Abstract

Vibratory stress relief is a green and efficient aging technology compared with traditional natural stress relief and thermal stress relief. The research aimed to determine whether vibratory stress relief is feasible to improve the fatigue life of aluminum alloy 7075-T651 or not. Under the same resonance frequency, analyses and comparisons of the residual stress distributions before and after vibratory stress relief are presented with X-ray method. Experimental results indicate that vibratory stress relief is effective in reducing and equilibrating residual stresses. Through uniaxial tension–compression fatigue tests, we obtained the S–N curves for specimens under states of original and varying exciting forces. Findings led to the conclusion that vibratory stress relief can improve the fatigue life of aluminum alloy 7075-T651 when dynamic stress does not exceed 8% of the yield strength.

Keywords

Aluminum alloy 7075-T651 vibratory stress relief exciting forces dynamic stresses residual stresses fatigue life

Introduction

With the rapid development of the modern aircraft industry comes a high demand for aluminum alloys with greater fatigue life. During the production and mechanical processing of aluminum alloys, residual stress will result inside the material because of numerous processing variables, including external force and heat. Inhomogeneous residual stress field distribution plays a key role in the cracking and distortion of aluminum components, which can affect dimensional stability and fatigue life significantly. Vibratory stress relief (VSR) technology is a green and efficient aging technology compared with the traditional natural stress relief (NSR) and thermal stress relief (TSR). Advantages of VSR include short production cycles, ease of implementation in the manufacturing process, and low investment costs.¹ VSR has been proposed repeatedly as an alternative to TSR and is widely used in various industrial fields.² Residual stress relief occurs when the sum of the induced cyclic stress and the residual stress exceeds the local yield stress of the material,³ and it can improve the dimensional stability and fatigue life of the component.⁴

Many researchers have studied the relationship between VSR and the fatigue life of components. Some investigators have commented on an increase in fatigue life, whereas others have found quite the opposite. D Djuric et al.⁵ investigated that VSR treatment had only limited influence on the macroscopic residual stress state, but found that VSR treatment increased damage to the microstructure that caused the decreased fatigue life of ultra high-strength steel. Buhler and Pfalzgraf⁶ contributed a paper describing tests on castings. Their conclusions were not encouraging, although they achieved a 20% reduction in residual stresses when they increased the applied cyclic stress to the approximate fatigue limit of the steel used. They were clearly restricted by concerns for potential fatigue failures and hence never attained the stress amplitudes that would be required for significant stress relief. Wozney and Crawmer⁷ investigated the mechanism of VSR and its application to large-scale welded fabrications by experimental method. They believed that the cyclic hardening characteristics of the test material could be cited as a possible factor affecting the degree of stress relief. It was concluded that stress reduction should not be expected to occur uniformly throughout vibrated structures and that the possibility of fatigue damage during treatment cannot be neglected. Sonsino et al.⁸ experimented with two types of specimens: T-joints and egg-box-type cruciform joints. A fatigue test was performed using both kinds of specimens, which indicated that fatigue life was higher in TSR treated specimens and led to the conclusion that VSR cannot act as a substitute for TSR. Jesensky⁹ reported success in reducing residual stress for welded structures by experimental method. However, the mode of vibration or applied stress was not reported, which made the findings ambiguous. ASMY Munsi et al.¹⁰ investigated TSR and VSR on the fatigue life of welds. The results indicated that the fatigue life of welds dropped 43% after TSR and that the fatigue life of welds increased 17%–30% after VSR. DX Fang et al.¹¹ prepared two groups of welding plate samples, labeled Groups A and B. The samples of Group A were treated by VSR by “one-half load” method, and the samples of Group B were untreated. The bending fatigue tests conducted on Groups A and B indicated that the fatigue life of Group A increased 25% more than that of Group B. YP Lu et al.¹² analyzed and compared the mechanisms of VSR and TSR. They deemed both methods are similar in nature for reducing macroscopic residual stress because both release the macroscopic residual stress through plasticity deformation to reduce metal residual elasticity strain. However, the processes for plasticity deformation are not alike. Hence, authors concluded that VSR can be practiced in many instances and that VSR is better than TSR for dimensional stability and fatigue strength.

However, most of these studies have focused on steel, cast iron, or welded components, whereas little known about the influence of VSR on aluminum alloys.

In view of the conclusions, the uncertainty and the importance of aluminum alloys in industrial applications and the components were vibrated at resonance frequency in a VSR process. As such, the relationship between changes in the residual stress and the VSR process under first-order resonance frequency, as well as the varying exciting forces on aluminum alloy specimens, was studied in regard to the effect of VSR on fatigue life by experimental methods.

Experimental details

Aluminum alloy 7075-T651 prestretching plate 500-mm long (rolling direction), 1800-mm wide (perpendicular to rolling direction), and 31.75-mm thick serves as the experimental material. Comparison designations for 7075 aluminum alloy are shown in Table 1, and T651 represents the state of heat treatment and prestretching. The chemical compositions and mechanical properties of aluminum alloy 7075 are shown in Tables 2 and 3. The sampling direction of the specimen is the same as the rolling direction of the plate. Figure 1 gives a schematic illustration of the fatigue specimen, which was designed according to China national Standard GB/T 3075-2008. The experimental flow chart is shown in Figure 2.

Table 1.

Comparison designations for 7075 aluminum alloy.

Countries	China	USA	Japan	France	Germany
Grades	GB	ASTM	JIS	NF	DIN
Aluminum alloy	7075	7175	7075	7075	Al-Zn-Mg-Cu-1.5

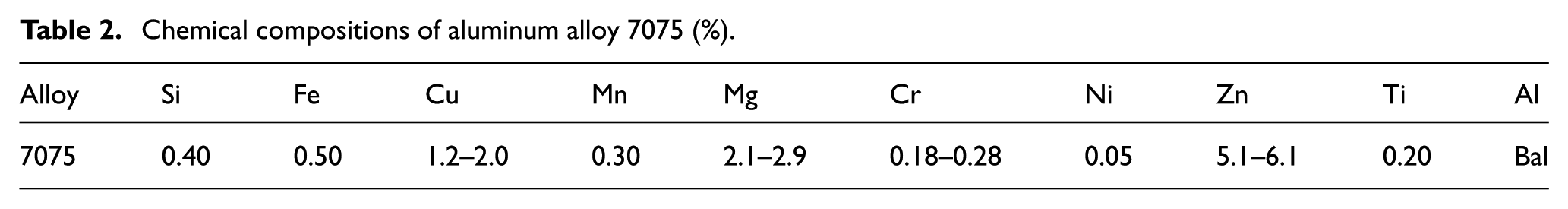

Table 2.

Chemical compositions of aluminum alloy 7075 (%).

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Al
7075	0.40	0.50	1.2–2.0	0.30	2.1–2.9	0.18–0.28	0.05	5.1–6.1	0.20	Bal

Table 3.

Mechanical properties of aluminum alloy 7075-T651.

Density (kg/m³)	Hardness (HB)	Elastic modulus (GPa)	Yield strength (MPa)	Tensile strength (MPa)	Elongation (%)
2810	150	71.7	518	580	11

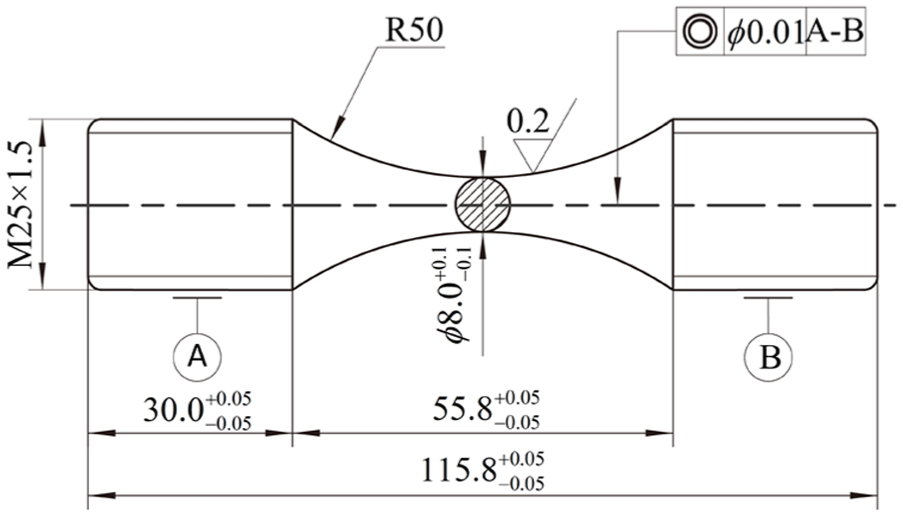

Figure 1.

Fatigue specimen of aluminum alloy 7075-T651.

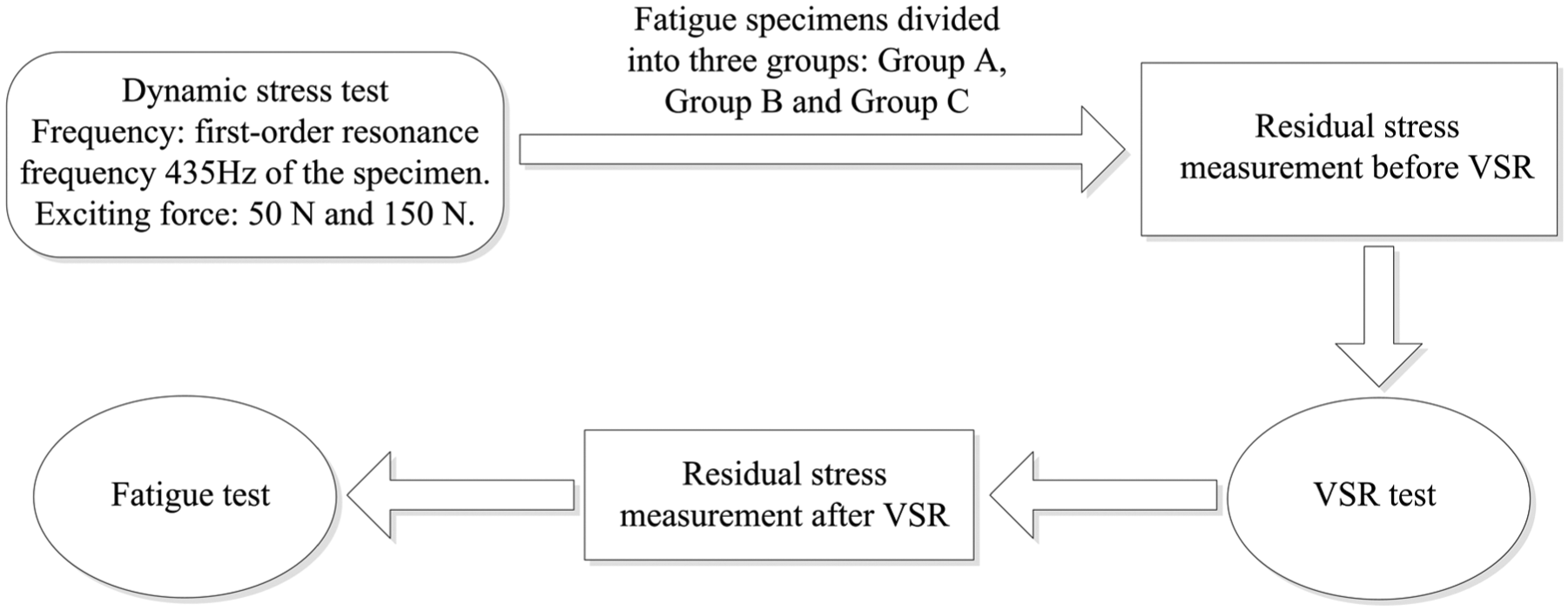

Figure 2.

Experimental flow chart.

Dynamic stress tests of the specimen

Exciting force plays an important role in the VSR process. Dynamic stresses depend on exciting forces under the conditions of certain geometry, vibration mode and vibration frequency of the specimen. The dynamic stresses increase with an increasing exciting force. The choice of exciting force is determined by dynamic stresses in engineering applications.

To determine the dynamic stresses on the surface of the specimen, which was produced by exciting forces 50 and 150 N, we needed to calibrate the strength of vibration. The MW-601 model broadband aging center (Beijing Semboo Science and Technology Co., Beijing, China) was used to perform dynamic stress tests, and its scope of exciting force ranged from 0 to 500 N (electromagnetic force).

We collected data in the dynamic stress tests through the use of the data acquisition and digital signal-processing system by China Orient Institute of Noise & Vibration (Beijing, China). The specimen’s first-order vibration mode consisted of a bending vibration with a resonance frequency of 435 Hz, according to finite element method (FEM) modal analysis. The dynamic stress distribution of the specimen corresponding to the bending vibration mode appears in Figure 3. The value of the modal stress in Figure 3 is meaningless because it reflects the magnitude of the stress, it is not the true stress value under the first-order vibration mode. However, it can be used as a reference for judging the magnitude of stress. The maximum dynamic stress occurred on the surface of the specimen, in the middle section, as shown in Figure 3. Fracture in the fatigue test also occurred in the middle section of the specimen, and three strain gauges pasted on the surface of the middle section of the specimen at equal angles (120°) along the circumferential direction, marked 1, 2, and 3. One end of the specimen was fixed to the vibration stage, the other end was free and vibrated at the first-order natural frequency of the specimen under the exciting forces of 50 and 150 N, and the direction of vibration was perpendicular to the direction of specimen axial. The exciting force is harmonic and changes with time, and the exciting force amplitudes are 50 and 150 N, respectively, namely, $F = F_{0} \sin ω t$ , where $F_{0}$ are 50 and 150 N, respectively; and $ω = 2 π f$ , where $f$ is the first-order resonance frequency of the specimen.

Figure 3.

Dynamic stress distribution corresponding to bending vibration mode.

VSR tests of the specimen

After dynamic stress tests, VSR was conducted on the same equipment as with the dynamic stress tests. The fatigue specimens were divided into three groups: Group A—specimens in their original state with no vibration; Group B—specimens subjected to vibration under a 50 N exciting force; and Group C—specimens subjected to vibration under a 150 N exciting force.

The VSR experiment for Group B included 25 specimens, and each was vibrated. One end of the specimen was clamped to a vibration stage with fixture, and the other end was free to move and was marked with a cross which served as an orthogonal coordinate. The specimen’s longitudinal direction perpendicular to the vibration stage plane and the motion of vibration stage were horizontally reciprocating. The specimen vibrated at a first-order natural frequency of 435 Hz under the exciting force of 50 N. The specimen was rotated 90° after the first 10 min of VSR and then subjected to another 10 min of VSR to ensure that the fatigue specimens were symmetric and uniform.

The VSR experiment for Group C included 25 specimens, and each was vibrated. One end of the specimen was clamped to a vibration stage with fixture, and the other end was free to move and was marked with a cross which served as an orthogonal coordinate. The specimen’s longitudinal direction perpendicular to the vibration stage plane and the motion of vibration stage were horizontally reciprocating. The specimen vibrated at a first-order natural frequency of 435 Hz under the exciting force of 150 N. The specimen was rotated 90° after the first 10 min of VSR and then subjected to another 10 min of VSR to ensure that the fatigue specimens were symmetric and uniform.

Residual stresses measurement of the fatigue specimen

The iXRD X-ray diffractometer (Proto, Canada) was used to measure residual stress and it was adjusted to level by level gauge. The parameters of X-ray diffractometer consisted of the following: Co_K-Alpha radiation, 20 KV X-ray tube voltage, 4 mA electrical current, and crystal of diffraction (331). Gaussian fitting was used as the peak location method, and the diameter of the collimator was 2 mm. Exposure time was 1 s, and each position was exposed 10 times. The elastic constants were (1/2)S2:18.89E−6[1/MPa] and −S1:4.69E−6 [1/MPa]. Beta angles were 30.00, 22.65, 15.50, 5.39, 0.00, −5.39, −15.50, −22.65, and −30.00. Moreover, Φ wobble did not occur in any of the measurement points. The iXRD X-ray diffractometer must be calibrated with non-stress aluminum powder and the stress value should be controlled within 14 MPa before residual stress measured.

All specimens were manufactured by the same processes. A total of five specimens each from Groups A, B and C were marked 1–5. Three measured points had equal angles (120°) along the circumferential direction on surface of the middle test for each specimen and were marked 1–1, 1–2, 1–3, … 5–1, 5–2, 5–3 (1–1 was the first measured point of Specimen No. 1; 1–2 was the second measured point of Specimen No. 1; 1–3 was the third measured point of Specimen No. 1, and so on). A piece of silk cloth is used to clean the surface of specimens before residual stress is measured. The specimen was placed horizontally, and the vertical distance between X-ray tube and measured point was 22.65 mm. The residual stress values of three directions for each point were measured: 0° (circumferential direction of the specimen), 45°, and 90° (longitudinal direction of the specimen).

Uniaxial tension–compression fatigue experiment

The high-frequency fatigue testing machine GPS100 (Changchun Research Institute Mechanical Science Co., Changchun, China) was used to perform the uniaxial tension–compression fatigue experiment. The stress ratio was $R = - 1$ . The frequency was 105 Hz with a 5-Hz drop protection. Both the alternating and average load protections were set to ±3 kN. The fatigue experiment was conducted at a room temperature of 25°C. The starting point of cyclic stress $σ_{(1)}$ for the fatigue experiment was (0.45–0.5)σ_b, the stress increment was (3%–5%)σ_R₌₋₁, and σ_R₌₋₁ was the estimated fatigue limit. The yield strength $σ_{b}$ of the aluminum alloy 7075-T651 was 518 MPa. The cyclic stress levels of Group A were 250, 240, 230, 220, 210, and 205 MPa in the fatigue experiments, respectively. The cyclic stress levels of Groups B and C were 250, 240, 230, 220, and 210 MPa, respectively. The number of specimens used by each cyclic stress level was five.

Results

Results of dynamic stress tests of the specimen

A single strain gauge was used for the dynamic stress test, and the dynamic stress was tested in the longitudinal direction of the specimen. The relationships between the maximum dynamic strains and the effective dynamic strains, according to equations (1)–(4), are as follows

Maximum dynamic strain : \hat{X} = max | x (t) |

(1)

Average dynamic strain: \bar{X} = \frac{1}{T} \int_{0}^{T} x (t) dt

(2)

Average amplitude of dynamic strain: {\bar{X}}_{P} = \frac{1}{T} \int_{0}^{T} | x (t) | dt

(3)

Effective dynamic strain: X_{RMS} = \sqrt{\frac{1}{T} \int_{0}^{T} x^{2} (t) dt}

(4)

where $x (t)$ is the dynamic strain function and $T$ is the integration time.

We obtained the values of the dynamic strains and multiplied them by the modulus of elasticity of aluminum alloy 7075-T651. Thus, we obtained the dynamic stresses of maximum and effective values corresponding to 50 and 150 N exciting forces, as shown in Table 4.

Table 4.

Dynamic stress tests of exciting forces 50 and 150 N.

		50 N			150 N
		No. 1	No. 2	No. 3	No. 1	No. 2	No. 3
Dynamic strain value, ε (×10⁻⁶)	Max	137.6	286.6	534.6	224.1	477.6	849.8
	Min	−141.4	−308.0	−496.1	−222.9	−506.9	−807.4
	Effective	91.0	194.5	338.2	152.5	336.6	568.0
Dynamic stress, τ_d (MPa)	Max	9.9	20.5	38.3	16.1	34.2	60.9
	Min	−10.1	−22.1	−35.6	−16.0	−36.3	−57.9
	Effective	6.5	13.9	24.2	10.9	24.1	40.7

Results of residual stress measurements of fatigue specimens

The residual stresses show different values because of cutting conditions and materials. At times, the state of the compressive stresses and the state of tensile stresses could be obtained on specimen surfaces. The residual stresses in 0° (circumferential direction of the specimen), 45°, and 90° (longitudinal direction of the specimen) direction were all compressive before and after VSR in this study. Because it was not plausible to evaluate the residual stress field before and after VSR, so the equivalent residual stress was adopted to compare residual stress changes for Groups B and C before and after VSR. The equivalent residual stress of measured point $σ_{s}$ can be calculated according to equation (5)

σ_{s} = \sqrt{\frac{1}{2} [{(σ_{1} - σ_{2})}^{2} + {(σ_{2} - σ_{3})}^{2} + {(σ_{3} - σ_{1})}^{2}]}

(5)

where $σ_{1}, σ_{2}$ are principal stresses; $σ_{3} = 0$ because of the direction of $σ_{3}$ perpendicular to the specimen surface, X-ray transmission depth is very shallow, and the surface thin layer irradiated by X-ray is in plane stress state.

Bragg’s law served as the principle basis for applying an X-ray to a residual stress test. According to $\sin^{2} ψ$ method, the X-ray was applied from an arbitrary direction onto the surface of the specimen (tilt $ψ$ angle in $φ$ direction); $σ_{φ}$ is the stress that tilted the $φ$ angle $σ_{1}$ . $σ_{φ + 90}$ is the stress that is perpendicular to $σ_{φ}$ . Therefore, $σ_{1}$ and $σ_{2}$ and the direction angle $α$ can be calculated according to equations (6)–(8)

σ_{1} = \frac{σ_{φ + 90} - σ_{φ} \cot^{2} α}{1 - \cot^{2} α}

(6)

σ_{2} = \frac{σ_{φ + 90} - σ_{φ} \tan^{2} α}{1 - \tan^{2} α}

(7)

α = \frac{1}{2} \arctan \frac{σ_{φ} + σ_{φ + 90} - 2 σ_{φ + 45}}{σ_{φ} - σ_{φ + 90}}

(8)

The results of the equivalent residual stress measurements for Groups A are shown in Figure 4, and the results of the equivalent residual stress measurements for Groups B and C before and after VSR are shown in Figures 5 and 6.

Figure 4.

Equivalent residual stress measurements for Group A.

Figure 5.

Equivalent residual stress measurements for Group B before and after VSR.

Figure 6.

Equivalent residual stress measurements for Group C before and after VSR.

Figures 5 and 6 show tendencies toward equivalent residual stress before and after VSR. Peak residual stress $σ_{p}$ was the maximum equivalent residual stress, average residual stress $σ_{a}$ was the average equivalent residual stress, and residual stress amplitude $(σ_{max} - σ_{min})$ was the maximum equivalent residual stress $σ_{max}$ minus the minimum equivalent residual stress $σ_{min}$ for 15 measured points corresponding to a certain state. We can see that the peak stress value decreased noticeably after VSR. Compared with the state before VSR, the overall residual stress field of the specimens had been reduced and equilibrated after VSR. Table 5 summarizes the value of the peak residual stress $σ_{p}$ , the average residual stress $σ_{a}$ , the residual stress amplitude $(σ_{max} - σ_{min})$ , and the rate of change before and after VSR. As shown in Table 5, the change of peak residual stress $σ_{p}$ and residual stress amplitude $(σ_{max} - σ_{min})$ decreased with increasing exciting force, whereas the average residual stress $σ_{a}$ indicated only a small rise. In Group B, $σ_{p}$ decreased by 38.85 MPa (decline rate is 11.51%) and $(σ_{max} - σ_{min})$ decreased by 63.23 MPa (decline rate is 34.76%). The average residual stresses $σ_{a}$ rose by 6.39 MPa (rise rate is 2.82%). In Group C, $σ_{p}$ decreased by 102.04 MPa (decline rate is 23.65%) and $(σ_{max} - σ_{min})$ decreased by 88.04 MPa (decline rate is 35.72%). The average residual stresses $σ_{a}$ rose by 8.49 MPa (rise rate is 3.46%). Peak residual stress and residual stress amplitude decreased with an increase in exciting forces.

Table 5.

Change of equivalent residual stresses before and after VSR (MPa).

		Peak residual stress, $σ_{p}$	Average residual stress, $σ_{a}$	Residual stress amplitude, $(σ_{max} - σ_{min})$
Group A	Initial state	272.08	211.69	121.94
Group B	Before 50 N vibrated	337.51	226.94	181.91
	After 50 N vibrated	298.66	233.33	118.68
	Change value	38.85↓	6.39↑	63.23↓
	Change rate	11.51%↓	2.82%↑	34.76%↓
Group C	Before 150 N vibrated	431.52	245.34	246.44
	After 150 N vibrated	329.48	253.83	158.4
	Change value	102.04↓	8.49↑	88.04↓
	Change rate	23.65%↓	3.46%↑	35.72%↓

Results of uniaxial tension–compression fatigue experiment

Fatigue experiment data processing was performed according to the Chauvenet criterion, which is based on the theory of normal distribution. The mean $μ$ and standard deviation $σ$ of the normal distribution entirety is estimated by the sample mean $\bar{x}$ and the standard deviation $s$ (shown in Figure 7). At each cyclic stress level of $n$ observed values, when a suspicious value $x_{m}$ is less than the lower limit value $a$ or greater than upper limit value $b$ , $x_{m}$ will be rejected. The interval of rejected is determined by a small probability value $1 / (2 n)$ ; $n = 5$ , $1 / (2 n) = 10 %$ , and the area to the left of point a under the normal distribution curve is 5% (shaded area of Figure 7), such that the coordinate of point a is $\bar{x} - 2 s$ by looking up standard normal distribution table. In the same way, the area to the right of point b under the normal distribution curve is 5%, and the coordinate of point b is $\bar{x} + 2 s$ . Therefore, on the principle that the rejected intervals of the areas to the left and to the right are the same, the sum of them would be equal to $1 / (2 n)$ . $x_{m}$ will be rejected when $x_{m} > \bar{x} + 2 s$ or $x_{m} < \bar{x} - 2 s$ .

Figure 7.

Normal distribution curve.

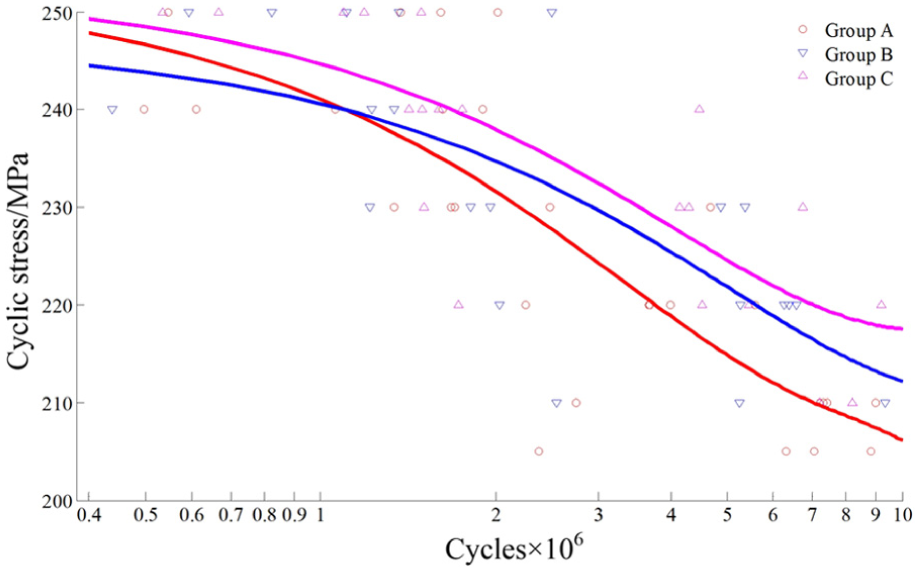

Figure 8 displays the S–N curves of the specimens in their original state and after VSR. In the fatigue experiment of highly applied stress, the stress exhibits a 7 MPa difference among three groups for the same fatigue life, which could be treated as data dispersion. The fatigue lives rise with increasing exciting force, and the fatigue limits of Groups A–C were 205, 213, and 218 MPa; the fatigue limit of Group B increased by 4% compared with Group A, and the fatigue limit of Group C increased by 6.3% compared with Group A.

Figure 8.

The S–N curves of specimens in their original state and after VSR.

Discussion

As shown in Table 4, dynamic stress test results indicate that dynamic stresses rise with increasing exciting forces. Peak residual stress $σ_{p}$ , average residual stress $σ_{a}$ , and residual stress amplitude $(σ_{max} - σ_{min})$ are three important indicators for evaluating residual stress field before and after VSR. As shown in Table 5, peak residual stress and residual stress amplitude decrease with an increase in exciting forces, while average residual stress changed slightly. Peak residual stress and residual stress amplitude decreases are beneficial to fatigue life. Average residual stress rises only moderately, with almost no effect on the fatigue life. Therefore, as shown in Figure 8, the fatigue life increases with an increase in exciting force because VSR is effective in reducing and equilibrating residual stresses and reduces stress concentrations within the entire scope.

The possible mechanism of influence on the fatigue life can be discussed from perspectives of mechanics of materials, microstructure, and energy.

In terms of macroscopic aspects, many researchers believe that VSR homogenized residual stress occurs through the plastic deformation and redistribution of the internal stress field. When $σ_{d} + σ_{r}$ is greater than $σ_{s}$ (where $σ_{d}$ is the dynamic stress, $σ_{r}$ is residual stress of the material, and $σ_{s}$ is yield limit of the material),¹³ micro-plastic deformation takes place, which in turn relieves the peak residual stress. Therefore, the residual stress field redistributes and reaches a new equilibrium.¹⁴ The fatigue damage can be categorized into three stages: (1) crack initiation, (2) crack propagation, and (3) instantaneous fracture. Among these stages, the former two have a major impact on fatigue life as damages usually begin in areas subjected to high stress or strain and propagate gradually afterward.¹⁵ The locality is an important characteristic of fatigue damage. After mechanical machining, the specimen surface incurs rough marks equivalent to tiny gaps, which cause stress concentration on the specimen surface, where fatigue damage originated from that position of concentrated stress. During the VSR process, the micro-plastic deformation occurs on the specimen surface, which reduces the peak value of the residual stress and redistributes the stress field to a new balanced state. As a result, the fatigue life improved after VSR, and the fatigue limit rose with increasing exciting forces within a certain range.

In terms of microstructure aspects, the theoretical basis for VSR consists of dislocation movements, dislocation interactions, and interactions between dislocation and solute atoms.¹⁶ Aluminum plates that have been quenched and machined have large amounts of dislocation pileups and pileup groups, where residual stress tends to be larger.¹⁷ The applied shear stress relieves some of the original dislocations while generating new ones. The stresses that annihilate dislocations consist of the original dislocation stress field $τ_{r}$ (equivalent to the residual stress $σ_{r}$ in the specimen) and the dislocation pileup residual stress field formed by external force $τ_{d}$ (equivalent to the dynamic stress $σ_{d}$ of VSR). The stress $τ_{s}$ that caused micro-plastic deformation can be deemed as the yield limit $σ_{s}$ of the aluminum alloy. If the residual stress of crystals is released, the condition of $τ_{r} + τ_{d} > τ_{s}$ must be met, which is consistent with $σ_{d} + σ_{r} > σ_{s}$ from the viewpoint of the mechanics of the materials. Because cracks always initiate in regions of high stress or strain, the reduction of peak residual stress and the equilibrium of the stress field have lessened the impact of the stress concentration. Moreover, under cyclic stress, dislocations could overcome the resistance of the atomic lattice, friction, grain, and glide, leading to microscopic plastic deformation in the crystal. The VSR process enhances the dislocation density and hence the resistance of dislocation movements. The pinning effect of the solute atoms on the dislocations might hinder the movement of the dislocations as well. As a result, it is more difficult for slip bands to slip, thereby delaying the initiation of fatigue crack and increasing the crack initiation life. Even if cracks initiate eventually, their propagation will be significantly deterred because the crack propagation velocity is proportional to the square of stress intensity factor.¹⁸ All of these mechanisms contribute to the improved fatigue life and limit after VSR.

In terms of energy, before VSR, lattice distortion inside the specimen results in some atoms achieving a metastable state. When the frequency of exciting force equals first-order resonance frequency of the specimen, under the effect of VSR, some atoms in the metastable state obtain vibration energy such that strenuous motion occurs, which restores lattice distortion and some atoms return to the stability of the lower energy state. These occurrences cause the residual stress of the specimen to drop and the residual stress field to homogenize very well. At the lower energy state, atoms require more energy to leave the equilibrium position again, they slip and lattice distortion occurs. Therefore, within the same fatigue loads, the fatigue life of the specimen treated by VSR is increased, and the fatigue limits improved as well.

Conclusion

Generally speaking, we can conclude as follows:

Residual stresses show different values because of cutting conditions and materials, and at times the state of compressive stresses and the state of tensile stresses can be obtained on the specimen surface. The residual stress field can be described by the equivalent residual stress proposed in this article.

Three important indicators are proposed to evaluate the change of the residual stress field before and after VSR, such as peak residual stress $σ_{p}$ , residual stress amplitude $(σ_{max} - σ_{min})$ , and average residual stress $σ_{a}$ . It is beneficial to increase the fatigue life of aluminum alloy 7075-T651 when peak residual stress $σ_{p}$ , residual stress amplitude $(σ_{max} - σ_{min})$ , and average residual stress $σ_{a}$ are all reduced, whereas it is detrimental to the fatigue life of aluminum alloy 7075-T651 if the peak residual stress $σ_{p}$ , residual stress amplitude $(σ_{max} - σ_{min})$ , and average residual stress $σ_{a}$ are all raised. In addition, these three indicators and degrees that are lower and higher should be considered.

From aspects of macroscopic, microstructure, and energy, the mechanisms for VSR on fatigue life were discussed. As shown in Table 4, the maximum dynamic stress corresponding to the exciting force 150 N was 40.7 MPa and the fatigue limit of Group C increased 6.3% compared with Group A, so it was concluded that VSR is feasible to improve the fatigue life of aluminum alloy 7075-T651 when dynamic stress does not exceed 8% of the yield strength.

The effect of VSR on the fatigue life of aluminum alloy 7075-T651 was researched, and the study introduced the use of equivalent residual stress to describe residual stress field. VSR processing reduced and homogenized residual stress and reduce stress concentrations within an entire scope. The S–N curves before and after VSR proved that the fatigue life of 7075-T651 can be improved by VSR, which is consistent with the findings of ASMY Munsi et al.¹⁰ and DX Fang et al.¹¹
