Abstract

In this paper, a novel thin-walled double-hexagonal crash box is first proposed and then multi-objective robust optimized for better overall crashworthiness under multi-angle impact loading, using a proposed hybrid method combining aluminum foam-filling and Taguchi-grey relational analysis (GRA). Specifically, the finite element (FE) models of the regularly-shaped double-hexagonal column (DHC) extracted from original irregularly-shaped crash box under multi-angle impact loading, including hollow (H-DHC) and foam-filled (F-DHC), are first built and validated by experiments. On this basis, a comprehensive crashworthiness comparison is conducted to explore relative merits of F-DHC over original H-DHC under multi-angle impact loading. After that, the F-DHC is multi-objective robust optimized for maximizing overall specific energy absorption (SEA_θ) and minimizing overall initial peak crushing force (IPCF⁰) simultaneously under multi-angle impact loading, using a hybrid method of Taguchi-GRA. At last, a bumper-crash box integrated crashworthiness analysis under multi-angle impact loading is executed to further verify the optimization. The optimal F-DHC and the optimized crash box within the optimal F-DHC demonstrate evident improvement of crashworthiness compared to their respective initial designs, indicating aluminum foam-filling combined with Taguchi-GRA could be an effective approach for multi-objective robust optimization of the novel crash box and other similar vehicle structures.

Keywords

Multi-objective robust optimization foam-filled double-hexagonal crash box Taguchi-grey relational analysis

Introduction

With continuous growth of car ownership and increasing number of occupant casualties caused by car collisions every year, the crashworthiness safety of cars is becoming increasingly concerned in recent years.^1–3 In the process of a car frontal collision, the collision energy dissipation mainly depends on the body front-end structures composed of a bumper, two crash boxes, and two front rails at the two ends of the bumper (Figure 1). The crash box, which is a classical thin-walled structure (TWS) connecting the bumper and the front rail, is classified as the main crash energy-absorbing member in the front-end structures and is expected to be capable of absorbing kinetic energy through collapse deformation during a frontal impact, as well as maintaining vehicle deceleration within a safe limit.^4,5 Hence, crashworthiness investigation and optimization design of thin-walled crash boxes have always been research hotspots.

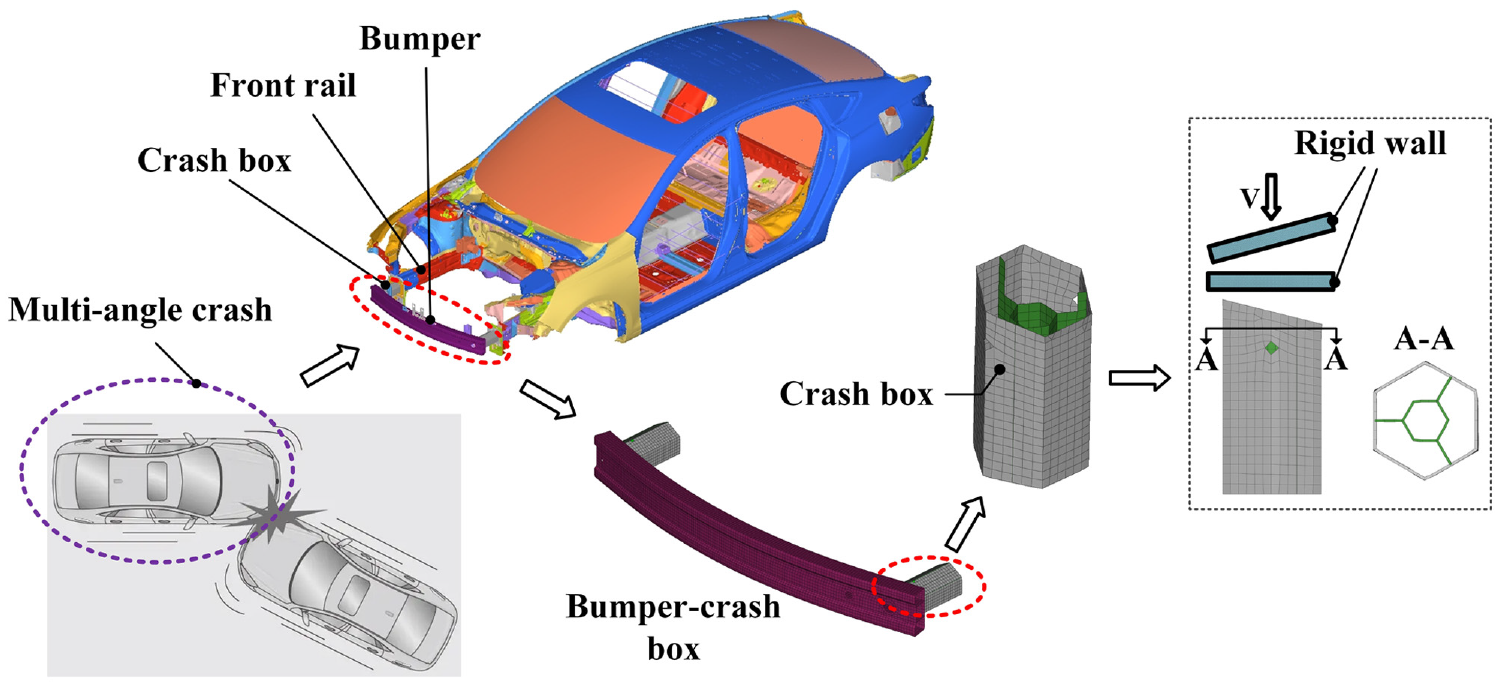

Figure 1.

Novel double-hexagonal crash box under multi-angle impact loading.

To improve crashworthiness of TWSs without adding too much weight, scholars worldwide have proposed many effective methods during past decades, such as multi-cell design,^6,7 functionally-graded design,^8–10 filling structures (or materials),^11–13 employment of lightweight yet high strength composite materials,^14–16 hybrid materials, and structures,¹⁷ and application of advanced manufacturing processes,^18,19 etc. Considering existing car bodies are generally composed of a large number of hollow TWSs possessing specific demands or constraints on strength, lightweight, spatial layout, or cost, aluminum foam-filling is considered a relatively more efficient and practical approach to improve the crashworthiness of TWSs of a car body due to its excellent compressive energy-absorption characteristics and light weight.²⁰ Toward this end, scholars have conducted extensive research on crash-worthiness characteristics of aluminum foam-filled TWSs.^21–28 For instance, Zhang et al.²⁹ investigated dynamic response and energy absorption performance of aluminum foam-filled sandwich circular tubes under internal blast loading. Wang et al.³⁰ studied the energy absorption behavior of an aluminum foam-filled circular-triangular nested tube energy absorber under impact loading; Sun et al.³¹ conducted experimental and numerical investigation into the crashworthiness of aluminum-foam-composite hybrid structures; Qi et al.³² executed comparative study on empty and foam-filled hybrid material double-hat beams under lateral impact. Xu et al.³³ explored mechanical properties of aluminum foam filled re-entrant honeycomb with uniform and gradient designs, etc. Besides, there also have been a few studies on crashworthiness characteristics of foam-filled thin-walled crash boxes. Santosa and Wierzbicki³⁴ studied the effect of low density filler material, such as aluminum honeycomb, or foam, on the crushing resistance of a square box column under axial quasi-static loading. Toksoy and Güden³⁵ investigated the crushing behavior of partially Al closed-cell foam filled commercial 1050H14 Al crash boxes under quasi-static and dynamic deformation velocities. Wang et al.⁴ carried out crashworthiness study on a novel aluminum foam-filled crash box with partial filling and combined trigger design under axial impact loading, etc.

In addition to the proposed effective methods mentioned above, the optimization techniques, including experimental design,^36,37 surrogate modelling,^38,39 and optimization algorithms,^40,41 etc., which are extensively employed to handle all kinds of optimization issues,^42–48 have also been widely employed to further enhance the crashworthiness of TWSs or thin-walled crash boxes. For instance, Ebrahimi et al.⁴⁰ executed crashworthiness efficiency optimization for two-directional functionally graded foam-filled tubes under axial crushing impacts using multi-objective particle swarm optimizations (MOPSOs). Meriç and Gedikli⁴⁹ performed multi-objective optimization of energy absorbing behavior of foam-filled hybrid composite tubes based on feed-forward artificial neural networks (FFNN). Sun et al.⁴¹ conducted multi-objective optimization for thin-walled structures with functionally graded thickness by combining response surface method (RSM) and Non-dominated sorting genetic algorithm-II (NSGA-II). Yin et al.²⁴ performed multi-objective robust optimization of foam-filled bionic thin-walled structures through a hybrid method of ensemble meta-model, NSGA-II, 3-sigma robust design, and Monte Carlo simulation (MCS). Zhou et al.³⁷ carried out multi-objective design optimization of a novel NPR crash box based on optimal Latin square design method, RSM and NSGA-II. Hou et al.⁵⁰ carried out a multi-objective optimization of a novel crash box composed of Al shell and 3D-printed lattice core for maximum specific energy absorption (SEA) and minimum mass using optimal Latin hypercube sampling (OLHS), RSM and NSGA-II. Tan et al.³⁶ conducted a multi-objective optimization of a novel auxetic hierarchical honeycomb crash box by combining RSM with NSGA-II and archive-based micro genetic algorithm (AMGA). Wang et al.⁵¹ conducted a many-objective optimization design of a novel hexahedral pyramid (H-P) crash box composed of H-P negative Poisson’s ratio (auxetic) inner core structure and outer shell layer by integrating the RSM method and the multi-objective evolutionary algorithm based on decomposition with detecting and escaping strategy (MOEA/D-DAE). Xie et al.³⁸ carried out a multi-objective crashworthiness optimization of energy-absorbing box with gradient lattice structure by combining OLHS, RSM-RBF neural network (RBFNN)-Kriging hybrid meta-models, NSGA-II and entropy-grey relational analysis (E-GRA), etc.

Through extensive literature review and research, it has been found that the crashworthiness of TWSs or thin-walled crash boxes with conventional cross-sectional shapes (circular, triangular, square, hexagonal, polygon, elliptical, hat-shaped, etc.) and different modes (hollow, filled) under uni-directional (axial, transverse, etc.) crushing loading have been extensively studied, while few studies have been reported concerning crashworthiness of novel double-hexagonal thin-walled crash boxes under multi-angle impact loading, which is more realistic considering collision angles may vary in actual car collisions and thus affect the energy absorption characteristics. Besides, existing studies on optimization of thin-walled crash boxes are mostly limited to deterministic optimization, ignoring the uncertainties of crash box like dispersion of material properties, randomness of structure size and so on due to due to manufacturing precision.^52–56 Engineering designs of crash box obtained from such deterministic optimization would have a risk of violating performance requirements and place occupants at potential risks of injuries during a car collision.³ In addition, conventional optimization approaches based on experimental design, surrogate modeling (RSM, RBF, Kriging, etc.) and optimization algorithms (NSGA-II, MOPSO, MOEA, etc.) are extensively employed to handle such engineering optimization issues, while they generally rely on a large number of calculating samples to obtain sufficiently accurate surrogate models, which usually leads to a significant increase in computational costs.

Hence in the present study, a novel thin-walled double-hexagonal crash box is first proposed (as shown in Figure 1) and then multi-objective robust optimized for better overall crashworthiness under multi-angle impact loading, using a proposed hybrid method combining aluminum foam-filling and Taguchi-grey relational analysis (GRA). Considering the proposed crash box is irregularly-shaped longitudinally with the upper end face inclined to match the bow-shaped bumper, a substructure with regular double-hexagonal cross section and flat upper and lower end faces at the lower end of the crash box, herein named as hollow double-hexagonal column (H-DHC), is extracted and taken as object for aluminum foam-filling, crashworthiness investigation, and multi-objective robust optimization. Specifically, the finite element (FE) models of the DHCs under multi-angle impact loading, including hollow (H-DHC) and foam-filled (F-DHC), are first built and validated by experiments. On this basis, a comprehensive crashworthiness comparison is conducted to explore relative merits of F-DHC over original H-DHC under multi-angle impact loading. After that, the F-DHC is multi-objective robust optimized for maximizing overall specific energy absorption (SEA_θ) and minimizing overall initial peak crushing force (IPCF⁰) simultaneously under multiple-angle impact loading, using a hybrid method of Taguchi-GRA. At last, a bumper-crash box integrated crashworthiness analysis under multi-angle impact loading is executed to further verify the optimization. Figure 2 outlines the flowchart of the present study.

Figure 2.

The flowchart of the present study.

The remaining part of the present study is organized in this manner: section 2 introduces the finite element (FE) modeling and verification of DHCs (H-DHC, F-DHC), section 3 elaborates the crashworthiness indicators and comparison of H-DHC and F-DHC under multi-angle impact loading, followed by section 4 with the multi-objective robust optimization of F-DHC using Taguchi-GRA, and section 5 concludes the present study at last.

FE modeling and verification

Geometrical configuration

In the present study, a novel thin-walled crash box with double-hexagonal cross section is first proposed, whose upper end face is inclined designed to match the bow-shaped bumper, as shown in Figures 1 and 3. For convenience of research and without losing generality, a substructure with regular double-hexagonal cross section and flat upper and lower end faces at the lower end of the crash box, herein named as hollow double-hexagonal column (H-DHC), is extracted and taken as object for aluminum foam-filling, crashworthiness investigation, and multi-objective robust optimization, as shown in Figure 3. The H-DHC is composed of inner plate and outer plate. To improve energy absorption without adding too much weight, the space between inner plate and outer plate of H-DHC is fully filled with lightweight aluminum foam to constitute the foam-filled double-hexagonal column (F-DHC). The geometric parameters of the initial DHCs (H-DHC and F-DHC) are as follows: column length L = 140 mm, hexagonal side length a = 50 mm, inner plate thickness t₁ = 2 mm and outer plate thickness t₂ = 2.2 mm. To monitor the load and boundary conditions of a thin-walled crash box in real vehicle crash scenarios, the bottom ends of the DHCs are placed on a rigid base fully fixed, while the top ends are subjected to a rigid wall at an initial velocity of 15 m/s. Impact angles ranging from 0° to 30° at an interval of 5° (namely 0°, 5°, 10°, 15°, 20°, 25°, and 30°) are considered to take into account the uncertainty of impact direction.

Figure 3.

Schematic of double-hexagonal crash box and DHCs (H-DHC, F-DHC) under multi-angle impact loading.

Material Behavior

The column walls of DHCs, namely the inner and outer plates, are both made of aluminum alloy with material parameters as follows: density ρ = 0.27 g/cm³, Young’s modulus E = 68.2 GPa and Poisson’s ratio v = 0.3. The stress-strain curve of the aluminum alloy is shown in Figure 4,⁵⁷ and the elasto-plastic model with modified piecewise linear plasticity is employed to constitute the material behaviors. In contrast, A principal structure model proposed by Deshpande and Fleck⁵⁸ is used to constitute the behavior of the aluminum foam, whose yield criterion could be described as:

φ = σ_{e} - σ_{y} \leq 0

(1)

where σ_y denotes the yield stress and σ_e represents the equivalent stress. The σ_e could be further described as:

σ_{e}^{2} = \frac{σ_{v}^{2} + α^{2} σ_{m}^{2}}{1 + {(α / 3)}^{2}}

(2)

where σ_v represents the von Mises effective stress and σ_m denotes the mean stress. Besides, $α$ is a parameter about yield surface shape control, which could be expressed by Poisson’s ratio v^p with a function relationship.

α^{2} = \frac{9 (1 - 2 v^{p})}{2 (1 + v^{p})}

(3)

where the Poisson’s ratio v^p equals 0 for the aluminum foam.⁵⁹ According to equation (3), α ≈ 2.12 can be obtained. The strain hardening rule could be summarized as:

σ_{y} = σ_{p} + γ \frac{ε_{e}}{ε_{d}} + α_{2} \ln {(1 - {(\frac{ε_{e}}{ε_{d}})}^{β})}^{- 1}

(4)

where ε_e represents the equivalent effect strain. σ_p, α₂, γ, β, E_P, and ε_d denote the foam material parameters, which are related to the foam density by the formula as follows:

{\begin{matrix} {σ_{p}, α_{2}, γ, β^{- 1}, E_{p}} = C_{0} + C_{1} {(\frac{ρ_{f}}{ρ_{f_{0}}})}^{n} \\ ε_{d} = - \ln (\frac{ρ_{f}}{ρ_{f_{0}}}) \end{matrix}

(5)

where $ρ_{f_{0}}$ and $ρ_{f}$ represents density of the base material and foam, respectively. In addition, the material constants (C₀, C₁, and n) for aluminum foam are as shown in Table 1.^60–62

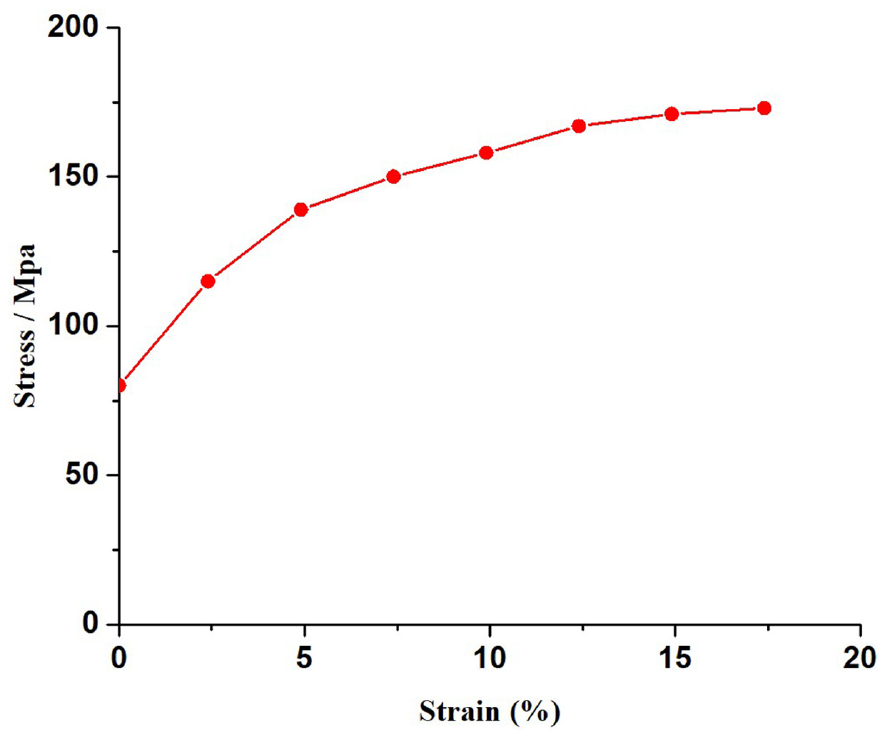

Figure 4.

Stress-strain curve of the aluminum alloy.⁵⁷

Table 1.

Material constants for aluminum foam.⁵⁸

	σ_p/MPa	α₂/MPa	γ/MPa	1/β	E_P/MPa
C₀/MPa	0	0	0	0.22	0
C₁/MPa	720	140	42	320	3.3e5
n	2.33	0.45	1.42	4.66	2.45

Finite element (FE) modeling

In the present study, the explicit non-linear FE code LS-DYNA is employed to perform numerical investigation on the crashworthiness characteristics of the DHCs (H-DHC, F-DHC) under multi-angle impact loading. Consistent with the geometric model, the bottom ends of the DHCs are placed on a rigid base fully fixed, while the top ends are subjected to a rigid wall at an initial velocity of 15 m/s from a set of various angles (0°, 5°, 10°, 15°, 20°, 25°, and 30°). The inner plate and outer plate of DHCs are modeled using Belytschko–Tsay quadrilateral shell elements with five integration points across the thickness and one in the element plane. In contrast, the aluminum foam is modeled using eight-node hexahedron elements with one-point reduced integration mechanism coupled with stiffness based hourglass control.⁶³ The inner plate, outer plate and the foam filler are all meshed with an element size of 4 mm to reduce the computational cost while maintaining simulation accuracy.⁵⁹ To avoid interpenetration, the “automatic single surface” contact is defined for both the inter plate and the outer plate, the “automatic surface to surface” contact is defined among the inter plate, out plate and the foam filler, and the “automatic node to surface” contact is defined among the upper rigid wall, middle DHCs, and the lower rigid base. For all the contacts defined above, the static and dynamic coefficients are uniformly set to 0.3 and 0.2, respectively.⁶³ Figure 5 demonstrates the built FE models of DHCs, including H-DHC and F-DHC, under multi-angle impact loading.

Figure 5.

FE models of DHCs under multi-angle impact loading.

Verification of FE models

To verify the accuracy of the developed FE model of H-DHC, the original hollow and irregularly-shaped crash box is manufactured and selected to perform experimental verification, as shown in Figure 6. Herein the material of the crash box is aluminum alloy AA6063, whose stress-strain curve is also shown in Figure 6. The bottom end of the crash box is placed on a rigid base fully fixed, while the top end is compressed by the machine platform at a velocity of 10 mm/min. To avoid test error and for better comparison, 6 specimens of crash box with identical structural parameters are tested. Figure 7 compares the crushing force versus displacement curves for the FE simulation and experimental tests, from which it can be seen that the six groups of test results are basically the same, and for each specimen, the simulation result can well captures the deformation progress in the test. In addition, the corresponding final deformation modes of the six specimens and that of a simulation with six views are compared as shown in Figure 8. From which, it is easily seen that the final deformation modes of experimental results agree fairly well with that of simulation.

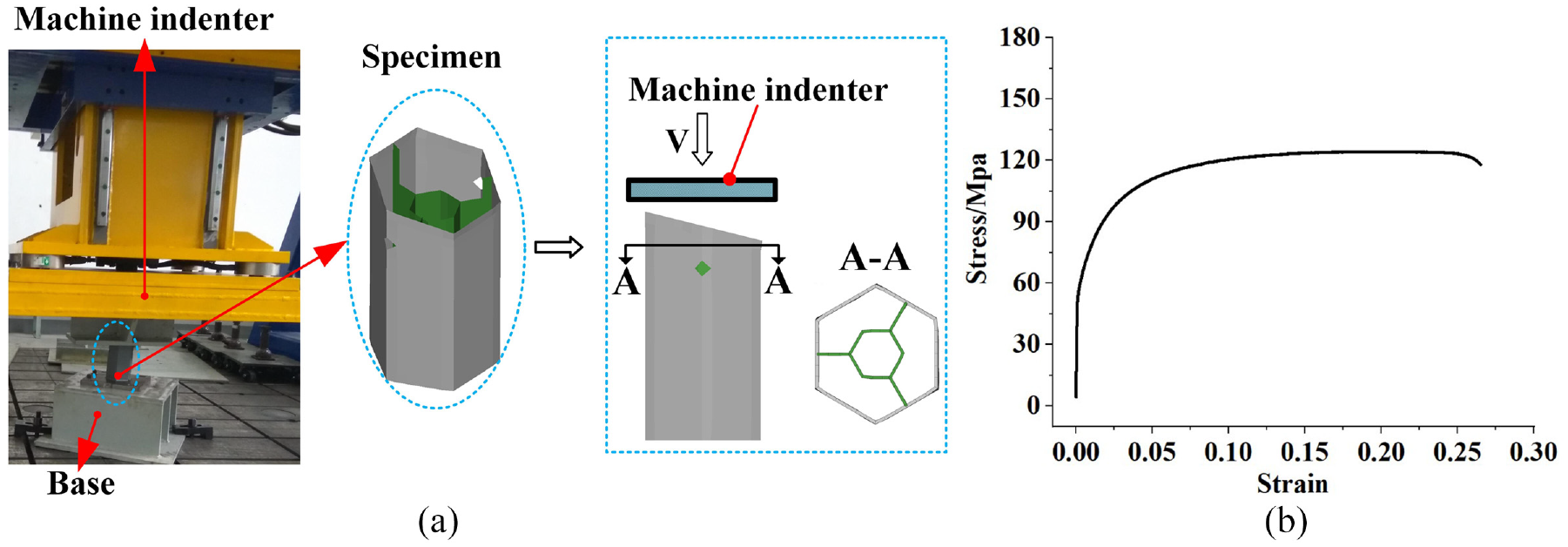

Figure 6.

Quasi-static compressing of crash box: (a) Quasi-static compressing experiment and (b) Stress-strain curve of AA6063.

Figure 7.

Comparison of force-displacement curve: (a) Specimen #1, (b) Specimen #2, (c) Specimen #3, (d) Specimen #4, (e) Specimen #5, and (f) Specimen #6.

Figure 8.

Comparison of the final deformation modes: (a) Experiments and (b) simulation.

Without losing generality, the foam-filled square column (F-SC) is employed to indirectly verify the accuracy of the developed FE model of F-DHC, considering there are few relevant reports concerning crushing experiment of foam-filled double-hexagonal column as far as the authors know. Figure 9 compares the crushing force versus displacement curve and the final deformation mode between the FE simulation and the experiment performed by Li et al.,⁶⁴ while Table 2 further compares the extracted initial peak crushing force (IPCF) and mean crushing force (MCF) on the whole stroke bet-ween the experiment and the simulation. From which it also can be seen that there is reasonable agreement between the simulation and experimental results.

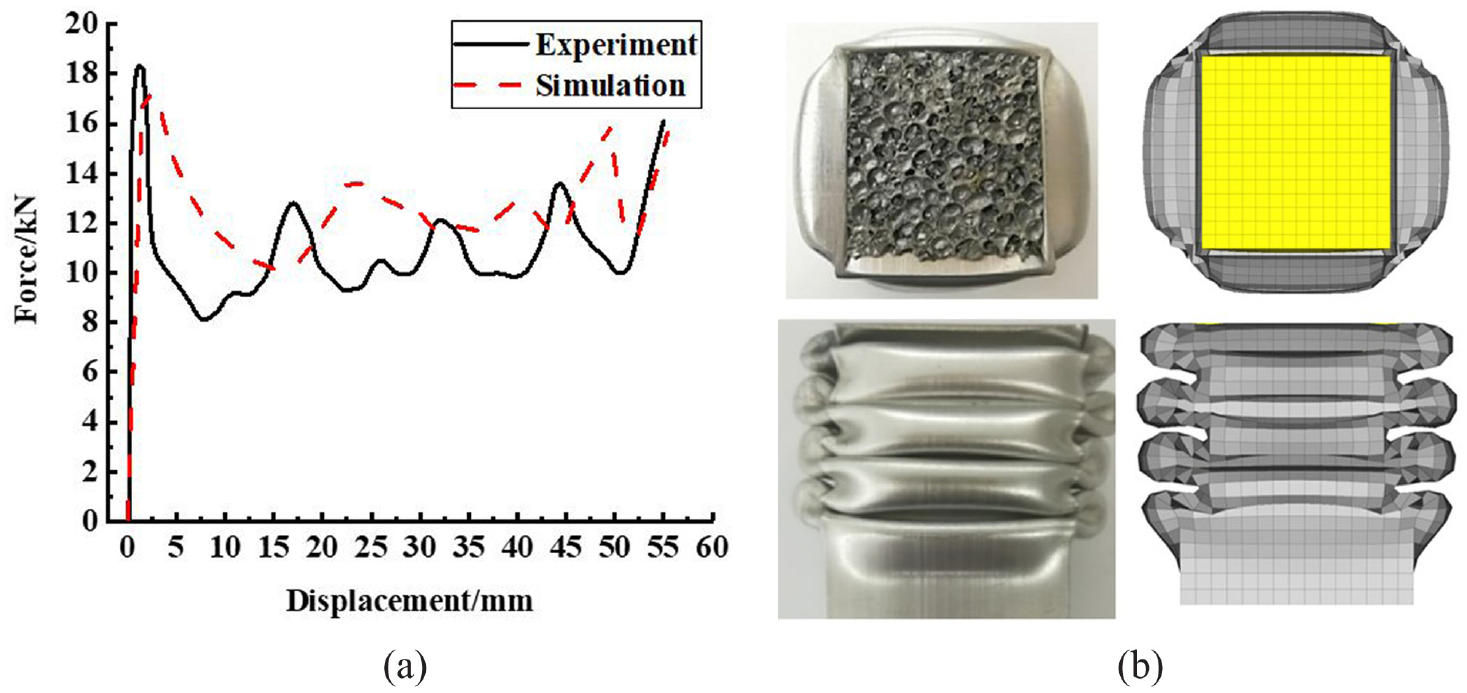

Figure 9.

Comparison of the experiment⁶⁴ and simulation for F-SC: (a) Force-displacement curve and (b) Final deformation modes.

Table 2.

The IPCF and MCF of the experiment^65,66 and simulation for F-SC.

F-DHC	Experiment (kN)	Simulation (kN)	Relative error (%)
IPCF	18.470	17.123	−7.29
MCF	10.880	11.769	8.17

Considering the effect of strain rate of the aluminum alloys employed in the present study are insensitive and can be ignored, the FE models verified under the quasi-static crushing can be extended to dynamic scenarios. In a summary, the developed FE models of DHCs, including H-DHC and F-DHC, are of acceptable accuracy and provide considerable confidence for us to explore the crashworthiness characteristics and optimization approach under multi-angle impact loading.

Crashworthiness analysis

Crashworthiness indicators

To quantitatively evaluate the crashworthiness of the DHCs under dynamic impact loading, it is essential to predefine crashworthiness indicators. There are many crashworthiness indicators available, among which Energy absorption (EA), specific energy absorption (SEA), peak crushing force (PCF), mean crushing force (MCF), and crushing force efficiency (CFE) have been widely utilized to estimate the crashworthiness of thin-walled structures.⁶⁰ Specifically, EA denotes the absorbed energy of structures via their plastic deformation, which demonstrates the total capacity for energy absorption. SEA, which denotes the energy absorption per unit mass, is often considered a more objective and effective indicator to measure the energy absorption efficiency of material. PCF and MCF respectively denote the maximum and average value of instantaneous crushing force on the whole stroke, while CFE demonstrates the ratio of MCF relative to PCF, which measures the load consistency and uniformity. The above crashworthiness indicators, as shown in Figure 10, are normally calculated as follows:

EA (d) = \int_{0}^{d} F (x) dx

(6)

SEA (d) = \frac{EA (d)}{M} = \frac{\int_{0}^{d} F (x) dx}{M}

(7)

PCF (d) = max_{d} F (x)

(8)

MCF = \frac{EA (d)}{d} = \frac{\int_{0}^{d} F (x) dx}{d}

(9)

CFE (d) = \frac{MCF (d)}{PCF (d)}

(10)

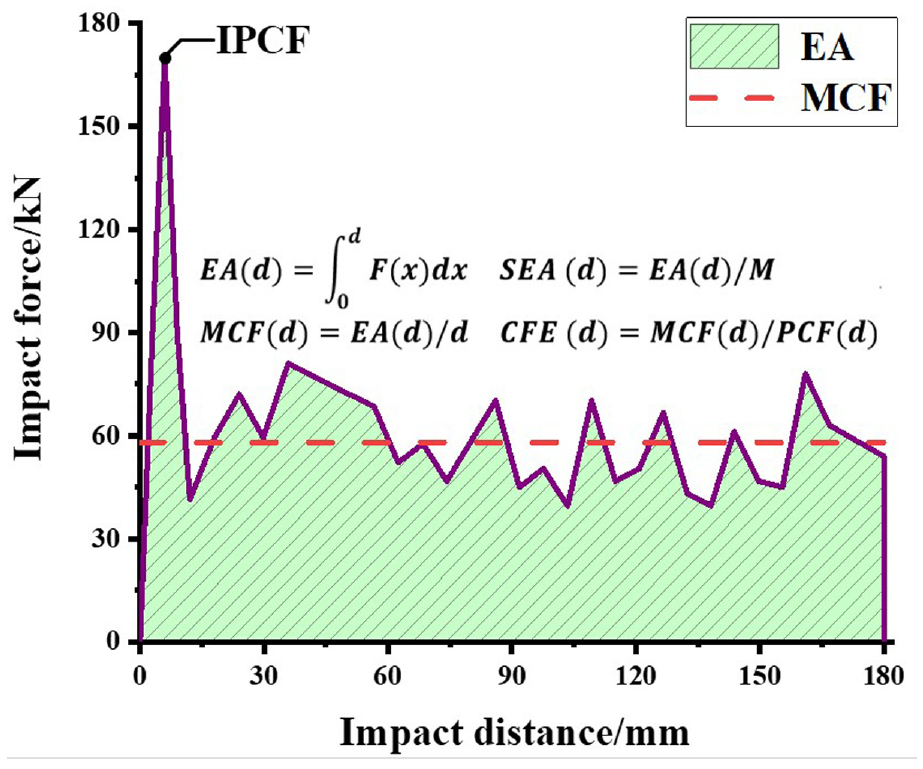

Figure 10.

Crashworthiness indicators.

Nevertheless, under multi-angle impact loading scenarios, the varied impact angles could largely affect the value of energy absorption. In this regard, an ideal energy absorber is expected to demonstrate superior overall energy absorption characteristics under multi-angle impact loading. Thus, taking into account the influence of different impact angles, a novel overall crashworthiness indicator SEA_θ is employed and defined as follows:

SE A_{θ} = \sum_{k = 1}^{N_{θ}} ω_{θ_{k}} SE A_{θ_{k}}

(11)

\sum_{k = 1}^{N_{θ}} ω_{θ_{k}} = 1 (ω_{θ_{k}} \geq 0)

(12)

where $SE A_{θ_{k}}$ represents the SEA under the specific impact angle θ_k (k = 1, 2, …, N_θ), N_θ denotes the total number of impact angles considered. ω_θk stands for the relative weight (importance or occurrence probability) of θ_k. and can be described as equation (12).

In addition, in the automotive engineering, the initial peak crushing force (IPCF), which denotes the first peak of the crushing force and normally measures the load severity when initial plastic folding happens, is often considered critical to survival rate of occupants when vehicle collision occurs. More specifically, high IPCF may lead to severe injury or even death of occupants. Further, under multi-angle impact loading scenarios, the IPCF under impact angle of 0° (marked as IPCF⁰) is generally the maximum among all impact angles, which should be primarily controlled. Hence, for DHCs under multi-angle impact loading in the present study, IPCF⁰ is adopted as another key indicator to evaluate overall crashworthiness. Thus, SEA_θ and IPCF⁰ are finally adopted to evaluate overall crashworthiness under multi-angle impact loading. Obviously, for DHCs in the present study, higher values of SEA or SEA_θ indicating a higher capacity for energy absorption are preferred. In contrast, PCF, PCF⁰, IPCF, or IPCF⁰ are all “smaller-the- better” to reduce the load severity and risk of occupant injuries.

Crashworthiness comparison

To explore the potential relative merits of F-DHC compared with H-DHC under multi-angle impact loading, a comprehensive crashworthiness comparison is first conducted. Except for the aluminum foam filler, other structural parameters of H-DHC, and F-DHC are kept the same. Figure 11 compares the crashworthiness indicators, including EA, SEA, IPCF, and MCF, between H-DHC and F-DHC under impact angles ranging from 0° to 30° with an interval of 5°, while Table 3 further compares the corresponding final deformation modes. Obviously, for both H-DHC and F-DHC, the values of all above crashworthiness indicators decrease gradually along with increasing impact angles, which well confirms the importance and necessity of considering multi-angle impact loading scenarios. Besides, it can be seen that the EA and MCF of F-DHC under each impact angle outweigh that of H-DHC due to the introduction of aluminum foam, and the folding lobes of F-DHC is relatively more regular than that of H-DHC especially under larger impact angles, which both reveal the effect of aluminum foam filler on improving total energy absorption capacity. Nevertheless, it can also be seen that the SEA of F-DHC under each impact angle is smaller than that of H-DHC, which discloses the fact that the aluminum foam filler has no relative advantages over column walls, namely inner plate and outer plate, from the point of material energy absorption efficiency. Besides, note that the IPCF of F-DHC under each impact angle is relatively larger than that of H-DHC, which is due to the enhancement of stiffness caused by introduction of aluminum foam filler. To sum up, the F-DHC outperforms the H-DHC concerning energy absorption, while it is inferior to the latter concerning load severity which is closely related to occupant injuries in a collision. Considering the above two aspects normally are competing and even conflicting, hence multi-objective optimization approach for F-DHC needs further investigation to obtain better overall crashworthiness under multi-angle impact loading.

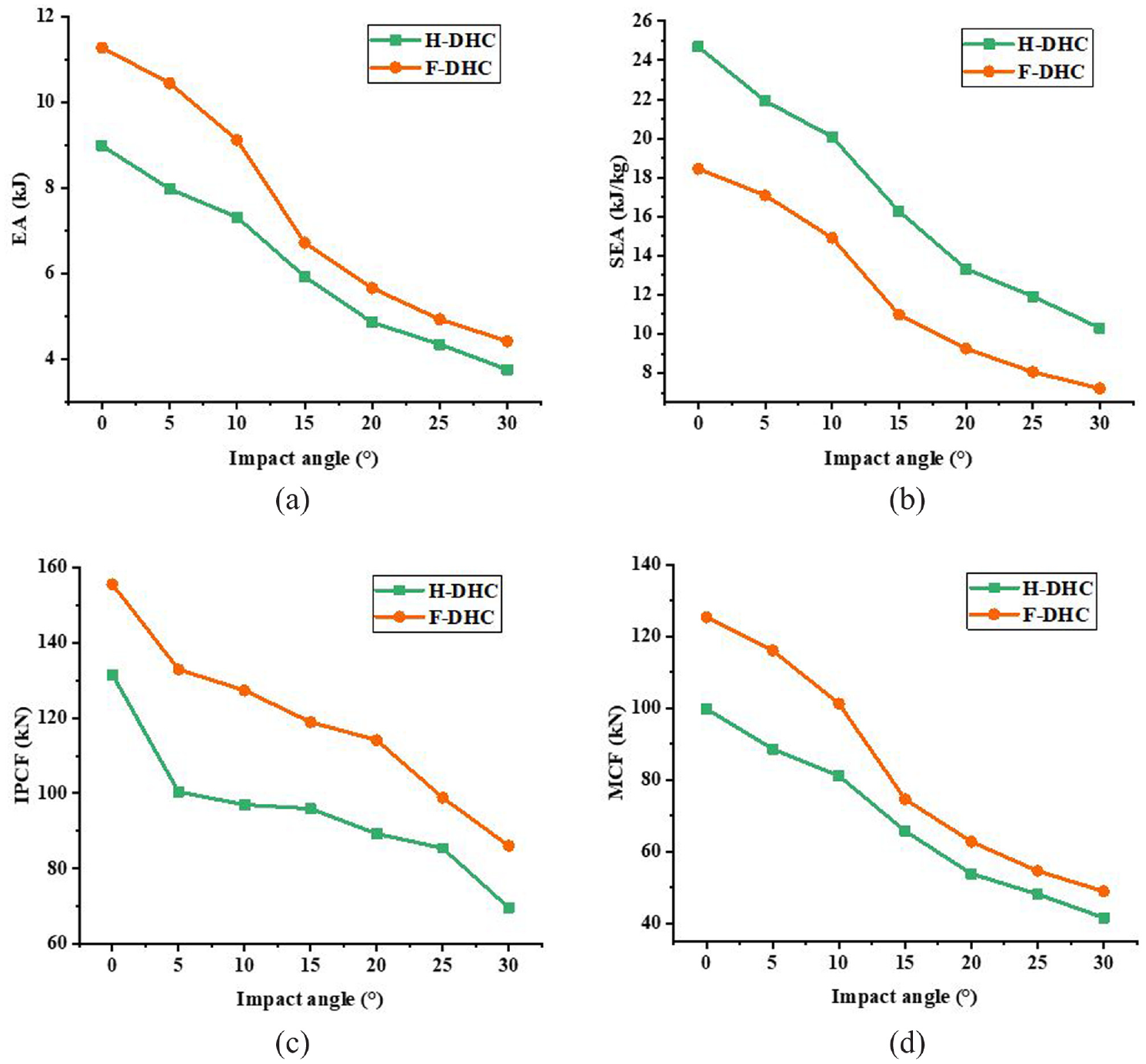

Figure 11.

Crashworthiness comparison between H-DHC and F-DHC: (a) energy absorption (EA), (b) specific energy absorption (SEA), (c) initial peak crushing force (IPCF) and (d) mean crushing force (MCF).

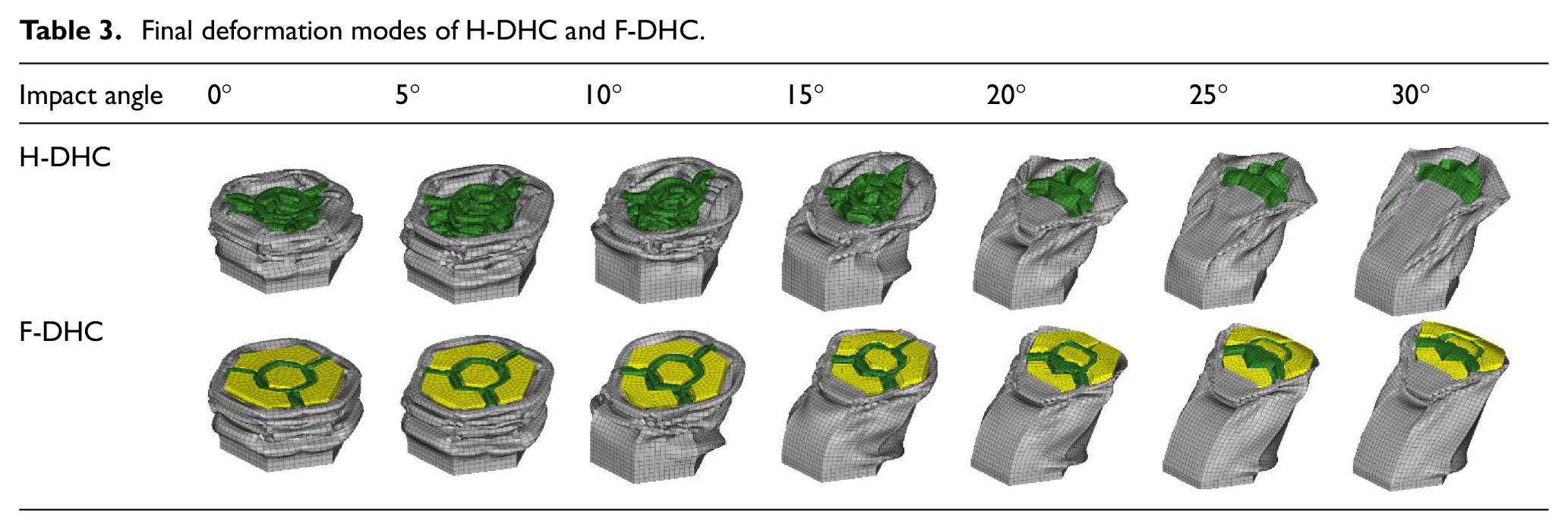

Table 3.

Final deformation modes of H-DHC and F-DHC.

Impact angle	0°	5°	10°	15°	20°	25°	30°
H-DHC
F-DHC

Multi-objective robust optimization of F-DHC

For F-DHC, as mentioned earlier, direct employment of deterministic optimization results would encounter large potential risks in actual vehicle collision scenarios. Hence, multi-objective robust optimization for F-DHC is more preferable and adopted in the present study. Compared with other robust optimization methods, the Taguchi robust method, which adopts Taguchi orthogonal array (OA) including design and noise factors and handles the experimental results based on signal-to-noise ratio (SNR) that to be maximized, demonstrates notable merits on evaluating robustness of experiments, influence of factors on response and exploring optimal combination of factor levels with high efficiency and dramatic simplicity. Nevertheless, the conventional Taguchi robust method is generally limited to optimizing a single response at a time, which is not suitable to handle the multi-objective robust optimization of F-DHC herein. However, this could be well overcome by coupling Taguchi robust method with gray relational analysis (GRA), namely Taguchi-GRA. Through GRA, which is acknowledged as a relatively accurate method for multiple criteria decision making (MCDM), multiple responses could be converted to a single response called gray relational grade (GRG), which stands for the relative closeness of a candidate to the ideal referential alternative and normally is “larger-the-better” (LTB). Therefore, Taguchi-GRA is employed herein to perform multi-objective robust optimization of F-DHC for better overall crashworthiness under multi-angle impact loading.

Taguchi-GRA methodology

The main procedure of Taguchi-GRA are summarized as follows:

Step 1: Taguchi experimental design

In general, the main steps of Taguchi experimental design include: (1) Define the design variables and corresponding levels, including control factors and noise factors. (2) Define the responses (or objectives) and corresponding quality characteristics. (3) Build the Taguchi orthogonal array (OA), with control factors constituting the inner table and noise factors constituting the outer Table 4 Execute the experimental samples one by one and count the response data.

Table 4.

Control factors, noise factors, and corresponding levels.

Types	Design variables	Levels
Types	Design variables	1	2	3	4	5
Control factors	ρ (g/cm³)	0.1	0.2	0.3	0.4	0.5
	t₁ (mm)	1.2	1.6	2.0	2.4	2.8
	t₂ (mm)	1.4	1.8	2.2	2.6	3.0
		1	2	3
Noise factors	D (g/cm³)	2.5	2.7	2.9
	E (MPa)	66,400	68,200	70,000
	P	0.25	0.3	0.35
	Y (MPa)	70	80	90

For multi-objective robust optimization of F-DHC in the present study, structural parameters including foam density (ρ), inner plate thickness (t₁) and outer plate thickness (t₂) are selected as three control factors and for each factor five levels are assigned, thus a L₂₅ (53) orthogonal array is built to constitute the inner table. Meanwhile, considering the inherent uncertainty in the material properties of the plates of F-DHC, the density (D), elastic modulus (E), Poisson’s ratio (P), and yield strength (Y) of plate material are chosen as four noise factors, and for each factor three levels are assigned, thus a L₉ (34) orthogonal array is built to constitute the outer table. Considering multi-angle impact loading scenarios, the overall SEA (SEA_θ) is taken as one response (or objective), while IPCF under 0° impact loading (IPCF⁰) is taken as an another based on the fact that IPCF of F-DHC obtains maximum under pure axial impact loading, as disclosed by Figure 11. Table 4 demonstrates design variables and corresponding levels, while Table 5 demonstrates the constituted OA table for Taguchi experimental design, which is a specially designed array that permits the investigation of main effects and interaction effects of design variables on responses.

Table 5.

Taguchi experimental layout and results.

Taguchi experimental layout				Noise factors	D	1		1		…	3
					E	1		2		…	3
					Y	1		2		…	2
					P	1		2		…	1
No.	Control factors			No.		1		2		…	9
No.	ρ	t₁	t₂	Response		SEA_θ	IPCF⁰	SEA_θ	IPCF⁰	…	SEA_θ	IPCF⁰
1	1	1	1			10.24	77.71	10.27	77.69	…	9.26	77.46
2	1	2	2			12.47	103.09	12.50	103.35	…	11.15	106.09
3	1	3	3			14.42	133.48	14.46	133.62	…	12.83	134.67
4	1	4	4			15.93	162.03	16.05	162.33	…	14.15	166.62
5	1	5	5			16.90	195.99	16.95	196.28	…	14.96	199.88
6	2	1	2			10.52	100.21	10.66	100.56	…	9.71	103.82
…	…	…	…			…	…	…	…	…	…	…
25	5	5	4			16.02	246.66	16.03	246.84	…	14.83	250.86

Step 2: Single-to-noise ratio (SNR)

After the Taguchi experimental design has been completed and the response data for each factor level has been counted, the signal-to-noise ratio (SNR), which measures the magnitude of the mean of a process compared to its variation, is employed to evaluate the response performance according to the corresponding characteristics.⁶⁷ Specifically, the SNR of a response with “larger-the-better (LTB)” characteristic could be calculated using equation (13), while the SNR of a response with “smaller-the-better (LTB)” characteristic could be calculated using equation (14):

SN R_{ij} = - 10 \log_{10} (\frac{1}{n} \sum_{k = 1}^{n} \frac{1}{y_{ijk}^{2}})

(13)

SN R_{ij} = - 10 \log_{10} (\frac{1}{n} \sum_{i = 1}^{n} y_{ijk}^{2})

(14)

where $SN R_{ij}$ represents the SNR for the jth response of ith experiment, $y_{ijk}$ denotes the experimental result for jth response of ith experiment at kth measurement, n denotes the total number of measurements per experiment.

For multi-objective robust optimization of F-DHC in the present study, two conflicting objectives namely SEA_θ and IPCF⁰, are selected to measure and robustly optimize the overall crashworthiness of F-DHC under multi-angle impact loading. Obviously, SEA_θ is larger-the-better (LTB) to improve overall energy absorption, while IPCF⁰ is smaller-the-better (STB) to control load severity. Hence, equations (13) and (14) are respectively adopted for SEA_θ and IPCF⁰ to calculate corresponding SNR.

Step 3: Gray relational analysis (GRA)

In general, for a single-response (or objective) optimization, based on the obtained SNR of response, the Taguchi method is capable of evaluating the influence of each factor on the response and further determining the optimal combination of factor levels via main effect analysis. However, as aforementioned earlier, the traditional Taguchi method is limited to handling single-objective optimization, which therefore is not suitable to address multi-objective robust optimization of F-DHC herein. To eliminate this obstacle, GRA is incorporated to Taguchi method to convert the multiple responses to a single gray relational grade (GRG) that is to be maximized. Specific procedures of GRA are as follows:

Gray relational generation

First, the experimental data sequence (from Taguchi OA) are transformed to a uniform range of [0,1] through different normalization methods according to response characteristics, which is generally named as gray relational generation. Specifically, for original sequence with “larger-the-better” (LTB) response^68,69:

x_{i}^{*} (k) = \frac{x_{i}^{o} (k) - min x_{i}^{o} (k)}{max x_{i}^{o} (k) - min x_{i}^{o} (k)} (i = 1, 2, . . ., m; k = 1, 2, . . . n)

(15)

Else, for original sequence with “smaller-the-better” (STB) response:

x_{i}^{*} (k) = \frac{max x_{i}^{o} (k) - x_{i}^{o} (k)}{max x_{i}^{o} (k) - min x_{i}^{o} (k)} (i = 1, 2, . . ., m; k = 1, 2, . . . n)

(16)

Otherwise, for original sequence with “nominal-the-best” (NTB) response:

\begin{matrix} x_{i}^{*} (k) = 1 - \frac{| x_{i}^{o} (k) - x_{i}^{o} |}{max {max x_{i}^{o} (k) - x_{i}^{o}, x_{i}^{o} - min x_{i}^{o} (k)}} \\ (i = 1, 2, . . ., m; k = 1, 2, . . . n) \end{matrix}

(17)

where $x_{i}^{o} (k)$ and $x_{i}^{*} (k)$ denote the original and normalized value of kth response at ith experiment, respectively. $max x_{i}^{o} (k)$ and $min x_{i}^{o} (k)$ denote the maximum and minimum value of $x_{i}^{o} (k)$ for the kth response among i experiments, respectively. $x_{i}^{o}$ is a target value, n and m denote the total number of experiments and responses, respectively.

Gray relational coefficient (GRC)

Second, the GRC $ξ_{i} (k)$ is calculated from the normalized experimental data to measure the correlation between the current experiment and the desired solution as:

\begin{matrix} ξ_{i} (k) = ξ (x_{r}^{*} (k), x_{i}^{*} (k)) = \frac{Δ_{min} + δ \cdot Δ_{max}}{Δ_{ri} (k) + δ \cdot Δ_{max}} \\ = \frac{min_{\forall i} min_{\forall k} Δ_{ri} (k) + δ \cdot max_{\forall i} max_{\forall k} Δ_{ri} (k)}{| x_{r}^{*} (k) - x_{i}^{*} (k) | + δ \cdot max_{\forall i} max_{\forall k} Δ_{ri} (k)} \end{matrix}

(18)

where $x_{r}^{*} (k)$ denotes the ideal normalized value, that is, the maximum normalized SNR (since SNR is LTB), for the kth response among all experiments, $Δ_{ri} (k)$ denotes the difference between $x_{r}^{*} (k)$ and $x_{i}^{*} (k)$ , δ is the identification coefficient, δ∈ (0,1) and δ = 0.5 is generally recommended and adopted in this paper.^68,69

Gray relational grade (GRG)

Finally, the gray relational grade (GRG) which measures the correlation of current experiment and the ideal solution can be calculated by averaging the GRC for multiple responses as:

GR G_{i} = (1 / n) \sum_{k = 1}^{n} ξ_{i} (k)

(19)

Nevertheless, taking into account the difference of response preference or significance, different weights are assigned to different responses to calculate the weighted GRG as follows:

GR G_{i ω} = \sum_{k = 1}^{n} ω_{k} \cdot ξ_{i} (k)

(20)

where $GR G_{i}$ and $GR G_{i ω}$ denote the GRG and weighted GRG for ith experiment, ω_k denotes the weight of kth response, n denotes the total number of responses.

For multi-objective robust optimization of F-DHC in the present study, n = 2 as SEA_θ and IPCF⁰ are selected as two responses. The GRG could be treated as an overall response of the crashworthiness characteristics of F-DHC instead of multiple responses – SEA_θ and IPCF⁰. Obviously, larger value of $GR G_{i}$ or $GR G_{i ω}$ signifies that the corresponding combination of factor levels is closer to the optimal condition.

Step 4: Main effect and interaction effect analyses

Through GRA, the multi-objective robust optimization has now been converted to a single-objective robust optimization of GRG, which then could be handled by Taguchi analysis to explore the optimal combination of factor levels. Specifically, the average response value of GRG of each factor level is first calculated, then the main effect value of each factor, which is the difference between the maximum and minimum average GRG of factor levels, could be obtained. The process could be described as follows:

{\bar{f}}_{u} = \frac{1}{N} \sum_{v = 1}^{N} Γ_{uv}

(21)

Δ f = max ({\bar{f}}_{1}, {\bar{f}}_{2}, \dots, {\bar{f}}_{M}) - min ({\bar{f}}_{1}, {\bar{f}}_{2}, \dots, {\bar{f}}_{M})

(22)

where ${\bar{f}}_{u}$ is the mean GRG value for the uth level of factor f, $N$ is the number of uth level experiments of factor f, and $Γ_{uv}$ is the GRG value of vth experiment with the uth level of factor f, M represents the total number of levels of factor f while Δf is the main effects.

In general, the average response value of each factor level, the main effect value of each factor on response and the interaction effect value of any two factors on response could be obtained and demonstrated in a factor response table, a main effect plot and an interaction effect plot, respectively. Based on which, the main effect of any one factor and the interaction effect of any two factors on the response could be figured out. More significantly, the optimal combination of factor levels for optimal response could be determined. Normally, the lower the main effect value of a factor, the smaller the influence of the factor on the response, and vice versa. In contrast, the interaction plots measure the influence of factor interaction on response. Parallel lines in an interaction plot indicate no interaction, and the greater the difference in slope between the lines, the higher the degree of interaction.

Results and discussion

The experimental results based on the Taguchi OA are demonstrated in Table 5, based on which the SNR of SEA_θ (marked as SNR1) and IPCF⁰ (marked as SNR2) for each experiment are respectively calculated according to equations (13) and (14), and the corresponding results are counted and displayed in Table 6.

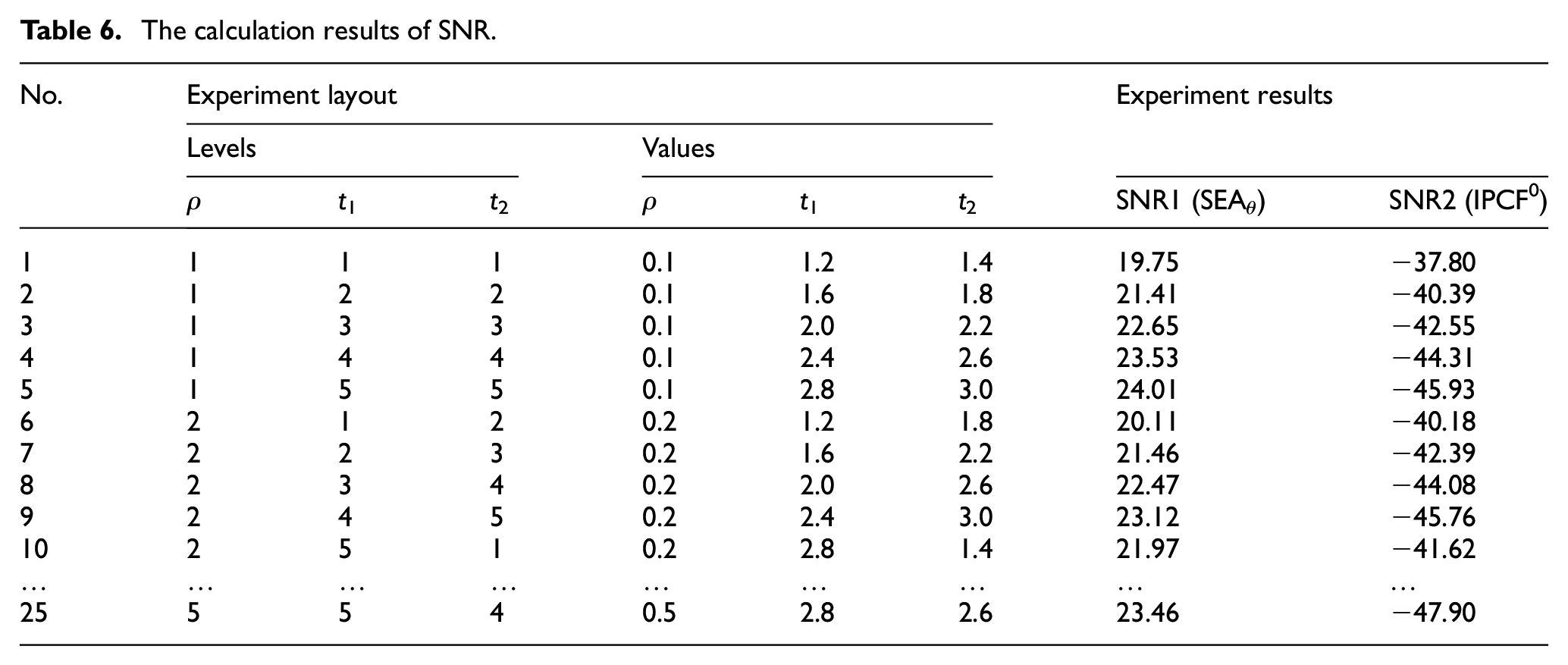

Table 6.

The calculation results of SNR.

No.	Experiment layout						Experiment results
	Levels			Values
	$ρ$	t ₁	t ₂	$ρ$	t ₁	t ₂	SNR1 (SEA_θ)	SNR2 (IPCF⁰)
1	1	1	1	0.1	1.2	1.4	19.75	−37.80
2	1	2	2	0.1	1.6	1.8	21.41	−40.39
3	1	3	3	0.1	2.0	2.2	22.65	−42.55
4	1	4	4	0.1	2.4	2.6	23.53	−44.31
5	1	5	5	0.1	2.8	3.0	24.01	−45.93
6	2	1	2	0.2	1.2	1.8	20.11	−40.18
7	2	2	3	0.2	1.6	2.2	21.46	−42.39
8	2	3	4	0.2	2.0	2.6	22.47	−44.08
9	2	4	5	0.2	2.4	3.0	23.12	−45.76
10	2	5	1	0.2	2.8	1.4	21.97	−41.62
…	…	…	…	…	…	…	…	…
25	5	5	4	0.5	2.8	2.6	23.46	−47.90

To explore the influence of control factors (ρ, t₁ and t₂) on responses, the response tables for SNR1 of SEA_θ and SNR2 of IPCF⁰ are calculated and demonstrated in Tables 7 and 8, respectively. For a certain factor, the mean value at a certain level represents the global average value of SNR for all experiments with this specific level, and the Delta denotes the maximum difference of SNR mean among different levels. Generally, a factor with a higher Delta among the factors indicates a relatively larger influence on the response compared with others. Therefore, the most influential factor on SEA_θ is outer plate thickness (t₂), followed by inner plate thickness (t₁), and finally foam density (ρ) according to Table 7. In contrast, the most influential factor on IPCF⁰ is also the outer plate thickness (t₂), followed by foam density (ρ), and finally inner plate thickness (t₁) according to Table 8. Therefore, both SEA_θ and IPCF⁰ receive the largest influence from outer plate thickness (t₂). Besides, the main effect plots of control factors on the SNR1 of SEA_θ and SNR2 of IPCF⁰ are demonstrated in Figure 12, from which the influence of each factor on the SNR of responses can also be figured out by comparing the slopes of the lines. Nevertheless, a more significant function of main effect plots is to determine the optimal combination of factor levels for each response. To be more specific, the optimal combination of factor levels for maximizing SNR1 (namely maximizing SEA_θ) is F5-I5-O5 (namely ρ = 0.5 g/cm³, t₁ = 2.8 mm and t₂= 3.0 mm.), as boldly marked in Table 7. In contrast, the optimal combination of factor levels for maximizing SNR2 (namely minimizing IPCF⁰) is F1-I1-O1 (namely ρ = 0.1 g/cm³, t₁ = 1.2 mm, and t₂ = 1.4 mm), as boldly marked in Table 8.

Table 7.

Response table for SNR1 of SEA_θ.

Means	Level	ρ (Foam density)	t ₁ (Inner plate thickness)	t ₂ (Outer plate thickness)
SNR1 (LTB)	1	22.271	21.044	21.130
	2	21.826	21.792	21.613
	3	21.760	22.249	22.167
	4	22.035	22.585	22.633
	5	22.637	22.858	22.986
	Delta	0.877	1.814	1.856
	Rank	3	2	1

Table 8.

Response table for SNR2 of IPCF⁰.

Means	Level	ρ (Foam density)	t₁ (Inner plate thickness)	t₂ (Outer plate thickness)
SNR2 (LTB)	1	−42.198	−42.485	−41.649
	2	−42.806	−43.474	−42.842
	3	−43.704	−44.148	−44.034
	4	−44.851	−44.638	−45.069
	5	−46.211	−45.025	−46.175
	Delta	4.013	2.540	4.526
	Rank	2	3	1

Figure 12.

Main effect plots of factors on SNR1 of SEA_θ and SNR2 of IPCF⁰: (a) Mean of SNR1 and (b) Mean of SNR2.

In addition, to explore the influence of interactions among control factors on a single response, the interaction effect plots of control factors on SNR1 of SEA_θ and SNR2 of IPCF⁰ are demonstrated in Figures 13 and 14, respectively. An interaction plot is a plot of means for each level of a factor with the level of a second factor kept constant, which could be employed to evaluate the two-way interactions among factors on the responses. To be more specific, there is no interaction if the lines are parallel, otherwise there is, and the greater the lines deviate from being parallel, the larger the interaction. It can be seen that for SNR1 (Figure 13), the interaction effect is observed between either two of the three factors (foam density, inner plate thickness, and outer plate thickness), among which the interaction between inner plate thickness and outer plate thickness appears relatively larger, indicating the relationship between inner plate thickness, and SEA_θ, depends on outer plate thickness and vice versa. Likewise, for SNR2 (Figure 14), the interaction effect is also observed between either two of the three factors, while the corresponding interactions are restively smaller than that of SNR1.

Figure 13.

Interaction effect plots of factors on SNR1.

Figure 14.

Interaction effect plots of factors on SNR2.

As just revealed, the optimal combination of factor levels for maximizing SEA_θ (F5-I5-O5) are entirely different with that for minimizing IPCF⁰ (F1-I1-O1). Actually, the optimal combination of factor levels that make one goal the best will make the other goal the worst. However, the automobile crash box prefers the F-DHC be manufactured at the same level of design to obtain optimal SEA_θ and IPCF⁰ simultaneously, which is not suitable to be handled with traditional Taguchi method aimed to optimize a single response at a time. Therefore, to achieve multi-objective robust optimization of F-DHC, the two conflicting responses (SEA_θ and IPCF⁰) are converted into a single response, that is, gray relational grade (GRG) that to be maximized (LTB), through gray relational analysis (GRA). For this purpose, the gray relational generation based on equation (15) for SEA_θ and equation (16) for IPCF⁰, the gray relational coefficient based on equation (18) and the gray relational grade (GRG) based on equation (19) or equation (20) are obtained and demonstrated in Table 9. Note that herein to explore the effect of different weights on the optimization results, SNR1 is given three different weights (ω₁ = 0.4,0.5,0.6) and the weights of SNR2 (ω₂ = 0.6,0.5,0.4) are changed accordingly, resulting in three different groups of GRG as shown in Table 9.

Table 9.

Gray relational coefficient (GRC) and gray relational grade (GRG).

No.	Experiment levels			Gray relational generation		Gray relational coefficient		Gray relational grade (GRG) (LTB)
	$ρ$	t ₁	t ₂	SNR1 (LTB)	SNR2 (LTB)	SNR1 (LTB)	SNR2 (LTB)	ω₁ = 0.4	ω₁ = 0.5	ω₁ = 0.6
Weight				0.000	1.000	0.333	1.000	0.733	0.667	0.600
Ideal				0.389	0.743	0.450	0.660	0.576	0.555	0.534
1	1	1	1	0.680	0.529	0.610	0.515	0.553	0.562	0.572
2	1	2	2	0.888	0.355	0.817	0.437	0.589	0.627	0.665
3	1	3	3	1.000	0.195	1.000	0.383	0.630	0.692	0.753
4	1	4	4	0.083	0.764	0.353	0.680	0.549	0.516	0.484
5	1	5	5	0.402	0.546	0.455	0.524	0.496	0.490	0.483
6	2	1	2	0.639	0.378	0.580	0.446	0.499	0.513	0.526
7	2	2	3	0.791	0.212	0.705	0.388	0.515	0.547	0.578
8	2	3	4	0.520	0.621	0.510	0.569	0.545	0.540	0.534
9	2	4	5	0.000	1.000	0.333	1.000	0.733	0.667	0.600
10	2	5	1	0.389	0.743	0.450	0.660	0.576	0.555	0.534
…	…	…	…	…	…	…	…	…	…	…
25	5	5	4	0.871	0.000	0.518	0.333	0.518	0.564	0.610

The response table for GRG under three different weights are calculated and demonstrated in Tables 10 to 12, respectively. Obviously, the influence of control factors (ρ, t₁ and t₂) on GRG differs along with different weights. Specifically, the most influential factor on GRG when ω₁ = 0.4 is foam density (ρ), followed by outer plate thickness (t₂), and finally the inner plate thickness (t₁). In contrast, the most influential factor on GRG when ω₁= 0.5 is foam density (ρ), followed by inner plate thickness (t₁), and finally outer plate thickness (t₂), which is identical to the results when ω₁= 0.6. Considering the main effect and interaction effect plots for GRG under such different weights are of little difference, the main effect and interaction effect plots for GRG when ω₁ = 0.4 are selected as a representative to be shown in Figures 15 and 16, respectively. According to Figure 15, the optimal combination of factor levels for GRG when ω₁ = 0.4 is F1-I5-O1 (namely ρ = 0.1 g/cm³, t₁ = 2.8 mm, and t₂ = 1.6 mm), as boldly marked in Table 10. In contrast, the optimal combination of factor levels for both GRG when ω₁ = 0.5 and GRG when ω₁ = 0.6 is F1-I5-O5, as boldly marked in Tables 11 and 12, respectively. In addition, according to Figure 16, relatively larger interaction effect on GRG is observed among either two of the three factors compared with that on SEA_θ or IPCF⁰ solely just discussed, indicating that the three factors demonstrate large interaction effects on overall crashworthiness (SEA_θ and IPCF⁰) under multi-angle impact loading.

Table 10.

Response table for GRG when ω₁ = 0.4.

Means	Level	ρ	t₁	t₂
GRG (LTB)	1	0.6162	0.5309	0.5414
	2	0.5210	0.4910	0.5090
	3	0.4792	0.4926	0.4986
	4	0.4647	0.5127	0.5037
	5	0.4782	0.5320	0.5067
	Delta	0.152	0.041	0.043
	Rank	1	3	2

Table 11.

Response table for GRG when ω₁ = 0.5.

Means	Level	ρ	t₁	t₂
GRG (LTB)	1	0.6205	0.5155	0.5234
	2	0.5210	0.4916	0.5048
	3	0.4820	0.5034	0.5084
	4	0.4753	0.5325	0.5259
	5	0.5029	0.5587	0.5392
	Delta	0.145	0.067	0.034
	Rank	1	2	3

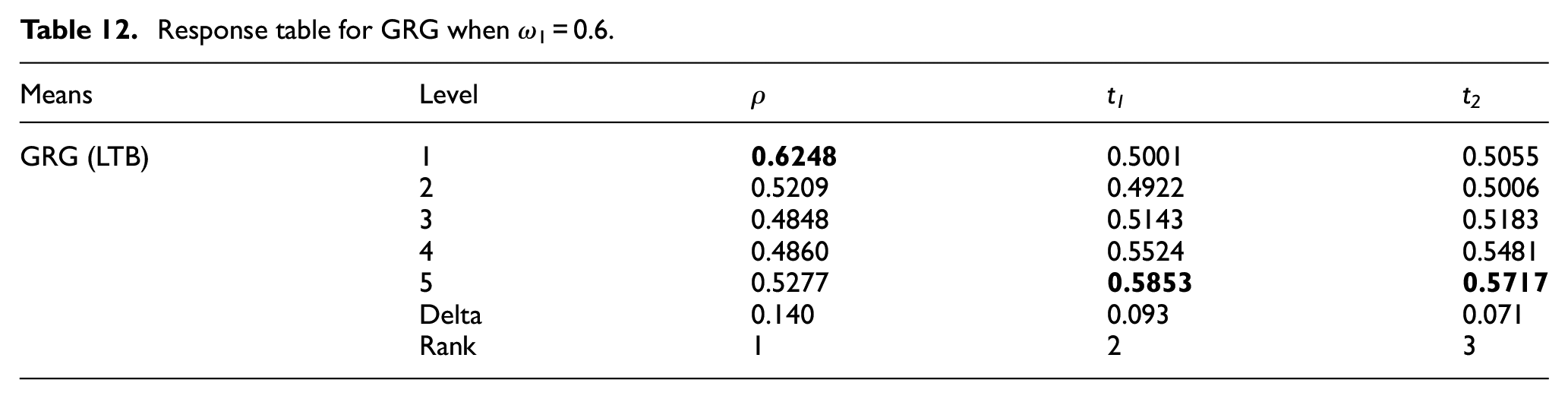

Table 12.

Response table for GRG when ω₁ = 0.6.

Means	Level	ρ	t₁	t₂
GRG (LTB)	1	0.6248	0.5001	0.5055
	2	0.5209	0.4922	0.5006
	3	0.4848	0.5143	0.5183
	4	0.4860	0.5524	0.5481
	5	0.5277	0.5853	0.5717
	Delta	0.140	0.093	0.071
	Rank	1	2	3

Figure 15.

Main effect plot of factors for GRG when ω₁ = 0.4.

Figure 16.

Interaction effect plots of factors for GRG when ω₁ = 0.4.

Verification of optimal F-DHC

Now that the optimal combination of factor levels, as well as corresponding structural parameters, for better overall crashworthiness (SEA_θ and IPCF⁰) of F-DHC is obtained, the subsequent step is to verify the effectiveness of the optimization results. Considering the optimal combination of factor levels under ω₁ = 0.5 and ω₁ = 0.6 is identical, hence two case are designed to compare the verification:

Case 1 (ω₁= 0.4): F1-I5-O1, namely ρ = 0.1 g/cm³, t₁= 2.8 mm and t₂= 1.6 mm;

Case 2 (ω₁= 0.5 or 0.6): F1-I5-O5, namely ρ = 0.1 g/cm³, t₁= 2.8 mm and t₂= 3.0 mm.

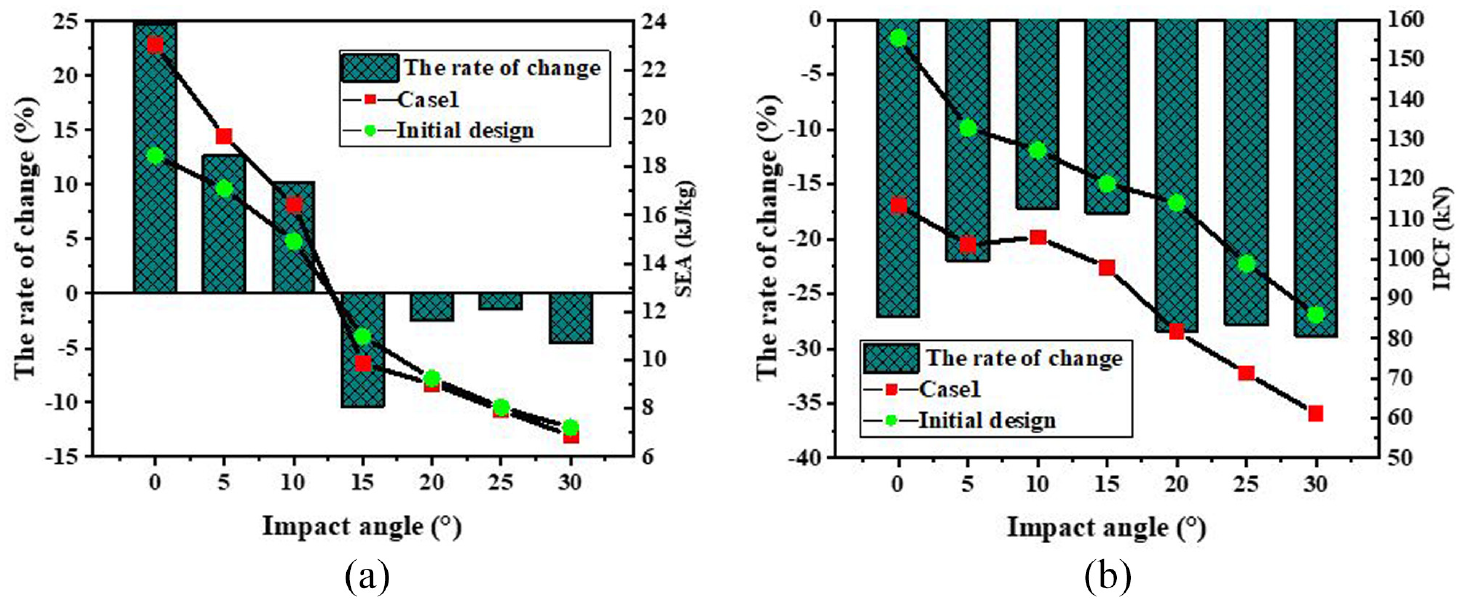

A detailed crashworthiness comparison among the optimal design in case 1, the optimal design in case 2 and the initial design (F3-I3-O3, namely ρ = 0.3 g/cm³, t₁ = 2.0 mm and t₂ = 2.2 mm) of F-DHC under multi-angle impact loading is conducted. Table 13 presents the comparison of overall crashworthiness indicators of F-DHC under multi-angle impact loading. It can be seen that: (1) In case 1, the optimal design obtains 24.34% higher of SEA_θ and 27.08% lower of IPCF⁰; (2) In case 2, the optimal design 49.59% higher of SEA_θ and 27.61% higher of IPCF⁰. Obviously, compared with that in case 1, the optimal design in case 2 gains more increase of SEA_θ (49.59%vs 24.34%) due to larger weight (ω₁ = 0.5 or 0.6 vs ω₁= 0.4), while it obtains less decrease of IPCF⁰ (−27.61% vs 27.08%) due to smaller weight (ω₂= 0.5 or 0.4 vs ω₂= 0.6), indicating the relative weight directly affects the optimization result. More specifically, for a certain response (or objective), the larger the weight, the better the optimization for it. Nevertheless, considering the application of F-DHC in actual crash box, an ideal optimal design should not pursue maximum SEA_θ at the expense of larger IPCF⁰ that represents worse load severity, therefore the optimal design in case 1 is considered a relatively better choice for optimization of F-DHC concerning overall crashworthiness.

Table 13.

Comparison of overall crashworthiness indicators of F-DHC under multi-angle impact loading.

Objective	Initial design	Optimal design (Case 1)	Change (%)	Optimal design (Case 2)	Change (%)
SEA_θ/(kJ/kg)	10.617	13.202	24.34	15.883	49.59
IPCF⁰/kN	155.491	113.381	−27.08	198.416	27.61

Besides, for better comparison, the crashworthiness indicators (SEA, IPCF) of optimal F-DHC in case 1 (abbreviated as Case 1 in the table) and case 2 (abbreviated as Case 2 in the table) under single-angle impact loading (0°, 5°,10°, 15°, 20°, 25°, and 30°) are also compared with that of the initial design, as shown in Table 14, Figures 17 and 18. It can be seen that: (1) In case 1, the SEA under small impact angles (0°, 5°,10°) are significantly increased with different percent, while that under large impact angles (15°, 20°, 25°, and 30°) are slightly decreased with different percent. Meanwhile, the IPCF under all impact angles (0°, 5°, 10°, 15°, 20°, 25°, and 30°) are dramatically decreased with different percent. (2) In case 2, the SEA under all impact angles are evidently increased with different percent. Meanwhile, except for angle of 30° with a slight decrease, the IPCF under most impact angles (0°, 5°,10°, 15°, 20°, and 25°) are dramatically increased. Like discussed earlier, the optimal F-DHC in case 2 gains large increase of SEA at the expense of elevating IPCF dramatically under almost all impact angles, which is not an ideal solution in actual application on crash box. In contrast, the optimal F-DHC in case 1 gains moderate increase of SEA under small impact angles and slight decrease of SEA under large impact angles, meanwhile reducing IPCF significantly under all impact angles, which is considered a more ideal solution compared to that of case 2, considering actual vehicle crashes are more likely to take place under small impact angles, and during which the load severity (IPCF) should be controlled of more priority to guarantee occupant safety. In addition, the corresponding final deformation modes of the optimal design in case 1 and the initial design under single-angle impact loading are also compared as shown in Table 15, in which only subtle difference are observed, indicating the overall crashworthiness of F-DHC under multi-angle impact loading have been improved under the condition of slight changes in deformation modes. To sum up, the multi-objective robust optimization of F-DHC is reasonable and effective.

Table 14.

Comparison of crashworthiness indicators of F-DHC under single-angle impact loading.

Impact angle	SEA					IPCF
Impact angle	Initial design (kJ/kg)	Case 1 (kJ/kg)	Change (%)	Case 2 (kJ/kg)	Rate (%)	Initial design (kN)	Case 1 (kN)	Change (%)	Case 2 (kN)	Rate (%)
0°	18.45	23.01	24.71	24.17	30.99	155.49	113.38	−27.08	198.42	27.61
5°	17.09	19.26	12.70	23.03	34.76	132.85	103.65	−21.99	171.33	28.96
10°	14.91	16.43	10.18	20.31	36.16	127.30	105.42	−17.19	164.90	29.53
15°	10.99	9.85	−10.33	13.39	21.88	118.90	97.89	−17.67	156.23	31.40
20°	9.25	9.03	−2.43	10.61	14.63	114.11	81.71	−28.39	149.40	30.93
25°	8.06	7.94	−1.48	10.42	29.33	98.85	71.31	−27.86	105.04	6.26
30°	7.22	6.89	−4.54	9.25	28.21	86.06	61.25	-28.82	80.26	−6.74

Figure 17.

Comparison of crashworthiness indicators for case 1: (a) Specific energy absorption (SEA) and (b) Initial peak crushing force (IPCF).

Figure 18.

Comparison of crashworthiness indicators for case 2: (a) Specific energy absorption (SEA) and (b) Initial peak crushing force (IPCF).

Table 15.

Comparison of final deformation modes under single-angle impact loading.

Impact angle	0°	5°	10°	15°	20°	25°	30°
Initial design
Optimal design

Verification of optimization for crash box

As explained at the beginning of this study, the regularly-shaped H-DHC is extracted from an irregularly-shaped automobile crash box to perform foam-filling and multi-objective robust optimization, whether the obtained optimal F-DHC improves the crashworthiness of the crash box or not needs further investigation. To this end, the FE model of an automobile body with the crash box studied under multi-angle impact loading is built, which is further simplified to a bumper-crash box integrated model under multi-angle impact loading as shown in Figure 19. Specifically, the below rigid bases of the crash box are fully constrained while the bumper is impacted by a rigid wall at an initial velocity of 15 m/s from multiple angles. On this basis, the crashworthiness of the bumper-crash box assembly with the optimal F-DHC (abbreviated as optimized design) under multi-angle impact loading are compared with that of the initial design. Note that for bumper-crash box assembly, the output force-displacement curve is complicated by the influence of the bumper, therefore IPCF is no longer a suitable indicator to evaluate load severity of the while assembly. In contrast, PCF, which indicates the global maximum of crushing force on the whole stroke, is relatively more suitable and thus adopted instead. Likewise, PCF⁰, which denotes the PCF under 0° impact angle and generally the maximum among all angles, is employed to evaluate the load severity under multi-angle impact loading.

Figure 19.

FE model of automobile body and bumper-crash box assembly under impact loading.

Consequently, the crashworthiness of the optimized design and the initial design are compared, among which Table 16 presents the overall crashworthiness indictors of bumper-crash box assembly under multi-angle impact loading, Table 17 and Figure 20 demonstrates the crashworthiness indictors under individual single-angle impact loading and Figure 21 shows the corresponding final deformation modes. According to Table 16, the optimized design gains 18.31% higher of SEA_θ and 20.76% lower of PCF⁰ simultaneously compared with the initial design. In addition, compared with the initial design, the optimized design gains different percent of increase of SEA and obtains different percent of decrease of PCF under all single-angle impact loading simultaneously, as shown in Table 17 and Figure 20. Meanwhile, no evident change is observed in final deformation modes before and after optimization, as shown in Figure 21, which is desired especially for component-level optimization. Hence, the crash box is effectively multi-objective optimized with the optimal F-DHC. To sum up, the multi-objective robust optimization of the crash box is reasonable and effective.

Table 16.

Comparison of overall crashworthiness indicators of bumper-crash box assembly under multi-angle impact loading.

Objective	Initial design	Optimized design	Change (%)
SEA_θ	8.671	10.258	18.31
PCF⁰	290.737	230.366	−20.76

Table 17.

Comparison of crashworthiness indicators under single-angle impact loading.

Impact type	Impact angle (°)	SEA			PCF
Impact type	Impact angle (°)	Initial design (kJ/kg)	Optimized design (kJ/kg)	Change (%)	Initial design (kN)	Optimized design (kN)	Change (%)
Single-angle	0	17.234	20.629	19.70	290.737	230.366	−20.76
	5	10.829	14.261	31.69	267.553	234.170	−12.48
	10	10.342	11.968	15.71	176.442	168.295	−4.62
	15	7.489	8.723	16.48	158.942	112.637	−29.13
	20	4.952	5.447	9.99	144.660	118.984	−17.75
	25	5.819	6.507	11.82	134.585	111.008	−17.52
	30	4.028	4.270	6.03	128.197	107.999	−15.76

Figure 20.

Comparison of crashworthiness indicators under single-angle impact loading: (a) Specific energy absorption (SEA) and (b) Peak crushing force (PCF).

Figure 21.

Comparison of final deformation modes under single-angle impact loading.

Conclusion

The present study first proposes a novel double-hexagonal crash box, and then puts forward a multi-objective robust optimization method combining aluminum foam-filling and Taguchi-gray relational analysis (GRA) to optimize the crash box for better overall crashworthiness under multi-angle impact loading. The main findings, limitations, and recommendations of this study are as follows:

The constructed finite element (FE) models of DHCs, including hollow (H-DHC) and foam-filled (F-DHC), are of good accuracy with simulation results basically consistent with that of experiments. Therefore, the subsequent crashworthiness comparison and multi-objective robust optimization based on FE models are reasonable and credible.

The foam-filled DHC (F-DHC) outperforms the hollow DHC (H-DHC) concerning total energy absorption, while it is inferior to the latter concerning load severity. Hence, multi-objective optimization for F-DHC is desired to seek optimal design for better overall crashworthiness under multi-angle impact loading.

According to the main effect analysis, the sorting of factor influence differs for single response alone (SEA_θ, IPCF⁰) and multi-response together (GRG), which is affected by the weights assigned for each response. In addition, obvious interaction effects are observed among foam density (ρ), inner plate thickness (t₁) and outer plate thickness (t₂) for SEA_θ, IPCF⁰, and GRG.

Compared with the initial design, the optimal F-DHC obtained through Taguchi-GRA gains 24.34% higher of SEA_θ and 27.08% lower of IPCF⁰ simultaneously, which further improves the bumper-crash box assembly with 18.31% higher of SEA_θ and 20.76% lower of PCF⁰ simultaneously, indicating the multi-objective robust optimization for the crash box is reason- able and effective, thus aluminum foam-filling combined with Taguchi-GRA could be an effective approach for multi-objective robust optimization of the novel crash box and other similar vehicle structures.

Note that the Taguchi-GRA method could only be employed to determine an optimal combination of factor levels based on pre-set finite and discrete levels of each factor, while it cannot be used to seek out the optimal combination of factor levels in the global design space where infinite and continuous levels are set to each factor. Hence, more efficient global optimization approaches are worth further exploring.

Footnotes

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China (Grant No. 52202437), Natural Science Foundation Project of Chongqing Science and Technology Commission (Grant No. cstc2020jcyjmsxmX0458, cstc2021jcyj-msxmX0555), Science and Technology Research Program of Chongqing Municipal Education Commission (Grant No. KJQN202101111), Special Project for Scientific and Technological Talents of Chongqing Banan District (Grant No.2020TJZ021), Research and Innovation Team Cultivation Plan of Chongqing University of Technology (2023TDZ013), Foundation of State Key Laboratory of Automotive Simulation and Control (No. 20210213), Open Fund Project of the State Key Laboratory of Automobile Safety and Energy Conservation (No. KFY2204), Synchronize implementation project of Chongqing University of Technology (2023TBZ007) and Graduate Student Innovation Program of Chongqing University of Technology (No. gzlcx202 22127).The authors would like to express their appreciation for the above fund supports.

ORCID iD

Feng Xiong

References

Abdullah

NAZ

Sani

MSM

Salwani

, et al. A review on crashworthiness studies of crash box structure. Thin-Walled Struct 2020; 153: 106795.

Min

Cho

. Impact characteristic according to the structure of crash box at the vehicle. Arch Metall Mater 2017; 62: 1047–1050.

Xiao

Fang

, et al. On safety design of vehicle for protection of vulnerable road users: a review. Thin-Walled Struct 2023; 182: 109990.

Wang

Zhang

Zheng

, et al. Crashworthiness design and impact tests of aluminum foam-filled crash boxes. Thin-Walled Struct 2022; 180: 109937.

Lee

Hahn

Rhee

, et al. Effect of triggering on the energy absorption capacity of axially compressed aluminum tubes. Mater Des 1999; 20: 31–40.

Albak

Eİ

. Crashworthiness design for multi-cell circumferentially corrugated thin-walled tubes with sub-sections under multiple loading conditions. Thin-Walled Struct 2021; 164: 1–23.

Liu

Chng

ZXC

Wang

, et al. Crashworthiness improvements of multi-cell thin-walled tubes through lattice structure enhancements. Int J Mech Sci 2021; 210: 1–19.

Baroutaji

Arjunan

Stanford

, et al. Deformation and energy absorption of additively manufactured functionally graded thickness thin-walled circular tubes under lateral crushing. Eng Struct 2021; 226: 1–14.

Zhang

. Dynamic crashing behavior of thin-walled conical tubular structures with nonlinearly-graded diameters. Proc IMechE, Part C: J Mechanical Engineering Science 2019; 233: 2456–2466.

10.

Zhou

Dong

Wang

, et al. Approaching ideal energy absorption through the multicellular structure with gradient material distribution. Int J Mech Sci 2022; 225: 1–19.

11.

Wang

Zhang

Pei

, et al. Energy-absorbing mechanism and crashworthiness performance of thin-walled tubes diagonally filled with rib-reinforced foam blocks under axial crushing. Compos Struct 2022; 299: 1–18.

12.

Szklarek

Kotełko

Ferdynus

. Crashworthiness performance of thin-walled hollow and foam-filled prismatic frusta – FEM parametric studies – Part 1. Thin-Walled Struct 2022; 181: 1–19.

13.

Xie

Zhang

Liu

, et al. A reinforced energy-absorbing structure formed by combining multiple aluminum foam-filled open-hole tubes. Int J Mech Sci 2022; 224: 1–15.

14.

Yang

Chen

Yao

, et al. Quasi-static and low-velocity axial crushing of polyurethane foam-filled aluminium/CFRP composite tubes: an experimental study. Compos Struct 2022; 299: 1–16.

15.

Jin

Goo

. Mechanical behaviors and fracture mechanisms of CFRP sandwich composite structures with bio-inspired thin-walled corrugated cores. Aerosp Sci Technol 2022; 126: 1–19.

16.

Zhu

Zhao

, et al. On energy-absorbing mechanisms and structural crashworthiness of laterally crushed thin-walled structures filled with aluminum foam and CFRP skeleton. Thin-Walled Struct 2021; 160: 1–20.

17.

Sun

Chen

Zhu

, et al. Lightweight hybrid materials and structures for energy absorption: a state-of-the-art review and outlook. Thin-Walled Struct 2022; 172: 108760.

18.

Wang

Kim

J-W

. Bending deformation prediction in a welded square thin-walled aluminum alloy tube structure using an artificial neural network. Int J Adv Manuf Technol 2021; 117: 2791–2805.

19.

Feng

Zhu

Wan

, et al. Tests of perforated aluminium alloy SHSs and RHSs under axial compression. Thin-Walled Struct 2018; 130: 194–212.

20.

Baroutaji

Sajjia

Olabi

A-G

. On the crashworthiness performance of thin-walled energy absorbers: recent advances and future developments. Thin-Walled Struct 2017; 118: 137–163.

21.

Hou

Long

, et al. Crashworthiness design for foam filled thin-wall structures. Mater Des 2009; 30: 2024–2032.

22.

Yin

Wen

Liu

, et al. Crashworthiness optimization design for foam-filled multi-cell thin-walled structures. Thin-Walled Struct 2014; 75: 8–17.

23.

Zheng

Sun

, et al. Crushing analysis of foam-filled single and bitubal polygonal thin-walled tubes. Int J Mech Sci 2014; 87: 226–240.

24.

Yin

Xiao

Wen

, et al. Multi-objective robust optimization of foam-filled bionic thin-walled structures. Thin-Walled Struct 2016; 109: 332–343.

25.

Yang

Fan

Meguid

. Effect of foam-filling on collapse mode transition of thin-walled circular columns under axial compression: analytical, numerical and experimental studies. Int J Mech. Sci 2019; 150: 665–676.

26.

Yang

. Multiobjective optimization for empty and foam-filled square columns under oblique impact loading. Int J Impact Eng 2013; 54: 177–191.

27.

Garai

Béres

Weltsch

. Development of tubes filled with aluminium foams for lightweight vehicle manufacturing. Mater Sci Eng A 2020; 790: 1–9.

28.

Meguid

Yang

Hou

. Crush behaviour of foam-filled thin-walled conical frusta: analytical, numerical and experimental studies. Acta Mech 2016; 227: 3391–3406.

29.

Zhang

Liu

, et al. Dynamic response and energy absorption performance of aluminum foam-filled sandwich circular tubes under internal blast loading. Int J Impact Eng 2023; 173: 104458.

30.

Wang

Zhang

Liu

, et al. Energy absorption behaviour of an aluminium foam-filled circular-triangular nested tube energy absorber under impact loading. Structures 2021; 34: 95–104.

31.

Sun

Wang

, et al. Experimental and numerical investigation into the crashworthiness of metal-foam-composite hybrid structures. Compos Struct 2019; 209: 535–547.

32.

Sun

Yang

. A comparative study on empty and foam-filled hybrid material double-hat beams under lateral impact. Thin-Walled Struct 2018; 129: 327–341.

33.

Luo

Zhang

, et al. Mechanical properties of aluminum foam filled re-entrant honeycomb with uniform and gradient designs. Int J Mech Sci 2023; 244: 108075.

34.

Santosa

Wierzbicki

. Crash behavior of box columns filled with aluminum honeycomb or foam. Comput Struct 1998; 68: 343–367.

35.

Toksoy

Güden

. Partial Al foam filling of commercial 1050H14 Al crash boxes: the effect of box column thickness and foam relative density on energy absorption. Thin-Walled Struct 2010; 48: 482–494.

36.

Tan

, et al. Crashworthiness design and multi-objective optimization of a novel auxetic hierarchical honeycomb crash box. Struct Multidiscipl Optim 2021; 64: 2009–2024.

37.

Zhou

Z-D

, et al. Design optimization of a novel NPR crash box based on multi-objective genetic algorithm. Struct Multidiscipl Optim 2016; 54: 673–684.

38.

Xie

Wang

Zong

, et al. Multi-objective crashworthiness optimization of energy-absorbing box with gradient lattice structure. Appl Math Model 2023; 121: 304–320.

39.

Aktaş

Acar

Güler

, et al. An investigation of the crashworthiness performance and optimization of tetra-chiral and reentrant crash boxes. Mech Based Des Struct Mach 2022; 1–24–DOI: 10.1080/15397734.2022.2075382

40.

Ebrahimi

Vahdatazad

Liaghat

. Crashworthiness efficiency optimisation for two-directional functionally graded foam-filled tubes under axial crushing impacts. Int. J. Crashworthiness 2017; 22: 307–321.

41.

Sun

, et al. Crashing analysis and multiobjective optimization for thin-walled structures with functionally graded thickness. Int J Impact Eng 2014; 64: 62–74.

42.

Jia

Miao

Tian

, et al. Multiobjective bike repositioning in bike-sharing systems via a modified artificial bee colony algorithm. IEEE Trans. Autom. Sci. Eng 2020; 17: 909–920.

43.

Tian

Fathollahi-Fard

Ren

, et al. Multi-objective scheduling of priority-based rescue vehicles to extinguish forest fires using a multi-objective discrete gravitational search algorithm. Inf Sci 2022; 608: 578–596.

44.

Tian

Hao

Zhou

, et al. Fuzzy Grey Choquet integral for evaluation of multicriteria decision making problems with interactive and qualitative indices. IEEE Trans Syst Man Cybern Syst 2021; 51: 1855–1868.

45.

Tian

Zhang

, et al. Multi-objective evolutionary algorithm with machine learning and local search for an energy-efficient disassembly line balancing roblem in emanufacturing. J Manuf Sci Eng 2023; 145: 1–12.

46.

Tian

Jiang

Liu

, et al. Dynamic energy-efficient scheduling of multi-variety and small batch flexible job-shop: a case study for the aerospace industry. Comput Ind Eng 2023; 178: 109111.

47.

Wang

Tian

Zhang

, et al. A hybrid genetic algorithm with multiple decoding methods for energy-aware remanufacturing system scheduling problem. Robot Comput Integr Manuf 2023; 81: 102509.

48.

Zhang

Tian

, et al. Disassembly sequence planning for green remanufacturing using an improved whale optimisation algorithm. Processes 2022; 10: 1998.

49.

Meriç

Gedikli

. Multi-objective optimization of energy absorbing behavior of foam-filled hybrid composite tubes. Compos Struct 2022; 279: 114771.

50.

Hou

Yang

, et al. Crashworthiness optimization of crash box with 3D-printed lattice structures. Int J Mech Sci 2023; 247: 1–12.

51.

Wang

Dai

Zhao

, et al. Multi-objective optimization of hexahedral pyramid crash box using MOEA/D-DAE algorithm. Appl Soft Comput 2022; 118: 108481.

52.

Sun

, et al. Crashworthiness analysis and optimization of sinusoidal corrugation tube. Thin-Walled Struct 2016; 105: 121–134.

53.

Yin

Xiao

Wen

, et al. Multiobjective optimization for foam-filled multi-cell thin-walled structures under lateral impact. Thin-Walled Struct 2015; 94: 1–12.

54.

Ding

Tong

Liu

, et al. Dynamic axial crush analysis and design optimization of a square multi-cell thin-walled tube with lateral variable thickness. Int J Mech Sci 2018; 140: 13–26.

55.

Ghasemi

Shakeri

Vanini

SAS

. A multi-objective optimization of energy absorption properties of thin-walled circular tube with combined bar extrusion under quasi-static axial loading: experiments and numerical simulation. Int J Mech Sci 2020; 180. DOI: 10.1016/j.ijmecsci.2020.105691

56.

Sarkabiri

Jahan

Rezvani

. Crashworthiness multi-objective optimization of the thin-walled grooved conical tubes filled with polyurethane foam. J Braz Soc Mech Sci Eng 2017; 39: 2721–2734.

57.

Yin

Wen

Hou

, et al. Multiobjective crashworthiness optimization of functionally lateral graded foam-filled tubes. Mater Des 2013; 44: 414–428.

58.

Deshpande

Fleck

. Isotropic constitutive models for metallic foams. J Mech Phys Solids 2000; 47(6–7): 1253–1283.

59.

Xiong

Wang

Yin

. Optimization analysis of novel foam-filled elliptical columns under multiple oblique impact loading. Mater Des 2018; 156: 198–214.

60.

Gao

Wang

, et al. Crushing analysis and multiobjective crashworthiness optimization of foam-filled ellipse tubes under oblique impact loading. Thin-Walled Struct 2016; 100: 105–112.

61.

Yin

Wen

Fang

, et al. Multiobjective crashworthiness optimization design of functionally graded foam-filled tapered tube based on dynamic ensemble metamodel. Mater Des 2014; 55: 747–757.

62.

Reyes

Hopperstad

Berstad

, et al. Constitutive modeling of aluminum foam including fracture and statistical variation of density. Eur J Mech ASolids 2003; 22: 815–835.

63.

Pang

Kang

Yan

, et al. Crashworthiness design of functionally graded structures with variable diameters. Int J Crashworthiness 2017; 22: 148–162.

64.

Rakheja

Shangguan

W-B

. Study on crushing behaviors of foam-filled thin-walled square tubes with different types and number of initiators under multiple angle loads. Thin-Walled Struct 2019; 145: 1–14.

65.

Zhang

. Experimental and numerical investigation on crush resistance of polygonal columns and angle elements. Thin-Walled Struct 2012; 57: 25–36.

66.

Zhang

. Energy absorption of multi-cell stub columns under axial compression. Thin-Walled Struct 2013; 68: 156–163.

67.

Nelabhotla

Jayaraman

Asghar

, et al. The optimization of chemical mechanical planarization process-parameters of c-plane gallium-nitride using Taguchi method and grey relational analysis. Mater Des 2016; 104: 392–403.

68.

Xiong

Wang

Zhang

, et al. Lightweight optimization of the side structure of automobile body using combined grey relational and principal component analysis. Struct Multidiscipl Optim 2018; 57: 441–461.

69.

Xiong

Wang

, et al. Lightweight optimization of the front end structure of an automobile body using entropy-based grey relational analysis. Proc IMechE, Part D: J Automobile Engineering 2019; 233: 917–934.

Multi-objective robust optimization of foam-filled double-hexagonal crash box using Taguchi-grey relational analysis

Abstract

Keywords

Introduction

FE modeling and verification

Geometrical configuration

Material Behavior

Finite element (FE) modeling

Verification of FE models

Crashworthiness analysis

Crashworthiness indicators

Crashworthiness comparison

Multi-objective robust optimization of F-DHC

Taguchi-GRA methodology

Step 1: Taguchi experimental design

Step 2: Single-to-noise ratio (SNR)

Step 3: Gray relational analysis (GRA)

Gray relational generation

Gray relational coefficient (GRC)

Gray relational grade (GRG)

Step 4: Main effect and interaction effect analyses

Results and discussion

Verification of optimal F-DHC

Verification of optimization for crash box

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
