Abstract

Accurate and efficient road adhesion coefficient estimation is the premise for the proper functioning of vehicle active safety control system. With the increased application of distributed drive vehicles and on-board sensors, a multi-module self-organizing feedforward neural network (LM-MMSOFNN) based on improved Levenberg-Marquardt (LM) learning algorithm is proposed for online road adhesion coefficient estimation. In this method, the vehicle dynamics model and the Dugoff tire model were well established, and the input and output variables of the neural network model were obtained by Principal Component Analysis (PCA) method. To improve the estimation accuracy, Extended Kalman Filter (EKF) and Moving Average (MA) were used to denoise the measured signal. On this basis, a road adhesion coefficient estimation model based on multi-module self-organizing neural network was established. Both sides of road adhesion coefficients are calculated by multi-module self-organizing neural network simultaneously. Through the increase and decrease of self-organizing neurons and the improved LM learning algorithm, the computational complexity and system hardware storage are reduced, and the algorithm exhibits a good adaptability to different roads. Simulation and vehicle experiments show that the proposed method can fully extract multi-sensor information and adapt to the different road characteristics changes under driving condition. As compared with Kmeans method, it has higher estimation accuracy and stronger adaptability to varying speed.

Keywords

Four-wheel independent drive electric vehicle road adhesion coefficient self-organizing neural network online estimation

Introduction

With the development of internet and artificial intelligence, a large number of driving assistance systems have been applied to autonomous vehicle. However, the vehicular handling stability depends on the real-time state parameters.^1,2 Road adhesion coefficient is one of the key parameters affecting vehicle active safety control.³ Thus, there is a great potential of road adhesion coefficient estimation in academia and industry.

The main factors affecting road adhesion coefficient are tire, road surface and driving conditions. There are two main forms to identify road adhesion coefficient, one is measured by optical sensors,⁴ but due to high cost and strict application environment, it has not been widely used in vehicle development. The other way is to install a large number of sensors inside the tire or on the bodywork to estimate the road adhesion coefficient by vehicle response under different conditions.⁵ Commonly used methods include design observer^6,7 and Kalman filter.^8,9 A 6-DOF tire-road friction coefficient estimation method based on the longitudinal, lateral and vertical accelerations of each tire was proposed, then the recursive least square method is applied to estimate the tire-road friction coefficient.¹⁰ Cheng et al.¹¹ designed a monitoring system which can simultaneously observe tire-road friction coefficient and tire force by mode switching observer under different working conditions, such as normal running, braking and steering. In addition, the vehicle kinematics and dynamics model are combined to estimate the road adhesion coefficient.^12,13 Based on this method, a nonlinear observer was designed to estimate the road adhesion coefficient by states of wheel torque, lateral acceleration and vehicle lateral displacement.¹⁴

The rapid development of autonomous driving has benefited from a large number of sensors. Fusion of multiple sensors to obtain more vehicle information becomes the focus of relevant research.^15,16 According to the types of available sensors, Fayyad et al.¹⁷ proposed a fusion algorithm based on engine torque, braking torque, accelerometer and GPS measurement data which can estimate the adhesion coefficient of each wheel. The vision sensor, laser sensor and global positioning system are combined with Kalman filtering algorithm to provide environmental information for intelligent vehicles.^18,19 Inevitably, there are measurement delay and environmental impacts in visual system, such as rainy and foggy days.^20,21

Using a data-driven method to identify the road adhesion coefficient can avoid the influence of environmental factors, thus multi-sensor based neural network is applied in the estimation of road adhesion coefficient.^22,23 By combining wheel angular velocity and yaw velocity sensors, tire lateral force and longitudinal force was estimated first, then multi-layer perceptron neural network was used to estimate road friction coefficient.⁹ When the friction characteristics are approximately unknown, an accurate estimation method of tire-road friction can be designed by using multi-sensor information fusion.²⁴ Bonfitto et al.²⁵ proposed three recursive artificial neural networks to estimate vehicular sideslip angles under different road conditions, meanwhile, identify dry, wet and icy road types. Instead of using the standard mathematical tire model, the road friction coefficient under lateral force excitation is estimated by using the time-delay neural network (TDNN). Ribeiro et al.²⁶ used TDNN to estimate the road friction coefficient under detecting lateral force excitation. In addition, this method can independently estimate the road friction at each wheel. Pu et al.²⁷ uses the Long Short Memory (LSTM) neural network to develop a data driven road friction prediction model, and uses the time characteristics of road friction to improve the prediction performance. By using video data to estimate friction coefficient, the road surface and condition classification based on deep neural network (DNN) is used to improve the vehicle dynamics control of anti-lock braking system (ABS).²¹

The estimation deviation makes a great impact on vehicle stability control under complexity road conditions, especially butt road or split road. To solve this problem, this paper proposes an online road adhesion coefficient estimation method based on multi-module self-organizing neural network (LM-MMSOFNN), which can observe the road adhesion coefficient of both sides at the same time, so as to improve the accuracy and stability of vehicle control. The main contributions of this paper are as follows:

Combined with vehicle dynamics model and multi-sensors, an independent estimation method for road adhesion coefficient of left and right wheels was proposed based on LM-MMSOFNN.

The neural network model of road adhesion coefficient is established directly without estimating tire force, which simplifies the model and calculation process.

Self-organizing neural network can adaptively adjust the optimal network structure and improve the adaptability of different working conditions. The computational complexity and storage space of the network are reduced by using the improved LM algorithm, EKF, MA and the increase or decrease of self-organizing neurons.

The rest of this paper is organized as follows. Section 2 presents the vehicle dynamics modeling. Section 3 details the estimation of road adhesion coefficient based on LM-MMSOFNN algorithm. Section 4 describes simulation and real car experiment. Finally, the conclusions are concluded in Section 5.

Vehicle and tire models

Vehicle dynamics model and tire model

At present, the parameter estimation of road adhesion coefficient by using neural network mostly uses longitudinal and lateral tire forces first, and then estimates the road adhesion coefficient. In this paper, the dimensionality of vehicle dynamics model is reduced through principal component analysis of relevant parameters, and the neural network model of road adhesion coefficient is obtained directly. Thus, the original model of calculating road adhesion coefficient by estimating tire force is simplified. Four wheels were not simplified by the concentrated axis of mathematical tire model, but the road adhesion coefficient models of left front wheel and right front wheel were established respectively. Therefore, the calculated road adhesion coefficient is more accurate and more adaptable to complex road working conditions.

The four-wheel independent drive (4WID) vehicle dynamics model and Dugoff tire model are illustrated in Figure 1. Differential equations of the vehicle body motion are then established to estimate the road adhesion coefficient and tire force.

Figure 1.

The 4WID vehicle dynamics model and tire model: (a) vehicle dynamics model and (b) tire model.

The differential equations of vehicle model are:

(1) Longitudinal movement

(F_{xfl} + F_{xfr}) \cos δ - (F_{yfl} + F_{yfr}) \sin δ + F_{xrl} + F_{xrr} = m a_{x}

(1)

(2) Lateral movement

(F_{xfl} + F_{xfr}) \sin δ + (F_{yfl} + F_{yfr}) \cos δ + F_{yrl} + F_{yrr} = m a_{y}

(2)

(3) Yaw motion

\begin{matrix} ((F_{xfr} - F_{xfl}) \cos δ + (F_{yfl} - F_{yfr}) \sin δ) \frac{a}{2} + ((F_{xfl} + F_{xfr}) \sin δ \\ + (F_{yfl} + F_{yfr}) \cos δ) a - (F_{xrl} - F_{xrr}) \frac{b}{2} - (F_{yrl} + F_{yrr}) b = I_{z} \overset{\cdot}{γ} \end{matrix}

(3)

where, $a_{x}$ , $a_{y}$ are respectively represent the longitudinal acceleration and lateral acceleration; $δ$ denotes the front wheel angle; $u$ , $V_{y}$ are the longitudinal and lateral speeds of the vehicle, respectively; $m$ is the vehicle quality; $fl$ , $fr$ , $rl$ , $rr$ are the left front wheel, right front wheel, left rear wheel, and right rear wheel, respectively; $F_{x}$ , $F_{y}$ are respectively represent the longitudinal and lateral forces of the tire; $a$ , $b$ are the distance from the center of mass to front and rear axles, respectively; $I_{z}$ denotes the moment of inertia around the axis.

Under the driving conditions, the longitudinal slip rate of the wheel is:

σ_{ij} = 1 - \frac{v_{ij}}{w_{ij} R} (ij = fl, fr, rf, rr)

(4)

The longitudinal and lateral forces of the tire are calculated using the nonlinear Dugoff model:

μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})

(5)

μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})

(6)

where, $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ is the wheel slip ratio; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ , $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ are respectively represent the longitudinal stiffness and lateral stiffness; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ is related to the adhesion coefficient $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ ; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ denotes the road adhesion coefficient; $α$ is the wheel slip angle.

The function $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ is also defined as:

μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})

(7)

μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})

(8)

The vertical loads of each tire are:

μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})

(9)

where, $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ , $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ are respectively represent the wheelbase of front and rear wheels; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ is the distance between the front and rear axles; F_zij denotes the vertical force of the tire; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ is the height of center mass; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ represents tire slip angle; $μ = f (w_{fl}, w_{fr}, w_{rl}, w_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr})$ denotes the longitudinal speed of wheel center; $w_{ij}$ is the angular velocity of the wheel.

LM-MMSOFNN algorithm

Multi-Module Self-O Feedforward Neural Networks (MMSOFNN)

Feedforward neural network^28,29 is a one-way multi-layer neural network. The input information starts from input layer, and goes to hidden layer, which is also the adaptive rule layer, and then ends at output layer. By adaptively changing network structural parameters, the self-organizing neural network can find the inherent laws in samples automatically, which can not only preserve the topological mapping between samples, but also reduce the dimension of input feature space and improve the computational efficiency.^30,31 Because of its excellent performance in prediction, the self-organizing neural network has a strong advantage in estimation of road adhesion coefficient compared with other neural networks. The multi-module neural network^32–34 is composed of several independent sub-network modules, which is suitable for the identification of road adhesion coefficient for multiple wheels. The neural network prediction model of road adhesion coefficient was established for each sub-module, and neural network training can be carried out separately to find the optimal network hidden layer structure and establish the best neural network prediction model.

Improved LM learning algorithm

A self-organizing neural network^35,36 include center $c_{ij}$ , and width $σ_{ij}$ in the second layer, the weight matrix between second and third layer is $W^{L 1}$ , $W^{L 2}$ is the weight matrix between third and fourth layer. In the learning of layer 2, for online modeling of FNN, the expected target value is: $d = [d_{1}, d_{2}, \dots, d_{k}, \dots, d_{n}]^{T}$ , with the corresponding output target value $y = [y_{1}, y_{2}, \dots, y_{k}, \dots, y_{n}]^{T}$ . A single sample sent to the network for training, the error $e_{n}$ is

e_{n} = d_{k} - y_{k}

(10)

where, $n$ indicates the sample number and Jacobian matrix $j_{p}$ is expressed as:

j_{p} = [\frac{\partial e_{p}}{\partial w_{1}}, \dots, \frac{\partial e_{p}}{\partial w_{m}}, \frac{\partial e_{p}}{\partial c_{11}}, \dots, \frac{\partial e_{p}}{\partial c_{nm}}, \frac{\partial e_{p}}{\partial_{σ 11}}, \dots, \frac{\partial e_{p}}{\partial_{σ_{nm}}}]

(11)

The gradient sub-vector $η_{p}$ and sub-matrix $q_{p}$ are obtained according to equations (10) and (11).

η_{p} = j_{p} e_{p}

(12)

q_{p} = j_{p}^{T} j_{p}

(13)

Avoiding multiplication of Jacobian matrix in the algorithm, the improved LM algorithm^37,38 only generates row vectors, thus reducing storage space and improving calculation speed. For all training samples in the current sliding window, the gradient vector $g$ and Hessian matrix $Q$ are calculated by cyclic accumulatio.

g = \sum_{p = 1}^{P} η_{p}

(14)

Q = \sum_{p = 1}^{P} q_{p}

(15)

The parameter update of the improved LM algorithm is based on

Φ (t + 1) = Φ (t) + (Q (t) + μ I)^{- 1} g (t)

(16)

where, $Φ = [w_{1}, \dots, w_{m}, c_{11}, \dots, c_{nm}, σ_{11}, \dots, σ_{nm}]$ . Finally, substituting (14) and (15) into (16) realizes online learning of the parameters.

SOFNN growth

The SOFNN is determined by the training samples, while the number of hidden layer neurons has a great impact on the network structure. Too many neurons might increase the complexity of the network, whereas fewer neurons might reduce the nonlinear fitting ability of the network.^39,40 Therefore, an appropriate network structure could not only ensure the accuracy of tire force estimation, but also reduce the computational complexity. $h_{j}^{out}$ is the output neuron in regular layer, and T denotes the total number of learning samples. For a large number of samples or online learning, T is obtained by using a sliding window.

The neuron growth index with NGI for SOFNN is:

NG I_{j} = \frac{1}{Tn} \sum_{t = 1}^{T} \sum_{k = 1}^{n} \frac{w_{jk}^{L 2} (t) h_{j}^{out} (t)}{y_{k} (t)}

(17)

and $G_{th}$ represents the threshold for the adaptive growth of SOFNN neurons:

G_{th} = \frac{e^{l / max l}}{α l} \sum_{j = 1}^{l} NG I_{j}

(18)

where $l$ is the number of hidden neurons before growth, $max l$ is the upper bound of hidden layer neurons, and $α$ denotes the adaptive growth coefficient, with a value range of (0,1). During the growth process, a new neuron would added, if the j_th hidden neuron NGI_j> G_th,

SOFNN pruning

The neural pruning index NPI is defined based on the output variance and output mean of the nodes in the rule layer:

NP I_{j} = \sqrt{(\frac{1}{T} \sum_{t = 1}^{T} {(h_{j}^{out} (t) - \bar{h_{j}})}^{2})} (\frac{1}{T} \sum_{n = 1}^{T} h_{j}^{out} (t))

(19)

Combining NPI we could also determine the neuron pruning threshold, $P_{th}$ as

P_{th} = e^{l / max l} \frac{β}{l} (\sum_{j = 1}^{l} NP I_{j})

(20)

where, $β$ is the adaptive pruning coefficient, with a value range of (0,1).

In the process of neuronal modification, if the j_th hidden neuron NPI_j< $P_{th}$ , then the j_th neuron contributes very little to the network, therefore this neuron is pruned off.

Road adhesion coefficient estimation

This section makes online estimation of road adhesion coefficient based on LM-MMSOFNN algorithm, which mainly includes three parts:

Firstly, Principal Component Analysis (PCA) method was used to reduce the dimensionality of the vehicle dynamics model and selected the relevant characteristic parameters. Then, feature extraction of information measured by on-board sensors, denoising of measurement signals through Extended Kalman filter (EKF) and Moving Average (MA), and extracting main feature information.

LM-MMSOFNN is constructed to establish a neural network prediction model which can simultaneously estimate different road adhesion coefficients of both sides wheels. Figure 2 is the structure diagram of neural network prediction model on-line estimation proposed in this paper.

Figure 2.

Structure diagram of road adhesion coefficient online estimation based on neural network prediction model.

Simulation and real vehicle tests

Simulation results

In order to verify the effectiveness of the proposed road adhesion coefficient online estimation based on LM-MMSOFNN, CarSim was performed to generate the data set of vehicle dynamics simulation. CarSim is a software specially designed for vehicle dynamics simulation. It has been adopted by many international automobile manufacturers and has become the standard simulation software in the automobile industry. With the real parameters of experimental vehicle were imported into the CarSim software for calculation, then the data were derived to verify the proposed neural network method. The relevant parameters of the real vehicle are presented in Table 1.

Table 1.

Main parameters of 4WID vehicle.

Variable parameters	Notation	Description	Value
Mass of the vehicle	m	1412	kg
Moment of inertia around the Z-axis	I_z	1536.7	kg·m²
Distance from the center of mass to the axle	a	1015	mm
Distance from the center of mass to the middle axle	b	1895	mm
Distance from the center of mass to ground	c	540	mm
Wheelbase	W	1675	mm
Wheel effective radius	r	353	mm
Lateral stiffness of the front wheel	c_αf	34.4	kN·rad^–1
Lateral stiffness of the rear wheel	c_αr	30.2	kN·rad^–1

In the vehicle dynamics model and tire model, many state parameters related to the road adhesion coefficient, and there is a strong nonlinear relationship between the parameters. According to vehicle dynamics and tire models, the parameters related to the road adhesion coefficient are

\begin{matrix} μ = \\ f (ω_{fl}, ω_{fr}, ω_{rl}, ω_{rr}, σ_{fl}, σ_{fr}, σ_{rl}, σ_{rr}, a_{x}, a_{y}, α_{fl}, α_{fr}, α_{rl}, α_{rr}, δ_{fl}, δ_{fr}) \end{matrix}

(21)

The neural network has a strong superiority in dealing with nonlinear problems, it is very appropriate to establish a road adhesion coefficient estimation model. Therefore, the multivariate statistical method of PCA is used to reduce the dimension of vehicle dynamics model and extract the main characteristic parameters. The results of PCA analysis are shown in Figure 3.

Figure 3.

The spearman principal component analysis related to μ.

Combined with the vehicle dynamics model, the Spearman correlation between input and output was analyzed, and finally the input and output signals of the neural network were determined. The input-output relationship of the online prediction model of road adhesion coefficient based on neural network is:

μ = f (ω_{fl}, ω_{fr}, σ_{fl}, σ_{fr}, a_{x}, a_{y}, δ_{fl}, δ_{fr})

(22)

Performance evaluation indicators of the model, select RMSE, MAE, and NRMS (normalized root mean square error)⁴¹:

NRMS = \frac{\sqrt{\sum_{i = 1}^{N} {(F_{ij} - {\hat{F}}_{ij})}^{2} / N}}{max (| F_{ij} |)}

(23)

RMSE = \sqrt{\frac{1}{N} \sum_{i = 1}^{N} {(F_{ij} - {\hat{F}}_{ij})}^{2}}

(24)

MAE = \frac{1}{N} \sum_{i = 1}^{N} | F_{ij} - {\hat{F}}_{ij} |

(25)

In the simulation and real vehicle experiment, the same input and output signals are used to establish the neural network model. The input signals are measured by on-board sensor inertial measurement unit (IMU), the wheel speed sensor (WSS) and wheel angle sensor (WAS) which were pre-installed into the hub motor. The list of signals in the LM-MMSOFNN algorithm are given in Table 2.

Table 2.

The list of signals in LM-MMSOFNN algorithm.

#	Notation	Description	Value
1	a_x	Longitudinal acceleration	m/s²
2	a_y	Lateral acceleration	m/s²
3	δ_fl	The wheel angle of left front wheel	deg
4	δ_fr	The wheel angle of right front wheel	deg
5	ω_fl	The angular velocity of left front wheel	rad/s
6	ω_fr	The angular velocity of right front wheel	rad/s
7	σ_fl	The longitudinal slip rate of left front wheel
8	σ_fr	The longitudinal slip rate of right front wheel

Table 3.

Estimation error of adhesion coefficient of butt road at 90 km/h.

90 km/h	RMSE	MAE
From μ = 0.85 to μ = 0.35	0.0167	0.0096
From μ = 0.35 to μ = 0.85	0.0178	0.0110

Table 4.

Estimation error of adhesion coefficient of butt road at 60 km/h.

60 km/h	RMSE	MAE
From μ = 0.6 to μ = 0.2	0.0525	0.0328
From μ = 0.2 to μ = 0.6	0.0297	0.0164

Table 5.

Estimation error of left side adhesion coefficient of split road at 60 km/h.

	LM-MMSOFNN	Kmeans
NRMS (%)	0.0047	0.0344
RMSE(N)	0.0038	0.0287
MAE(N)	0.0029	0.0272
MAE(N)⁴²	0.062(STUKF)	0.209(UKF)

Butt road

Working condition 1

Relevant parameters of the experimental vehicle and experimental conditions were set in the CarSim, including speed, road adhesion coefficient, driving track, driving start-stop time, etc. The vehicle drives under double-lane change road condition at the speed of 90 km/h and then the condition changes into serpentine road after 20 s. Secondary feature extraction was carried out to remove unavailable data, then 3200 sets of data were finally obtained for neural network modeling which contains the values of all input and output signals. The secondary feature extraction of data processing can reduce the learning time of neural network and avoid the overfitting problem. All data sets were divided into two parts, 70% for training and 30% for testing.

The vehicle drives 20 s on the dry asphalt road (road adhesion coefficient 0.85) and drives into ice and snow road (road adhesion coefficient 0.35) for 30 s. The estimated results of road adhesion coefficient and errors are shown in Figure 4(a) and (b). The vehicle drives on the ice and snow road for 30 s, then drives on dry asphalt road for 20 s. The estimated results are illustrated in Figure 4(c) and (d).

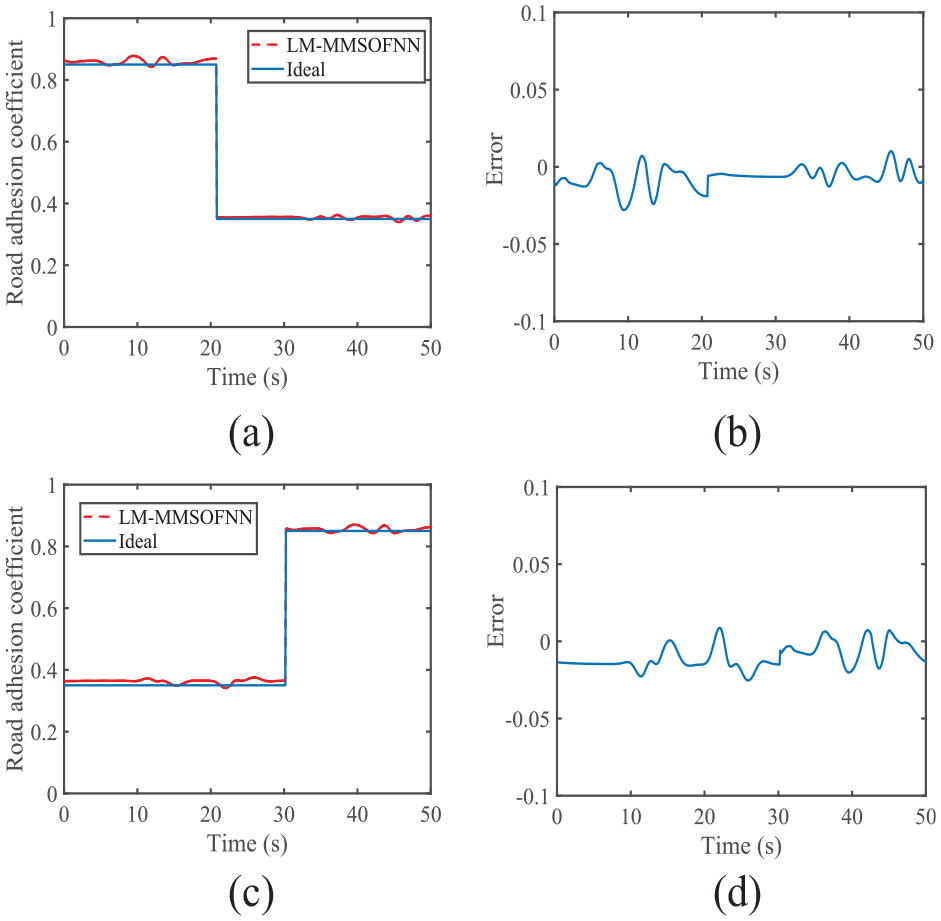

Figure 4.

Adhesion coefficient estimation of butt road at 90 km/h: (a) the vehicle from dry asphalt road into ice road, (b) estimation error, (c) the vehicle from dry ice road into asphalt road, and (d) estimation error.

It can be seen that the estimation of road adhesion coefficient based on LM-MMSOFNN algorithm has high accuracy for the butt road at a speed of 90 km/h. With the minimum RMSE value is 0.0168 and the minimum MAE value 0.0096, which can meet the needs of vehicle control.

Working condition 2

At the speed of 60 km/h, the vehicle drives from the gravel road (road adhesion coefficient 0.6) to the ice road (road adhesion coefficient 0.2) after 30 s. The results and errors of road adhesion coefficient estimation are given in Figure 5(a).

Figure 5.

Adhesion coefficient estimation of butt road at 60 km/h: (a) the vehicle from ice road to gravel road and (b) the vehicle from gravel road to ice road.

The vehicle drives 30 s from ice road to gravel road with the results and errors of road adhesion coefficient estimation are shown in Figure 5(b).

At the speed of 60 km/h, the estimation of road adhesion coefficient based on LM-MMSOFNN algorithm the minimum RMSE value is 0.0297 and the minimum MAE value is 0.0164 which can completely meet the needs of vehicle control. The estimated results of two conditions of the butt road are presented that the neural network can be better trained when the adhesion coefficients differ greatly, and the estimated results are closer to the actual value.

Split road

Working condition 1

Adopt a split road with a speed of 60 km/h, the left side adhesion coefficient is 0.8 (dry asphalt road) and the right side adhesion coefficient is 0.2 (ice road). Driving in serpentine conditions for 20 s, 4000 data sets were generated, which were divided into two parts, 70% of were used for training and 30% for testing. The results of the adhesion coefficients of the left and right sides of the road are introduced in Figures 6 and 7.

Figure 6.

Left side adhesion coefficient estimation of split road at 60 km/h: (a) estimation of left side road adhesion coefficient and (b) estimation error.

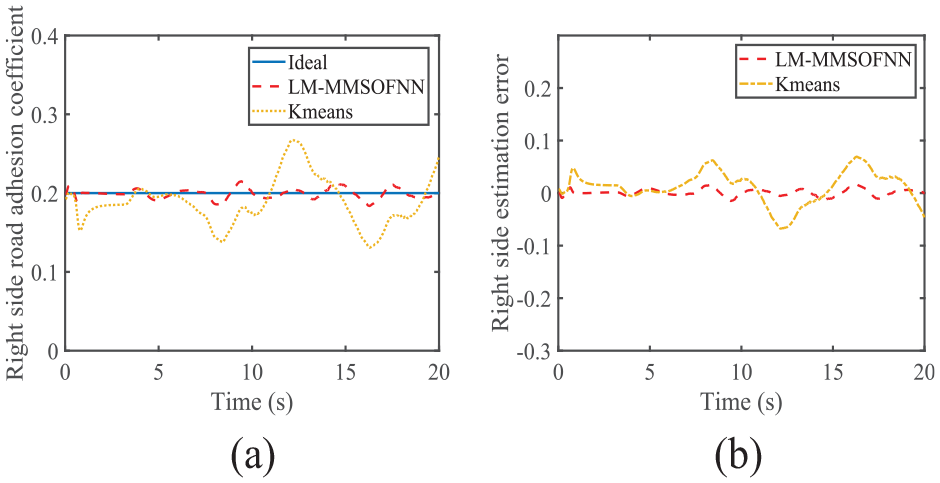

Figure 7.

Right side adhesion coefficient estimation of split road at 60 km/h: (a) estimation of right side road adhesion coefficient and (b) estimation error.

On the open road with a speed of 60 km/h, LM-MMSOFNN can be used to estimate the road adhesion coefficient with high estimation accuracy and the maximum estimation error is 0.08, which can meet the requirements. In Figures 6 and 7, the estimated accuracy of the left side is higher than the right side, which is caused by the steering wheel angle selected was the left front wheel when establishing the prediction model of neural network road adhesion coefficient estimation.

Working condition 2

Figure 8(a) demonstrates the sensor measurement signals of simulation on variable speed condition. In Figure 8(a) the velocity varies with time working condition that the maximum longitudinal speed is 95 km/h and the minimum longitudinal speed is 0.7 km/h. Under the condition of split road, the adhesion coefficient of the left side is 0.8, the adhesion coefficient of right side is 0.2, driving for 20 s. Figures 9 and 10 illustrate the estimated results of the road adhesion coefficient of the left and right sides on the split road. In Tables 6 and 7, the estimated errors of neural network modeling are reported.

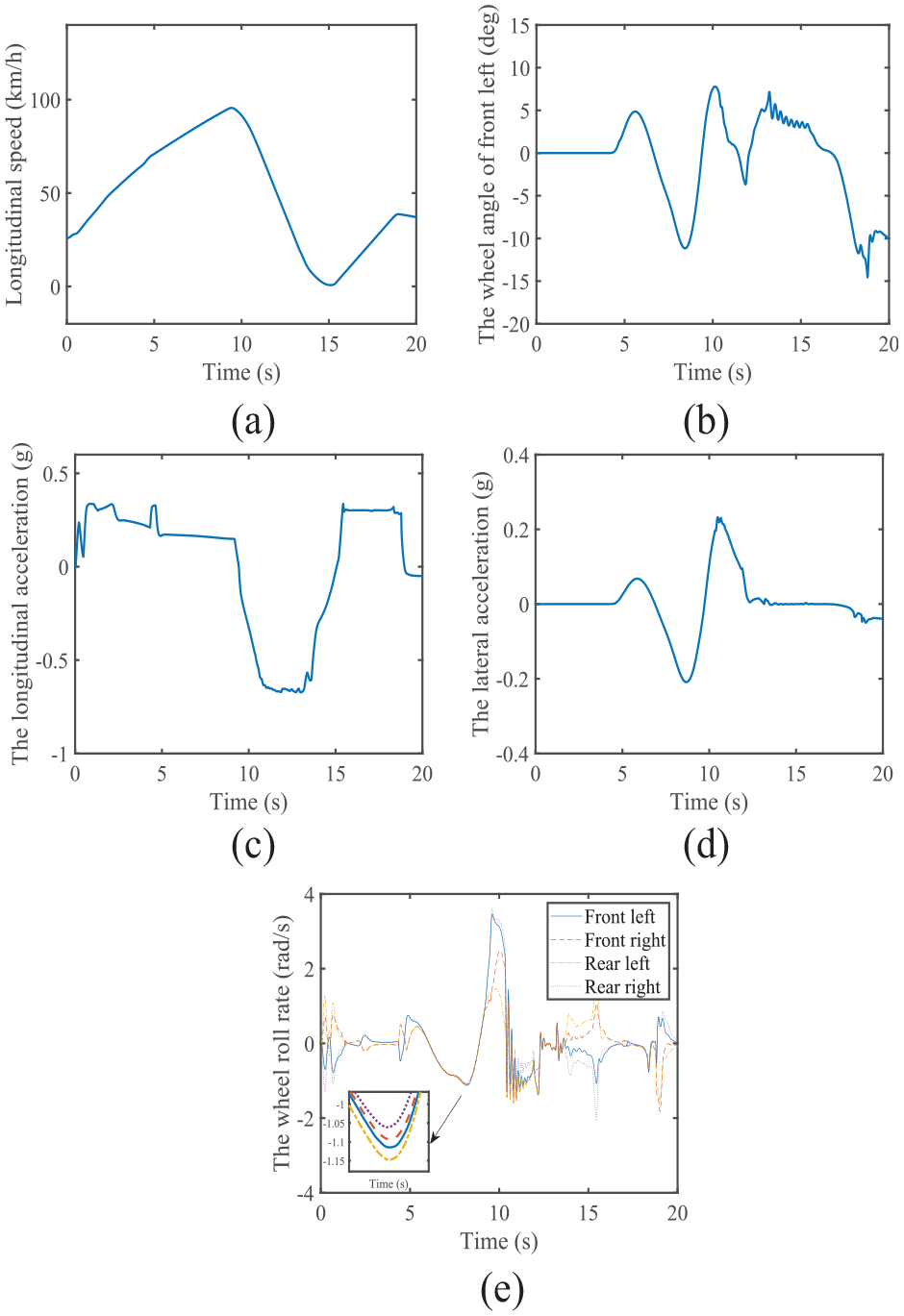

Figure 8.

Variable speed simulation experiment sensor measurement signals: (a) time variation of longitudinal speed, (b) the wheel angle of left front wheel, (c) the longitudinal acceleration, (d) the lateral acceleration, and (e) the wheel roll rate.

Figure 9.

Left side adhesion coefficient estimation with time variation speed: (a) estimation of left side road adhesion coefficient and (b) estimation error.

Figure 10.

Right side adhesion coefficient estimation with time variation speed: (a) estimation of right side road adhesion coefficient and (b) estimation error.

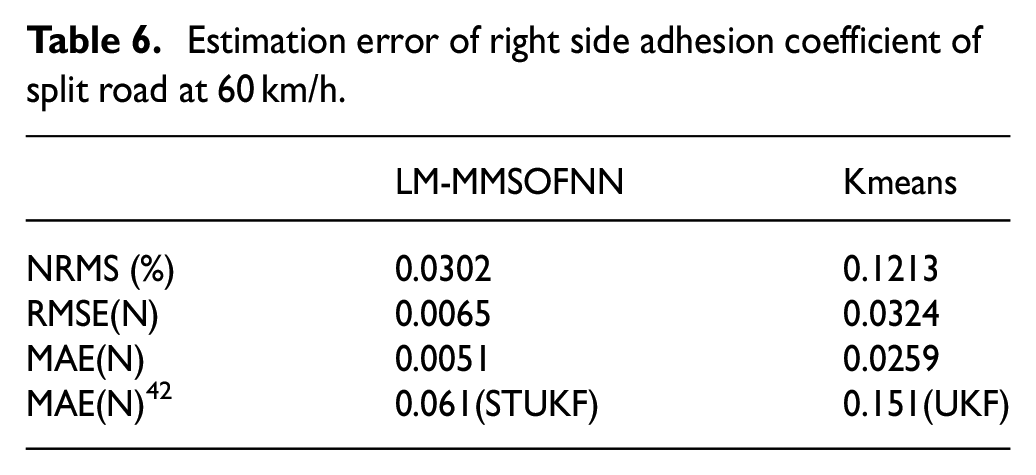

Table 6.

Estimation error of right side adhesion coefficient of split road at 60 km/h.

	LM-MMSOFNN	Kmeans
NRMS (%)	0.0302	0.1213
RMSE(N)	0.0065	0.0324
MAE(N)	0.0051	0.0259
MAE(N)⁴²	0.061(STUKF)	0.151(UKF)

Table 7.

Estimation error of left side adhesion coefficient with time variation speed.

	LM-MMSOFNN	Kmeans
NRMS (%)	0.0089	0.0707
RMSE(N)	0.0074	0.0564
MAE(N)	0.0061	0.0439

Table 8.

Estimation error of right side adhesion coefficient with time variation speed.

	LM-MMSOFNN	Kmeans
NRMS (%)	0.0364	0.1128
RMSE(N)	0.0078	0.0348
MAE(N)	0.0057	0.0314

Table 9.

Estimation error of dry asphalt road adhesion coefficient.

Left	LM-MMSOFNN	Kmeans	Right	LM-MMSOFNN	Kmeans
NRMS (%)	0.3809	0.0663	NRMS (%)	0.0089	0.0707
RMSE(N)	0.0003	0.0193	RMSE(N)	0.0074	0.0564
MAE(N)	0.0097	0.0498	MAE(N)	0.0134	0.1294

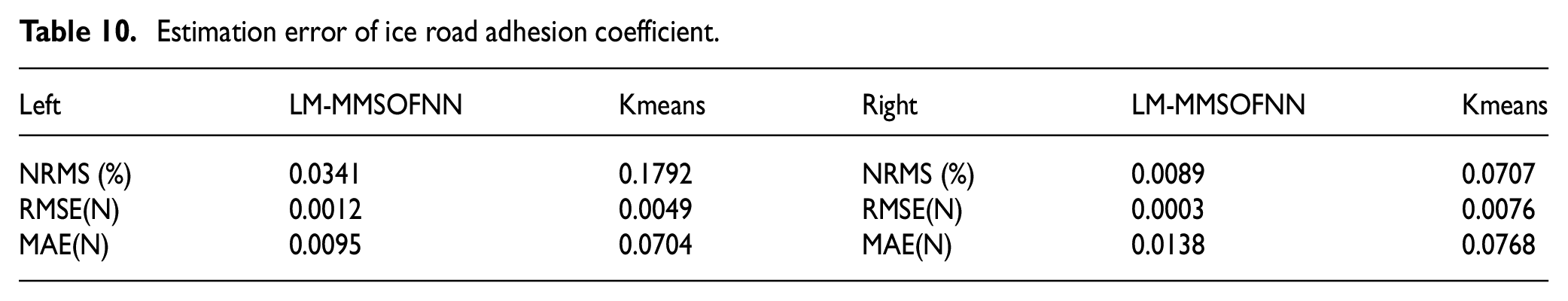

Table 10.

Estimation error of ice road adhesion coefficient.

Left	LM-MMSOFNN	Kmeans	Right	LM-MMSOFNN	Kmeans
NRMS (%)	0.0341	0.1792	NRMS (%)	0.0089	0.0707
RMSE(N)	0.0012	0.0049	RMSE(N)	0.0003	0.0076
MAE(N)	0.0095	0.0704	MAE(N)	0.0138	0.0768

As shown in Figure 8 when the longitudinal velocity of the vehicle changes greatly, the LM-MMSOFNN method can still meet the high accuracy requirements in estimating the road adhesion coefficient of both sides. In Figure 9, the MAE on the left is 0.0061, and the MAE on the right is 0.0057 in Figure 10. Compared with the Kmeans method, the LM-MMSOFNN estimation of road adhesion coefficient error is obviously smaller, with higher estimation accuracy and stronger adaptability to variable speed conditions.

In the simulation of road adhesion coefficient estimation, the variable speed condition is closer to the actual driving demand. The accurate prediction model of road adhesion coefficient of left and right wheels can effectively avoid vehicle slip and enhance the stability control effect during turning and braking.

Real vehicle test

Some experiments with a four-wheel independent distributed drive pure wire controlled intelligent vehicle are conducted to test the practicability of estimation scheme LM-MMSOFNN. The type of IMU of the vehicle is MTI-G-710, and the sampling period of the global positioning system (GPS) is 2.5 ms. Rapid control prototype (RCP) is a real-time target control system developed by Speedgoat which recommended by MathWorks and can realize real-time online development in the Simulink environment. The wheel rotation speeds and wheel angles are measured by WSS and WAS sensors which built into the hub motor and transmitted signals to computer by CAN bus. Sensors and road conditions for real vehicle test, as shown in Figure 11.

Figure 11.

Vehicle sensors and road conditions of realvehicle test.

The real vehicle car test is carried out under dry asphalt road conditions. Due to the large measurement noise in IMU, the measured longitudinal acceleration and lateral acceleration are processed by the EKF-MA to reduce the impact of road adhesion coefficient estimation.

As can be seen from Figure 12, during the actual vehicle test on dry asphalt road, the estimated results of road adhesion coefficient on both sides can meet the actual demand. The mean absolute error on the left side is 0.0097, and the mean absolute error on the right side is 0.0134. Compared with Kmeans method, inferred that Kmeans method has a higher error when the vehicle turns, while LM-MMSOFNN method has no obvious change. Therefore, the method proposed in this paper has strong adaptability to dry asphalt road in actual road experiment.

Figure 12.

Road adhesion coefficient estimation on dry asphalt road: (a) road adhesion coefficient estimation of left side and (b) road adhesion coefficient estimation of right side.

Figure 13 provides the actual vehicle experiment test on the ice road. On the left side road adhesion coefficient estimation, the Kmeans neural network training model does not converge and has a large error all the time. With the estimating on the right side, it is more sensitive to the changes of the speed and driving trajectory, resulting in the maximum error of 0.25, which cannot meet the accuracy requirements of the road adhesion coefficient estimation. It is worth noting that the estimation results of road adhesion coefficients on both sides of LM-MMSOFNN method have high accuracy with the mean absolute error is 0.0095 on the left side and 0.0138 on the right side.

Figure 13.

Road adhesion coefficient estimation of ice road: (a) road adhesion coefficient estimation of left side and (b) road adhesion coefficient estimation of right side.

Conclusion

In this paper, a LM-MMSOFNN estimation method for road adhesion coefficient is proposed without adding vehicle sensors. The multi-module self-organizing neural network is designed to calculate the road adhesion coefficients of both sides at the same time, which provides important information for the stability control of distributed drive vehicles. Firstly, using the method of data dimensionality reduction in machine learning, PCA analysis of modeling parameters was carried out and main characteristic parameters were extracted. Then, noise reduction filtering and data preprocessing are carried out by using EKF-MA method. Finally, the neural network model was constructed with the improved LM learning algorithm, with the growth and pruning of self-organizing neurons improves the generalization ability of the network, reduces the computational complexity and storage space, improves the estimation accuracy. Through simulations and real vehicle experiments on the butt and splitting roads, the LM-MMSOFNN method in this paper outperforms the Kmeans method under the evaluation metrics of NRMS, RMSE and MAE criteria. In conclusion, the proposed method has higher estimation accuracy and better adaptability to variable speed conditions.

Footnotes

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work is supported by the National Science Foundation of China under Grant (U22A20246), Key Research Project of Hebei Province (21342202D).

ORCID iD

Shaohua Li

References

Jin

Yin

, et al. Improving vehicle handling stability based on combined AFS and DYC system via robust Takagi-Sugeno fuzzy control. IEEE Trans Intell Transp Syst 2017; 19: 2696–2707.

Han

Huang

, et al. Trajectory tracking of in-wheel motor electric vehicles based on preview time adaptive and torque difference control. Adv Mech Eng 2022; 14: 1–16.

Zhang

Wang

. Robust gain-scheduling energy-to-peak control of vehicle lateral dynamics stabilisation. Veh Syst Dyn 2014; 52: 309–340.

Wang

Zhou

Wei

, et al. Host-target vehicle model-based lateral state estimation for preceding target vehicles considering measurement delay. IEEE Trans Ind Inform 2018; 9: 4190–4199.

Jin

Gao

Jiang

, et al. Research on the control and coordination of four-wheel independent driving/steering electric vehicle. Adv Mech Eng 2017; 9: 1–13.

Singh

Arat

Taheri

. Literature review and fundamental approaches for vehicle and tire state estimation. Veh Syst Dyn 2018; 57: 1–23.

Mahyuddin

Herrmann

, et al. Adaptive observer-based parameter estimation with application to road gradient and vehicle mass estimation. IEEE Trans Ind Electron 2013; 61: 2851–2863.

Huang

, et al. Calculation algorithm of tire-road friction coefficient based on limited-memory adaptive extended Kalman filter. Math Probl Eng 2019; 2019: 1–14.

Zareian

Azadi

Kazemi

. Estimation of road friction coefficient using extended Kalman filter, recursive least square, and neural network. Proc IMechE, Part K: J Multi-body Dynamics 2015; 230: 52–68.

10.

Kim

Hahn

Hong

, et al. Estimation of tire-road friction coefficient based on on-board 6-DoF acceleration measurement. IEEE Trans Veh Technol 2015; 64: 3368–3377.

11.

Cheng

Mei

Ran

, et al. Adaptive unified monitoring system design for tire-road information. J Dyn Syst Meas Control 2019; 141: 78–92.

12.

Marzbani

Khayyam

, et al. Autonomous vehicles: autodriver algorithm and vehicle dynamics. IEEE Trans Veh Technol 2019; 68: 3201–3211.

13.

Shaoyi

Yanyan

. Adhesion state estimation based on improved tire brush model. Adv Mech Eng 2018; 10: 1–9.

14.

Gao

Xiong

Lin

, et al. Multi-sensor fusion road friction coefficient estimation during steering with Lyapunov method. Sensors 2019; 19: 3816.

15.

Saadeddin

Abdel-Hafez

Jaradat

, et al. Performance enhancement of low-cost, high-accuracy, state estimation for vehicle collision prevention system using anfis. Mech Syst Signal Process 2013; 41: 239–253.

16.

Yeong

Velasco-Hernandez

Barry

, et al. Sensor and sensor fusion technology in autonomous vehicles: A review. Sensors 2021; 21: 2140.

17.

Fayyad

Jaradat

Gruyer

, et al. Deep learning sensor fusion for autonomous vehicle perception and localization: A review. Sensors 2020; 20: 4220.

18.

Rajamani

Phanomchoeng

Piyabongkarn

, et al. Algorithms for real-time estimation of individual wheel tire-road friction coefficients. IEEE/ASME Trans Mechatron 2012; 17: 1183–1195.

19.

Bevly

Ryu

Gerdes

. Integrating INS sensors with GPS measurements for continuous estimation of vehicle sideslip, roll, and tire cornering stiffness. IEEE Trans Intell Transp Syst 2006; 7: 483–493.

20.

Anderson

Bevly

. Using GPS with a model-based estimator to estimate critical vehicle states. Veh Syst Dyn 2010; 48: 1413–1438.

21.

Šabanovič

Žuraulis

Prentkovskis

, et al. Identification of road-surface type using deep neural networks for friction coefficient estimation. Sensors 2020; 20: 612–629.

22.

Matuško

Petrović

Perić

, et al. Application of the RBF neural networks for tire-road friction force estimation. In: 2003 IEEE International symposium on industrial electronics.

23.

Períc

Antíc

Milovanovíc

, et al. Quasi-sliding mode control with orthogonal endocrine neural network-based estimator applied in anti-lock braking system. IEEE/ASME Trans Mechatron 2015; 21: 754–764.

24.

Matuško

Petrović

Perić

. Neural network based tire/road friction force estimation. Eng Appl Artif Intell 2008; 21: 442–456.

25.

Bonfitto

Feraco

Tonoli

, et al. Combined regression and classification artificial neural networks for sideslip angle estimation and road condition identification. Veh Syst Dyn 2019; 58: 1–22.

26.

Ribeiro

Moutinho

Fioravanti , et al. Estimation of tire-road friction for road vehicles: a Time delay neural network approach. J Braz Soc Mech Sci Eng 2020; 42: 1–13.

27.

Liu

Shi

, et al. Road surface friction prediction using long short-term memory neural network based on historical data. J Intell Transp Syst 2021; 26: 34–45.

28.

Razavi

Tolson

. A new formulation for feedforward neural networks. IEEE Trans Neural Netw 2011; 22: 1588–1598.

29.

Eldan

Shamir

. The power of depth for feedforward neural networks. PMLR 2016; 49: 907–940.

30.

Qiao

Han

, et al. An improved algorithm for building self-organizing feedforward neural networks. Neurocomputing 2017; 262: 28–40.

31.

Qiao

Han

, et al. A self-organizing cascade neural network with random weights for nonlinear system modeling. Appl Soft Comput 2016; 42: 184–193.

32.

Pan

Yuan

Lei

, et al. MIEGAN: Mobile image enhancement via a multi-module cascade neural network. IEEE Trans Multimed 2022; 24: 519–533.

33.

Lei

Huang

Jiao

, et al. Bayberry segmentation in a complex environment based on a multi-module convolutional neural network. Appl Soft Comput 2022; 119: 108556.

34.

Huang

Lin

Zhou

, et al. Identifying physical-layer attacks for IoT security: an automatic modulation classification approach using multi-module fusion neural network. Phys Commun 2020; 43: 101180.

35.

Han

Qiao

. A structure optimisation algorithm for feedforward neural network construction. Neurocomputing 2013; 99: 347–357.

36.

Sun

Gong

Han

, et al. Pruning Elman neural network and its application in bolt defects classification. Int J Mach Learn Cybern 2019; 10: 1847–1862.

37.

Wilamowski

. Improved computation for Levenberg-Marquardt training. IEEE Trans Neural Netw 2010; 21: 930–937.

38.

Meng

Yuan

Yan

, et al. Indoor positioning of RBF neural network based on improved fast clustering algorithm combined with LM algorithm. IEEE Access 2019; 7: 5932–5945.

39.

Rezaeian

Zarringhalam

Fallah

, et al. Novel tire force estimation strategy for real-time implementation on vehicle applications. IEEE Transactions Veh Technology 2015; 64: 2231–2241.

40.

Ping

Cheng

Yue

, et al. Adaptive estimations of tyre–road friction coefficient and body’s sideslip angle based on strong tracking and interactive multiple model theories. Proc IMechE, Part J 2020; 234: 3224–3238.

41.

Islam

Sattar

Amin

, et al. A new adaptive merging and growing algorithm for designing artificial neural networks. IEEE Trans Syst Man Cybern B 2009; 39: 705–722.

42.

Han

Wang

Qiao

. Efficient self-organizing multilayer neural network for nonlinear system modeling. Neural Netw 2013; 43: 22–32.

Road adhesion coefficient estimation by multi-sensors with LM-MMSOFNN algorithm

Abstract

Keywords

Introduction

Vehicle and tire models

Vehicle dynamics model and tire model

LM-MMSOFNN algorithm

Multi-Module Self-O Feedforward Neural Networks (MMSOFNN)

Improved LM learning algorithm

SOFNN growth

SOFNN pruning

Road adhesion coefficient estimation

Simulation and real vehicle tests

Simulation results

Butt road

Working condition 1

Working condition 2

Split road

Working condition 1

Working condition 2

Real vehicle test

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
