Antibacterial,Antibiofilm,and Anti-Quorum Sensing Potential of Novel Synthetic Compounds Against Pathogenic Bacteria Isolated From Chronic Sinusitis Patients

Abstract

Quorum sensing (QS) is a major controller of virulence and biofilm formation in pathogenic bacteria. The aim of the research was to screen novel synthetic compounds (18) from 2 series (Pyrazole and Diene dione) for quorum sensing and biofilm inhibitory potential against resistant pathogens isolated from patients with chronic sinusitis. Most of the compounds have documented zone of inhibition against Gram positive strains Staphylococcus aureus, Enterococcus faecalis and moderate activity against Gram negative Klebseilla pneumoniae and Proteus mirabilis in comparison with standard antibiotic. Compounds Q1 and Q7 have given the maximum zone of inhibition 18 and 20 mm with MICs 0.312 mg/mL and .156 mg/mL against S aureus and E faecalis, respectively. Some compounds were equally potent at inhibiting the formation of biofilm which later established by phase contrast microscopy. Regarding quorum sensing inhibition, the tested concentration of synthetic compound UA3 0.313 mg/mL inhibited violacein production without decreasing Chromobacterium pseudoviolaceum count which was significantly lower than determined MIC’s. It was depicted from the results that selected compounds exhibited low level of cytotoxicity toward human red blood cells. Hence, these findings revealed that most novel compounds were effective antibacterial, whereas compound UA3 has shared significant anti-quorum sensing potential against Chromobacterium pseudoviolaceum.

Keywords

quorum sensing antibacterial potential biofilm inhibition synthetic compounds sinusitis isolates

Introduction

Antimicrobial is a substance which can efficiently inhibit growth of pathogens. These have been in use for the management of infectious diseases since the start of 20^th century.¹ After the invention of penicillin, a list of antimicrobials was developed and many common bacterial diseases could be cured. The overuse of antibiotics in clinical practice resulted in emergence of drug resistance.² In Pakistan, multi drug resistance in salmonella typhi has increased due to which first line of defense antibiotics were become ineffective and drug of choice become third generation cephalosporin ceftriaxone.³ The United States center for disease control and prevention (CDC) has found that microbial resistance cause over 2 million ailments and over 23,000 deaths annually, and this number is going to increase in future.⁴ The development of drug has usually focused on bacteria in planktonic forms. Many antimicrobials were initially developed to target individual microbe, being evaluated in vitro against microorganism growing in planktonic mode of life. But toward the end of the 20^th century, it was clear that most bacteria survive in vivo in the form of more composite communities called biofilm. Biofilm is a mode of resistance bacteria develop against environmental stress, immune response, and antibiotics.⁵

Biofilm antibiotic tolerance is a capability of microbes living inside the biofilm to outlive antibiotic treatment using a certain genes. It is mostly natural form of microbial life because it increases its ability to fight against the hostile environmental conditions by avoiding the free flow of blood and water. Microbes residing inside biofilm are about 1000 times more resistant to antimicrobial that are in free floating form. Similarly, bacteria in deeper layers are also more protected from antibiotics and due to increase in cell number, providing an opportunity to transfer plasmid DNA caring resistant gene through conjugation. Hence, the resistance due to biofilm is different from resistant phenomenon that operates at cellular level and cannot overlook in the development of new strategies to fight against infectious ailments.⁶

Quorum sensing system (QS) is a telephonic system in microbes which is a great regulator of bacterial functions. The QS controls the formation of biofilm, formation of virulence factor, and process of infection. Resistance to antimicrobial drugs has led to the inhibition of bacterial virulence factors, which are control by QS. Virulence factors comprised of adhesion, toxins, and some secretions.⁷ Quorum sensing inhibitor impedes the virulence factors responsible for bacterial pathogenesis. The chromobacterium pseudoviolaceum is a Gram negative bacterium mainly present as harmless saprophyte and known as biosensor strain for quorum sensing inhibition. It produces quorum sensing signal molecule acyl homoserine lactone (AHL) which is involved in production of violacein.⁸ QS inhibitor are a newly develop therapeutic agents which effectively control the virulence of bacteria and hence inhibit the growth of biofilm which make host to eliminate bacteria innately as well as allowing antibiotics to effectively kill the bacteria.⁹

Heterocyclic compounds are an extremely important and special class of compounds; they represent more than half of organic compounds having a broad range of biological activities. Thus, the basic structure of these compounds provides a structure on which different functional groups are arranged to produce an effective compound. Among heterocyclic compounds, nitrogen containing pyrazole compounds display potent biological and pharmacological properties.¹⁰ Pyrazole compound have demonstrated excellent biological activities like analgesic, anti-inflammatory, antibacterial, antifungal, antiviral, and antitumor.¹¹ Dione-based thiosemicarbazide derivatives exhibited appreciable biological activity such as antifungal, antiviral, anticonvulsant, antimicrobial, and anti-Alzheimer. Indoline-2,3-dione derivatives document good antimicrobial activity, as it acts on many targets possess a wide spectrum of biological and pharmacological activities.¹²

The wide spread of multidrug-resistant strains (MDR), day by day, are becoming more problematic for human health and searching of new synthetic compounds become mandatory for successful treatment of bacterial diseases. Therefore, the present study is planned to evaluate the antibacterial, biofilm, and quorum sensing inhibitory potential of pyrazole, diene, and dione derivatives.

Materials and Methods

Synthetic Compounds

Two series of synthetic compounds (Table 1) have been collected from Organic Chemistry Lab, Department of Chemistry, University of Education, Lahore, Pakistan. Synthetic compounds prepared (10 mg/mL) in dimethyl sulfoxide (DMSO). This concentration of sample solution was stored for use for the rest of the study.

Table 1.

Structural, Molecular Weight, and Molecular Formula of Synthetic Compounds.

Compound code	Soly.	Mol. Wt. g/mol	Mol. Formula
Q-3A	DCM	238.67	C₁₁H₁₁ClN₂O₂
Q-3B	DCM	218.25	C₁₁H₁₁N₂O₂
Q-5A	DCM	234.68	C₁₁H₁₁ClN₄
Q-5B	DCM	214.27	C₁₂H₁₄N₄
Q-7A	DCM	310.78	C₁₇H₁₅ClN₄
Q-7B	DCM	290.36	C₁₈H₁₈N₄
Q-9A	DCM	276.72	C₁₃H₁₃ClN₄O
Q-9B	DCM	256.30	C₁₄H₁₆N₄O
M-1	DCM	336.39	C₂₁H₂₀O₄
M-2	DCM	418.19	C₂₃H₂₆N₂O₂
UA-4	DCM	308.33	C₁₉H₁₆O₄
UA-6	DCM	476.18	C₃₅H₂₄O₂
M-5	DCM	276.34	C₁₉H₁₆O₂
UA-5	DCM	336.39	C₂₁H₂₀O₄
UA-3	DCM	366.33	C₁₉H₁₄N₂O₆
M-8	DCM	392.59	C₂₅H₃₆N₄
M-9	DCM	366.09	C₁₉H₁₄N₂O₆
UA-1	DCM	368.38	C₂₁H₂₀O₆

Test Organisms

Four characterized bacterial strains (Enterococcus faecalis, Staphylococcus aureus, Proteus mirabilis, and Klebseilla pneumoniae) isolated and characterized by conventional as well as molecular techniques from patients with chronic sinusitis have been collected from Medicinal Biochemistry Lab, Department of Biochemistry, University of Agriculture, Faisalabad, Pakistan. All bacterial cultures grown for 24 h were adjusted to McFarland standard .5 equivalent to 1.5 × 10⁸ cfu/mL (S. aureus), 1.9 × 10⁸ cfu/mL (E faecalis), 2.1 × 10⁸ cfu/mL (K pneumoniae), 1.6 × 10⁸ cfu/mL (P. mirabilis).

Antibacterial Activity of Synthetic Compounds

Antibacterial activity of synthetic compounds was evaluated by well diffusion assay.¹³ After preparing nutrient agar plates, refreshed bacterial culture was poured onto the plates. Wells (6 mm) were made with the help of sterilized borer. Samples in concentration of 10 mg/mL (100 μL) were filled in these wells. Antibiotic (ciprofloxacin 10 mg/mL) was used as standard. Then, plates were incubated (Bolton incubator Model BS-C270) for 24 h at 37°C. Zone of inhibition was measured in millimeter (mm).

Minimum Inhibitory Concentration

The resazurin-based micro-dilution assay was performed to evaluate the inhibitory effect of synthetic compounds against selected bacterial strains. Samples (10 mg/mL) (100 μL) were put in the first row of 96-well plates. All other wells were filled with 50 μL of Mueller Hilton broth (Oxoid UK). Micro-dilution of Compounds was carried out exactly according to laboratory standard protocol (CLSI). To each well of the plate (10 μL), resazurin indicator solution (270 mg/40 mL of distilled water) was added and finally at the end bacterial culture (10 μL) was added to each well of the plate. Each plate has negative (bacteria culture plus broth) and positive control (ciprofloxacin 10 mg/mL). Plates were incubated at 37°C for 24 h. The color change was noted visually. Bacterial growth resulted in conversion of blue color to pink. The lowest concentration of compound which prevented the change in color from blue to pink indicates the MIC of compounds. The test was performed in triplicate.¹⁴

Anti-Biofilm Potential

Biofilm inhibition potential of synthetic compounds was determined by using 4 bacterial strains S aureus, E faecalis, P mirabilis and K pneumoniae. To carry out biofilm inhibition assay, biofilms were grown on the 96-well plate.¹⁵ Biofilm were subjected to inhibition by synthetic and standard antibiotic (Ciprofloxacin). The wells of micro-titer plate were filled with 100 μL of nutrient broth (Oxoid-UK). Synthetic compound samples (10 mg/mL DMSO) 100 μL were put in the wells. Then 20 μL of bacterial culture was inoculated. Positive control contained ciprofloxacin, while negative control contained nutrient broth and microbial strains. The 96-well plate was sealed and put to incubator at 37°C for 24 h. Under aerobic condition. After incubation, free floating bacterial cells were removed by pipetting, and then washed 2 times with PBS (pH 7.1). Then microplate was left to dry at room temperature for 15 min, and the biofilm was fixed by heating for 60 min at 60°C in the oven. Then 200 μL of crystal violet solution (.1%) was added to all wells and left in the plate for 20 min. Crystal violet solution was removed. Each well was washed with 200 μL of PBS to remove unbound dye. Then, 200 μL of ethanol 95% was added to the wells, and then plate left at 4°C for 30 min to solubilize the crystal violet stained biofilm mass. The absorbance of treated and control wells was reported at 630 nm using micro plate reader (Biotek USA).¹⁶

Phase Contrast Microscopy

Morphology of bacteria attached to material surfaces was discovered by well-reputed technique of microscopy.¹⁷ The microscopy was performed from the Hi-Tech laboratory, University of Agriculture, Faisalabad, Pakistan. The sterilized glass slides were used for this assay. 25 μL of nutrient broth, 25 μL of sample, and 5 μL of bacterial solution were poured on to the center of glass slide. Slides were incubated at 37 C overnight. Next day, the slides were washed with phosphate buffer with a pH of 7.8. Then, they were fixed with 99% of methanol and dried. The glass slides were stained with 7% crystal violet for 10 minutes. The slides were washed with tap water to remove extra stain. Slides were left to dry and then images were taken under a phase contrast microscope.

Quorum Sensing Inhibition

This test was performed as described by Abdullah et al. with some modifications.¹⁸ The strain Chromobacterium psuedoviolaceum was procured from Leibniz institute DSMZ-German collection of microorganism and cell cultures, in Germany. Chromobacterium psuedoviolaceum was grown in LB broth (Oxoid UK) by incubating it for 24 h at 26°C. Next day, it was diluted 1:1000 with LB broth to get a bacterial concentration of 10⁶ cfu/mL. Synthetic compound samples (10 mg/mL) serially 2-fold diluted with LB into a 48-well microplate. A bacterial culture (500 μL) (10⁶ CFU/mL) was added to 500 μL of already determined dilutions of samples. When samples were prepared, the plate was incubated aerobically at 26°C without shaking for 36–48 h. Diluted bacterial culture without treatment was used as control. After incubating, 750 μL from each well (Test and control wells) was put to 1 mL Eppendorf and centrifuge (SIGMA Laborzentrifugen Model 1–14) at 8000g for 5 min to centrifuge violacein and bacterial cells. The supernatant discarded and the pellets were vortexes (Velp Scientifica Model F28228176) with 750 μL of 100% DMSO to solubilize the violacein. The samples were centrifuged again to precipitate bacterial cells. Now to evaluate violacein, 200 μl of supernatant-containing violacein was put into 96-well microplate and OD₅₈₅ was taken. To ensure QS inhibition took place without killing the C pseudoviolaceum by the sample’s sub-MICs, the bacterial cells which were in pellet were mixed again with 750 μL of DW (pH 7.0) and OD₅₉₅ was measured. The absorbance of cells treated with sub-MICs of samples was compared with non-treated cells.

Cytotoxicity of Synthetic Compounds

Hemolytic activity of synthetic compounds was evaluated by using the protocol of Saleem et al.¹⁹ In the falcon tube (15 mL), 3 mL fresh human blood was collected. Centrifuge the blood for 5 minutes at 850 x g. The supernatant was discarded, and blood cells were undergone washing with chilled PBS for 3 times each and then diluted it to 20 mL. Then mix 20 μL of sample and 180 μL of prepared blood cells in Eppendorf. Eppendorf were centrifuged for 5 minutes at 1310 x g after incubating at 37°C for 30 minutes. 100 μL supernatant was taken and mixed with 900 μL of chilled PBS. 200 μL from this was put to 96-well plate for absorbance at 576 nm by microplate reader (BioTek USA). Phosphate buffer saline was taken as negative control and Triton X-100 was taken as positive control. The data collected were presented in percentage of hemolysis.

Statistical Analysis

Each experiment was performed in triplicate form. All calculations were performed by using Minitab 17 statistical software. One-way analysis of variance followed by Tukey’s test was applied to determine the significant and nonsignificant¹⁹

Results and Discussion

Antibacterial Activity

Antimicrobial potential of synthetic compounds (18) was evaluated against 2 Gram negative and 2 Gram positive isolates of sinusitis and comparing with standard antibiotic ciprofloxacin (Quinolone) as shown in Table 2. The compounds showed higher antibacterial potential against Gram positive strains, while moderate to low against Gram negative strains. Among pyrazole derivatives (Q series) the maximum zone of inhibition was shared by Q1 (18 mm) and Q7 (20 mm) against S aureus and E faecalis, respectively. Whereas in M and UA series higher zone of inhibition was observed in M3 (17 mm) and UA2 (17 mm) against above Gram positive strains, respectively. The diameter of inhibition against Gram negative Proteus mirabilis and Klebseilla pneumoniae by pyrazole compounds was demonstrated by Q3 (11 mm) and Q1 (12 mm), respectively, whereas the highest susceptibility of P mirabilis and K. pnuemoniae toward diene dione derivatives (UA, M) was shared by M3 (14 mm, 13 mm) sequentially. According to studies, substitution of electron withdrawing groups in molecules is responsible for antibacterial activity. Our all pyrazole compounds have chloride, carbonyl groups which are electron withdrawing groups responsible for good antibacterial activities except Q4 and Q6 sharing poor activity against pathogenic strains while diene dione derivatives (UA, M series) also contain carbonyl group which impart antibacterial property to these compounds as well. In a study, newly synthesized pyrazole derivative compound (61) has shown excellent activity against multidrug-resistant strains of S aureus, P. aeruginosa, and E. faecium. Among all pyrazole derivatives when py11 compared with antibiotic melittin it demonstrated 2-fold, 2–4-fold, and 4-fold better antibacterial potential against resistant strains of S. aureus, P. aeruginosa, and E. faecium respectively.²⁰ According to another study, new synthetic compounds (Pyrazole derivatives) from (3a-h) have revealed moderate to very good bactericidal potential against all strains, namely, E. coli, S aureus, P aeruginosa and S pyogenes when compared with standard antibiotic ampicillin. The author added that the cause of variable activity against both Gram positive and Gram negative bacteria was attributed to structural differences between the two. Gram negative bacteria have an outer phospholipidic membrane. This makes the cell wall impermeable to lipophilic solutes, while Gram positive bacteria were more susceptible because of only one outer peptidoglycan layer which is not an effective permeable barrier.²¹ This is in accordance with our study that most of our derivatives contain hydrophobic methyl groups, which make these compounds probably less effective against Gram negative pathogens (Figure 1).

Table 2.

Antibacterial Activity of Series of Synthetic Compounds Against Bacteria Isolated from Sinusitis Patients.

Sample	S. aureus		E. Faecalis		P. mirabilis		K. pneumoniae
Sample	ZOI (mm)	MIC (mg/mL)	ZOI (mm)	MIC (mg/mL)	ZOI (mm)	MIC(mg/mL)	ZOI (mm)	MIC (mg/mL)
Q1	18 ± 1.3^b	.312 ± 1.4^e	15 ± 1.0^e	1.25 ± 1.01^d	10 ± 0.9^d	5 ± 0.7^b	12 ± 1.3^b	2.5 ± 0.7^c
Q2	10 ± 0.2^fg	1.25 ± 1.0^d	10 ± 1.2ⁱ	2.5 ± 1.0^c	7 ± 1.0^f	10 ± 1.0^a	10 ± 1.2^d	2.5 ± 1.0^c
Q3	13 ± 1.0^de	1.25 ± 1.0^d	14 ± 0.3^f	1.25 ± 1.5^d	11 ± 0.3^c	2.5 ± 1.0^c	10 ± 1.0^d	2.5 ± 1.0^c
Q4	—		5 ± 1.1^l	10 ± 1.1^a	5 ± 1.0^g	10 ± 1.0^a	7 ± 1.1^e	10 ± 1.0^a
Q5	12 ± 1.2^de	1.25 ± 1.1^d	16 ± 0.4^d	1.25 ± 1.2^d	5 ± 1.1^g	10 ± 1.0^a	7 ± 1.0^e	10 ± 0.5^a
Q6	6 ± 1.2^j	10 ± 1.2^a	6 ± 1.0^k	10 ± 1.0^a	—
Q7	13 ± 1.3^d	1.25 ± 0.7^c	20 ± 1.3^b	.156 ± 0.7^e	10 ± 1.4^d	10 ± 0.7^a	11 ± 1.1^c	5 ± 0.7^b
Q8	6 ± 1.0^J	10 ± 1.0^a	7 ± 0.1^j	10 ± 0.4^a	—	…	7 ± 1.0^e	5 ± 1.0^b
UA1	10 ± 1.6^fg	2.5 ± 0.1^c	12 ± 1.2^h	5 ± 0.7^b	13 ± 1.2^b	2.5 ± 0.7^c	10 ± 0.8^d	5 ± 0.7^b
UA2	7 ± 0.8^hi	10 ± 0.7^a	17 ± 0.4^c	5 ± 1.4^b	10 ± 1.3^d	2.5 ± 0.8^c	11 ± 0.6^c	2.5 ± 0.8^c
UA3	16 ± 0.9^c	1.25 ± 0.7^d	15 ± 0.8^e	10 ± 1.4^a	9 ± 1.1^e	2.5 ± 0.7^c	12 ± 1.3^b	2.5 ± 0.7^c
UA4	—				5 ± 1.0^g	10 ± 1.0^a	5 ± 1.0^f	10 ± 1.0^a
UA5	6 ± 0.7^ij	10 ± 1.1^a	5 ± 1.0^a	10 ± 1.0^a	—
M1	9 ± 1.0^g	5 ± 1.4^b	—
M2	12 ± 1.1^e	1.25 ± 1.0^d	10 ± 1.1^c	2.5 ± 1.4ⁱ	—		7 ± 1.0^e	10 ± 1.0^a
M3	17 ± 1.2^c	.312 ± 0.8^e	13 ± 0.9^g	2.5 ± 0.8^c	10 ± 1.7^d	1.25 ± 0.7^d	11 ± 2.0^c	2.5 ± 0.7^c
M4	8 ± 1.0^h	5 ± 1.0^b	10 ± 1.3ⁱ	2.5 ± 0.5^c	10 ± 1.1^d	2.5 ± 1.0^c	5 ± 1.0^f	10 ± 1.1^a
M5	10 ± 1.2^f	5 ± 1.1^b	—				7 ± 1.0^e	5 ± 1.0^b
Ciprofloxacin	28 ± 0.5^a	.039 ± 0.2^e	26 ± 0.4^a	.078 ± 0.4^e	30 ± 1.2^a	.019 ± 0.4^e	28 ± 1.4^a	.019 ± 0.2^d

S aureus = Staphylococcus aureus, E. faecalis = Enterococcus faecalis, P. mirabilis = Proteus mirabilis, K. pneumoniae = Klebsiella pneumoniae. (- ) = No activity. MIC Results are shown as n = 3, mean ± standard deviation. Furthermore, means carrying different superscripted alphabet (a-j) exhibit significant difference among means at (P< .05) with 95% confidence interval.

Figure 1.

Representative plates (A–D) and (E−H) present antibacterial activity of synthetic compounds against Staphylococcus aureus and Proteus mirabilis, respectively. Ciprofloxacin is use as a standard in the center.

Minimum Inhibitory Concentration

The minimum inhibitory concentration (MIC) for S. aureus determined by micro-dilution method in the presence of compound Q1 and M3 was .312 mg/mL. The concentration required to inhibit growth of E. faecalis was .156 mg/mL, documented by Q7. The MIC was as low as 1.25 mg/mL toward P mirabilis. The MIC was as low as 1.25 mg/mL toward P mirabilis shared by M3. K. pnuemoniae growth was inhibited at the lowest concentration of 2.5 mg/mL shared by Q1, Q2, Q3, UA2, UA3, and M3 as shown in Table 2 (Figure 2).

Figure 2.

(A) Representative plate of minimum inhibitory concentration of synthetic compounds against Proteus mirabilis. (−) = Negative, (+) = Ciprofloxacin, 1. Q1, 2. Q2, 3. Q3, 4. Q4, 5. Q5, 6. Q6. (B) Representative plate of minimum inhibitory concentration of synthetic compounds against Staphylococcus aureus. (−) = Negative, (+) = Ciprofloxacin 1. Q1, 2. Q2, 3. Q3, 4. Q5, 5. Q6, 6. Q7.

Biofilm Inhibition of Synthetic Compounds

Biofilms consist of extra polymeric substances (EPS) occupied by microbial communities. These have the ability to adhere to abiotic and biotic surfaces.²¹ According to National Institute of Health (NIH), about 65–80% bacterial and chronic infections are due to biofilm formation.²² In 2017, World Health Organization (WHO) has issued a list of priority pathogens in which majority of pathogens belong to Gram negative class. This is because of structural differences in the cell wall of Gram negative bacteria as compared to Gram positive bacteria.²³ Synthetic compounds were evaluated for their biofilm inhibitory potential against 4 pathogenic strains of sinusitis against reference drug ciprofloxacin, as shown in Table 3. Although the measured anti-biofilm potential was from whole molecule but limited structural activity relationship (SAR) was also observed. The compounds like Q (65.55), Q2 (40.43), Q3 (47.51), Q5 (45.61), Q7 (49.72), UA1 (43.45), UA3 (57.61), M2 (53.46) and M3 (69.52) had shown appreciable percentage biofilm inhibition potential then rest of the compounds against S aureus and E. faecalis, respectively. As mentioned earlier, compounds have given moderate to poor percentage biofilm hydrolysis against Gram negative pathogens such as P mirabilis and K. pneumoniae Q1 (33.41), Q2 (24.36), Q3 (29, 31), Q5 (10, 21), Q7 (39, 40), UA1 (42, 46), UA3 (35, 45), M2 (5, 25), and M3 (45, 34), respectively. The presence of methyl and carbonyl or chloride groups are common in above compounds, which enhances their anti-biofilm activity.

Table 3.

Biofilm Inhibition (%) of Selected Sinusitis Isolates by Series of Synthetic Compounds.

Strain	Staphylococcus aureus	Enterococcus faecalis	Proteus mirabilis	Klebsiella pneumoniae
Sample no.	Biofilm inhibition (%) ± S. D	Biofilm inhibition (%) ± S. D	Biofilm inhibition (%) ± S. D	Biofilm inhibition (%) ± S. D
Q1	65 ± 0.3^a	55 ± 0.1^d	33 ± 0.3^d	41 ± 0.1^ab
Q2	40 ± 0.3^f	43 ± 0.4^e	24 ± 1.1^e	36 ± 1.0^c
Q3	47 ± 1.1^cde	51 ± 0.3^d	29 ± 0.3^d	31 ± 1^d
Q4	5 ± 0.1^j	6 ± 0.1^g	10 ± 0.3^f	24 ± 1.2^e
Q5	45 ± 1.0^cdef	61 ± 0.1^bc	10 ± 1.0^f	21 ± 0.3^ef
Q6	12 ± 1.1^ij	10 ± 0.5^f	5 ± 0.2^g	5 ± 0.6^h
Q7	49 ± 1.2^cd	72 ± 0.8^a	39 ± 0.9^c	40 ± 0.1^bc
Q8	19 ± 0.7^h	14 ± 1.2^f	5 ± 0.5^g	45 ± 0.2^ab
UA1	43 ± 0.4^ef	45 ± 0.4^e	42 ± 0.3^ab	46 ± 0.3^a
UA2	25 ± 0.8^g	67 ± 0.4^b	31 ± 0.6^d	43 ± 0.8^ab
UA3	57 ± 0.5^b	61 ± 0.6^c	35 ± 0.9^c	45 ± 0.2^a
UA4	5 ± 0.4^j	4 ± 0.3^g	10 ± 0.4^f	16 ± 0.3^fg
UA5	17 ± 0.6^hi	11 ± 0.6^f	5 ± 0.4^g	5 ± 0.4^h
M1	39 ± 0.5^def	5 ± 1.1^g	5 ± 0.5^g	5 ± 0.5^h
M2	53 ± 0.1^bc	46 ± 1.5^e	5 ± 0.6^g	25 ± 0.9^e
M3	69 ± 0.2^a	52 ± 1.6^d	45 ± 0.3^a	34 ± 0.1^d
M4	29 ± 0.7^g	45 ± 1.2^e	39 ± 1.1^bc	15 ± 0.2^g
M5	41 ± 0.9^def	5 ± 1.1^g	5 ± 1.3^g	20 ± 0.4^e
Ciprofloxacin	84 ± 0.9	89 ± 1.1	94 ± 1.3	90 ± 0.4

S aureus = Staphylococcus aureus, E faecalis = Enterococcus faecalis, P mirabilis = Proteus mirabilis, K. pneumoniae = Klebsiella pneumoniae. Results are shown as n = 3, mean ± standard deviation. Furthermore, means carrying different superscripted alphabet (a-j) exhibit significant difference among means at (P< .05) with 95% confidence interval.

A study reported the synthesis and antibacterial potential of 31 coumarin-substituted pyrazole derivatives. Out of 31 compounds, some have shown remarkable activity against MRSA strain with MIC around 3.125 μg/mL. These molecules were also effective at inhibition and destruction of biofilms of MRSA.²⁴ In another study, synthesized 2 pyrazole derivatives and evaluated their antimicrobial and anti-biofilm potential against 4 Salmonella spp. Both compounds inhibited biofilm formation with reduction up to 5.2 log₁₀.²⁵ The author further stated that fluorine and methyl group confer lipophilicity which in turn increases cell permeability. The presence of fluorine (Halogens) results in breakdown of extracellular matrix, thus allows penetration of compounds into biofilm. These results are in agreement with our study which also shows presence of hydrophobic halogenated, methyl and carbonyl groups.²⁶

Phase Contrast Microscopy (Qualitative Assay)

Phase contrast microscopy was performed on glass slides, which is a qualitative analysis of biofilm inhibition as shown in Figure 3. Slide (A) negative control showing heavy growth and compact area of biofilm of Staphylococcus aureus, Slide (B) positive control (ciprofloxacin) revealing more clear area showing little biofilm formation. Sample Q1(C) has shown significant biofilm hydrolysis on the glass slide showing more clear areas with minimum growth in comparable to standard slide (B) and UA4 compound showing more compact color areas of biofilm, confirming less biofilm inhibition by this compound. These results were in accordance with the quantitative biofilm inhibition assay.

Figure 3.

Representative slides of phase contrast microscopy of compounds against Staph aureus. (A) Negative control, (B) positive control (Ciprofloxacin) (C) Q1 (D) UA4.

Quorum Sensing Inhibition of Synthetic Compounds by Using Chromobacterium psuedoviolaceum

The effect of synthetic compounds on violacein production was studied as shown in Figure 4. C psuedoviolaceum was used as a reporter strain to evaluate quorum sensing inhibition in Gram negative bacteria. In the present research work, P. mirabilis and K. pneumoniae were Gram negative pathogen isolated from sinusitis patients. The compound will be considered quorum sensing inhibitor when C. pseudoviolaceum strain was unable to form violet pigment (violacein) without effecting the growth of bacteria and if violacein is formed then no quorum sensing inhibition occur. The outcome displayed quorum sensing inhibition with value which was lesser than minimum inhibitory concentration of that compound. The tested concentration of synthetic compound (UA-3) .313 mg/mL inhibited violacein production significantly (OD 0.04) with very little effect on growth of C pseudoviolaceum (OD 0.28) while compared to positive control having violacein production (OD 0.12) and bacterial count of (OD 0.33). However, 1.25 mg/mL showed more than 90% QS inhibition but with bacterial growth inhibition compared with positive control (bacterial cells without compounds). QS inhibition is important to reduce the production of virulence factors released by pathogenic microorganism.

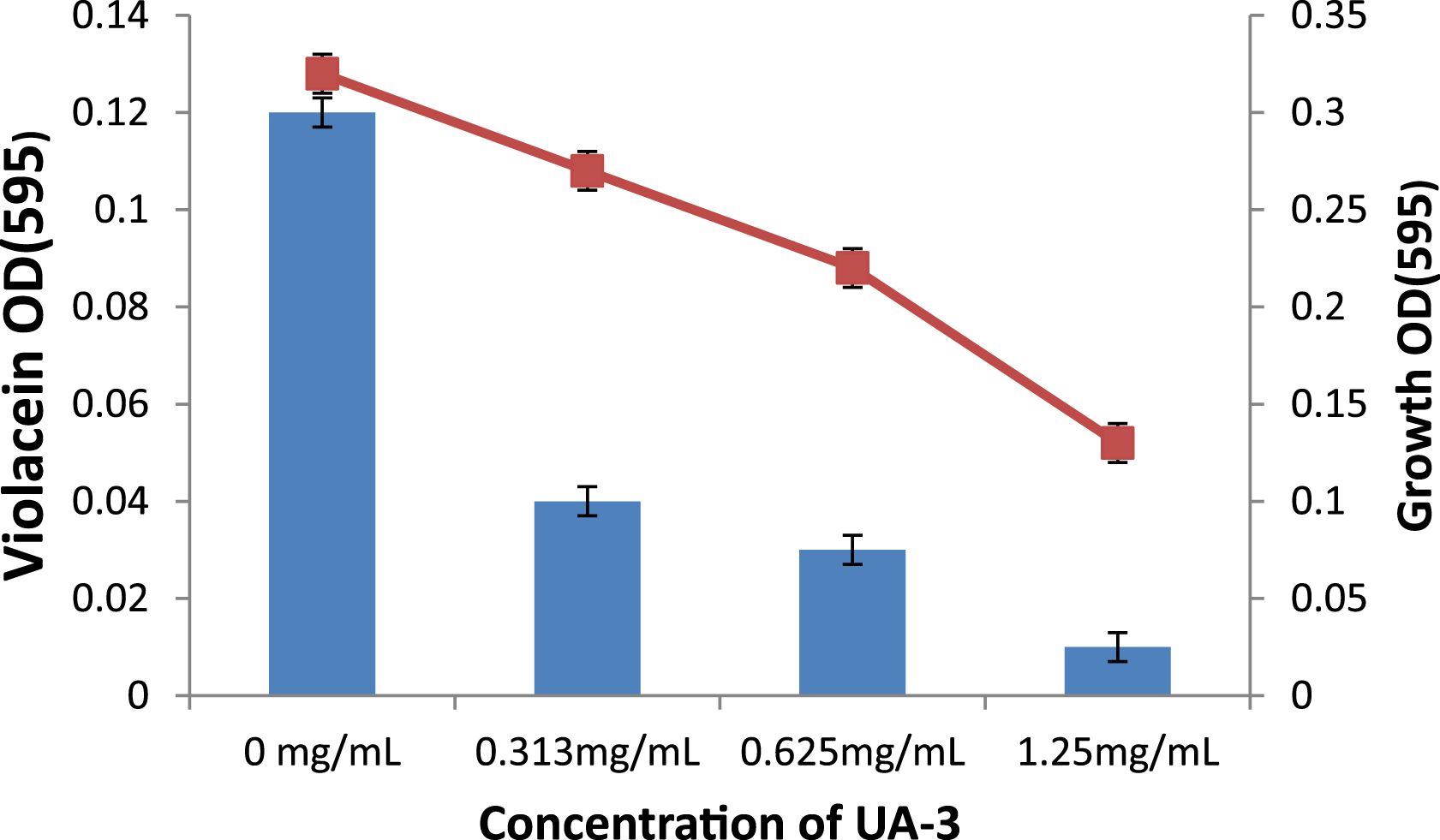

Figure 4.

Production of violacein by C. pseudoviolaceum in comparison with bacterial growth in presence of Synthetic compound UA-3.

Cytotoxicity Studies of Synthetic Compounds

When the drug is going to develop, safety of the product is a major concern. Many compounds have shown toxicity issues in terms of hemolysis, which results in lysis of RBCs. Free hemoglobin cause problems for important organs like liver, heart and kidneys. Three series of synthetic compounds had given different hemolytic activities in the range of 2–12%. Most of the compounds were nontoxic toward red blood cells. Except two, compounds like M2 and UA2 have demonstrated some degree of cytotoxicity of 10 and 12%, respectively. Our study has been endorsed by another study who had made derivatives of pyrazole compounds by Gewald synthesis. They documented non-toxicity of 13 pyrazole derivative compounds whose hemolysis was ranging from 3.6 to 20.1% (Figure 5).²⁷

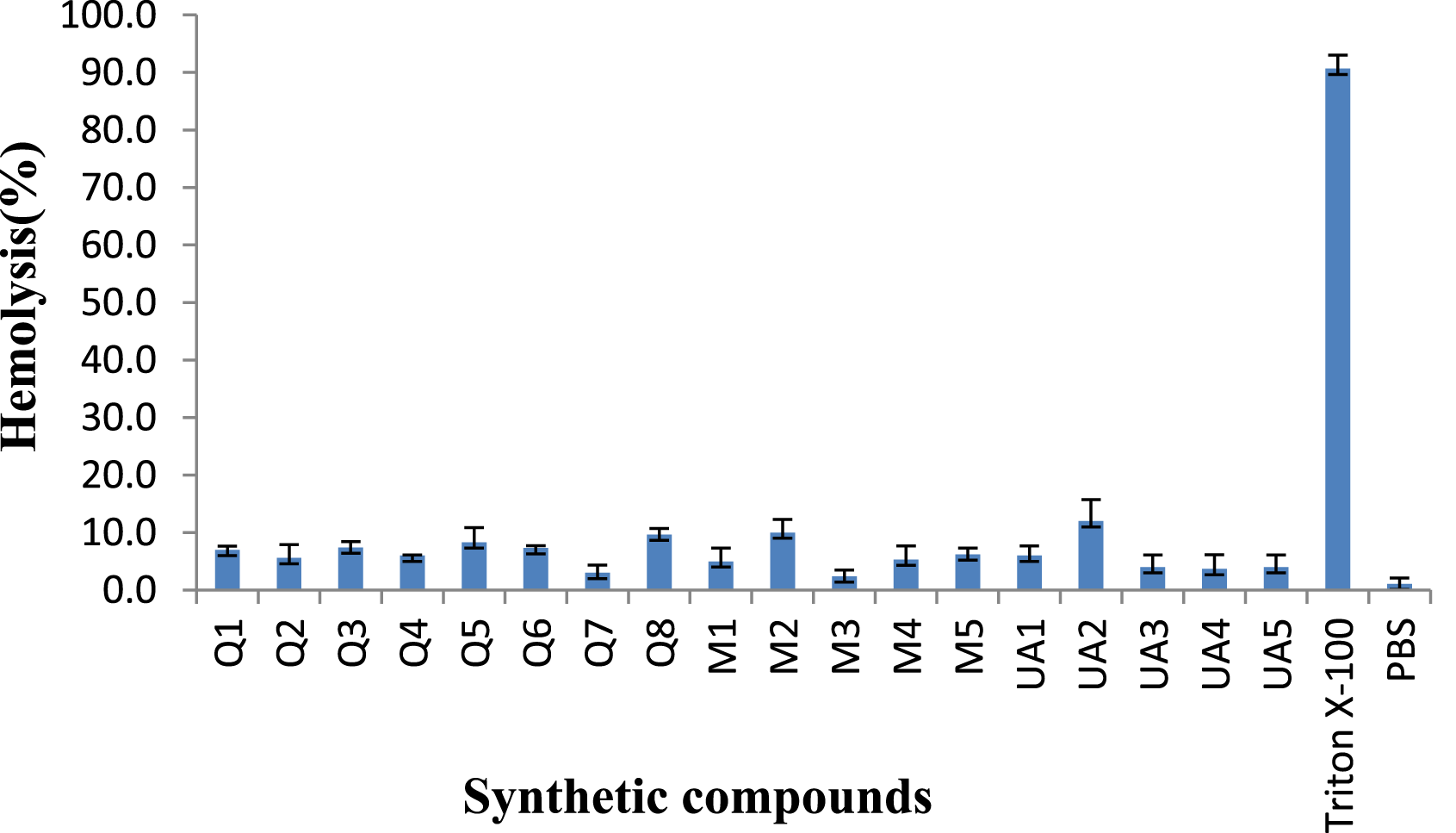

Figure 5.

Percentage Hemolytic Activity of Synthetic Compounds Against RBC Triton X-100 (positive control); PBS (negative control).

Conclusion

It was concluded from the current study that among 18 compounds Q3A, Q3B, Q5A, Q7A, Q9A, UA1, UA4, M2, and M5 exhibited promising antibacterial and anti-biofilm potential against Gram positive bacteria with better safety profile in terms of cytotoxicity. Second, compound UA3 had demonstrated reasonable quorum sensing inhibition against Chromobacterium pseudoviolaceum. Hence, the biofilm formation of Gram negative strains of P. mirabilis and K. pneumoniae causing chronic sinusitis can be inhibited by inhibition of quorum sensing in them. Further in vitro studies for efficacy and safety are recommended for these compounds.

Footnotes

Acknowledgments

The author of this research article gratefully acknowledges Dr Misbah Irshad, Department of Chemistry, University of Education, Lahore, Pakistan, for providing synthetic compounds and the funding support from Higher Education Commission (HEC), Government of Pakistan for this support under the project NRPU#4927.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Muhammad Asif Rafiq

Kashif Jilani

References

Lewis

. The science of antibiotic discovery. Cell. 2020;181(1):29-45.

Scheffler

Colmer

Tynan

Demain

Gullo

. Antimicrobials, drug discovery, and genome mining. Appl Microbiol Biotechnol. 2013;97(3):969-978.

Rasheed

Saeed

Alikhan

N-F

, et al. Emergence of Resistance to Fluoroquinolones and Third-Generation Cephalosporins in Salmonella Typhi in Lahore. Pakistaniaat. 2020;8(9):1336.

Cao

Naseri

Walsh

Ziora

. Non-antibiotic antimicrobial agents to combat biofilm-forming bacteria. Journal of Global Antimicrobial Resistance. 2020;21:445-451.

Penesyan

Gillings

Paulsen

. Antibiotic discovery: combatting bacterial resistance in cells and in biofilm communities. Molecules. 2015;20(4):5286-5298.

Talapko

Škrlec

. The principles, mechanisms, and benefits of unconventional agents in the treatment of biofilm infection. Pharmaceuticals. 2020;13(10):299.

Chen

Zhang

Liu

Lin

. Quorum sensing inhibitors: a patent review (2014–2018). Expert Opin Ther Pat. 2018;28(12):849-865.

Harrison

Soby

. Reclassification of Chromobacterium violaceum ATCC 31532 and its quorum biosensor mutant CV026 to Chromobacterium subtsugae. Amb Express. 2020;10(1):1-7.

Ahmed

SAKS

Rudden

Smyth

Dooley

JSG

Marchant

Banat

. Natural quorum sensing inhibitors effectively downregulate gene expression of Pseudomonas aeruginosa virulence factors. Appl Microbiol Biotechnol. 2019;103(8):3521-3535.

10.

Zárate-Zárate

Aguilar

Hernández-Benitez

Labarrios

Delgado

Tamariz

. Synthesis of α-ketols by functionalization of captodative alkenes and divergent preparation of heterocycles and natural products. Tetrahedron. 2015;71(38):6961-6978.

11.

Faria

Vegi

Miguita

AGC

Dos Santos

Boechat

Bernardino

AMR

. Recently reported biological activities of pyrazole compounds. Bioorg Med Chem. 2017;25(21):5891-5903.

12.

Mansour

Taher

El-Farargy

Elewa

. Synthesis of Some Novel Indoline-2, 3-Dione Derivatives and the Influence of Gamma Irradiation on Their Biological Activities. 2021:1-15.

13.

Ayub

Hanif

Sarfraz

Shahid

. Biological activity of Boswellia serrata Roxb. oleo gum resin essential oil: effects of extraction by supercritical carbon dioxide and traditional methods. Int J Food Prop. 2018;21(1):808-820.

14.

Teh

Nazni

Nurulhusna

Norazah

Lee

. Determination of antibacterial activity and minimum inhibitory concentration of larval extract of fly via resazurin-based turbidometric assay. BMC Microbiol. 2017;17(1):1-8.

15.

Algburi

Zehm

Netrebov

Bren

Chistyakov

Chikindas

. Subtilosin prevents biofilm formation by inhibiting bacterial quorum sensing. Probiotics and antimicrobial proteins. 2017;9(1):81-90.

16.

Al-Dulaimi

Algburi

Abdelhameed

, et al. Antimicrobial and Anti-Biofilm Activity of Polymyxin E Alone and in Combination with Probiotic Strains of Bacillus subtilis KATMIRA1933 and Bacillus amyloliquefaciens B-1895 against Clinical Isolates of Selected Acinetobacter spp.: A Preliminary Study. Pathogens. 2021;10(12):1574.

17.

Shahid

Anwar

Shahid

, et al. Laser-assisted synthesis of Mn0. 50Zn0. 50Fe2O4 nanomaterial: Characterization and in vitro inhibition activity towards Bacillus subtilis biofilm. J Nanomater. 2015;2015.

18.

Algburi

Asghar

Huang

, et al. Black cardamom essential oil prevents Escherichia coli O157: H7 and Salmonella Typhimurium JSG 1748 biofilm formation through inhibition of quorum sensing. J Food Sci Technol. 2021;58(8):3183-3191.

19.

Saleem

Nasir

Rasool

, et al. In vitro antimicrobial and haemolytic studies of Kalanchoe pinnata and Callistemon viminalis. Int J Chem Biochem Sci. 2015;7:29-34.

20.

Ahn

Gunasekaran

Rajasekaran

, et al. Pyrazole derived ultra-short antimicrobial peptidomimetics with potent anti-biofilm activity. Eur J Med Chem. 2017;125:551-564.

21.

Parrino

Schillaci

Carnevale

, et al. Synthetic small molecules as anti-biofilm agents in the struggle against antibiotic resistance. Eur J Med Chem. 2019;161:154-178.

22.

Jamal

Ahmad

Andleeb

, et al. Bacterial biofilm and associated infections. J Chin Med Assoc. 2018;81(1):7-11.

23.

Jubeh

Breijyeh

Karaman

. Resistance of gram-positive bacteria to current antibacterial agents and overcoming approaches. Molecules. 2020;25(12):2888.

24.

Alnufaie

Raj Kc

Alsup

, et al. Synthesis and antimicrobial studies of coumarin-substituted pyrazole derivatives as potent anti-Staphylococcus aureus agents. Molecules. 2020;25(12):2758.

25.

Damim

de Albuquerque

Dantas

FGS

, et al. Antimicrobial and Antibiofilm Activities of 4,5-Dihydro-1H-pyrazole-1-carboximidamide Hydrochloride against Salmonella spp. J Chem. 2021;2021:1-9.

26.

Jia

Zhang

Wang

, et al. The effect of halogenation on the antimicrobial activity, antibiofilm activity, cytotoxicity and proteolytic stability of the antimicrobial peptide Jelleine-I. Peptides. 2019;112:56-66.

27.

Nayak

Poojary

Kamat

. Novel pyrazole‐clubbed thiophene derivatives via Gewald synthesis as antibacterial and anti‐inflammatory agents. Arch Pharmazie. 2020;353(12):2000103.
