Abstract
The aim of this study was to reveal the mechanism of enhanced ram sperm motility induced by heavy ion radiation (HIR) after in vitro liquid storage. Ram semen was stored for 24 hours at 5°C and then irradiated with 0.1 Gy carbon ion radiation (CIR). In comparison to nonirradiated (NIR) sperm, the motility, viability, and adenosine triphosphate content were all higher in CIR sperm, and the reactive oxygen species levels were lower. Moreover, 87 differential mitochondrial protein spots were detected in 2-dimensional gels between CIR and NIR sperm and were identified as 52 corresponding proteins. In addition, 33 differential proteins were involved in a main pathway network, including COX5B, ERAB/HSD17B10, ETFA, SDHB, and SOD2, which are known to be involved in cell communication, energy production, and antioxidant responses. We used immunoblotting and immunofluorescence to analyze the content and localization of these proteins, respectively, and the levels of these proteins in CIR sperm were lower than those in NIR sperm. An understanding of the molecular function of these proteins could provide further insight into the mechanisms underlying high sperm motility induced by HIR in rams.
Introduction
Since the sperm are quite resistant to radiation damage, 1 the use of radiation to improve the quality of mammalian sperm has been of increased concern to researchers in the recent years, previous studies have shown that X-rays can improve the sperm-fertilizing potential in cattle, 2 and the most representative study involves the use of laser radiation to improve rabbit and poultry sperm fertilization. 3 -5 Although researchers have attempted to determine related biological effects and irradiation technology in mammalian sperm improvement, the research results have been inconclusive.
In the recent years, heavy ion radiation (HIR) has gradually entered the field of vision animal researchers because in vitro, HIR can improve the quality of human sperm, 6 which is of great significance for mammalian sperm improvement. In our previous studies, we determined the effects of carbon ion radiation (CIR) on ram sperm quality in vitro liquid. We also confirmed that a suitable dose of CIR has a positive effect that can promote greater ram sperm motility and raise the adenosine triphosphate (ATP) content in sperm over 24 hours of in vitro liquid storage at 15°C. Furthermore, we determined that the best suitable radiation dose for this purpose was 0.1 Gy. 7 There is, however, limited information available about the mechanism underlying enhanced sperm quality by HIR; thus, we need to delineate this potential mechanism.
He–Ne laser irradiation can increase mitochondrial electrochemical potential and increase ATP synthesis. 8 The ATP content was shown to be increased after HIR in our previous study, 7 which suggested to us that HIR improves sperm-fertilizing potential by changing sperm mitochondria function as a possible mechanism. Because mitochondria play a key role in energy production and maintenance of sperm motility, 9 this conclusion has encouraged us to believe that sperm mitochondria are the key reason that HIR can enhance ram sperm motility. Therefore, the aims of the present study were to examine the changes in the ram sperm mitochondrial proteome irradiated by HIR using a 2-dimensional gel electrophoresis (2-DE) approach to identify mitochondrial proteins that undergo abundant changes after HIR and to predict the biological functions and cellular pathways in the regulation of ram sperm motility after HIR.
Materials and Methods
Semen Collection, Dilution, and Examination
Using artificial vaginas, semen was collected 3 times (3 pools, n = 3) from 5 mature and healthy Dorset rams (Ovis aries) under the same feeding conditions for 3 or 4 ejaculations/pool over 4 months. The pooled sperm concentration and motility were then assessed using a counting cell and an optical microscope (80i, Nikon, Tokyo, Japan) at 400× magnification. 10 Only semen with a wave motion score >3 on a scale of 0 to 5, with a sperm concentration of >2.5 × 109/mL were accepted. 11 Each pool was mixed well and then further mixed with 5× volume of diluent (2.422 g Tris, 1.34 g citric acid, 0.5 g fructose, 500 IU benzylpenicillin, and streptomycin in 100 mL deionized water). 12,13 The mixture was protected from light and incubated in water at 37°C in a vacuum cup for 30 minutes (volume 1.5 L; Wanxiang, China). All samples were then stored at 5°C for 24 hours.
Irradiation
A heavy ion beam current, 12C6+ accelerated to 80 MeV/U and LET of 30 keV μm-1 at the beam entrance, was supplied by the Heavy Ion Research Facility in Lanzhou (HIRFL) at the Institute of Modern Physics, Chinese Academy of Sciences (Lanzhou, China). The dose rate was approximately 0.5 Gy min−1, and the irradiated dose was 0.1 Gy. An air isolation room was used to detect the dose, and the acquisition of dose data was automatically controlled by a computer. Semen samples were divided into 2 parts after storage at 5°C for 24 hours. One part was not irradiated (the NIR group), whereas the other samples were irradiated with 0.1 Gy of the 12C6+ beam (the CIR group). The CIR group was irradiated at room temperature and first placed in water at 37°C in a vacuum cup after irradiation and then immediately returned to the laboratory. The NIR group was kept the same temperature conditions with CIR group, and all experiments were performed within 30 minutes. 7
Sperm Motility and Viability
Sperm samples were diluted to 30 × 106 sperm/mL with diluent, and sperm motility counts were determined using a counting cell chamber and light microscope at 400× (Nikon 80i). Sperm motility (as a percentage) was calculated by dividing the number of motile sperm over the total number of sperm (both motile and nonmotile). 14
Alexa Fluor® 488 Annexin V apoptosis kit (Thermo,Waltham, Massachusetts) was used to assess sperm viability. Briefly, 5 µL of annexin V and 1 µL of PI stock solution were added to the sperm suspension (100 µL, 1 × 106 sperm/mL) and incubated at room temperature for 15 minutes. The samples were then observed under a fluorescence microscope at a 400× magnification (Nikon 80i). Viable sperm expressed the green fluorescence of Alexa Flour 488 (excitation of 488 nm and emission of 530 nm) and nonviable sperm expressed the red fluorescence of PI (excitation of 535 nm and emission of 615 nm). At least 200 sperm were evaluated, and the percentage of viable sperm was calculated according to the following ratio: green cells/(green cells + red cells) × 100%. 15
Intracellular Reactive Oxygen Species and Determination of ATP Concentration
A sperm suspension (50 µL) was made in phosphate-buffered saline (PBS; 1 × 106 sperm/mL) loaded with 5 µmol/L 2’, 7’-dichlorofluorescein diacetate (DCFH-DA; Sigma Chemical, St Louis, Missouri). After incubation in the dark for 30 minutes, sperm were resuspended in 1 mL PBS. Cellular reactive oxygen species (ROS) were measured in 10 000 cells using a Varioskan Flash 3001 microplate reader (Thermo) at 470 nm excitation and 530 nm emission as a result of DCFH-DA oxidation. 16
The ATP content was measured according to the protocol of the ATP assay kit (Beyotime, Shanghai, China). An aliquot of 1 × 106 sperm was homogenized with 200 µL of the lysis buffer supplied with the ATP assay kit and then vortexed for 1 to 2 seconds on a shaker. After centrifugation at 12 000 ×g for 5 minutes at 4°C, the supernatant was transferred to a new tube for the ATP assay. Luminescence from a 100 µL sample together with 100 µL ATP detection buffer from the ATP assay kit was measured in a Varioskan Flash 3001 microplate reader (Thermo). The standard curve of ATP concentration was constructed from a known amount (1 nmol/L to 1 mol/L). 17
Measurement of Mitochondrial Membrane Potential
The mitochondrial membrane potential was assessed using an assay JC-1 kit (Beyotime). Briefly, approximately 2 × 107 sperm were added into 500 µL JC-1 stained working solution (1:200 dilution and final concentration 10 mg/mL) and incubated at 37°C for 30 minutes. When the membrane potential is relatively low, JC-1 is capable of emitting green fluorescence. At a high membrane potential, JC-1 aggregates and produces red fluorescence. After incubation, samples were washed twice with the JC-1 wash buffer and suspended in the wash buffer before analysis. Fluorescence absorbance was measured using a Varioskan Flash 3001 microplate reader (Thermo). Activated mitochondria expressed red fluorescence of the JC-1 stain (J-aggregate, excitation of 525 nm and emission of 590 nm) and less activated mitochondria expressed green fluorescence of the JC-1 stain (J-monomer, excitation of 490 nm and emission of 530 nm). The mitochondrial membrane potential was calculated according to the following ratio: red fluorescence absorbance/green fluorescence absorbance. 18
Transmission Electron Microscopy Observation of Mitochondrial Ultrastructure
The sperm suspension (50 µL) in PBS (1 × 106 sperm/mL) was centrifuged, and sperm were fixed with 2% glutaraldehyde, post-fixed with 1% osmium tetroxide, and embedded in resin. Ultrathin sections were cut and stained with uranyl acetate and lead citrate. Mitochondria are enriched in the midpiece of sperm, and the ultrastructure of the midpiece of ram sperm was determined using a transmission electron microscope (Hitachi H-7650; Hitachi Technologies, Tokyo, Japan).
Mitochondrial Extraction of Ram Sperm
Mitochondria of ram sperm were isolated using a mitochondrial isolation kit (Beyotime). Semen samples were centrifuged at 275 ×g for 10 minutes at room temperature to separate seminal plasma. The sperm pellet was resuspended in dilution buffer and centrifuged at 800 ×g for 10 minutes at 4°C after which the supernatant was discarded. One mL of mitochondrial separation reagent was added per 2 × 106 sperm to suspend the sperm pellet. The suspension was then homogenized on ice 30 times with a glass homogenizer and centrifuged at 1000 ×g to remove other organelles. The supernatant was centrifuged at 11 000 ×g for 10 minutes at 4°C to collect the mitochondria. Purified mitochondria were frozen at −80°C until proteomic analysis.
Two-Dimensional Electrophoresis, Image Analysis and Matrix-Assisted Laser Desorption/Ionization Tandem Time-of-Flight Mass Spectrometry Analysis
Purified mitochondria were treated with a lysis buffer containing 7 mol/L urea, 2 mol/L thiourea, 4% (w/v) 3-[(3- cholamidopropyl)-dimethylammonio]-1-propane sulfonate (CHAPS), and 2% (w/v) dithiothreitol (DTT) in the presence of 1% (V/W) protease inhibitor cocktail (Sigma Chemical, St Louis, Missouri). Protein concentration was measured by the Bio-Rad Bradford protein assay using bovine serum albumin (Sigma) as a standard.
Each 300 µg mitochondrial protein sample was dissolved in 350 µL of rehydration buffer and loaded into a 17-cm immobilized pH gradient (IPG) strip (Bio-Rad Laboratories, Hercules, California) at pH 3 to 10, after which separation was conducted using the IPGphor isoelectric focusing system (IEF). The program settings were as follows: 14 hours at 50 V; 1 hour at 250 V; 1000 V for 1 hour; 9000 V for 6 hours; and 9000 V for 8 hours. 19,20 Following isoelectric focusing, the focused IPG strips were equilibrated in buffer containing 6.0 mol/L urea, 375 mmol/L Tris, 20% glycerol, 2% sodium lauryl sulfate, and 130 mmol/L DTT for 10 minutes in buffer containing 350 mmol/L acrylamide monomer. Alkylation in the buffer occurred for 10 minutes. The second dimension was carried out on a large polyacrylamide gel (18 × 18 × 0.1 cm) with a 12% stacked gel. The focused IPG strips were sealed to the top of the stacked gel with a 0.5% low melting agarose solution in 375 mmol/L Tris and 0.007% bromophenol blue. Electrophoresis was performed at 4°C and the gel was run in a Protean II xi Cell (Bio-Rad) at a constant current of 24 mA/gel for ∼8 hours with a maximum limit of 300 V. 21,22 Upon completion, the gel was stained with silver nitrate and destained with ultrapure water. 23 Three 2-DE gels were prepared for each sample, scanned with an Epson scanner, and stored as TIF files. The PDQuest 8.0 software (Bio-Rad) was used to detect and match spots. Spots were selected if the difference in protein quantity was ≥2-fold (normalized spot volume) between control and irradiated groups. The mass spectrometry (MS) and MS/MS data for protein identification were obtained using a matrix-assisted laser desorption/ionization tandem time-of-flight mass spectrometry instrument (4800 Proteomics Analyzer; Applied Biosystems). Instrument parameters were set using the 4000 Series Explorer software (Applied Biosystems).
Imunoblotting and Immunofluorescence
The 5 commercial primary antibodies used were rabbit polyclonal IgG anti-COX5B (Cat. #bs-3931R); mouse polyclonal IgG anti-ERAB/HSD17B10 (Cat. #bs-0021M); rabbit polyclonal IgG anti-ETFA (Cat. #bs-0494R); rabbit polyclonal IgG anti-SDHB (Cat. #bs-6650R); rabbit polyclonal IgG anti-SOD2 (Cat. #bs-20667R; Bioss Biotechnology Co, Ltd, Beijing, China), and rabbit polyclonal IgG anti-β-actin (Cat. #AP0060; Bioworld technology, Inc, Ltd, Nanjing, China). A 30 µg of sperm protein was separated by sodium dodecyl sulfate polyacrylamide gel electrophoresis and transferred to a polyvinylidene fluoride membrane. The membrane was blocked with 5% skimmed milk in Tris-buffered saline (TBS) and immunoblotted with primary antibody and horseradish peroxidase (HRP)-labeled secondary antibody (ZDR-5308; Zhongshan Jinqiao Biotechnology Co., Ltd., Beijing, China). Immunoreactivity was detected using an enhanced chemiluminescent HRP substrate kit (BLH01S050; Bioworld), and images were captured by a FluorChem 2 imaging system (Alpha Innotech, San Leandro, California). The Quantity One 4.5.2 image analysis software (Bio-Rad) was used to quantitatively analyze the relative density of bands in Western blots. The data were corrected for the background and expressed as the optical density (OD/mm2).
Sperm samples were suspended in PBS and then air-dried on microscope slides at room temperature and fixed in methanol. The slides were then washed 3 times in PBS for 10 minutes and blocked for 1 hour at room temperature in 5% bovine serum albumin (BSA). Slides were incubated for 1 hour with the primary antibodies (1:500) and then washed 3 times in PBS. The sperm were incubated in the secondary antibodies Alexa Fluor 555 (rabbit IgG, bs-0295P-A555; 1:100) and Alexa Fluor 555 (Mouse IgG, bs-0296P-A555; 1:100; Bioss), for 1 hour at room temperature. Slides were then washed and counterstained with 4,6-diamidino-2-phenylindole before being placed on a coverslip. Negative controls were obtained using similar techniques but with the omission of the primary antibody. Images were obtained using a confocal laser microscope (LSM, Oberkochen, Germany) and camera. Sperm exhibiting red fluorescence were considered positive. 24
Statistical Analysis
Data are presented as mean ± standard error of mean (SEM). Student t test was used to analyze differences in the SPSS/PC program (Version 19.0; SPSS Inc, Chicago, Illinois). P < .05 was considered statistically significant.
Results
Analysis of Sperm Motility and Viability
To investigate the effects of CIR on ram sperm after 24 hours of storage at 5°C, sperm motility and viability were examined. Greater motility was observed in the CIR group (Table. 1; P < .01); however, there were no changes in sperm apoptosis in the CIR group using Alexa Flour 488 annexin V/PI staining (Table. 1). These results indicate that 0.1 Gy CIR treatment after 24 hours of storage at 5°C can improve ram sperm motility, and imposes no harm on sperm viability compared to NIR sperm.
Comparison of Motility, Viability, Mitochondrial Function, and ATP and ROS Contents in Ram Sperm Subjected to CIR after 24 h of In Vitro Liquid Storage at 5°C.a,b
Abbreviations: CIR, Ram Sperm Subjected to 0.1 Gy Carbon ion Radiation; NIR, Non-Irradiated Ram Sperm.
a Values Represent Mean ± SEM (n = 3).
b Asterisks denote values that are significantly different from those of NIR sperm
c P < .01 with Student t test analysis.
d P < .05 with Student t test analysis.
Analysis of ATP Content
The ATP has a direct effect on sperm motility. Therefore, the ATP content was measured to determine whether or not HIR improves ram sperm motility through an increase in ATP content; 0.1 Gy CIR treatment significantly increased ATP content in ram sperm (Table. 1; P < .01). These results suggest that CIR improves ram sperm motility after 24 hours of storage at 5°C by increasing ATP content.
Analysis of ROS Content
In vitro liquid storage of sperm for over 24 hours was implemented to increase the formation of ROS in sperm and then disrupt the antioxidative system in sperm and decrease sperm motility. Therefore, ROS content was measured to determine whether or not CIR improves ram sperm motility by decreasing ROS content. A significant decrease in ROS content was observed in ram sperm following CIR treatment with 0.1 Gy (Table. 1; P < .05). These results suggest that CIR can decrease ROS content in ram sperm after 24 hours of storage at 5°C.
Analysis of Ultrastructure of Midpiece in Ram Sperm
Mitochondria are mainly involved in the formation of the midpiece of sperm; therefore, transmission electron microsocpy was used to evaluate any damage to the ultrastructure of the midpiece in ram sperm (Figure. 1). No obvious damage nor notable differences in the ultrastructure of the mitochondria were noted in the NIR and CIR ram sperm. Sperm exhibited tightly arranged, intact mitochondria around the axons. This indicated that 0.1 Gy CIR treatment did not harm the ultrastructure of the midpiece nor the mitochondrial arrangement in ram sperm after 24 hours of storage at 5°C.
Mitochondria are mainly involved in the formation of the midpiece of sperm. The representative ultrastructure of the midpiece in ram sperm was observed using transmission electron microscopy. NIR indicates non-irradiated ram sperm; CIR, ram sperm subjected to 0.1 Gy carbon ion radiation.
Analysis of Mitochondrial Function
Mitochondria are the energy centers of sperm and they directly affect sperm motility and energy supply. Following JC-1 staining, which was used to evaluate mitochondrial function, a significant increase in the proportion of red/green fluorescence absorbance was observed in the group treated with 0.1 Gy CIR (Table 1; P < .01). These data indicated that CIR treatment improved mitochondrial function in ram sperm after 24 hours of storage at 5°C.
Identification of Differential Mitochondrial Proteins
We performed 2-DE experiments to investigate the differential mitochondrial proteins in NIR and CIR sperm, and the protein profiles are shown in Figure. 2. PDQuest 8.0 software was used to detect differential protein spots, and ≥2-fold difference in the protein quantities (normalized spot volume) was used as the standard to detect differential protein spots. Based on analysis of the 2-D gels, a significant proteome difference between the NIR and the CIR sperm was observed, and 87 differential protein spots were detected. Among the 87 protein spots that were evident, the volume of 19 spots was increased and that of 68 spots was reduced in the CIR group (Figure. 2). A list of differential proteins and their potential function is shown in Table 2. These 87 protein spots were identified as 52 proteins. The fold-change of the proteins (ratio of CIR-to-NIR) was converted to generate a heatmap representing differential proteins using R/Bioconductor software (Figure. 3A).

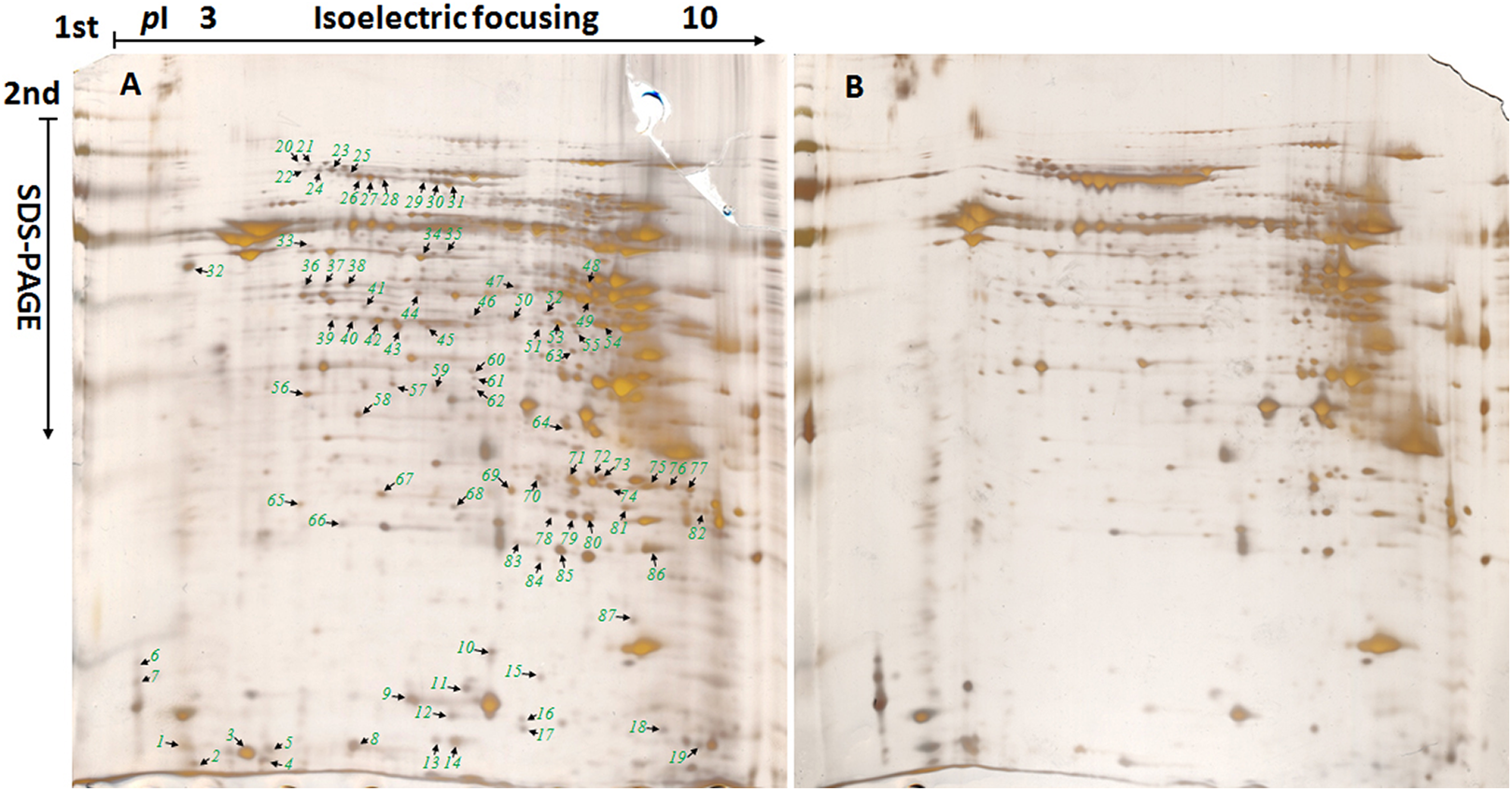

Protein profiles and differential protein spots of ram sperm subjected to carbon ion radiation after 24 hours of in vitro liquid storage at 5°C. Proteins (300 µg) were separated using an isoelectric focusing system (IEF) at pH 3 to 10, followed by 12% SDS-PAGE, and subsequently visualized by silver staining. A, Nonirradiated ram sperm. B, Ram sperm subjected to 0.1 Gy carbon ion radiation. Green arrows represent differential protein spots. Spot numbers of representative proteins are in accordance with Table 2.
Differential Mitochondrial Proteins in Ram Sperm Subjected to Carbon ion Radiation After 24 Hours of In Vitro Liquid Storage at 5°C.
Abbreviations: pI, Isoelectric Point; Mw, Molecular Weight; NCBI, National Center of Biotechnology Information.
a Peptides matched refers to the matched peptides to the amino acids of the full-length protein.
b Match between non-irradiated sperm and sperm subjected to carbon ion radiation (gels of 3 × 0.1 Gy carbon ion radiation vs nonirradiated sperm; n = 3 in each group).
A, Heatmap of the identified proteins constructed using the R/Bioconductor software; fold change of the proteins (ratios of CIR/CK) converted to the P value; R, ram sperm subjected to 0.1 Gy carbon ion radiation; C, nonirradiated ram sperm. B, Annotation of biological process (a), cellular component (b), and molecular function (c) of differential proteins in ram sperm subjected to 0.1 Gy carbon ion radiation after 24 hours of in vitro liquid storage at 5°C; the original GO annotations were downloaded from the National Center of Biotechnology Information (NCBI) Entrez Gene database and further analyzed; the percentages represented are the total number of hits divided by the number of annotated proteins for each GO category. C, Bioinformatic analysis of enriched KEGG pathways using the database for annotation, Visualization and Integrated Discovery (DAVID) functional analysis. D, Interaction network of differential ram sperm proteins subjected to 0.1 Gy carbon ion radiation after 24 hours of in vitro liquid storage at 5°C; interacting proteins and biological processes are included. The dotted line indicates the correlation between proteins or biological processes. Unlinked differential proteins were removed from the figure. CK indicates Control; CIR, carbon ion radiation.
Bioinformatic Analysis of the Differential Mitochondrial Proteins
The differential mitochondrial proteins of ram sperm were grouped using Gene Ontology (GO) annotation and classified by biological process, cellular function, and molecular function. Using the biological process database, the metabolic process (15%) was associated with energy production (Figure 3Ba). The remaining proteins were involved in organelle, cell, extracellular region, membrane-enclosed lumen, cell junction, and macromolecular complex (Figure 3Bb). An analysis of molecular function demonstrated that the majority of the proteins were classified as proteins with catalytic and binding features (Figure 3Bc). The Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment showed the differential mitochondrial proteins can be enriched in 10 biological process (Figure 3C). The protein–protein interaction network was analyzed using a publicly available program (http://www.omicsbean.com), and the interaction network included 33 proteins involved in 10 biological process (Figure 3D).
Immunoblotting and Immunofluorescence Analysis of 5 Different Proteins
Immunoblotting and immunofluorescence analysis using the abovementioned commercial primary antibodies resulted in the detection of the 5 proteins in NIR and CIR sperm (Figures 4 and 5). Compared to NIR sperm, the content of these 5 proteins was significant decreased in CIR sperm (Figure 4B; P < .01, P < .001). The localization of these 5 proteins in sperm was also analyzed, and the fluorescence was distributed on acrosome and midpiece of sperm (Figure 5A-J). None of the 5 candidate proteins was detected in the sperm tail. The fluorescence strength of the 5 proteins was weak in CIR ram sperm. The imunoblotting and immunofluorescence results were consistent with those of the 2-DE analyses.
A, Representative immunoblotting of 5 proteins in ram sperm. B, Relative protein content; values represent the mean ± SEM from 3 gels per group; asterisks indicate a statistically significant difference from NIR sperm; **P < .01 and ***P < .001 with Student t test analysis. NIR indicates nonirradiated ram sperm; CIR, ram sperm subjected to 0.1 Gy carbon ion radiation.
Immunofluorescence localization analysis of 5 proteins in ram sperm subjected to carbon ion radiation after 24 hours of in vitro liquid storage at 5°C. (A–J, magnification ×400; K and L, magnification ×1000; scale bar = 10 µm); DAPI (nucleus, green) and target protein (red). A, C, E, G, and I indicate NIR sperm; B, D, F, H, and J indicate CIR sperm; K and L indicate the morphological characteristics of different parts of the ram sperm; K was observed under a differential interference contrast microscope (DIC); L represents the merging of DIC and immunofluorescent images (red, ETFA). NIR, non-irradiated ram sperm; CIR, ram sperm subjected to 0.1 Gy carbon ion radiation.
Discussion
We have demonstrated that HIR treatment can improve ram sperm motility after 24 hours of in vitro liquid storage 7 ; however, the mechanism underlying this phenomenon remains unclear. In the present study, we focused on the mitochondrial function combined with 2-DE to reveal the underlying mechanism that HIR treatment can improve ram sperm motility after storage at 5°C for 24 hours. Improvements in sperm quality following HIR involve use of new techniques for maintaining highly motile sperm. Therefore, with ram sperm motility, the role of HIR in improving sperm quality has important practical significance. Such improvement can contribute effectively in the enhancement of artificial insemination conditions.
HIR Treatment can Improve Mitochondrial Function and Anti-Oxidative Ability to Increase Ram Sperm Motility After Storage for 24 hours at 5°C
In the present study, we demonstrated that 0.1 Gy CIR treatment affected the metabolic pathways related to energy production in ram sperm after storage for 24 hours. These results indicated that HIR treatment might mediate mitochondrial oxidative phosphorylation (OXPHOS) and other metabolic pathways to produce more energy for ram sperm motility. Because OXPHOS is the main energy source under normal conditions, under pathologic conditions, OXPHOS was blocked. Thus, sperm could activate other metabolic pathways, such as glycolysis, the TCA cycle, and fatty acid degradation to maintain the energy supply for sperm motility. 25 Therefore, we speculate that ram sperm stored at 5°C for 24 hours could have an impact on OXPHOS and was gradually weakened, while other metabolic pathways were gradually increased to maintain ATP balance. The ATP content was correspondingly reduced because the efficiency of ATP of other metabolic pathways was lower than OXPHOS. When CIR stimulated stored ram sperm, OXPHOS could be recovered and became a predominant source of energy. Therefore, we found that the level of many metabolic enzymes is decreased in irradiated ram sperm; this suggested that the increased mitochondrial function is the primary basis for CIR treatment improving ram sperm motility. The results of JC-1 provided evidence to support this speculation and 0.1 Gy CIR treatment can improve ram sperm motility after storage for 24 hours at 5°C.
Under physiologic conditions, low levels of ROS can modulate ROS-dependent pathways required for human sperm activation 26 ; however, excessive ROS causes membrane lipid oxidation reactions and reduces unsaturated fatty acids of cell membranes, resulting in sperm membrane injury and adverse effects on sperm production, sperm movement, and survival. 27 In the present study, a significant decrease in ROS levels was observed in irradiated ram sperm after storage for 24 hours at 5°C, which clearly demonstrated that 0.1 Gy CIR treatment can active the anti-oxidative system in ram sperm. Oxidative stress also inhibits mitochondrial respiration and ATP production, and the lower ATP content clearly demonstrates that the in vitro liquid storage for 24 hours can disrupt the energy supply balance in ram sperm. Moreover, high concentrations of ROS, reduced sperm motility, and low JC-1 staining were observed in ram sperm after storage for 24 h at 5°C. These findings provide evidence that in vitro liquid storage over 24 hours is toxic to ram sperm, because it can impair mitochondrial function by generating high levels of ROS. The decreased ROS, increased JC-1 staining, sperm motility, and ATP content in irradiated ram sperm demonstrated that 0.1 Gy CIR treatment improved ram sperm motility via improving OXPHOS and the antioxidative ability in ram sperm.
Mitochondrial Proteins With Altered Levels in the Irradiated Ram Sperm and their Possible Functions
0.1 Gy CIR treatment can enhance the anti-oxidant ability of ram sperm after storage for 24 h at 5°C because the anti-oxidant enzymes were identified in this study. ETFA is associated with sperm anti-oxidant enzymatic activity. 28 SOD2 is the major anti-oxidant enzyme in the mitochondrial matrix, which scavenges ROS and protects mitochondria from mitochondrial damage. 29 The decreased SOD2 and ETFA in irradiated ram sperm suggest that oxidative stress is weakened and the anti-oxidant ability was enhanced. Indeed, the decreased ROS content in irradiated ram sperm can demonstrate this speculation.
Fatty acid beta-oxidation (FAO) is an important energy source of the body during fasting and metabolic stress. 30 ECHS1 is an important mitochondrial matrix enzyme that catalyzes the β-oxidation spiral of fatty acid catabolism. 31 ACADS and ACAM are enzymes of free FAO, and ACADS plays an important role in free FAO and regulates energy balance, which is the rate-limiting step of mitochondrial β-oxidation cycle. 32,33 When carbohydrates are limited in use or when carbohydrates cannot be used effectively, ketolysis enables fat-derived energy for sperm use. 34 OXCT is the rate-limiting enzyme in ketolysis that determines the rate at which ketoacetylacetates are converted to acetyl-CoA. 35 Mitochondrial enoyl-CoA isomerase (ECI1) is an auxiliary enzyme involved in unsaturated fatty acid oxidation. 36 17 β-hydroxysteroid dehydrogenase type 10 (HSD17B10) encodes SDR5C1, SDR5C1 is a member of the NAD+/NADP-dependent short-chain dehydrogenase/reductase (SDR) family and the only hydroxysteroid dehydrogenase (HSD) family member localized to mitochondria. SDR5C1 acts by oxidoreduction of L-2-methyl-3-hydroxy-butyryl-CoA at the penultimate step in the β-oxidation of isoleucine. 37 In this study, the changes in ECHS1, ACADS, ACAM, OXCT, ECI1, and HSD17B10 levels suggested that in vitro liquid storage for 24 hours could disturb energy balance in ram sperm by decreasing the mitochondrial function and increasing fatty acid catabolism and ketolysis. The decrease in the level of these proteins in irradiated ram sperm might be the results of improvement of mitochondrial function by CIR treatment.
The Krebs cycle provides the required electrons for the mitochondrial respiratory chain. The succinate dehydrogenase complex is the only respiratory chain complex and is involved in the mitochondrial Krebs cycle and aerobic electron transport chain. The succinate dehydrogenase complex subunits include SDHA, SDHB, SDHC, and SDHD, which are completely encoded by the nuclear gene 38 . Succinyl-CoA ligase was identified as substrates of protein kinase A (PKA). 39 The function of succinyl-CoA synthetase is to catalyze the aerobic metabolism of succinyl-CoA, GDP, or ADP and produce succinate, GTP, or ATP and CoA. 39 Huang et al compared the differential proteins between high- and low-motility buffalo sperm and found the SUCLG2 is increased in sperm with low motility. 40 CS is the first enzyme in the Krebs cycle catalyzing the synthesis of citrate from oxalacetate and acetyl CoA. 41 FH is an enzyme involved in the Krebs citric acid cycle. A previous study showed that the level of FH is increased in patients with asthenozoospermia. 42 In this study, decreased succinate dehydrogenase [ubiquinone] iron-sulfur subunit, mitochondrial isoform X6 [Ovis aries musimon] (SDHB), succinyl-CoA ligase [ADP-forming] subunit beta, mitochondrial [Ovis aries] (SUCLA2), succinyl-CoA ligase [GDP-forming] subunit beta, mitochondrial isoform X1 [Ovis aries] (SUCLG2), citrate synthase, mitochondrial [Ovis aries] (CS), and fumarate hydratase [Ovis aries] (FH) suggested the presence of a general deregulation in the metabolic pathways involved in energy production in ram sperm after 24 hours of storage at 5°C, and the CIR could change this trend by improving mitochondrial function of ram sperm. There is still no evidence of a direct relationship between the enzymes of the Krebs cycle and sperm motility. Therefore, the enzyme may affect sperm motility through metabolic processes; however, the level of SDHA was increased in irradiated sperm in this study and should be studied further.
Tekt1 is a member of the Tektin family and is involved in the formation of sperm flagella with a potential effect on flagellar stability and sperm motility. 43 A mutation in Tekt1 is an important cause of sperm immobility or asthenozoospermia in humans, dogs, and other species. 44 TPI1 catalyzes the conversion of dihydroxyacetone phosphate to glyceraldehyde-3-phosphate, and glyceraldehyde-3-phosphate dehydrogenase catalyzes glyceraldehyde-3-phosphate to glycerol 1,3-bisphosphate and then produces ATP in the following steps. 45 The relationship between TPI1 level and frozen–thawed boar sperm has been demonstrated. The frozen–thawed process can decrease the boar sperm motility; however, the levels of TPI1 are increased in frozen–thawed boar sperm. 45 In this study, the relationship between decreased Tekt1 and TPI1, and ram sperm motility should be further confirmed.
In this study, the level of 5 proteins (COX5B, ERAB/HSD17B10, ETFA, SDHB, and SOD2) was verified using immunoblotting and immunofluorescence. The results showed differences in the levels of these 5 proteins between the NIR and CIR groups, and their levels were decreased in the CIR group and were consistent with the 2-DE results, which indicates that these 5 proteins could play a potential role in improving mitochondrial function of ram sperm induced by CIR after in vitro liquid storage.
Conclusions
This is the first comprehensive description of mitochondria in ram sperm to reveal the underlying mechanism that 0.1 Gy CIR treatment can improve ram sperm motility after in vitro liquid storage for 24 hours at 5°C. The present study has identified differential proteins and the pathways relevant to sperm motility and those that could likely be altered in ram sperm resulting in the manifestation high motility after 0.1 Gy CIR. These mitochondrial proteins that undergo abundant changes after 0.1 Gy CIR and predict the biological functions and cellular pathways in the regulation of ram sperm motility after CIR.
