ScalEdge: A framework for scalable edge computing in Internet of things

Abstract

Edge computing brings down storage, computation, and communication services from the cloud server to the network edge, resulting in low latency and high availability. The Internet of things (IoT) devices are resource-constrained, unable to process compute-intensive tasks. The convergence of edge computing and IoT with computation offloading offers a feasible solution in terms of performance. Besides these, computation offload saves energy, reduces computation time, and extends the battery life of resource constrain IoT devices. However, edge computing faces the scalability problem, when IoT devices in large numbers approach edge for computation offloading requests. This research article presents a three-tier energy-efficient framework to address the scalability issue in edge computing. We introduced an energy-efficient recursive clustering technique at the IoT layer that prioritizes the tasks based on weight. Each selected task with the highest weight value offloads to the edge server for execution. A lightweight client–server architecture affirms to reduce the computation offloading overhead. The proposed energy-efficient framework for IoT algorithm makes efficient computation offload decisions while considering energy and latency constraints. The energy-efficient framework minimizes the energy consumption of IoT devices, decreases computation time and computation overhead, and scales the edge server. Numerical results show that the proposed framework satisfies the quality of service requirements of both delay-sensitive and delay-tolerant applications by minimizing energy and increasing the lifetime of devices.

Keywords

Computation offloading clustering edge computing Internet of things scalability virtual machine

Introduction

Edge computing is an emerging computing paradigm, which has completely reshaped the technological landscape of modern-day interactive applications and Internet of things (IoT)-based smart systems. User interest in performing data, computation, and communication using handheld devices such as mobile phones, tablet PCs, and laptops is rising. The computational power of these devices is improving over time, but they are yet to compete with their desktop counterpart. In addition, these devices are resource-limited and their performance while working with the traditional cloud environment, acquired high latencies.¹

’The IoT plays a crucial role in the design of state-of-the-art infrastructure. These include smart cities, health, intelligent transportation, and smart home, and so on. However, applications related to these systems are data, compute, and communication intensive, which require more power, high processing, and abundant storage. IoT devices are resource-limited, but edge computing overcomes these weaknesses, offering low latency, high bandwidth, and a desirable quality of service.² Edge computing sought a viable solution for IoT devices.³ Figure 1 illustrates cloud-based edge computing architecture.

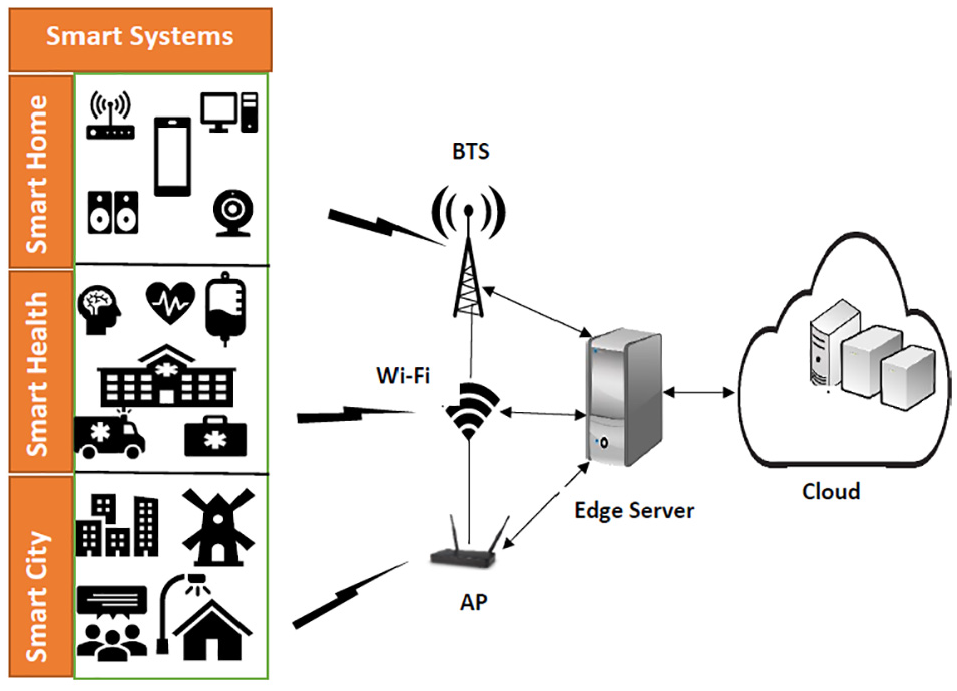

Figure 1.

Edge computing architecture and IoT-based smart systems.

Computation offloading is one of the main characteristics of edge computing, where the IoT devices offload a compute-intensive task to the edge server for execution. Nonetheless, computation offloading is a complex task and requires information on what, when, and how to offload. Deploying a computation offloading scheme requires serious attention because it incurs computational, and processing latencies, in addition to network latencies. The IoT-based systems strictly adhere to low latency. It requires serious consideration while designing an efficient computation offloading scheme.

These smart systems are built using a large number of IoT devices. These devices tend to send multiple offloading requests to the edge server. That originates congestion over the edge server that leads to the scalability problem. Scalability is the capability of an edge server to execute a large number of computation offloading requests simultaneously. However, scalability poses several challenges such as overloading back-haul links, misuse of resources, and hinders the performance of an edge server.⁴ The proposed solution comprises the following contributions:

We have proposed an energy-efficient framework for Internet of things (EEFI) to scale the edge server for IoT-based smart systems. The framework spans over the IoT layer, edge layer, and cloud layer. The inclusion of the cloud strengthens the edge layer to utilize its resource-rich features.

At the IoT layer, we have introduced the energy-efficient recursive clustering (EERC) for clustering IoT devices that limit the number of offloading tasks sent to the edge server. The offloading decision is made based on the weight value assigned to each offloading request. The EERC clusters the IoT devices when an event occurs and elects a cluster head (CH) following the criteria. The recursive clustering keeps the CH selection dynamic. This approach saves the energy of IoT devices because no CH is permanently designated for the computation offloading process.

The proposed two-stage computation offloading algorithm (EEFI) performs a seamless offloading process following strict energy and latency the requirement of for each task. First, at the IoT layer, the algorithm ensures whether offloading to the edge server is beneficial or local execution by observing the criteria. Second, at the edge layer, the algorithm ascertains to process delay-sensitive and delay-tolerant tasks over the edge server, under the conventional workload. However, under high workload, the algorithm offloads the delay-tolerant task to the cloud for execution. This approach protects the edge server from congestion and scales it to perform optimally.

The forgoing technique produces desirable results because it considering multiple aspects while dealing with scalability. The framework proposed tackles the scalability both at the IoT layer via the EERC clustering and at the edge layer through the EEFI computation offloading algorithm. Along with the implementation of an efficient resource management technique at the edge layer. However, several studies do not consider the cloud in their edge-based architecture and could not benefit from the limitless resources of the cloud. However, most of the research studies for granted the importance of an effective clustering technique at the IoT layer are discussed in Table 1.

Table 1.

Summary of related work.

Serial number	Article	RMM	CO	FR/OT	RMoE	CT
1	Shakarami et al.⁵	CPU, execution time, latency	Yes	Brand and bound	Yes	SIoT
2	Liu et al.⁶	CPU cycles, latency	Yes	Particle swarm optimization	Yes	No
3	Budrienė andZalieckaitė⁷	Execution time, energy consumption, latency	No	Supply chain marketing model	Yes	No
4	Satyanarayanan⁸	Response time, latency, communication overhead	Yes	SDN-based MEC architecture	Yes	Hierarchical
5	Rodrigues et al.⁹	Response time, energy consumption, latency	No	Task-specific learning schemes	Yes	Yes
6	Katsaragakis¹⁰	Latency, communication overhead	No	MOOP	Yes	Service-based
7	Babar et al.¹¹	Latency, offloading overhead	Yes	NDK and RenderScript app	Yes	No
8	Benedetto et al.¹²	Offloading overhead, number of tasks, latency	Yes	Markov approximation	Yes	Dynamic
9	Zhou et al.¹³	Execution time, energy consumption, frequency	Yes	TOFFEE	Yes	No
10	Ortiz et al.¹⁴	Number of tasks, latency, energy consumption	No	Scalable architecture	Yes	Energy-aware

CPU: central processing unit; SDN: software-defined networking; MEC: multi-access edge computing; MOOP: multi-objective optimization problem; NDK: native development kit; TOFFEE: task offloading and frequency scaling for energy efficiency; SIoT: social Internet of Things; RMM: resource management metrics; CO: computation offload; FR/OT: framework/optimization technique; RMoE: resource management over edge; CT: clustering technique.

The rest of the article is composed as follows: section “Related work” comprises a literature study, section “EEFI” focuses on the proposed EEFI, the edge–cloud orchestration, and the computation offloading technique. The discussion and result analysis are presented in section “Results and discussion,” and section “Conclusion” concludes the research.

Related work

Computation offloading is a salient feature of edge computing systems, and resource-constrained IoT devices are likely to reduce latency and energy consumption.^5,11,15 The issue overcomes with a computation offloading facility. This facility is acquired via three different techniques:

Application offloading, where the complete application or process offloads to the edge server. It is the most common and simplest method. However, it incorporates the complexity of edge server discovery, process migration, context gathering, and remote execution control.¹⁶

Using the component offloading method, an application divides into several portions or methods, whichever is compute-intensive, are offloaded to the edge server. Component offloading encompasses the complexity of partitioning, scheduling, synchronization, and remote execution control.¹²

In virtual machine (VM) migration,¹⁷ a VM employs over an edge server that provides resources to users. This model scales the edge server to implement as many VM-based edge servers as demanded and does not encapsulate the complexity of architecture and software.

On a commercial scale, medium to small businesses is growing at enormous speed. They cannot scale their technological infrastructure to meet the needs of tomorrow. Mostly, they cannot afford a separate, centralized data center that requires up-front installation cost, maintenance cost, and up-gradation cost.^13,18,19 These businesses are transforming into smart systems, and their infrastructure deployments require a large number of IoT devices to interact. The authors present a component offloading technique based on a deep Q-Learning to handle massive computation offloading requests, to reduce latency and energy consumption in large-scale offloading.⁶

Intelligent systems such as smart cities, health, education, and many more are emerging. However, applications associated with these systems are complex and demand high-performance computing, whereas IoT devices offload compute-intensive tasks to the edge server. Offloading these tasks at random might get the desired quality of service (QoS), latency, and reliability, but receiving simultaneous jobs, especially in peak time, overwhelms the edge server with many requests, which results in the scalability issue.

When IoT devices in abundance opt for offloading, the edge server will be overwhelmed with many offloading requests. These concurrent requests create congestion at the edge server and result in scalability problems in an edge server environment.⁷ Scalability is the ability of the system, a network, or a process to handle the growing amount of work.⁸ Scalability in edge computing is quite getable through computation offloading. However, offloading computationally intensive tasks incurs extra energy and latency while interacting with other devices and servers.

The scalability problem is addressed in several ways by researchers. From the perspective of a smart system, the system generates a massive amount of data and requires a quick response to make timely decisions. However, the author implemented a VM migration technique to balance the workload over the edge server. Besides, edge server resources such as central processing unit (CPU), memory, bandwidth, and latency have managed to avoid bottleneck situations over edge servers via distributed market-based resource management algorithm^9,10 and flexible resource management for data and communication-intensive applications.²⁰

Edge computing meets the evolving needs of the market. Researchers implemented a low-cost framework for large-scale IoT devices to achieve heterogeneity, scalability, and resiliency.^21,22 The studies facilitate resource-constrained IoT devices to offload complex tasks to the edge server to achieve low latency and energy consumption. Despite this, computation offload incurs communication delay among IoT devices and consumes more energy, and this is where the study lacks in proposing an efficient solution.

Heuristic offloading decision algorithm (HODA) introduced different optimization techniques to achieve low latency and minimize the energy consumption of IoT devices.²³ The selective offloading scheme proposed ensures scalability by reducing network latency and energy consumption.¹⁶ However, it did not consider the time and energy-consume to send back the computation result to the user, which we contemplate in our work.

Clustering is another technique used to deal with the scalability problem. These techniques in several studies show phenomenal results. Adaptive Particle Swarm Optimization Technique clusters IoT devices to reduce their energy consumption by adjusting the inertia weight parameter to find the optimal solution.^24,25 Social Internet of Things (SIoT),¹⁴ a clustering technique, where the devices in IoT cluster are grouped based on co-location, co-services, and co-ownership to limit the number of requests sent to the edge server. It also avoids the bottleneck at the edge.

Geo-clustering,²⁶ fuzzy clustering (FCBWTS),²⁷ and multi-clustering²⁸ scale the edge server architecture, decrease the cost of energy consumption, and handle a large pool of IoT devices effectively. These techniques scale the edge servers but consume extra energy and add more communication overhead.

Emerging computing paradigms such as transparent computing, and opportunistic edge computing (OEC), were proposed and the stakeholders are encouraged to make available their edge resources to deal with scalability. However, there is a trade-off between energy consumption to make computation offload and reducing latency.^29,30 The proposed work scalable edge computing²² considers the implementation of multi-objective optimization over edge servers for efficient resource allocation.

Our proposed solution spans over a framework. We introduced a recursive clustering technique at the IoT layer presented in section “Clustering of IoT devices.” A resource scheduling technique over an edge server is mentioned in section “The edge–cloud orchestration architecture,” and a two-stage hierarchical computation offloading algorithm that exploits the effectiveness of edge computing and uses cloud in conjunction with an edge for better scalability. A summary of the relevant work is highlighted in Table 1.

EEFI

This section illustrates the proposed methodology for addressing the scalability problem. It includes how large-scale IoT devices are clustered and how the edge computing provisions the available resources of the edge–cloud orchestration framework. A two-stage computation offloading algorithm performs low latency and minimizes energy consumption. We tried to achieve scalability at both the cluster forming level and the edge orchestration level.

Clustering of IoT devices

IoT architecture consists of a multitude of devices of heterogeneous types. The instantaneous provision of resources to these devices challenges the resource-limited edge servers. To address the scalability challenge, we have divided these large-scale devices into smaller manageable groups called clusters. These are based on EERC algorithm. EERC is an event-driven clustering algorithm that clusters the IoT devices when an event occurs. It offers a two-stage clustering. In stage 1, the distance between the IoT devices computed using Euclidean Distance Forming “K” clusters. The recursive nature of the algorithm further divided the “K” cluster into a “j” number of clusters using distance and interval between nodes. Using this criterion, a CH is elected.

The election of CH is made using round-robin (RR) scheduling, and the energy level of the devices is also taken into account. Every node in the cluster receives data for two rounds. The device with the minimum turn-around time, high energy level, and computational power as compared to other nodes inside the cluster is selected as a CH. The CH will keep on changing whenever re-clustering takes place, and the next node that fits the criteria will be selected as CH. Each device in the cluster sends data to CH. The CH aggregates the data, assigns a weight value to each task, makes an offloading decision, and offloads the task to base station (BS). Figure 2 shows a two-stage clustering design.

Figure 2.

Recursive clustering for IoT.

The primary advantage of EERC is scalability because it reduces the amount of traffic forwarded to the edge server, which protects the edge server from the bottleneck. The secondary advantage is reducing the energy consumption of the cluster’s devices, as the CH head changes every time. Furthermore, this approach also avoids a single point of failure and increases the lifetime of IoT devices. Data aggregation at CH allows only high-priority tasks to be offloaded to the edge server which efficiently utilizes the back-haul links, reduces communication overhead, and improves reliability.³¹

The edge–cloud orchestration architecture

The edge–cloud orchestration architecture spans over three tiers. Tier-1 consists of smart IoT devices discussed in section “Clustering of IoT devices.” In tier-2, edge servers of limited capability to compute, store, and process are hierarchically placed, and tier-3 consists of a resource-rich cloud based on multiple servers that provide a variety of services in abundance. A client–server communication model is deployed both at smart devices and at the edge server, where smart devices such as mobile phones act as a client and edge acts as a server. A client–server model deployment reduces the communication overhead,^14,24 and the inclusion of edge server leads to energy efficiency, enhances throughput, high bandwidth, and reduces network overhead.^26–28 The workflow of computation offload is illustrated in Figure 3.

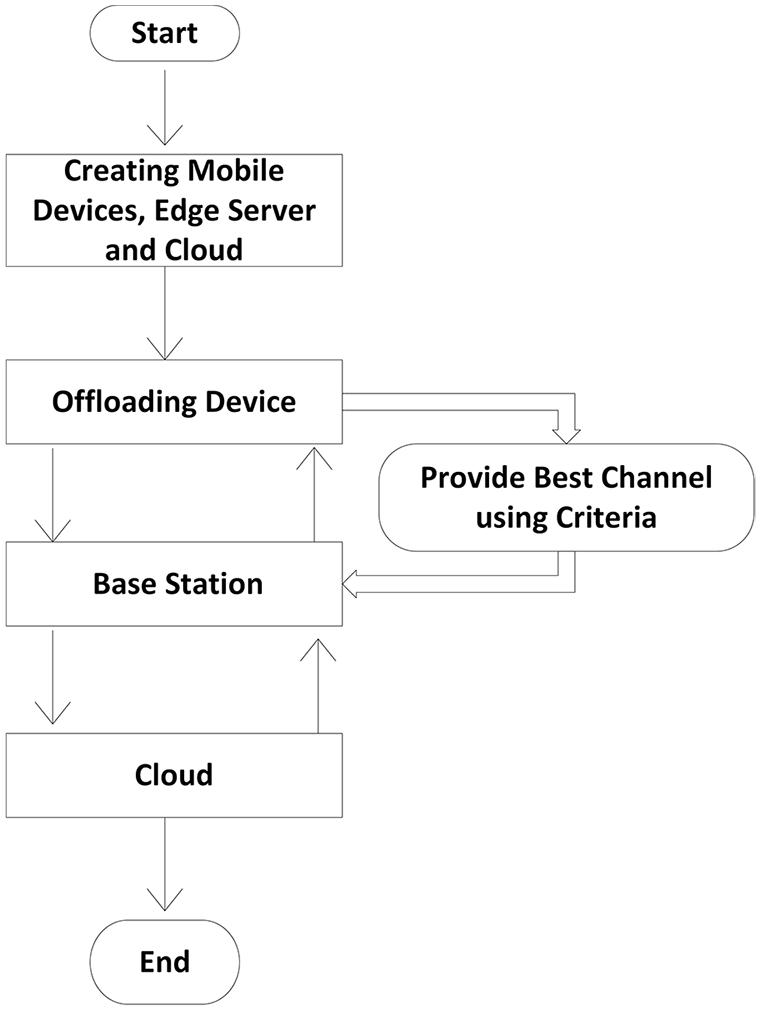

Figure 3.

Computation offloading flowchart.

The workflow completes in three stages. First, the CHs from different clusters send a request to get the BS information for a successful offloading process. In response, the BS provides the best channel by considering the loss factor, channel overhead, and bandwidth. Second, the smart device prepares for offloading by first, evaluating if, offloading is beneficial or not. If the task requirements are beyond the capability of the device and have a high weight value, the task will be offloaded using an offloading algorithm, discussed in section 4.3. In our work, we have evaluated task requirements based on execution time, bandwidth, energy consumption, and latency that provide enough knowledge for making computational offloads successful.

Sun and Ansari³² considered only latency, and Nan et al.³³ focused more on energy consumption that only provides limited information for such a complex task as offloading. Third, the BS receives the offloading request, forwards it to the edge server to process the compute-intensive task, and sends the results back to the end-user device using the same channel, and then releases the channel as shown in Figure 4.

Figure 4.

Three-tier edge–cloud orchestration architecture.

The CH aggregates the data and makes computational offloading decisions based on equations (1) and (2)

Ω_{d, j} = {\begin{matrix} 1, & if (M_{j} < M_{d}) | | (w_{j} < E_{d, j}) \\ 0, & otherwise \end{matrix}

(1)

where Ω_d,j is the computation offload decision parameter, ω_j is the time delay of job j, M_j is the memory required by job j, M_d is the available memory on device d, and E_d,j is the estimated execution time of job j on device d. Once the job j is offloaded to the nearest edge e, then the edge e makes a further decision whether to offload the given job to the cloud, in case, the server is overloaded or the latency of the task fears to violate, otherwise, the task is locally executed over the edge. The offloading decision is given by

Ω_{e, j} = {\begin{matrix} 1, & if (w_{j} < E_{e, j} + Q_{e, j}) \\ 0, & otherwise \end{matrix}

(2)

where E_e,j is the estimated execution time of job j on edge e, and Q_e,j is the queuing delay of job j on edge e.

The offloading technique

We have implemented two popular computational offload algorithms for mobile edge computing, that is, efficient multi-user computation offload (EMU)³⁴ and a dynamic offloading algorithm (DoA),³⁵ using biased randomization. However, EMU performs well in the environment, where we deal with a static number of users, and dynamic offloading works well when the number of users is not stationary but degrades performance in cellular connectivity. We have combined both algorithms for better performance. The proposed algorithm is based on dynamic programming, which is an efficient optimization technique that transforms complex problems into a sequence of general problems, with randomized strategy.

A client–server model is implemented for simulation purposes, where the BS acts as a server and mobile as a client. The EEFI algorithm is implemented on the client station, which decides to offload the task, or not to offload, unlike the centralized algorithms, where the BS is responsible for making the offloading decision. The EEFI algorithm works well with the static number of users, and the biased randomization works better with users on the move.

Computation offloading is a complex process and requires enough knowledge about the time it takes to complete the task and the total energy consumed by the task. The prior knowledge of these will make the computation offload decision a lot easier.^36,37 In our work, we have calculated the time taken to offload a task, given in equation (3) as follows

T_{off} = T_{u} + T_{e} + T_{d}

(3)

where T_off is the total time required to offload a task, T_u is the total time to upload the task, T_e represents the time taken to execute the task, and T_d is the download time, when the task is completed and the result is downloaded on to the device. Our computation offloading technique shown reasonably improved performance and more accurate results because we have considered the download time, while studies^35,38,39 have neglected the downtime effect.

The time required for computation offload is expressed in equation (4)

T_{u} = \frac{D_{n}}{Wlo g_{2} (1 + \frac{{Pu}^{*} Los}{N})}

(4)

where D_n is the size of data, which is offloaded to the edge for execution. W represents the bandwidth of the channel. Pu is the total power of the device that uploads the task.Los is the channel gain, and N represents the Gauss noise power in the channel. The time to execute a task over an edge server is expressed in equation (5)

T_{e} = \frac{C_{n}}{C_{e}}

(5)

where CE is the execution rate of the edge server. The computation offloading time is obtained by combining equations (4) and (5). However, downloading time has a lesser effect on the computation offloading time because the size of the input is much higher than the output produced. Therefore, the total time to offload a task is given in equation (6)

T_{off} = \frac{D_{n}}{Wlo g_{2} (1 + \frac{Pu * Los}{N})} + \frac{C_{n}}{C_{e}}

(6)

We have got the energy and time consumed by the computation offload. In the next stage, we have illustrated how to determine whether the decision to offload is beneficial or not, depends upon the following conditions

T_{off} < T_{local}

(7)

E_{u} < E_{local}

(8)

If the time and energy consumed by the task offloading are lesser than the local execution, the offloading is beneficial otherwise not. The offloading decision is made using equations (1) and (2). When the offloading request is received at the edge tier, it is desirable to allocate the minimum resources to the task by the edge server. The computation offloading problem becomes a binary programming problem, which is solved using cross-entropy-based centralized optimization. This optimization algorithm works well in the current scenario as most of the information is known to BS and the edge server. The EEFI Algorithm 1 presents a detailed description of the offloading process.

Algorithm 1. EEFI’s computation offloading algorithm.
1: Offloading at IoT Tier 2: Input = task for Offloading. \\ takes a compute-intensive task for offloading 3: Output = Get the execution result. \\ Post execution result of offloaded task 4: DsTask 0. \\ Task initialization. 5: DtTask 1. 6: task can be delay-sensitive (DsTask) or delay tolerant (DtTask) 7: task ← 0 or 1. 8: for each task in tasks do 9: if No task to offload then \\ execute the task locally 10: Execute the task locally 11: Get the best channel form BS using (3.2). 12: Calculate T_off from equation (3). \\ Calculate the energy and Time consumption 13: Calculate T_e from equation (5) 14: Set Task ← DsTask 15: Set Task ← DtTask 16: else if task = 0 and T_off < l_exe then \\ Task offloading to the edge or local execution 17: Offload the Task to the edge 18: else if task = 0 and T_e < l_exe then 19: Offload the Task to the edge 20: else if task = 1 then 21: Offload the Task to the edge. 22: else 23: Execute it locally 24: end if 25: end for •Offloading at the Edge 26: Latency (DsTask ← 1 s) \\ latency threshold for delay-sensitive task 27: Latency (DtTask ← 0.5 s) \\ latency threshold for delay-sensitive task 28: Set ServerCong ← 70%. \\ set server congestion threshold. 29: Get the offloading decision from equations (1) and (2). 30: for each task in tasks do 31: if Task = 0 and SeverCong <70% then \\ task execution over edge 32: make the offloading decision using equation (1). 33: Execute the task over Edge 34: else if task = 0 and ServerCong ≥70% and latency satisfies then \\ offload the task to cloud 35: make the offloading Decision using equation (2). 36: offload the task to the Cloud 37: else if task = 0 and ServerCong ≥70% and latency does not satisfy then 38: offload delay-tolerant task to cloud \\ execute the task over Edge 39: execute delay-sensitive tasks over edge 40: else 41: Execute the task over edge 42: end if 43: end for

Algorithm 1. EEFI’s computation offloading algorithm.

1: Offloading at IoT Tier
2: Input = task for Offloading. \\ takes a compute-intensive task for offloading
3: Output = Get the execution result. \\ Post execution result of offloaded task
4: DsTask 0. \\ Task initialization.
5: DtTask 1.
6: task can be delay-sensitive (DsTask) or delay tolerant (DtTask)
7: task ← 0 or 1.
8: for each task in tasks do
9: if No task to offload then \\ execute the task locally
10: Execute the task locally
11: Get the best channel form BS using (3.2).
12: Calculate T_off from equation (3). \\ Calculate the energy and Time consumption
13: Calculate T_e from equation (5)
14: Set Task ← DsTask
15: Set Task ← DtTask
16: else if task = 0 and T_off < l_exe then \\ Task offloading to the edge or local execution
17: Offload the Task to the edge
18: else if task = 0 and T_e < l_exe then
19: Offload the Task to the edge
20: else if task = 1 then
21: Offload the Task to the edge.
22: else
23: Execute it locally
24: end if
25: end for
•Offloading at the Edge
26: Latency (DsTask ← 1 s) \\ latency threshold for delay-sensitive task
27: Latency (DtTask ← 0.5 s) \\ latency threshold for delay-sensitive task
28: Set ServerCong ← 70%. \\ set server congestion threshold.
29: Get the offloading decision from equations (1) and (2).
30: for each task in tasks do
31: if Task = 0 and SeverCong <70% then \\ task execution over edge
32: make the offloading decision using equation (1).
33: Execute the task over Edge
34: else if task = 0 and ServerCong ≥70% and latency satisfies then \\ offload the task to cloud
35: make the offloading Decision using equation (2).
36: offload the task to the Cloud
37: else if task = 0 and ServerCong ≥70% and latency does not satisfy then
38: offload delay-tolerant task to cloud \\ execute the task over Edge
39: execute delay-sensitive tasks over edge
40: else
41: Execute the task over edge
42: end if
43: end for

Results and discussion

This section describes the results achieved through a three-tier EEFI-based smart systems. The performance improvement of the computation offloading algorithm and their effects on latency and energy consumption of devices are discussed. The simulation setup spans over, a BS with a radius of 250 m, following a radio communication specification, adopted in the Third-Generation Partnership Project (3gpp). A 10-GHz edge server is placed in the closed proximity of users. A face recognition application,³⁴ with variant data size, is introduced as a compute-intensive task along with the latency requirements of 1 s for delay-sensitive, and 1.5 s for delay-tolerant applications, respectively. The devices deployed at the IoT layer carry the processing capability of 0.5–1.5 GHz.

The simulation setup was designed to analyze the performance of EEFI by finding average latency, energy consumption, and the maximum number of computation offloading requests entertained by the edge server. Then, it is compared with the state-of-the-art solutions.^16,24 Furthermore, the performance improvement of EEFI in local execution and total computation offloading is observed, when the number of offloaded requests are increasing from 0 to 50. The offloading tasks are generated in a single-user multitasking manner presented in Figure 5, and the multi-user multitasking manner is shown in Figure 6.

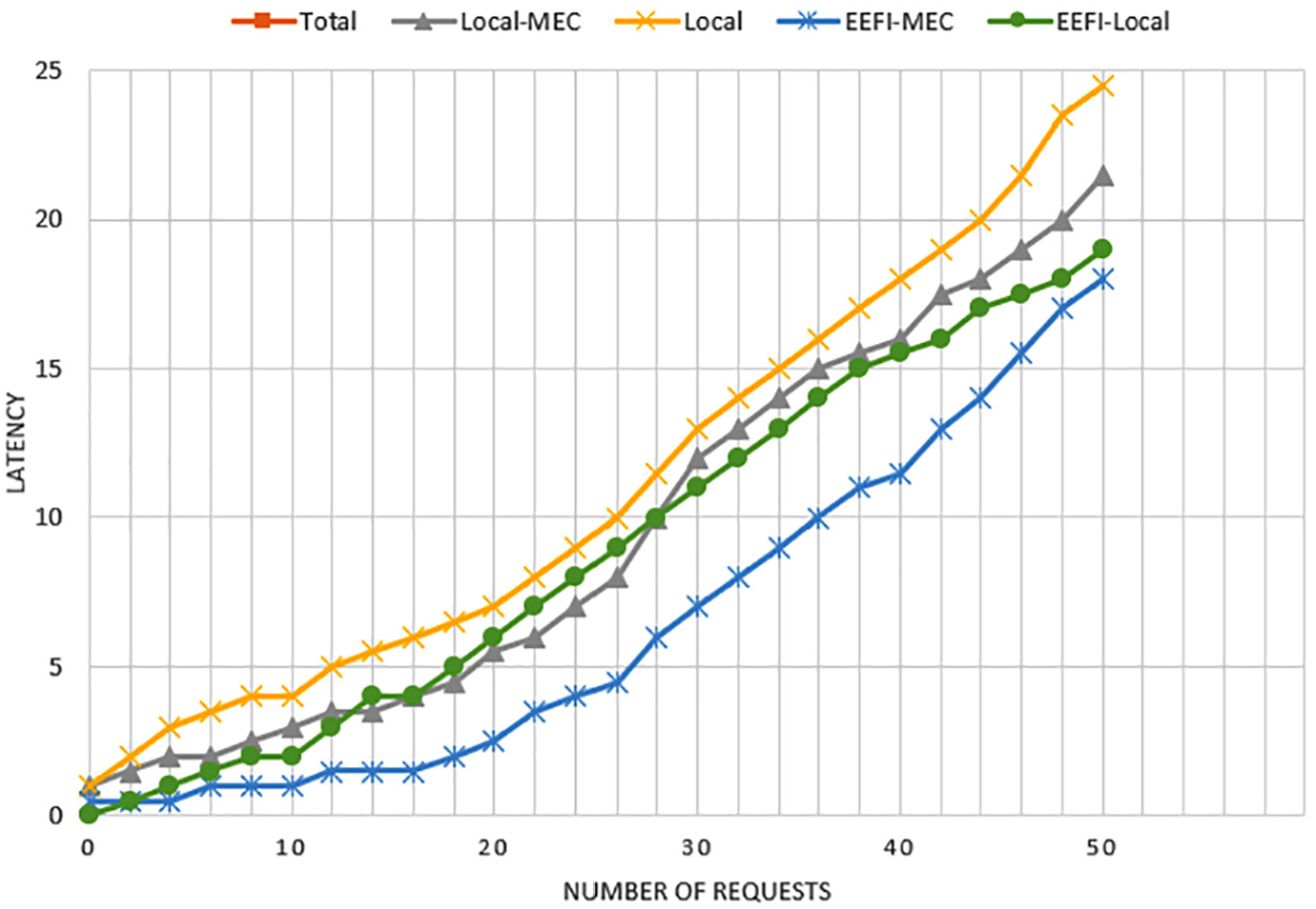

Figure 5.

Latency and number of tasks comparison of EEFI versus adaptive PSO.

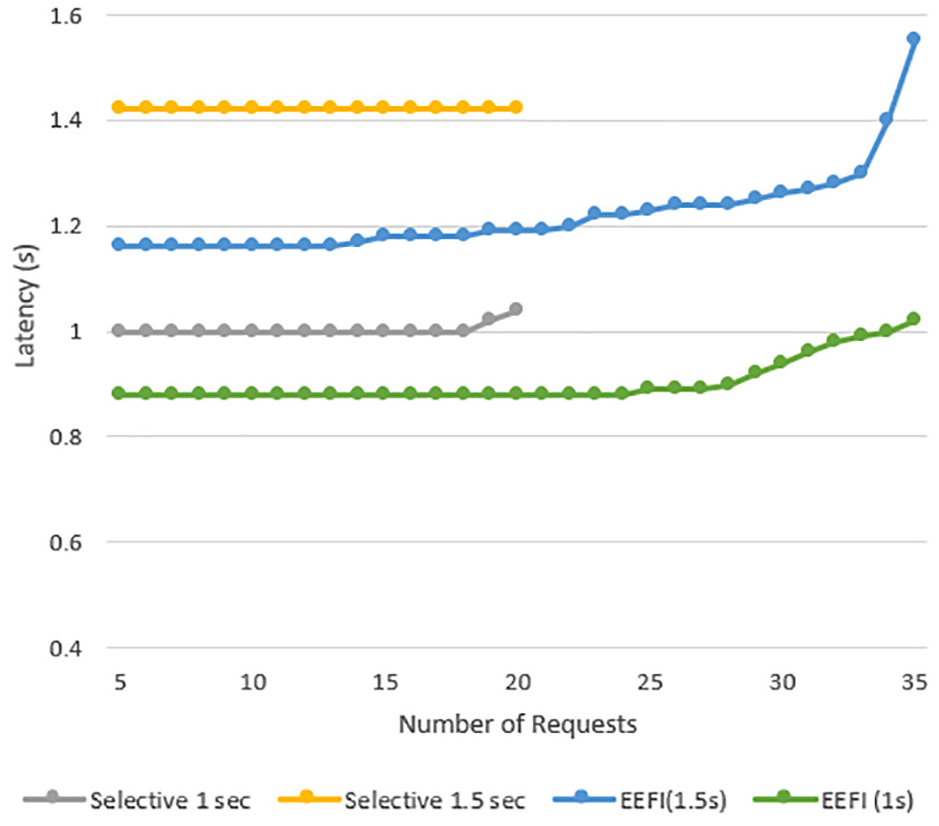

Figure 6.

The comparison of selective offloading versus EEFI approaches to latency requirements.

The results exhibit significant improvement in average latency per user in both delay-sensitive and delay-tolerant applications, shown in Figures 5 and 6. A client–server architecture has been introduced in the IoT tier and edge tier, which eases the synchronization in both tiers, and reduces the communication overhead, to meet the latency requirements of delay-sensitive and delay-tolerant tasks. The average latency achieved by EEFI is 0.8 s for delay-sensitive tasks and 1.12 s for delay-tolerant tasks. The average latency in local execution remains under control 0.9 s in normal conditions, satisfying the strict latency requirements for delay-sensitive applications. However, the average latency recorded as 1.1 s in peak hours violates the strict latency requirements. The average latency of the total offloading goes up to 1.6 s when the offloading requests reach 35. The total number of requests entertained by the edge increased by 65% due to recursive clustering at the IoT tier, which protects the server from the bottleneck, by limiting the number of requests sent to the edge server. However, the performance degrades when the number of requests exceeds 35, which is due to the scalability problem. The EEFI yields better results than selective offloading.

Energy consumption per user request and energy consumed in total offloading are described in Figure 7. We observed that EEFI works well with delay-tolerant and consumes less energy (0.070 j), which is 27% lesser than energy consumption of local execution. Although, in the case of delay-sensitive applications, energy consumption remains low when the number of requests is less than 27, and the energy consumption rises 10% when the number of requests increases to 35. It is because the resource-constrained devices are unable to save energy and offloading some of the requests from the edge to the cloud, in an attempt to protect the edge server from the bottleneck. It also points to the inherent problem of edge computing, where energy and latency cannot be reduced at the same time.

Figure 7.

Energy consumption of selective offloading and EEFI and edge computing trade-off.

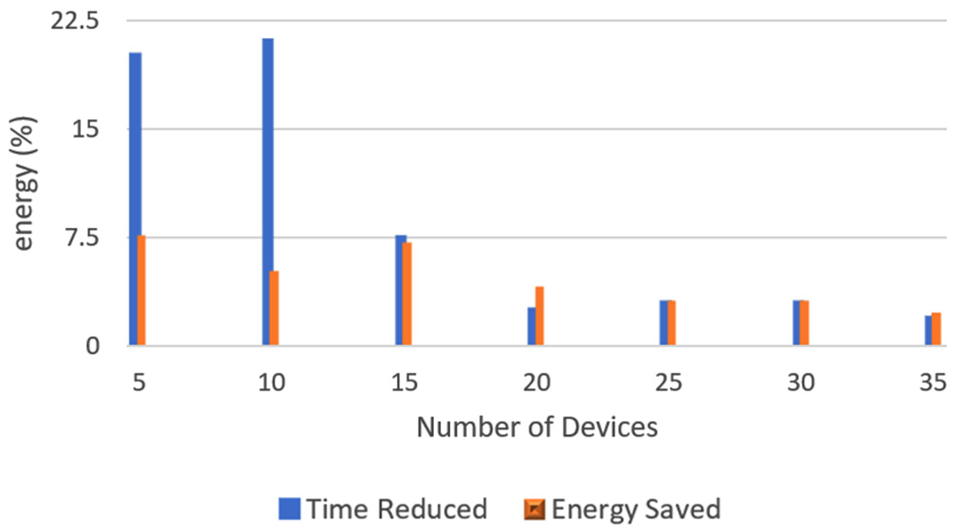

Figure 8 highlighted the energy saved and time reduced with the different number of devices, and Figure 9 shows energy and time reduced with different data sizes. We have observed that the EEFI saves energy and reduces time to an extent, and the deployment of recursive clustering at the IoT layer scales the edge server.⁴⁰

Figure 8.

The comparison of time reduced and energy saved with a different number of devices.

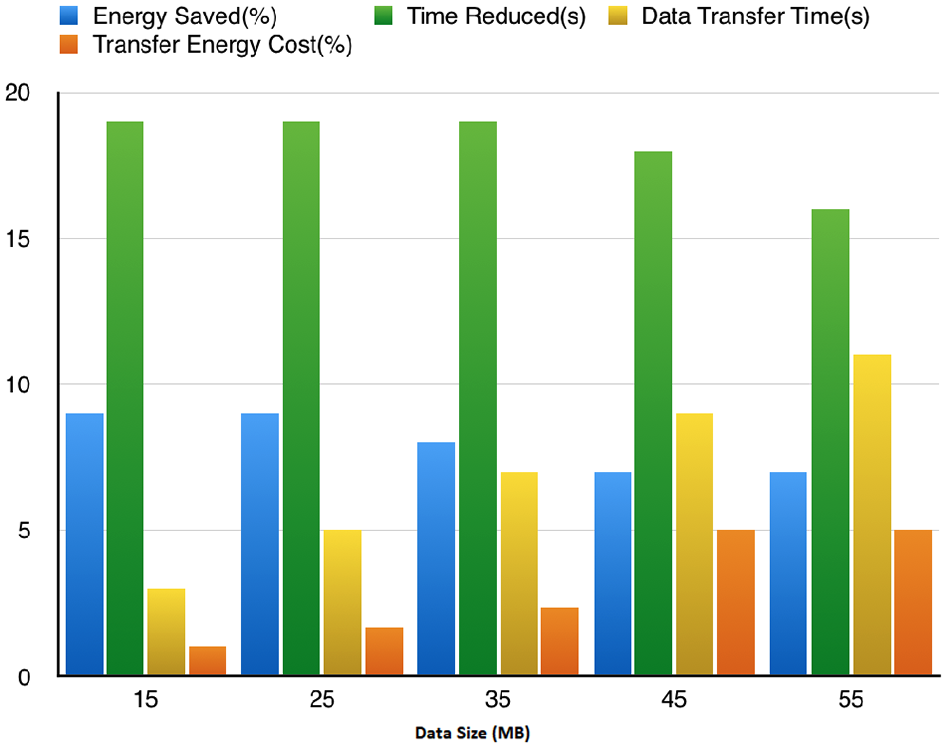

Figure 9.

Energy and time saved under different data sizes with 75% battery level.

Data sizes range from 13 to 55 MB were applied to test the performance of EEFI. Significant improvement has been noticed under different battery levels of the devices using 30 MB of data size as shown in Figure 10. EEFI outperforms both the computation offloading schemes. However, the reduced computation overhead tends to be steady, as the number of devices increases, which is the trade-off of the proposed EEFI framework.

Figure 10.

Energy and time saved under different battery levels with 30 MB data.

A total of 7.902% energy was conserved. 18.4 s of computation time reduced, 6.9 s of data transfer time, and a 3.331% transfer of energy cost recorded. Moreover, EEFI reduces computation offloading overhead by 0.554%. That is because the client–server architecture utilizes for offloading compute-intensive tasks to the edge. The architecture abridges synchronization in the offloading process. Furthermore, it increases the lifetime of the devices by 12.58% while offloading a task, which is beyond the capability of IoT devices to the edge.

Conclusion

We have introduced a three-tier energy-efficient framework comprised of cloud, edge, and IoT devices. To resolve the scalability problem in edge computing, a recursive clustering technique was deployed at the IoT layer that limits the number of requests offloaded to the edge server and protects the edge from the bottleneck. We propose a two-stage hierarchical computation offloading algorithm that satisfies the latency and energy requirement of the task while performing computation offloading. To ensure the effective utilization of edge resources, the state-of-the-art resource scheduling technique is employed. That assigns minimum edge resources to each offloaded task. This technique scales the edge server further. EEFI has shown improved performance in reducing energy consumption, saves computation time, and extends the battery life of resource-constrained IoT devices. The framework also reduces the computation offloading overhead by adopting client–server architecture for the computation offloading process. The results depict that the EEFI satisfies the requirements of delay-sensitive and delay-tolerant applications and scales the edge server to entertain the maximum number of user requests.
