Abstract

In the device-to-device communication network, there is the interference problem when device-to-device users share the same spectrum with cellular users, a distributed beamforming scheme based on non-cooperative game is proposed to maximize weighted sum rate under the rated transmit power and the users’ quality of service. Since the optimization problem is non-concave, we first obtain the solution of the Karush-Kuhn-Tucher (KKT) condition for the downlink beamforming problem of each sender by dual decomposition. Second, a distributed beamforming algorithm based on the non-cooperative game is proposed, which can quickly converge to the Nash equilibrium point with a lower information exchange overhead. Finally, the simulation results show that the proposed algorithm has better performance in terms of system sum rate and fairness than the existing algorithms.

Keywords

Device-to-device communication non-cooperative game beamforming weighted sum rate fairness

Introduction

Device-to-device (D2D) communication is a communication method coexisting with a cellular network. When a user equipment is close, the D2D communication can directly communicate through a D2D connection under the control of a base station. Since the advantages that D2D communication increases the throughput of an entire cell, decreases the energy consumption, improves the instantaneous data rate, it has recently received more and more attention.^1–3 Attractive applications for D2D communications include streaming video, online games, multimedia downloads, peer-to-peer file sharing, and so on. If some users download data through the base station, other users receive the data through D2D communication, and the load of the cellular base station can be greatly reduced, thereby saving a lot of resources compared to the traditional cellular base station communication. Due to the fact that device-to-device users (DUEs) reuse resources of cellular users (CUEs), this multiplexing method can also cause severe intra-frequency interference. Therefore, overcoming the interference between DUEs and CUEs is a major challenge.⁴

On one hand, in order to utilize the advantages of D2D communication without causing too much interference to CUEs, most of the literature focuses on the proposed resource allocation and interference suppression strategies.^5–7 On the other hand, there are also some studies on how to reduce the strong interference from CUEs to DUEs.^8–13 In Min et al.,^8–11 considering uplink resources of multiplexed cellular connections for communication. Min et al.⁸ aimed at maximizing the number of D2D access pairs and proposed the best interference-aware channel allocation strategy using Hungarian algorithm. Yu et al.⁹ proposed a transmission power control scheme for CUEs. In Tao et al.,¹⁰ a cognitive resource allocation scheme was proposed based on greedy algorithm and serial interference cancelation algorithm. In order to maximize the network utility function of D2D communication, Zhou et al.¹¹ proposed an iterative power and optimized interference cancelation algorithm. Game theory exploited for mitigating interference between DUEs and CUEs is described in Xu et al.,¹² The paper uses a sequential second price auction to optimize the overall sum rate of the system. A graph theory-based scheme adopting interference-aware graph-based resource allocation is proposed in Zhang et al.,¹³ The objective of this article is to allocate radio resources to the DUEs and the CUEs in such a manner that the system sum rate is maximized. The interference relationships among the DUEs and cellular communication are formulated as an interference-aware graph.

In Chen et al.,¹⁴ the proposal tries to minimize signaling and computational overhead by utilizing a distributed resource allocation scheme. Consequently, the evolved node B (eNB) allocates resource blocks (RBs) to the DUEs in a centralized manner with a slow timescale while the DUEs decide on their transmission powers and modulation and coding scheme in a distributive manner with a fast timescale. The D2D links can use the same resources if the probability of interference among them is lower than a specific threshold. The proposal in Dong et al.¹⁵ tries to further increase spatial reuse for the DUEs. The objective is maximally utilizing the same resources by the DUEs that do not interfere with each other (i.e. DUEs that are sufficiently spatially distant). In addition, Bagheri and Katz¹⁶ and Pratas and Popovski¹⁷ discussed the problem of downlink channel resources for D2D communication multiplexing cellular communication in single-antenna base station system. Bagheri and Katz¹⁶ proposed a downlink resource allocation scheme for D2D communication to improve throughput and spectrum utilization for the entire system. Pratas and Popovski¹⁷ considered network-assisted D2D communication systems that allow fixed-rate connections to reuse cellular downlink resources.

However, the above research mainly focuses on the single-antenna base station system. The multi-antenna base station and terminal in the next generation mobile communication system will be regarded as the basic system settings, which encourages people to study the multi-antenna scheme in D2D communication. Once D2D communication is equipped with multiple antennas, some conventional techniques, such as beamforming, precoding, interference alignment, can be used to eliminate interference.^18–22 Jänis et al.¹⁸ utilized MIMO schemes particularly heuristic precoders at cellular downlink (eNB) that avoid generating cross-tier interference from an eNB to a D2D receiver underlaying the same resources by aligning the transmitted signal from the NB to the null space of the NB-D2D interference channel. A time division duplexing (TDD) single cell with multi-user multiple-input multiple-output (MIMO) architecture is considered in Li et al., in which there are multiple CUEs and multiple DUEs and the base station (BS) is equipped with multi-antennas, the authors formulate an optimization problem to maximize the overall rate of the CUEs and D2D pairs, which is non-deterministic polynomial (NP)-hard and non-convex. Two steps are taken to solve the optimization problem heuristically.¹⁹ In Spencer et al.,²⁰ an effective zero forcing (ZF) algorithm was proposed to suppress each user’s signal to null space in the interfering channel to suppress multi-user interference. In Sadek et al.,²¹ signal to leakage and interference ratio (SLNR) precoding scheme was proposed, which can improve the performance of the ZF algorithm, especially in the case of low signal-to-noise ratio. Ni et al.²² studied the beamforming and interference cancelation strategies in multi-antenna base station D2D communication system, but it only considered the case of only one D2D pair and one CUE in the system.

Most of the existing D2D communication networks focus on beamforming of CUEs at the base station and few consider the autonomous beamforming between D2D user pairs. In Tang et al.,²³ they propose several new algorithms for cooperative MIMO precoder pair selection for D2D DL to mitigate intra-cell cross-tier interference(eNB-DUE and DUE-CUE) where each CUE shares resources with only one D2D link. The precoding is used on both eNB and D2D transmitter. One class of precoding schemes decouples the precoder pair selection through maximizing SLNR by considering signal and interference strengths from the perspective of the transmitter. The second scheme imposes a restriction on signal to interference plus noise ratio (SINR) at the other co-channel receiver. Recently, Zhu et al.²⁴ considered the design of transponders in multi-antenna systems and optimized the beamforming matrix of base stations and D2D transmitters with the mean square error and system capacity as the optimization objective. However, only one cell User and one D2D user pair in the system. Wang et al.²⁵ proposed an iterative second-order cone programming (SOCP) beamforming algorithm by optimizing the weighted sum rate of the system. Furthermore, Zhong et al.²⁶ studied the resource allocation and precoding scheme in heterogeneous networks of D2D communication, but ignored the fairness of DUEs in resource reuse.

Based on the above analysis and existing problems, this article considers that the base station and the D2D sender have multiple antennas. In order to solve the problem of system sum rate and fairness of D2D communication in the case of multi-cellular users and multiple D2D users, a distributed adaptive pricing beamforming (DAPB) algorithm based on price strategy for non-cooperative game is proposed. The main contributions of this article are listed as follows:

Most of the existing D2D communication networks focus on beamforming of CUEs at the base station, while few consider the autonomous beamforming between D2D user pairs . Assuming that DUEs can reuse channel resources of multiple cellular communications to autonomous beamforming between D2D user pairs. The problem of maximizing the weighted sum rate of the entire network is established under the constraints of the transmission power and the user’s SINR. However, this is a non-convex problem.

We consider the beam matrix sender (including the D2D sender and the sender of the base station) as a game participant and formulate an effective distributed price scheme to optimize the weighted sum rate of the system. Based on the dual decomposition method, the Karush-Kuhn-Tucher (KKT) condition of the downlink beamforming problem at each transmitting end is solved and the convergence of the proposed algorithm is proved. The proposed algorithm can quickly converge to the Nash equilibrium point with low information exchange overhead. It has the characteristics of complete cooperation game performance while taking into account the low information interaction overhead of non-cooperative game. Compared with the existing typical algorithms, proposed algorithm has a great improvement in terms of the weighted sum rate and fairness of the system.

The remainder of this article is organized as follows. The system model and problem formulation are described in details in section “System model and problem formulation.” Then, the distributed beamforming algorithm for non-cooperative games is derived in section “Distributed beamforming algorithm for non-cooperative games.” The update strategy for each transmit end beam matrix is discussed in section “Update strategy for each transmit end beam matrix.” Complexity and overhead of the proposed algorithm is analyzed in section “Algorithm analysis.” Finally, simulations are shown in section “Simulations and analyses” and conclusions are drawn in section “Conclusion.” A summary of major notations used in this article is shown in Table 1.

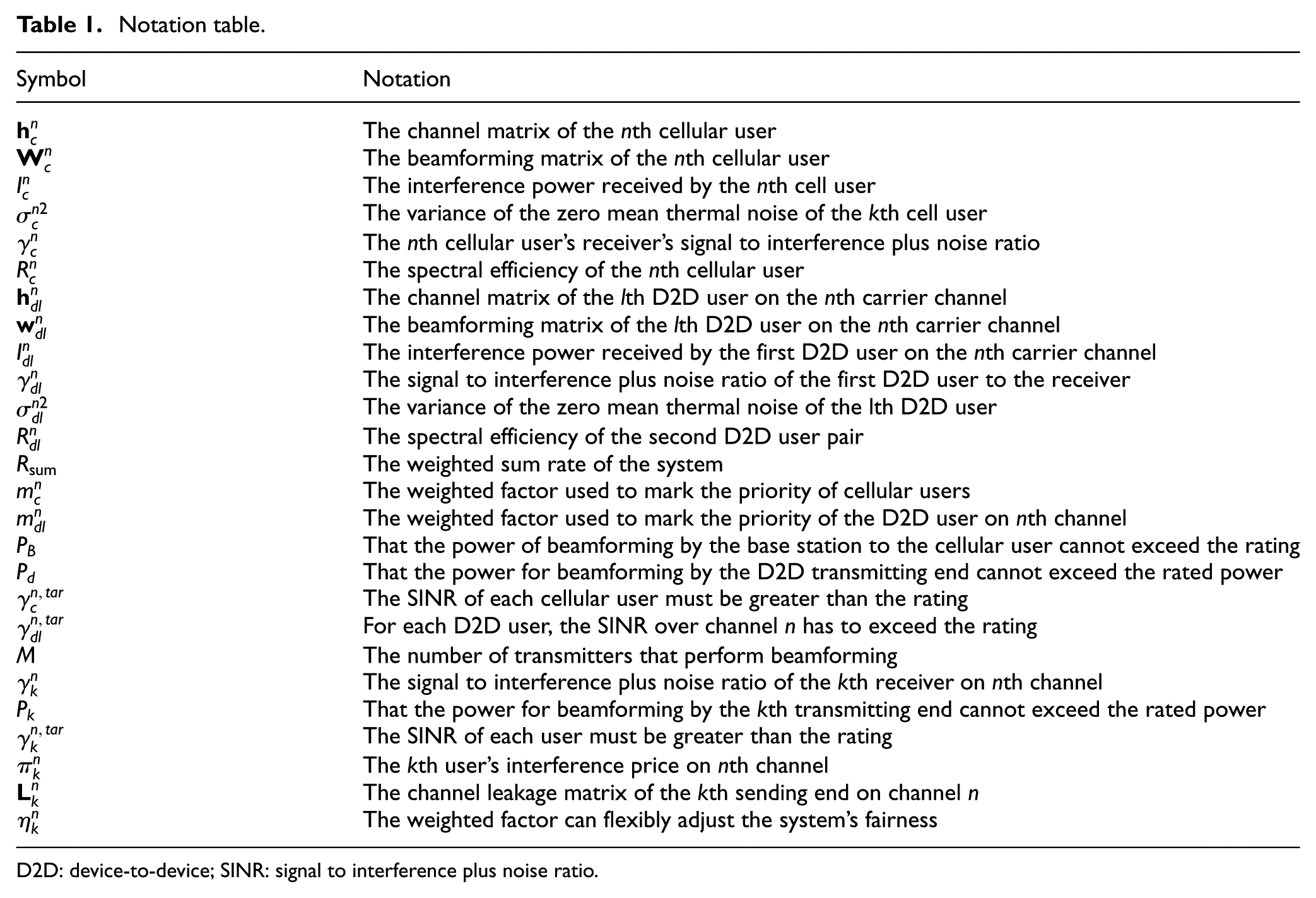

Table 1.

Notation table.

Symbol	Notation
$h_{c}^{n}$	The channel matrix of the nth cellular user
$W_{c}^{n}$	The beamforming matrix of the nth cellular user
$I_{c}^{n}$	The interference power received by the nth cell user
$σ_{c}^{n 2}$	The variance of the zero mean thermal noise of the kth cell user
$γ_{c}^{n}$	The nth cellular user’s receiver’s signal to interference plus noise ratio
$R_{c}^{n}$	The spectral efficiency of the nth cellular user
$h_{dl}^{n}$	The channel matrix of the lth D2D user on the nth carrier channel
$w_{dl}^{n}$	The beamforming matrix of the lth D2D user on the nth carrier channel
$I_{dl}^{n}$	The interference power received by the first D2D user on the nth carrier channel
$γ_{dl}^{n}$	The signal to interference plus noise ratio of the first D2D user to the receiver
$σ_{dl}^{n 2}$	The variance of the zero mean thermal noise of the lth D2D user
$R_{dl}^{n}$	The spectral efficiency of the second D2D user pair
$R_{sum}$	The weighted sum rate of the system
$m_{c}^{n}$	The weighted factor used to mark the priority of cellular users
$m_{dl}^{n}$	The weighted factor used to mark the priority of the D2D user on nth channel
$P_{B}$	That the power of beamforming by the base station to the cellular user cannot exceed the rating
$P_{d}$	That the power for beamforming by the D2D transmitting end cannot exceed the rated power
$γ_{c}^{n, tar}$	The SINR of each cellular user must be greater than the rating
$γ_{dl}^{n, tar}$	For each D2D user, the SINR over channel n has to exceed the rating
$M$	The number of transmitters that perform beamforming
$γ_{k}^{n}$	The signal to interference plus noise ratio of the k th receiver on nth channel
$P_{k}$	That the power for beamforming by the kth transmitting end cannot exceed the rated power
$γ_{k}^{n, tar}$	The SINR of each user must be greater than the rating
$π_{k}^{n}$	The kth user’s interference price on nth channel
$L_{k}^{n}$	The channel leakage matrix of the kth sending end on channel n
$η_{k}^{n}$	The weighted factor can flexibly adjust the system’s fairness

D2D: device-to-device; SINR: signal to interference plus noise ratio.

System model and problem formulation

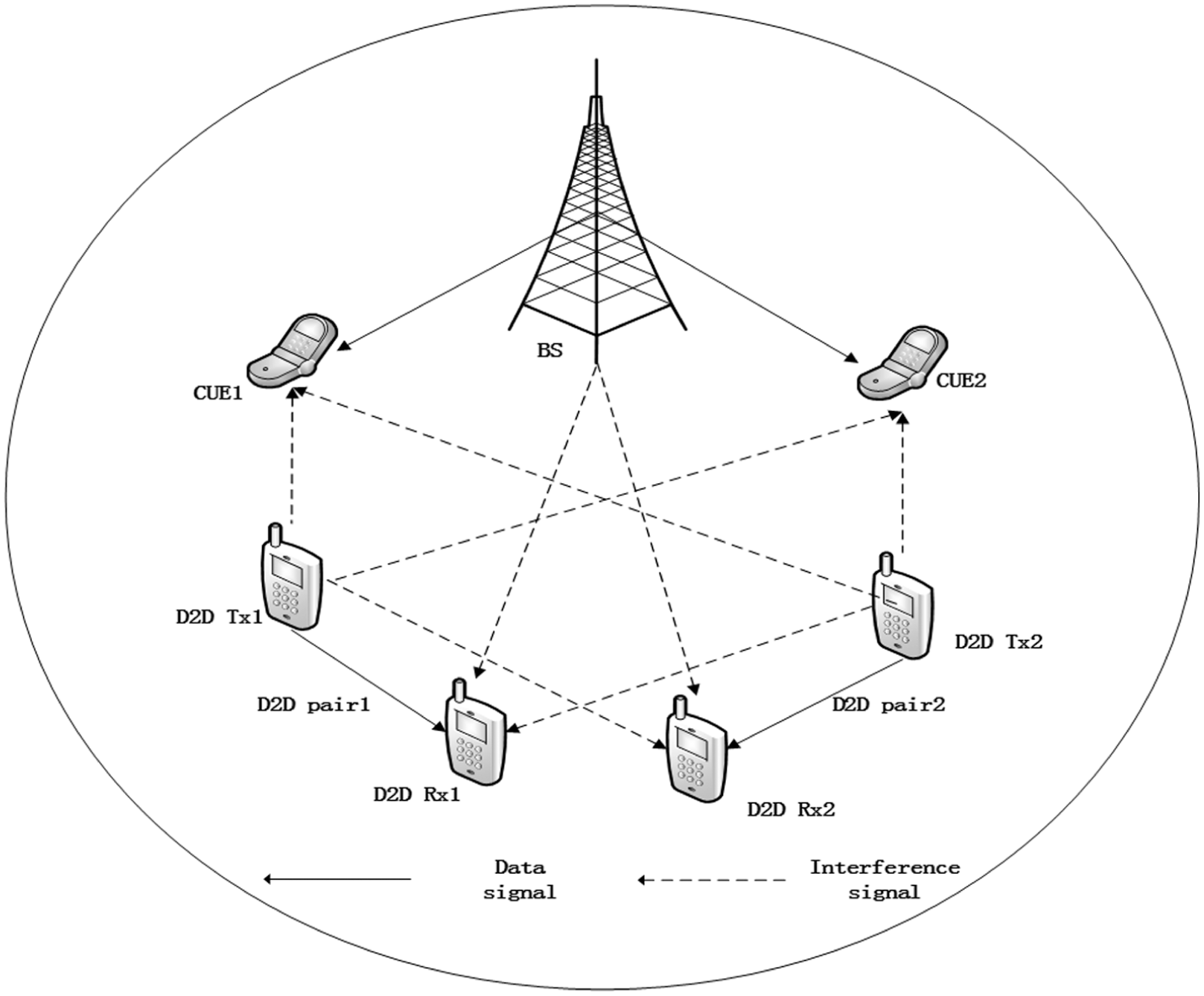

As shown in Figure 1, we consider single-cell orthogonal frequency division multiplexing (OFDM) downlink multi-user cellular heterogeneous network with one BS, K CUEs (CUEi, i = 1, 2,…, K), D D2D user pairs (D2DTxj, D2DRxj, j = 1, 2,…, D). We assume that the base station and the D2D user have T antennas for the transmitting end (D2DTx), the single antenna for the CUE and the D2D receiving end (D2DRx). There are N subcarrier channels in the network, each channel can only be allocated to one CUE (the number of carrier channels and the number of CUEs are equal), and each D2D user pair can reuse all the carrier channels.

Figure 1.

System model.

Thus, the nth CUE’s receiver’s signal to interference plus noise ratio is as follows

γ_{c}^{n} = \frac{{| {\vec{h}}_{c}^{n} W_{c}^{n} |}^{2}}{I_{c}^{n} + σ_{c}^{n 2}}

(1)

where $I_{c}^{n}$ represents the interference power received by the nth cell user $I_{c}^{n} = \sum_{i = 1}^{K} | {\vec{h}}_{dk}^{n} W_{k}^{n} |^{2}$ ; $h_{c}^{n} \in ℂ^{T \times 1}$ represents the channel matrix of the nth CUE. Its variances is $δ_{c}^{n}$ , that is, $E {h_{c}^{n} {\vec{h}}_{c}^{n}} = δ_{c}^{n} I_{T}$ ; $I_{T}$ is a T-dimensional unit matrix.

Furthermore, the spectral efficiency of CUE n is expressed as

R_{c}^{n} = \log_{2} (1 + γ_{c}^{n})

(2)

Thus, we can get the signal to interference plus noise ratio of the first D2D user to the receiver as follows

γ_{dl}^{n} = \frac{| {\vec{h}}_{dl}^{n} w_{dl}^{n} |^{2}}{I_{dl}^{n} + σ_{dl}^{n 2}}

(3)

where $σ_{dl}^{n 2}$ denotes the variance of the zero mean thermal noise of the kth D2D user over the nth carrier channel. $h_{d l}^{n} \in ℂ^{T \times 1}$ represents the channel matrix of the lth D2D user. Its variances are $δ_{dl}^{n}$ , that is, $E {h_{dl}^{n} {\vec{h}}_{dl}^{n}} = δ_{dl}^{n} I_{T}$ ; $I_{T}$ is a T-dimensional unit matrix. $I_{dl}^{n}$ indicates the interference power received by the first D2D user on the nth carrier channel as follows

I_{dl}^{n} = \sum_{j = 1, j \neq l}^{D} | {\vec{h}}_{dlj}^{n} w_{dj}^{n} |^{2} + | {\vec{h}}_{cdl}^{n} w_{c}^{n} |^{2}

(4)

The spectral efficiency of the second D2D user pair is expressed as

R_{dl}^{n} = \log_{2} (1 + γ_{dl}^{n})

(5)

We consider that the goal of linear beamforming is to maximize the weighted sum rate of the system

max_{W} R_{sum} = \sum_{n = 1}^{N} (m_{c}^{n} R_{c}^{n} + \sum_{l = 1}^{D} m_{dl}^{n} R_{dl}^{n})

(6a)

subject to

\sum_{n = 1}^{N} {\vec{w}}_{c}^{n} w_{c}^{n} \leq P_{B}

(6b)

\sum_{n = 1}^{N} {\vec{w}}_{dl}^{n} w_{dl}^{n} \leq P_{d}, \forall l \in D

(6c)

γ_{c}^{n} \geq γ_{c}^{n, tar}, \forall n \in N

(6d)

γ_{dl}^{n} \geq γ_{dl}^{n, tar}, \forall n \in N, \forall l \in D

(6e)

In formula (6a), the weighted factor $m_{c}^{n}$ used to mark the priority of CUEs, $m_{dl}^{n}$ is a weighted factor used to mark the priority of the D2D user on channel n, equation (6b) shows that the power of beamforming by the base station to the CUE cannot exceed the rating $P_{B}$ , equation (6c) indicates that the power for beamforming by the D2D transmitting end cannot exceed the rated power $P_{d}$ , equation (6d) indicates that the SINR of each CUE must be greater than the rating $γ_{c}^{n, tar}$ , equation (6e) shows that for each D2D user, the SINR over channel n has to exceed the rating $γ_{dl}^{n, tar}$ .

Define the variable $M = D + 1,$ $M$ Indicates the number of transmitters that perform beamforming, including D D2D pairs plus one base station (the base station is the first beam sender and the other M-1’s are served by D D2D pairs), we study the optimal beamforming matrix of the base station and the D2D sender to maximize the weighted sum rate of the entire system. Thus, the problem of equation (6a) can be rewritten as follows

\begin{matrix} max_{W} R_{sum} = \sum_{k = 1}^{M} \sum_{n = 1}^{N} η_{k}^{n} \log_{2} (1 + γ_{k}^{n}) \\ s . t . \sum_{n = 1}^{N} {\vec{w}}_{k}^{n} w_{k}^{n} \leq P_{k}, \forall k \in M \\ γ_{k}^{n} \geq γ_{k}^{n, tar}, \forall k \in M, \forall n \in N \end{matrix}

(7)

Distributed beamforming algorithm for non-cooperative games

Game theory provides a mathematical tool to solve the problem of resource competition and cooperation.^27–32 In general, cooperative games require frequent exchange of information between game participants, which results in huge information overhead and poor scalability in large networks; non-cooperative game is an effective tool to formulate a distributed algorithm, but the non-cooperative game’s Nash equilibrium point is generally worse than the optimization center algorithm. On the other hand, price strategy is another effective way to overcome the inefficiency of non-cooperative game. Due to the distributed nature of DUEs and the characteristics of D2D communication, a distributed resource allocation strategy is preferable. Therefore, the following discussion is based on the pricing of non-cooperative game distributed beamforming.

Pricing program

We set up the following model for the price-based non-cooperative beamforming game

Ω = {M, {W_{k}}_{k \in M}, {U_{k}}_{k \in M}}

(7)

The elements of the game model are as follows:

Participants in the game: $M = {1, 2, \dots, M}$ , which is the Mth signal sender.

Strategy collection: ${W_{1}, W_{2} \dots W_{M}}$ . The strategy for the Mth sender is as follows

\begin{matrix} W_{k} = {w_{k}^{n} \in C^{T}, n \in N : \sum_{n = 1}^{N} {\vec{w}}_{k}^{n} w_{k}^{n} \leq P_{k} \\ γ_{k}^{n} \geq γ_{k}^{n, tar}, \forall k \in M, \forall n \in N} \end{matrix}

(8)

Utility function collection: ${{\hat{U}}_{1}, {\hat{U}}_{2} \dots, {\hat{U}}_{M}}$

{\hat{U}}_{k} (W_{k}, W_{- k}) = \sum_{n = 1}^{N} U_{k}^{n} - C (W_{k}, W_{- k})

(9)

Among them, $U_{k}^{n} = η_{k}^{n} \log_{2} (1 + γ_{k}^{n})$ , which represents the weighted sum rate of user k on channel n, $W_{k} = {w_{k}^{n}, k \in M, n \in N}$ and $W_{- k} = {W_{1}, \dots, W_{k - 1}, W_{k + 1}, \dots W_{M}}$ , respectively, denote a beamforming matrix of a kth sending device and a device other than the kth sending device. $C (W_{k}, W_{- k})$ denotes the total payment fee of the kth transmitting device on N channels; next, we will describe it in detail.

Reasonable pricing factors are very important to price-based algorithms. The effective pricing schemes need to consider the cost of resources consumed by game participants in meeting their own resource needs. Inspired by the literature,³³ We introduce the user’s interference price $π_{k}^{n}$ , which represents the marginal decrease in its sum rate due to a marginal increase in its received interference, given by

π_{k}^{n} = - \frac{\partial U_{k}^{n}}{\partial I_{k}^{n}} = \frac{η_{k}^{n}}{\ln 2} \frac{| h_{k}^{n} w_{k}^{n} |^{2}}{(1 + γ_{k}^{n}) {(σ_{k}^{n 2} + I_{k}^{n})}^{2}}

(10)

Since the kth transmitting end transmits data on the channel n with the beam matrix $w_{k}^{n}$ , it will generate interference $| h_{kj}^{n} w_{k}^{n} |^{2}$ on the same frequency to the receiving end j, $j \neq k$ . Therefore, based on the pricing scheme, the total cost that the kth sending end device needs to pay on the nth carrier channel is

\sum_{j \neq k} π_{k}^{n} | {\vec{h}}_{kj}^{n} w_{k}^{n} |^{2} = {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n}

(11)

where $L_{k}^{n}$ is a channel leakage matrix of the kth sending end on channel n, represents the amount of interference caused to other intra-frequency devices when the kth sending end device and the destination receiving end communicate, defined as

L_{k}^{n} = \sum_{j \neq k} π_{k}^{n} h_{kj}^{n} {\vec{h}}_{kj}^{n}

(12)

Therefore, the total payment fee of the kth transmitting device on N channels is

C (W_{k}, W_{- k}) = \sum_{n = 1}^{N} {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n}

(13)

Based on the above analysis, in our non-cooperative beamforming game, each sending device needs to solve the following optimization problems

\begin{matrix} max_{W_{k}} \sum_{n = 1}^{N} (U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n}) \\ s . t . \sum_{n = 1}^{N} {\vec{w}}_{k}^{n} w_{k}^{n} \leq P_{k}, \forall k \in M \\ γ_{k}^{n} \geq γ_{k}^{n, tar}, \forall k \in M, \forall n \in N \end{matrix}

(14)

Observe the above equations (10)–(14) taking into account the differences between channels and Quality of Service (QoS), we set different weighted factor $η_{k}^{n}$ for different users on different channels. This can reflect the fairness between users, $η_{k}^{n}$ as a weighted factor can flexibly adjust the system’s fairness. The simulation in section “System fairness simulation” further confirms the fairness of the system.

We note that the objective function is still non-convex relative to the beam matrix $W_{k}$ . Therefore, the global optimal solution of equation (14) is hard to find. In the following section, we will propose a KKT condition for the dual decomposition algorithm to solve problem (14).

Distributed adaptive pricing beamforming algorithm

The main idea of the distributed algorithm is that each sender can automatically design its own beam matrix until convergence. Many update algorithms can be used to solve these problems, such as simultaneous updates, sequential updates, completely asynchronous updates. We use the sequential update scheme in Algorithm 1, which we call distributed adaptive pricing beamforming.

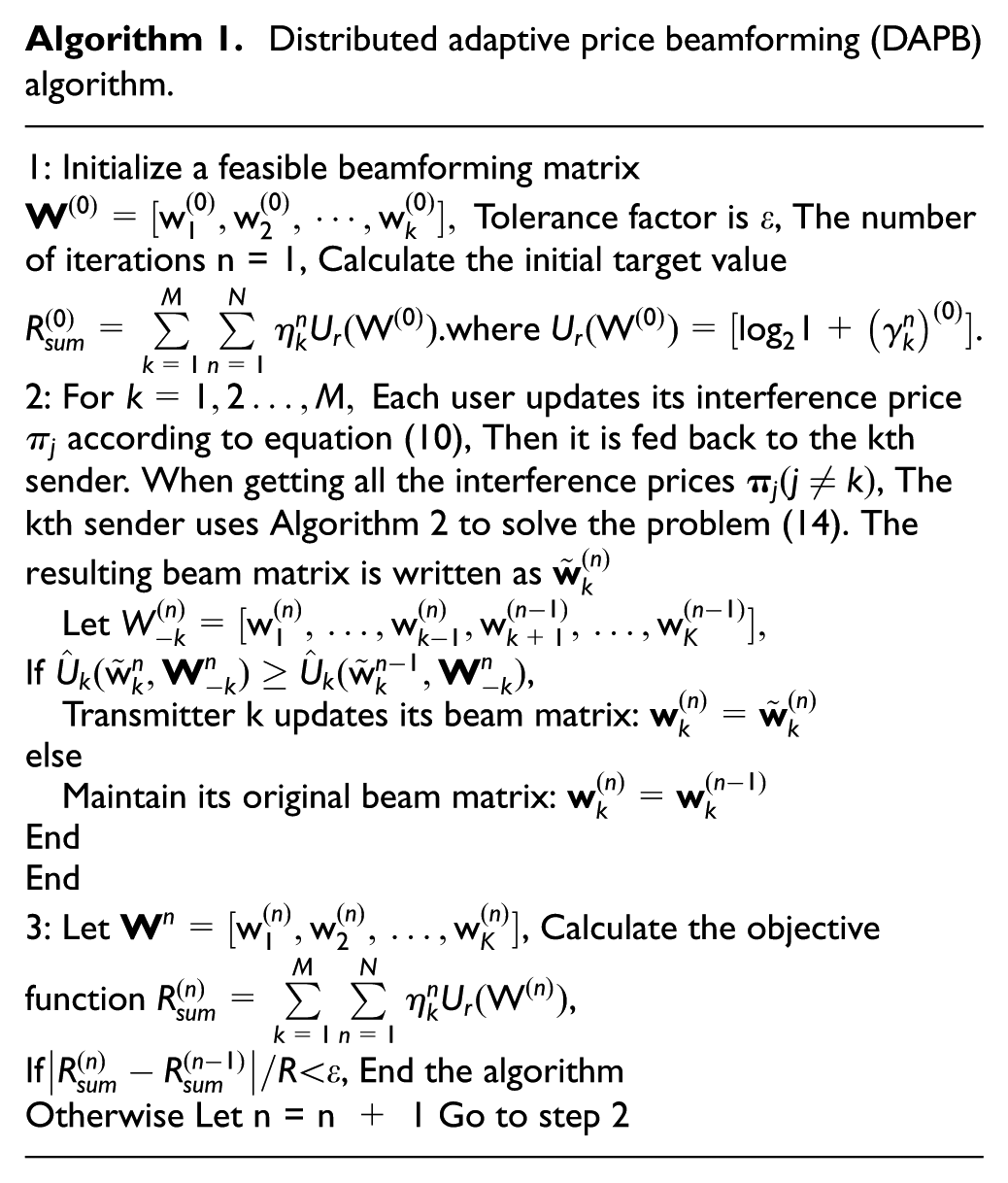

Algorithm 1.

Distributed adaptive price beamforming (DAPB) algorithm.

1: Initialize a feasible beamforming matrix

W^{(0)} = [w_{1}^{(0)}, w_{2}^{(0)}, \dots, w_{k}^{(0)}],

Tolerance factor is

ε

, The number of iterations n = 1, Calculate the initial target value

R_{sum}^{(0)} = \sum_{k = 1}^{M} \sum_{n = 1}^{N} η_{k}^{n} U_{r} (W^{(0)})

.where

U_{r} (W^{(0)}) = [\log_{2} 1 + {(γ_{k}^{n})}^{(0)}]

.2:

For k = 1, 2 \dots, M,

Each user updates its interference price

π_{j}

according to equation (10), Then it is fed back to the kth sender. When getting all the interference prices

π_{j} (j \neq k)

, The kth sender uses Algorithm 2 to solve the problem (14). The resulting beam matrix is written as

{\tilde{w}}_{k}^{(n)}

Let

W_{- k}^{(n)} = [w_{1}^{(n)}, \dots, w_{k - 1}^{(n)}, w_{k + 1}^{(n - 1)}, \dots, w_{K}^{(n - 1)}],

If {\hat{U}}_{k} ({\tilde{w}}_{k}^{n}, W_{- k}^{n}) \geq {\hat{U}}_{k} ({\tilde{w}}_{k}^{n - 1}, W_{- k}^{n})

, Transmitter k updates its beam matrix:

w_{k}^{(n)} = {\tilde{w}}_{k}^{(n)}

else Maintain its original beam matrix:

w_{k}^{(n)} = w_{k}^{(n - 1)}

EndEnd3: Let

W^{n} {= [w}_{1}^{(n)} {, w}_{2}^{(n)}, \dots, w_{K}^{(n)}]

, Calculate the objective function

R_{sum}^{(n)} = \sum_{k = 1}^{M} \sum_{n = 1}^{N} η_{k}^{n} U_{r} (W^{(n)})

If | R_{sum}^{(n)} - R_{sum}^{(n - 1)} | / R < ε

, End the algorithmOtherwise Let n = n + 1 Go to step 2

Note the sequential update algorithm, only when ${\hat{U}}_{k} ({\tilde{w}}_{k}^{n}, W_{- k}^{n}) \geq {\hat{U}}_{k} ({\tilde{w}}_{k}^{n - 1}, W_{- k}^{n})$ is established, the kth sender updates its beam matrix; otherwise, it maintains its original matrix. This will ensure the convergence of the algorithm.

Algorithm convergence proof

Theorem 1: Algorithm 1 converges to Nash equilibrium

It is proved that when the transmitter updates the beam matrix, the weighted sum rate is non-decreasing, $U_{k}^{n}$ is convex for $I_{k}^{n}$ , and we obtain the second partial derivative of $U_{k}^{n}$ with respect to $I_{k}^{n}$

\frac{\partial^{2} U_{k}^{n}}{\partial I_{k}^{n 2}} = \frac{η_{k}^{n}}{\ln 2} [{(\frac{1}{σ_{k}^{n 2} + I_{k}^{n}})}^{2} - {(\frac{1}{σ_{k}^{n 2} + I_{k}^{n} + | {\vec{h}}_{k}^{n} w_{k}^{n} |})}^{2}] > 0

(15)

So $U_{k}^{n}$ is a convex function for $I_{k}^{n}$ . So, we can draw

\begin{matrix} U_{k}^{n} ({\tilde{W}}^{n}) \geq U_{k}^{n} (W^{n}) + \frac{\partial U_{k}^{n}}{\partial I_{k}^{n}} ({\tilde{I}}_{k}^{n} - I_{k}^{n}) \\ = U_{k}^{n} (W^{n}) - π_{k}^{n} (W^{n}) ({\tilde{I}}_{k}^{n} - I_{k}^{n}) \end{matrix}

(16)

where $I_{k}^{n}$ and ${\tilde{I}}_{k}^{n}$ respectively represent the interference of the current working point $W = {W^{(n)}, n \in N}$ and the interference of other new working points $\tilde{W} = {{\tilde{W}}^{(n)}, n \in N}$ .

Formula (16) is superimposed on all carrier channels to obtain the following formula

\sum_{n = 1}^{N} U_{k}^{n} ({\tilde{W}}^{n}) \geq \sum_{n = 1}^{N} (U_{k}^{n} (W^{n}) - π_{k}^{n} (W^{n}) ({\tilde{I}}_{k}^{n} - I_{k}^{n}))

(17)

Assuming that given the current beamforming matrix $W = {W^{(n)}, n \in N}$ , the sending kth end updates its beamforming using Algorithm 1, and from Algorithm 1, we can get

{\hat{U}}_{k} ({\hat{W}}_{k}, W_{- k}) \geq {\hat{U}}_{k} (W_{k}, W_{- k})

(18)

where $\tilde{W} = {W_{1}, \dots, W_{k - 1}, {\tilde{W}}_{k}, W_{k + 1}, \dots, W_{M}}$ represents the working point after the kth transmitting end updates its beam matrix ${\tilde{W}}_{k} = {w_{k}^{n}, n \in N}$ .

Substituting equations (9)–(13) into equation (18), we get equations (19) and (20)

\begin{matrix} \sum_{n = 1}^{N} (U_{k}^{n} ({\hat{W}}^{n}) - \sum_{j \neq k} π_{k}^{n} | {\vec{h}}_{k, j}^{n} {\hat{w}}_{k}^{n} |^{2}) \\ \geq \sum_{n = 1}^{N} (U_{k}^{n} (W^{n}) - \sum_{j \neq k} π_{k}^{n} | {\vec{h}}_{k, j}^{n} w_{k}^{n} |^{2}) \end{matrix}

(19)

\begin{matrix} \sum_{n = 1}^{N} (U_{k}^{n} ({\hat{W}}^{n}) - {\hat{w}}_{k}^{n} L_{k}^{n} {\hat{w}}_{k}^{n}) \\ \geq \sum_{n = 1}^{N} (U_{k}^{n} (W^{n}) - w_{k}^{n} L_{k}^{n} w_{k}^{n}) \end{matrix}

(20)

Let $W = [w_{1}, \dots, w_{k}]$ denote the beam matrices of all the transmitters before the kth transmit end updates the beam matrix and ${\tilde{w}}_{k}$ represents a beam matrix that is updated by the transmit kth end after knowing the other transmit end beam matrix $W_{- k}$ . $\tilde{W} = ({\tilde{w}}_{k}, W_{- k})$ represents the beam matrix of all the transmitters after the transmit kth end updates its beam matrix. Therefore, we can get

\sum_{k = 1}^{M} \sum_{n = 1}^{N} U_{k}^{n} (\hat{W})

(21a)

= \sum_{n = 1}^{N} [U_{j}^{n} (\hat{W}) + \sum_{k = 1, k \neq j}^{M} U_{k}^{n} (\hat{W})]

(21b)

\geq \sum_{n = 1}^{N} [U_{j}^{n} (\hat{W}) + \sum_{k = 1, k \neq j}^{M} (U_{k}^{n} (W) + \frac{\partial U_{k}^{n} (W)}{\partial I_{k}^{n}} ({\hat{I}}_{k}^{n} - I_{k}^{n}))]

(21c)

= \sum_{n = 1}^{N} [U_{j}^{n} (\hat{W}) + \sum_{k = 1, k \neq j}^{M} U_{k}^{n} (W) - \sum_{k = 1, k \neq j}^{M} π_{k}^{n} ({\hat{I}}_{k}^{n} - I_{k}^{n})]

(21d)

= \sum_{n = 1}^{N} (U_{j}^{n} (\hat{W}) + \sum_{k = 1, k \neq j}^{M} U_{k}^{n} (W) - {\hat{\vec{w}}}_{k}^{n} L_{k}^{n} {\hat{w}}_{k}^{n} + {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n})

(21e)

\geq \sum_{n = 1}^{N} (U_{j}^{n} (W) + \sum_{k = 1, k \neq j}^{M} U_{k}^{n} (W) - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n} + {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n})

(21f)

= \sum_{k = 1}^{M} \sum_{n = 1}^{N} U_{k}^{n} (W)

(21g)

where ${\hat{I}}_{k}^{n}$ and $I_{k}^{n}$ respectively represent the interference when the beam matrix is $\tilde{W}$ and $W$ . Equation (21c) holds because $U_{k}^{n} (W)$ is a convex function, equation (21d) is established because the definition of $π_{k}^{n}$ is used. Combining equations (20) and (21e), we can get equation (21f). Therefore, when each sender updates its beamforming, the weighted sum rate of the entire system is non-decreasing.

At the same time, from equation (9), we know that

U_{k}^{n} (W) = η_{k}^{n} \log_{2} (1 + γ_{k}^{n})

(22)

From equation (14), we know that

\sum_{n = 1}^{N} {\vec{w}}_{k}^{n} w_{k}^{n} \leq P_{k}, \forall k \in M

(23)

thus, {\vec{w}}_{k}^{n} w_{k}^{n} \leq P_{k}, \forall k \in M . \forall n \in N

(24)

γ_{k}^{n} = \frac{{| {\vec{h}}_{k}^{n} w_{k}^{n} |}^{2}}{I_{k}^{n} + σ_{k}^{n 2}} < \frac{{| {\vec{h}}_{k}^{n} w_{k}^{n} |}^{2}}{σ_{k}^{n 2}}

(25)

{| {\vec{h}}_{k}^{n} w_{k}^{n} |}^{2} < δ_{k}^{n} P_{k}

(26)

where $δ_{k}^{n}$ is variance of $h_{k}^{n}$ , we can know that from equations (1) and (3). Therefore, there is an upper bound on $γ_{k}^{n}$ , combination Equation (22), $U_{k}^{n} (W)$ is on the upper bound; the weighted sum rate of the entire system $\sum_{k = 1}^{M} \sum_{n = 1}^{N} U_{k}^{n} (W)$ is also on the upper bound. Therefore, the DAPB algorithm converges. Proof is completed.

Update strategy for each transmit end beam matrix

Dual decomposition

Here, we discuss Algorithm 1 in which each sender updates its beamforming strategy. Dual decomposition is a good way to decompose coupled constraints and is often used to solve distributed optimization problems.

First, we set the scalar variable $p_{k} = {p_{k}^{n}, n \in N}$ to denote the power constraint of the kth sender on channel n. Therefore, we can rewrite the optimization problem (14) as follows

\begin{matrix} max_{W_{k}} \sum_{n = 1}^{N} (U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n}) \\ s . t . \sum_{n = 1}^{N} p_{k}^{n} \leq P_{k} \\ {\vec{w}}_{k}^{n} w_{k}^{n} \leq p_{k}^{n}, n \in N \\ γ_{k}^{n} \geq γ_{k}^{n, tar} \end{matrix}

(27)

Note that optimization problem (27) has only one coupling constraint $\sum_{n = 1}^{N} p_{k}^{n} \leq P_{k}$ . Under this coupling constraint, we can get the Lagrange function of the optimization problem (27) as follows

\begin{matrix} F_{k} (W_{k}, p_{k}, λ_{k}) = \sum_{n = 1}^{N} (U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n}) - λ_{k} (\sum_{n = 1}^{N} p_{k}^{n} - P_{k}) \\ = \sum_{n = 1}^{N} (U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n} - λ_{k} p_{k}^{n}) + λ_{k} P_{k} \end{matrix}

(28)

where $λ_{k}$ is Lagrange’s dual variable.

We define the dual problem as

min_{λ_{k}} D_{k} (λ_{k})

(29)

The objective function is

\begin{matrix} max_{W_{m}, p_{m}} F_{k} (W_{k}, p_{k}, λ_{k}) \\ s . t . {\vec{w}}_{k}^{n} w_{k}^{n} \leq p_{k}^{n}, n \in N \\ γ_{k}^{n} \geq γ_{k}^{n, tar}, n \in N \end{matrix}

(30)

Since the dual function $D_{k} (λ_{k})$ is an imitation function with respect to $λ_{k}$ , it is a convex function with respect to $λ_{k}$ .

Decoupling sub-problems

First, we want to calculate $λ_{k}$ for a given $D_{k} (λ_{k})$ . Due to the structure of problem separation, the dual function $D_{k}$ can be decomposed into N sub-problems $D_{k}^{n}$ , $n \in N$ , as follows

\begin{matrix} max_{{w_{k}^{n}, p_{k}^{n}}} U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n} - λ_{k} p_{k}^{n} \\ s . t . {\vec{w}}_{k}^{n} w_{k}^{n} \leq p_{k}^{n} \\ γ_{k}^{n} \geq γ_{k}^{n, tar} \end{matrix}

(31)

The Lagrange function of sub-problem $D_{k}^{n}$ is

\begin{matrix} {\tilde{F}}_{k}^{n} (w_{k}^{n}, p_{k}^{n}, λ_{k}, α_{k}^{n}, β_{k}^{n}) \\ = U_{k}^{n} - {\vec{w}}_{k}^{n} L_{k}^{n} w_{k}^{n} - λ_{k} p_{k}^{n} - α_{k}^{n} ({\vec{w}}_{k}^{n} w_{k}^{n} - p_{k}^{n}) \\ + β_{k}^{n} (γ_{k}^{n} - γ_{k}^{n, tar}) \end{matrix}

(32)

where $α_{k}^{n}$ is the dual variable under the constraint condition ${\vec{w}}_{k}^{n} w_{k}^{n} \leq p_{k}^{n}$ and $β_{k}^{n}$ is the dual variable under the constraint condition $γ_{k}^{n} \geq γ_{k}^{n, tar}$ .

Then we get KKT conditions as follows

\frac{\partial {\tilde{F}}_{k}^{n}}{\partial w_{k}^{n}} = ((U_{k}^{n})' + β_{k}^{n}) \frac{2 {\vec{h}}_{k}^{n} h_{k}^{n} w_{k}^{n}}{(σ^{2} + γ_{k}^{n})} - 2 L_{k}^{n} w_{k}^{n} - 2 α_{k}^{n} I_{k}^{n} w_{k}^{n} = 0

(33)

\frac{\partial {\tilde{F}}_{k}^{n}}{\partial p_{k}^{n}} = - λ_{k} + α_{k}^{n} = 0

(34)

where $I_{k}^{n}$ represents the unit matrix of N × N. Combining equations (33) and (34), we can get

(U_{k}^{n} {(\frac{| h_{k}^{n} w_{k}^{n} |^{2}}{σ_{k}^{n 2} + γ_{k}^{n}})}^{'} + β_{k}^{n}) \frac{h_{k}^{n} {\vec{h}}_{k}^{n} w_{k}^{n}}{σ_{k}^{n 2} + γ_{k}^{n}} = (L_{k}^{n} + λ_{k} I_{T}) w_{k}^{n}

(35)

Let

Q_{k}^{n} = L_{k}^{n} + λ_{k} I_{T}

(36)

For a given $λ_{k}$ , $β_{k}^{n}$ , we will solve the beam matrix expression from equation (35).

Theorem 2

For a given $λ_{k} \geq 0$ , $β_{k}^{n} \geq 0$ , the KKT condition of equation (31) yields the following result

w_{k}^{n} * = Q_{k}^{n} † h_{k}^{n} \sqrt{(σ_{k}^{n 2} + γ_{k}^{n}) Φ_{k}^{n} ψ_{k}^{n}}

(37)

p_{k}^{n} * = {\vec{w}}_{k}^{n} * w_{k}^{n} * = (σ_{k}^{n 2} + γ_{k}^{n}) Φ_{k}^{n} τ_{k}^{n}

(38)

Φ_{k}^{n} = Inv {U_{k}^{n} {(\frac{σ_{k}^{n 2} + γ_{k}^{n}}{{\vec{h}}_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n}})}^{'}} - β_{k}^{n}

(39)

ψ_{k}^{n} = \frac{1}{{({\vec{h}}_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n})}^{2}}

(40)

τ_{k}^{n} = ‖ {Q_{k}^{n}}^{†} h_{k}^{n} ‖^{2} ψ_{k}^{n}

(41)

where $(•)^{†}$ denotes the pseudo-inverse and $Inv {U'}$ is the inverse function of $U^{'}$ .

The proof is as follows: there are two cases of KKT conditions in equation (31):

Case 1: $λ_{k} > 0$ and $w_{k}^{n} \neq 0$

Since $Q_{k}^{n}$ is a positive definite matrix, we get

Q_{k}^{n} w_{k}^{n} \neq 0

(42)

From equations (35) and (42), we can find out ${\vec{h}}_{k}^{n} w_{k}^{n} \neq 0$ and $h_{k}^{n} \propto Q_{k}^{n} w_{k}^{n} .$ Therefore, the non-zero beam matrix $w_{k}^{n *}$ obtained from the KKT condition in equation (31) must satisfy the following form

w_{k}^{n *} \propto Q_{k}^{n} † h_{k}^{n}

(43)

Case 2: $λ_{k} = 0$ and $w_{k}^{n} \neq 0$

In this case, if equation (35) is to be established, one of the following conditions must be met:

${\vec{h}}_{k}^{n} w_{k}^{n} = 0$ and $L_{k}^{n} w_{k}^{n} = 0$

$w_{k}^{n *} \propto L_{k}^{n} † h_{k}^{n}$ .

If condition 1 holds, ${\vec{h}}_{k}^{n} w_{k}^{n} = 0$ means that the non-zero beam matrix $w_{k}^{n}$ orthogonal to the channel matrix ${\vec{h}}_{k}^{n}$ . In this case, the receiver cannot receive any information from the sender, so we discard this case.

Then, when $w_{k}^{n} \neq 0$ and $w_{k}^{n} \neq 0$ , the beam matrix satisfying equation (35) must have the following form

w_{k}^{n *} \propto L_{k}^{n} † h_{k}^{n}

(44)

We can see that equation (44) is the form of equation (43) at $λ_{k} = 0$ . So, by discussing the above two cases, we can write a unified solution to the KKT condition of equation (35)

w_{k}^{n *} = μ_{k}^{n} Q_{k}^{n} † h_{k}^{n}

(45)

where $μ_{k}^{n}$ is the scalar constant.

Substituting equation (45) into equation (35), we get equation (46)

U_{k}^{n} {(\frac{| {\vec{h}}_{k}^{n} μ_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n} |^{2}}{σ_{k}^{n 2} + γ_{k}^{n}})}^{'} \frac{{\vec{h}}_{k}^{n} μ_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n}}{σ_{k}^{n 2} + γ_{k}^{n}} = Q_{k}^{n} μ_{k}^{n} Q_{k}^{n} † h_{k}^{n}

(46)

Since $Q_{k}^{n} μ_{k}^{n} Q_{k}^{n} † = μ_{k}^{n} I$ and $h_{k}^{n} \neq 0$ we can get

U_{k}^{n} (\frac{| {\vec{h}}_{k}^{n} μ_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n} |^{2}}{σ_{k}^{n 2} + γ_{k}^{n}})^{'} = \frac{σ_{k}^{n 2} + γ_{k}^{n}}{{\vec{h}}_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n}}

(47)

That is

\frac{| {\vec{h}}_{k}^{n} μ_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n} |^{2}}{σ_{k}^{n 2} + γ_{k}^{n}} = Inv {U_{k}^{n} {(\frac{σ_{k}^{n 2} + γ_{k}^{n}}{{\vec{h}}_{k}^{n} {Q_{k}^{n}}^{†} h_{k}^{n}})}^{'}}

(48)

Therefore, we can solve

μ_{k}^{n} = \sqrt{(σ_{k}^{n 2} + γ_{k}^{n}) Φ_{k}^{n} ψ_{k}^{n}}

(49)

λ_{k} (t + 1) = (λ_{k} (t) + o ({\vec{w}}_{k}^{n} w_{k}^{n} - p_{k}^{n}))^{+}

(50)

β_{k}^{n} (t + 1) = (β_{k}^{n} (t) + ν (γ_{k}^{n} - γ_{k}^{n, tar}))^{+}

(51)

Each sender’s beamforming algorithm

In Algorithm 2, each beam sender can obtain the KKT solution to Problem (14). From Theorem 1, we know that Algorithm 1 converges to a Nash equilibrium point. Furthermore, the eighth line in Algorithm 1 ensures that the beam update of each sender is not lower than the total weighted sum rate of the system, so the value of the system weighted sum of the Nash equilibrium points will not be lower than the value of the original problem (7), the weighted sum rate of which corresponding to the point of KKT solution.

Algorithm 2.

Beam update algorithm for each sender.

1) initialize q = 0, for sender 1: M,2) According to equation (10), calculate

{π_{k}^{n}}_{n = 1}^{N}

3) Use the sub-gradient method to find the optimal

o^{*}

ν^{*}

, andupdate

λ_{k}

β_{k}^{n}

according to equations (50) and (51).4) According to equation (12), calculate

{L_{k}^{n}}_{n = 1}^{N}

.5) Calculate the optimal solution

{{w (q + 1)}_{k}^{n} *, {p (q + 1)}_{k}^{n} *}_{n = 1}^{N}

in (31) from (37) and (38)6) If

‖ {p (q + 1)}_{k}^{n *} - p (q) ‖ \leq τ

stop the algorithm, otherwiseq = q + 1, repeat 2) to 5), until the termination conditionis met, return the corresponding beam matrix

{w (q + 1)}_{k}^{n} *

at this time

Algorithm analysis

Algorithm complexity analysis

We use $N_{DAPB}$ to represent the time required for the DAPB algorithm to converge, $K$ indicates the number of transmit ends of the beam matrix, $N_{i, dual}$ represents the time needed to solve the dual problem, easy to get the time complexity of this algorithm is $o (N_{DAPB} N_{i, dual} K)$ . Notice that $N = {1, 2, \dots, N}$ is a series of orthogonal subcarrier channels. For any $n_{1}, n_{2} \in N, n_{1} \neq n_{2}$ , the optimal solution ${w_{k}^{n *}, p_{k}^{n *}}$ has a similar structure. Each beam sending end may use the similar way to update beams above N different channels at the same time. When N is large, the convergence speed of the algorithm can be obviously accelerated.

Note that the problem of equation (32) is divided into two sub-problems: (1) finding the optimal beam set (including energy and direction) and (2) finding the best duality factor for the dual problem. In this article, the Lagrange dual method and the sub-gradient method are combined to solve the problem. Compared with the multi-dimensional search algorithm, the computational complexity of this algorithm is much smaller, and the optimization effect is much better.

Overhead analysis

In order to implement Algorithm 1, each sender k needs to know its own channel matrix $h_{k, j}^{n}$ , interference plus noise power (IPNP) $σ_{k}^{n 2} + I_{k}^{n}$ , and information leakage matrix $L_{k}^{n}$ . Assuming the system is operating in TDD mode, the channel matrix can be estimated separately by uplink and downlink. The interference plus noise power at the kth receiver can be easily detected and then returned to the transmitter. By equation (12), we can know that $L_{k}^{n}$ consists of two parts:

Channel matrix $h_{k, j}^{n}, \forall j \neq k$ ;

Interfere with the price $π_{k}^{n}, \forall j \neq k$ .

In our assumed TDD system, the kth transmitter’s channel matrix $h_{k, j}^{n}$ can be estimated separately by uplink and downlink. To calculate the interference price $π_{k}^{n}$ in equation (10), we need to know the four quantities: constant factor $η_{k}^{n}$ , signal-to-interference noise ratio $γ_{k}^{n}$ , interference plus noise power $σ_{k}^{n 2} + I_{k}^{n}$ , and useful signal power $| h_{k}^{n} w_{k}^{n} |^{2}$ . Assume that the priority factor $η_{k}^{n}$ is a fixed value, and the receiver has already got this value before sending the signal.

When the jth transmitting end updates its beam matrix, the jth receiving end calculates the SINR, which is $γ_{k}^{n}$ and the interference plus noise power (IPNP), which is $σ_{k}^{n 2} + I_{k}^{n}$ . Based on the above calculation, signal power $| h_{k}^{n} w_{k}^{n} |^{2}$ can be obtained by multiplying the SINR and IPNP. At the same time, the jth receiving end can calculate its price factor $π_{k}^{n}$ by equation (10) and broadcast this value to other sending end.

As each transmit end k updates its beam matrix, it requires its intended receive end to feed back the value of IPNP, while all other receive ends feed back their respective interference prices. As a result, k variables will be generated. Because every iteration of k transmitters to be updated beam, so the total cost of DAPB algorithm is $N_{DAPB} K^{2}$ , where $N_{DAPB}$ represents the number of iterations needed when the DAPB algorithm converges.

For the sake of comparison, we analyze the traditional centralized algorithm, which generally requires a central processing unit (CPU) in the network center to collect all the matrices in the network. Global optimization has been achieved. Therefore, $2 K^{2} M$ unit feedback channel information is generated. The CPU calculates the beam matrix for all transmitters and, at the same time, passes this information to the transmitters, which will result in $2 KM$ unit beamforming interactions. Therefore, the total cost of a centralized algorithm is $2 K^{2} M + 2 KM$ . Note that compared with our DAPB algorithm, the cost of the centralized algorithm depends on the number of antennas. In the future 5G system, the sender will be equipped with a large-scale antenna array,³⁴ which will result in excessive information exchange burden.

Simulations and analyses

The performance of the proposed algorithm (DAPB algorithm) is verified by simulation. We choose^24–26 to simulate the influence of different parameters on system weighted sum rate and system fairness, respectively. In order to be more comprehensive, the iterations of the DAPB algorithm using classical ZF, MSLNR (minimum signal leakage and noise ratio), and CM (channel matching) criteria are simulated.

In this section, we assume that the radius of the cell is 500 m. Users in the cell are randomly distributed. The distance between the CUE and the base station is within 500 m. The D2D user can form a D2D pair within 50 m. The rest of the simulation parameters are shown in the following table.

The well-known Jain’s et al.³⁵ fairness criterion is adopted to measure the fairness of the system, which is used to measure whether the D2D receiver and the CUE receiver fair to share system resources. $R_{i}$ represents the sum of subscribers including D2D user ( $i \leq D$ ) and CUE ( $D + 1 \leq i \leq C + D$ ), and the fairness criterion is expressed as follows

J (R_{1}, R_{2}, \dots, R_{C + D}) = \frac{{(\sum_{i = 1}^{C + D} R_{i})}^{2}}{(C + D) \cdot \sum_{i = 1}^{(C + D)} {R_{i}}^{2}}

(52)

Effect of different parameters on system weighted sum rate

In this section, the effect of different parameters on system weighted sum rate is simulated. In Figure 2, the number of cell users is 4 and the number of D2D user is 8. In Figure 3, the number of cell users is 4 and the number of DUEs changes from 1 to 6. In Figures 4 and 5, the number of cell users is 8 and the number of D2D user is 16. The rest of the simulation parameters are shown in Table 2.

Figure 2.

System weighted sum rate changes with the number of iterations.

Figure 3.

System weighted sum rate changes with the number of D2D changes.

Figure 4.

System weighted sum rate with the maximum transmit power of DUE.

Figure 5.

System weighted sum rate with the $D_{dd} / D_{d}^{BS}$ changes.

Table 2.

Main simulation parameters.

Parameters	Value
System bandwidth	10 MHz
Maximum power of basestation $p_{k, max}^{c}$	20 W
Maximum transmit power of DUE $p_{i, max}^{d}$	100mW
User’s SINR threshold	10 dB
Noise power spectral density	–174 dBm/Hz
Path loss model for the linksbetweenbase station and users	$36.7 + 35 \times \lg (d [km])$
Path loss model for the linksbetweencellular users and D2D users	$66.5 + 40 \times \lg (d [km])$
Path loss model for D2D links	$38.4 + 20 \times \lg (d [km])$
Number of antennas, T	4
Tolerance $ε$	$10^{- 5}$

DUE: device-to-device user; SINR: signal to interference plus noise ratio; D2D: device-to-device.

We first analyze the iteration number and convergence of the DAPB algorithm. In Figure 2, the convergence of the system and the rate is studied. It can be seen from the figure that as the iteration progresses, the system sum rate increases monotonically and finally converges. And the algorithm can reach convergence after a few iterations. Our algorithm has better performance than traditional MSLNR algorithm, traditional ZF algorithm, and traditional CM algorithm. At the same time, we find that the DAPB algorithm has the same convergence sum rate under different initial beam conditions (step 1 in Algorithm 1). Using MSLNR to initialize Algorithm 1 accelerates the convergence of the algorithm compared to the ZF and CM beam procedures.

The computational time of different algorithms is given in Table 3, where N denotes the number of subcarrier channels and D denotes the number of DUEs. Our simulation configuration is Intel(R) Core(TM) i7-6700 CPU at 3.40 GHz computer with 16 GB of memory size. As the number of DUEs and subcarrier channels increases, the time for various algorithms to converge will increase. As expected, the centralized algorithm requires significantly more time than the distributed algorithms, especially in dense networks. Hence, the centralized algorithm has the highest computational complexity. Consistent with the above analysis results, it is better to use MSLNR algorithm to initialize Algorithm 1. As stated in the analysis in “Algorithm complexity analysis” section, the multi-dimensional search algorithm requires much more time than our proposed DAPB algorithm, and it becomes prohibitively high in the case N = 16, D = 24. This simulation time is the time required for the entire DAPB algorithm to converge, not the time required for iteration. In the simulation, we set $ε = 10^{- 5}$ , which increases the number of iterations and also increases simulation time. If we set the factor bigger, the simulation time will be much shorter. In addition, we use MATLAB as the simulation environment, which will be affected by computer CPU, memory and other related factors. The actual application of the system’s computing power, and memory resources will be much better. In algorithm time simulation, our DAPB algorithm performs much better than other algorithms. Therefore, we think our algorithm has good research value and practical application value. In Table 4, we use the DAPB-MSLNR algorithm as an example to simulate the time required for the algorithm under different tolerance factors. It can be seen from the figure that if we set the tolerance factor to be larger, the number of iterations of the algorithm will decrease. Therefore, the algorithm takes less time to converge.

Table 3.

Average computational time (s) for various methods.

	N = 4, D = 8	N = 4, D = 24	N = 16, D = 8	N = 16, D = 24
DAPB-MSLNR	0.71	1.53	0.81	1.86
DAPB-ZF	0.83	1.75	0.90	2.06
DAPB-CM	0.98	1.92	1.12	2.33
Multi-dimensional search	1.21	25.34	6.72	38.72
Centralized	1.84	43.22	12.21	62.11

DAPB: distributed adaptive price beamforming; MSLNR: minimum signal leakage and noise ratio; ZF: zero forcing; CM: channel matching.

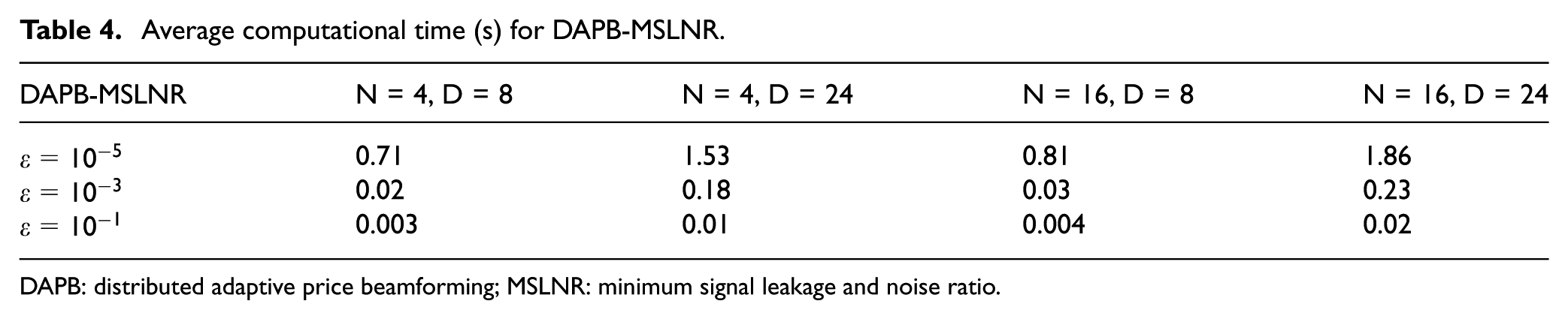

Table 4.

Average computational time (s) for DAPB-MSLNR.

DAPB-MSLNR	N = 4, D = 8	N = 4, D = 24	N = 16, D = 8	N = 16, D = 24
$ε = 10^{- 5}$	0.71	1.53	0.81	1.86
$ε = 10^{- 3}$	0.02	0.18	0.03	0.23
$ε = 10^{- 1}$	0.003	0.01	0.004	0.02

DAPB: distributed adaptive price beamforming; MSLNR: minimum signal leakage and noise ratio.

As can be seen from Figure 3, the weighted sum rate of the system increases as the number of D2D user pairs and the number of multiplexed links increases. When the number of reusable channel links is constant, the system weighted sum rate will increase as the number of D2D pairs increases. However, an exception occurs when the number of channel links is 2 and 1. This is because when the channel resources are multiplexed, the competition between the D2Ds is excessively large, resulting in a sharp increase in co-channel interference. When the number of DUEs is fixed, as the number of reusable links increases, the system’s weighted sum rate also increases.

As shown in Figure 4, the figure shows the variation of the weighted sum rate of the system with the maximum transmit power of D2D. It can be seen from the figure that under the condition of a certain number of user antennas (T), the weighted sum rate of the system increases first with the increase of the maximum transmit power of D2D, then reach steady state. At the same time, we can also see that with a certain maximum D2D transmit power, increasing the number of antennas will increase the weight sum rate of the system.

As shown in Figure 5, the weighted sum rate of the system decreases with the increase of $D_{dd} / D_{d}^{BS}$ (where $D_{dd}$ denotes the distance between DUEs, $D_{d}^{BS}$ denotes distance between D2D user and Base Station), and the interference in the system also increases, resulting in a decrease of the weighted sum rate of the system. Meanwhile, as the ratio increases, the value of the system weighted sum rate will become stable. When the ratio of $D_{dd} / D_{d}^{BS}$ is relatively small, the performance of the proposed algorithm and the literature^24–26 is relatively close. With the ratio increases, the proposed algorithm is better than the other two programs.

As shown in Figure 6, the system weighted sum rate for various algorithms increases as the average signal-to-noise ratio of the system channel increases, eventually reaching a steady value. And the proposed algorithm has better performance in terms of system weighted sum rate than other existing algorithms. When the number of beam transmitters is relatively large, the system is limited in interference. The proposed price-gambling scheme can indirectly induce the beam transmitters to cooperate and maintain the non-cooperative beam-strategy characteristics, thus increasing the weighted sum rate of the system. In addition, the performance of the proposed algorithm is similar to that based on the fully cooperative beamforming algorithm. The reason is as follows: the optimal system weighted sum rate problem proposed in this article is a non-convex problem. The algorithm based on complete cooperation only solves the KKT condition, and the Nash equilibrium point performance of our proposed algorithm is not less than KKT conditions of the point.

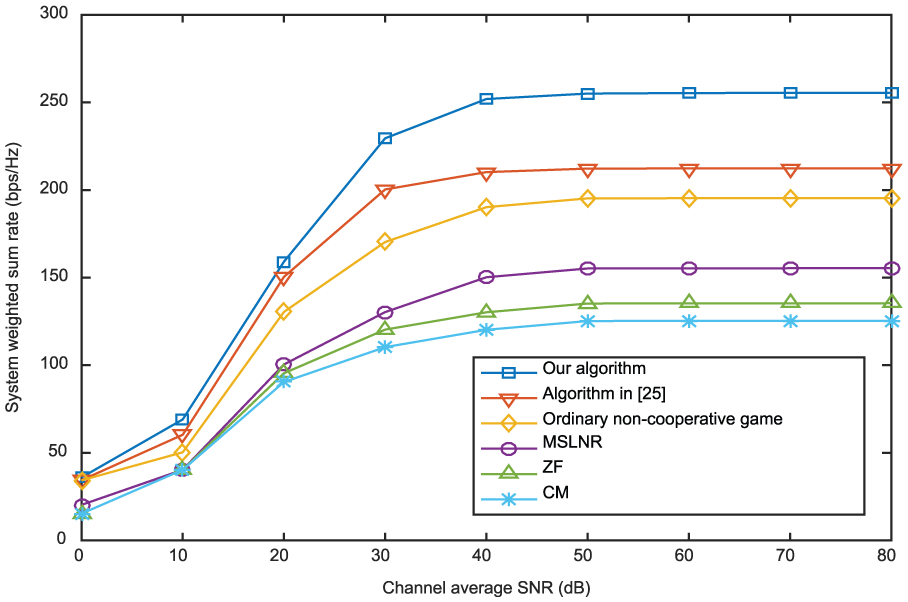

Figure 6.

System weighted sum rate with the channel average signal-to-noise ratio changes.

System fairness simulation

The system fairness is analyzed in this section. In Figure 7, the number of cell users changes from 3 to 10, and the number of DUEs is 8. In Figure 8, the number of cell users is 8, and the number of DUEs changes from 3 to 10. In Figure 9, the number of cell users is 4, and the number of DUEs is 8. The rest of the simulation parameters are shown in Table 2. As the analysis following formula (14) shows, $η_{k}^{n}$ as a weighted factor can flexibly adjust the system’s fairness. Equal weighted factor in our algorithm means that the sum rate of all the user on all carrier channels has equal weighted factor $η_{k}^{n} = 1 / NM$ ,where $N$ denotes the number of carrier channels and $M$ denotes numbers of beam senders. Non-eq64 weighted factor means that we set different weighted factors for different uses and different channels. We set a higher weight factor for links that with poor channel quality and lower sum rate to improve the fairness of the system.

Figure 7.

System fairness changes with the number of cellular subscribers.

Figure 8.

System fairness changes with the number of D2D users.

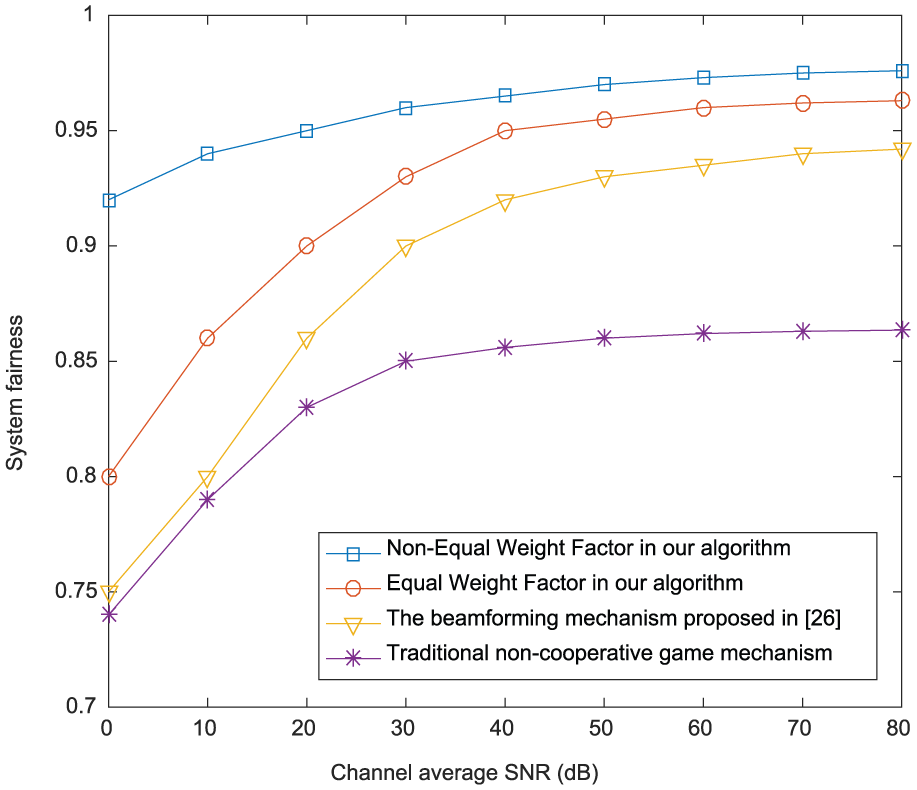

Figure 9.

System fairness with the average SNR of the channel changes.

Figures 7 and 8 show the change of system fairness with the number of CUEs and DUEs. It can be seen from the figure that with the increase of users, the fairness of various algorithms will be reduced. Proposed algorithm has good fairness in different numbers of users. This is because the algorithm in this article satisfies the QoS requirements of different users through an effective beam algorithm. The penalty factor set by the utility function can well ensure the fairness of users. The proposed algorithm is more suitable for large networks with large number of users. Besides, setting different weighted factors to different users which relative to the same weight of the weighted factor can further improve the fairness of the system.

Figure 9 reflects the system fairness with the average signal-to-noise ratio of the channel changes, we can see from the figure, as the channel average signal-to-noise ratio increases, the system fairness will first increase and then tend to steady state. Compared with other algorithms, this algorithm has better fairness under different channel signal-to-interference-plus-noise ratios. This is because the algorithm in this article satisfies the QoS requirements of different users through an effective beam algorithm. The penalty function set by the utility function can avoid some selfish behavior, which ensures the fairness of users further. At the same time, we can also see from the figure that setting different weighted factors for different priority users can further improve system fairness.

In Table 2, the simulation parameters are mainly based on the typical system (time division long term evolution [TD-LTE] system) and the comparative literature, and a setting scheme is selected, which is different from the actual application scenario. The simulation results here mainly illustrate the theoretical performance of the algorithm. This is an ideal performance index. It provides only a reference for the selection of the technical solution and system design, and it is not enough for practical applications. The actual application will leave a certain margin when selecting parameters, and there are several sets of parameter settings. In addition, a large number of on-site tests and tests are needed to modify and optimize the parameters. This will be the content that needs to be studied and implemented in the next step of the paper.

Let me discuss how realistic the set parameters and actual production applications in my paper are and then discuss the problems and new challenges that may arise due to differences in parameter settings and actual production and life:

The cell radius: We all know that the radius of macrocells is generally 1–25 km, and the radius of microcells is generally 30–300 m. Typically, the radius of long term evolution (LTE) cells in urban areas is generally 400–700 m. The radius of the cell in this article is chosen to be 500 m and actual. The LTE cell is in a reasonable range.

System bandwidth: In general, LTE systems theoretically support six types of bandwidth, this is 1.4M, 3M, 5M, 10M, 15M, and 20M. Therefore, our bandwidth setting 10M is reasonable.

User’s SINR threshold: The setting of this parameter is mainly to determine the user’s communication quality, which can be set according to the specific production and living needs.

We set the noise power spectral density to –174 dBm/Hz. It is a quantity that has nothing to do with the type of communication system. In a sense, it is derived from thermodynamics (so it is related to temperature) and is a well-known parameter in the industry.

Path loss model for the links between base station and users: The revised COST231-Hata city propagation model based on the communication between the base station and all users.

Path loss model for the links between CUEs and DUEs: The distance between D2D pairs is small. This chapter adopts the free space model.

Path loss model for the links between CUEs and DUEs: We use the loss model of Andrews et al.³⁶ for simulation.

The smaller we set the value, the greater the time required for system convergence and the longer the distributed adaptive pricing beamforming (DPBF) algorithm will take. If we assume that the number of antennas in our simulation is too large, the actual application may require high equipment, and thus, it is difficult to achieve.

Conclusion

This article presents a distributed beamforming algorithm based on price strategy for non-cooperative game. Considering the case where the base station and the D2D sender have multiple antennas, it is assumed that the D2D user can reuse the channel resources of multiple cellular communications. Under the relevant constraints, the problem of maximizing the weighted sum rate of the entire network is formulated. But this is a non-convex problem. Considering the beam matrix transmitters (including the D2D transmitters and base stations) as game participants, an efficient distributed price scheme is proposed to optimize the system’s weighted sum rate. At the same time, the convergence of the proposed algorithm is proved. In this article, KKT conditions are proposed to solve the downlink beamforming problem of each sender based on the dual decomposition method. The proposed algorithm can quickly converge to the Nash equilibrium point with low information exchange overhead. It has the characteristics of complete cooperation game performance while taking into account the low information interaction overhead of non-cooperative game. The next step is to consider the energy efficiency of the system as an optimization objective to discuss energy-efficient beamforming algorithms.

Footnotes

Handling Editor: Wenbing Zhao

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This article was supported by the National Nature Science Foundation of China under contract numbers 61271259, 61301123, 61471076, and 61601070, the Chongqing Basic and Frontier Research Project under contract number CSTC 2016jcyjA0455, the Research Project of Chongqing Education Commission under contract number KJ130536 and KJ1600411, Changjiang Scholars and Innovative Research Team in University (IRT1299), and the special fund of Chongqing Key Laboratory (CSTC2012zdsy006).

ORCID iD

Chuan-wen Li

References

Wei

Qian

et al . Enable device-to-device communications underlaying cellular networks: challenges and research aspects. IEEE Commun Mag 2014; 52(6): 90–96.

Choi

Han

. Device-to-device discovery for proximity-based service in LTE-advanced system. IEEE J Sel Area Commun 2015; 33(1): 55–66.

Noura

Nordin

. A survey on interference management for Device-to-Device (D2D) communication and its challenges in 5G networks. J Netw Comput Appl 2016; 71(C): 130–150.

Mach

Becvar

Vanek

. In-band device-to-device communication in OFDMA cellular networks: a survey challenges. IEEE Commun Surv Tut 2015; 17(4): 1885–1922.

Doppler

Ribeiro

et al . Resource sharing optimization for device-to-device communication underlaying cellular networks. IEEE T Wirel Commun 2011; 10(8): 2752–2763.

Xing

Hakola

. The investigation of power control schemes for a device-to-device communication integrated into OFDMA cellular system. In: 21st IEEE international symposium on personal, indoor and mobile radio communications, Instanbul, 26–30 September 2010, pp.1775–1780. New York: IEEE.

Peng

Wang

et al . Interference avoidance mechanisms in the hybrid cellular and device-to-device systems. In: 20Th IEEE international symposium on personal, indoor and mobile radio communications, Tokyo, Japan, 13–16 September 2009, pp.617–621. New York: IEEE.

Min

Lee

Park

et al . Capacity enhancement using an interference limited area for device-to-device uplink underlaying cellular networks. IEEE T Wirel Commun 2011; 10(12): 3995–4000.

Tirkkonen

Doppler

et al . Power optimization of device-to-device communication underlaying cellular communication. In: IEEE international conference on communications, Dresden, 14–18 June 2009, pp.3696–3700. New York: IEEE.

10.

Tao

Sun

Shao

. Radio resource allocation based on greedy algorithm and successive interference cancellation in device-to-device (D2D) communication. In: IET international conference on information and communications technologies (IETICT), Beijing, China, 27–29 April 2013, pp.452–458. New York: IEEE.

11.

Zhou

Ruttik

Tirkkonen

. Interference canceling power optimization for device to device communication. In: 81st IEEE vehicular technology conference (VTC Spring), Glasgow, 11–14 May 2015, pp.1–5. New York: IEEE.

12.

Song

Han

et al . Interference-aware resource allocation for device-to-device communications as an underlay using sequential second price auction. In: IEEE international conference on communications, Ottawa, ON, Canada, 10–15 June 2012, pp.445–449. New York: IEEE.

13.

Zhang

Cheng

Yang

et al . Interference-aware graph based resource sharing for device-to-device communications underlaying cellular networks. In: Wireless communications and networking conference (WCNC), Shanghai, China, 7–10 April 2013, pp.140–145. New York: IEEE.

14.

Chen

Charbit

Hakola

. Time hopping for device-to-device communication in LTE cellular system. In: Wireless communications and networking conference (WCNC), Sydney, NSW, Australia, 18–21 April 2010, pp.1–6. New York: IEEE.

15.

Dong

Choi

Jeon

et al . Resource allocation scheme for device-to-device communication for maximizing spatial reuse. In: Wireless communications and networking conference (WCNC), Shanghai, China, 7–10 April 2013, pp.112–117. New York: IEEE.

16.

Bagheri

Katz

. A resource allocation mechanism for enhancing spectral efficiency and throughput of multi-link D2D communications. In: 25th IEEE international symposium on personal, indoor and mobile radio communications, Washington, DC, 2–5 September 2014, pp.1391–1396. New York: IEEE.

17.

Pratas

Popovski

. Zero-outage cellular downlink with fixed-rate D2D underlay. IEEE T Wirel Commun 2015; 14(7): 3533–3543.

18.

Jänis

Koivunen

Ribeiro

et al . Interference-avoiding MIMO schemes for device-to-device radio underlaying cellular networks. In: 20th IEEE international symposium on personal, indoor and mobile radio communications, Tokyo, Japan, 13–16 September 2009, pp.2385–2389. New York: IEEE.

19.

JCF

Lei

Gao

. Device-to-device (D2D) communication in MU-MIMO cellular networks. In: Global communications conference (GLOBECOM), Anaheim, CA, 3–7 December 2012, pp.3583–3587. New York: IEEE.

20.

Spencer

Swindlehurst

Haardt . Zero-forcing methods for downlink spatial multiplexing in multiuser MIMO channels. IEEE T Signal Proces 2004; 52(2): 461–471.

21.

Sadek

Tarighat

Sayed

. A leakage-based precoding scheme for downlink multi-user MIMO channels. IEEE T Wirel Commun 2007; 6(5): 1711–1721.

22.

Jin

et al . Beamforming and interference cancellation for D2D communication underlaying cellular networks. IEEE T Commun 2016; 64(2): 832–846.

23.

Tang

Zhu

Ding

. Cooperative MIMO precoding for D2D underlay in cellular networks. In: IEEE international conference on communications, Budapest, 9–13 June 2013, pp.5517–5521. New York: IEEE.

24.

Zhu

Guo

Wei

et al . Transceiver optimization for multi-antenna device-to-device communications. China Commun 2016; 13(5): 110–121.

25.

Wang

Liu

. Weighted sum rate-based coordinated beamforming in multi-cell multicast networks. IEEE Commun Lett 2016; 20(8): 1567–1570.

26.

Zhong

Fang

Jin

et al . Joint resource allocation for device-to-device communications underlaying uplink MIMO cellular networks. IEEE J Sel Area Commun 2015; 33(1): 41–54.

27.

Lee

Jung

Park

et al . A new energy efficient beamforming strategy for MISO interfering broadcast channels based on large systems analysis. IEEE T Wirel Commun 2015; 15(4): 2872–2882.

28.

Yin

Zhang

et al . Pricing-based interference coordination for D2D communications in cellular networks. IEEE T Wirel Commun 2015; 14(3): 1519–1532.

29.

Huang

Sun

Chen

. GALLERY: a game-theoretic resource allocation scheme for multicell device-to-device communications underlaying cellular networks. IEEE Internet Things 2015; 2(6): 504–514.

30.

Romero

Blesa

Rozas

et al . Energy efficiency strategy in D2D cognitive networks using channel selection based on game theory and collaboration. Int J Distrib Sens N 2016; 12(8): 1–14.

31.

Yang

Xie

Vasilakos

. Stackelberg game based power control with outage probability constraints for cognitive radio networks. Int J Distrib Sens N 2015; 11: 1–9.

32.

Yang

Xie

Vasilakos

. Noncooperative and cooperative optimization of electric vehicle charging under demand uncertainty: a robust stackelberg game. IEEE T Veh Technol 2016; 65(3): 1043–1058.

33.

Schmidt

Shi

Berry

et al . Distributed resource allocation schemes. IEEE Signal Proces Mag 2009; 26(5): 53–63.

34.

Andrews

Buzzi

Wan

et al . What will 5G be? IEEE J Sel Area Commun 2014; 32(6): 1065–1082.

35.

Jain

Chiu

Hawe

. A quantitative measure of fairness and discrimination for resource allocation in shared computer systems. arXiv: csii/9809099, 1984.

36.

Andrews

Kumaran

Ramanan

et al . Providing quality of service over a shared wireless link. IEEE Commun Mag 2001; 39(2): 150–154.

Distributed beamforming algorithm based on game theory in device-to-device communications

Abstract

Keywords

Introduction

System model and problem formulation

Distributed beamforming algorithm for non-cooperative games

Pricing program

Distributed adaptive pricing beamforming algorithm

Algorithm convergence proof

Theorem 1: Algorithm 1 converges to Nash equilibrium

Update strategy for each transmit end beam matrix

Dual decomposition

Decoupling sub-problems

Theorem 2

Each sender’s beamforming algorithm

Algorithm analysis

Algorithm complexity analysis

Overhead analysis

Simulations and analyses

Effect of different parameters on system weighted sum rate

System fairness simulation

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
