Influence of Spinal Cord Integrity on Gait Control in Human Spinal Cord Injury

Abstract

Background. Clinical trials in spinal cord injury (SCI) primarily rely on simplified outcome metrics (ie, speed, distance) to obtain a global surrogate for the complex alterations of gait control. However, these assessments lack sufficient sensitivity to identify specific patterns of underlying impairment and to target more specific treatment interventions. Objective. To disentangle the differential control of gait patterns following SCI beyond measures of time and distance. Methods. The gait of 22 individuals with motor-incomplete SCI and 21 healthy controls was assessed using a high-resolution 3-dimensional motion tracking system and complemented by clinical and electrophysiological evaluations applying unbiased multivariate analysis. Results. Motor-incomplete SCI patients showed varying degrees of spinal cord integrity (spinal conductivity) with severe limitations in walking speed and altered gait patterns. Principal component (PC) analysis applied on all the collected data uncovered robust coherence between parameters related to walking speed, distortion of intralimb coordination, and spinal cord integrity, explaining 45% of outcome variance (PC 1). Distinct from the first PC, the modulation of gait-cycle variables (step length, gait-cycle phases, cadence; PC 2) remained normal with respect to regained walking speed, whereas hip and knee ranges of motion were distinctly altered with respect to walking speed (PC 3). Conclusions. In motor-incomplete SCI, distinct clusters of discretely controlled gait parameters can be discerned that refine the evaluation of gait impairment beyond outcomes of walking speed and distance. These findings are specifically different from that in other neurological disorders (stroke, Parkinson) and are more discrete at targeting and disentangling the complex effects of interventions to improve walking outcome following motor-incomplete SCI.

Introduction

More than half of patients with spinal cord injury (SCI) exhibit incomplete injuries, leading to varying degrees of functional impairment of the affected limbs. ¹ The provision of patient-customized interventions ² for motor-incomplete spinal cord injury (iSCI) is limited by the rather crude clinical tools currently used for assessing locomotion (eg, motor scores, speed, distance). Detailed analysis of locomotion in iSCI patients serves 2 important aims. First, the ability to score locomotor function allows the determination of changes in walking capacity to measure the effect of therapeutic interventions.^3-6 Second, comprehensive assessment of walking beyond unrefined measures of capacity may provide insights into mechanisms underlying changes of neural control.^7,8

The majority of studies on gait recovery after iSCI focus on quantitative measures of time and distance (10-m walk test, 6-minute walk test), functional scores (eg, Walking Index for Spinal Cord Injury, and the mobility subscore of the Spinal Cord Independence Measure)^9-11 or a subjective rating of gait quality. ¹² These investigations mainly assessed the temporal profiles of ambulatory capacity ¹³ and the impact of rehabilitation interventions.^4,14 Few studies have used more detailed kinematic methodologies (eg, quality of walking) to uncover complex alterations of iSCI walking.^15-18 The objective of the present study was to establish a comprehensive assessment framework in iSCI, applying multivariate data analysis of motor function to (1) reveal the influence of spinal cord integrity on walking outcomes and (2) provide a new approach for disentangling different domains of locomotor control in human SCI.

Materials and Methods

Participants

• Inclusion criteria: iSCI patients aged 18 years and older, who were at least able to stand and walk without the assistance of another person, were included.

• Exclusion criteria: Patients suffering from any other neurological disorder or preexisting gait impairment were excluded. The study was approved by the Zurich Cantonal ethics committee in accordance with the Declaration of Helsinki. Participants provided written informed consent.

The data of 22 iSCI patients (15 men, 7 women; 48.3 ± 15.6 years old; weight, 74.6 ± 13.4 kg; height, 171.6 ± 8.4 cm) and 21 healthy controls (8 men, 13 women; 38.4 ± 14.3 years old; weight, 66.7 ± 12.1 kg; height, 172.2 ± 8.2 cm) were included in this study (Table 1).

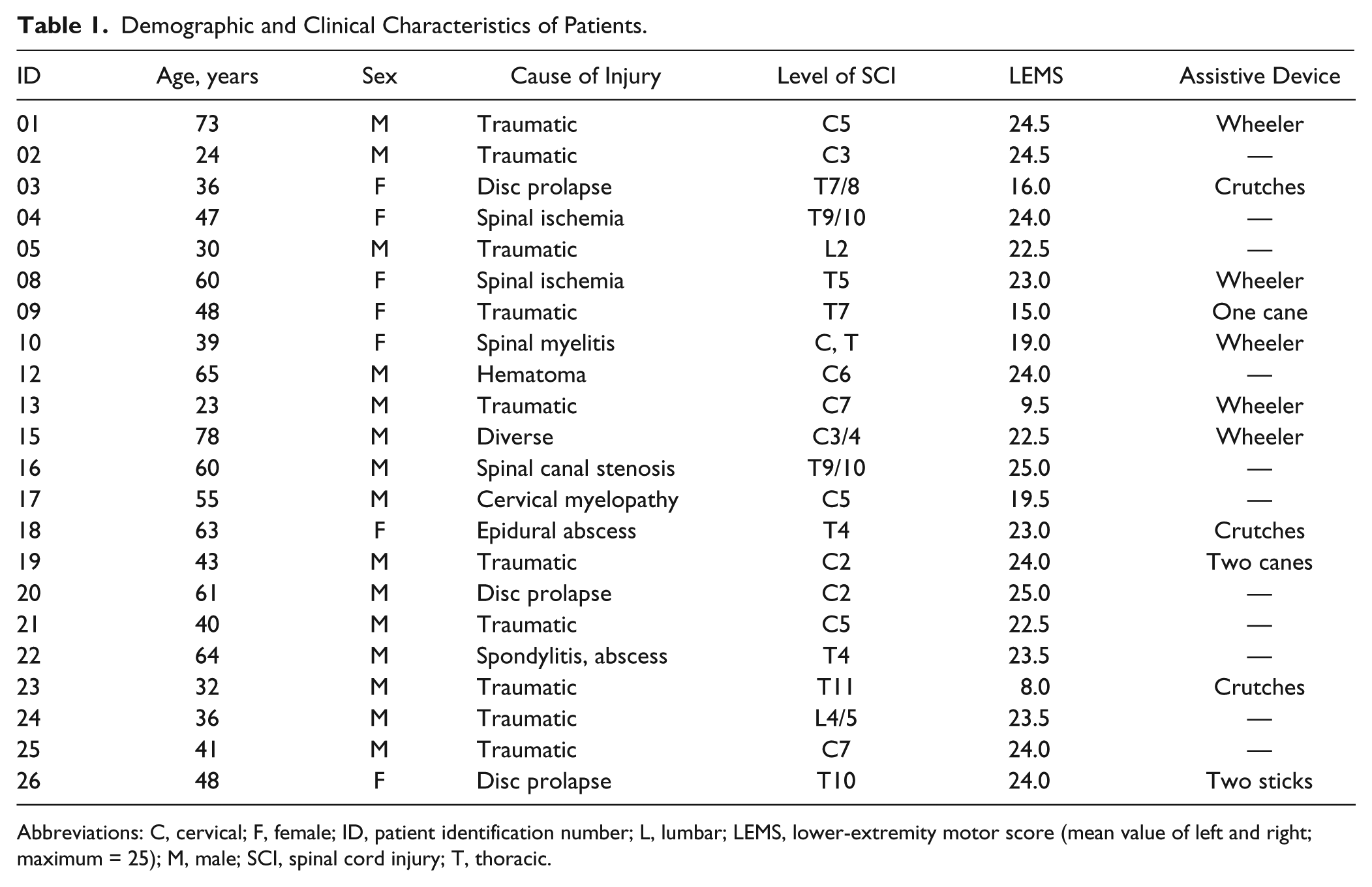

Table 1.

Demographic and Clinical Characteristics of Patients.

ID	Age, years	Sex	Cause of Injury	Level of SCI	LEMS	Assistive Device
01	73	M	Traumatic	C5	24.5	Wheeler
02	24	M	Traumatic	C3	24.5	—
03	36	F	Disc prolapse	T7/8	16.0	Crutches
04	47	F	Spinal ischemia	T9/10	24.0	—
05	30	M	Traumatic	L2	22.5	—
08	60	F	Spinal ischemia	T5	23.0	Wheeler
09	48	F	Traumatic	T7	15.0	One cane
10	39	F	Spinal myelitis	C, T	19.0	Wheeler
12	65	M	Hematoma	C6	24.0	—
13	23	M	Traumatic	C7	9.5	Wheeler
15	78	M	Diverse	C3/4	22.5	Wheeler
16	60	M	Spinal canal stenosis	T9/10	25.0	—
17	55	M	Cervical myelopathy	C5	19.5	—
18	63	F	Epidural abscess	T4	23.0	Crutches
19	43	M	Traumatic	C2	24.0	Two canes
20	61	M	Disc prolapse	C2	25.0	—
21	40	M	Traumatic	C5	22.5	—
22	64	M	Spondylitis, abscess	T4	23.5	—
23	32	M	Traumatic	T11	8.0	Crutches
24	36	M	Traumatic	L4/5	23.5	—
25	41	M	Traumatic	C7	24.0	—
26	48	F	Disc prolapse	T10	24.0	Two sticks

Abbreviations: C, cervical; F, female; ID, patient identification number; L, lumbar; LEMS, lower-extremity motor score (mean value of left and right; maximum = 25); M, male; SCI, spinal cord injury; T, thoracic.

Experimental Setup

Participants walked barefoot overground, along a straight 8-m walkway and on a treadmill at different walking speeds. Patients were allowed to use an assistive device for overground walking if needed and were allowed to hold handrails on the treadmill. Participants first walked overground to assess their preferred walking speed. This value was used to subsequently determine the relative walking speeds on the treadmill: 50% (slow), 100% (preferred), and 150% (fast) of preferred speed. Additionally, the participants walked at predefined treadmill speeds, starting at a slow speed (0.5 km/h), and increased speeds in steps of 0.5 km/h until 150% of preferred speed (fast) was reached. If a patient could not reach this speed, the maximal walking speed they were able to walk was recorded instead.

For lower-body kinematics, 8 infrared cameras (T10, Vicon motion systems Ltd, Oxford, UK) at 200 Hz and 2 synchronized digital high-speed video cameras (pilot series, Basler AG, Ahrensburg, Germany) at 100 Hz were used. Pressure sensors underneath the treadmill belt (Zebris FDM-T, zebris Medical GmbH, Isny im Allgäu, Germany) recorded force distributions at 120 Hz. Also, 16 reflective markers (16 mm in diameter) were placed on bony landmarks, according to the Vicon Plug-in Gait lower-body model.

Outcome Measures

Time-Distance Parameters

The following time-distance parameters were determined: preferred overground walking speed (preferred speed, km/h), step length (cm), cadence (strides/min), stance phase (%), and single support phase (%) during treadmill walking. Initial foot contact defined gait-cycle onset. One gait cycle ranged from initial contact of one foot to the subsequent initial contact of the same foot. Time-distance parameters were calculated by the Zebris WinFDM-T software.

Kinematic Data

Kinematic data were first processed offline using the Vicon Nexus Software (1.5.2) to fill data gaps and apply the Vicon Plug-in Gait kinematic model. Data were exported for further analysis using custom-written MATLAB scripts (MATLAB R2010b/R2013a, Mathworks Inc, Natick, MA): continuous data from ~20 consecutive gait cycles were cut into individual gait cycles and time-normalized using linear interpolation. The maximal range of motion (ROM) of the hip and knee angles, averaged over all gait cycles, and the resultant velocity vector (angular change per unit time) of these 2 angles at toe-off (angular velocity at toe-off) were calculated. To assess whether angular velocity at toe-off limits walking speed in patients, their data were compared with those of controls at patients’ maximal speed by interpolating data of controls using a third-degree polynomial least-squares fit. Variable Δ values reflect the difference between slow and preferred speed, providing a measure for the modulatory capacity of different features of gait with a doubling of walking speed (ie, from 50% to 100% of preferred speed). To evaluate multisegmental intralimb coordination, combined hip-knee angle-angle plots, called cyclograms, were studied. The angular component of coefficient of correspondence (ACC) ¹⁹ was calculated to quantify the cycle-to-cycle cyclogram shape consistency. To quantify cyclogram quality, the shape difference between patients’ cyclograms and a norm cyclogram of healthy individuals at preferred speed was calculated using the square root of sum of squared distances (SSD ²⁰ ):

$${\mathrm{SSD}}_{j,k}=\sqrt{{\displaystyle \sum {\left({\mathrm{\alpha }}_{j,i}-{\mathrm{\alpha }}_{k,i}\right)}^2+{\left({\mathrm{\beta }}_{j,i}-{\mathrm{\beta }}_{k,i}\right)}^2}},$$

where cyclogram j (patient) is compared with cyclogram k (norm cyclogram) after uniform scaling and translation of the centroid to the origin, and α and β represent hip and knee angles, respectively.

Clinical and Electrophysiological Data

Lower-limb voluntary muscle strength was measured by trained examiners using the American Spinal Injury Association (ASIA) lower-extremity motor score. The mean of both legs was evaluated (maximum = 25). Spinal cord integrity was assessed via electrophysiological recordings according to clinical routine by motor-evoked potentials (MEPs) of the tibialis anterior and abductor hallucis muscles, and somatosensory-evoked potentials (SSEPs) were elicited from the tibialis posterior nerve. MEPs were elicited by single-pulse transcranial magnetic stimulation of respective contralateral motor cortex areas just next to the midline via a figure-of-eight coil connected to a magnetic stimulator (The Magstim Company Ltd, Wales, UK). SSEPs were elicited dorsal of the malleolus medialis, and the recording electrodes were placed in the Cz′-Fz configuration according to the international 10/20 system. P40/N50 peaks were chosen for SSEP evaluation. SSEPs and MEPs were evaluated by taking into account both response latency and amplitude, as reported previously for SSEPs, ²¹ resulting in a 5-point impairment scale.

Statistical Analysis

Statistical analyses were performed using SPSS Statistics 19 (IBM Corp, New York, NY) and MATLAB.

Principal Component Analysis (PCA)

To account for the multidimensionality of data, a categorical PCA was performed, which included 23 parameters of all control and iSCI participants, to discern clusters of interrelated parameters of walking, leveraging the extensive ensemble of gait-related variables. ²² Principal components (PCs) were retained according to the Scree plot ²³ and PC overdetermination (at least 2 |factor loadings| ≥0.6). Variables with high loadings on the same PC indicate a strong interrelationship. In the context of kinematic outcomes, PCs have been interpreted to reflect neurobiological “motor primitives” or discretely organized “motor modules” of complex movements. ²⁴ To examine the validity and robustness of the PC clusters, a bootstrapping procedure was used with 10 000 iterations on a random subset of 80% of participants, and the factor loadings were cross-validated using consensus from Pearson’s r, root mean square (RMS), coefficient of congruence (CC), and Cattell’s S. Monte Carlo studies have indicated that consensus of R, CC, RMS, and S together indicate robust converging support for stability of multidimensional patterns, independent of the number of subjects used. Here, we use these statistics in our bootstrapping algorithms to reveal that the PC loading patterns are highly robust, despite the limited number of subjects available for SCI clinical populations.^25,26

Pairwise Comparisons

Spearman’s rank correlation coefficient ρ was used to correlate a pair of single outcome measures. The comparison of 2 groups was performed by a 2-tailed t test for normally distributed data and a Mann-Whitney U test or Wilcoxon signed-rank test for nonnormally distributed independent or dependent samples, as appropriate. Bonferroni correction was applied (0.05/n).

Results

The gait pattern of healthy controls and iSCI patients was studied both qualitatively and quantitatively considering specific characteristics of lower-limb coordination. Gait pattern features were analyzed at 2 different walking speeds: 0.5 km/h and preferred speed. To compare the gait pattern at a matching speed, patients at their preferred speed (mean = 2.0 km/h) were additionally compared with controls walking at 2.0 km/h.

Multivariate Analysis

PCA of the 23 variables revealed 3 robustly reproducible PCs (r ≥ 0.98, RMS ≤ 0.01, CC ≥ 0.97, Cattell’s S ≥ 0.5) that together accounted for 74.2% of the variance (Figure 1A). The overall variance was mainly influenced by the neurological condition (ie, healthy vs SCI; Figure 1B). PC1 (45.3% of the variance) was characterized by variables of walking dynamics (eg, walking speed, angular velocity) as well as spinal cord integrity (ie, MEP, SSEP) and quantified metrics of the intralimb coordination (shape difference [SSD], cycle-to-cycle consistency [ACC]). The orthogonal PC2 assembled step length and variables associated with the timing and reciprocal bilateral coordination of the gait cycle. The third PC was predominantly defined by hip and knee ROMs.

Figure 1.

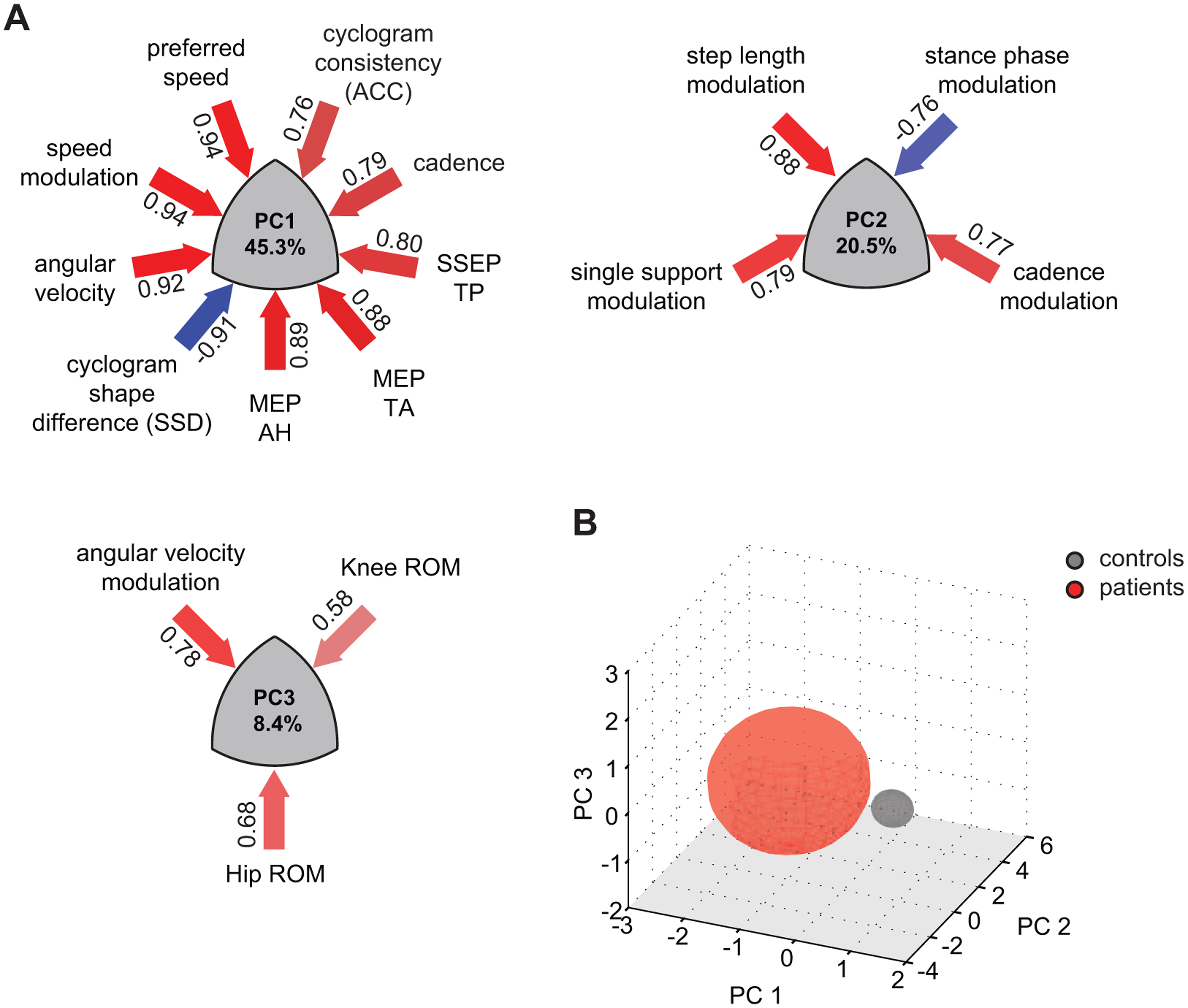

Multivariate analysis of gait-related parameters: principal components (PCs) 1 to 3 explain 74.2% of the total variance. PCs show clustered variance of multiple parameters with high loadings on the corresponding PC. A. Variable loadings are depicted in numbers next to the arrows, whose colors reflect the magnitude and relationship of loading (positive relationship = red, negative = blue). Transformed data are plotted in the 3D space determined by the orthogonal PCs 1 to 3 and grouped according to neurological condition (B).

Gait Control Impairments

ANOVA and post hoc Tukey’s tests revealed that the 2 groups (iSCI and control group) significantly differed along PC1, but no group distinction was seen with respect to PC2 or PC3. Measures representing spinal cord integrity (MEP, SSEP) as well as walking speed assembled on PC1 (Figure 1A) and were significantly affected in iSCI participants. Clinically, patients were limited in preferred and maximal walking speeds (Figure 2A); whereas all controls were able to increase their speed to 150% of preferred speed (6.18 ± 0.79 km/h), 12 of 19 patients showed a restricted ability to increase their walking speed beyond 100% (2.85 ± 1.55 km/h). Also among the best walkers (preferred speed ≥3 km/h), 3 of 5 patients could not attain their relative maximal walking speed. Even more pronounced than speed impediments, patients showed a remarkably limited capacity to modulate angular velocity at toe-off (Figure 2B). At the 0.5 km/h speed, the 2 groups showed comparable angular velocities, whereas iSCI participants diverged from control data with increasing walking speed. The increase in angular velocity was significant from 0.5 km/h to preferred as well as from preferred to maximal walking speed in control participants (paired t test: P < .001 and P = .003). Patients could only increase the angular velocity between the 0.5 km/h and preferred speed but not between preferred and maximal speed (paired t test: P < .001 and P = .355). At patients’ maximal speed (2.85 km/h), the angular velocity was significantly lower compared with the interpolated values at the respective speed in controls (t test: P = .026).

Figure 2.

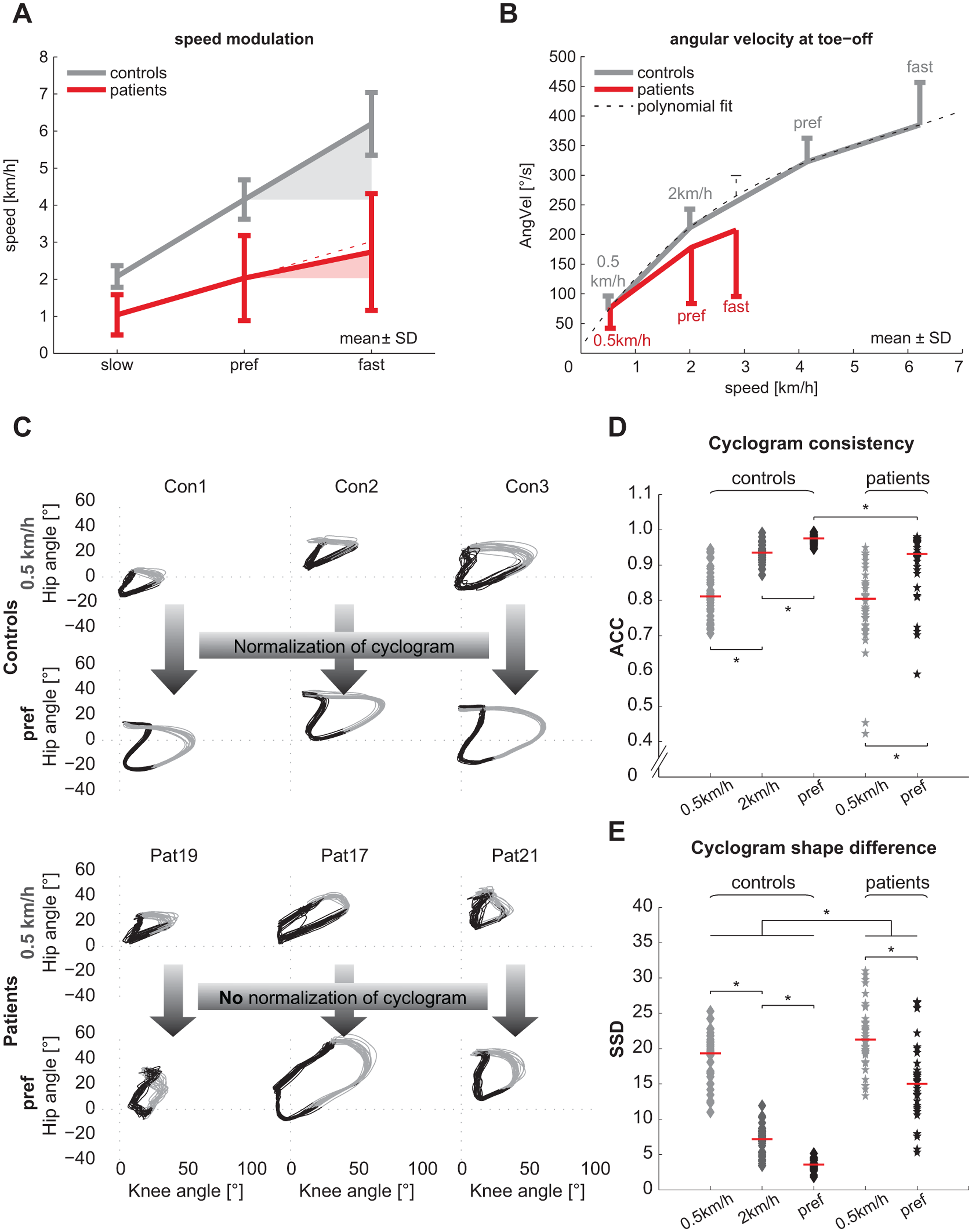

Speed modulation of parameters contributing to PC1: (A) Absolute speed and speed modulation is limited in iSCI patients. Theoretical linear increase is indicated by the red dotted line. Error bars indicate ±1 SD. (B) The diagram illustrates the modulation of the hip-knee angular velocity at toe-off. A third-degree polynomial fit (thin dotted line) was used to interpolate control participants’ data to obtain their angular velocity at patients’ fast speed. Error bars indicate 1 SD. (C) Hip-knee cyclograms of controls (top 2 rows) and patients (bottom 2 rows) both at 0.5 km/h and at preferred (pref) walking speed are shown; 20 gait cycles are plotted; the black color indicates stance phase, and gray color indicates swing phase. (D) The cycle-to-cycle reproducibility of the hip-knee cyclogram (ACC) improved with increasing speed in both groups but was lower in patients at preferred speed. (E) The shape difference of the cyclogram compared with normal (SSD) improved in patients at preferred speed but remained different from controls at all speeds.

The quality of intralimb coordination (shape difference to normal) showed a striking convergence when increasing speed from 0.5 km/h to preferred in healthy controls, whereas iSCI patients with a deteriorated pattern were unable to normalize it (Figure 2C). Metrics quantifying hip-knee cyclogram characteristics showed the sensitivity of the intralimb coordination to changes in speed: the cycle-to-cycle consistency (ACC) increased from 0.5 km/h to preferred speed in both groups (Wilcoxon signed rank test: P < .001) but was still higher in controls compared with patients at preferred speed (Mann-Whitney U test: P < .001; Figure 2D). However, at 0.5 km/h and at the matching speed (2 km/h), the ACC was indistinguishable between groups (Mann-Whitney U test: P = .394; P = .666). The shape difference to normal of the cyclogram (SSD) improved at preferred speed compared with the 0.5 km/h walking in both groups (paired t test: P < .001). However, it remained different from normal in iSCI patients both at a matching speed (2 km/h) and when comparing preferred speeds (t test: P < .001; Figure 2E), emphasizing the diminished normalization capacity.

Preserved Control of Gait-Cycle Parameters

In contrast to the variables determining PC1, PC2 was loaded by gait-cycle parameters that remained well modulated according to walking speed (Figures 3A through 3D). The values of step length, cadence, single support, and stance phase were well within the range of controls.

Figure 3.

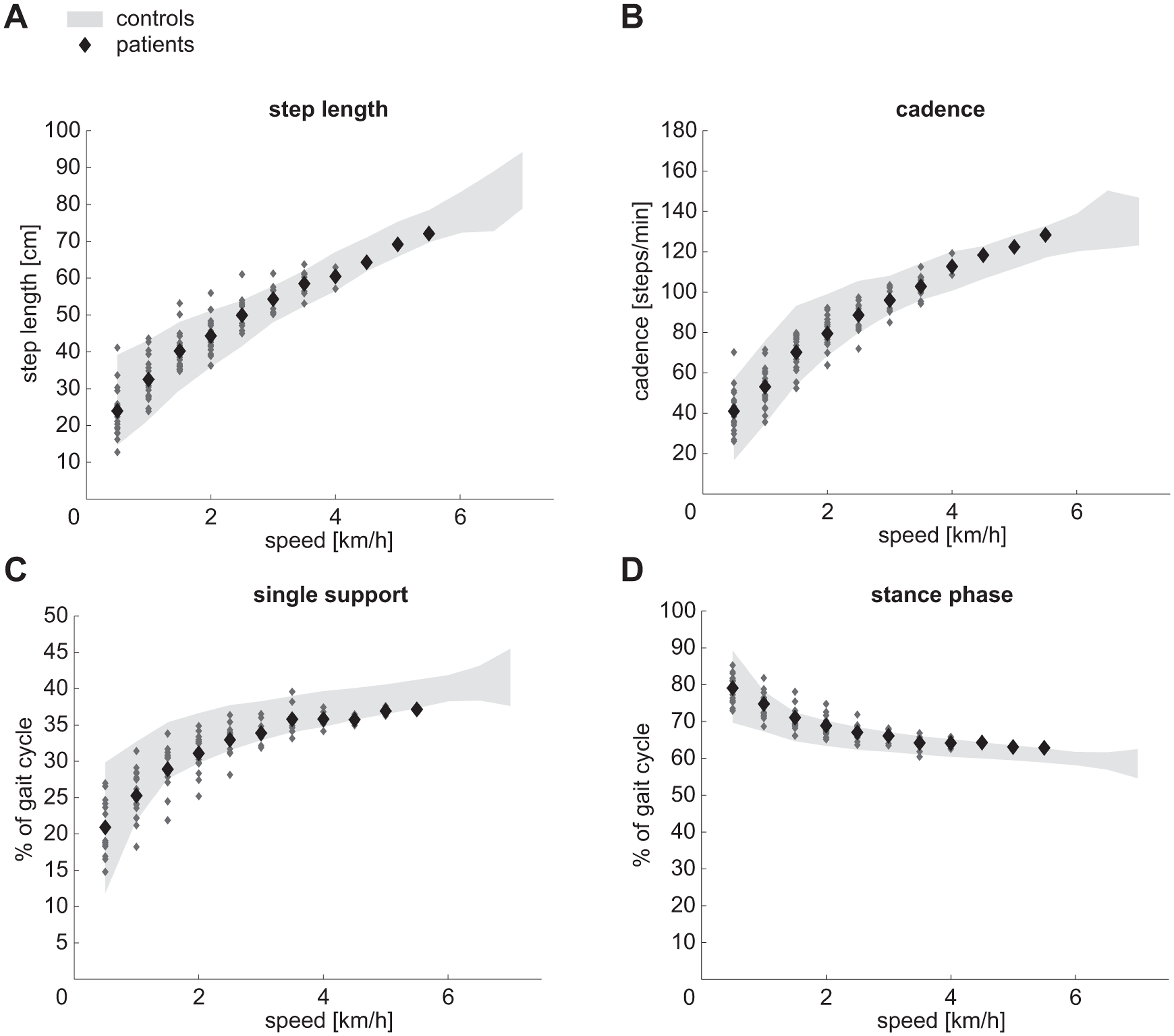

Speed modulation of parameters contributing to PC2 (A through D): Modulation of step length, cadence, single support, and stance phase of controls (gray area, ± 2SD interval) and patients (large dots = group mean values, small dots = individual patient’s data) at different walking speeds (0.5-7.0 km/h in controls, 0.5-5.5 km/h in patients). The 2 groups did not differ.

Range of Motion

Hip ROM and knee ROM represent the maximal sagittal excursion of single joint angles during a gait cycle. At 0.5 km/h and at the matching speed (2 km/h), iSCI participants showed a greater hip ROM compared with controls, while the knee ROM did not differ between groups (t test: P = .005 and P = .961 at 0.5 km/h; P < .001 and P = .613 at matching speed). In contrast, the hip ROM showed no difference between groups at preferred speed while the knee ROM was reduced in iSCI participants (t test: P = .317 and P = .001).

Speed Dependence

Some gait variables, for example, angular velocity at toe-off, were linearly related to preferred speed (Figure 4A), where patients attained lower values than controls in accordance with their reduced walking speed. In contrast, the cyclogram shape did not reflect preferred walking speed in healthy participants, given that the SSD remained within a narrow range (~2 to 5) in the control group irrespective of speed (Figure 4B). Patients, on the other hand, showed a high relation between the cyclogram shape and preferred speed. Interestingly, spinal cord integrity (ie, spinal cord conductivity as measured by evoked potentials) did not determine the speed capacity of patients (Figures 4C and 4D). The ROMs showed rather weak relations to preferred speed, especially in iSCI participants but also in healthy individuals (Figures 4E and 4F).

Figure 4.

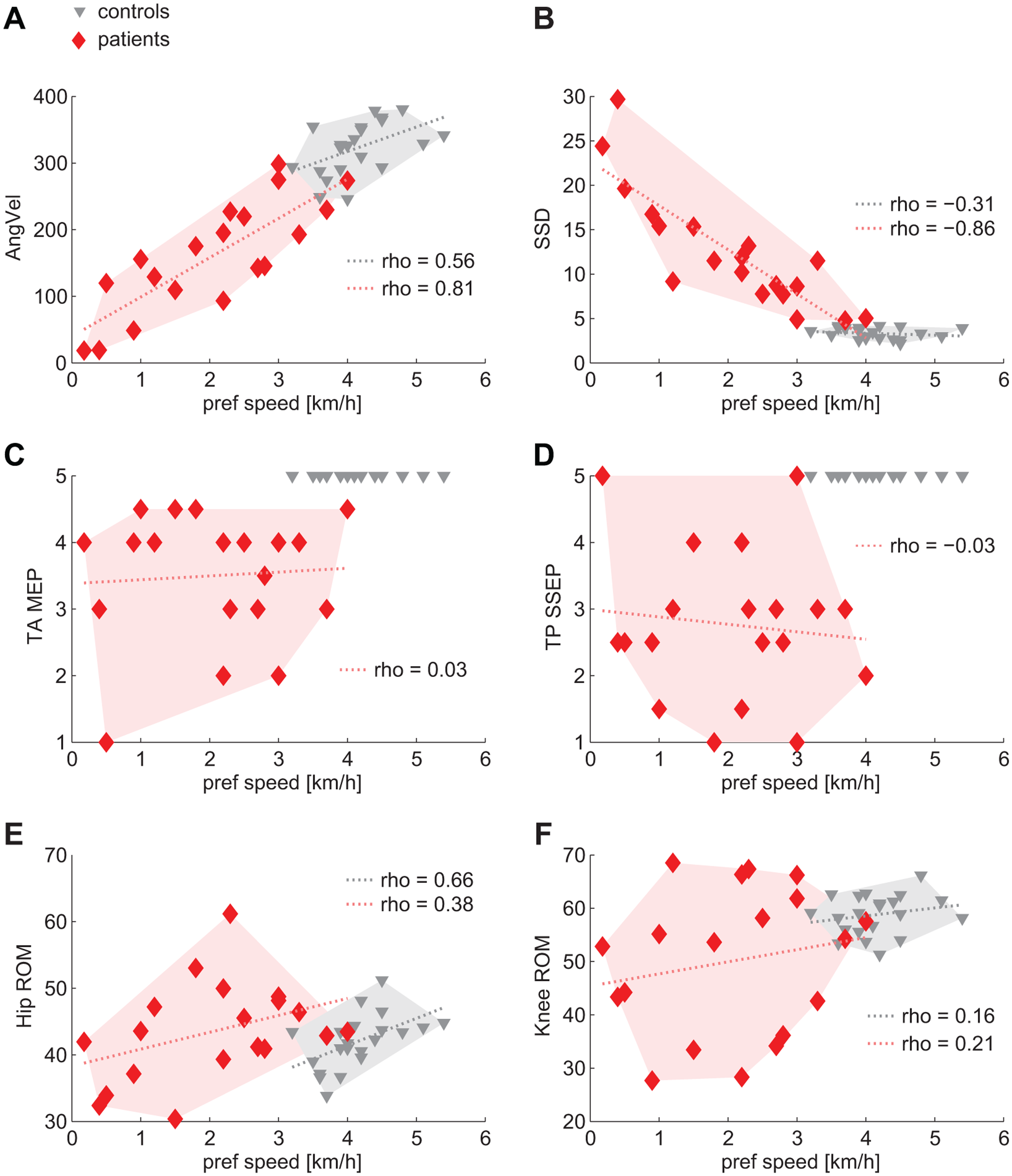

Relation of gait-related parameters to preferred speed: (A and B) Angular velocity at toe-off and SSD (shape difference to normal) showed linear relations to walking capacity and separated the 2 groups (C and D). The degree of spinal cord integrity did not correlate with walking capacity but clearly distinguished the 2 groups. Ranges of motion showed weak to moderate relation to walking capacity and did not distinguish between groups (E and F). A linear fit was added to the graphs (dotted lines) to illustrate trends, although Spearman’s correlation does not assume linearity of data.

Discussion

The present study, analyzing combined clinical and kinematic assessments, provides specific findings of the complexity of gait alterations and locomotor control in walking following iSCI. Through statistical data integration across multiple outcome modalities, specific clusters of coherent gait parameters were distinguishable that were related to spinal cord integrity and discretely controlled after iSCI. The findings are specifically different from that for other neurological disorders (eg, stroke and Parkinson). The effectiveness of any treatment intervention (training, drugs) in iSCI to improve walking outcome may be evaluated against these distinguishable clusters of outcome. ²⁷

Gait Control Impairments

Clinical (ASIA protocol) and electrophysiological measures (ie, MEPs and SSEPs) have been shown to be sensitive in assessing spinal cord impairment following SCI and are predictive for functional outcome.^5,28-30 Although these measures are sensitive at predicting levels of walking outcome (no, therapeutic, functional, and full locomotor capacity^31,32), they may not be able to predict more detailed gait characteristics or continuous measures such as walking speed. This is the first study to show that SCI specifically affects certain clusters of parameters while others remain well controlled. Different levels of gait pattern distortion could be quantified by the measure of shape difference to normal (SSD), which was strongly related to speed capacity in iSCI participants. In addition, whereas healthy participants showed a striking convergence toward a uniform pattern at preferred speed, patients could voluntarily change speed up to a certain limit but failed to improve the shape difference when increasing their walking speed. These findings indicate that speed and kinematic features respond differently to changes in supraspinal input. A similar behavior could be observed in stroke patients who showed improved gait symmetry at faster speeds but with no changes in compensatory movements. ³³ Despite a high responsiveness to supraspinal input at the stance to swing transition, ³⁴ speed increases were not proportionally paralleled by increased angular velocity at toe-off, suggesting that compensatory mechanisms (eg, increased hip ROM) might instead enable speed increments. The observed behaviors imply that additional factors may play a role: faster walking biomechanically induces less movement variability (ie, parallel increase of ACC and speed), ³⁵ and spasticity probably impedes the translation of increased speed to higher angular velocities.

Preserved Control Mechanisms

Despite a clear reduction in the capacity to walk beyond the preferred walking speed (ie, maximal speed), ¹⁵ specific gait parameters remained unaltered in iSCI participants, suggesting less dependence on spinal cord integrity. PC2 variables represented intact interlimb coordination to produce temporally (gait-cycle phases) and spatially (step length) adequate steps, and interestingly, across the range of walking speeds that iSCI participants could attain, these parameters remained adequately modulated. This is in contrast to distinct impairments in the control of gait-cycle parameters observed in neurological disorders affecting supraspinal motor centers. In Parkinsonian patients, step length is significantly reduced, whereas cadence can be increased to values even higher than in controls (shuffling gait). ³⁶ Stroke patients typically show an asymmetric slow gait with decreased cadence ³⁷ and limited stride length.^38,39 In line with these observations, iSCI participants showed preserved temporal accuracy of skilled ankle movements despite diminished absolute active ROM and movement velocity. ⁴⁰ In contrast, stroke patients showed decreased movement accuracy both in the paretic and the unaffected leg. ⁴¹ These findings indicate that muscle weakness and movement timing are unrelated, and the required control for temporal movement accuracy (within the boundaries of preserved muscle strength/speed) remains largely intact in iSCI.

Domains of Locomotor Control

The clear distinction between healthy and altered gait, which is congruent with normal and impaired spinal cord integrity assessed by spinal tract conductivity, suggests that human walking is highly dependent on unimpaired supraspinal input (cortical and subcortical). ⁴² The nonlinear relation of measures of spinal conductivity to single gait parameters may partly be attributable to the complex interactions of supraspinal inputs that are fine-tuned by spinal networks simultaneously integrating sensory feedback from the periphery. In addition to an immediately diminished drive from supraspinal centers, spinal networks reorganize after injury and functionally change over time,^43,44 which again may differently affect gait parameters. For these reasons, it remains difficult to attribute the control of specific gait parameters to particular areas of the sensorimotor system. However, one may assume that the control of distinct clusters of parameters differently depend on spinal cord integrity. Given that PC1 and 2 are orthogonal and, therefore, unrelated, one may conclude that PC1, comprising spinal cord integrity and speed, more strongly relies on an intact spinal cord. The parameters related to the control of reciprocal limb activation (PC2) were less dependent on spinal cord integrity and may rely more on spinal circuits (eg, central pattern generators) as shown in previous studies.^45-49

Implications for Interventions

Through the advancement over the currently simplified outcome evaluation (walking speed and distance) using more comprehensive assessments combined with unbiased multivariate analysis that enables the handling of the complexity of data, patients may receive therapeutic interventions specifically tailored to their impairment. ²⁷ The identification of distinct outcome domains may allow elucidation of the role of spinal cord integrity in gait control and reveal information on underlying mechanisms involved in recovery.

Limitations

The number of participants from this inherently heterogeneous group of patients was rather small, and therefore, a generalization of results may be limited. Animal studies have revealed that voluntary changes of gait parameters, although immediately responding to supraspinal commands, are still influenced by subhierarchical (ie, spinal) effects such as facilitation or inhibition.^7,50 Thus, discerning supraspinal and spinal neural control of locomotion, especially in humans, remains very challenging. A major factor influencing walking pattern is spasticity, which was not assessed in this study. In addition, the effects of medication (ie, antispasticity) and walking aids on these outcomes as well as the fact that participants were walking on a treadmill as opposed to overground require further attention.

Conclusion

Locomotor function in iSCI patients is clinically well addressed by measures of speed and distance because they represent levels of walking capacity required for daily activities but should be complemented by refined assessments of movement quality and spinal conductivity. The modulation of specific gait parameters is distinctly dependent on spinal cord integrity, and gait alterations after iSCI are specific and differ from those seen in brain disorders (eg, Parkinson’s disease, stroke). The distinction and understanding of the dynamic changes of neural control after injury as well as during recovery and rehabilitation interventions may contribute to improved outcome evaluation and advanced treatments for iSCI.
