Onbaekwon Suppresses Colon Cancer Cell Invasion by Inhibiting Expression of the CXC Chemokine Receptor 4

Abstract

Cysteine X cysteine (CXC) chemokine receptor 4 (CXCR4) and C-X-C motif chemokine 12 (CXCL12) were originally identified as chemoattractants between immune cells and sites of inflammation. Since studies have validated an increased level of CXCL12 and its receptor in patients with colorectal cancers, CXCL12/CXCR4 axis has been considered as a valuable marker of cancer metastasis. Therefore, identification of CXCR4 inhibitors has great potential to abrogate tumor metastasis. Onbaekwon (OBW) is a complex herbal formula that is derived from the literature of traditional Korean medicine Dongeuibogam. In this study, we demonstrated that OBW suppressed CXCR4 expression in various cancer cell types in a concentration- and time-dependent manner. Both proteasomal and lysosomal inhibitors had no effect to prevent the OBW-induced suppression of CXCR4, suggesting that the inhibitory effect of OBW was not due to proteolytic degradation but occurred at the transcriptional level. Electrophoretic mobility shift assay further confirmed that OBW could block endogenous activation of nuclear factor kappa B, a key transcription factor that regulates the expression of CXCR4 in colon cancer cells. Consistent with the aforementioned molecular basis, OBW abolished cell invasion induced by CXCL12 in colon cancer cells. Together, our results suggest that OBW, as a novel inhibitor of CXCR4, could be a promising therapeutic agent contributing to cancer treatment.

Keywords

onbaekwon CXCR4 CXCL12 metastasis invasion colon cancer

Introduction

Colorectal cancer is one of the most common cancers and the third leading cause of cancer-related death worldwide. Death due to colorectal cancer usually results from uncontrolled metastasis.¹

Several recent studies have assessed the role of chemokines and chemokine receptors in tumor progression.² Chemokine networks might play a role in tumor progression because they can affect the growth, adhesion, and organ-specific metastasis of tumor cells.³ The cysteine X cysteine (CXC) chemokine family and their ligands were originally identified as chemoattractants between immune cells and sites of inflammation.⁴ Cancer cells also use chemokine networks to modulate the host microenvironment and facilitate cancer progression. Recently, studies have validated an increased level of chemokine C-X-C motif chemokine 12 (CXCL12) and its receptor in patients with colorectal cancer, and the CXCL12/CXCR4 (chemokine receptor 4) axis is considered a useful marker of cancer metastasis.⁵

Over the past centuries, agents derived from natural sources have long received attention from researchers and clinicians because of their safety, efficacy, and immediate availability. Indeed, at least 70% of all drugs approved by the Food and Drug Administration in the past 30 years originated from natural sources.⁶ Consequently, discovering less toxic and more effective drugs that can improve survival rates and decrease side effects is needed to establish new therapeutic strategies for colorectal cancer.

Onbaekwon (OBW) is a complex herbal formula, derived from the literature of traditional Korean Medicine, Dongeuibogam. The formula has been used traditionally for treating abdominal mass and comprises Aconitum carmichaelii Debx, Evodia rutaecarpa Bentham,Gleditsia sinensis Lam, among others.

Evodiamine is a phytochemical from a traditional Chinese medicine named Evodia rutaecarpa Benth, which is widely used for the treatment of gastrointestinal disorders and hypertension.⁷ Aconitum carmichaelii Debx has been used to relieve pain and treat rheumatic arthritis and other inflammatory conditions for over 2000 years. Moreover, Chuanwu (A carmichaelii) has an anti-arthritic effect in complete Freund’s adjuvant (CFA)-induced arthritic rats,⁸ and methanol extracts of crude Aconitum roots have anti-inflammatory effects in terms of inhibiting acid-induced vascular permeability and carrageen-induced hind paw edema in mice.⁹ In contrast, saponin isolated from Gleditsia sinensis Lam has been reported to show therapeutic potential against rheumatoid arthritis and tumors, 2 angiogenesis-related diseases.^10,11 However, the anticancer mechanism of processed OBW remains unclear.

In this study, we investigated the effect of OBW on CXCR4 expression and its inhibition of colon tumor cell invasion. Our results show that this OBW-induced suppression of CXCR4 expression was evident in various CXCR4-overexpressing tumor cell lines. This downregulation occurred at both the transcriptional and translational levels and led to inhibition of CXCL12-induced invasion by colon tumor cells.

Materials and Methods

Materials and Chemical

RPMI1640, Dulbecco’s modified Eagle’s medium (DMEM), and fetal bovine serum (FBS) were purchased from Hyclone (Logan, UT).Trypsin-EDTA (ethylenediaminetetraacetic acid; 0.25%) and antibiotic-antimycotic were obtained from Gibco BRL (Grand Island, NY). Lactacystin and chloroquine were obtained from Santa Cruz Biotechnology (Santa Cruz, CA). Antibodies against CXCR4 (ab2074) was obtained from Abcam (Cambridge, MA). β-Actin was used as a loading control (Cell Signaling, Danvers, MA). CXCL12 was purchased from R&D system (Minneapolis, MN).

Isolation of Onbaekwon

Onbaekwon is composed of Aconitum carmichaelii 250 g, Evodia rutaecarpa, Platycodi Radix, Bupleuri Radix, Acori Rhizoma, Asteris Radix, Coptidis Rhizoma, Zingiberis Rhizoma, Cinnamomi Cortex, Tiglii Fructus, Hoelen, Gleditsia sinensis Lam, Machili Cortex, Ginseng Radix 100 g each, Zanthoxyli Fructus 75 g. The herbal materials were purchased from Kyung Hee Pharm (Wonju, Korea) and identified by Prof Seong Woo Yoon (Kyung Hee University Hospital at Gangdong, Seoul, Korea). The voucher specimen was registered and deposited at East-West Medical Research Institute, Kyung Hee University. Dried specimen (1625 g) was ground into powder, and extracted twice with 80% ethanol (1 L × 3) for 2 hours, and filtered through a filter paper. The filtrate was evaporated in vacuo and dried with freezer to produce an ethanol extract of OBW (325 g). OBW was dissolved in dimethyl sulfoxide as a 580 mg/mL stock solution and stored at 4°C. Further dilution was done in cell culture medium.

Cell Line and Cell Culture

The immortalized human colon cancer HCT116, breast cancer MDA-MB-231, and liver cancer HepG2 and Hep3B were cultured in DMEM supplemented with 10% FBS and 1% antibiotics. Breast cancer MCF7 was cultured in RPMI 1640 supplemented with 10% FBS and 1% antibiotics. Cells were maintained at 37°C in an atmosphere of 5% CO₂-95% air. All cells were passaged at 80% confluences in 0.25% trypsin-EDTA for 3 to 5 minutes.

Western Blotting

For detection of CXCR4, OBW-treated whole cell extracts were lysed with RIPA buffer (150 mM NaCl, 10 mM Tris [pH 7.2], 0.1% sodium dodecyl sulfate [SDS], 1% triton X-100, 1% deoxycholate, and 5 mM EDTA) enriched with a complete protease inhibitor cocktail tablet (Roche Diagnostics, Mannheim, Germany), and then incubated on ice for 30 minutes with regular vortex before centrifuging at 14 000 rpm at 4°C for 15 minutes. Protein concentration was determined by using bicinchoninic acid protein assay kit (Pierce Biotechnology, Rockford, IL). The protein samples were boiled in SDS sample buffer for 5 minutes and were resolved on a 10% SDS-polyacrylamide gel. After electrophoresis, proteins were transferred onto polyvinyl difluoride (PVDF) membrane, which was blocked with 5% nonfat dry milk in tris-buffered saline with 0.1% tween-20 (TBST) and incubated with primary antibody at the appropriate final concentration followed by hybridization with horseradish peroxidase-conjugated anti-rabbit or anti-mouse secondary antibodies. For each step, the membrane was washed with TBST 3 times for 10 minutes and the transferred proteins were incubated with super-signal pico-chemiluminescent substrate or dura-luminol substrate (Thermo Scientific, Waltham, MA) for 2 minutes according to the manufacturer’s instruction and visualized with imagequant LAS 4000 (Fujifilm Life Science, Roche Diagnostics).

RNA Analysis and Reverse Transcription-Polymerase Chain Reaction (RT-PCR)

Total RNA was extracted using Trizol reagent according to the manufacturer’s instructions (Invitrogen, Carlsbad, CA). And cDNA synthesis was performed using the AccuPower Rocketscript cycle RT premix (Bioneer, Daejeon, Korea) according to the manufacture’s protocol. The relative expression of CXCR4 was analyzed by quantitative RT-PCR with glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as an internal control. The following pairs of forward and reverse primer sets were used: CXCR4, sense: 5′-CCG TGG CAA ACT GGT ACT TT-3′, antisense: 5′-TTT CAG CCA ACA GCT TCC TT-3′; GAPDH, sense: 5′-CAG CCT CAA GAT CAT CAG CA-3′, antisense: 5′-GTC TTC TGG GTG GCA GTG AT-3′. The RT-PCR reaction mixture contained 2.5 µL of 10× Taq reaction buffer, 0.5 µL of 10 mM dNTP, 1 µL each of forward and reverse primers, and 2 µL template DNA in a final volume of 25 µL. Amplification products were resolved by 1.5% agarose gel electrophoresis stained with safe dye and photographed by imagequant LAS 4000.

Real-Time Quantitative PCR

Real-time PCR was performed on the cDNA using the selective primers for CXCR4 (sense: 5′-CCG TGG CAA ACT GGT ACT TT-3′, antisense: 5′-TTT CAG CCA ACA GCT TCC TT-3′) and GAPDH (sense: 5′-CAG CCT CAA GAT CAT CAG CA-3′, antisense: 5′-GTC TTC TGG GTG GCA GTG AT-3′). PCR was performed in a Light Cycler 480 (Roche Diagnostics, Indianapolis, IN) using the Light Cycler DNA Master SYBR Green Kit (Roche Diagnostics) according to the manufacturer’s instruction. The PCR thermal profile was 95°C for 10 minutes, and 40 cycles of 95°C for 10 seconds, 55°C for 30 seconds followed by a cooling step at 40°C for 30 seconds. For relative quantification, the crossing point (Cp) value of CXCR4 was normalized by keeping the Cp value of GAPDH as a control.

Invasion Assay

In vitro invasion assay was done using Bio-Coat Matrigel invasion assay system (BD Biosciences, Lexington, KY) according to the manufacturer’s instructions. Cancer cells (5 × 10⁴/mL) were suspended in medium and seeded into the Matrigel-precoated transwell chambers with polycarbonate membranes of 8 µm pore size. After preincubation with or without pomolic acid (25 µM), transwell chambers were then placed into 24-well plates, in which was added the basal medium only or basal medium containing 100 ng/mL CXCL12. After incubation (24 hours for MCF7 and MDA-MB-231), the upper surface of transwell chamber was wiped off with a cotton swab and invading cells were fixed and stained with a Diff-Quick stain. The invading cell numbers were counted in 5 randomly selected microscope fields (×100).

Electrophoretic Mobility Shift Assay

A DIG Gel Shift kit (Roche, Mannheim, Germany) was used for electrophoretic mobility shift assay. The NF-κB oligonucleotide probe (NF-κB: 5′-CTT GAA GGG ATT TCC CTG GCT TGA AGG GAT TTC CCT GG-3′—only sense strands are shown; consensus sequences for NF-κB are underlined) containing the NF-κB binding motif was end-labeled with DIG-ddUTP. For the binding reaction, 10 µg of the sample protein was incubated at room temperature for 30 minutes with a DIG-labeled probe.The DNA-protein complexes were separated by electrophoresis in 6% nondenatured polyacrylamide gels using 0.5× TBE as a running buffer. After electrophoresis, the gels were transferred to nylon membranes and detected chemiluminescently. Signal intensity was quantified by an image analyzer (Las4000).

Statistical Analysis

The results obtained from each experiment are expressed as mean ± standard deviation (SD) from at least 3 independent experiments. The significance level was set at P < .05 for each analysis using Student’s t test.

Results

OBW Suppresses CXCR4 Protein Levels in HCT116 Cells

The chemokine receptor CXCR4 has been directly implicated in colorectal cancer metastasis.¹² Therefore, the effect of OBW on CXCR4 expression in HCT116 cells was investigated. Following incubation of HCT116 cells with various concentrations of OBW for 24 hours or with 0.8 mg/mL OBW for various times, CXCR4 expression was suppressed in a dose- and time-dependent manner (Figure 1A and B). Exposure of cells to 0.8 mg/mL OBW for 24 hours significantly inhibited CXCR4 expression.

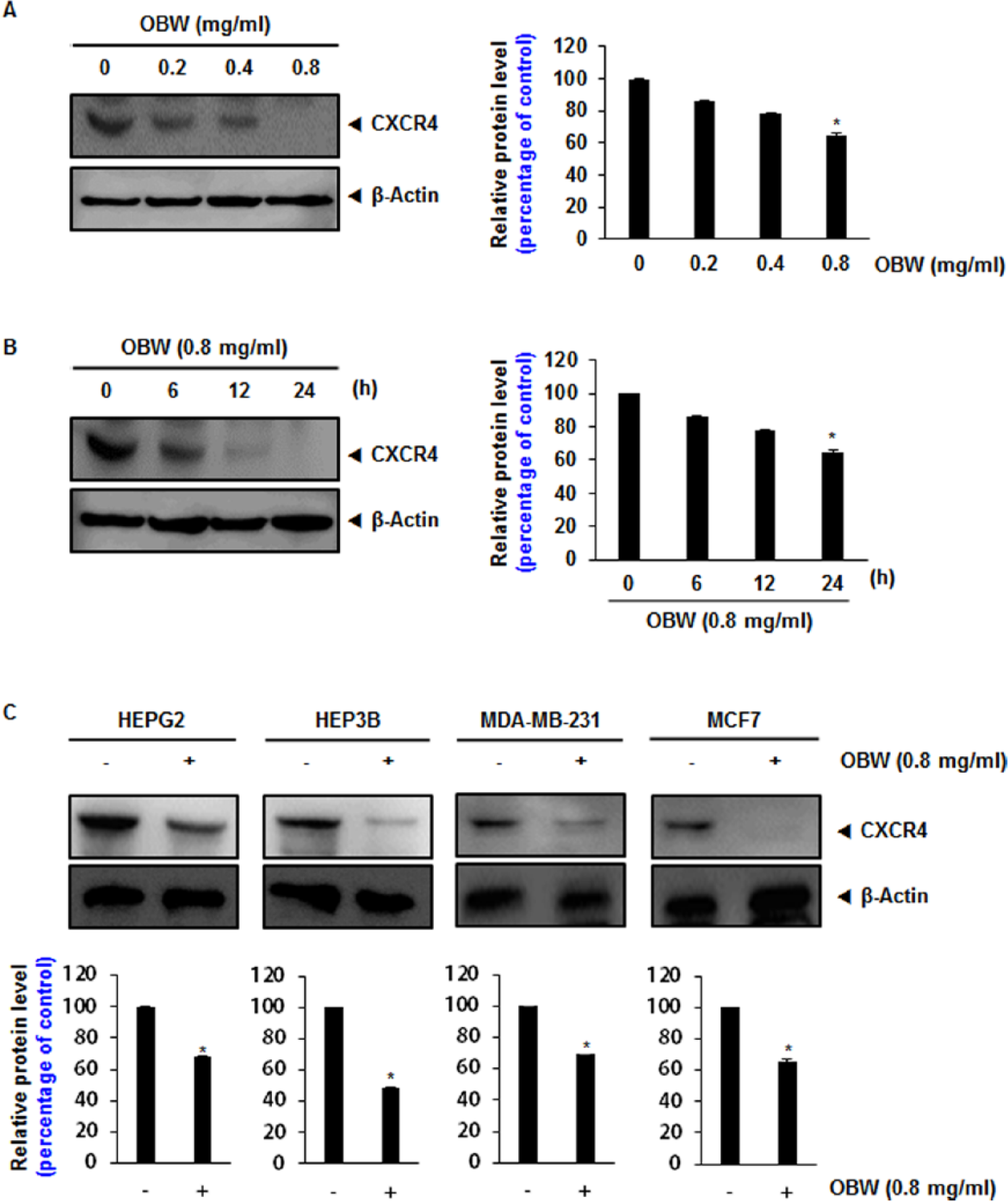

Figure 1.

OBW suppresses CXCR4 protein levels in HCT116 cells.

OBW Suppresses CXCR4 Expression in Various Cell Types

CXCR4 is overexpressed in a wide variety of tumor cells. CXCR4 has been implicated in metastasis of breast and liver cancer.^13,14 Thus, we investigated the effect of OBW on CXCR4 expression in liver (HEPG2, HEP3B) and breast (MDA-MB-231, MCF7) cancer cell lines. Cells were treated with 0.8 mg/mL OBW for 24 hours and their CXCR4 expression levels were examined. OBW inhibited CXCR4 expression in all cell lines tested (Figure 1C). Thus, CXCR4 suppression by OBW is not cell-type specific.

Downregulation of CXCR4 by OBW Is Not Due to Its Degradation

Because CXCR4 undergoes ubiquitination at its lysine residue followed by degradation,^15,16 we next explored the possibility that OBW enhances the rate of degradation by activating proteasomes. To determine this, we examined the effect of lactacystin, a proteasome inhibitor, on OBW-induced degradation of CXCR4 in HCT116 cells.

Cells were pretreated with lactacystin for 1 hour before being exposed to OBW. Lactacystin had no effect on OBW-induced degradation of CXCR4 (Figure 2A), suggesting that the effects of OBW on CXCR4 expression are not mediated by enhanced degradation.

Figure 2.

Downregulation of CXCR4 by OBW is not due to its degradation.

As CXCR4 also undergoes ligand-dependent lysosomal degradation,¹⁷ we next investigated the ability of chloroquine, a lysosomal inhibitor, to block OBW-induced degradation of CXCR4. Cells were pretreated with chloroquine for 1 hour before being exposed to OBW. Chloroquine at 200 µmol/L reduced CXCR4 degradation only slightly (Figure 2B), indicating that this was not the primary pathway of suppression of CXCR4 expression.

Downregulation of CXCR4 by OBW Occurs at the Transcriptional Level

Because OBW did not downregulate CXCR4 expression by enhancing its degradation, we investigated whether suppression occurred at the transcriptional level. HCT116 cells were treated with various concentrations of OBW and then mRNAs were extracted for analysis by RT-PCR and real-time PCR.OBW was found to downregulate CXCR4 mRNA levels (Figure 3A and B).

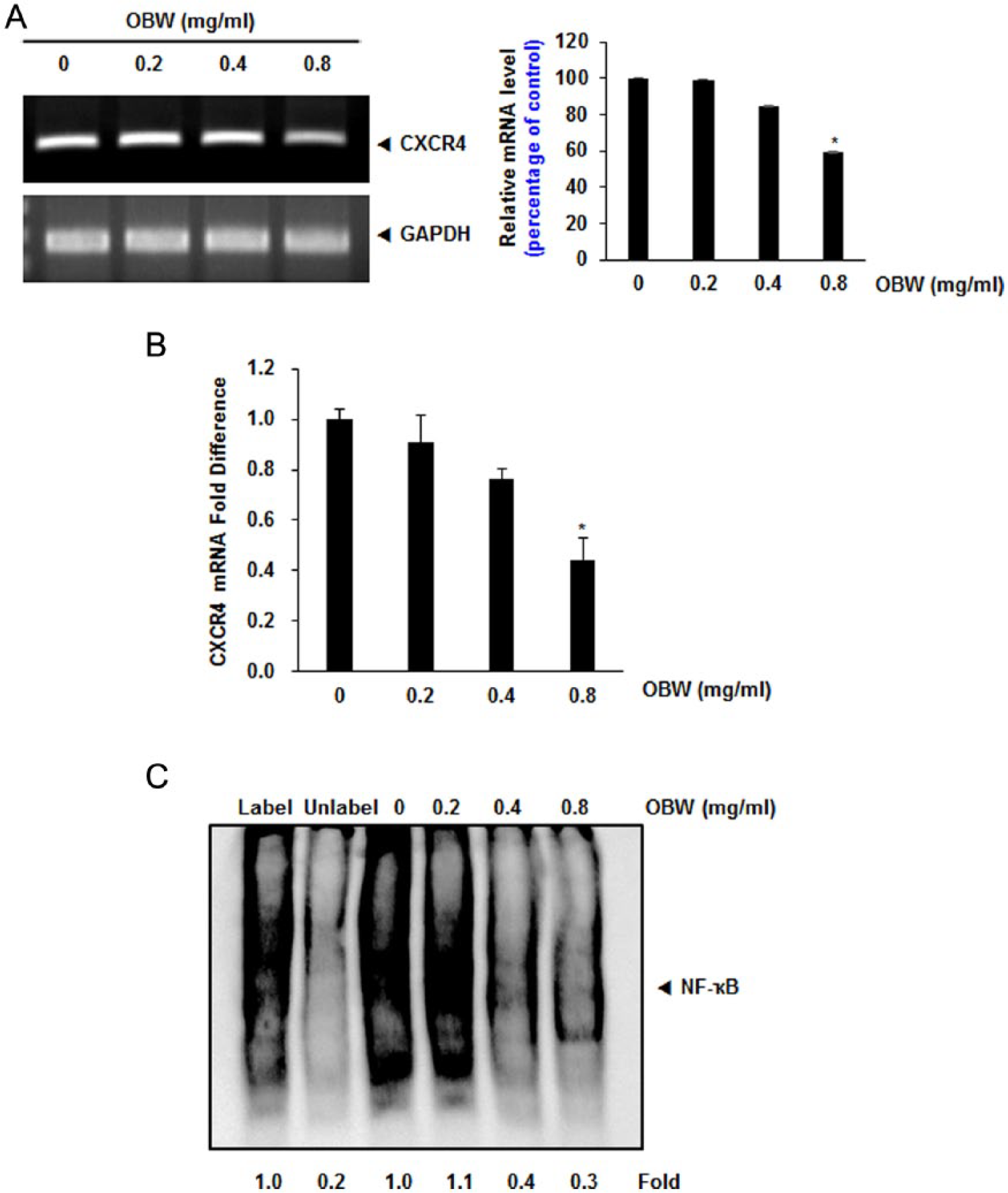

Figure 3.

Downregulation of CXCR4 by OBW occurs at the transcriptional level.

OBW Suppresses Constitutive Activation of NF-κB in HCT116 Cells

Earlier studies reported that NF-κB, a transcription factor related to expression of various genes, binds to several regions of the CXCR4 promoter. Thus, OBW likely influences CXCR4 expression by suppressing NF-κB activation. We performed a DNA-binding assay to explore the effect of OBW on constitutive NF-κB activation in HCT116 cells, and we found that treatment with 0.8 mg/mL OBW for 24 hours significantly inhibited NF-κB activation (Figure 3C).

OBW Suppresses CXCL12-Induced Colon Cancer Cell Invasion

Several lines of evidence implicate that CXCR4 in colon cancer metastasis, motility, and migration was induced by exposure to CXCL12.¹⁸ Therefore, colon cancer metastasis may be inhibited by silencing of CXCR4. The correlation between downregulation of CXCR4 by OBW and colon cancer cell migration was examined using an in vitro invasion assay. CXCL12 induced invasion of colon cancer cells, which was abrogated by OBW treatment (Figure 4A and B). Furthermore, OBW reduced the expression of the tumor metastasis and progression marker CXCR4.

Figure 4.

OBW suppresses CXCL12-induced colon cancer cell invasion.

Discussion

Chemokine receptors, which belong to the G-protein-coupled receptor family, are involved in regulation of the immune response, inflammation, leukocyte trafficking, and cytoskeletal rearrangement.¹⁹ A number of chemokine receptors are expressed in tumor cells, and CXCR4 has been shown to play an important role in cancer metastasis.^20-22 CXCR4 expression is higher in embryonic or dedifferentiated cells than in normal cells,²³ and CXCR4 expression was an independent predictor of poor survival in cancer patients.²⁴ Interaction of CXCL12 with CXCR4 triggers molecular events that facilitate cell migration, invasion, and metastasis. Thus, disruption of the CXCR4/CXCL12 axis is likely to reduce metastasis, making this factor a promising target for cancer treatment.²¹ The goal of the present study was to determine the effect of OBW on CXCR4 expression.Our results showed for the first time that OBW suppresses the expression of CXCR4, irrespective of cell type. Moreover, downregulation of CXCR4 was not due to proteolytic degradation of the receptor but rather through suppression of transcription. Furthermore, suppression of CXCR4 led to downregulation of invasion induced by the CXCL12 ligand in HCT116 colon cancer cells.

CXCR4 has been reported to be overexpressed in a variety of tumors and promotes metastasis.^25-27 Our data also showed that OBW suppressed CXCR4 expression in various tumor cell lines, including liver and breast cancer cells, thereby indicating that the effect of OBW on CXCR4 is not limited to a single cell type.

The mechanism underlying overexpression of this receptor in tumor cells is unclear. However, recent studies have documented the ligand-dependent downregulation of the CXCR4 expression by lysosomal degradation,¹⁶ which involves atrophin-interacting protein 4-mediated ubiquitination and degradation.¹⁷ However, our data indicate that OBW does not downregulate CXCR4 through this mechanism. As such, as downregulation of CXCR4 by OBW did not occur at the posttranslational level, we postulated that the effect would be at the transcriptional level.

Inflammatory cytokines produced by tumor cells^28,29 or inflammatory cells in the tumor microenvironment can promote tumor progression by inducing the expression of genes dependent on the NF-κB signaling pathway.³⁰ NF-κB was also shown to induce the expression of CXCR4.^26,31,32 Because NF-κB has been shown to upregulate the expression of several pro-metastatic and pro-angiogenic genes including interleukin 6 (IL-6), IL-8, and vascular endothelial growth factor (VEGF),^33-35 the NF-κB complex is normally confined to the cytosol through its interaction with the IκB protein. On stimulation, IκB is degraded and NF-κB is activated. Transient transfection of an NF-κB expression plasmid upregulated CXCR4 expression in human prostate cancer cells.³⁵ In this study, we presented evidence that OBW suppresses CXCR4 expression through NF-κB inhibition in colon cancer cells.

We further investigated the effect of OBW on CXCL12-induced invasion of colon cancer cells. The role of CXCL12 in promotion of invasive growth is well documented, and the intracellular signals triggered by CXCR4 activation have been investigated extensively.³⁶ This argues in favor of a critical role for the CXCR4 receptor in tumor invasiveness and progression and the potential of OBW to downregulate CXCL12-induced invasion of colon cancer cells. In summary, we found that OBW downregulated the expression of CXCR4, a key receptor in the cross-talk between tumor cells and their microenvironment, and thus, that the antimetastasis effects of OBW may be mediated through CXCR4 regulation. Further in vivo studies are needed to demonstrate the relevance of these observations to cancer treatment.

Conclusion

OBW exerts potent antimetastasis effects by inhibiting expression of CXCR4 in colon cancer cells. These inhibitory effects are mediated by the suppression of NF-κB activation. These findings support the traditional use of OBW in various anticancer treatments and also suggest that OBW might be useful in the development of new therapeutic agents for metastasis diseases.
