MicroRNA-133b Inhibits nTumor Cell Proliferation,Migration and Invasion by Targeting SUMO1 in Endometrial Carcinoma

Abstract

Objectives: An increasing number of studies have confirmed that microRNAs (miRNAs/miRs), as oncogenes or tumor suppressor genes, play an important regulatory role in the occurrence and development of numerous types of cancer. The aim of the present study was to investigate the potential role and mechanism of miR-133b and small ubiquitin like modifier 1 (SUMO1) in the development of endometrial carcinoma (EC). Methods: First, Venn diagrams are used to identify the differential expressions of miRNAs in EC from GSE35794 and GSE25405 datasets. Next, we conduct a series of functional tests, including Cell Counting Kit-8, wound healing, and transwell and matrigel assays. Then, a bioinformatics tool, is used to identify downstream target genes of miR-133b and to verify the predicted results by RT-qPCR, Western blotting and double luciferase reporter gene analysis. Finally, in order to further study whether the cellular function of miR-133b is mediated by the expression of SUMO1, rescue experiments were carried out. Results: The results of bioinformatics studies showed that the expression of miR-133b was down-regulated in EC tissues, and the expression level of miR-133b was lower in patients with high grade, different histology or menopausal status. The results of functional assay showed that overexpression of miR-133b reduced cell proliferation, migration and invasion. On the contrary, miR-133b silence has the opposite effect. SUMO1 was the direct target of miR-133b and was negatively regulated by miR-133b. The decrease of SUMO1mRNA expression inhibited the proliferation, migration and invasion of EC cells, and reversed the effect of miR-133b on EC cells. Conclusion: The findings from the present study suggested that miR-133b may be a tumor suppressor gene and a potential therapeutic target for the treatment of EC.

Keywords

endometrial carcinoma proliferation migration invasion

Introduction

Endometrial carcinoma (EC) is one of the most common malignant tumors in the female reproductive system.¹ In recent years, the incidence and mortality rates of EC have been increasing due to the changes in lifestyle. EC is divided into type I (estrogen-dependent) and type II (estrogen independent) according to the clinical and endocrine characteristics. Type I EC accounts for ∼85% of all cases.² At present, the treatment of EC primarily involves surgery, radiotherapy, chemotherapy, hormone therapy and new targeted therapy, as adjuvant therapeutic approaches for EC.³ However, the 5-year survival rate for patients with EC has not significantly improved. Therefore, further understanding into the molecular mechanism of EC would enable the identification of novel therapeutics for the prevention, diagnosis and treatment of EC.

MicroRNAs (miRNAs/miRs) are a type of endogenous small RNA and are 18 to 24 nucleotides in length. miRNA is an important regulatory factor, which plays a key role in various cellular processes and biological activities, including cell proliferation, migration, metastasis, apoptosis, autophagy and invasion.^4-7 miRNAs regulate gene expression by targeting the 3′-untranslated region (UTR) of mRNA, inhibiting or directly degrading target mRNA at the translational level. Previous studies have revealed that the abnormal expression of miRNAs in malignant tumor cells plays a crucial role in the multi-step process of carcinogenesis, from initiation and development, to the acquisition of metastatic features.^8-10 In recent years, an increasing number of studies have shown that the differential expression of miRNAs has been associated with the occurrence and development of EC, and the functional role and mechanism of miRNAs in EC have been widely investigated. For example, miR-486 to 5p was demonstrated to promote cell proliferation, migration and invasion by targeting MATK1 in EC.¹¹ In addition, EIF4E-related miR-320a and miR-340 to 5p inhibited the metastasis of EC cells by preventing TGF-β1-induced epithelial-mesenchymal transition.¹² Upregulation of miR-103 also promoted the progression of EC by targeting ZO-1.¹³ However, to the best of our knowledge, the function of miR-133b in EC has never been reported. Several studies have indicated that miR-133b could function as a tumor suppressor in various types of cancer. For example, miR-133b, derived from exosomes, was downregulated in bladder cancer cells, and overexpression of miR-133b inhibited bladder cancer proliferation by upregulating DUSP1.¹⁴ In addition, overexpression of miR-133b inhibited the phosphorylation of ERK1/2 and reduced the activity of the ERK signaling pathway thus, inhibiting the proliferation, migration and invasion of renal cell carcinoma cells and improving their chemosensitivity.¹⁵ Similarly, the mRNA expression level of miR-133b was downregulated in non-small cell lung cancer and was associated with lymph node metastasis.¹⁶ Studies have shown that small ubiquitin like modifier 1 (SUMO1) functions as ubiquitin, which binds to the target protein, as part of the post-translational modification system.¹⁷ SUMO1 has been considered to play a critical role in the occurrence and development of different types of malignancies, and the expression level of SUMO1 in malignant tumors was significantly increased.¹⁸ In addition, SUMO1 modification of Mettl3 promoted tumor progression by regulating Snail mRNA homeostasis in hepatocellular carcinoma¹⁹ and the protein, sumoylation, with SUMO1 promoted by Pin1 in glioma stem cells, increased the malignancy of glioblastoma.²⁰ Therefore, we hypothesize that miR-133b may play a role as a tumor suppressor gene in EC by regulating SUMO1.

In the present study, the mRNA expression level of miR-133b was detected in EC cell lines, include Ishikawa, HEC-1A, HEC-1B, RL95 to 2. and the functional roles of miR-133b in the regulation of proliferation, migration and invasion of EC cells was also investigated, as well as determining the potential mechanism of miR-133b.

Materials and Methods

Bioinformatics Analysis

The miRNA expression datasets related to EC were downloaded from the Gene Expression Omnibus database (GEO, https://www.ncbi.nlm.nih.gov/geo/，Created in 2000)²¹ to identify differentially expressed miRNAs. Using |log₂ fold change|>1 and p < 0.05, as filtering criteria, the differentially expressed miRNAs from the GSE35794 and GSE25405 datasets were identified using GEO2R. A volcano map was constructed using the SangerBox platform to visualize the differentially expressed miRNAs. In addition, the intersection of up- and downregulated miRNAs in the GSE35794 and GSE25405 datasets were obtained using a Venn diagram (https://bioinfogp.cnb.csic.es/tools/venny/).²² The mRNA expression level of miR-133b in EC based on tumor grade, histology and menopause status were analyzed using the UALCAN database. In addition, the PirTar, miRanda, Targetscan and miRDB databases were used to predict the target genes of miR-133b, following which, the Kaplan-Meier Plotter database (http://kmplot.com/analysis/, Created in 2009)²³ was performed to obtain the survival curves of overall survival (OS) and relapse-free survival (RFS) times with respect to expression level of SUMO1. Furthermore, Search Tool for the Retrieval of Interacting Genes/Proteins (STRING; https://string-db.org)²⁴ and Cytoscape were used to identify potential target genes.

Cell Culture and Transfection

The RL95 to 2 (No.TCHu198), Ishikawa, HEC-1-A(No.TCHu149) and HEC-1-B(No.TCHu115) EC cell lines were purchased from Shanghai Chinese Academy of Sciences Cell Bank and were cultured in DMEM, containing 10% FBS (Gibco; Thermo Fisher Scientific, Inc.；Cat：10099141C) and 1% penicillin/streptomycin (Gibco; Thermo Fisher Scientific, Inc.; Cat: 15140148) at 37 °C in a humidified incubator with 5% CO₂. The RL95 to 2 and HEC-1-A cell lines were transfected with negative control (NC) mimic, miR-133b mimic, NC inhibitor or miR-133b inhibitor (all cell lines were purchased from Guangzhou RiboBio Co., Ltd). Lipofectamine® 2000 (Invitrogen; Thermo Fisher Scientific, Inc.; Cat: 11668019), was used for transfection, according to the manufacturer's instructions and subsequent experimentation was performed 48 h following.

Cell Counting Kit-8 (CCK-8) Assay

The EC cell lines were seeded in 96-well plates, at a density of 5 × 10³ per well, then transfected with miR-133b mimics, miR-133b inhibitors, si-SUMO1 or their respective NCs. A total of 10 µl CCK-8 solution was added to each well, after the cells were cultured for 24, 48 and 72 h. After incubation at 37 °C for 2 h, the absorbance was detected at 450 nm using a Multiskan MS microplate reader (Thermo Fisher Scientific, Inc.).

Transwell and Matrigel Assays

Transwell and massays were used to perform cell vertical migration and invasion analyses. The RL95 to 2 cell line were transfected with NC inhibitor or miR-133b inhibitor, and the HEC-1-A cell line were transfected with NC mimic or miR-133b mimic, for 48 h. Following which, the cells were made into a suspension using serum-free medium and added to the upper chamber, and medium containing 20% FBS was added into the bottom chamber. The cells were fixed with 4% paraformaldehyde for 15 min, then stained with 0.1% crystal violet for 20 min, 48 h later. The matrigel assay was performed using the same method, except that matrigel-coated membranes were used. The number of migrated or invaded RL95 to 2 and HEC-1-A cells were captured using a light microscope (Olympus Corporation).

Wound Healing Assay

The RL95 to 2 and HEC-1-A cell lines were seeded in 6-well plates and cultured to ∼80% confluence. After the plasmid was transfected with NC mimic, miR-133b mimic, NC inhibitor or miR-133b inhibitor, the monolayer was scratched using a 10 μl pipette tip to create the wound, then it was gently washed with PBS to remove the floating cells. The wound width at 0, 24, 48 and 72 h was measured under a microscope (Olympus Corporation).

RNA Extraction and Reverse Transcription-Quantitative PCR (RT-qPCR) Assay

Total RNA (20 mg) was extracted from the RL95 to 2 and HEC-1-A cell lines using TRIzol® (Invitrogen; Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol. The quantitative real-time polymerase chain reaction (qRT-PCR) was performed on a NanoDrop One system (Merinton Instrument, Ltd) according to the manufacturer's instructions. To detect the expression levels of mRNA, first-strand cDNA was generated using the UEIris RT-PCR System for First-Strand cDNA Synthesis (Suzhou Purification Engineering Installation Co., Ltd, Suzhou, China) and RT-qPCR was conducted using the 2X SYBR Green qPCR Master Mix (Suzhou Purification Engineering Installation Co., Ltd, Suzhou, China). The mRNA expression levels of SUMO1 was normalized to that of the housekeeping gene, glyceraldehyde-3-phosphate dehydrogenase (GAPDH). To detect the expression levels of miRNA, the first strand cDNA (tailing method) was used, according to the manufacturer's instructions. U6 was used as the endogenous control for miR-133b. The following thermocycling conditions were used: Initial denaturation at 95 °C for 5 min, followed by 35 cycles at 95 °C for 15 sec, 58 °C for 25 sec, and 72 °C for 25 sec, and final extension at 72 °C for 5 min. The relative mRNA expression levels was calculated using the 2^−ΔΔCq method. The primer sequences (primer premier 5) are shown in Table 1.

Table 1.

List of primers used in this study.

Primer	Sequence
miR-133b	5′-UUUGGUCCCCUUCAACCAGCUA-3′
Universal primer	5′-GCGAGCACAGAATTAATACGAC-3′
U6	Forward: 5′-CTCGCTTCGGCAGCACA-3’
	Reverse: 5′-AACGCTTCACGAATTTGCGT-3’
GAPDH	Forward: 5′-ACGGATTTGGTCGTATTGGGCG-3’
	Reverse : 5′-GCTCCTGGAAGATGGTGATGGG-3’
SUMO1	Forward: 5′-CGAGGCGTAGCGGAAGTTAC-3’
	Reverse : 5′-TCCTCCATTCCCAGTTCTTTTG-3’

Western Blot Assay

The RL95 to 2 and HEC-1-A cell lines were harvested using a RIPA buffer, containing 1% protease inhibitors and the concentration of the total protein was measured using a BCA kit (Beyotime Institute of Biotechnology). The proteins were separated using a 12% SDS-PAGE and transferred to polyvinylidene fluoride （PVDF） membranes (EMD Millipore). Subsequently, the protein bands were blocked with 5% skimmed milk in TBS-Tween-20 buffer, then incubated with the following primary antibodies: SUMO1 (cat. no. A19121) and GAPDH (cat. no. A19056) (both from ABclonal Biotech Co., Ltd) diluted at 1:1000. A goat anti-rabbit (cat. no. AS014) or a goat anti-mouse (cat. no. AS003) (both from ABclonal Biotech Co., Ltd) diluted at 1:10,000 was used as the secondary antibody. An enhanced chemiluminescence (EMD Millipore) substrate was used to visualize the bands, and the intensity of the bands was quantitatively analyzed using Image J (National Institutes of Health).

Luciferase Reporter Assay

To validate the direct binding of miR-133b to the 3′UTR of SUMO1, wild-type (WT) or mutant-type (MUT) 3′UTR SUMO1 were amplified and ligated into the psiCHECK-2 reporter plasmid to construct WT-SUMO1 and MUT-SUMO1 recombinant plasmids, respectively. The 293 T cells were seeded into 24-well plates and co-transfected with WT-SUMO1 or MUT-SUMO1 and miR-133b mimic, NC mimic, miR-133b inhibitor or NC inhibitor using Lipofectamine® 2000. Luciferase activity was measured after transfection for 48 h, using a luciferase assay system (Promega Corporation). The renin luciferase plasmid, pRL-TK was used as the positive control.

Statistical Analysis

All the aforementioned experiments were conducted at least three times, and the data are presented as the mean ± standard deviation (SD). All statistical analyses were performed using the GraphPad Prism V8 software (GraphPad Software Inc.). A Student’s t-test or an one-way ANOVA was used to investigate the significance of the difference between two groups or multiple groups, respectively. The post hoc test of one-way ANOVA was Sidak. p < 0.05 was considered to indicate a statistically significant difference.

Results

Identifying Differentially Expressed miRNAs

The analysis of the GSE35794 and GSE25405 datasets was performed using the GEO2R online tool and the differential expression of the miRNAs was visualized using volcano plots. The red and green dots represent the miRNAs significantly up- or downregulated, respectively. Of these, 29 and 23 miRNAs were up- and downregulated in the GSE35794 dataset, while there was 143 and 346 miRNAs up- and downregulated in the GSE25405 dataset, respectively (Figure 1A and B). By crossing the two datasets, 18 up- and 21 downregulated miRNAs were identified (Figure 1C and D). Among them, the mRNA expression level of miR-133b was the lowest and miR-200b was the highest in EC. After reviewing previous studies, it was found that, to the best of our knowledge, miR-133b had never been reported in EC; therefore, miR-133b was selected for further analysis. Subsequently, the mRNA expression level of miR-133b in EC was investigated using the UALCAN database. As shown in Figure 2, miR-133b was notably downregulated in EC and patients with high grade tumors, different histology or menopause status expressed lower miR-133b expression levels. These results indicated that miR-133b was downregulated in EC and associated with tumor grade, different histology and menopause status.

Figure 1.

Volcano plots and venn diagrams. Volcano plots of the DEMs between endometrial carcinoma and adjacent tissues from the (A) GSE35794 and (B) GSE25405 datasets. The two datasets showed an overlap of (C) upregulated and (D) downregulated DEMs. DEMs, differentially expressed miRNAs.

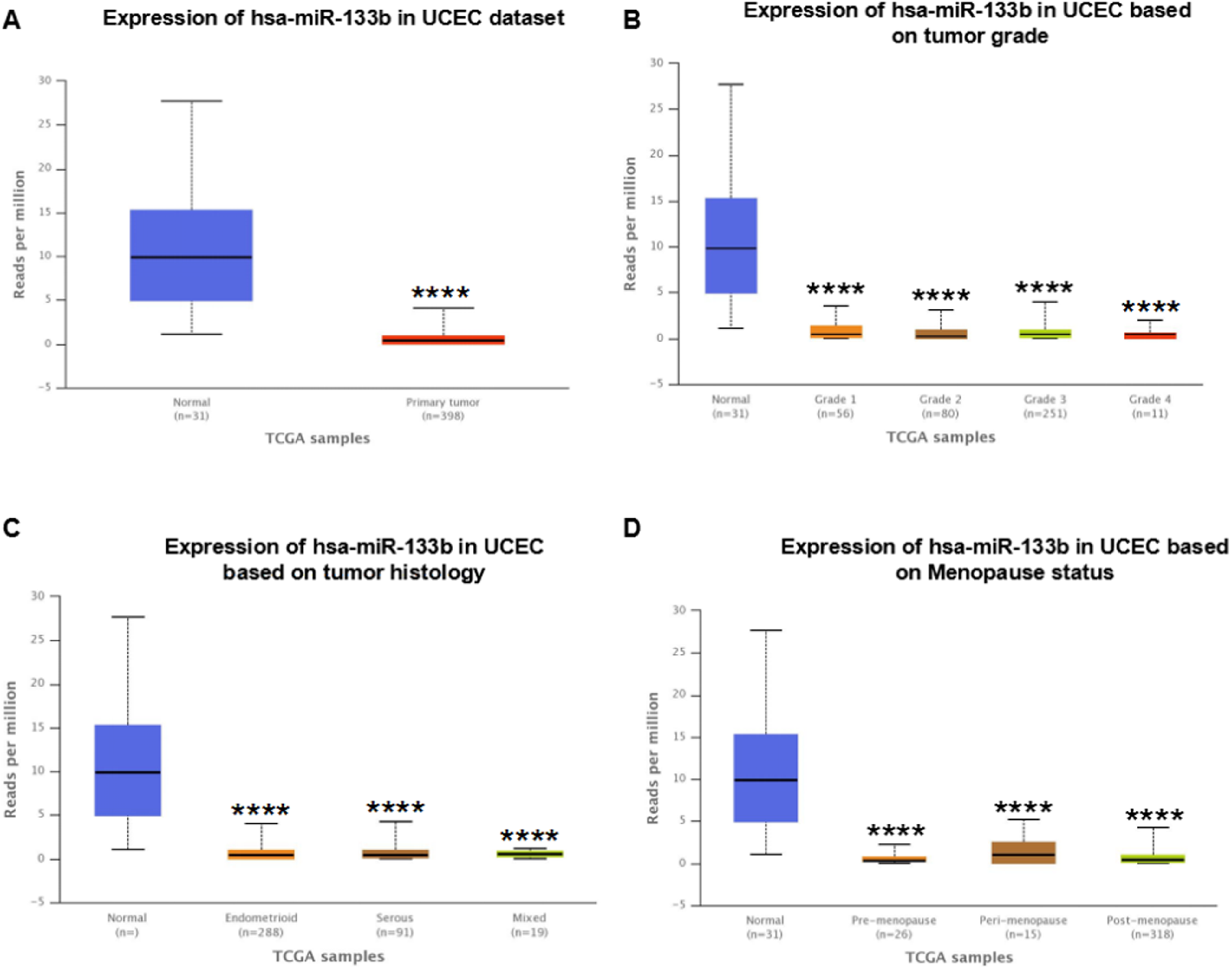

Figure 2.

Expression level of miR-133b in EC. Expression level of miR-133b in EC. (A) and adjacent normal tissues, (B) based on tumor grade, (C) based on tumor histology and (D) based on menopause status. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.

Expression Level and Transfection Efficiency of miR-133b in EC Cell Lines

The mRNA expression level of miR-133b in four EC cell lines (RL95-2, Ishikawa, HEC-1-A and HEC-1-B) was investigated and the RT-qPCR results indicated that the relative expression level of miR-133b was the highest in the RL95 to 2 cell line and lowest in the HEC-1-A cell line (Figure 3A; p < 0.0001). Therefore, the HEC-1-A cell line was selected for miR-133b overexpression and the RL95 to 2 cell line was selected for miR-133b knockdown. Then, the expression efficiency of miR-133b after 48 h transfection was detected and the results showed that the mRNA expression level of miR-133b was elevated 13.88 times in the HEC-1-A cell line transfected with miR-133b mimic (Figure 3B; p < 0.0001), and decreased 0.47 times in the RL95 to 2 cell line transfected with miR-133b inhibitor (Figure 3C; P < 0.001).

Figure 3.

Expression and transfection efficiency of miR-133b in the endometrial carcinoma cell lines. (A) The mRNA expression level of miR-133b in the RL95 to 2, HEC-1-B, HEC-1-A and Ishikawa cell lines were detected using reverse transcription-quantitative PCR. The expression level of miR-133b in (B) the HEC-1-A cell line transfected with NC or miR-133b mimic and (C) the RL95 to 2 cell line transfected with NC or miR-133b inhibitor. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.

miR-133b Inhibits EC Cell Proliferation, Migration and Invasion

A series of assays were used to elucidate the biological functions of miR-133b in the EC cell lines in vitro. As shown in Figure 4A, transfection with miR-133b mimic inhibited HEC-1-A cell proliferation at 48 (p < 0.0001) and 72 h (p < 0.001), while the miR-133b inhibitor exerted the opposite effect on the proliferation of the RL95 to 2 cells at 48 (p < 0.05) and 72 h (p < 0.0001). In addition, the effect of miR-133b on cell migration and invasion was determined. As shown in Figure 4B, a wound healing assay was used to detect the ability of cell migration, and it was found that the wound width of the HEC-1-A cell line transfected with miR-133b mimics was significantly decreased, 48 (p < 0.05) and 72 h (p < 0.01), following transfection, while the miR-133b inhibitor had the opposite effect at 48 (p < 0.05) and 72 h (p < 0.05). Transfection with miR-133b mimic attenuated HEC-1-A cell invasion and migration (Figure 4C; p < 0.05), while the miR-133b inhibitor had the opposite effect on RL95 to 2 cellular behavior (Figure 4C; p < 0.05). Collectively, these results demonstrated that overexpression of miR-133b suppressed the proliferation, migration and invasion in the EC cell lines.

Figure 4.

miR-133b suppresses cell proliferation, migration and invasion in the EC cell lines. (A) Proliferation of the RL95 to 2 and HEC-1-A cell lines following transfection with miR-133b mimic or inhibitor was determined using a Cell Counting Kit-8 assay and there are significant differences at 48 and 72 h for miR-133b expression between mimic and NC mimic. (B) Migration of the RL95 to 2 and HEC-1-A cells lines following transfection with miR-133b mimic or inhibitor was investigated using a wound healing assay. Each group was observed at a magnification of x40. (C) Migration and invasion of the RL95 to 2 and HEC-1-A cell lines following transfection with miR-133b mimic or inhibitor was determined using transwell and matrigel assays. Each group was observed at a magnification of x40.* p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.

SUMO1is a Target Gene of the miR-133b

The target genes of miR-133b were predicted using the miRanda, PirTar, Targetscan and miRDB online tools, which revealed 735, 405, 503 and 655 candidate genes, respectively. As shown in Figure 5A, the Venn diagram displayed the candidate genes from four mRNA-miRNA prediction databases, including 160 intersection genes. In addition, the 160 genes were imported into the STRING database to construct a protein-protein interaction network (Figure 5B), then the top 10 hub genes were screened using the cytoHubba plug-in, in Cytoscape (Figure 5C). Subsequently, the mRNA expression levels of the top three genes, SUMO1, XPO1 and SIRT1 were identified using the GEPIA database, and only SUMO1 was found to be downregulated in EC (Figure 5D; p < 0.05). Furthermore, the OS and RFS times in patients with EC and high SUMO1 mRNA expression levels were poor (Figure 5E; p < 0.01 and p < 0.05, respectively). The aforementioned results suggested that SUMO1 may be the target gene of miR-133b using bioinformatics analysis. Next, experimental verification was performed.

Figure 5.

SUMO1 is upregulated in EC and is targeted by miR-133b. (A) A venn diagram was used to identify the intersection of the miR-133b target genes predicted using the miRanda, PirTar, Targetscan and miRDB online tools. (B) A PPI network of the target genes was determined using the STRING database. (C) The Cytoscape software was used to extract hub genes from the PPI network. (D) The expression level of SUMO1, XPO1 and SIRT1 in EC and adjacent normal tissues from the GEPIA database. (E) The OS and RFS curves of SUMO1 in EC.

SUMO1 is a Direct Target Gene of miR-133b in EC Cells

To investigate whether SUMO1 is the target gene of miR-133b, a luciferase reporter assay was used to detect the direct binding sites of miR-133b in its 3′UTR. As shown in Figure 6A, miR-133b mimic decreased luciferase activity in the SUMO1 to 3′UTR-WT 293 T cells (p < 0.05); however, there was no significant effect in the SUMO1 to 3′UTR-MUT 293 T cells compared with that in the NC mimic group. In addition, the miR-133b inhibitor notably increased luciferase activity in SUMO1 to 3′UTR-WT 293 T cells (p < 0.05), while there was no effect in the SUMO1 to 3′UTR-MUT 293 T cells. To further characterize the association between miR-133b and SUMO1, the mRNA and protein expression levels of SUMO1, following overexpression and knockdown of miR-133b in both the HEC-1-A and RL95 to 2 cell lines was investigated. It was observed that the mRNA expression level of SUMO1 was increased in the RL95 to 2 cells transfected with miR-133b inhibitor, while decreased expression levels were found in the HEC-1-A cell line following transfection with miR-133b mimic (Figure 6B; both p < 0.01). The same trend was also found in the protein expression level of SUMO1 (Figure 6C; p < 0.001 and p < 0.01,respectively). Taken together, the results suggested that miR-133b targeted SUMO1 and negatively regulated its expression.

Figure 6.

miR-133b downregulates the expression level of SUMO1. (A) Luciferase activity of SUMO1 to 3’UTR-WT and SUMO1 to 3’UTR-MUT in the 293 T cell lines in the presence of miR-133b were detected using a dual luciferase reporter assay. The significant differences indicate the differences between SUMO1-WT/miR-133b mimic and SUMO1-WT/NC mimic or SUMO1-WT/miR-133b inhibitor and SUMO1-WT/NC inhibitor. (B) Reverse transcription-quantitative PCR was used to detect the mRNA expression level of SUMO1 in the RL95 to 2 and HEC-1-A cell lines following overexpression or knockdown of miR-133b. (C) A western blot assay was used to detect the protein expression level of SUMO1 in the RL95 to 2 and HEC-1-A cell lines following overexpression or knockdown of miR-133b. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.

SUMO1 Participates in miR-133b-Mediated Inhibition of Proliferation, Invasion and Migration in the EC Cell Lines

To further investigate whether the cellular function of miR-133b was mediated by SUMO1 expression, si-SUMO1 and miR-133b inhibitor were transfected into the RL95 to 2 cell lines together or separately. As shown in Figure 7A, CCK-8 analysis revealed that knockdown of SUMO1 significantly inhibited cell viability at 24, 48 and 72 h (p < 0.05), and the combination of SUMO1 knockdown and miR-133b silencing decreased cell viability significantly at 48 and 72 h compared with that in cells transfected with miR-133b inhibitor (p < 0.01 and p < 0.05, respectively). Similarly, the same trend was found for migration and invasion analysis in the RL95 to 2 cell line, using wound healing and transwell assays, respectively (Figure 7B and C). Subsequently, RT-q PCR and western blot assays revealed that the mRNA and protein expression levels of SUMO1 were significantly downregulated following si-SUMO1 transfection compared with that in the si-NC transfection group. In addition, the expression level of SUMO1 was also markedly decreased following co-transfection with si-SUMO1 and miR-133b inhibitor compared with that in cells transfected with miR-133b inhibitor (Figure 7D and E). These results suggested that SUMO1 could reverse the effect of miR-133b using a rescue experiment. Altogether, the results from the present study suggested that SUMO1 was a direct downstream target of miR-133b and SUMO1 interference inhibited cell proliferation, migration and invasion in the EC cell lines.

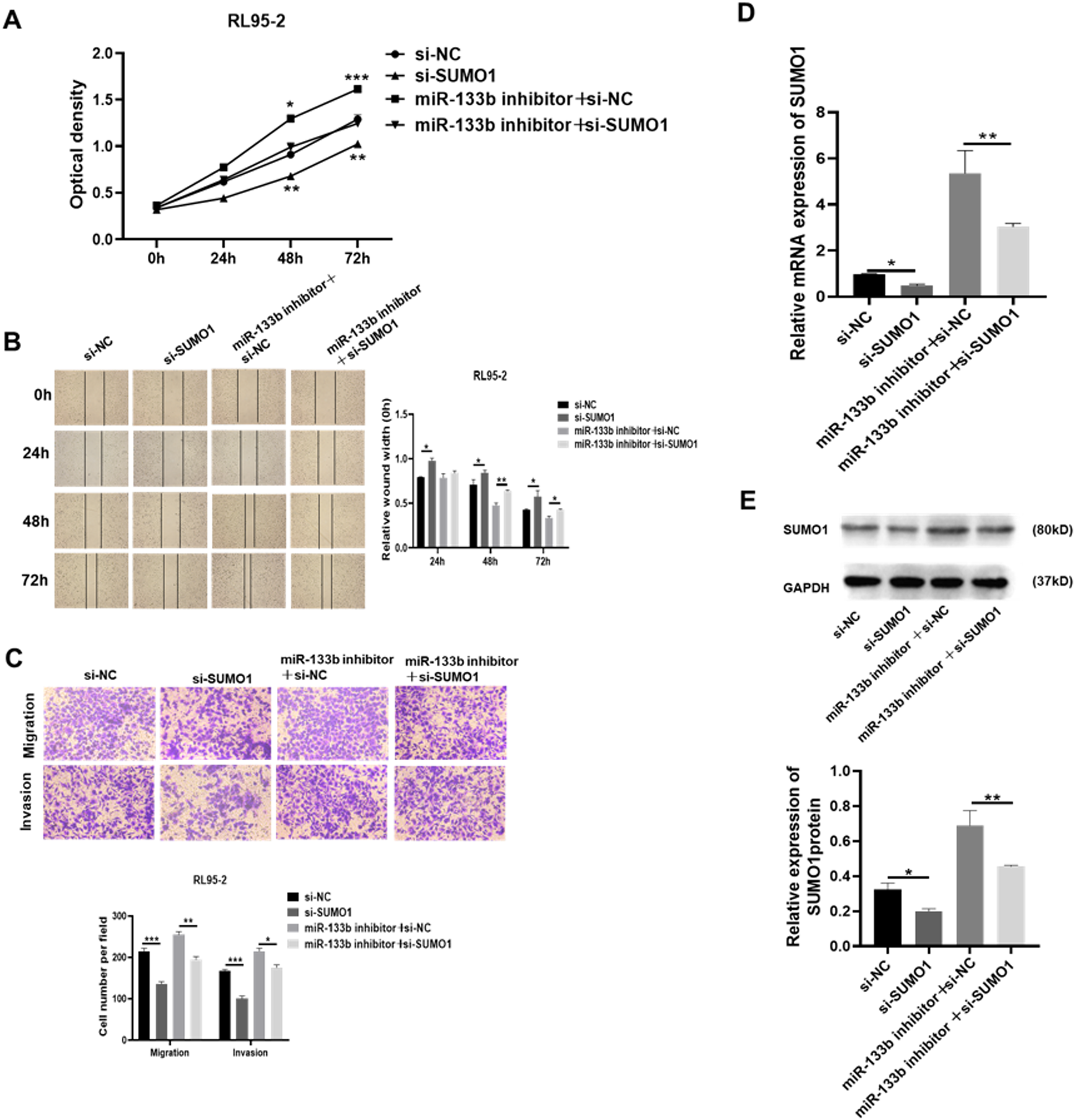

Figure 7.

miR-133b affects the proliferation, invasion and migration of endometrial carcinoma cells by regulating SUMO1 . Following inhibition of both SUMO1 and miR-133b or individually in the RL95 to 2 cell line, (A) proliferation, (B) cell migration, (C) cell invasion and migration, and (D) the mRNA and (E) the protein expression levels of SUMO1 were determined using Cell Counting Kit-8, wound healing, transwell and matrigel and assays, and RT-PCR and western blot analyses, respectively. Each group was observed at a magnification of x40. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.

Discussion

In the present study, it was found that miR-133b was downregulated in EC tissue and the low expression level of miR-133b was associated with positive tumor grade, tumor histology and menopause status. To identify its molecular function in EC, overexpression and knockdown experiments were used to investigate the functions of miR-133b in the EC cell lines. The results from the present study revealed that upregulation of miR-133b could inhibit the proliferation, migration and invasion of the EC cell lines. Considering that miRNAs can regulate gene expression by targeting the 3′UTR of mRNA, the miRanda, PicTar, Targetscan and miRDB online tools were used to predict the potential targets of miRNA. Using several bioinformatics tools, including Venny 2.1, STRING, Cytoscape and GEPIA, SUMO1 was selected as the potential target gene of miR-133b. Then, the relationship between miR-133 and SUMO1 was investigated and the results indicated that SUMO1 could reverse the effect of miR-133b using rescue experiments. Thus, we hypothesized that miR-133b acts as an anti-oncogene by suppressing the expression level of SUMO1 and miR-133b and SUMO1 could be novel candidates for EC therapy.

An increasing number of studies have showed that the abnormal expression level of miRNA was associated with the occurrence and development of cancer, including EC. miR-133b has been proven to play different functional roles in several types of malignant tumors. For example, overexpression of miR-133b suppressed cisplatin resistance by targeting TUG1 in human tongue squamous cell carcinoma.²⁵ In addition, miR-133b was also found to be downregulated in renal cell carcinoma cell lines and weakened the cell viability, invasion and migration by targeting the ERK signaling pathway.¹⁵ Furthermore, decreased miR-133b mRNA expression level has been reported in uterine sarcomas and in mixed epithelial-mesenchymal uterine tumors,²⁶ which was consistent with the results from the present study to a certain extent. Multivariate Cox proportional hazard model showed that low expression of miR-126 and miR-133b, tumor stage and lymph node metastasis were independent prognostic factors affecting the overall survival of patients with non small cell lung cancer.²⁷ In addition, researchers collected 154 patients with laryngeal cancer as the research subjects and 100 healthy people as the control group. The analysis results showed that the expression of miR-133b was significantly different from that of patients with different pathological stages and different degrees of differentiation; and receiver operating characteristic curves analysis shows that miR-133b has high diagnostic value for laryngeal cancer.²⁸ These results showed that miR-133b plays an important role in tumor and may serve as a potential target for clinical diagnosis of tumors. However, its mechanism in EC is still controversial. SUMO1 was found to be a direct target gene, downstream of miR-133b and inhibition of SUMO1 expression reduced the proliferation, invasion and migration of EC cells. SUMO1 performs reversible post-translational modifications, that regulate nuclear transport, transcriptional regulation, apoptosis and protein stability of cells.²⁰ For example, SUMO1 regulated tumorigenesis by modifying KHSRP to prevent the biogenesis of TL-G-RICH miRNAs.²⁹ Ginkgo biloba is a SUMO-1 inhibitor, and could inhibit the tumorigenicity and tumor progression of oral squamous cell carcinoma by reducing the enhancement of Smad4 sumoylation induced by TGF-β1.³⁰ To the best of our knowledge, so far SUMO1 has been reported in three studies investigating EC. In the first study, PGE2 promoted proliferation and invasion by enhancing the activity of SUMO1 in EC.³¹ In the second article, our previous study investigated the downregulation of H4 sumoylation by silencing SUMO-1 expression; thus, inhibiting EC cell proliferation and inducing apoptosis.³² In the third paper, acetylation of HIF-1 α protein reduced the stem maintenance ability of EC stem cells and enhanced their sensitivity to chemotherapy.³³ These studies suggested the potential role of SUMO1 in EC and provided evidence to verify the results of the present study. Studies have shown that miR-423 inhibits cisplatin-induced endometrial cancer cell apoptosis by regulating the expression of caspase3/7 and Bcl-2.³⁴ miR-199a-3p enhances the sensitivity of ovarian cancer cells to cisplatin by down-regulating the expression of ITGB8, which may become a target for the treatment of cisplatin-resistant ovarian cancer.³⁵ The above studies show that the expression of drug-resistant mRNAs and miRNAs in endometrial cancer cells treated with cisplatin or/and salinomycin is related to the difference. However, it is reported in the literature that both miR-133b and SUMO1 are not related to cisplatin/salinomycin resistance.

Conclusion

In conclusion, the collective findings of the current study revealed that miR-133b was downregulated in EC tissues, and overexpression of miR-133b inhibited cell proliferation, migration and invasion by targeting SUMO1. Thus, miR-133b was considered to play a suppressor role in EC tumorigenesis and the miR-133b/SUMO1 axis may be a therapeutic target for the treatment of EC. The study may provide novel insights and ideas for improving the treatment strategy of patients with EC. Despite these promising results, the limitations cannot be ignored. In our paper, there is a lack of the actual clinical evidence to verify the expression and prognosis of miR-133b in clinical histology. The advantage of this paper is to analyze the role of miR-133b in EC through bioinformatics combined with cell function tests. The shortcoming of this article is that it only conducts cell in vitro function test and has not been verified by animal in vivo experiment.

Footnotes

Acknowledgements

Not applicable.

Funding

No funding was received.

Competing Interests

The authors declare that they have no competing interests.

Availability of Data and Materials

Data supporting the discovery of this study are available from the corresponding authors on reasonable request.

Authors’ Contributions

LL and YC designed the experiments; JZ performed the bioinformatics analysis; XX and CTperformed the experiments and analyzed the results. All authors wrote and revised the manuscript. All the authors read and approved the final manuscript. All authors agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Ethics Approval and Consent to Participate

Our study did not require an ethical board approval because it did not contain human or animal trials.

Patient Consent for Publication

Not applicable.

Competing Interests

The authors declare that they have no competing interests.

ORCID iD

Jing Ye

Abbreviation

References

Gao

Nie

Zhang

, et al. Identification of long noncoding RNA RP11-89K21.1 and RP11-357H14.17 as prognostic signature of endometrial carcinoma via integrated bioinformatics analysis. Cancer Cell Int. 2020;20:268.

Morice

Leary

Creutzberg

Abu-Rustum

Darai

. Endometrial cancer. Lancet (London, England). 2016;387(10023):1094-1108.

Goad

Kumar

Jamaluddin

MFB

Tanwar

. Oestrogen fuels the growth of endometrial hyperplastic lesions initiated by overactive Wnt/β-catenin signalling. Carcinogenesis. 2018;39(9):1105-1116.

Zheng

. MiR-887-3p negatively regulates STARD13 and promotes pancreatic cancer progression. Cancer Manag Res. 2020;12:6137-6147.

Zhang

Liu

Zhao

. MiR-145 functions as a tumor suppressor in papillary thyroid cancer by inhibiting RAB5C. Int J Med Sci. 2020;17(13):1992-2001.

Liu

Jing

Liu

Qin

Liu

Hou

. Tumor-suppressor miRNA-27b-5p regulates the growth and metastatic behaviors of ovarian carcinoma cells by targeting CXCL1. J Ovarian Res. 2020;13(1):92.

Zhang

Wang

, et al. MicroRNA-874-5p regulates autophagy and proliferation in pulmonary artery smooth muscle cells by targeting sirtuin 3. Eur J Pharmacol. 2020;888:173485.

Correia de Sousa

Gjorgjieva

Dolicka

Sobolewski

Foti

. Deciphering miRNAs' action through miRNA editing. Int J Mol Sci. 2019;20(24):6249.

Tiwari

Mukherjee

Dixit

. MicroRNA Key to angiogenesis regulation: miRNA biology and therapy. Curr Cancer Drug Targets. 2018;18(3):266-277.

10.

Fabian

Sonenberg

. The mechanics of miRNA-mediated gene silencing: a look under the hood of miRISC. Nat Struct Mol Biol. 2012;19(6):586-593.

11.

Zheng

Zhu

Mao

Zhang

Cui

. MiR-486-5p Act as a biomarker in endometrial carcinoma: promotes cell proliferation, migration, invasion by targeting MARK1. Onco Targets Ther. 2020;13:4843-4853.

12.

Zhang

, et al. eIF4E-related miR-320a and miR-340-5p inhibit endometrial carcinoma cell metastatic capability by preventing TGF-β1-induced epithelial-mesenchymal transition. Oncol Rep. 2020;43(2):447-460.

13.

Zhang

Jia

Chen

. MicroRNA-103 regulates the progression in endometrial carcinoma through ZO-1. Int J Immunopathol Pharmacol. 2019;33:1-8.

14.

Cai

Yang

, et al. Exosome-transmitted microRNA-133b inhibited bladder cancer proliferation by upregulating dual-specificity protein phosphatase 1. Cancer Med. 2020;9(16):6009-6019.

15.

Liu

Gao

. Mir-133b affects cell proliferation, invasion and chemosensitivity in renal cell carcinoma by inhibiting the ERK signaling pathway. Mol Med Rep. 2020;22(1):67-76.

16.

Chen

Ruan

. Downregulation Of microRNA-133b And Its clinical value In Non-small cell lung cancer. Onco Targets Ther. 2019;12:9421-9434.

17.

Sanyal

Mondal

Sen

Sengupta Bandyopadhyay

Das

. SUMO E3 ligase CBX4 regulates hTERT-mediated transcription of CDH1 and promotes breast cancer cell migration and invasion. Biochem J. 2020;477(19):3803-3818.

18.

Katayama

Ogino

Bandoh

, et al. Overexpression of small ubiquitin-related modifier-1 and sumoylated Mdm2 in oral squamous cell carcinoma: possible involvement in tumor proliferation and prognosis. Int J Oncol. 2007;31(3):517-524.

19.

Wang

Zhao

, et al. SUMO1 Modification of methyltransferase-like 3 promotes tumor progression via regulating snail mRNA homeostasis in hepatocellular carcinoma. Theranostics. 2020;10(13):5671-5686.

20.

Zhang

Tao

Zhai

, et al. Protein sumoylation with SUMO1 promoted by Pin1 in glioma stem cells augments glioblastoma malignancy. Neuro Oncol. 2020;22(12):1809-1821.

21.

Clough

Barrett

. The gene expression omnibus database. Methods In Molecular Biology (Clifton, NJ). 2016;1418:93-110.

22.

Martin

Chadwick

, et al. VENNTURE--a novel venn diagram investigational tool for multiple pharmacological dataset analysis. PloS One. 2012;7(5):e36911.

23.

Hou

Liu

Yang

Wen

. Mining expression and prognosis of topoisomerase isoforms in non-small-cell lung cancer by using oncomine and Kaplan-Meier plotter. PloS One. 2017;12(3):e0174515.

24.

Deng

Wang

. Identification of potential crucial genes and Key pathways in breast cancer using bioinformatic analysis. Front Genet. 2019;10:695.

25.

Zhang

Zhou

Yan

Cao

. TUG1/miR-133b/CXCR4 Axis regulates cisplatin resistance in human tongue squamous cell carcinoma. Cancer Cell Int. 2020;20:148.

26.

Kowalewska

Bakula-Zalewska

Chechlinska

, et al. microRNAs in uterine sarcomas and mixed epithelial-mesenchymal uterine tumors: a preliminary report. Tumour Biology : The Journal of the International Society for Oncodevelopmental Biology and Medicine. 2013;34(4):2153-2160.

27.

Chen

Wang

Tian

Zheng

. Down-regulation of microRNA-126 and microRNA-133b acts as novel predictor biomarkers in progression and metastasis of non small cell lung cancer. Int J Clin Exp Pathol. 2015;8(11):14983-14988.

28.

Zhao

Liu

Zhang

Wang

. Expression levels and clinical significance of miR-203 and miR-133b in laryngeal carcinoma. Oncol Lett. 2020;20(5):213.

29.

Yuan

Deng

Zhao

, et al. SUMO1 Modification of KHSRP regulates tumorigenesis by preventing the TL-G-rich miRNA biogenesis. Mol Cancer. 2017;16(1):157.

30.

Liu

Wang

, et al. Ginkgolic acid, a SUMO-1 inhibitor, inhibits the progression of oral squamous cell carcinoma by alleviating SUMOylation of SMAD4. Mol Ther Oncolytics. 2020;16:86-99.

31.

Yang

Che

, et al. Prostaglandin E2 (PGE2) promotes proliferation and invasion by enhancing SUMO-1 activity via EP4 receptor in endometrial cancer. Tumour Biology : The Journal of the International Society for Oncodevelopmental Biology and Medicine. 2016;37(9):12203-12211.

32.

Zheng

Liu

Wang

Huang

. SUMO-1 Promotes ishikawa cell proliferation and apoptosis in endometrial cancer by increasing sumoylation of histone H4. International Journal Of Gynecological Cancer : Official Journal of the International Gynecological Cancer Society. 2015;25(8):1364-1368.

33.

Yuan

Jiang

Chen

, et al. [Hypoxia inducible factor-1α deSUMOylation reduces the stemness maintenance ability of endometrial cancer stem cell and increases its chemosensitivity]. Zhonghua yi xue za zhi. 2017;97(45):3579-3582.

34.

Sun

Liu

Kong

. MicroRNA-423 promotes proliferation, migration and invasion and induces chemoresistance of endometrial cancer cells. Exp Ther Med. 2018;16(5):4213-4224.

35.

Cui

Tian

, et al. miR-199a-3p enhances cisplatin sensitivity of ovarian cancer cells by targeting ITGB8. Oncol Rep. 2018;39(4):1649-1657.
