Abstract

Bifunctional magnetic/fluorescent core-shell silica nanospheres (MNPs) encapsulated with the magnetic Fe₃O₄ core and a derivate of 8-amimoquinoline (N-(quinolin-8-yl)-2-(3-(triethoxysilyl) propylamino) acetamide) (QTEPA) into the shell were synthesized. These functional MNPs were prepared with a modified stöber method and the formed Fe₃O₄@SiO₂-QTEPA core-shell nanocomposites are biocompatible, water-dispersible, and stable. These prepared nanoparticles were characterized by X-ray power diffraction (XRD), transmission electron microscopy (TEM), thermoelectric plasma Quad II inductively coupled plasma mass spectrometry (ICP-MS), superconducting quantum interference device (SQUID), TG/DTA thermal analyzer (TGA) and Fourier transform infrared spectroscopy (FTIR). Further application of the nanoparticles in detecting Zn²⁺ was confirmed by the fluorescence experiment: the nanosensor shows high selectivity and sensitivity to Zn²⁺ with a 22-fold fluorescence emission enhancement in the presence of 10 μM Zn²⁺. Moreover, the transverse relaxivity measurements show that the core-shell MNPs have T2 relaxivity (r2) of 155.05 mM⁻¹ S⁻¹ based on Fe concentration on the 3.0 T scanner, suggesting that the compound can be used as a negative contrast agent for MRI. Further in vivo experiments showed that these MNPs could be used as MRI contrast agent. Therefore, the new nanosensor provides the dual modality of magnetic resonance imaging and optical imaging.

Keywords

nanosensor magnetic resonance imaging core-shell silica nanospheres ZnII fluorescent sensing

Introduction

Compared with the dual-function molecular probes, the introduction of the nanoparticles makes more advantages of dual-function probes. In addition, as a new type of nanoparticles, magnetic fluorescent composite nanoparticles have attracted extensive attention in recent years. These composite nanoparticles take the advantages of molecular fluorescence, magnetic properties and nano-scaled materials, and can provide a potential platform for the construction of novel drugs for biological separation, targeting, biological imaging, tumor cell localization and even tumor therapy. Many interesting works have been reported based on these nanocomposites. Dual functional and multifunctional magnetic core shell Fe₃O₄@SiO₂ nanocomposites as a special carrier have attracted more and more attention.^1

-6 The silica shell outside the iron oxide core not only increases the and biocompatibility and stability of nanoparticles in water environment, but also provides convenient sites for modifying ligands in biomedical applications, such as biological separation,^7
-9 drug targeting,^10

-14 cell separation,⁸ enzyme immobilization^15

-18 and protein purification.¹⁹ In addition, Fe₃O₄@SiO₂ MNPs are more and more studied because they are easy to prepare and friendly to aqueous solution,²⁰ and can be designed into various shapes and sizes. On the other hand, some of which have been approved by FDA for clinical use. Fe₃O₄@SiO₂ NPs which have superparamagetism have gradually become good drug agents, and FDA has approved the use of some of them in clinical practice.²¹ As a solid-state chemical sensor, sensor modified Fe₃O₄@SiO₂ nanoparticles have many attractive advantages in heterogeneous solid-liquid system. Such nanoparticles are easily obtained by hydrolysis reaction, meanwhile, different functional groups are introduced in the preparation process. For example, magnetic resonance contrast agents and fluorescent organic dyes can be constructed together into such nanoparticles, which produces a good platform for many potential applications.²⁰

A variety of transition metal ions play a wide range of roles in the environment and biological physiological processes.^22
-24 Among them, Zinc ions is the second most abundant transition metal ion in human body.^25,26 In human body, most zinc are closely bound to enzymes and transcription factors,^27

-30 but many chelatable Zn(II) ions are still dissociated in certain cells and play important roles in biological systems.^31

-38 In the human body, the brain is one of the organs with the highest zinc content. Studies showed that the concentration of free zinc ions in the brain is about 0.1-0.5 mM, and in the serum is about 12 μM. Zinc ions are components of many enzymes in human body. It is widely involved in cell proliferation and differentiation, nucleic acid and protein synthesis and many other important physiological activities.^39
-41 Zinc ion is closely related to the central nervous system, for example, the decrease of zinc concentration in serum and plasma will increase the risk of Alzheimer’s disease and Parkinson’s disease.^42,43 Therefore, intense research efforts have been devoted to the development of chemosensors for Zn²⁺ ion detection. Due to the unique role of Zinc ions in physiological function, it is of great significance to detect and image Zinc ions in biological samples. In order to probe Zinc ions in vivo and in vitro, a large number of scientific researches have been carried out.⁴⁴ Among those reported Zn²⁺ sensors, quinoline derivatives are commonly chosen, such as 6-methoxy-(8-ptolunesulphonamido) quinoline (TSQ)⁴⁵ and its derivative (Zinquin series).^46
-48 These derivatives containing quinoline ring have been used for the fluorescence detection of zinc ions. It is obvious that the quinoline ring of supramolecular system, especially 8-aminoquinoline, has a very good selectivity for zinc ions.⁴⁹ However, some studies showed that zinc ion fluorescent probes containing quinoline ring have poor solubility in aqueous solution and are also interfered by other metal ions. In addition, many of the reported probes are difficult to work in the cellular environment. Therefore, there is still a great demand for the development of zinc ion fluorescent probes with wider versatility and higher performance.

With those concepts in mind, our strategy is to synthesize uniform dual-functionalized nanoparticles which permit dual-modality detections by incorporating organic fluorescent dye a chloroacetyl derivate of 8-amimoquinoline, N-(quinolin-8-yl)-2-(3-triethoxysilyl) propylamino) acetamide (QTEPA) into silica-coated magnetite core-shell (Figure 1). We utilized a common stöber method to synthesize the Fe₃O₄@SiO₂ silica-coated MNPs. However, Rastogi et al,⁵⁰ have reported the use of silica functional with the same fluorophore, QTEPA (Chemical structure shown in Figure S1), for the detection of Zn²⁺. In our work, the difference is superparamagnetic Fe₃O₄ was added as the core. These QTEPA modified MNPs, as far as we known, are the first to be reported for not only exhibiting good selectivity and sensitivity for Zn²⁺, but also of potential possibility to work as a T2 contrast agent.

Figure 1.

Schematic illustration of the formation of Fe₃O₄@SiO₂-QTEPA.

Experimental

The experimental details were provided in the supporting information.

Results

Characterization of the Modification MNPs

The TEM image of magnetic Fe₃O₄ obtained in this study is shown in Figure 2 (left). The result showed that the shapes of Fe₃O₄ nanoparticles are nearly spherical, and the average particle size is about 7 nm.⁵¹ After the Fe₃O₄ NPs were modified with II, TEM revealed that the Fe₃O₄ were successfully encapsulated in silica shell, and the average particle size was about 20-30 nm as shown in Figure 2 (right). The TGA results indicated that the grafted ratio of onto Fe₃O₄@SiO₂ is about 10% (Figure S2).

Figure 2.

TEM images of Fe₃O₄ (left) and Fe₃O₄ @SiO₂-QTEPA (right) (bar = 100 nm).

The suspension prepared with Fe₃O₄ has good stability and can be kept for several months without obvious change. Dynamic light scattering (DLS) experiments showed that the hydrodynamic diameter of Fe₃O₄ NP_s had almost no change in the first 2 months, and there was no obvious aggregation in 5 months. However, the stability Fe₃O₄@SiO₂-QTEPA is much less than pure Fe₃O₄, and the suspensions only maintain about 3-4 days (Figure S3).

Zeta potential (Ζ) reflects the degree of repulsion between adjacent, similarly charged particles in the dispersion. Particles with high Ζ (negative or positive) are electrically more stable than those with low Ζ, that is, the solution or dispersion of the former is more likely to resist aggregation. The zeta potential of Fe₃O₄ in aqueous solution is −18.8 mV, while Fe₃O₄@SiO₂-QTEPA aqueous solution has a net-negative charge at the value of −1.25 mV. Therefore, Fe₃O₄ NPs show higher water dispersibility than Fe₃O₄@SiO₂-QTEPA do. This is also a proof that the Fe₃O₄ was successfully grafted by SiO₂-QTEPA. This suggests that mutual repulsion between the macromolecules and subsequent lack of interactions.⁵²

The crystallographys of Fe₃O₄ and Fe₃O₄@SiO₂-QTEPA were verified by powder XRD (Figure 3). As shown in Figure 3, the diffraction patterns of both particles exhibit 6 peaks at 2θ of 30.1º, 35.5º, 43.1º, 53.6º, 57.2º, and 62.7º respectively, corresponding to standard inverse spinel phase of Fe₃O₄ (220) (311) (400) (422) (511) and (440) surface of the diffraction peak. The diffraction patterns and the relative intensities of all diffraction peaks of the 2 samples indicated that there were phases in both Fe₃O₄ and Fe₃O₄@SiO₂-QTEPA nanoparticles which are consistent with the crystal anti-spinel structure of magnetite (Fe₃O₄) and maghemite (γFe₂O₃). The results also showed that the crystal Fe₃O₄ were encapsulated in the core-shell structure. Compared with the Fe₃O₄, all the diffraction peaks of Fe₃O₄@SiO₂-QTEPA are weaken, which due to the surface of silica and organic matter. And the broad peak between 20º and 25 º (2θ) is assigned to the mesoporous silica oxide shell.

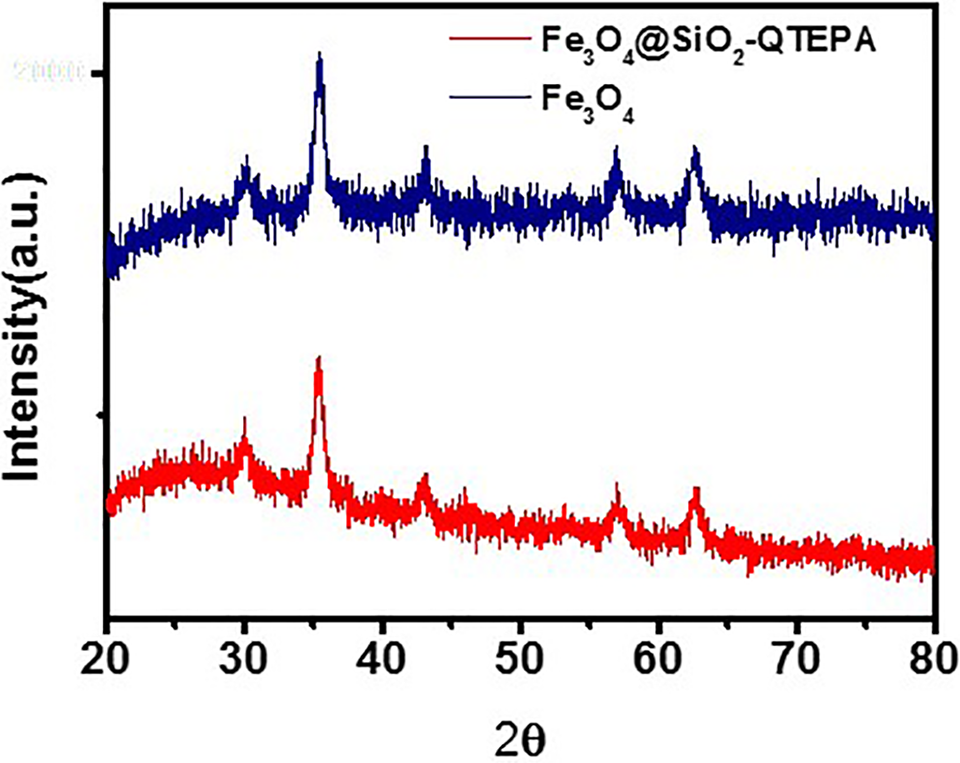

Figure 3.

X-ray diffraction pattern of Fe₃O₄ and Fe₃O₄@SiO₂-QTEPA.

FTIR spectroscopy is used to confirm that QTEPA silicon is successfully immobilized on the Fe₃O₄@SiO₂ nanoparticles. The FT-IR spectra of Fe₃O₄@SiO₂ and Fe₃O₄@SiO₂-QTEPA are shown in Figure 4. In Figure 4 (red line), the broad band centered at 3410.4 cm⁻¹ represents silane and any form of water adsorbed on the surface of Fe₃O₄@SiO₂ nanoparticles. The band at 1643.3 cm⁻¹ represents the bending mode of O-H vibrations. The strong band centered at 1103.04 cm⁻¹ represents the structural Si-O-Si vibration, while the Si-OH vibration band appears in the 802-950 cm⁻¹ region. Compared with the infrared spectrum of Fe₃O₄@SiO₂, the N-H stretching vibration band of Fe₃O₄@SiO₂-QTEPA appears at 3402 cm⁻¹ (black line) with the broad band of the silanol and moisture on the surface. The band at 1531.4 cm⁻¹ is C = C aromatic stretching band, while the carbonyl band at 1662.3 cm⁻¹ belongs to the aliphatic C-H stretching band. The FT-IR spectra clearly showed that II was successfully modified on the surface of MNPs.

Figure 4.

FTIR spectra of Fe₃O₄@SiO₂ (red line) and Fe₃O₄@SiO₂-QTEPA (black line).

Magnetic Properties Fe₃O₄@SiO₂-QTEPA

The magnetization curve of Fe₃O₄@SiO₂-QTEPA is shown in Figure 5. The room temperature magnetization (m) curve of the samples with applied magnetic field (H) shows that the saturation magnetization (MS) is 15.2 emu/g. Due to the existence of core-shell structure, the room temperature magnetization Fe₃O₄@SiO₂-QTEPA is lower than that of naked Fe₃O₄ nanoparticles (69.7 emu/g). Remanence and coercivity are almost invisible in the amplification curve (inset in Figure 5), which indicated that both nanoparticles have superparamagnetism at room temperature. So it can be considered that Fe₃O₄@SiO₂-QTEPA NPs have enough magnetic attraction to effectively perform magnetic separation and can be used in nuclear magnetic resonance imaging.

Figure 5.

Room temperature magnetization curves of pure Fe₃O₄ powder and Fe₃O₄@SiO₂-QTEPA.

The superparamagnetism of magnetic NPs has a strong contrast effect on the surrounding tissues, which enables T₂ -weighted MRI to display tumor tissues in any plane of the body.^53,54 Therefore, we measured the transverse relaxation time (T ₂) to evaluate the negative-contrast effect of Fe₃O₄@SiO₂-QTEPA. In order to evaluate the performance and effect of Fe₃O₄@SiO₂-QTEPA as T2 contrast agent, we measured the transverse relaxation time (T ₂) under 3 T magnetic field, and calculated the transverse relaxivity (r ₂) according to the following equation⁵⁵:

1 / T_{2} = 1 / T_{2}^{0} + r_{2} \cdot [F e]

where T ₂ ⁰ is the standard relaxation time of pure water, [Fe] is the concentration of Fe³⁺ calculated of Fe₃O₄@SiO₂-QTEPA NPs (treated with nitric acid digestion). Each point in the Figure 6 is the transverse relaxation rate (1/T₂) of the solution at different concentrations, and the straight line is the linear relationship between the reciprocal of relaxation time and Fe³⁺ concentration. The linear fitting transverse relaxation rate is 155.05 mM⁻¹ s⁻¹ (Figure 6), suggesting that the Fe₃O₄@SiO₂-QTEPA NPs could be used as a T ₂-shortening agent to effectively relax the spin of water proton. These results showed that although Fe₃O₄ is coated by silica shell, it can still contact with water molecules, and the existence of shell structure only slightly affects the relaxation of Fe₃O₄.

Figure 6.

T₂ relaxivity plot of aqueous of Fe₃O₄@SiO₂-QTEPA.

The T ₂-weighted magnetic resonance images of Fe₃O₄@SiO₂-QTEPA in terms of different Fe concentrations are shown in Figure 7. The Fe₃O₄@SiO₂-QTEPA NPs have good dispersion in water, which enabled us to detect the relaxivity of the particles in the solution at 3.0 T MR system. It is obvious from the Figure 7 that the Fe₃O₄@SiO₂-QTEPA NPs displayed a signal enhancement in the T2 weighted MRI image with the decrease of iron concentration, which means that MNPs may be used as the negative contrast agent of MRI.

Figure 7.

T₂-weighted MRI images of Fe₃O₄@SiO₂-QTEPA in water.

In Vitro and In Vivo MRI

The diagnostic potential of Fe₃O₄@SiO₂-QTEPA was first explored in vitro by testing the negative-contrast effect in MCF-7 cells. To evaluate the possibility of using Fe₃O₄@SiO₂-QTEPA nanoparticles as contrast agent to detect cancer cells, MCF-7 cells incubated with Fe₃O₄@SiO₂-QTEPA nanoparticles suspension with different concentrations ([Fe] = 0, 0.0025, 0.0050, 0.0075 0.0100, 0.0125, 0.0150, 0.0175, 1.020, 0.0225, 0.025 mM) were detected by nuclear magnetic resonance (NMR). It can be clearly seen from the Figure 8 that the MR signal of MCF-7 cells treated by this method gradually decreased with the increase of Fe concentration. This suggested that Fe₃O₄@SiO₂-QTEPA NPs have a good spatial resolution for T₂ MRI, which is consistent with the data reported in the literature based on iron oxide NPs.

Figure 8.

T₂-weighted MRI images of Fe₃O₄@SiO₂-QTEPA in MCF-7 cells for 3 h.

Further, we carried out in vivo experiments. Fe₃O₄@SiO₂-QTEPA suspension was injected into the mice via the tail vein and the changes of MR signal decline in the target organ liver were measured before and after injection (Figure 9A). The results showed that Fe₃O₄@SiO₂-QTEPA accumulated in the normal liver, while no signal appeared in other organs, which confirmed that the MNPs eventually targeted and gathered in the liver. Figure 9A is an in vivo MRI image of mouse liver. Figure 9A shows the images of mice liver in vivo MRI. The images were acquired 1, 5, 7 and 12 h respectively after tail vein injection of the Fe₃O₄@SiO₂-QTEPA suspension at 1 mg /mL Fe₃O₄@SiO₂-QTEPA concentration, equivalent to a dose of 5 mg Fe₃O₄@SiO₂-QTEPA/kg of the mice body weight, the color becomes darker after injection, and the signal cavity appears in the liver substance. The liver of mice was normal gray signal, while the signal becomes darker and daker after injection. After 1 h injection, the signal intensity in the liver decreased obviously. Compared with 5 and 7 hours after injection, 1 hour was the time that the MNPs accumulation in the normal liver arrived maximum value, and the MNPs gradually metabolized in the normal liver after 24 hours (Figure 9B).

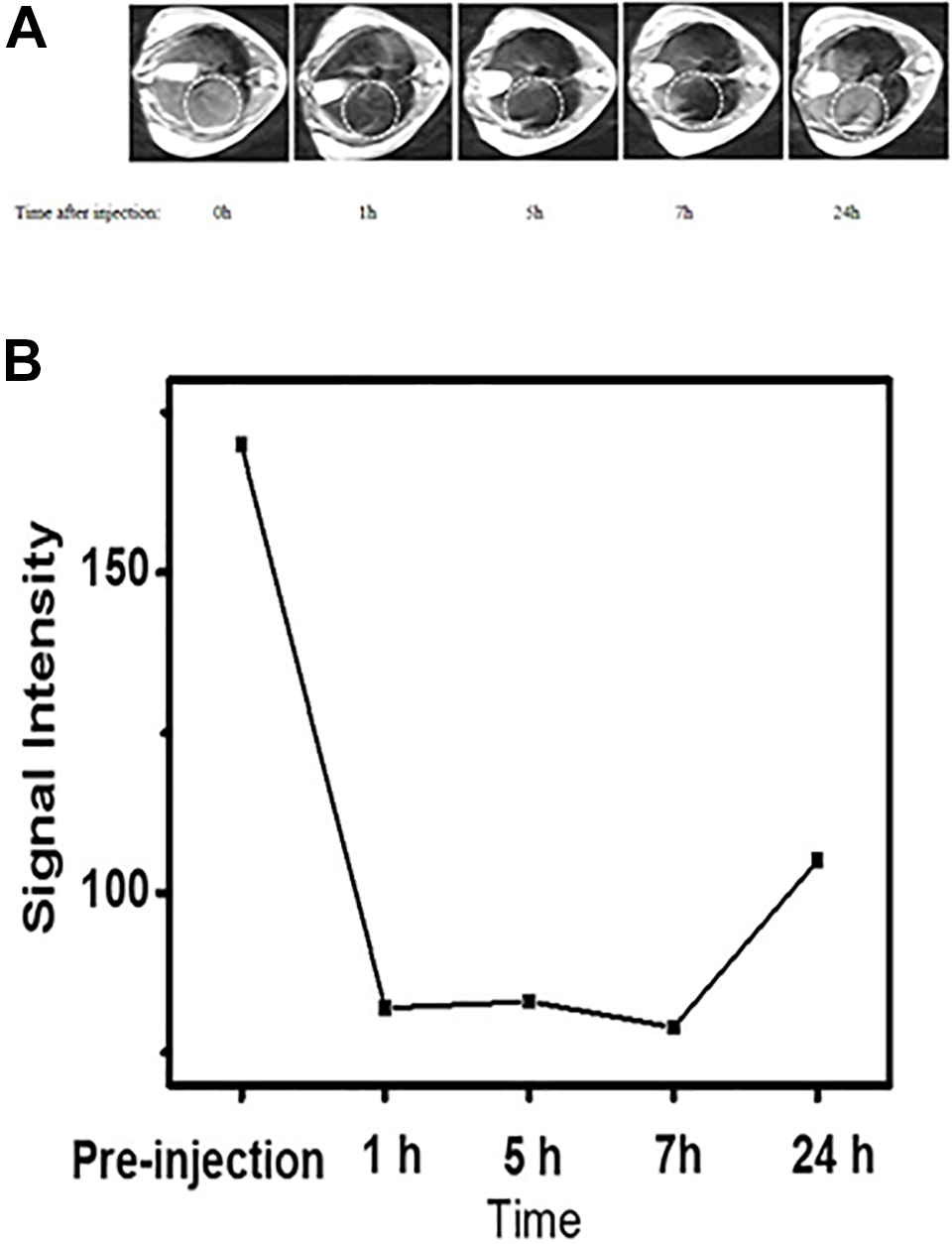

Figure 9.

A, MR imaging of mouse liver regions after systemic administration of 150 µL of Fe₃O₄@SiO₂-QTEPA (1 mg /mL). B, The time-dependent drop in MR T2 signal intensities measured in the liver after the administration of Fe₃O₄@SiO₂-QTEPA.

Zn²⁺ Fluorescence Sensing

The fluorescence experiments of all metal ions were carried out in MNPs buffer solution (100 µg of Fe₃O₄@SiO₂-QTEPA in 3 mL HEPES buffer). Fluorescence titration of Zn²⁺ was conducted using this suspension. Fe₃O₄@SiO₂-QTEPA showed a rather weak fluorescence signal in the range between 475 nm and 510 nm without Zn²⁺ ions. However, after adding Zn²⁺ to the concentration of 10 μM, the fluorescence intensity of the solution increased by a factor of about 22 times at 490 nm, and the maximum emission shifted from 420 nm to 490 nm (Figure 10A). We also determined the fluorescence spectra the Fe₃O₄@SiO₂-QTEPA suspension in presence of Mn²⁺, Fe³⁺, Ag⁺, Cr³⁺, Co²⁺, Cu²⁺, Cd²⁺, Fe²⁺, Hg²⁺, Pb²⁺and Ni²⁺. After adding these above metal ions to 20 μM separately, the changes of fluorescence intensity at 490 nm are shown in Figure 10B. After adding different metal ions, only the addition of Hg²⁺ increased the fluorescence intensity slightly. Adding other metal ions to the Fe₃O₄@SiO₂-QTEPA suspension did not cause obvious change of fluorescence spectra. In addition, the enhancement of fluorescence intensity due to the addition of Zn^{2 +} ions was not affected by the subsequent addition of other metal ions with concentrations of 20 μM except K⁺, Ca²⁺, Na⁺, Mg²⁺ (200 μM). (Figure S7 in the Supporting Information.)

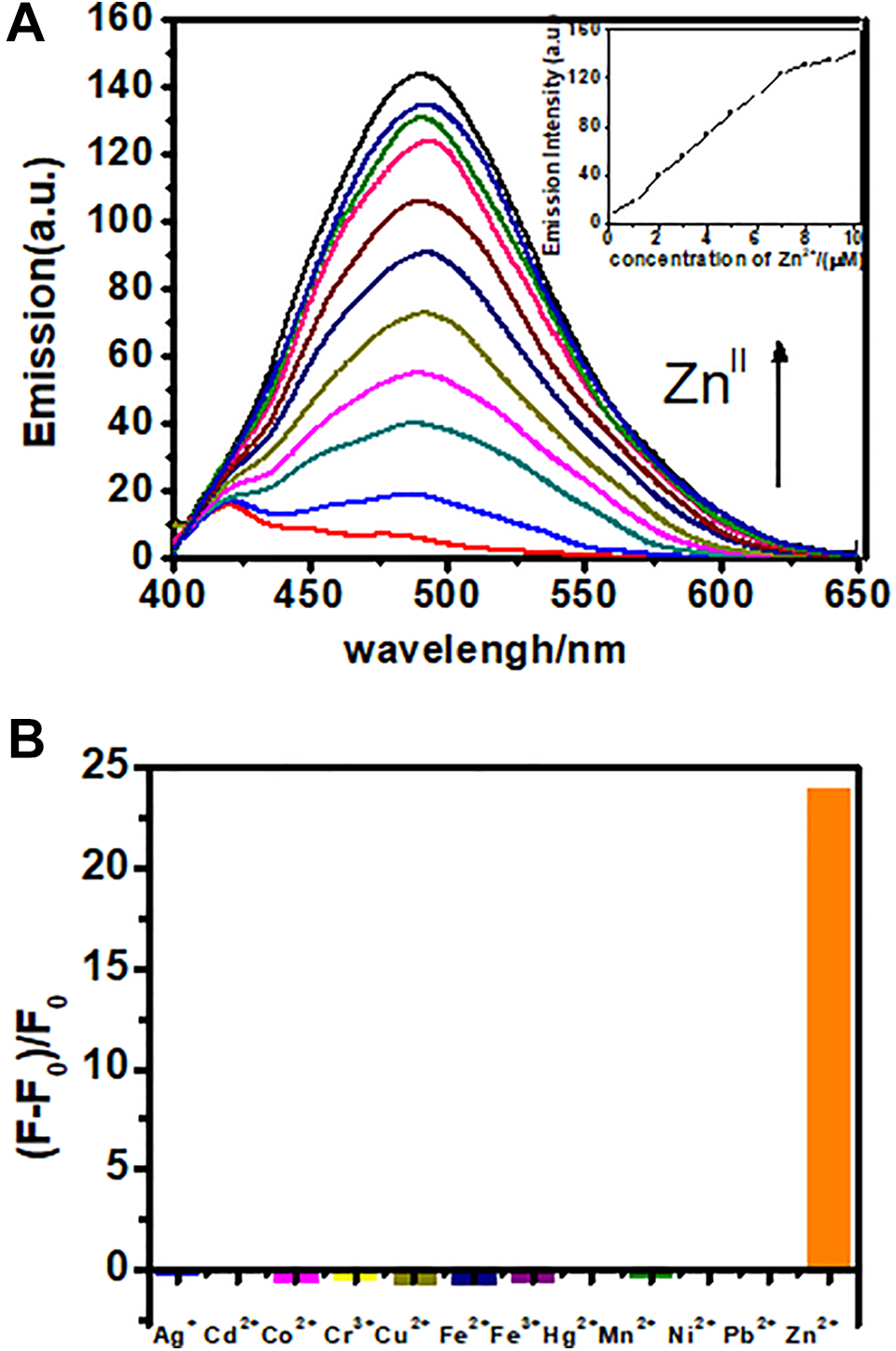

Figure 10.

A, Fluorescence emission spectra of Fe₃O₄@SiO₂-QTEPA (100 μg/3 mL) in the presence of Zn²⁺ from 1 μM to 10 μM in HEPES buffer. B, Bar graph of fluorescence emission intensity for 12 different metals showing metal selectivity profile of Fe₃O₄@SiO₂-QTEPA in HEPES (5 mM, pH = 7.4) with the concentration of 20 μM for each metal.

We applied Fe₃O₄@SiO₂-QTEPA NPs for fluorescent imaging of Zn²⁺ in living cells to demonstrate the Fe₃O₄@SiO₂-QTEPA NPs with practical application potential in the buffer system. Hela cells were incubated with Fe₃O₄@SiO₂-QTEPA NPs at 37ºC for 4 h and washed thoroughly by PBS buffer to remove the extra Fe₃O₄@SiO₂-QTEPA NPs. Then with the addition of Zn²⁺, the living cells were incubated for another 20 minutes. The results showed that Fe₃O₄@SiO₂-QTEPA NPs could penetrate the cell membrane for imaging Zn²⁺ in living cells, free Fe₃O₄@SiO₂-QTEPA NPs in living cells showed very weak fluorescence (Figure 11B), a bright fluorescence was observed in the cells (Figure 11C) after adding Zn²⁺ in the above cells. Finally, TPEN (a good masking agent for Zn²⁺) solution was added to the above cells for incubating another 20 minutes and fluorescence decreased (Figure 11D). These results demonstrated that Fe₃O₄@SiO₂-QTEPA NPs can be applied for dual-mode in vitro imaging of Zn²⁺ ions in living cells and potentially sensitive in vivo MRI imaging as well. The comparison of Fe₃O₄-SiO₂-QTEPA with another similar materials in the literatures were summarized in Figure S4.

Figure 11.

Bright image (A) and fluorescence images of Hela cells incubated with Fe₃O₄@SiO₂-QTEPA NPs in the absence (B) and presence (C) of Zn²⁺, and TPEN was added to eliminate Zn²⁺ (D). Scale bar is 10 μM.

Conclusions

In summary, we demonstrate bifunctional nanoparticles based on silica-coated Fe₃O₄ MNPs which can be used as biocompatible magnetic T₂ MRI contrast agents and for imaging Zn²⁺ in living cells. To the best of our knowledge, these QTEPA functionalized MNPs are the first to be reported for not only exhibiting good selectivity and sensitivity for Zn²⁺, but also of potential possibility to work as a T₂ contrast agent. This kind of core-shell magnetic nanoparticles has the comprehensive ability of fluorescence and MR imaging, and has the potential application for drug loading, which provides a platform for the research of targeting and biological imaging materials in biological systems. These results provide considerable foundation and reference for the construction of bifunctional magnetic nanoparticles. The magnetic nanoparticles modified by appropriate fluorescent probe molecules have good biocompatibility and can be used in fluorescence imaging and nuclear magnetic resonance imaging.
