Utilizing Single-Branched Stent in Combination With Fenestration or Chimney for Endovascular Repair of Aortic Arch Lesions With Aberrant Subclavian Artery

Abstract

Objective:

The study was to figure out the feasibility, efficacy, and safety of a single-branched stent graft, namely Castor, in combination with fenestration or chimney in the context of aortic arch lesions presenting with aberrant subclavian artery (ASA) and/or Kommerell’s diverticulum (KD).

Methods:

All consecutive patients with aortic arch lesions and ASA and/or KD receiving Castor from June 2018 to June 2023 were investigated.

Results:

Incorporating 18 patients, the study encompassed 11 cases with KD, 3 cases with dysphagia; 2 cases of right-sided aortic arch with left-sided aberrant left subclavian artery (ALSA), and 16 cases of left-sided aortic arch with right-sided aberrant right subclavian artery (ARSA). The mean operation time was 132±23 minutes. The mean measured proximal aortic diameter was 30.9±1.6 mm, and proximal diameter of Castor stent was 34 (32, 34.5) mm, with oversize of 9.1±1.6%; the mean measured branch diameter was 8.8±0.97 mm, and branch diameter of Castor stent was 10 (8, 10) mm, with oversize of 0.86±0.57 mm. Technical success rate was 100%, and no in-hospital mortality, no stroke, and no endoleak were identified. One (5.6%) case with spinal cord ischemia and one (5.6%) case with poor healing of operative site were identified. During the follow-up period, no aortic-related death or secondary intervention was recorded. The maximal aortic diameter was significantly reduced at the sixth postoperative month (p_adj=0.031); KD diameter was significantly reduced at the third (p_adj=0.001) and sixth (p_adj<0.001) postoperative month.

Conclusion:

Totally endovascular repair of aortic arch lesions with ASA and KD via Castor stent in combination with fenestration or chimney is feasible, effective, and safe, which can achieve an encouraging medium-term outcome and provide excellent remodeling at the lesions.

Clinical Impact

Single branched stent in combination with fenestration or chimney achieved a sufficient proximal landing zone and provided an encouraging medium-term outcome in this retrospective review of 18 patients receiving endovascular treatment of pathological aortic arch with aberrant subclavian artery and/or Kommerell’s diverticulum. The authors suggest this time-saving and efficient technique to establish systematic experience for the treatment in this kind of patients.

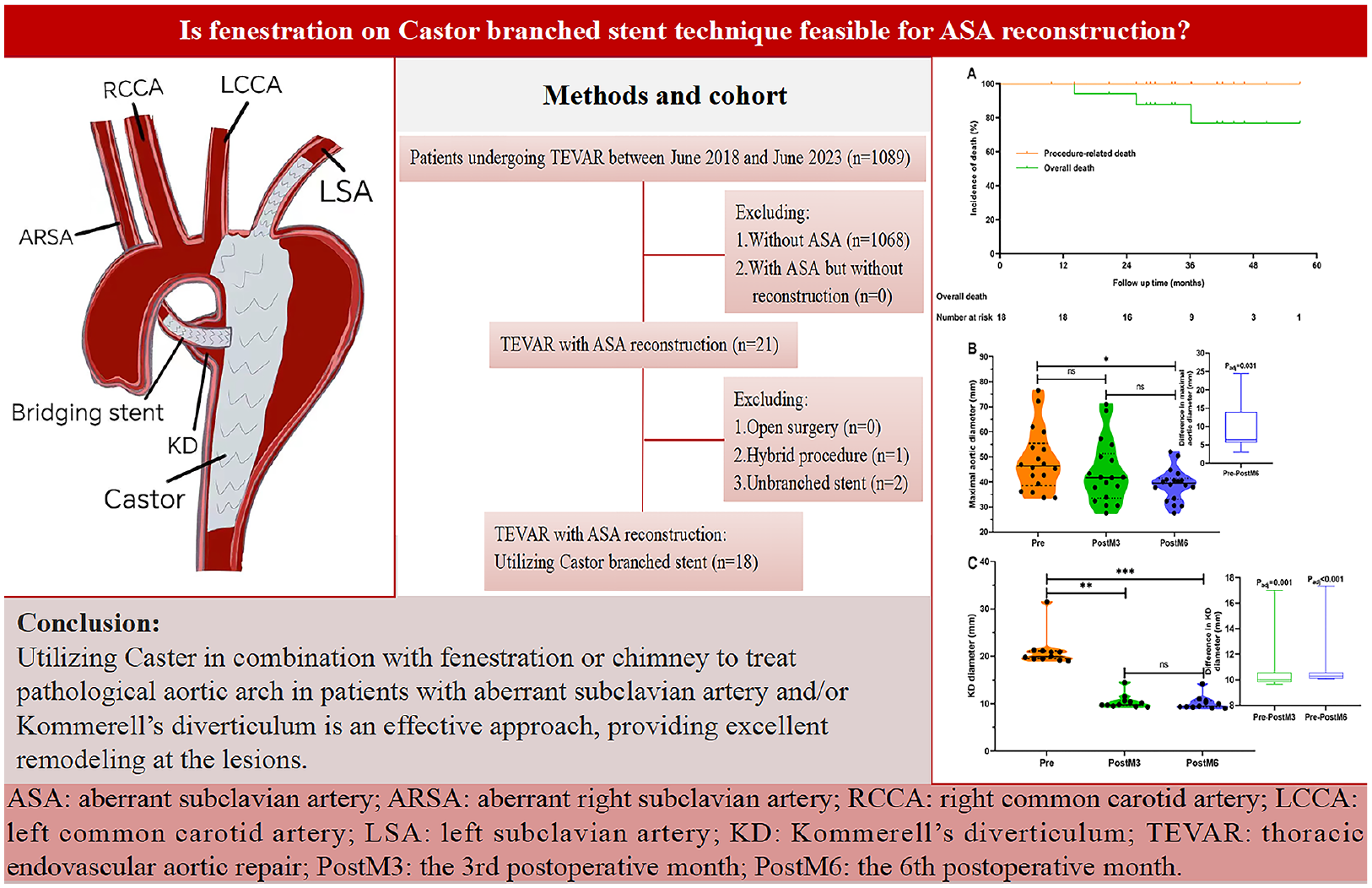

Graphical abstract

Keywords

aberrant subclavian artery thoracic endovascular aortic repair branched stent Kommerell’s diverticulum

Get full access to this article

View all access options for this article.

References

Freed

Low

VH.

The aberrant subclavian artery. AJR Am J Roentgenol. 1997;168:481–484.

Saran

Dearani

Said

, et al Vascular rings in adults: outcome of surgical management. Ann Thorac Surg. 2019;108(4):1217–1227.

Myers

Fasel

Kalangos

, et al Arteria lusoria: developmental anatomy, clinical, radiological and surgical aspects. Ann Cardiol Angeiol (Paris). 2010;59(3):147–154.

Dzsinich

Darabos

Székely

, et al Kommerell diverticulum—egy ritka betegség ritka szövődményei [Kommerell diverticulum—rare complications of a rare disease]. Magy Seb. 2020;73:61–68.

Nasir

Jadoon

Ellis

, et al Kommerell’s diverticulum, risk factor for aortic dissection. J Card Surg. 2009;24(4):463.

Richardson

Doty

Rossi

, et al Operation for aortic arch anomalies. Ann Thorac Surg. 1981;31(5):426–432.

Wang

Jin

, et al Surgical treatment for right-side aortic arch concomitant with Kommerell’s diverticulum: techniques selection and follow-up results. Eur J Med Res. 2024;29:10.

Ichikawa

Koizumi

Tanno

, et al Kommerell diverticulum in adults: evaluation of routine CT examinations. Tokai J Exp Clin Med. 2016;41:65–69.

Plotkin

Han

, et al Association of aberrant subclavian arteries with aortic pathology and proposed classification system. J Vasc Surg. 2020;72(5):1534–1543.

10.

Jing

Feng

, et al Endovascular repair of aortic dissection involving the left subclavian artery by castor stent graft: a multicentre prospective trial. Eur J Vasc Endovasc Surg. 2020;60:854–861.

11.

Shen

, et al Physician-modified fenestration or in situ fenestration for preservation of isolated left vertebral artery in thoracic endovascular aortic repair. Front Cardiovasc Med. 2023;10:1055549.

12.

Konstantinou

Antonopoulos

Tzanis

, et al Systematic review and meta-analysis of outcomes after operative treatment of aberrant subclavian artery pathologies and suggested reporting items. Eur J Vasc Endovasc Surg. 2022;63(5):759–767.

13.

Czerny

Schmidli

Bertoglio

, et al Clinical cases referring to diagnosis and management of patients with thoracic aortic pathologies involving the aortic arch: a companion document of the 2018 European Association for Cardio-Thoracic Surgery (EACTS) and the European Society for Vascular Surgery (ESVS) expert consensus document addressing current options and recommendations for the treatment of thoracic aortic pathologies involving the aortic arch. Eur J Vasc Endovasc Surg. 2019;57:452–460.

14.

Bath

D’Oria

Rogers

, et al Contemporary outcomes after treatment of aberrant subclavian artery and Kommerell’s diverticulum. J Vasc Surg. 2023;77(5):1339–1348.e6.

15.

Zhang

Cai

, et al Midterm outcomes of endovascular repair for Stanford type B aortic dissection with aberrant right subclavian artery. J Vasc Interv Radiol. 2019;30(9):1378–1385.

16.

Zhou

Bai

Ding

, et al Morphology and outcomes of total endovascular treatment of type B aortic dissection with aberrant right subclavian artery. Eur J Vasc Endovasc Surg. 2017;54(6):722–728.

17.

Zhu

Liu

, et al Repair of complicated type B dissection with an aberrant right subclavian artery. Interact Cardiovasc Thorac Surg. 2016;22:718–722.

18.

Samura

Zempo

Ikeda

, et al Chimney technique for aortic dissection involving an aberrant right subclavian artery. Ann Thorac Surg. 2014;97:315–317.

19.

Wang

Hou

, et al Thoracic endovascular aortic repair for aberrant subclavian artery and Stanford type B aortic intramural hematoma. Front Surg. 2022;8:813970.

20.

Pang

Qiu

Wang

, et al Endovascular aortic repair with castor single-branched stent-graft in treatment of acute type B aortic syndrome and aberrant right subclavian artery. Vasc Endovascular Surg. 2021;55(6):551–559.

21.

Ben Ahmed

Settembre

Touma

, et al Outcomes in the treatment of aberrant subclavian arteries using the hybrid approach. Interact Cardiovasc Thorac Surg. 2022;35:ivac230.

22.

Wooster

Back

Sutzko

, et al A 10-year experience using a hybrid endovascular approach to treat aberrant subclavian arterial aneurysms. Ann Vasc Surg. 2018;46:60–64.

23.

Pecoraro

Lachat

Cayne

, et al Mid-term results of chimney and periscope grafts in supra-aortic branches in high risk patients. Eur J Vasc Endovasc Surg. 2017;54(3):295–302.

24.

Weiss

Haligur

Jungi

, et al Symptomatic or aneurysmal aberrant subclavian arteries: results of surgical and hybrid repair. Interact Cardiovasc Thorac Surg. 2019;29:344–351.

25.

Kotelis

Gombert

Jacobs

MJ.

Treatment of post-thoracic endovascular aortic repair aorto-esophageal fistula-only radical surgery can be effective: techniques and sequence of treatment. J Thorac Dis. 2018;10(6):3869–3873.

26.

Chassin-Trubert

Gandet

Lounes

, et al Double fenestrated physician-modified stent-grafts for total aortic arch repair in 50 patients. J Vasc Surg. 2021;73(6):1898–1905.e1.

27.

Luo

Zhang

Huang

, et al Endovascular repair of aortic pathologies involving the aortic arch using castor stent-graft combined with in-vitro fenestration technology. BMC Cardiovasc Disord. 2023;23:107.
