Pararenal Aortic Thrombus in Patients Undergoing Aortic Aneurysm Repair With Chimney Technique

Abstract

Introduction:

Chimney technique (chimney graft in abdominal aortic aneurysm repair [ChEVAR]) can be used to treat patients with pararenal aortic aneurysm unfit for open surgery and not suitable for custom-made fenestrated endograft. Since almost 1 in 5 patients undergo a reintervention within 3 years, features associated with higher risk of complications need to be investigated to tailor the follow-up schedule to each patient. The aim of our study was to assess the impact of mural thrombus in the pararenal aorta on perioperative and follow-up complications after ChEVAR.

Methods:

All consecutive patients undergoing ChEVAR at our center from 2015 to 2022 were included in this retrospective study. Collected variables included number of target vessels, stent graft size, presence, and severity of mural thrombus in pararenal aorta, which was reported with a scoring system from 0 to 10 based on thrombus type, thickness area, and circumference

Analyzed outcomes included perioperative and follow-up complications.

Results:

Thirty-one patients underwent ChEVAR during the study period. In 4 patients the indication for ChEVAR was type 1A endoleak after a previous endovascular aneurysm repair (EVAR). The number of target vessels was 1 in 17 patients (55%), 2 in 12 (39%), 3 in 1 (3%), and 4 in 1 (%). The mean mural thrombus score was 5.9. Complications were the following: type 1A endoleak in 4 cases (13%), chimney stent complications in 7 cases (23%) (including partial or total thrombosis, intrastent stenosis, displacement), renal function worsening during follow-up in 8 cases (26%). Overall survival was 90% at 2 years. Patients with severe mural thrombus showed lower freedom from ChEVAR-related complications (28% vs 59% at 2 years, p=0.023).

Conclusions:

The presence of severe pararenal aortic mural thrombus was associated with lower freedom from ChEVAR-related complications in patients undergoing ChEVAR for pararenal aortic aneurysm repair. Further research with a larger number of patients is required to confirm these results.

Clinical Impact

The analysis of severity of mural thrombus in pararenal aorta, which was reported with a scoring system from 0 to 10 based on thrombus type, thickness area and circumference, can be useful and can be represent an important predictor element for complications in patient submitted to Chimney tecnique; in fact the presence of severe pararenal aortic mural thrombus was associated with lower freedom from ChEVAR-related complications in patients undergoing ChEVAR for pararenal aortic aneurysm repair. Then, in patient with pararenal aortic aneurysm, a preoperative evaluation could be focused on severity of mural thrombus to minimize the complications in ChEVAR tecnique or to change the surgical strategy.

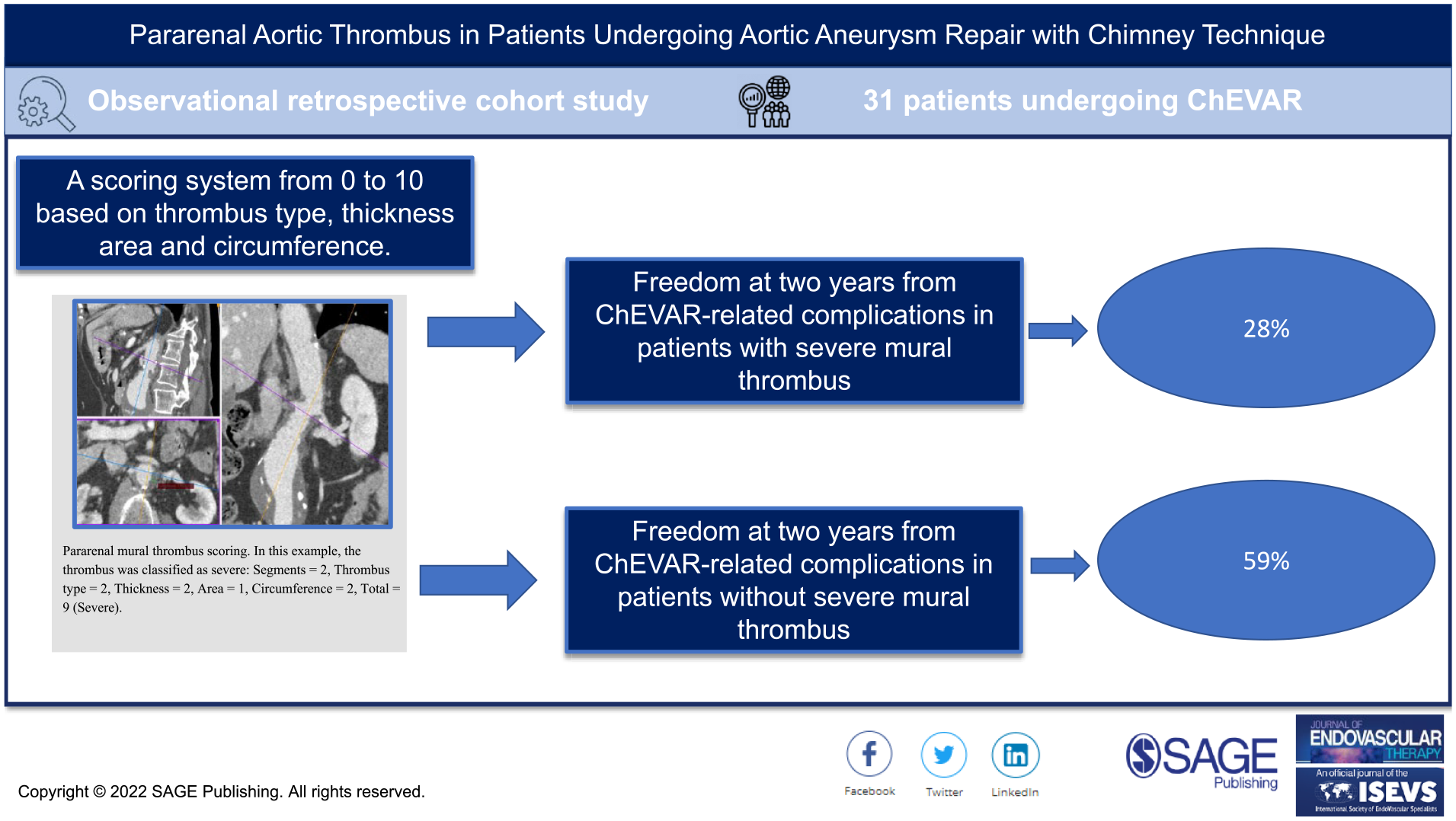

Visual Abstract

Keywords

pararenal aneurysm thrombus chimney graft/technique endovascular aneurysm repair intravascular ultrasound

Get full access to this article

View all access options for this article.

References

Wanhainen

Verzini

Van Herzeele

, et al. Editor’s choice: European Society for Vascular Surgery (ESVS) 2019 clinical practice guidelines on the management of abdominal aorto-iliac artery aneurysms. Eur J Vasc Endovasc Surg. 2019;57(1):8–93.

Patel

Katsargyris

Verhoeven

ELG

, et al. Endovascular aortic aneurysm repair with chimney and snorkel grafts: indications, techniques and results. Cardiovasc Intervent Radiol. 2013;36(6):1443–1451.

Donas

Inchingolo

Cao

, et al. Secondary procedures following iliac branch device treatment of aneurysms involving the iliac bifurcation: the pELVIS registry. J Endovasc Ther. 2017;24(3):405–410.

Greenberg

Clair

Srivastava

, et al. Should patients with challenging anatomy be offered endovascular aneurysm repair. J Vasc Surg. 2003;38(5):990–996.

Donas

Criado

Torsello

, et al. Classification of chimney EVAR-related endoleaks: insights from the PERICLES registry. J Endovasc Ther. 2017;24(1):72–74.

Oderich

Forbes

Chaer

, et al. Reporting standards for endovascular aortic repair of aneurysms involving the renal-mesenteric arteries. J Vasc Surg. 2021;73(1S):4S–52S.

Chaikof

Fillinger

Matsumura

, et al. Identifying and grading factors that modify the outcome of endovascular aortic aneurysm repair. J Vasc Surg. 2002;35(5):1061–1066.

Sandri

Oderich

Tenorio

, et al. Impact of aortic wall thrombus on late changes in renal function among patients treated by fenestrated-branched endografts. J Vasc Surg. 2019;69(3):651–660.

Patel

Constantinou

Hamilton

, et al. Editor’s choice: a shaggy aorta is associated with mesenteric embolisation in patients undergoing fenestrated endografts to treat paravisceral aortic aneurysms. Eur J Vasc Endovasc Surg. 2014;47(4):374–379.

10.

Ribeiro

Oderich

Macedo

, et al. Assessment of aortic wall thrombus predicts outcomes of endovascular repair of complex aortic aneurysms using fenestrated and branched endografts. J Vasc Surg. 2017;66(5):1321–1333.

11.

Prapassaro

Teraa

Chinsakchai

, et al. Mid-term outcomes of chimney endovascular aortic aneurysm repair: a systematic review and meta-analysis. Ann Vasc Surg. 2022;79:359–371.

12.

Franchin

Grassi

Piffaretti

, et al. Thoracic endovascular aortic repair in “shaggy thoracic aortic aneurysms. Cardiovasc Intervent Radiol. 2021;44(2):220–229.

13.

Borghese

Pisani

Di Centa

Symptomatic aortic mural thrombus treatment and outcomes. Ann Vasc Surg. 2020;69:373–381.

14.

Meyermann

Trani

Caputo

, et al. Descending thoracic aortic mural thrombus presentation and treatment strategies. J Vasc Surg. 2017;66(3):931–936.

15.

Jeyabalan

Wallace

Chaer

, et al. Endovascular strategies for treatment of embolizing thoracoabdominal aortic lesions. J Vasc Surg. 2014;59(5):1256–1264.

16.

Bayliss

Zhuang

Cholesterol crystal embolism and chronic kidney disease. Int J Mol Sci. 2017;18(6):1120. doi:10.3390/ijms18061120.

17.

Boufi

Mameli

Compes

, et al. Elective stent-graft treatment for the management of thoracic aorta mural thrombus. Eur J Vasc Endovasc Surg. 2014;47(4):335–341.

18.

Dadian

Ohki

Veith

, et al. Overt colon ischemia after endovascular aneurysm repair: the importance of microembolization as an etiology. J Vasc Surg. 2001;34(6):986–996.

19.

Pini

Faggioli

Freyrie

, et al. Impact of kidney ischemic lesions on renal function after fenestrated endovascular repair. J Vasc Surg. 2016;63(2):305–313.

20.

Bastos Gonçalves

Verhagen

Chinsakchai

, et al. The influence of neck thrombus on clinical outcome and aneurysm morphology after endovascular aneurysm repair. J Vasc Surg. 2012;56(1):36–44.

21.

Bastos Goncalves

Hoeks

Teijink

, et al. Risk factors for proximal neck complications after endovascular aneurysm repair using the endurant stentgraft. Eur J Vasc Endovasc Surg. 2015;49(2):156–162.

22.

Benedetto

Spinelli

Corte La

, et al. Role of contrast-enhanced ultrasound in the follow-up after endovascular abdominal aortic aneurysm repair. Diagnostics (Basel). 2022;12(12):3173. doi:10.3390/diagnostics12123173.

23.

Cantisani

David

Ferrari

, et al. Color Doppler ultrasound with superb microvascular imaging compared to contrast-enhanced ultrasound and computed tomography angiography to identify and classify endoleaks in patients undergoing EVAR. Ann Vasc Surg. 2017;40:136–145.
