Abstract

Ball bearings are an integral part of many machines and mechanisms and often determine their performance limits. Vibration, friction and power loss are some of the key measures of bearing performance. Therefore, there have been many predictive analyses of bearing performance with emphasis on various aspects. The current study presents a mathematical model, incorporating bearing dynamics, mechanics of rolling element-to-races contacts as well as the elastodynamics of the bearing outer ring as a focus of the study. It is shown that the bearing power loss in cage cycles increases by as much as 4% when the flexibility of the outer ring is taken into account as a thick elastic ring, based on Timoshenko beam theory as opposed to the usual assumption of a rigid ring in other studies. Geometric optimisation has shown that the lifetime power consumption can be reduced by 1.25%, which is a significant source of energy saving when considering the abundance of machines using rolling element bearings. The elastodynamics of bearing rings significantly affects the radial bearing clearance through increased roller loads and generated contact pressures. The flexible ring dynamics is shown to generate surface waviness through global elastic wave propagation, not hitherto taken into account in contact dynamics of rollers-to-raceways which are generally considered to be subjected to only localised Hertzian deflection. The elastodynamic behaviour reduces the elastohydrodynamic film thickness, affecting contact friction, wear, fatigue, vibration, noise and inefficiency.

Keywords

Deep groove ball bearings bearing-induced vibration elastodynamics of flexible outer ring friction power loss

Introduction

Key issues affecting the performance of rolling element bearings are wear and fatigue of rolling mating surfaces,^1–3 as well as vibration and noise.^4–7 Thermal stability also plays an important role in terms of bearing’s limiting performance.^8,9 All these parameters act in an integrated manner, determining the eventual bearing performance. Furthermore, during operation, the rolling elements within a bearing undergo complex motions such as rolling and sliding relative to the raceway grooves, as well as convergence and separation of the bearing rings.¹⁰ Therefore, use of a bearing dynamic model is a prerequisite to any investigation of its performance, such as reliability, structural integrity, fatigue, wear and operational efficiency.

Sunnersjö¹¹ was one of the first to investigate the effect of applied inertial forces using a two degree of freedom lateral transverse analytical bearing dynamics model. Meyer et al.¹² studied the effect of distributed defects such as waviness of the rolling mating surfaces upon the bearing vibration response using an analytical two degrees of freedom bearing model. Rahnejat and Gohar⁵ presented a 2-degree of freedom radial deep groove ball bearing model with lubricated ball-to-races contacts under various regimes of lubrication. They also studied the effect of inner race waviness. Their work was extended by Aini et al.¹³ to a 5-degree of freedom bearing dynamics model, including the effect of bearing moment loading, as well as applied axial thrust. With rolling element bearings, the effect of roller tilting, yawing and squeeze film motions, as well as lubricated contacts were taken into account by various researchers.^10,14,15 Misaligned rollers cause high edge contact pressures^14–17 which can lead to fatigue spalling and pitting. The presence of faults such as cracks and pits on rolling surfaces cause secondary bearing vibrations which have been extensively studied through numerical analysis as well as signal processing of vibration response of bearings.^18–20 Other faults include the presence of off-sized bearing elements²¹ as well as unstable cage dynamics.²²

In most of the analyses described thus far the bearing housing has been considered as rigid. However, in many applications housing compliance can lead to rotor/spindle misalignment. Therefore, its effect should normally be considered.^23,24 Most analyses also consider the rolling elements to be massless (negligible mass and inertia, when compared with the mass of the supported rotor). When, this assumption cannot be upheld, inertial dynamics of individual rolling elements should be taken into account leading to much more complex n-degrees of freedom bearing dynamics.^25–27 The effects of generated contact friction and heat generation are also taken into account in some studies.^8,9,28 Therefore, there are many interacting multi-physics issues which affect bearing dynamics, hence the plethora of research work in this area.

Non-concentricity of bearing rings or bearing housing plays an important role in its dynamics as it affects the bearing radial clearance. Such issues can also be caused by assembly faults in the case of bearing housing and through thermo-elastic deformation of bearing rings under generated distributed contact loads and temperature. These often limit the operational performance of bearings. Cavallaro et al.²⁹ presented a thin ring elastic model to account for the centrifugal expansion of the bearing raceways using the 2-dimensional equation for a disk detailed by Aramaki et al.³⁰ for high speed machine tool spindles. Cavallaro’s model was further developed by Leblanc et al.³¹ for thin elastic rings. They noted that the elastic model was a reasonable approximation for thin rings subjected to a static load. The FEA approach has been employed by Daidié et al.³² as well as by Olave et al.,³³ requiring high mesh density around the rollers, which leads to long computation times and limits the use of this approach under transient conditions. Other FEA-based models include the work of Lacroix et al.,³⁴ linking FEA of the rings to an analytical contact model and Wagner et al.³⁵ who used an FEA model of the flexible outer ring to demonstrate its influence upon the performance of a high speed ball bearing.

The current paper presents bearing dynamics, including the transient flexible response of the bearing’s outer ring. In this approach both the localised Hertzian deflection and global deformation of the bearing’s outer ring are taken into account. For this purpose, the bearing’s outer ring is considered as an elastic thick complete circular ring. It is important to note that in real applications, the bearing rings should be considered as thick rings, when the radius-to-width ratio is less than 10 according to Chidamparam and Leissa.³⁶ The numerical solution of a full bearing dynamics with a flexible ring is quite time consuming. Therefore, the investigation into the effect of ring elastodynamics on the vibrations of radial ball bearings requires the development of an initial thick ring dynamic model for amalgamation into an appropriate analysis. Thus, the outer ring elastodynamic model is based on the thick ring theory established originally by Timoshenko.³⁷

Problem formulation

Model description

The lateral excursions of the bearing centre determine the share of dynamic load carried by the ball complement in their orbital motion (Figure 1).

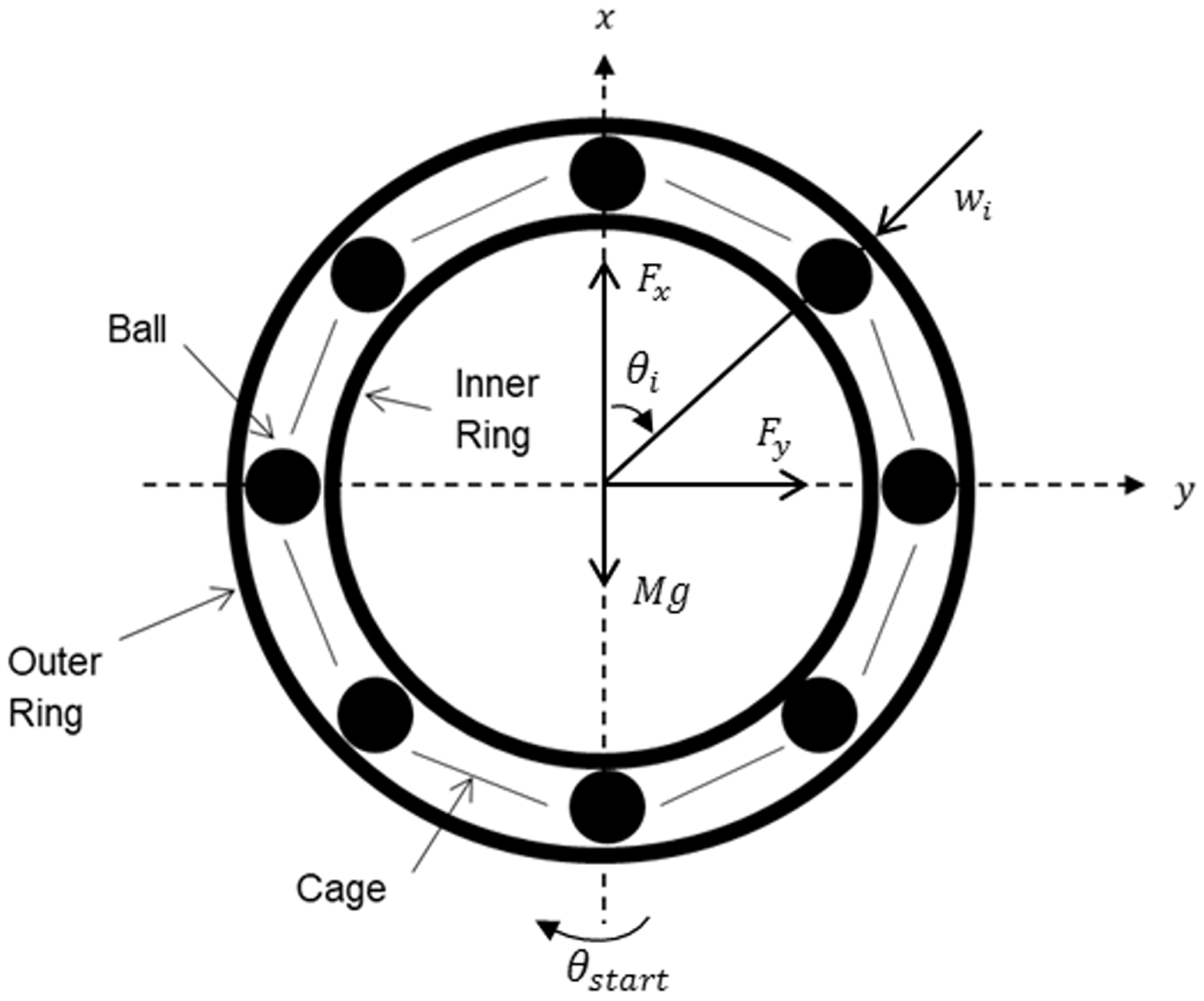

Figure 1.

Two degree of freedom deep groove ball bearing model.

The following assumptions are made in arriving at a 2-DOF bearing dynamics model:

The outer and inner bearing races are perfectly circular

The balls are perfectly spherical with identical diameters

The balls are considered as massless and equi-pitched around the bearing rings

The bearing is loaded only in the radial transverse directions.

The thermal effects are neglected.

The inner bearing ring and the supported rotor are rigid.

The effect of structural and contact damping is neglected.

The above assumptions lead to a 2-DOF bearing model for a radial deep groove ball bearing, accounting for the oscillations of the rigid supported shaft in the x and y radial transverse directions (Figure 1). This is the basic 2-DOF bearing dynamics model described in Refs.^5,38

The equations of motion become:

M \ddot{x} = (\sum_{i = 1}^{m} - W_{i} \cos θ_{i}) - M g + F_{x}

(1)

M \ddot{y} = (\sum_{i = 1}^{m} - W_{i} \sin θ_{i}) + F_{y}

(2)

where,

M

is the mass of the supported shaft,

F_{x}

and

F_{y}

are the external applied forces in the x and y-directions,

θ_{i}

is the instantaneous circumferential angular position of the ith ball and

W_{i}

is its instantaneous contact load, acting radially towards the centre of bearing. The balls-to-race contact reactions are given by the classical Hertzian contact theory as:

w_{i} = K δ_{i}^{n}

(3)

where,

w_{i}

is the contact reaction for the ith ball,

δ_{i}

is the localised Hertzian contact deflection and

K

is the contact stiffness non-linearity. The exponent

n

is 1.5 for a ball bearing and 1.11 for a roller bearing.^1,38,39

The localised contact deflection, $δ_{i}$ , is obtained as³⁸:

{2 δ}_{i} = 2 (h_{i} - C) + x \cos θ_{i} + y \sin θ_{i}

(4)

where,

C

is the local radial clearance,

h_{i}

is the lubricant film thickness, and

x

and y are the movements of the bearing centre in the lateral directions.

θ_{i}

denotes the instantaneous circumferential orbital position of the ith ball.

The deflection in equation (4) is altered to include the effect of an outer flexible ring’s local radial deflection, $u_{i}$ , at any contact location, i, as:

{2 δ}_{i} = 2 (h_{i} - C) + x \cos θ_{i} + y \sin θ_{i} + u_{i}

(5)

The combined contact stiffness non-linearity, K of any ball to the inner and outer races’ contacts is determined as^40,41:

K = \sqrt{\frac{e}{λ^{3}}} κ_{C}

(6)

where,

e

is the curvature sum for the ball to the inner and outer raceways as:

e = \frac{4}{R_{1} + R_{1}^{'} + R_{2} + R_{2}^{'}}

(7)

in which,

R_{1}

and

R_{2}

are the radii of curvature of the inner and outer raceways respectively, and

R_{1}^{'}

and

R_{2}^{'}

are the radii of curvature of the ball in the zx and zy planes of contact (clearly:

R_{1}^{'} = R_{2}^{'}

). In addition,

κ_{C}

represents the elastic contact proportionality constant as⁴⁰:

κ_{C} = \frac{8}{3} \frac{E_{1} E_{2}}{E_{1} (1 - v_{2}^{2}) + E_{2} (1 - v_{1}^{2})}

(8)

λ

in equation (6) is a coefficient which is a function of the elliptical footprint contact dimensions

α

and

β

and the contact parameter

ψ

(Tables 1 and 2)⁴¹:

ψ = arc \frac{e}{4} \sqrt{\{\begin{array}{l} {(\frac{1}{R_{1}} - \frac{1}{R_{1}^{'}})}^{2} + {(\frac{1}{R_{2}} - \frac{1}{R_{2}^{'}})}^{2} \\ + 2 (\frac{1}{R_{1}} - \frac{1}{R_{1}^{'}}) (\frac{1}{R_{2}} - \frac{1}{R_{2}^{'}}) \cos 2 ϕ \end{array}\}}

(9)

where,

ϕ

is the contact angle.

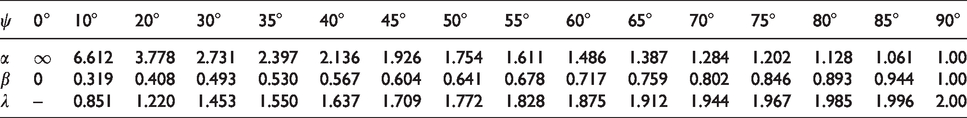

Table 1.

Contact mechanics parameters.⁴¹

$ψ$	$0^{} °$	$10 °$	$20 °$	$30 °$	$35 °$	$40 °$	$45 °$	$50 °$	$55 °$	$60 °$	$65 °$	$70 °$	$75 °$	$80 °$	$85 °$	$90 °$
$α$	$\infty$	6.612	3.778	2.731	2.397	2.136	1.926	1.754	1.611	1.486	1.387	1.284	1.202	1.128	1.061	1.00
$β$	0	0.319	0.408	0.493	0.530	0.567	0.604	0.641	0.678	0.717	0.759	0.802	0.846	0.893	0.944	1.00
$λ$	–	0.851	1.220	1.453	1.550	1.637	1.709	1.772	1.828	1.875	1.912	1.944	1.967	1.985	1.996	2.00

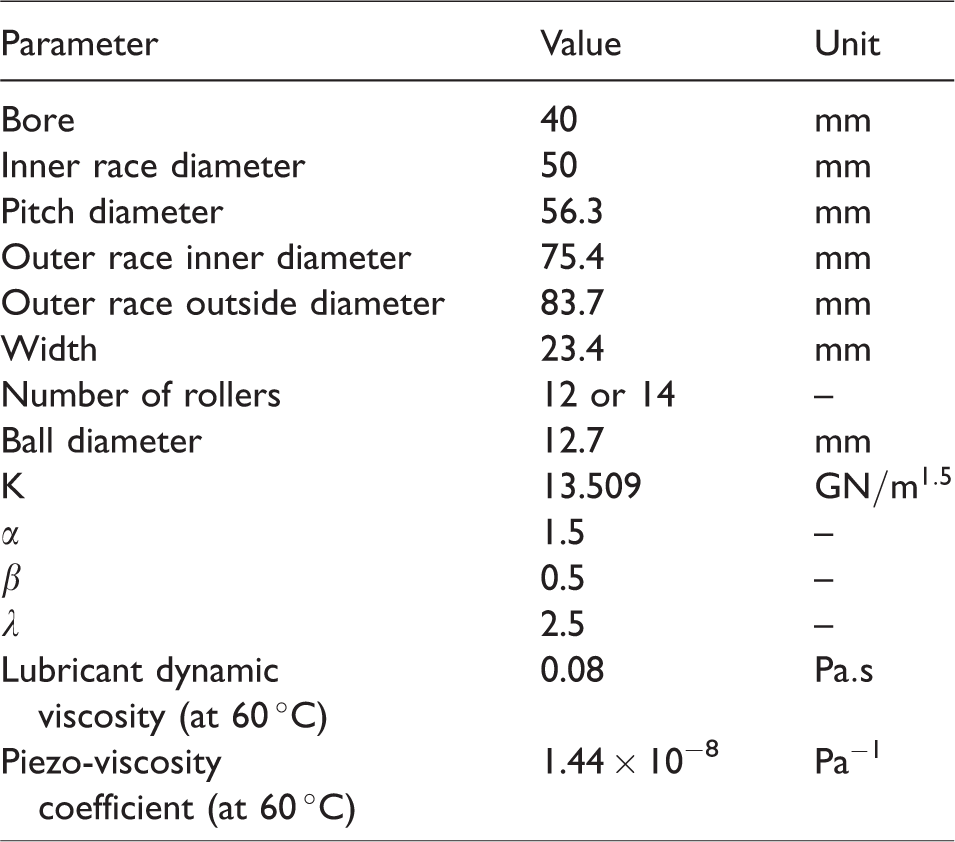

Table 2

Bearing specifications.

Parameter	Value	Unit
Bore	40	$mm$
Inner race diameter	50	$mm$
Pitch diameter	56.3	$mm$
Outer race inner diameter	75.4	$mm$
Outer race outside diameter	83.7	$mm$
Width	23.4	$mm$
Number of rollers	12 or 14	–
Ball diameter	12.7	$mm$
K	13.509	$GN / m^{1.5}$
$α$	1.5	–
$β$	0.5	–
λ	2.5	–
Lubricant dynamic viscosity (at 60 °C)	0.08	$Pa . s$
Piezo-viscosity coefficient (at 60 °C)	1.44 × 10⁻⁸	${Pa}^{- 1}$

The semi-major and semi-minor half-widths for the elliptical contact footprint for the ith ball-raceway contact becomes^40,41:

a_{i} = α {(\frac{w_{i} e}{κ_{C}})}^{\frac{1}{3}}

(10)

b_{i} = β {(\frac{w_{i} e}{κ_{C}})}^{\frac{1}{3}}

(11)

The effective contact stiffness for ball-to-the inner and outer raceways becomes:

K = {(\frac{1}{K_{i}^{- 1 / n} + K_{o}^{- 1 / n}})}^{n}

(12)

The maximum Hertzian contact pressure is³⁹:

p_{0} = \frac{3 w_{i}}{2 π a_{i} b_{i}}

(13)

And the Hertzian pressure distribution for each ball to races contact is obtained as:

{p (x', y') = p}_{0} {(1 - \frac{{x^{'}}^{2}}{a_{i}^{2}} - \frac{{y^{'}}^{2}}{b_{i}^{2}})}^{\frac{1}{2}}

(14)

where,

x

′ and

y

′ are the coordinate positions within the contact footprint of any ball-races contact.

The Hertzian theory adequately describes the mechanics of contact of ball-to-raceways’ grooves when the contact conditions in practice follow elastohydrodynamic regime of lubrication, which is the case for bearings with no emerging clearances, and with adequate preloading and interference fitting. However, the Hertzian theory assumes frictionless contact; an assumption which may be relaxed by stating a coefficient of friction. However, the correct approach is to calculate the viscous shear of the lubricant. Non-Newtonian shear of the lubricant leads to thin films and flattening of asperities on the mating opposing surfaces. Thus, friction can be obtained through determination of contact film thickness and shear stress.

The instantaneous central contact lubricant film thickness, assuming isothermal conditions, is obtained for any ball-to-race contact using the extrapolated lubricant film thickness equation of Hamrock and Dowson⁴² as:

H_{c i}^{*} = 2.69 {U^{*}}^{0.67} {G^{*}}^{0.53} {W^{*}}^{- 0.067} (1 - e^{- 0.73 e_{p}^{*}})

(15)

where,

H_{c i}^{*}

is the dimensionless central contact lubricant film thickness:

H_{c i}^{*} = \frac{h_{i}}{R_{x}}

(16)

where,

h_{i}

is the film thickness and

R_{x}

is the effective radius of curvature of the contacting bodies in the direction of lubricant entrainment into the contact. The dimensionless operating parameters are

U^{*}

(the speed or rolling viscosity parameter),

W^{*}

(the load parameter) and

G^{*}

(the materials’ parameter):

U^{*} = \frac{η_{0} μ}{E^{*} R_{x}}, W_{i}^{*} = \frac{w_{i}}{E^{*} {R_{x}}^{2}}, G^{*} = \frac{E^{*}}{p_{a, i}}

(17)

where,

η_{0}

is the lubricant atmospheric dynamic viscosity,

μ

is the lubricant entrainment velocity (average speed of the contacting surfaces),

p_{a, i}

is the asymptotic iso-viscous pressure and

E^{*}

is the equivalent Young’s modulus of elasticity of contacting bodies as:

E^{*} = \frac{2}{(\frac{1 - v_{1}^{2}}{E_{1}} + \frac{1 - v_{2}^{2}}{E_{2}})}

(18)

In addition, $e_{p}^{*}$ is the contact footprint ellipticity parameter and is defined as:

e_{p}^{*} = \frac{a_{i}}{b_{i}}

(19)

The non-Newtonian shear stress is determined as⁴³:

τ = τ_{0} + ε p_{m}

(20)

where

τ

is the viscous shear stress,

τ_{0}

is the characteristic shear stress,⁴⁴

ε

is the slope of the lubricant limiting shear stress with variations in pressure, and

p_{m}

is the mean contact pressure:

p_{m} = \frac{2}{3} p_{0}

(21)

The instantaneous generated viscous friction for the ith contact becomes:

F_{f i} = τ π a_{i} b_{i}

(22)

And the instantaneous power loss is determined as:

P_{l i} = F_{f i} \frac{R_{o}}{f_{s}}

(23)

where,

f_{s}

is the shaft rotational frequency and

R_{o}

is the inside radius of the outer race.

The specifications of the bearing considered in this study are listed in Table 2. To guard against a number of undesired phenomena such as ball skidding, skewing, rattling and cage collisions, a 5 µm radial interference fit is applied. Therefore, all the ball-to-races contacts remain in compression throughout their orbital motions (and the classical Hertzian contact theory can be upheld). The radii of curvature of the raceways’ grooves ensure a contact conformity of merely 7% and a contact angle of $ϕ = 45 °$ . The number of balls for a tightly packed arrangement is $Z = 14$ , whilst for a moderately packed arrangement is $Z = 12$ .

Elastic outer ring vibrations: An overview

In order to include the global modal deflection of an outer flexible ring into the 2-DOF bearing dynamics ( $u_{i}$ in equation (5)), the outer ring is considered as a thick circular elastic ring. Kuhl⁴⁵ measured the in-plane and out-of-plane vibration frequencies of a number of thick rings. Seidel and Erdelyi⁴⁶ developed equations for inextensible deformation of thick rings. Comparisons of thin and thick ring predictions were made for response frequencies with the measurements reported by Kuhl.⁴⁵ Rao and Sundararajan⁴⁷ derived an equation for free in-plane vibrations of a circular ring, including the effects of shearing deformation and rotary inertia. Good agreement was obtained with the measurements of Kuhl.⁴⁵ Rao⁴⁸ demonstrated the effect of transverse shear and rotary inertia on the out-of-plane motions of thick rings and incomplete rings with free simply supported and fixed ends. Experimental measurements for the transverse vibrations of free rings were reported by Peterson,⁴⁹ when investigating gear noise. Rao⁴⁸ used Peterson’s measurements to validate his model. An extensive review of literature for flexural vibrations of thick and thin rings is provided by Chidamparam and Leissa.⁵⁰ More recently, Tufekci and Dogruer⁵¹ showed that for doubly symmetric cross-sections, the in-plane and out-of-plane vibration responses of the rings can be decoupled. The treatment of flexural vibrations of thick rings has been progressively improved, including the recent work by Yu and Fadaee,⁵² validating the predictions of their in-plane FEA-based vibrations with the measurements of Kuhl.⁴⁵

Research in the dynamic behaviour of thin rings has received more attention, mainly because of the importance of incomplete circular compression rings as seals in internal combustion engines.^53–55 In-depth study of bearing races as thick rings and its integration with bearing dynamics is long overdue. This is the approach undertaken in this paper. For a 2-DOF bearing dynamic model the in-plane flexural dynamics of the thick outer bearing ring is developed. The out-of-plane outer race dynamics occurs in the axial direction of the rotor, which is not taken into account in the current 2-DOF bearing dynamics. The out-of-plane motion is resisted by the dry friction between the outer race and bearing housing. The in-plane vibrations are included in the 2-DOF bearing dynamics model.

In-plane elastodynamics of thick rings

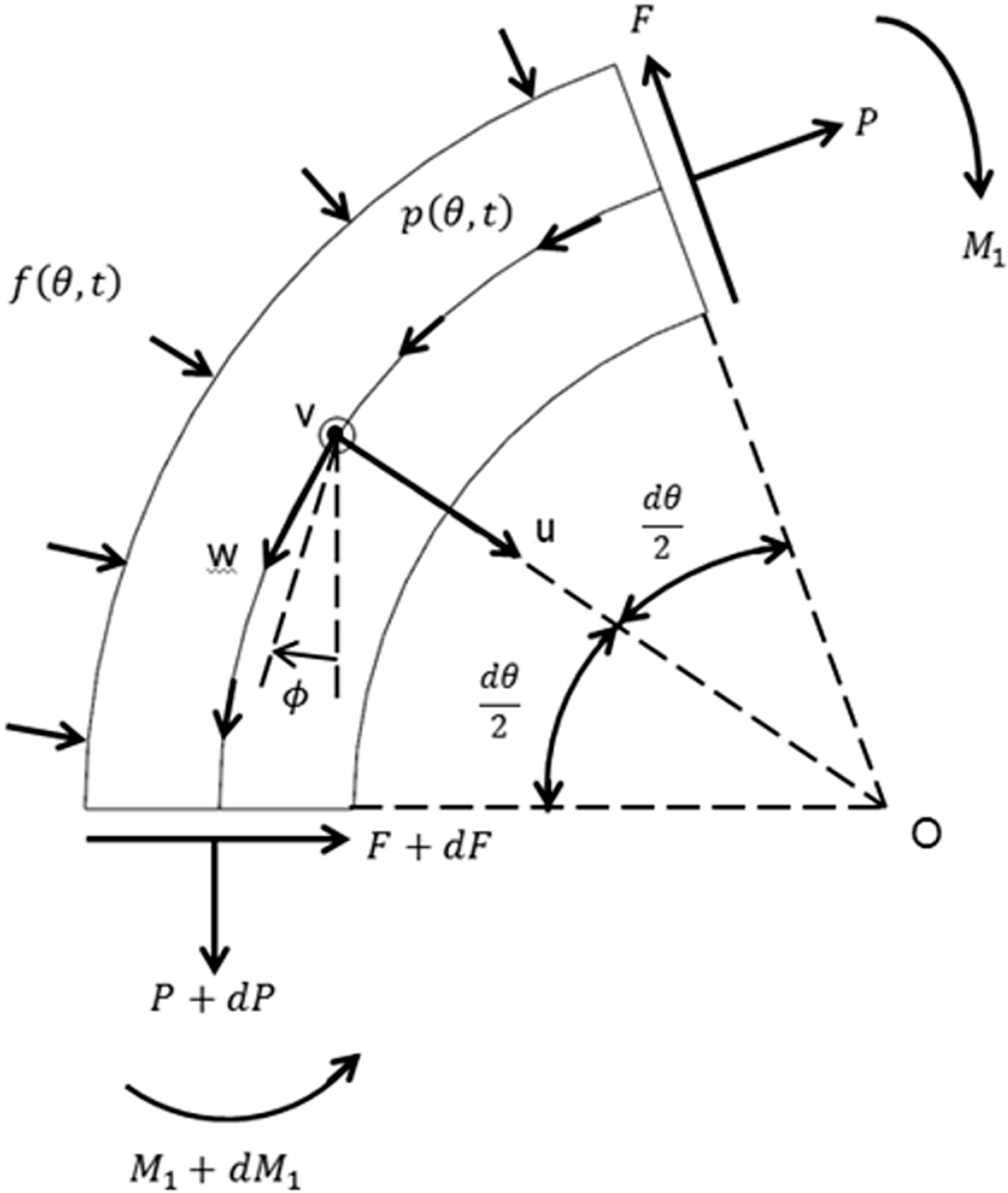

Figure 2 shows a segment of a thick circular ring, representing the outer race of a ball bearing. Definitions of all terms used in the methodology are shown in the figure, as well as the employed coordinate system and the in-plane forces and moments acting on an element of the ring.

Figure 2.

A ring segment subjected to in-plane vibrations.

The in-plane equations of motion for a thick ring segment, including shearing deformation and rotary inertia are obtained as^47,56:

\frac{κ A G}{R} (\frac{\partial^{2} u}{\partial θ^{2}} + \frac{\partial w}{\partial θ} - R \frac{\partial ϕ}{\partial θ}) + \frac{E A}{R} (\frac{\partial w}{\partial θ} - u) + f R = ρ A R \frac{\partial^{2} u}{\partial t^{2}}

(24)

\frac{E A}{R} (\frac{\partial^{2} w}{\partial θ^{2}} - \frac{\partial u}{\partial θ}) - \frac{κ A G}{R} (\frac{\partial u}{\partial θ} + w - R ϕ) + p R = ρ A R \frac{\partial^{2} w}{\partial t^{2}}

(25)

\frac{E I_{1}}{R} \frac{\partial^{2} ϕ}{\partial θ^{2}} + κ A G (\frac{\partial u}{\partial θ} + w - R ϕ) = ρ I_{1} R \frac{\partial^{2} ϕ}{\partial t^{2}}

(26)

where,

A

is the ring’s cross-sectional area,

R

is its radius,

I_{1}

the second area moment of inertia of ring’s cross-section,

E

the Young’s modulus of elasticity,

G

the shear modulus,

ρ

is the density of ring’s material,

κ

the shear correction factor,

f

the radial applied force, and

p

is the circumferentially applied force. The parameter

u

is the radial deflection due to the global ring elastodynamics and

w

is the circumferential deflection of the ring while

u_{i}

in equation (5) is the radial deflection of the flexible outer ring at the instantaneous position of the ith contact. The parameter

ϕ

is the shear deformation of the ring cross-section, and

t

denotes time.

The following assumptions are made in the derivation of the in-plane motion of a thick ring segment:

The ring cross-section remains unaltered.

The undeformed ring segment centreline follows a circular arc.

There are no boundary conditions applied to the ring segment.

Structural damping effect is neglected.

Method of solution

The coupled equations of motion (1) and (2) are solved together with equations (24) to (26) for the radial in-plane motion of the flexible outer ring using a combination of central finite difference method (FDM) and step-by-step Newmark linear acceleration technique. A mesh dependency study is carried out to ensure independence of the results from chosen mesh density.

The in-plane equations of motion are rearranged in order to obtain the equivalent mass (M) and stiffness (K) matrices (see Online Appendix A).

The formulation can then be used to obtain the natural frequencies of the flexible thick outer bearing ring system, where $M_{g}$ and $K_{g}$ represent the corresponding characteristic mass and stiffness matrices of the structure, thus:

|K_{g} - M_{g} λ_{n}| = 0

(27)

where:

λ_{n} = ω_{n}^{2}

(28)

The resultant mode shapes of the structure can then be found using:

(K_{g} - M_{g} λ_{n}) \{x_{n}\} = 0

(29)

where, the term

ω_{n}

represents the nth natural frequency of vibrations of the system, and

x_{n}

is its associated modal displacement vector.

In this manner the frequency response of the bearing includes the response of its outer flexible ring as well as the speed-dependent bearing frequencies due to cage rotation and its multiples.

Results and discussion

Validation of the thick ring methodology

It is essential to validate the expounded method with available experimental measurements.

Like other similar studies, the validation is carried out against the reported measurements of Kuhl.⁴⁵ Table 3 lists the specification of the thick circular ring in Kuhl⁴⁵ for which in-plane ring response was reported.

Table 3.

Material and dimensional properties of thick circular ring.⁴⁵

Parameter	Value	Unit
Ring radius	36.3	$m$
Ring width	17.4	$m$
Ring thickness	4	$m$
Young’s modulus	206.7	GPa
Poisson ratio	0.29	–
Density	7833	kg/m³

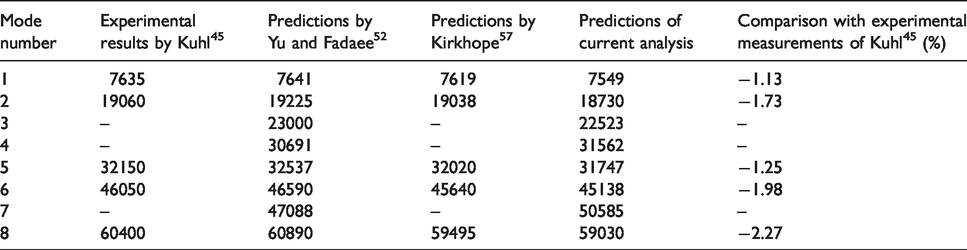

Table 4 lists the predicted results alongside the reported measurements of Kuhl.⁴⁵ A good agreement is observed between the predictions and measurements of Kuhl⁴⁵ (a maximum difference of 1.34%), as well as the analytical solutions of Kirkhope⁵⁷ and those of Yu and Fadaee,⁵² all using the same validation example. The complete ring analysed in Table 4 has a thickness-to-radius ratio of approximately 0.479, demonstrating the applicability of the theory to very thick rings for in-plane motions. Figure 3 shows the first three in-plane flexible mode shapes.

Table 4.

In-plane frequency response.

Mode number	Experimental results by Kuhl⁴⁵	Predictions by Yu and Fadaee⁵²	Predictions by Kirkhope⁵⁷	Predictions of current analysis	Comparison with experimental measurements of Kuhl⁴⁵ (%)
1	7635	7641	7619	7549	−1.13
2	19060	19225	19038	18730	−1.73
3	–	23000	–	22523	–
4	–	30691	–	31562	–
5	32150	32537	32020	31747	−1.25
6	46050	46590	45640	45138	−1.98
7	–	47088	–	50585	–
8	60400	60890	59495	59030	−2.27

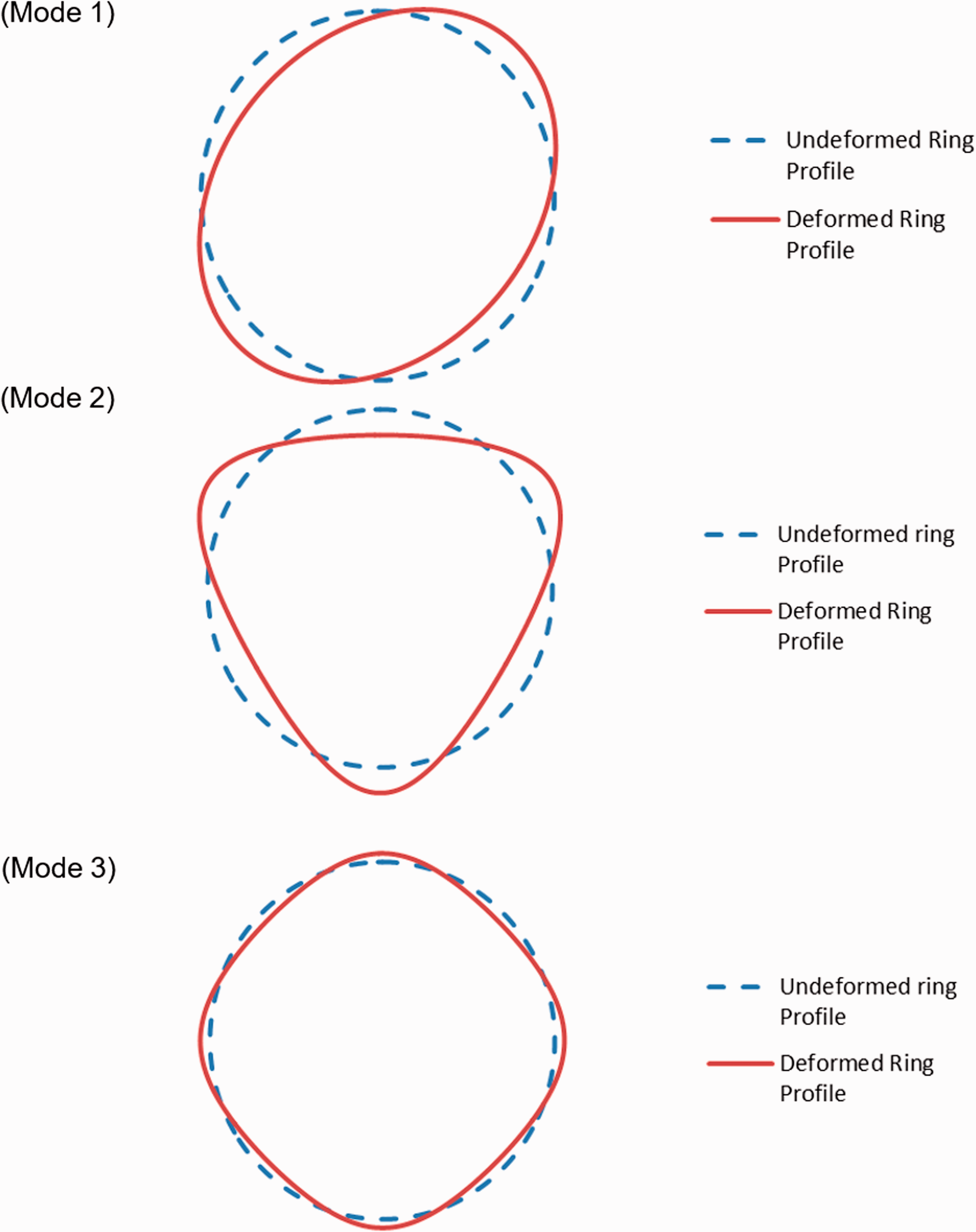

Figure 3.

First three predicted in-plane modes of the ring.

A closer look at the results in Table 4 indicates that the reported frequencies in this study slightly underpredict those reported by Kuhl.⁴⁵ The same trend can also be observed for the results reported by Kirkhope.⁵⁷ The results reported by Yu and Fadaee, however, seem to slightly overestimate the experimental results. Such variations between numerical and experimental results can also be observed elsewhere. For example, the results obtained by Gardner and Bert⁵⁸ also underpredict the same experimentally obtained frequencies, while the results reported by Lin and Soedel⁵⁹ underestimates some of experimental frequencies, and overpredicts some other such as those associated with mode numbers 2 and 3 by a very small amount of 0.09%. In the case of the current study, it is expected that the predicted results to improve further by, for instance, increasing the mesh density in the employed finite difference method. The experimental results would also vary with sampling time. Given these issues one can conclude that good agreement has been found.

Effect of flexible ring elastodynamics on radial ball bearing performance

Figure 4 shows a typical cyclic ball-to-races contact load in the radial transverse direction⁵ during a cage cycle with the assumption of rigid bearing rings. This is for the case of a radial interference fit of $C = - 5$ µm (in equation (4)), ensuring no emerging clearances in the bearing (i.e. all balls-to-races contacts are subject to compression with an applied load). An insufficient interference fit, or preload can result in the emergence of unloaded zones and lead to excess noise and vibration.

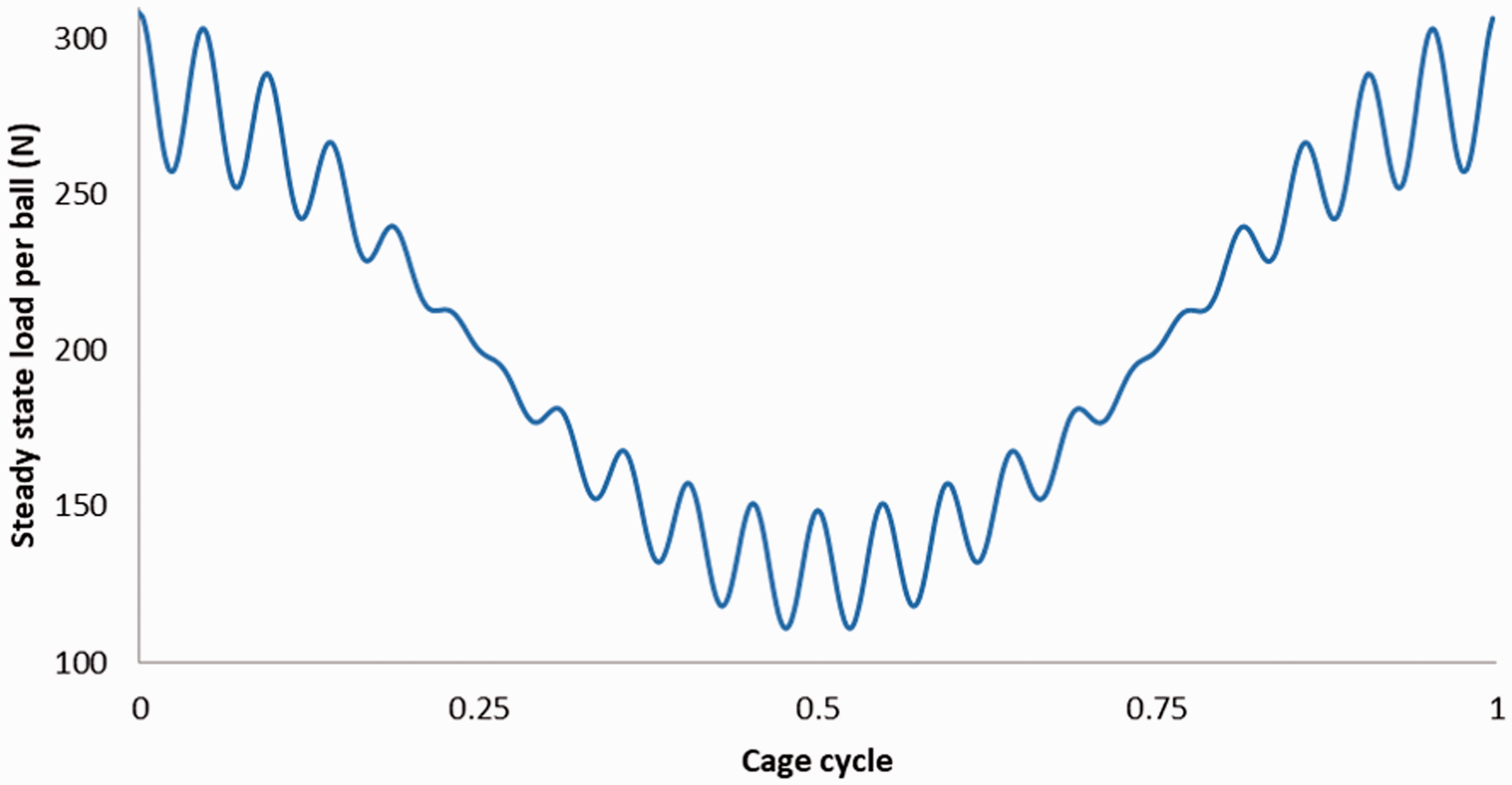

Figure 4.

Load per ball-to-races contact in a cage cycle.

The variation of contact load in a typical ball orbital motion results in bearing vibrations as a function of cage rotational speed as shown both analytically and experimentally by Wardle⁶ and Lynagh et al.,⁷ where: $f_{c} = \frac{f_{s}}{2} (1 - \frac{d_{b} \cos ϕ}{D_{P}}) = 13.3 Hz$ , where $d_{b}$ is the ball diameter and $D_{P}$ is the bearing pitch circle diameter. This corresponds to the predicted numerical bearing cage frequency of $13.27 Hz$ as highlighted in Figure 5.

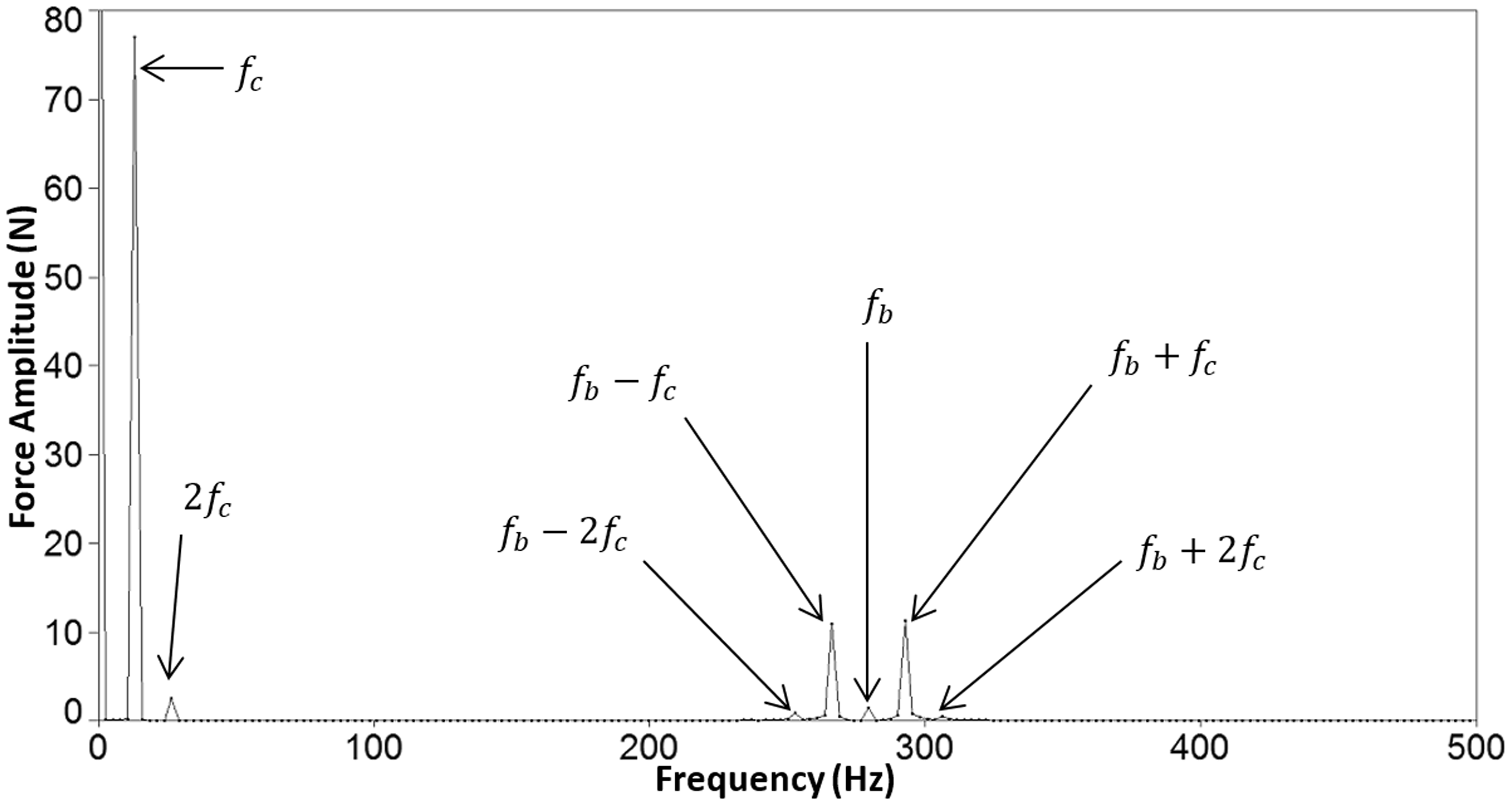

Figure 5.

Frequency spectrum of load per ball.

The spectrum of vibration can be obtained through fast Fourier transformation of several cage cycles as shown in Figure 5. The fundamental frequencies of the system occur, including $f_{b}$ , the base natural frequency of the system, which is dependent on bearing load and its dynamic stiffness, which is itself a function of number of balls and amount of interference fit or preload.^5,38 Cage frequency is the other main frequency of the system due to the repetitive cyclic cage rotations. Other contributions include multiples of cage frequency and its modulations with the system natural frequency. A greater number of harmonics of cage frequency occur with more defined (narrowed) loaded regions, which is not the case here. With very defined loaded regions (zero interference fit and emerging clearances), cage harmonics up to $N f_{c}$ (ball-pass frequency), where $N$ is the number of balls can appear in the bearing vibration spectrum, a phenomenon which is referred to as the variable compliance effect.^5,6,38 The ball-pass frequency is the speed of balls relative to a stationary outer race.

Applying the balls-to-races contact forces to the elastic outer ring model causes it to deflect around its circumference as demonstrated in Figure 6(a). The localised ring deflection contributes further to the localised contact deflection as indicated in equation (5), which in turn increases the load per ball in each cage cycle in equation (3). In effect, the global modal shape of a flexible outer ring increases the extent of interference fitting and contact loads. Figure 6(b) shows the resulting percentage increase in a typical ball-to-races contact deflection. In effect, the ring elastodynamics represents a form of elastic wave propagation represented as an elastic wavy surface of the outer race.

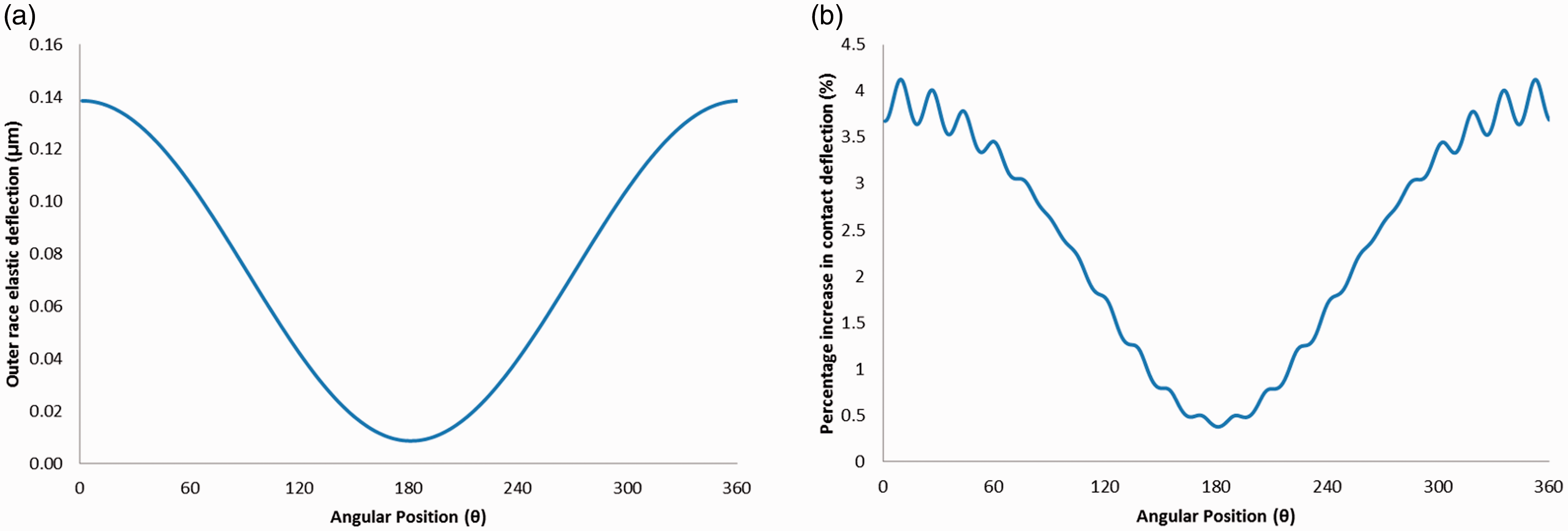

Figure 6.

(a) Modal outer elastic ring shape and (b) percentage rise in predicted contact deflection with a flexible outer race.

Figure 7(a) shows an increase in a ball contact load throughout a typical cage cycle. This is due to the in-plane radial deflection of the elastic outer ring. Owing to the contact stiffness non-linearity, the percentage increase in load per ball contact, as the result of ring deformation, can be as much as 6.25% (Figure 7(b)). This increase in contact load can compromise bearing performance through increased contact pressure, friction as well as wear and a rise in sub-surface stresses with the implication of reaching the onset of fatigue.

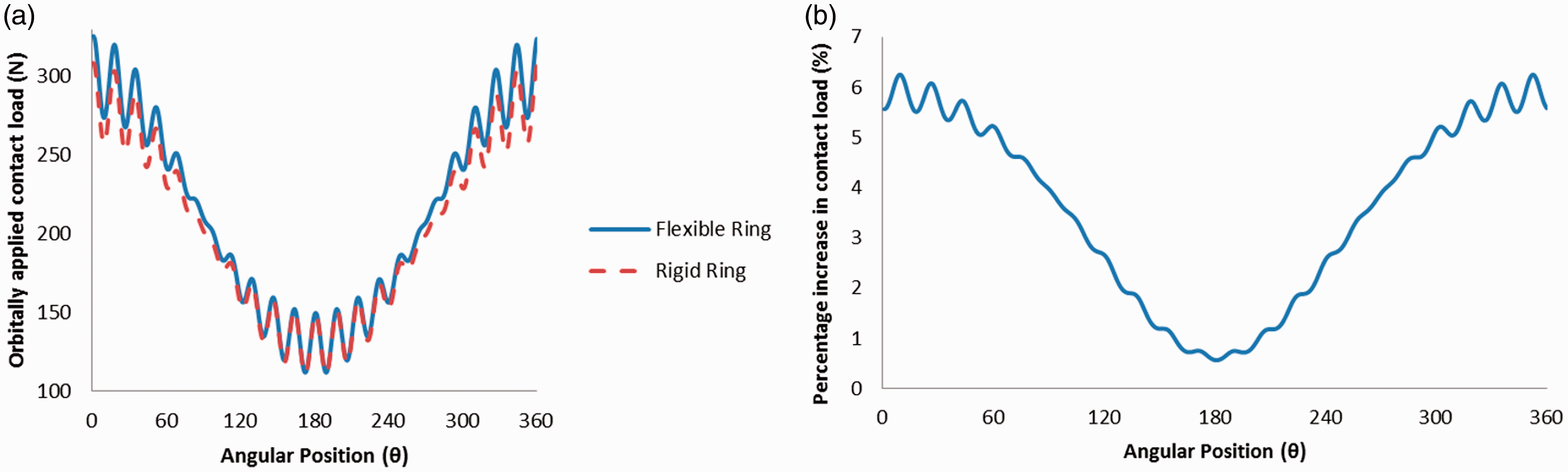

Figure 7.

(a) Contact load variation in a cage cycle for rigid and elastic outer races and (b) percentage increase in the predicted ball load in a cage cycle due to an elastic outer race.

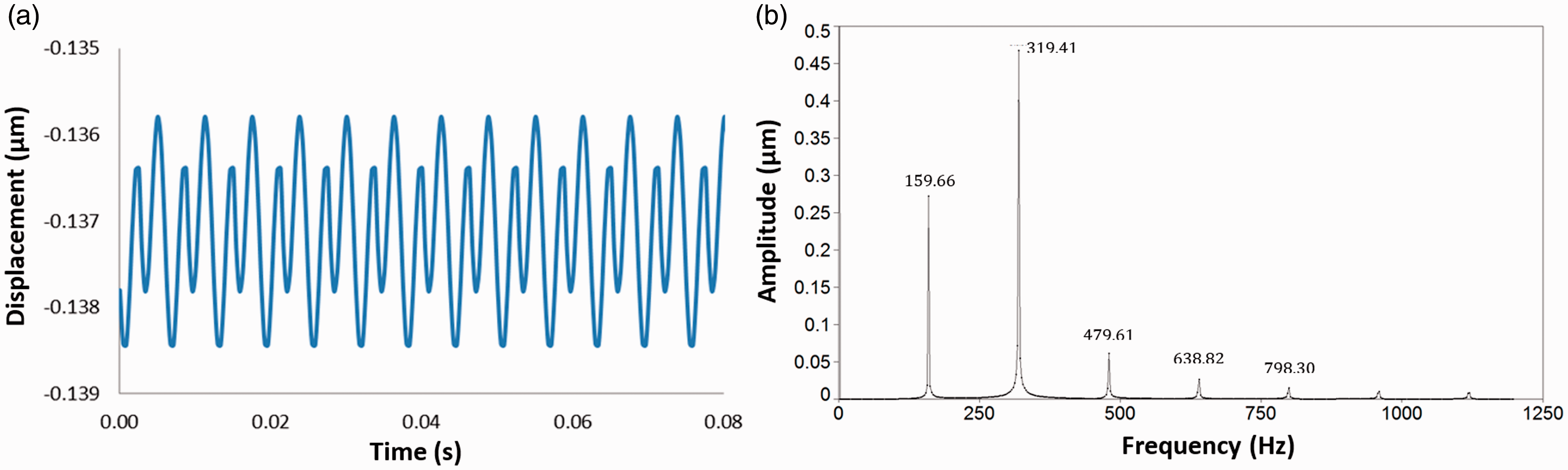

Figure 8(a) shows the displacement time history at the beginning of a bearing cycle (where the angular position $(θ = 0 °)$ represents the zero position in Figure 7(a)). If the shaft frequency coincides with another structural response frequency, then resonance would occur.

Figure 8.

Response at the beginning of the bearing cycle (point $θ = 0 °$ ): (a) displacement-time history and (b) frequency.

Premature resonance can occur well before any of the system component frequencies reach the rotor speed, as one would usually surmise. This occurs as any structural component would resonate with the ball pass frequency, which is at least an order of magnitude higher than the cage frequency, particularly with any emerging narrow loaded zone created by the deflection of an outer elastic ring, which is often ignored in any analysis. Therefore, an elastic ring behaviour demonstrated in Figure 8 can cause resonance orders of magnitude higher than that at the cage frequency or a given rotor speed (shaft out-of-balance frequency). For the case shown here the ball pass frequency is at 159.66 Hz and its harmonics occur at 319.41 Hz, 479.61 Hz, 638.82 Hz and 798.30 Hz respectively. These are clearly visible in the frequency analysis of the bearing centre displacement time history in Figure 8(b). The dominant frequency in Figure 8(b) is the second order of the ball pass frequency acting at ${2 f}_{r} = 319.2 H z$ . The global ring elastodynamic deflection demonstrated in Figure 6(a) can affect the cage frequency calculation of Lynagh et al.⁷ by altering the pitch diameter $(D_{P})$ . This can in turn alter the ball pass frequency through $f_{r} = N f_{c}$ .⁷ However, this is deemed to be negligible as the deflection in the ring $(\partial_{\max} = 0.14 μ m)$ is significantly smaller than the pitch circle diameter $(D_{P} = 56.3 mm)$ of the bearing.

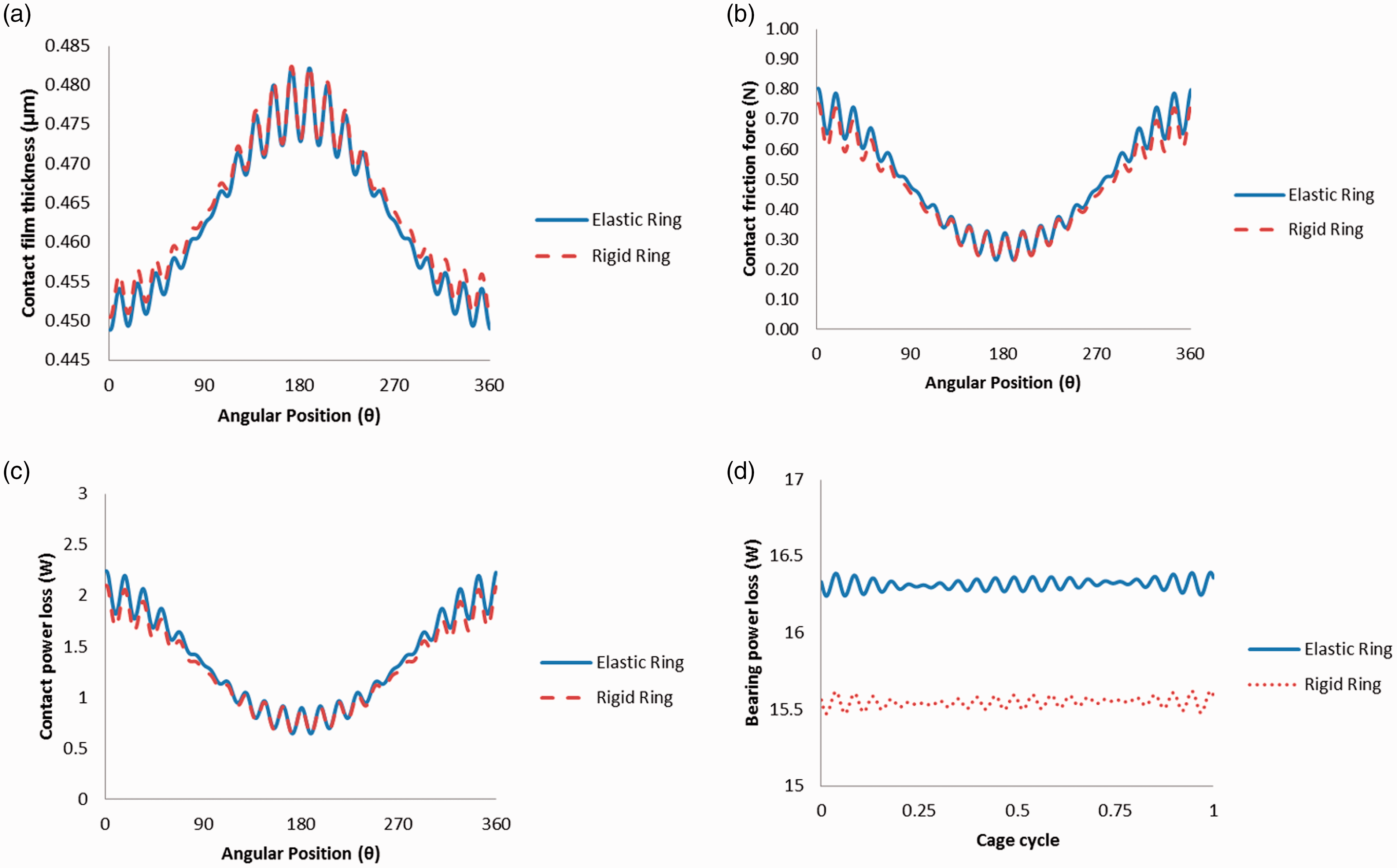

Figure 9(a) shows the time history of the predicted elastohydrodynamic lubricant film thickness for a ball-race contact in a steady state cage cycle. Any reduction in the film thickness results in an increase in friction, shown in Figure 9(b) with the associated power loss per cage cycle per ball contact shown in Figure 9(c). The total bearing power loss, comprising all the ball-to-races contacts is shown in Figure 9(d). This shows that an elastic outer ring increases the bearing power loss by approximately 4% (in the studied case). The fluctuations in bearing power loss, observed in Figure 9(d), is an additional source of vibration in any rotor-bearing system. Additionally, bearing reliability is of paramount importance. Any increased contact pressures and shear can lead to increased sub-surface stresses with increased chance of inelastic deformation.

Figure 9.

Rolling element variation in (a) lubricant film thickness, (b) friction loss, (c) power loss and (d) total bearing power loss.

There have been numerous studies into the fundamental mechanisms, affecting life of bearings. These include the distortion energy hypothesis known as the von Mises criterion, as well as he maximum shear stress hypothesis, known as the Tresca criterion. Broszeit and Zwirlein⁶⁰ and others^2,39,61 have shown that the alternating shear stress hypothesis should be used to predict the ultimate useful life of a bearing. The equivalent stress $(σ_{e})$ due to the alternating shear hypothesis is^62,63:

σ_{e} = 2 |τ_{zxm}|

(30)

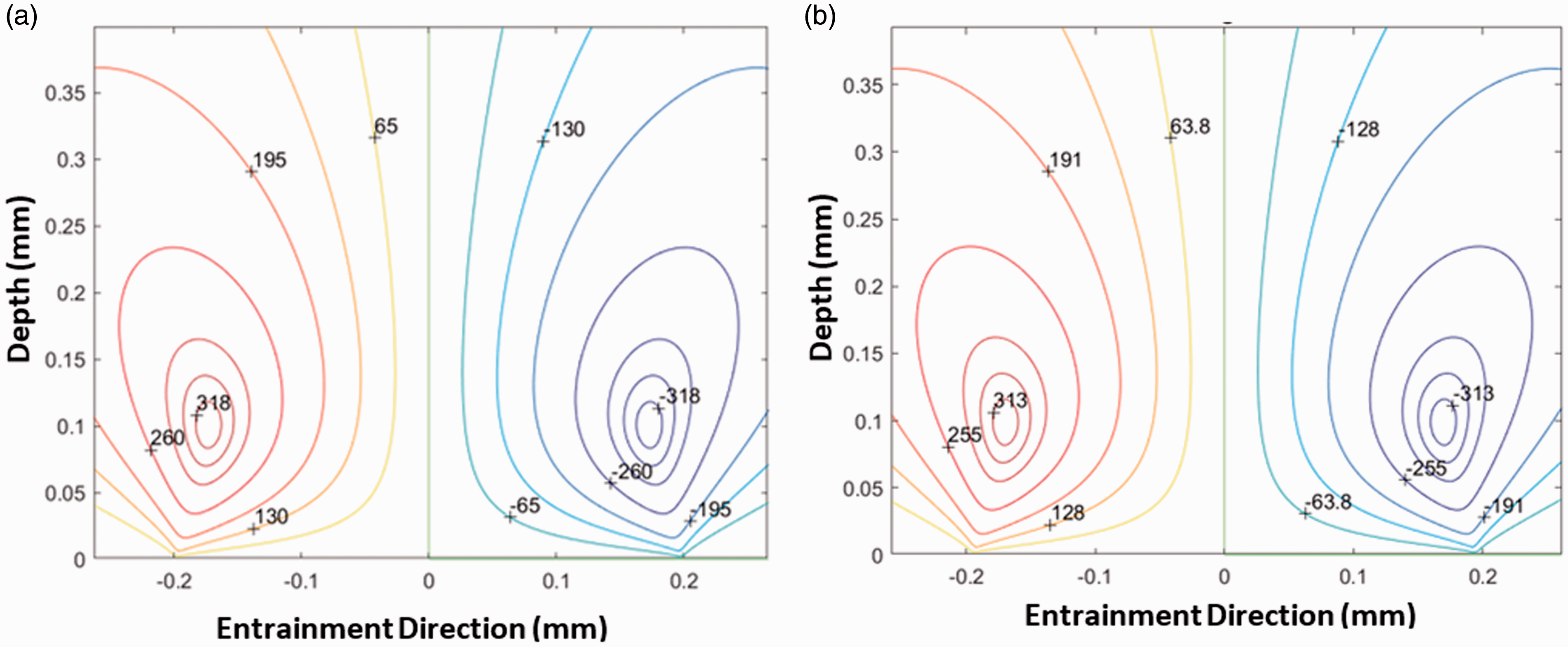

Figure 10 shows the sub-surface orthogonal reversing shear stresses ${\pm τ}_{zxm}$ . The cyclic compressive-tensile nature of these stresses is often responsible for the failure of contacting surfaces. The results in Figure 10 show an increase of 3.2% in the double amplitude of orthogonal shear, indicating a slight deterioration in the contact conditions due to increased contact deformation because of a flexible outer ring.

Figure 10.

Orthogonal reversing shear stress (MPa) distribution for an (a) elastic ring and (b) rigid ring.

The lifetime power loss for the bearing can be predicted based on the usual assumption of 10% bearing failures due to fatigue after 2 million cycles and approximately 50% failure after 10 million cycles.³⁹ These are shown for the cases of an assumed rigid as well as the more realistic flexible outer race in Figure 11. The results are obtained by evaluating the lubricant viscosity at an assumed operational temperature of 60 °C. The results indicate that the cumulative effect of ring elasticity over a large number of cycles is marginal, but not insignificant (4% increase in power loss per bearing cycle), considering the ubiquitous nature of bearings in all forms of rotating machinery. However, such a relatively small difference in the predictions for one cycle can result in considerable differences in the prediction of the consumed lifetime power by the bearing. For instance, based on the results in Figure 11, the difference for a bearing during a nominal lifespan of 10 million cycles, which is expected for 50% of all bearings, can accumulate to approximately 0.16 kWh rotating at a cage speed of 13.3 Hz. The associated power loss would significantly increase in high speed applications.

Figure 11.

Bearing power loss for a single cycle.

Optimisation of the elastic ring can improve the system efficiency in applications where the bearing weight is negligible such as in fixed rotating machinery. The outer race or housing can be optimised to reduce the losses associated with their flexibility. In applications where the machine is not fixed, such as the automotive industry, both the bearing weight and the power loss due to the flexible ring should be optimised in concert.

Important geometrical design parameters for the bearing outer race are its outer diameter $d_{0}$ , bearing width, $a_{0}$ and the race radial thickness, $b_{0}$ . These geometric properties can play an important role in the bearing total power loss per cycle, the outer ring maximum deflection and frequency response as shown in Figure 12. The pitch circle diameter of the bearing remains unaltered for the bearing outer race throughout the geometric parametric study. The original ring parameters are listed in Table 2 as $d_{0}$ , $a_{0}$ and $b_{0}$ . The non-dimensional parameter, $d^{*}$ represents the ratio of altered ring parameter to its original value.

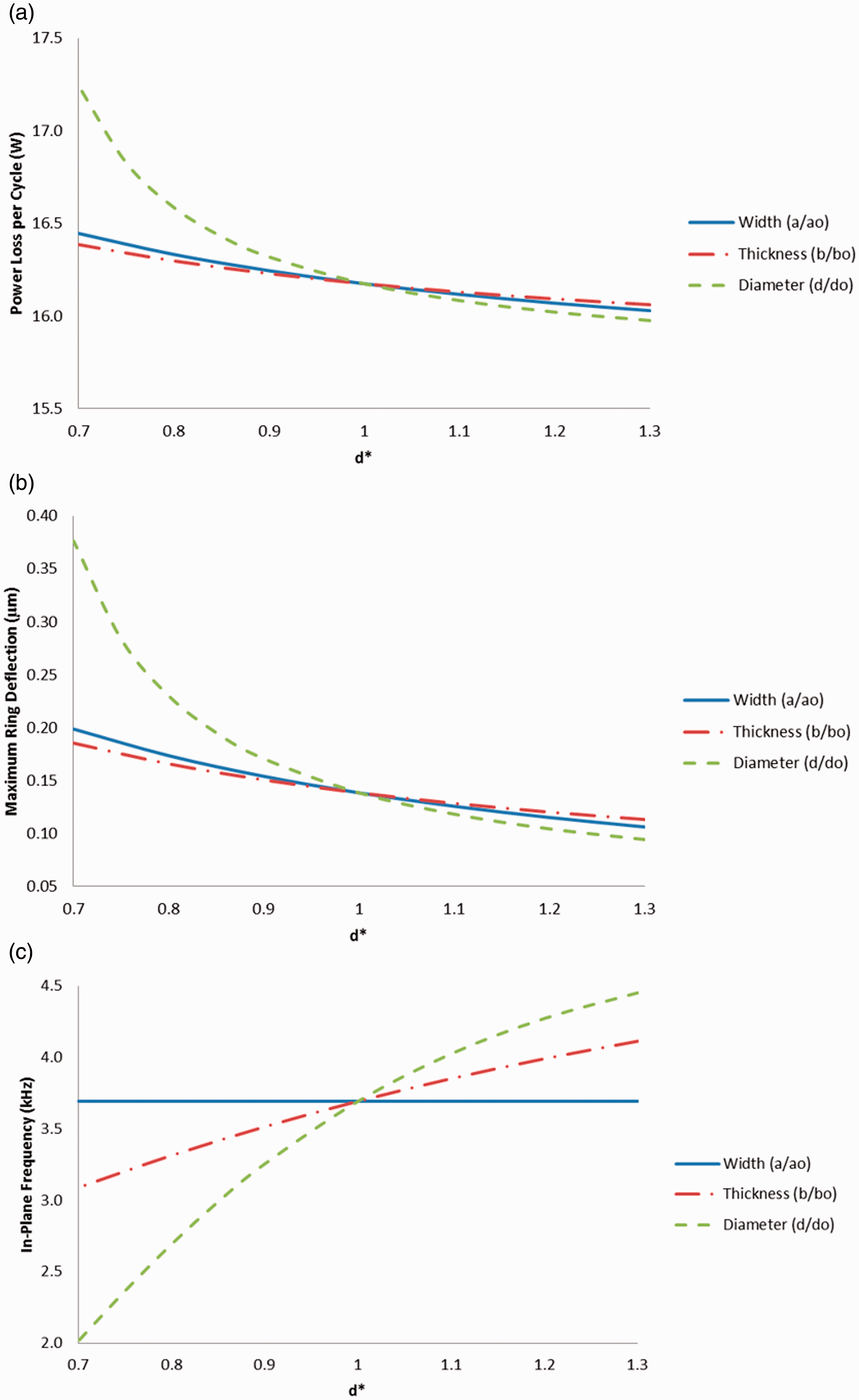

Figure 12.

Dimensionless design parameter analysis: The effect of geometric properties on tric properties on (a) power loss per cycle (b) maximum deformation and (c) in-plane frequency of the ring.

Figure 12 shows the effect of geometric parameters of the outer race power loss per cycle (a), deformation (b) and its in-plane frequency response (c) of the radial deep groove ball bearing. Optimisation of the outer ring allows the total power loss per cycle to be reduced by 1.25%, which subsequently reduces the running energy costs and the corresponding carbon emissions. It is important to note that in certain applications, the additional weight may compromise the predicted energy savings. The results also show that the maximum deflection, hence the generated wavy surface of the elastic ring can be altered to change the bearing response and increase the useful working life of the bearing. It is important to note that although the rings deflection can be minimised through an increase in its diameter, width and thickness, both its deflection and the wavy structural response is still evident. It is also important to note that for high performance applications reductions in the diameter, width and thickness may cause significant increases in the ring deflection.

To avoid a compromise in performance it is important to ensure that the bearing outer ring resonant frequencies do not coincide with the bearing operational frequencies. For the case of the bearing in Table 2, a moderately packed ball complement arrangement comprises 12 balls and for a tightly packed arrangement there are 14 balls. Therefore, the tightly packed arrangement can excite the resonance frequency of the bearing at lower operational frequencies than the moderately packed one. The bearing outer race needs to be designed so that its operational structural modal frequencies are outside any system excitation frequency. The excitation frequency is primarily provided by the shaft rotation frequency, but other source of vibration can excite the structure as well, such as multiples of cage frequency and surface waviness of the bearing outer race. Figure 12(c) demonstrates the effect of different geometric properties on the outer ring resonant frequencies. It can be seen that the radius has the most effect compared with its thickness. The ring width does not affect the in-plane frequency response of the structure. Unfortunately, the shift in frequency response is associated with a shift in bearing outer race ring deflection as demonstrated in Figure 12(b). Therefore, it is important that these two design factors are considered together in an integrated approach. Ring width is an important geometric parameter in that it has no effect on the structural resonance frequency, but it can be used to reduce the maximum deflection and power loss due to the outer flexibility.

It is noteworthy that in certain applications the radial bearing can also accommodate an axial load. Furthermore, thrust bearings mainly support axial loads but can also accommodate for radial loads. In applications where the radial load is accompanied by axial loading it is important that the out-of-plane ring frequency is also considered.

Concluding remarks

The total power consumption per revolution is shown to increase when the flexibility of bearing rings or housing is taken into account (approximately 4% for the case studied under isothermal conditions). Therefore, the predicted power loss in motors, rotors and gearboxes where bearings are used in abundance increase with realistic bearing models such as the one presented in this study. The study also shows that flexibility of the ring enables optimisation of bearing performance through selection of appropriate geometrical parameters. A geometric investigation has shown that the losses induced by an elastic outer ring can be reduced by up to 1.25%. This can provide significant power savings through the lifetime of systems, especially with the abundance of bearings in almost 95% of all machines and mechanisms.

Flexible ring dynamics causes surface waviness of the bearing raceway through global elastic wave propagation. This has not hitherto taken into account in the rollers-to-raceway contact dynamics, all of which have generally considered that the contacts are only localised, subject to Hertzian deflection. Furthermore, the elastodynamic behaviour of the ring reduces the elastohydrodynamic film thickness which in turn affects a number of fundamental ball bearing performance attributes such as, contact friction, wear, fatigue behaviour, vibration, noise and inefficiency. The ball bearing model could be expanded to include thermal effects of the lubricant using for example an analytical thermal network model. Inclusion of contact damping as well as structural damping of the flexible bearing rings would also improve the practicality of the methodology. However, it should be noted that under elastohydrodynamic regime of lubrication with an adequately interference fitted/preloaded bearing, damping due to lubricant action has been shown to be insignificant.^64,65 The main source of contact damping would be due to material hysteresis in localised deformation.⁶⁶

Supplemental Material

sj-pdf-1-pik-10.1177_1464419320951398 - Supplemental material for The effect of outer ring elastodynamics on vibration and power loss of radial ball bearings

Supplemental material, sj-pdf-1-pik-10.1177_1464419320951398 for The effect of outer ring elastodynamics on vibration and power loss of radial ball bearings by R Turnbull, R Rahmani and H Rahnejat in Proceedings of the Institution of Mechanical Engineers, Part K: Journal of Multi-body Dynamics

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors gratefully acknowledge the financial support of the Engineering and Physical Sciences Research Council (EPSRC) under the Centre for Doctoral Training in Embedded Intelligence; grant reference EP/L014998/1 as well as AVL List GmbH.

ORCID iDs

R Turnbull

R Rahmani

Supplemental Material

Supplemental material for this article is available online.

References

Harris

TA.

Rolling bearing analysis. Hoboken: John Wiley and Sons, 2001.

Johns-Rahnejat

Gohar

Point contact elastohydrodynamic pressure distribution and sub-surface stress field. In: Rahnejat H and Whalley R (eds) International tri-annual conference on multi-body dynamics: monitoring and simulation techniques, Bradford, UK, 25–27 March 1997, pp.161–177. London: Mechanical Engineering Publications.

Rubini

Meneghetti

Application of the envelope and wavelet transform analyses for the diagnosis of incipient faults in ball bearings. Mech Syst Signal Process 2001; 15: 287–302.

Yhland

A linear theory of vibrations caused by ball bearings with form errors operating at moderate speed. J. Tribol 1992; 114: 348–359.

Rahnejat

Gohar

The vibrations of radial ball bearings. Proc IMechE, Part C: J. Mechanical Engineering Science 1985; 199: 181–193.

Wardle

FP.

Vibration forces produced by waviness of the rolling surfaces of thrust loaded ball bearings part 1: theory. Proc IMechE, Part C: J. Mechanical Engineering Science 1988; 202: 305–312.

Lynagh

Rahnejat

Ebrahimi

, et al. Bearing induced vibration in precision high speed routing spindles. Int J Mach Tools Manuf 2000; 40: 561–577.

Kim

Lee

SK.

Prediction of thermo-elastic behavior in a spindle–bearing system considering bearing surroundings. Int J Mach Tools Manuf 2001; 41: 809–831.

Grujičić

Tomović

Mitrović

, et al. The analysis of impact of intensity of contact load and angular shaft speed on the heat generation within radial ball bearing. Therm Sci 2016; 20: 1765–1133.

10.

Kushwaha

Rahnejat

Transient concentrated finite line roller-to-race contact under combined entraining, tilting and squeeze film motions. J Phys D Appl Phys 2004; 37: 2018–2034.

11.

Sunnersjö

CS.

Varying compliance vibrations of rolling bearings. J Sound Vib 1978; 58: 363–373.

12.

Meyer

Ahlgren

Weichbrodt

An analytic model for ball bearing vibrations to predict vibration response to distributed defects. J Mech Des 1980; 102: 205–210.

13.

Aini

Rahnejat

Gohar

A five degrees of freedom analysis of vibrations in precision spindles. Int J Mach Tools Manuf 1990; 30: 1–18.

14.

Liu

Yang

On the thermal elastohydrodynamic lubrication of tilting roller pairs. Tribol Int 2013; 65: 346–353.

15.

Kushwaha

Rahnejat

Gohar

Aligned and misaligned contacts of rollers to races in elastohydrodynamic finite line conjunctions. Proc IMechE, Part C: J. Mechanical Engineering Science 2002; 216: 1051–1070.

16.

Najjari

Guilbault

Edge contact effect on thermal elastohydrodynamic lubrication of finite contact lines. Tribol Int 2014; 71: 50–61.

17.

Rahnejat

Johns-Rahnejat

Teodorescu

, et al. A review of some tribo-dynamics phenomena from micro to nano-scale conjunctions. Tribol Int 2009; 42: 1531–1541.

18.

Randall

RB.

Optimisation of bearing diagnostic techniques using simulated and actual bearing fault signals. Mech Syst Signal Process 2000; 14: 763–788.

19.

Sopanen

Mikkola

Dynamic model of a deep-groove ball bearing including localized and distributed defects. Proc IMechE, Part K: J Multi-body Dynamics 2003; 217: 201–211.

20.

Patel

Naik

BS.

Nonlinear vibration prediction of cylindrical roller bearing rotor system modeling for localized defect at inner race with finite element approach. Proc IMechE, Part K: J Multi-body Dynamics 2017; 231: 647–657.

21.

Vafaei

Rahnejat

Aini

Vibration monitoring of high speed spindles using spectral analysis techniques. Int J Mach Tools Manuf 2002; 42: 1223–1234.

22.

Ghaisas

Wassgren

Sadeghi

Cage instabilities in cylindrical roller bearings. J Tribol 2004; 126: 681–689.

23.

Gao

Wang

, et al. Influences of bearing housing deflection on vibration performance of cylinder roller bearing–rotor system. Proc IMechE, Part K: J Multi-body Dynamics 2013; 227: 106–114.

24.

Liu

Shao

Dynamic modelling of a rotor-bearing-housing system including a localized fault. Proc IMechE, Part K: J Multi-body Dynamics 2018; 232: 385–397.

25.

Gupta

PK.

Dynamics of rolling-element bearings—part I: cylindrical roller bearing analysis. J Lubr Tech 1979; 101: 293–302.

26.

Gupta

PK.

Dynamics of rolling-element bearings—part IV: ball bearing results. J. Lubr Tech 1979; 101: 319–326.

27.

Rahnejat

Rothberg

(eds). Multi-body dynamics: monitoring and simulation techniques III. Hoboken: John Wiley & Sons, 2004.

28.

Mohammadpour

Johns-Rahnejat

Rahnejat

Roller bearing dynamics under transient thermal-mixed non-Newtonian elastohydrodynamic regime of lubrication. Proc IMechE, Part K: J Multi-body Dynamics 2015; 229: 407–423.

29.

Cavallaro

Nelias

Bon

Analysis of high-speed intershaft cylindrical roller bearing with flexible rings. Tribol Trans 2005; 48: 154–164.

30.

Aramaki

Shoda

Morishita

, et al. The performance of ball bearings with silicon nitride ceramic balls in high speed spindles for machine tools. J Tribol 1988; 110: 693–698.

31.

Leblanc

Nelias

Defaye

Nonlinear dynamic analysis of cylindrical roller bearing with flexible rings. J Sound Vib 2009; 325: 145–160.

32.

Daidié

Chaib

Ghosn

3D simplified finite elements analysis of load and contact angle in a slewing ball bearing. J Mech Des 2008; 1300: 82601.

33.

Olave

Sagartzazu

Damian

, et al. Design of four contact-point slewing bearing with a new load distribution procedure to account for structural stiffness. J Mech Des 2010; 1320: 21006.

34.

Lacroix

Naslias

Leblanc

Four-point contact ball bearing model with deformable rings. J Tribol 2013; 135: 031402.

35.

Wagner

Krinner

Thümmel

, et al. Full dynamic ball bearing model with elastic outer ring for high speed applications. Lubricants 2017; 5: 17.

36.

Chidamparam P and Leissa AW. Vibrations of Planar Curved Beams, Rings, and Arches. ASME. Appl. Mech. Rev 1993; 46(9): 467–483.

37.

Timoshenko

SP.

On the correction for shear of the differential equation for transverse vibrations of prismatic bars. Lond Edinb Dublin Philos Mag J Sci 1921; 41: 744–746.

38.

Rahnejat

Computational modelling of problems in contact dynamics. Eng Anal 1985; 2: 192–197.

39.

Gohar

Rahnejat

Fundamentals of tribology. Singapore: World Scientific Publishing Company, 2012.

40.

Hoffmann

Rahnejat

Constrained multi-body dynamic analysis of shaft and bearing systems. In: Vibration and control of mechanical systems, 2001. Presented at the 2001 ASME international mechanical engineering congress and exposition, 11–16 November 2001, New York.

41.

Whittemore

Petrenko

SN.

Friction and carrying capacity of ball and roller bearings (Technical Paper 201). Washington: National Bureau of Standards, 1921.

42.

Hamrock

Dowson

Isothermal elastohydrodynamic lubrication of point contacts: part III—fully flooded results. J Lubr Technol 1977; 99: 264–275.

43.

Briscoe

Evans

DCB.

The shear properties of Langmuir–Blodgett layers. Proc R Soc Lond A 1982; 380: 389–407.

44.

Eyring

Viscosity, plasticity, and diffusion as examples of absolute reaction rates. J Chem Phys 1936; 4: 283–291.

45.

Kuhl

Messungen zu den Theorien der Eigenschwingungen von Kreisringen beliebiger Wandstärke. Doctoral Dissertation, Berlin Technical, Hirzel, 1941.

46.

Seidel

Erdelyi

EA.

On the vibration of a thick ring in its own plane. J Eng Ind 1964; 86: 240–244.

47.

Rao

Sundararajan

In-plane flexural vibrations of circular rings. J Appl Mech 1969; 36: 620–625.

48.

Rao

SS.

Effects of transverse shear and rotatory inertia on the coupled twist-bending vibrations of circular rings. J Sound Vib 1971; 16: 551–566.

49.

Peterson

RE.

An experimental investigation of ring vibration in connection with the study of gear-noise. Trans ASME 1930; 52: APM-52.

50.

Chidamparam

Leissa

AW.

Vibrations of planar curved beams, rings, and arches. Appl Mech Rev 1993; 46: 467–483.

51.

Tufekci

Dogruer

OY.

Out-of-plane free vibration of a circular arch with uniform cross-section: exact solution. J Sound Vib 2006; 291: 525–538.

52.

Fadaee

A comprehensive model for in-plane and out-of-plane vibration of CANDU fuel endplate rings. Nucl Eng Des 2016; 304: 19–29.

53.

Baker

Theodossiades

Rahnejat

, et al. Influence of in-plane dynamics of thin compression rings on friction in internal combustion engines. J Eng Gas Turbines Power 2012; 1340: 92801.

54.

Bhouri

Tian

Curved beam based model for piston-ring designs in internal combustion engines: working engine conditions study (SAE Technical Paper, Pap. No. 2018-011277). Warrendale: SAE International, 2018.

55.

Baker

Theodossiades

Rahmani

, et al. On the transient three-dimensional tribodynamics of internal combustion engine top compression ring. J Eng Gas Turbines Power 2017; 1390: 62801.

56.

Rao

SS.

Vibration of continuous systems. Hoboken: John Wiley & Sons, 2019.

57.

Kirkhope

In-plane vibration of a thick circular ring. J Sound Vib 1977; 50: 219–227.

58.

Gardner

Bert

CW.

Vibration of shear deformable rings: theory and experiment. J Sound Vib 1985; 103: 549–565.

59.

Lin

Soedel

On general in-plane vibrations of rotating thick and thin rings. J Sound Vib 1988; 122: 547–570.

60.

Broszeit

Zwirlein

Internal stresses and their influence on material stresses in Hertzian contacts—calculations with different stress hypotheses. J Tribol 1986; 108: 387–393.

61.

Kannel

Tevaarwerk

JL.

Subsurface stress evaluations under rolling/sliding contacts. J Tribol 1984; 106: 96–103.

62.

Johns-Rahnejat

PM.

Pressure and stress distribution under elastohydrodynamic point contacts. PhD Thesis, Imperial College of Science and Technology, University of London, UK, 1988.

63.

Rahnejat

Rahmani

Mohammadpour

, et al. Tribology of power train systems. In: George ET (ed.) ASM handbook, volume 18, friction, lubrication, and wear technology. Cleveland: ASM International, 2017, pp. 916–931.

64.

Dareing

Johnson

KL.

Fluid film damping of rolling contact vibrations. J Mech Eng Sci 1975; 17: 214–218.

65.

Mehdigoli

Rahnejat

Gohar

Vibration response of wavy surfaced disc in elastohydrodynamic rolling contact. Wear 1990; 139: 1–5.

66.

Hunt

Crossley

FRE.

Coefficient of restitution interpreted as damping in vibroimpact. J Appl Mech 1975; 42: 440–445.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.07 MB
