Abstract

In this study, the design of adaptive backstepping sliding mode control (ABSMC) has been developed for vibration suppression of earth-quaked building supported by magneto-rheological (MR) damper. The control and adaptive laws developed based on ABSMC methodology has been established according to stability analysis based on Lyupunov theorem. A Single degree of freedom (SDOF) building system has been considered and the earthquake acceleration data used in performance analysis of the proposed controller is based on El Centro Imperial Valley Earthquake. The ABSMC has been compared to classical sliding mode control in terms of vibration suppression in the controlled system subjected to earthquake. The performance of proposed controller has been assessed via computer simulation, which showed its effectiveness to stabilize the building against earthquake vibration and the boundness of estimated stiffness and viscosity coefficients.

Keywords

Earthquake vibration structural building adaptive control backstepping control sliding mode control

Introduction

Earthquakes are responsible for the destruction and severe damage to buildings and structures because of their peak accelerations.¹ They are one of the most destructive natural hazards that cause great loss of life (10,000 people die each year due to earthquakes). In Algeria, for example, the EL-Asnam earthquake of 10 October 1980 with a magnitude of 7.2 destroyed at least 25,000 housing units and made 300,000 people homeless, while the main shock had killed about 2500 peoples.² Over the past few decades, safety of structural systems against earthquake motions is one of the most important challenges in the life cycle of a building. Therefore, the control of structural vibration mitigation has attracted several researchers from theoretical and experimental side.³

A passive control system consists of devices attached to a structure without requiring an external power source to operate with limited control performance. This technology is dedicated to reinforce or modify the stiffness and damping of building structure. On the other hand, the active control system requires large external power source. They show better performance than passive systems, but on the price of reliability and cost. Semi-active control systems are class of active control systems with small external energy requirements which can in real-time tracked the motion of structure to develop the control forces guarantying the structure stability. Recently, many control algorithms and semi-active devices have been investigated for earthquake hazard mitigation especially magneto-rheological (MR) dampers due to their numerous advantages. The MR dampers are smart devices with synthetic fluids changing their viscosity from liquid to semi-solid state in milliseconds if an electric or magnetic field is applied, low-power requirements, mechanical simplicity, low cost, high dynamic range, and very fast excellent control effect responses.²

The control strategies applied to control MR dampers for structural vibration mitigation are ranged in two classes. The first one is the classical category which requires a mathematical model based on Lyapunov stability.³ The second one is the intelligent category which does not require a mathematical model of the system.⁴ Another category called a hybrid control is the combination of the tow precedents categories.⁵

Many researchers have presented different control strategies to address the vibration control problem in structures suffering from earthquakes. The following researches interviews the recent control strategies designed to mitigate the impact of vibration on earth-quaked systems.

Zizouni et al. proposed a robust Linear Quadratic Regulator (LQR) for semi-active control of three-story structure supported by MR damper. The control design is devoted to both suppressing the seismic vibration and minimizing the input energy of the MR damper.² In Ref. 1, Çetin et al. designed an adaptive controller for vibration suppression of structural system against earthquake excitation and wind loading based on a semi-active MR damper. The unmeasurable internal state variables are estimated using nonlinear observer. Royel et al. developed a nonlinear control design based on second-order sliding mode control to inhibit the external earthquakes or dynamic loadings for smart structures, which is integrated with MR fluid damper.⁶ In Ref. 7, Zizouni et al. neural network controller to mitigate the vibrations of 3-story scaled structure. The control methodology is based on linear quadratic (LQ) control for actuating the MR damper. A clipped optimal algorithm is combined with the proposed controller to adapt the control voltage fed to the MR damper. In Ref. 8, Guclu has combined robust sliding mode control (SMC) and proportional integral derivative controller for active-seismic control of multi-degree-of-freedom structural system against earthquakes to suppress the building vibrations. Khalatbarisoltani et al. proposed reinforcement learning-based controller for active structural control systems subjected to seismic uncertainties. The control methodology is based on online tuning the gain‐scheduling PD fuzzy controller. A state predictor is combined with proposed controller to solve the time delay problem.⁹ Chen and Lai have combined a transfer system with a modern control strategy for shaking tables in order to mimicking the responses of high-rise buildings subjected to earthquakes. Three nonlinear controllers and three linear controllers are designed and synthesized to verify the feasibility and applicability of the proposed strategy.¹⁰ In Ref. 11, Afkham and Ehteram have deigned sliding mode control for nonlinear-modeled buildings in the presence of earthquakes. The proposed controller could significantly reduce the floor displacements of building under earthquakes. Schlacher et al. presented a class of a hybrid control systems for earth-quaked high-raised buildings based on passive base isolation supported by active damper. The control law has been designed to solve the disturbance decoupling problem by approximation. The stability of controlled system has proven based on Liypunov theory and dissipative systems to yield robust control against seismic vibration.¹² Chang and Sung presented a neuro-control algorithm based on structural modal energy for a 3-story nonlinear building supplied with active mass damper to suppress the earthquake vibration. The control algorithm showed more effectiveness in reducing the structural response and modal energy as compared to non-controlled response and a multilayer perceptron.¹³ In Ref. 14, Shan et al. proposed model reference adaptive control to reduce the effect of earthquake to excited structures. The adaptive control law is developed based on backstepping theory and the stability of controlled system was analyzed considering a little prior knowledge of structural model and parametric effects due to actuator saturation and the switching delay. In Ref. 15, Alli and Yakut have designed fuzzy sliding-mode control (FSMC) for seismic isolation of 8-story shear building excited by earthquake. The FSMC could remove the chattering effect without losing the robustness against parametric uncertainties, modeling inaccuracies and varying dynamic loads. In Ref. 16, A. Rayegani and G. Nouri have investigated the performance of MR damper to prevent seismic pounding in isolated buildings with different gap distances. For each gap distance, the fuzzy logic control of MR damper has been optimized to prevent pounding and to improve the behavior of structure as compared to isolated pounded building. In Ref. 17, Li et al. presented an adaptive model reference sliding model control design to suppress the vibrations of a multi-degree-of freedom nonlinear structure supported with active-mass damper subjected to earthquake excitation. A modified unscented Kalman filter is developed to adaptively identify the unknown states and parameters necessary for control forces. Yao et al. have applied a semi-active control based on MR damper to a vehicle suspension system. Firstly, MR damper has been designed and tested in flow mode and a Bouc-Wen model was adopted to characterize the performance of designed damper. The coefficients of the damper have been optimized numerically and experimentally. The semi-active control strategy together with MR damper has been applied to vibration control of suspension vehicle.¹⁸ In Ref. 19, Saidi A et al. proposed an adaptive sliding mode control for vibration mitigation of scaled three-story building structure supported by MR damper fixed at ground floor. A comparison study has been conducted between controlled and uncontrolled structures subjected to the same excitation of earthquake. In Ref. 20, Yuksel H. and Nurkan Y. have presented adaptive backstepping control design for vibration suppression of uncertain nine-story building structure. The building is supported by tuned mass damper established on the top floor. The stability of controlled building model is guaranteed and the effectiveness of controller has been verified. In Ref. 21, Fali L et al. presented sliding mode control design based on adaptive gain law for controlling the vibration of three-story scaled structure subjected to earthquake excitation. The structure is equipped with semi-active device (MR damper) which is fed by required force control to suppress unwanted vibrations of shaking structure. A Clipped optimal algorithm is applied for commanding the current driver.

The Variable Structure Control with Sliding Mode Control (SMC) was developed by Emelyanov and his team assistances in the early 1950’s. The SMC methodology is an effective tools which it aims to design a controller for a nonlinear, complex, high order and time varying systems in the presence of certain or uncertain parameters variations and external disturbances.^22,23 The main advantage of the SMC that it is low sensitive for system parameters variations and disturbances which restricted the necessity of exact modeling.²⁰ The SMC replaces the dynamics of a system by application of a discontinuous control signal that forces the system to slide along a stable manifold known as sliding surface.^24,25

The SMC introduces control law which can be distributed into two main parts (equivalent part and switching part). The equivalent part deals with dynamic of the system and sliding surface such as to conduct the trajectory of the states toward the sliding surface. The switching part of control signal is responsible for driving states trajectory to equilibrium point by maintaining the dynamics of the system onto the sliding surface.^26,27 In the control action of the SMC, there is undesired phenomena known as chattering, which is caused by the high frequency oscillation of the sliding variable around the sliding surface, and it is one problem in using sliding mode technique.²⁷

The backstepping control procedure depends on the concept of simplifying the complex nonlinear system by decomposing it into lower orders subsystems.^28,29 This is based on the fact that in each equation of the system mathematical model and subsystem, one of the coordinates acts as a virtual, and this coordinate has to appear in an affine way in each equation.³⁰ It is a nonlinear control method based on the Lyapunov theorem with advantage of design flexibility because of the recursive use of Lyapunov functions.³¹ The combination of sliding mode control and backstepping control can simplify the design of backstepping controller, also enhanced the robustness of the controller and the overall system to the undesired external disturbances.³² In addition, it has been shown that the chattering effect in using SMC is considerably reduced by fusing both SMC and backstepping control.

In the practical applications, the problem with the presence of uncertainty, external disturbances or unwanted vibration is that their bounds cannot be determined precisely. The adaptive control technique is used to adapt the parameters of controller such as to cope with these uncertainties, disturbances or vibration such as to keep the controlled systems within stability margins.^33–36

One critical problem with building systems subjected to earthquakes is that their parameters such as spring and viscosity coefficients encounter evitable variations under earthquake vibration. Therefore, one solution to fix this problem is to propose an adaptive control. In order to have the robustness power of sliding mode control and the effectiveness of backstepping control theory, the Adaptive Backstepping Sliding Mode Control (ABSMC) has been proposed for vibration suppression of building supported by MR damper. This is a new control design, which has not been addressed previously. The present work proposed three nonlinear controllers, represented by SMC, BSMC, and ABSMC, to control and guarantee the stability of Earth-quaked building with the assistance of MR damper. The contributions of this study can be highlighted as follows:

1. To solve the problem of vibration control in building, supported by MR damper and subjected to earthquake, by developing new algorithms based on SMC, BSMC, and ABSMC.

2. To prove the asymptotic stability of controlled building in the presence seismic vibration for the three proposed controllers (SMC, BSMC, and ABSMC) such that all errors finally converges to their corresponding zero equilibrium conditions.

3. To show the boundness of estimated viscosity and stiffness coefficients of adaptively-controlled building system.

4. To show the superiority of ABSMC performance as compared to SMC in terms of vibration suppression.

Dynamic model

In this study, the used building structure model is equipped with an MR damper located between the ground and a brace as shown in Figure 1. It has been shown that the control force in this floor is more effective than the control force of MR damper located in the upper floors.³⁷ This structure is seismically subjected to acceleration ${\ddot{x}}_{g}$ .

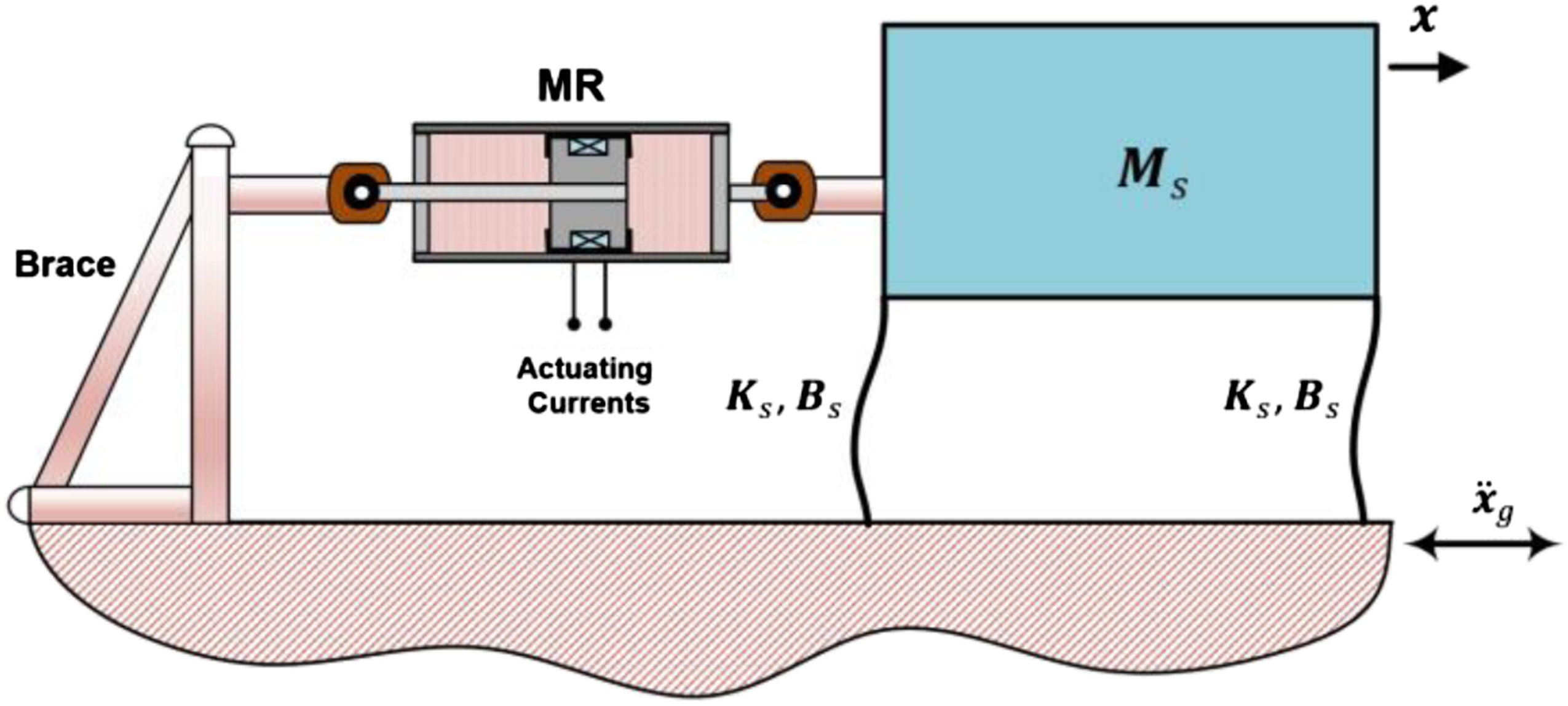

Figure 1.

Schematic representation of Earth-quaked building supported by MR damper. Note: MR: magneto-rheological.

The general equation of dynamic motion for the structural system shown in Figure 1 can be described by

M_{s} \ddot{x} + B_{s} \dot{x} + K_{s} x = M_{s} {\ddot{x}}_{g} + f_{M R}

(1)where

x

\dot{x}

, and

\ddot{x}

are displacement, acceleration, and velocity of floor relative to the base, respectively. The parameter

M_{s}

denotes the mass of structure, while the parameters

K_{s}

and

B_{s}

characterize the stiffness and damping of structure due to earthquake, respectively. The variable

{\ddot{x}}_{g}

represents the acceleration generated by the earthquake. The input

f_{M R}

denotes the force, which is generated by MR damper.

In order to represent equation (1) into state variable form, the state variable $x_{1}$ is assigned to displacement and $x_{2}$ is designated to the velocity of structure floor. Therefore, equation (1) can be rewritten as

\begin{array}{l} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = - \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M_{s}} x_{1} + \frac{1}{M_{s}} f_{M R} + {\ddot{x}}_{g} \end{array}

(2)where

v

represents the control force (control signal) and

{\ddot{x}}_{g}

is the earthquake data function.

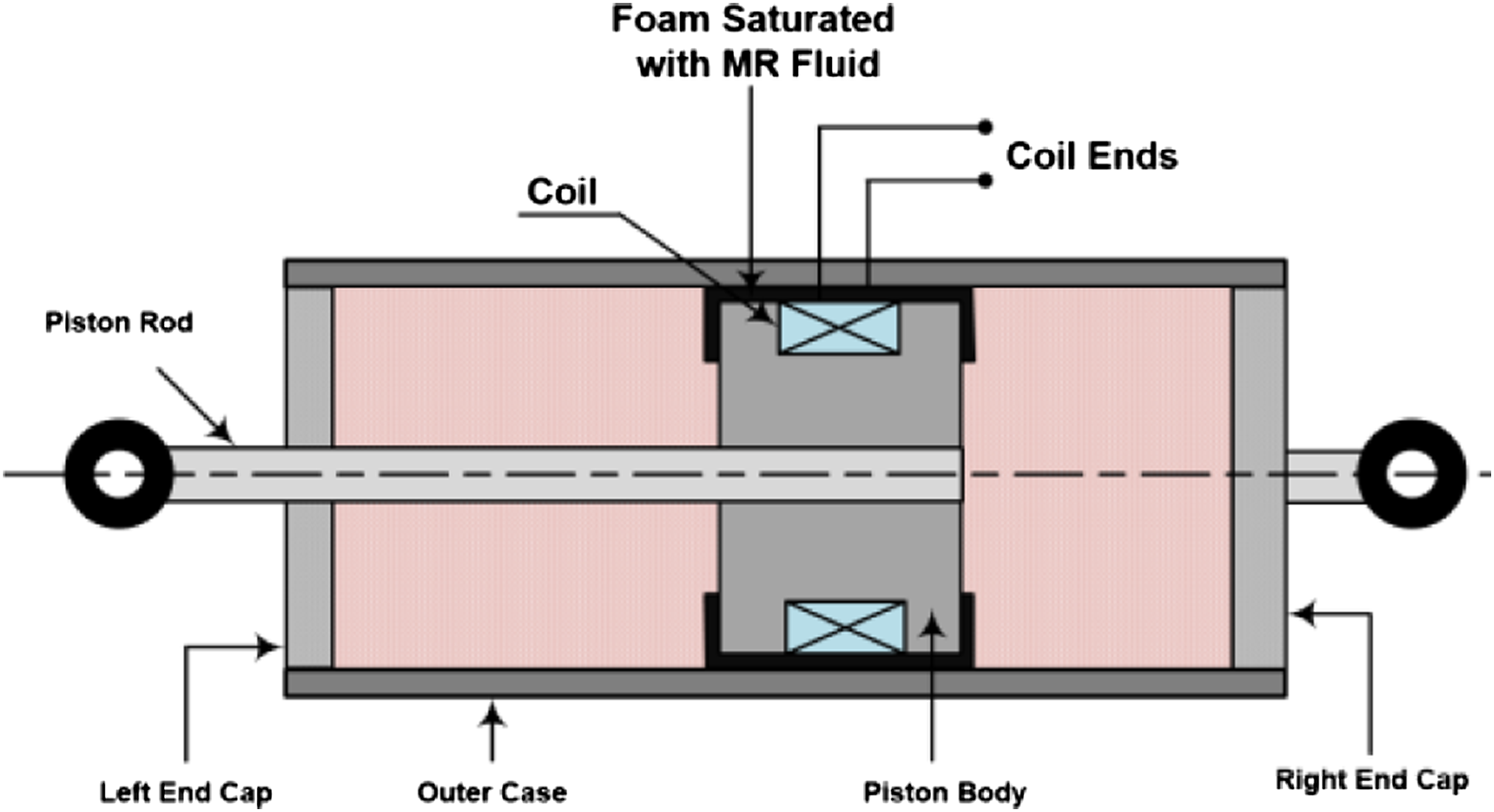

The schematic representation of the MR damper is described in Figure 2. The MR damper consists of conventional damper, whose viscosity is electrically controlled via actuating coil. This coil is excited by an external voltage which is part of controlled signal for this system. The MR damper nonlinear behavior was firstly developed and extended by Bingham model.³⁸ Then, other researchers has proposed other models of MR damper based on differential equation, which are verified and validated based on experimental setup.^39–41

Figure 2.

Schematic representation of MR damper.

The dynamic properties of this MR device are augmented by Bouc-Wen model, which is shown in Figure 3. Based on Figure 3, the dynamic equations which characterize MR device can be described by^42,43

f_{M R} = c_{1} \dot{y} + k_{1} (x - x_{o})

(3)

c_{1} \dot{y} = c_{o} (\dot{x} - \dot{y}) + k_{o} (x - y) + α z

(4)

\dot{z} = - γ z | \dot{x} - \dot{y} | {| z |}^{n - 1} - β (\dot{x} - \dot{y}) {| z |}^{n} + A (\dot{x} - \dot{y})

(5)where,

f_{M R}

denotes the output force. The variables x and

\dot{x}

represent displacement and velocity of the damper, respectively, the evolutionary variable

z

represent the hysteresis behavior of the output force according to the displacement and velocity of the damper. The coefficients k0 and c0 denotes the accumulator stiffness and viscous damping at low velocity, while c1 and k1 describe the damping and stiffness at high velocities. The parameters g, b, n, and A characterize the shape and scale of the hysteresis loop. The parameters of the MR damper depending on the applied voltage

v

are⁴⁴

α = α_{a} + α_{b} u, c_{o} = c_{o a} + c_{o b} u, c_{1} = c_{1 a} + c_{1 b} u

(6)

\dot{u} = - η (u - v)

(7)where

v

represents the command voltage applied to the control circuit,

u

denotes the phenomenological variable covering the dynamic of the system, and

η

represent time-response constant. The coefficients

α_{a}

α_{b}

c_{o a}

c_{o b}

c_{1 a}

, and

c_{1 a}

constitutes the elements of damping coefficients

α

c_{o}

and

c_{1}

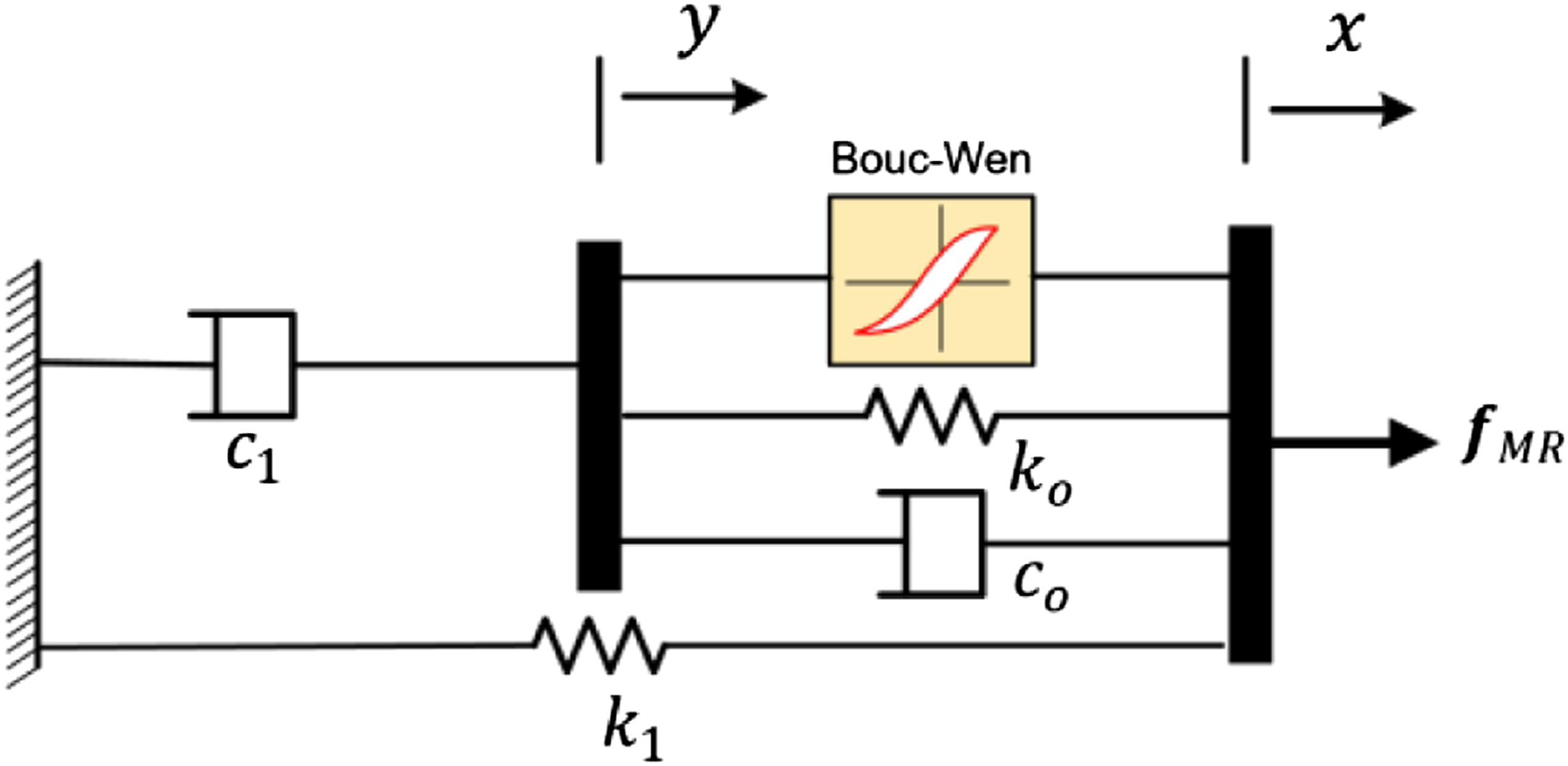

Figure 3.

Modified Bouc-Wen model of MR damper.

It is worthy to mention that MR devices can change the stiffness of their fluid up to 100 Hz and can operate over a wide range of the ambient temperature, usually from −40°C to +150°C. They have a large yield shear stress routinely between 50–100 kPa for applied magnetic fields of 150–250 kA/m. MR fluids react to external stimulus in a few milliseconds and can be readily controlled by standby batteries with a voltage in range of 12–24 V.

Adaptive backstepping sliding mode control

In this section, the control and adaptive laws are developed based on adaptive backstepping SMC methodology. Firstly, sliding mode control design has to be conducted and then the adaptive backstepping SMC will be established accordingly. In the control design, the actual force $f_{M R}$ is replaced by the notation $f_{c}$ to indicate the control force, which has to be controlled by control algorithm.

Sliding mode control

Let $e$ be the difference between the actual state $x_{1}$ and the desired displacement $x_{1 d}$

e = x_{1} - x_{1 d}

(8)

In our case, $x_{1 d}$ must equal to zero, then $e = x_{1}$ . Therefore, the first and second derivative of error equation gives

\begin{array}{l} \dot{e} = {\dot{x}}_{1} = x_{2} \\ \ddot{e} = {\dot{x}}_{2} = - \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M} x_{1} + \frac{1}{M_{s}} f_{c} + {\ddot{x}}_{g} \end{array}

(9)

The sliding surface $s$ can be defined as

s = c e + \dot{e}

(10)

Taking the first time derivative of equation (10) to have

\dot{s} = c \dot{e} + \ddot{e} = c \dot{e} + {\dot{x}}_{2}

(11)

Using equations (9) and (11) becomes

\dot{s} = c \dot{e} - \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M_{s}} x_{1} + \frac{1}{M_{s}} f_{c} + {\ddot{x}}_{g}

(12)where

c

is a scalar design parameter. In the SMC technique, the control law

(f_{c})

is defined by

f_{c} = f_{e q} + f_{s w}

(13)where

f_{e q}

and

f_{s w}

are the equivalent and switching control parts, which are described respectively by

f_{e q} = - c M_{s} \dot{e} + B_{s} x_{2} + K_{s} x_{1} - M_{s} {\ddot{x}}_{g}

(14)

f_{s w} = - β_{1} s i g n (s)

(15)where

β_{1}

is a scalar design gain. In order to reach

(\dot{s} = 0, s = 0)

, the control law

f_{c}

will be deduced

f_{c} = - c M_{s} \dot{e} + B_{s} x_{2} + K_{s} x_{1} - M_{s} {\ddot{x}}_{g} - β_{1} M_{s} s i g n (s)

(16)

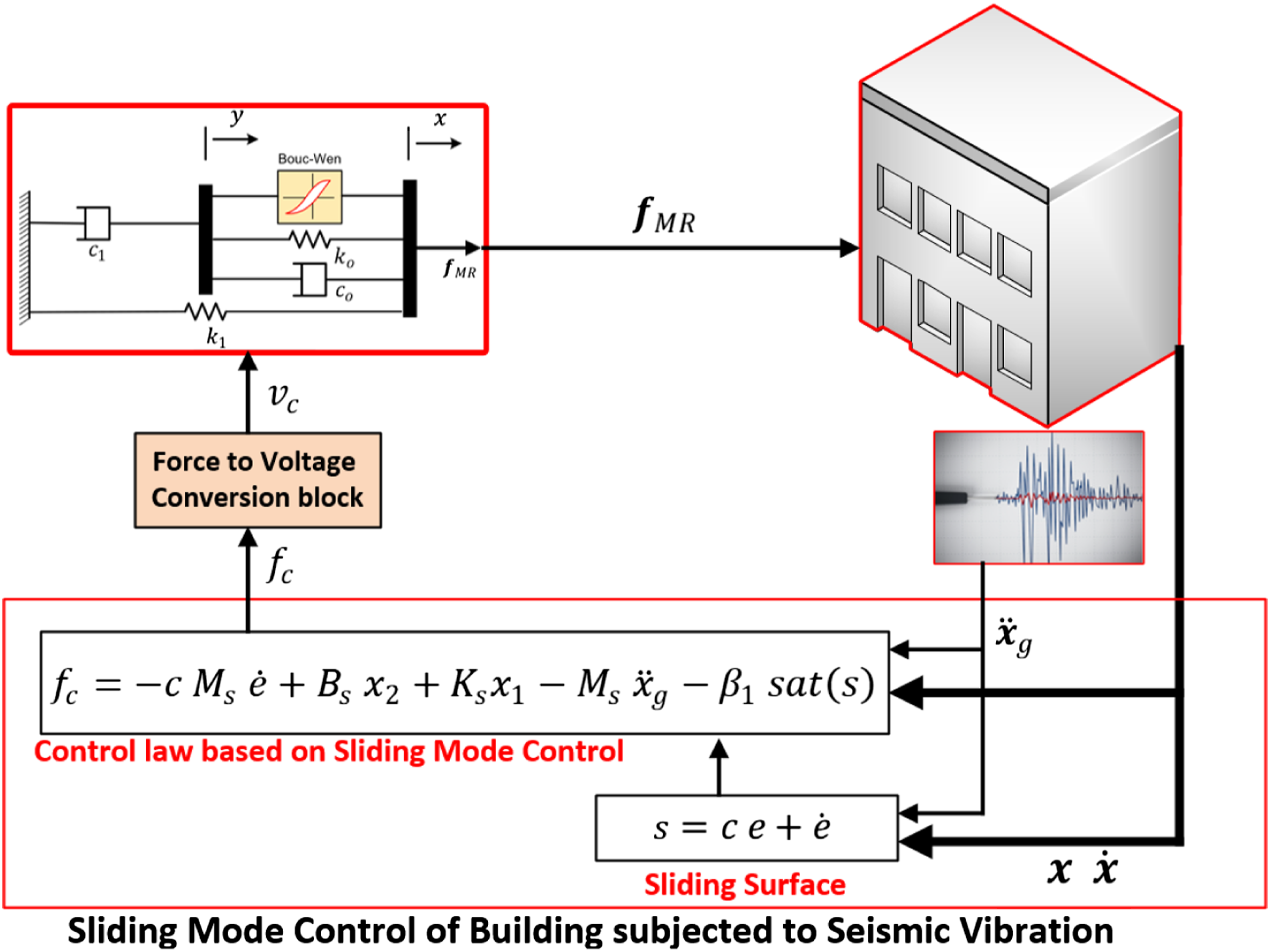

Figure 4 shows the schematic diagram of sliding mode controlled building subjected to Seismic Vibration. The figure illustrates the connection of controller with MR damper to be generated the desired force for mitigating the earth vibration.

Figure 4.

Schematic diagram of sliding mode controlled building subjected to seismic vibration.

In practical realization of MR-based controlled building structures, the MR coils requires current actuating signal to generate force. Therefore, a driver is required to convert the desired voltage (control signal) into desired current and hence to desired force. Other optimal algorithm is required to control the voltage-to-current converter (driver) via Heavy step function.^19,21,33

Stability analysis

The candidate Lyapunov Function (L.F.) can be defined as

V_{s} = \frac{1}{2} s^{2}

(17)

The time derivative of L.F. gives

{\dot{V}}_{s} = s [c \dot{e} - \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M_{s}} x_{1} + \frac{1}{M_{s}} f_{c} + {\ddot{x}}_{g}]

(18)

Based on equations (17) and (19) becomes

{\dot{V}}_{s} = s (- M_{s} β_{1} s i g n (s))

(19)or

{\dot{V}}_{s} = - M_{s} β_{1} | s |

(20)

The ${\dot{V}}_{s}$ is negative definite so that the sliding variable will reach the sliding surface in finite-time. Consequently, during the sliding mode, the state will reach asymptotically to the origin. In order to reduce the effect of the chattering phenomenon, the signum function is replaced by the saturation function. The last control law

f_{c} = - c M_{s} \dot{e} + B_{s} x_{2} + K_{s} x_{1} - M_{s} {\ddot{x}}_{g} - β_{1} s a t (s)

(21)

Backstepping sliding mode control

In order to derive the ABSMC control law, the BSMC has to be derived as a first step to design the ABSMC controller. In what follows, the algorithm of BSMC is explained in steps:

Step 1

The tracking error and its derivative is given respectively as

e_{1} = x_{1} - x_{1 d}

(22)Since

x_{1 d} = 0

, then

e_{1} = x_{1}

. The time derivative of

e_{1}

gives

{\dot{e}}_{1} = {\dot{x}}_{1} = x_{2}

(23)

Let $x_{2 v}$ is the virtual control and defined as

x_{2 v} = α (e_{1}) = - c_{1} e_{1}

(24)where

c_{1}

is a positive constant. The candidate L.F. is chosen as

V_{1} = \frac{1}{2} e_{1}^{2}

(25)

Taking the time derivative of L.F. and using equation (23) to have

{\dot{V}}_{1} = e_{1} {\dot{e}}_{1} = e_{1} x_{2}

(26)

If the variable $x_{2}$ is assigned as virtual control $x_{2 v}$ , as defined by equation (24), then equation (26) becomes

{\dot{V}}_{1} = - c_{1} e_{1}^{2}

(27)

This indicates that ${\dot{V}}_{1} < 0$ , $\forall e_{1} \neq 0$ .

Step 2

The deviation of the virtual control $x_{2 v}$ from its actual control variable $x_{2}$ can be defined as

e_{2} = x_{2} - x_{2 v}

e_{2} = x_{2} - α (e_{1})

(28)

Then, using equations (28) and (23) to have

{\dot{e}}_{1} = α (e_{1}) + e_{2}

After that the dynamics of $e_{2}$ is given by

{\dot{e}}_{2} = {\dot{x}}_{2} - \dot{α} (e_{1})

(29)

Based on equation (24), the time derivative of $α (e_{1})$ is given by $α = - c_{1} {\dot{e}}_{1}$ . Then, equation (29) can be written as

{\dot{e}}_{2} = - \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M} x_{1} + \frac{1}{M_{s}} f_{c} + {\ddot{x}}_{g} + c_{1} {\dot{e}}_{1}

(30)

The second L.F. candidate and its time derivative are respectively given by

V_{2} = V_{1} + \frac{1}{2} e_{2}^{2}

(31)

{\dot{V}}_{2} = {\dot{V}}_{1} + e_{2} {\dot{e}}_{2}

(32)

Using equation (30) and (27), one can have

{\dot{V}}_{2} = - c_{1} e_{1}^{2} + e_{2} (- \frac{B_{s}}{M_{s}} x_{2} - \frac{K_{s}}{M_{s}} x_{1} + \frac{1}{M_{s}} f_{c} + {\ddot{x}}_{g} - c_{1} {\dot{e}}_{1})

In order to have ${\dot{V}}_{2} < 0$ , the control force $f_{c}$ is set to be

f_{c} = (B_{s} x_{2} + K_{s} x_{1} - M_{s} {\ddot{x}}_{g} + c_{1} M_{s} {\dot{e}}_{1} - c_{2} M_{s} e_{2})

Then

{\dot{V}}_{2} = - c_{1} e_{1}^{2} - c_{2} e_{2}^{2}

(33)

If $c_{2}$ is a positive constant, then ${\dot{V}}_{2} \leq 0$ . One can conclude that the control law can guarantee the negative definiteness of ${\dot{V}}_{2}$ and hence it proves the asymptotic stability of the system.

Adaptive backstepping sliding mode control

In this study, it is assumed that an uncertainty in parameters of vibrated system will arise due to an earthquake. In particular, two uncertainties will be addressed for this application; one uncertainty which concerned to the viscous damping coefficient $B_{s}$ and the other with the stiffness coefficient $K_{s}$ of the building system; that is

{\hat{B}}_{s} = B_{s} + {\tilde{B}}_{s}, {\hat{K}}_{s} = K_{s} + {\tilde{K}}_{s}

(34)where

{\hat{B}}_{s}

is the estimated value of

B_{s}

coefficient,

{\hat{K}}_{s}

represents the estimated value of the

K_{s}

coefficient,

B_{s}

and

K_{s}

represent the nominal values of damping and stiffness coefficients, respectively. The objective is how to design ABSMC to suppress the vibration of building subjected to earthquake with assistance of MR damper. The candidate L.F. can be defined as

V_{4} = V_{3} + \frac{1}{2} γ_{1} {\tilde{B}}_{s}^{2} + \frac{1}{2} γ_{2} {\tilde{K}}_{s}^{2}

(35)where

γ_{1}

γ_{2}

are the adaptation gains. The time derivative of last equation gives

{\dot{V}}_{4} = {\dot{V}}_{3} + γ_{1} {\tilde{B}}_{s} {\dot{\hat{B}}}_{s} + γ_{2} {\tilde{K}}_{s} {\dot{\hat{K}}}_{s}

Assuming low variation in coefficients $K_{s}$ and $B_{s}$ , then ${\dot{\hat{K}}}_{s} = {\dot{\tilde{K}}}_{s}$ and ${\dot{\hat{B}}}_{s} = {\dot{\tilde{B}}}_{s}$

{\dot{V}}_{4} = - c_{1} e_{1}^{2} - c_{2} e_{2}^{2} - s (\frac{B_{s}}{M_{s}} x_{2} + \frac{K_{s}}{M_{s}} x_{1} - \frac{1}{M_{s}} f_{c} - {\ddot{x}}_{g} - c_{4} {\dot{e}}_{1}) + γ_{1} {\tilde{B}}_{s} {\dot{\hat{B}}}_{s} + γ_{2} {\tilde{K}}_{s} {\dot{\hat{K}}}_{s}

(36)

The control law $(f_{c})$ can be deduced as follows

f_{c} = {\hat{B}}_{s} x_{2} + {\hat{K}}_{s} x_{1} - M_{s} {\ddot{x}}_{g} - c_{4} M_{s} {\dot{e}}_{1} - c_{5} M_{s} s - β_{2} M_{s} s i g n (s)

(37)

Using the control law in equation (37), one can get

\begin{array}{l} {\dot{V}}_{4} = - c_{1} e_{1}^{2} - c_{2} e_{2}^{2} - c_{5} s^{2} - β_{2} s s i g n (s) + γ_{1} {\tilde{B}}_{s} {\dot{\hat{B}}}_{s} + γ_{2} {\tilde{K}}_{s} {\dot{\hat{K}}}_{s} \\ - s (B_{s} - {\hat{B}}_{s}) x_{2} - (K_{s} - {\hat{K}}_{s}) x_{1} \end{array}

(38)

Using equations (34) and (38) can be rewritten as

{\dot{V}}_{3} = - c_{1} e_{1}^{2} - c_{2} e_{2}^{2} - c_{5} s^{2} - β_{2} | s | + {\tilde{B}}_{s} (γ_{1} {\dot{\hat{B}}}_{s} - s x_{2}) + {\tilde{K}}_{s} (γ_{2} {\dot{\hat{K}}}_{s} - s x_{1})

(39)

In order to guarantee negative definiteness of ${\dot{V}}_{4}$ function, the last terms have to be set to zero. This results in the following adaptive laws

{\dot{\hat{B}}}_{s} = \frac{1}{γ_{1}} s x_{2}

(40)

{\dot{\hat{K}}}_{s} = \frac{1}{γ_{2}} s x_{1}

(41)

Since ${\dot{V}}_{4} \leq 0$ , the system is negative definite and hence, the proposed ABSMC can guarantee the stability of the building subjected to earthquake and supported by MR damper.

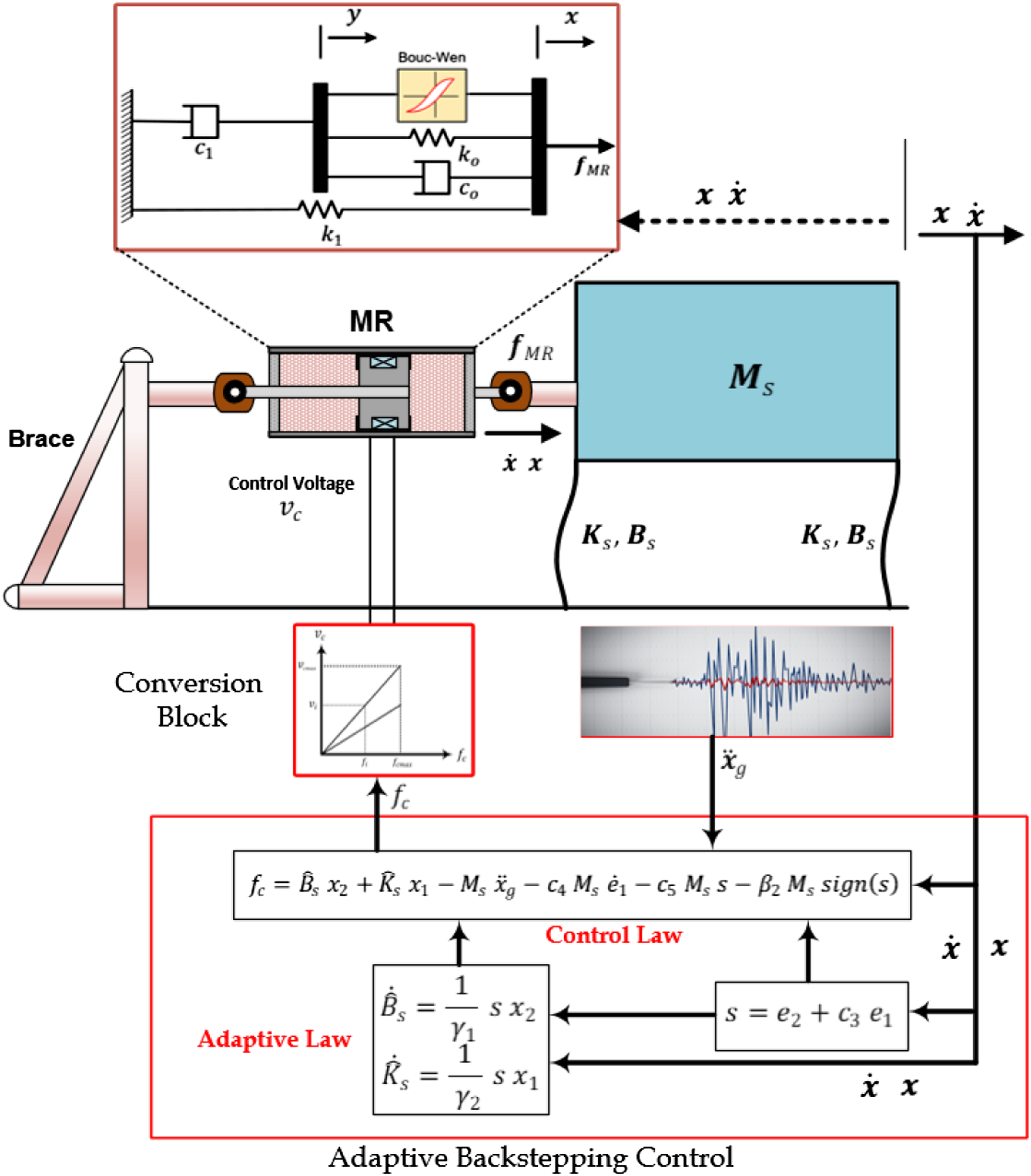

The control force developed due to either classical or adaptive backstepping control design cannot directly actuate the MR damper; since this device requires a voltage signal to be operated. Figure 5 shows the controlled earth-quaked structure based on adaptive backstepping control algorithm.

Figure 5.

Suppression of seismic vibration based on adaptive backstepping control algorithm for earth-quaked structure supported by MR damper.

Computer simulation

In this section, the effectiveness of backstepping sliding mode control and adaptive backstepping sliding mode controllers are assessed and compared to each other. The design Parameters for SMC are set to c = 10, k = 1, while the design parameters for ABSMC have the settings: $c_{1} = 100$ , $c_{2} = 1$ , $c_{3} = 10$ , $c_{5} = 100$ and $k = 100$ . The adaptive rate parameters of adaptive law are set to the values $γ_{1} = γ_{1} = 1$ . The system parameters are $M_{s} = 93.3 Kg$ , $C_{s} = 175 N \cdot s / m$ , $K_{s} = 12 \times 10^{5} N / m$ .²

The data used in this study are related to earthquake happened in May 1940 at Imperial Valley (Brawley).⁴⁵ Total damage has been estimated at about $6 million. The magnitude was 7.1. The behavior of earthquake has been recorded and displayed in Figure 6.

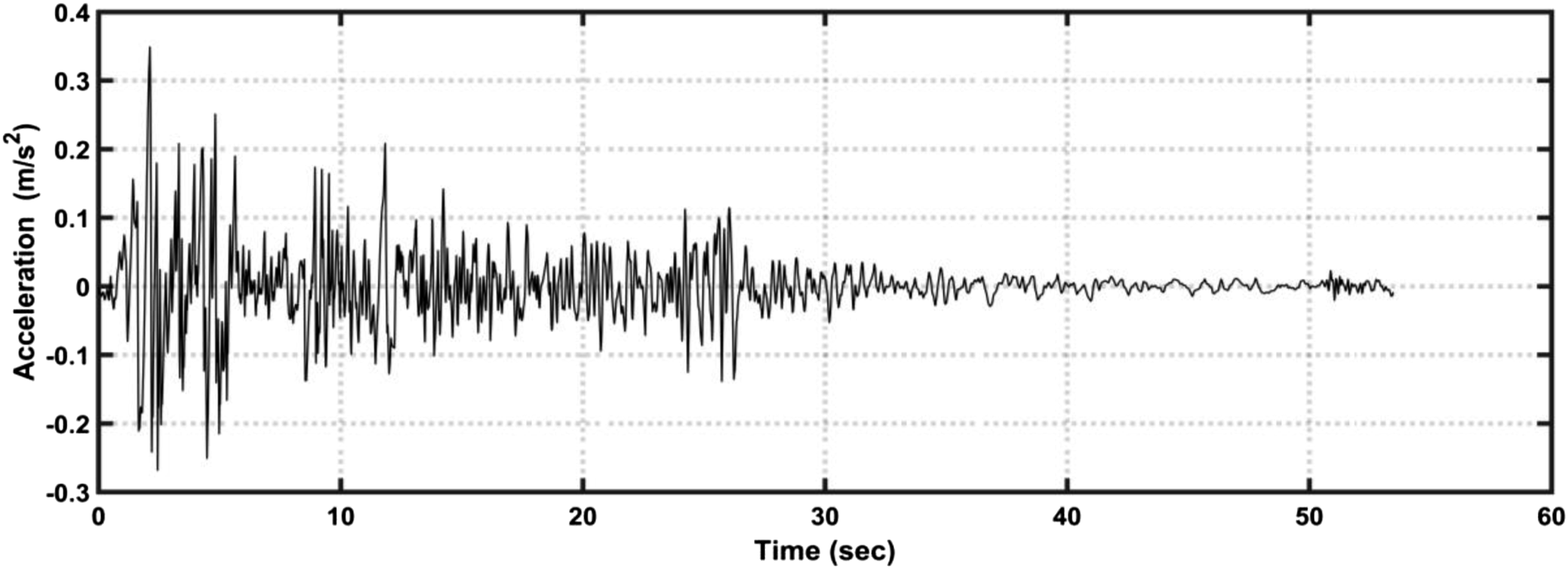

Figure 6.

El Centro 1940 Imperial Valley earthquake.

The dynamic responses of displacement of building system under earthquake based on sliding mode control and ABSMC is shown in Figure 7. As compared to uncontrolled system, it is evident from the figure that the SMC and ABSMC could reduce the effect of earthquake vibration with the presence of MR damper. However, the figure shows that the ABSMC could give less magnitude of vibration for controlled and earth-quaked building than that based on SMC.

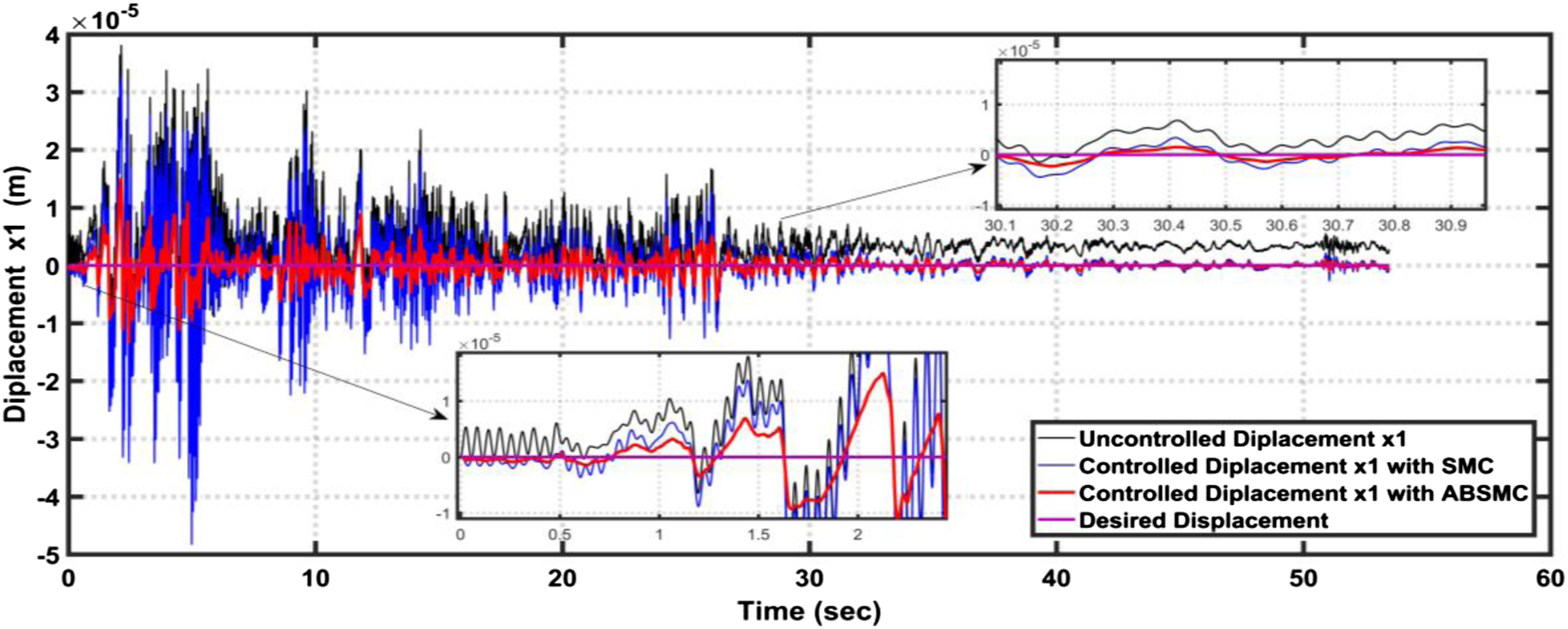

Figure 7.

Displacement responses of the earth-quaked building Based on SMC and ABSMC. Note: ABSMC: adaptive backstepping sliding mode control; SMC: sliding mode control.

The performance comparison between SMC and ABSMC are evaluated in terms of Root Mean Square (RMS) of displacement. It has been shown that the RMS value of displacement for uncontrolled system under earthquake is equal to $16.5347 \times 10^{- 6}$ , while the RMS value of displacement resulting from SMC is equal to $6.231 \times 10^{- 6}$ and the RMS value of displacement over the duration of earthquake for ABSMC is equal to $2.0244 \times 10^{- 6}$ . This indicates that the ABSMC has better ability to suppress the magnitude of vibration due to earthquake.

The acceleration generated due to adaptive backstepping sliding mode control and the conventional sliding mode control is shown in Figure 8. It is clear that the acceleration generated by ABSMC is less than that generated by the SMC. This indicates that vibration suppression due to ABSMC is better than SMC.

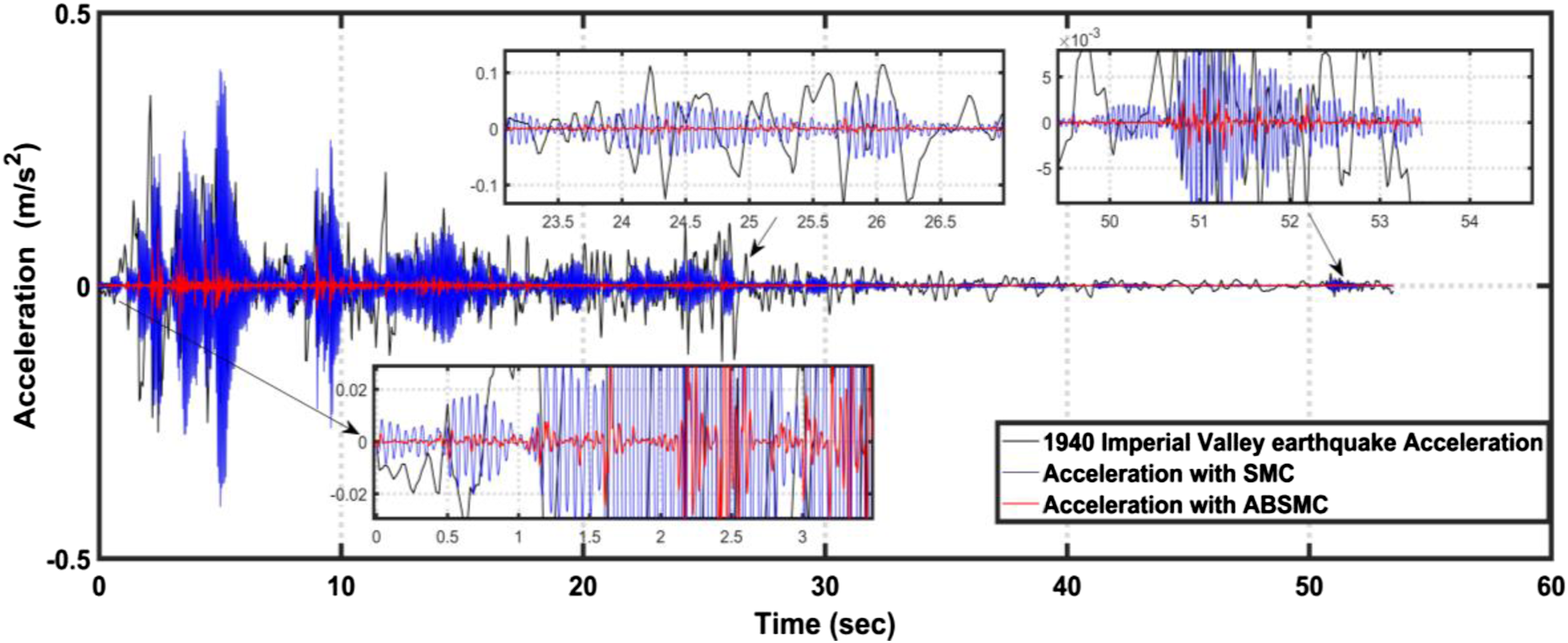

Figure 8.

Acceleration responses of the earth-quaked building based on SMC and ABSMC. Note: ABSMC: adaptive backstepping sliding mode control; SMC: sliding mode control.

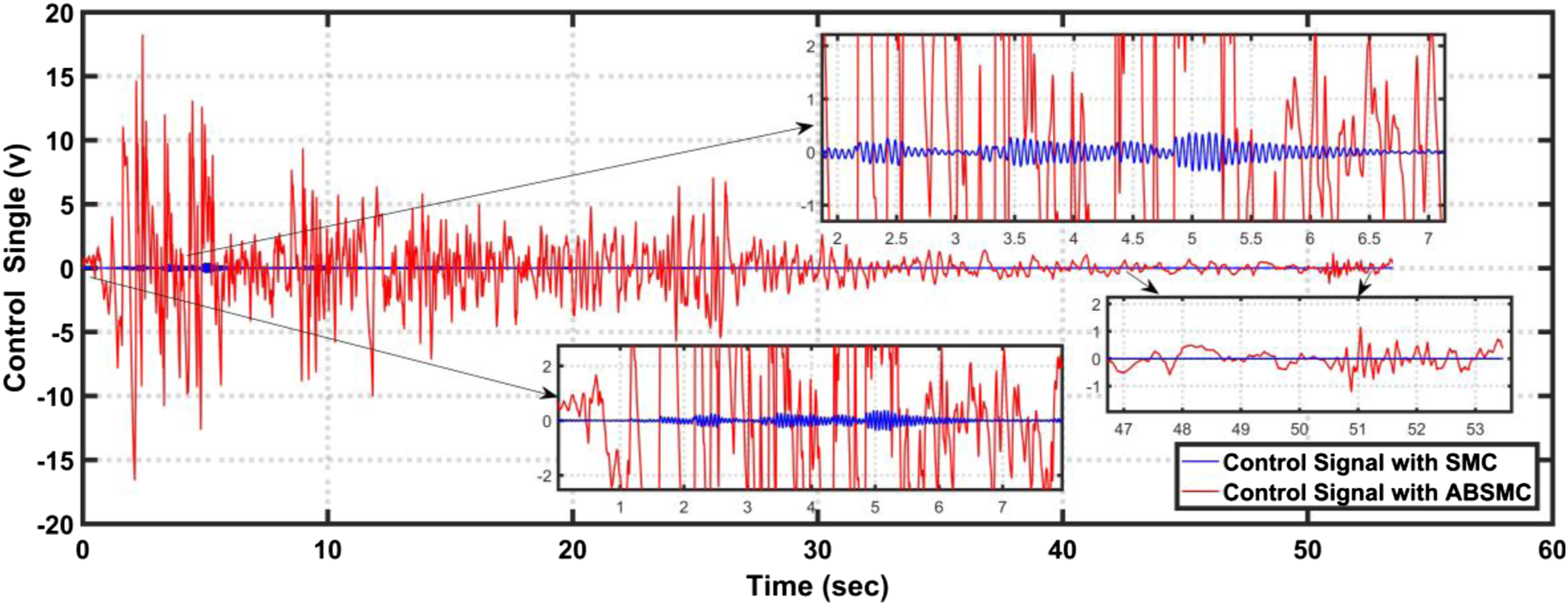

Figure 9 shows the generated control signal based on SMC and ABSMC. It is clear from the figure that the control effort produced by SMC is less than that based on ABSMC and this is price has to be paid by the ABSMC for better vibration suppression.

Figure 9.

Control signal generated from SMC and ABSMC. Note: ABSMC: adaptive backstepping sliding mode control; SMC: sliding mode control.

In this study, the value of resistance and inductance are taken as $R = 21.9 Ω$ and $L = 6.6 H$ , respectively.⁴⁶ Based on impedance of MR circuit, characterized by its resistance and reactance, and the control voltage indicated in Figure 9, the current flows through the circuit is shown in Figure 10 according to Ohm’s law. Based on these values and the control voltage indicated in Figure 9, the envelope of current is illustrated in Figure 10. Figure 11 shows the instantaneous power consumption over the time of earthquake period. The average of power has been evaluated to be 5.73 W.

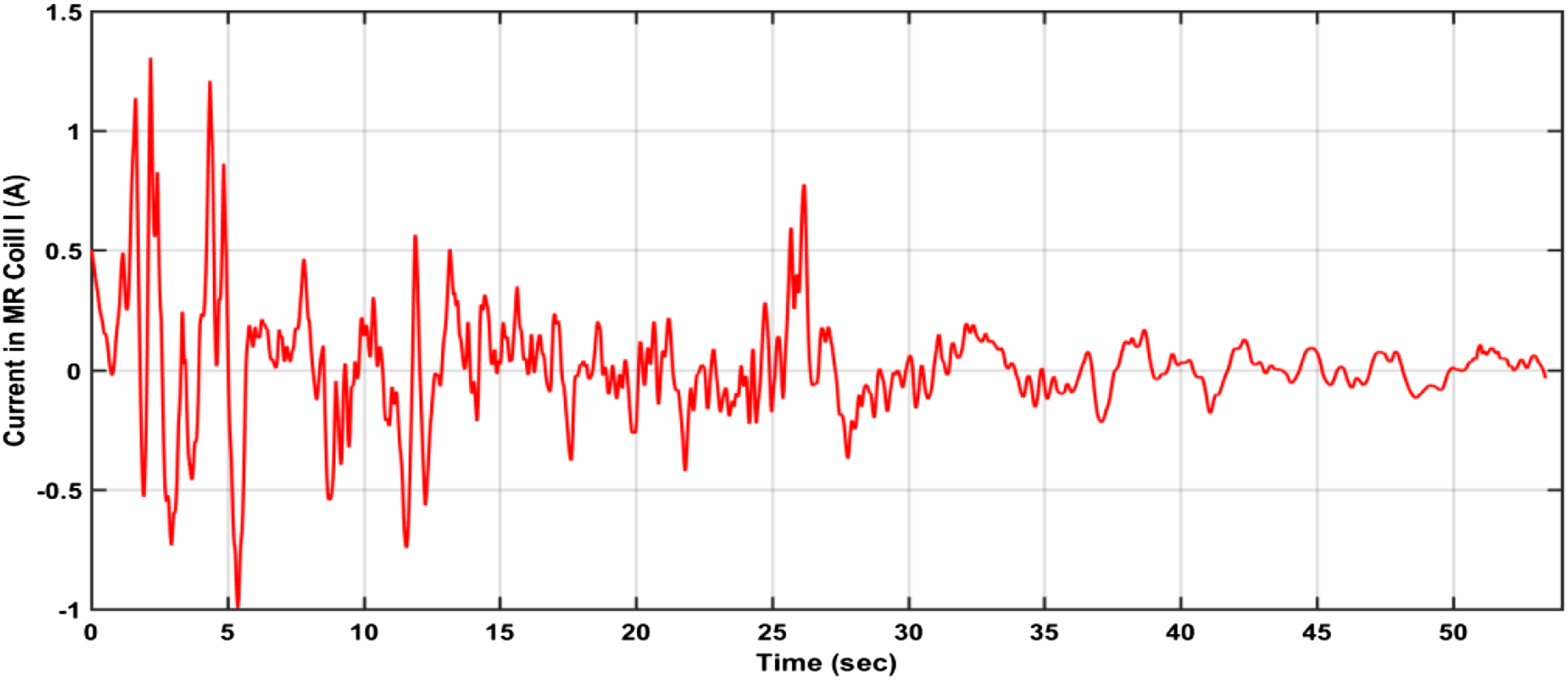

Figure 10.

The current passing through the coil of MR Damper.

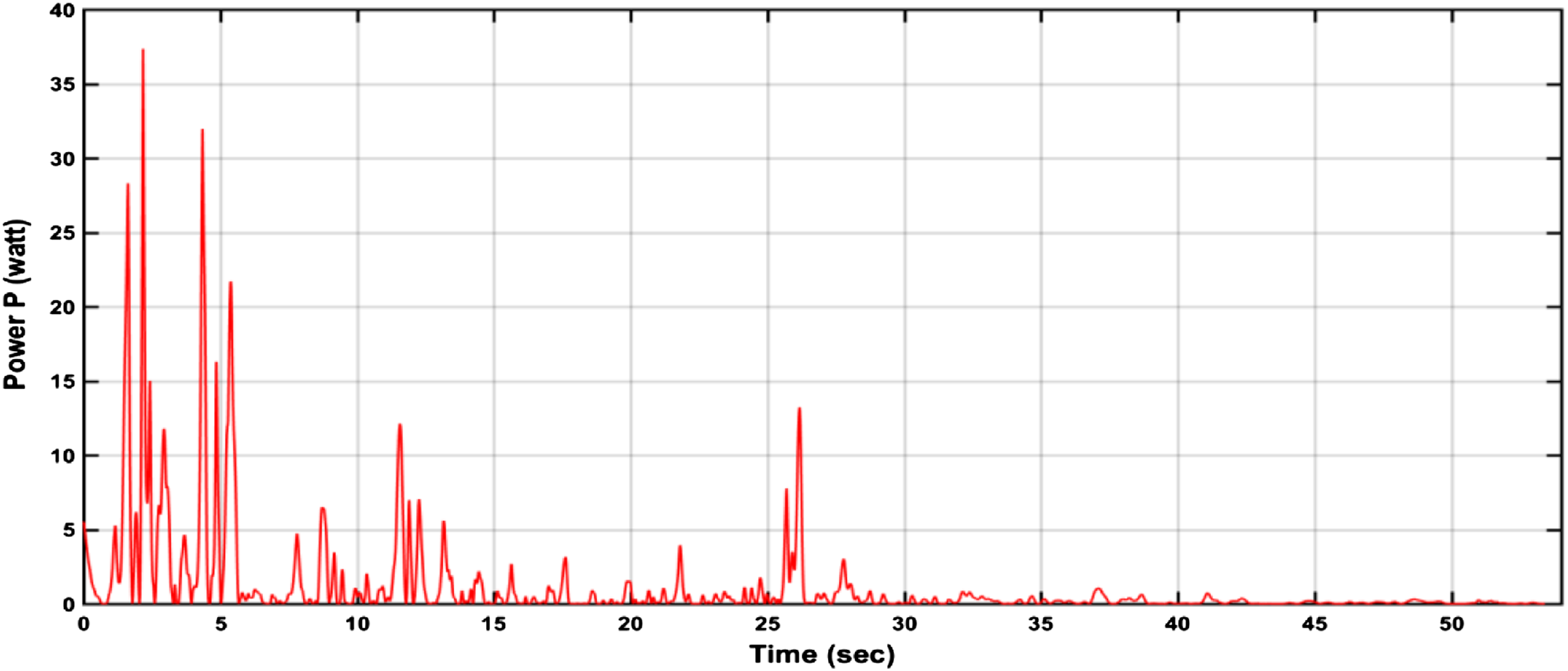

Figure 11.

The power dissipated through the coil of MR Damper.

Under seismic vibration due to earthquake, the mass of structure remains unchanged, but the structure’s stiffness and damping will encounter a change or variation. This change in stiffness and damping characteristics of the building requires an adaptive control design to account and compensate these uncertainties. The cooperation of developed adaptive law and control law of ABSMC will cope with such variation in parameters. In this study, the maximum allowable change in building stiffness and damping is assumed to take 5% of their nominal values. The estimated values of stiffness and viscosity coefficients are depicted in Figures 12 and 13, respectively.

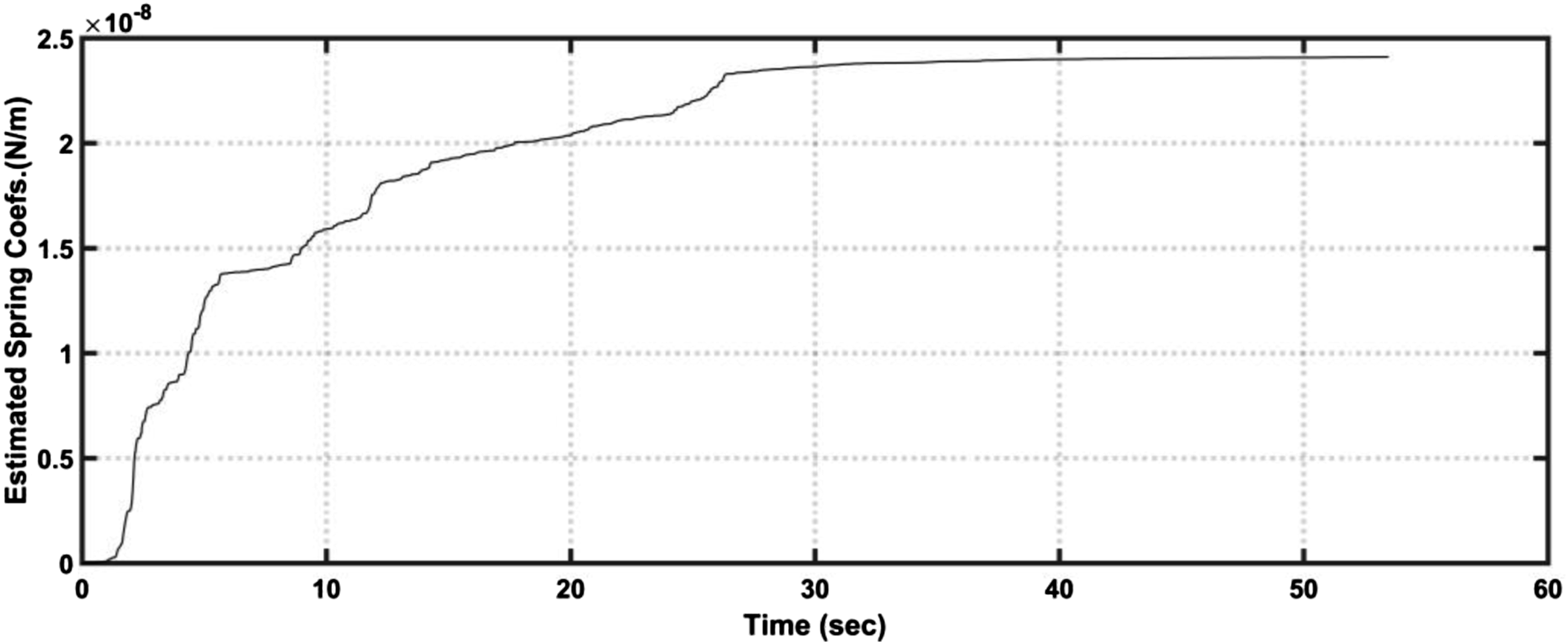

Figure 12.

Estimated value of stiffness coefficient by adaptive law.

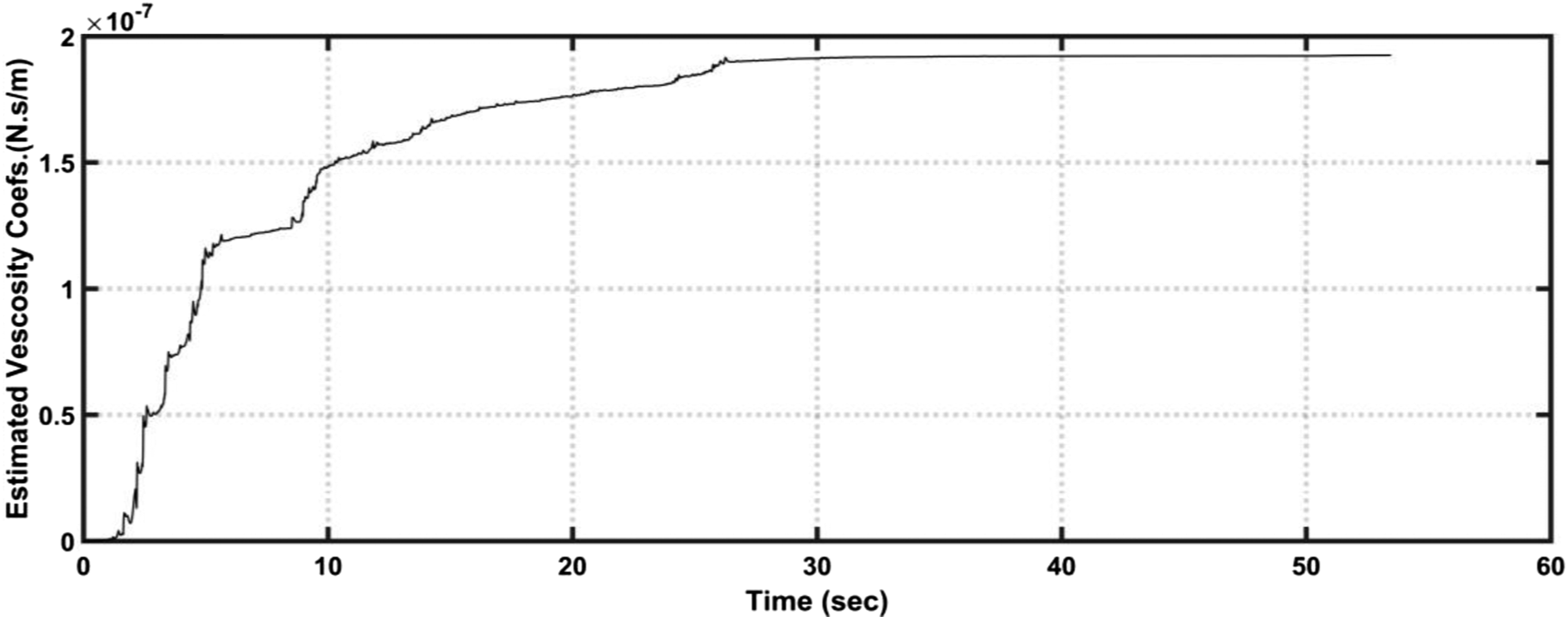

Figure 13.

Estimated value of viscosity coefficient by adaptive law.

It is clear from the figures that the adaptive law could give bounded estimated uncertain parameters which lead to stability of controlled system. However, if these estimated parameters go unbounded in magnitude, this may lead to instability problems of adaptive controlled building system.

Conclusion

In this paper, design of ABSMC has been presented to mitigate the vibration of building subjected to earthquake. The design of control algorithm has been developed according to Lypunove-based stability analysis such to guarantee the asymptotically stability. The efficacy of proposed ABSMC has been confirmed based on numerical simulation. Based on simulated results, an improvement of 62.32% in vibration suppression has been obtained with SMC as compared to uncontrolled building, while the ABSMC could give 87.76% and 67.5% improvement in vibration suppression as compared to uncontrolled and SMC-based building, respectively. However, the power absorbed by MR circuit in case of SMC is 73.3% less than that based on ABSMC; this is the price to be paid by latter controller for suppression improvement. In addition, the proposed adaptive controller could give bounded estimated values for stiffness and viscosity coefficients. The present work can be extended to include building of multiple stories. Other control strategies can be pursued to conduct a comparison study in performance with proposed controller.^47–49

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Amjad J Humaidi

Ibaheem K Ibraheem

References

Çetin

Zergeroglu

Sivrioglu

, et al. Adaptive control of structures with MR Damper. In: 18th IEEE International Conference on Control Applications Part of 2009 IEEE Multi-conference on Systems and Control. Saint Petersburg, Russia, 8–10 July, 2009.

Zizouni

Bousserhane

Hamouine

, et al. MR Damper-LQR control for earthquake vibration mitigation. Int J Civ Eng Technol 2017; 8(11): 201–207.

Andrey

Leonid

. Stability notions and Lyapunov functions for sliding mode control systems. J Franklin Inst 2014; 351: 1831–1865.

Kobersy

Finaev

Beloglazov

, et al. Design features and research on the neuro-like learning control system of a vehicle. Int J Neural Networks Adv Appl 2014; 1: 73–80.

Azadi

Eghtesad

Fazelzadeh

, et al. Vibration suppression of smart nonlinear flexible appendages of a rotating satellite by using hybrid adaptive sliding mode/Lyapunov control. J Vibr Control 2012; 19(7): 975–991.

Royel

Movassaghi

Kwok

, et al. Smart structures using MR dampers with second order sliding mode control. In: International conference on control: Automation and information sciences (ICCAIS), Saigon, Vietnam, 26–29 November 2012, pp. 170–175. IEEE.

Zizouni

Fali

Sadek

, et al. Neural network control for earthquake structural vibration reduction using MRD. Front Struct Civ Eng 2018; 13: 1171–1182.

Guclu

. Sliding mode and PID control of a structural system against earthquake. Math Comput Modell 2006; 44: 210–217.

Khalatbarisoltani

Soleymani

Khodadadi

. Online control of an active seismic system via reinforcement learning. Struct Control Health Monit 2018; 26(3): 1–18.

10.

Chen

Lai

. Advanced control strategy for floor response replication of high-rise buildings subjected to earthquakes. J Earthquake Eng 2020; 1–25. DOI: 10.1080/13632469.2020.1713927.

11.

Afkham

Ehteram

. Nonlinear control of buildings subjected to earthquakes by using sliding mode controller (SMC). Mod Appl Sci 2010; 4(12): 170–176.

12.

Schlacher

Kugi

Irschik

. Nonlinear control of earthquake excited high raised buildings by approximate disturbance decoupling. Acta Mech 1997; 125: 49–62.

13.

Chang

Sung

. Modal-energy-based neuro-controller for seismic response reduction of a nonlinear building structure. Appl Sci 2019; 9: 1443.

14.

Shan

Ouyang

Shi

. Adaptive control of earthquake‐excited nonlinear structures with real‐time tracking on prescribed performance criteria. Struct Control Health Monit 2018; 25: 1–21.

15.

Alli

Yakut

. Fuzzy sliding-mode control of structures. Eng Struct 2005; 27: 277–284.

16.

Rayegani

Nouri

. Application of smart dampers for prevention of seismic pounding in isolated structures subjected to near-fault earthquakes. J Earthquake Eng 2020: 1–16. DOI: 10.1080/13632469.2020.1822230.

17.

Wang

Qin

. Adaptive model reference sliding mode control of structural nonlinear vibration. Shock Vibr 2019; 2019: 1–13.

18.

Yao

Yap

Chen

, et al. MR damper and its application for semi-active control of vehicle suspension system. Mechatronics 2002; 12(7): 963–973.

19.

Saidi

Zizouni

Kadri

, et al. Adaptive sliding mode control for semi-active structural vibration control. Stud Inf Control 2019; 28(4): 371–380. DOI: 10.24846/v28i4y201901.

20.

Yuksel

Nurkan

. Adaptive Backstepping control with estimation for the vibration isolation of buildings. J Vibr Control 2012; 18(13): 1996–2005.

21.

Fali

Djermane

Zizouni

, et al. Adaptive sliding mode vibrations control for civil engineering earthquake excited structures. Int J Dyn Control 2019; 7(3): 955–965. DOI: 10.1007/s40435-019-00559-0.

22.

Utkin

. Sliding mode control: mathematical tools, design and applications. Columbus, OH: The Ohio State University, 2015.

23.

Mohammad

AL-Samarraie

. Robust controller design for flexible joint based on back-stepping approach. IJCCCE 2020; 20(2): 58–73.

24.

Humaidi

Akram

. PMLSM position control based on continuous projection adaptive sliding mode controller. Syst Sci Control Eng 2018; 6(3): 242–252.

25.

Shibly

Hamzah

Al-Nadawi

. Vehicle ABS control system design via integral sliding mode. Int J Autom Control 2016; 10(4): 356–374.

26.

Al-Dujaili

Falah

Humaidi

, et al. Optimal super-twisting sliding mode control design of robot manipulator: design and comparison study. Int J Adv Rob Syst 2020; 17(6): 1–17.

27.

Falah

Humaidi

Al-Dujaili

, et al. Robust super-twisting sliding control of PAM-actuated manipulator based on perturbation observer. Cogent Eng 2021; 7(1): 1–30.

28.

Humaidi

Hameed

. Development of a new adaptive backstepping control design for a non-strict and under-actuated system based on a PSO Tuner. Information 2019; 10: 38.

29.

Zhu

Zuo

, et al. Disturbance-estimated adaptive backstepping sliding mode control of a pneumatic muscles-driven ankle rehabilitation robot. Sensors 2017; 18: 66.

30.

Humaidi

Kadhim

Gataa

. Development of a novel optimal backstepping control algorithm of magnetic impeller-bearing system for artificial heart ventricle pump. Cybern Syst 2020; 51(4): 521–541.

31.

Petit

Daasch

Albu-Schäffer

. Backstepping control of variable stiffness robots. IEEE Trans Control Syst Technol 2015; 23: 2195–2202.

32.

Mohd Basri

. Design and application of an adaptive backstepping sliding mode controller for a six-DOF quadrotoraerial robot. Cambridge, England: Cambridge University Press, 2018.

33.

Humaidi

Hameed

. Robustness enhancement of MRAC using modification techniques for speed control of three phase induction motor. J Electr Syst 2017; 13(4): 723–741.

34.

Humaidi

Hameed

. Design and comparative study of advanced adaptive control schemes for position control of electronic throttle valve. Information 2019; 10(2): 65.

35.

Humaidi

Hameed

. Design of block-backstepping controller to ball and arc system based on zero dynamic theory. J Eng Sci Technol 2018; 13(7): 2084–2105.

36.

. Design and simulation of adaptive backstepping sliding mode control of manipulator based on MATLAB. Rev de la Fac de Ing 2017; 32(11): 235–240.

37.

Jansen

Dyke

. Semi-active control strategies for MR dampers: a comparative study. J Eng Mech 2000; 126(8): 795–803.

38.

Pohoryles

Duffour

. Adaptive control of structures under dynamic excitation using magnetorheological dampers: an improved clipped-optimal control algorithm. J Vibr Control 2015; 21(13): 2569–2582.

39.

Bingham

. An investigation of the laws of plastic flow. Bulletin of the Bureau of Standards 1916; 13(2): 309–353.

40.

Gamota

Filisko

. Dynamic mechanical studies of electrorheological materials: moderate frequencies. J Rheol 1991; 35(3): 399–425.

41.

Ismail

Ikhouane

Rodellar

. The hysteresis Bouc-Wen model, a survey. Arch Comput Methods Eng 2009; 16(2): 161–188.

42.

Spencer

Jr Dyke

Sain

, et al. Phenomenological Model for Magnetorheological Dampers. J Eng Mech 1997; 123(3): 230–238.

43.

Dyke

Spencer

Jr Sain

, et al. Modeling and control of magnetorheological dampers for seismic response reduction. Smart Mater Struct 1996; 5: 565–575.

44.

Dyke

. Seismic protection of a benchmark building using Magnetorheological dampers. In: Proceedings of the Second world conference on structural control, Kyoto, Japan, June 28–July 1 1998, pp. 1455–1462.

45.

McVerry

. Frequency domain identification of structural models from EarthQuake records. PhD thesis. Pasadena, CA: California Institute of Technology, 1979.

46.

Yang

Jung

Spencer

, et al. Dynamic modeling of large-scale magneto-rheological damper systems for civil engineering applications. J Eng Mech 2004; 130(9): 1–12.

47.

Humaidi

Ibraheem

Azar

, et al. A new adaptive synergetic control design for single link robot arm actuated by pneumatic muscles. Entropy 2020; 22(7): 723.

48.

Tahir

Al-Samarraie

. The application of extremum seeking algorithms in pid tuning for continuous stirred tank reactor. Int Rev Autom Control 2021; 14(1): 28–38.

49.

Humaidi

Hameed

. Robust adaptive speed control for DC motor using novel weighted E-modified MRAC. In: 2017 IEEE International Conference on Power, Control, Signals and Instrumentation, Engineering (ICPCSI), 2017, pp. 313–319.

Adaptive backstepping sliding mode control design for vibration suppression of earth-quaked building supported by magneto-rheological damper

Abstract

Keywords

Introduction

Dynamic model

Adaptive backstepping sliding mode control

Sliding mode control

Stability analysis

Backstepping sliding mode control

Adaptive backstepping sliding mode control

Computer simulation

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
