Abstract

The combination of dynamic vibration absorber and partial state feedback with time-delay is called delayed resonator. In order to suppress the seat vibration caused by uneven road surface and improve ride comfort, the delayed resonator is applied to the seat suspension to realize active control of the seat suspension system. The dynamic model of the half-vehicle suspension system is established, and the time-delay differential equation of the system under external excitation is solved by the precise integration method. The root mean square of the time-domain vibration response of seat displacement, seat acceleration and vehicle acceleration are selected as the objective function. Then, the optimal time-delay control parameters are obtained by particle swarm optimization algorithm. The frequency sweeping method is used to obtain the critical time-delay value and time-delay stable interval of the system. Finally, an active seat suspension model with delayed resonator is established for numerical simulation. The results show that the delayed resonator can greatly suppress the seat vibration response regardless of the road simple harmonic excitation or random excitation. Compared with dynamic vibration absorber, it has a better vibration absorption effect and a wider vibration reduction frequency band.

Keywords

Active seat suspension delayed resonator frequency sweeping method optimization and simulation

Introduction

Recently, research on the suppression of vehicle vibration has been widely carried out. For some commercial and heavy vehicles, the continuous vibration caused by uneven road surfaces seriously affects the physical and mental health of drivers and passengers and endangers driving safety.¹ At present, the reduction of vehicle vibration is mainly achieved by adjusting tires, vehicle suspension, and seat suspension. By modeling the vehicle frame and engine suspension, Tan et al.² proposed a new model of the whole vehicle, which can better reflect the dynamic characteristics of the vehicle system and effectively reduce the vibration transmitted from the engine to the vehicle frame. Relevant studies have shown that the ride comfort of vehicle can be improved by reducing the vertical stiffness of the tire or reducing the tire pressure. However, the reduction in tire pressure increases the rolling resistance of the tire and causes great heat release, which reduces the lifespan of the tire. Vehicle suspension is the main damping system, but the cost for control and adjustment of it is high. The seat suspension is in direct contact with the driver or passenger and the change of it hardly affects other performances of the vehicle. Therefore, the improvement of the seat suspension system is of great significance for improving passenger comfort and vehicle ride comfort.

Passive seat suspension cannot meet the real-time adjustment of stiffness and damping, so that the vibration reduction performance is greatly limited. Therefore, various controllable active and semi-active seat suspensions have been developed.^3-6 The magnetorheological damper is widely used in the seat suspension system, which has many advantages such as low energy consumption, low manufacturing cost, and good controllability.⁷ Gan et al.⁸ proposed an active seat with double electric cylinders to reduce the low-frequency vibration transmitted to the driver. However, in all control systems, there are inevitably time-delay problems in some signal acquisition and transportation, information processing of arithmetic units, and execution of actuators. The existence of it makes the dynamic response of the system more complicated and even leads to bifurcation and chaos in the system, which eventually affects the safety.⁹

Dynamic vibration absorber (DVA) is a kind of equipment that uses a resonance system to absorb the vibration energy of objects. It has been widely used in various industries such as transportation, industrial machinery, and aerospace.¹⁰ The core of the DVA is the attachment of a mass-spring-damper resonance system to the vibrating object, and its structure diagram is shown in Figure 1 (a). The DVA with time-delay feedback control force is called delayed resonator (DR), as shown in

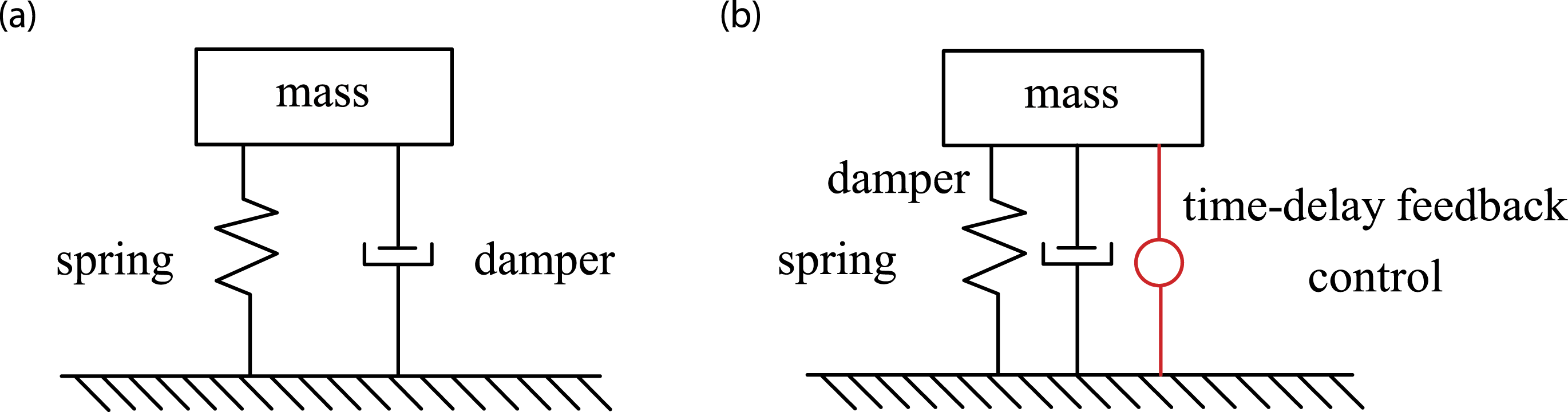

Figure 1.

(a) Dynamic vibration absorber (DVA) and (b) delayed resonator (DR).

Figure 1(b). It can choose different feedback objects and different feedback types to achieve damping control; however, the performance of it should be further studied. Olgac and Holm-Hansen¹¹ first proposed the concept of DR, which can completely absorb the vibration of the main system under single-frequency excitation. Then, the Olgac team conducted theoretical research on DR based on displacement feedback,¹² velocity feedback,¹³ and acceleration feedback¹⁴ and analyzed the impact of different feedback types on system vibration. Zhao et al.¹⁵ studied the dynamic behavior of a two-degree-of-freedom (DOF) structure with DR using the direct method, focusing on the vibration and stability of the main vibration system of the structure. Zhao and Xu¹⁶ studied the vibration damping performance of the nonlinear DR on the main system using the multi-scale method. The results show that the vibration response of the main system was reduced by 86% compared with the time-delay-free system when the time-delay feedback parameters were adjusted to the optimal value. Li et al.¹⁷ studied the application of time-delay feedback control and LQR control in reducing the vertical vibration of the vehicle, and the results show that the time-delay feedback control has a better vibration reduction effect. Zhang et al.¹⁸ proposed a novel event-triggered fault tolerant auto-steering control strategy for autonomous land vehicles for path tracking under in-vehicle network time-delay. The controller not only guaranteed the path tracking performance but also saved communication resources. Wang and Hu¹⁹ used the method of stability switching to analyze the stability of time-delay systems and solved the time-delay stability interval by judging whether the polynomial equations have positive real roots and the number of real roots. Koumene Taffo et al.²⁰ chose the nonlinear quarter-vehicle model as the research object and analyzed the parameter resonance problem under time-delay displacement feedback and velocity feedback. At present, great progress has been made in the study of the theory of time-delay vibration reduction, but research on the seat suspension system is still few. In addition, the vehicle is a complex multi-DOF dynamics model, and it is one-sided to study the suspension vibration reduction effect of time-delay control on the quarter-vehicle model. In other words, the half-vehicle model can better reflect the real vibration characteristics of the vehicle.

To solve the above problems, this study applies DR to the seat suspension system of a light truck. Taking a half-vehicle model as the research object, an active seat suspension control method based on DR is proposed. The time-delay control parameters with the smallest time-domain vibration response of the seat under road harmonic excitation and random excitation are obtained by particle swarm optimization. The stability interval of the time-delay system is obtained by the frequency sweeping method and verified numerically. Finally, models of passive seat suspension, seat suspension with DVA, and active seat suspension with DR are established. The performance of DR on seat vibration reduction in the time-domain and frequency-domain is compared and analyzed using the above model.

Mechanical model

To analyze the influence of time-delay feedback control on seat vibration, a DR is assembled on the seat suspension. The vehicle model is simplified to a 6-DOF suspension system dynamic model, which mainly includes the vertical movement and pitch movement of the vehicle body, the vertical movement of the seat, the vertical movement of the DR, and the vertical movement of the front and rear wheels.

In Figure 2, $m_{c}$ and $I_{c}$ represent body mass and body pitching moment of inertia, respectively; $k_{s f}$ and $c_{s f}$ are the stiffness and damping coefficient of the front suspension, respectively; $k_{s r}$ and $c_{s r}$ are the stiffness and damping coefficient of the rear suspension, respectively; $m_{t f}$ and $m_{t r}$ are the front and rear axle tire masses, respectively; $k_{t f}$ and $k_{t r}$ are the stiffness of the

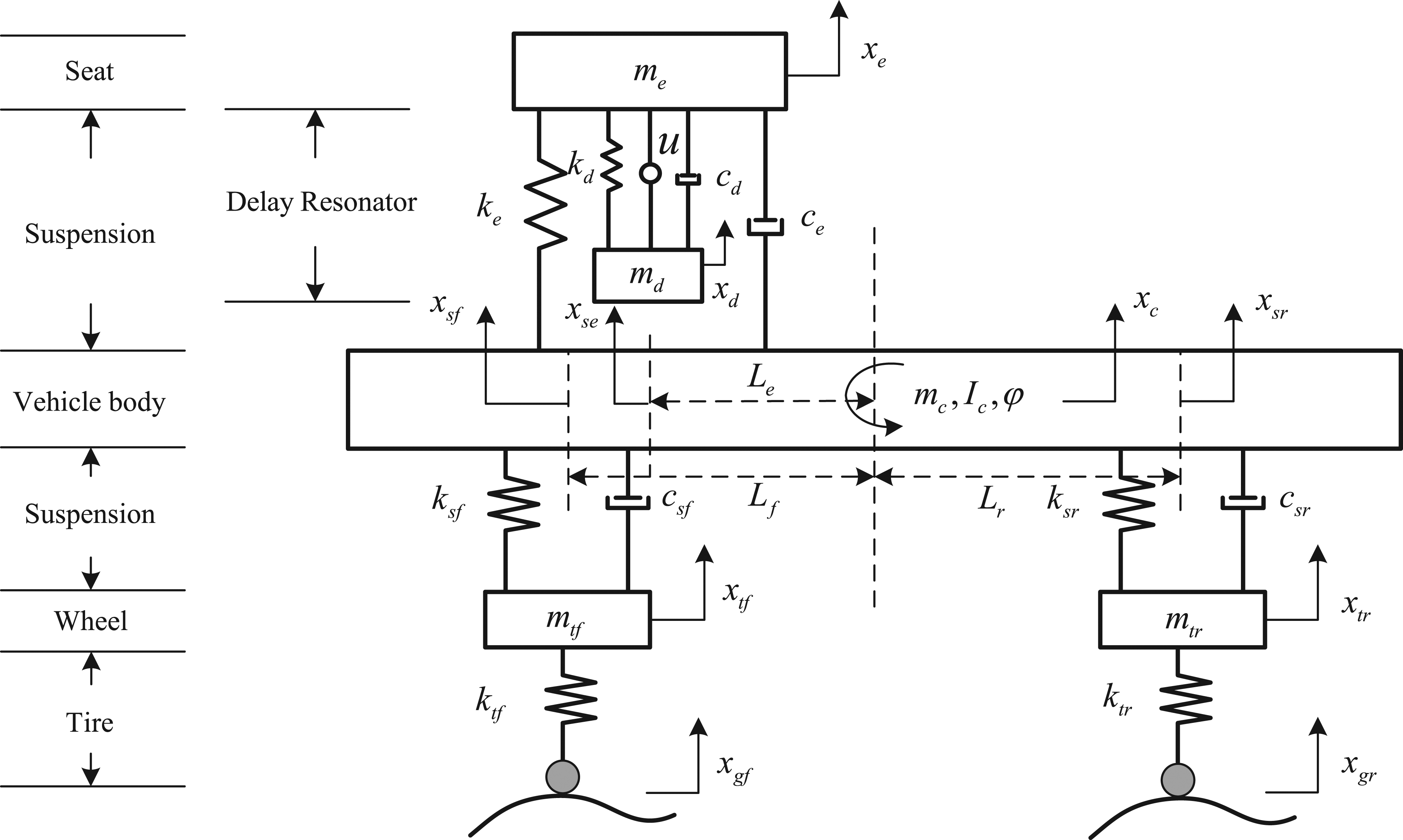

Figure 2.

Six-DOF half-vehicle suspension model with delay resonator (DR).

front and rear axle tires, respectively; $φ$ is the pitching angle of the vehicle body; $m_{e}$ is the mass of the seat (including the weight of the passenger); $k_{e}$ and $c_{e}$ are the stiffness and damping coefficients of the seat, respectively; $m_{d}$ is the mass of the DR; $k_{d}$ and $c_{d}$ are the stiffness and damping coefficients of the DR, respectively; $L_{f}$ and $L_{r}$ represent the distance from the center of mass of the vehicle body to the front and rear axles, and $L_{e}$ is the distance from the center of mass of the body to the center of the seat; $x_{e}$ , $x_{c}$ , and $x_{d}$ represent the vertical displacement of seat, vehicle body, and DR, respectively; $x_{t f}$ and $x_{t r}$ represent the vertical displacement of front and rear axle tires, respectively; and $x_{g f}$ and $x_{g r}$ represent the road excitation displacement.

Separate each degree of freedom system, and according to Newton’s second law, establish vibration differential equations with time-delay feedback control.

Vertical motion equation of DR

m_{d} {\ddot{x}}_{d} - k_{d} (x_{e} - x_{d}) - c_{d} ({\dot{x}}_{e} - {\dot{x}}_{d}) - u = 0

(1)

Equation of seat vertical motion

m_{e} {\ddot{x}}_{e} + k_{e} (x_{e} - x_{s e}) + c_{e} ({\dot{x}}_{e} - {\dot{x}}_{s e}) + k_{d} (x_{e} - x_{d}) + c_{d} ({\dot{x}}_{e} - {\dot{x}}_{d}) + u = 0

(2)

Vertical motion equation of vehicle body

m_{c} {\ddot{x}}_{c} + k_{s f} (x_{s f} - x_{t f}) + c_{s f} ({\dot{x}}_{s f} - {\dot{x}}_{t f}) + k_{s r} (x_{s r} - x_{t r}) + c_{s r} ({\dot{x}}_{s r} - {\dot{x}}_{t r}) - k_{e} (x_{e} - x_{s e}) - c_{e} ({\dot{x}}_{e} - {\dot{x}}_{s e}) = 0

(3)

Body pitching motion equation

I_{c} {\ddot{φ}}_{c} - L_{f} [k_{s f} (x_{s f} - x_{t f}) + c_{s f} ({\dot{x}}_{s f} - {\dot{x}}_{t f})] + L_{r} [k_{s r} (x_{s r} - x_{t r}) + c_{s r} ({\dot{x}}_{s r} - {\dot{x}}_{t r})] + L_{e} [k_{e} (x_{e} - x_{s e}) + c_{e} ({\dot{x}}_{e} - {\dot{x}}_{s e})] = 0

(4)

Vertical motion equation of front and rear axle tires

{\begin{matrix} m_{t f} {\ddot{x}}_{t f} + k_{t f} (x_{t f} - x_{g f}) - k_{s f} (x_{s f} - x_{t f}) - c_{s f} ({\dot{x}}_{s f} - {\dot{x}}_{t f}) = 0 \\ m_{t r} {\ddot{x}}_{t r} + k_{t r} (x_{t r} - x_{g r}) - k_{s r} (x_{s r} - x_{t r}) - c_{s r} ({\dot{x}}_{s r} - {\dot{x}}_{t r}) = 0 \end{matrix}

(5)

The system includes a DR based on seat displacement feedback. The time-delay feedback control force is expressed as

u = g x_{e} (t - τ)

(6)

where

g

is the feedback gain coefficient,

t

is the time, and

τ

is the time-delay, which represents the sum of the intrinsic and active time-delay. When

τ

= 0, the DR becomes a DVA without time-delay feedback control.

Assuming that the vehicle is driving in a straight line, when passing a certain point, the vibration input of the rear wheel passing through this point will be delayed for a period of time than that of the front wheel, which can be expressed as

x_{g r} (t) = x_{g f} (t - T)

. In addition, the time difference is the ratio of the vehicle wheelbase to the vehicle speed, which is

T = (L_{f} + L_{r}) / v

. Table 1 shows the parameters of a light truck suspension model.

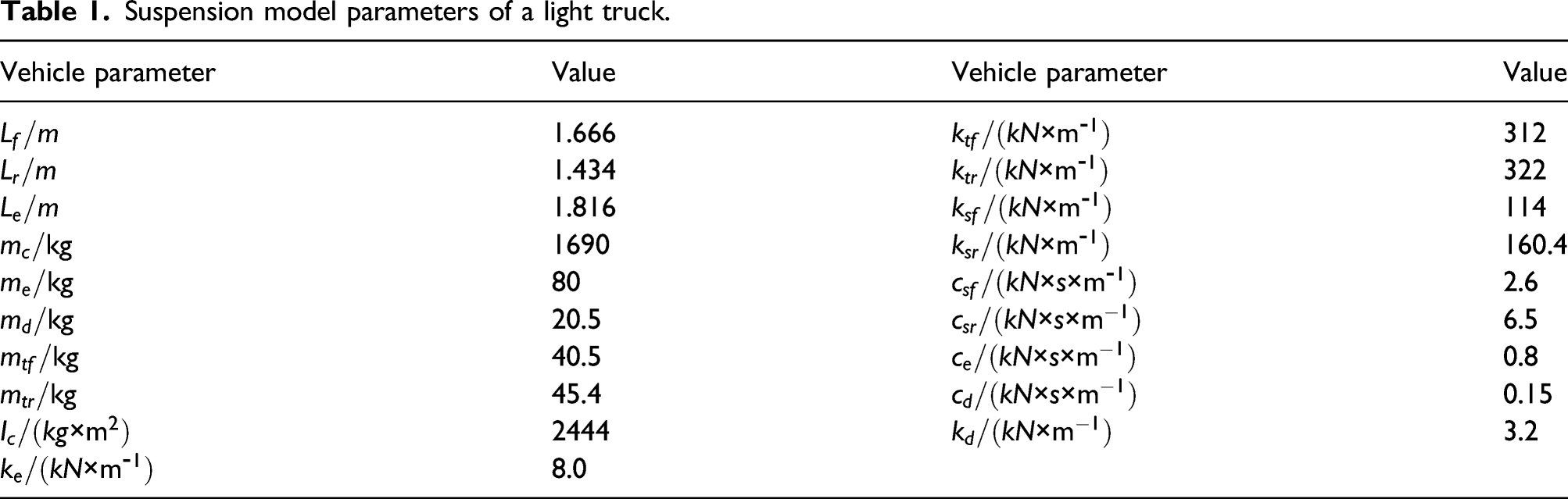

Table 1.

Suspension model parameters of a light truck.

Vehicle parameter	Value	Vehicle parameter	Value
$L_{f} / m$	1.666	$k_{t f} / (kN× m^{-1})$	312
$L_{r} / m$	1.434	$k_{t r} / (kN× m^{-1})$	322
$L_{e} / m$	1.816	$k_{s f} / (kN× m^{-1})$	114
$m_{c} / kg$	1690	$k_{s r} / (kN× m^{-1})$	160.4
$m_{e} / kg$	80	$c_{s f} / (kN×s× m^{-1})$	2.6
$m_{d} / kg$	20.5	$c_{s r} / (kN×s× m^{- 1})$	6.5
$m_{t f} / kg$	40.5	$c_{e} / (kN×s× m^{- 1})$	0.8
$m_{t r} / kg$	45.4	$c_{d} / (kN×s× m^{- 1})$	0.15
$I_{c} / (kg× m^{2})$	2444	$k_{d} / (kN× m^{- 1})$	3.2
$k_{e} / (kN× m^{-1})$	8.0

The pitch angle of the vehicle changes within a small range, which can be approximated as

{\begin{matrix} x_{s e} = x_{c} - L_{e} φ \\ x_{s f} = x_{c} - L_{f} φ \\ x_{s r} = x_{c} + L_{r} φ \end{matrix}

(7)

Solution of optimal feedback control parameters

Method of solving the time-delay equation

The state variables $X (t) = {[x_{d}, {\dot{x}}_{d}, x_{e}, {\dot{x}}_{e}, x_{c}, {\dot{x}}_{c}, φ, \dot{φ}, x_{t f}, {\dot{x}}_{t f}, x_{t r}, {\dot{x}}_{t r}]}^{T}$ are selected according to the performance requirements of the suspension system.

Define the state space equations of the suspension system as follows

{\begin{matrix} \dot{X} (t) = A X (t) + B U (t) + E h (t) \\ Y (t) = C X (t) + D U (t) \end{matrix}

(8)

where the output variables

Y (t) = {[x_{e}, {\dot{x}}_{e}, {\ddot{x}}_{e}, {\ddot{x}}_{c}, \ddot{φ}]}^{T}

, the time-delay feedback control force

U (t) = g x_{e} (t - τ)

, the road excitation displacement

h (t) = {[x_{g f}, x_{g r}]}^{T}

, and the control matrix of the state equation is shown in Appendix 1.

According to the precise integration method^21,22 of delay differential equations, the numerical solution of the vibration system of the 6-DOF half-vehicle model is solved. Establish a quantitative relationship between time-delay control parameters, road excitation, and time-domain vibration response of the system.

The time-delay control term in equation (8) is regarded as the excitation term and its solution can be written as

X (t) = \exp (A t) X (0) + \int_{0}^{t} \exp [A (t - s)] B U (t) d s + \int_{0}^{t} \exp [A (t - s) h (s) d s]

(9)

It is assumed that the selected step size is $Δ t = t_{k + 1} - t$ , then the total number of steps is $n = t / Δ t$ .

The numerical discretization of equation (9) can be expressed as

X_{k + 1} = \exp (A Δ t) X_{k} + \int_{k Δ t}^{(k + 1) Δ t} \exp [A [(k + 1) Δ t - s]] h (s) d s + \int_{(k - n) Δ t}^{(k + 1 - n) Δ t} \exp [A [(k + 1) Δ t - s - n Δ t]] B U (s) d s

(10)

Then, equation (10) is solved to obtain the vibration response of the system at each time node as follows

{\begin{matrix} x_{e} = [x_{e 1}, x_{e 2}, x_{e 3}, x_{e 4}, \dots, x_{e n}] \\ {\dot{x}}_{e} = [{\dot{x}}_{e 1}, {\dot{x}}_{e 2}, {\dot{x}}_{e 3}, {\dot{x}}_{e 4}, \dots, {\dot{x}}_{e n}] \\ x_{c} = [x_{c 1}, x_{c 2}, x_{c 3}, x_{c 4}, \dots, x_{c n}] \\ {\dot{x}}_{c} = [{\dot{x}}_{c 1}, {\dot{x}}_{c 2}, {\dot{x}}_{c 3}, {\dot{x}}_{c 4}, \dots, {\dot{x}}_{c n}] \\ φ = [φ_{1}, φ_{2}, φ_{3}, φ_{4}, \dots, φ_{n}] \\ \dot{φ} = [{\dot{φ}}_{1}, {\dot{φ}}_{2}, {\dot{φ}}_{3}, {\dot{φ}}_{4}, \dots, {\dot{φ}}_{n}] \end{matrix}

(11)

where

x_{e n}

and

{\dot{x}}_{e n}

represent the vertical vibration displacement and velocity of the seat at the time of

t_{n}

, respectively;

x_{c n}

and

{\dot{x}}_{c n}

represent the vibration displacement and velocity of the vehicle body at the time of

t_{n}

, respectively; and

φ_{n}

and

{\dot{φ}}_{n}

represent the vibration displacement and velocity of vehicle pitching at the time of

t_{n}

, respectively.

Finally, substituting equation (11) into equations (2-4) so that the seat acceleration, body acceleration, and pitching acceleration of the system at each time node are as follows

{\begin{cases} {\ddot{x}}_{e} = \frac{1}{m_{e}} [k_{e} (x_{s e} - x_{e}) + c_{e} ({\dot{x}}_{s e} - {\dot{x}}_{e}) + k_{d} (x_{d} - x_{e}) + c_{d} ({\dot{x}}_{d} - {\dot{x}}_{e}) - g x_{e} (t - τ)] \\ {\ddot{x}}_{c} = \frac{1}{m_{c}} [k_{s f} (x_{t f} - x_{s f}) + c_{s f} ({\dot{x}}_{t f} - {\dot{x}}_{s f}) + k_{s r} (x_{t r} - x_{s r}) + c_{s r} ({\dot{x}}_{t r} - {\dot{x}}_{s r}) - k_{e} (x_{s e} - x_{e}) - c_{e} ({\dot{x}}_{s e} - {\dot{x}}_{e}) \\ \ddot{φ} = \frac{1}{I_{c}} [L_{f} [k_{s f} (x_{t f} - x_{s f}) + c_{s f} ({\dot{x}}_{t f} - {\dot{x}}_{s f})] - L_{r} [k_{s r} (x_{t r} - x_{s r}) + c_{s r} ({\dot{x}}_{t r} - {\dot{x}}_{s r})] - L_{e} [k_{e} (x_{s e} - x_{e}) - c_{e} ({\dot{x}}_{s e} - {\dot{x}}_{e})]] \end{cases}

(12)

Through this method, different road surface excitation can be directly introduced into the solution and optimization of time-delay control parameters. The time-delay control parameters with the minimum time-domain vibration response of the system under the action of DR can be obtained.

Objective function

The root mean square (RMS) value of seat displacement, RMS value of seat acceleration, and RMS value of vehicle body acceleration are selected as multi-objective optimization functions to reduce the impact of vibration generated by the vehicle on passenger comfort and vehicle ride comfort

\min J = c_{1} J_{1} + c_{2} J_{2} + c_{3} J_{3}

(13)

where

J_{1}

is the RMS of seat displacement in the time-domain vibration response;

J_{2}

is the RMS of seat acceleration in the time-domain vibration response; and

J_{3}

is the RMS of body acceleration in the time-domain vibration response. The dimensions and orders of magnitude of seat displacement, seat acceleration, and body acceleration are different. According to the importance of the index item in the index item system, the weight coefficients are set to

c_{1} = 0.3

c_{2} = 0.4

, and

c_{3} = 0.3

J_{1} = \sqrt{\frac{\sum_{k = 1}^{n} x_{e k}^{2}}{n}}, J_{2} = \sqrt{\frac{\sum_{k = 1}^{n} {\ddot{x}}_{e k}^{2}}{n}}, J_{3} = \sqrt{\frac{\sum_{k = 1}^{n} {\ddot{x}}_{c k}^{2}}{n}}

(14)

where

x_{e k}

is the vibration displacement of the seat at time

t_{k}

;

{\ddot{x}}_{e k}

is the vibration acceleration of the seat at time

t_{k}

; and

{\ddot{x}}_{c k}

is the vibration acceleration of the vehicle body at time

t_{k}

Time-delay control parameters optimization algorithm

Particle swarm optimization (PSO) is an intelligent algorithm based on information interaction between individuals and groups.^23-25 It mainly uses individual extremum and group extremum to achieve gradual optimization. The algorithm can approach the optimal solution very quickly and can effectively optimize the control parameters with a certain time-delay, so that the objective function tends to be minimized. The algorithm steps are as follows:

Two two-dimensional search spaces representing time-delay and feedback gain coefficients are set; $n$ pairs of time-delay control parameters $(τ_{n}, g_{n})$ are randomly selected. The search spaces are denoted as

{\begin{matrix} T = [τ_{1}, τ_{2}, τ_{3}, \dots, τ_{n}] \\ g = [g_{1}, g_{2}, g_{3}, \dots, g_{n}] \end{matrix}

(15)

2. According to equation (11), the numerical solutions of the vibration displacement response and velocity response of the seat and vehicle body under the action of each pair of control parameters are solved. Then, the vibration acceleration response of seat and vehicle body is calculated through equation (12). Finally, the numerical solution of the objective function under each pair of control parameters is obtained by equation (13) and stored in an array

J_{1 \times n} = [J_{1}, J_{2}, J_{3}, \dots, J_{n}]

(16)

3. In each array, the time-delay feedback parameters corresponding to the minimum objective function are selected as the individual optimal value $P_{i s}$ . The minimum objective function is taken as the global optimal value $P_{g s}$ .

4. After obtaining a set of optimal values, it is necessary to update the particle velocity and position. The update rules are defined as

{\begin{matrix} V_{i s} (t + 1) = ω_{t} V_{i s} + q_{1} r_{1} (P_{i s} - X_{i s}) + q_{2} r_{2} (P_{g s} - X_{i s}) \\ X_{i s} (t + 1) = X_{i s} (t) + V_{i s} (t + 1) \end{matrix}

(17)

where

q_{1}

= 1.2,

q_{2}

= 2.2,

ω_{t}

= 0.6, and

r_{1}

and

r_{2}

are random numbers in [0, 1].

5. The global optimum is continuously updated to find the control parameters corresponding to the global optimum at the end of the calculation, in other words, the optimal time-delay control parameters.

In the algorithm, 40 particles are randomly selected for 100 iterations of optimization, and the change of fitness values under simple harmonic excitation and random excitation is obtained, respectively. From Figure 3 (a) and (b), it can be seen that the fitness values both decrease with the increase of the number of iterations until stability. This indicates that the vibration response of the seat is continuously reduced to a minimum. After optimization, the optimal control parameters for simple harmonic excitation and random excitation are

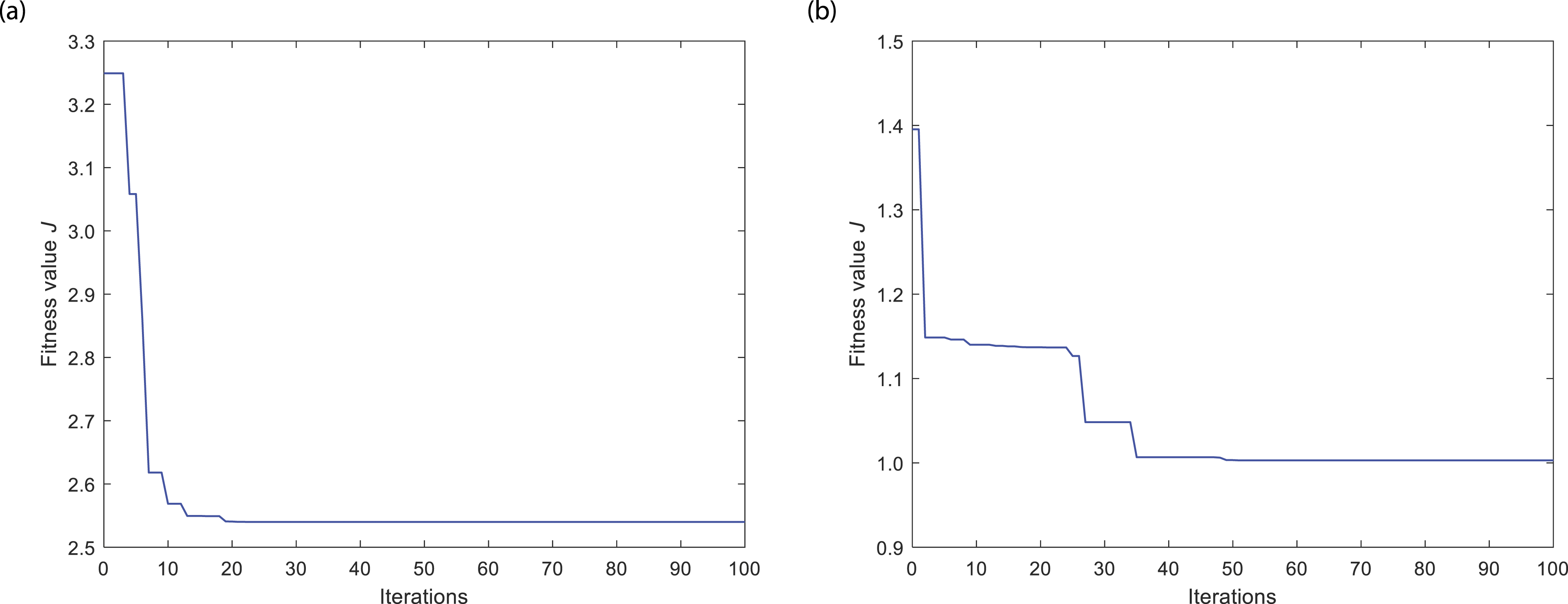

Figure 3.

(a) Variation of fitness value under simple harmonic excitation and (b) variation of fitness value under random excitation.

$g_{1}$ = 54,755 $N× m^{- 1}$ , $τ_{1}$ = 0.0183 s; $g_{2}$ = 35,408 $N× m^{- 1}$ , $τ_{2}$ = 0.0131 s.

Stability analysis

When the time-delay feedback control is introduced into the system, the system can remain stable only when appropriate feedback parameters are selected. Therefore, the frequency sweeping method is chosen for the stability analysis, which can simplify the system analysis and effectively detect the imaginary root of the system.²⁶

The Laplace transform is applied to equations (1–5) to solve the system characteristic equation

\det (A_{66}) = 0

(18)

where

A_{66}

is a 6 × 6 matrix with time-delay feedback term and its specific form is

A_{66} = [\begin{matrix} a_{11} & a_{12} & a_{13} & a_{14} & a_{15} & a_{16} \\ a_{21} & a_{22} & a_{23} & a_{24} & a_{25} & a_{26} \\ a_{31} & a_{32} & a_{33} & a_{34} & a_{35} & a_{36} \\ a_{41} & a_{42} & a_{43} & a_{44} & a_{45} & a_{46} \\ a_{51} & a_{52} & a_{53} & a_{54} & a_{55} & a_{56} \\ a_{61} & a_{62} & a_{63} & a_{64} & a_{65} & a_{66} \end{matrix}]

(19)

where

\begin{array}{l} a_{11} = m_{d} s^{2} + k_{d} + c_{d} s, a_{12} = - k_{d} - c_{d} s - z g, a_{13} = 0, a_{14} = 0, a_{15} = 0, a_{16} = 0, \\ a_{21} = - k_{d} - c_{d} s, a_{22} = m_{e} s^{2} + k_{e} + c_{e} s + k_{d} + c_{d} s + z g, a_{23} = - k_{e} - c_{e} s, a_{23} = L_{e} k_{e} + c_{e} L_{e} s, a_{25} = 0, a_{26} = 0, \\ a_{31} = 0, a_{32} = - k_{e} - c_{e} s, a_{33} = m_{c} s^{2} + k_{s f} + c_{s f} s + k_{s r} + c_{s r} s + k_{e} + c_{e} s, \\ a_{34} = - L_{f} k_{s f} - L_{f} c_{s f} s + L_{r} k_{s r} + L_{r} c_{s r} s - L_{e} k_{e} - L_{e} c_{e} s, \\ a_{35} = - k_{s f} - c_{s f} s, a_{36} = - k_{s r} - c_{s r} s, a_{41} = 0, a_{42} = k_{e} L_{e} + c_{e} L_{e} s, \\ a_{43} = - k_{s f} L_{f} - c_{s f} L_{f} s + k_{s r} L_{r} + c_{s r} L_{r} s - k_{e} L_{e} - c_{e} L_{e} s, \\ a_{44} = I_{c} s^{2} + k_{s f} L_{f}^{2} + c_{s f} L_{f}^{2} s + k_{s r} L_{r}^{2} + c_{s r} L_{r}^{2} s + k_{e} L_{e}^{2} + c_{e} L_{e}^{2} s, \\ a_{45} = k_{s f} L_{f} + c_{s f} L_{f} s, a_{46} = - k_{s r} L_{r} - c_{s r} L_{r} s, a_{51} = 0, \\ a_{52} = 0, a_{53} = - k_{s f} - c_{s f} s, a_{54} = k_{s f} L_{f} + c_{s f} L_{f} s, a_{55} = m_{t f} s^{2} + k_{t f} + k_{s f} + c_{s f} s, a_{56} = 0, a_{61} = 0, a_{62} = 0, \\ a_{63} = - k_{s r} - c_{s r} s, a_{64} = - k_{s r} L_{r} - c_{s r} L_{r} s, a_{65} = 0, a_{66} = m_{t r} s^{2} + k_{t r} + k_{s r} + c_{s r} s \end{array}

Equation (18) can be further expressed as

C E (s, z) = a_{1} (s) z + a_{0} (s) = \sum_{k = 0}^{1} a_{k} (s) z^{k} = 0

(20)

where

\begin{array}{l} a_{0} (s) = b_{1} s^{12} + b_{2} s^{11} + b_{3} s^{10} + b_{4} s^{9} + b_{5} s^{8} + b_{6} s^{7} + b_{7} s^{6} + b_{8} s^{5} + b_{9} s^{4} + b_{10} s^{3} + b_{11} s^{2} + b_{12} s + b_{13} \\ a_{1} (s) = c_{1} s^{10} + c_{2} s^{9} + c_{3} s^{8} + c_{4} s^{7} + c_{5} s^{6} + c_{6} s^{5} + c_{7} s^{4} + c_{8} s^{3} + c_{9} s^{2} \end{array}

z = e^{- s τ}

s = i ω

b_{n} (n = 1,2, \dots, 13)

, and

c_{n} (n = 1,2, \dots, 9)

are the coefficients of the characteristic equation polynomial, and

a_{0} (s)

is a time-delay uncorrelated term of the highest power.

For $a_{k} (s) (k = 0,1)$ , equivalent transformation of equation (20) is obtained

C E (s, z) = a_{1} (s) [z + \frac{a_{0} (s)}{a_{1} (s)}] = 0

(21)

Since both $s$ and $z$ are complex numbers, the quasi-polynomial $z + a_{0} (s) / a_{1} (s)$ can only be equal to zero when the system state equation is equal to zero.

Scan $ω$ from zero to a positive number $\bar{ω}$ , for each $s = i ω$ , the time-delay system has $n$ complex roots of $z$ . Draw the relationship diagram between $| z |$ and $ω$ in $ω \in [0, \bar{ω}]$ , where | | represents the norm. In this way, $n$ two-dimensional figures can be obtained, in which the abscissa represents the frequency, and the ordinate represents the norm of the corresponding complex root.

If there is a point $| z | = 1$ , the corresponding frequency $ω_{m} (m = 1,2, \dots, n)$ on the abscissa are the crossover frequencies of the system, so that $s = ω_{m} i$ are the $n$ positive imaginary roots of equation (18). For each positive imaginary root, there are infinitely many time-delay values $τ_{m, r} (r = 1,2, \dots, \infty)$ , satisfying $C E (ω_{m} i, τ_{m, r}) = 0$ .

Substitute $s = ω_{m} i$ into equation (15), the calculation result is $e^{- δ i} = x + y i$ . Further, calculate the value of $δ$ , where $δ$ meets the following conditions

$δ = \arctan (- \frac{y}{x})$ , when $x > 0, y < 0$ ;

$δ = \arctan (- \frac{y}{x}) + 2 π$ , when $x > 0, y > 0$ ;

$δ = \arctan (- \frac{y}{x}) + π$ , when $x < 0$ ;

$δ = \frac{π}{2}$ , when $x = 0, y = - 1$ ;

$δ = \frac{3 π}{2}$ , when $x = 0, y = 1$ .

Finally, the time-delay value is calculated

τ = \frac{δ}{ω} + \frac{2 r π}{ω} (r = 0,1, \dots, \infty)

(22)

If two imaginary roots belong to the same quasi-polynomial, then the larger one moves to the right in the complex plane until it crosses the imaginary axis. The smaller one moves to the left until it crosses the imaginary axis.

According to the above theory, the feedback control parameter $g_{1}$ = 54,755 N/m optimized by simple harmonic excitation is substituted into equation (20), and the relationship between frequency and norm of $z_{1}$ is obtained, as shown in Figure 4(a). It can be seen from the figure that the imaginary root of the system corresponds to the point $| z_{1} | = 1$ , so the system has two crossover frequencies $ω_{1}$ = 4.009 rad/s and $ω_{2}$ = 28.6634 rad/s. Then, $s = 4.009 i$ is substituted into the characteristic equation, and the time-delay value is obtained by equation (22) as 1.4061 + $2 r π / 4.009 (r = 0,1, \dots, \infty)$ . The time-delay value of the other crossover frequency is calculated, and the final result is 0.0274 + $2 r π / 28.6634 (r = 0,1, \dots, \infty)$ .

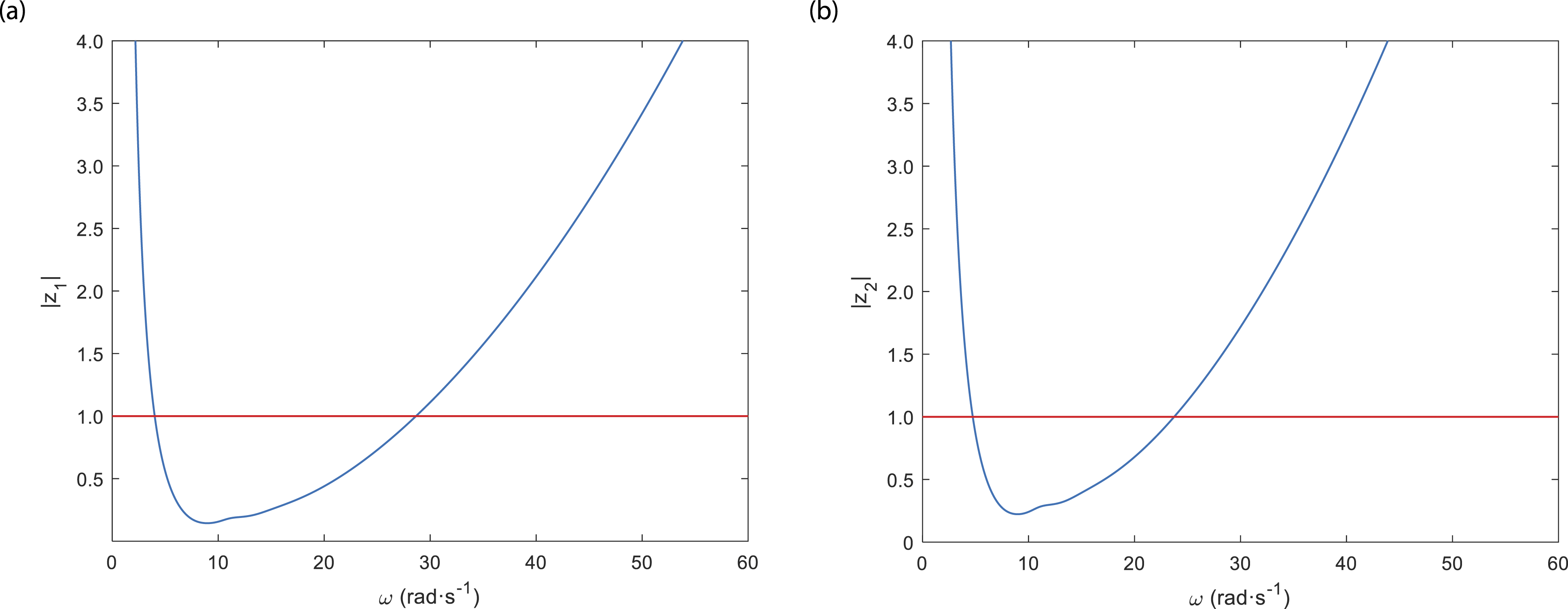

Figure 4.

(a) Norm of $z_{1}$ in simple harmonic excitation and (b) the norm of $z_{2}$ in random excitation.

The imaginary root $s = 4.009 i$ crosses the imaginary axis from right to left in the complex plane, and the number of unstable characteristic roots of the time-delay system decreases. The imaginary root $s = 28.6634 i$ crosses the imaginary axis from left to right in the complex plane, and the number of unstable characteristic roots of the time-delay system increases. Therefore, the asymptotic stability interval of the time-delay system is $τ_{1} \in (0,0.0274)$ .

When $τ = 0$ , the necessary and sufficient condition for the asymptotic stability of the system is that the characteristic roots of the characteristic equation all contain negative real parts. Substituting $τ = 0$ into equation (20), the characteristic equation is solved and the characteristic roots are obtained as follows, from which it can be known that the system is asymptotically stable.

$s_{1} = - 33.1359 + 96.4854 * i$ , $s_{2} = - 33.1359 - 96.4854 * i$ , $s_{3} = - 74.1554 + 67.6073 * i$ , $s_{4} = - 74.1554 - 67.6073 * i$ ,

$s_{5} = - 8.5867 + 27.0795 * i$ , $s_{6} = - 8.5867 - 27.0795 * i$ , $s_{7} = - 2.5196 + 14.0137 * i$ , $s_{8} = - 2.5196 - 14.0137 * i$ ,

$s_{9} = - 1.5247 + 10.8382 * i$ , $s_{10} = - 1.5247 - 10.8382 * i$ , $s_{11} = - 1.0380 + 4.0729 * i$ , $s_{12} = - 1.0380 - 4.0729 * i$ .

Similarly, the optimal feedback control parameter $g_{2}$ = 35,408 N/m of random excitation is introduced into equation (18), and the relationship between $| z_{2} |$ and $ω$ is obtained. There are also two crossover frequencies in the system, which are $ω_{1} = 4.7395$ rad/s and $ω_{2} = 23.7408$ rad/s, as shown in Figure 4 (b). After analysis and calculation, the asymptotic stability interval of the time-delay system with this parameter is $τ_{2} \in [0,0.0427)$ .

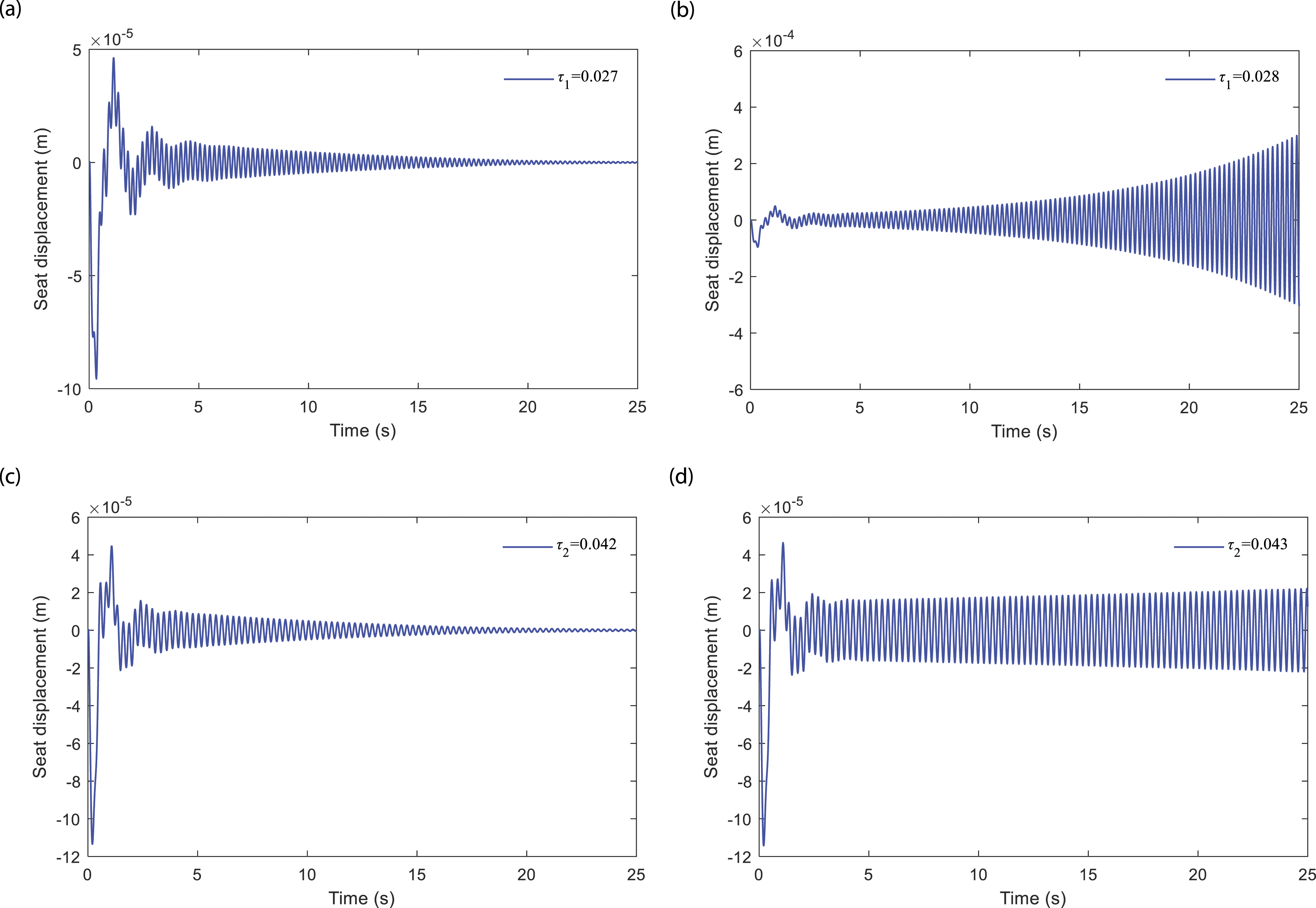

To verify the above conclusions, time-delay $τ$ for different stability intervals is taken for numerical simulation. The initial condition is taken as. Figure 5 (a) shows that the system is asymptotically stable when $τ_{1} = 0.027 < 0.0274$ . Figure 5 (b) shows that the system is unstable when $τ_{1} = 0.028 > 0.0274$ . Figure 5 (c) shows that the system is asymptotically stable when $τ_{2} = 0.042 < 0.0427$ . Figure 5 (d) shows that the system is unstable when $τ_{2} = 0.043 > 0.0427$ . Numerical simulation verifies the correctness of the theoretical analysis.

Figure 5.

Numerical simulation results.

Simulation and result analysis

To verify the damping effect of DR in the seat suspension system, the amplitude–frequency characteristics and time-domain responses of the seat under different excitations are analyzed by comparing the passive seat suspension and the seat suspension with DVA.

Frequency-domain analysis

Bring the optimal time-delay feedback control parameters $g_{1}$ and $τ_{1}$ into equation (18) to construct the amplitude–frequency characteristic curve based on seat displacement feedback, as shown in Figure 6 (a).

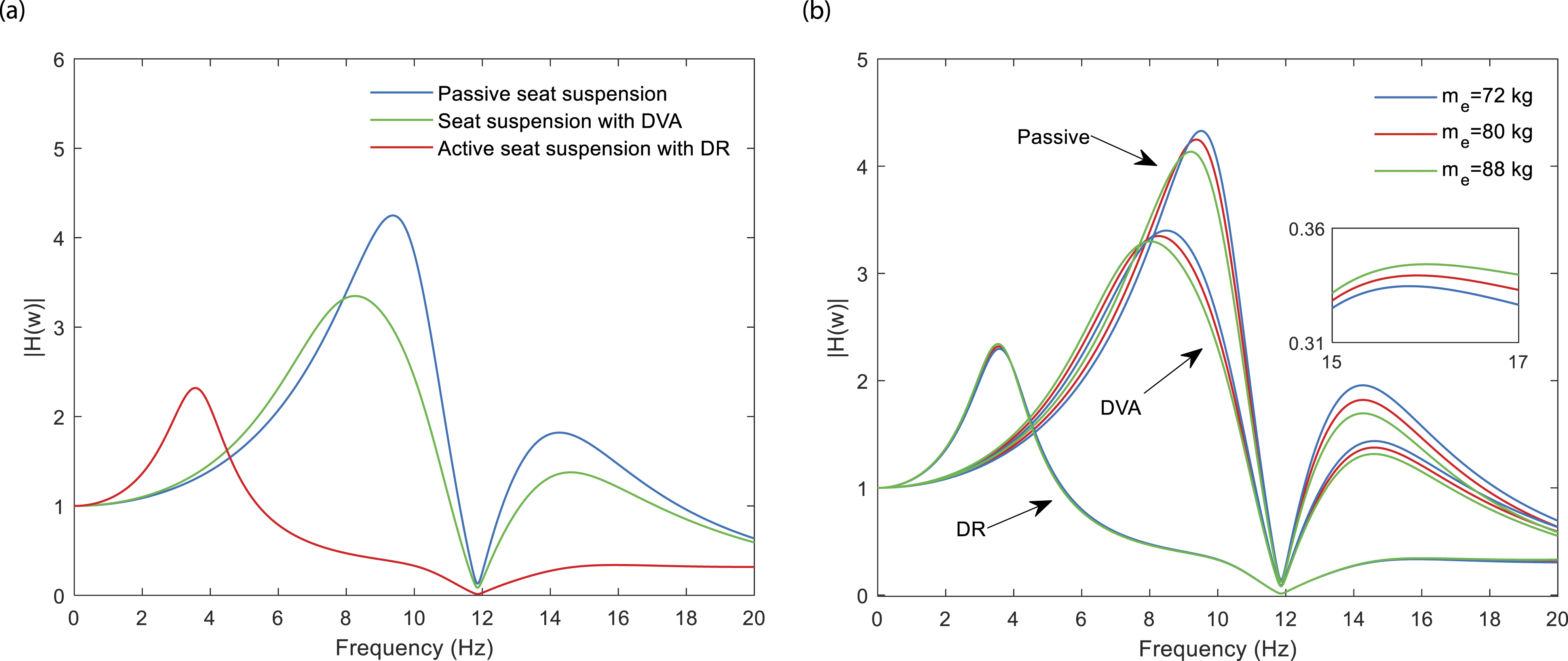

Figure 6.

(a) Seat amplitude–frequency characteristic curve and (b) seat amplitude–frequency characteristic curve under different passenger weights.

It can be seen from the figure that the natural frequency of passive seat suspension is around 9 Hz. Both the seat suspension with DVA and the active seat suspension with DR can effectively reduce the seat vibration displacement in this frequency range, and the control effect with DR is better. On the other hand, compared with passive seat suspension, the

DVA has achieved a good damping effect on seat vibration response within 8∼20 Hz, while the DR has achieved a better damping effect than DVA within 4.5∼20 Hz. The results show that DR can reduce the vibration characteristics of the seat suspension more effectively and has a wider damping frequency band.

To further discuss the adaptability of the DR to the passenger weight, the passenger weight is decreased and increased by 10%, respectively, that is,

m_{e}

= 72 kg and

m_{e}

= 88 kg. After changing the parameters, the frequency-domain analysis is performed for the passive suspension, the seat suspension with DVA, and the active seat suspension with DR, as shown in Figure 6 (b), and the corresponding RMS is shown in Table 2. It can be seen that the system can still show good control when the parameters of the seat system change. The variation range of the amplitude–frequency characteristic of the seat suspension with DR is significantly smaller than that of the passive suspension and the seat suspension with DVA, indicating that the vibration reduction performance of the DR on the seat is stable and has good robustness.

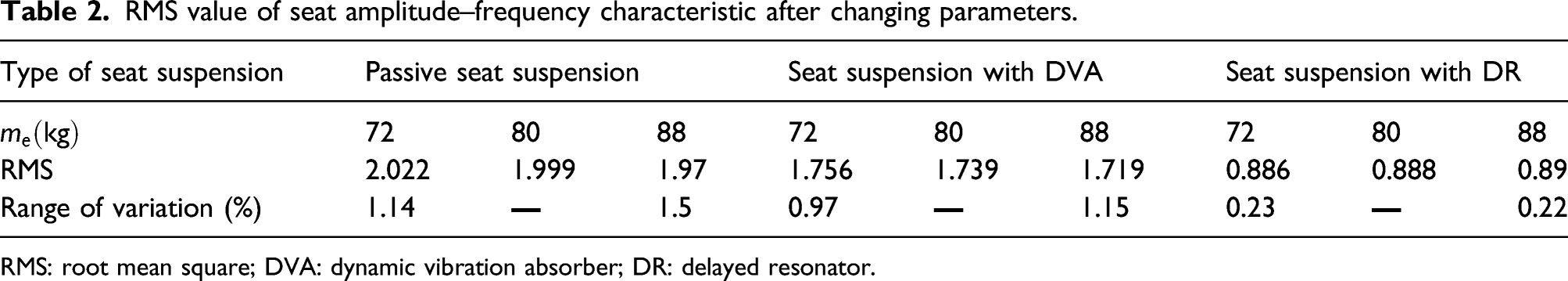

Table 2.

RMS value of seat amplitude–frequency characteristic after changing parameters.

Type of seat suspension	Passive seat suspension			Seat suspension with DVA			Seat suspension with DR
$m_{e} (kg)$	72	80	88	72	80	88	72	80	88
RMS	2.022	1.999	1.97	1.756	1.739	1.719	0.886	0.888	0.89
Range of variation (%)	1.14	—	1.5	0.97	—	1.15	0.23	—	0.22

RMS: root mean square; DVA: dynamic vibration absorber; DR: delayed resonator.

Time-domain analysis under simple harmonic excitation

The optimized time-delay feedback parameters $g_{1}$ and $τ_{1}$ are substituted into equations (1) and (2), and the simple harmonic excitation $x_{g f} = 0.05 \sin (13 t)$ is used to simulate the front wheel road input. The vibration response characteristics of the system under different seat suspensions are analyzed, as shown in Figure 7.

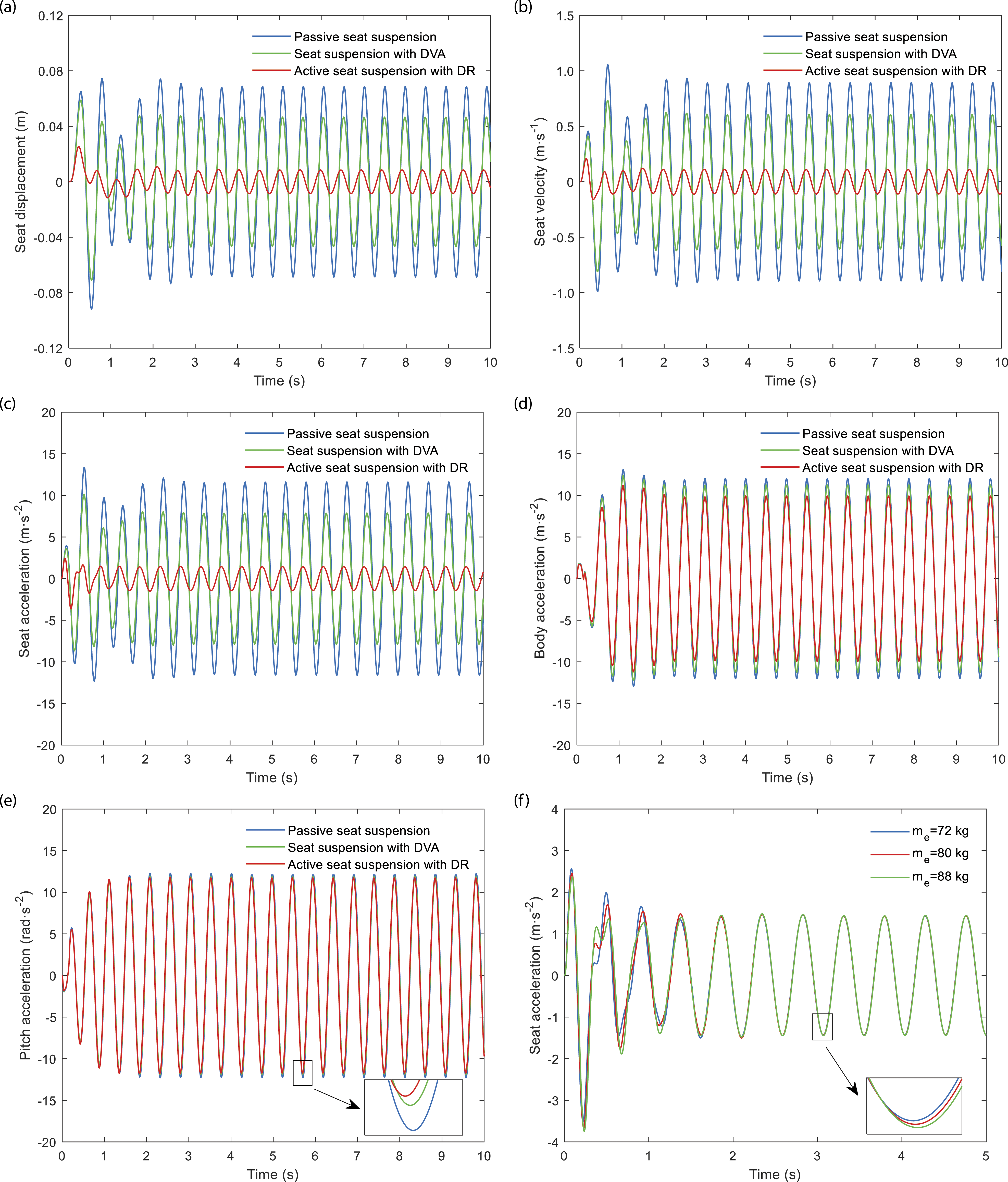

Figure 7.

Simulation comparison under simple harmonic excitation.

From the time-domain diagrams of the vibration response of the seat and body, it can be seen that the active seat suspension with DR achieves a more significant vibration reduction effect than the seat suspension with DVA, compared to the passive seat suspension. Under the control of DR, after the vibration of the seat suspension system stabilizes, its vibration displacement, velocity, and acceleration are significantly reduced. To quantitatively analyze the damping effect of two different absorbers, the RMS of the response quantities of each seat suspension system is shown in Tables 3 and 4. Compared with the passive seat suspension, under the control of DVA, the RMS of seat vibration displacement, velocity, and acceleration are reduced by 31%, 33%, and 32%, respectively, and the RMS of body acceleration and pitching acceleration are reduced by 7% and 2%. Under the control of DR, the RMS of seat vibration displacement, velocity, and acceleration are reduced by 86%, 83%, and 86%, respectively, and the RMS of body acceleration and pitching acceleration are reduced by 16% and 5%. Figure 7 (f) plots the time-domain of seat acceleration for different passenger weights, which also intuitively illustrates that passenger weight has little effect on seat performance and that this active seat suspension is suitable for many types of passengers.

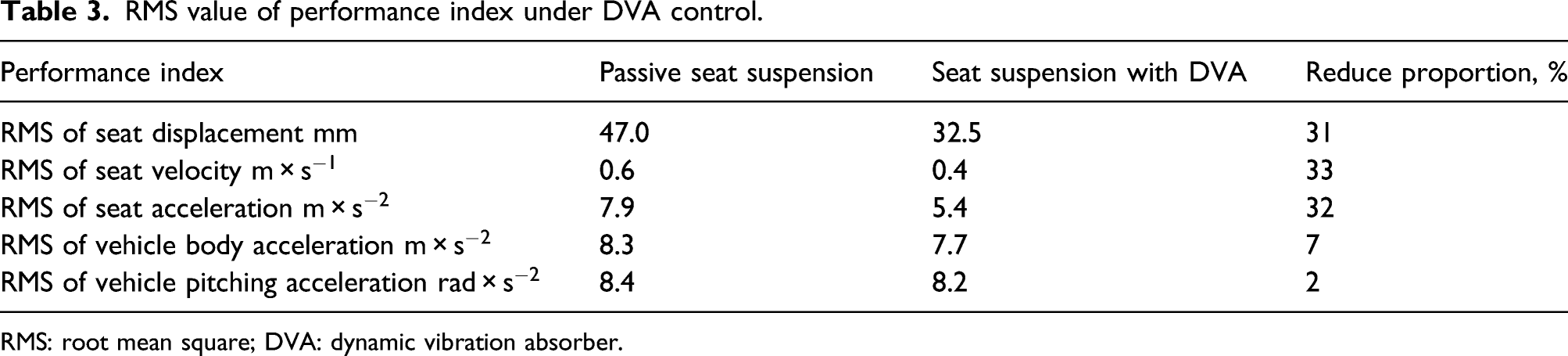

Table 3.

RMS value of performance index under DVA control.

Performance index	Passive seat suspension	Seat suspension with DVA	Reduce proportion, %
RMS of seat displacement $mm$	47.0	32.5	31
RMS of seat velocity $m \times s^{- 1}$	0.6	0.4	33
RMS of seat acceleration $m \times s^{- 2}$	7.9	5.4	32
RMS of vehicle body acceleration $m \times s^{- 2}$	8.3	7.7	7
RMS of vehicle pitching acceleration $rad \times s^{- 2}$	8.4	8.2	2

RMS: root mean square; DVA: dynamic vibration absorber.

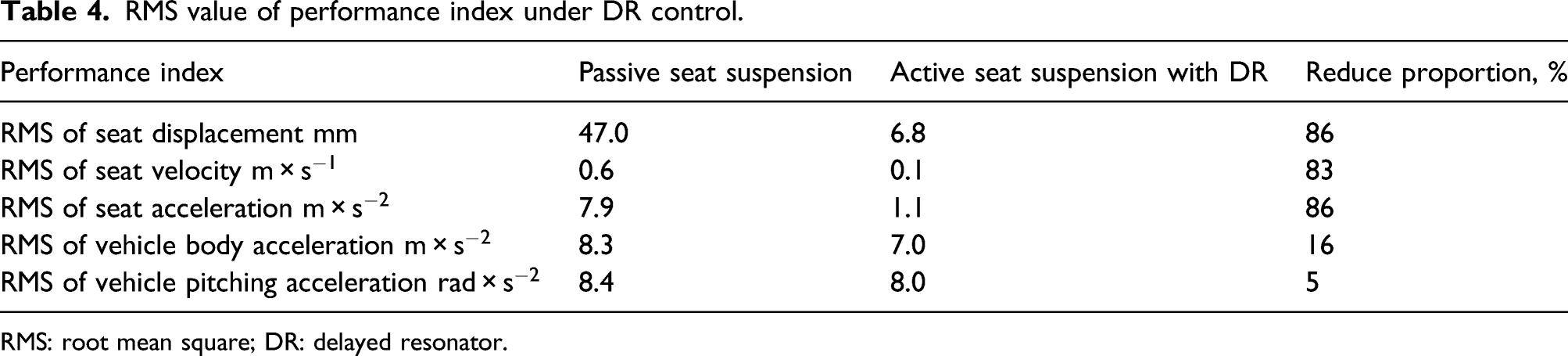

Table 4.

RMS value of performance index under DR control.

Performance index	Passive seat suspension	Active seat suspension with DR	Reduce proportion, %
RMS of seat displacement $mm$	47.0	6.8	86
RMS of seat velocity $m \times s^{- 1}$	0.6	0.1	83
RMS of seat acceleration $m \times s^{- 2}$	7.9	1.1	86
RMS of vehicle body acceleration $m \times s^{- 2}$	8.3	7.0	16
RMS of vehicle pitching acceleration $rad \times s^{- 2}$	8.4	8.0	5

RMS: root mean square; DR: delayed resonator.

Through the above analysis, it can be seen that the DR can greatly suppress the vibration response of the seat and has little effect on other performances of the vehicle suspension. It can ensure that the vibration damping performance of the seat is improved without affecting the vibration of the vehicle body. At the same time, the DR absorbs the external vibration of the seat suspension system more effectively than DVA and has better damping control effect.

Time-domain analysis under random excitation

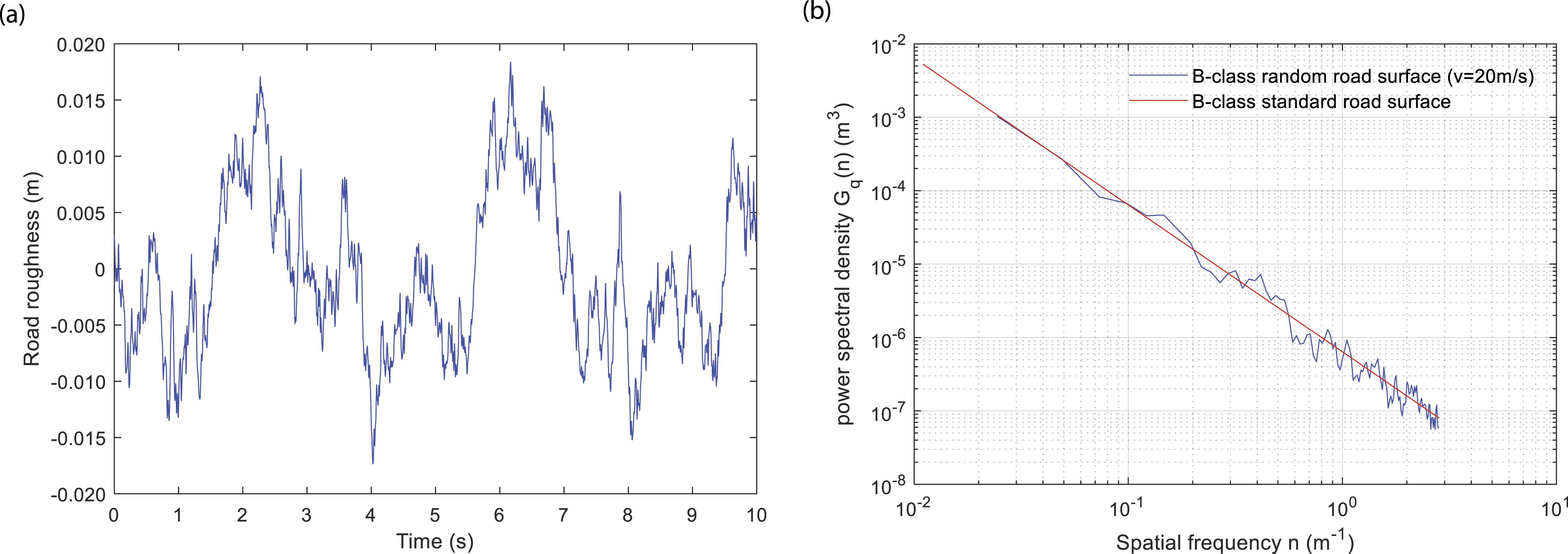

In this section, the simple harmonic excitation of the front wheel vibration input is changed into random excitation to explore the vibration reduction control effect of DR on the seat suspension under random excitation.

As the input of tire vibration, road roughness is usually described by road power spectral density.^27,28 The expression of road power spectral density (PSD) is

G_{q} (n) = G_{q} (n_{0}) {(\frac{n}{n_{0}})}^{- W}

(23)

where

n

is the spatial frequency,

n_{0}

is the reference spatial frequency,

G_{q} (n_{0})

is the road power spectral density value, and

W

is the frequency index.

The road surface PSD in spatial frequency is converted to road surface PSD in temporal frequency and substituted into equation (23) and set $W$ =2, which can be expressed as

G_{q} (f) = \frac{1}{v} G_{q} (n_{0}) {(\frac{n}{n_{0}})}^{- W} = n_{0}^{2} G_{q} (n_{0}) \frac{v}{f^{2}}

(24)

where

f

is the time-frequency and

v

is the vehicle speed,

f = n \cdot v

Taking B-class road roughness as an example, the vibration damping effect of DR on the seat is studied. Take $f_{0}$ =0.1 Hz, $G_{q} (n_{0}) = 64 \times 10^{- 6} m^{3}$ , $v$ =20 m/s, the upper limit of spatial frequency is 2.83, and the lower limit is 0.011. The time-domain diagram of B-class random road roughness is shown in Figure 8 (a). Meanwhile, the PSD comparison curve of random road roughness and standard B-class road roughness can be obtained, as shown in Figure 8 (b).

Figure 8.

(a) B-class random road roughness and (b) comparison of PSD curve of road surface displacement.

Figure 8(b) shows that the PSD of the generated random road surface is consistent with that specified for the standard grade road surface, indicating that the generated signal is reasonable and can be used as an input excitation for ride comfort analysis and research. Similarly, optimized time-delay control parameters $g_{2}$ and $τ_{2}$ are substituted into equations (1) and (2), and the time-domain simulation of system vibration under random excitation is shown in Figure 9.

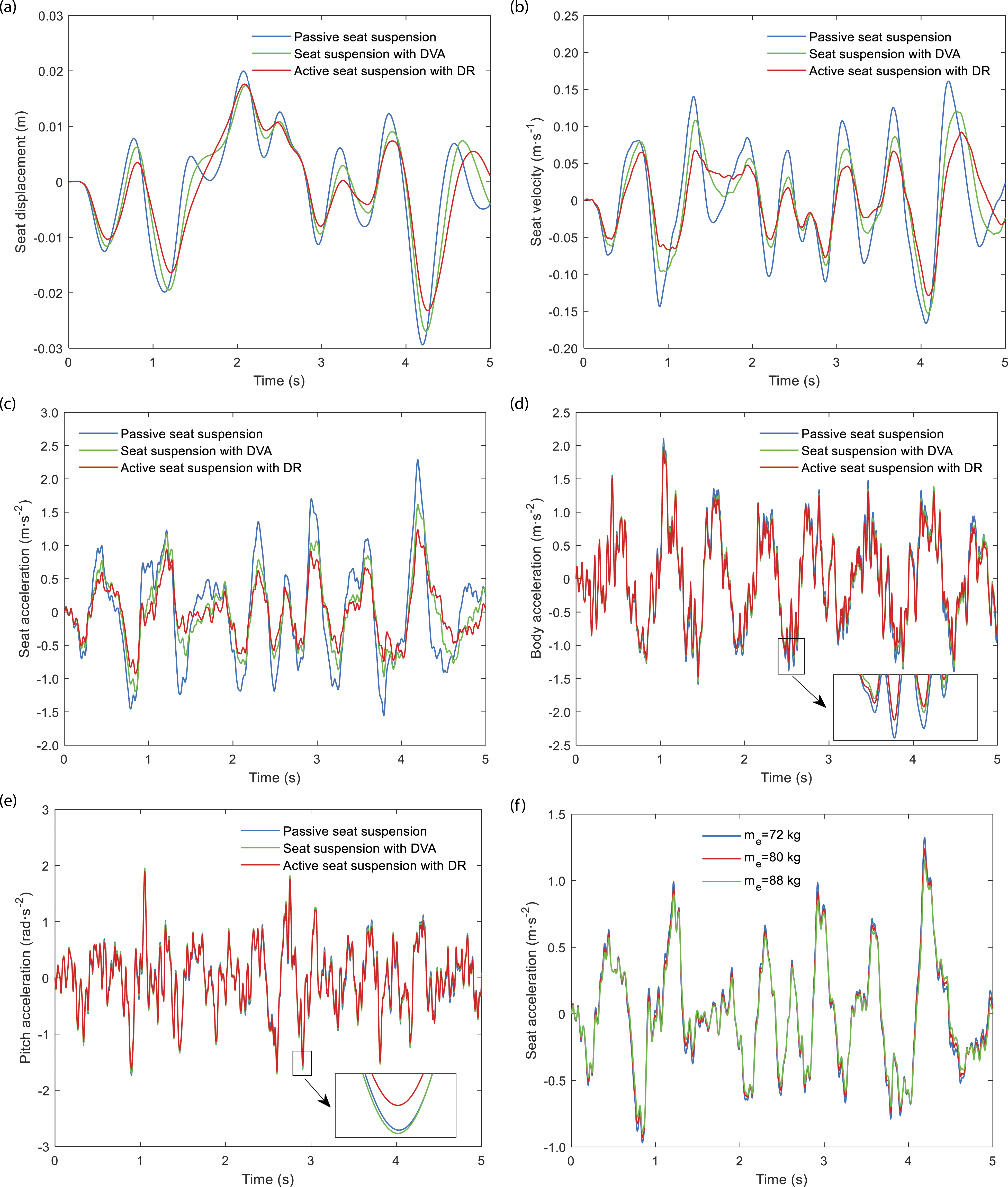

Figure 9.

Simulation comparison under random excitation.

It can be seen from the time-domain diagram of seat and body vibration response that the DR reduces the vibration velocity and acceleration of the seat significantly. At the same time, the seat displacement, body acceleration, and pitch acceleration also decreased in different degrees.

Tables 5 and 6 show the RMS of the response of each seat suspension system. Compared with passive seat suspension, under the control of DVA, the RMS of seat displacement, velocity, and acceleration are reduced by 5%, 14%, and 25%, respectively; the RMS of vehicle body acceleration is reduced by 4%, but the RMS of pitching acceleration is increased by 2%. Under the control of DR, the RMS of seat vibration displacement, velocity, and acceleration are reduced by 11%, 29%, and 50%, respectively, and the RMS of body acceleration and pitching acceleration are reduced by 7% and 2%. Figure 9 (f) plots the time-domain of the seat acceleration for different passenger weights. It can be seen that the DR still has good robustness to parameter perturbation under random excitation of the road.

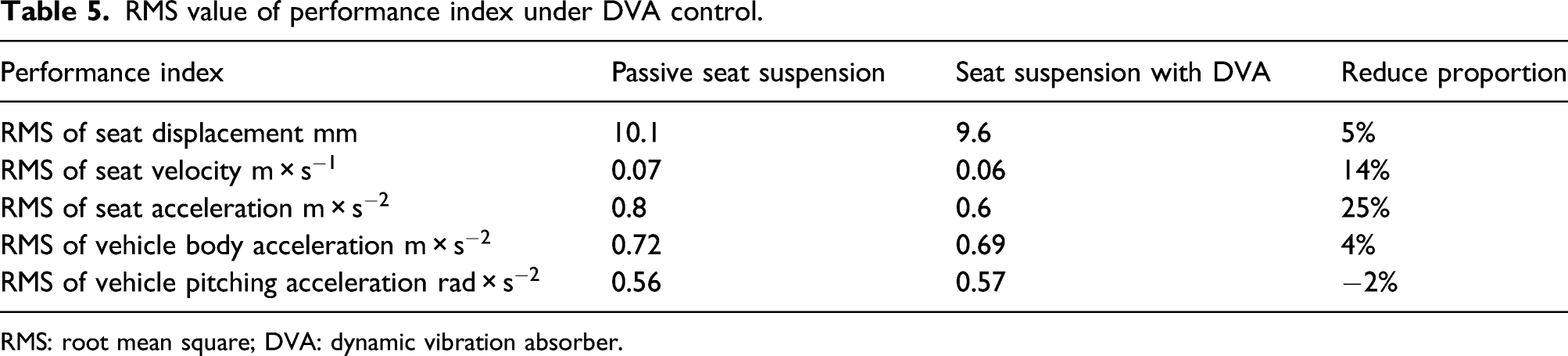

Table 5.

RMS value of performance index under DVA control.

Performance index	Passive seat suspension	Seat suspension with DVA	Reduce proportion
RMS of seat displacement $mm$	10.1	9.6	5%
RMS of seat velocity $m \times s^{- 1}$	0.07	0.06	14%
RMS of seat acceleration $m \times s^{- 2}$	0.8	0.6	25%
RMS of vehicle body acceleration $m \times s^{- 2}$	0.72	0.69	4%
RMS of vehicle pitching acceleration $rad \times s^{- 2}$	0.56	0.57	−2%

RMS: root mean square; DVA: dynamic vibration absorber.

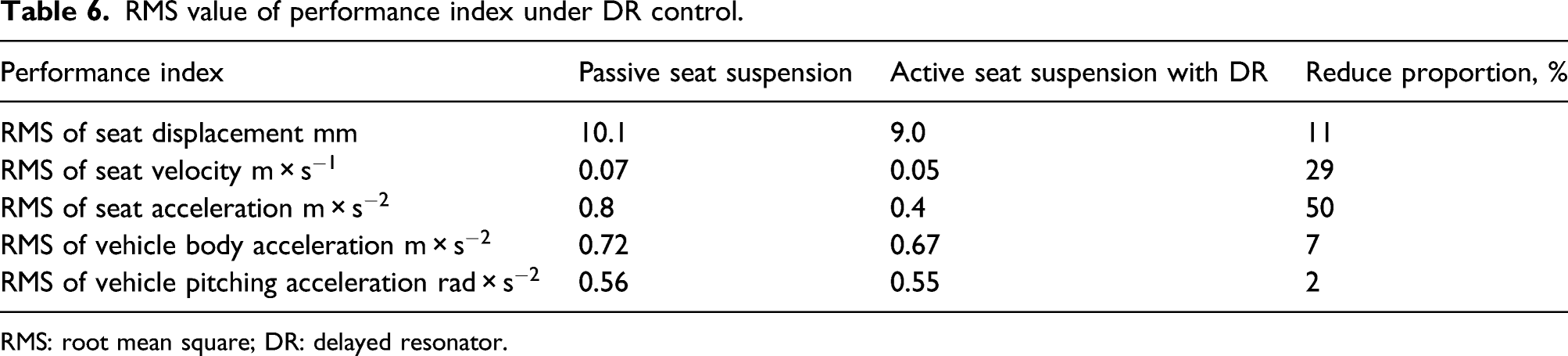

Table 6.

RMS value of performance index under DR control.

Performance index	Passive seat suspension	Active seat suspension with DR	Reduce proportion, %
RMS of seat displacement $mm$	10.1	9.0	11
RMS of seat velocity $m \times s^{- 1}$	0.07	0.05	29
RMS of seat acceleration $m \times s^{- 2}$	0.8	0.4	50
RMS of vehicle body acceleration $m \times s^{- 2}$	0.72	0.67	7
RMS of vehicle pitching acceleration $rad \times s^{- 2}$	0.56	0.55	2

RMS: root mean square; DR: delayed resonator.

From the above analysis, it can be seen that under the random excitation of the road surface, the DR also achieves a better vibration reduction control effect than the DVA, which is particularly obvious in the control of seat vibration velocity and seat vibration acceleration. The use of DR to improve the seat suspension system not only has a small impact on the driving performance of the vehicle but also improves the body vibration to a certain extent.

Conclusion

In this study, the DR is applied to the seat vibration control of a half-vehicle model. The stability of the time-delay system is studied by combining theory with numerical methods, and the time-delay control parameters are optimized. Finally, the simulation analysis of the model under different excitation is carried out. The main conclusions are as follows: (1) the precise integration method is used to solve the time-delay differential equation, and the RMS of seat vibration response in the time-domain is taken as the main optimization objective, so that the time-delay control parameters with maximum damping effect can be directly obtained. Moreover, the corresponding optimal vibration reduction effect can be obtained through different time-delay control parameters obtained by different external excitations. (2) Compared with DVA, the DR has a wider damping frequency band and better damping performance under the premise of the stable time-delay system. In addition, if the selection of time-delay control parameters is unreasonable, then the vibration control effect of the DR becomes worse, which is to be avoided. (3) Through simulation analysis, the DR can achieve a better vibration reduction control effect than the DVA for both simple harmonic excitation and random excitation. It can significantly improve the vibration reduction performance of the seat suspension system, and the vibration response of the vehicle body is effectively attenuated, thus improving passenger comfort and vehicle ride comfort. Meanwhile, the DR has good robustness under the condition of 10% increase or decrease of passenger weight, which provides a new research direction for the design of vehicle seat suspension system.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by National Natural Science Foundation of China (Grant No. 51275280).

ORCID iDs

Yongguo Zhang

Chuanbo Ren

Appendix

Equation of state each control matrix

A = [\begin{matrix} 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ - \frac{k_{d}}{m_{d}} & \frac{c_{d}}{m_{e}} & \frac{k_{d}}{m_{d}} & \frac{c_{d}}{m_{e}} & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \begin{array}{l} \frac{k_{d}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} \frac{c_{d}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} - \frac{k_{d} + k_{e}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} - \frac{c_{d} + c_{e}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} \frac{k_{e}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} \frac{c_{e}}{m_{e}} \\ 1 \end{array} & \begin{array}{l} - \frac{k_{e} L_{e}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} - \frac{c_{e} L_{e}}{m_{e}} \\ 0 \end{array} & \begin{array}{l} 0 \\ 0 \end{array} & \begin{array}{l} 0 \\ 0 \end{array} & \begin{array}{l} 0 \\ 0 \end{array} & \begin{array}{l} 0 \\ 0 \end{array} \\ 0 & 0 & \frac{k_{e}}{m_{c}} & \frac{c_{e}}{m_{c}} & a_{65} & a_{66} & a_{67} & a_{68} & \frac{k_{s f}}{m_{c}} & \frac{c_{s f}}{m_{c}} & \frac{k_{s r}}{m_{c}} & \frac{c_{s r}}{m_{c}} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & - \frac{L_{e} k_{e}}{I_{c}} & - \frac{L_{e} c_{e}}{I_{c}} & a_{85} & a_{86} & a_{87} & a_{88} & - \frac{L_{f} k_{s f}}{I_{c}} & - \frac{L_{f} c_{s f}}{I_{c}} & - \frac{L_{f} k_{s r}}{I_{c}} & - \frac{L_{f} C_{s r}}{I_{c}} \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{k_{s f}}{m_{t r}} & \frac{c_{s f}}{m_{t f}} & - \frac{k_{s f} L_{f}}{m_{t f}} & - \frac{C_{s f} L_{f}}{m_{t f}} & - \frac{k_{s f} + k_{t f}}{m_{t f}} & - \frac{C_{s f}}{m_{t f}} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & \frac{k_{s r}}{m_{t r}} & \frac{c_{s r}}{m_{t r}} & \frac{k_{s r} L_{r}}{m_{t r}} & \frac{k_{s r}}{m_{t r}} & 0 & 0 & \frac{k_{s f} L_{s r}}{m_{t r}} & \frac{c_{s r}}{m_{t r}} \end{matrix}]

where

\begin{array}{l} a_{65} = - \frac{k_{s f} + k_{s r} + k_{e}}{m_{c}}, a_{66} = - \frac{c_{s f} + c_{s r} + c_{e}}{m_{c}}, a_{67} = \frac{k_{s f} L_{f} - k_{s r} L_{r} + k_{e} L_{e}}{m_{c}}, a_{68} = \frac{c_{s f} L_{f} - c_{s r} L_{r} + c_{e} L_{e}}{m_{c}}, \\ a_{85} = \frac{k_{s f} L_{f} - k_{s r} L_{r} + k_{e} L_{e}}{I_{c}}, a_{86} = \frac{c_{s f} L_{f} - c_{s r} L_{r} + c_{e} L_{e}}{I_{c}}, a_{87} = - \frac{k_{s f} L_{f}^{2} + k_{s r} L_{r}^{2} + k_{e} L_{e}^{2}}{I_{c}}, a_{88} = - \frac{c_{s f} L_{f}^{2} + c_{s r} L_{r}^{2} + c_{e} L_{e}^{2}}{I_{c}}, \end{array} C = [\begin{matrix} 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \frac{k_{d}}{m_{e}} & \frac{c_{d}}{m_{e}} & - \frac{k_{d} + k_{e}}{m_{e}} & - \frac{c_{d} + c_{e}}{m_{e}} & \frac{k_{e}}{m_{e}} & \frac{c_{e}}{m_{e}} & - \frac{k_{e} L_{e}}{m_{e}} & - \frac{c_{e} L_{e}}{m_{e}} & 0 & 0 & 0 & 0 \\ 0 & 0 & \frac{k_{e}}{m_{c}} & \frac{c_{e}}{m_{c}} & b_{45} & b_{46} & b_{47} & b_{48} & \frac{k_{s f}}{m_{c}} & \frac{c_{s f}}{m_{c}} & \frac{k_{s r}}{m_{c}} & \frac{c_{s r}}{m_{c}} \\ 0 & 0 & - \frac{L_{e} k_{e}}{I_{c}} & - \frac{L_{e} c_{e}}{I_{c}} & b_{55} & b_{56} & b_{57} & b_{58} & - \frac{L_{f} k_{s f}}{I_{c}} & - \frac{L_{f} c_{s f}}{I_{c}} & \frac{L_{r} k_{s r}}{I_{c}} & \frac{L_{r} c_{s r}}{I_{c}} \end{matrix}]

where

\begin{array}{l} b_{45} = - \frac{k_{s f} + k_{s r} + k_{e}}{m_{c}}, b_{46} = - \frac{c_{s f} + c_{s r} + c_{e}}{m_{c}}, b_{47} = \frac{k_{s f} L_{f} - k_{s r} L_{r} + k_{e} L_{e}}{m_{c}}, b_{48} = \frac{c_{s f} L_{f} - c_{s r} L_{r} + c_{e} L_{e}}{m_{c}}, \\ b_{55} = \frac{k_{s f} L_{f} - k_{s r} L_{r} + k_{e} L_{e}}{I_{c}}, a_{56} = \frac{c_{s f} L_{f} - c_{s r} L_{r} + c_{e} L_{e}}{I_{c}}, a_{57} = - \frac{k_{s f} L_{f}^{2} + k_{s r} L_{r}^{2} + k_{e} L_{e}^{2}}{I_{c}}, a_{58} = - \frac{c_{s f} L_{f}^{2} + c_{s r} L_{r}^{2} + c_{e} L_{e}^{2}}{I_{c}} \end{array}

B = [\begin{matrix} 0 \\ \frac{g}{m_{d}} \\ 0 \\ - \frac{g}{m_{e}} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}] E = [\begin{matrix} 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ \frac{k_{t f}}{m_{t f}} & 0 \\ 0 & 0 \\ 0 & \frac{k_{t r}}{m_{t r}} \end{matrix}] D = [\begin{matrix} 0 \\ 0 \\ - \frac{g}{m_{e}} \\ 0 \\ 0 \end{matrix}]

References

Zhao

Yan

, et al. Research progress of vehicle seat damping system. Constr Mach and Equip 2019; 50: 61–69.

Tan

Chen

Liao

, et al. A condensed dynamic model of a heavy-duty truck for optimization of the powertrain mounting system considering the chassis frame flexibility. Proc Inst Mech Eng D: J Automobile Eng 2020; 234: 2602–2617.

Tan

Zhang

, et al. Improvement of ride quality for patient lying in ambulance with a new hydro-pneumatic suspension. Adv Mech Eng 2019; 11: 168781401983780. DOI: 10.1177/1687814019837804.

Chen

Zhang

, et al. Improvement of both handling stability and ride comfort of a vehicle via coupled hydraulically interconnected suspension and electronic controlled air spring. Proc Inst Mech Eng Part D: J Automobile Eng 2020; 234: 552–571.

Zeng

Tan

Ding

, et al. An experimental investigation of resonance sources and vibration transmission for a pure electric bus. Proc Inst Mech Eng Part D: J Automobile Eng 2019; 234: 950–962. DOI: 10.1177/0954407019879258.

Wang

Zhang

Chen

, et al. Frequency-based modeling of a vehicle fitted with roll-plane hydraulically interconnected suspension for ride comfort and experimental validation. IEEE Access 2020; 8: 1091–1104.

Meng

Rui

, et al. MRD modeling and its application in seat cushioning. Noise and Vibration Control 2017; 37: 58–62.

Gan

Hillis

Darling

. Adaptive control of an active seat for occupant vibration reduction. J Sound Vib 2015; 349: 39–55.

Shen

Yang

, et al. Dynamic analysis of single degree of freedom semi-active suspension system with time delay. J Vib Shock 2010; 31: 38–40.

10.

Bai

Hou

. Impact of dynamic vibration absorbers on vehicle vertical vibration energy and suspension performances. J Vib Shock 2020; 39: 169–174.

11.

Olgac

Holm-Hansen

. A novel active vibration absorption technique: delayed resonator. J Sound Vib 1994; 176: 93–104.

12.

Olgac

Hosek

. Active vibration absorption using delayed resonator with relative position measurement. J Vib Acoust 1997; 119: 131–136.

13.

Filipovic

Olgac

. Design resonator with speed feedback-design and performance analysis. Mechatronics 2002; 12: 393–413.

14.

Vyhlídal

Olgac

Kučera

. Delayed resonator with acceleration feedback-complete stability analysis by spectral methods and vibration absorber design. J Sound Vib 2014; 333: 6781–6795.

15.

Zhao

. Delayed resonator and its effects on vibrations in primary system. J Vib Eng 2006; 19: 548–552.

16.

Zhao

Y-Y

. Effects of delayed feedback control on nonlinear vibration absorber system. J Sound Vib 2007; 308: 212–230.

17.

Sun

. Application of LQR control and time-delay feedback control in vibration reduction of the vehicle. Software 2020; 41: 12–17.

18.

Zhang

, et al. A novel robust event-triggered fault tolerant automatic steering control approach of autonomous land vehicle under in-vehicle network delay. Int J Robust Nonlinear Control 2021; 31: 1–29.

19.

Wang

. Stability switches of time-delayed dynamic systems with unknown parameters. J Sound Vib 2000; 233: 215–233.

20.

Koumene Taffo

Siewe Siewe

. Parametric resonance, stability and heteroclinic bifurcation in a nonlinear oscillator with time-delay: application to a quarter-car model. Mech Res Commun 2013; 52: 1–10.

21.

Ren

. A high-precision and general computational scheme in precise integration of structural dynamics. Mech Sci Tech 2005; 24: 1507–1509.

22.

Yan

Ren

Zhou

, et al. The study on vibration reduction of nonlinear time-delay dynamic absorber under external excitation. J Math Probl Eng 2020; 2020: 8578596.

23.

Drehmer

LRC

Paucar Casas

Gomes

. Parameters optimisation of a vehicle suspension system using a particle swarm optimisation algorithm. Vehicle Syst Dyn 2015; 53: 449–474.

24.

Chen

Cai

. Time-delay identification of time-delay dynamic system based on particle swarm optimization. J Appl Mech 2010; 27: 433–473.

25.

Parsopoulos

Vrahatis

. Recent approaches to global optimization problems through particle swarm optimization. Nat Comput 2002; 1: 235–306.

26.

. Research on Stability of Time-Delay Systems. PhD thesis. China: Shanghai Jiao Tong University, 2007.

27.

Chen

. Modeling and simulation of road surface excitation on vehicle in time domain. Automotive Eng 2015; 37: 549–553.

28.

Zhang

Chen

, et al. A comprehensive tune of coupled roll and lateral dynamics and parameter sensitivity study for a vehicle fitted with hydraulically interconnected suspension system. Proc Inst Mech Eng Part D: J Automobile Eng 2020; 235: 143–161. DOI: 10.1177/0954407020944287.

Effect of delayed resonator on the vibration reduction performance of vehicle active seat suspension

Abstract

Keywords

Introduction

Mechanical model

Solution of optimal feedback control parameters

Method of solving the time-delay equation

Objective function

Time-delay control parameters optimization algorithm

Stability analysis

Simulation and result analysis

Frequency-domain analysis

Time-domain analysis under simple harmonic excitation

Time-domain analysis under random excitation

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

Appendix

References
