Online secondary path modeling method with auxiliary noise power scheduling strategy for multi-channel adaptive active noise control system

Abstract

Accurate model of secondary paths is very crucial for the multi-channel filtered-X least mean square algorithm applied in adaptive active noise control system. The auxiliary random noise technique is popular for online secondary path modeling during adaptive active noise control operation. This paper proposes a simplified variable step-size strategy and an effective auxiliary noise power scheduling strategy for the multi-channel filtered-X least mean square algorithm. Through a defined indirect error signal, the proposed method can guarantee every online secondary path modeling filter has its own exclusive variable step-size strategy to update their coefficients, and every injected noise has its own exclusive scheduling strategy considering all of the corresponding online secondary path modeling filters. The proposed method can improve the adaptive performance and simplifies the complexity of multi-channel adaptive active noise control system. Computer simulations show that the proposed method gives much better noise reduction and secondary path modeling accuracy at a somewhat faster convergence rate comparing with the competing methods.

Keywords

Adaptive active noise control online secondary path modeling variable step-size strategy auxiliary noise power scheduling strategy multi-channel filtered-X least mean square

Introduction

The filtered-X least mean square (FXLMS) algorithm is very popularly applied in adaptive active noise control (AANC) system. The FXLMS algorithm requires its reference signal to be filtered by secondary path which leads from the controller to the error sensor.^1,2 Therefore, the accuracy of the secondary path transfer function has significant influence upon the performance of the AANC system. Effect of secondary path modeling error on the performance of FXLMS algorithm has been studied in Chen et al.³ and Chan and Chu.⁴ It has been shown that fast and precise secondary path model is very important for the AANC system equipped with the FXLMS algorithm. However, the secondary path is usually time varying or nonlinear, implying that online secondary path modeling (OSPM) is required to track such changes and ensure the convergence, stability, and accuracy of AANC system.

In many practical situations, multiple secondary sound sources and error sensors are needed to enlarge the noise reduction space and increase the noise reduction. So, a multi-channel AANC system is essential. In these cases, computational complexity of multi-channel AANC system with OSPM is larger than that of a single channel system due to the increase in the number of secondary paths. In order to reduce the computational complexity, some simplified multi-channel FXLMS algorithm had been developed in Douglas⁵ and Das et al.⁶ Since the main objective of this paper is to propose an effective OSPM method for multi-channel AANC system, all the control methods mentioned in this paper are based on standard multi-channel FXLMS algorithm.

One of the popular OSPM methods was proposed by Eriksson and Allie⁷ in which an internally generated random noise (called auxiliary noise) is used as an excitation signal for the OSPM filter. The auxiliary noise is injected into the secondary path for modeling, exciting the secondary path, and observing its response. However, in Eriksson’s method, the ideal error signal becomes an interference for the OSPM filter, and the auxiliary random noise becomes an interference for the active control filter. Another fatal defect of the auxiliary random noise technique is that a large auxiliary noise will increase the residual noise greatly, and thus deteriorate the noise reduction, even though it can lead to a quick acquisition of accurate secondary path estimation. So, an auxiliary noise power scheduling (ANPS) strategy is necessary to obtain an accurate secondary path model and reduce the influence of auxiliary noise to the residual noise.

The improvements of the Eriksson’s method have been put forward in Zhang et al.,^8,9 Akhtar et al.,^10,11 Pu et al.,¹² and Carini and Malatini¹³ and summed up by Kajikawa et al.¹⁴ Among them, the methods given by Zhang et al.^8,9 proposed a parallel online modeling algorithm using three adaptive filters with a delay unit in the output port of the primary path. Zhang’s methods gave a new desired signal for OSPM filter, avoiding the interference between the active control process and secondary path modeling process, so the OSPM filter can converge rapidly. Akhtar et al.¹⁰ used a same error signal to update the active control filter and the OSPM filter, and employed variable step-size (VSS) strategy to increase the modeling accuracy and improve system convergence, employed an ANPS strategy to decrease the auxiliary noise power after the control system stabilizes. Carini and Malatini¹³ proposed an optimal VSS strategy with ANPS strategy based on delay coefficient technique. He delayed D samples of the auxiliary signal and used the instantaneous value of the first D delay coefficients to estimate the system distance. However, in order to obtain the system distance, the length of OSPM filter had to be increased by D which is equivalent to introduce another adaptive filter. In Pu et al.’s¹⁵ method, the VSS strategy and ANPS strategy are calculated only by procedure parameters available directly. There is no need of any experience parameter before the control system starts to work without increasing the computational complexity. Paulo and José¹⁶ proposed an ANPS strategy based on a variable power ratio which is low when no noise cancelation occurs and high when noise reduction is being performed. Ahmed et al.¹⁷ proposed a complex and refined power scheduling algorithm with two stages judged by the ratio between powers of error signal and reference signal.

However, most of the researches on OSPM are for single channel control system and few for multi-channel AANC system. Akhtar et al.¹⁰ extended their previous work and proposed a multi-channel VSS OSPM method. Jung et al.¹⁸ extended Akhtar’s ANPS strategy to multi-channel system directly. In this paper, we propose a new indirect error signal. Based on the error signal, a simplified VSS strategy and an effective ANPS strategy for multi-channel AANC system are proposed. The proposed method guarantees that every OSPM filter has its own exclusive VSS strategy, and every injected auxiliary noise has its own exclusive ANPS strategy. The proposed method can effectively improve the convergence performance of multi-channel AANC algorithm.

The organization of this paper is as follows: the next section gives a brief overview of the existing multi-channel OSPM methods. “The proposed OSPM method for multi-channel AANC system” section proposes a new OSPM method with VSS strategy and ANPS strategy for multi-channel AANC system and gives a computational complexity analysis of the proposed method. “Simulation results and analysis” section presents a series of simulation experiments to compare the performance of the proposed method with existing OSPM methods. The final section concludes the paper.

The existing OSPM methods for multi-channel AANC system

Multi-channel AANC system with OSPM

A multi-channel (I × J×K) AANC system with I reference inputs, J secondary sources, and K error sensors is employed for mathematical descriptions and theoretical analysis, whereas, for clarity of presentation, the block diagram will be drawn for 1 × 2 × 2 AANC system. The block diagram of multi-channel OSPM algorithm (1 × 2 × 2) is shown in Figure 1.

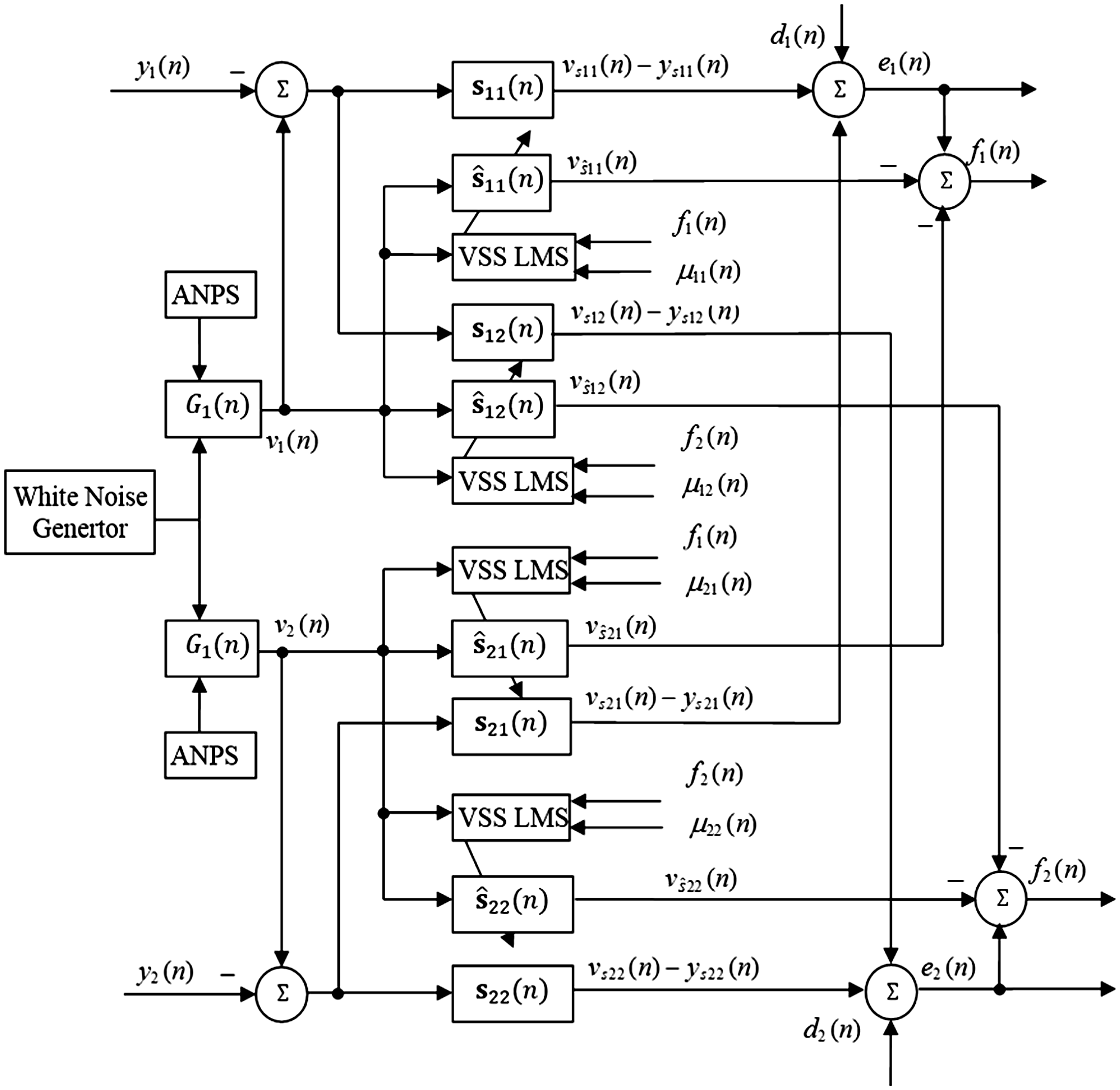

Figure 1.

Block diagram of multi-channel OSPM algorithm (1 × 2 × 2). ANPS: auxiliary noise power scheduling; LMS: least mean square ; VSS: variable step size.

There are J × K secondary paths between J secondary sources and K error sensors for multi-channel AANC system. $s_{jk} (n) = [s_{jk 1} (n), s_{jk 2} (n), \dots s_{jkM} (n)]$ is the secondary path transfer function from the jth secondary source to the kth error sensor. ${\hat{s}}_{jk} (n)$ is the estimated value of $s_{jk} (n)$ . M is the length of the OSPM filters. $x_{M} (n) = [x (n), x (n - 1), \dots x (n - M + 1)]$ is the reference signal vector with the last M samples. The reference signal filtered by the impulse response of the OSPM filters are given as

x_{{\hat{s}}_{jk}} (n) = {\hat{s}}_{jk}^{T} (n) x_{M} (n) 1 \leq j \leq J, 1 \leq k \leq K

(1)

$w_{j} (n) = [w_{j 0} (n), w_{j 1} (n), \dots w_{jL - 1} (n)]$ is the coefficient of the jth active controller. L is the length of the active controllers. $x_{L} (n) = [x (n), x (n - 1), \dots x (n - L + 1)]$ is the reference signal vector with the last L samples. The control signals are calculated as

y_{j} (n) = w_{jT} (n) x_{L} (n) 1 \leq j \leq J

(2)

$y_{j} (n) = [y_{j} (n), y_{j} (n - 1), \dots y_{j} (n - M + 1)]$ is the jth control signal vector with the last M values. The internally generated white Gaussian noise $v (n)$ is utilized as the training signal to afford felicitous estimation of all OSPM filters, meanwhile injected in the outputs of active control filters. $v_{j} (n)$ is the auxiliary noise to be injected into the jth control signal. $v_{j} (n) = [v_{j} (n), v_{j} (n - 1), \dots v_{j} (n - M + 1)]$ is the auxiliary noise vector with the last M values. The auxiliary noise filtered by the impulse response of the OSPM filters is given as

v_{{\hat{s}}_{jk}} (n) = {\hat{s}}_{jk}^{T} (n) v_{j} (n) 1 \leq j \leq J, 1 \leq k \leq K

(3)

$e_{k} (n)$ is the residual error signal picked up by the kth error sensor. $f_{k} (n)$ is an indirect error calculated by

f_{k} (n) = e_{k} (n) - \sum_{j = 1}^{J} v_{\hat{s} j k} (n)

(4)

The weight update equations for the active controllers and the OSPM filters are given by

{\hat{s}}_{jk} (n + 1) = {\hat{s}}_{jk} (n) + μ_{sjk} v_{j} (n) f_{k} (n)

(5)

w_{j} (n + 1) = w_{j} (n) + μ_{wj} \sum_{k = 1}^{K} x_{{\hat{s}}_{jk}} (n) f_{k} (n)

(6)

where

μ_{sjk}

is the step size for updating the coefficients of

{\hat{s}}_{jk} (n)

, and

μ_{wj}

is the step size for updating the coefficients of

w_{j} (n)

. These step sizes have important influence on convergence of the AANC system.

The existing multi-channel ANC system with OSPM

Ahktar et al.¹⁰ proposed a practical VSS strategy, the basic idea of VSS stems from the fact that the interference in the desired response of the modeling filter is decreasing with the convergence of the active control system, (ideally) converging to zero. Hence a small step size is used initially and later its value is increased accordingly. Ahktar’s VSS strategy for multi-channel OSPM is calculated by a power ratio $ρ_{k} (n)$

ρ_{k} (n) = P_{f_{k}} (n) / P_{e_{k}} (n)

(7)

where

P_{f_{k}} (n)

and

P_{e_{k}} (n)

are powers of

f_{k} (n)

and

e_{k} (n)

. The step sizes for all the online SPM filters

{\hat{s}}_{jk} (n) (1 \leq j \leq J)

associated with the kth error sensor are same and calculated as

μ_{sk} (n) = ρ_{k} (n) μ_{\min} + [1 - ρ_{k} (n)] μ_{\max}

(8)

where

μ_{\min}

and

μ_{\max}

are experimentally determined values for lower and upper bounds of step sizes, respectively.

Jung’s ANPS strategy for multi-channel OSPM is also calculated by the power ratio $ρ_{k} (n)$

G_{j} (n) = \sqrt{[1 - ρ_{k} (n)] g_{\min}^{2} + ρ_{k} (n) g_{\max}^{2}}

(9)

where

g_{\min}^{2}

and

g_{\max}^{2}

are experimentally determined as lower and upper bounds of auxiliary noise variance, respectively. Here, we combine Ahktar’s VSS strategy and Jung’s ANPS strategy as a multi-channel OSPM method, called Ahktar–Jung’s method.

Different secondary paths ${\hat{s}}_{jk} (n) (1 \leq j \leq J)$ have different transfer function characteristics. The identical step size in equation (8) is not competent to be used to update different OSPM filters coefficient associated with the kth error sensor. From equation (9), on the premise of the same number of secondary sources and error sensors, it is not appropriate to use the relevant information of the kth error sensor to calculate the auxiliary noise power injected into the output of the jth active controller. This is because the auxiliary noise injected into the output of the jth controller affects all error signals, not only the kth error signal.

Then, we extend Carini’s VSS strategy and ANPS strategy for a single OSPM channel control system to multi-channel system (named extended-Carini’s method). The modeling error estimate of the extended-Carini’s method is calculated as

{\hat{N}}_{s_{jk}} (n + 1) = λ {\hat{N}}_{s_{jk}} (n) + (1 - λ) ({\hat{s}}_{jk 0}^{T} {\hat{s}}_{jk 0} v_{jT} (n) v_{j} (n)) / D

(10)

where D is the tap-weight length of the part of the SPM filter

{\hat{s}}_{0} (n)

, which is used for estimating the modeling error of the OSPM filter.

The VSS strategy of the extended-Carini’s method is given as

μ_{s_{jk}} (n) = \max ({\hat{N}}_{s_{jk}} (n) / P_{f_{k}} (n), μ_{s_{jk} \min})

(11)

The ANPS strategy of extended-Carini’s method is given as

G_{j} = \sqrt{P_{e_{k}} (n) / P_{s_{jk}} (n) (1 + R)}

(12)

where

P_{e_{k}} (n)

is the power of e_k(n),

P_{s_{jk}} (n)

is an exponentially smoothed estimate of the secondary path s _jk (n), and R is a user select constant.

In extended-Carini’s method, the VSS strategy ensures every OSPM filter a different step size. However, in order to obtain the modeling error ${\hat{N}}_{s_{jk}} (n)$ , the length of OSPM filter had to be increased, resulting in a large increase of computation. Furthermore, once the acoustic path perturbed, these step sizes freeze to low values and thus resulting in a poor tracking performance.¹⁷

The proposed OSPM method for multi-channel AANC system

The proposed VSS strategy for multi-channel OSPM

$f_{k} (n) 1 \leq k \leq K$ are used as error signals to update the coefficients of the control filters and the OSPM filters. $f_{k} (n)$ can be derived as

f_{k} (n) = d_{k} (n) - \sum_{j = 1}^{J} y_{sjk} (n) + \sum_{j = 1}^{J} v_{sjk} (n) - \sum_{j = 1}^{J} v_{\hat{s} j k} (n)

(13)

Here, we define

f_{k 1} (n) = d_{k} (n) - \sum_{j = 1}^{J} y_{sjk} (n)

(14)

f_{k 2} (n) = \sum_{j = 1}^{J} v_{sjk} (n) - \sum_{j = 1}^{J} v_{\hat{s} j k} (n)

(15)

From equation (13), we see that $f_{k} (n)$ contains two components: the first component $f_{k 1} (n)$ carries beneficial error information for the adaptation of the control filters, but acts as an interference for OSPM filters. The second part $f_{k 2} (n)$ carries beneficial error information for the adaptation of OSPM filters, but acts as interference for control filters.¹⁴

Due to the presence of a strong disturbance from $f_{k 1} (n)$ , the convergence of the OSPM filters is greatly frustrated. Some OSPM filters may become unstable in the worst case especially at the start-up of AANC system or when there are strong changes in the acoustic paths. So, reducing the influence of the disturbance signal $f_{k 1} (n)$ as much as possible is important to improve the stability and convergence of OSPM filters. If $f_{k 1} (n)$ can be measured, we can eliminate it from $f_{k} (n)$ directly. In Pu et al.,¹⁵ the authors proposed a VSS strategy to track relevant information about $f_{k 1} (n)$ . The step size for single channel AANC system is given by

μ_{s} (n) = σ (n) μ_{s \min} (n) = \frac{P_{v} (n)}{P_{e} (n)} μ_{s \min} (n)

(16)

The step size μ_s(n) varies adaptively in accordance with the ratio between the power of auxiliary noise v(n) and that of residual signal e(n). Here, we extend the VSS strategy to multi-channel OSPM

σ_{jk} (n) = \frac{P_{v_{j}} (n)}{P_{e_{k}} (n)}

(17)

where

P_{v_{j}} (n)

and

P_{e_{k}} (n)

are the powers of the jth injected noise signal and the kth error signal, respectively. Rely on

σ_{jk} (n)

, the step size

μ_{s_{jk}} (n)

for the OSPM filter

{\hat{s}}_{jk} (n)

can be expressed as

μ_{s_{jk}} (n) = σ_{jk} (n) μ_{s \min} (n) = \frac{P_{v_{j}} (n)}{P_{e_{k}} (n)} μ_{s \min} (n)

(18)

The signal v_j(n) is uncorrelated with d_k(n) and y_j(n). So the ratio $σ_{jk} (n)$ can be expressed as

σ_{jk} (n) = \frac{P_{v_{j}} (n)}{P_{e_{k}} (n)} = \frac{P_{v_{j}} (n)}{P_{f_{k 1}} (n) + \sum_{j = 1}^{J} {‖ s_{jk} (n) ‖}^{2} P_{v_{j}} (n)}

(19)

Initially at n = 0, when the AANC system is started, the control signals are zero, and hence the ratio $σ_{jk} (n)$ is a very small value, so it is with the step size $μ_{s_{jk}} (n)$ . In steady state, as $n \to \infty,$ $P_{f_{k 1}} (n) \to 0$ , thus the expression (19) can be approximated as follows

σ_{jk} (n \to \infty) \approx \frac{1}{\sum_{i = 1}^{J} {‖ s_{jk} (n) ‖}^{2} \frac{P_{v_{i}} (n)}{P_{v_{j}} (n)}}

(20)

Here, all of $s_{jk} (n) (1 \leq j \leq J, 1 \leq k \leq K)$ are constant, so $σ_{jk} (n)$ is determined by not only $P_{v_{j}} (n)$ but also $P_{v_{i}} (n) (i \neq j)$ , and thus the convergence performance of the OSPM filter ${\hat{s}}_{jk} (n)$ would be influenced by the other OSPM filters ${\hat{s}}_{ik} (n) (i \neq j, 1 \leq i \leq J)$ . To avoid the above problem, a new indirect error signal is defined as follows

ϵ_{jk} (n) = e_{k} (n) - \sum_{i = 1, i \neq j}^{J} v_{{\hat{s}}_{jk}} (n) = f_{k 1} (n) + f_{k 2}^{j} (n) + v_{s_{jk}}

(21)

f_{k 2}^{j} (n) = \sum_{i = 1, i \neq j}^{J} v_{sik} (n) - \sum_{i = 1, i \neq j}^{J} v_{\hat{s} i k} (n)

(22)

$ϵ_{jk} (n)$ is calculated by subtracting the filtered auxiliary noise signals $v_{{\hat{s}}_{jk}} (n) (i \neq j)$ from $e_{k} (n)$ .

Here, we replace $P_{e_{k}} (n)$ in equation (19) with $P_{ϵ_{jk}} (n)$ , a modified ratio $σ_{jk} (n)$ is provided as follows

σ_{jk} (n) = \frac{P_{v_{j}} (n)}{P_{ϵ_{jk}} (n)} = \frac{P_{v_{j}} (n)}{P_{f_{k 1}} (n) + P_{f_{k 2}^{j}} (n) + {‖ s_{jk} (n) ‖}^{2} P_{v_{j}} (n) + 2 v_{sjk} \sum_{i = 1, i \neq j}^{J} Δ s_{ik} v_{i}}

(23)

At the start-up of the AANC system, due to the initial values of $y_{j} (1 \leq j \leq J)$ are all zero, leading to of $P_{f_{k 1}} (n)$ . ${\hat{s}}_{jk} (n) (1 \leq j \leq J, 1 \leq k \leq K)$ are far from their real transfer functions, leading to an increase of $P_{f_{k 2}^{j}} (n)$ . So, $σ_{jk} (n)$ is very small at this stage. As the AANC system converges, $P_{f_{k 1}} (n)$ , $P_{f_{k 2}^{j}} (n)$ , and $Δ s_{ik}$ tend to zero, so $σ_{jk} (n)$ increases to a large fixed value related with $s_{jk} (n)$

σ_{jk} (n \to \infty) \approx \frac{P_{v_{j}} (n)}{{‖ s_{jk} (n) ‖}^{2} P_{v_{j}} (n)} = \frac{1}{{‖ s_{jk} (n) ‖}^{2}}

(24)

Comparing equations (20) and (24), it can be found that $σ_{jk} (n)$ is only influenced by the corresponding secondary path $s_{jk} (n)$ .

Replacing $P_{e_{k}} (n)$ in equation (18) with $P_{ϵ_{jk}} (n)$ , the VSS strategy for the OSPM filter is calculated as

μ_{s_{jk}} (n) = \frac{P_{v_{j}} (n)}{P_{ϵ_{jk}} (n)} μ_{s \min} (n)

(25)

From equation (25), it can be seen that $μ_{s_{jk}} (n)$ is the exclusive VSS strategy for ${\hat{s}}_{jk} (n)$ . The proposed VSS strategy provides different VSS strategies for different OSPM filters.

The proposed ANPS strategy for multi-channel OSPM

To reduce the influence of auxiliary noise to the residual noise, an ANPS strategy was proposed in Pu et al.¹⁵ to reduce the harmful contribution in single channel AANC system. In Pu et al.,¹⁵ G(n) varies adaptively in accordance with the ratio between the powers of e(n) to f(n). Here, we directly extend the ANPS strategy to multi-channel OSPM, and replace $P_{e_{k}} (n)$ with $P_{ϵ_{jk}} (n)$ , the ANPS strategy is given as

G_{jk} (n) = P_{f_{k}} (n) / P_{ϵ_{jk}} (n) (1 \leq j \leq J, 1 \leq k \leq K)

(26)

Further derivation of the ratio $G_{jk} (n)$ can be expressed as

G_{jk} (n) = \frac{P_{f_{k} (n)}}{P_{ϵ_{jk} (n)}} = 1 - \frac{P_{v_{\hat{s} j k}} (n) + 2 v_{sjk} \sum_{i = 1, i \neq j}^{J} Δ s_{ik} v_{i}}{P_{f_{k 1}} (n) + P_{f_{k 2}^{j}} (n) + P_{v_{sjk}} (n) + 2 v_{sjk} \sum_{i = 1, i \neq j}^{J} Δ s_{ik} v_{i}}

(27)

At the start-up of the AANC system, $P_{f_{k 1}} (n)$ and $P_{f_{k 2}^{j}} (n)$ are very large. So, $G_{jk} (n) \approx 1$ . In the ideal state, when the secondary paths associated with the jth controller are discussed, it can be assumed that the OSPM filters associated with the other controllers converge well $({\hat{s}}_{ik} (n) \to s_{ik} (n), i \neq j)$ . So, as the active control filters converges, $P_{f_{k 1}} (n)$ , $P_{f_{k 2}^{j}} (n)$ , and $Δ s_{ik} (i \neq j)$ tend to zero. Equation (27) can be simplified approximately as follows

G_{jk} (n) \approx 1 - \frac{{‖ {\hat{s}}_{jk} (n) ‖}^{2}}{{‖ s_{jk} (n) ‖}^{2}}

(28)

The value of $G_{jk} (n)$ is determined only by the ratio of ${‖ {\hat{s}}_{jk} (n) ‖}^{2}$ and ${‖ s_{jk} (n) ‖}^{2}$ . When ${\hat{s}}_{jk} (n)$ converges to its real transfer function $s_{jk} (n)$ , $G_{jk} (n)$ tends to zero. The auxiliary noise $v_{j} (n)$ injected into $y_{j} (n)$ will affect all the secondary paths ${\hat{s}}_{jk} (n) (1 \leq k \leq K)$ associated with the jth secondary source. So, considering the other OSPM filters associated with the jth secondary source, we expand $G_{jk} (n)$ to $G_{j} (n)$ as follows

G_{j} (n) = \sum_{k = 1}^{K} P_{f_{k}} (n) / \sum_{k = 1}^{K} P_{ϵ_{jk}} (n)

(29)

Similar to the above discussion, at the start-up of the AANC system, $G_{j} (n = 0) \approx 1$ . As the AANC system converges

G_{j} (n \to \infty) \approx 1 - \frac{\sum_{k = 1}^{K} {‖ {\hat{s}}_{jk} (n) ‖}^{2}}{\sum_{k = 1}^{K} {‖ s_{jk} (n) ‖}^{2}}

(30)

As all OSPM filters associated with the jth secondary source come to converge, that means all ${\hat{s}}_{jk} (n) (1 \leq k \leq K)$ come to their real values, the value of $G_{j} (n)$ can be close to zero. Therefore, the proposed ANPS strategy is given as equation (29), where the number of secondary sources and error sensors need not be equal. The block diagram of the proposed ANPS strategy is shown in Figure 2.

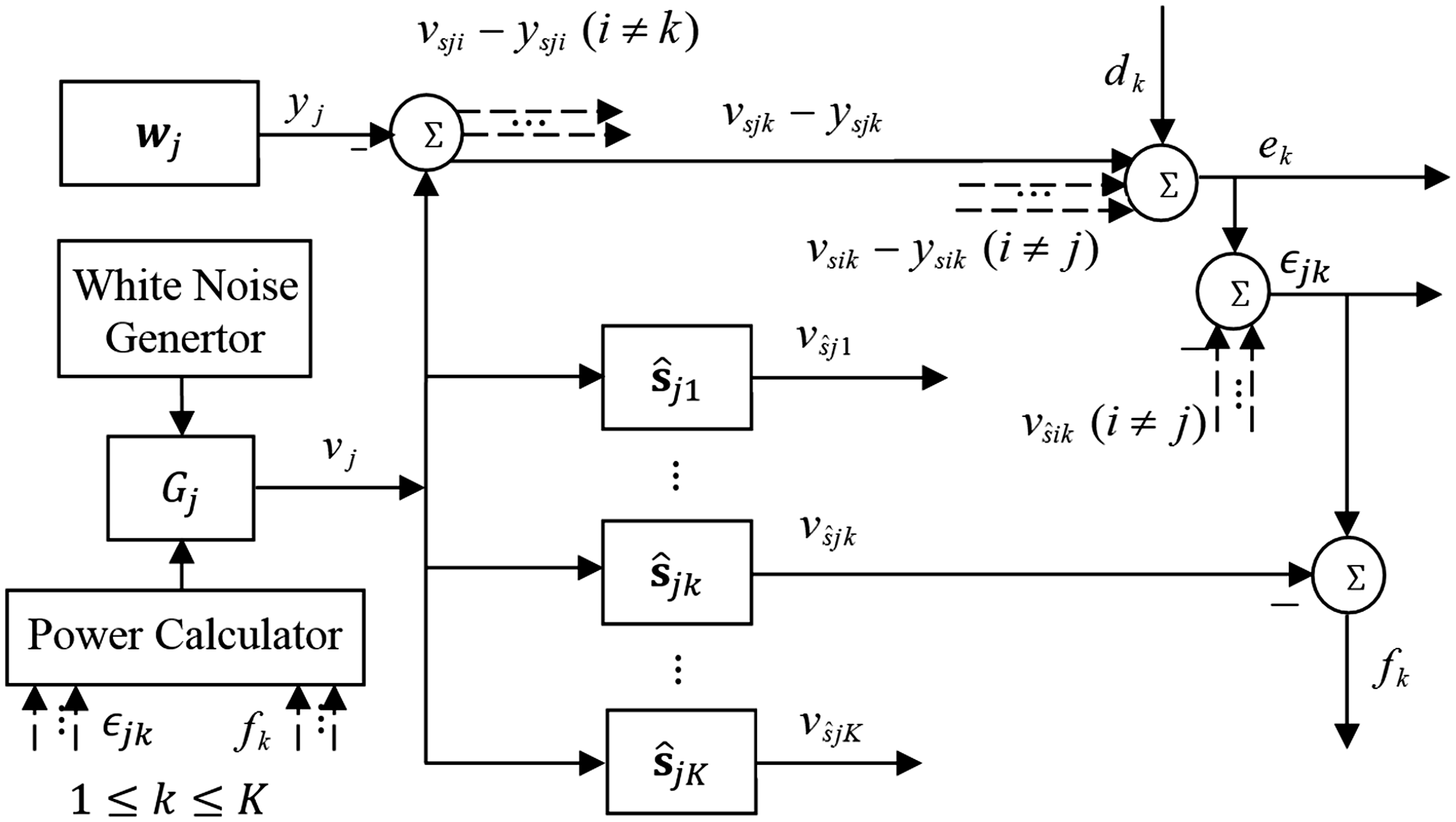

Figure 2.

Block diagram of auxiliary noise scheduling strategy.

Calculation analysis and comparison

Table 1 summarizes the proposed VSS strategy and ANPS strategy for multi-channel AANC system equipped with OSPM. The computation complexity is normally determined by the number of computations required per iteration of the algorithm.¹¹ A detailed computational complexity analysis of the proposed method is provided in Table 1.

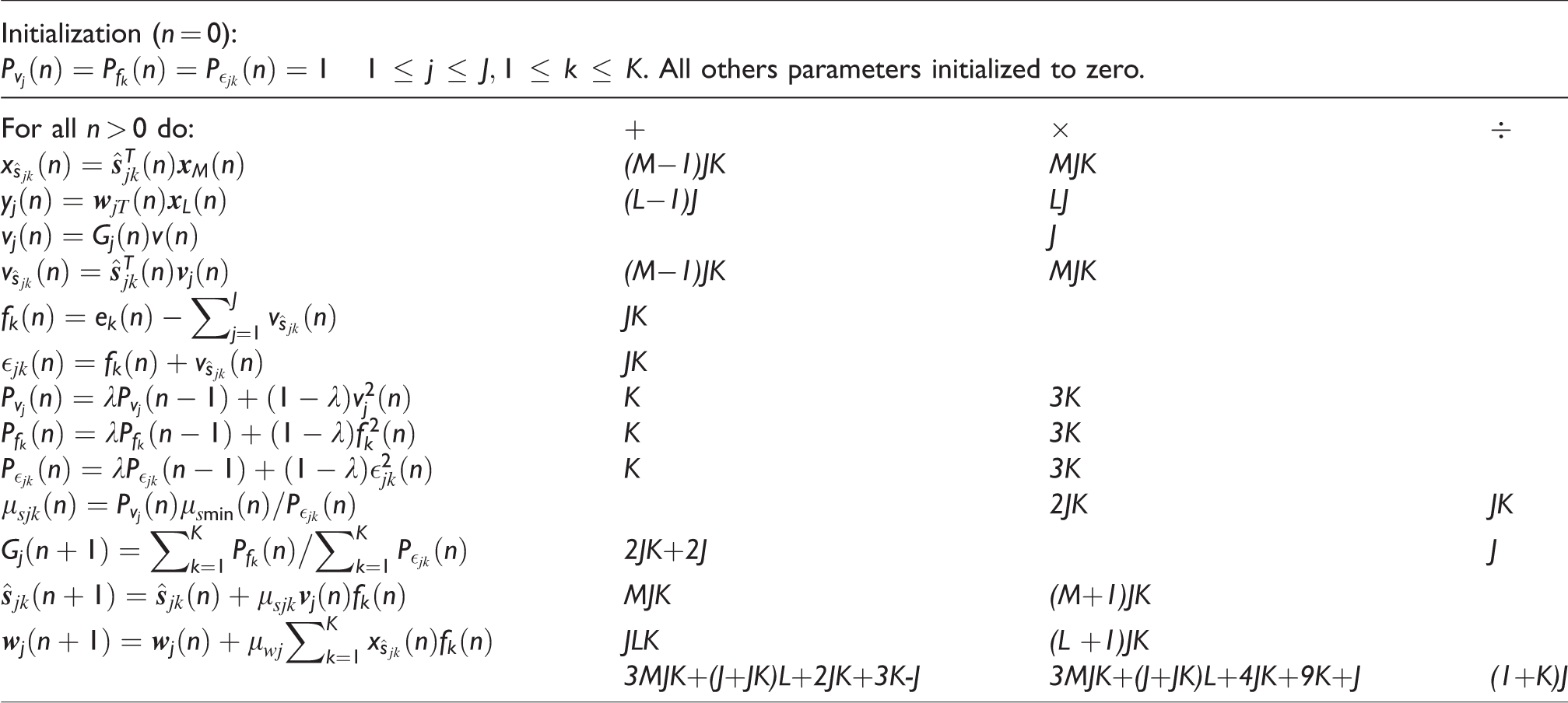

Table 1.

Analysis of computational complexity of the proposed algorithm.

Initialization (n = 0): $P_{v_{j}} (n) = P_{f_{k}} (n) = P_{ϵ_{jk}} (n) = 1 1 \leq j \leq J, 1 \leq k \leq K$ . All others parameters initialized to zero.
For all n > 0 do:	+	×	÷
$x_{{\hat{s}}_{jk}} (n) = {\hat{s}}_{jk}^{T} (n) x_{M} (n)$	(M−1)JK	MJK
$y_{j} (n) = w_{jT} (n) x_{L} (n)$	(L−1)J	LJ
$v_{j} (n) = G_{j} (n) v (n)$		J
$v_{{\hat{s}}_{jk}} (n) = {\hat{s}}_{jk}^{T} (n) v_{j} (n)$	(M−1)JK	MJK
$f_{k} (n) = e_{k} (n) - \sum_{j = 1}^{J} v_{{\hat{s}}_{jk}} (n)$	JK
$ϵ_{jk} (n) = f_{k} (n) + v_{{\hat{s}}_{jk}} (n)$	JK
$P_{v_{j}} (n) = λ P_{v_{j}} (n - 1) + (1 - λ) v_{j}^{2} (n)$	K	3K
$P_{f_{k}} (n) = λ P_{f_{k}} (n - 1) + (1 - λ) f_{k}^{2} (n)$	K	3K
$P_{ϵ_{jk}} (n) = λ P_{ϵ_{jk}} (n - 1) + (1 - λ) ϵ_{jk}^{2} (n)$	K	3K
$μ_{sjk} (n) = P_{v_{j}} (n) μ_{s \min} (n) / P_{ϵ_{jk}} (n)$		2JK	JK
$G_{j} (n + 1) = \sum_{k = 1}^{K} P_{f_{k}} (n) / \sum_{k = 1}^{K} P_{ϵ_{jk}} (n)$	2JK+2J		J
${\hat{s}}_{jk} (n + 1) = {\hat{s}}_{jk} (n) + μ_{sjk} v_{j} (n) f_{k} (n)$	MJK	(M+1)JK
$w_{j} (n + 1) = w_{j} (n) + μ_{wj} \sum_{k = 1}^{K} x_{{\hat{s}}_{jk}} (n) f_{k} (n)$	JLK	(L +1)JK
	3MJK+(J+JK)L+2JK+3K-J	3MJK+(J+JK)L+4JK+9K+J	(1+K)J

A detailed computational complexity comparison between the proposed method with the extended-Eriksson’s, Akhtar–Jung’s, and extend-Carini’s methods is given in Table 2. The extended-Carini’s method has the highest computational cost comparing with the other methods due to the using the delay coefficient technique. That is because the using the delay coefficient technique for online estimation error of the secondary path. The extended-Eriksson’s method has the lowest computation, because it is the basic OSPM method in which fixed step sizes are employed for both active control filters and OSPM filters, and no ANPS strategy is employed. The proposed method and the Ahktar–Jung’s method have the lower computational cost comparing with the extended-Carini’s method, because the simple ANPS strategy and VSS strategy are employed for the iteration of the OSPM filters.

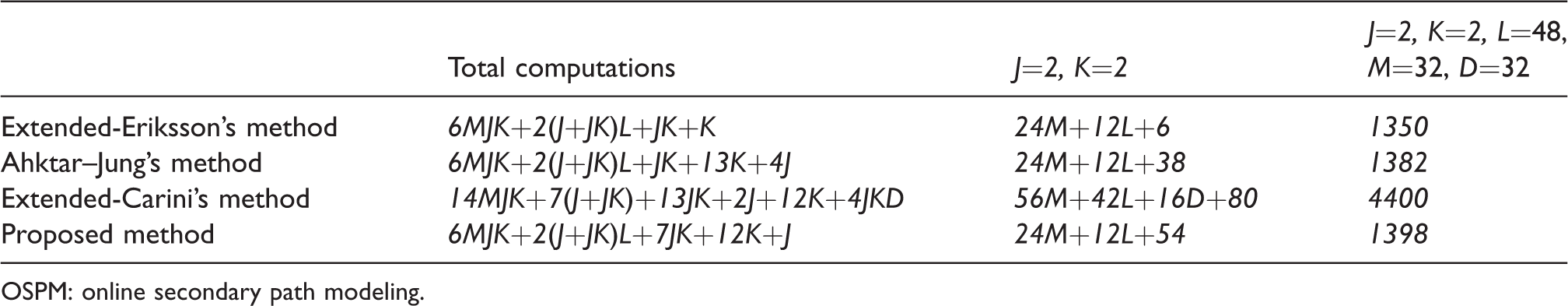

Table 2.

Comparison of computational complexity of 1×J × K ANC system with OSPM.

	Total computations	J=2, K=2	J=2, K=2, L=48, M=32, D=32
Extended-Eriksson’s method	6MJK+2(J+JK)L+JK+K	24M+12L+6	1350
Ahktar–Jung’s method	6MJK+2(J+JK)L+JK+13K+4J	24M+12L+38	1382
Extended-Carini’s method	14MJK+7(J+JK)+13JK+2J+12K+4JKD	56M+42L+16D+80	4400
Proposed method	6MJK+2(J+JK)L+7JK+12K+J	24M+12L+54	1398

OSPM: online secondary path modeling.

Simulation results and analysis

In this section, we provide a series of simulation experiments on multi-channel AANC system, comparing the performance of the proposed multi-channel OSPM algorithm with multi-channel offline SPM method, the extended-Carini’s OSPM method,¹³ and Akhtar–Jung’s OSPM method.^10,18 In Case 1 and Case 2, the number of secondary sources and error sensors is equal, while in Case 3, they are not.

The length of active control filters L is 128, and the length of OSPM filters M is 64 in all methods including ${\hat{s}}_{jk 0} (n)$ and ${\hat{s}}_{jk 1} (n)$ in extended-Carini’s method. All the adaptive filters weights are initialized by null vectors, except for ${\hat{s}}_{jk 0} (n)$ in extended-Carini’s method which are initialized by all-one vectors.

The magnitude responses of the primary paths used in simulation experiments are shown in Figure 3. Primary path 1 and 2 are used in Case 1 and Case 2 in 1 × 2 × 2 multi-channel AANC system, and then combined with primary path 3 are used in Case 3 in 1 × 2 × 3 multi-channel AANC system.

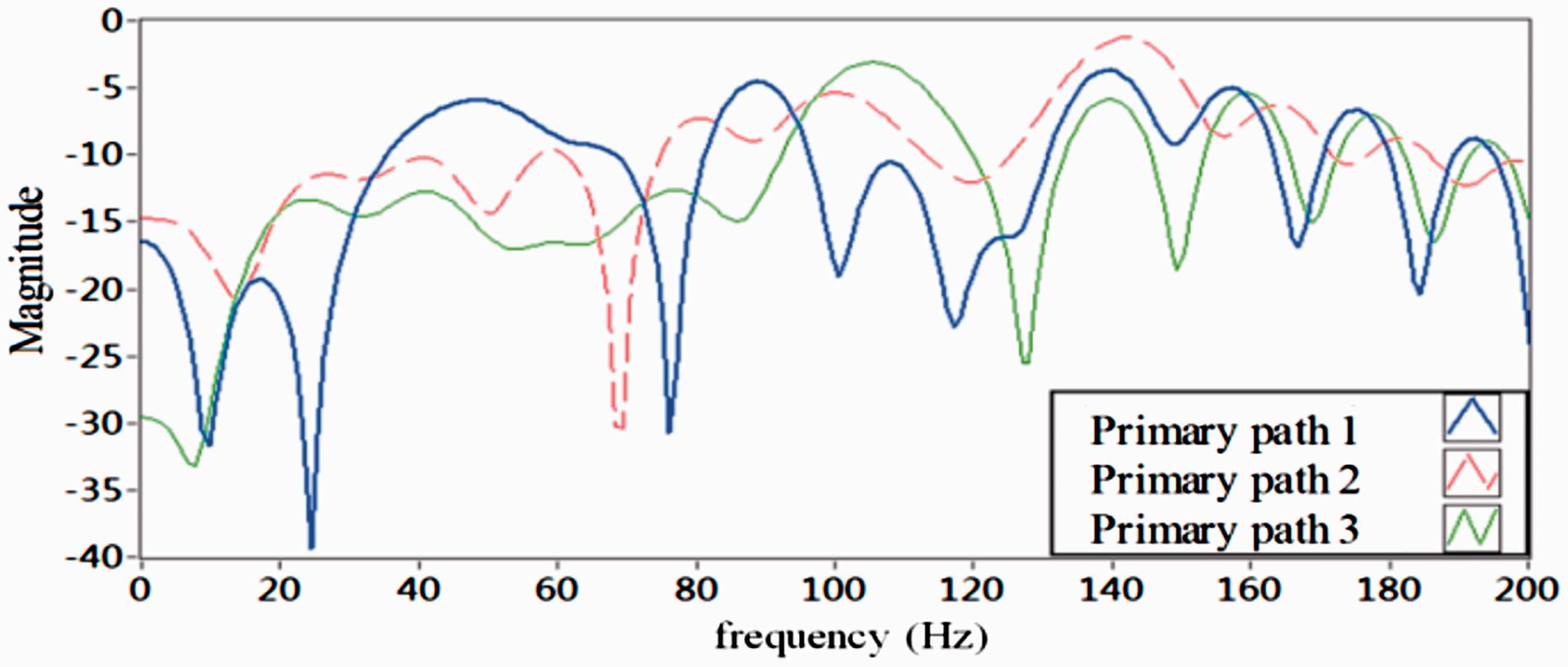

Figure 3.

Magnitude responses of primary noise paths.

In practical applications, significant changes in acoustic paths may be encountered due to the movement of secondary sources or error sensors. A sudden change in the acoustic paths is set at n = 40,000 in all three simulation experiments. Magnitude responses of original and changed secondary paths are shown in Figure 4. Figure 4(a) and (b) about magnitude response of s ₁₁(n), s ₂₁(n), s ₁₂(n), s ₂₂(n) is used in Case 1 and Case 2. Magnitude response of s ₁₃(n), s ₂₃(n) is shown in Figure 4(e) and (f) and combined with s ₁₁(n), s ₂₁(n), s ₁₂(n), s ₂₂(n) are used in Case 3.

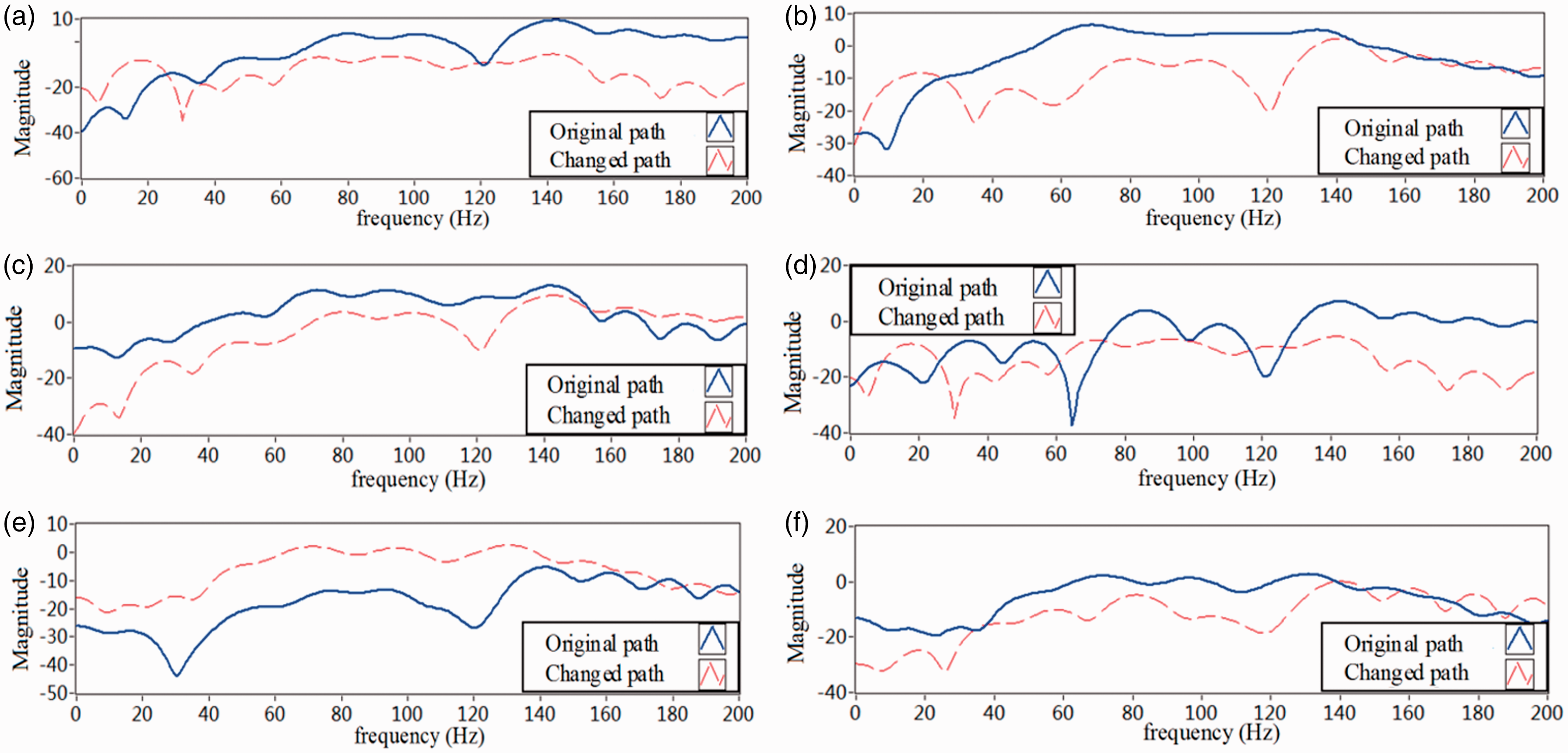

Figure 4.

Magnitude responses of secondary paths (solid line: original path, dashed line: changed path at n = 40,000): (a) s ₁₁(n), (b) s ₂₁(n), (c) s ₁₂(n), (d) s ₂₂(n), (e) s ₁₃(n), and (f) s ₂₃(n).

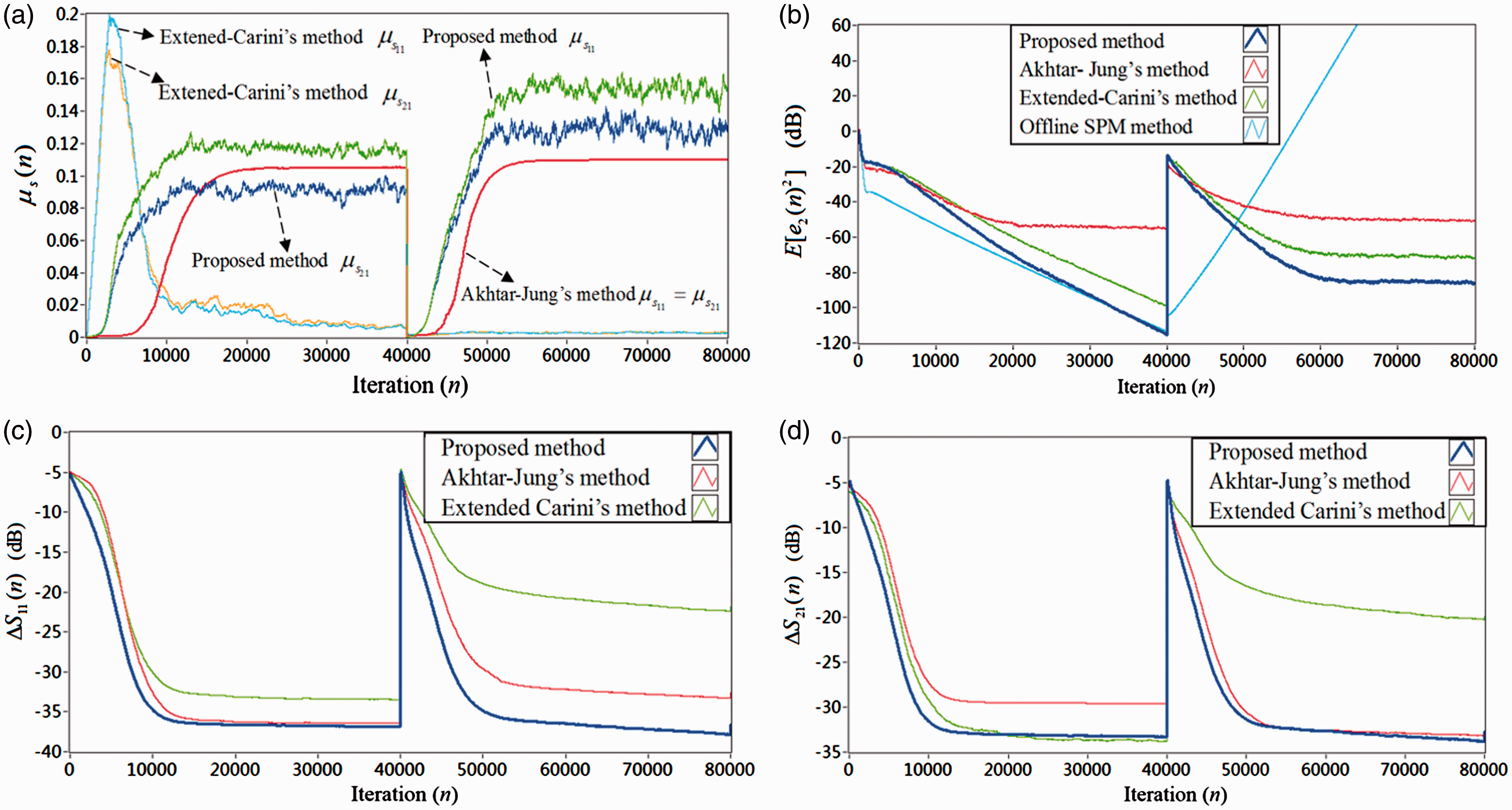

Figure 5.

Simulation results in Case 1. (a) Step size $μ_{s} (n)$ , (b) mean-squared error $E [e_{2} {(n)}^{2}]$ (dB), (c) relative modeling error $Δ S_{11} (n)$ (dB), and (d) relative modeling error $Δ S_{21} (n)$ (dB). SPM: secondary path modeling.

To quantify performance of OSPM filters, the relative modeling error of OSPM filters is defined

Δ S_{jk} (n) = 10 \log_{10} {\frac{\sum_{i = 0}^{M - 1} {‖ s_{jki} (n) - {\hat{s}}_{jki} (n) ‖}^{2}}{\sum_{i = 0}^{M - 1} {‖ s_{jki} (n) ‖}^{2}}}

(31)

Case 1: 1 × 2 × 2 multi-channel AANC system for tonal noise

In this case, x(n) is a sine signal with frequency of 90 Hz and amplitude of 2, corrupted with a white noise resulting in a SNR of 30 dB. A zero-mean white Gaussian noise of variance 1 is used for OSPM. The simulation parameters for all methods are set as described in Table 3.

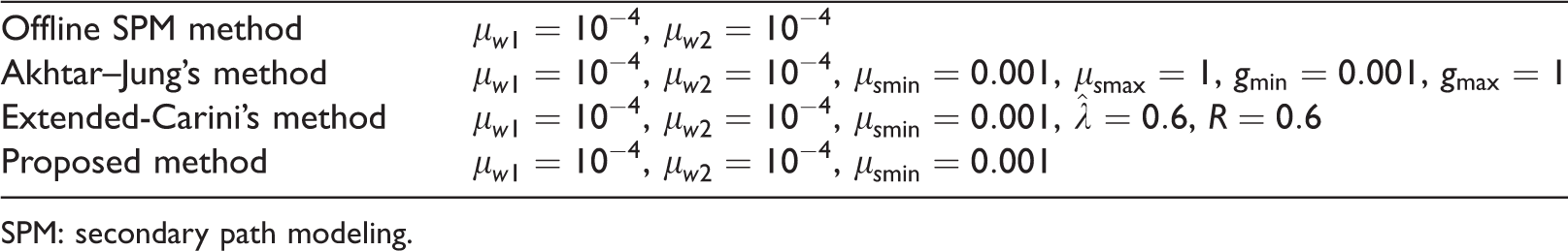

Table 3.

Simulation parameters for the four methods.

Offline SPM method	$μ_{w 1} = 10^{-4}$ , $μ_{w 2} = 10^{-4}$
Akhtar–Jung’s method	$μ_{w 1} = 10^{-4}$ , $μ_{w 2} = 10^{-4}$ , $μ_{s \min} = 0.001$ , $μ_{s \max} = 1$ , $g_{\min} = 0.001$ , $g_{\max} = 1$
Extended-Carini’s method	$μ_{w 1} = 10^{-4}$ , $μ_{w 2} = 10^{-4}$ , $μ_{s \min} = 0.001$ , $\hat{λ} = 0.6$ , $R = 0.6$
Proposed method	$μ_{w 1} = 10^{-4}$ , $μ_{w 2} = 10^{-4}$ , $μ_{s \min} = 0.001$

SPM: secondary path modeling.

The step-size curves for OSPM filters associated with the error sensor 1 are shown in Figure 5(a). Different OSPM filters have different step-size curves before and after the acoustic paths change in the proposed method and the extended-Carini’s method. But in Akhtar’s method, the step sizes for ${\hat{s}}_{11} (n)$ and ${\hat{s}}_{21} (n)$ vary by same VSS strategy no matter how the acoustic paths are changed.

In Figure 5(b), the mean-squared error $E [e_{2} {(n)}^{2}]$ curves are plotted for various methods. Before the acoustic paths change, all methods have good noise reduction performance. After the acoustic paths change, large model errors make the active control algorithm based on offline SPM diverge, while the control algorithms based on online SPM make the AANC system converge again. The proposed method shows the best noise reduction performance comparing with the competing methods.

The relative modeling errors ΔS₁₁(n) and ΔS₂₁(n) are shown in Figure 5(c) and (d). It can be seen that the proposed method can reduce the modeling error to a lower steady-state value at a somewhat faster convergence speed before and after the acoustic paths change. Due to the step sizes frozen to small values after the acoustic paths change, the convergence of the OSPM filters in Carini’s method is very slow and ΔS₁₁(n) and ΔS₂₁(n) are relatively high.

Case 2: 1 × 2 × 2 multi-channel AANC system for broad band noise

In this case, the reference signal is a broadband signal obtained by filtering a zero-mean white Gaussian noise with bandpass filter having pass-band 100–400 Hz. The variance of the reference signal is adjusted to 2. A zero-mean white Gaussian noise of variance 1 is used for the secondary path modeling. The sampling frequency is 1 kHz. The simulation parameters for all methods are set as described in Table 4.

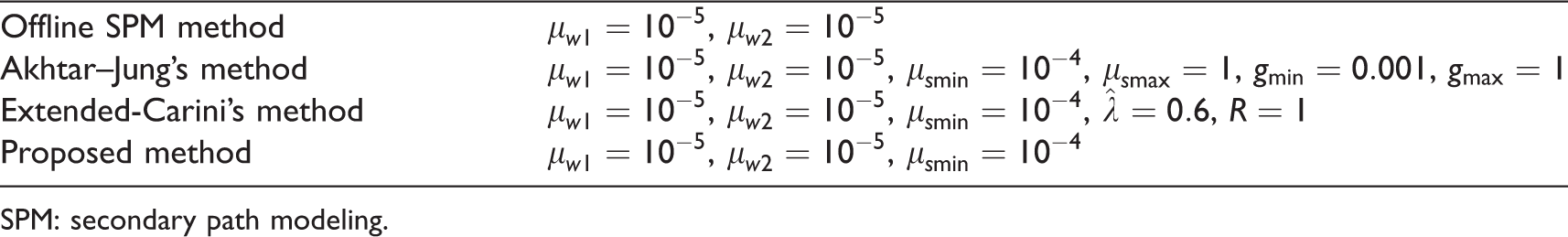

Table 4.

Simulation parameters for the four methods.

Offline SPM method	$μ_{w 1} = 10^{- 5}$ , $μ_{w 2} = 10^{- 5}$
Akhtar–Jung’s method	$μ_{w 1} = 10^{- 5}$ , $μ_{w 2} = 10^{- 5}$ , $μ_{s \min} = 10^{- 4}$ , $μ_{s \max} = 1$ , $g_{\min} = 0.001$ , $g_{\max} = 1$
Extended-Carini’s method	$μ_{w 1} = 10^{- 5}$ , $μ_{w 2} = 10^{- 5}$ , $μ_{s \min} = 10^{- 4}$ , $\hat{λ} = 0.6$ , $R = 1$
Proposed method	$μ_{w 1} = 10^{- 5}$ , $μ_{w 2} = 10^{- 5}$ , $μ_{s \min} = 10^{- 4}$

SPM: secondary path modeling.

Similar to the Case 1, the proposed method has better performance than the competing methods in dealing with broad band noise. The variation charts of the step sizes are shown in Figure 6(a). The proposed VSS strategy enables every OSPM filter to have a unique step size, matched with the proposed ANPS strategy, leading to a high noise reduction performance in dealing with the broadband noise. The mean-squared error $E [e_{2} {(n)}^{2}]$ curves are plotted in Figure 6(b).

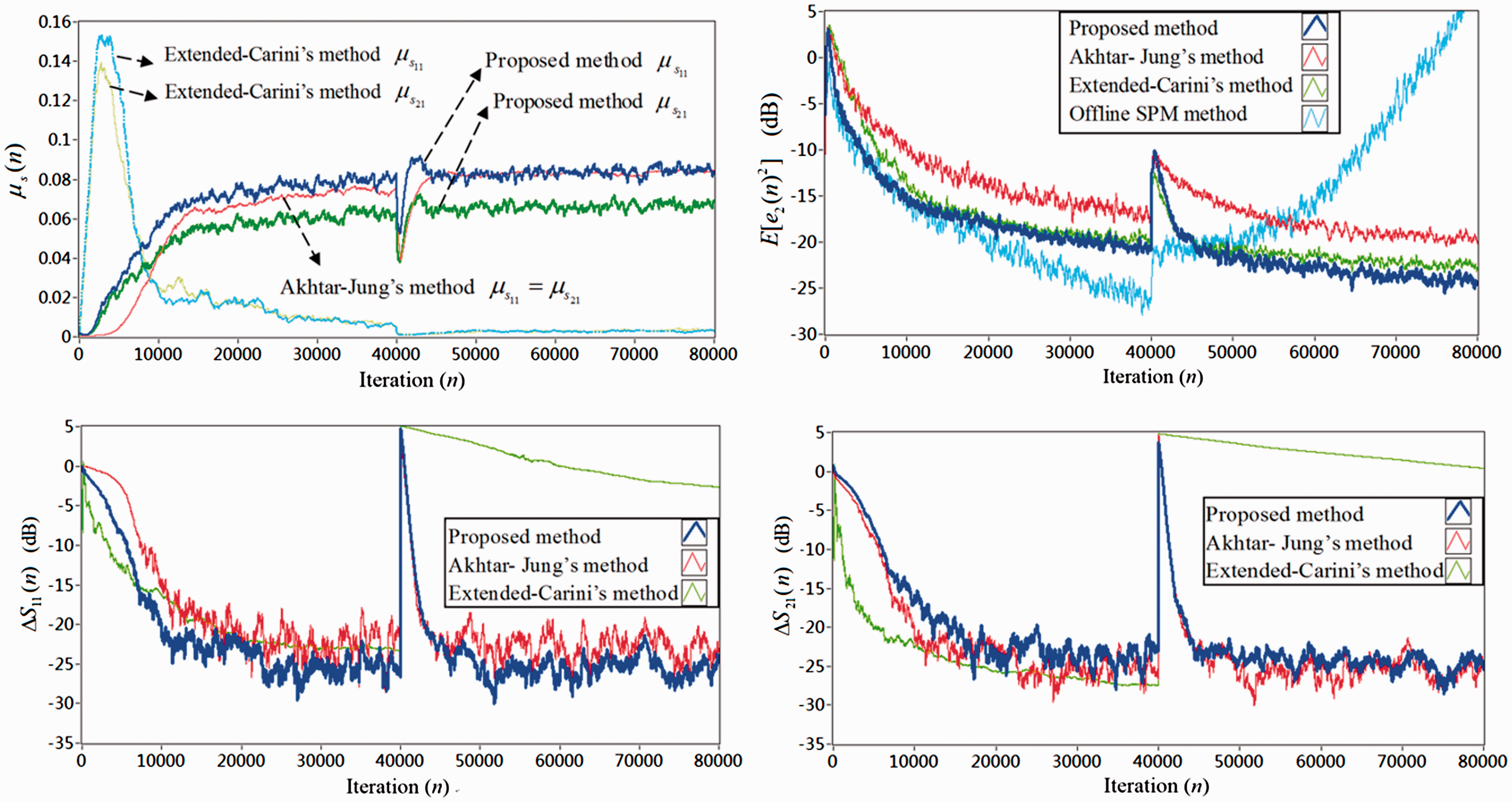

Figure 6.

Simulation results in Case 2. (a) Step size $μ_{s} (n)$ , (b) mean-squared error $E [e_{2} {(n)}^{2}]$ (dB), (c) relative modeling error $Δ S_{11} (n)$ (dB), and (d) relative modeling error $Δ S_{21} (n)$ (dB). SPM: secondary path modeling.

The relative modeling error ΔS₁₁(n) and ΔS₂₁(n) are shown in Figure 6(c) and (d). All these methods can reduce the modeling error to a lower steady level at reasonably faster convergence rate before the acoustic path change. However, after the change, the ability to re-model secondary paths is limited in extended-Carini’s method.

Case 3: 1 × 2 × 3 multi-channel AANC system

Akhtar–Jung’s method only works if the numbers of secondary sources and error sensors of multi-channel AANC system are same, while the extended-Carini’s method and the proposed method have no such limitation. In this case, numbers of secondary sources and error sensors are set to not equal to demonstrate the advantage of proposed method for multi-channel AANC system. The simulation parameters are set to the same as in Case 1.

The simulation results are shown in Figure 7(a) to (d), every OSPM filter has its own exclusive VSS strategy using the proposed method and the extended-Carini’s method. However, with the extended-Carini’s method, the convergence of the OSPM filters is slower, and the relative modeling errors of different OSPM filters are larger after the acoustic paths change comparing with the proposed method. Both the proposed method and the extended-Carini’s method have a high noise reduction performance even though the number of secondary sources and error sensors is not equal. But the proposed method performs better than the extended-Carini’s method at much reduced computational cost.

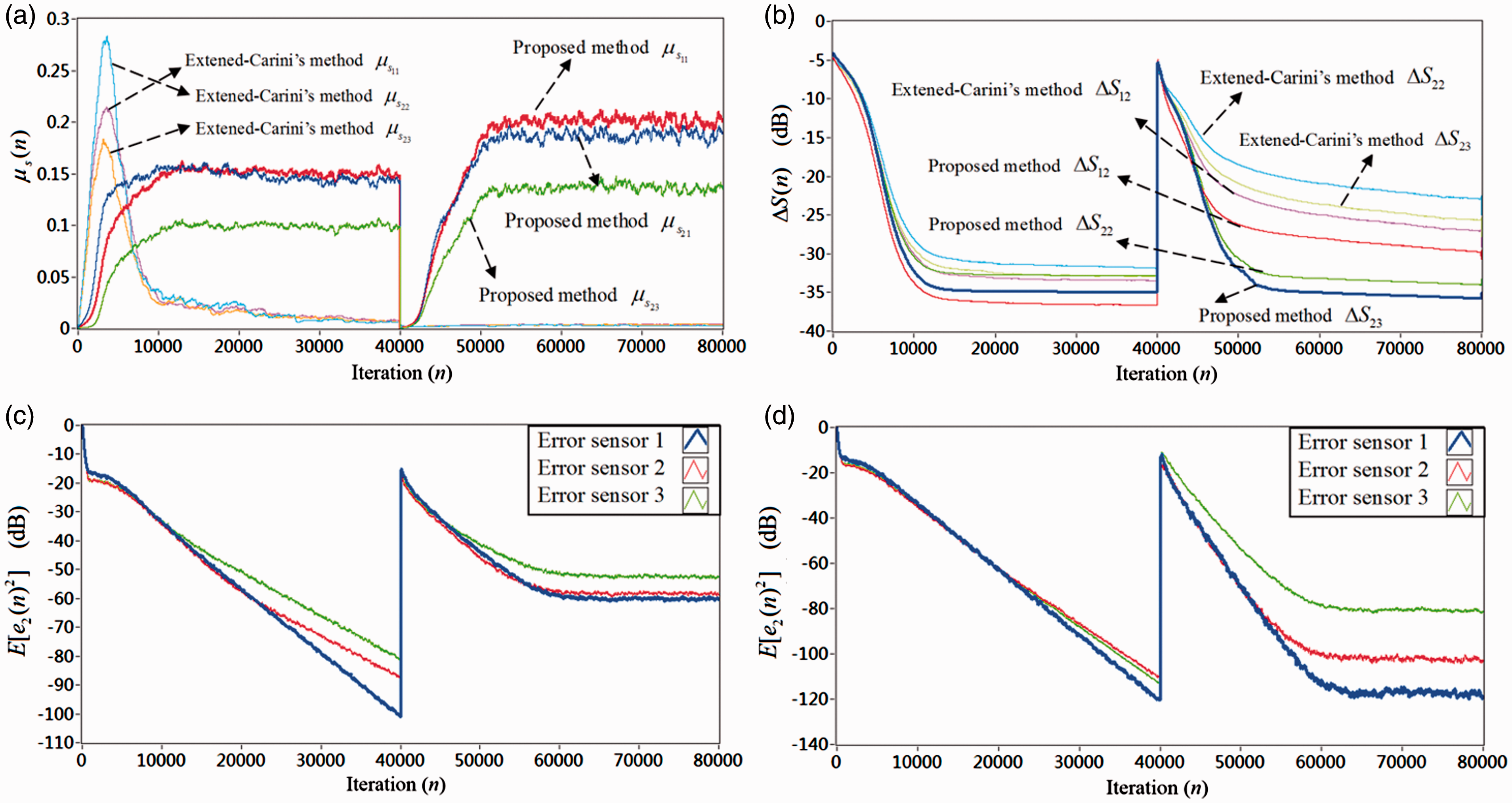

Figure 7.

Simulation results in Case 3. (a) Step size $μ_{s} (n)$ , (b) relative modeling error $Δ S (n)$ (dB), (c) $E [e_{2} {(n)}^{2}]$ of the extended-Carini’s method, and (d) $E [e_{2} {(n)}^{2}]$ of the proposed method.

Conclusions

This paper proposes simplified and effective VSS strategy and ANPS strategy for multi-channel AANC system with OSPM method. Through a novel indirect error signal, the proposed method can guarantee every OSPM filter has its own exclusive VSS strategy and every injected noise has its own exclusive ANPS strategy, which can improve the adaptive performance of multi-channel AANC system.

Furthermore, the proposed method breaks up the limitation of Akhtar–Jung’s OSPM method that the number of secondary sources and error sensors must be equal and simplifies the complexity of multi-channel AANC system. Computer simulations show that the proposed method gives better noise reduction performance and secondary path modeling accuracy at a somewhat faster convergence rate comparing with the existing methods.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/ or publication of this article: This project is supported by the National Natural Science Foundation of China (No. 51605127), the Fundamental Research Funds for the Central Universities (No. 107-4115103040, PA2018GDQT0008).

References

Elliott

Stothers

Nelson

PA.

A multiple error LMS algorithm and its application to the active control of sound and Noise. IEEE Trans Acoust Speech Signal Process 1987; ASSP-35: 1423–1434.

Das

Mohapatra

Routray

et al . Filtered-s LMS algorithm for multichannel active control of nonlinear noise processes. IEEE Trans Audio Speech Lang Process 2006; 14: 1875–1880.

Chen

Sone

Abe

Effects of multiple secondary paths on convergence properties in active noise control systems with LMS algorithm. J Sound Noise 1996; 195: 217–228.

Chan

Chu

YJ.

Performance analysis and design of FxLMS algorithm in broadband ANC system with online secondary-path modeling. IEEE Trans Audio Speech Lang Process 2012; 20: 982–993.

Douglas

SC.

Fast implementations of the filtered-X LMS and LMS algorithms for multichannel active noise control. IEEE Trans Speech Audio Process 1999; 7: 454–465.

Das

Panda

Kuo

SM.

New block filtered-X LMS algorithms for active noise control systems. IET Signal Process 2007; 1: 73–81.

Eriksson

Allie

MC.

Use of random noise for online transducer modeling in an adaptive active attenuation system. J Acoustic Soc Am 1989; 85: 797–802.

Zhang

Lan

Ser

Cross-updated active noise control system with online secondary path modeling. IEEE Trans

Speech Audio Process 2001; 9: 598–602.

Zhang

Lan

Ser

A robust online secondary path modeling method with ANPS strategy and norm constraint manipulation. IEEE Trans Speech Audio Process 2003; 11: 45–53.

10.

Akhtar

Abe

Kawamata

Online secondary path modeling in multichannel active noise control systems using variable step size. Signal Process 2008; 88: 2019–2029.

11.

Akhtar

Abe

Kawamata

Noise power scheduling in active noise control systems with online secondary path modeling. IEICE Electron Express 2007; 4: 66–71.

12.

Zhang

Jiang

JH.

A new online secondary path modeling method based on delay coefficient technique. J Vibroeng 2014; 16: 2998–3013.

13.

Carini

Malatini

Optimal variable step-size NLMS algorithms with auxiliary noise power scheduling for feedforward active noise control. IEEE Trans Audio Speech Lang Process 2008; 16: 1383–1395.

14.

Kajikawa

Gan

W-S

Kuo

SM.

Recent advances on active noise control: open issues and innovative applications. APSIPA Trans Signal Inf Process 2013; special sessions: 661-666.

15.

Zhang

Jiang

JH.

A new online secondary path modeling method for adaptive active structure noise control. Smart Mater Struct 2014; 23: 065015.

16.

Paulo

ACL

José

ABG.

Auxiliary noise power scheduling algorithm for active noise control with online secondary path modeling and sudden changes. IEEE Signal Process Lett 2015; 22: 1590–1594.

17.

Ahmed

Akhtar

Zhang

Robust auxiliary-noise-power scheduling in active noise control systems with online secondary path modeling. IEEE Trans Audio Speech Lang Process 2013; 21: 749–761.

18.

Jung

Seo

Kim

LJ.

Multi-channel ANC using online secondary-path modeling with noise power scheduling. In: IEEE international symposium on signal processing and information technology (ISSPIT 2010 ), Luxor, Egypt, 15–18. December 2010.
