Abstract

The vehicle semi-active suspension is a typical multiple-input multiple-output system with strong couplings, actuator constraints and fast dynamics. This paper addresses the damping force regulation of shock-absorber in vehicle semi-active suspensions using an explicit model predictive control (EMPC) approach, which allows minimizing the system control objective function while satisfying the actuator constraints. The main advantage of the proposed approach is that the control law computation requirement is low, and thus the EMPC system is suitable for implementation in a standard automotive microcontroller. The design of the EMPC system consists of mathematical modeling, objective function determination, controller formulation and simulation validation. Presented simulation results verify that a superior control performance of the vehicle semi-active suspension system is achieved by the proposed EMPC control approach compared with the performance obtained using conventional control method.

Keywords

Semi-active suspension explicit model predictive control damping force regulation actuator constraint

Introduction

Advanced suspension systems are widely used in modern vehicles, due to their merits of improving ride comfort and handling performance.^1–3 In the past few decades, the active/semi-active suspension systems with advanced electronic control technology have caused extensive concern of researchers.⁴ The active suspension systems can significantly improve the suspension performance by controlling the force of the actuator directly, but high cost and high energy consumption are the key factors restricting its development.⁵ Although the performance of the semi-active suspension is slightly inferior to that of the active suspension, simple structure, low cost and low energy consumption are its main advantages, which make it have good prospects for engineering applications.⁶ To improve the control performance of the semi-active suspension, a variety of control methods, such as the optimal control, the sliding mode control and the fuzzy adaptive control,^7–9 have been adopted for the controller design. However, these control methods are often difficult to deal with the constraints of system states and damping force regulation when applied to the vehicle semi-active suspension.¹⁰

For the ability to handle the constraints on manipulated variables in multiple-input multiple-output (MIMO) systems, model predictive control (MPC) is one of the most promising methods in industrial applications.^11–13 MPC uses the system dynamic model to predict the evolution of the system states as a function of control inputs over a finite prediction horizon and calculates a sequence of optimal control inputs by minimizing a cost function over a finite control horizon. In addition, MPC applies only the first input of the calculated control sequence, the prediction horizon is moved forward one step and the process is then repeated. More importantly, compared with conventional regulators that only optimize the system control performance around a given initial state, MPC can optimize the control problem at each time step and results in higher flexibility in dealing with the constraints on inputs, outputs and states.¹⁴ MPC is now widely used in the field of process industry, such as the chemical industry and the petroleum refining industry, thus achieves great economic and social benefits.¹⁵

According to the difference of control scheme, MPC method can be further divided into several types, such as the generalized predictive control, the nonlinear MPC and the robust MPC, and all these MPC methods have been applied in the engineering control field.^16–18 However, due to a finite-horizon optimal control problem that needs to be solved in each sampling period, the computation time requirement considerably limits the bandwidth of processes to which the MPC can be applied.¹⁹ Higher computation burden leads to higher requirements on the processing power of the controller hardware and, furthermore, higher requirement on the cost. Therefore, such predictive control methods are not suitable for the production vehicle semi-active suspension systems. To solve this problem, the explicit MPC (EMPC) method, which has the potential ability to reduce hardware cost and amount of computation needed for the implementation, has attracted great interest in engineering.^20–22 The EMPC approach is based on doing most of the required computation off-line by using multi-parametric programming technology (MPT), leaving only part of the computation for the online part of the implementation.^23,24

In this paper, several aspects of designing an EMPC controller for a vehicle semi-active suspension system are proposed. The main contribution of this paper is to form a complete procedure in formulating an EMPC controller for damping force regulation of shock-absorber according to the research experience, particularly on the method of defining an accurate control problem for the full-car semi-active suspension system and establishing an augmented EMPC controller. The performance of the proposed EMPC approach will be compared with well-established “two state” skyhook control algorithm for a vehicle semi-active suspension system through numerical simulation, and the simulation results support the proposed method.

This paper is organized as follows. After the introduction, the system description and modeling of a vehicle semi-active suspension system are described. The EMPC controller is then designed, which is followed by simulation results. Finally, the conclusions are summarized.

System description and modeling

Full-car semi-active suspension system

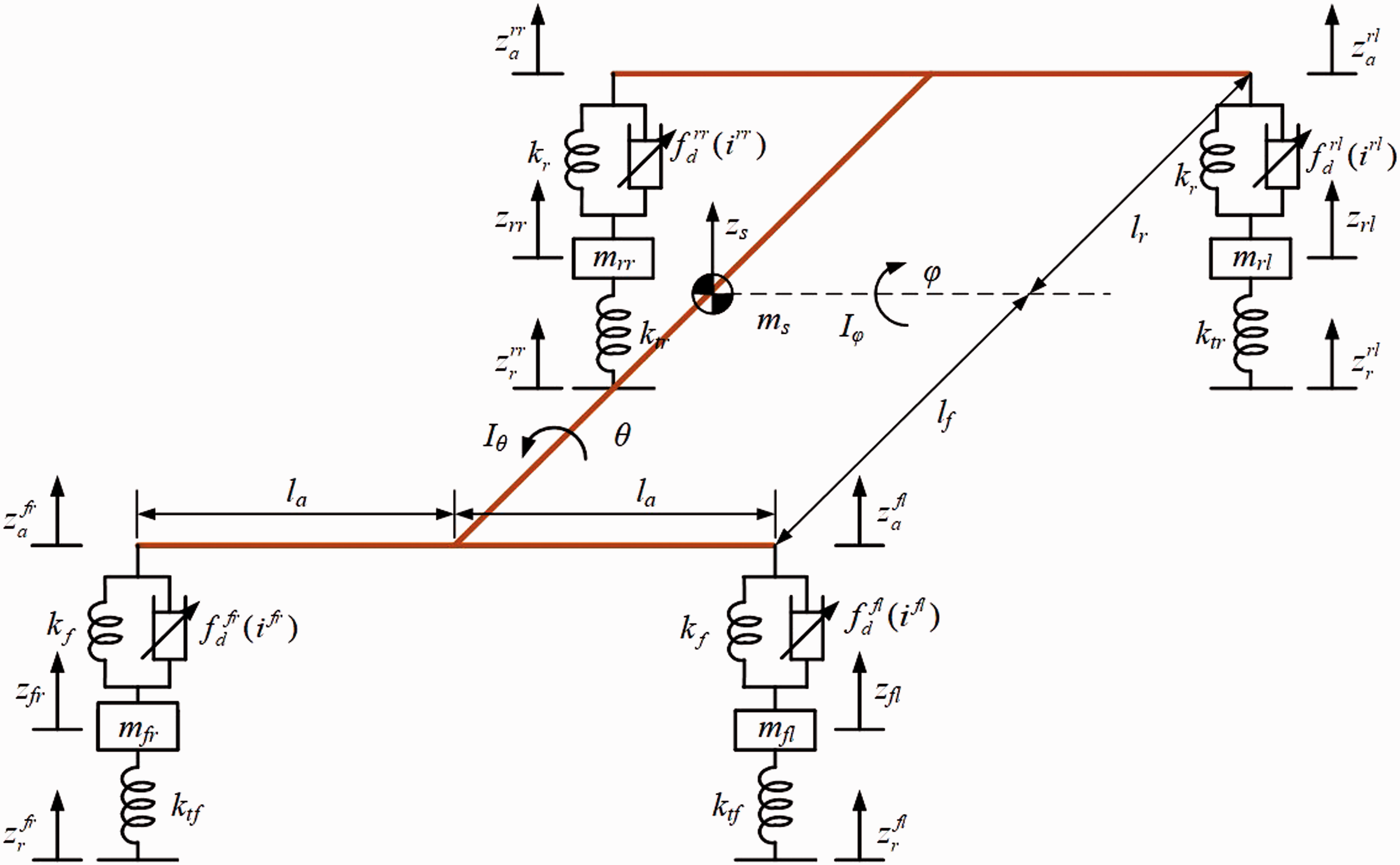

The schematic of a full-car semi-active suspension system is shown in Figure 1.^25,26 The vehicle is assumed to drive at a constant speed v, the chassis, the engine and the wheels are modeled as rigid bodies.

Figure 1.

Full-car semi-active suspension schematic.

In the figure, the parameters characterizing the model include the sprung mass m_s, the roll moment of inertia I_θ, the pitch moment of inertia I_ϕ, the front and rear unsprung masses on the right and left sides m_fr, m_fl, m_rr and m_rl, the tyre stiffnesses of the front wheel and the rear wheel k_tf and k_tr, the constant spring stiffnesses of the front wheel and the rear wheel k_f and k_r, the distances between the center of gravity to the front and the rear axis l_f and l_r, half of the distance between the left wheel and the right wheel l_a; the variables describing the model include the vertical displacement at the center of gravity z_s, the roll and pitch angles of the vehicle body θ and ϕ, the vertical displacements of the sprung mass at four corners $z_{a}^{f r}$ , $z_{a}^{f l}$ , $z_{a}^{r r}$ and $z_{a}^{r l}$ , the vertical displacements of the front and rear unsprung masses on the right and left sides z_fr, z_fl, z_rr and z_rl, the road roughness displacements $z_{r}^{f r}$ , $z_{r}^{f l}$ , $z_{r}^{r r}$ and $z_{r}^{r l}$ , the control currents of the four damping-adjustable dampers i ^fr, i ^fl, i ^rr and i ^rl, the variable damping coefficients of the four dampers $f_{d}^{f r} (\cdot)$ , $f_{d}^{f l} (\cdot)$ , $f_{d}^{r r} (\cdot)$ and $f_{d}^{r l} (\cdot)$ .

Since the roll and pitch angles of the vehicle body are relatively small, thus the following linear geometrical relationships can be obtained²⁷

{\begin{array}{l} z_{a}^{f r} = z_{s} + l_{f} φ - l_{a} θ; z_{a}^{f l} = z_{s} + l_{f} φ + l_{a} θ \\ z_{a}^{r l} = z_{s} - l_{r} φ + l_{a} θ; z_{a}^{r r} = z_{s} - l_{r} φ - l_{a} θ \end{array}

(1)

Then, the motion equations of the full-car semi-active suspension model are presented as

{\begin{array}{l} \begin{array}{l} m_{s} {\ddot{z}}_{s} = F_{s}^{f r} + F_{s}^{f l} + F_{s}^{r l} + F_{s}^{r r} = k_{f} (z_{f r} - z_{a}^{f r}) + u_{f r} + k_{f} (z_{f l} - z_{a}^{f l}) \\ + u_{f l} + k_{r} (z_{r r} - z_{a}^{r r}) + u_{r r} + k_{r} (z_{r l} - z_{a}^{r l}) + u_{r l} \end{array} \\ I_{θ} \ddot{θ} = F_{s}^{f l} l_{a} + F_{s}^{r l} l_{a} - F_{s}^{f r} l_{a} - F_{s}^{r r} l_{a} \\ I_{φ} \ddot{φ} = F_{s}^{f r} l_{f} + F_{s}^{f l} l_{f} - F_{s}^{r l} l_{r} - F_{s}^{r r} l_{r} \\ m_{f r} {\ddot{z}}_{f r} = k_{t f} (z_{r}^{f r} - z_{f r}) - k_{f} (z_{f r} - z_{a}^{f r}) - u_{f r} \\ m_{f l} {\ddot{z}}_{f l} = k_{t f} (z_{r}^{f l} - z_{f l}) - k_{f} (z_{f l} - z_{a}^{f l}) - u_{f l} \\ m_{r l} {\ddot{z}}_{r l} = k_{t r} (z_{r}^{r l} - z_{r l}) - k_{r} (z_{r l} - z_{a}^{r l}) - u_{r l} \\ m_{r r} {\ddot{z}}_{r r} = k_{t r} (z_{r}^{r r} - z_{r r}) - k_{r} (z_{r r} - z_{a}^{r r}) - u_{r r} \end{array}

(2)

where

F_{s}^{f r}

F_{s}^{f l}

F_{s}^{r l}

and

F_{s}^{r r}

are the vertical forces generated by the four semi-active suspensions, u_fr, u_fl, u_rr and u_rl are the damping forces generated by the four dampers.

Adjustable damping force

In vehicle semi-active suspension systems, the adjustable damping force is $u (t) = f_{d} (t) (\dot{z} (t) - {\dot{z}}_{a} (t))$ , where the damping coefficient $f_{d} (t)$ is variable. Variable damping can be achieved by many different types of dampers. The most common one is designed based on a standard hydraulic damper, where a fluid flows through several valves. By regulating the open area of valves, the damping coefficient can then be varied, and the only power required for the damping adjustment is the relatively small power needed to control the valves.²⁸ In particular, the valves open area can be regulated by a suitable servo-mechanism driven by an appropriate current i(t). According to the design requirement of the damping force regulation, the “force-current map”, which provides the damping force u(t) at each time as a function of the controlled current i(t) and the relative speed $v_{d c} (t) = \dot{z} (t) - {\dot{z}}_{a} (t)$ , can be determined. In Figure 2, the nonlinear behavior of a typical force-current map for a damping adjustable damper is shown.²⁹ For the sake of simplicity, only the maximum curve $u_{i, \max} (v_{d c})$ and the minimum curve $u_{i, \min} (v_{d c})$ are shown. Then, by observing Figure 2, it can be seen that the force-current map consists of the following straight line equations

{\begin{array}{l} u = f_{d 1} v_{d c} + α_{1}; u = f_{d 2} v_{d c} + α_{2}; \\ u = f_{d 3} v_{d c} + α_{3}; u = f_{d 4} v_{d c} + α_{4}; u = f_{d 5} v_{d c} + α_{5} \end{array}

(3)

where f_di > 0 and α_i (i = 1,…,5) are the real parameters which define the shadow regions in which the adjustable damping force must lay. The shadow regions restrict the realizable value for the control damping force u(t) that can be achieved by the semi-active damper device. Therefore, the vehicle suspension semi-active control strategy, in order to make the controlled damping forces feasible, must be computed guaranteeing the satisfaction of the following passivity constraint

u_{i, \min} (v_{d c}) \leq u \leq u_{i, \max} (v_{d c})

(4)

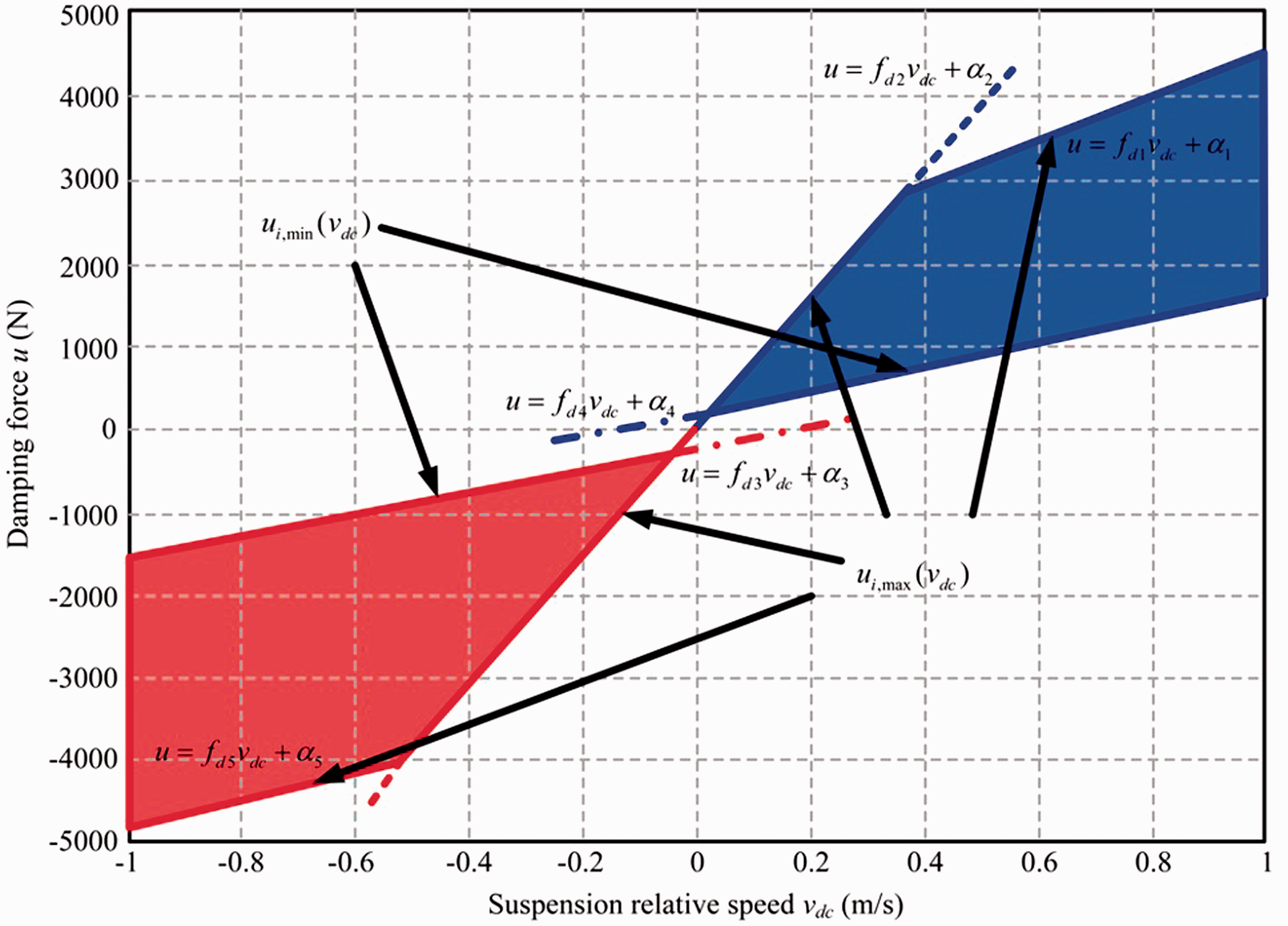

Figure 2.

Force-current map of a damping adjustable damper.

According to the force-current map, the above constraint can be further given in a more detailed form as

i f v_{d c} \geq 0 {\begin{array}{l} u \leq f_{d 1} v_{d c} + α_{1} \\ u \leq f_{d 2} v_{d c} + α_{2} \\ u \geq f_{d 4} v_{d c} + α_{4} \end{array}; i f v_{d c} < 0 {\begin{array}{l} u \leq f_{d 3} v_{d c} + α_{3} \\ u \geq f_{d 2} v_{d c} + α_{2} \\ u \geq f_{d 5} v_{d c} + α_{5} \end{array}

(5)

Explicit model predictive control design

MPC controller design

One of the ideas of MPC is the explicit use of a model to predict the process output at future time instants, thus as an optimization-based control law, the system optimal solution relies on an accurate dynamic model of the process, which satisfies given constraints and minimizes a quadratic performance measure.²⁹ According to the differential equations shown in equation (2), a state space form of the system model with can be rewritten as

{\begin{array}{l} \dot{x} = A_{c} x+ B_{c} u_{i} + B_{d} w \\ y = C_{c} x+ D_{c} u_{i} + D_{d} w \end{array}

(6)

where

x = {[z_{f r} z_{f l} z_{r l} z_{r r} z_{s} θ φ {\dot{z}}_{f r} {\dot{z}}_{f l} {\dot{z}}_{r l} {\dot{z}}_{r r} {\dot{z}}_{s} \dot{θ} \dot{φ}]}^{T}

is the system state vector,

u_{i} = {[u_{f r} u_{f l} u_{r l} u_{r r}]}^{T}

is the system control input vector,

w = {[z_{r}^{f r} z_{r}^{f l} z_{r}^{r l} z_{r}^{r r}]}^{T}

is the system disturbance input vector. The coefficient matrices A_c , B_c and B_d can be further derived as follows

A_{c} = [\begin{matrix} 0_{7 \times 7} & I_{7 \times 7} \\ A_{7 \times 7}^{c 1} & 0_{7 \times 7} \end{matrix}]; B_{c} = [\begin{matrix} 0_{7 \times 4} \\ - I_{4 \times 4} \\ B_{3 \times 3}^{c 1} \end{matrix}]; B_{d} = [\begin{matrix} 0_{7 \times 4} \\ B_{4 \times 4}^{d 1} \\ 0_{3 \times 3} \end{matrix}]

(7)

where the specific elements in the matrices

A_{7 \times 7}^{c 1}

B_{3 \times 3}^{c 1}

and

B_{4 \times 4}^{d 1}

are shown in Appendix 1. The system outputs, i.e. the performance indices of the full-car semi-active suspension system, are defined as follows

y = {[{\ddot{z}}_{s} \ddot{θ} \ddot{φ} z_{f r} - z_{a}^{f r} z_{f l} - z_{a}^{f l} z_{r l} - z_{a}^{r l} z_{r r} - z_{a}^{r r} z_{r}^{f r} - z_{f r} z_{r}^{f l} - z_{f l} z_{r}^{r l} - z_{r l} z_{r}^{r r} - z_{r r}]}^{T}

(8)

Similarly, the coefficient matrices C_c , D_c and D_d can be derived as

C_{c} = [\begin{matrix} C_{3 \times 7}^{c 1} & 0_{3 \times 7} \\ C_{4 \times 7}^{c 2} & 0_{4 \times 7} \\ - I_{4 \times 4} & 0_{4 \times 10} \end{matrix}]; D_{c} = [\begin{matrix} D_{3 \times 4}^{c 1} \\ 0_{8 \times 4} \end{matrix}]; D_{d} = [\begin{matrix} 0_{7 \times 4} \\ I_{4 \times 4} \end{matrix}]

(9)

where the specific elements in the matrices

C_{3 \times 7}^{c 1}

C_{4 \times 7}^{c 2}

and

D_{3 \times 4}^{c 1}

are shown in Appendix 2.

By choosing a suitable sampling period T and discretization methodology, a discrete time model, which meets the requirement of MPC controller design, can be further obtained in state space form³⁰

{\begin{array}{l} x_{t + 1} = A_{c,t} x_{t} + B_{c,t} u_{i,t} + B_{d,t} w_{t} \\ y_{t} = C_{c,t} x_{t} + D_{c,t} u_{i,t} + D_{d,t} w_{t} \end{array}

(10)

The design objective of MPC controller is to find an optimal control law u_i _, _t which optimizes the performance of the vehicle semi-active suspension with regard to ride comfort and road handling, subjects to the adjustable damping force constraint (5) and the dynamic equation (10). Since the variable damping force u_i _, _t can be achieved by a suitable servo-mechanism, the control inputs computed by the MPC control algorithm can be converted into the required driving current i(t) based on the force-current map. Performance indicators that are concerned can be embodied in an objective function J. By choosing the optimal prediction horizon N_p, the optimal control horizon N_c ≤ N_p and the positive definite matrices Q = Q ^T > 0, R = R ^T > 0, the aforementioned objective function J can be presented by a quadratic function

J (U, x_{t|t}, N_{p}, N_{c}) = \sum_{k = 0}^{N_{p} - 1} (y_{t+k|t}^{T} Q y_{t+k|t}) + \sum_{k = 0}^{N_{c} - 1} (u_{t+k|i,t}^{T} R u_{t+k|i,t})

(11)

where

y_{t+k|t}

represents the system output predicted by the model (10) based on the input sequence

u_{t|i,t}, \dots, u_{t+k -1 |i,t}

and the “initial” state,

U = {[u_{t|i,t}, u_{t+ 1 |i,t}, \dots, u_{t+ N_{c} -1 |i,t}]}^{T}

is the system control input vector moves to be optimized.

The adjustable damping force constraint (5) can be rewritten as linear inequalities on the controlled force u_i and the system state variables x . It is obvious that the relative speed $v_{d c}^{f r} = {\dot{z}}_{f r} - {\dot{z}}_{a}^{f r}; v_{d c}^{f l} = {\dot{z}}_{f l} - {\dot{z}}_{a}^{f l}; v_{d c}^{r l} = {\dot{z}}_{r l} - {\dot{z}}_{a}^{r l};$ $v_{d c}^{r r} = {\dot{z}}_{r r} - {\dot{z}}_{a}^{r r}$ between sprung mass and unsprung mass can be presented as the product Ex , where E is the suitable coefficient matrix and its specific elements are omitted here. Then, for each control instant t + k|t, such that k = 0, 1, …, N_c − 1, the control inputs move $u_{t+k|t}$ has to be computed on the basis of the following constraints

if E x_{t+k|t} \geq 0 {\begin{matrix} u_{t+k|t} \leq f_{d 1} E x_{t+k|t} + α_{1} \\ u_{t+k|t} \leq f_{d 2} E x_{t+k|t} + α_{2} \\ u_{t+k|t} \geq f_{d 4} E x_{t+k|t} + α_{4} \end{matrix}; if E x_{t+k|t} < 0 {\begin{array}{l} u_{t+k|t} \leq f_{d 3} E x_{t+k|t} + α_{3} \\ u_{t+k|t} \geq f_{d 2} E x_{t+k|t} + α_{2} \\ u_{t+k|t} \geq f_{d 5} E x_{t+k|t} + α_{5} \end{array}

(12)

Note that the above constraints (12) are defined based on the sign of the predicted vehicle suspension relative speed $v_{dc,t+k|t} = E x_{t+k|t}$ , thus the constraints to be satisfied must be switched inside the prediction horizon due to the introduce of the sign of $v_{dc,t+k|t}$ . This situation can be regarded as a MPC control scheme involving logical constraints. According to the method introduced in some literatures,^31–33 the computation of this class of problems can be computed by means of mixed integer programming techniques.

Then, the MPC control law for the vehicle semi-active suspension system can be obtained by applying the following receding horizon strategy:

Get the system state x_t at time instant t;

Solve the following quadratic problem through mixed integer programming techniques

\begin{array}{l} \min_{U} J (U, x_{t|t}, N_{p}, N_{c}) \\ s.t . constraints (12) \end{array}

(13)

Apply only the first input of the calculated control sequence U to the optimization problem;

The prediction horizon is moved forward one step and the process is repeated at time t+1.

Achievement of EMPC control

Although the vehicle semi-active suspension control law has been derived based on the MPC techniques, the application of the above procedures cannot be actually achieved in a standard automotive microcontroller, since it requires the solution of the optimization problem (13) at each sampling period. As a fast dynamics system, the required solve time of this task cannot meet the system real-time control requirements obviously. This motivates the recent research efforts devoted to reduce online computation time and computational resource requirements of the MPC techniques. In particular, an explicit piecewise linear solutions of the MPC problem, i.e. EMPC, based on MPT have been introduced.³⁴ In the EMPC approach, all the computations necessary for the implementation of the EMPC are performed offline. Then, the EMPC controller just needs to provide the control action as a function of the system states and hence can be less computationally demanding than the classic MPC approach. Figure 3 provides a brief implementation procedure of the EMPC approach.³⁵

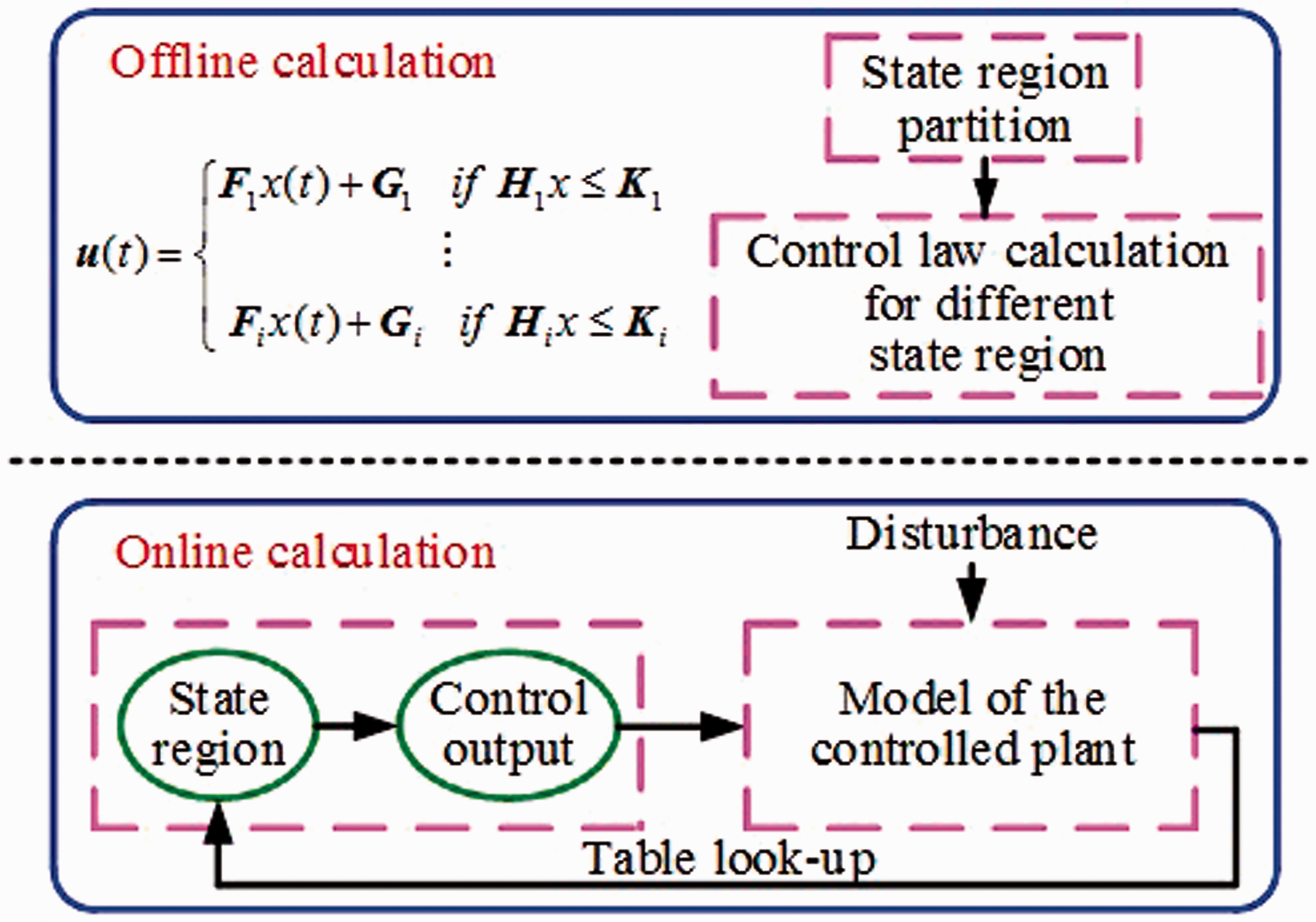

Figure 3.

Implementation procedure of the EMPC approach.

In the figure, i is the number of the system state regions, H_i and K_i are the data matrices representing the system state partition, F_i and G_i are the data matrices representing the explicit expression of the MPC control law about the system states. The control problem (13) can be rewritten in the following quadratic form

\begin{array}{l} \min_{U} \frac{1}{2} u_{i} T M u_{i} + b^{T} u_{i} + f_{0} \\ s.t . S u_{i} \leq r = Vx (t) + p \end{array}

(14)

where S is an m× n matrix, r is an m vector and

M = 2 (D_{c} T Q D_{c} + R); b = 2 D_{c} T Q C_{c} x; f_{0} = x C_{c}^{T} Q C_{c} x

. Note that the term f ₀ is a quadratic function of the system state x , and the vectors b and r depend in an affine way on the system state x . It is considered that the optimization problem is feasible for all points in the state space, and the solution is denoted by u_i*. There are two possible situations for these points: the solution is either inside the polytope defined by the constraints or at its boundary. For all points contained in Ω₀, which is defined as a set of those points where the problem solution lies inside the polytope, the solution of the MPC optimization problem is

u_{i}^{*} = - M^{- 1} b = - 2 M^{- 1} D_{c}^{T} Q C_{c} x

(15)

That is, u_i* is an affine function of the system state x for all points in Ω₀. The region in the state space such that the solution of the system optimization problem lies at the boundary of the polytope is defined by Ω_p. The rows of S for a set of system active constraints can be partitioned as³⁶

S = [\begin{matrix} S_{1} \\ S_{2} \end{matrix}] r = [\begin{matrix} r_{1} \\ r_{2} \end{matrix}] with \begin{matrix} S_{1} u_{i} = r_{1} \\ S_{2} u_{i} < r_{2} \end{matrix}

(16)

where S ₁ is an m₁× n matrix, r ₁ is an m₁ vector. Then, the MPC optimization problem is equivalent to

\begin{array}{l} \min_{U} \frac{1}{2} u_{i}^{T} M u_{i} + b^{T} u_{i} + f_{0} \\ s.t . S_{1} u_{i} = r_{1} \end{array}

(17)

A direct way of solving this problem is to use constraints S ₁ u_i = r₁ to express m₁ of the u_i as a function of the remaining n−m₁ variables, i.e. u_i = Yr₁+Zl, where Y and Z are n× m₁ and n× (n−m₁) matrices such that S ₁ Y = I, S ₁ Z = 0 and the matrix [ Y Z ] has full rank, and then to substitute them in the objective function. If this substitution is made, the equality constraints hold and the objective function can be rewritten by

J (l) = \frac{1}{2} l^{T} M_{l} l + b_{l}^{T} l + f_{l 0}

(18)

with

M_{l} = Z^{T} MZ, b_{l} = Z^{T} (b + MY r_{1}), f_{l 0} = [\frac{1}{2} r_{1}^{T} Y^{T} M + b^{T}] Y r_{1} + f_{0}

. Since matrix Z ^T MZ is positive definite, there is only one optimum point that can be found solving the set of equations Z ^T MZl = −Z ^T ( b + MYr ₁ ), and the solution is

l = - {(Z^{T} MZ)}^{- 1} Z^{T} (b + MY r_{1})

(19)

The above expression (19) shows that l is an affine function of b and r ₁ which are also affine functions of the system state. Therefore, for all points in region Ω_p, the solution of the MPC control problem can be presented by an affine function of the state. That is, an MPC with a quadratic objective function and linear constraints results in a controller which is a piecewise affine (PWA) function of the system state,³⁶ which is just the main idea of EMPC.

Simulation results and analysis

Performance evaluation settings

The performance of the proposed EMPC control method is validated by numerical simulations in this section. To evaluate the system close-loop control behaviors, a two-state skyhook controller designed for the conventional semi-active suspension is adopted for comparison purpose. In two-state skyhook control strategy,³⁷ the damper is controlled at a maximum or minimum damping force, which are referred to as high-state and low state damping respectively. The determination of the damping adjustment state depends on the product of the suspension relative speed and the absolute speed of the sprung mass. The skyhook controller determines the desired damping force as

u = {\begin{array}{l} u_{i, \max} (v_{d c}), if {\dot{z}}_{a} ({\dot{z}}_{a} - \dot{z}) \geq 0 \\ u_{i, \min} (v_{d c}), if {\dot{z}}_{a} ({\dot{z}}_{a} - \dot{z}) < 0 \end{array}

(20)

From the skyhook control strategy, it can be seen that if the product is positive or zero, the damping force is adjusted to its high state; otherwise, the damping force is set to the low state. The vehicle semi-active suspension based on skyhook control strategy is often regarded as a benchmark control method and used to validate any new control strategy. Therefore, the performance of the EMPC controller and the skyhook controller toward the vehicle semi-active suspension will be compared with the passive vehicle suspension to further demonstrate the potential advantages of the system. The random road profile, which represents the major disturbance acting on the vehicle suspension, is also chosen to model the actual roughness of road surface.³⁸

The parameters of the EMPC controller to be tuned include the length of the prediction horizon N_p, the length of the control horizon N_c and the weighting matrices Q and R . Since the main control objective in a semi-active suspension system is to improve ride comfort and handling performance, and due to the fact that these two control objectives are conflicting,^39,40 thus the weighting matrices should be tuned to obtain a satisfactory performance compromise. By repeated performance comparisons of the EMPC controller with different weighting parameters, a satisfactory control performance is achieved with

N_p = 5; N_c = 4;

Q = diag(12, 8.5, 8.5, 950, 950, 950, 950, 1280, 1280, 1280, 1280);

R = diag(0.015, 0.015, 0.015, 0.015)

The damping adjustable damper characteristics are described by the force-current map shown in Figure 2. Such a map can be obtained using tests data collected for the damper model identification.⁴¹ According to derived force-current map of the considered damper, the following passivity constraints are defined as

if v_{d c} \geq 0 {\begin{array}{l} u \leq 1480 v_{d c} + 2852 \\ u \leq 3400 v_{d c} + 1700 \\ u \leq 13500 v_{d c} \\ u \geq 1500 v_{d c} - 540 \\ u \geq 600 v_{d c} \end{array}; f v_{d c} < 0 {\begin{array}{l} u \leq 600 v_{d c} \\ u \leq 1000 v_{d c} + 400 \\ u \geq 13500 v_{d c} \\ u \geq 3000 v_{d c} - 970 \\ u \geq 1200 v_{d c} + 2050 \end{array}

(21)

Furthermore, the physical parameters which characterize the considered vehicle are given in Table 1.

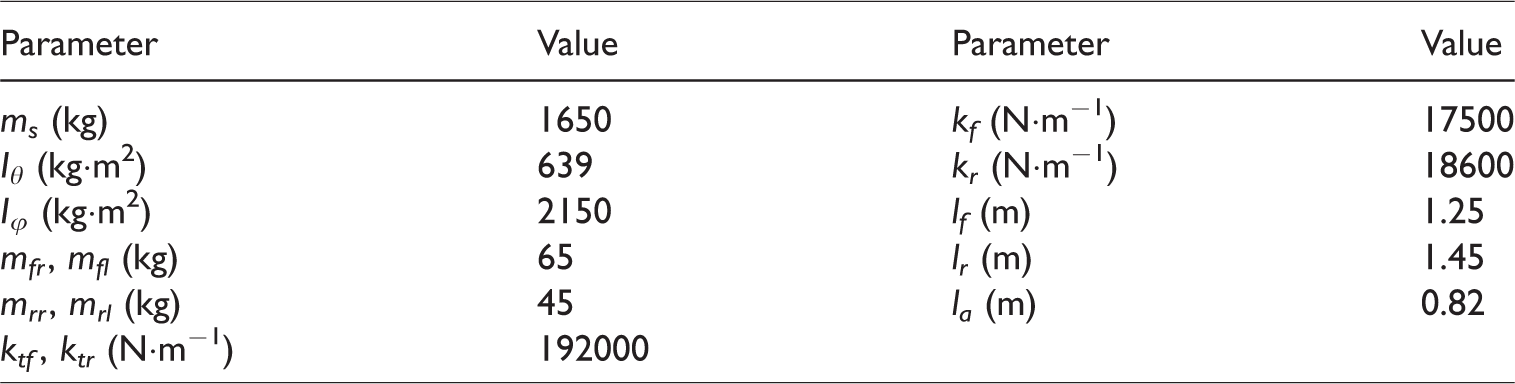

Table 1.

Vehicle physical parameters.

Parameter	Value	Parameter	Value
m_s (kg)	1650	k_f (N·m⁻¹)	17500
I_θ (kg·m²)	639	k_r (N·m⁻¹)	18600
I_φ (kg·m²)	2150	l_f (m)	1.25
m_fr , m_fl (kg)	65	l_r (m)	1.45
m_rr , m_rl (kg)	45	l_a (m)	0.82
k_tf , k_tr (N·m⁻¹)	192000

Time domain simulation analysis

The computation of the EMPC control moves is realized by using an optimized MATLAB code. The mean computation time for each control move for EMPC performed on an Intel Core i5 platform at 3.3 GHz is of about 0.35 ms, while the full MPC procedure takes about 0.15 s, which verifies the computational efficiency advantage of the proposed EMPC controller. To obtain the simulation results, we assume that the vehicle is driving on a rough road corresponding to the class B of ISO road profiles at 70 km/h. Figures 4 to 8 illustrate the simulation responses of the sprung mass acceleration, the roll angle acceleration of the vehicle body, the pitch angle acceleration of the vehicle body, the dynamic tire load of the front-right wheel and the front-right suspension deflection of the three types of suspension respectively. On this basis, the r.m.s. values of the vehicle suspension performance criteria are also listed in Table 2.

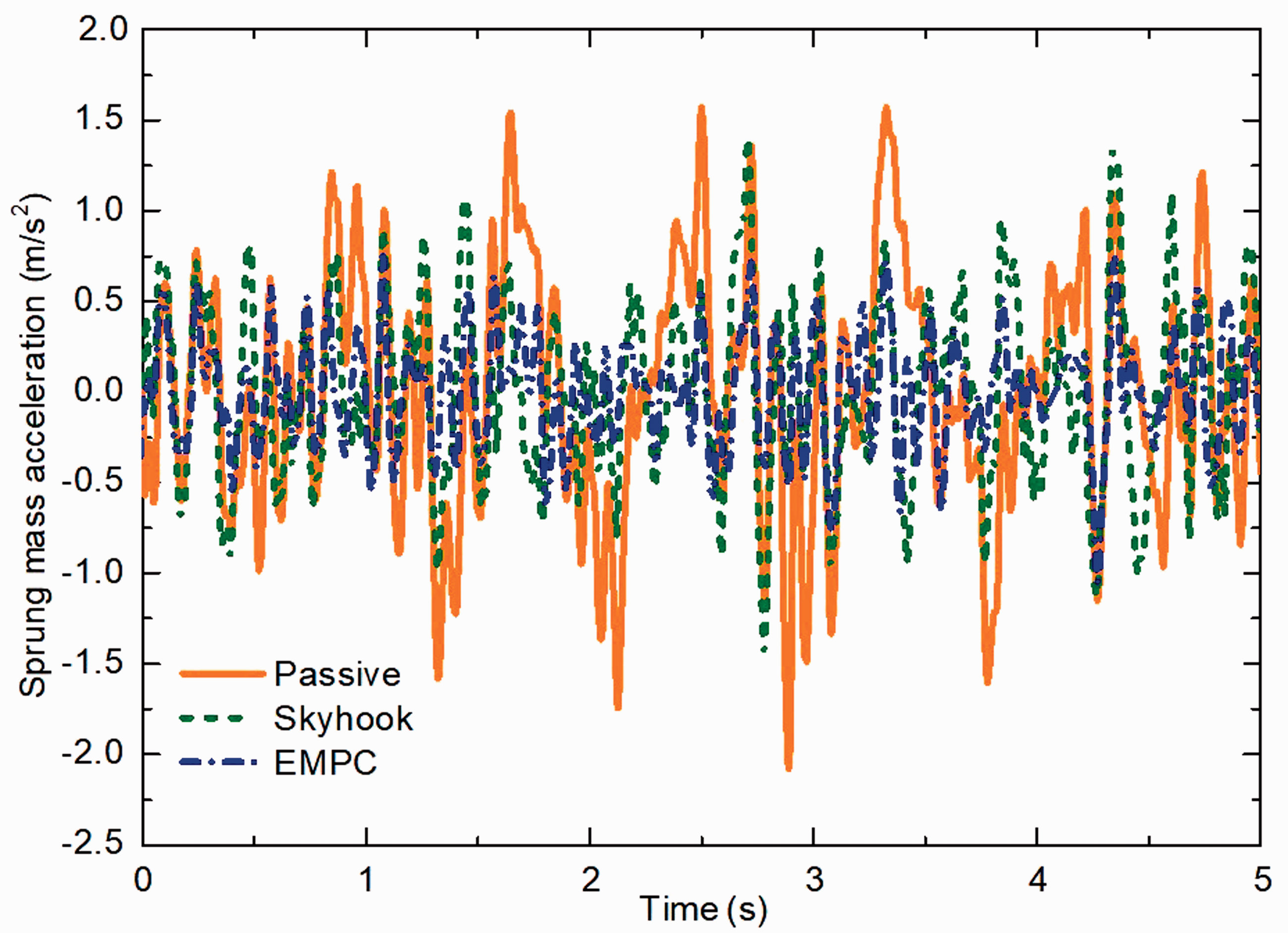

Figure 4.

Time responses of the sprung mass acceleration under random road input.

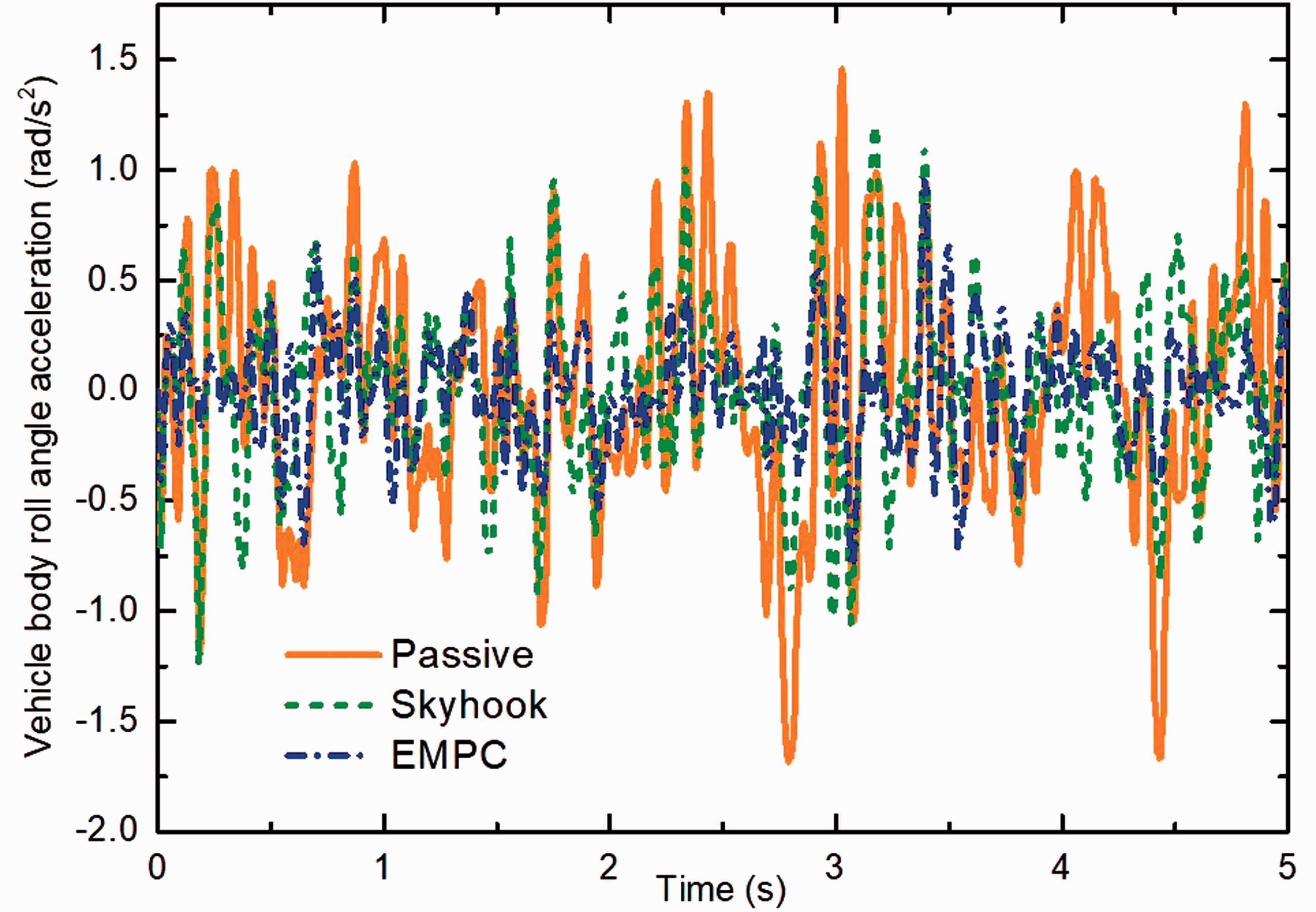

Figure 5.

Time responses of the roll angle acceleration.

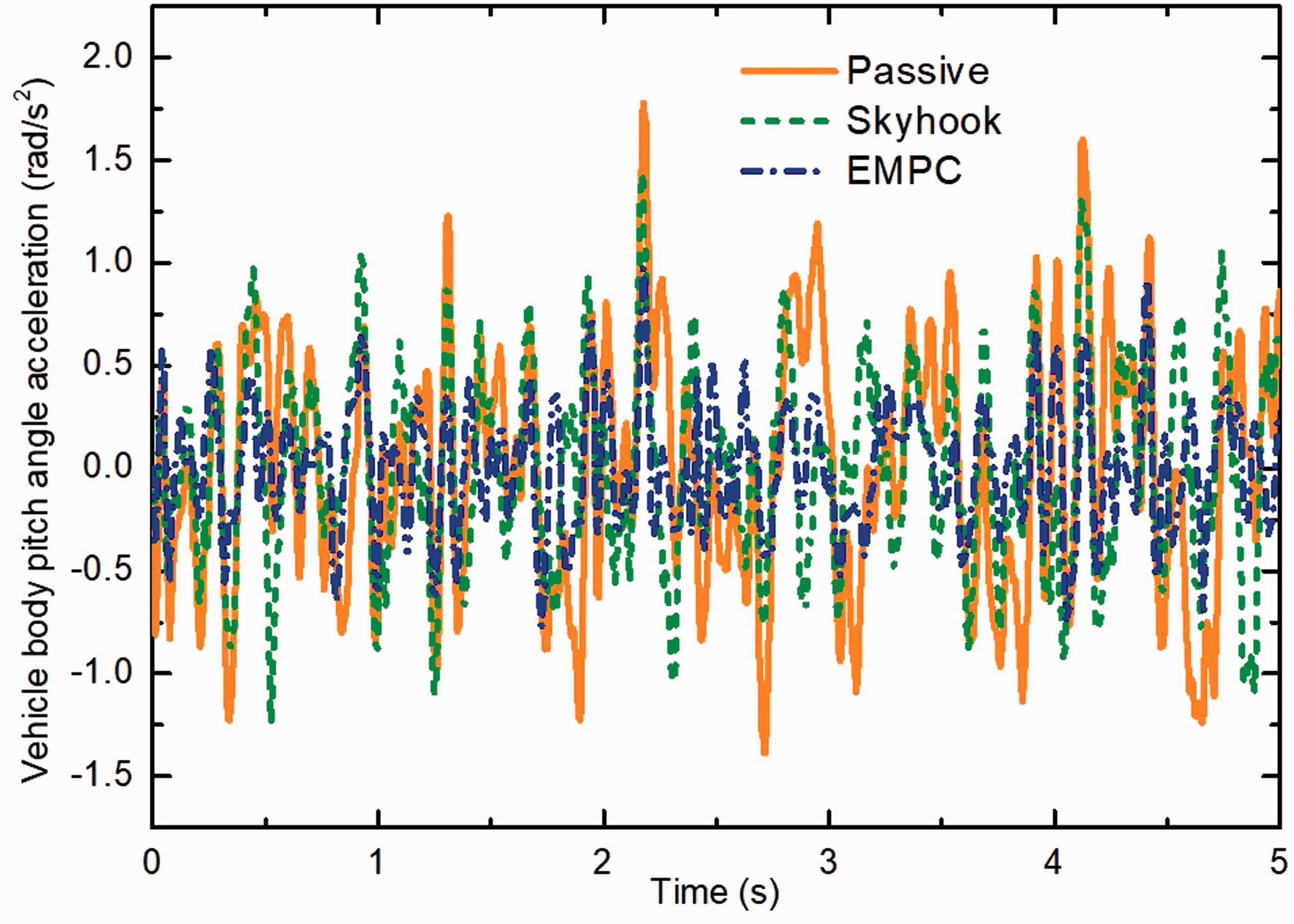

Figure 6.

Time responses of the pitch angle acceleration.

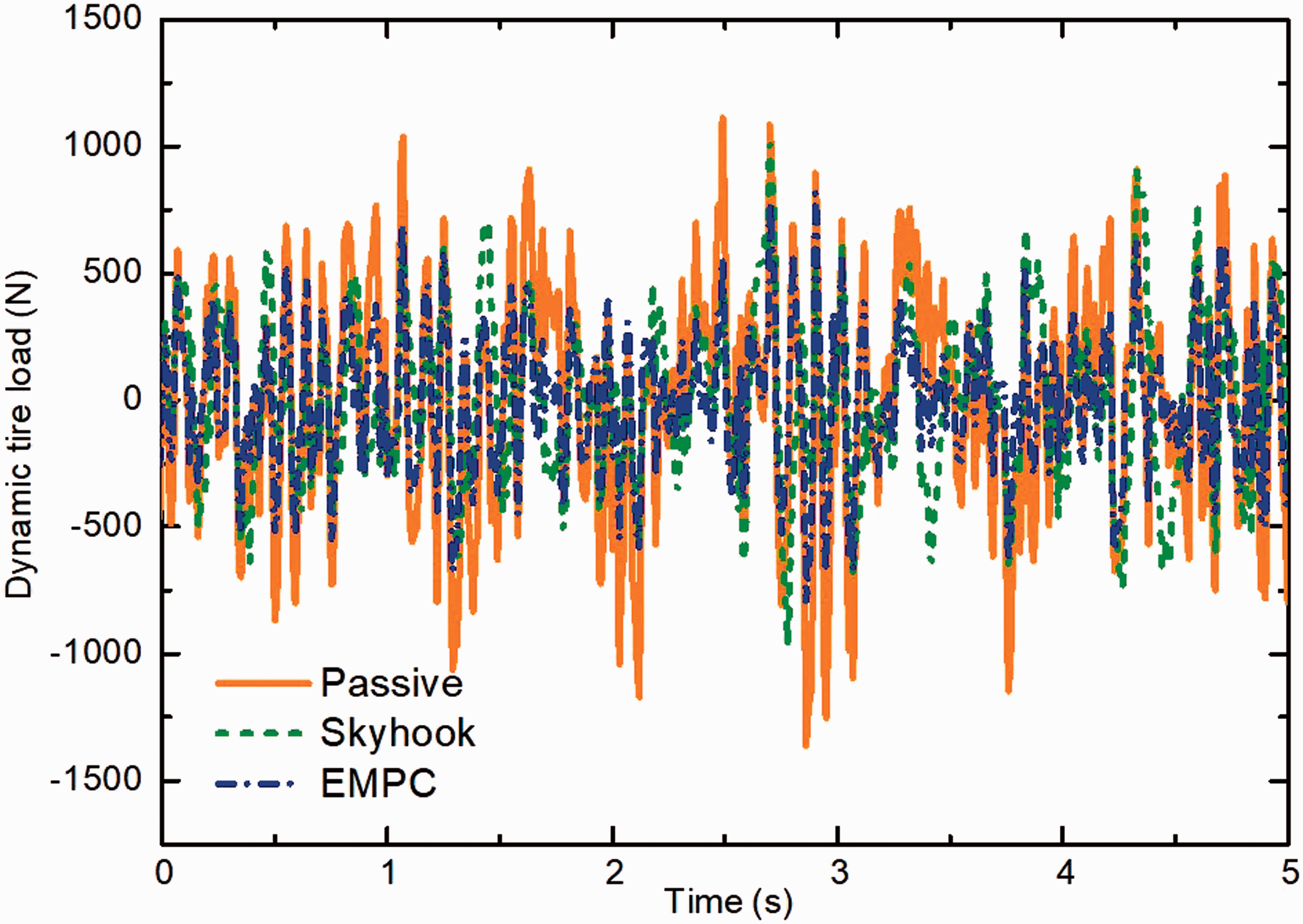

Figure 7.

Time responses of the dynamic tire load.

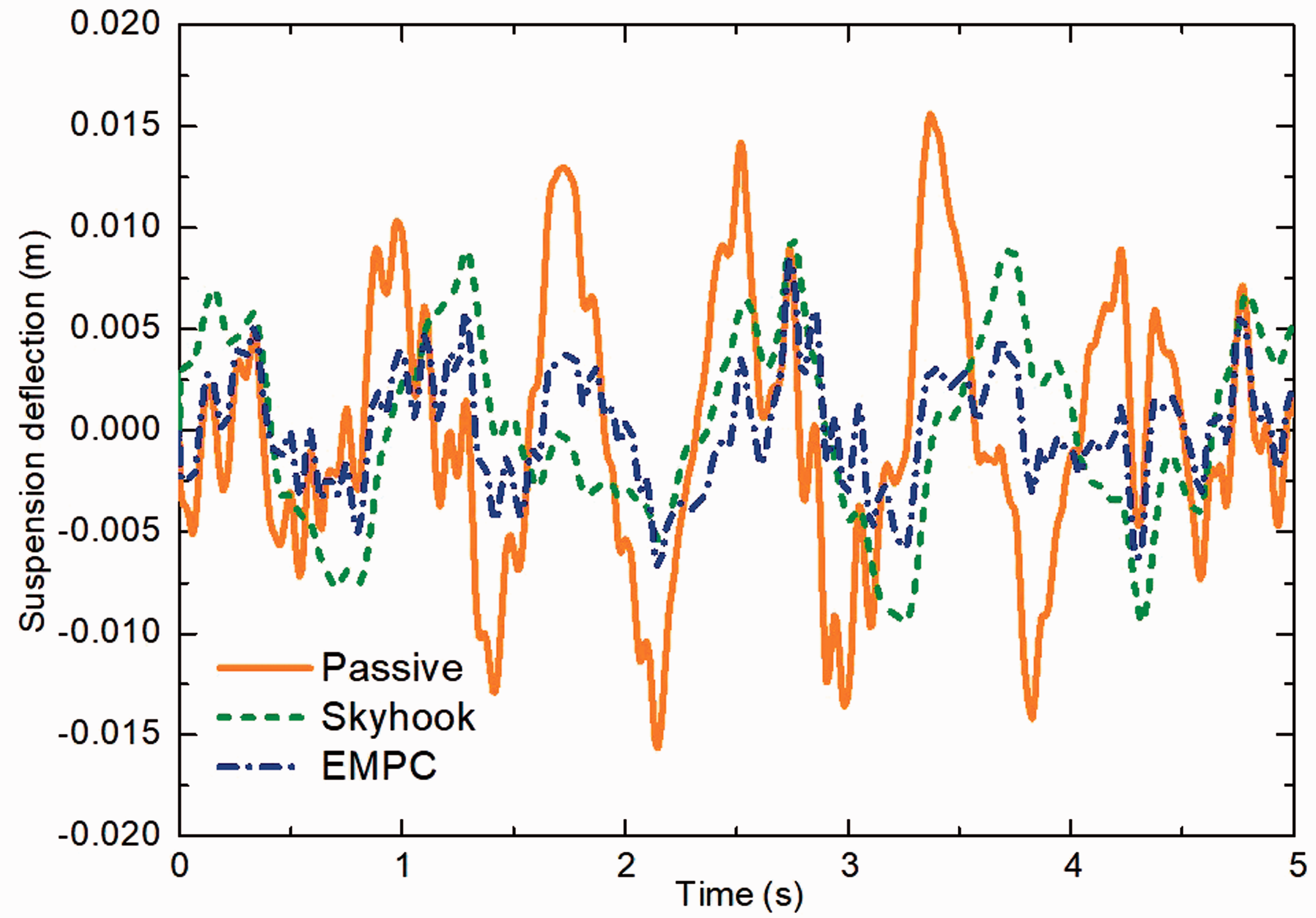

Figure 8.

Time responses of the suspension deflection.

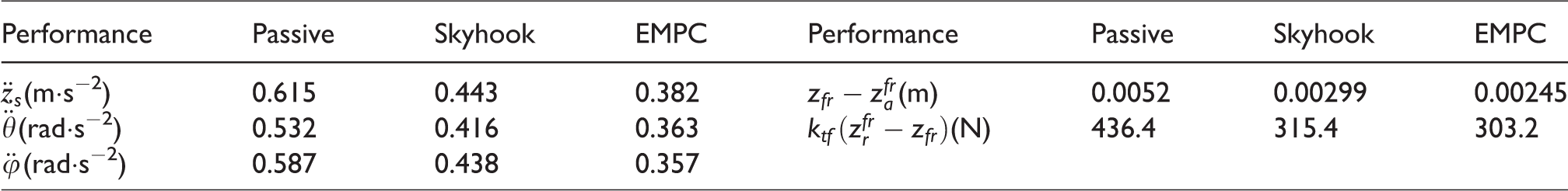

Table 2.

Comparison of r.m.s. values of the vehicle suspension performance criteria.

Performance	Passive	Skyhook	EMPC	Performance	Passive	Skyhook	EMPC
${\ddot{z}}_{s}$ (m·s⁻²)	0.615	0.443	0.382	$z_{f r} - z_{a}^{f r}$ (m)	0.0052	0.00299	0.00245
$\ddot{θ}$ (rad·s⁻²)	0.532	0.416	0.363	$k_{t f} (z_{r}^{f r} - z_{f r})$ (N)	436.4	315.4	303.2
$\ddot{φ}$ (rad·s⁻²)	0.587	0.438	0.357

As shown in Figures 4 to 8 and Table 2, it can be concluded that the designed EMPC controller is effective in improving the performance of the vehicle semi-active suspension. In particular, the suspension controlled by EMPC can reduce the r.m.s. values of the sprung mass vertical acceleration, the roll angle acceleration of the vehicle body, the pitch angle acceleration of the vehicle body, the dynamic tire load of the front-right wheel and the front-right suspension deflection by 37.89%, 31.77%, 39.18%, 52.88% and 30.5%, respectively, compared with the conventional passive suspension. These improvement amplitudes are significantly larger than that of the semi-active suspension controlled by a skyhook controller, which verifies that better performance of the vehicle semi-active suspension can be achieved by the proposed EMPC approach.

Frequency domain simulation analysis

To further validate the performance of the proposed EMPC control method, Figures 9 to 12 illustrate the frequency responses of the sprung mass acceleration, the roll angle acceleration of the vehicle body, the dynamic tire load of the front-right wheel and the front-right suspension deflection of the three types of suspension respectively. As shown in these figures, the designed EMPC controller can also improve the performance of the vehicle semi-active suspension in frequency domain. In particular, the suspension controlled by EMPC can reduce the sprung mass vertical acceleration in low frequency region, which is just the sensitive vibration area of human body. The peak values of the frequency responses of the other suspension performance indices are also reduced significantly by the EMPC controller. Similarly, these improvement amplitudes are larger than that of the vehicle semi-active suspension controlled by a skyhook controller.

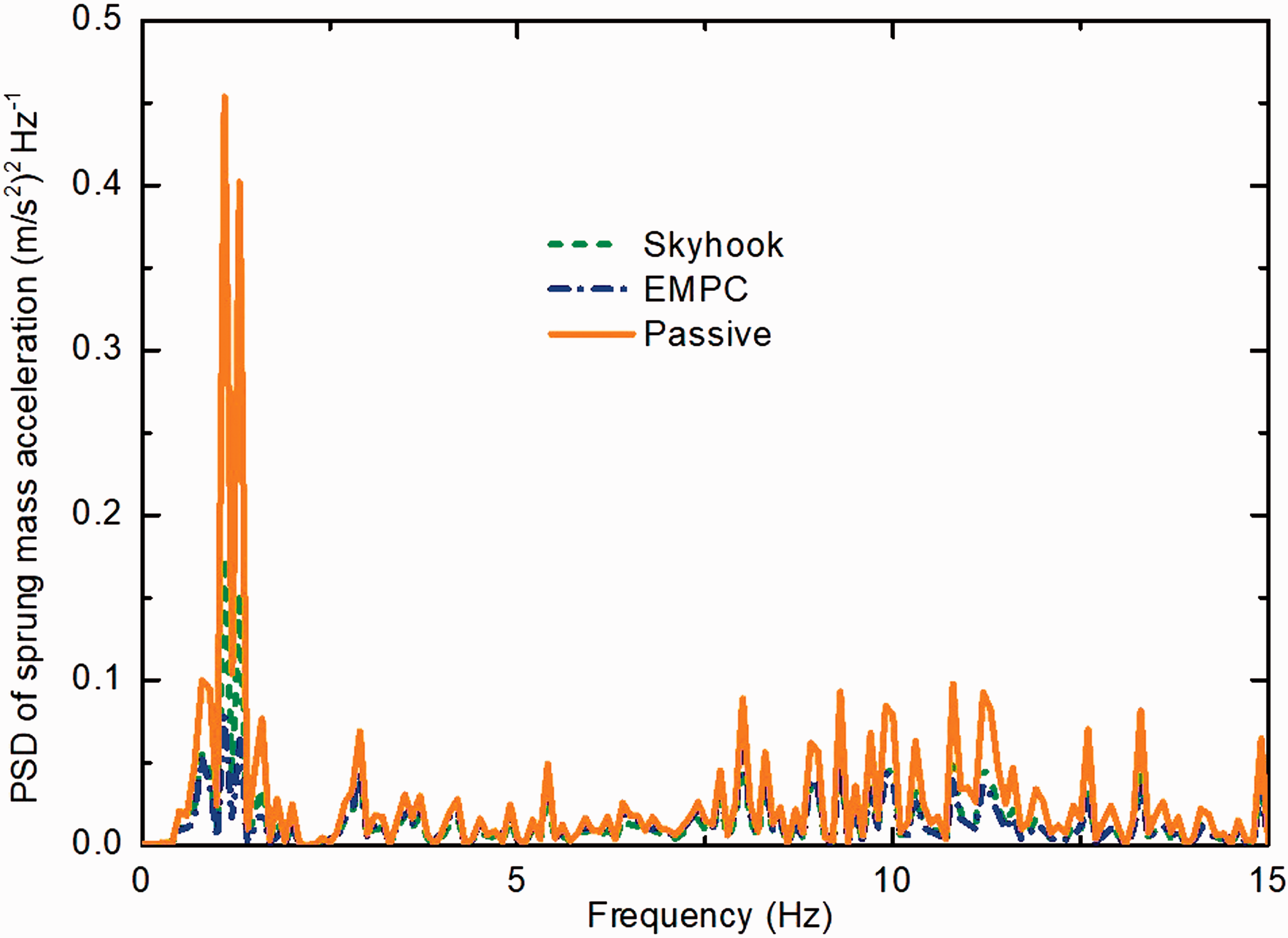

Figure 9.

Frequency responses of the sprung mass acceleration.

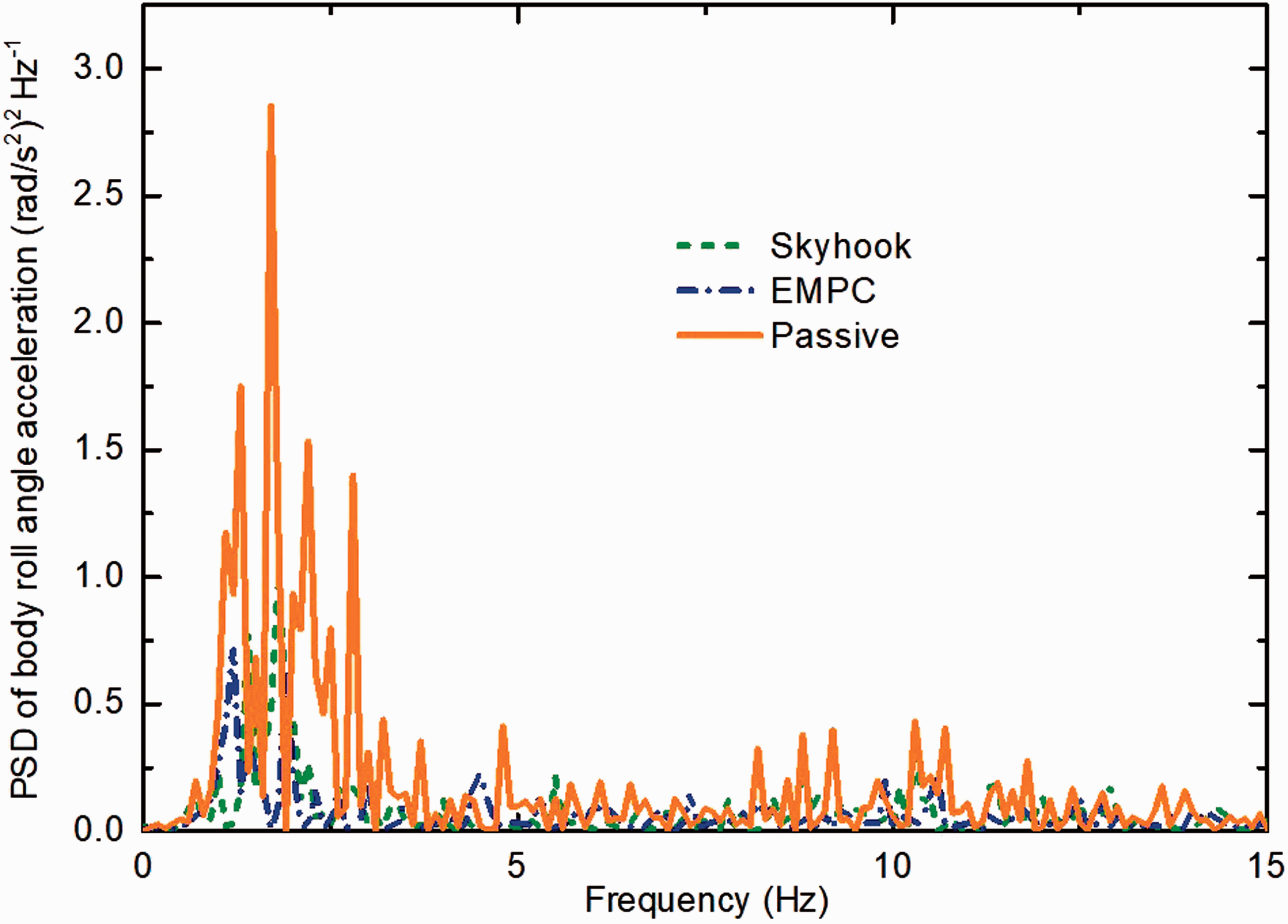

Figure 10.

Frequency responses of the roll angle acceleration.

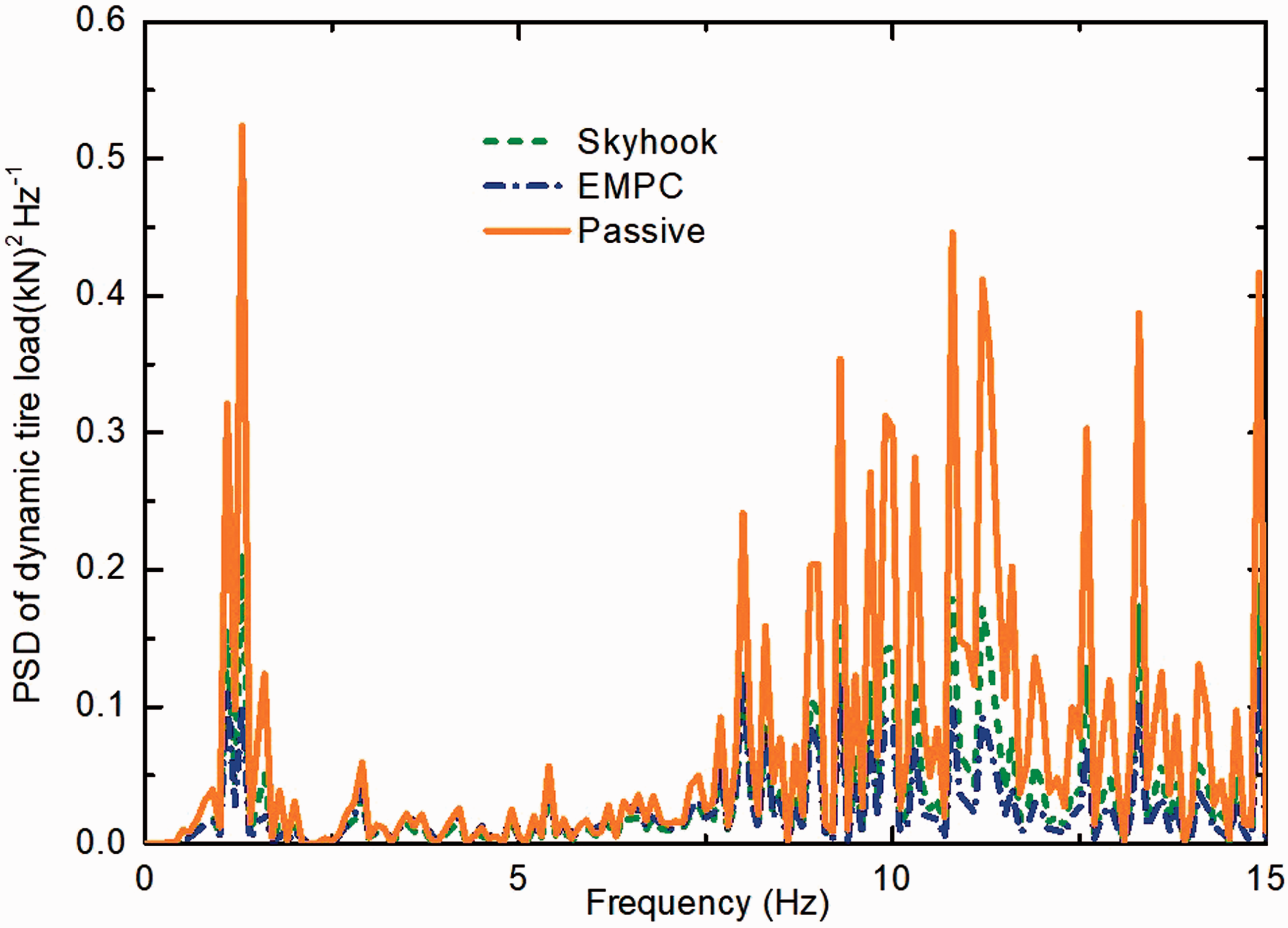

Figure 11.

Frequency responses of the dynamic tire load.

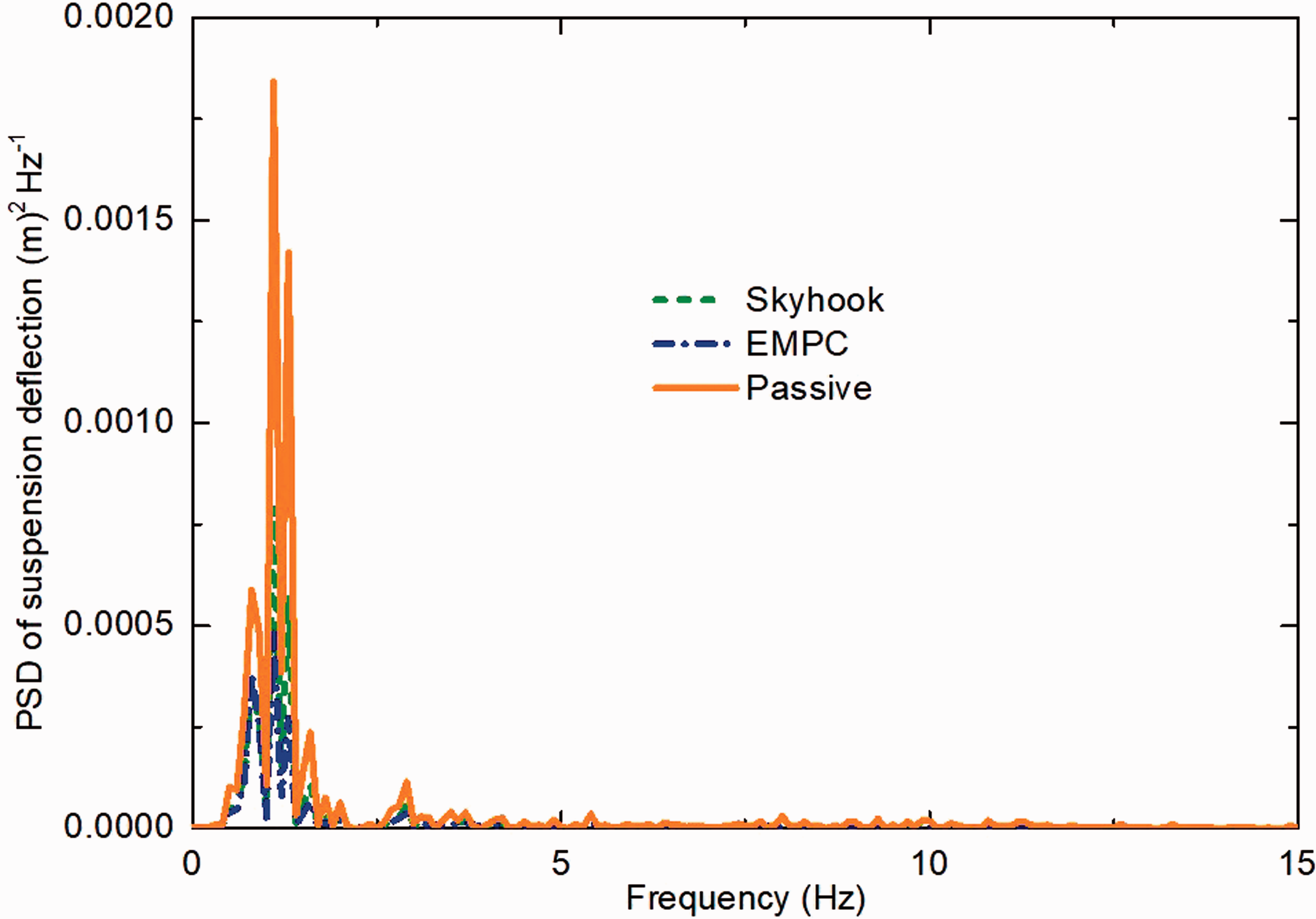

Figure 12.

Frequency responses of the suspension deflection.

Conclusion

In this work, an EMPC controller is designed for the vehicle semi-active suspension to cope with strong couplings, actuator constraints and fast dynamics of the system. Compared with traditional MPC, the EMPC requires low computation time while maintaining identical performance as MPC. The state-space model of the full-car semi-active suspension system, which considers the passivity constraints of the adjustable damping force, is established, and an augmented EMPC controller is then formulated by using MPT. Simulation results show that the proposed EMPC approach demonstrates significant performance improvement for the vehicle semi-active suspension, as well as low computation requirement.
