Abstract

Based on the notions of spectrum sensitivities, proposed by us earlier, we develop a novel optimization approach to deal with robustness in the closed-loop eigenvalues for partial quadratic eigenvalue assignment problem arising in active vibration control. A distinguished feature of this new approach is that the objective function is composed of only the system and the closed-loop feedback matrices. It does not need an explicit knowledge of the eigenvalues and eigenvectors. Furthermore, the approach is applicable to both the state-feedback and derivative feedback designs. These features make the approach viable to design an active vibration controller for practical applications to large real-life structures. A comparative study with existing algorithms and a study on the transient response of a real-life system demonstrate the effectiveness, superiority, and competitiveness of the proposed approach.

Keywords

Partial eigenvalue assignment active vibration control robustness spectrum sensitivity

Introduction

Vibrating structures, such as bridges, highways, automobiles, air and space crafts, and others, are usually modeled by a system of second-order differential equations generated by finite element discretization of the original distributed parameter systems. Such second-order system is known as the finite element model (FEM) in the vibration literature.^1–7 These structures sometimes experience dangerous vibrations caused by resonance when excited by external forces including earthquake, gusty winds, weights of human bodies that may result in partial or complete destruction of the structures. In practice, and very often, such vibrations are controlled by using passive damping forces. Besides being economic to apply it, such an approach has several practical drawbacks: it is ad hoc in nature and is able to control only localized vibrations. On the other hand, the technique of active vibration control (AVC) is scientifically based and can control vibrations globally in a structure if properly implemented.^8–13 The most important aspect of the AVC implementation is to effectively and efficiently compute the feedback forces needed to control the measured unwanted vibrations, caused by the resonant frequencies.

Recently, a mathematically elegant approach that reassigns a few resonant eigenvalues to suitably chosen ones while keeping the other large number of them and the associated eigenvectors unchanged has been proposed. This latter approach is known to have the no-spill over property, and the problem of computing the feedback matrices to reassign the unwanted eigenvalues in this way is called partial quadratic eigenvalue problem (PQEVAP). The approach works exclusively in the second-order setting itself and is capable of taking advantages of computationally exploitable inherit structural properties of FEM, such as definiteness, sparsity, bandness, etc. which are assets in large-scale computational settings. Typically, the mass and stiffness matrices are symmetric, the mass matrix is positive diagonal, and the stiffness matrix is three-diagonal and positive definite or semidefinite. The most attractive feature of this approach is that the no-spill over property is guaranteed by means of a mathematical theory. This is in sharp contrast with the standard and obvious solution approach of the PQEVAP by transforming a second-order control system to a standard linear state-space. By doing so, one can clearly make use of the existing excellent numerical methods for eigenvalue assignment problems.¹⁴ However, in this case one needs to deal with a system of dimensions twice that of the original model, which then becomes computationally prohibitive even with a moderate-size model. Note that the FEM models that arise from practical applications, especially in aerospace and space engineering, and power systems control, could be very large, possibly of multimillion degree of freedom, and computational methods for such large-scale matrix computations are not well developed.¹⁵ More importantly, by transforming to a standard state-space linear system, all the exploitable properties of the FEM, as stated above, will be completely destroyed. By transforming it to a generalized state-space system,¹⁵ the symmetry can be preserved but not the definiteness. Furthermore, such generalized transformations give rise to descriptor control problems, and the numerical methods for such control problems, especially for singular and nearly singular and large-scale systems, do not virtually exist.¹⁴

A basic solution of the original PQEVAP that meets with the above practical requirements is originally proposed by Datta et al.,¹⁶ in the single input case and then subsequently generalized to the multi-input cases by Datta et al.¹⁷ and Ram and Elhay.¹⁸ For practical effectiveness, it is not enough just to compute a pair of feedback matrices, but they should be computed in such a way that they have norms as small as possible and the closed-loop eigenvalues are as insensitive as possible to small perturbations to the data.^19–22 Minimization of feedback norms leads to economic design while the minimization of the closed-loop eigenvalue sensitivity ensures numerical robustness in the control design. While the former is straightforward,^19,20 the later poses a difficult computational task, because the major part of the closed-loop eigenvector matrix consists of the large number of eigenvalues and eigenvectors which are not known to the users. In order to overcome these computational difficulties, we propose a novel minimization approach to deal with the robustness issue. It is based on the notions of spectrum sensitivity, introduced earlier by the authors. The distinguished feature of this approach is that the objective function is formulated in such a way that it does not require explicit knowledge of the eigenvalues and eigenvectors. It is composed of only the closed-loop feedback matrices. The gradient formulas are then computed also in terms of the feedback matrices. This feature makes it possible to design robust controllers in a practical way. In this paper, we propose a new optimization algorithm for RPQEVAP for which the objective function is formulated in terms of the closed-loop mass, stiffness, and damping matrices, thus computation of this function and of the associated gradient formula can be performed without explicitly knowing the closed-loop eigenvectors. This objective function depends upon several spectrum sensitivity results which exhibit these eigenvalue sensitivity relations with the closed-loop feedback matrices. The required gradient formulas are derived in the paper in terms of the closed-loop feedback matrices. These new optimization algorithms are obtained for both cases of the state feedback and state-derivative feedback. Numerical examples, both with small and large order matrices, are performed and an experiment to study the transient response of a real-life system is carried out to demonstrate the effectiveness of the proposed approach in both cases of state and velocity feedback. A comparative study with other existing algorithms shows that the robustness achieved by the proposed algorithms is comparable to, and, in some cases, is better than that achieved by algorithms which aim at minimizing the condition number of the closed-loop eigenvector matrix.

Preliminary concepts on second-order systems and the partial quadratic eigenvalue assignment problems (PQEVAPs)

A vibrating structure modeled by a system matrix second-order differential equations has the form

M \overset{..}{x} (t) + C \dot{x} (t) + K x (t) = 0

(1)

where

M, C

, and K are, respectively, the mass, damping, and stiffness matrices, each of them of order n, and

x (t)

is the displacement vector. Since this model is often generated by using finite element techniques, it is known as the FEM. The matrices often have special structures

M = M^{T} ≻ 0, C = C^{T}, K = K^{T} ≽ 0

(2)

in which the superscript T denotes the matrix transpose operator. Dynamics of such a system are governed by the eigenvalues and eigenvectors of the associated quadratic matrix eigenvalue problem

Q (λ_{k}) y_{k} = 0, k = 1, 2…, 2 n

(3)

with the pencil

Q (λ) = λ^{2} M + λ C + K

(4)

The details on the quadratic eigenvalue problem can be found in Datta.¹⁵ Suppose a control force of the form

f (t) = B u (t)

(5)

where B is an n × m control matrix and

u (t)

is a control vector of order m, applied to the model to control the unwanted vibrations caused by resonances. Thus, we have the control model

M \overset{..}{x} (t) + C \dot{x} (t) + K x (t) = B u (t)

(6)

Assuming that the state and the velocity vectors $x (t)$ and $\dot{x} (t)$ are known, let us take

u (t) = F_{s} \dot{x} (t) + G_{s} x (t)

(7)

where

F_{s}

and

G_{s}

are two unknown velocity and state feedback matrices. Many times the state vector

x (t)

is not explicitly known, but the velocity vector

\dot{x} (t)

and the acceleration vector

\ddot{x} (t)

can rather be estimated. In such case, it is more practical to assume that

u (t) = F_{d} \dot{x} (t) + G_{d} \overset{..}{x} (t)

(8)

Here, the unknown feedback matrices $F_{d}$ and $G_{d}$ are named, respectively, velocity and acceleration feedback matrices. The control laws defined by equations (7) and 8) are, respectively, called the state feedback and the derivative feedback laws. Given then these expressions of the control inputs, the respective closed-loop systems can be written as

M \overset{..}{x} (t) + (C - B F_{s}) \dot{x} (t) + (K - B G_{s}) x (t) = 0

(9)

(M - B G_{d}) \overset{..}{x} (t) + (C - B F_{d}) \dot{x} (t) + K x (t) = 0

(10)

PQEVAP and robustness

The PQEVAP is to assign a few eigenvalues of $Q (λ)$ , say, $λ_{1}, …, λ_{p}$ ; p ≪ 2n, which are believed to cause resonances in a vibrating structure, to suitably chosen numbers $μ_{1}, …, μ_{p}$ by computing the two feedback matrices $F_{s}$ and $G_{s}$ for the state feedback case, and $F_{d}$ and $G_{d}$ for the derivative feedback case, while leaving the other eigenvalues and the associated eigenvectors unchanged.

In the multi-input case, if there exists a feedback pair, then there are infinitely many.

The problems of choosing the feedback matrices with the property that they have minimum feedback norms and that the closed-loop eigenvector matrix is well conditioned are, respectively, called minimum norm and robust PQEVAPs, denoted by MNPQEVAP and RPQEVAP.

Notations

In order to state the solutions of these problems in the next section, let us introduce the following notations:

$Λ_{1} = d i a g ([\begin{matrix} α_{1} & β_{1} \\ - β_{1} & α_{1} \end{matrix}], \dots, [\begin{matrix} α_{l} & β_{l} \\ - β_{l} & α_{l} \end{matrix}], λ_{2 l + 1}, \dots, λ_{p})$ , in which $λ_{k} = c o n j (λ_{k + 1}) = α_{k} + i β_{k}, k = 1, …, 2 l$ and $λ_{2 l + 1}, …, λ_{p} \in ℝ$ . It is a real representation of the eigenvalues that must be reassigned.

${\bar{Λ}}_{1} = d i a g ([\begin{matrix} {\bar{α}}_{1} & {\bar{β}}_{1} \\ - {\bar{β}}_{1} & {\bar{α}}_{1} \end{matrix}], \dots, [\begin{matrix} {\bar{α}}_{l} & {\bar{β}}_{l} \\ - {\bar{β}}_{l} & {\bar{α}}_{l} \end{matrix}], μ_{2 \bar{l} + 1}, \dots, μ_{p})$ , in which $μ_{k} = c o n j (μ_{k + 1}) = {\bar{α}}_{k} + i {\bar{β}}_{k}, k = 1, …, 2 \bar{l}$ and $μ_{2 \bar{l} + 1}, …, μ_{p} \in ℝ$ . It is a real representation of the new eigenvalues.

$Y_{1} = [ℜ e (y_{1}) ℑ m (y_{1}) \dots ℜ e (y_{l}) ℑ m (y_{l}) y_{2 l + 1} \dots y_{p}]$ . It is a real representation of the eigenvectors that must be reassigned.

Note that l and $\bar{l}$ are not necessarily equal, that is the cardinality of the complex eigenvalues of the spectrum part to be assigned does not need to equal that of the reassigned part.

The PQEVAP and robustness solutions

In this section, we first state a known parametric solution to PQEVAP and then propose a new optimization approach to study its robustness.

A solution to PQEVAP

Construction of $F_{s}$ and $G_{s}$ : Let arbitrary $Γ_{s} \in ℝ^{m \times p}$ and $Z_{s} \in ℝ^{p \times p}$ be the solution of the Sylvester equation ²³

Λ_{1}^{T} Z_{s}^{T} - Z_{s}^{T} {\bar{Λ}}_{1} = - Y_{1}^{T} B Γ_{s}

(11)

Z_{s}

is invertible, and

Φ_{s} = Γ_{s} Z_{s}^{- T}

(12)

then it has been shown in Cai et al.²² that

F_{s} = Φ_{s} Y_{1}^{T} M, G_{s} = Φ_{s} (Λ_{1} Y_{1}^{T} M + Y_{1}^{T} C)

(13)

Construction of $F_{d}$ and $G_{d}$ : Assume that $0 \notin s p e c (Λ_{1})$ , and let $Γ_{d} \in ℝ^{m \times p}$ and $Z_{d}$ be the solution of the Sylvester equation

Λ_{1}^{T} Z_{d}^{T} - Z_{d}^{T} {\bar{Λ}}_{1} = - Λ_{1}^{T} Y_{1}^{T} B Γ_{d}

(14)

If $Z_{d}$ is invertible, and

Φ_{d} = Γ_{d} {(Z_{d}^{T} {\bar{Λ}}_{1})}^{- 1}

(15)

then it has been shown in Zhang et al.²⁴ that

F_{d} = Φ_{d} Λ_{1}^{T} Y_{1}^{T} M, G_{d} = - Φ_{d} Y_{1}^{T} K

(16)

Spectrum sensitivity

We define now eight sensitivities related to the perturbations of the sum and the product of the eigenvalues with respect to changes in the system matrices $M, C$ , and K as follows

S_{Π K s} = \frac{\partial \prod λ_{s}^{c}}{\partial K} = \frac{d e t (K - B G_{s})}{d e t M} {(K - B G_{s})}^{- T}

(17)

S_{Π M s} = \frac{\partial \prod λ_{s}^{c}}{\partial M} = - \frac{d e t (K - B G_{s})}{d e t M} M^{- T}

(18)

S_{Σ C s} = \frac{\partial \sum λ_{s}^{c}}{\partial C} = - M^{- T}

(19)

S_{Σ M s} = \frac{\partial \sum λ_{s}^{c}}{\partial M} = - M^{- T} {(C - B F_{s})}^{T} M^{- T}

(20)

S_{Π K d} = \frac{\partial \prod λ_{d}^{c}}{\partial K} = \frac{d e t K}{d e t (M - B G_{d})} K^{- T}

(21)

S_{Π M d} = \frac{\partial \prod λ_{d}^{c}}{\partial M} = - \frac{d e t K}{d e t (M - B G_{d})} {(M - B G_{d})}^{- T}

(22)

S_{Σ C d} = \frac{\partial \sum λ_{d}^{c}}{\partial C} = - {(M - B G_{d})}^{- T}

(23)

S_{Σ M d} = \frac{\partial \sum λ_{d}^{c}}{\partial M} = - {(M - B G_{d})}^{- T} {(C - B G_{d})}^{T} {(M - B G_{d})}^{- T}

(24)

In the above formulas on the sensitivities, the subscripts s and d stand, respectively, for the state feedback and the derivative feedback, and $λ_{s}^{c}$ and $λ_{d}^{c}$ stand for the respective closed-loop eigenvalues.

Robustness with spectrum sensitivity

Based on the concepts of eigenvalue sensitivities stated above, we now propose to study the robustness issue in PQEVAP by minimizing the following parametric objective functions which are composed of only the closed-loop system and feedback matrices. Each term of the objective functions is intimately related to spectrum sensitivities as justified below.

Minimize

f_{s} (Γ_{s}) = \frac{1}{2} w_{1 s} | | {(K - B G_{s})}^{- T} | |_{F}^{2} + \frac{1}{2} w_{2 s} | | M^{- T} {(C - B F_{s})}^{T} M^{- T} | |_{F}^{2}

(25)

The case of derivative feedback is similar.

Minimize

f_{d} (Γ_{d}) = \frac{1}{2} w_{1 d} ‖ {(M - B G_{d})}^{- T} ‖_{F}^{2} + \frac{1}{2} w_{2 d} | | {(M - B G_{d})}^{- T} {(C - B F_{d})}^{T} {(M - B G_{d})}^{- T} | |_{F}^{2}

(26)

Note that the first term of equation (25) is related to equations (17) and (18), which concern the sensitivities of the product of the closed-loop eigenvalues with respect to changes in the stiffness and mass matrices. Similarly, the second term of equation (25) relates to the sensitivities of the sum of the closed-loop eigenvalues with respect to damping and mass matrices through equations (19) and (48). Thus, minimization of equation (25) is related to the minimization of the sensitivities of closed-loop eigenvalues. Similar remarks apply to expression (26). The weights $w_{1 s}, w_{2 s}, w_{1 d}$ , and $w_{2 d}$ can be chosen by the designer to avoid dominance in the minimization problems (25) or (26).

In order to minimize equations (25) and (26), the corresponding gradient functions must be computed. In the following, we show how to do so by stating two propositions. The interested readers are referred to the proof in Appendix 1.

Computations of gradient formulae and the associated robust feedback algorithms

Gradient formula for state-feedback objective function

Proposition 1: Suppose that $U, V$ are the solutions of the following Sylvester equations

{\bar{Λ}}_{1} U - U Λ_{1}^{T} = - Z_{s}^{- T} P γ B Γ Z_{s}^{- T}

(27)

{\bar{Λ}}_{1} V - V Λ_{1}^{T} = - Z_{s}^{- T} Q Θ B Γ Z_{s}^{- T}

(28)

and

Z_{s}

is the same as in equation (11 ).

Then, the gradient $\nabla_{Γ_{s}} f_{s}$ is given by

\nabla_{Γ_{s}} f_{s} = {[\frac{1}{2} Z_{s}^{- T} (Q Θ - P γ) + \frac{1}{2} (- V + U) Y_{1}^{T}] B}^{T}

(29)

where

Θ = w_{1 s} {(K - B G_{s})}^{- 1} {(K - B G_{s})}^{- T} {(K - B G_{s})}^{- 1}

(30)

γ = w_{2 s} M^{- 2} {(C - B F_{s})}^{T} M^{- 2}

(31)

P = Y_{1}^{T} M

(32)

Q = Λ_{1} Y_{1}^{T} M + Y_{1}^{T} C

(33)

Robust state-feedback algorithm

Based on the gradient formula obtained above, we now state the following algorithm for robust feedback computation in the state-feedback case as SFRPQEVAP.

Algorithm 1. Robust state-feedback algorithm

Input: The matrices $K, C, M, Λ_{1}, {\bar{Λ}}_{1}, Y_{1}$ ; the maximum number of iterations maxiter; the tolerance ϵ

Output: The feedback matrices $F_{s}, G_{s}$

1 Step 1: Set k = 1 and choose $Γ_{s}^{(1)} = [γ_{1} … γ_{p}] \in ℝ^{m \times p}$ ;

2 Step 2: Compute $Z_{s}, F_{s}, G_{s},$ using equations (9) to (11);

3 Step 3: Compute $\nabla_{Γ_{s}} f^{(k)}$ using equations (27) to (33);

4 Step 4: If $| | \nabla_{Γ_{s}} f^{(k)} | |_{F} \leq ϵ$ or k = maxiter, stop. Otherwise, set $k \Leftarrow k + 1$ and compute a new $Γ_{s}^{(k + 1)}$ using a gradient-based technique—BFGS,

Levenberg–Marquardt or other; other, return to Step 2.

Gradient formula for derivative feedback objective function

Proposition 2: Suppose that $U, V$ are the solutions of the following Sylvester equations

{\bar{Λ}}_{1} U - U Λ_{1}^{T} = - Z_{d}^{- T} P γ B Γ Z_{d}^{- T}

(34)

{\bar{Λ}}_{1} V - V Λ_{1}^{T} = - Z_{d}^{- T} Q Θ B Γ Z_{d}^{- T}

(35)

and

Z_{d}

be the same as in equation (14 ).

Then, the gradient $\nabla_{Γ_{d}} f_{d}$ , equation (26 ) is given by

\nabla_{Γ_{d}} f_{d} = {[\frac{1}{2} Z_{d}^{- T} (Q Θ - P γ) + \frac{1}{2} (- V + U) Y_{1}^{T}] B}^{T}

(36)

where

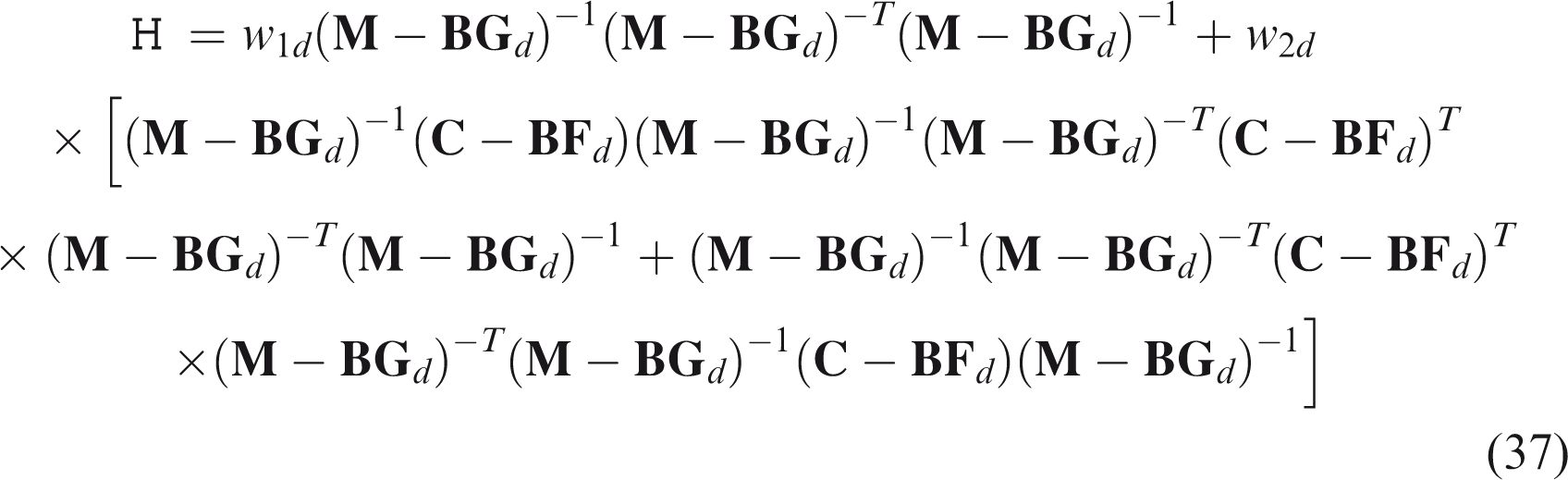

\begin{matrix} Θ = w_{1 d} {(M - B G_{d})}^{- 1} {(M - B G_{d})}^{- T} {(M - B G_{d})}^{- 1} + w_{2 d} \\ \times [{(M - B G_{d})}^{- 1} (C - B F_{d}) {(M - B G_{d})}^{- 1} {(M - B G_{d})}^{- T} {(C - B F_{d})}^{T} \\ \times {(M - B G_{d})}^{- T} {(M - B G_{d})}^{- 1} + {(M - B G_{d})}^{- 1} {(M - B G_{d})}^{- T} {(C - B F_{d})}^{T} \\ \times {(M - B G_{d})}^{- T} {(M - B G_{d})}^{- 1} (C - B F_{d}) {(M - B G_{d})}^{- 1}] \end{matrix}

(37)

γ = w_{2 d} [{(M - B G_{d})}^{- 1} {(M - B G_{d})}^{- T} {(C - B F_{d})}^{T} {(M - B G_{d})}^{- T} {(M - B G_{d})}^{- 1}]

(38)

P = - Y_{1}^{T} K

(39)

Q = Λ_{1}^{T} Y_{1}^{T} M

(40)

Robust derivative-feedback algorithm

An algorithm for robust feedback computation is now stated below for a solution of RPQEVAP in the derivative feedback case.

Algorithm 2. Robust derivative-feedback algorithm

Input: The matrices $K, C, M, Λ_{1}, {\bar{Λ}}_{1}, Y_{1}$ ; the maximum number of iterations maxiter; the tolerance ϵ

Output: The feedback matrices $F_{d}, G_{d}$

1 Step 1: Set k = 1 and choose $Γ_{d}^{(1)} = [γ_{1} … γ_{p}] \in ℝ^{m \times p}$ ;

2 Step 2: Compute Z_d , F_d , G_d , using equations (12) to (14);

3 Step 3: Compute $\nabla_{Γ_{d}} f^{(k)}$ using equations (34) to (40);

4 Step 4: If $| | \nabla_{Γ_{d}} f^{(k)} | |_{F} \leq ϵ$ or k = maxiter, stop. Otherwise, set $k \Leftarrow k + 1$ and compute a new $Γ_{d}^{(k + 1)}$ using a gradient-based technique as BFGS,

Levenberg–Marquardt, or other; return to Step 2;

A Remark on Computational Complexity Algorithms 1 and 2: The computational complexity of the proposed algorithms is dominated mainly by the matrix inversions and products necessary to compute the matrices $Θ$ and $γ$ which are used in gradient calculation for the feedbacks. Thus, the algorithms are $O (n^{3})$ , and therefore efficient. Also, note that both the algorithms can be implemented with the help of only a small number of eigenvalues and eigenvectors that need to be replaced.

Numerical experiments and comparisons

In this section, we present the results of the proposed method, comparing them with those of other existing methods. Specifically, the following methods are considered for our comparisons:

Proposed Robust State Feedback method (Method I—Algorithm 1);

Proposed Robust Derivative Feedback (Method II—Algorithm 2);

The method of Cai et al.²² (Method III);

The method of Wang²⁵ (Method IV);

The method of Bai et al.²¹ (Method V).

In the first two experiments, the matrices $M, C$ and K are perturbed by the following quantities

| | Δ M | |_{F} \leq 0.0001 | | M | |_{F}, | | Δ C | |_{F} \leq 0.0001 | | C | |_{F}, | | Δ K | |_{F} \leq 0.0001 | | K | |_{F}

Let $λ_{j}^{c}$ and ${\tilde{λ}}_{j}^{c}$ stand for the jth closed-loop eigenvalue of the unperturbed and the perturbed system, respectively. Then, we define

D_{e n} = {[\sum_{j = 1}^{2 n} {(λ_{j}^{c} - {\tilde{λ}}_{j}^{c})}^{2}]}^{\frac{1}{2}}

(41)

This quantity is the deviation of the perturbed closed-loop eigenvalues from the unperturbed ones

R_{s s} = \frac{| | F | |_{F}^{2} + | | G | |_{F}^{2}}{| | F_{m n} | |_{F}^{2} + | | G_{m n} | |_{F}^{2}}

(42)

is the relative change to minimum norm feedbacks.

| | F_{m n} | |_{F}

and

| | G_{m n} | |_{F}

stand for the minimum feedback norms as computed in the paper of Brahma and Datta.¹⁹

Experiment I: Random example

In this experiment, we consider a random example of order 5 from MATLAB gallery (“randcorr”, n)

M = [\begin{matrix} 1 & 0.020074 & 0.16178 & - 0.00084629 & - 0.039004 \\ 0.020074 & 1 & 0.25089 & 0.090954 & 0.14549 \\ 0.16178 & 0.25089 & 1 & - 0.13847 & 0.0026833 \\ - 0.00084629 & 0.090954 & - 0.13847 & 1 & - 0.13832 \\ - 0.039004 & 0.14549 & 0.0026833 & - 0.13832 & 1 \end{matrix}]

C = [\begin{matrix} 1 & - 0.044725 & - 0.093248 & - 0.16885 & 0.18645 \\ - 0.044725 & 1 & 0.05047 & 0.38706 & - 0.29389 \\ - 0.093248 & 0.05047 & 1 & 0.0028751 & - 0.086355 \\ - 0.16885 & 0.38706 & 0.0028751 & 1 & 0.034282 \\ 0.18645 & - 0.29389 & - 0.086355 & 0.034282 & 1 \end{matrix}]

K = [\begin{matrix} 1 & - 0.63971 & - 0.16469 & 0.042341 & - 0.50555 \\ - 0.63971 & 1 & 0.19923 & 0.072314 & 0.49672 \\ - 0.16469 & 0.19923 & 1 & 0.64109 & - 0.24001 \\ 0.042341 & 0.072314 & 0.64109 & 1 & - 0.403 \\ - 0.50555 & 0.49672 & - 0.24001 & - 0.403 & 1 \end{matrix}]

B = [\begin{matrix} 0.3971 & 0.9226 \\ 0.1576 & 0.4583 \\ 0.7275 & 0.7742 \\ 0.9719 & 0.3286 \\ 0.1564 & 0.3638 \end{matrix}]

The eigenvalues $- 0.2551 \pm 1.3772 i$ are reassigned to $- 1, - 2$ , respectively. The weights $w_{1 s}$ and $w_{2 s}$ are set to be 1 for Method I.

The results in Table 1 show that $κ_{2} (Y_{c})$ is comparable for all the four methods, while the other significant measures of robustness, namely $f (Γ_{s}), D_{e n}$ and R_ss are much better with the Method I than with the others.

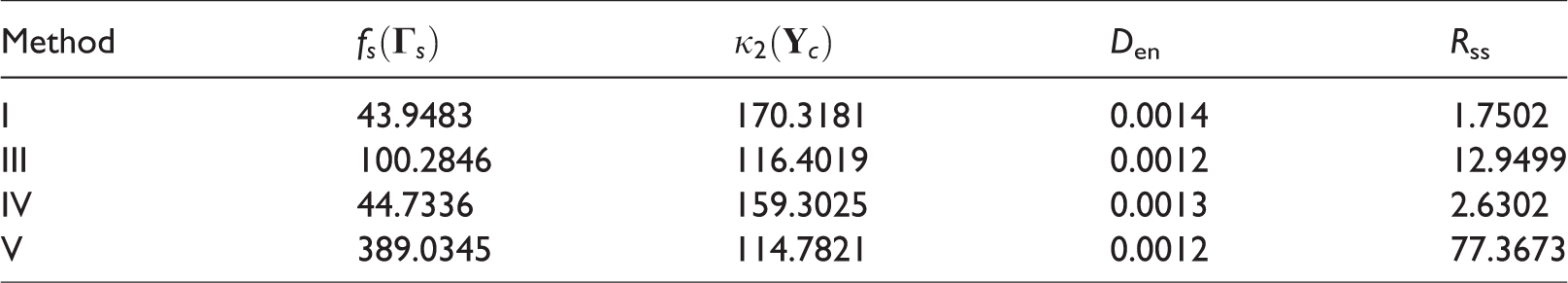

Table 1.

Comparisons of Methods in a random example.

Method	$f_{s} (Γ_{s})$	$κ_{2} (Y_{c})$	D_en	R_ss
I	43.9483	170.3181	0.0014	1.7502
III	100.2846	116.4019	0.0012	12.9499
IV	44.7336	159.3025	0.0013	2.6302
V	389.0345	114.7821	0.0012	77.3673

Experiment II: An example of oil rig

For this experiment, the matrices $M, K \in ℝ^{66 \times 66}$ are obtained from Harwell–Boeing Collection BCSSTRUC1²⁶ which proposes a statically condensed oil rig model. Moreover, we set $C = I_{66 \times 66}$ and $B^{T} = {[\begin{matrix} I_{2 \times 2} & 0_{62 \times 2} & - I_{2 \times 2} \end{matrix}]}^{T}$ . The eigenvalues $- 4.7067 \pm 5.2347 i, - 5.1680 \pm 4.2682 i, - 5.2067 + 4.1522 i$ of the model are reassigned to the positions: $- 6 \pm i, - 6 \pm 2 i, - 6 \pm 3 i$ . The weights are set as $w_{1 s} = 1$ and $w_{2 s} = 1 e - 008$ . As seen in Table 2, for the Method I, the condition number of the matrix of closed-loop eigenvectors is smaller than that obtained by Method V, whereas it is comparable with that of Method III. The other measures are substantially better for the Method I than the others.

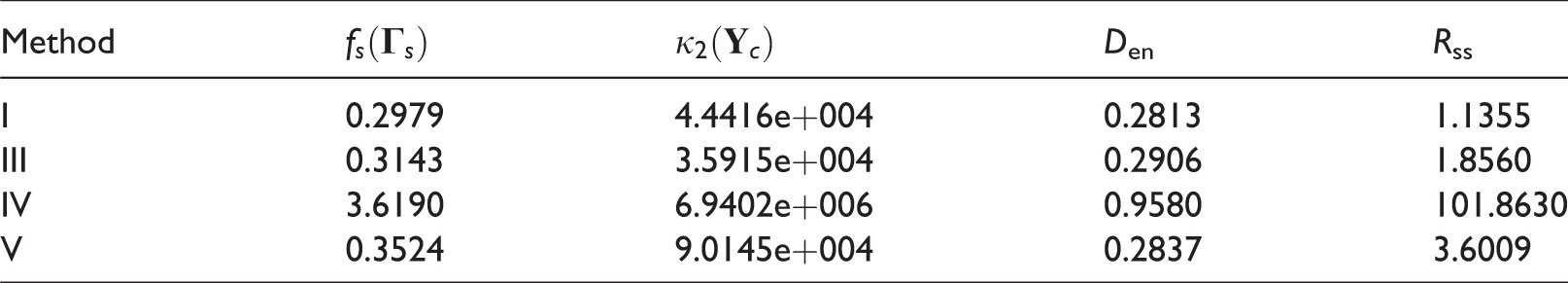

Table 2.

Comparison of Methods in an example of oil rig.

Method	$f_{s} (Γ_{s})$	$κ_{2} (Y_{c})$	D_en	R_ss
I	0.2979	4.4416e+004	0.2813	1.1355
III	0.3143	3.5915e+004	0.2906	1.8560
IV	3.6190	6.9402e+006	0.9580	101.8630
V	0.3524	9.0145e+004	0.2837	3.6009

Experiment III

The matrices for this experiment were taken from Qian and Xu²⁷

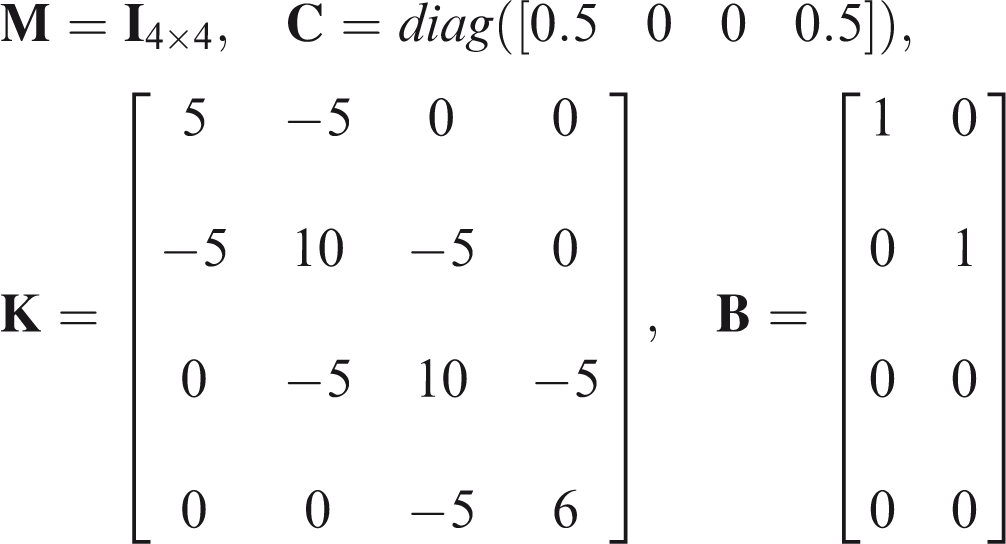

\begin{array}{l} M = I_{4 \times 4}, C = d i a g ([0.5 0 0 0.5]), \\ K = [\begin{matrix} 5 & - 5 & 0 & 0 \\ - 5 & 10 & - 5 & 0 \\ 0 & - 5 & 10 & - 5 \\ 0 & 0 & - 5 & 6 \end{matrix}], B = [\begin{matrix} 1 & 0 \\ 0 & 1 \\ 0 & 0 \\ 0 & 0 \end{matrix}] \end{array}

For this experiment, the eigenvalues $- 0.0385 \pm 4.1362 i$ are reassigned to $- 1 \pm i$ , and the perturbations in the system matrices are set as

| | Δ M | |_{F} \leq 0.01 | | M | |_{F}, | | Δ C | |_{F} \leq 0.01 | | C | |_{F}, | | Δ K | |_{F} \leq 0.01 | | K | |_{F}

The weights considered in this case are $w_{1 s} = w_{2 s} = 1$ for Method I and for Method II $w_{1 d} = w_{2 d} = 1$ .

As seen from the results of Table 3, the condition numbers for the eigenvector closed-loop matrix for each of the Methods I and II are smaller than that of Method III. The quantity D_en for the Method I is comparable with that of Method III, while for Method II it is much better. Figure 1 shows the distribution of reassigned eigenvalues in both cases of the feedbacks.

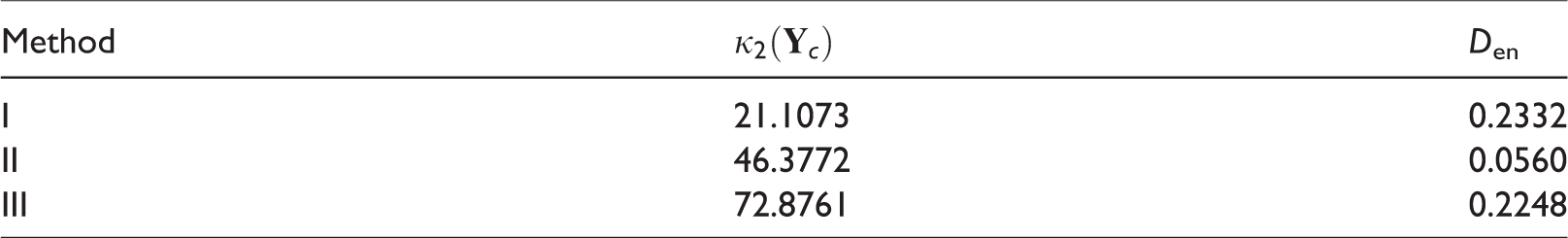

Table 3.

Condition number and eigenvalue perturbation for the control design in Experiment III.

Method	$κ_{2} (Y_{c})$	D_en
I	21.1073	0.2332
II	46.3772	0.0560
III	72.8761	0.2248

Figure 1.

Distribution of the reassigned eigenvalues in Experiment III with state feedback (red) and derivative feedback (black), under linear perturbation in systems matrices of 1%.

Experiment IV on system response—vibration absorber of a machine

In this section, we present the results on system responses of a second-order model representing absorber of a machine, taken from Beards.²⁸ The matrices $M, C$ , K, and B are given by

\begin{matrix} M = I_{3 \times 3}, C = 0 \\ K = [\begin{matrix} 2 & 0 & - 0.6 \\ 0 & 2 & - 2 \\ - 0.6 & - 2 & 2.68 \end{matrix}], B = [\begin{matrix} 1 & 0 \\ 0 & 0 \\ 0 & - 1 \end{matrix}] \end{matrix}

The natural frequencies of the system are $\pm 2.1108 i, \pm 1.4142 i, \pm 0.4737 i$ . Now, an external excitation of the form $f (t) = 0.1 s i n (2.1108 t)$ is applied to the system. It is clear that the eigenpair $\pm 2.1108 i$ will cause resonance. This eigenpair is then reassigned to $- 1 \pm i$ to control the vibration due to the resonance and the feedback matrices are computed using Algorithms 1 and 2. The system responses then are determined for the open-loop system and for the closed-loop system using the Algorithm 1 (Method I), Algorithm 2 (Method II), and Method V. These system responses are displayed in Figure 2. It is seen that the oscillations due to resonance (Figure 2(a)) are well controlled by applying feedback control forces in both cases (Figure 2(b) and (c)). Finally, we study the closed-loop steady-state system response in a long term—after $450 s$ from initial time—for Algorithms 1 and 2 and Method V under a perturbation of $+ 10 %$ and –10%, respectively, in matrices M and K. The results are displayed in Figure 3. In Figure 3(a) the horizontal displacement (red lines) and the torsional tilt (green lines) under perturbations—dashed lines for the closed-loop system determined by Method I are displayed. The corresponding results for the closed-loop system obtained by Method II are displayed in Figure 3(b), and the results for the Method V are displayed in Figure 3(c). Despite the phase difference in the three responses, all the Methods were able to achieve the control of resonance under severe perturbations in the matrices M and K, and thus confirming that they deliver good robustness.

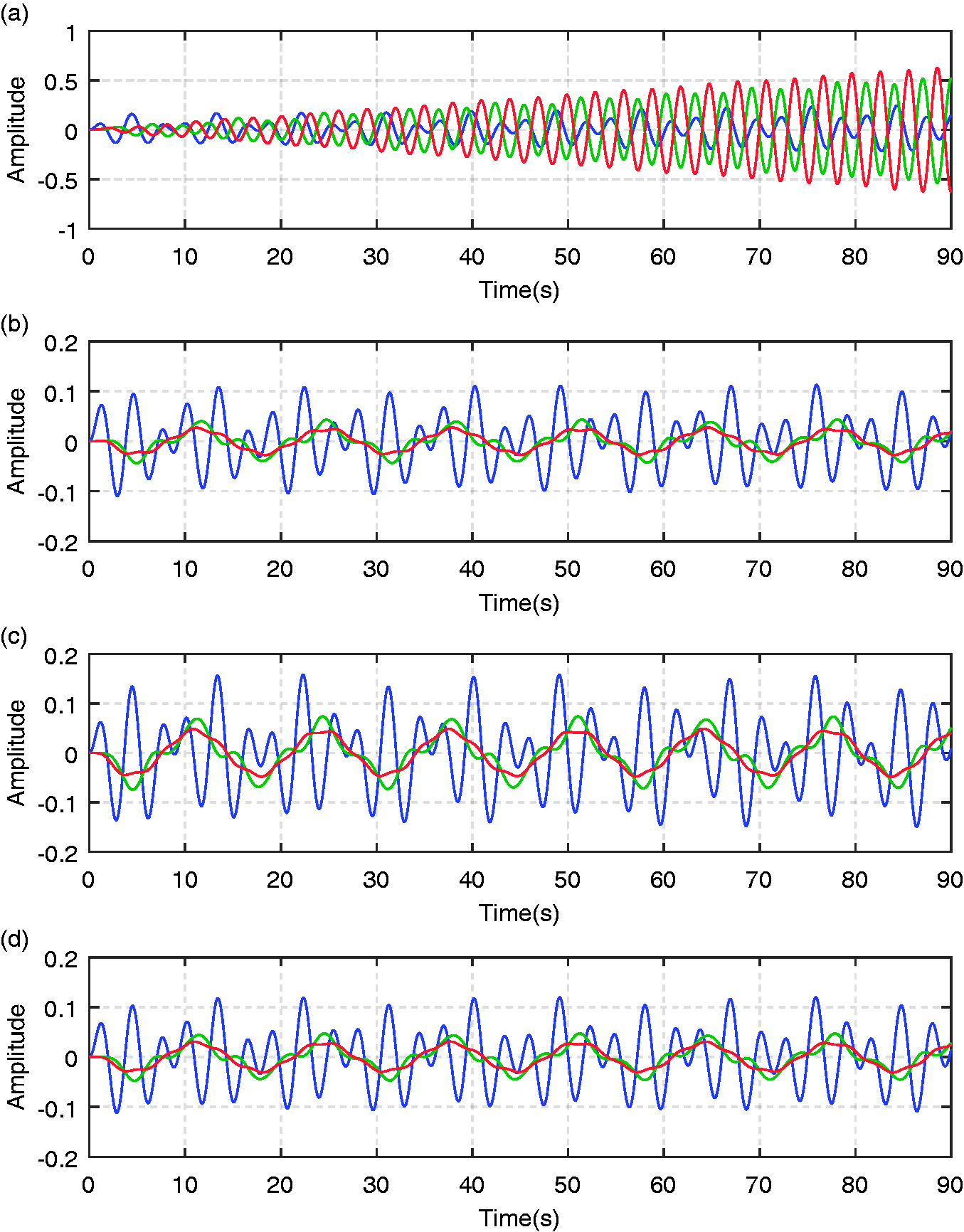

Figure 2.

A study of controlling resonant vibrations on vertical (blue lines) and horizontal (red lines) displacements and torsional tilt (green lines) by Methods I, II, and V: (a) Open-loop, (b) closed-loop with Method I, (c) closed-loop with Method II, and (d) closed-loop with Method V.

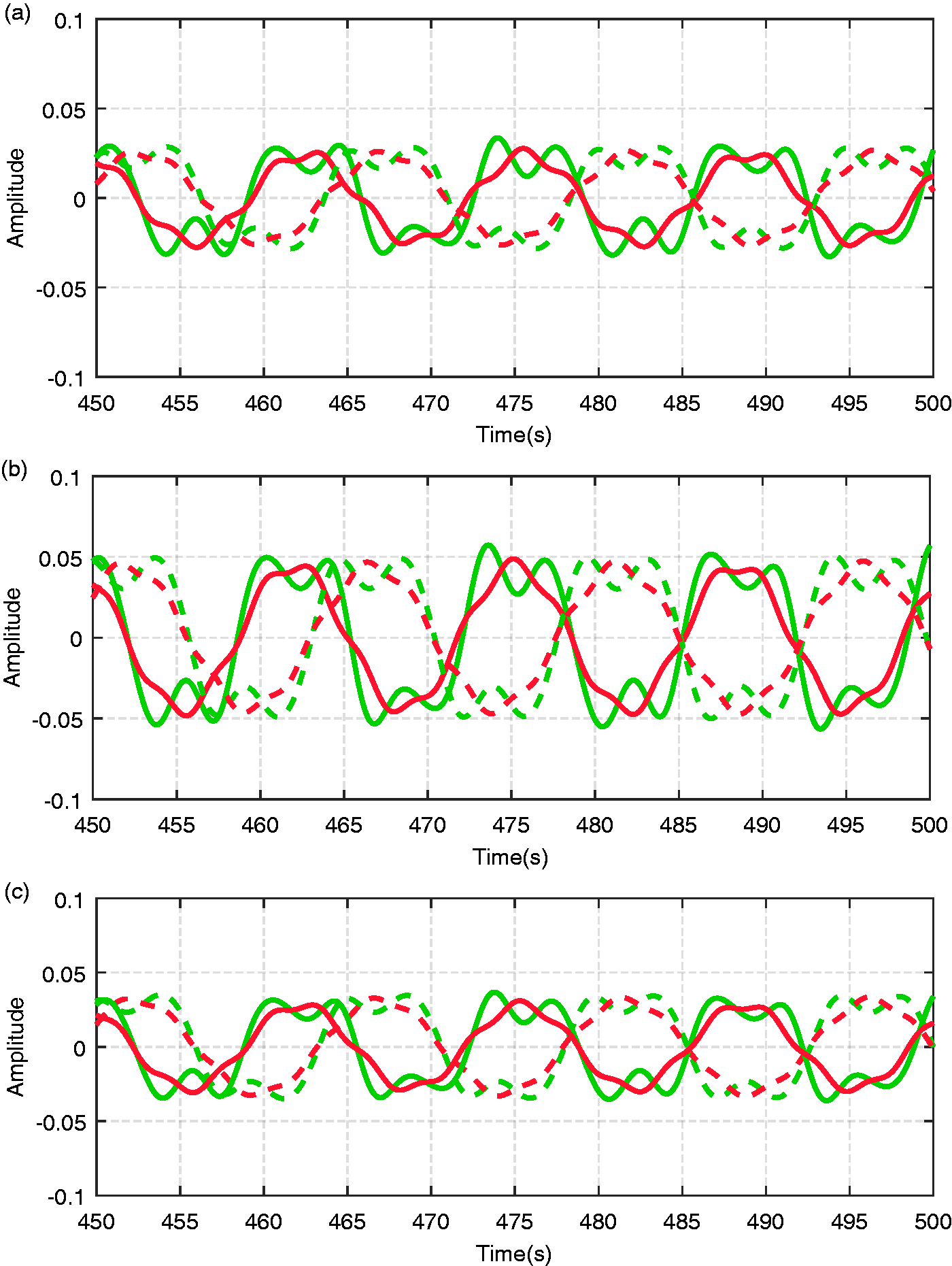

Figure 3.

Deviations of the steady-state time domain responses in for horizontal displacement (red lines) and torsional tilt (green lines) under resonant excitation in unperturbed (continuous) and perturbed (dashed) closed-loop system: (a) Method I, (b) Method II, and (c) Method V.

Experiment V: Comparison of the proposed algorithms with a genetic algorithm (GA)

In this section, we compare the proposed algorithms with a GA which is believed to give a global solution to an optimization problem but which is heuristic in nature. The results are displayed in Table 4. Here the superscripts s, d, and GA stand for the respective quantities in cases of state feedback, derivative feedback, and GA. All these three algorithms are applied to the three examples in “Experiment I: Random example,” “Experiment II: An example of oil rig,” and “Experiment III” subsections. It is seen that the results of our algorithm are very close or same as those obtained by GA for Experiment I and Experiment III.

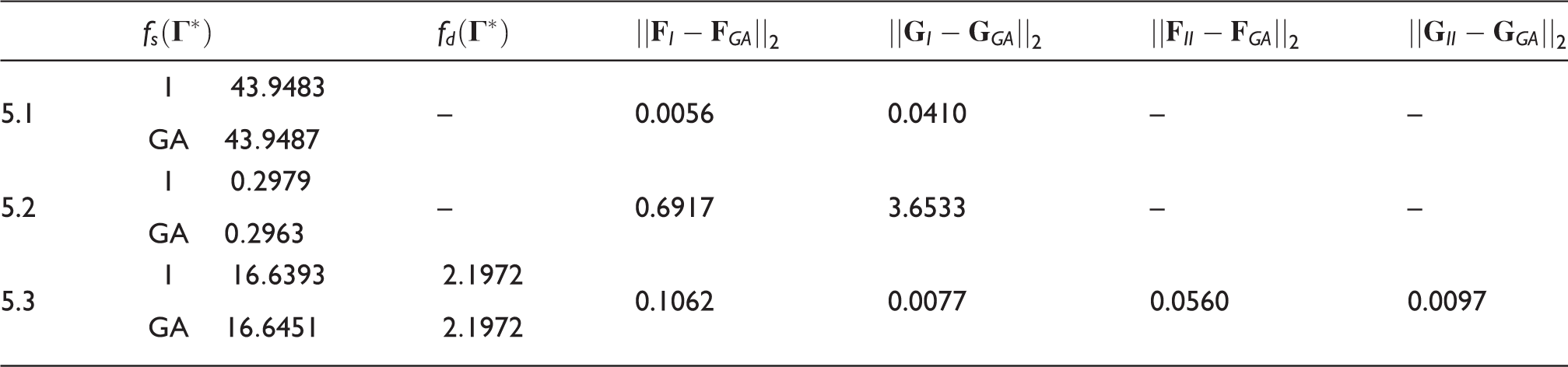

Table 4.

Comparison of the proposed gradient-based Algorithms 1 and 2 against the meta-heuristic GA optimization.

	$f_{s} (Γ^{*})$	$f_{d} (Γ^{*})$	$\| \| F_{I} - F_{G A} \| \|_{2}$	$\| \| G_{I} - G_{G A} \| \|_{2}$	$\| \| F_{I I} - F_{G A} \| \|_{2}$	$\| \| G_{I I} - G_{G A} \| \|_{2}$
5.1	$\begin{matrix} I & 43.9483 \\ GA & 43.9487 \end{matrix}$	–	0.0056	0.0410	–	–
5.2	$\begin{matrix} I & 0.2979 \\ GA & 0.2963 \end{matrix}$	–	0.6917	3.6533	–	–
5.3	$\begin{matrix} I & 16.6393 \\ GA & 16.6451 \end{matrix}$	$\begin{matrix} 2.1972 \\ 2.1972 \end{matrix}$	0.1062	0.0077	0.0560	0.0097

GA: genetic algorithm.

Experiment VI: A study of eigenvector condition number reduction

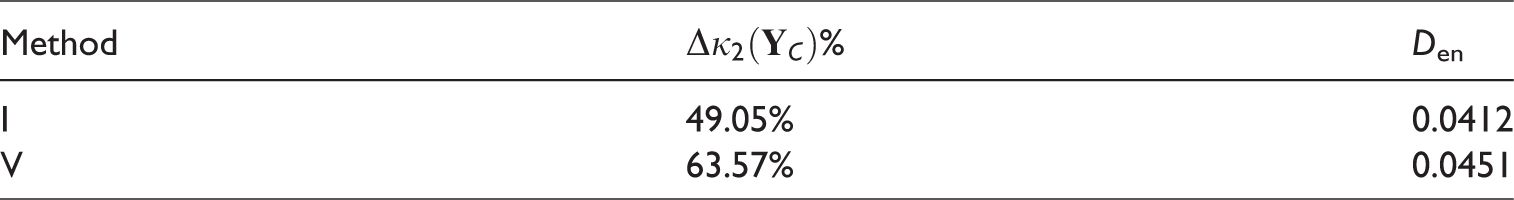

In this experiment, we evaluate the capability of Algorithm 1 in reducing the closed-loop eigenvector condition number and compare it with the results obtained by Method V. It is to be noted that Method V is designed to minimize the condition number of the closed-loop eigenvector matrix. Here we consider the example from Ram and Elhay¹⁸ and Bai et al.²¹ with matrices

M = I_{n}, C = 0, K = [\begin{matrix} 2 & - 1 & 0 & \dots & 0 & 0 \\ - 1 & 2 & - 1 & \dots & 0 & 0 \\ 0 & - 1 & 2 & \dots & 0 & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ & ⋮ & ⋮ \\ 0 & 0 & \dots & - 1 & 2 & - 1 \\ 0 & 0 & \dots & 0 & - 1 & 1 \end{matrix}], B = [\begin{matrix} I_{m} \\ 0 \end{matrix}]

where n = 40 and m = 3. The four eigenvalues with smallest absolute value are reassigned to

λ_{2 k - 1} = - k + \sqrt{- 10 k}, λ_{2 k} = c o n j (λ_{2 k - 1})

, k = 1, 2. The weights are chosen as

w_{1 s} = 0.1

and

w_{2 s} = 1

for Method I. For the sake of comparison, the initial value of Γ _s for both methods is taken as

Γ_{0} = [\begin{matrix} 1 & 1 & 1 & 0 \\ 0 & 1 & 1 & 1 \\ 1 & 0 & 1 & 0 \end{matrix}]

We then compute the reduction on the condition number for the methods

Δ κ_{2} (Y_{C}) % = 100 \frac{κ_{2}^{0} - κ_{2}}{κ_{2}^{0}}

(43)

as well as the quantity D_en. The results are displayed in Table 5. We observe that, although Method I does not explicitly take into account the condition number in the formulation of the cost function, it gives a reasonable improvement on the condition number after its application, with a slightly favorable result for the Method V. However, the quantity D_en is better in Method I than in Method V for perturbations of 1% in both the matrices K and M.

Table 5.

Reduction for the condition number and deviation of the eigenvalues for Experiment VI.

Method	$Δ κ_{2} (Y_{C}) %$	D_en
I	49.05%	0.0412
V	63.57%	0.0451

Summary and conclusions

A practical aspect of the design of a controller is to ensure robustness in the closed-loop eigenvalues. Mathematically, this is equivalent to minimizing the condition number of the closed-loop eigenvector matrix. The task is computationally prohibitive for the active vibration controller design of a vibrating structure modeled by a system of second-order differential equations, because a major part of the closed-loop eigenvector matrix in this case is not known to the users. We propose an alternative approach to this problem. The approach involves minimizing a cost function that is composed of only the closed-loop system and feedback matrices. Therefore, its implementation does not require the explicit knowledge of eigenvalues and eigenvectors, making the approach practically implementable. Another distinguished feature of the approach is that it works for both state- and velocity-feedback designs. A comparative study of the algorithms based on this proposed approach with the existing algorithms which are especially designed to explicitly minimize the condition number of the closed-loop eigenvector matrix shows that the algorithms are competitive and in some cases give better results. Future research will be directed toward the development of such a strategy for partial eigenstructure assignment in a vibrating system where not only a few eigenvalues are assigned but the associated eigenvectors need to be assigned as well by feedback of different types.

Footnotes

Acknowledgments

The authors would like to thank their institutions for the support.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was supported by Brazilian CAPES Foundation under grants #88881.064972/2014–01.

Appendix 1. Proof of Proposition 1

References

Inman

DJ.

Active modal control for smart structures. Philos Trans R Soc A Math Phys Eng Sci 2001; 359: 205–219.

Tisseur

Meerbergen

The quadratic eigenvalue problem. SIAM Rev 2001; 43: 235–286.

Nakamura

Stiffness design of 3-d shear buildings for specified seismic drifts. J Struct Eng 1993; 119: 50–68.

Misrikhanov

Ryabchenko

VN.

The quadratic eigenvalue problem in electric power systems. Autom Remote Control 2006; 67: 698–720.

Betcke

Higham

Mehrmann

et al . NLEVP: a collection of nonlinear eigenvalue problems. ACM Trans Math Softw 2013; 39: 7:1–7:28.

Lee

MH.

Inverse dynamic input estimation of a seismic soil structure interaction system. Int J Appl Mech 2014; 6: 1–21.

Simulation study of active control of vibro-acoustic response by sound pressure feedback using modal pole assignment strategy. J Low Freq Noise Vib Active Control 2016; 35: 167–186.

Mottershead

Ram

YM.

Inverse eigenvalue problems in vibration absorption: passive modification and active control. Mech Syst Signal Process 2006; 20: 5–44.

Fuller

Active vibration control. In: M Crocker (ed.) Handbook of noise and vibration control. New York: John Wiley, 2008, chapter 64, pp. 770–784.

10.

Comparison of passive and active vibration isolation systems, http://www.azom.com/article.aspx?articleid=11257 (2014, accessed 28 August 2016).

11.

Gudarzi

μ-synthesis controller design for seismic alleviation of structures with parametric uncertainties. J Low Freq Noise Vib Active Control 2015; 34: 491–511.

12.

Palazzolo

AB.

Active vibration control. Vibration Theory and Applications with Finite Elements and Active Vibration Control. New York: John Wiley & Sons, Ltd, 2016, pp. 867–925.

13.

Ning

Sun

Zhang

et al . An active seat suspension design for vibration control of heavy-duty vehicles. J Low Freq Noise Vib Active Control 2016; 35: 264–278.

14.

Datta

Numerical Methods for Linear Control Systems. San Diego: Academic Press, 2003.

15.

Datta

BN.

Numerical linear algebra and applications. 2nd ed. Philadelphia, PA: Society for Industrial and Applied Mathematics, 2010.

16.

Datta

Elhay

Ram

YM.

Orthogonality and partial pole assignment for the symmetric definite quadratic pencil. Lin Alg Appl 1997; 257: 29–48.

17.

Datta

Elhay

Ram

et al . Partial eigenstructure assignment for the quadratic pencil. J Sound Vib 2000; 230: 101–110.

18.

Ram

Elhay

Pole assignment in vibratory systems by multi-input control. J Sound Vib 2000; 230: 309–321.

19.

Brahma

Datta

A Sylvester-equation based parametric approach for minimum norm and robust partial quadratic eigenvalue assignment problems. In: Proceedings of IEEE MED ’07, Mediterranean conference on control automation,Athens, Greece, 27–29 June 2007, pp. 1–6.

20.

Brahma

Datta

An optimization approach for minimum norm and robust partial quadratic eigenvalue assignment problems for vibrating structures. J Sound Vib 2009; 324: 471–489.

21.

Bai

Datta

Wang

Robust and minimum norm partial quadratic eigenvalue assignment in vibrating systems: a new optimization approach. Mech Syst Signal Process 2010; 24: 766–783.

22.

Cai

Qian

SF.

The formulation and numerical method for partial quadratic eigenvalue assignment problems. Numer Lin Alg Appl 2010; 18: 637–652.

23.

Horn

Johnson

(eds) Matrix analysis. New York: Cambridge University Press, 1986.

24.

Zhang

Ouyang

Zhang

et al . Partial quadratic eigenvalue assignment in vibrating systems using acceleration and velocity feedback. Inverse Probl Sci Eng 2015; 23: 479–497.

25.

Wang

Numerical approaches to robust partial quadratic eigenvalue assignment problems. Master’s Thesis, Xiamen University, Xiamen, China, 2009.

26.

Lewis

Matrix bcsstk02, http://math.nist.gov/matrixmarket/data/harwell-boeing/bcsstruc1/bcsstk02.html (1982, accessed December 2016).

27.

Qian

Robust partial eigenvalue assignment problem for the second-order system. J Sound Vib 2005; 282: 937–948.

28.

Beards

Structural vibration: analysis and damping. London: Elsevier Science, 1996.

Robustness of the quadratic partial eigenvalue assignment using spectrum sensitivities for state and derivative feedback designs

Abstract

Keywords

Introduction

Preliminary concepts on second-order systems and the partial quadratic eigenvalue assignment problems (PQEVAPs)

PQEVAP and robustness

Notations

The PQEVAP and robustness solutions

A solution to PQEVAP

Spectrum sensitivity

Robustness with spectrum sensitivity

Computations of gradient formulae and the associated robust feedback algorithms

Gradient formula for state-feedback objective function

Robust state-feedback algorithm

Gradient formula for derivative feedback objective function

Robust derivative-feedback algorithm

Numerical experiments and comparisons

Experiment I: Random example

Experiment II: An example of oil rig

Experiment III

Experiment IV on system response—vibration absorber of a machine

Experiment V: Comparison of the proposed algorithms with a genetic algorithm (GA)

Experiment VI: A study of eigenvector condition number reduction

Summary and conclusions

Footnotes

Acknowledgments

Declaration of conflicting interests

Funding

Appendix 1. Proof of Proposition 1

References
