Abstract
Stroke patients with spasticity usually require long-lasting care and interventions but frequently report that outpatient and community treatment is limited, reflecting a significant unmet need in health and social care provision. Rehabilitation and spasticity management services are essential for patient recovery, with improvements in both activity and participation reducing the burden on patients, family and society. Current clinical guidance provides scope for improvements in both post-stroke management and spasticity prevention. However, access to specialist services can be limited and the patient journey does not always match national recommendations. Identification of spasticity and its predictors and lack of subsequent referral to rehabilitation or specialist spasticity services are key issues in the management of post-stroke spasticity. Implementation of a traffic light classification system prioritises patients at an increased risk of spasticity and promotes early and consistent management across the spectrum of primary and secondary care. The proposed system is based on clinical evidence, expert consensus and recent clinical guidelines. It provides simple and straightforward criteria for management, multidisciplinary consultation and referral to specialist spasticity services, with patients allocated by monitoring requirements and a low (green/periodic monitoring), medium (amber/routine referral) or high risk (red/urgent referral) of spasticity.
Introduction
Stroke is the second most common cause of death and a leading cause of long-term disability in Europe and the World.1-3 Stroke survivors present with a high incidence of long-term disabilities and complications, 4 with up to a third remaining physically dependent, 1 and approximately half of all patients presenting with neurological impairment at 6 months. 5 Although age-standardised rates of stroke mortality have decreased, the absolute annual incidence and burden is increasing. 6
Spasticity is a motor and sensory disorder characterised by an intermittent or sustained increase in tonic stretch reflexes with exaggerated tendon jerks, resulting from hyperexcitability of the stretch reflex.7,8 It is common after stroke, with the prevalence of motor impairments estimated at up to 80% in stroke survivors.3,9-13
Spasticity is estimated to occur in almost 25% of patients within 2 weeks post-stroke.14,15 However, after 12 months, the overall prevalence of spasticity increases to 38% in patients surviving a first stroke and 44% for those with recurrent stroke admissions. 16 Severe or disabling spasticity has been reported in approximately 15% of post-stroke patients.10,17
Although a distinct problem, spasticity is also implicated in the formation of muscle contractures: loss of motion over time due to abnormal shortening of the soft tissue structures, restricting joint mobility and leading to pain and stiffness. Spasticity and muscle contractures are distinct issues, although spasticity is implicated in contracture formation and contractures may actually potentiate spasticity in some patients. 18
While the natural history of spasticity and contracture development is highly variable, permanent loss of joint range is reported to occur within 2–6 weeks post-stroke11,12 peaking at 1-3 months; 12 impairments may continue to develop over 3–6 months.3,12 Electromyography studies suggest that reflex-mediated increase in muscle spasticity reaches its maximum between 1 and 3 months after stroke. 11
Spasticity is observed frequently in the upper extremities, developing commonly in the elbow (79%), wrist (66%) and shoulder (58%). 12 The most frequent predictors of spasticity and contracture include weakness, reduced motor control and functional impairment.3,15 Risk of pain is often associated with reduced sensation, shoulder subluxation, weakness and stroke severity. 3 In lower limbs, the prevalence of increased muscle tone and spasticity is significantly lower, potentially less severe and involves fewer muscles.15,19,20 Common lower limb involvement includes ankle plantar flexors, followed by hip adductors, knee extensors, knee flexors and hip internal rotators. 19
Limitations in mobility immediately after stroke predict the incidence of pain at 3 months; pain is correlated with impaired upper extremity movement and function. 21 The occurrence of shoulder pain is reported in up to 40% of patients but may be observed in as many as 90% of post-stroke patients with hemiplegia or those receiving rehabilitation. 3 Impairment of daily functioning and early leg weakness have been identified as significant predictors of lower limb spasticity at 12 months post-stroke. 22
Clinical study outcomes suggest that the highest incidence of pain appears within the first 6 months post-stroke, although it may initially occur as early as 1 week or at up to 16 months. 3 One analysis reports that a majority of patients with shoulder pain at 4 months continued to report pain at 16 months. 23 Post-stroke pain and spasticity are often observed as interlinked predictors of each other, with increases in pain associated with spasticity, and vice versa.
Spasticity in stroke is a substantial burden on patients, who often experience reductions in both their ability to perform daily living activities (active function), personal care tasks (passive function) and in health-related quality of life,17,24 and for carers, who exhibit poorer physical and emotional health compared with the general population. 17 Furthermore, access to specialist spasticity services is often limited or non-existent, with patients waiting over 6 months for services and a majority discharged from secondary care without recommended therapy. 1 Early identification and treatment of at-risk patients will increase their quality of care and help improve function, increase independence and avoid long-term complications.1,12,25
Intervention
Intervention goal categories. 9
Rehabilitation is essential in facilitating patient recovery post-stroke (including management of spasticity), with the potential to make significant improvements in both activity and participation. Such improvements reduce the burden on patients, family and society, while also making significant long-term cost savings. 2 However, decisions on rehabilitation requirements, including type, intensity and location, are usually made by multidisciplinary teams who must also manage resource pressures and the availability of community support and rehabilitation facilities. 2 Stroke patients with spasticity usually require long-lasting care and interventions but frequently report that outpatient and community treatment is limited, reflecting a significant perceived unmet need in health and social care provision. 24
Current treatment options for spasticity may include physical treatments such as long-duration stretch (such as limb casting or splinting to prevent the consequences of spasticity), positioning, exercise and pharmaceutical intervention including oral spasticity medication and focal treatments. Traditionally, spasticity has been managed in a sequential fashion. 12 However, most clinicians in the United Kingdom currently adhere to recommendations from the Royal College of Physicians (RCP), applying a more systematic and tailored approach to reducing spasticity and combining physical treatments supported by pharmacotherapy. 30
Oral spasticity medications generally have evidence for benefit, but individual response to treatment can be variable and is associated with systemic side effects. 12 Regional treatments, such as intrathecal baclofen, have demonstrated efficacy in appropriately selected cases. A recent study in stroke patients with severe spasticity (Ashworth score ≥3 in ≥2 affected lower extremity muscle groups) demonstrated that intrathecal baclofen provided statistically significant treatment effects in pain and patient quality of life compared with oral antispastic therapy. 31 Focal spasticity has demonstrated significant benefits following intramuscular injections of botulinum toxin therapy.30,32-34
The lack of high-quality research into pharmacological interventions to treat spasticity following stroke was clearly highlighted in a recent Cochrane review. 35 With the exception of botulinum toxin injections, there was insufficient high-quality evidence to make conclusions about the effect of pharmacological interventions on post-stroke spasticity. Also, evidence suggests there is a significantly increased risk of adverse effects in patients receiving antispasmodics when compared with placebo, and particular care should be taken to monitor patients receiving such regimens. 35
The ASPIRE (Adult Spasticity International Registry) study is a prospective, international observational study of spasticity patients treated with focal botulinum toxin injections. 33 An interim, 1-year follow-up analysis suggests that 85% of patients (n = 731) and 93% of clinicians expressed extreme satisfaction/satisfaction that botulinum toxin injections was beneficial for relieving spasticity. Patients (91%) and physicians (98%) indicated they would definitely/probably continue botulinum toxin treatment for spasticity. 36 Botulinum toxin injections have been associated with weakness, extremity pain, injection site reactions, localised pain, irritation and haemorrhage. 37 Recent meta-analyses of stroke patients with spasticity suggest the frequency of adverse events is not significantly different to that observed with placebo.38,39
A recent literature review of botulinum toxin in combination with other treatment modalities suggests that extracorporeal shock wave therapy (single sonic pulses characterised by high peak pressure [100 MPa], fast pressure rise [< 10 ns] and short duration [10 ms]) provides improved post-injection outcomes compared with electrical stimulation, including spasticity and pain; electrical stimulation of injected muscles may boost the efficacy of botulinum toxin, although the most appropriate stimulation protocol has yet to be defined. 40
Both adhesive taping and casting may improve the effect of botulinum toxin on limb spasticity, with casting providing better outcomes for spasticity, range of motion and gait. However, there is little current consensus over appropriate timing, duration, target or appropriate casting material. 40
Guidelines
Implementing current evidence and guidance provides scope for improvements in both post-stroke management and secondary prevention. 24 The RCP Stroke guidelines state that the whole stroke pathway should be incorporated when commissioning organisations generate a care portfolio. 41 The whole stroke pathway includes hyperacute and acute care, secondary prevention and community or long-term rehabilitation. Stroke rehabilitation services should provide an inpatient stroke unit that delivers rehabilitation for all admitted stroke patients, specialist-supported early discharge for at-home or tertiary care rehabilitation and a service capable of delivering specialist rehabilitation in outpatient and community settings. 41
Nonetheless, despite the availability of clinical guidelines directing post-stroke management and rehabilitation,30,42-44 the patient journey does not always match such national recommendations. Access to specialist services is limited: the National UK stroke audit showed that only 34% of post-acute stroke services offer specialist spasticity management. 45 Over half of patients enrolled in the ASPIRE-S (Action on Secondary Prevention Interventions and Rehabilitation in Stroke) study experienced a delay in care before receiving community rehabilitation, with some waiting over 6 months for services; almost 60% did not receive the therapy recommended at discharge. The complex nature of stroke care results in patients having contact with many different services, providers and healthcare professionals at varying stages of stroke recovery and rehabilitation. 1 Early identification and treatment of patients at risk of developing spasticity should improve physical function and increase independence while also increasing their quality of care.1,12 With regular assessments, patients benefit from earlier treatment and avoid long-term complications; this is especially pertinent for the most impaired patients and those with reduced access to specialist care. 25
When stroke and rehabilitation services are not adequately resourced, patient transition between services and care providers is hampered, presenting a significant challenge to professionals, patients and their families/carers. 1
Early assessment and management of post-stroke spasticity are critical for avoiding long-term complications. The SALGOT study, examining post-stroke upper limb spasticity, concluded that reduced sensorimotor function was the most important predictor for both spasticity and severe spasticity at 12 months post-stroke and that spasticity could be predicted with high sensitivity at 10 days post-stroke. 25
Clinical experience suggests that implementation of recommended standard care varies widely across centres and services. To elucidate best care in spasticity management and rehabilitation, a panel of expert specialists met on several occasions in an Advisory Board capacity and subsequently created a consensus for recommended clinical practice.
Consensus Recommendations
Screening and Identification
The Expert Consensus panel agreed that identification of spasticity and its predictors and lack of subsequent referral to rehabilitation or specialist spasticity services are key issues, especially in stroke teams. It has been demonstrated that many post-stroke complications are either preventable or may be potentially ameliorated with treatment. While it may be argued (although with ongoing debate in this area) that stroke recovery attains a plateau after a certain time, long-term and late therapy can increase the functional status of patients. Thus, a coordinated and long-term management approach to post-stroke complications may provide benefits to some patients. 24
Acute stroke teams may not commonly focus on spasticity signs or management. As such, post-stroke patients with symptoms of spasticity such as muscle stiffness are often managed by physiotherapists in the post-acute setting. There is usually a delay between identification of spasticity by physiotherapy clinicians and the process of obtaining an accompanying sign-off for spasticity referral.
Before any intervention is undertaken to manage spasticity, it is important to assess its impact and severity. 26 A number of grading scales have been used to quantify spasticity as a positive feature of upper motor neurone impairment, including the MAS and modified Tardieu scale (MTS). The MAS has acknowledged limitations in its measurement properties, particularly reliability and validity, but is used widely as it is relatively easy and quick to complete. 46
Other measures of spasticity are used widely, such as flexor muscle stretch velocity, 47 resistance to passive movement,48,49 range of movement 50 and reflex threshold and measurement by electromyography (EMG).51,52 However, reliability and agreement between clinical scales varies widely by assessment and assessor, 53 and there are often limitations in their utility within the realities of clinical practice.
A recent observational cohort study of stroke patients suggested that severe functional impairment (as suggested by high NIHSS, MRS and low MMSE, BMRC and BI scores) was associated with a high risk of developing PSS. Although many studies recommended a variety of clinical predictors for PSS, as yet there is no confirmation over which offer the most accurate prediction. 15
The MTS considers both the range of motion measured during slow passive stretch (R2) and the angle of muscle reaction during fast passive stretch (R1); large and small differences between R2 and R1 indicate spasticity and muscle contracture, respectively. The MTS can be time-consuming to complete, but has tested, more robust validity, although possesses some similar challenges to MAS regarding reliability.54,55
It is also important to recognise that not every ‘tight’ muscle is spastic or may lead to spasticity or cause problems with activity or care even when spasticity is present. A clinically detectable increase in resistance to passive stretch may be due to spasticity, rigidity, muscle stiffness or a fixed muscle contracture.
26
The Arm activity measure (ArmA) and Leg activity measure (LegA) have been developed for this purpose.56-60 ArmA and LegA help identify when spasticity is impacting on care (passive function), activity performance (active function) and, for the leg using the LegA, spasticity-related quality of life. They are patient- or carer-reported and quick to complete in busy clinical environments. Both measures were systematically developed with users and clinical experts and have undergone rigorous psychometric testing with robust validity and reliability outcomes.
Earlier assessment and prediction of post-stroke spasticity requires early identification of at-risk patients by healthcare professionals involved in the care of stroke patients. 61 Patients with post-stroke complications tend to reside in secondary care for longer, presenting a significant opportunity for rehabilitation. Unfortunately, referral rates from both sub-acute care and rehabilitation services are generally low due to a paucity of understanding, low prioritisation of post-stroke spasticity and limitations in service provision. Understanding the predictive factors for spasticity is beneficial for patients requiring clinical intervention and is associated with improved long-term outcomes. 62

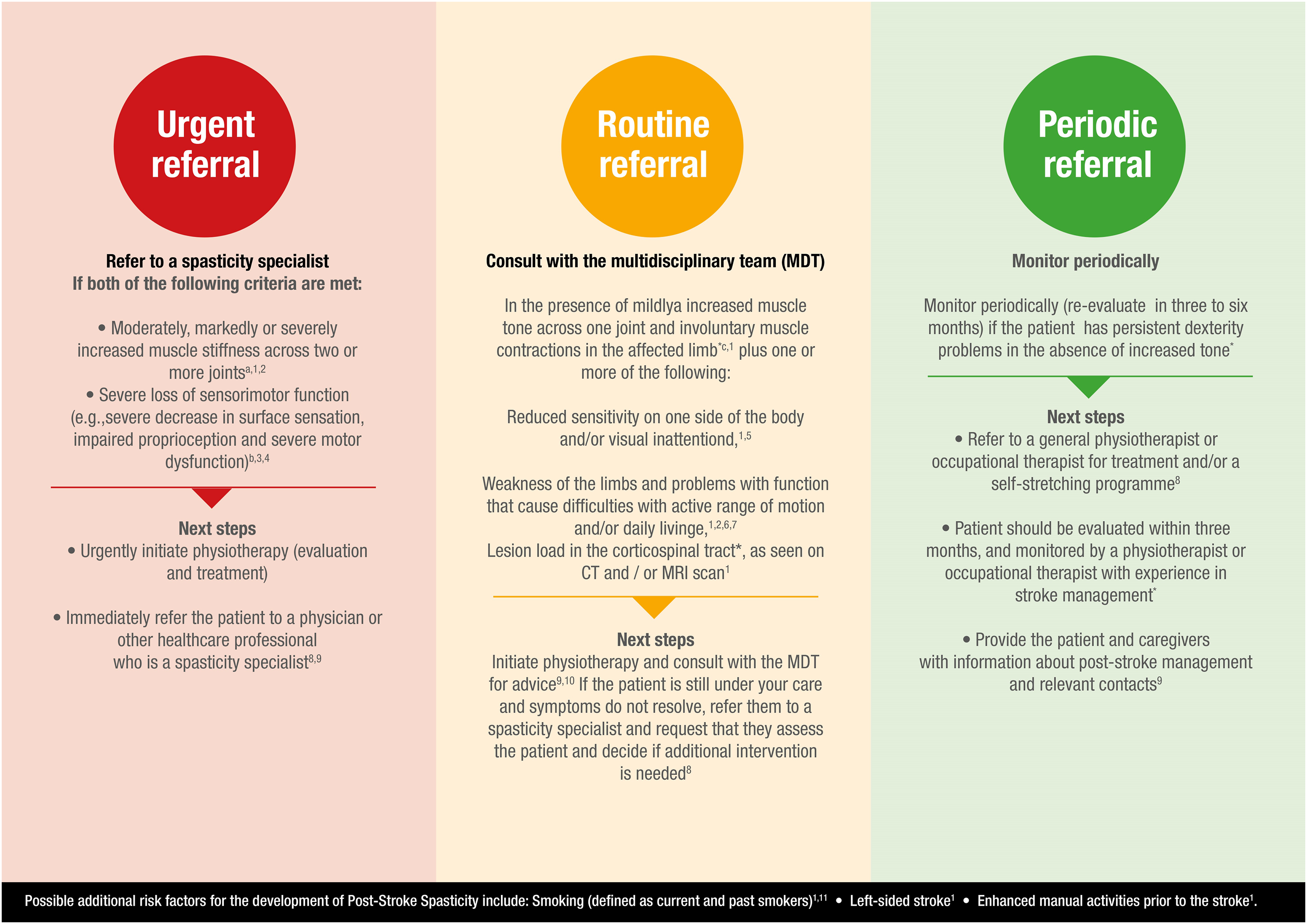

A system to aid this has been developed, categorising individuals into 3 levels of risk. These levels of risk are termed ‘traffic light’ categories and are graded low, medium and high risk (Figure 1).
63
Post-stroke spasticity risk classification system.
63
∗ Based on the clinical expertise of Dr Rhoda Allison, Dr Ganesh Bavikatte, Professor Philippe Marque, Associate Professor Barry Rawicki, Dr Maria Matilde de Mello Sposito, Dr Paul Winston and Professor Jörg Wissel. (a) Mildly increased muscle stiffness is a Modified Ashworth Scale (MAS) 1 or +1, while moderately is MAS 2, markedly is MAS 3 and severe is MAS 4∗ (cf Bohannon RW, et al 1987 for more information).
46
(b) Measured using the Fugl-Meyer Upper Extremity Scale
37
(cf Fugl-Meyer AR, et al 1975 for more information).
73
(c) Muscle contractions may occur due to spasms, disturbed reciprocal inhibition or spastic dystonia and should be differentiated from contractures. (d) Visual inattention includes hemianopsia, scotoma or visual neglect. (e) Can be measured with the Barthel Index (low score) and EQ-5D (low score).
61
Low risk patients should be monitored periodically if they have persistent dexterity problems in the absence of increased tone and re-evaluated after 3–6 months.
Medium risk patients present with moderately increased muscle stiffness at 1–14 days post-stroke (MAS score ≥ 146), left-sided weakness or paresis, involuntary muscle contractions, reduced sensitivity on one side of the body at 1–5 days post-stroke, left-sided visual inattention or extensive lesions in various areas, as seen on CT and/or MRI scan.61,64-68 Younger age at time of a stroke may also be considered a medium risk factor for spasticity development. 25 Medium risk patients should be referred to the multidisciplinary team for assessment. If the symptoms do not resolve or are not possible to manage, they should be referred to a spasticity specialist to determine whether intervention is required. 34
Patients at high risk of spasticity present with weakness, especially of the upper limb; problems with dexterity that cause difficulties with daily living, particularly issues with finger dexterity; markedly increased muscle stiffness in 1 joint (MAS score ≥ 246) or moderately increased muscle stiffness in ≥2 joints at 4–12 weeks post-stroke or reduced sensorimotor function at 3 days, 10 days and 4 weeks post-stroke.25,61 High risk patients with muscle stiffness should be directly referred to a spasticity specialist and immediately assessed for physiotherapy assessment.
For the purposes of the traffic light model, low or ‘green’ risk patients have a lower-ranked association with spasticity development but may still be at some risk – they are not at a reduced risk of spasticity compared with patients without risk factors. A patient’s risk level is determined by their highest ranked risk factor.
WSO post-stroke checklist.
69
The missing 12th point from the WSO checklist is the impact of stroke on carers and family. Healthcare professionals should ensure carers have access to services that will help them provide the support required for the patient. 69
Both patient and carer well-being are interdependent, with patient anxiety, depressive symptoms, cognitive impairment and quality of life being significant predictors of carer anxiety and depressive symptoms at 6 months post-stroke. Thus, early interventions, including increased training and support programmes that involve patient carers, may lower the risk or impact of negative quality of life components. 70
Referral and Treatment
Early recognition of risk factors and immediate action is critical for spasticity identification and treatment. The traffic light classification system is a straightforward tool to prioritise patients at an increased risk of developing spasticity (Figure 1). 63 A patient’s risk level is determined by the highest ranked risk factor, which should then determine the next steps for referral. The traffic light risk classification comprises recommendations from clinical evidence and expertise and recent clinical guidelines.
Low risk, ‘green’ patients should receive information about post-stroke spasticity, including symptoms that may develop; inclusion of relatives and carers in consultations often proves valuable. They should be provided with contact information in case development of spasticity is suspected 71 and potentially be referred to a community physiotherapist for appropriate training.34,71
Medium risk, ‘amber’ patients should be referred for a spasticity specialist consultation, ensuring the patient receives a follow-up appointment once a year with a specialist rehabilitation service. 34 Provision of once-monthly treatment with a community physiotherapist is the target for clinical care, 34 although this is rarely, if ever, achieved. Thus, patient or carer self-referral and identification may be a more pragmatic approach.
High risk, ‘red’ patients should be referred for prompt evaluation by a spasticity assessor or a rehabilitation centre specialising in spasticity.
71
The rehabilitation centre should have access to a multidisciplinary team and all available first-line treatments.34,71
In practical terms, the traffic light classification system is suggested for use in both primary and secondary care by clinicians and physiotherapists. It is proposed for identifying spasticity risk in patients who have experienced a stroke, ideally within 12 weeks post-stroke, and should be used at regular follow-up visits.
Considerations
Spasticity is a physiological consequence of neurological injury, potentially causing profound disability in combination with other features of an upper motor neurone syndrome and significantly affecting the process of rehabilitation. Spasticity is often associated with restrictions in activity and care. 26
Optimum management is dependent on an awareness of the natural history of spasticity, an appreciation of the impact on patients and a comprehensive approach to minimise that impact. 26
Local commissioning organisations should ensure that the whole stroke pathway is delineated. A joined-up approach to the pathway is recommended to ensure continuity of patient care, which incorporates management of spasticity. Early identification of spasticity predictors is essential within the acute post-stroke care setting to enable early rehabilitation, supported discharge and secondary prevention referrals. Nonetheless, even when patients are identified and managed early, spasticity requires long-term community-based care and review, for both the patient and carer.
Patients will encounter various healthcare professionals during their care and rehabilitation, with varying levels of expertise and understanding of the needs of spasticity. Thus, we consider that a standardised method of assessing spasticity is highly desirable, ensuring a consistent level of assessment, referral and follow-up. Currently, spasticity management and continuity of care has little clinical ownership, lending to a general lack of accountability for any delay in action or treatment.
Management of patients with post-stroke spasticity is more effective when performed in a multidisciplinary setting, especially when there is clear communication and education between patients, carers and healthcare providers. It should be highlighted that spasticity responds well to treatment, dependent on the form and therapy applied.
Oral antispasmodic medications such as baclofen, tizanidine and dantrolene provide a systemic effect for generalised spasticity. They are most useful for more widespread spasticity of modest severity, but maximal efficacy may be limited by sedation, muscle weakness or liver toxicity. 30 Regional spasticity responds well to intrathecal medication, while focal spasticity has demonstrated benefits following intramuscular injections of botulinum toxin therapy. 32
Conclusions
In conclusion, early prediction of post-stroke spasticity will prioritise at-risk patients for assessment and management. Early identification and treatment should be embedded in clinical routines. The proposed traffic light system for identifying patients at an increased risk of spasticity will enable early and consistent management while offering simple and straightforward criteria for referral to specialist spasticity services.
