Contemporary Management of Clinically Non-functioning Pituitary Adenomas: A Clinical Review

Abstract

Non-functioning pituitary adenomas (NFPAs) are benign pituitary tumours that constitute about one-third of all pituitary adenomas. They typically present with symptoms of mass effects resulting in hypopituitarism, visual symptoms, or headache. Most NFPAs are macroadenomas (>1 cm in diameter) at diagnosis that can occasionally grow quite large and invade the cavernous sinus causing acute nerve compression and some patients may develop acute haemorrhage due to pituitary apoplexy. The progression from benign to malignant pituitary tumours is not fully understood; however, genetic and epigenetic abnormalities may be involved. Non-functioning pituitary carcinoma is extremely rare accounting for only 0.1% to 0.5 % of all pituitary tumours and presents with cerebrospinal, meningeal, or distant metastasis along with the absence of features of hormonal hypersecretion. Pituitary surgery through trans-sphenoidal approach has been the treatment of choice for symptomatic NFPAs; however, total resection of large macroadenomas is not always possible. Recurrence of tumours is frequent and occurs in 51.5% during 10 years of follow-up and negatively affects the overall prognosis. Adjuvant radiotherapy can decrease and prevent tumour growth but at the cost of significant side effects. The presence of somatostatin receptor types 2 and 3 (SSTR3 and SSTR2) and D2-specific dopaminergic receptors (D2R) within NFPAs has opened a new perspective of medical treatment for such tumours. The effect of dopamine agonist from pooled results on patients with NFPAs has emerged as a very promising treatment modality as it has resulted in reduction of tumour size in 30% of patients and stabilization of the disease in about 58%. Despite the lack of long-term studies on the mortality, the available limited evidence indicates that patients with NFPA have higher standardized mortality ratios (SMR) than the general population, with women particularly having higher SMR than men. Older age at diagnosis and higher doses of glucocorticoid replacement therapy are the only known predictors for increased mortality.

Introduction

Non-functioning pituitary adenomas (NFPAs) are benign pituitary tumours that arise from the adenohypophyseal cells, accounting for one-third of all pituitary adenomas. ¹ Widespread use of computed tomography (CT) and magnetic resonance imaging (MRI) for various clinical disorders has led to a surge in pituitary lesions being diagnosed incidentally, so-called pituitary incidentalomas. ² The clinical presentation of NFPAs varies from an incidental finding to life-threatening apoplexy. Non-functioning pituitary adenomas are diagnosed in the absence of clinical and biochemical evidence of tumour-related hormone hypersecretion. ³ Typically, patients with NFPAs present with symptoms of mass effect more often than insidiously developing pituitary dysfunction.^4-8 Central diabetes insipidus (CDI) at the time of diagnosis is rare and should alert the physician to consider other diagnoses such as craniopharyngioma and hypophysitis which are more likely to have CDI at the presentation. ⁹ Non-functioning pituitary adenomas are classified according to their size as micro or macroadenomas. Surgery, radiotherapy (RT), pharmacological therapy, or careful monitoring is among the management options available at present.^10,11 This article presents a review on the literature on the epidemiology, diagnosis, treatment, and follow-up of NFPAs.

Epidemiology

Pituitary adenomas are common brain lesions that are being diagnosed with increasing frequency. Based on radiologic and autopsy studies, the prevalence of pituitary adenomas in the general population is estimated to be around 15%. ¹² In fact, pituitary adenomas are the third most common central nervous system neoplasms following meningiomas and gliomas.^13,14 Non-functioning pituitary adenomas represent around one-third of all pituitary adenomas and three quarters of all pituitary macroadenomas. NFPAs are the second most common type of pituitary adenomas after prolactinoma, ¹ with an estimated prevalence of 7 to 41.3 cases and standardized incidence rate of 0.65 to 2.34 cases per 100 000 population, respectively, in most of the epidemiological studies.^15-17 Non-functioning pituitary adenomas are commonly diagnosed after the fourth decade of life with women presenting at an earlier age compared with men. ¹⁶ Data regarding sex distributions are discordant.^9,16,18

Most of pituitary adenomas arise sporadically ¹⁹ but might also occur as part of hereditary endocrine syndromes. Among patients with multiple endocrine neoplasia type-1 (MEN 1), NFPAs constituted around 14.7% and 42.3% of all patients with pituitary adenomas, respectively, in 2 different studies.^20,21 In a large retrospective multicentre study of 138 cases of familial isolated pituitary adenomas (FIPAs), 28 cases were NFPAs, representing almost a fifth of patients with FIPAs. ²² Interestingly, a 30-year-old man with NFPA was diagnosed in the setting of germ-line SDHA mutation. ²³ Compared with the sporadic types, familial NFPAs were diagnosed at an average of 8 years earlier and were more invasive. ²²

Clinical Presentations

The clinical presentation of NFPAs varies across a spectrum spanning from asymptomatic patients at one end to life-threatening pituitary apoplexy at the other end. Diagnosis is usually incidental and often delayed by 1.96 ± 2.9 years due to the lack of hormonal over secretion features. ⁴ Patients typically present with symptoms of mass effect such as headache, visual loss, ophthalmoplegias, or those related to hypopituitarism. ¹ Irrespective of the pituitary adenoma size, headache is common and is one of the most frequent reasons to perform imaging studies that has led to the detection of incidental NFPAs in around one-fifth of the cases.^24,25 Increased intrasellar pressure, dural membrane stretching, and trigeminal pain pathways activation are among the proposed mechanisms of headache. ²⁶ Visual field defects are features of mass effect, caused by compression of optic chiasma by the tumour. The typical visual defect is bitemporal hemianopia but different patterns of visual field loss are seen with different sites of compression ranging from complete to partial and unilateral to bilateral. Chronic severe compression may lead to papilledema, optic atrophy, decreased visual acuity, and pupillary abnormalities which may be of insidious onset. Cavernous sinus invasion due to parasellar extension affects cranial nerves and may result in ophthalmoplegia, ptosis, diplopia, or strabismus. Most commonly affected cranial nerves are occulomotor followed by abducens, whereas trochlear or trigeminal nerve involvement is less common. Invasion of brain parenchyma, dural membranes, and other surrounding structures may cause temporal lobe epilepsy, intracranial hypertension, and obstructive hydrocephalus, ²⁷ whereas inferior extension of the tumour may cause erosion of sellar floor leading to cerebrospinal fluid (CSF) rhinorrhoea. ²⁸ Pituitary apoplexy complicating NFPA is a life-threatening clinical event resulting from acute haemorrhagic or an ischaemic event. ²⁹ Typically, patients present acutely with sudden severe headache, vomiting, and visual impairment with or without altered level of consciousness. ³⁰ Acute hormonal insufficiency is common, in particular, central adrenal insufficiency, which may occur in up to 70% of the patients. ³¹ Non-functioning pituitary adenomas are the most common type of pre-existing adenomas in which apoplexy occurs and accounts for approximately 45% to 82% of the cases of apoplexy.^32-34 It is possible that NFPAs are overrepresented in the pituitary apoplexy cohorts as functionality of the tumour is not evident at the time of evaluation due to the damage caused by pituitary apoplexy. ³⁰ While the pathophysiology of pituitary apoplexy is not completely understood, intrinsic factors with mismatch between tumour perfusion and metabolism and its blood supply could influence the occurrence of apoplexy. ³⁵ Surgery, RT, dynamic pituitary stimulation tests, dopamine agonist (DA) therapy, coagulopathy, and use of anticoagulation agents are recognized precipitating factors. ²⁹ However, most of the patients (around 75%) might present with apoplexy without any precipitating factors. ³⁶ Male sex, macroadenomas, and cavernous sinus invasion are observed more often in patients with pituitary apoplexy.^37,38 Patients may have spontaneous resolution of the adenoma following apoplexy. ²⁹ However, long-term follow-up is essential as some patients may develop regrowth of the tumour, especially those with residual tumour or in the absence of RT. ³⁹ Among hormonal dysfunctions caused by NFPAs, mild hyperprolactinaemia is commonly encountered due to stalk effect as the growing mass blocks dopamine inhibition of lactotrophs but it rarely exceeds 95 ng/mL. ⁴⁰ Hypopituitarism develops insidiously and often goes undetected. Partial hypopituitarism develops in around 37% to 85% of the NFPA cases,^4-6 whereas panhypopituitarism is reported in around 6% to 29% of the cases.^7,8 Growth hormone (GH) axis is the most commonly affected one, with 61% to 100% of the patients showing biochemical evidence of GH deficiency. Gonadal axis is affected in 36% to 96% of the patients; central hypothyroidism is seen in 8% to 81% of the cases, whereas central adrenal insufficiency is observed in around 17% to 62%.^41-44 Although most of the NFPAs are macroadenomas at diagnosis, CDI is rarely seen. ⁹ The presence of CDI should alert the physician to consider other sellar pathologies such as craniopharyngiomas, hypophysitis, or malignancy. Gonadal axis is affected in 30%, central hypothyroidism occurs in 28%, adrenal insufficiency occurs in 18%, whereas GH axis is affected in 8% of the patients.^45-47 Partial hypopituitarism is seen even with microadenomas as well, with 30% to 42% of the patients having at least one axis affected. ⁴⁸

Diagnosis and Evaluation

Pituitary adenomas are classified by their size as either macroadenomas (⩾ 10 mm) or microadenomas (<10 mm) in diameter. Magnetic resonance imaging is the gold standard modality of investigation for the evaluation of sellar and parasellar masses and its differential diagnosis. It is noteworthy that other lesions can be found in sellar area and may mimic a pituitary adenoma. In the case of erosion of the sella, CT scan is necessary to assess the bony anatomy of the sella. Patients with macroadenomas and those with symptoms of mass effects need careful eye and visual field examinations. The Congress of Neurological Surgeons has published guidelines for preoperative eye evaluation which may provide prognostic factors for recovery as well as helping in documenting postoperative changes. Older patients and those with visual loss for more than 4 months have less chances of postoperative visual recovery and they need to be counselled appropriately. ⁴⁹

NFPA is a diagnosis of exclusion. Therefore, it is of paramount important to exclude hormonal hypersecretion before labelling a pituitary mass as an NFPA (basic investigations included 8 am serum cortisol, IGF1, T4, thyroid-stimulating hormone). Full laboratory evaluation for both hormonal hypersecretion and hyposecretion for all patients with pituitary incidentaloma or NFPA is shown in Table 1. It is especially important to exclude prolactinoma beyond any degree of doubt as it is the only pituitary tumour that can be managed medically. Accordingly, prolactin measurement should be made in dilution when values are not as high as expected in a patient with a large pituitary macroadenoma, in which the case the serum prolactin levels should be re-measured after a 1:100 serum sample dilution to exclude the possibility of falsely low value due to the high dose hook effect (before providing a label of NFPA). ⁵¹

Table 1.

Evaluation of pituitary function in intrasellar masses.

Measurements: Serum IGF1, cortisol (09:00 am), prolactin, FSH/LH, oestradiol (females)/testosterone (males), TSH, and FT4

Check for hormone hypersecretion: • If IGF1 is elevated, further evaluation for GH excess • Screening for glucocorticoid excess (overnight dexamethasone suppression test, 24-hour urinary free cortisol, midnight salivary cortisol) may be considered, regardless of clinical suspicion

Check for hypopituitarism: • In case of suspected GH deficiency, GH stimulation testing is recommended. Biochemical testing for GHD can be avoided in patients with clear-cut features of GHD and 3 other documented pituitary hormone deficits. Insulin tolerance test/GHRH + arginine/glucagon tests may be performed. • Adrenal insufficiency (AI) is indicated by a basal cortisol level < 3 μg/dL and a cortisol level > 15 μg/dL likely excludes an (AI) diagnosis. One of the following dynamic tests (ACTH stimulation test/ITT/low dose ACTH stimulation test) may be performed to check for central adrenal insufficiency. Peak cortisol levels less than 18.1 μg/dL (500 nmol/L) at 30 or 60 minutes indicates adrenal insufficiency.

Additional appropriate screening and follow-up investigations are needed in patients with personal or family history of multiple endocrine neoplasia.

Source: Freda et al ² and Lloyd et al. ⁵⁰

Abbreviations: ACTH, adrenocorticotropic hormone; FSH, follicle-stimulating hormone; GH, growth hormone; GHD, growth hormone deficiency; LH, luteinizing hormone; TSH, thyroid-stimulating hormone.

Furthermore, laboratory findings can indicate high prolactin levels in the absence of typical symptoms of hyperprolactinaemia. Therefore, it is important to assess for the presence of macroprolactin to avoid clinical confusion and inappropriate management. ⁵²

Physiological and pathological causes of hyperprolactinaemia and their implications for interpreting prolactin results should not be confused with true tumorous hyperprolactinaemia.

Workup for familial subtypes such as FIPA with germ-line aryl hydrocarbon receptor interacting protein mutations should be considered with the occurrence of large pituitary adenomas at a younger age, in patients who lack clinical evidence of MEN1 syndrome or Carney complex. ⁵³

Pathogenesis

Most of pituitary adenomas are sporadic. ¹⁹ The pathological mechanisms involved in adenohypophyseal cell tumorigenesis include activation of oncogene, inactivation of tumour suppressor gene, epigenetic changes, and deregulation of microRNAs. ⁵⁴ It is estimated that 80% of pituitary adenomas demonstrate alterations in at least one cell cycle regulator. ⁵⁵ Mammalian sterile-20-like kinase (MST4), which has been shown to be upregulated in NFPAs of gonadotroph origin, stimulates p38, AKT, and HIF1, which are known tumorigenic factors in pituitary adenomas. ⁵⁶ Non-functioning/silent somatotroph adenomas lack sporadic mutations of the GNAS gene coding for the Gsα protein occurring in around 40% of functioning somatotroph adenomas. ⁵⁷ While the ubiquitin-specific protease 8 (USP8) was known to be frequently mutated in functioning corticotroph adenomas, nonetheless this has not been the case with not in non-functioning/silent corticotroph adenomas. ⁵⁸ Germ-line mutations are rare in NFPAs and mutations in the succinate dehydrogenase genes (SDHx) cause a group of syndromes in which NFPAs can occur. ⁵⁹

Histopathological Classification

The principles of the classification and grading of NFPAs are outlined in the recently published fourth edition of the World Health Organization (WHO) classification of endocrine tumours which established a more precise and cell lineage–specific system.^50,60 This novel approach is based on the expression of anterior pituitary (adenohypophyseal) hormones and pituitary-specific transcription factors. ⁵⁰ Another change in the latest WHO classification is the elimination of the term ‘atypical adenoma’ and introduction of ‘high-risk pituitary adenomas’ including tumours with specific histological subtypes, elevated cellular proliferation assessed by mitotic rate, and Ki-67 labelling index and evidence of invasive growth evaluated by imaging and/or histology ⁶⁰ (Table 2).

Table 2.

Classification of non-functioning pituitary adenomas, transcription factor, hormonal content, and tumour behaviour.

Tumour type	Transcription factor	Hormone	Behaviour
Gonadotroph	SF1	β-LH, β-FSH, α-SU	—
Corticotroph	T-Pit	ACTH	High-risk
Somatotroph	Pit-1	GH	High-risk
Lactotroph	Pit-1	PRL	—
Pleurihormonal	Pit-1	GH, PRL, TSH, α-SU	High-risk
Double/Triple NFPA	Variable	Variable	—
Null-cell	None	None	—

Abbreviations: ACTH, adrenocorticotropic hormone; PRL, prolactin; TSH, thyroid-stimulating hormone.

Management

Treatment options available for NFPAs include observation, surgery, RT, and medical therapy.^10,11 Non-functioning pituitary adenomas can be complex and should be discussed in a multidisciplinary team (MDT) ideally in specialized centres with extensive experience in the management of pituitary adenomas. The most appropriate option needs to be considered rationally for each patient on individual basis (Table 3).

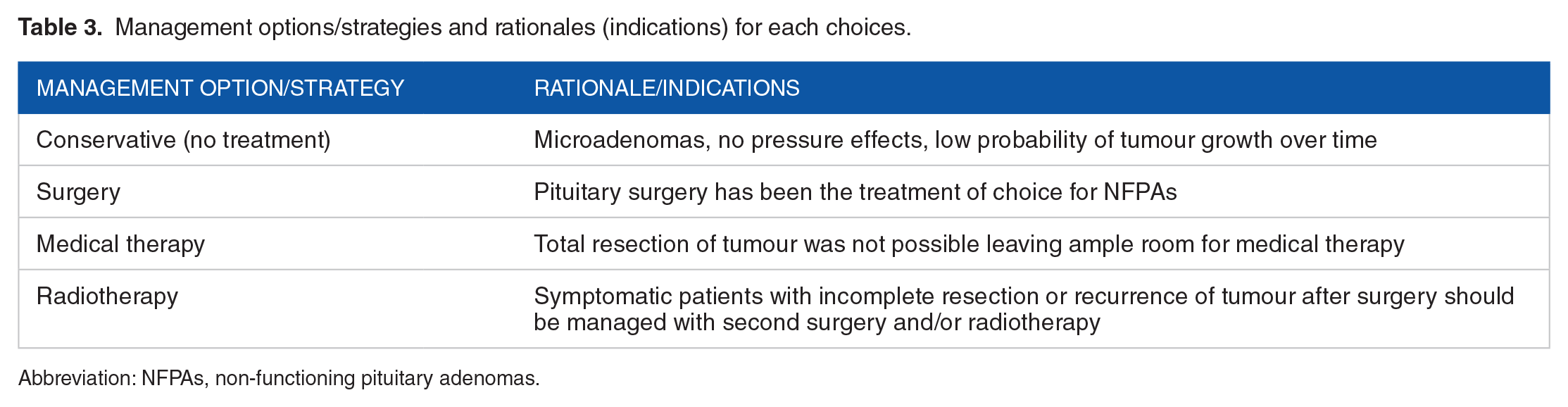

Table 3.

Management options/strategies and rationales (indications) for each choices.

Management option/Strategy	Rationale/Indications
Conservative (no treatment)	Microadenomas, no pressure effects, low probability of tumour growth over time
Surgery	Pituitary surgery has been the treatment of choice for NFPAs
Medical therapy	Total resection of tumour was not possible leaving ample room for medical therapy
Radiotherapy	Symptomatic patients with incomplete resection or recurrence of tumour after surgery should be managed with second surgery and/or radiotherapy

Abbreviation: NFPAs, non-functioning pituitary adenomas.

Observation

As NFPAs are diagnosed in symptomatic as well as asymptomatic patients, the probability of tumour growth over time is the main rationale for watchful monitoring; therefore, understanding the natural history of the tumour is important because it gives insight into which tumour can be observed over time. In a review of 14 observational series including 648 patients with NFPAs, 65% had macroadenomas and 35% had microadenomas.^18,45,61,62 Tumour size enlargement on MRI during follow-up over 1 to 8 years was related to initial tumour size (96 out of 419 patients with macroadenomas, 96 [23%] had increase in tumour size, while 272 patients [65%] had stable tumour in size and 51 patients [12%] showed decrease in tumour size). Whereas out of the 229 patients with microadenomas, 23 (10%) had an increase in tumour size, 189 (83%) had no change and 17(7%) showed reduction in tumour size^18,45-47,63. Solid tumours showed greater growth tendency than cystic tumours. Seven out of the 8 cases of pituitary apoplexy occurred in macroadenomas group, whereas only 1 case was reported in a microadenoma. New pituitary hormone deficiency occurred at a rate of 2.8 per 100 patient-years and was detected exclusively in enlarging macroadenomas. ¹¹ Enormous variability was reported in the rate of tumour enlargement as tumour size doubling duration ranged from 0.8 to 27.2 years. No correlation was seen between tumour size doubling and initial tumour size. ⁶³ Of prospective randomized controlled studies, the observational approach, and its recommendations are based on expert opinions.

Surgery

The main goal in managing NFPAs is to decompress the mass effect caused by the enlarging adenoma making surgery the first choice of treatment, however, preserving the normal pituitary gland is a very important outcome as well. Although gross tumour resection is a goal, the benefits of complete resection must be balanced with the risks associated with aggressive surgical approach. Even when surgery is not curative, it leads to considerable debulking and volume reduction in nearly all patients. ⁶⁴ Generally, indications to operate include symptomatic patients presenting with visual loss, neurological deficits, and hormonal deficiencies and in lately presenting p cases an obstructive hydrocephalus. In asymptomatic patients, surgery will be considered if signs of impending visual loss are visible anatomically. In acute pituitary apoplexy, specific indications of surgery in pituitary apoplexy have changed in the current practice such as unlikley previously indicated, surgical intervention is not recommended in all cases, but only in those patients with visual deficits and a deteriorating level of consciousness.^65,66

Preservation of normal pituitary function could be achieved intra-operatively by careful extra-capsular dissection of tumours from normal pituitary gland and surrounding dura matter with minimal manipulation of the gland, thus avoiding damage to neurovascular structures. Many considerations are taken intra-operatively as well to minimize the likelihood of CSF leak including CSF diversion methods and dura closure using autologous fat or fascia lata graft placement. ⁶⁷

For many years, microscopic trans-sphenoidal surgery (TSS) has been the standard of care. However, with the recent on-going advances in endoscopic visualization, endoscopic technology has been considered a major alternative.

Limited illumination and smaller field of vision are minor disadvantages of the microscopic approach, whereas better illumination and visualization with a panoramic view with endoscopic approach yet at the cost of two-dimensional images instead of three-dimensional; the latter approach allows a better extent of resection and bony exposure by endoscopic approach in the theory. ⁶⁸ Nonetheless both approaches are equally safe and effective regarding outcomes and extent of resection. Moreover, a personalized approach based on multiple factors is crucial in determining the optimal treatment strategy. ⁶⁹

In all surgical approaches, tumour size and cavernous sinus invasion were found to be the factors adversely impacting the rate of gross total resection. Transcranial approach is less frequently used such as when the trans-sphenoidal approach is not appropriate; however, in selected case with an important suprasellar extension, transcranial surgery becomes mandatory. ⁷⁰ A combined transcranial and trans-sphenoidal approach is recommended in selected patients.^71,72

Penn et al have recently reviewed the outcomes of surgical management and reported improvement in vision in 56.4% to 90.0% of the patients presenting initially with visual fields and acuity deficits, whereas headache improved in around 89.7% of the patients. ⁶⁵ Although studies specific to NFPAs are limited, recovery of hypopituitarism has been reported in 16% to 48% of the patients with all types of adenomas. Interestingly, Alfio et al reported the surgical outcomes of PAs in the elderly patients, who have been considered at a higher risk compared with younger counterparts, found no statistical differences in surgical outcomes compared with younger patients, demonstrating that TSS is a safe and effective treatment option for PAs in elderly patients. Furthermore, they found no difference in visual outcomes after surgery in older patients. ⁷⁴

The probability of tumour recurrence during 5 years of follow-up was directly affected by the extent of the tumour resection as patients with subtotal tumour resection showed radiological and symptomatic progression in 61% and 17%, respectively, compared with patients with complete resection of tumour where only 12% had tumour recurrence. ⁶⁵ Loss of vision, hypopituitarism, CDI, and rarely injury to carotid vasculature were the commonest complications with overall rate of 9.1% as reported by Penn et al. Persistent postoperative CSF leak can lead to meningitis, pneumocephalus, and intracranial bleedings. Epistaxis, crusting, and septal perforations are some other complications. ⁶² Recurrence of tumours after surgery is an issue and there might be a need to manage symptomatic patients with a second surgery and/or RT. ⁷⁵

Medical Treatment

Unfortunately, total resection of tumour is not always possible leaving ample room for medical therapy (Table 4) and RT (Table 5). Residual as well as recurrent tumours are frequent and this affects the overall prognosis. During 5 and 10 years of follow-up, the recurrence rates reported are as high as 24.4% and 51.5%, respectively. ¹⁰⁶ Adjuvant RT can decrease and prevent tumour growth but at the cost of significant side effects. ¹⁰⁷

Table 4.

Drugs and classes of medical agents used for NFPAs.

Classes of medications	References
Dopamine agonists (DA)	62, 76-80
Somatostatin receptor ligands (SRLs)	81-85
Combination treatment with SRLs plus DAs	85
Temozolomide (TMZ)	86-89
Peptide receptor radionuclide therapy (PRRT)	86, 90-93
Gonadotrophin-releasing hormone (GnRH) receptor agonists and antagonists	62
Octreotide-mediated tumour-targeted cytotoxic drug delivery	94, 95
Folate receptor-mediated drug targeting	32, 96-98
Targeting of PI3K/AKT/mTOR pathway	99, 100-104

Table 5.

Summary of the clinical indications and radiotherapy techniques in the context NFPAs.

Indications for radiotherapy for NFPAs	Contemporary techniques for radiotherapy
1. Residual or recurrent disease postsurgery or postmedical treatment	1. Three-dimensional conformal radiotherapy (3DCRT)
	2. Intensity-modulated radiotherapy (IMRT)
2. Patient declined or not eligible for surgery or medical treatment	3. Volumetric-modulated arc therapy (VMAT)
	4. Stereotactic radiosurgery (SRS) or stereotactic radiotherapy (SRT)
	5. Fractionated stereotactic radiotherapy (FSRT)

Source: Minniti et al. ¹⁰⁵

Abbreviation: NFPA, non-functioning pituitary adenoma.

The demonstration of somatostatin receptor types 2 and 3 (SSTR3 and SSTR2) and D2-specific dopaminergic receptors (D2R) within NFPAs has opened a new perspective of medical treatment for such tumours.^76,108 Several case reports and small prospective studies using agents that modulate these receptors have been published. Although large placebo-controlled clinical trials are lacking, these studies have shown the efficacy of medications indicated for functional pituitary tumours in NFPAs as well after incomplete resection.

Dopamine agonists

The role of DA arises from the fact that irrespective of their cell lineage of origin, most of pituitary adenomas express dopamine receptors and over the past 3 decades, several studies have documented the presence and functionality of dopamine receptors in NFPAs. ⁷⁶ Bromocriptine and quinagolide were the agents of choice in earlier studies. However, cabergoline, the more potent and specific D2R agonist, has been used in recent studies. The outcome of a small study using bromocriptine with mean follow-up of 40 months showed tumour control achieved in about 78.8% of patients, in comparison with 33.3% in the untreated patients. Of note, control rate reached 90% when DA was initiated before evidence of enlargement of remnant tumour in comparison with 61.5% if DA treatment was initiated later in the course of the disease. ⁷⁷

The clinical experience with DA use in NFPAs was analysed by Colao et al ⁶² where the cumulative evidence for tumour size reduction in patients treated with DA was reported in 27.6% of cases and the rate of tumour stabilization was reported in more than 90% of the cases, whereas the tumour regrowth was only seen in 8.5% of the patients. In another larger study, 55 patients received cabergoline as preventive therapy for tumour regrowth, whereas 24 patients were given cabergoline only when tumour regrowth was evident and this study showed that preventive therapy was effective in tumour control in 87.3% of patients compared with 46.7% in the control group. ⁷⁸ Factors associated with poor response to treatment were male sex, younger age, and large preoperative tumour size. ⁷⁹ However, we cannot predict at this point which NFPA will respond to therapy based on analysis of D2R expression in the surgical specimen. ⁸⁰

Based on the available data, DAs could be used in patients with NFPAs for prevention of regrowth of postoperative residual tumour which subsequently can reduce the requirement of a second surgery or RT. However, further research in this area is needed to confirm their effectiveness.

Somatostatin receptor ligands

Anti-proliferative and anti-secretory effects of somatostatin are mediated by binding to 5 different subtypes of somatostatin receptors (SSTR). They are broadly expressed on NFPAs, particularly SSTR3 being the most abundant subtype, followed by SSTR2. ⁸¹ For this reason, somatostatin receptor ligands (SRLs), such as octreotide and lanreotide, have been studied and used over the past 3 decades for treatment of patient with NFPAs. Octreotide LAR showed stability of postsurgical tumour remnant in 81% of patients with NFPA while having limited effect on tumour shrinkage and without any effect on visual field deficits or pituitary functions. ⁸² Another study on patients with NFPA not cured by surgery reported an improvement of visual field defects with use of high-dose octreotide (1200 μg/daily) for 3 to 6 months in 3 out of 4 patients without any significant change in tumour remnant volume. ⁸³ Similar data were obtained from another study which showed 50% improvement of visual field defects in the absence of change in tumour volume after 1 month of subcutaneous octreotide treatment. ⁸⁴ Findings from a longer follow-up study with up to 12 months’ octreotide therapy in patients with NFPAs described a significant increase in tumour volume in only 2 out of 9 patients (22%). ⁸⁵ Pasireotide has not been studied so far in patients with NFPA. Therefore, it should not be used till further studies are done to explore its safety and efficacy. In summary, SRL therapy has limited effect on tumour shrinkage in NFPAs; nonetheless, it has the potential effect in stabilizing and preventing tumour remnant regrowth in most of the patients, but long-term studies are needed to assess its place in the management algorithm of patients with NFPA.

Combination treatment with SRLs plus DAs

Colao et al ⁸⁵ reported remarkable decrease of residual tumour volume and improvement in mean defects at visual perimetry among 10 patients, who previously had unsuccessful pituitary surgery, when they were treated with combination of lanreotide plus cabergoline for 6 months. However, clinical experience is very limited. At present, the use of such combination therapy is not evidence based due to paucity of data and studies. Therefore, further studies are needed to confirm the role of combination treatment in patients with NFPAs.

Temozolomide

Temozolomide (TMZ) is an oral alkylating agent which has been used mainly in the treatment of glioblastoma multiforme but also for the treatment of pituitary carcinoma and aggressive pituitary adenomas since 2006. ⁸⁶ The effectiveness of TMZ in aggressive pituitary adenomas and pituitary carcinomas is about 55% and 58%, respectively. ⁸⁷ Recently, data on the efficacy of TMZ have been reported in about 100 patients with pituitary adenomas and the response in NFPAs was 22% (6/27) with a further 48% (13/27) reported to have stable disease, but it has to be noted that the response rate was somewhat lower for NFPA as compared with other secreting pituitary adenomas with higher rate of recurrence after TMZ treatment in the range of 50%.^88,89

Temozolomide remains an important treatment option for aggressive and recurrent pituitary adenomas and carcinomas, but large-scale studies are needed to determine the effectiveness, proper doses, and duration of treatment.

Peptide receptor radionuclide therapy

Peptide receptor radionuclide therapy with radio-labelled somatostatin analogues represents an alternative therapeutic option by which focused and precise therapy is given by specifically targeting tumours that express these receptors and is used routinely for metastatic neuroendocrine tumours of gut. ⁸⁶ However, the clinical experience with this modality in pituitary adenomas is limited to few case reports.^90-93

Gonadotrophin-releasing hormone receptor agonists and antagonists

The clinical experience with gonadotrophin-releasing hormone (GnRH) analogues’ uses in NFPAs was analysed by Colao et al ⁶² where no beneficial effects on tumour volume as well as on visual field defects have been reported.

Octreotide-mediated tumour-targeted cytotoxic drug delivery

A recent method of targeted anticancer drug delivery is by coupling potent chemotherapeutic agents with SSTR2-preferential somatostatin analogues. This allows drug delivery at receptor specific sites, reduces systemic side effects, and increases their anti-tumour efficacy. Doxorubicin, methotrexate, and paclitaxel are being used in this way. ⁹⁴ Although effective in vitro, their clinical use is limited due to hydrolysis of the delicate ester bond linking cytotoxic drug to the SRL, in vivo. Using a cleavable disulfide-intercalating linker, a doxorubicin-octreotide bioconjugate has been developed and was found to suppress adrenocorticotropic hormone (ACTH) secretion in AtT20 mouse pituitary cells. Cytotoxicity to pituitary, pancreatic, and breast cancer cell lines was also reported. ⁹⁵ Although being apparently promising, further studies are needed to establish the clinical value of this modality of treatment for patient with cancer and with aggressive pituitary tumours.

Folate receptor–mediated drug targeting

Exploration of FRα-targeted therapeutic approaches has led to emergence of FRα-specific monoclonal antibodies and conjugates of folic acid with anticancer agents, which are in early stages of clinical trials for lung and ovarian cancer. FRα overexpression is seen in NFPAs, both at the messenger RNA (mRNA) and protein levels but not in normal pituitary tissue or secretory pituitary adenomas. ⁹⁶ Invasive and large tumours with high Ki-67 proliferation index have shown much higher expression. ⁹⁷ In primary cell cultures derived from patients with NFPA, anti-proliferative, anti-invasive, and pro-apoptotic activity shown by FRα-targeted liposomal doxorubicin was encouraging and is of potential value in management of aggressive pituitary tumours. ³² Detection of FRα-expressing NFPA with 99mTc-Folate SPECT-CT helps in identifying tumours amenable to FRα-targeted therapy as demanded by the concept of personalized/precision cancer therapy which requires selection of patients for a specific targeted therapy based on molecular characterization of the tumour and its microenvironment. ⁹⁸

Targeting of PI3K/AKT/mTOR pathway

Non-functioning pituitary adenomas have high AKT and cyclin D1 mRNA expression levels compared with other pituitary adenomas and this is associated with early recurrence.^99,100,109 Positive correlation has been seen between tumour size and invasiveness and expression level of RAPTOR and RICTOR, which are regulatory proteins of the mTOR pathway. Thus, inhibition of PI3K signalling came naturally as a valuable therapeutic target for pituitary tumours and NFPA. ¹⁰¹ Significant reduction in cell viability along with enhanced apoptosis in NFPA primary culture is reported with everolimus. ¹⁰⁰ In patients with NFPA, anti-proliferative effects were reported with NVP-BEZ235, a dual inhibitor of PI3K-AKT-mTOR, ¹⁰² and in cells resistant to rapamycin monotherapy, decreased protein kinase B (AKT) phosphorylation by octreotide combination regimen restored sensitivity and enhanced the anti-proliferative effect in rapamycin-sensitive cells. ¹⁰³ Despite all this optimism, the results of everolimus-octreotide combination therapy were discouraging in ACTH-secreting pituitary carcinoma, ¹⁰⁴ and its role in management of NFPA needs further research.

Radiotherapy

Routine use of RT postoperatively is no longer indicated in the management of NFPAs and should only be considered if there is cavernous sinus involvement not amenable to surgical excision and/or if significant postoperative residual tumour is present. ⁷⁵ As per the Congress of Neurological surgeon guidelines, symptomatic patients with incomplete resection or recurrence of tumour after surgery should be managed with a second surgery and/or RT. ⁷⁵ Despite good efficacy, RT had limited use in past due to potential risk of long-term radiation adverse effects such as radiation-induced hypopituitarism and neurological damages. Recent advancement in imaging technologies, software systems, and radiation dose delivery has markedly improved the overall outcome. ¹¹⁰ Clinical contexts and techniques for RT in the context of NFPAs are summarized in Table 5. Treatment outcomes are similar among all the techniques listed in Table 5. However, exposure of healthy tissue around the pituitary gland to RT and duration of treatment may be different, which may impact on treatment-related side effects and patient convenience. Three-dimensional conformal radiotherapy requires simpler treatment planning, whereas intensity-modulated radiotherapy (Figure 1), volumetric-modulated arc therapy, and stereotactic radiosurgery/stereotactic radiotherapy (SRS/SRT) need relatively advanced treatment planning. Linear accelerator unit is the most commonly used way to deliver the above-mentioned RT techniques. Other treatment units used are as follows: TomoTherapy, CyberKnife, Gamma Knife, Proton, and other charged particles. Cone beam CT, megavoltage voltage CT, and orthogonal films are often used to verify the position of patient during treatment. ¹⁰⁵

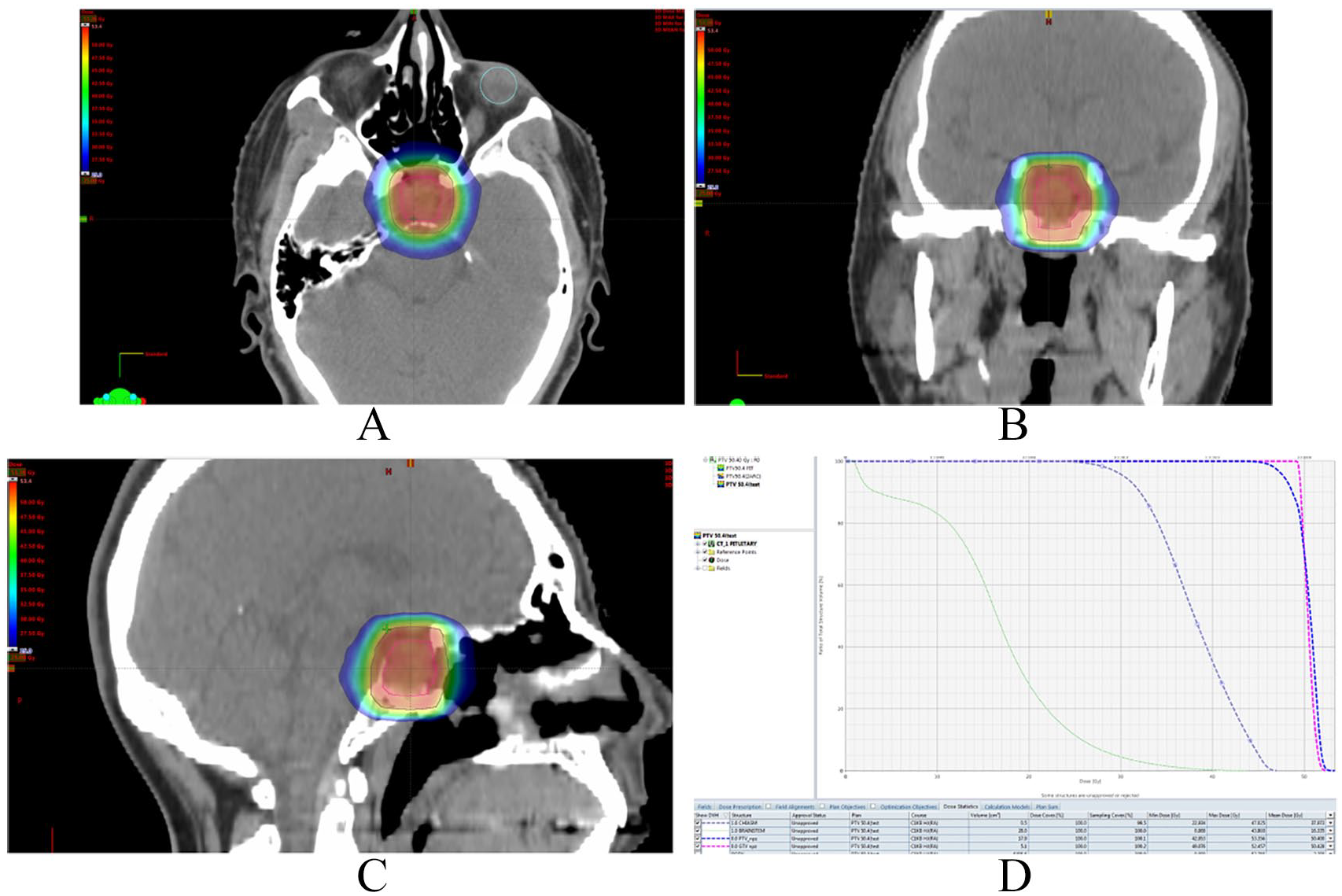

Figure 1.

Pituitary adenoma IMRT planning pictures: (A) axial image, (B) coronal image, (C) sagittal image, (D) dose volume histogram (DVH) showing dose received per volume by targets and organs at risk.

RT doses

Standard dose fractionations commonly use doses between 45 and 55 Gy, in 1.8 to 2.0 Gy daily fractions. Thus, 25 to 28 fractions are required to deliver the full dose which is completed over 5 to 6 weeks with 5 daily fractions per week. Sometimes, twice daily fraction sizes of 1.2 Gy with 6 hours apart are used to deliver total dose of 55.2 Gy. The SRS/SRT dose fractionations use a single fraction of 12 to 20 Gy. Alternatively, 25 Gy can be delivered in 5 daily sessions. Caution should be used for lesions >2.5 to 3 cm in size and/or involving the anterior optic pathways. Fractionated stereotactic radiotherapy dose fractionations are 25 to 28 daily fractions of 1.8 to 2.0 Gy with a total dose of 45 to 50 Gy. ¹¹¹

Conventional RT

Minniti et al ¹⁰⁵ reviewed and analysed efficacy of conventional RT in NFPAs from 13 large series, where 10- and 20-year’s tumour control rates were 80% to 90% and 75% to 90%, respectively. Hypopituitarism was the most common long-term complication occurring in around 20% to 30% cases at 5 years and the rate increases with time. Risk of optic pathway and cranial nerve injury were reported in 1% to 5% cases.^112,113 Regarding the risk of secondary brain tumours, cumulative risk was found to be 2.0% and 2.4% at 10 and 20 years, respectively. ¹⁰⁵ Higher incidence of cognitive decline and cerebrovascular disease has been observed but the role and contribution of radiation is not clear so far.^114,115

Stereotactic Radiosurgery

Results from several large retrospective series on SRS for NFPAs had revealed tumour control of 90% to 95% at 5 years as analysed by Minniti et al. Tumour shrinkage was observed in 20% to 60% of the cases along with improvement in ocular motility and visual functions in around 25% patients. The most commonly used technique was Gamma Knife. ¹⁰³ A margin dose of 12 to 20 Gy was found to be as effective as a dose more than 20 Gy; however, a dose less than 12 Gy was found to be associated with worse outcomes. Larger tumour volume, suprasellar extension, and low radiation doses were associated with poor tumour control outcomes. ¹¹⁶ Hypopituitarism again is the most common long-term side effect observed with figures of 10% to 40% at 5 years. ¹⁰⁵ Visual disturbances and cranial nerve dysfunctions were seen in 1% to 4% of the patients, whereas radiation-induced necrosis of the brain and other cranial nerve neuropathies were rarely observed. Compared with conventional RT, the risk of secondary brain tumours has not been precisely determined with SRS. ¹¹⁷ For NFPAs located close to optic pathways, alternative practice is to deliver SRS dose of 18 to 25 Gy over 2 to 5 fractions. A tumour control rate of 98% was reported at 3 years with side effects observed in 5% of the cases. ¹¹⁸

Fractionated stereotactic RT

In a recent review of several large series with fractionated stereotactic radiotherapy (FSRT), Minniti et al reported tumour control rate of 95% at 5 years. Reduction in tumour size was found in 20% to 50% with improvement in visual symptoms in around 30% cases. Hypopituitarism was the most commonly observed complications with new onset pituitary hormone deficiency in 10% to 48% over mean follow-up duration of 30 to 75 months, whereas optic neuropathy occurred in 1% of the patients. Other complications observed with conventional RT were rarely seen with FSRT but larger studies with long-term follow-up are needed before reaching to final conclusion. ¹⁰⁵

Health-Related Quality of Life

Quality of life (QoL) might be affected by a number of factors such as effects of surgery, RT, deficiency of one or multiple pituitary hormones along with various comorbidities. ¹¹⁹ The published data regarding the health-related QoL in patients with NFPAs are diverse and conflicting. Fewer studies have shown that compared with normal population, patients with NFPAs were found to have impaired QoL with significant impairment in mental and physical measures during active disease which remained unchanged even after successful treatment,^120,121 whereas others did not find any significant difference in QoL between patients with NFPAs and control populations.^122,123 Recent advances in the management of NFPAs such as centralization of pituitary surgery to specialized centres, availability of SRS and FSRT, and hormonal replacement therapies for hypopituitarism have improved the treatment outcome in general and have been reflected in QoL outcome studies as well. A recent study from Finland found that the overall QoL was near-normal over a mean follow-up period of more than 7 years, with mean QoL scores for patients with NFPAs that were only marginally lower than controls with lack of statistical significance. The patients with NFPA had significantly poor scores on sexual activity and vision, depression and distress with speech, vitality, usual activities, discomfort, and symptoms, whereas no difference was observed regarding dimensions of hearing, movement, sleeping, eating, excretion, and mental function. Hypopituitarism has been found to be an independent predictor of impaired QoL. Patients on hydrocortisone and testosterone replacement had a higher mean score, whereas those with repeat surgery and on thyroxine replacement had poorer scores. ¹¹⁹ Furthermore, surgical intervention can be an effective way of restoring visual defects as well as improving the QoL to older patients. ⁷⁴ Impairment of body pain, mental health, and general health perception was reported more frequently in patients with NFPAs with GH deficiency compared with GH-sufficient subjects, which improved after optimum replacement with GH. Patients treated with craniotomy reported more impairment in QoL compared with those who underwent TSS. It was also observed that compared with male patients, female patients with NFPAs had more physical and emotional problems, lower energy levels, and poorer health perception. ¹²² Although the health-related QoL in patients with NFPA is improving as shown in recent studies, disease-specific questionnaire is needed to identify more sensitive or specific impairments in this population.

Malignant Transformations

Patients with NFPAs have higher rates of various types of neoplasms, the reason for which remains unknown; the hypothesis of genetic and/or epigenetic predisposition is still being studied. ¹²⁴

Although most of NFPAs are benign, around 45% to 55% are locally invasive and may show aggressive features. ¹⁷ Proliferative markers such as Ki-67, mitotic rate, and p53 immunoreactivity are commonly used for assessment for aggressive behaviour potential; at the same time, higher SSTR3 and low MGMT expression are also associated with more aggressive NFPAs.^125,126 Non-functioning pituitary carcinomas (NFPCs) are very rare entity defined as tumours of adenohypophyseal origin with cerebrospinal, meningeal, or distant metastasis along with the absence of features of hormonal hypersecretion. ¹²⁷ Fortunately, it is very rare and accounts for only 0.1% to 0.5% of all pituitary adenomas.^128,129 To date, approximately 38 cases of NFPC have been reported. ¹³⁰

Ki-67 is the most reliable marker of proliferation with values between 1.3% and 10% and more than 10% being associated with tumour recurrence and malignancy, respectively, whereas values more than 3% are a reliable prognostic marker. Increased p53 immunoreactivity is another proliferation marker; however, the lack of reliable methods of quantification has led to its removal from WHO 2017 classification. Similarly, a mitotic rate more than 2 per 10 high power fields is seen commonly with pituitary carcinoma and is associated with increased recurrence rate.^58,131

The progression from benign to malignant pituitary tumours is not fully understood and largely remains unknown; however, there is general acceptance that it is associated with genetic and epigenetic abnormalities.^127,132 Activation of classical oncogenes such as Ras and mutation of p53 are a common event in other cancer types but are rarely seen in pituitary carcinomas.^127,133 The benign nature of most pituitary tumours, according to Lenders and McCormack, ¹²⁷ is thought to result from oncogene-induced senescence, with upregulation of cell cycle regulator genes such as p53, p21, and p16. Other factors that may play a role in the malignant transformation of benign NFPA include chromosomal instability with chromosomal gains involving 14q, 5p, and 7p. ¹³⁴ Furthermore, increased nuclear expression of pituitary tumour transformation gene (PTTG) has been linked with tumours aggressiveness ¹³⁵ ; upregulation of certain microRNAs has been shown to play a role in NFPCs, with no evidence of overexpression in the primary tumour. ¹³⁶

Non-functioning pituitary carcinomas cannot be reliably differentiated from benign tumours by any clinical, biochemical, or radiological features. ¹²⁸ As reviewed by Lenders et al, ¹²⁷ out of 38 cases of NFPC seen, 23 of them were females with median age at diagnosis being 48 years. Non-functioning pituitary carcinoma usually evolves from aggressive macroadenomas with mean latency period of 6.6 years between primary tumour diagnosis and metastasis and presents initially with features of mass effects ¹²⁸ ; however, 5 cases showed extremely rapid progression where metastasis occurred within 1 month only from the initial presentation. ¹²⁷ Cerebrospinal metastases were commoner than systemic ones with intracranial metastasis being the commonest. ¹³⁷

Mortality

Long-term survival of patients with NFPAs is compromised due to morbidities related to the tumour itself, the selected treatment modality, or its related side effects. ⁵⁸ Although limited data are available, studies do suggest mortality rates higher than general population. A study from Denmark and Sweden population showed a significantly increased mortality rate for women only (standardized mortality ratio [SMR]: 1.97 and 1.37, respectively). ¹³⁸ Furthermore, RT was found to be associated with increased mortality rate (SMR: 1.62) which appears to be secondary to hypopituitarism. ¹³⁹ Higher mortality rate was also reported by another study done in United States on 663 patients. ¹⁴⁰ The SMR of 1.70 was observed by Tomlinson et al where causes of death were respiratory, cardiovascular, and cerebrovascular, and the mortality was again higher in women compared with men (SMR: 2.23; 99% confidence interval [CI]: 1.60-3.11 vs SMR 1.37; 99% CI: 0.98-1.91, P = .006). ¹⁴¹ The prognosis of NFPC is very poor with a median survival of only 8 months, although long-term survivors have been described. ¹⁴²

Conclusions

Clinically, non-functional pituitary adenomas are benign tumours of the pituitary gland that commonly present with symptoms related to mass effect. Although multiple pathological subtypes of NFPAs exist the first-line treatment for symptomatical lesions is surgical after detailed hormonal, ophthalmologic, and radiographic assessment. Surgical resection, most commonly through a transnasal trans-sphenoidal approach, is the preferred treatment option with adjunctive RT used sometimes for symptomatic patients with incompletely resected tumours or those with recurrence of the tumour after surgery. Perioperative care should include neurological evaluation and monitoring for symptoms and signs of diabetes insipidus and syndrome of inappropriate antidiuretic hormone. Although surgical complications can be devastating, surgery can be performed safely with low morbidity and mortality in experienced hands. Therefore, multidisciplinary team approach including endocrinologists, neurosurgeons, and ophthalmologists, is mandatory for the comprehensive management of patients with NFPAs and for long-term follow-up.
