Abstract
Ovarian cancer is the seventh most common gynaecologic malignancy seen in women. Majority of the patients with ovarian cancer are diagnosed at the advanced stage making prognosis poor. The standard management of advanced ovarian cancer includes tumour debulking surgery followed by chemotherapy. Various types of chemotherapeutic regimens have been used to treat advanced ovarian cancer, but the most promising and the currently used standard first-line treatment is carboplatin and paclitaxel. Despite improved clinical response and survival to this combination of chemotherapy, numerous patients either undergo relapse or succumb to the disease as a result of chemotherapy resistance. To understand this phenomenon at a cellular level, various macromolecules such as DNA, messenger RNA and proteins have been developed as biomarkers for chemotherapy response. This review comprehensively summarizes the problem that pertains to chemotherapy resistance in advanced ovarian cancer and provides a good overview of the various biomarkers that have been developed in this field.
Introduction
Malignant transformation of the ovarian surface epithelium causes epithelial ovarian cancer.
1
Ovarian cancer is 1 of the seventh most common cancer affecting women worldwide and accounting for 295 414 new cases and 184 799 deaths annually.
2
The lifetime risk of developing ovarian cancer in a woman is 1 in 75, with her chance of mortality due to the disease being 1 in 100.
3
It occurs in peri-menopausal and post-menopausal women, with 80% to 90% of cases occurring after the age of 40 with the peak incidence of occurring at age of 60.
4
Other risk factors for cancer include family history,
Ovarian cancer is staged according to the FIGO system (
The standard treatment for advanced ovarian cancer is primary cytoreductive surgery followed by platinum-based chemotherapy. 14 The cytoreductive surgery is done to accurately establish a diagnosis, to remove poorly perfused tissue that may harbour the disease and to decrease the tumour bulk to enhance adjuvant chemotherapy.15,16 The amount of residual disease after surgery is inversely related to overall survival (OS); patients with optimum cytoreduction (defined as <1 cm residual disease) having a more superior outcome compared with those with sub-optimal cytoreduction (>1 cm residual disease). 17 The chemotherapeutic strategy for treating advanced ovarian cancer comprises different chemotherapeutic drugs, and different combinations that have been tried to improve clinical response (CR) and OS and decrease toxicity. 18 The chemotherapeutic regimens used to treat advanced ovarian cancer are comprehensively summarized in Table 1 and the important and most pertinent aspects of various combinations have been discussed below.

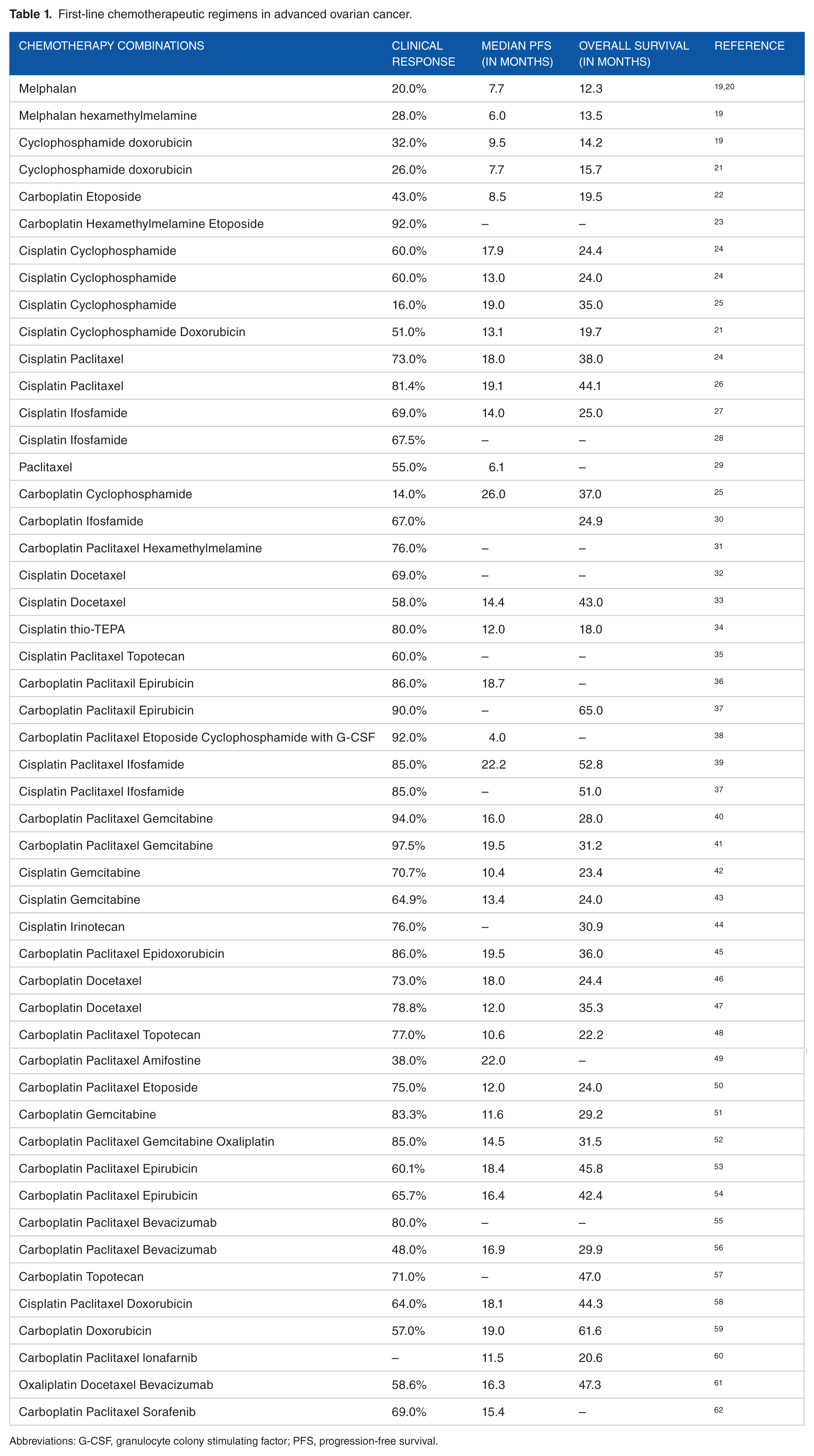

First-line chemotherapeutic regimens in advanced ovarian cancer.
Abbreviations: G-CSF, granulocyte colony stimulating factor; PFS, progression-free survival.
Melphalan as a Single Agent and Its Combinations
During the 1950s, the main therapeutic strategy for treating advanced ovarian cancer was cytoreductive surgery and radiotherapy. An improvement in the treatment was achieved with the use of alkylating agents like melphalan which causes cytotoxicity against tumour cells by alkylating DNA at N7 position of guanine and induces DNA inter-strand cross-linkages, leading to inhibition of replication and transcription. 63 The use of single-agent melphalan benefitted the patients with advanced ovarian cancer. 64 However, the CR was 20%, median progression-free survival (median PFS) was 7.7 months and median OS was 12.3 months, along with toxicity manifestations such as myelosuppression with neutropenia.19,20 The combination of melphalan and hexamethylmelamine produced a CR of 28%, median PFS of 6 months and median OS of 13.5 months as compared with the combination of adriamycin and cyclophosphamide, which produced a slightly improved CR of 32%, median PFS of 9.5 months and median OS of 14.2 months; however, it produced significant hematologic and gastrointestinal toxicity. 19 The use of melphalan is limited as it causes severe myelosuppression. 65
Cyclophosphamide as a Single Agent and Its Combinations
Previous studies have demonstrated the efficacy of other alkylating agents like cyclophosphamide and anthracycline doxorubicin. The
Cisplatin as a Single Agent and Its Combinations
The inclusion of cisplatin in the chemotherapeutic regimen for advanced ovarian cancer proved to be a major landmark. Cisplatin binds to nuclear DNA leading to interference with transcription and/or DNA replication and eventually cell death induced by cell repair machinery. 66 A Cochrane review and meta-analysis confirmed a modest 2- and 5-year survival advantage in women with advanced stage epithelial ovarian cancer who were given platinum-based combination chemotherapy compared with those given combination therapy lacking platinum. 67 The use of cisplatin in combination with thio-TEPA produced an improved CR; however, OS was not good. 34 The combination of cisplatin, cyclophosphamide and doxorubicin showed an increased CR of 51% and median OS of 19.7 months. 21 Chemotherapy combinations containing an alkylating agent and a platinum coordination complex produced a high response rate in women with advanced ovarian cancer. Cisplatin-based combination chemotherapy showed improved CR and progression-free interval (PFS) as compared with alkylating agents alone or combinations without cisplatin. 24 The CR in the cisplatin-cyclophosphamide group was 60% and median OS was of 24.4 months. 24 As long-term disease control in patients with advanced ovarian cancer was not significant, new drug combinations were investigated. The efficacy of cisplatin-ifosfamide combination showed improved CR and OS.27,28 Cisplatin-docetaxel combination produced an improved CR of 69%; however, increasing the docetaxel dose caused significant hematologic toxicity to the patient.32,33 Cisplatin with gemcitabine, a nucleoside antimetabolite, is an active agent in ovarian cancer and produced significantly increased CR.42,43 A similar study reported a 71% CR; however, 63% of patients developed high-grade neutropenia and 28% developed high-grade thrombocytopenia. 68 The combination of cisplatin with irinotecan, an inhibitor of DNA topoisomerase I, showed improved activity in chemotherapy-naive patients with advanced ovarian cancer; however, neutropenia was the dose-limiting adverse effect.44,69
Carboplatin as a Single Agent and Its Combinations
Carboplatin which has good efficacy and less toxicity than cisplatin was introduced in the 1980s as first-line chemotherapeutic agent.66,70 Carboplatin crosses the cell membrane where it is hydrolysed to 1,1-cyclobutanedicarboxylate and therefore gains a positive charge.71,72 The positively charged intermediate interacts with nucleophilic molecules such as DNA or RNA by covalent bond formation with the N7 site of purine bases leading to formation of platinum adducts (Figure 1).73,74 Carboplatin is less toxic than cisplatin as the former forms an intermediate 1,1-cyclobutanedicarboxylate which is a poorer leaving group as compared with chloride, which leads to low reactivity rate and there is therefore less adduct formation. 75 The clearance of cisplatin occurs majorly by host tissues; however, for carboplatin, it occurs by renal function, therefore targeted area-under-the-curve (AUC) dosing based on estimated renal clearance improved safety and tolerability of carboplatin. 76 Carboplatin and etoposide, which showed significant synergistic activity in animal models of ovarian cancer, had a relatively low CR of only 43% along with increased toxicity rate. 22 Combination of carboplatin, hexamethylmelamine and etoposide produced a very high CR of 92%; however, the study was on a very small sample size. 23 Carboplatin and cyclophosphamide combination proved to be effective in optimally debulked advanced ovarian cancer patients; however, the combination did not significantly prevent tumour progression in a majority of patients. 25 A combination of carboplatin and ifosfamide too has showed improved CR. 30 Carboplatin and docetaxel produced an improved CR of 73%; however, it has substantial myelotoxicity. 46 Gemcitabine, a nucleoside analogue, and carboplatin also showed significant CR. 51 Carboplatin and topotecan, which is a specific topoisomerase I inhibitor that causes single-stranded breaks in DNA during replication, showed a CR of 71%. 57

Mechanism of action of cisplatin. Double stranded DNA is shown in black; Cisplatin is shown as a brown oval; and purine bases are shown as blue coloured lines.
Paclitaxel as a Single Agent and Its Combinations
In the 1990s, paclitaxel was found to be the most effective agent in patients with relapsed platinum-refractory disease.
77
It acts by binding to intracellular β-tubulin, which leads to microtubule stabilization,
Carboplatin and Paclitaxel as a Combination
Carboplatin and paclitaxel have been a standard chemotherapy combination used and the related clinical studies summarizing its efficacy are provided in Table 2. It is seen that the combination therapy of carboplatin-paclitaxel achieves a CR ranging from 50% to 81% and median PFS range of 13.6 to 19.3 months. Numerous trials have established that a combination of paclitaxel and carboplatin is well tolerated in advanced ovarian cancer.
90
A few earlier randomized trials too demonstrated that the combination of cisplatin and paclitaxel was superior to cisplatin and cyclophosphamide in advanced ovarian cancer.
91
Also, trials have showed that carboplatin and paclitaxel was a less toxic and highly effective combination regimen.
92
A study conducted by

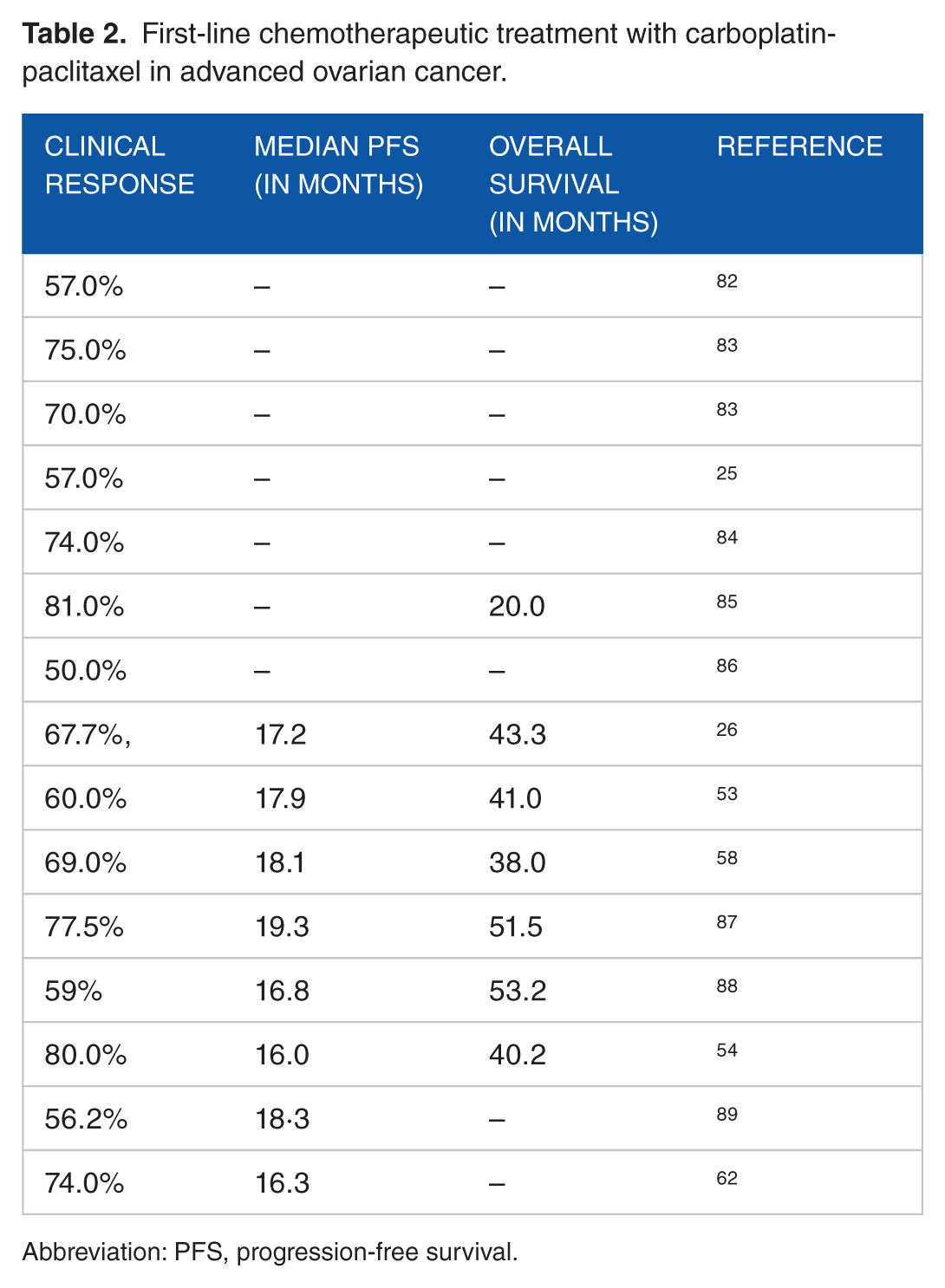

First-line chemotherapeutic treatment with carboplatin-paclitaxel in advanced ovarian cancer.
Abbreviation: PFS, progression-free survival.
Chemotherapy Resistance in Advanced Ovarian Cancer
First-line chemotherapy with carboplatin and paclitaxel achieves an improved CR; however, recurrence occurs in 25% of patients with early stage disease and more than 80% of patients with advanced disease. 97 A majority of advanced ovarian cancer patients experience disease relapse within 2 years of the initial treatment of combination chemotherapy. 98 The heterogeneity of tumour cells leads to molecular variations in signalling pathways including oncogene activation, tumour suppressor inactivation and various pro-survival genetic mutations. 99 Therefore, chemo-resistance to standard chemotherapy regimen has emerged as a major challenge. 100 Whereas the current therapeutic regimens are fixed linear protocols, cancer biology is a highly dynamic system. Adapting a therapeutic strategy using systems biology approach based on temporal and spatial variations in tumour is a futuristic goal in oncology. 101 Other studies including poly (ADP-ribose) polymerase inhibitors and anti-angiogenic agents have shown that trial design with restricted eligibility criteria rather than testing chemotherapeutic agents in unselected populations can lead to improved clinical outcomes in the targeted populations.102–104 Drug resistance is 1 of the most important factors for failure of chemotherapy in advanced ovarian cancer. Chemotherapy resistance is of 2 types: (a) intrinsic chemo-resistance, where the cancer cells are inherently resistant to drug treatment, and (b) acquired chemo-resistance, which can be acquired during the course of treatment. 105 Intrinsic chemo-resistance is caused due to cancer cells possessing several biological modifications including inhibited drugs uptake, increased drug efflux, increased detoxification of chemotherapeutic drugs, inhibition of apoptosis and so on. 106 While acquired chemo-resistance can arise due to genetic and epigenetic alternations that assist the cancer cells to adapt to chemotherapy induced effects such as stress, DNA damage and apoptosis. 106 Therefore, chemo-resistance, which is a multifactorial phenomenon, is being investigated with the view to decipher chemo-resistance mechanisms and develop drugs to overcome it.107,108 However, the major problem is that identification of patients pre-disposed to chemo-resistance is challenging as there are no available tests to guide clinicians to make an informed decision to alter treatment course before chemotherapy.
Biomarkers and Chemotherapy Resistance in Advanced Ovarian Cancer
Despite initial responsiveness to combination chemotherapy of carboplatin and paclitaxel, the occurrence of chemo-resistant tumours is a major hurdle and therefore demands elucidation of its pathogenesis. The delineation of molecular signatures from these tissues has paved the way for biomarker discovery. Biomarkers are biological macromolecules that can be objectively measured and evaluated and indicate the functioning of biological processes and pharmacologic response in the human body. 109 Biomarker discovery has made many strides in the field of medicine and health.110–112 Over the past decade, clinical proteomics has helped in biomarker discovery in the field of advanced ovarian cancer.113,114 An understanding of biomarkers in chemotherapy resistance in advanced ovarian cancer will have the following benefits: (a) to elucidate the molecular mechanisms at a cellular level that dictate drug resistance, (b) design new therapeutic strategies to overcome drug resistance, (c) plan the best chemotherapeutic strategy and improve patient management, (d) help to improve patient compliance and reduce financial expenditure and (e) predict the sensitivity of tumour to chemotherapeutic regimen allowing chemotherapy administration to the patient who would benefit and prevent the toxic effects of chemotherapy to non-responder patients.
Various biomarkers and their mechanism of action that help to understand chemotherapy resistance are summarized in Table 3. Even though chemo-resistance has plagued the CR and survival in advanced ovarian cancer since the beginning of chemotherapy administration, the research investigating predictive biomarkers began much later. It can be observed that much of the research in chemo-resistance biomarker discovery has focussed on transcriptomics and proteomics with very few genomic studies investigating the same.

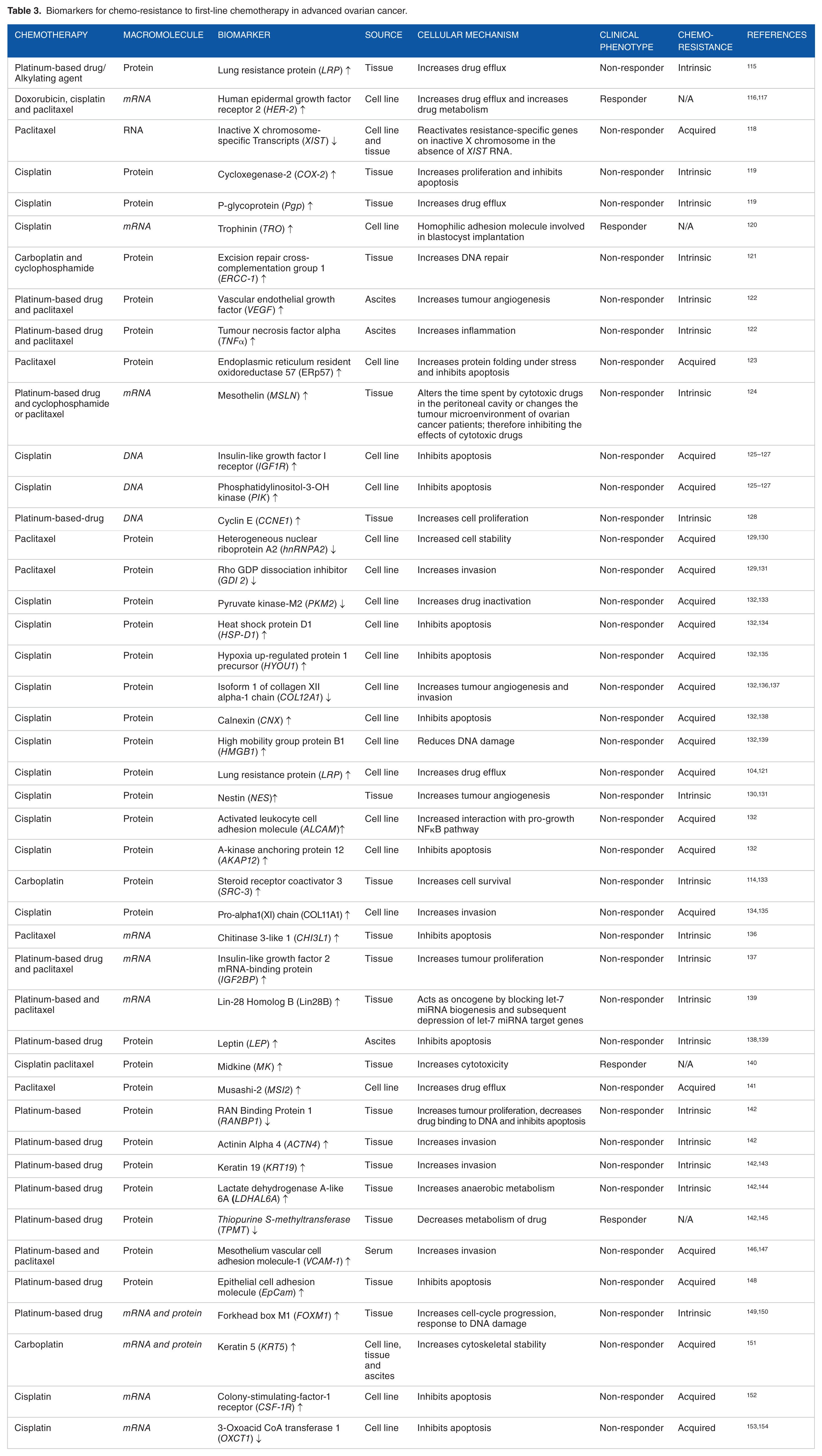

Biomarkers for chemo-resistance to first-line chemotherapy in advanced ovarian cancer.
The field of genomics encompasses the systematic study of the genome of an organism. In advanced ovarian cancer, genomics has been primarily used to reveal chromosomal abnormalities or mutations such as insertions and deletions or abnormal chromosomal numbers in a process.125,128,155,156 Other studies have focused on the study of single nucleotide polymorphisms (SNPs) in deciphering individual response to the chemotherapeutic drugs.157,158 In the past, very few studies have explored the frontier of genomics in the field of biomarker discovery for chemo-resistance in advanced ovarian cancer. The major limitation of genomics approach is that the investigation of mutation and SNPs does not correlate with the level of proteins. For instance, in a previous study 12 genes were identified using DNA microarray technology; however only
Transcriptomics is the study of the complete set of mRNA (messenger RNA) transcripts produced by a tissue or an organism under specific conditions at a particular point in time. Messenger RNA detection and estimation have been widely used in the study of chemo-resistance in advanced ovarian cancer (Table 3). However, many studies have suffered from a major limitation of inaccurate correlation between gene expression and protein expression. Correlation between mRNA and protein level is insufficient to predict protein expression levels from quantitative mRNA data.
159
For some genes with similar mRNA levels, the protein levels may vary by more than 20-fold and conversely, for proteins with similar levels, corresponding mRNA levels may vary by as much as 30-folds.
160
Such discrepancy can be explained by taking into account post-translational events such as alternative splicing, translational regulation and differences in protein
Proteomics is the study of the set of all expressed proteins in a cell, tissue or organism at a specific time under specific conditions. It can be used to characterize the flow of information in biological pathways and their networks to establish functional relevance of proteins. The proteome of a biological entity represents the dynamic relationship between the genes, environment and pathological states. Proteins are the macromolecules that are majorly affected in diseases and participate in the subsequent disease response. It is evident that proteins have the advantage to be used as biomarkers in various clinical states and to assess associated therapeutic response due to the following advantages: (a) genome is largely similar in individuals of the same species, whereas protein expression is specific to a cell type under specific conditions; (b) effect of environment is reflected in proteome more easily than genome which remains stable; (c) protein expression level is result of transcriptional activation, transcript degradation and translation efficiency and (d) proteins are the key downstream effectors and affecters in various cellular functions. Therefore, a majority of the studies have used proteomics to study the phenomenon of chemo-resistance in advanced ovarian cancer.
Post-translational modifications are important determinants of protein functionality and are an important mechanism to increase the diversity of proteome along with regulatory interactions with the various cellular functions. 163 Several studies have investigated the role of post-translational modifications as potential biomarkers in cancer. 164 Some post-translational modifications also play a role in chemo-response mechanisms in ovarian cancer and is summarized in Table 4. These modifications have an effect on cytoskeletal integrity, protein folding, metabolic function and apoptotic activity of tumour cells that in turn determines the response of ovarian cancer cells to the chemotherapeutic drug.

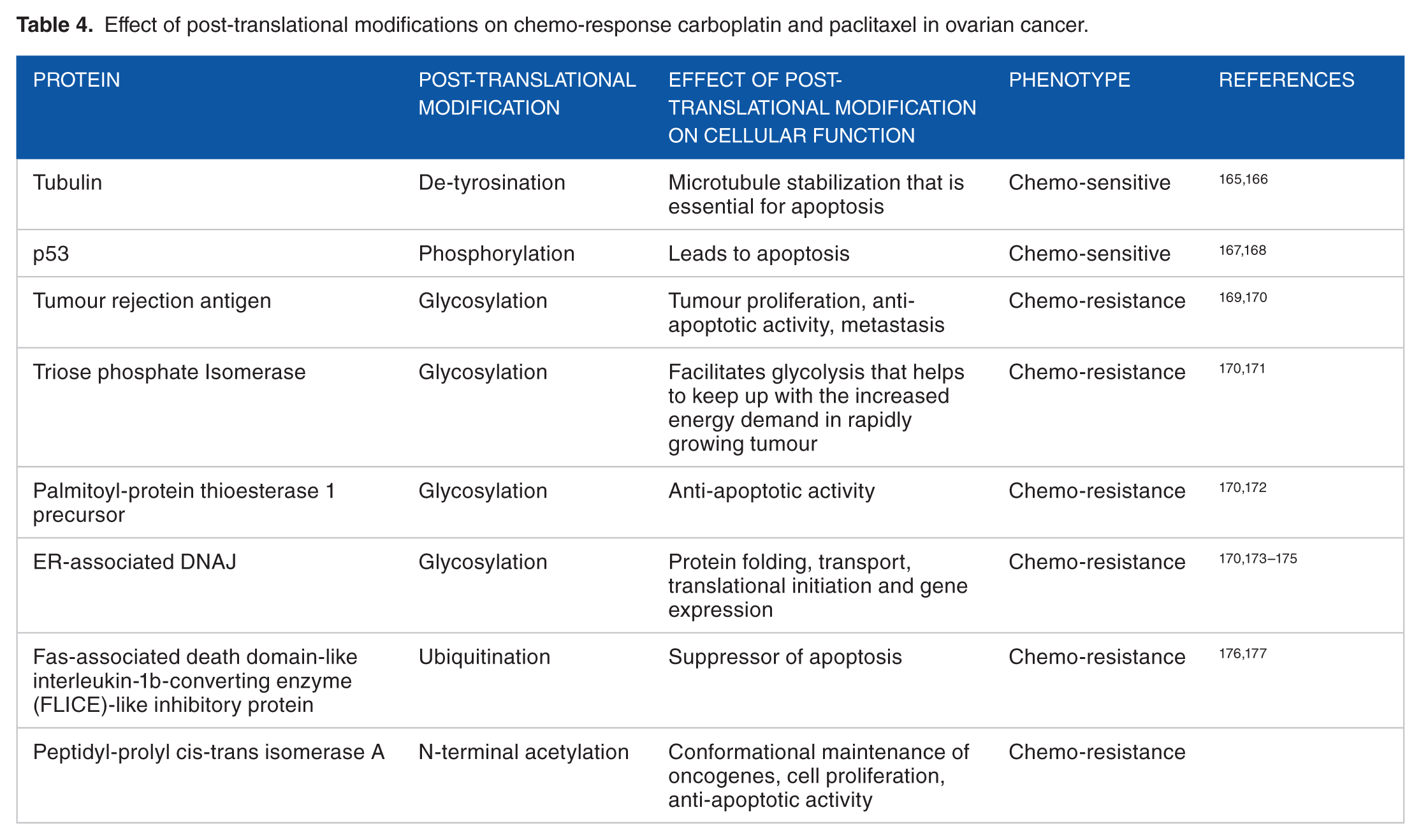

Effect of post-translational modifications on chemo-response carboplatin and paclitaxel in ovarian cancer.
Biomarkers and Their Biological Functions
The identified genes, mRNA or proteins are involved in various biological functions such as cell cycle and checkpoint proteins, protein folding, chaperones, DNA repair proteins, cytoskeletal proteins, metabolic enzymes, transcriptional activators, drug-efflux pumps, and cellular redox protein and regulators of the apoptotic pathway as can be seen in Table 3.
The different mechanisms that cause chemo-resistance are explained. (a) Apoptosis is 1 of the main mechanisms employed by the cells to evade drug-induced cytotoxicity and subsequently manifest as chemo-resistance. PI3K/AKT and ERK1/2 pathway are at the centre stage of mediating anti-apoptotic activity in chemo-resistance. Various proteins interact with this pathway to prevent cell death such as increased expression of insulin-like growth factor I receptor (IGF1R), phosphatidylinositol-3-OH kinase (PIK), A-kinase anchoring protein 12 (AKAP12), chitinase 3-like 1 (CHI3L1), leptin (LEP), epithelial cell adhesion molecule (EpCam) and colony-stimulating-factor-1 receptor (CSF1R) that causes evasion of apoptosis as a downstream effect of PI3K/AKT and ERK1/2 pathway activation.125,126,127,143,147 Other proteins like cyclooxygenase-2 are known to increase production of prostaglandin E2 which is involved in resistance to apoptosis.
119
Proteins like endoplasmic reticulum resident oxidoreductase 57 (ERp57) show class III β-tubulin (TUBB3) mediated anti-apoptotic activity.
123
(b) Drug efflux from the cells plays an important role in the response of tumour cells to chemotherapy. Some of the interesting mechanisms include HER2 mediated increase in activity of drug-efflux pumps including the adenosine triphosphate (ATP)–binding cassette, sub-family B, member 1 (ABCB1) and ABCC3.
14
Other mechanisms include increased activity of drug-transporters like lung resistance protein and ATP-driven P-glycoprotein (Pgp).115,119,132 (c) Cell adhesion and tumour invasion pose a challenge to the efficacy of chemotherapeutic drugs. For example, down-regulation of isoform 1 of collagen XII alpha-1 chain (COL12A1) causes extracellular matrix remoulding and tumour migration.
132
Other cytoskeletal modulations include actinin alpha-4 (ACTN4) up-regulation that enhances cell motility by bundling the actin cytoskeleton causing metastasis.
153
Other proteins like mesothelium vascular cell adhesion molecule-1 (VCAM1) is up-regulated in non-responders and is known to mediate tumour invasion by the epithelial and mesenchymal transition. (d) Drug metabolism is common in chemo-resistant tumour cells as an important pathway to eliminate active drug molecules and evade cytotoxic effect. Human epidermal growth factor
Research has been done to understand these aspects using an array of human tissue samples. Some of the sources include ascitic fluid, serum, ovarian cancer cell lines and ovarian cancer tissue samples. A comprehensive review by Kaur and group revealed that pharmacological studies using cell lines suffer from some major drawbacks 191 : (a) Cell lines get genetically altered, and this sometimes alters their phenotype, native functions and their response to stimuli; (b) genotypic and phenotypic variation may occur due to serial passage of cell lines over an extended period of time and (c) unsuspected heterogeneity may occur due to genetic drift. Therefore, cell lines do not provide the actual reflection of molecular events as compared with tissue-based experiments. Also, most of the ovarian cancer cell line studies have been done for individual drugs such as cisplatin and paclitaxel, which may not correspond with the actual use of drug combinations in patients. It is of interest to note that the standard protocol for advanced ovarian cancer is a debulking surgery followed by chemotherapy. The procurement of the ovarian cancer tissue offers a window of opportunity for discovering biomarkers for innate resistance.
Studies have looked into the role of biomarkers to evaluate patient response to carboplatin and paclitaxel. This has been summarized in Table 5. Some of the important observations are as follows: (a) Genomic and transcriptomic studies that have been done to understand chemo-resistance to carboplatin and paclitaxel in ovarian cancer do not correspond to protein expression; (b) the chemotherapy response results from cell-cycle pathways that include apoptosis, drug-efflux mechanisms, regulation of innate immunity and cell survival; (c) observed chemo-response outcomes were mostly intrinsic by nature, indicating pre-mediated cellular mechanisms that determine clinical phenotypes and (d) metabolic proteins, chaperones, transporters, transcription regulators and cytoskeletal proteins are up-regulated in ovarian cancer tissues of patients who had chemo-resistance. Although proteomics was used to study the problem of chemo-resistance in advanced ovarian cancer, substantial progress was not made due to the absence of whole cell proteome comparison between chemo-resistant and chemo-sensitive patient tissue samples. To address this, our group has sought to delineate distinct protein signatures that could red flag an innate chemotherapy resistance in advanced ovarian cancer. In this endeavour, we employed fluorescence-based differential in-gel expression coupled with mass spectrometric analysis to identify differentially expressed proteins in the advanced ovarian cancer tissue of patients resistant and sensitive to carboplatin and paclitaxel combinations. 114 Aldehyde reductase, hnRNP, cyclophilin A, heat shock protein-27 and actin that were expressed in the chemo-sensitive state are proteins intricately involved in apoptosis, and prohibitin, enoyl-coA hydratase, peroxiredoxin, fibrin-β and fibrin-γ that were expressed in the chemo-resistant state are proteins that dictate cell survival.225,226 This clearly establishes the importance and relevance of biomarker discovery for chemo-response in ovarian cancer. This is a positive step that can pave the way for better patient management and compliance.

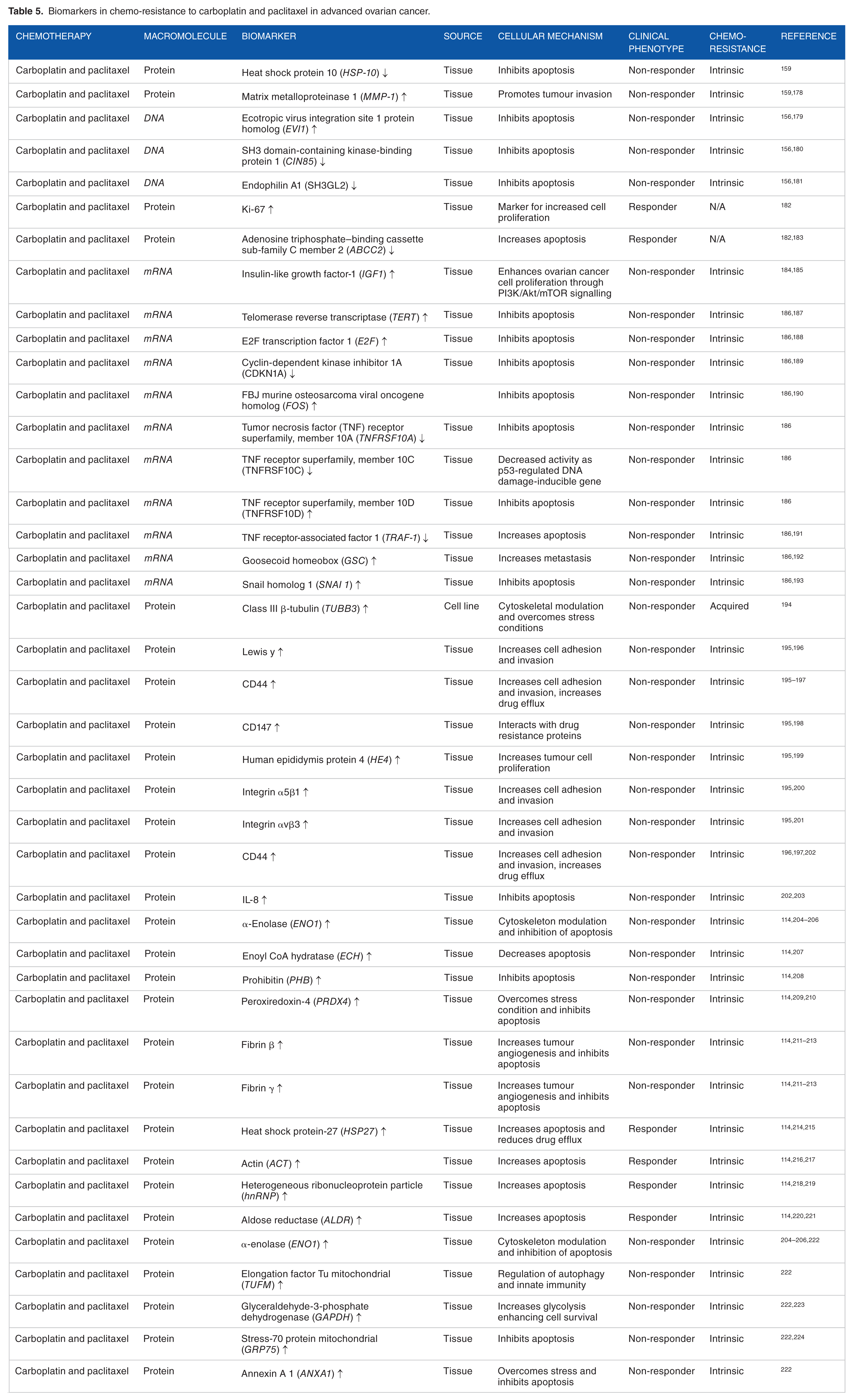

Biomarkers in chemo-resistance to carboplatin and paclitaxel in advanced ovarian cancer.
Conclusions
Clinical research for chemotherapy combinations in advanced ovarian cancer has progressed over the years with a view to achieve better CR and tolerability. Currently, carboplatin and paclitaxel combination is widely used to treat advanced ovarian cancer globally. Even though there has been significant improvement in the CR and OS, a large proportion of the patients relapse due to chemo-resistance. A lot of progress has been made in the fields of genomics, transcriptomics and proteomics to understand the molecular processes that determine and dictate chemotherapy response. Clinical proteomics holds a lot of promise for biomarker discovery that can pave the way for development of diagnostics that can help monitor chemotherapeutics in patients with advanced ovarian cancer.
Footnotes
Funding:
The author(s) received no financial support for the research, authorship and/or publication of this article.
Declaration of conflicting interests:
The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.
Author Contributions
Concept was concieved by GH; Drafted by RP, RH and GH; Proof read by LK, RH and GH.
