Abstract

Objectives:

This research aims to enhance the quality of hospital services by utilizing Quality Function Deployment (QFD) with a novel Multi-Dimensional House of Quality (MD-HOQ) approach. This method integrates Service Quality (SERVQUAL) analysis and considers resource constraints, such as financial and workforce limitations, to select and prioritize technical requirements effectively.

Methods:

The proposed MD-HOQ approach was applied to a private hospital in Tehran, Iran. Data were gathered from a sample of 8 experts and a sample of 386 patients, using 2 in-depth interviews and 4 questionnaires. The process included identifying hospital sections and determining their importance using the Analytic Hierarchy Process. Patients’ needs in each section were then identified and weighted through SERVQUAL analysis. Subsequently, technical requirements to meet these needs were listed and weighted using MD-HOQ. A mathematical model was employed to determine the optimal set of technical requirements under resource constraints.

Results:

Application of the MD-HOQ approach resulted in the identification of 50 patient needs across 5 hospital sections. Additionally, 40 technical requirements were identified. The highest implementation priorities were assigned to “training practitioners and nurses,” “improving the staff’s sense of responsibility,” and “using experienced specialists, physicians, and surgeons.”

Conclusions:

The integrated QFD approach, utilizing MD-HOQ and SERVQUAL analysis, provides a comprehensive framework for hospital managers to prioritize technical requirements effectively. By considering resource constraints and the gap between patient expectations and perceptions, this method ensures that resources are allocated to the most impactful technical requirements, leading to improved patient satisfaction and better overall hospital service quality. This approach not only enhances the quality of hospital services but also ensures efficient utilization of resources, ultimately benefiting patient satisfaction.

Keywords

quality management hospital services quality function deployment house of quality service quality

Introduction

Healthcare services play a critical role in determining the living standards of any society, as their effectiveness significantly impacts both the quality and length of life within a community.^1,2 With the rapidly growing demand for healthcare services, there is an increasing need for practical solutions to enhance their quality.³ Hospitals serve as the primary health service providers for citizens.⁴

Improving the quality of hospital services has profound benefits, including lower mortality rates, shorter hospital stays, better recovery outcomes, fewer medical errors, and reduced legal complaints against hospitals.^5
-7 Moreover, it enhances patient safety, satisfaction, trust in healthcare staff, and the overall reputation of the hospital.^7
-9 Conversely, poor-quality hospital services can negatively affect human health, the economy, and society,^10
-13 These impacts include higher mortality rates due to misdiagnosis, ineffective treatments, or delays in services, as well as the exacerbation of illnesses caused by inadequate or improper care. Economically, poor quality leads to increased treatment costs due to repeated or prolonged care, greater financial burdens on families and the healthcare system, and reduced societal productivity caused by absenteeism among staff and patients. Socially, it results in a decline in the quality of life for patients and their families. Legally and ethically, it increases complaints and lawsuits against hospitals and healthcare staff. Additionally, poor-quality services create secondary impacts on the healthcare system, such as greater pressure on hospitals and medical resources due to the higher frequency of repeat visits. Highlighting these effects shows the critical need for improving hospital service quality to mitigate these risks and enhance healthcare outcomes.

According to the latest available statistics up to 2022, Iran has 1054 hospitals with a total of 159 697 active inpatient beds.¹⁴ Of these, 905 hospitals operate as general hospitals, with a total of 129 884 active beds.¹⁵ In addition to hospitals, a significant number of other healthcare facilities, such as clinics, polyclinics, and health centers, are operational across the country. One of the most significant healthcare reforms in Iran, the “Health Sector Evolution Plan,” was initiated in 2014.¹⁶ Among its primary goals is enhancing the quality of hospital services. While the reform has led to positive changes, such as a reduction in in-hospital mortality rates, challenges remain. For example, higher rates of readmission within 30 days post-reform highlight areas requiring further improvement in care quality.¹⁷

This research aims to propose a hybrid method by integrating the Multi-Dimensional House of Quality (MD-HOQ), Analytic Hierarchy Process (AHP), and SERVice QUALity (SERVQUAL) methods to enhance the quality of hospital services while considering resource constraints such as financial and human resources. To evaluate the performance of the proposed method, it was implemented in a real-life private hospital in Tehran, Iran.

The House of Quality (HOQ) is a 2-dimensional matrix that serves as the core of the Quality Function Deployment (QFD) method. QFD is one of the widely used tools for enhancing service quality in healthcare that captures and translates customer (ie, patient) needs into technical requirements. In HOQ matrix, customer needs are listed in the rows, while technical requirements are listed in the columns. Each technical requirement is weighted based on its impact on customer satisfaction, and implementing these requirements leads to quality enhancement in the organization.¹⁸

While several studies have utilized QFD to enhance service quality in hospitals and healthcare centers, none have adequately addressed the constraints posed by limited resources, including financial and workforce, in the selection and implementation of technical requirements. Additionally, these studies typically consider only a 2-dimensional HOQ matrix, which limits their application in real-world scenarios.

The main objectives of this study include adopting a cross-sectoral perspective to enhance hospital service quality. Traditional HOQ methods are often unsuitable for hospitals due to their multi-dimensional nature, as each section has varying levels of importance. Implementing QFD for each section independently can lead to diverse plans and inefficiencies. The proposed MD-HOQ addresses this by applying QFD across multiple hospital sections to create a comprehensive and unified list of technical requirements, ensuring efficient resource utilization and consistency. The final weight of each technical requirement reflects its impact on patient satisfaction across all sections rather than focusing on a single section. Additionally, the MD-HOQ incorporates the relative importance of different hospital sections when calculating the weight of technical requirements. Using AHP ensures that technical requirements that satisfy the needs of more critical sections are given higher priority. This study also addresses patients’ critical needs by enhancing the traditional QFD approach. Beyond the usual parameters—such as the number of patients’ needs addressed, the intensity of the impact, and the importance of the needs satisfied—this research introduces the gap between patient expectations and perceptions, measured through SERVQUAL analysis. A higher gap indicates greater dissatisfaction, necessitating focused attention. Lastly, the study considers resource constraints, recognizing that organizational resources like financial and workforce capacities are limited and may not suffice to implement all identified technical requirements. Therefore, the proposed method prioritizes technical requirements that maximize patient satisfaction while accounting for resource consumption and the relative importance of each requirement, with financial and workforce limitations determined through expert opinions.

The main research question of this study can be stated as follows: What is the best set of technical requirements to enhance the quality of hospital services under resource constraints, including financial and workforce constraints?

To answer this, the study addresses the following sub-questions:

What is the degree of importance of each section at the considered hospital?

What are the patients’ needs in each section?

What is the importance degree of each patient need?

What is the gap between patients’ expectations and perceptions for each need?

What is the unique list of technical requirements for satisfying patient needs across different sections?

What are the relationships between the identified technical requirements and patient needs in different sections?

What are the implementation priorities and costs of the identified technical requirements?

The rest of the paper is ordered as follows: The previous research is reviewed, and the research gaps are identified in Section 2. Section 3 outlines the methodology and proposed approach. Section 4 discusses the results of implementing the proposed approach in a private hospital. Finally, Section 5 provides the conclusions.

Literature Review

This section reviews the most relevant studies that applied QFD to enhance the quality of healthcare services.

Camgöz-Akdağ et al¹⁹ combined SERVQUAL and QFD to determine success factors for quality improvement in the healthcare industry. Azadi and Farzipoor Saen²⁰ employed QFD and Data Envelopment Analysis (DEA) to enhance the quality of healthcare services, using imprecise data within the context of imprecise enhanced Russell graph measures to consider criteria such as cost and ease of implementation. Using a combination of QFD and SERVQUAL, Chou et al²¹ provided a prioritization list for creating a friendly hospital environment and identifying service gaps. Lee et al³ used QFD and fuzzy numbers to enhance healthcare service quality, considering 7 customer needs and 17 technical requirements in their QFD.

Gao and Zhang²² combined QFD and SERVQUAL to estimate hidden costs of quality caused by patient dissatisfaction in healthcare. Wood et al²³ used QFD for green hospital design in Malaysia, considering 18 demand qualities in the rows of the HOQ matrix and 13 quality design elements in the columns. Dehe and Bamford²⁴ used QFD to enhance strategic operations in healthcare organizations in the United Kingdom, identifying 15 service and building design attributes to satisfy 10 customer needs. Jonny and Zagloed²⁵ discussed quality enhancement in the Indonesian healthcare system by merging QFD, Kano’s model, and the balanced scorecard, focusing on maximizing natural light usage, ventilation, water-efficient equipment, and environmentally friendly materials. Priyono and Yulita²⁶ integrated QFD and the Kano model to enhance the quality in the front office of a hospital in Indonesia, identifying 14 patient needs categorized into “attractive needs,” “one-dimensional needs,” and “must-be needs.”

Raziei et al²⁷ employed group decision-making, fuzzy theory, SERVQUAL, and QFD to enhance service quality in a public hospital, considering 25 customer needs and proposing 23 technical requirements. Maalej et al²⁸ merged QFD, risk analysis, and fuzzy numbers to enhance the quality of healthcare services, considering 5 patient needs and 7 technical requirements, and calculating a risk priority number for each technical requirement. Hasibuan et al²⁹ used QFD to enhance the quality of a public general hospital, considering 21 patient needs and discussing their importance and gaps between patient interests and hospital service levels. Susanto and Wurjaningrum³⁰ combined service blueprint analysis and QFD to determine business process services in the inpatient room of a Hospital in Indonesia, identifying 10 customer needs and 10 technical requirements. Joshi and Bhargava³¹ discussed the integration of Green QFD and waste management in healthcare centers, comparing the results of QFD and Green QFD, and implementing their method in both a private and a state hospital.

Mathews et al³² implemented QFD to prioritize healthcare solutions for pressure ulcers, analyzing the development costs, usage costs, and development time for each technical requirement. Altuntas and Kansu³³ merged SERVQUAL, QFD, and failure modes and effects analysis to improve service quality and eliminate potential failures during service delivery in a public hospital in Turkey.

Tortorella et al³⁴ discussed the implementation and integration of healthcare 4.0 in hospitals using QFD, considering healthcare value chain problems as rows in the QFD matrix and healthcare 4.0 digital applications as columns, implementing their method in hospitals in Brazil and India. Lu et al³⁵ combined the Kano model and QFD to design a pre-hospital emergency system, showing the procedures and their ranks. Junior et al³⁶ integrated QFD, fuzzy theory, and SERVQUAL analysis to create a quality planning tool for surgical centers, implementing the model in a public hospital in Brazil and considering the most relevant deficiencies as QFD matrix entries. Khan et al³⁷ integrated fuzzy theory, QFD, and the full consistency method to evaluate strategies for enhancing healthcare sector resilience in Pakistan during the COVID-19 pandemic. They used QFD to establish relationships between resilient attributes and strategies. Nie et al³⁸ employed QFD to improve healthcare service quality, using the best-worst method to determine customer needs and interactive and multi-criteria decision-making to determine technical requirement weights.

Raj and Samuel³⁹ used QFD to identify barriers to healthcare waste management in India, showing the elements that affect waste management. Gavahi et al⁴⁰ combined QFD and SERVQUAL to enhance service quality in radiology centers of public hospitals in Tehran, Iran, categorizing patient requirements into the 5 dimensions of SERVQUAL. Chowdhury et al⁴¹ used QFD to determine resilience strategies to improve vaccine operations and distribution performance during the COVID-19 pandemic, using fuzzy set qualitative comparative analysis to prioritize strategies.

Review Summary and Key Insights

The literature review reveals that while some studies have utilized pure QFD, the trend in recent research is to merge QFD with other techniques, such as SERVQUAL and various multi-criteria decision-making (MCDM) methods. These combinations aim to enhance the robustness and applicability of QFD in improving healthcare service quality. The review also shows that none of the studies have implemented an MD-HOQ. The traditional 2-dimensional HOQ limits the application of QFD in complex organizational structures, such as hospitals with multiple departments. Additionally, no research has considered resource constraints, including financial and workforce constraints, when selecting and implementing technical requirements. This omission can lead to impractical solutions that are not feasible in real-world settings where financial resources are limited.

To address these gaps, this research proposes a new approach with several main contributions. First, implementing an MD-HOQ allows it to be applied across different sections of hospitals, facilitating the creation of a comprehensive and unified list of technical requirements that address the needs of multiple departments. Second, by integrating the MD-HOQ with SERVQUAL and AHP, this research introduces a more precise method for determining the weights of technical requirements while considering resource constraints. Finally, the proposed solution is validated through implementation in a real-life hospital, demonstrating its practicality and effectiveness in enhancing hospital service quality under resource constraints.

Methodology

This study presents a modified QFD approach with an overarching view, named MD-HOQ, integrated with SERVQUAL analysis to improve hospital service quality under resource constraints. In the proposed hybrid method, based on the patients’ needs, the technical requirements to satisfy them are identified. Based on the impact of technical requirements on patients’ needs (considering the importance degrees, perceptions, and expectations of the affected patients’ needs), the weights of the technical requirements are determined. Finally, the optimum set of selected technical requirements, based on resource constraints, is identified. This section describes the tools used, the data-gathering process, and the research steps. Section 4, in contrast, presents the results obtained from implementing these research steps in a real-life hospital.

MD-HOQ

Although the traditional HOQ has 2 dimensions (1 dimension for technical requirements and 1 dimension for patients’ needs), the proposed MD-HOQ has multiple dimensions. If MD-HOQ is implemented in n different sections, it has (n + 1) dimensions (1 dimension for technical requirements and n dimensions for patients’ needs in each section). Figure 1 shows the structure of the proposed MD-HOQ.

Figure 1.

The structure of MD-HOQ.

Date Gathering

In this study, 2 in-depth interviews and 4 types of questionnaires were employed to collect the required data. Data collection took place over a period of 5 months (from February 1, 2024, to June 30, 2024).

The Used Samples

Two groups, experts and patients, were included as participants in the interviews and questionnaires. Detailed information about these samples is provided below:

Patient Sample: A sample of 386 patients was randomly selected, and the sample size was determined using the Cochran formula with a 5% margin of error39. The hospital had a total of 16 491 visits across the selected sections (surgery, emergency, CCU, physiotherapy, and pediatrics) during the 5-month study period. Stratified sampling was applied to ensure representative patient sampling. Detailed information on the patient sample is presented in Table 1.

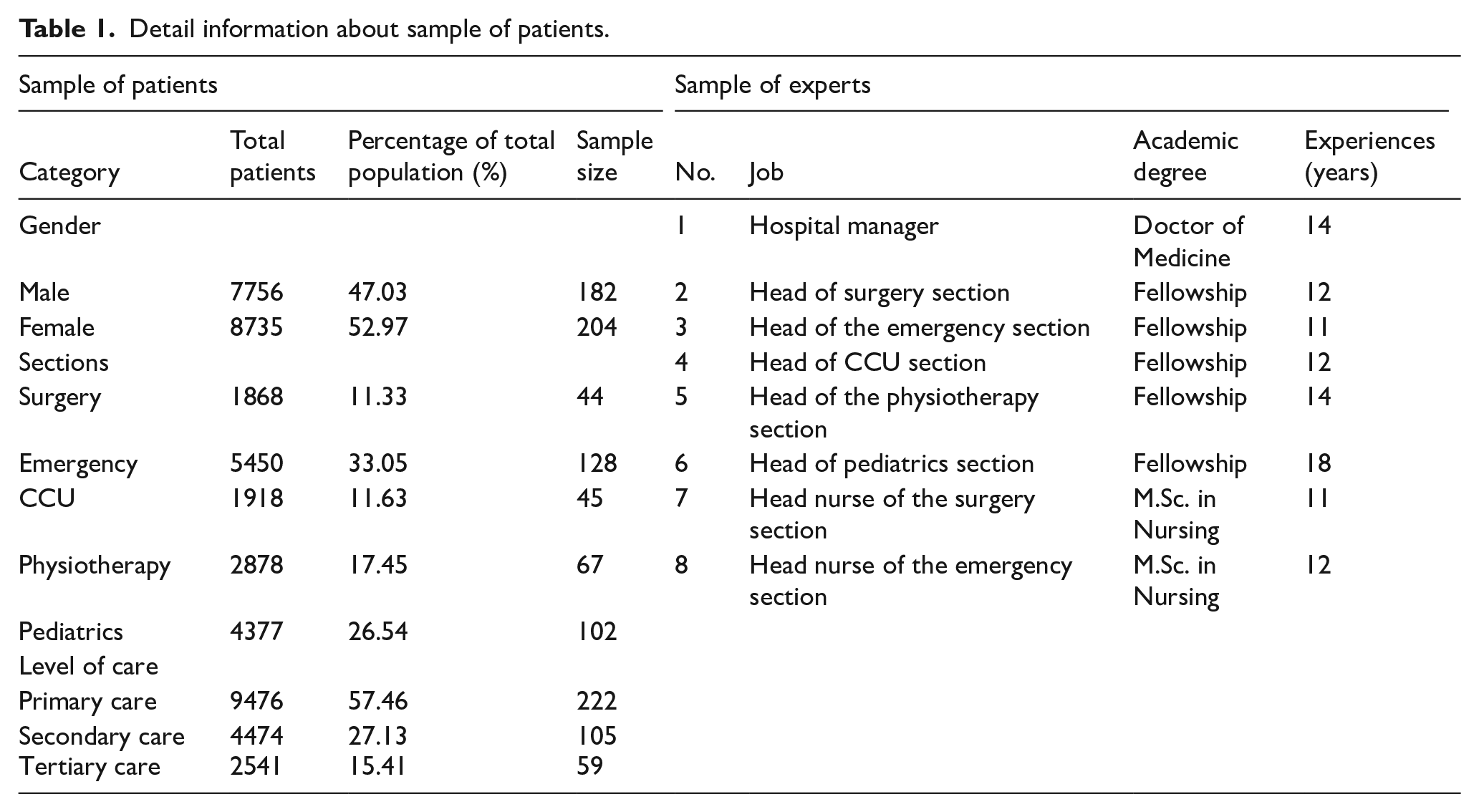

Table 1.

Detail information about sample of patients.

Sample of patients				Sample of experts
Category	Total patients	Percentage of total population (%)	Sample size	No.	Job	Academic degree	Experiences (years)
Gender				1	Hospital manager	Doctor of Medicine	14
Male	7756	47.03	182	2	Head of surgery section	Fellowship	12
Female	8735	52.97	204	3	Head of the emergency section	Fellowship	11
Sections				4	Head of CCU section	Fellowship	12
Surgery	1868	11.33	44	5	Head of the physiotherapy section	Fellowship	14
Emergency	5450	33.05	128	6	Head of pediatrics section	Fellowship	18
CCU	1918	11.63	45	7	Head nurse of the surgery section	M.Sc. in Nursing	11
Physiotherapy	2878	17.45	67	8	Head nurse of the emergency section	M.Sc. in Nursing	12
Pediatrics	4377	26.54	102
Level of care
Primary care	9476	57.46	222
Secondary care	4474	27.13	105
Tertiary care	2541	15.41	59

Expert Sample: The expert sample included 8 individuals selected through purposeful sampling based on the following criteria: (1) A minimum academic qualification of MSc or higher, (2) Over 10 years of professional experience in healthcare, and (3) Adequate knowledge of the selected sections or relevant management scopes.

Detailed information about the expert sample is also presented in Table 1.

The Interviews and Questionnaires

Patients’ needs were identified using 2 methods: recorded patient comments from the hospital’s website and in-depth interviews with patients, referred to as the first interview. To complement this, a second in-depth interview was conducted with experts to determine the technical requirements necessary to address patients’ needs and to assess the cost and workforce required. In addition to the interviews, 4 questionnaires were utilized to gather comprehensive data for the study. The first questionnaire employed pairwise comparison matrices to evaluate the importance of various hospital sections, while the second questionnaire focused on assessing the significance of patients’ needs. The third questionnaire measured patients’ expectations and perceptions regarding each identified need, and the fourth questionnaire investigated the relationships between technical requirements and patients’ needs. The respondents for the first and fourth questionnaires were selected from the expert sample, while the second and third questionnaires were completed by the patient sample. Table 2 presents the linguistic terms used in the questionnaires, their corresponding numerical values, and the respondents for each questionnaire.

Table 2.

Linguistic terms used in the questionnaires.

	The first questionnaire (Pairwise comparisons)		The second questionnaire (Importance degree)		The third questionnaire (SERVQUAL)		The fourth questionnaire (Relationship matrix)
Subject	Value	Linguistic term	Value	Linguistic term	Value	Linguistic term	Linguistic term	Value
	1	Equally strong	1	Very Low	1	Completely disagree	Weak (△)	1
	3	Moderately strong	2	Low	2	Disagree	Moderate (〇)	3
	5	Strong	3	Medium	3	No Difference	Strong (●)	9
	7	Very strong	4	High	4	Agree	No relationship	0
	9	Extremely strong	5	Very High	5	Completely agree
Respondent	Sample of experts		Sample of patients		Sample of patients		Sample of experts
Number of questions	33		50		100		2000

The reliability of the first questionnaire is validated by an average inconsistency rate of 0.02, while the reliability of the second, third, and fourth questionnaires is validated by Cronbach’s alpha values of .88, .81, and .79, respectively. All the questionnaires are standard, and their validity has been confirmed.^42,43

Research Steps

This section describes the research steps taken to answer the research questions. Figure 2 provides an overview of these steps.

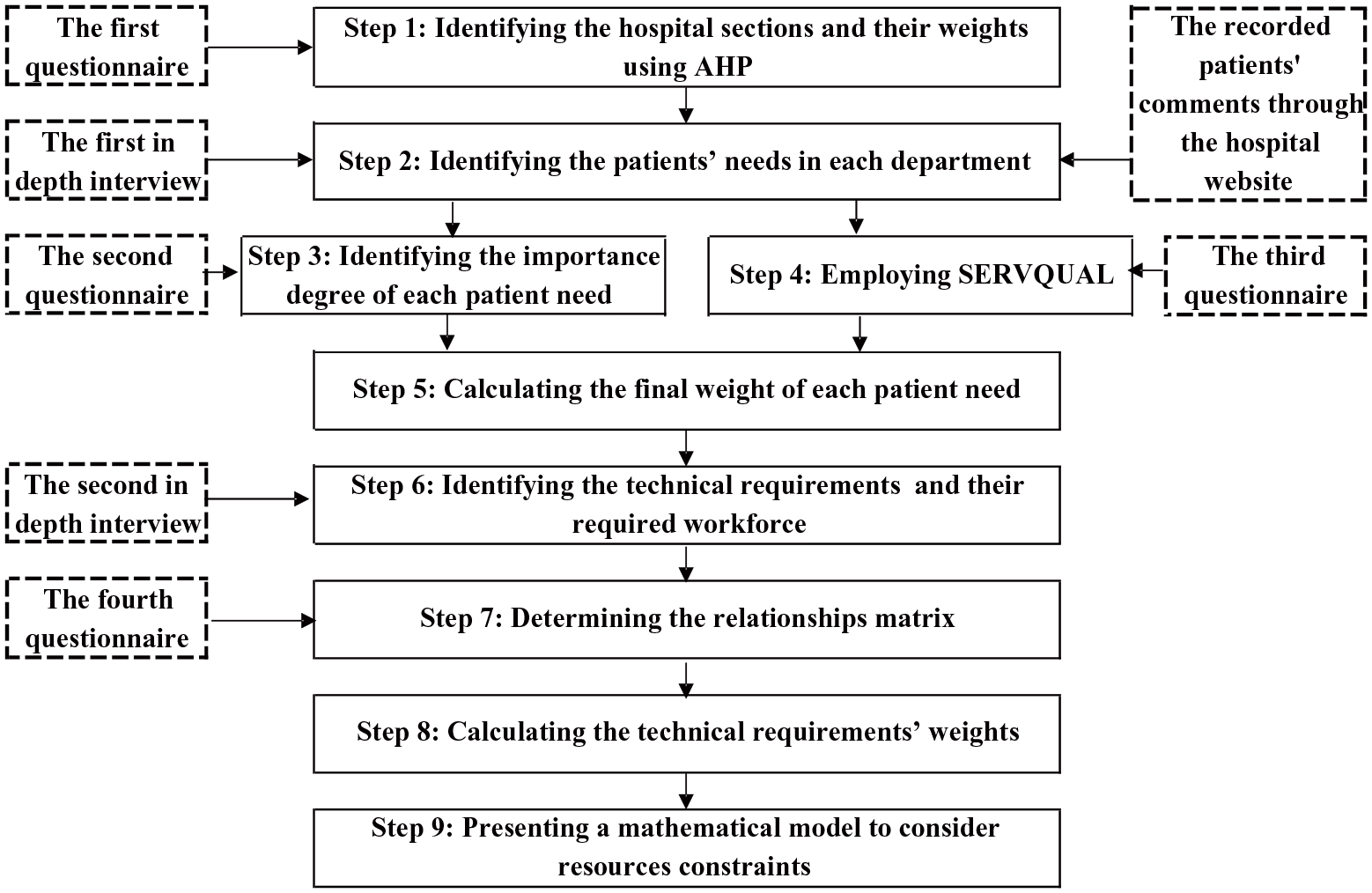

Figure 2.

An overview of the research steps.

Step 1: Identifying the hospital sections and their weights

In this step, the hospital sections with different patients (customers) are identified, and the degree of importance of each section is determined.

Due to budget limitations, not all hospital sections could be included in the quality enhancement procedure. Therefore, initial filtering was applied based on the following 3 parameters: (1) The number of patients (as sections with higher patient numbers have the greatest impact on overall patient perception of hospital services), (2) Income generation by the section (since the hospital is private, sections with higher income potential are prioritized for quality improvements), and (3) Section criticality (sections identified as critical in terms of patient dissatisfaction, such as those with a high number of complaints or issues from previous feedback, which could harm the hospital’s reputation).

Based on these criteria, 5 sections—surgery, emergency, cardiac care unit (CCU), physiotherapy, and pediatrics—were selected as alternatives. The importance degrees of these sections are calculated based on the above criteria using AHP method. Readers interested in learning more about AHP are referred to.^44,45

If there are n criteria and m alternatives, the procedures of the AHP method are as follows:

Create a pairwise comparison matrix for all the criteria (P). This matrix is an n× n matrix. The arrays in this matrix show the privilege of criteria against each other.

P = {[p_{k j}]}_{n \times n} = [\begin{matrix} p_{11} & p_{12} & p_{13} & \dots & p_{1 n} \\ p_{21} & p_{22} & p_{23} & \dots & p_{12} \\ p_{31} & p_{32} & p_{33} & \dots & a_{13} \\ \dots & \dots & \dots & \dots & \dots \\ \dots & \dots & \dots & \dots & \dots \\ p_{n 1} & p_{n 2} & p_{n 3} & \dots & p_{n n} \end{matrix}]

(1)

Normalize matrix P using equation (2), and name it matrix NORM,

N O R M = {[n o r m_{k j}]}_{n \times n}, n o r m_{k j} = p_{k j} ∕ \sum_{k = 1}^{n} p_{k j}

(2)

Calculate the criteria weights employing equation (3). In this equation, $W C_{j}$ represents the weight of criterion j (j =1, 2,. . ., n).

W C_{j} = \sum_{k = 1}^{n} \frac{n o r m_{k j}}{n}

(3)

For each criterion j, obtain an m× m pairwise comparison matrix to compare alternatives and obtain the weight of alternatives for each criterion. Let $W A_{i}^{j}$ be the weight of alternative i in criterion j.

Obtain the total weight (importance degree) of each alternative i (DW_i) using equation (4).

D W_{i} = \sum_{j = 1}^{n} W C_{j} \times W A_{i}^{j} i = 1, 2, \dots, m

(4)

The pairwise comparison matrices are obtained using the pairwise comparison questionnaire. In this questionnaire, the elements (criteria or alternatives) are compared. In each comparison, the decision-makers have several choices to indicate the preference of one element over another. Each response is a human judgment expressed using a linguistic term⁴⁶

Step 2: Identifying the patients’ needs in each section

In this step, patients’ needs in each section were determined through in-depth interviews with patients and by analyzing records of their comments submitted via the hospital’s website. These identified needs were then reviewed by experts to eliminate duplicates and overlaps, ensuring a concise and accurate list of requirements.

Step 3: Identifying the importance degree of each patient’s needs

The degree of importance of the patients’ needs is determined using the customer importance degree questionnaire (ie, the second questionnaire). In this questionnaire, the customers rate the importance of each identified need based on the Likert scale shown in Table 2. The patients’ needs with higher importance degrees should be given more attention by the managers.

Step 4: Employing SERVQUAL

To determine the final weight of each patient’s needs, SERVQUAL analysis is used to identify the gap between expected service and experienced (perceived) service. For this purpose, the patients’ perceptions and expectations are assessed using the SERVQUAL questionnaire. In this questionnaire, patients rate their perceptions and expectations for each identified need based on the Likert scale shown in Table 2. Finally, an index named improvement ratio (IR_i) is defined and calculated using equation (5), where $P_{i}^{d}$ and $E_{i}^{d}$ are the patient perceptions and expectations of the ith patient’s need in the dth section, respectively. The greater the gap between the expectation and perception of a patient’s need i, the higher the improvement ratio, indicating that this need requires more attention from hospital managers. Improving the quality provided (patient perception) will reduce the gap with patient expectations, leading to higher patient satisfaction.

I R_{i}^{d} = E_{i}^{d} / P_{i}^{d}

(5)

Step 5: Calculating the final weight of each patient’s need

To determine the final weight of patients’ needs, both the importance degree and improvement ratio are considered. The absolute weight ( $A W_{i}^{d}$ ) and the relative weight ( $R W_{i}^{d}$ ) of the ith patient’s need in the dth section are obtained using equations (6) and (7), respectively.

A W_{i}^{d} = I_{i}^{d} \times {IR}_{i} = I_{i}^{d} \times (E_{i}^{d} / P_{i}^{d})

(6)

R W_{i}^{d} = A W_{i}^{d} / \sum_{i = 1}^{n^{d}} A W_{i}^{d}

(7)

In equation (7), $n^{d}$ is the number of patients’ needs in the dth section. The greater the weight of the patient’s need, the higher its priority compared with other needs. Equation (6) shows that the priority of each patient’s need depends not only on its importance but also on the hospital’s delay in satisfying this need.

Step 6: Identifying the technical requirements

This step identifies the technical requirements for satisfying the patients’ needs using in-depth interviews with experts.

Step 7: Determining the relationship matrix

In this step, the relationship between each patient’s needs and each technical requirement is determined. Table 2 shows the various relationship types and the corresponding number for each type. In this case, 5 relationship matrices should be obtained (a relationship matrix for each section).

Step 8: Calculating the technical requirements’ weights

If QFD is implemented in each section separately, then different lists of technical requirements will be obtained, each with different weights (importance degrees) for each technical requirement. Some technical requirements only affect the patients’ needs in a single section, while others may affect multiple sections simultaneously. Therefore, the technical requirements that affect multiple sections could receive higher weight, even if they might not have a high weight in each individual section.

For better clarification, consider 2 technical requirements (ie, A and B), which only affect one section, where A has a higher weight than B. In this case, A gets a higher priority for implementation and will be prioritized. However, assuming technical requirement B affects the patients’ needs in multiple sections, it may have more benefits for the hospital. Thus, it should get a higher implementation priority, even if it has a lower weight in one specific section. To have an overarching view in MD-HOQ, the weight of each technical requirement is calculated using equations (8) and (9).

A T W_{j} = \sum_{d = 1}^{F} \sum_{i = 1}^{n^{d}} D W_{d} \times r_{i j}^{d} \times R W_{i}^{d}

(8)

R T W_{j} = \frac{A T W_{j}^{d}}{\sum_{j = 1}^{Z} A T W_{j}^{d}}

(9)

In these equations, F, Z, $A T W_{j}$ , $R T W_{j}$ , $D W_{d}$ , $r_{i j}^{d}$ represent the number of sections, the number of technical requirements, the absolute total weight of technical requirement j, its relative total weight, the weight of the section obtained in Step 1, and the relation of the jth technical requirement and the ith patient need in the dth section, respectively.

The weight of each technical requirement shows its total effect on patients’ satisfaction. In other words, the weight of each technical requirement shows its benefit (utility) and implementation priority for the hospital. The higher weight of each technical requirement indicates a higher implementation priority for the hospital. The weight of technical requirements depends on the following parameters:

The number of patient needs affected by a technical requirement: As the number of patient needs affected by a technical requirement increases, the weight of that technical requirement also increases.

The importance of patient needs affected by a technical requirement: If a technical requirement addresses patient needs with higher importance, the weight of that technical requirement increases.

The significance of hospital sections affected by a technical requirement: If a technical requirement impacts patient needs in more critical sections, the weight of that technical requirement increases.

The intensity of a technical requirement’s effect on patient needs: If a technical requirement has a substantial impact on patient needs (●), its weight is higher compared to a technical requirement with a weaker effect (△).

Step 9: Considering the resource constraints

While it is desirable to implement all the technical requirements, resource constraints often prevent this. Therefore, the hospital manager must select a subset of the technical requirements based on the available resources. This study proposes a mathematical formulation, presented in equations (10)-(12), to determine the optimal set of technical requirements while adhering to resource constraints, including financial and workforce, under the following assumptions.

Implementing each technical requirement j incurs a cost denoted by C_j.

The hospital’s total budget for implementing the technical requirements is predetermined and represented by B.

Each technical requirement j needs $H_{j}$ Man-hour of the executive team (in the considered case, the executive team is composed of 5 staff from the administrative and financial section)

The hospital’s total available workforce of the executive team is predetermined and represented by AWF.

The benefit of each technical requirement j for the hospital ( $R T W_{j}$ ) is determined using the MD-HOQ, as described by equation (9).

The objective is to maximize the total benefit (utility) of implementing the technical requirements while staying within the resource’s constraints.

M a x Z = \sum_{j = 1}^{z} R T W_{j} \times X_{j}

(10)

Subject to:

\sum_{j = 1}^{z} C_{j} \times X_{j} \leq B

(11)

\sum_{j = 1}^{z} H_{j} \times X_{j} \leq AWF

(12)

Where X_j is a binary decision variable $(X_{j} \in {0, 1})$ . It takes the value 1 if the j-th technical requirement is selected for implementation, and 0 otherwise.

Results

To examine the proposed method, it was implemented in a case study at a 300-bed private hospital located in Tehran, Iran. Constructed in 1998, the hospital spans 12 stories and covers a total area of 4300 square meters. The high population of Tehran city (more than 9 million citizens) and the resulting high demand for hospital services prompted the selection of a hospital in this city as the case study. Additional reasons include its private status (since competition among private hospitals to attract patients is intense, enhancing service quality is critical for survival) and its good accessibility. The results of applying the research steps (outlined in Section 3.3 and illustrated in Figure 2) to this hospital are detailed in this section.

Hospital Sections and Their Importance Degrees

In the first step, the 5 most important and critical sections were selected: Surgery (I), Emergency (II), Cardiac Care Unit (CCU) (III), Physiotherapy (IV), and Pediatrics (V). Their relative importance was then determined using the AHP method, based on 3 criteria: number of patients, criticality, and generated income. After implementing the AHP method, the importance degrees for sections I to V were found to be 0.486, 0.252, 0.116, 0.063, and 0.083, respectively.

Patient’s Needs in Each Section

In this step, the patients’ needs in each section were identified. It is important to note that the needs of patients in one section may differ from those in other sections. Ultimately, 50 patients’ needs were identified across the 5 hospital sections, with 10 high-priority needs for each section. These are detailed in Table 3 (CW^d_i denotes the ith customer need in the dth section).

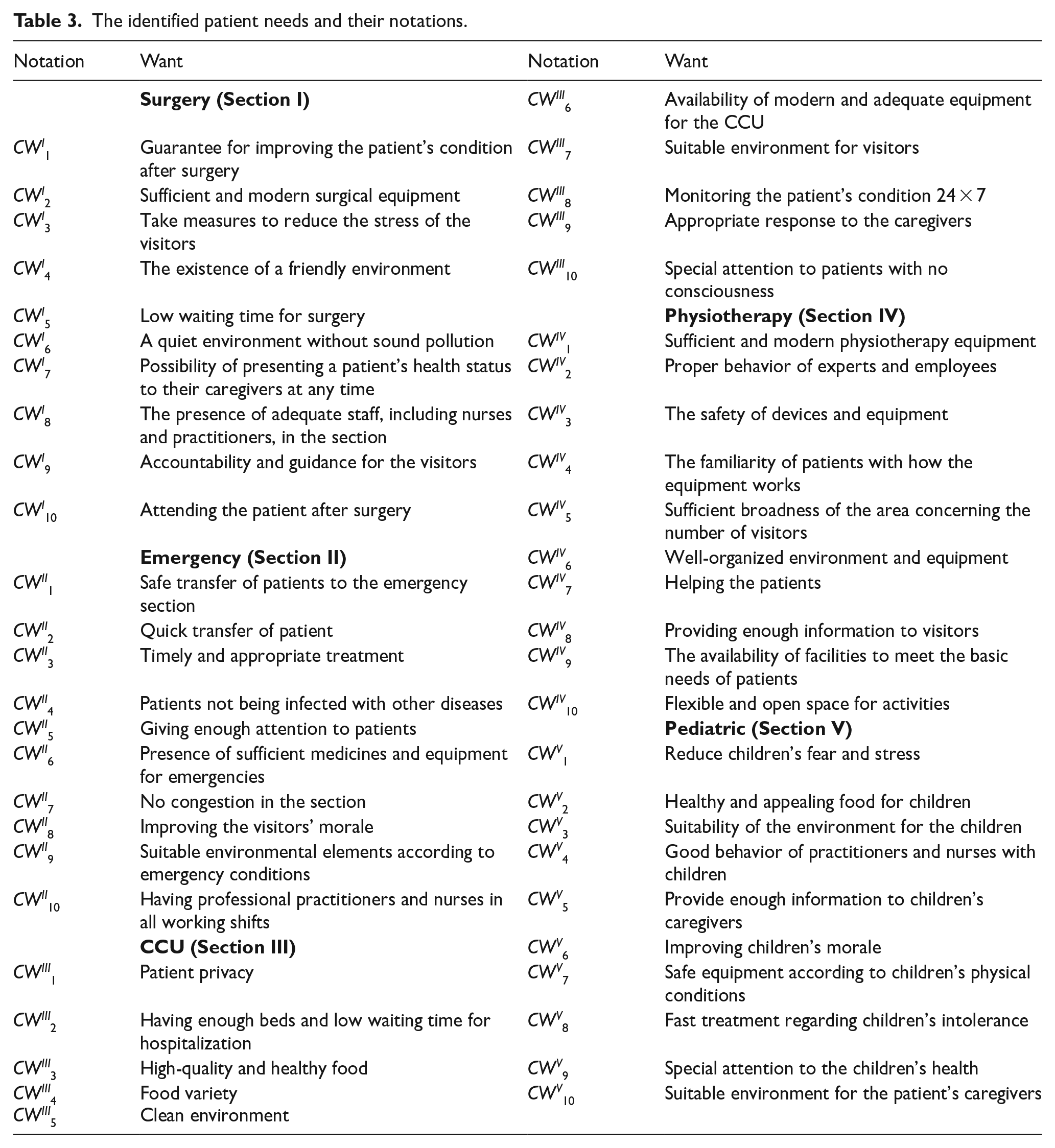

Table 3.

The identified patient needs and their notations.

Notation	Want	Notation	Want
	Surgery (Section I)	CW ^III ₆	Availability of modern and adequate equipment for the CCU
CW ^I ₁	Guarantee for improving the patient’s condition after surgery	CW ^{^III} ₇	Suitable environment for visitors
CW ^I ₂	Sufficient and modern surgical equipment	CW ^III ₈	Monitoring the patient’s condition 24 × 7
CW ^{^I} ₃	Take measures to reduce the stress of the visitors	CW ^{^III} ₉	Appropriate response to the caregivers
CW ^I ₄	The existence of a friendly environment	CW ^{^III} ₁₀	Special attention to patients with no consciousness
CW ^{^I} ₅	Low waiting time for surgery		Physiotherapy (Section IV)
CW ^{^I} ₆	A quiet environment without sound pollution	CW ^IV ₁	Sufficient and modern physiotherapy equipment
CW ^{^I} ₇	Possibility of presenting a patient’s health status to their caregivers at any time	CW ^IV ₂	Proper behavior of experts and employees
CW ^{^I} ₈	The presence of adequate staff, including nurses and practitioners, in the section	CW ^{^IV} ₃	The safety of devices and equipment
CW ^I ₉	Accountability and guidance for the visitors	CW ^{^IV} ₄	The familiarity of patients with how the equipment works
CW ^I ₁₀	Attending the patient after surgery	CW ^{^IV} ₅	Sufficient broadness of the area concerning the number of visitors
	Emergency (Section II)	CW ^IV ₆	Well-organized environment and equipment
CW ^{^II} ₁	Safe transfer of patients to the emergency section	CW ^{^IV} ₇	Helping the patients
CW ^{^II} ₂	Quick transfer of patient	CW ^{^IV} ₈	Providing enough information to visitors
CW ^II ₃	Timely and appropriate treatment	CW ^{^IV} ₉	The availability of facilities to meet the basic needs of patients
CW ^{^II} ₄	Patients not being infected with other diseases	CW ^{^IV} ₁₀	Flexible and open space for activities
CW ^{^II} ₅	Giving enough attention to patients		Pediatric (Section V)
CW ^{^II} ₆	Presence of sufficient medicines and equipment for emergencies	CW ^{^V} ₁	Reduce children’s fear and stress
CW ^II ₇	No congestion in the section	CW ^{^V} ₂	Healthy and appealing food for children
CW ^{^II} ₈	Improving the visitors’ morale	CW ^{^V} ₃	Suitability of the environment for the children
CW ^{^II} ₉	Suitable environmental elements according to emergency conditions	CW ^{^V} ₄	Good behavior of practitioners and nurses with children
CW ^II ₁₀	Having professional practitioners and nurses in all working shifts	CW ^V ₅	Provide enough information to children’s caregivers
	CCU (Section III)	CW ^V ₆	Improving children’s morale
CW ^III ₁	Patient privacy	CW ^{^V} ₇	Safe equipment according to children’s physical conditions
CW ^{^III} ₂	Having enough beds and low waiting time for hospitalization	CW ^{^V} ₈	Fast treatment regarding children’s intolerance
CW ^{^III} ₃	High-quality and healthy food	CW ^{^V} ₉	Special attention to the children’s health
CW ^{^III} ₄	Food variety	CW ^{^V} ₁₀	Suitable environment for the patient’s caregivers
CW ^{^III} ₅	Clean environment

Identifying the Importance Degree of Each Patient’s Needs

Table 4 presents the importance degrees obtained from the second questionnaire. The results indicate that in sections I to V, the highest importance degrees are assigned to the following patient needs: “The presence of adequate staff, including nurses and practitioners in the section,” “Giving enough attention to patients,” “Special attention to patients with no consciousness,” “The availability of facilities to meet the basic needs of patients,” and “Special attention to children’s health,” respectively.

Table 4.

The importance degree, perceptions, expectations, and weights of patients’ needs.

Want	Section	Importance degree	Patient expectation	Patient perception	Improvement ratio	Absolute weight	Relative weight
CW^I₁	I	4.351	4.322	4.306	1.004	4.366	0.098
CW^I₂	I	4.353	4.286	4.21	1.018	4.431	0.1
CW^I₃	I	4.249	4.016	3.875	1.036	4.403	0.099
CW^I₄	I	3.982	3.961	3.956	1.001	3.987	0.09
CW^I₅	I	4.47	4.335	4.262	1.017	4.546	0.102
CW^I₆	I	4.41	4.374	4.369	1.001	4.416	0.099
CW^I₇	I	4.362	4.208	3.958	1.063	4.637	0.104
CW^I₈	I	4.566	4.535	4.501	1.008	4.6	0.104
CW^I₉	I	4.34	4.145	4.096	1.012	4.393	0.099
CW^I₁₀	I	4.501	4.288	4.197	1.022	4.599	0.104
CW^II₁	II	4.317	4.304	4.27	1.008	4.351	0.097
CW^II₂	II	4.286	4.249	4.197	1.012	4.339	0.097
CW^II₃	II	4.501	4.431	4.281	1.035	4.66	0.104
CW^II₄	II	4.514	4.486	4.413	1.016	4.589	0.103
CW^II₅	II	4.551	4.416	4.301	1.027	4.672	0.105
CW^II₆	II	4.532	4.494	4.46	1.008	4.567	0.102
CW^II₇	II	4.174	4.122	4.088	1.008	4.209	0.094
CW^II₈	II	4.216	4.153	4.06	1.023	4.313	0.097
CW^II₉	II	4.174	4.151	4.068	1.02	4.259	0.095
CW^II₁₀	II	4.54	4.509	4.33	1.041	4.728	0.106
CW^III₁	III	4.153	4.018	3.842	1.046	4.344	0.099
CW^III₂	III	4.545	4.47	4.423	1.011	4.593	0.104
CW^III₃	III	4.109	4.07	4.044	1.006	4.135	0.094
CW^III₄	III	4.083	4.052	3.953	1.025	4.185	0.095
CW^III₅	III	4.514	4.462	4.41	1.012	4.567	0.104
CW^III₆	III	4.343	4.306	4.255	1.012	4.396	0.1
CW^III₇	III	4.114	4.068	4.034	1.008	4.149	0.094
CW^III₈	III	4.527	4.405	4.33	1.017	4.606	0.105
CW^III₉	III	4.301	4.195	4.122	1.018	4.377	0.099
CW^III₁₀	III	4.605	4.496	4.444	1.012	4.659	0.106
CW^IV₁	IV	4.369	4.309	4.262	1.011	4.417	0.1
CW^IV₂	IV	4.358	4.234	4.169	1.016	4.426	0.1
CW^IV₃	IV	4.499	4.501	4.434	1.015	4.567	0.103
CW^IV₄	IV	4.436	4.382	4.322	1.014	4.498	0.102
CW^IV₅	IV	4.239	4.182	4.088	1.023	4.336	0.098
CW^IV₆	IV	4.475	4.429	4.369	1.014	4.537	0.102
CW^IV₇	IV	4.205	4.156	4.091	1.016	4.272	0.096
CW^IV₈	IV	4.275	4.249	4.19	1.014	4.336	0.098
CW^IV₉	IV	4.504	4.475	4.418	1.013	4.562	0.103
CW^IV₁₀	IV	4.242	4.135	4.042	1.023	4.34	0.098
CW^V₁	V	4.47	4.41	4.369	1.01	4.513	0.102
CW^V₂	V	4.145	4.125	4.07	1.013	4.201	0.095
CW^V₃	V	4.322	4.312	4.306	1.001	4.327	0.098
CW^V₄	V	4.39	4.34	4.2	1.033	4.536	0.103
CW^V₅	V	4.299	4.252	4.192	1.014	4.36	0.099
CW^V₆	V	4.312	4.273	4.182	1.022	4.405	0.1
CW^V₇	V	4.46	4.442	4.384	1.013	4.518	0.102
CW^V₈	V	4.309	4.236	4.21	1.006	4.336	0.098
CW^V₉	V	4.509	4.483	4.429	1.012	4.565	0.103
CW^V₁₀	V	4.309	4.262	4.223	1.009	4.349	0.099

Implementation of SERVQUAL

Table 4 shows the values obtained for patient expectations and perceptions of each patient’s needs. The results indicate that in sections I to V, the highest gaps between patient perception and expectation are found for the following needs: “Possibility of presenting a patient’s health status to their caregivers at any time,” “Having professional practitioners and nurses in all working shifts,” “Patient privacy,” “Flexible and open space for activities,” and “Good behavior of practitioners and nurses with children,” respectively.

Final Weight of Patients’ Needs

The final weights of patients’ needs are shown in Table 4. The results indicate that in sections I to V, the highest weights are assigned to the following needs: “Possibility of presenting a patient’s health status to their caregivers at any time,” “Having professional practitioners and nurses in all working shifts,” “Special attention to patients with no consciousness,” “The safety of devices and equipment,” and “Special attention to children’s health,” respectively.

Identification of Technical Requirements

In this step, 40 technical requirements were identified to satisfy the patients’ needs. Table 5 shows the identified technical requirements. As shown in Figure 3, each technical requirement addresses at least 2 hospital sections.

Table 5.

The common technical requirements and their notations.

Notation	Technical requirement	Notation	Technical requirement
TR₁	Increasing the knowledge of practitioners and nurses	TR₂₁	Determining appropriate tests and reducing the time required to obtain the test results
TR₂	Providing modern medical equipment and facilities	TR₂₂	Establish an elaborate admission system and expedite patient clearance procedures
TR₃	Using experienced specialists, physicians, and surgeons	TR₂₃	Taking appropriate measures to increase patient visiting times
TR₄	Periodic replacement of medical equipment	TR₂₄	Using guideboards for guiding visitors
TR₅	Providing amenities for visitors	TR₂₅	Employing experienced nurses
TR₆	Training practitioners and nurses	TR₂₆	Providing high-quality and healthy food
TR₇	Counseling and instructing the visitors	TR₂₇	Providing various types of food for each meal
TR₈	Taking with patients	TR₂₈	Performing appropriate and timely examinations of patients
TR₉	Improving environmental conditions	TR₂₉	Creating personalization options for patients
TR₁₀	Using colors and other elements to make the environment of the hospital similar to the home environment	TR₃₀	Improving sanitary facilities and equipment
TR₁₁	Creating a complete and accurate information system	TR₃₁	Providing entertainment for visitors
TR₁₂	Estimate the number of patients and eliminate the shortage of workforce	TR₃₂	Updating the manager’s knowledge of medical science and management
TR₁₃	Determining time periods for checking the patients	TR₃₃	Prepare comfortable and clean clothes for patients
TR₁₄	Using modern and appropriate structural equipment	TR₃₄	Using medical alert devices to monitor patients’ health status
TR₁₅	Enhancing the employee’s sense of responsibility	TR₃₅	Mechanization of sanitary equipment
TR₁₆	Safety equipment for patients’ health	TR₃₆	Placing guides and descriptions next to devices and equipment
TR₁₇	Create special paths and equipment for patients without walking ability	TR₃₇	Placing warning signs
TR₁₈	Using modern equipment for patient transfer	TR₃₈	Sufficient space for footway
TR₁₉	Eliminate the lack of medicines and medical supplies	TR₃₉	Increase patient care according to the patients’ age and physical condition
TR₂₀	Implementing programs for cleaning the hospital’s environment and training orderlies	TR₄₀	Employing specialized physicians for each section

Figure 3.

The relationship matrix in various sections: (a) surgery, (b) emergency, (c) CCU, (d) physiotherapy, and (e) pediatric.

Obtaining the Relationships Matrix

The relationships between the visitors’ needs and the technical requirements were determined using the fourth questionnaire. The results, presented in Figure 3, indicate that 17 technical requirements cover 5 sections, 12 technical requirements cover 4 sections, 8 technical requirements cover 3 sections, and 3 technical requirements cover 2 sections.

Weights of Technical Requirements

Using equations (8) and (9), the final and absolute weights for each technical requirement were calculated, and the results are shown in Table 6. The results indicate that the technical requirements with the highest weights are “Training practitioners and nurses (TR6),” “Providing modern medical equipment and facilities (TR2),” “Using experienced specialists, physicians, and surgeons,” and “Enhancing employees' sense of responsibility,” respectively.

Table 6.

The weights of the technical requirements.

Technical requirement j	Relative weights in each section					Relative total weight $(R T W_{j}$ )	Implementation cost or C_j (USD)	Need workforce or H_j (Man-Hour)
Technical requirement j	Surgery	Emergency	CCU	Physiotherapy	Pediatric	Relative total weight $(R T W_{j}$ )	Implementation cost or C_j (USD)	Need workforce or H_j (Man-Hour)
TR₁	0.0398	0.0647	0.0083	0.0606	0.0503	0.0446	10 000	1200
TR₂	0.0415	0.0437	0.0781	0.083	0.0338	0.0483	1 120 000	2000
TR₃	0.0602	0.0504	0.0169	0.0057	0.0412	0.0477	230 000	1600
TR₄	0.0165	0.0114	0.0334	0.0386	0	0.0172	450 000	2000
TR₅	0.0167	0.0141	0.0472	0.0274	0.0498	0.023	30 000	2000
TR₆	0.0764	0.0824	0.0939	0.0614	0.0743	0.0788	10 000	800
TR₇	0.0346	0.0098	0	0.1062	0.0225	0.0279	30 000	800
TR₈	0.0357	0.0294	0.0247	0.0436	0.0679	0.036	10 000	800
TR₉	0.0282	0.0438	0.0347	0.0274	0.05	0.0346	20 000	2000
TR₁₀	0.0281	0	0.0234	0	0.0524	0.0207	10 000	800
TR₁₁	0.0336	0.0487	0.0593	0.0261	0.0359	0.0401	30 000	2000
TR₁₂	0.0473	0.0496	0.0346	0.0086	0.0229	0.042	50 000	1200
TR₁₃	0.0369	0.0345	0.0523	0.0086	0.0174	0.0347	10 000	800
TR₁₄	0.0148	0.0236	0.0409	0.0291	0.0055	0.0202	450 000	1200
TR₁₅	0.0449	0.0471	0.0259	0.0701	0.0491	0.0452	30 000	800
TR₁₆	0.0049	0.0292	0	0.0275	0.0173	0.0129	80 000	800
TR₁₇	0.0017	0.0496	0	0.0257	0	0.0149	30 000	1600
TR₁₈	0.0067	0.0284	0	0.0092	0	0.011	20 000	2000
TR₁₉	0.035	0.0302	0.0086	0	0.0055	0.0261	30 000	2000
TR₂₀	0	0.0046	0.0492	0.0273	0.0166	0.01	10 000	800
TR₂₁	0.0299	0.0303	0	0	0.0224	0.024	10 000	2000
TR₂₂	0.0202	0.0138	0.0259	0	0	0.0163	10 000	1600
TR₂₃	0.0192	0.0141	0	0	0.0506	0.0171	30 000	1200
TR₂₄	0.0295	0.0138	0.0053	0.0261	0.0185	0.0216	10 000	800
TR₂₅	0.0434	0.0484	0.0169	0.0057	0.0601	0.0406	50 000	800
TR₂₆	0.0045	0.005	0.0259	0	0.0326	0.0091	30 000	400
TR₂₇	0.0045	0	0.0262	0	0.0326	0.0079	30 000	800
TR₂₈	0.0369	0.0353	0.0088	0	0.0229	0.0297	30 000	800
TR₂₉	0.0134	0	0.0505	0.003	0.0018	0.0127	30 000	800
TR₃₀	0	0.0015	0.0258	0	0	0.0034	80 000	1600
TR₃₁	0.0199	0	0.0234	0	0.0445	0.0161	30 000	800
TR₃₂	0.037	0.0097	0.0248	0.0265	0.0058	0.0255	30 000	800
TR₃₃	0.0134	0	0.0234	0	0	0.0092	30 000	800
TR₃₄	0.0198	0.0101	0.0292	0	0.0058	0.016	50 000	800
TR₃₅	0.0148	0	0.0258	0	0	0.0102	30 000	1600
TR₃₆	0	0.005	0.0053	0.0836	0.0055	0.0076	10 000	800
TR₃₇	0.0148	0.0078	0.0086	0.0656	0.0224	0.0162	10 000	800
TR₃₈	0.0049	0.0437	0.0078	0.0522	0	0.0176	30 000	2000
TR₃₉	0.0203	0.0204	0.0349	0.0257	0.0174	0.0221	30 000	1200
TR₄₀	0.0502	0.0457	0	0.0257	0.0446	0.0412	30 000	800

Resource Constraints

After in-depth interviews with experts, the costs and required workforce for implementing each technical requirement are estimated. Table 6 shows the estimated costs and required workforce for each technical requirement. Based on the total relative weight and the resource constraints, the most suitable technical requirements for implementation, considering the budget limit, can be selected using the mathematical model (equations (10)-(12)). In equation (10), $R T W_{j = 1, \dots, 40}$ =[0.0446,0.0483,0.0477,. . .,0.0412] represents the vector of coefficients of $X_{j = 1, \dots, 40}$ for the case study, which is the total relative weight of each technical requirement. In equation (11), $C_{j = 1, \dots, 40}$ =[10 000, 1 120 000, 230 000,. . ., 30 000] represents the implementation cost of each technical requirement in the case study hospital. In equation (12), $H_{j = 1, \dots, 40}$ =[1600, 2000,. . ., 800] represents the required workforce (man-hours) for each technical requirement in the considered hospital.

Suppose the total available budget equals the sum of all technical requirements’ costs (3 250 000 USD) and the available workforce equals the sum of all needed workforce (48 400 man-hours). In that case, all the technical requirements would be selected for implementation, and the benefit obtained for the hospital would be 1 (the sum of the weights of all technical requirements). However, when the budget or available workforce is limited, not all requirements can be selected, necessitating an optimal selection of technical requirements. This optimization problem is addressed in this study by solving equations (10)-(12) using a commercial optimization solver (LINGO 18 software).

Table 7 presents the results obtained for different budget and workforce values. As shown in this table, reducing the budget while keeping the available workforce constant decreases the number of selected technical requirements and, consequently, the value of the objective function (Scenarios 1-5). Similarly, this effect is observed when reducing the available workforce while keeping the budget constant (Scenarios 6 to 10).

Table 7.

The results obtained for different budgets and available workforce.

Scenario	Considered budget (USD)	Available workforce (man-hour)	Selected technical requirements	Objective function
0	B = 3 250 000	AWF = 48 400	All technical requirements	1
1	0.9×B	AWF	All technical requirements except TR4	0.9828054
2	0.7×B	AWF	All technical requirements except TR4, TR14, and TR30	0.9592515
3	0.5×B	AWF	All technical requirements except TR2, TR4, and TR30	0.9311335
4	0.3×B	AWF	All technical requirements except TR2, TR4, TR14, TR16, TR26, TR27, TR30, and TR34	0.8649875
5	0.1×B	AWF	TR6 to TR13, TR15, TR20 to TR22, TR24, TR28, and TR37	0.5635771
6	B	0.9× AWF	All technical requirements except TR18, TR30, and TR35	0.9754287
7	B	0.7× AWF	All technical requirements except TR4, TR17, TR18, TR22, TR27, TR30, TR33, TR35, TR36, and TR38	0.8846869
8	B	0.5× AWF	TR1, TR2, TR3, TR6, TR7, TR8, TR9, TR10, TR11, TR12, TR13, TR14, TR15, TR24, TR25, TR26, TR28, TR31, TR32, TR34, TR37, TR39, TR40	0.7589405
9	B	0.3× AWF	TR1, TR2, TR3, TR6, TR7, TR8, TR12, TR13, TR15, TR24, TR25, TR26, TR28, TR32, TR40	0.5728919
10	B	0.1× AWF	TR6, TR8, TR13, TR15, TR25, TR40	0.2765436

Discussion

Discussion of Results

The analysis of the MD-HOQ results reveals that the technical requirements with the highest priorities are “Training practitioners and nurses (TR6),” “Providing modern medical equipment and facilities (TR2),” and “Using experienced specialists, physicians, and surgeons (TR3).” Each requirement plays a vital role in enhancing hospital quality and services.

Training practitioners and nurses is crucial to enhance hospital performance across various dimensions. It improves patient care by equipping healthcare professionals with updated knowledge of medical advancements and new technologies.^47-49 Furthermore, comprehensive training reduces errors by reinforcing adherence to protocols and safety measures, thereby increasing patient safety.^47-50 Effective training programs also enhance communication skills, fostering better patient interactions characterized by empathy and understanding.^47,48,50 From an operational standpoint, familiarity with standardized practices and efficient use of equipment increases overall efficiency,^47,51 while compliance with legal and regulatory requirements is strengthened through informed training initiatives.^6,51 In addition to these benefits, professional development opportunities significantly boost job satisfaction and staff retention, reducing turnover and ensuring a consistent, skilled workforce.^51,52 Collectively, these factors contribute to higher patient satisfaction, which positively impacts clinical outcomes.⁴⁷

The provision of modern medical equipment and facilities also significantly improves hospital services. Advanced diagnostic tools enhance the accuracy of diagnoses, enabling better treatment planning and patient outcomes.^53-55 Similarly, cutting-edge equipment facilitates the execution of complex treatments and surgeries with greater precision and safety.^53
-58 At the same time, real-time monitoring devices reduce the likelihood of critical incidents, thus enhancing patient safety.^54,57,58 Modernization extends beyond patient care; automated systems streamline hospital operations, reducing waiting times and optimizing resource utilization.^53,56-59 Hospitals with state-of-the-art facilities also attract skilled medical professionals who prefer to work in advanced environments.^54,56 Furthermore, these technologies enable continuous care, including remote monitoring post-discharge,^53-58 and reduce costs by minimizing errors and complications.^53-55,59 Compliance with global standards is another important outcome, as modern equipment enhances a hospital’s reputation and credibility, drawing more patients and ensuring competitive positioning.^53,55

Similarly, employing experienced physicians and surgeons significantly impacts hospital quality. Their expertise leads to higher survival rates, fewer medical errors, and better treatment outcomes.^60,61 These specialists also contribute to operational efficiency by enabling faster and more accurate diagnoses, which reduce hospital stays and associated costs.^61,62 Beyond technical proficiency, experienced practitioners excel in patient communication, fostering trust and satisfaction through clear and empathetic interactions.^62,63 Their credibility encourages patients to adhere to treatment plans, improving outcomes.^63,64 Additionally, these experts serve as mentors, transferring knowledge to junior staff and strengthening the overall competency of the medical team.⁶³ Hospitals that employ experienced specialists often enjoy enhanced reputations, which not only attract more patients but also facilitate access to financial resources for further development.⁶⁴

Discussion of the Techniques Used

The hybrid methodology employed in this research integrates SERVQUAL, MD-HOQ, and a mathematical model to optimize hospital resource allocation and prioritize technical requirements effectively.

SERVQUAL plays a central role by combining the importance of patient needs with their dissatisfaction levels, as measured by the gap between expectations and perceptions. For example, the need for the “Possibility of presenting a patient’s health status to their caregivers at any time” (CW7) has a lower importance degree (4.362) compared to “Adequate staff availability” (CWI8, with a value of 4.566), its relative weight (4.637) is higher because patients exhibit greater dissatisfaction with CW7 (improvement ratio of 1.063) than with CWI8 (improvement ratio of 1.008). This approach ensures that the most critical needs, from the patient’s perspective, are prioritized.

MD-HOQ enhances the coordination of quality improvement efforts across hospital sections by integrating the priorities of different units into a unified framework. Without this integration, separate implementations of HOQ could result in inefficiencies, such as resource misallocation or rework. For instance, in the physiotherapy section, the technical requirement “Counseling and instructing visitors” (TR7) has the highest priority with a relative weight of 0.1062. However, when considering the overall hospital context, its weight decreases to 0.0279, demonstrating the importance of aligning section-specific priorities with organizational goals. Moreover, MD-HOQ incorporates the relative importance of hospital sections (determined through AHP), ensuring that resources are allocated to maximize benefits for the entire organization.

The mathematical model further refines this prioritization by accounting for resource constraints, such as costs and workforce availability. Unlike traditional approaches that prioritize requirements solely based on their weights, this model optimizes utility by selecting a combination of requirements that delivers the highest overall value within the available resources. For instance, in Scenario 10 (Table 7), where 4840 (0.1 × AWF = 0.1 × 48 400) human resources are available, selecting requirements based solely on weight would result in implementing only TR6, TR2, and TR3, consuming all resources and achieving a total weight of 0.1748. By contrast, the mathematical model selects TR6, TR8, TR13, TR15, TR25, and TR40, achieving a higher total weight of 0.2765. This demonstrates how the model effectively increases utility by balancing priority, cost, and resource constraints.

Conclusion and Future Research Directions

This study presented an integrated Quality Function Deployment (QFD) approach with an overarching view, utilizing a new Multi-Dimensional House of Quality (MD-HOQ) matrix for quality improvement in hospital services. Additionally, MD-HOQ was integrated with Service Quality (SERVQUAL) analysis. This proposed approach helps hospital managers prioritize technical requirements more effectively. Since implementing each technical requirement incurs costs and requires workforce, correct prioritization considering resource constraints leads to higher patient satisfaction. Integrating SERVQUAL analysis into the traditional HOQ introduces an additional dimension in determining the weight of technical requirements. This approach considers the gap between patients’ expectations and perceptions of each need. Since a larger gap indicates greater patient dissatisfaction, technical requirements that address needs with higher gaps receive higher implementation priority. Moreover, hospitals consist of different sections, and MD-HOQ provides a tool to compile a comprehensive list of technical requirements for all hospital sections. In the proposed MD-HOQ, the weight of each technical requirement is determined based on its effects on patient needs across all hospital sections. This approach ensures that hospital resources are allocated to the most impactful technical requirements, benefiting the entire hospital.

To test the proposed approach, it was applied to a hospital. First, hospital sections and their importance were identified. Patients’ needs in various hospital sections were then identified, and their importance degree, expectations, and perceptions were obtained. Consequently, a list of technical requirements to satisfy these patient needs was identified, and the weight of each technical requirement was calculated based on its impact on patient needs. Finally, a mathematical formulation was used to determine the optimal list of technical requirements, considering resource constraints such as budget and available workforce.

By focusing on enhancing hospital services and balancing quality with resource constraints, this study contributes valuable insights into quality management, hospital services, and the application of MD-HOQ frameworks integrated with SERVQUAL analysis. This approach not only improves the overall quality of hospital services but also ensures efficient utilization of resources, ultimately leading to better patient outcomes and satisfaction.

Research Implications

This research provides hospital managers with a comprehensive understanding of patients’ needs across different sections. It also facilitates knowledge sharing, coordination, and cooperation between hospital sections. By offering an integrated plan to address patients’ needs in multiple sections simultaneously, this study promotes better utilization of hospital resources, eliminates rework, saves time, and increases hospital productivity. Additionally, integrating MD-HOQ and SERVQUAL enhances hospital resource use and maximizes hospital service quality while considering resource constraints. Ultimately, improving the quality of services in hospitals positively influences society’s overall health.

Research Limitations and Suggestions for Future Studies

The results obtained from the questionnaires are specific to the case study considered and may not be applicable to other cases with different needs and specifications. However, the proposed approach offers potential for application to other organizations with multiple sections and distinct types of customers. Additionally, the patient needs and technical requirements identified in this study may be a starting point for similar studies in other hospitals.

Future research could explore using other MCDM techniques, such as the analytic network process (ANP) or the technique for order of preference by similarity to ideal solution (TOPSIS), to determine the weight of patient needs or sections. Another potential research avenue is incorporating fuzzy numbers to account for uncertainty in parameters such as the importance, perception, and expectations of patient needs. Furthermore, using other quality management tools, such as the Kano model, to determine the weight of patient needs could be considered as another area for future research.

Footnotes

Acknowledgements

The authors would like to thank Tehranpars Hospital for their invaluable support in data collection and knowledge sharing.

ORCID iDs

Mohammad Ali Beheshtinia

Masood Fathi

Morteza Ghobakhloo

Statements and Declarations

References

Moshood

Sorooshian

Nawanir

Okfalisa

Efficiency of medical technology in measuring service quality in the Nigerian healthcare sector. Int J Afr Nurs Sci. 2022;16:100397.

Chukwuma

Lylozian

Gong

Challenges and opportunities for purchasing high-quality health care: lessons from Armenia. Health Syst Reform. 2021;7(1):e1898186.

Lee

CKM

CTY

Yeung

Choy

. Analyze the healthcare service requirement using fuzzy QFD. Comput Ind. 2015;74:1-15.

Brun Vergara

Garcia Ruiz

Guzman

. The evolution of health benefits packages in Colombia: thirty years of successes and failures. Health Syst Reform. 2023;9(3):2343174.

Ojewale

Akingbohungbe

Akinokun

Akingbade

Caregivers’ perception of the quality of nursing care in child health care services of the University College Hospital, Nigeria. J Pediatr Nurs. 2022;66:120-124.

Torkzad

Beheshtinia

MA.

Evaluating and prioritizing hospital service quality. Int J Health Care Qual Assur. 2019;32(2):332-346.

Patel

Harikumar

Principles and implementation of Quality Management and Patient Safety Systems in hospital. In: Bhatia

Chaudhari

Chaudhary

Sharma

Dhingra

eds. A Guide to Hospital Administration and Planning. Springer Nature; 2023;231-249.

Pasinringi

Rivai

Arifah

Rezeki

SF.

The relationship between service quality perceptions and the level of hospital accreditation. Gac Sanit. 2021;35:S116-119.

Teerawattananon

Vishwanath Dabak

Culyer

, et al. Fifteen lessons from fifteen years of the Health Intervention and Technology Assessment Program in Thailand. Health Syst Reform. 2023;9(3):2330974.

10.

Chou

Walker

Kanyangarara

Estimating the global impact of poor quality of care on maternal and neonatal outcomes in 81 low- and middle-income countries: A modeling study. PLoS Med. 2019;16(12):e1002990.

11.

Akinleye

McNutt

L-A

Lazariu

McLaughlin

CC.

Correlation between hospital finances and quality and safety of patient care. PLoS One. 2019;14(8):e0219124.

12.

Kruk

Gage

Arsenault

, et al. High-quality health systems in the Sustainable Development Goals era: time for a revolution. Lancet Glob Health. 2018;6(11):e1196-e1252.

13.

Hussey

Wertheimer

Mehrotra

The association between health care quality and cost: a systematic review. Ann Intern Med. 2013;158(1):27-34.

14.

AmarFact. Statistics on the number of hospitals and inpatient beds in Iran (in persian). 2022. https://amarfact.com/statistics/status-statistics-of-hospitals-and-inpatient-beds-in-iran/

15.

AmarFact. Statistics on the status of hospitals in Iran in terms of general and specialized orientations (in Persian). 2022. https://amarfact.com/statistics/situ-of-ir-hosp-in-trm-of-gen-orienspeci/

16.

Hosseini

Boushehri

Alimohammadzadeh

Challenges and solutions for implementing telemedicine in Iran from health policymakers’ perspective. BMC Health Serv Res. 2024;24(1):50.

17.

Soltani

Rezaei

Kazemi-Karyani

, et al. The effect of Iran’s health sector evolution plan on hospitals performance indicators: an interrupted time series analysis. Front Heal Serv. 2023;3:1144685.

18.

Beheshtinia

Sedady

Fathi

Ghobakhloo

Iranmanesh

A fuzzy three-dimensional house of quality to integrate and coordinate departments’ activities in organizations. IEEE Access. 2023;11:90538-90553.

19.

Camgöz-Akdağ

Tarım

Lonial

Yatkın

QFD application using SERVQUAL for private hospitals: a case study. Leadersh Health Serv. 2013;26(3):175-183.

20.

Azadi

Farzipoor Saen

A combination of QFD and imprecise DEA with enhanced Russell graph measure: a case study in healthcare. Socioecon Plann Sci. 2013;47(4):281-291.

21.

Chou

Tsai

Pai

Yen

CH.

Application of Kano’s two-dimensional quality model and QFD on a gender-friendly environment of hospital. Proceedings of PICMET ‘14 Conference: Portland International Center for Management of Engineering and Technology; Infrastructure and Service Integration, Kanazawa, Japan, 2014, pp. 3322-3331.

22.

Gao

Zhang

Healthcare service hidden quality cost estimation based the SERVQUAL and QFD Method. In: Qi

Shen

Dou

eds. Proceedings of the 22nd International Conference on Industrial Engineering and Engineering Management 2015: Core Theory and Applications of Industrial Engineering (Volume 1). Atlantis Press; 2016;417-426.

23.

Wood

Wang

Abdul-Rahman

Jamal Abdul-Nasir

NS.

Green hospital design: integrating quality function deployment and end-user demands. J Clean Prod. 2016;112:903-913.

24.

Dehe

Bamford

Quality function deployment and operational design decisions – a healthcare infrastructure development case study. Prod Plan Control. 2017;28(14):1177-1192.

25.

Jonny Zagloed

TYM.

The development of an integrated Indonesian health care model using Kano’s model, quality function deployment and balanced scorecard. AIP Conf Proc. 2017;1902:020031.

26.

Priyono

Yulita

. Improving service quality of hospital front office using an integrated Kano model and quality function deployment. Service quality, Kano model, quality function deployment, hospital front office. Intangible Capital. 2017;13(5):924.

27.

Raziei

Torabi

Tabrizian

Zahiri

A hybrid GDM-SERVQUAL-QFD approach for service quality assessment in Hospitals. Eng Manag J. 2018;30(3):179-190.

28.

Maalej

Halouani

Chabchoub

A linguistic reliable quality function deployment method for the healthcare sector. Int J Multicriteria Decis Mak. 2018;7(3/4):276.

29.

Hasibuan

Parinduri

Sulaiman

, et al. Service quality improvement by using the quality function deployment (QFD) method at the Government General Hospital. J Phys Conf Ser. 2019;1363(1):012095.

30.

Susanto

Wurjaningrum

Service blueprint and quality function deployment in designing service quality improvement in hospital. Int J Innov Creat Chang. 2019;9(8):287-299.

31.

Joshi

Bhargava

Waste Management integration with green quality function deployment (G-QFD) for Healthcare Centre. Prod Eng Arch. 2019;22(22):45-49.

32.

Mathews

Stoll

Sternberger

, et al. Prioritizing health care solutions for pressure ulcers using the quality function deployment process. Am J Med Qual. 2020;35(3):197-204.

33.

Altuntas

Kansu

An innovative and integrated approach based on SERVQUAL, QFD and FMEA for service quality improvement. Kybernetes. 2020;49(10):2419-2453.

34.

Tortorella

Fogliatto

Sunder

M V

Cawley Vergara

Vassolo

Assessment and prioritisation of healthcare 4.0 implementation in hospitals using quality function deployment. Int J Prod Res. 2022;60(10):3147-3169.

35.

Huang

Ying

Jiang

. Research on the design of the pre-hospital Emergency System based on kano-QFD. In: Göbl

van der Spek

Baalsrud Hauge

McCall

, eds. Entertainment Computing – ICEC 2022. ICEC 2022. Lecture Notes in Computer Science. Vol. 13477. Springer, 2022, pp. 398-411.

36.

Junior

JBG

Hékis

Costa

JAF

, et al. Application of the QFD-fuzzy-SERVQUAL methodology as a quality planning tool at the surgical centre of a public teaching hospital. BMC Med Inform Decis Mak. 2022;22(1):8.

37.

Khan

Ali

Pamucar

A new fuzzy FUCOM-QFD approach for evaluating strategies to enhance the resilience of the healthcare sector to combat the COVID-19 pandemic. Kybernetes. 2022;51(4):1429-1451.

38.

Nie

R-X

Tian

Z-P

Kwai Sang

Wang

J-Q.

Implementing healthcare service quality enhancement using a cloud-support QFD model integrated with TODIM method and linguistic distribution assessments. J Oper Res Soc. 2022;73(2):207-229.

39.

Raj

Samuel

Barriers to Healthcare Waste Management: A QFD Strategy. Springer Nature; 2023.

40.

Gavahi

Hosseini

SMH

Moheimani

An application of quality function deployment and SERVQUAL approaches to enhance the service quality in radiology centres. Benchmarking. 2023;30(5):1649-1671.

41.

Chowdhury

MMH

Mahmud

AKMS

Khan

Hossain

Barua

. Lessons learnt from COVID-19 vaccine operations and distribution performance: challenges and resilience strategies. Asia Pac J Mark Logist. 2023;35(9):2317-2343.

42.

Sedady

Beheshtinia

MA.

A novel MCDM model for prioritizing the renewable power plants’ construction. Manage Environ Qual. 2019;30(2):383-399.

43.

Shahin

Bagheri Iraj

Vaez Shahrestani

Developing the C-shaped QFD 3D matrix for service applications with a case study in banking services. Int J Qual Reliab Manag. 2017;35(1):109-200.

44.

Kibria

Seekamp

Xiao

Dalyander

Eaton

Multi-criteria decision approach for climate adaptation of cultural resources along the Atlantic coast of the southeastern United States: application of AHP method. Clim Risk Manag. 2024;43:100587.

45.

Sáenz-Royo

Chiclana

Herrera-Viedma

Ordering vs. Ahp. Does the intensity used in the decision support techniques compensate?

Expert Syst Appl. 2024;238:121922.

46.

Beheshtinia

Omidi

A hybrid MCDM approach for performance evaluation in the banking industry. Kybernetes. 2017;46(8):1386-1407.

47.

Woo

BFY

Lee

JXY

Tam

WWS

. The impact of the advanced practice nursing role on quality of care, clinical outcomes, patient satisfaction, and cost in the emergency and critical care settings: a systematic review. Hum Resour Health. 2017/09/11;15(1):63. 2017.

48.

Calmita

HJC

Boag

BR.

The impact of clinical skills training on hospital nursing care towards acquisition of improved care quality: a systematised review. Eur Heart J. 2021;42:ehab724.3148.

49.

Joan

Bryan

Sarah

The Role of Undergraduate Nursing Education in Patient Safety. PSNet [Internet]; 2023.

50.

Alarjani

Alharbi

NHM

Alshammari

. The significance of enhancing health workers' skills and knowledge in driving positive patient experiences. Natl J Health Sci. 2021;5(S1):1084-1093.

51.

Abou Hashish

Alsayed

Evidence-based practice and its relationship to quality improvement: a cross-sectional study among Egyptian nurses. Open Nurs J. 2020;14(1):14-262.

52.

Nasution

Suhairi

Nurbaiti

. The influence of training and career development on employee retention mediated by job satisfaction. MEC-J (Manag Econ J). 2024;8(2):203-224.

53.

Zamzam

Abdul Wahab

Azizan

, et al. A systematic review of Medical Equipment Reliability Assessment in improving the quality of healthcare services. Front Public Health. 2021;9:753951.

54.

Sinha

The role and impact of new technologies on healthcare systems. Discov Heal Syst. 2024/11/14;3(1):96. 2024.

55.

Guo

Han

Guo

Advanced Technologies in Healthcare (AI, Signal Processing, Digital Twins and 5G). Springer; 2024.

56.

Maleki Varnosfaderani

Forouzanfar

. The role of AI in hospitals and clinics: transforming healthcare in the 21st century. Bioengineering. 2024;11(4):337.

57.

Ali

AlAhmad

Kahtan

A review of advanced technologies available to improve the healthcare performance during COVID-19 pandemic. Procedia Comput Sci. 2023;217:205-216.

58.

Ivančić

Glavan

Vukšić

. A Literature Review of Digital Transformation in Healthcare. 2020 43rd International Convention on Information, Communication and Electronic Technology (MIPRO)”, Opatija, Croatia, 2020, pp. 1351-1355.

59.

Hinrichs-Krapels

Ditewig

Boulding

, et al. Purchasing high-cost medical devices and equipment in hospitals: a systematic review. BMJ Open. 2022;12(9):e057516.

60.

Conway

Byrne

O’Riordan

Silke

Improved outcomes of high-risk emergency medical admissions cared for by experienced physicians. QJM. 2014;108(2):119-125.

61.

Freire-Tellado

Navarro-Patón

Mateos-Lorenzo

, et al. Influence of the type of physician on survival from emergency-medical-service-witnessed cardiac arrest: an observational study. Healthcare. 2022;10(10):1841.

62.

Madison

Hospital–physician affiliations and patient treatments, expenditures, and outcomes. Health Serv Res. 2004;39(2):257-278.

63.

Zolnierek

Dimatteo

MR.

Physician communication and patient adherence to treatment: a meta-analysis. Med Care. 2009;47(8):826-834.

64.

Castro-Blancas

Rivas-Zavaleta

Cespedes-Blanco

Raymundo

Rivera

. Recruitment and Training Model for Retaining and Improving the Reputation of Medical Specialists to Increase Revenue of a Private Healthcare SME. Springer International Publishing; 2020:719-725.

Enhancing Hospital Services: Achieving High Quality Under Resource Constraints

Abstract

Objectives:

Methods:

Results:

Conclusions:

Keywords

Introduction

Literature Review

Review Summary and Key Insights

Methodology

MD-HOQ

Date Gathering

The Used Samples

The Interviews and Questionnaires

Research Steps

Results

Hospital Sections and Their Importance Degrees

Patient’s Needs in Each Section

Identifying the Importance Degree of Each Patient’s Needs

Implementation of SERVQUAL

Final Weight of Patients’ Needs

Identification of Technical Requirements

Obtaining the Relationships Matrix

Weights of Technical Requirements

Resource Constraints

Discussion

Discussion of Results

Discussion of the Techniques Used

Conclusion and Future Research Directions

Research Implications

Research Limitations and Suggestions for Future Studies

Footnotes

Acknowledgements

ORCID iDs

Statements and Declarations

References
