Abstract

Aims:

The use of highly cross-linked polyethylene (XLPE) on the acetabulum has undoubtedly improved the wear rates and hence survivorship of total hip arthroplasty (THA). However, the importance of head tribology is not known. Oxidised zirconium (OxZr) was introduced to offer the lower wear rates of ceramic but the strength of metal. Whether OxZr heads have any purported benefits in terms of lowering wear is not known. This study therefore aims to compare wear rates of XLPE against metal and OxZr heads over a 10-year period.

Methods:

A previous study has suggested we need a minimum 95 cases to show a statistically significant difference. Thus, in this 10-year retrospective analysis we included 95 subjects with a primary THA with a 28-mm OxZr and 131 patients with a 28-mm cobalt-chrome (CoCr) head, both against XLPE liners.

Linear and volumetric wear rate comparisons were performed using a validated 2-dimensional stereoisometric analysis by an independent centre.

Results:

There were no significant differences for any of the patient demographics between the 2 groups, with >60% women in both groups and normally distributed age. Cup inclination angle was also comparable between the 2 groups.

While there was no difference in volumetric wear rates (p = 0.7377), the annual linear wear rate for OxZr was 0.030 mm (95% CI, 0.024–0.036) compared with 0.046 mm (95% CI, 0.038–0.054) for CoCr, a statistically significant difference (p = 0.0002)

Conclusions:

The widespread use of XLPE has revolutionised THA. This study is the first to show a statistically significantly lower wear rate with the use of OxZr. Whether this is enough to justify the cost differential and whether it translates to better implant survivorship is still to be determined. But if wear limiting wear rates is associated with decreasing revision rates, the use of ceramicised metal may be of clinical benefit.

Keywords

Hip arthroplasty hip replacement oxidised linear wear OXINIUM tribology

Introduction

Highly cross-linked polyethylene has dramatically changed the wear rates of hard-on-soft bearings in total hip arthroplasty (THA).^1–3 Most reports show that it results in up to 4 times less wear than with conventional polyethylene and lower wear rates than the reported 0.1-mm/year threshold associated with osteolysis.^4–9

Since then, much work has concentrated on the opposite side of the bearing combination – the femoral head. It has been postulated that the better scratch profile, surface smoothness and wettability of ceramic heads when compared to traditional cobalt chromium (CoCr) heads may decrease polyethylene debris/wear and therefore result in less osteolysis/aseptic loosening.^10–13

This has led many surgeons to convert to the use of ceramic heads instead of metal despite an increased economic cost,¹⁴ even though the majority of the evidence indicates there are not lower wear rates with a ceramic head and only a recent meta-analysis indicates a possible trend to lower wear.^13,15–18 It is also thought that ceramic heads will lower the incidence of mechanically activated crevice corrosion (MACC) or trunnionosis.¹⁹ This is often cited as a major reason for the rise in the use of ceramic heads for primary THA.²⁰

The risks of using ceramic heads include their brittleness, leading to a relatively high incidence of fracture. Even though third and fourth generation ceramic heads report lower fracture rates, reports of varying fracture rates between 0.01% and 1.5% persist.^21,22

Oxidised zirconium (OxZr) was introduced to reduce polyethylene wear (because of the ceramic outer layer) while the metal core aimed to eliminate the potential for catastrophic fracture.²³

There have been encouraging data showing lower wear rates in the short term of OxZr against ultra-high molecular weight (UHMW) polyethylene (4 years),²⁴ and an RCT comparing wear of metal, ceramic and OxZr against XLPE (highly cross-linked polyethylene) at 5 and 7 years.^25,26 Both of these studies have been underpowered and have follow-up only in the early phase of survivorship. Of 2 10-year RCT RSA analyses, 1 found no statistical difference between metal and OXINIUM (Smith+Nephew, Memphis, TN, USA) heads at 10 years,²⁷ while a second demonstrated a trend towards lower wear rates in favour of OxZr, although this finding was not statistically significant.²⁸

Conversely, A previously published article from this study group found there were lower wear rates with the oxidised zirconium head than with metal heads, but the study remained underpowered and the results were not statistically significant.

To discover whether there was a significant decrease in XLPE wear with OxZr compared with metal heads, this study was appropriately powered (based on our previous study).

We therefore present a minimum 10-year follow-up of 2 separate bearing combinations to assess if there is any statistical difference in the wear rates of cobalt-chrome metal heads versus OxZr heads with the same contemporary XLPE.

Methodology

In this retrospective study, we acquired Ethical Board approval (#19-275) to perform a validated assessment on the wear rates of 2 different bearing surfaces.

Inclusion criteria consisted of patients aged 18–65 years undergoing THR for primary arthritis. Exclusion criteria included a history of hip joint sepsis, primary or secondary malignancy in the involved hip, secondary osteoarthritis due to inflammatory arthropathy, fracture of the femoral neck, and bone deficiency requiring the use of autologous or allograft bone.

Patients were recruited between 2008 and 2013 from three academic centres. These were St Michael’s Hospital (Toronto, Canada), Western University (London, Canada) and the University of Nebraska (Lincoln, Omaha, NE, USA). Patients were followed up for a minimum of 10 years.

Our previous study looked at 4 bearing types including OxZr and CoCr against conventional ultra-high-molecular-weight polyethylene (UHWMWPE) and XLPE.²⁹ We found a trend to lower XLPE wear rate for OxZr heads compared with CoCr. However, this difference could not be considered statistically significant based on the low cohort numbers (23–25 patients in each arm of the study).

From this study, a power calculation was performed and we predicted at what difference a statistically significant difference may be detectable if the cohort size was increased to a minimum of 95 patients.

We therefore collated immediate postoperative and 10-year postoperative images of patients who had undergone THA with either a CoCr or OxZr head. As our initial cohorts included 28-mm heads, this analysis was limited to this head size alone. All implants were made by Smith+Nephew (Memphis, TE, USA) and were a Porous Synergy stem and hydroxyapatite (HA) coated Reflection cup.

The primary outcome assessed is average linear wear rates over 10 years and the secondary outcome is volumetric wear rates.

A standardised anteroposterior (AP) of the pelvis and a lateral view of the hip were taken immediately postoperatively and then again at 10 years, and radiographic assessment was performed to assess steady state wear. While there would be some initial creep, this was present in both groups.

Radiological assessment

Radiological assessment of wear was performed by a blinded, independently contracted company that had developed the Polyware digital analysis program (Draftware inc, Vevay, IN, USA). Polyware is a software application that creates a 3-dimensional model of implants based on AP and lateral radiographs.³ The process has been validated,¹³ with an inter-observer error at 95% estimated to be ±0.007679 and has previously been reported to be more reliable than 2-dimensional analysis.^13,30 Calibration is performed using standardised 28-mm femoral heads and the program is compatible with the Smith+Nephew Reflection acetabular component. Changes in volumetric and linear wear, as well as directional analysis, are calculated by the program. The linear wear accuracy of Polyware is ±0.015 mm and the volumetric is validated as ±0.13 mm³.¹⁴ We also assessed acetabular inclination (via the automated program as well as via manual assessment with reference to the trans-ischial line). Any osteolysis or radiolucent lines (RLLs) were assessed using the lines of Gruen et al.³¹ and of DeLee and Charnley³² for the femoral and acetabular components, respectively.

The secondary outcome was volumetric wear (mm/cm³).

Statistical analysis

For demographics and wear results, means and standard deviations (SDs) were calculated and are listed in the results. For comparison between the 2 groups an unpaired student’s t-test was conducted with a 2-tailed hypothesis and a significance value of 0.05. To determine normality of samples, the Kolmogorov-Smirnov test was used. For non-normally distributed samples a two-tailed Mann-Whitney U-test with a significance value of 0.05 was conducted to determine significance.

This manuscript was prepared following the STROBE (Strengthening the Reporting of Observational Studies in Epidemiology) checklist for observational studies.

Results

Demographics

All patients included in this study received primary total hip arthroplasty and had no evidence of osteolysis as part of their clinical picture. 95 patients were assigned to the oxinium group and 131 to the cobalt group. Age and sex data were collected for all patients and the results are listed in Table 1. Both groups were female dominated with >60% of patients being female in both groups. When comparing age across the 2 groups there was no statistically significant difference between the means of the 2 groups. All age data were normally distributed.

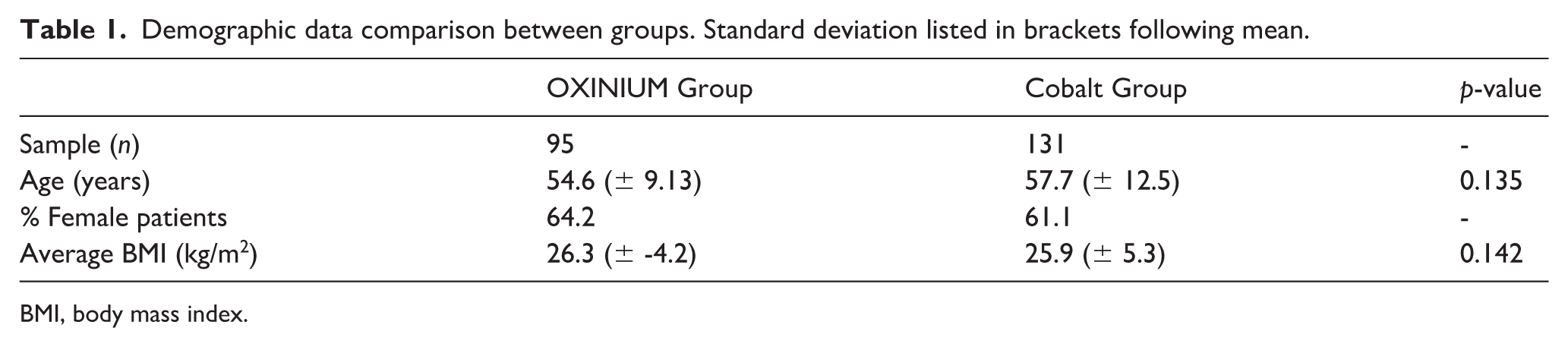

Table 1.

Demographic data comparison between groups. Standard deviation listed in brackets following mean.

	OXINIUM Group	Cobalt Group	p-value
Sample (n)	95	131	-
Age (years)	54.6 (± 9.13)	57.7 (± 12.5)	0.135
% Female patients	64.2	61.1	-
Average BMI (kg/m²)	26.3 (± -4.2)	25.9 (± 5.3)	0.142

BMI, body mass index.

All cups were investigated irrespective of the cup inclination angle.

All cups were HA-coated Reflection with XLPE liners and 87% were high offset Synergy stems (Smith+Nephew) with the remainder standard offset Synergy stems.

Wear analysis

Outcomes for wear over time were calculated in terms of both linear and volumetric wear per year, and summary results are listed in Table 2. Volumetric wear values were normally distributed in both groups and statistical analysis with a t-test revealed no significant difference between the means of the 2 groups (Table 1) (Figures 1 and 2).

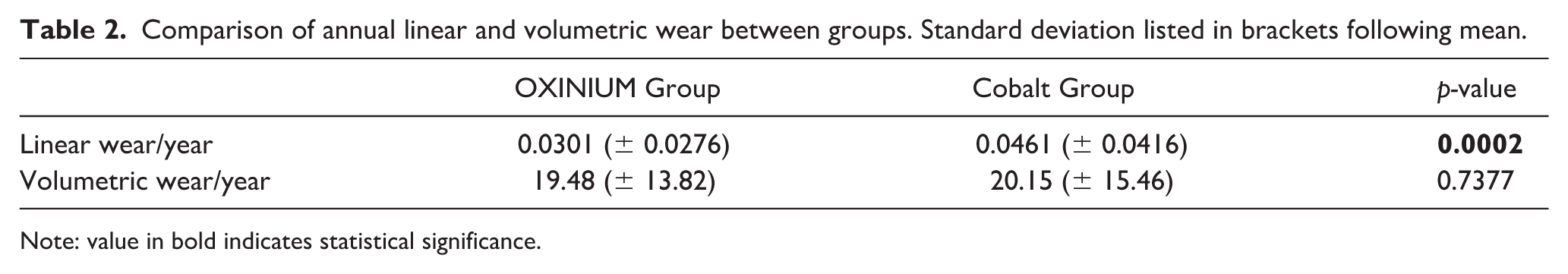

Table 2.

Comparison of annual linear and volumetric wear between groups. Standard deviation listed in brackets following mean.

	OXINIUM Group	Cobalt Group	p-value
Linear wear/year	0.0301 (± 0.0276)	0.0461 (± 0.0416)	0.0002
Volumetric wear/year	19.48 (± 13.82)	20.15 (± 15.46)	0.7377

Note: value in bold indicates statistical significance.

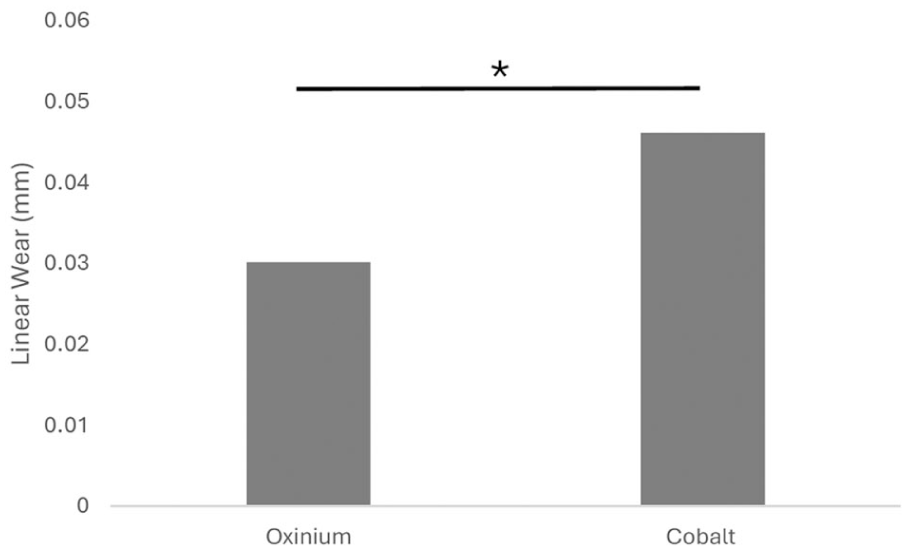

Figure 1.

Graph of average linear wear of OxZr versus metal heads.

Figure 2.

Graph of average volumetric wear of OxZr versus metal heads.

Conversely, linear wear rates were non-normally distributed and thus the Mann-Whitney U-test was used to show a statistically significant difference between the means of the 2 groups with the cobalt group having higher wear rates per year when compared to the OXINIUM group (Table 2) (Figure 1).

Discussion

This 10-year multicentre retrospective follow-up analysis has demonstrated that there were statistically significant lower wear rates of XLPE when combined with an oxidised zirconium head than with a cobalt-chrome head. This assessment was performed with a validated calibrated imaging tool performed by a blinded secondary company.

To our knowledge, this is the first 10-year follow-up to show such a statistically significant difference.

Prior to the introduction of XLPE to THA, osteolysis and subsequent implant aseptic loosening was often the leading cause of revision.³³ XLPE has led to a dramatic change in implant survivorship by a reduction in polyethylene wear.^4,34

After widespread uptake in the use of XLPE, the linear wear rates of polyethylene dropped below what was thought to be a threshold limit of 0.1 mm/year.⁹ Wear above this limit is thought to be the instigator of osteolysis and hence aseptic loosening. When XLPE is used, neither metal nor OxZr will come close to this threshold for wear but finding the lowest wear rate and related clinical significance is the goal of this study.

XLPE usage in hip arthroplasty has resulted in only anecdotal cases of osteolysis and the associated lower revision rates.³⁵ As a result, the use of “hard on soft” is now the predominant bearing combination in North America with the “soft” being XLPE.³⁶

However, there is controversy over the ideal partnering head. While there are theoretical benefits to the use of a ceramic head (over a metal head) such as better scratch profile and better wettability,^37,38 only 1 study has demonstrated any improvement in conventional polyethylene,³⁹ and this has not transferred to any meaningful in vivo improvement in wear profile with XLPE. Conversely, the brittle nature of ceramic means there remains a risk fracture of these heads. Even with third generation ceramics, this is reported to be 0.79/1000 cases.³⁰ Oxidised zirconium was therefore developed as a proprietary material by a single vendor. This offers the benefits of a ceramic surface with the strength of metal.

The Australian Joint Registry, when comparing different bearing surfaces, has demonstrated the superior survivorship of OxZr (also known as ceramicised metal*) versus XLPE at 19 years (Figure 3).⁴⁰ But the proprietary nature of this means they are cautious with their announcement of this superiority.

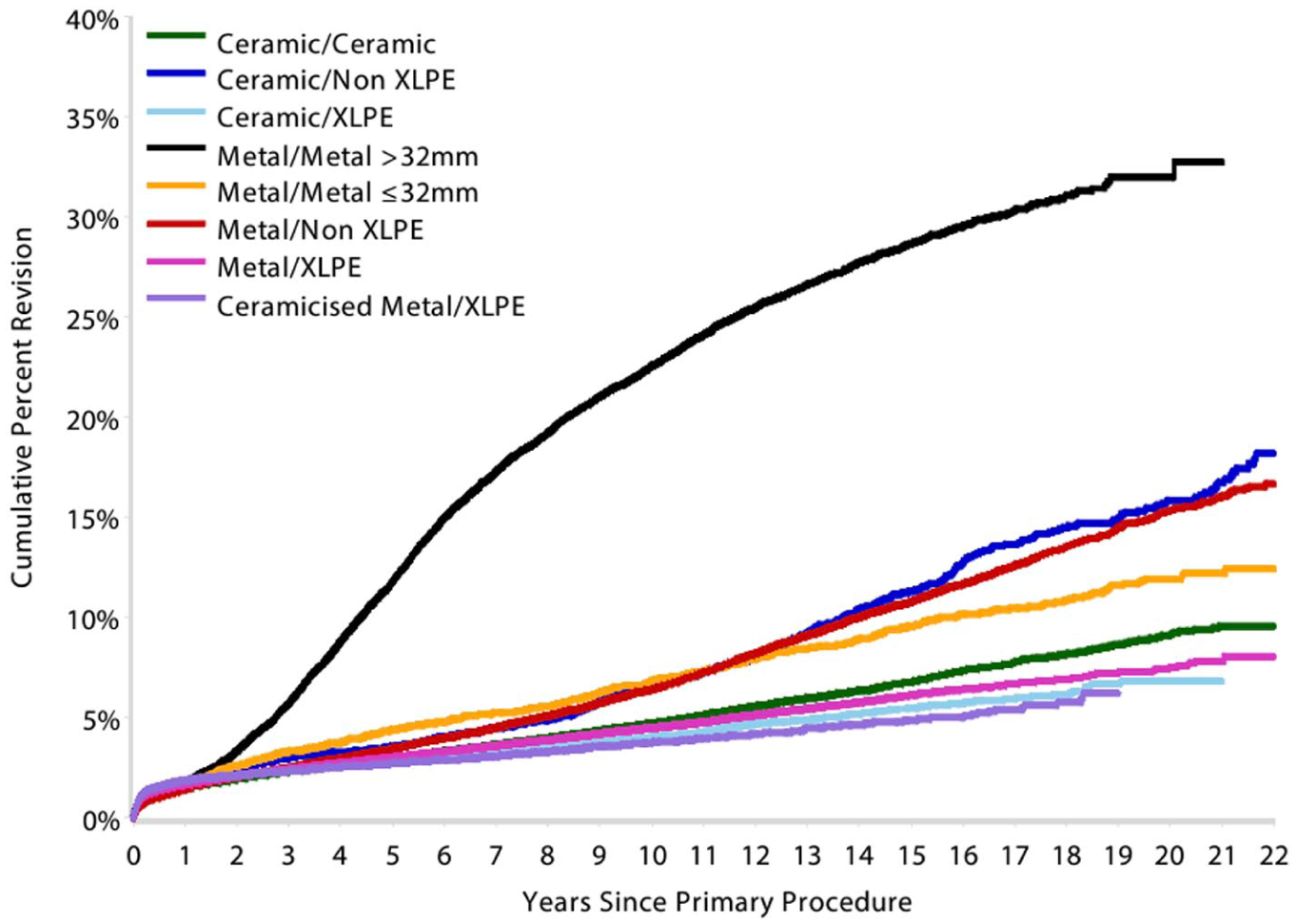

Figure 3.

Australian Joint Registry showing comparative wear rates of different bearing surfaces up to 19 years.

*Ceramicised metal/XLPE has the lowest rate of revision at 10 years. However, the results should be interpreted with caution as this bearing is a single company product, used with a small number of femoral stem and acetabular component combinations. This may have a confounding effect, making it unclear if the lower rate of revision is an effect of the bearing surface or reflects the limited combinations of femoral and acetabular prostheses.

The reasons for the improved survivorship of ceramic and ceramicised metal heads is currently being debated. Whether it is due to decreased polyethylene wear because of the surface properties of the ceramic/ceramicised metal heads or whether there is a limitation in the potential for adverse reaction to metal debris (ARMD) or trunnionosis at the head/taper junction is unknown.⁴¹

To our knowledge, this study is the first to show a significant decrease in wear of XLPE with OxZr heads. This may therefore confirm the reason or one of the reasons for the improved survivorship.

The increased use of both ceramic and ceramicised metal heads against XLPE when compared to traditional metal-XLPE is down to a perceived better survivorship.³⁴ However,this comes at an extra cost. Cost-effectiveness has already been quantified for certain ages and at certain costs differentials and may not be appropriate for all ages.⁴²

Limitations of study

The major limitation of this study is the question of whether the difference in wear rates (even if statistically significant) has any clinical significance. However, the reason for better survivorship with either ceramic or OxZr heads has not yet been confirmed and this paper adds to the weight of evidence.

Additionally, this study is also retrospective and may lend itself to bias. The analysis, however, is a validated technique which has already been used many times in this journal.

Additionally, the increased use of both ceramic and ceramicised metal heads against XLPE when compared to traditional metal-XLPE is down to a perceived better survivorship.³⁴ But this comes at an extra cost. The cost-effectiveness has already been quantified at certain ages and at certain costs differentials and may not be appropriate for all ages.⁴²

When this trial was started, it was not clear what XLPE wear rates would be with larger heads. As a result, the use of smaller heads was still common. There are now multiple publications to show wear rates remain low and constant even with thin polyethylene.⁴³ However, this study remains pertinent to reflect overall wear rates.

This is a multicentre study, with at least 5 different surgeons (all performing a posterior approach) which, although it may confer bias, adds to the transferability of the information to the real-world setting. Similarly, patient demographics such as age/a proxy for activity levels and body mass index (BMI) were not included and may have an impact on wear rates. This study only assesses 28-mm heads, the use of which is now on the decline compared to 32- and 36-mm heads. Our assessment methodology is a validated assessment protocol that has been correlated to RSA.

This study is purely a radiological assessment of wear rates and osteolysis risk, and does not reflect function and pain levels.

Finally, the OxZr heads are a proprietary product that is only made by 1 manufacturer (Smith+Nephew).

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was funded by Smith+Nephew Orthopaedics, 34667-7363-BG.

ORCID iDs

Amit Atrey

Graeme Hoite

References

Muratoglu

Wannomae

Christensen

, et al. Ex vivo wear of conventional and cross-linked polyethylene acetabular liners. Clin Orthop Relat Res 2005; 438: 158–164.

McKellop

Shen

, et al. Development of an extremely wear-resistant ultra high molecular weight polyethylene for total hip replacements. J Orthop Res 1999; 17: 157–167.

Muratoglu

Bragdon

O’Connor

, et al. Unified wear model for highly crosslinked ultra-high molecular weight polyethylenes (UHMWPE). Biomaterials 1999; 20: 1463–1470.

Glynn-Jones

Thomas

GER

Garfield-Roberts

, et al. The John Charnley Award: highly crosslinked polyethylene in total hip arthroplasty decreases longterm wear: a doubleblind randomized trial. Clin Orthop Relat Res 2015; 473: 432–438.

Nikolaou

Edwards

Bogoch

, et al. A prospective randomised controlled trial comparing three alternative bearing surfaces in primary total hip replacement. J Bone Joint Surg Br 2012; 94: 459–965.

Mutimer

Devane

Adams

, et al. Highly crosslinked polyethylene reduces wear in total hip arthroplasty at 5 years. Clin Orthop Relat Res 2010; 468: 3228–3233.

Callary

Field

Campbell

DG.

Low wear of a second-generation highly crosslinked polyethylene liner: a 5-year radiostereometric analysis study. Clin Orthop Relat Res 2013; 471: 3596–3600.

Hanna

Somerville

McCalden

, et al. Highly cross-linked polyethylene decreases the rate of revision of total hip arthroplasty compared with conventional polyethylene at 13 years’ follow-up. Bone Joint J 2016; 98-B: 28–32.

Dumbleton

Manley

Edidin

AA.

A literature review of the association between wear rate and osteolysis in total hip arthroplasty. J Arthroplasty 2002; 17: 649–661.

10.

Hernigou

Zilber

Filippini

, et al. Ceramic-ceramic bearing decreases osteolysis: a 20-year study versus ceramic-polyethylene on the contralateral hip. Clin Orthop Relat Res 2009; 467: 2274–2280.

11.

Falex

La Cava

Panegrossi

Femoral prosthetic heads and their significance in polyethylene wear. Int Orthop 2000; 24: 126–129.

12.

Fabry

Zeitz

Baumann

, et al. Wear performance of sequentially cross-linked polyethylene inserts against ion-treated CoCr, TiNbN-Coated CoCr and Al2O3 ceramic femoral heads for total hip replacement. Lubricants 2015; 3: 14–26.

13.

Mertz

Yang

Chung

, et al. Ceramic femoral heads exhibit lower wear rates compared to cobalt chrome: a meta-analysis. J Arthroplasty 2023; 38: 397–405.

14.

Carnes

Odum

Troyer

, et al. Cost analysis of ceramic heads in primary total hip arthroplasty. J Bone Joint Surg Am 2016; 98: 1794–1800.

15.

Kim

YH.

Comparison of polyethylene wear associated with cobalt-chromium and zirconia heads after total hip replacement. A prospective, randomized study. J Bone Joint Surg Am 2005; 87: 1769–1776.

16.

Kraay

Thomas

Rimnac

, et al. Zirconia versus Co-Cr femoral heads in total hip arthroplasty: early assessment of wear. Clin Orthop Relat Res 2006; 453: 86–90.

17.

Rasquinha

Ranawat

Weiskopf

, et al. Serum metal levels and bearing surfaces in total hip arthroplasty. J Arthroplasty 2006; 21(Suppl. 2): 47–52.

18.

Teeter

MacLean

Somerville

, et al. Wear performance of cobalt chromium, ceramic, and oxidized zirconium on highly crosslinked polyethylene at mid-term follow-up. J Orthop 2018; 15: 620–623.

19.

Kocagoz

Underwood

MacDonald

, et al. Ceramic heads decrease metal release caused by head-taper fretting and corrosion. Clin Orthop Relat Res 2016; 474: 985–994.

20.

Zagra

Gallazzi

Bearing surfaces in primary total hip arthroplasty. EFORT Open Rev 2018; 3: 217–224.

21.

Lee

Kim

RH.

Incidence of modern alumina ceramic and alumina matrix composite femoral head failures in nearly 6 million hip implants. J Arthroplasty 2017; 32: 546–551.

22.

Park

Hwang

Choy

WS.

Ceramic failure after total hip arthroplasty with an alumina-on-alumina bearing. J Bone Joint Surg Am 2006; 88: 780–787.

23.

Good

Ries

Barrack

, et al. Reduced wear with oxidized zirconium femoralheads. J Bone Joint Surg Am 2003; 85-A(Suppl. 4): 105–110.

24.

Teeter

MacLean

Somerville

, et al. Wear performance of cobalt chromium, ceramic, and oxidized zirconium on highly crosslinked polyethylene at mid-term follow-up. J Orthop 2018; 15: 620–623.

25.

Zaoui

Hage

Langlois

, et al. Do oxidized zirconium femoral heads reduce polyethylene wear in cemented THAs? A blinded randomized clinical trial. Clin Orthop Relat Res 2015; 473: 3822–3828.

26.

Karidakis

Karachalios

Oxidized zirconium head on crosslinked polyethylene liner in total hip arthroplasty: a 7- to 12-year in vivo comparative wear study. Clin Orthop Relat Res 2015; 473: 3836–3845.

27.

Salipas

Poole

Teeter

, et al. A ten-year radiostereometric analysis of polyethylene wear between oxidized zirconium and cobalt chrome articulations in total hip arthroplasty. J Arthroplasty 2022; 37: S692–S696.

28.

Kayani

Baawa-Ameyaw

Fontalis

Oxidized zirconium versus cobalt-chrome femoral heads in total hip arthroplasty: a multicentre prospective randomized controlled trial with ten years’ follow-up. Bone Joint J 2022; 104-B: 833–843.

29.

Khoshbin

Ward

, et al. Wear rates of XLPE nearly 50% lower than previously thought after adjusting for initial creep: an RCT comparing 4 bearing combinations. JB JS Open Access 2020; 5: e0066.

30.

Sychterz

Yang

McAuley

, et al. Two-dimensional versus three-dimensional radiographic measurements of polyethylene wear. Clin Orthop Relat Res 1999; 365: 117–123.

31.

Gruen

McNeice

Amstutz

HC.

“Modes of failure” of cemented stem-type femoral components: a radiographic analysis of loosening. Clin Orthop Relat Res 1979; (141): 17–27.

32.

DeLee

Charnley

Radiological demarcation of cemented sockets in total hip replacement. Clin Orthop Relat Res 1976; (121): 20–32.

33.

Robert

Cooper Craig

, et al. Polyethylene debris-induced osteolysis and loosening in uncemented total hiparthroplasty: a cause of late failure. J Arthroplasty 1992; 3: 285–290.

34.

Jacobs

Christensen

Greenwald

, et al. Clinical performance of highly cross-linked polyethylenes in total hip arthroplasty. J Bone Joint Surg Am 2007; 89: 2779–2786.

35.

Lachiewicz

Soileau

ES.

Highly cross-linked polyethylene provides decreased osteolysis and reoperation at minimum 10-year follow-up. J Arthroplasty 2016; 31: 1959–1962.

36.

Heckmann

Sivasundaram

Stefl

, et al. Total hip arthroplasty bearing surface trends in the United States from 2007 to 2014: the rise of ceramic on polyethylene. J Arthroplasty 2018; 33: 1757–1763.e1.

37.

Chang

Yoo

Song

, et al. Transfer of metallic debris from the metal surface of an acetabular cup to artificial femoral heads by scraping: comparison between alumina and cobalt-chrome heads. J Biomed Mater Res B Appl Biomater 2008; 85: 204–209.

38.

Skinner

HB.

Ceramic bearing surfaces. Clin Orthop Relat Res 1999; (369): 83–91.

39.

Meftah

Klingenstein

Yun

, et al. Long-term performance of ceramic and metal femoral heads on conventional polyethylene in young and active patients: a matched-pair analysis. J Bone Joint Surg Am 2013; 95: 1193–1197.

40.

Australian Orthopaedic Association National Joint Replacement Registry. 2023 Annual Report: hip, knee and shoulder arthroplasty, 2023, pp. 145–148. https://aoanjrr.sahmri.com/documents/10180/1579982/AOA_NJRR_AR23.pdf/c3bcc83b-5590-e034-4ad8-802e4ad8bf5b?t=1695887126627 (accessed November 2025).

41.

Eichler

Barry

Lavigne

, et al. No radiological and biological sign of trunnionosis with large diameter head ceramic bearing total hip arthroplasty after 5 years. Orthop Traumatol Surg Res 2021; 107: 102543.

42.

Carnes

Odum

Troyer

, et al. Cost analysis of ceramic heads in primary total hip arthroplasty. J Bone Joint Surg Am 2016; 98: 1794–1800.

43.

Fransen

Bengoa

Neufeld

, et al. Thin highly cross-linked polyethylene liners combined with large femoral heads in primary total hip arthroplasty show excellent survival and low wear rates at a mean follow-up of 12.8 years. Bone Joint J 2023; 105-B: 29–34.
