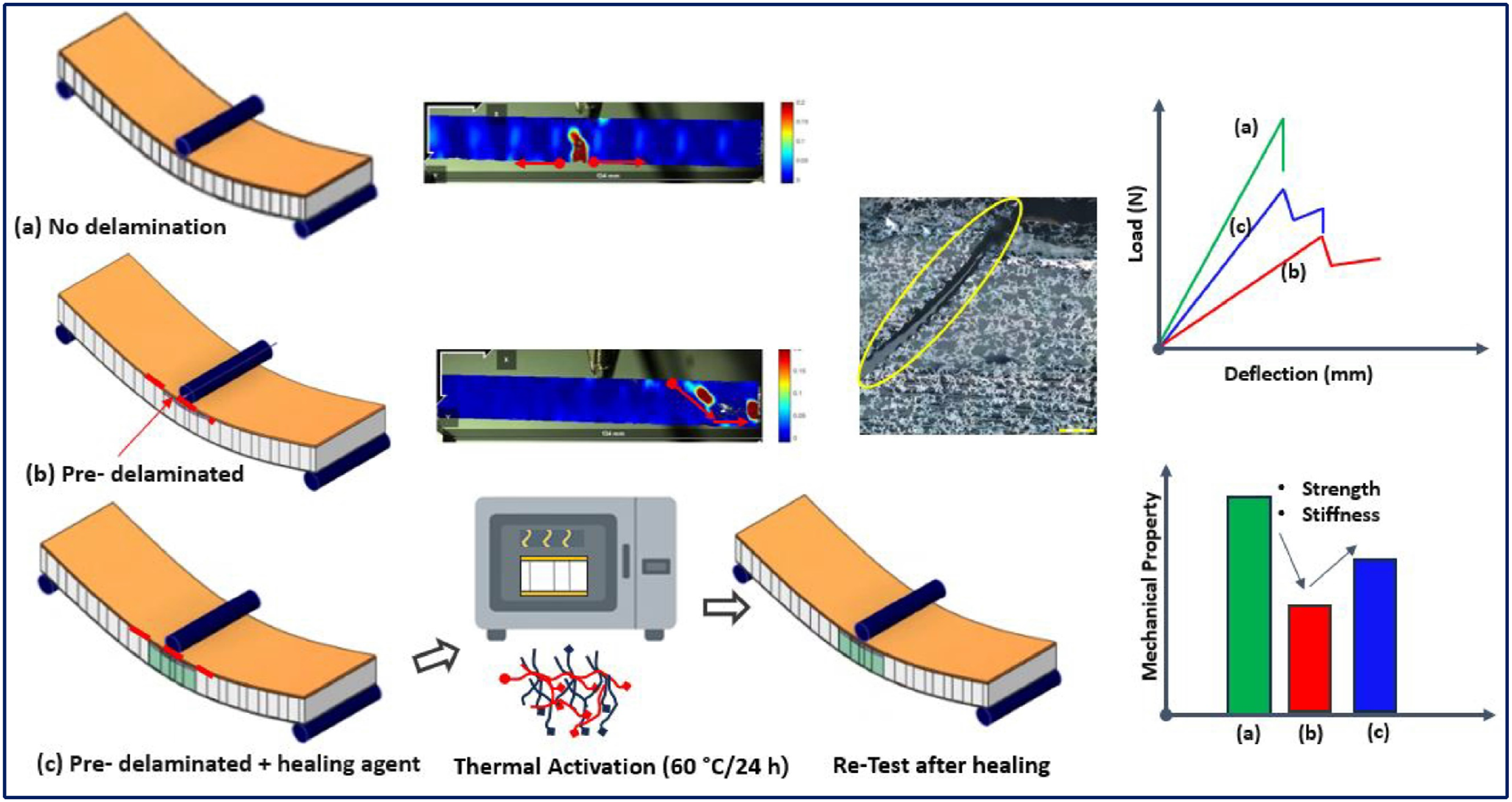

This study investigates the development and performance evaluation of self-healing honeycomb sandwich panels incorporating an intentionally introduced pre-delamination at the face sheet–core interface. Sandwich panels were fabricated with flax/epoxy composite face sheets bonded to an epoxy honeycomb core using an adhesive film, and three configurations were examined: intact, pre-delaminated, and healed specimens. Healing was achieved by embedding an epoxy–hardener healing agent within selected honeycomb cells adjacent to the delaminated region, enabling autonomous crack-bridging after thermal activation. Flexural testing under three-point bending revealed that pre-delamination caused a pronounced reduction in stiffness, peak load capacity, and deformation capability, accompanied by a distinct shift in failure mode. In contrast, the healed panels showed substantial recovery, restoring approximately 80% of flexural strength, stiffness, and mid-span deflection capacity. Digital Image Correlation (DIC) confirmed reduced strain localization, improved load-transfer characteristics, and a relocation of the final rupture site away from the original defect after healing. These findings demonstrate that incorporating healing agents into naturally occurring honeycomb cavities is an effective and structurally efficient method for mitigating interfacial delamination without adding vascular networks or embedded capsules. The results highlight a simple, scalable route to enhancing damage tolerance, reducing maintenance requirements, and extending the service life of lightweight composite sandwich structures.
GalliotBVolkerS. Cnidarians as a model system for understanding evolution and regeneration. Int J Dev Biol2002; 46: 39–48.
2.
GuadagnoLRaimondoMNaddeoC, et al.Self-healing materials for structural applications. Polym Eng Sci2014; 54: 777–784.
3.
BlaiszikBJCarusoMMMcIlroyDA, et al.Microcapsules filled with reactive solutions for self-healing materials. Polymer (Guildf)2009; 50: 990–997.
4.
ShahAur RPrabhakarMNWangH, et al.The influence of particle size and surface treatment of filler on the properties of oyster shell powder filled polypropylene composites. Polym Compos2018; 39: 2420–2430.
5.
FischerH. Self-repairing material systems―a dream or a reality?Nat Sci (Irvine)2010; 02: 873–901.
6.
WhiteSRSottosNRGeubellePH, et al.Autonomic healing of polymer composites. Nature2001; 409: 794–797.
7.
BrownENWhiteSRSottosNR. Microcapsule induced toughening in a self-healing polymer composite. J Mater Sci2004; 39(5): 1703–1710.
LiuYLChuoTW. Self-healing polymers based on thermally reversible Diels-Alder chemistry. Polym Chem2013; 4: 2194–2205.
10.
Venkata ChalapathiKPrabhakarMNLeeD-W, et al.Development of thermoplastic self-healing panels by 3D printing technology and study extrinsic healing system under low-velocity impact analysis. Polym Test2023; 119: 107923.
11.
TooheyKSSottosNRLewisJA, et al.Self-healing materials with microvascular networks. Nat Mater2007; 6: 581–585.
12.
SayahlatifiSRahimiGBokaeiA. Experimental and numerical investigation of sandwich structures with balsa core and hybrid corrugated composite/balsa core under three-point bending using digital image correlation. J Sandw Struct Mater2021; 23: 94–131.
13.
CarlssonLAKardomateasGA. Structural and failure mechanics of sandwich composites. Springer Science & Business Media, 2011.
14.
LeeITShiYAfsarAM, et al.Low velocity impact behavior of aluminum honeycomb structures. Adv Compos Mater2010; 19: 19–39.
15.
DanielIMGdoutosEE. Failure modes of composite sandwich beams. In: Major accomplishments in composite materials and sandwich structures. Springer Netherlands, 2009, pp. 197–227.
16.
de OliveiraLÁVieiraMMdos SantosJC, et al.An investigation on the mechanical behaviour of sandwich composite structures with circular honeycomb bamboo core. Discover Mechanical Engineering2022; 1: 7.
17.
RamakrishnanGVijaya RamnathBVigneshC, et al.Sandwich and natural fiber composites - a review. IOP Conf Ser Mater Sci Eng2018; 390: 012067.
18.
CohadesABranfootCRaeS, et al.Progress in self‐healing fiber‐reinforced polymer composites. Adv Mater Interfaces2018; 5: 1800177.
19.
BlaiszikBJKramerSLBOlugebefolaSC, et al.Self-healing polymers and composites. Annu Rev Mater Res2010; 40: 179–211.
20.
WilliamsHRTraskRSBondIP. Self-healing composite sandwich structures. Smart Mater Struct2007; 16: 1198–1207.
21.
WoolRP. Self-healing materials: a review. Soft Matter2008; 4: 400–418.
KausarAAhmadIMaazaM, et al.Self-healing nanocomposites—advancements and aerospace applications. J Compos Sci2023; 7: 148.
24.
TraskRSBondIP. Biomimetic self-healing of advanced composite structures using hollow glass fibres. Smart Mater Struct2006; 15: 704–710.
25.
WilliamsHRTraskRSBondIP. Self-healing sandwich panels: restoration of compressive strength after impact. Compos Sci Technol2008; 68: 3171–3177.
26.
ÖzerHKuzuEÖzadaÇ, et al.The self-healing sandwich panel: production of epoxy based self-healing capsules, self-healable sandwich panel development, and experimental measurement of self-healing performance. Constr Build Mater2021; 310: 125303.
27.
SudhakaraPObi ReddyKPrasadCV, et al.Studies on borassus fruit fiber and its composites with polypropylene. Composites Research2013; 26: 48–53.
28.
DavamiKMohsenizadehMMitchamM, et al.Additively manufactured self-healing structures with embedded healing agent reservoirs. Sci Rep2019; 9: 7474.
29.
Abraha GuangulHPrabhakarMNLeeDW, et al.Development of hybrid green composites by dual natural fibers (jute/bamboo) reinforcement and investigation of their mechanical behavior. Polym Compos2024; 45: 8225–8235.
30.
PrabhakarMNNaga KumarCDong WooL, et al.Hybrid approach to improve the flame-retardant and thermal properties of sustainable biocomposites used in outdoor engineering applications. Compos Part A Appl Sci Manuf2022; 152: 106674.
31.
BourchakMKhanAJuhanyKA. Effect of preheating and post-curing time on the mechanical properties of epoxy resin. Adv Compos Lett2013; 22: 95–99.
32.
ParkSLeeDSongJ. Fabrication and evaluation of mechanical properties of carbon/epoxy square tube using pressure bag molding and compared with autoclave method. Int J Precis Eng Manuf2018; 19: 441–446.
33.
HöwerDLerchBABednarcykBA, et al.Cohesive zone modeling for mode I facesheet to core delamination of sandwich panels accounting for fiber bridging. Compos Struct2018; 183: 568–581.
34.
Haftamu AbrahaADong-wooLeeJung-ilSong. Development and Validation of a Finite Element Model for Flax/Epoxy–Epoxy Honeycomb Sandwich Panels toward Self-Healing Applications. Polym Compos; in press. Epub ahead of print 2026. DOI: 10.1002/pc.70764.
35.
GoumgharAAssararMZouariW, et al.Study of the fatigue behaviour of hybrid flax-glass/epoxy composites. Compos Struct2022; 294: 115790.
OhJHKimJMLeeCS. Digital image correlation using image calibration under restricted environment. Journal of the Korean Society of Manufacturing Technology Engineers2021; 30: 323–331.
38.
McCormickNLordJ. Digital image correlation. Mater Today2010; 13: 52–54.
39.
OhJKomotoriJSongJ. Fatigue strength and fracture mechanism of different post-fused thermal spray-coated steels with a co-based self-fluxing alloy coating. Int J Fatigue2008; 30: 1441–1447.
40.
AïssaBTherriaultDHaddadE, et al.Self-healing materials systems: overview of major approaches and recent developed technologies. Adv Mater Sci Eng2012; 2012: 1–17.
41.
BaiNSimonGPSaitoK. Investigation of the thermal self-healing mechanism in a cross-linked epoxy system. RSC Adv2013; 3: 20699.
42.
LatifMKumarCNPrabhakarMN, et al.Development of hybrid composites with improved mechanical and self-healing properties. Fibers Polym2019; 20: 413–420.
43.
SteevesCAFleckNA. Collapse mechanisms of sandwich beams with composite faces and a foam core, loaded in three-point bending. Part II: experimental investigation and numerical modelling. Int J Mech Sci2004; 46: 585–608.
