Application of Parallel Multiparametric Cell-Based FLIPR Detection Assays for the Identification of Modulators of the Muscarinic Acetylcholine Receptor 4 (M 4 )

Abstract

Muscarinic acetylcholine receptors (mAChRs) have long been viewed as viable targets for novel therapeutic agents for the treatment of Alzheimer’s disease and other disorders involving impaired cognitive function. In an attempt to identify orthosteric and allosteric modulators of the muscarinic acetylcholine receptor M₄ (M₄), we developed a homogenous, multiparametric, 1536-well assay to measure M₄ receptor agonism, positive allosteric modulation (PAM), and antagonism in a single well. This assay yielded a Z′ of 0.85 ± 0.05 in the agonist, 0.72 ± 0.07 in PAM, and 0.80 ± 0.06 in the antagonist mode. Parallel screening of the M₁ and M₅ subtypes using the same multiparametric assay format revealed chemotypes that demonstrate selectivity and/or promiscuity between assays and modalities. This identified 503 M₄ selective primary agonists, 1450 PAMs, and 2389 antagonist hits. Concentration-response analysis identified 25 selective agonists, 4 PAMs, and 41 antagonists. This demonstrates the advantages of this approach to rapidly identify selective receptor modulators while efficiently removing assay artifacts and undesirable compounds.

Introduction

G-protein–coupled receptors (GPCRs) are implicated in a multitude of human disorders that have been linked to associated mutations and polymorphisms.^1,2 These receptors are encoded by more than 1000 genes, yet synthetic ligands exist for only a small fraction of the receptor superfamily. ³ Another approach to discovering ligands that act on the orthosteric site of GPCRs is the development of selective modulators that bind at an alternatively located binding site (allosteric site) to either potentiate or inhibit the activation of the receptor by its natural ligand. ⁴ This approach has proven particularly fruitful for identifying metabotropic glutamate receptor (mGlu) ligands, and there is mounting evidence that the same may hold true for muscarinic acetylcholine receptors (mAChR). ⁵

To date, five mAChR subtypes have been identified (M₁–M₅) that play important roles in mediating the actions of acetylcholine (ACh) in the peripheral and central nervous systems. ⁶ Of these, M₁ and M₄ are the most heavily expressed in the central nervous system (CNS) and represent attractive therapeutic targets for cognitive illnesses such as Alzheimer’s disease and schizophrenia. ⁷ In contrast, the adverse effects of cholinergic agents are thought to be primarily due to activation of peripheral M₂ and M₃ mAChRs. Because of the high-sequence homology and conservation of the orthosteric ACh binding site among the mAChR subtypes, development of selective chemical agents for a single subtype has been largely unsuccessful. Specifically, the absence of highly selective activators of M₄ has made it impossible to test the role of selective M₄ activation. ⁸ On the other hand, novel compound scaffolds that behave as selective agonists, positive allosteric modulations (PAMs), or antagonists of any muscarinic receptor may have significant value as chemical probes. ⁹

In past literature, the term multiparametric has been used to describe assays with multiple endpoints from the same experiment. ¹⁰ Here, multiparametric is used to describe an assay in which each well provides readouts for multiple modes of pharmacology, in this case agonist, antagonism, and PAM. Multiparametric assays are an increasingly popular approach to efficiently investigate receptor pharmacology in a variety of targets; recently, these types of high-throughput screening (HTS) assays have involved mAChRs. ⁹ These reports, however, use different parallel processes requiring multiple compound additions to find selective, confirmed inhibitors or activators of M₄, but not PAMs.

Here, we describe a homogenous, single-compound addition, multiparametric, 1536-well screening assay to measure M₄ receptor agonism, PAM, and antagonism in the same well. We used well-known control compounds to validate each mode; ACh for the agonist mode, ML108 for the PAM mode, and atropine for the antagonist mode. ¹¹ The performance of this assay in an HTS campaign against a diverse, public domain compound collection is documented. Further, a methodological approach based on parallel HTS efforts is presented to better understand the behaviors of compounds demonstrating M₄ specific pharmacology in contrast to those appearing to be artifacts associated with this assay format.

Materials and Methods

Cell Lines

Human M₁ (hM₁) cDNA in pcDNA3.1 (+) was purchased from www.cDNA.org. hM₁ was transfected into CHO cells purchased from the ATCC (www.atcc.org), and single-neomycin–resistant clones were isolated and screened for M₁-mediated calcium mobilization. hM₁/CHO cells were cultured in Ham’s F-12: 10% fetal bovine serum (FBS), 20 mM HEPES, 50 µg/mL G418 (Mediatech, Inc., Herndon, VA). The human M₄ (hM₄) cDNA in pcDNA3.1 (+) was purchased from www.cDNA.org. CHO cells purchased from the ATCC (www.atcc.org) were stably transfected with hM₄ cDNA along with the chimeric G protein G_qi5 ¹² to facilitate measurement of receptor function via intracellular calcium in pIREShygro (Invitrogen, Carlsbad, CA) and single-hygromycin– and neomycin–resistant clones were isolated and screened for M₄-mediated calcium mobilization. hM₄/CHO-G_qi5 cells were cultured in Ham’s F-12: 10% FBS, 20 mM HEPES, 50 µg/mL G418 (Mediatech, Inc.), 500 µg/mL hygromycin. Human M₅ (hM₅) CHO cells were a gift from the laboratory of Allan Levey (Emory University). hM₅/CHO cells were cultured in Ham’s F-12: 10% FBS, 20 mM HEPES, 50 µg/mL G418 (Mediatech, Inc.). Parental CHO-K1 cells were purchased from ATCC (Manassas, VA).

Cell Culture

Cells were cultured in T-175 cm² flasks (Corning, Corning, NY) at 37 °C and 95% relative humidity. Unless indicated otherwise, all cell culture reagents were sourced through Life Technologies (Carlsbad, CA). The growth media consisted of Ham’s F-12 nutrient media supplemented with 10% v/v heat-inactivated qualified FBS (Hyclone Laboratories Inc., Logan, UT), 20 mM HEPES, 500 µg/mL geneticin, 200 µg/mL hygromycin, and 1X penicillin and streptomycin mix. The parental CHO-K1 cell line was cultured in the same growth media lacking geneticin and hygromycin.

Fluorescent Imaging Plate Reader Assay

The assay media consisted of Ham’s F-12 nutrient media supplemented with 10% v/v heat-inactivated qualified FBS and 20 mM HEPES. All assays were run in Corning 1536-well clear-bottom plates (part 7338; Corning). Fluo-8 detection kits were used for all fluorescent imaging plate reader (FLIPR) assays (part 36316; AAT Bioquest, Sunnyvale, CA), which included addition of 250 mM probenicid (pH 8; Sigma, St. Louis, MO) while reading on the fluorescence imaging plate reader (FLIPR; Molecular Devices, Sunnyvale, CA). Agonist control ACh (part A6625), antagonist control atropine (part A0132), and PAM control ML108 (also known as VU0152100, part V5015) were purchased from Sigma. All additions of compound and controls were accomplished by an integrated 1536 pin tool mounted on the FLIPR Tetra. Although all three readouts occur with only one compound addition, the system does not read the well continuously but rather separates the reads by the amount of time required for the instruments’ manipulation of the source plates required for the next ligand and control addition. Cell and reagent additions were performed on the Kalypsys/GNF robotic screening platform at the Scripps Research Institute Molecular Screening Center (Scripps Research Institute, Jupiter, FL). The final protocol is summarized in Table 1 . Detailed protocols for every assay mentioned in this article can be retrieved on the PubChem Web site using its respective PubChem AID shown in Table 2 .

Table 1.

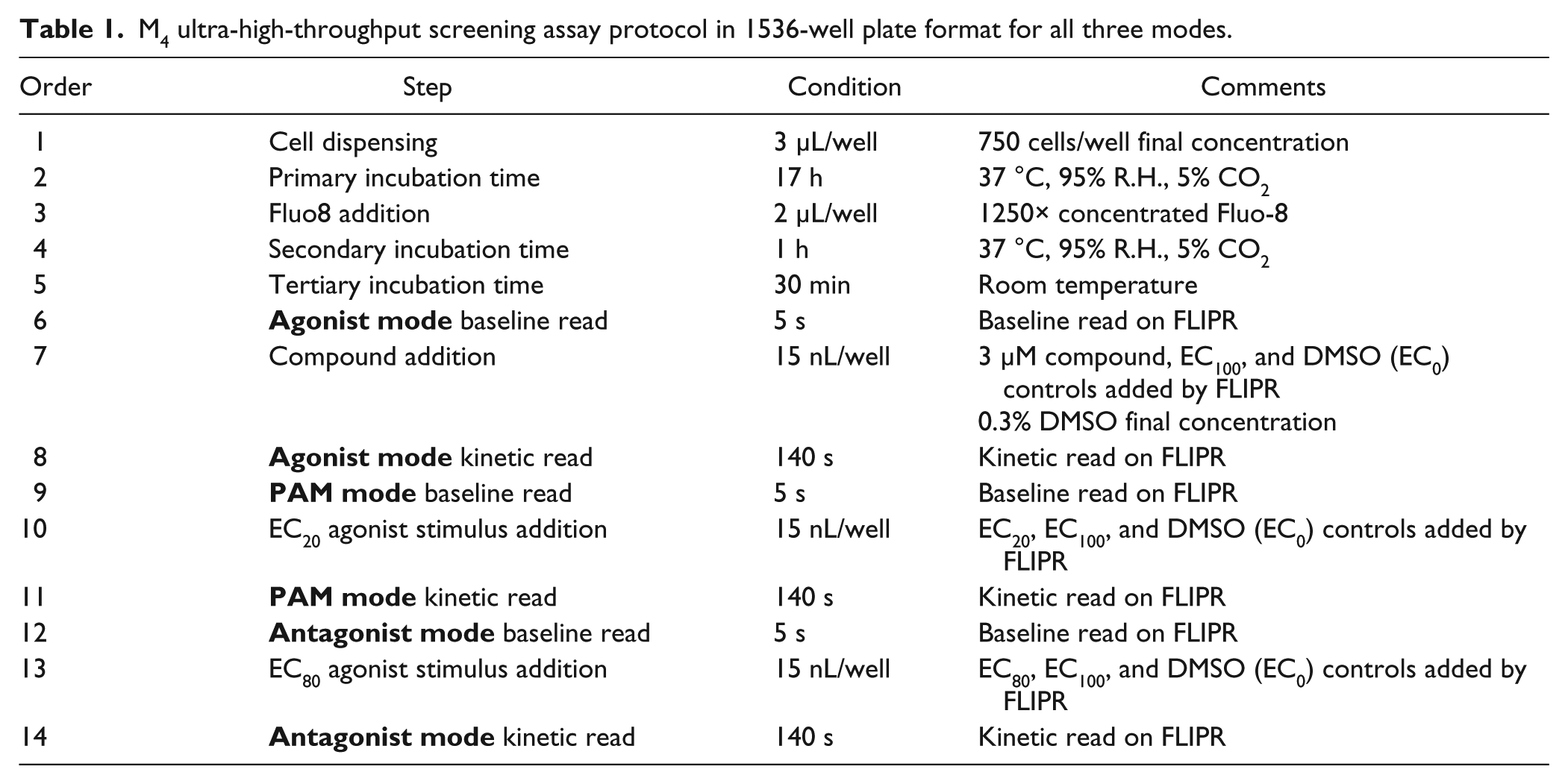

M₄ ultra-high-throughput screening assay protocol in 1536-well plate format for all three modes.

Order	Step	Condition	Comments
1	Cell dispensing	3 µL/well	750 cells/well final concentration
2	Primary incubation time	17 h	37 °C, 95% R.H., 5% CO2
3	Fluo8 addition	2 µL/well	1250× concentrated Fluo-8
4	Secondary incubation time	1 h	37 °C, 95% R.H., 5% CO2
5	Tertiary incubation time	30 min	Room temperature
6	Agonist mode baseline read	5 s	Baseline read on FLIPR
7	Compound addition	15 nL/well	3 µM compound, EC100, and DMSO (EC0) controls added by FLIPR 0.3% DMSO final concentration
8	Agonist mode kinetic read	140 s	Kinetic read on FLIPR
9	PAM mode baseline read	5 s	Baseline read on FLIPR
10	EC20 agonist stimulus addition	15 nL/well	EC20, EC100, and DMSO (EC0) controls added by FLIPR
11	PAM mode kinetic read	140 s	Kinetic read on FLIPR
12	Antagonist mode baseline read	5 s	Baseline read on FLIPR
13	EC80 agonist stimulus addition	15 nL/well	EC80, EC100, and DMSO (EC0) controls added by FLIPR
14	Antagonist mode kinetic read	140 s	Kinetic read on FLIPR

Table 2.

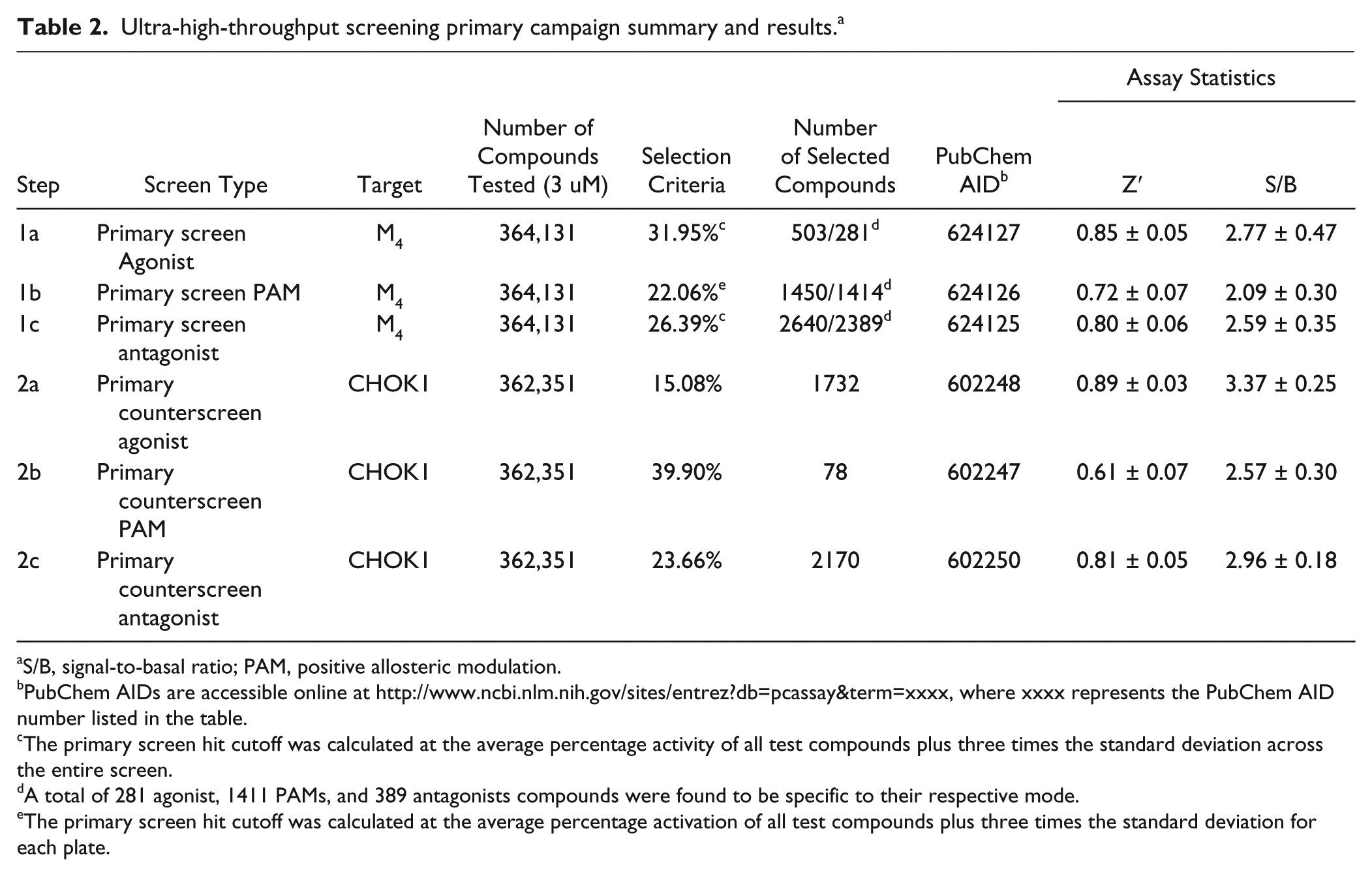

Ultra-high-throughput screening primary campaign summary and results. ^a

							Assay Statistics
Step	Screen Type	Target	Number of Compounds Tested (3 uM)	Selection Criteria	Number of Selected Compounds	PubChem AID b	Z′	S/B
1a	Primary screen Agonist	M4	364,131	31.95% c	503/281 d	624127	0.85 ± 0.05	2.77 ± 0.47
1b	Primary screen PAM	M4	364,131	22.06% e	1450/1414 d	624126	0.72 ± 0.07	2.09 ± 0.30
1c	Primary screen antagonist	M4	364,131	26.39% c	2640/2389 d	624125	0.80 ± 0.06	2.59 ± 0.35
2a	Primary counterscreen agonist	CHOK1	362,351	15.08%	1732	602248	0.89 ± 0.03	3.37 ± 0.25
2b	Primary counterscreen PAM	CHOK1	362,351	39.90%	78	602247	0.61 ± 0.07	2.57 ± 0.30
2c	Primary counterscreen antagonist	CHOK1	362,351	23.66%	2170	602250	0.81 ± 0.05	2.96 ± 0.18

a

S/B, signal-to-basal ratio; PAM, positive allosteric modulation.

b

PubChem AIDs are accessible online at http://www.ncbi.nlm.nih.gov/sites/entrez?db=pcassay&term=xxxx, where xxxx represents the PubChem AID number listed in the table.

c

The primary screen hit cutoff was calculated at the average percentage activity of all test compounds plus three times the standard deviation across the entire screen.

d

A total of 281 agonist, 1411 PAMs, and 389 antagonists compounds were found to be specific to their respective mode.

e

The primary screen hit cutoff was calculated at the average percentage activation of all test compounds plus three times the standard deviation for each plate.

Screening Data

Kinetic data were acquired by the FLIPR at the rate of 1 Hz. Agonist, PAM, and antagonist mode kinetic data were saved as separate data files. Individual well activity is interpreted as the ratio of the maximum signal divided by the minimum signal from the basal read or max/baseline. All data files were uploaded into the Scripps database for plate quality control (QC) and hit identification. Activity for the agonist and PAM modes was normalized on a per-plate basis using the following equation:

$$\%activation=100\times \left(\frac{Testwell-MedianLowControl}{MedianHighControl-MedianLowControl}\right)$$

For all three modes, test well refers to those that contain test compounds. Low control wells for the agonist mode contain DMSO only. For the PAM mode, low control wells contain ACh at EC₂₀. High control wells for both PAM and agonist mode contain ACh at EC₁₀₀. Activity for the antagonist mode was normalized on a per-plate basis using the following equation:

$$\%inhibition=100\times \left(1-\left(\frac{Testwell-MedianHighControl}{MedianLowControl-MedianHighControl}\right)\right)$$

In this case, low control is defined as wells that contain an EC₈₀ of ACh. High control wells contain DMSO only.

A Z′ value greater than 0.5 was required for a plate to be consider valid. ¹³ During the primary screen, test compounds from the library were screened in singlicate at a final nominal test concentration of 3 µM (final DMSO concentration of 0.3%). For each mode, the hit cutoff used to qualify active compounds was calculated as the average percentage activity (agonist, PAM modes) or inhibition (antagonists) of all compounds tested plus three times the standard deviation. ¹⁴

Dose-response curves were fitted using a four-parameter equation describing a sigmoidal curve without constraining parameters within the Assay Explorer software (Symyx Technologies, Santa Clara, CA). Where appropriate, data have been represented using Prism version 4.03 (GraphPad Software, San Diego, CA). In those cases, EC₅₀ or IC₅₀ determinations were done using the variable slope sigmoidal curve analysis tool.

A four-way Venn diagram generator was used to compare the parental CHO-K1, M₁, and M₅ multiparametric assay data versus the M₄ data described here. Each of these assays was run at the SRIMSC and previously published in PubChem (AIDs 588814, 588819, 588852, 624037, 624038, and 624040). The tool used is freely available at http://www.pangloss.com/seidel/Protocols/venn4.cgi.

Screening Library

The Molecular Libraries Small Molecule Repository (MLSMR) library was provided by BioFocus DPI (South San Francisco, CA) through the National Institutes of Health’s Roadmap Initiative. Details can be found online at http://mli.nih.gov/mli/compound-repository/mlsmr-compounds/. The MLSMR library is a collection of more than 360,000 synthetic and natural small molecules from both commercial and academic sources, which can be grouped into the following four categories: (1) specialty sets of known bioactive compounds such as drugs and toxins (0.65%), (2) focused libraries aimed at specific target classes (2.85%), (3) noncommercial sources (7.4%), and (4) diversity sets covering a large area of the chemical space (89.1%).

Results

Assay Principle and Screening Strategy

As we had great interest in efficiently identifying M₄ agonists, antagonists, and PAMs for this research program, a miniaturized multiparametric FLIPR-based assay was developed. Using methods similar to those described previously but in 1536-well format, it measures receptor agonism, PAM, and antagonism from a single well, following a single addition of test compound.^15–19 As developed, a fully automated robotic platform accomplishes the dispensing of cells and detection reagent to the microtiter plate, as well as necessary incubation prior to the intracellular calcium assay. Intracellular calcium measurements, including test compound and control addition, are performed by the FLIPR. To enable continuous HTS, the originally separated assays were concatenated into a single assay protocol with a specific order of pharmacologic test modes: agonism was measured first, followed by PAM, then antagonism.

Each mode of detection relied on a specific set of plate controls. These controls were used either for response normalization or to verify appropriate agonist, PAM, or antagonist pharmacologic response in that mode. Figure 1 illustrates the performance of various controls in each mode of the resulting assay detection workflow that was applied to the discovery of modulators of M_4. We used three relevant controls: ACh, atropine, and ML108 as references for M₄ receptor agonism, antagonism, and PAM, respectively. Figure 1 shows examples of typical FLIPR kinetic response traces obtained for each of these reference compounds in all three modes. The first kinetic measurement, which is used for the detection of potential agonists, was initiated by the addition of test compound to cells loaded with the intracellular calcium probe. Agonists were identified as compounds that show a response three standard deviations greater than cells challenged with vehicle (DMSO). The second measurement, for detection of PAMs, was performed in the presence of EC₂₀ ACh stimulation. PAMs were identified as compounds in wells that exhibited a response three standard deviations greater than that of the EC₂₀ stimulation alone. The third and final measurement was used to detect antagonists in the presence of an EC₈₀ challenge of ACh. Antagonists were identified as compounds in wells that had a response three standard deviations lower than that of wells challenged with the EC₈₀.

Figure 1.

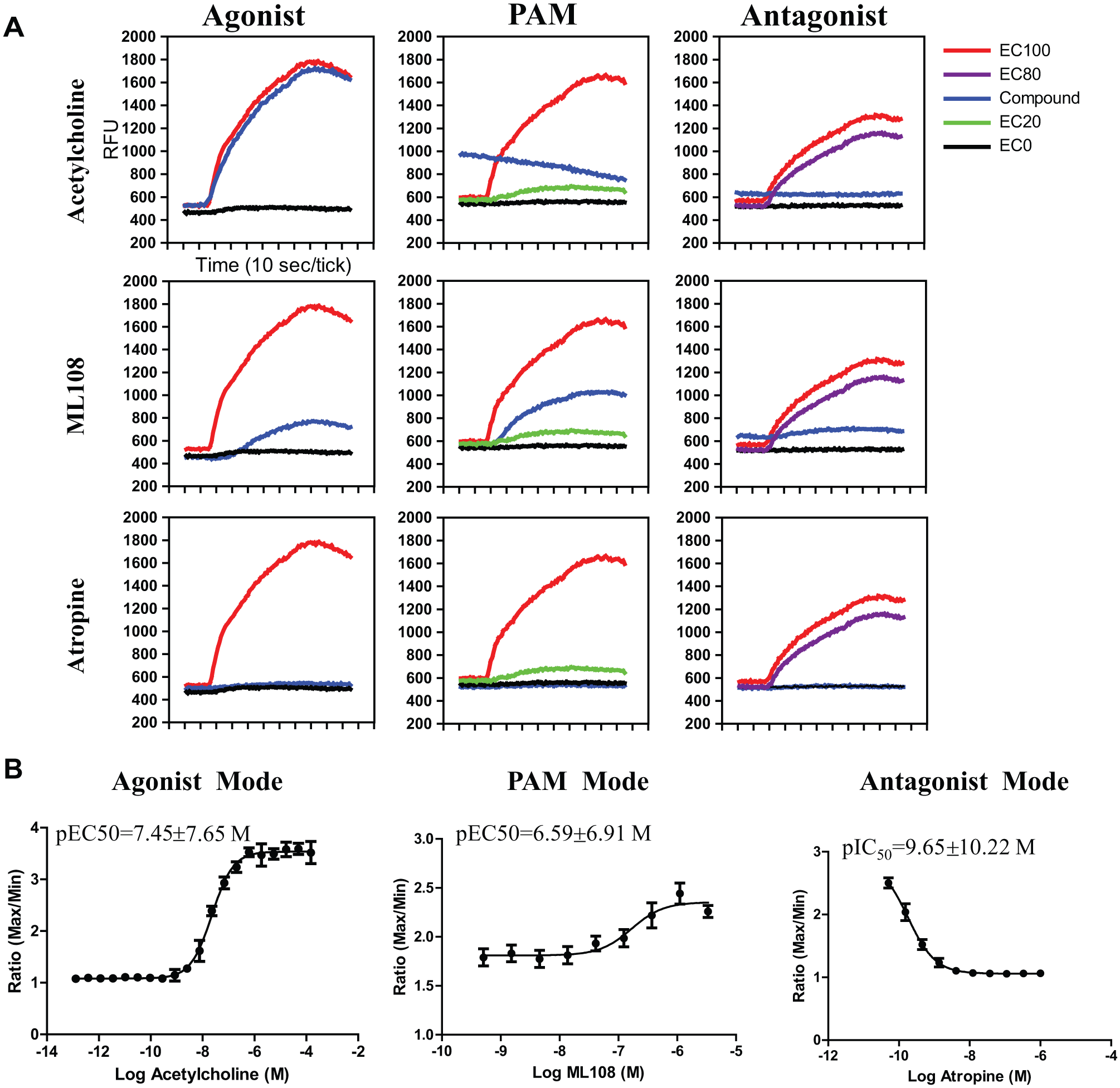

(A) Illustration of fluorescent imaging plate reader kinetic trace data for each mode, agonist, positive allosteric modulation, or antagonist, for each control compound. The compound trace, as tested at 3 µM, in comparison to the controls for each mode is shown in blue. Red = acetylcholine at EC₁₀₀, purple = acetylcholine at EC₈₀, green = acetylcholine at EC₂₀, black = DMSO only. (B) Concentration-response curve graphs for control compounds of each screening mode. The y-axis represents the ratio of the maximum signal divided by the minimum signal from the basal read of the particular mode. The x-axis represents the log of the molar concentration of the control compound used for that mode. The curves represent the mean and standard deviation for 16 points. pEC₅₀ and pIC₅₀ values for each control are shown (N = >10 experiments).

Multiparametric, 1536-Well Assay Optimization

The first step in 1536-well assay development was to optimize the cell number per well and then Fluo8 incubation time using methods previously described. ²⁰ The signal-to-basal ratio (S/B) in the agonist mode, as calculated by the high control response divided by low control response, was not significantly affected by the number of cells plated per well. However, increasing the cell concentration resulted in suboptimal Z′ values (Suppl. Fig. 1A, B). Hence, a cell density of 750 cells per well was chosen.

Fluo8 incubation time was also optimized. The length of incubation with Fluo8 had little effect on Z′, but longer incubation times increased the S/B (Suppl. Fig. 1C). The stability of the S/B between 60 and 90 min allows for some flexibility during robotic screening, and a 60-min incubation time was chosen for all future experiments.

Characterization of Controls

Critical to the success of the multiparametric HTS assay was the use of dedicated pharmacologic control wells specific to each measurement mode, as well as control wells that indicated the cells were competent throughout the assay (Suppl. Fig. 2). As expected, having wells in each mode for the “high” and “low” responses facilitated the efficient identification of hits, as each well response was normalized to synchronous responses in control wells. Further, each assay mode could be treated as a unique entity in our HTS database, streamlining the plate-based QC. Unique to the multiparametric assay format, we found that additional controls, namely, an EC₀ (DMSO) in the PAM mode and an EC₁₀₀ of ACh in the antagonist mode, also aided in the efficient QC of assay quality. Specifically, we used the responses from these wells to verify the M₄ cells were fully capable of eliciting basal and full calcium responses throughout the entire assay. Kinetic traces for control compounds tested in each mode are shown in Figure 1 .

The M₄ multiparametric FLIPR assay, as outlined in Table 1 , was run in homogeneous format. All three controls as shown in Figure 1B , ACh (pEC₅₀ = 7.45 ± 7.65), ML108 (pEC₅₀ = 6.59 ± 6.91), and atropine (pIC₅₀ = 9.65 ± 10.22), yielded pEC₅₀ or pIC₅₀ values similar to previously published in the agonist, PAM, and antagonist modes, respectively. ¹¹ Notably, ML108 was also found to be active in the agonist assay mode.

Data Deconvolution and Compound Triage

Successful execution of the multiparametric assay was dependent on reliable identification of hits within a mode as well as identification of a compound’s pharmacologic activity across all measurement modes. For demonstration purposes, kinetic traces from a set of M₄ HTS hits are shown in Figure 2 . Within the agonist mode, a compound was defined as an agonist if it elicited a response greater than that of a vehicle (DMSO) challenge ( Fig. 2 , compound I). Because the same cells are used for subsequent measurements, the magnitude of the response in the following two modes was highly dependent on the level of the response in the agonist mode. For example, an EC₁₀₀ challenge of the full agonist ACh elicits a large calcium response in the agonist mode, which persists through the PAM mode. In the antagonist mode, upon restimulation of the cells with an EC₈₀ of ACh, the compound fails to elicit a significant calcium response ( Fig. 1A , top panel). This phenomenon is attributed to the depletion of intracellular calcium stores by ACh in the agonist mode, leaving less calcium available for the cells to respond to the EC₈₀ challenge in the antagonist mode. ²¹ In the case of compound I in Figure 2 , the “partial” response in the agonist mode was insufficient to deplete intracellular calcium stores, allowing for the compound to be identified as a moderate agonist hit with no PAM or antagonist activity. In contrast, compound IV behaves similarly to ACh in Figure 1A , indicating that it may be a full agonist. In this multiparametric method, an agonist that behaves similarly to ACh will be inappropriately recorded as a hit in the antagonist mode. That is, the lack of a calcium response in the antagonist mode would be similar to that of an antagonist compound and therefore incorrectly scored as a hit. This potential false-positive artifact is a strength of the multiparametric format, as it distinguished efficacious agonists (i.e., those that liberate the same calcium stores as a muscarinic receptor agonist) from partial agonists or assay artifact.

Figure 2.

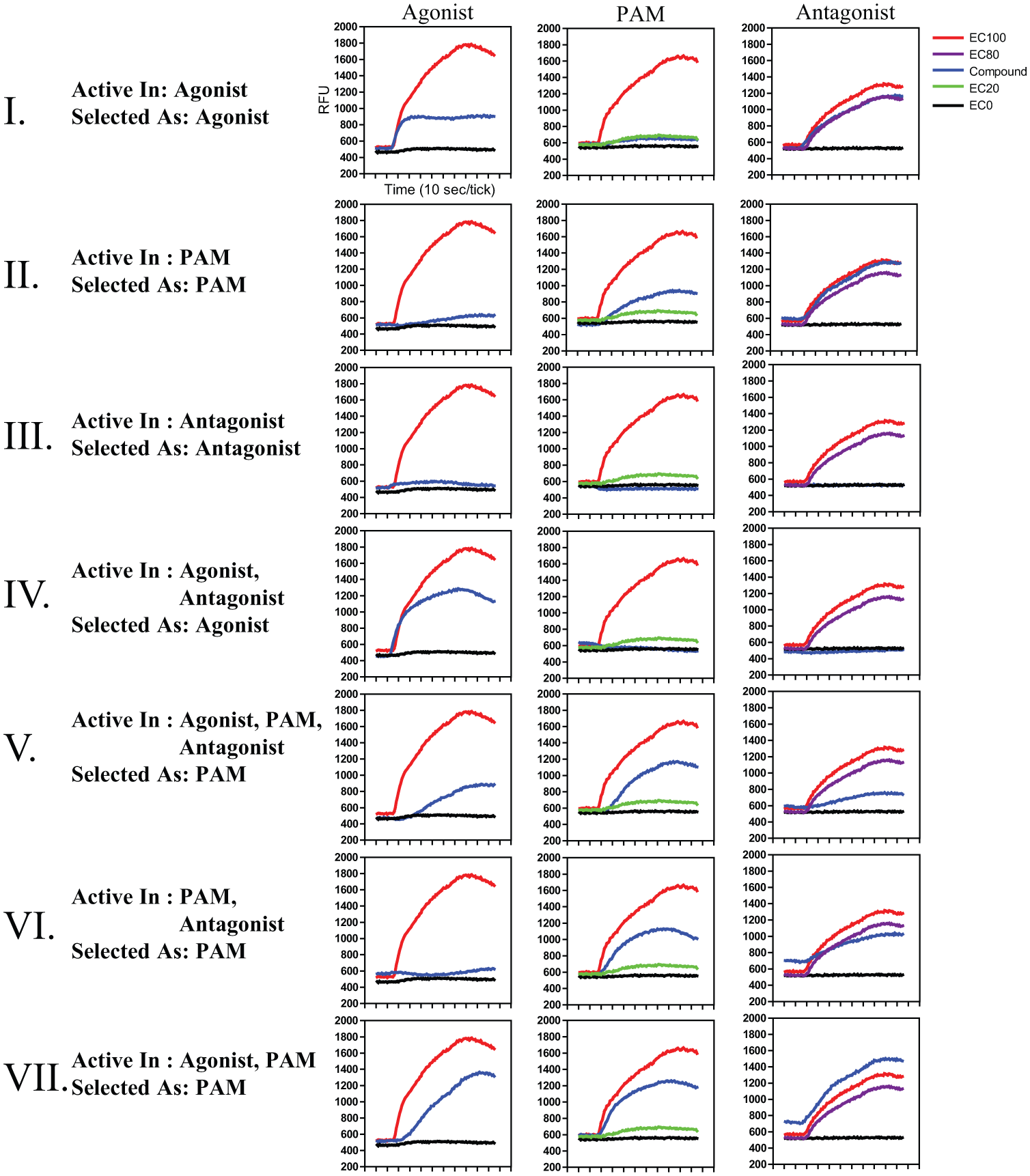

Typical trace files for compounds shown as an example of responses observed in each screening mode (I–VII). The compound trace, as tested at 3 µM, in comparison to the controls for each mode is shown in blue. Red = acetylcholine at EC₁₀₀, purple = acetylcholine at EC₈₀, green = acetylcholine at EC₂₀, black = DMSO only. The analysis of the traces is described in two respects: the mode/s the compound was found “active in” and then which mode the compound was progressed forward as or “selected as.”

For the M₄ HTS, antagonists were defined as compounds that elicited a response less than that of the EC₈₀. An example of complete antagonism is the HTS control, atropine, shown in Figure 1A . As expected, a putative antagonist would be inactive in the agonist mode and abrogate the EC₂₀ response in the PAM mode. Compound III in Figure 2 is an HTS antagonist mode hit that behaves similarly to atropine in all three test modes: in the agonist mode, this compound has no response; in the PAM mode, the same compound blocks the response of the EC₂₀ ACh challenge; in the antagonist mode, the compound completely abrogates the EC₈₀ response of the ACh challenge. In this case, the behavior of the hit in all three test modes of the multiparametric assay adds validity to its identification as an M₄ antagonist.

Critical to a compound’s identification as a PAM hit was its behavior within the PAM mode itself; however, the identification of putative PAMs also benefitted from the multiparametric HTS approach. Ideally, a PAM would not elicit a calcium response by itself but rather in the presence of an orthosteric agonist. An example of this type of response profile is exhibited by compound II in Figure 2 , as it yields an insignificant response in the agonist mode but a significantly higher response than the ACh control EC₂₀ and EC₈₀ responses in the PAM and antagonist modes, respectively. In recombinant systems, agonist behavior of PAMs has been observed, presumably due to the overexpression of the target receptor and/or signaling mechanism components.^4,22 This type of behavior was observed in the multiparametric HTS format for the PAM control ML108 ( Figure 1A , middle panel) as well as compounds V and VII in Figure 2 ; all yielded responses in the agonist mode as well as in the PAM mode and were classified as PAMs.

Interestingly, PAM hits yielded different magnitudes of kinetic responses in the antagonist mode, appearing to have peak responses indistinguishable (cf. compound II), below (cf. compounds V,VI), or elevated (cf. compound VII) in reference to the EC₂₀ ACh control response. For example, compound V generated a moderate agonist and a strong PAM response, which was unable to decay to basal levels before the EC₂₀ and EC₈₀ challenges were added. However, the method for calculating the antagonist mode HTS response (i.e., the ratio of the peak response divided by the same well’s baseline level response obtained just prior to the EC₈₀ of Ach addition) made all these compounds appear as hits in the antagonist mode. All PAM hits that displayed these patterns of responses in multiparametric HTS assay were selected for follow-up, as they could be distinguished from compounds displaying classical agonism (cf. compounds I) or antagonism (cf. compound III). However, to validate their PAM pharmacology, more detailed dose-response studies are necessary. ²³

Multiparametric Screen for the Identification of M₄ Modulators

The M₄ multiparametric FLIPR assay described above was run against the MLPCN library of 364,131 compounds. These data and the outcome of the primary counterscreen are summarized in Table 2 .

During the course of the campaign, monitoring the range of receptor stimulation and Z′ showed that, compared with basal and EC₁₀₀ controls, the PAM EC₂₀ response yielded an average value of 27.2% ± 1.6%, whereas the antagonist mode EC₈₀ response demonstrated an average value of 79.8% ± 2.2%, compared with the EC₀ (DMSO only) for an N = 302 plates. Note, a typical EC₂₀ response determined acceptable for screening was 10% to 30% of EC₁₀₀, and the EC₈₀ response range was acceptable between 70% and 90% of EC₁₀₀. For this effort, the average Z′ of each mode always exceeded 0.5, as listed in Table 2 .

The results of the primary multiparametric screen yielded 503 M₄ agonist, 1450 PAM, and 2640 antagonist mode hits ( Table 2 ). Each mode’s hits were reanalyzed based on the hit compound’s activity across the entire multiparametric assay. The results of this reanalysis method are shown in Table 2 . Of the 503 agonist hits, 281 or 55.86% were active only in that mode, whereas 97.52% or 1414 of the 1450 PAM hits acted solely in the PAM mode. Of the 2640 antagonist hits, 2389 or 90.4% had activity only in the antagonist mode. When comparing the overlap between agonist and PAM hits, only six hits acted as both an agonist and a PAM, of which five of those were also found as antagonists. All primary hits were assessed for promiscuity against the multiparametric data generated from a parental CHO-K1 cell FLIPR counterscreen ( Table 2 ) and parallel executed M₁, M₅ HTS assays described in detail elsewhere (PubChem AIDs 588814, 588819, 588852, 624037, 624038, and 624040) and summarized below.^9,24

Parallel Assays for Selectivity and Promiscuity

With the goal of identifying selective M₄ modulators, we performed counterscreens against two cell lines, one expressing the M₁ receptor and the other expressing the M₅ receptor. This was done in parallel to the M₄ HTS, and each cell line was screened against the entire MLPCN compound collection. Although not described here, hit identification for the M₁ and M₅ multiparametric HTS campaigns was done similar to that illustrated in Figure 2 .

Using this approach, we found M₄ HTS hits that nonspecifically modulated the release of calcium, as evidenced by their activity in the parallel HTS assays across multiple screening modes. The method used for triaging nonspecific activators is illustrated in Figure 3 . In this example, addition of 3 µM thapsigargin, which is known to intrinsically block the ability of cells to pump calcium into the endoplasmic reticulum, results in an increase in intracellular calcium and ultimately would be identified as a hit in all modes of the M₄ multiparametric assay as well as all counterscreens run in parallel to the M₄ HTS campaign. Compounds that were inactive in the parental cell HTS campaign but active in the M₄, M₁, and/or M₅ HTS were similarly identified and triaged.

Figure 3.

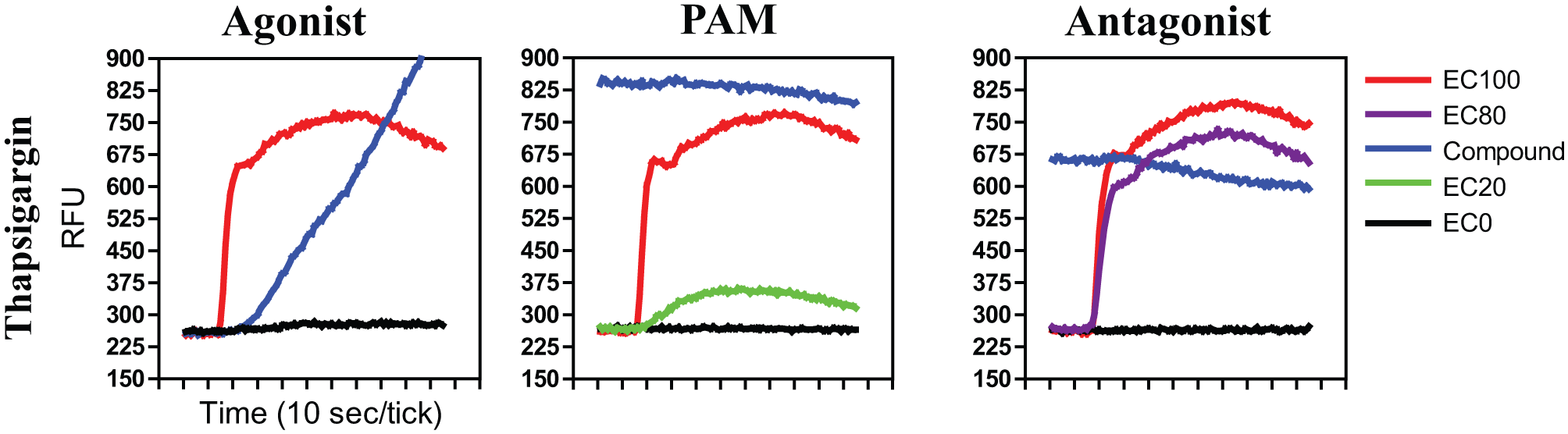

The effects of thapsigargin on Fluo8 response in all three modes of the M₄ multiparametric assay. The y-axis represents the relative fluorescence units (RFUs). The x-axis represents the kinetic read time in seconds for each mode, which was the same in each case. The controls for each mode are color coded.

Venn comparison of results from the M₄, parental, M₁, and M₅ primary HTS assays identified M₄ HTS hits that exhibited nonspecific pharmacology or were assay artifact. Specifically, 102 agonist hits, 1318 PAM hits, and 959 antagonist hits exhibit selectivity to the M₄ receptor ( Fig. 4 ). Of the 2379 combined total M₄ selective hits, in silico triage reduced the list to 2185 compounds of interest, of which 2103 were available and retested as concentration-response curves (CRCs) across the three modes as a 10-point, 1:3 dilution titration in triplicate. These same compounds were tested in multiparametric M₄, M₁, M₅, and CHO-K1 assay formats. Following CRC assays, compounds were considered a hit only if they yielded graded dose-response curves with EC₅₀ or IC₅₀ values less than 10 µM. From these titration assays, 25 were found to be M₄ selective agonists, 4 compounds were found to be M₄ selective PAMs, and 41 compounds were found to be M₄ selective antagonists. Some of these were followed up at M₂ and M₃ when selectivity studies were performed lower in the tier, but it was not deemed that primary screening for these targets was resource and time efficient. Of the 21 compounds that progressed through M₂ and M₃ selectivity assays, only 2 were active as M₃ agonists. The individual hit cutoff applied to each of the 12 primary campaigns was low, averaging only 24.30% ± 7.68%. When combined with our method to qualify dose-response hits, this led to a small but potent and selective group of compounds being identified. In addition, similar to the triage of the primary HTS data, all CRC data were filtered to remove hits that overlapped in the other assays. Examples of the CRC data generated for the three most potent compounds for each mode of the M₄ assay are shown in Supplemental Figure 3. These compounds are specific to the M₄ assay described here and were not found active in the others.

Figure 4.

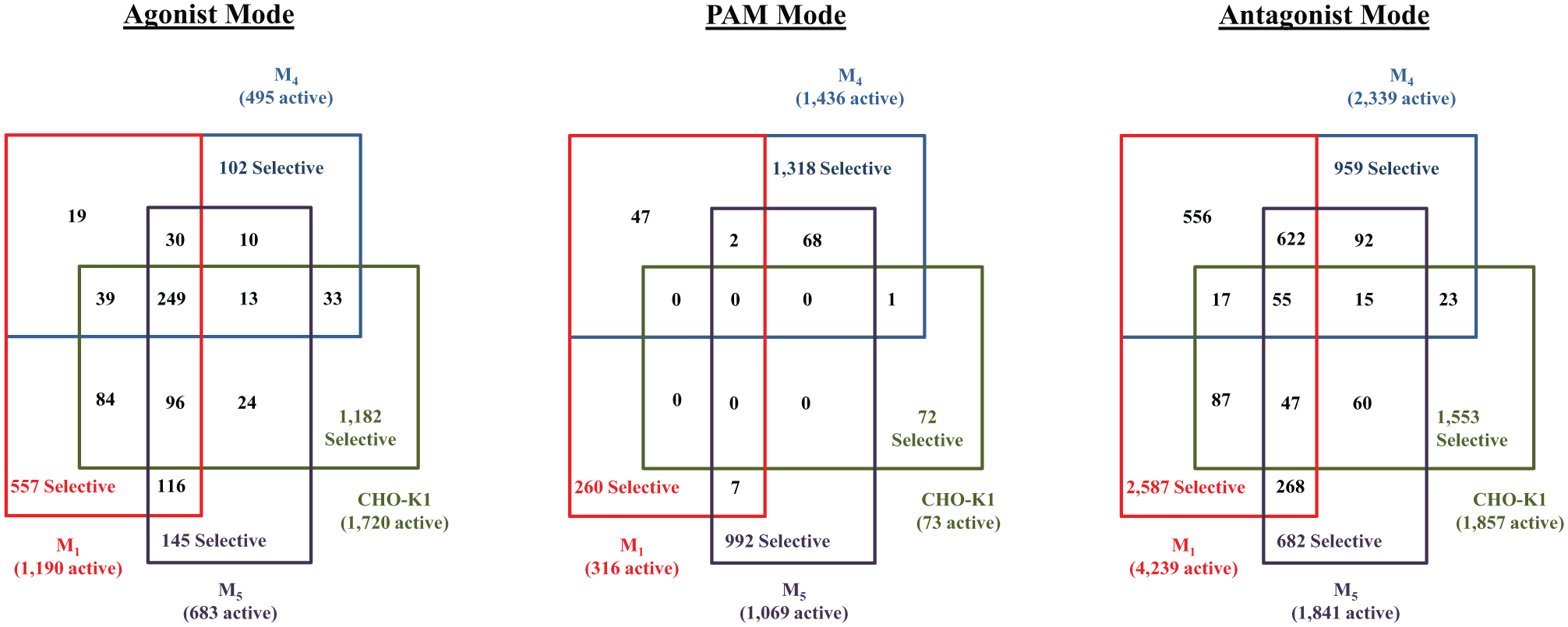

Four-way Venn diagram for muscarinic screens in the three modes. Data from the primary assays for M₁, M₄, M₅, and parental CHO-K1 cells are shown here. The numbers in parentheses next to the target are the number of hits specific for that screening mode. The numbers in the various boxes represent the number of compounds found to respond in those overlapping assays.

Following this triage, there is still the potential of finding compounds that trigger a native Gi-coupled receptor in the CHO-M₄-Gqi5 cell line and signal through the Gqi5 protein to activate calcium. Because the parental cell line does not have Gqi5, it is possible that non-M₄ receptor–mediated agonist activity could be seen in the M₄ cell line and not picked up in the CHO-parental counterscreen. We also did not include Gqi5 in the M₁ and M₅ cell lines, and hence, compounds could slip past here too. This is likely not so much an issue with PAMs or antagonists as the activity of these compounds relies on their ability to modulate ACh responses. We recognize that additional follow up of the 503 putative agonist hits will be required in an assay in which M₄ activity is monitored using a native Gi/o-dependent assay, such as M₄ coupling through potassium (GIRK) channels. ²⁵ Similar to the M₁- and M₅-specific modulators described elsewhere, the details of the efficacy found for the M₄-selective compounds including further mode of action studies, SAR (structure to activity relationship), and pharmaceutical development will be the topic for future publication.^24,26

Discussion

In this report, we present a homogeneous, 1536-well HTS assay that screens for a compound’s agonist, PAM, and antagonist activity on the same set of cells expressing the M₄ receptor. This multiparametric assay has the benefit of reducing overall screening costs: a multiparametric HTS campaign consumes approximately one-third of reagents and cells compared with running HTS campaigns separately for each type of pharmacology. An unexpected advantage of the multiparametric format is the savings of screening campaign duration time. In our lab, an average single detection mode HTS campaign of the MLPCN collection takes 5 business days of robot time per target; in addition, scale up of cells takes an additional 10 d per screen. Here, we were able to generate three pharmacologically distinct data sets against 364,131 compounds in 8 business days of robot time with 10 d for cell preparation for a 2.5-fold reduction in time (18 vs. 45 d).

The ability to assess a compound’s behavior across the three different test modes is another advantage of the multiparametric assay format. Behavior of a hit across all three modes of the HTS assay facilitated the rapid identification of hits that were “classical” agonists, PAMs, or antagonists. The identification of agonists that exhibited more complex pharmacology was also aided by the multiparametric approach. Careful analysis of a hit’s response across all modes allowed the identification of agonists that holistically desensitized the M₄ intracellular calcium response and PAMs that demonstrated agonist activity. Triage of selective hits was also aided by comparison of the M₄ primary hits with hits from three other multiparametric HTS campaigns.

Knowing that adverse effects of cholinergic agents are thought to be primarily due to activation of peripheral M₂ and M₃ mAChRs raises the question as to why we chose to triage against M₁ and M₅. We were initially interested in M₁, M₄, and M₅ as targets and felt this was the most efficient way to find compounds for each target and to get an idea of selectivity. Finally, the antagonist component of the screen could potentially identify negative allosteric modulators or NAMs (negative allosteric modulators). One would anticipate these would be further elucidated in secondary assays when tested in the presence of a suboptimal concentration of a known antagonist such as atropine while looking for further diminishment of receptor signaling.

Although we successfully reduced timelines and increased output, one must be aware that assay development and implementation may take longer. Crucially, there must be pharmacological controls available for each mode in order to optimize each assay, help classify compounds, and determine their fate. Even with excellent controls, caution must be exercised. For instance, many PAM hits will not reach 100% of maximal Ach activity. Here, we set the high control as an EC₁₀₀ of Ach, which seems prudent but may have unrealistically biased us toward finding and/or normalizing data that demonstrate low activity for PAMs. In addition, data management becomes more daunting. Software tools must be put in place that allow compilation of concatenated data to yield percentage activity or inhibition for each mode. Finally, algorithms need to be established to quickly triage compounds that would qualify as agonists, PAMs, and antagonists.

mAChRs play a vital role in cognitive function, making them important targets for drug discovery. Several types of modulators have been the focus of pharmaceutical companies to target mAChRs. Some of these areas include agonists, antagonists, and allosteric modulators. Efforts to develop subtype-selective, mAChR agonists have been hampered by the difficulty in achieving high selectivity for individual mAChRs important for CNS function (M₁ and M₄) while reducing adverse effects due to activation of peripheral mAChRs (especially M₂ and M₃). Major advances have now been achieved in the discovery of allosteric agonists and positive allosteric modulators of M₁ and M₄ that show greater selectivity for individual mAChR subtypes than do previous mAChR activators. Early studies indicate that these allosteric mAChR agonists and PAMs have properties needed for optimization as potential clinical candidates and have robust effects in animal models that predict efficacy in the treatment of Alzheimer’s disease, schizophrenia, and related disorders. ⁴

To address the need for subtype-selective mAchR modulators, save time, and reduce cost, we have developed a rapid miniaturized method to detect the three aforementioned modulator types, successively, in the same well during a single assay requiring only one compound addition. Not only does this expedite the discovery of agonists, PAMs, and antagonists, but it also allows for more robust results as the variability in assay-to-assay discrepancies, day-to-day cell handling, and other environmental conditions is removed. This method has proven to be successful, as indicated by the discovery of specific probes for M₁, M₄, and M₅ and is the focus of follow-up research here and at other institutes.^27,28
