High-Content Screening for Biofilm Assays

Abstract

The authors describe a novel high-throughput screening platform that provides rapid, reliable, quantitative assessment of biofilm formation and removal on engineered surfaces. Unlike traditional biofilm assays based on plate readers, this assay platform is based on high-content screening, which allows for multiplexing to simultaneously quantify the number of bacterial adhesions per unit area and the viability of adhered cells using fluorescent dye combinations. This platform is fully automated and has a throughput of more than 10,000 wells per day. The authors used this platform to examine the influence of different assay buffer systems on bacterial adhesion, viability, and removal on cross-linked polyvinyl alcohol coating films synthesized directly onto the bottoms of 384-well plates. The results indicated that water chemistry, bacteria cell type, and film chemistry combine to govern biofilm formation. In general, both reversible and irreversible bacterial adhesion increased with the extent of cross-linking in coating films, which correlates strongly with coating film cross-linking degree and hydrophobicity, which is closely related. The high-throughput platform offers a powerful tool for rapid evaluation of fouling-resistant coating films in addition to elucidation of fundamental mechanisms governing bacterial adhesion.

Introduction

Biofilms can be broadly defined as a mixture of microorganisms and extracellular polymeric substances attached to a surface of biological, manmade, or natural origins. ^1-3 Biofilms have been associated with major medical problems of infection because the extracellular matrix protects bacteria from phagocytosis and host-immune responses. ⁴ Furthermore, biofilms harbor bacteria that contaminate drinking water ^5-7 and cause rejection of medical devices and implants. ⁸ Biofilm bacteria are also more resistant to antibiotics because a large portion of the bacteria in the biofilm is metabolically dormant and nonculturable. ⁹ Biofouling problems cost global water, energy, and shipping industries billions of dollars annually in the form of corroded pipes, reduced heat transfer capacity, higher fuel consumption due to increased drag, plugged water and air injectors, and fouled membranes, sensors, and water filters. In these environmental as well as biomedical applications, surfaces that resist biofilm formation and compounds that modulate biofilm formation are highly sought after.

Herein, we focus on the specific problem of biofilm formation on water treatment membranes, which costs the global water industry over $1 billion anually. ^10,11 The key step in biofilm formation is the initial attachment of bacteria cells to a substrate surface (aka primary adhesion). ^12,13 Primary adhesion is governed by cell-substrate physicochemical interactions and is largely reversible (over short time periods) by simple physical and chemical perturbations (e.g., hydraulic flushing or chemical cleaning). Irreversible adhesion of bacteria cells is initiated by secretion of exopolysaccharide molecules, which anchor and shelter adhered bacteria, alter substrate surface properties, and possibly make biofilm formation more favorable.

Many assay systems have been established to screen for compounds and surfaces of favorable properties (e.g., Alamar blue, ¹⁴ adenosine triphosphate [ATP]–driven luminescent assays, ¹⁵ and the Calgary biofilm device ^16,17 ). However, all of these assays rely on either the metabolically active portion of the biofilm bacteria or the culturable part, ^18,19 and therefore conclusions drawn from these assays should be approached with caution. ¹⁹ The only assay that currently measures biomass is the crystal violet assay, ²⁰ which is not amenable to automation nor possesses the sensitivity to monitor primary adhesion events.

Here, we introduce an assay system that relies on high-content screening (HCS) to measure initial bacterial adhesion as well as extent of biofilm formation and removal over time. Using dye combinations such as SYTO-9 and propidium iodide, the HCS assay quantifies total adhered cells as well as viability of adhered cells and allows for direct screening of biofilm modulation by surface modification and incorporation of antimicrobial compounds. Finally, this assay is fully automated, making it useful for high-throughput screening (HTS). The platform is demonstrated herein for 2 different bacteria cells in 3 representative water chemistries (seawater, freshwater, and wastewater effluent) and 4 cross-linked polyvinyl alcohol (PVA) film chemistries—giving a total of 24 combinations.

Materials and Methods

Preparation of PVA coating films in 384-well microplates

Mowiol^® PVA 6-98 with average molecular weights of 47,000 g/mol and 98.0% to 98.8% hydrolyzed was purchased from Sigma-Aldrich (St. Louis, MO) for the formation of coating films on the bottom in the wells of microplates. Succinic acid (Sigma-Aldrich) was used as the cross-linking agent.

PVA powder was dissolved under stirring in de-ionized water (DI) water at 90°C. Unless otherwise specified, the PVA concentration was 0.10 wt%. Next, PVA solutions were cooled to room temperature and the cross-linking agent was added along with 2 M HCl as catalyst under continuous stirring to produce the PVA casting solution. Cross-linker concentration was selected to produce a theoretical cross-linking degree of 20% unless otherwise specified. The theoretical cross-linking degree was defined by

$${\chi }_{\text{CL}}[\%]=\frac{{\text{W}}_{\text{CL}}\times {\text{MW}}_{\text{PVAunit}}\times 2}{{\text{W}}_{\text{PVA}}\times {\text{MW}}_{\text{CL}}}\times 100,$$

where W_CL, W_PVA, MW_PVAunit, and MW_CL represented the weight of the cross-linking agent, the weight of PVA, the molecular weight of 1 PVA unit (—CHOH-CH₂—), and the molecular weight of the cross-linking agent, respectively.

Then, 50-µL PVA solutions (see preparation procedure in supplementary material) were dispensed into each well of a black/micro-clear-bottom 384-well plate (cat. 781091; Greiner Bio One, Frickenhausen, Germany) using an automated dispenser (Multidrop 384; Thermo Fisher Scientific, Williston, VT). Then, the aqueous casting solution was allowed to evaporate/air-dry at room temperature overnight (24 h) and followed by 5 curing steps at 100°C of 2 min duration to cross-link the PVA coating films.

Water chemistry

Three classes of aquatic chemistries were explored to establish the role of water quality on bacterial adhesion and removal: freshwater, wastewater effluent, and seawater. Each aquatic chemistry is represented by a complex but organic-free electrolyte. Freshwater was prepared to 1-liter solution by addition of 2.61 mg NaCl, 58.53 mg MgCl₂·6H₂O, 171.83 mg CaSO₄·2H₂O, 39.93 mg NaHCO₃, 5.35 mg K₂SO₄, and 17.36 mg Na₂SO₄·10H₂O; wastewater was prepared to 1-liter solution by addition of 73.88 mg NaCl, 88.21 mg NaHCO₃, 980.85 mg Na₂SO₄·10H₂O, 30.52 mg KCl, 258.52 mg MaSO₄·7H₂O, 288.16 mg CaCl₂·2H₂O, 61.42 mg NH4Cl, and 71.94 mg NaNO₃; and seawater was prepared to 1-liter solution by addition of 24.317 g NaCl, 4.4629 g MgCl₂·6H₂O, 0.1549 g NaHCO₃, 0.6794 g KCl, 6.214 g MaSO₄·7H₂O, 1.3493 g CaCl₂·2H₂O, 0.0774 g NaBr, 0.023 g H₃BO₃, 0.0026 g NaF, and 0.0218 g SrCl₂·6H₂O. The pH value of all water chemistries were adjusted to 7.0. All chemicals (Fisher Scientific, Pittsburgh, PA) were reagent grade or better.

Preparation of bacteria for adhesion

Model microorganisms used in this study included Pseudomonas putida (provided by Dr. Patricia Holden at University of California, Santa Barbara), which is a gram-negative aerobic bacterium cultured in tryptic soy broth (TSB), and Bacillus subtilis (provided by Dr. Beth Lazazzera at UCLA), which is a gram-positive aerobic bacteria cultured in Luria-Bertani broth (LB). Pure bacterial cell cultures were suspended in TSB or LB media and shaken at 150 rpm in an incubator at 25°C. Cells were harvested at mid-exponential phase by centrifugation at 3800 g. Pelletized cells were washed using phosphate-buffered saline (PBS) solution and centrifugation twice, and then obtained cells were washed using the corresponding water chemistries (freshwater, wastewater, or seawater with full inorganics recipe; see supporting information). The suspensions were normalized to 10 ⁹ cfu/L using a hemocytometer following the procedure described by Kang et al. ²¹

Plate processing

Of this bacterial suspension in various water chemistries, 50 µL was added to each well of a 384-well plate using a Biomek FX with 96 pipetting manifold (Beckman Coulter, Indianapolis, IN), and the microplates were then incubated for 24 h at room temperature to allow bacterial adhesion and growth of biofilms on the surface of coating films. Before plate processing, dyes (LIVE/DEAD^® BacLight™ Bacterial Viability Kits) were dissolved in 30 mL sterile DI water per the manufacturer’s recommendations to a final concentration of 12 µM Syto-9 and 60 µM PI. For the adhesion assay, only SYTO-9 was used, whereas for the parallel assessment of viability assay, SYTO-9 and propidium iodide (PI) were used together. Then, 10 µL of dye solution was added per well and incubated for 20 min at room temperature. The microplates were then imaged and washed 3 times with 100 µL DI water using an ELX405 Microplate Washer (Bio-Tek Instruments, Inc., Winooski, VT) and reimaged. For dispensing a height of 14.6 mm, an x-offset of 0.454 mm, a y-offset of 0.229 mm, and a flow rate of 3 were used, which translates to 273 µL/s. For the aspiration, a final height of 3.81 mm, a delay of 500 ms, an x-offset of 0.686 and a y-offset of 0.229, a manifold speed of 4.7 mm/s, and a vacuum of about 15 in hg were used. The inner diameter was 0.02 in for the dispense manifold and 0.033 in for the aspirate manifold.

Image acquisition and data processing

Microplates were acquired on an ImageXpress^micro (Molecular Devices, Sunnyvale, CA) using green fluorescent protein (GFP) and TRITC zero pixel shift filters (Semrock, Rochester, NY) with image-based focusing. We used a Nikon SFlour 10× lens with a numerical aperture of 0.3 and an exposure of about 150 ms, resulting in 66% saturation of the image on the CoolSNAP HQ camera at 2 × 2 binning to acquire 1 field per well. The resulting 16-bit images (696 × 520 pixel, 1 pixel = 1.29 × 1.29 micron) were processed using MetaXpress 1.74R software (Molecular Devices). Using the multiple-wavelength cell scoring module, this analysis software allowed for counting the total number of adhesions as well as viability: the total number of adhesions in the field of view resulted from the SYTO-9 channel, whereas the number of adhesions containing bacteria with compromised membranes was counted using the PI channel. The following settings were used for both channels in the multiple-wavelength cell scoring analysis module: the approximate minimum width was set to 10 µm, the approximate maximum width was set to 30 µm, and the intensity above background was 1000 gray levels.

Results and Discussion

Screening for biofilm adhesion and removal on PVA-modified surfaces

In this study, we approached biofilm formation from an engineering point of view. Our experiments were designed to evaluate what kind of surface is most resistant to biofilm formation and from which type of surface biofilms are most easily dislodged. As a model surface, we used cross-linked PVA hydrogels, which have been investigated for some time for biofilm resistance in the applications of interest here. ²² Figure 1 provides a pictograph of the HCS-based biofilm assay on PVA films.

Fig. 1.

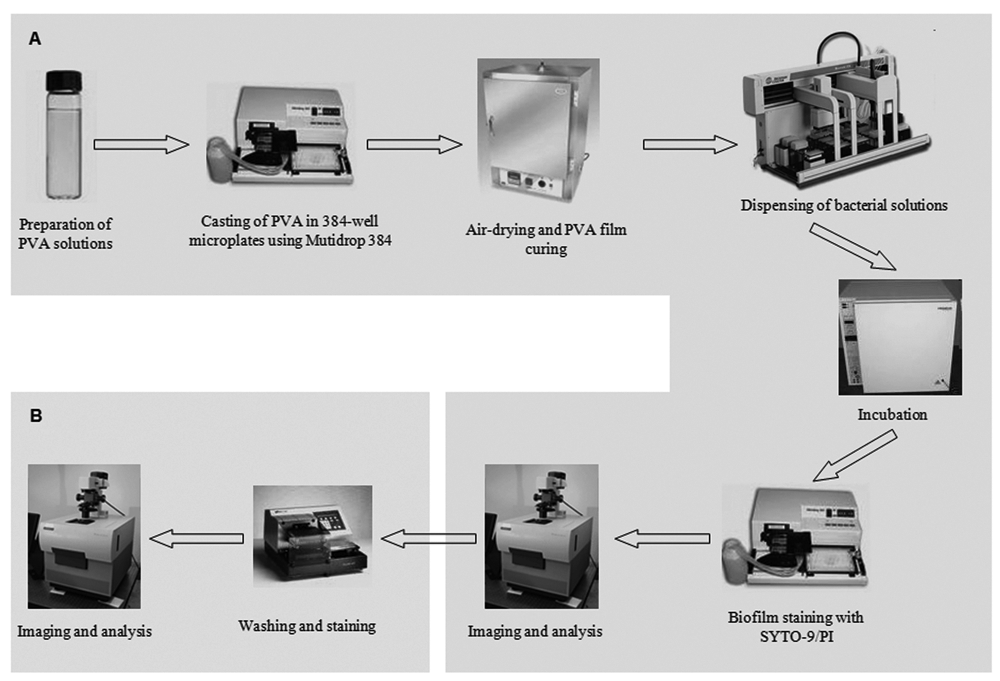

Schematic workflow for the high-throughput synthesis of polyvinyl alcohol (PVA) films and subsequent high-throughput assay for evaluating biofilm-retardant properties of the resulting surfaces. Part A of the assay tests for biofilm growth and is homogeneous, whereas part B tests for ease of removal of biofilms and is nonhomogeneous. The workflow is based on standard high-throughout screening equipment and can be fully automated.

The first step was preparation of the PVA-modified surfaces. Historically, combinatorial synthesis and testing of modified surfaces was a relatively slow process typically relying on 24-well plates or custom-made devices with even lower throughput rates. ²³ We have sped up the production of surface-modified plates by using a noncontact dispenser that enabled casting PVA films directly onto the bottoms of 384-well optical microplates. Tens of thousands of wells with varying surface chemistries can be easily assembled in a single day using this configuration. The resulting plates can be stored until needed, adding to the flexibility of this system. The actual assay itself can be divided into 2 steps: (1) a homogeneous biofilm assay using HCS detection of biofilm formation and (2) a nonhomogeneous biofilm assay targeted at biofilm removal.

For initial validation of the assay, we used standard, TC-treated (nonmodified) black 384-well plates with a clear bottom. The assay began with the addition of the bacteria to the 384-well plates using a Biomek FX liquid handler. We used P. putida and B. subtilis as gram-positive and gram-negative model organisms. At this point, the bacterial solution in different assay buffer systems reflecting real-world water chemistries (freshwater, seawater, and treated wastewater effluent) rather than LB/TSB growth media was pipetted into each well using a Beckman Biomek FX. Because Syto-9 dye fluoresced only when intercalated into nucleic acids, washing was not necessary, and the assay was homogeneous. This property of the dye is especially important for polymer films that could adsorb or absorb dyes—thus potentially adding to the background and obscuring the signal. The same rationale applied to the use of PI. The plates can be imaged on a standard HCS system. We used an ImageXpress^micro and standard image-based autofocusing. For biofilm removal experiments, the microplate was washed on an ELX405 Microplate Washer, and the imaging was repeated as described above. We used detection settings to detect adhesions of a minimal size of 10 µm, which corresponds roughly to a few hundred bacteria.

Our first experiment in Figure 2 shows the influence of different water chemistries on biofilm adhesion on a standard, nonmodified, TC-treated, 384-well microplate. False-positive signal from adsorbtion of dyes to the plate was not found: the control wells without bacteria gave no indication of adherent material in any of the water chemistries (data not shown). Almost a 10-fold difference was observed between P. putida and B. subtilis, but in both cases, the assay detected the biofilm with reasonable standard deviations ( Fig. 2 ). The Z′ for this assay was generally above 0.5, which makes this assay suitable for HTS.

Fig. 2.

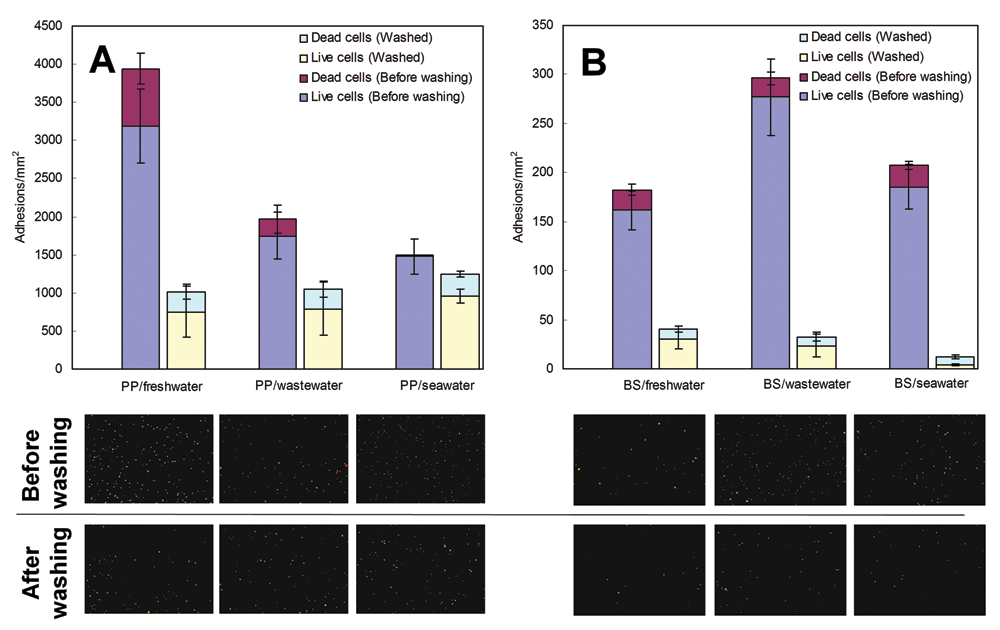

Influence of water chemistry on biofilm formation and removal results: (A) Pseudomonas putida (PP) and (B) Bacillus subtilis (BS). Below are representative pictures for each test condition, where the green channel is used for Syto-9 representing a general stain and propidium iodide (PI) is in the red channel marking adhesions containing significant amounts of dead bacteria. Each condition was repeated 12 or 16 times, and the resulting standard deviations are represented in the error bars. The results for the 2 bacteria differ by about 1 order of magnitude, and the water chemistry has a tremendous influence on the amount of adhesions, which in turn is specific to the bacterium.

The water chemistry has also exerted a significant influence on biofilm formation. Most studies use LB or TSB media, which bear little relevance to any practical conditions in which biofilm-forming bacteria are normally found, thus making translational work much more difficult. We anticipate that in the future, assay buffer systems will be used that resemble more the natural environment.

The data for the remaining biofilm adhesions after washing were on the order of 1000 adhesions per mm² and did not correlate to the initially adherent amount of P. putida. One could imagine that the number of adhesions might be dependent on the number of sites—possibly defects in the surface—per unit area that are available for individual cell adhesion if nonlimiting amounts of bacteria are available. The ratio between adhesions that were scored as PI negative and positive was approximately constant for P. putida after washing. We use PI as an indicator for the viability of a biofilm adhesion as it is membrane impermeable and hence stains only dead bacteria. Adhesions that score as PI positive contain a significant amount of dead bacteria. Because it has been argued that biofilms initially adhere to a surface using dead bacterial matter as “glue,” we wanted to test if biofilm adhesions that contain higher numbers of dead bacteria have an advantage in adhering to surfaces. We found that the ratio of PI-negative to PI-positive adhesions after washing does not change, and hence the adhesive properties of biofilms do not necessarily depend strictly on the presence of large amounts of dead bacteria in an adhesion.

For the purpose of optimizing surfaces, it is important that an assay can pick up subtle changes in biofilm formation—changes that are difficult to measure using a plate reader–based biofilm assay. We reasoned that the hydrophobicity of PVA films should modulate the amount of biofilm growing on it. To put our assay to the final test, we cast PVA films with different cross-linking degrees into the bottom of 384-well plates. The different extent of cross-linking resulted in different hydrophobicities of the resulting films: contact angle measurements revealed that more cross-linked films were more hydrophobic (data not shown).

We used these plates in our assay system, and the results are summarized in Figure 3 . The number of adhesions generally increased with increased cross-linking (i.e., hydrophobicity). The differences were not drastic—and would have been most likely missed using a plate reader–based assay. Linear regression of the %PVA cross-linking versus adhesions shows that for P. putida, a linear dependence of adhesions and cross-linking degree is found (R ² = 0.98 before washing and R ² = 0.99 after washing, regression—plot shown in supplementary data), whereas for B. subtilis, the trend is less pronounced (R ² = 0.9 before and after washing—plot shown in supplementary data). Most interestingly, the PVA surface modification resulted in a dramatic loss of biofilm formation for P. putida, whereas B. subtilis was more attracted to PVA-modified surfaces than nonmodified surfaces. The results indicate that “one-size-fits-all” surface modifications are impractical, and surfaces have to be tailored to resist adhesion of specific bacteria in the water chemistry of interest. Because cross-linking degree is a chemical modification that results in not only higher hydrophobicity but also other structural changes such as changes in polymer mesh size, changes in the numbers of various chemical moieties, and so on, more detailed studies are needed to elucidate the dependence between biofilm formation and surface modifications using PVA and other surface modifications.

Fig. 3.

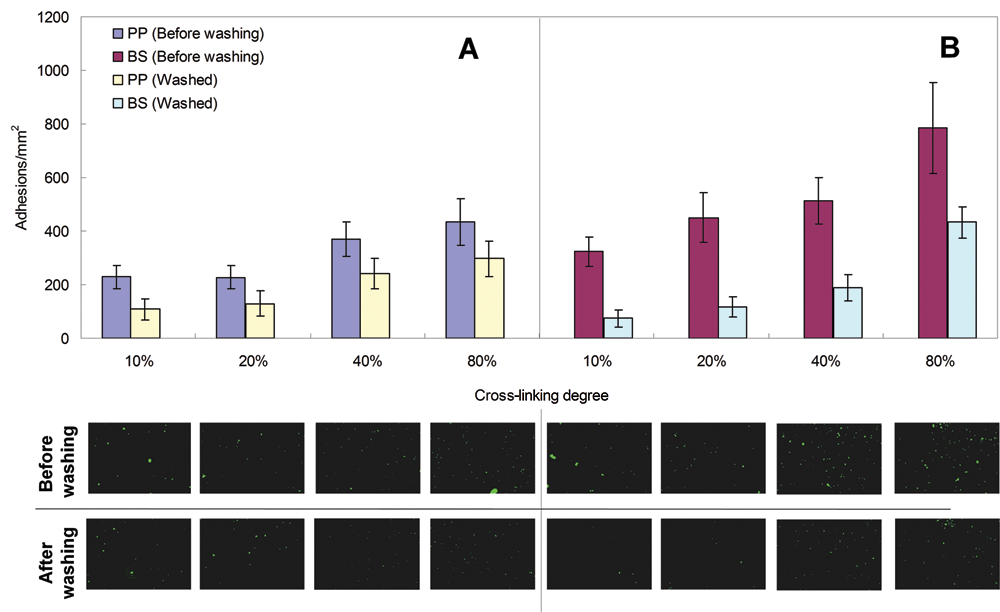

Influence of polyvinyl alcohol (PVA) cross-linking degree on biofilm formation in freshwater media for (A) Pseudomonas putida and (B) Bacillus subtilis. For both bacterial species, a dependence of the biofilm growth can be seen with the hydrophobicity of the PVA films covering the bottom of the 384-well plate. All adhesion assays were repeated 12 or 16 times, and the resulting standard deviations are represented in the error bars. For PVA, hydrophobicity is directly proportional to the cross-linking degree of the PVA used to synthesize the films. Both bacteria show roughly the same amount of biofilm growth on PVA films, whereas in Figure 2 , P. putida had a 10-fold higher affinity to the nonmodified surface. Below each bar is a picture of a representative well, where the adhesions are in green.

Conclusions

A HCS-based high-throughput assay was developed and applied to assess biofilm growth, viability, and removal from synthesized polymer-coating films. Validation of the assay was carried out on standard 384-well plates using a multiplexed SYTO-9/PI (live/dead) staining with 2 different bacterial species—P. putida and B. subtilis—in 3 different assay buffer systems (water chemistries), which reflect real-world oligotrophic conditions rather than nutrient-rich growth media, which are typically used. The use of real-world water chemistries will contribute to more translatable results without having to send every coating film composition for field testing, thereby dramatically minimizing time, labor, and cost. The results indicated that water and surface chemistry conspired to determine biofilm formation, whereas each bacteria cell type responded uniquely to different water and surface chemistries. Last but not least, the assay system presented here was fully automated, enabling future HTS of a larger number of biofilm modulating surfaces, nanoparticles, and small molecules.
