Abstract

FluxOR™ technology is a cell-based assay used for high-throughput screening measurements of potassium channel activity. Using thallium influx as a surrogate indicator of potassium ion channel activity, the FluxOR™ Potassium Ion Channel Assay is based on the activation of a novel fluorescent dye. This indicator reports channel activity with a large fluorogenic response and is proportional to the number of open potassium channels on the cell, making it extremely useful for studying K⁺ channel targets. In contrast to BTC-AM ester, FluxOR™ dye is roughly 10-fold more thallium sensitive, requiring much lower thallium for a larger signal window. This also means that the assay is carried out in a physiological, normal-chloride saline. In this article, the authors describe how they used BacMam gene delivery to express Kv7.2 and 7.3 (KCNQ), Kir2.1, or Kv11.1 (hERG) potassium ion channels in U2-OS cells. Using these cells, they ran the FluxOR™ assay to identify and characterize channel-specific inhibitory compounds discovered within the library (Tocriscreen™ Mini 1200 and Sigma Sodium/Potassium Modulators Ligand set). The FluxOR™ assay was able to identify several known specific inhibitors of Kv7.2/7.3 or hERG, highlighting its potential to identify novel and more efficacious small-molecule modulators.

Keywords

FluxOR™potassium ion channel high-throughput screening flux BacMam

Introduction

Ion channels underlie numerous physiological processes and present unique challenges in drug discovery screening, owing to complex multisubunit architectures and practical considerations when measuring their activity with any degree of throughput.¹ Potassium-selective channels comprise the largest and most widely distributed class of ion channels known, with 75 loci in the mammalian family tree.² Given their ubiquitous presence in nearly every physiological pathway and their role in many different disease states, including central nervous system (CNS), cardiac, and proliferative disorders, it is not surprising that potassium channels are seen as attractive therapeutic targets.

Kv7.2/7.3 (KCNQ2 and KCNQ3) coassemble to underlie an “M current” in the CNS,³ and mutations cause benign familial neonatal convulsions (BFNC), dominantly inherited epilepsy, and myokymia.^4-6 hERG (Kv11.1, KCNH2) is a widely screened channel that encodes a voltage-gated potassium channel known to repolarize cardiac muscle following an action potential. Rigorous hERG screening and safety testing is required of all new drugs in preclinical development.⁷ Kir2.1 is a strong inward rectifier expressed predominantly in heart, brain, and skeletal muscle. Kir2.1 mutations underlie the dysmorphic features, periodic paralysis, and cardiac arrhythmias of Anderson’s syndrome.⁸

Using thallium influx as a surrogate indicator of potassium ion channel activity, we describe here our efforts with the FluxOR™ Potassium Ion Channel Assay. The FluxOR™ assay is based on the activation of a novel fluorescent dye with a high affinity for thallium. This indicator reports channel activity with a large fluorogenic response and is proportional to the number of open potassium channels on the cell, making it extremely useful for studying K⁺ channel targets.

In contrast to BTC-AM ester,^9,10 FluxOR™ dye is roughly 10-fold more thallium sensitive, requiring much lower thallium concentrations for a larger signal window. Importantly, this means that the assay can be carried out in physiological saline with normal chloride concentrations. This was an important limitation of BTC, for which chloride-free conditions were necessitated by the solubility coefficient of thallium chloride, which is about 4 mM at physiological pH.

In the present study, we used BacMam gene delivery to express these 3 different potassium ion channel targets in U-2 OS cells. We then ran the FluxOR™ assay on the cells to identify and characterize channel-specific inhibitory compounds discovered within the library (Tocriscreen™ Mini 1200 and Sigma Sodium/Potassium Modulators Ligand set).

Methods and Materials

Cell culture

The human U-2 OS cell line was obtained from the American Type Culture Collection (ATCC number HTB-96; ATCC, Manassas, VA) and maintained and cultivated twice weekly in McCoy’s 5A Medium Modified Growth Serum (GIBCO 12330; GIBCO, Carlsbad, CA) with fetal bovine serum (Cosmic Calf FBS; Hyclone, Logan, UT) at a final concentration of 10%. Cells were cultured in 5% CO₂ at 37 °C, and subcultures were made with divalent-free phosphate-buffered saline (PBS) rinse followed by dissociation with TrypLE™ Express (Invitrogen, Carlsbad, CA). A Countess™ automated cell counter (Invitrogen) was used to quantitate the cell numbers before plating into Greiner poly-D-lysine-coated 96- or 384-well microplates.

BacMam K channel transduction using BacMam

For multiplicity of infection (MOI) studies: U-2 OS cells were harvested for resuspension in divalent-free PBS at 1 × 10⁶ cells/mL. Aliquots were prepared in 15-mL tubes with 1 mL of cells (10⁶) and viral stock needed to achieve the indicated MOI. This suspension was incubated at room temperature for 60 min before adding complete medium and plating.

For screening: U-2 OS cells were trypsinized and transduced in fresh-10 cm dishes as follows: 2.5 × 10⁶ cells in 9.5 mL McCoy’s Media (Invitrogen) + 10% fetal calf serum (FCS; Hyclone) were used per 10-cm dish. BacMam ion channel targets were added at 10% v/v (1 mL of BacMam stock at approximately 2 × 10⁸ pfu/mL) when cells were diluted for plating. For the Kv7.2/7.3 dual transduction, 8 mL media was used, and the BacMam constructs for each channel were added at a 1:1 ratio (1 mL each for a total of 2 mL). Cells were incubated at 37 °C with 5% CO₂ for 5 to 6 h. Following incubation, cells were trypsinized and plated in 384-well plate(s) at 5000 cells/well in 30 µL media.

Compound preparation and handling

The Tocriscreen™ Mini collection of 1120 compounds (Tocris Bioscience, Bristol, UK) and Sigma Sodium/Potassium Modulators Ligand set collection of 69 compounds (Sigma-Aldrich, St. Louis, MO) were aliquoted into four 384-well plates at a 5-mM concentration in 100% DMSO. These master plates were used to make a working stock plate of compounds at a 100-µM concentration in Hank’s Buffered Saline Solution (Invitrogen) and 10% DMSO (Sigma-Aldrich).

The compounds were added to the screening plates as a 10× solution yielding a 10-µM final concentration. The final DMSO concentration was 1%.

Potassium channel assay

The FluxOR™ potassium channel assay was performed as outlined in the product information sheet and performed on the Hamamatsu FDSS 6000 (Hamamatsu Photonics, K.K., Hamamatsu, Japan). Briefly, FluxOR™ loading buffer was made from Hank’s Balanced Saline Solution (HBSS) buffered with 20 mM HEPES and pH adjusted with NaOH to 7.4. Powerload™ concentrate and water-soluble probenecid were used as directed by the kit to enhance the dye solubility and retention, respectively. Media were removed from the cell plates manually, and 20 µL of loading buffer containing the FluxOR™ dye mix was applied to each well with a Multidropper Combi (Thermo Fisher, Waltham, MA). Once inside the cell, the nonfluorescent AM ester form of the FluxOR™ dye was cleaved by endogenous esterases into a thallium-sensitive indicator. The dye was loaded for 60 min at room temperature and then removed manually. The cell plates were subsequently washed once with dye-free assay buffer, before adding a final volume of 20 µL assay buffer containing water-soluble probenecid. Cell plates received 2 µL per well of the screening compounds, delivered with a Hamamatsu FDSS 6000 (Hamamatsu Photonics, K.K.), and were then incubated at room temperature (23-25 °C) for 30 min to allow equilibration of the test compounds in the cultures. Prior to injection, stimulation buffer was prepared from the 5× chloride-free buffer, thallium, and potassium sulfate reagents provided in the kit to contain 10 mM free thallium (5 mM Tl₂SO₄) and 50 mM free potassium (25 mM K₂SO₄). These concentrations resulted in final added concentrations of 2 mM free Tl⁺ and 10 mM free K⁺ after 1:5 dilution upon injection of the stimulus buffer into cells that had been loaded with FluxOR™ dye.

Data analysis

Data for the FluxOR™ screen were analyzed using the CeuticalSoft™ program (CeuticalSoft, Hudson, NY). The max-min fluorescence value for each well was determined from a 25-s wide window spanning 1 s preinjection and 24 s postinjection. Hits were chosen as greater then 50% inhibition when compared to DMSO controls. Autofluorescence was determined by measuring the change in fluorescence when compounds were added to the plate. If the baseline fluorescence increased by more then 50 RFUs upon compound addition, the compound was determined to be autofluorescent and not included in further analysis. Eighteen compounds were identified as autofluorescent and disregarded, and 10 µM cisapride functioned as a positive control for hERG channels. DMSO at the same concentration used for compound addition served as the negative control for all channels assayed. Values were graphed using GraphPad^® Prism (GraphPad Software, San Diego, CA).

Dose-response analysis and hit confirmation

Selected compounds determined as “hits” from the screen were picked from the library comprising the Tocriscreen™ Mini 1120 (Tocris Bioscience) plus Sigma Sodium/Potassium Modulators Ligand set (Sigma-Aldrich) and diluted over an 8-point dose-response curve. Each compound was measured in 4 replicates. Automatic fitting routines in GraphPad^® Prism (GraphPad Software) were subsequently used to define the dose-response activity and associated apparent IC₅₀ values.

Results and Discussion

Cells were transduced with the appropriate potassium channel target as outlined in Methods and Materials and plated into 384-well microplates for use the following day. Cells were loaded with FluxOR™ at room temperature, treated with compound, and assayed. hERG, Kv7.2/7.3, and Kir2.1 were assayed by adding stimulus buffer with thallium and 10 mM additional KCl. To determine the transduction conditions that resulted in the largest assay window, we tested different amounts of virus per cell and cell number per well. U-2 OS cells were transduced with BacMam Kir2.1 (KCNJ2) at approximately 200 MOI and incubated overnight. The cells were harvested and plated at densities of 200, 500, 1000, 2000, 5000, and 10,000 cells/well into a Greiner poly-D-lysine-coated 384-well microplate. Cells were allowed to adhere for 2 h before FluxOR™ dye loading. The FluxOR™ potassium channel assay was run on the FDSS 6000 as described in Methods and Materials. Responses were recorded as normalized departure from baseline (ΔF/F) at 60 s after the stimulus, obtaining values of 0.22 ± 0.04, 0.30 ± 0.04, 0.55 ± 0.06, 1.06 ± 0.06, 1.05 ± 0.05, and 0.91 ± 0.05 in correspondence with cell density ( Fig. 1a ). Two and five thousand cells plated per well for use the following day gave the largest signal ( Fig. 1a ), whereas at 10,000 cells per well, the signal began to decrease. Five thousand cells per well plated for use the following day was chosen as the optimal cell number per well. The gray traces are individual normalized races from each well, the white trace represents the average of the replicates, and the error bars represent the standard deviation.

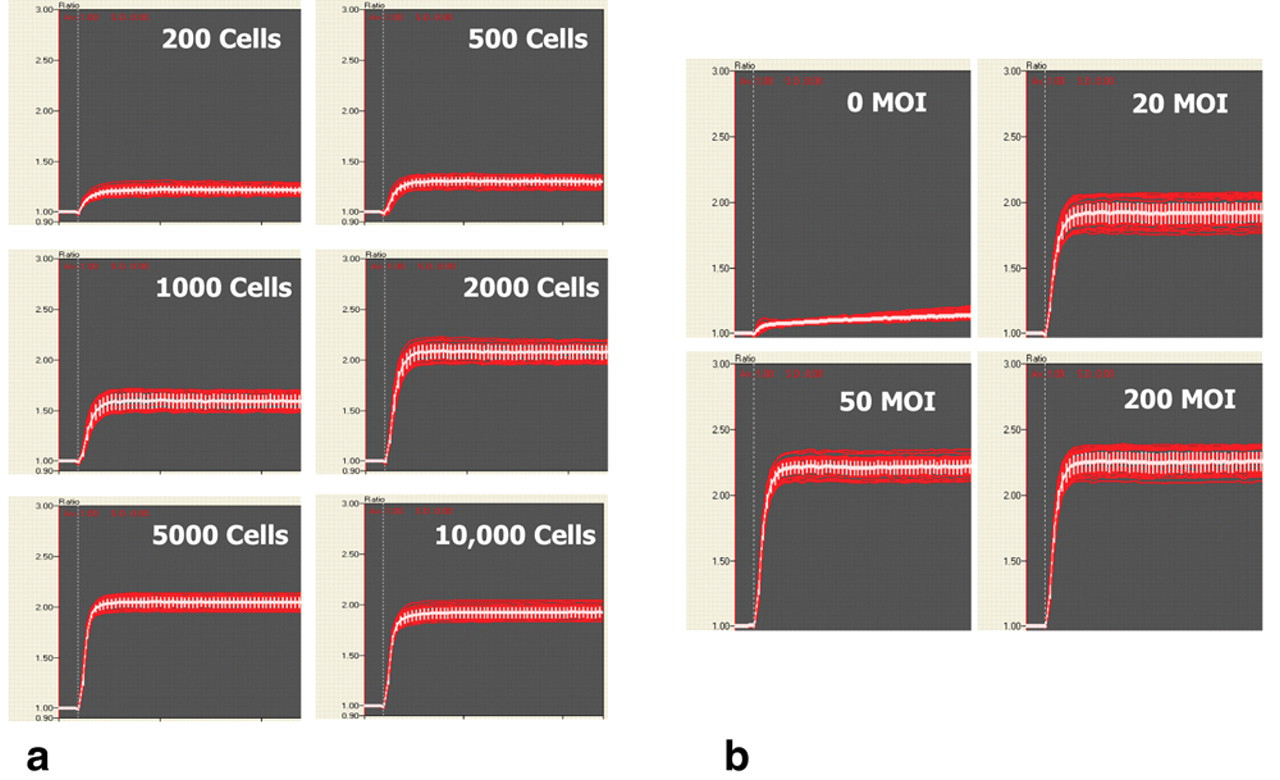

Fig. 1.

(a) U-2 OS cells were transduced with BacMam Kir2.1 (KCNJ2) at approximately 200 multiplicity of infection (MOI) and incubated overnight. (b) U-2 OS cells were transduced at different MOIs of BacMam Kir2.1 and assayed for a potassium channel–mediated thallium response using FluxOR™.

Cells were also treated to differing numbers of viral particles per cell. U-2 OS cells were transduced with BacMam Kir2.1 stock solutions at approximately 0, 20, 50, and 200 MOI and plated at 5000 cells/well into a 384-well plate and incubated overnight. The following day, cells were assayed for a potassium channel–mediated thallium response using FluxOR™. Responses were (ΔF/F) 0.11 ± 0.02, 0.90 ± 0.05, 1.20 ± 0.05, and 1.27 ± 0.06. We found that at 5000 cells per well, ~200 viral particles per cell resulted in the largest assay window ( Fig. 1b ), 1.27 ± 0.06 ΔF/F. Approximately 200 viral particles per cell correspond to a 10% by volume solution of BacMam stock to media. We used these experimental conditions for the remainder of the experiments described in this article.

To demonstrate that the FluxOR™ assay can be an effective high-throughput screening (HTS) reagent, we performed a screen of a library consisting of the compounds in the Tocriscreen™ Mini 1200 and Sigma Sodium/Potassium Modulators Ligand collection. We used BacMam transduced cells expressing functional hERG, Kv7.2/7.3, and Kir2.1 channels as described in Methods and Materials. Screening results are shown in Figure 2 . Compounds were identified as hits if they inhibited 50% or more of the nontreated negative control average response. Each microplate contained cells individually expressing hERG, Kv7.2/7.3, and Kir2.1 channels. We used hERG and Kir2.1 as counterscreens to Kv7.2/7.3. Data from each plate were normalized to its internal average of the negative control wells (in filled gray triangle; DMSO at the same concentration used for compound addition). hERG data gave a Z′ value of 0.75.¹¹ The hits from each channel are also diagrammed in Figure 2b ; autofluorescent compounds are excluded from the diagram. The Venn diagram shows that the FluxOR™ assay can be used to screen for hits against specific potassium channels.

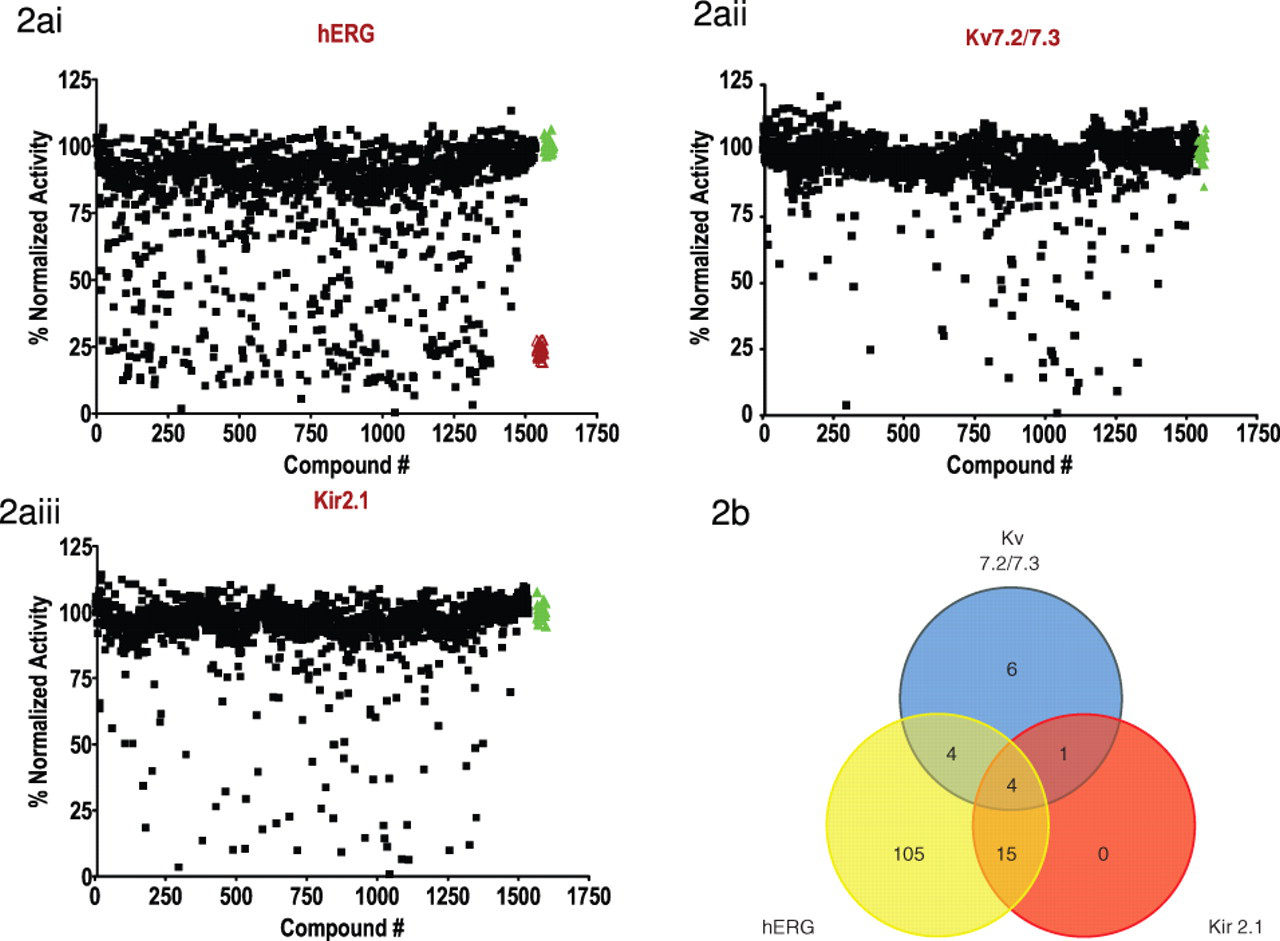

Fig. 2.

Results from the library screen of U-2 OS cells expressing Kv7.2/7.3, Kir2.1, or hERG using FluxOR™. (ai) Results from the hERG-expressing cells. The positive control compound is depicted as an unfilled gray triangle (10 µM cisapride), and the negative control is depicted as a filled gray triangle. (aii) Results from the Kv7.2/7.3-expressing cells. (aiii) Results from the Kir2.1-expressing cells. (b) Venn diagram showing the hits from the FluxOR™ screen of the library. Two compounds inhibited all of the 3 channels, Kv7.2/7.3, Kir2.1, and hERG, whereas 5 acted on Kv7.2/7.3 alone, 124 on hERG, and 1 appeared to inhibit Kir2.1 alone.

To validate the feasibility of the FluxOR™ assay as a screening tool for potassium channels, we went on to test the pharmacology of known potassium channel modulators identified as hits in Figure 2 . Based on their well-characterized inhibition of hERG or Kv7.2/7/3, haloperidol, linopiridine, XE991, and cisapride were chosen for further analysis. Microplates containing cells expressing hERG, Kv7.2/7.3, or Kir2.1 channels were used to assay the ability of each of the 4 compounds to block the signal elicited by application of the thallium stimulation buffer to FluxOR™-loaded cells. The IC₅₀ values obtained show specificity across the channels as well as good agreement with published results for specific inhibition of these channels ( Table 1 ). The hit identified as a specific Kir2.1 blocker, naloxonazine dihydrochloride, was also analyzed further but was found to be insoluble and had no effect on any of the 3 channels tested (data not shown). Table 1 illustrates the results obtained from dose-response studies performed on other hits identified in Figure 2 but not shown in Figure 3 .

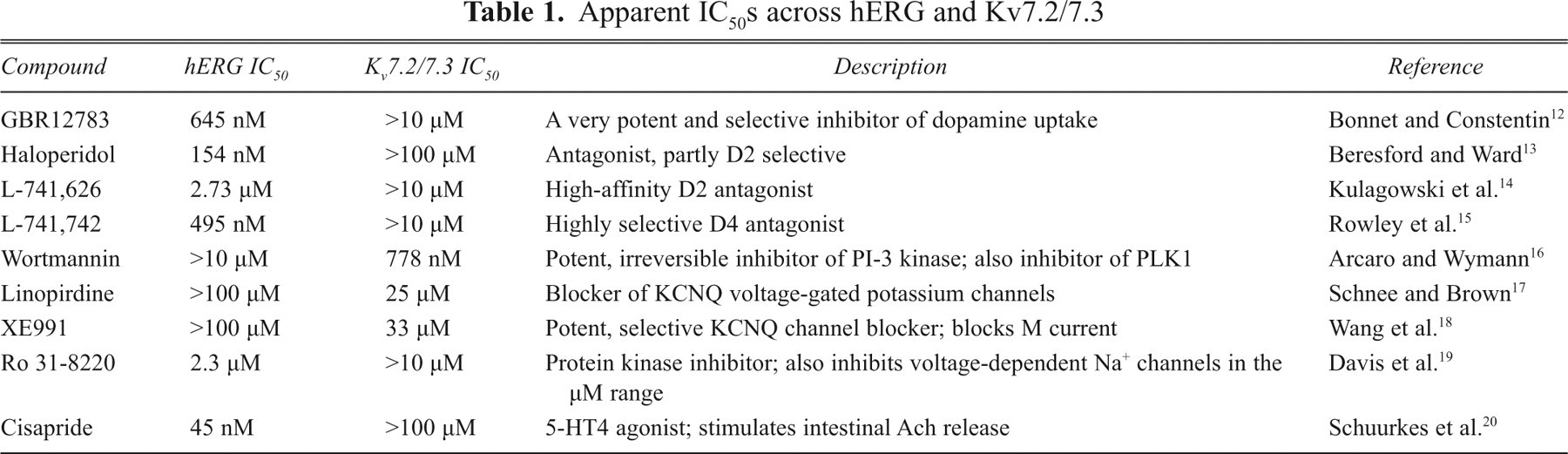

Table 1.

Apparent IC₅₀s across hERG and Kv7.2/7.3

Compound	hERG IC₅₀	K_v7.2/7.3 IC₅₀	Description	Reference
GBR12783	645 nM	>10 µM	A very potent and selective inhibitor of dopamine uptake	Bonnet and Constentin¹²
Haloperidol	154 nM	>100 µM	Antagonist, partly D2 selective	Beresford and Ward¹³
L-741,626	2.73 µM	>10 µM	High-affinity D2 antagonist	Kulagowski et al.¹⁴
L-741,742	495 nM	>10 µM	Highly selective D4 antagonist	Rowley et al.¹⁵
Wortmannin	>10 µM	778 nM	Potent, irreversible inhibitor of PI-3 kinase; also inhibitor of PLK1	Arcaro and Wymann¹⁶
Linopirdine	>100 µM	25 µM	Blocker of KCNQ voltage-gated potassium channels	Schnee and Brown¹⁷
XE991	>100 µM	33 µM	Potent, selective KCNQ channel blocker; blocks M current	Wang et al.¹⁸
Ro 31-8220	2.3 µM	>10 µM	Protein kinase inhibitor; also inhibits voltage-dependent Na⁺ channels in the µM range	Davis et al.¹⁹
Cisapride	45 nM	>100 µM	5-HT4 agonist; stimulates intestinal Ach release	Schuurkes et al.²⁰

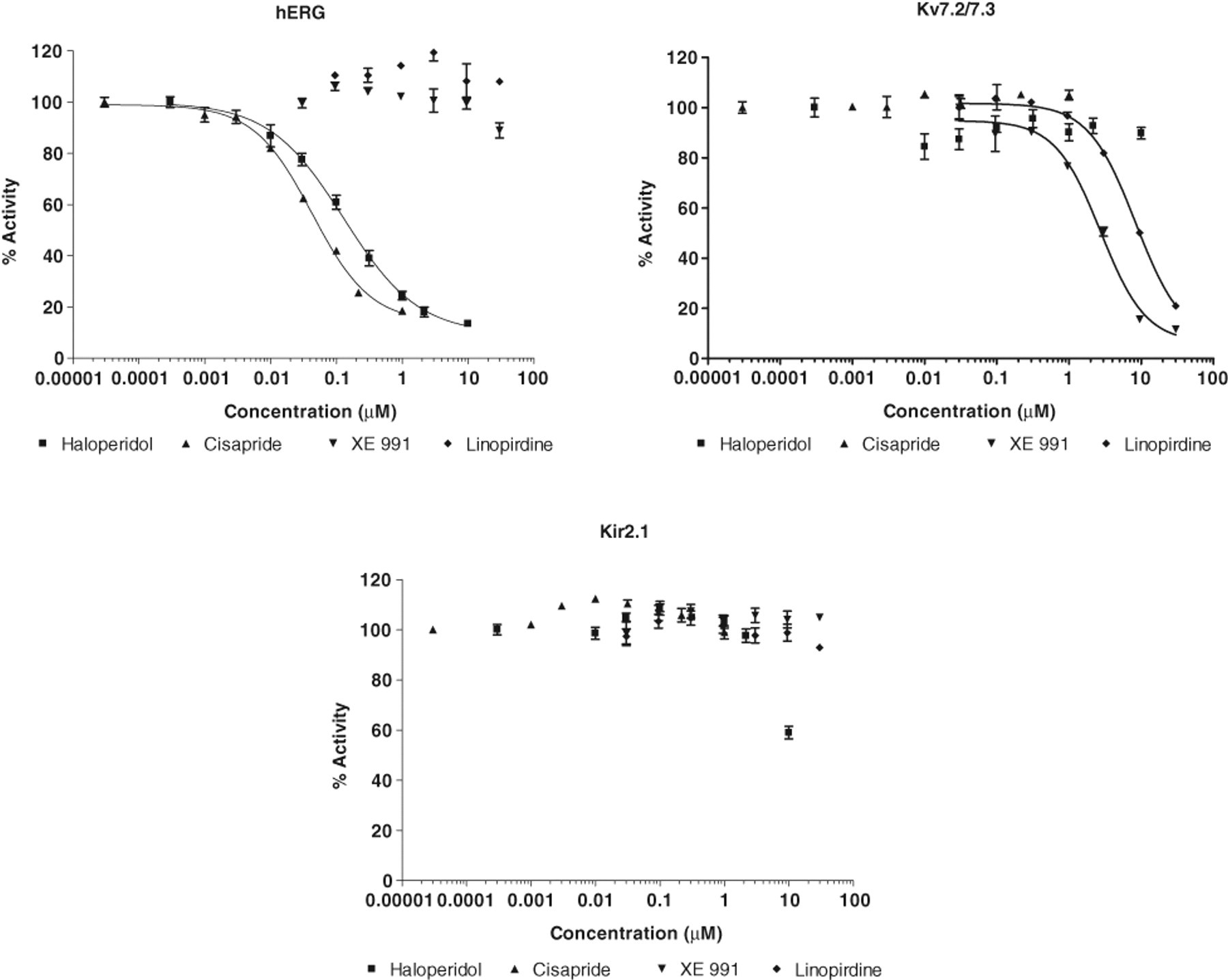

Fig. 3.

Dose response for inhibition of the FluxOR™ signal by haloperidol, cisapride, XE991, and linopiridine at hERG, Kv7.2/7.3, or Kir2.1 channels. Channel activity with no inhibitor present is defined as 100%. For each sample, the max-min fluorescence value was calculated and then normalized, with the largest change being set to 100%. Each point is the average of 4 replicates, and error bar represents the standard error of the mean.

Summary

HTS is a highly evolved and increasingly automated environment with large unmet needs in the field of ion channels. Potassium channels in particular are an important class of membrane proteins implicated in a variety of cardiac and CNS diseases; they are expressed in virtually every mammalian cell and regulate electrical excitability and synaptic communication. Potassium channels represent a class of drug target that has thus far proven intractable to HTS interrogation.

The purpose of this study was to show that the signal obtained with the FluxOR™ potassium channel assay can be easily incorporated into a high-throughput workflow while showing pharmacological fidelity and a predictive capacity. A screen of 3 different potassium channels showed that FluxOR™ is able to identify several known specific inhibitors of Kv7.2/7.3 or hERG channels, highlighting its potential to identify novel and more efficacious small-molecule modulators. When a subset of the hits was further studied, the IC₅₀ values we obtained for these compounds, as measured in the fluorescent FluxOR™ assay, were in agreement with those reported in electrophysiology recordings, confirming the functionality of this assay platform.

References

Kaczorowski

McManus

Priest

Garcia

: Ion channels as drug targets: the next GPCRs. J Gen Physiol 2008;131:399-405.

Harmar

Hills

Rosser

Jones

Buneman

Dunbar

: IUPHAR-DB: the IUPHAR database of G protein-coupled receptors and ion channels. Nucl Acids Res 2009;37:D680-D685.

Wang

Pan

Shi

Brown

Wymore

Cohen

: KCNQ2 and KCNQ3 potassium channel subunits: molecular correlates of the M-channel. Science 1998;282:1890-1893.

Biervert

Schroeder

Kubisch

Berkovic

Propping

Jentsch

: A potassium channel mutation in neonatal human epilepsy. Science 1998;279:403-406.

Singh

Charlier

Stauffer

DuPont

Leach

Melis

: A novel potassium channel gene, KCNQ2, is mutated in an inherited epilepsy of newborns. Nat Genet 1998;18:25-29.

Dedek

Kunath

Kananura

Reuner

Jentsch

Steinlein

: Myokymia and neonatal epilepsy caused by a mutation in the voltage sensor of the KCNQ2 K+ channel. Proc Natl Acad Sci USA 2001;98:12272-12277.

Cavero

Crumb

: ICH S7B draft guideline on the non-clinical strategy for testing delayed cardiac repolarisation risk of drugs: a critical analysis. Exp Opin Drug Saf 2005;4:509-530.

Zhang

Yin

Ren

Wang

Zhang

Cheng

: Identification of a novel KCNQ1 mutation associated with both Jervell and Lange-Nielsen and Romano-Ward forms of long QT syndrome in a Chinese family. BMC Med Genet 2008;9:24-31.

Weaver

Harden

Dworetzky

Robertson

Knox

: A thallium-sensitive, fluorescence-based assay for detecting and characterizing potassium channel modulators in mammalian cells. J Biomol Screen 2004;9:671-677.

10.

Hougaard

Eriksen

Jørgensen

Johansen

Dyhring

Madsen

: Selective positive modulation of the SK3 and SK2 subtypes of small conductance Ca2+-activated K+ channels. Br J Pharmacol 2007;151:655-665.

11.

Zhang

Chung

TDY

Oldenburg

: A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J Biomol Screen 1999;4:67-73.

12.

Bonnet

Constentin

: GBR 12783, a potent and selective inhibitor of dopamine uptake: biochemical studies in vivo and ex vivo. Eur J Pharmacol 1986;121:199-209.

13.

Beresford

Ward

: Haloperidol decanoate: a preliminary review of its pharmacodynamic and pharmacokinetic properties and therapeutic use in psychosis. Drugs 1987;33:31-39.

14.

Kulagowski

Broughton

Curtis

Mawer

Ridgill

Baker

: 3---4--4-Chlorophenyl-piperazin-1-yl--methyl--1H-pyrrolo-2,3-b-pyridine: an antagonist with high affinity and selectivity for the human dopamine D4 receptor. J Med Chem 1996;39:1941-1942.

15.

Rowley

Broughton

Collins

Baker

Emms

Marwood

: 5--4-Chlorophenyl--4-methyl-3--1--2-phenylethyl-piperidin-4-yl-isoxazole: a potent, selective antagonist at human cloned dopamine D4 receptors. J Med Chem 1996;39:1943-1945.

16.

Arcaro

Wymann

: Wortmannin is a potent phosphatidylinositol 3-kinase inhibitor: the role of phosphatidylinositol 3,4,5-trisphosphate in neutrophil responses. Biochem J 1993;296:297-301.

17.

Schnee

Brown

: Selectivity of linopirdine -DuP 996-, a neurotransmitter release enhancer, in blocking voltage-dependent and calcium-activated potassium currents in hippocampal neurons. J Pharmacol Exp Ther 1998;286:709-717.

18.

Wang

H-S

Pan

Shi

Brown

Wymore

Cohen

: KCNQ2 and KCNQ3 potassium channel subunits: molecular correlates of the M-channel. Science 1998;282:1890-1893.

19.

Davis

Hill

Keech

Lawton

Nixon

Sedgwick

: Potent selective inhibitors of protein kinase C. FEBS Lett 1989;259: 61-63.

20.

Schuurkes

Van Nueten

Van Daele

Reyntjens

Janssen

: Motor-stimulating properties of cisapride on isolated gastrointestinal preparations of the guinea pig. J Pharmacol Exp Ther 1985;234:775-783.
