Abstract

Quasi-zero-stiffness (QZS) isolation systems have demonstrated good performance in low-frequency vibration isolation fields. However, the existing QZS isolation systems with traditional negative stiffness elements cannot support high payloads under miniaturization and simplification. To give some beneficial insights into high loading capacity, optimized structure, and good vibration isolation performance, a novel axially magnetized negative stiffness module (MNSM) is proposed based on the concepts of modularity and expansibility. Concretely, an axially magnetized negative stiffness unit (MNSU) is designed as the fundamental building block of MNSM, and the proposed MNSM can be composed of different axially magnetized negative stiffness units (MNSUs) for diversified requirements. To effectively investigate the characteristics of the MNSU, a computationally high efficient equivalent surface current method is developed. As a result, two types of MNSUs with optimized parameters are achieved, and their design procedures are presented respectively. To verify the benefits of the MNSMs, the designed QZS isolator is theoretically modeled and solved with the average method and then verified through the Runge–Kutta method. Through analyzing the isolation systems with MNSMs under different nonlinearities and dynamic parameters, the results indicate that the proposed MNSMs can endow the QZS vibration isolator with a lower resonant frequency, a wider isolation frequency range, and a smaller transmissibility. Additionally, it is also demonstrated that there is an inverse relationship between the complexity of the MNSM structure and the sensitivity of the isolation system.

Keywords

vibration isolation quasi-zero-stiffness negative stiffness axially magnetized low frequency

1. Introduction

With the improved requirements of accuracy, working stroke, loading capacity, and stability in many fields such as aerospace, ship, vehicle seat, suspension, ultra-precision manufacturing, measuring, and others, the demand for low-frequency vibration isolation surges. Theoretically, a linear vibration isolator can only attenuate the vibration from $\sqrt{2}$ times the natural frequency of the system. The conflict between the requirements for stiffness and static displacement is a significant issue for the linear vibration isolator. It is not feasible to enlarge the isolation frequency range by reducing the positive stiffness, which needs to be sufficiently provided to guarantee the loading capacity and the stability of the main structure (Balaji and SelvaKumar, 2021).

To overcome the inherent shortcomings of conventional linear vibration isolators, the so-called high-static low-dynamic stiffness vibration isolator (HSLDS-VI) has been the subject of extensive research recently. Generally, HSLDS-VI is constituted by connecting a negative stiffness module with a positive stiffness element in parallel. The combination of low-dynamic stiffness and high-static stiffness in this type of isolator results in a larger isolation frequency range without compromising loading capacity (Carrella et al., 2012). When the dynamic stiffness reaches ultra-low or even zero around the static equilibrium position (Carrella et al., 2007b; Carrella et al., 2009; Gatti et al., 2010; Zhao et al., 2022a; Zhao et al., 2022b), the HSLDS-VI is called the quasi-zero-stiffness vibration isolator (QZS-VI), which is firstly comprehensively introduced by Alabuzhev (1989).

The features of QZS isolator are as described above, and there are numerous mechanisms that can achieve QZS. Depending on the negative stiffness modules (NSM), the QZS-VIs can be broadly grouped into the followings, including oblique-spring type (Carrella et al., 2007a; Carrella et al., 2007b; Carrella et al., 2009; Deng et al., 2020; Lan et al. 2014; Zhao et al., 2021; Zhao et al., 2022a), cam-roller-spring type (Ye et al., 2015; Zhou et al., 2015; Song et al. 2022), Euler bucked beam type (Huang et al., 2014; Liu et al., 2013; Liu et al. 2021a; Lu et al., 2020), disk-spring type (Meng et al., 2015), permanent magnetic type (Carrella et al., 2008; Dong et al., 2017; Wu et al., 2014; Shan et al., 2015; Zheng et al., 2016; Shi et al., 2015; Zhou et al., 2019), and origami structure type (Ishida et al., 2017a; Ishida et al., 2017b; Li and Wang, 2015). In addition, growing attention has been paid to the semi-active or active electromagnetic types for better adaptability and isolation performance (Han et al., 2018; Liu et al., 2019; Pu et al., 2019; Sun et al., 2014; Sun et al., 2020; Xu and Sun, 2015; Zhao et al., 2021b). To achieve negative stiffness, the classic oblique-spring type utilized two pre-compressed springs (Carrella et al., 2007a; Carrella et al., 2007b; Carrella et al., 2009). Lan et al. (2014) designed a lateral adjustment mechanism to adjust the negative stiffness value for a wide range of payloads. Lu et al. (2014) configured the oblique-type QZS isolator as the monostable and bistable isolators and then investigated their isolation performances under harmonic and random excitations. Deng et al. (2020) were inspired by the ability of bird’s multi-vertebral neck to keep head stable and constituted a multi-layer oblique-spring structural QZS-VI. An improved oblique-spring is proposed by Zhao et al. (2021a), which widened the QZS region by increasing the amount of oblique springs. Zhao et al. (2022a) designed a three-pair oblique-spring QZS isolator, which can obtain lower transmissibility under higher displacement excitation. Ye et al. (2015) optimized the classic design for different loading capacity. Song et al. (2022) proposed a parabolic cam-roller QZS-VI, which can deal with larger excitations and possess better isolation performance in comparison with the conventional cam-roller-spring QZS-VI. A QZS-VI based on the Euler bucked beam structure was developed by Liu et al. (2013), and then Huang et al. (2014) explored the effects of system defects on the dynamic characteristics of the isolation system with the Euler bucked beam structure. Lu et al. (2020) designed a circular-ring vibration isolator with highly nonlinear geometric stiffness. By utilizing piezoelectric buckled beams to convert the vibration energy into electrical energy, an improved Euler bucked beam QZS-VI was proposed by Liu et al. (2021a). The Euler bucked beam QZS-VI can simultaneously achieve vibration isolation and energy harvesting. As a recent research hotspot (Ji et al., 2021), origami structures can realize high-static and low-dynamic stiffness through the nonlinear force-displacement relationships generated by the folding deformation of the creases and the bending of the facets (Cheung et al., 2014). And, some improved isolators with origami structures have emerged. (Inamote and Ishida, 2019; Sadeghi and Li, 2019; Yan et al., 2020). Han et al. (2018) designed a semi-active QZS-VI equipped with the adjustable NSM by adopting the electromagnetic asymmetric tooth structure. Pu et al. (2019) and Sun et al. (2020) proposed an electromagnetic spring by making a pair of coil and magnet ring coaxially mounted, and then a semi-active vibration isolator with such multi-layer electromagnetic springs was designed and investigated. By introducing the actuator into the traditional three-spring type QZS-VI, Sun et al. (2014) provided an active QZS-VI based on the delay active control algorithm.

Although the aforementioned passive QZS-VIs have obvious advantages over the linear isolator, and the aforementioned active and semi-active isolators have improved in terms of adaptability and isolation performance. Unfortunately, the limited pre-deformation restricts negative stiffness and loading capacity for the above passive isolators. The negative stiffness of above semi-active or active isolators is realized through electromagnetic effect, which raises the bar for algorithm, sensor, and control system. In summary, such above types are unable to concurrently achieve the miniaturization, structural simplicity, high negative stiffness, and realizability of NSM.

As the focus of this paper, the NSMs made of permanent magnets have the ability to provide large magnetic force in a compact volume and prevent mechanical contact. Moreover, since permanent magnets can be magnetized beforehand, elaborate structures are not required to provide pre-compression or energy. Carrella et al. (2008), Dong et al. (2017), and then Wu et al. (2014) utilized three permanent magnets to construct an NSM. To further simplify the structure with two specially configured permanent magnets, Shan et al. (2015) and then Zheng et al. (2016) proposed HSLDS isolators based on the NSMs composed of a pair of radial magnetized permanent magnetic rings. The magnetic rings in the above study were constructed by arranging several blocks of tile permanent magnets in a circle, which brought difficulty in installation for the strong repulsive force exerted between two neighboring tile magnets. Consequently, the space between the adjacent tiles had to be increased, and the low-space utilization rate would decrease the magnetic performance. Differently, it is easier to fabricate the axial magnetized permanent magnet rings. Shi and Zhu (2015) proposed a magnetic negative stiffness damper, which was composed of such two concentric rings. Then, Zhou et al. (2019) constituted a similar physical prototype. However, the related magnetic stiffness was obtained based on the equivalent magnetic charge method. It is complex and time-consuming for calculation due to quadruple integral, which is not conducive to the further investigation. Moreover, the concepts of modularity and extensibility have not been introduced into the design of the NSM, which limits its application prospects. Most important, the mathematical modeling of the QZS-VI with such extensible NSM has not been formulated, and the associated vibration isolation mechanism needs to be explained urgently.

Taking into consideration the technical constraints of existing QZS-VIs, this paper primarily aims to present the theoretical modeling and analysis of a quasi-zero-stiffness vibration isolator equipped with extensible and axially magnetized negative stiffness modules (MNSMs). Significantly, the modularity and extensibility are improved. A magnetized negative stiffness module (MNSM) can be made up of numerous identical or distinct magnetized negative stiffness units (MNSUs) depending on the loading requirements and applications, with a single magnetized negative stiffness unit (MNSU) serving as the MNSM’s fundamental building block. The remainder of this paper is structured as follows. In Section 2, the geometrical parameter effects of the axially MNSU on the magnetic negative stiffness characteristics are deeply analyzed. Section 3 presents the design procedures of MNSMs. In Section 4, the mathematical modeling of the designed magnetic quasi-zero-stiffness vibration isolator is established and solved, and then some discussions about the dynamic characteristics of the isolator are given. Section 5 concludes the work.

2. The model of MNSU

The MNSU is designed as fundamental building block to build the MNSM under the modular concept. Therefore, it is necessary to model the MNSU and investigate its characteristics.

2.1. The structure of MNSU

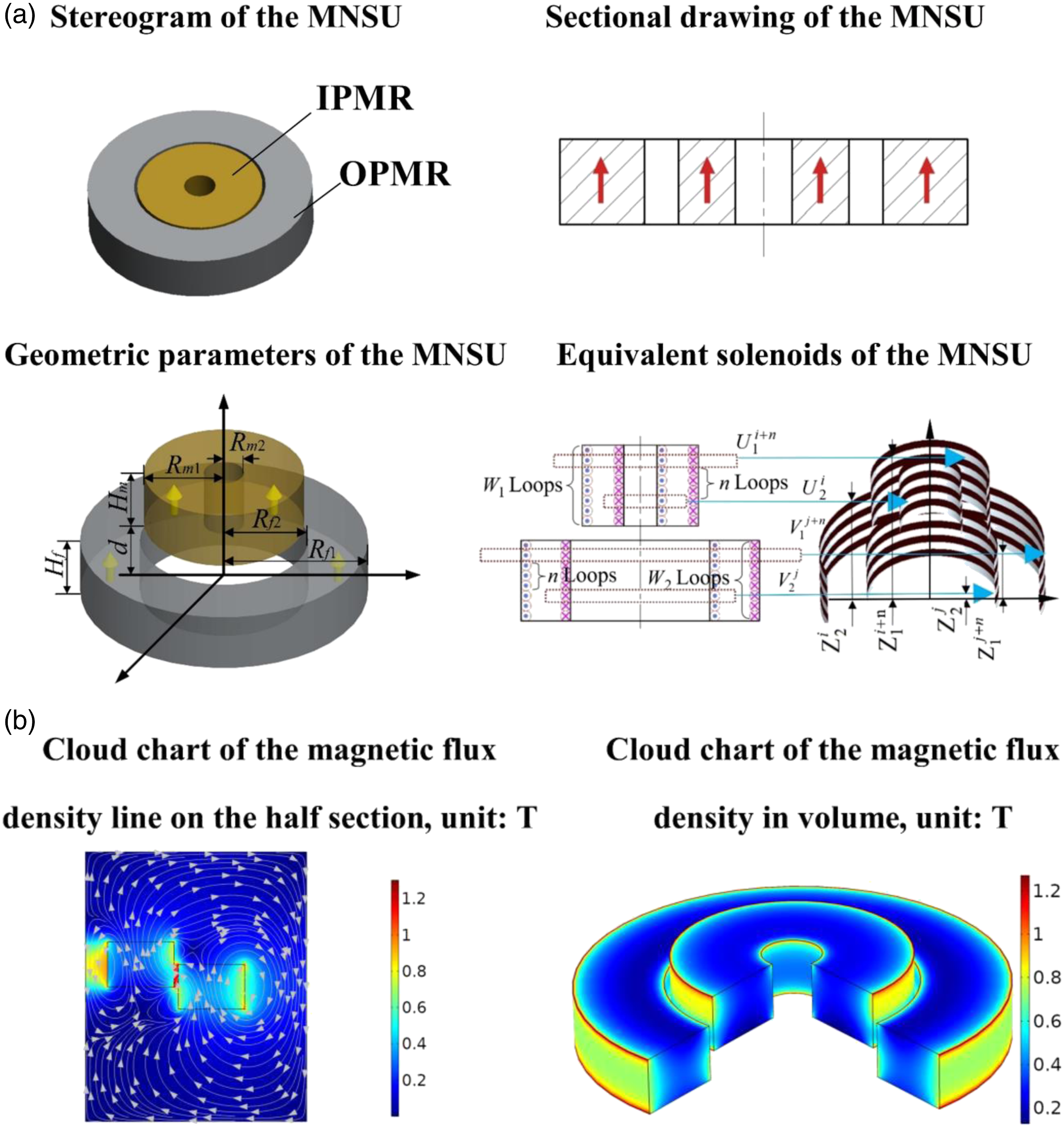

Figure 1(a) shows the structure and parameters of the MNSU, which is composed of a moving inner permanent magnetic ring (IPMR) and a fixed outer permanent magnetic ring (OPMR). The parameter meanings are given in Appendix A. The material of the MNSU is Nd-Fe-B.

Figure 1.

Axially magnetized negative stiffness unit (MNSU): (a) the model of the MNSU and (b) the MNSU established in COMSOL.

According to the equivalent surface current method, the MNSU are equated into four different solenoids and shown in Figure 1(a).

The external and internal equivalent solenoids of the IPMR are, respectively, denoted as U₁ and U₂. U₁ and U₂ have the same turn numbers W₁ and the identical current I₁. $U_{1}^{i + n}$ and $U_{2}^{i}$ , respectively, stand for the (i+n)-th layer of U₁ with height $Z_{1}^{i + n}$ and the i-th layer of U₂ with height $Z_{2}^{i}$ .

The external and internal equivalent solenoids of the OPMR are, respectively, denoted as V₁ and V₂. V₁ and V₂ have the same turn numbers W₂ and the identical current I₂. $V_{1}^{j + n}$ and $V_{2}^{j}$ , respectively, stand for the (j+n)-th layer of V₁ with height $Z_{1}^{j + n}$ and the j-th layer of V₂ with height $Z_{2}^{j}$

I_{1} = \frac{B r_{1} H_{1}}{μ_{0} W_{1}}

(1)

I_{2} = \frac{B r_{2} H_{2}}{μ_{0} W_{2}}

(2)

2.2. Analytical model of magnetic force and stiffness

In this paper, a computationally high efficient equivalent surface current method for calculating the magnetic force of the MNSU is derived.

Traditionally (Liu et al., 2021b; Zheng et al., 2016; Zhou et al., 2019), the expression of $F_{Z / m u . f v}$ (electromagnetic force between each pair of $U_{u}^{i}$ and $V_{v}^{j}$ ) can be described as equation (3) through the Biot–Savart law, and its specific derivation is presented in Appendix B. The traditional calculating model is displayed in Figure 2(a). The coil diameter of $U_{u}^{i}$ (a certain layer of U₁ or U₂) is dh₁ and that of $V_{v}^{j}$ (a certain layer of V₁ or V₂) is dh₂

F_{Z / m u . f v} = \frac{I_{1} I_{2} μ_{0} R_{m u} R_{f v}}{4 π} \int_{0}^{2 π} \int_{0}^{2 π} \int_{0}^{H_{1}} \int_{0}^{H_{2}} \frac{Z_{u, v}^{i, j} \cos (ϕ_{u} - ϕ_{v}) d ϕ_{u} d ϕ_{v} d h_{1} d h_{2}}{{[{(R_{m u} \cos ϕ_{u} - R_{f v} \cos ϕ_{v})}^{2} + {(R_{m u} \cos ϕ_{u} - R_{f v} \cos ϕ_{v})}^{2} + {(Z_{u, v}^{i, j})}^{2}]}^{\frac{3}{2}}}

(3)Unfortunately, the above method is time-consuming and laborious. Shiri and Shoulaie (2009) proposed an efficient model of the axial magnetic force between each pair of

U_{u}^{i}

and

V_{v}^{j}

in Figure 2(b), and the specific derivation is expressed in Appendix B. The traditional model is established in three-dimensional rectangular coordinate system, while the improved one proposed by Shiri and Shoulaie (2009) is in spherical coordinate system. The former needs to calculate a quadruple integral for each pair of

U_{u}^{i}

and

V_{v}^{j}

, while the latter reduces the complexity by gradually reducing the required variables in the calculation process. Besides, the integrand function of the former is not smooth, which makes integration difficult. It is needed to use the numerical integration method to obtain the results and increase the number of iterations to ensure the same accuracy as the latter, which has been verified by Shiri and Shoulaie (2009). In comparison, the latter method greatly improves the computational efficiency and saves computational resources by introducing the complete elliptic integrals of the first kind and second kind to reduce integral term and complexity, of which the final result only requires the calculation of the elliptic integrals with the inclusion of other known parameters. The axial magnetic force between each pair of the equivalent coils can be greatly simplified as equation (4)

{\vec{F}}_{Z / m u, f v} = {\vec{e}}_{z} \frac{I_{1} I_{2} μ_{0} Z_{u, v}^{i, j} k_{u, v}^{i, j}}{4 \sqrt{R_{f u} R_{m v}}} (2 K_{u, v}^{i, j} - \frac{2 - {(k_{u, v}^{i, j})}^{2}}{1 - {(k_{u, v}^{i, j})}^{2}} E_{u, v}^{i, j})

(4)where

k_{u, v}^{i, j} = \sqrt{\frac{4 R_{m u} R_{f v}}{{(R_{m u} + R_{f v})}^{2} + {(Z_{u, v}^{i, j})}^{2}}}, K_{u, v}^{i, j} = \int_{0}^{\frac{π}{2}} \frac{1}{\sqrt{1 - {(k_{u, v}^{i, j})}^{2} \sin^{2} θ}} d θ, E_{u, v}^{i, j} = \int_{0}^{\frac{π}{2}} \sqrt{1 - {(k_{u, v}^{i, j})}^{2} \sin^{2} θ} d θ, Z_{u}^{i} = \frac{(2 i - 1)}{2 W_{1}} H_{1} + \frac{H_{2} - H_{1}}{2} + d, Z_{v}^{j} = \frac{(2 j - 1)}{2 W_{2}} H_{2}, Z_{u, v}^{i, j} = Z_{u}^{i} - Z_{v}^{j}

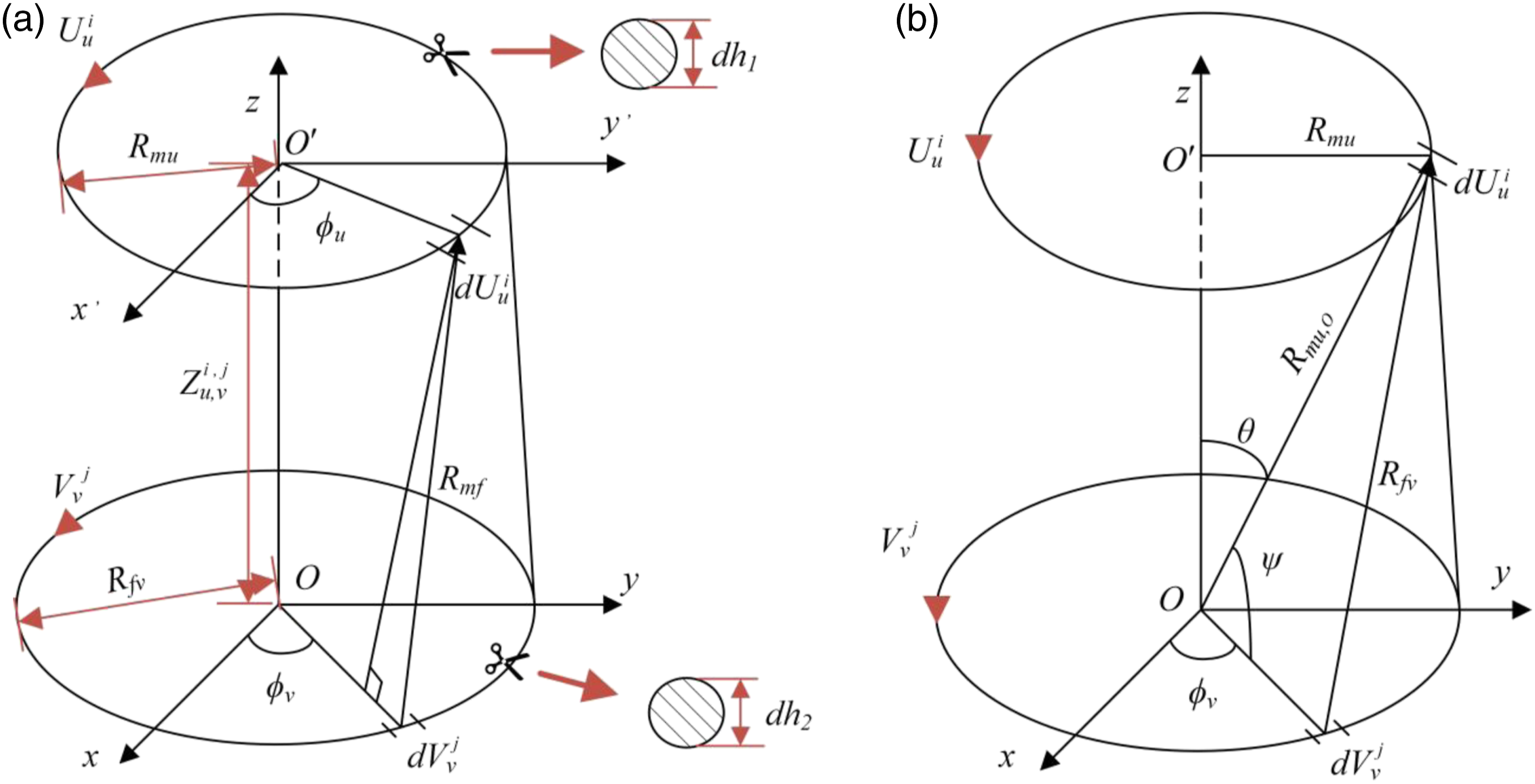

Figure 2.

The calculating model of electromagnetic force between a pair of equivalent coils: (a) traditional and (b) the improved.

By superimposing $F_{Z / m u . f v}$ generated by the equivalent solenoids, F_Z (the magnetic force of MNSU) can be obtained in equation (5). Subsequently, K_z (the axial stiffness of MNSU) can be obtained as the derivative of F_Z with respect to d (the IPMR moving distance) in equation (6), and its specific expression is described in Appendix C

\begin{array}{l} F_{Z} = \sum_{u = 1}^{2} \sum_{v = 1}^{2} F_{Z / m u, f v} = F_{Z / m 1, f 1} + F_{Z / m 2, f 1} + F_{Z / m 1, f 2} + F_{Z / m 2, f 2} \\ = \sum_{u = 1}^{2} \sum_{v = 1}^{2} {\sum_{i = 1}^{W_{1}} \sum_{j = 1}^{W_{2}} (- 1)}^{u + v} \frac{I_{1} I_{2} μ_{0} Z_{u, v}^{i, j} k_{u, v}^{i, j}}{4 \sqrt{R_{f u} R_{m v}}} (2 K_{u, v}^{i, j} - \frac{2 - {(k_{u, v}^{i, j})}^{2}}{1 - {(k_{u, v}^{i, j})}^{2}} E_{u, v}^{i, j}) \end{array}

(5)

K_{Z} = - \frac{\partial F_{z}}{\partial d}

(6)

Table E.1 in Appendix E lists the parameters of MNSU^* for the result comparison between the proposed analytical method and the COMSOL’s FEM. Figure 1(b) displays the model of the MNSU established in COMSOL. Figure 3(a) depicts F_Z calculated by the proposed analytical method and the finite element method in COMSOL. In Figure 3(b), the MNSU negative stiffness range D_n stands for the displacement range where the stiffness is less than zero, and the negative stiffness at the equilibrium position is named as the MNSU rated negative stiffness K_n.

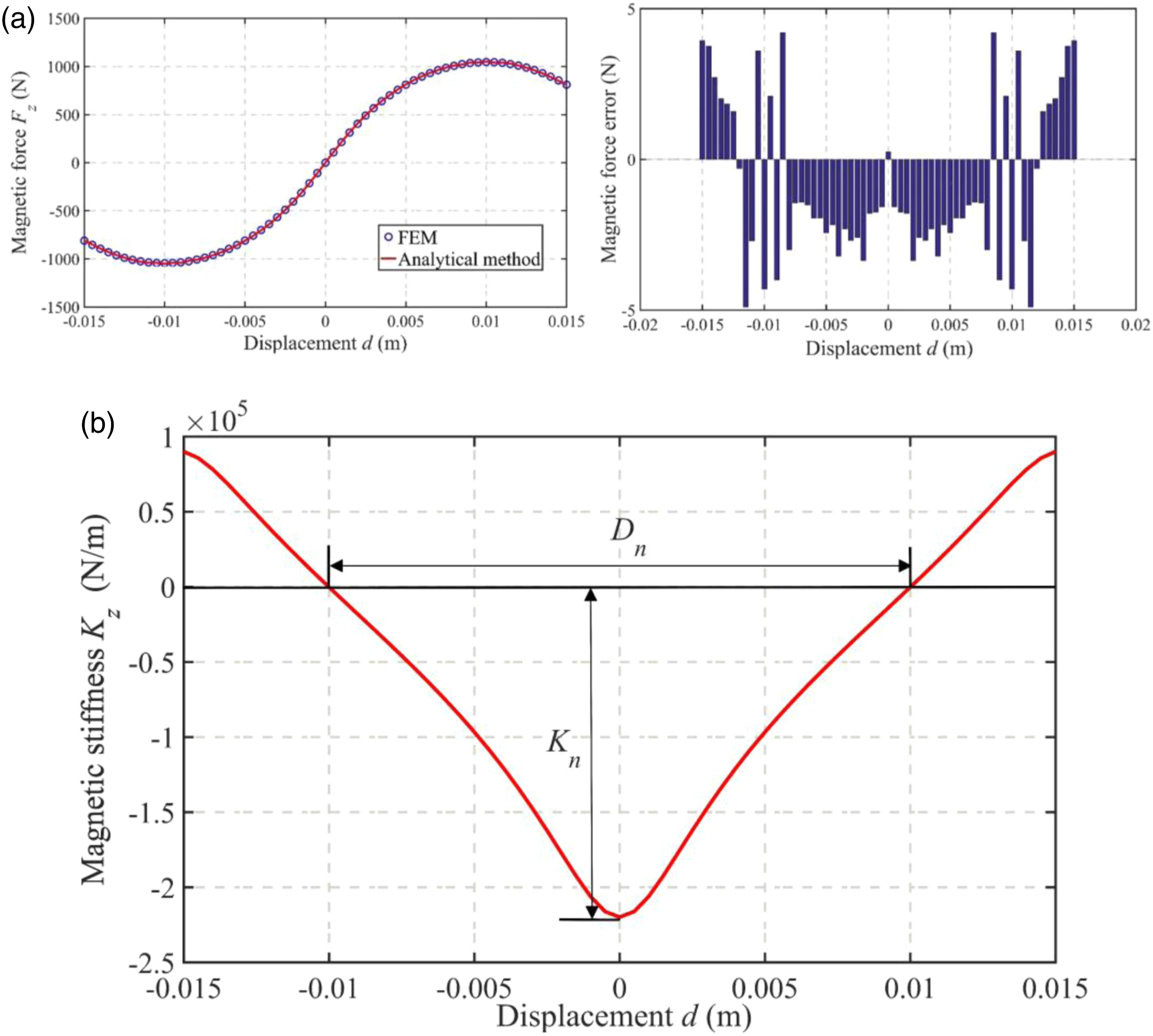

Figure 3.

Calculated results of the MNSU^*: (a) the magnetic force and (b) the magnetic stiffness.

2.3. Effects of geometric parameters of the MNSU on the stiffness characteristics

The geometric parameters of the MNSU are normalized as follows $\hat{d} = \frac{d}{R_{m 2}}, {\hat{T}}_{m} = \frac{T_{m}}{R_{m 2}} = \frac{R_{m 1} - R_{m 2}}{R_{m 2}}, {\hat{T}}_{f} = \frac{T_{f}}{R_{m 2}} = \frac{R_{f 1} - R_{f 2}}{R_{m 2}}, {\hat{h}}_{m} = \frac{H_{m}}{R_{m 2}}, {\hat{h}}_{f} = \frac{H_{f}}{R_{m 2}}, \hat{g} = \frac{G}{R_{m 2}}, {\hat{F}}_{Z} = \frac{F_{Z}}{F}, {\hat{K}}_{Z} = \frac{K_{Z}}{K}$ , where $F = 10^{3} N$ and $K = 10^{5} N / m$ .

2.3.1. Effects of the height on the magnetic stiffness characteristics

To study the effects of the height, when keeping the radial thicknesses of the IPMR and the OPMR identical and constant, the gap unchanged, and the cases in Figure 4 and Figure 5 are separately discussed and presented.

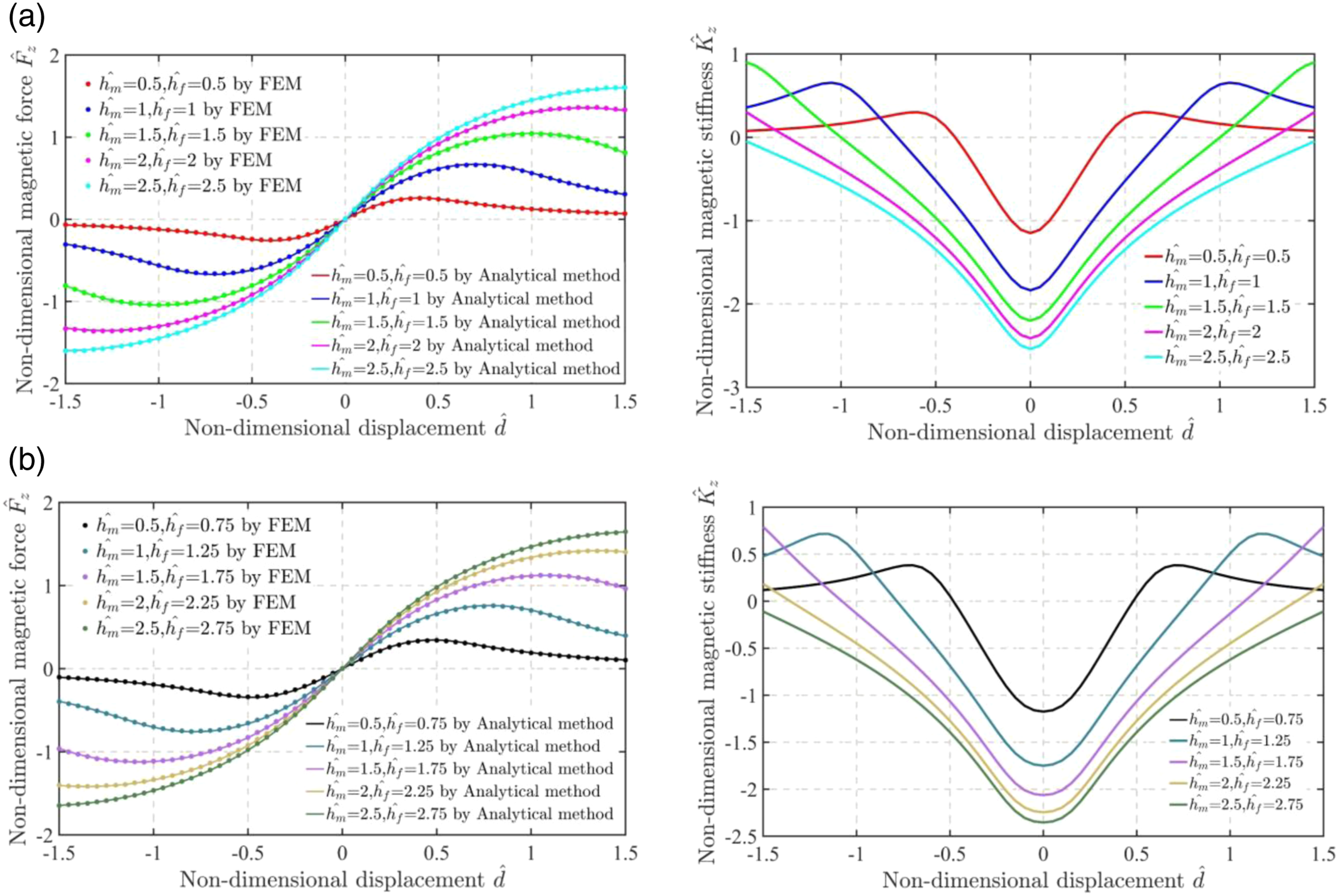

Figure 4.

Effects of the height: (a) when heights remain identical and (b) when the height difference keeps constant.

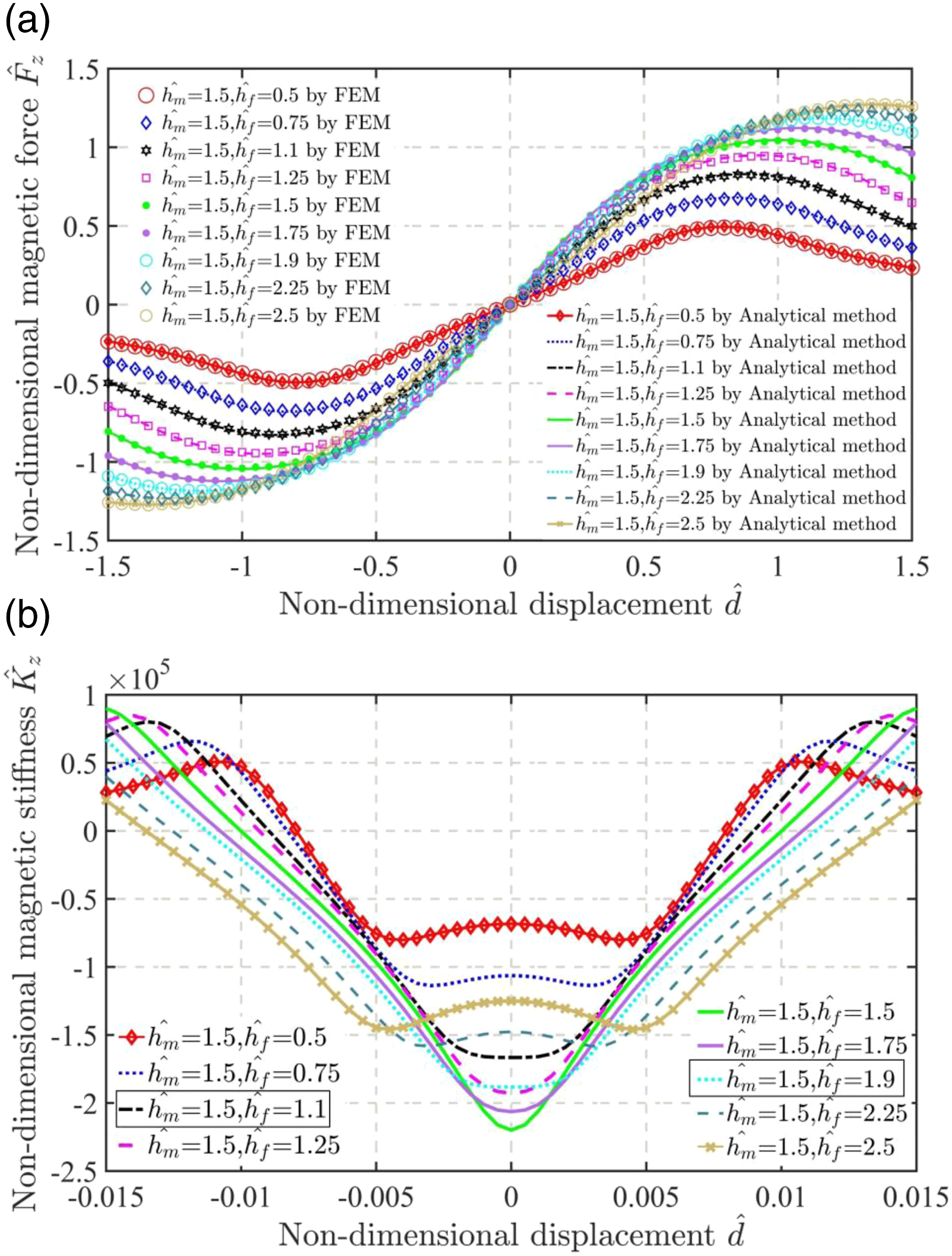

Figure 5.

Effects of the height when the height of the inner permanent magnetic ring remains unchanged and the height of outer permanent magnetic ring varies.

As displayed in Figure 4, when the MNSU’s heights remain identical or the height difference keeps constant, the increase in height can result in higher K_n and wider D_n. However, there is a limitation for the improvement of the above performance.

When the height of the IPMR remains unchanged and the height of OPMR varies in Figure 5, what is striking is the alternative occurrences of softening and hardening stiffnesses around the equilibrium position. At first, the softening stiffnesses gradually change to hardening stiffnesses. When the heights of two magnetic rings equals, K_n reaches the highest. After that, the increased height makes the curves soften again.

It is worth noting that the strong nonlinear stiffness is detrimental to the isolation performance when K_n reaches the highest. Furthermore, the curves with the least nonlinear and relatively high negative stiffness near equilibrium positions (when ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.1$ and ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.9$ ) can be achieved between the curves with softening and hardening stiffnesses around the equilibrium position.

2.3.2. Effects of the radial thickness on the magnetic stiffness characteristics

To study the effects of the radial thickness, in the case of keeping the height of the magnetic rings identical and constant, the gap unchanged and the associated conditions are discussed and presented in Figure 6.

From Figure 6, larger radial thickness results in higher K_n and wider D_n. However, the varying rates of above properties get slight gradually with increasing radial thickness, which is specifically obvious when the thickness of IPMR remains unchanged and the thickness of OPMR varies. After crossing the critical point that ${\hat{T}}_{m} = 3, {\hat{T}}_{f} = 3$ , the increase in the radial thickness of the OPMR has little effect on the negative stiffness. Considering that, it is most effective to make the radial thickness identical and as large as possible within reasonable range.

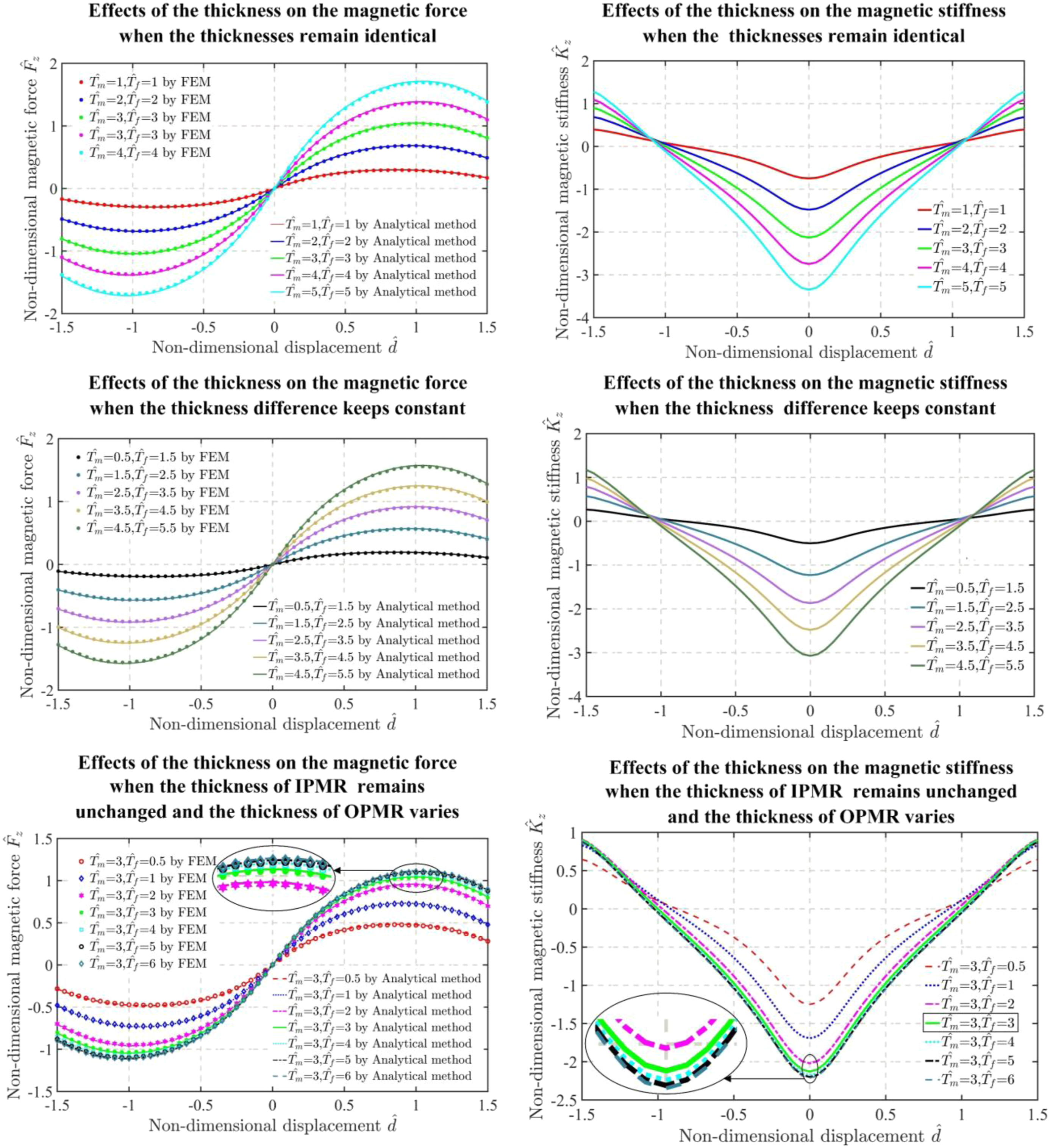

Figure 6.

Effects of the radial thickness.

2.3.3. Effects of the gap on the magnetic stiffness characteristics

From Figure 7(b), as the gap between the IPMR and OPMR gets narrow, K_n keeps decreasing. However, considering the manufacturing and practical application, it is not necessary to keep reducing the gap for higher K_n on the premise of guaranteeing the payload.

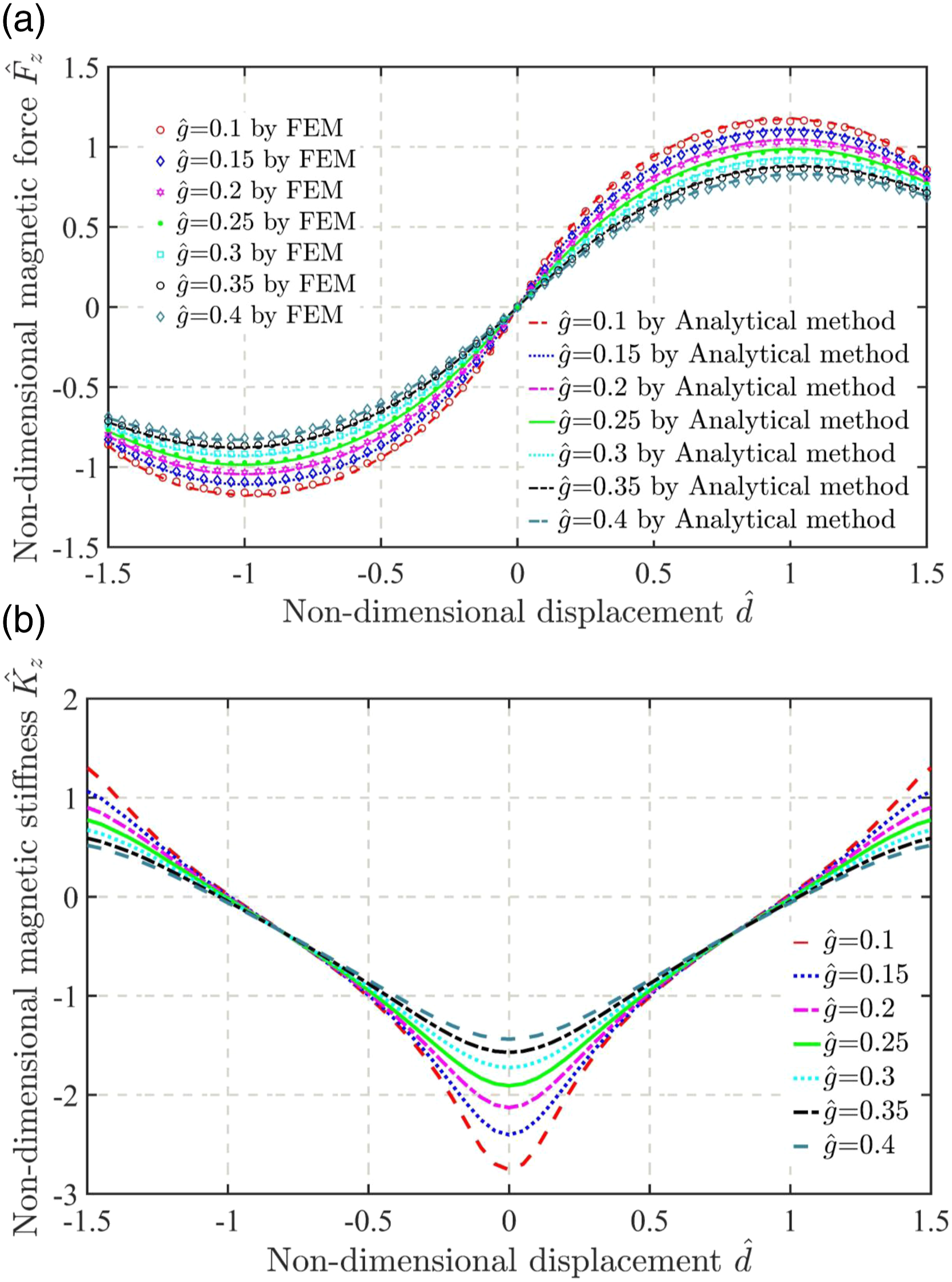

Figure 7.

Effect of the gap: (a) the magnetic force and (b) the magnetic stiffness.

3. Design of the MNSM

3.1. The design method of the MNSM

Three principles have been proven effective to direct the design of the NSM performance near the equilibrium position (Zheng et al., 2016), which refer to (a) the value of negative stiffness; (b) the linearity of the negative stiffness around the static equilibrium position; and (c) the working stroke with high and linear negative stiffness. Based on that, according to the theoretical analysis in Section 2, the MNSU with the ideal negative stiffness is achieved when ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.9$ . Besides, another critical MNSU is obtained when ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.1$ , which can be a good supplement to the former. By adopting the modularity concept, the two can serve as the MNSM’s fundamental building blocks. The synthesis of principles and the modularity allows MNSM to be configured for various applications.

3.2. The design procedures of different MNSMs

3.2.1. The design procedure of the MNSM composed of individual MNSU

When K_n of the MNSU with ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.9$ is enough to compensate the targeted positive stiffness, the systematic design procedure and the negative stiffness varying process are, respectively, exhibited in Figure 8(a). Specifically, MNSU(1) is initially set with arbitrary parameters, and the MNSM varies from MNSU(1) to MNSU(3) following steps 2–4. The structure of that MNSM is displayed in Figure 8(b).

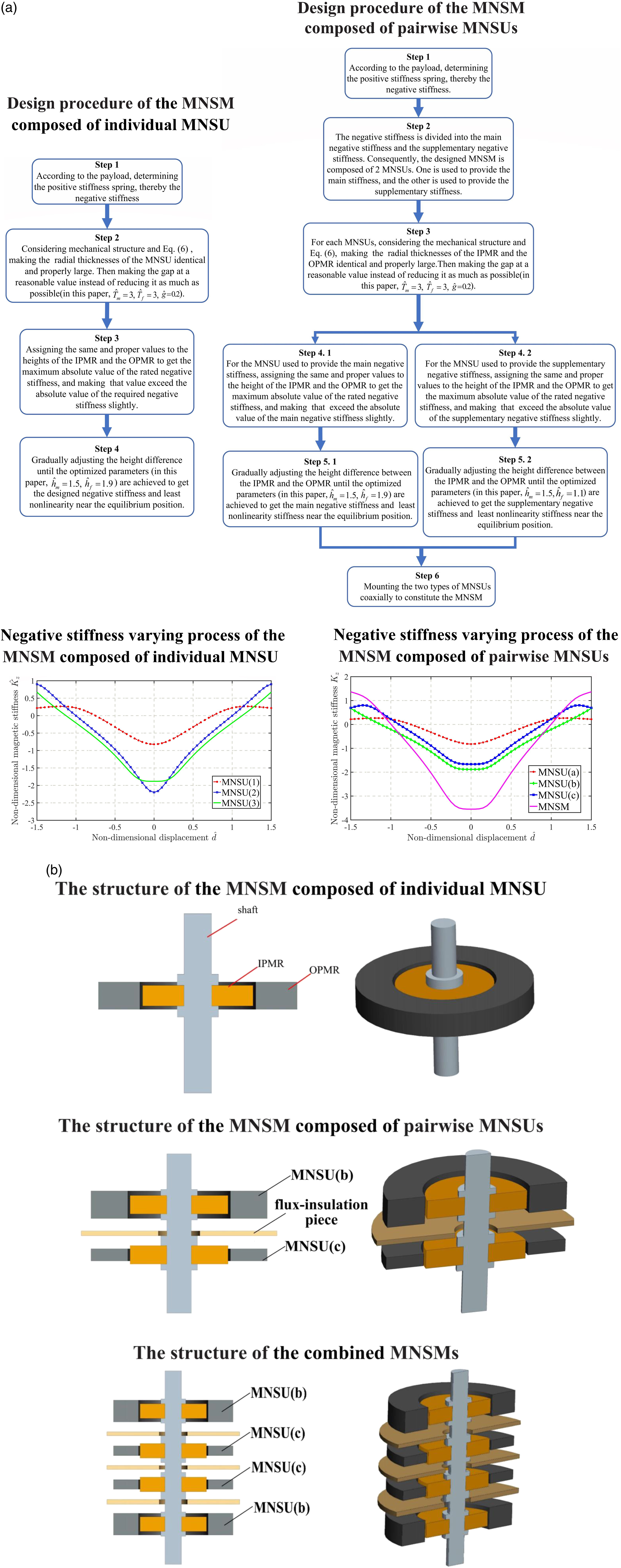

Figure 8.

Axially magnetized negative stiffness module (MNSM): (a) the design procedure of MNSMs and their negative stiffness varying processes and (b) the structure of the MNSMs with optimized parameters.

3.2.2. The design procedure of the MNSM composed of pairwise MNSUs

For better vibration isolation performance and larger targeted payload, an extensive MNSM can be designed as a combination of the MNSUs with ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.9$ and ${\hat{h}}_{m} = 1.5, {\hat{h}}_{f} = 1.1$ .

The systematic design procedure and negative stiffness varying process of the MNSM composed of pairwise MNSUs are, respectively, exhibited in Figure 8(a). Concretely, MNSU(a) is initially set with arbitrary parameters. MNSU(b) and MNSU(c) are, respectively, used to provide the main negative stiffness and the supplementary negative stiffness. Variations from MNSU(a) to MNSU(b) and from MNSU(a) to MNSU(c), respectively, correspond to the process from step 3 to step 5.1 and that from step 3 to step 5.2. The MNSM is constituted by mounting MNSU(b) and MNSU(c) coaxially. The geometric parameters of the above MNSUs are listed in Table E.1. The structure of the MNSM composed of pairwise MNSUs is displayed in Figure 8(b).

As described above, the two basic combinations are introduced. Further, multiple such MNSMs can be mounted flexibly for higher performance. The structure of the combined MNSM is illustrated in Figure 8(b). It should be noted that the compact structure is conducive for the miniaturization of the isolator with such NSM. Each designed MNSU has a relatively large ratio between the diameter and height, which cannot cause instability when multiple MNSUs are axially mounted.

As shown in Table E.2 of Appendix E, the MNSMs have advantages over some existing NSMs in various aspects. The above performance endows the MNSM extensive prospects in the field of low-frequency vibration isolation under high payload, such as aerospace, ship, machine tool, and others.

4. Dynamic modeling of the magnetic quasi-zero-stiffness vibration isolator (MQZS-VI)

4.1. Modeling of the MQZS-VI

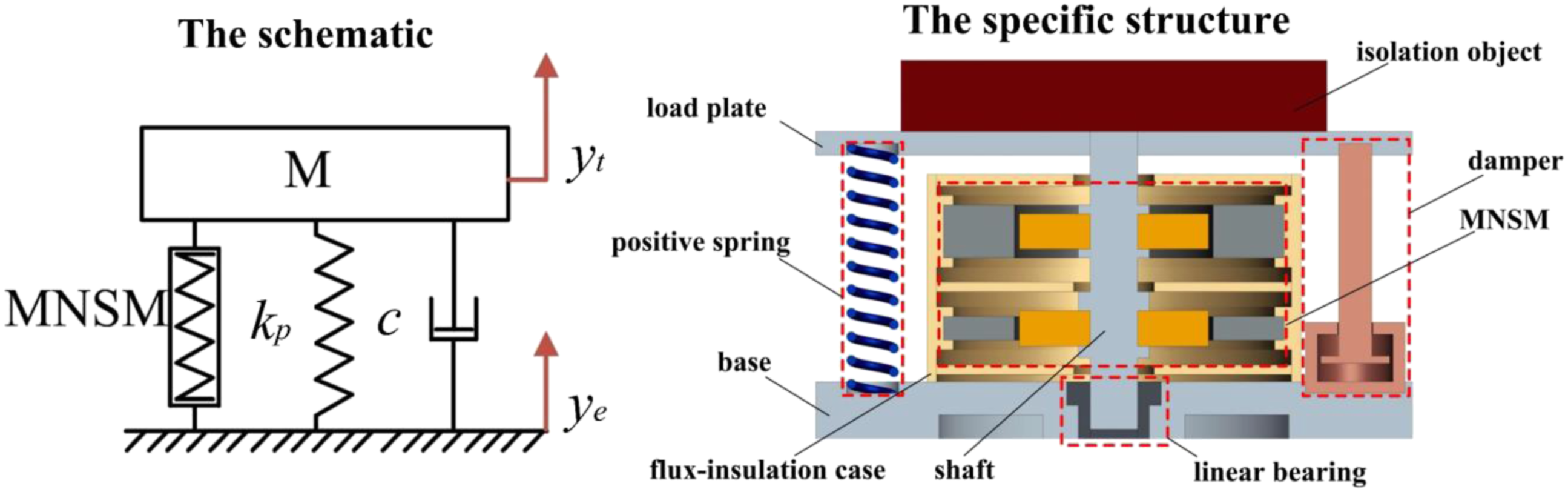

Figure 9 presents the model of the MQZS-VI with the MNSM.

Figure 9.

A quasi-zero-stiffness isolator equipped with the extensible and axially magnetized negative stiffness modules.

4.2. The dynamic equation

The dynamic equation of isolation system is given

M {\ddot{y}}_{t} + c ({\dot{y}}_{t} - {\dot{y}}_{e}) + k_{p} (y_{t} - y_{e}) - F_{m} = 0

(7)where y_e=Ycos(w_et) and d=y_t-y_e.

4.3. The approximation of the magnetic force

The expression of the magnetic force in equation (5) can be fitted as a multiple degree polynomial by least squares criterion in equation (8) for computation simplicity

F_{m} = P_{3} d^{3} + P_{2} d^{2} + P_{1} d + P_{0}

(8)The exact and approximate results of the magnetic force generated by different MNSUs are shown in Figure 10. It is apparent that these two types of results fit well near the equilibrium position (±5 mm).

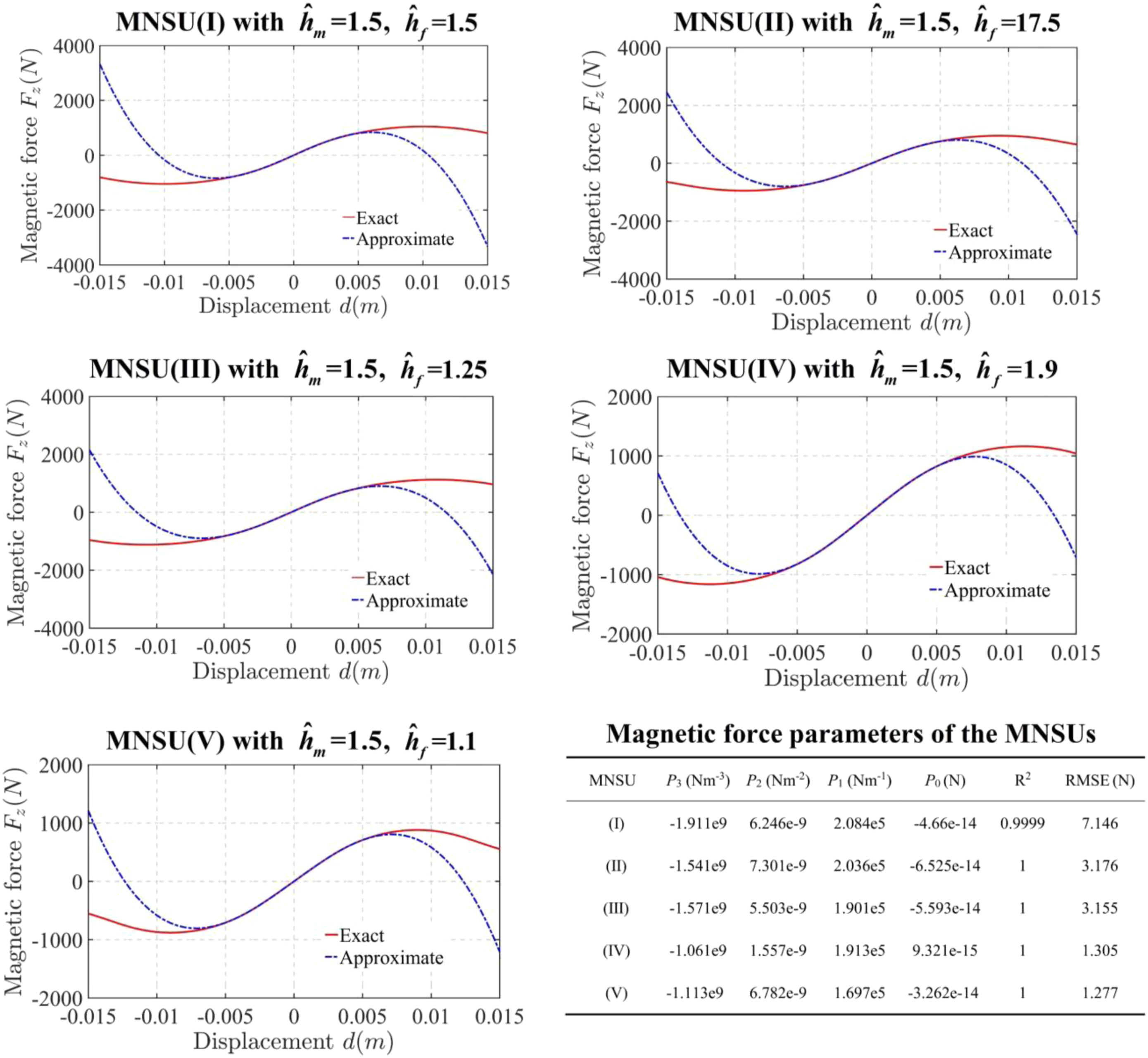

Figure 10.

The fitting results of the MNSUs’ magnetic forces.

4.4. The solution of the dynamic equation

To solve the equation, the following non-dimensional variables are introduced

ω = \frac{ω_{e}}{Ω}, z = \frac{y_{t} - y_{e}}{Y ω}, Ω^{2} = \frac{k_{p}}{M}, ζ = \frac{c}{2 M Ω}, τ = Ω t

The dynamic equation can be written in the non-dimensional form as

z^{″} + 2 ζ z^{'} + z - W (z) = ω \cos ω τ

(9)where the prime

W (z) = C_{3} z^{3} + C_{2} z^{2} + C_{1} z + C_{0}

(10)where

C_{3} = \frac{P_{3} Y^{2} ω^{2}}{k_{p}}, C_{2} = \frac{P_{2} Y ω}{k_{p}}, C_{1} = \frac{P_{1}}{k_{p}}, C_{0} = \frac{P_{0}}{Y ω k_{p}}

Applying the average method to solve equation (9) and rearranging the equation as

z^{″} + ω^{2} z = ω \cos (ω τ) - 2 ζ z^{'} + W (z) + (ω^{2} - 1) z

(11)

By introducing ε and σ to the right of equation (11), the equation can be further rewritten as

z^{″} + ω^{2} z = ε [ω \cos (ω τ) - 2 ζ z^{'} + W (z) + σ z]

(12)where ε = 1 and

σ = \frac{ω^{2} - 1}{ε}

Assuming the steady-state response as follows

{\begin{array}{c} z = ρ \cos ϕ \\ ϕ = ω τ + β \end{array}

(13)

z^{'} = - ρ ω \sin ϕ

(14)where ρ and φ are the functions with respect to τ.

Thus, taking the derivative of equation (20) and equation (21) gives

z^{'} = ρ^{'} \cos ϕ - ρ (ω + β^{'}) \sin ϕ

(15)

z^{″} = - ω [ρ^{'} \sin ϕ + ρ ω (ω + β^{'}) \cos ϕ]

(16)

Because equation (21) and equation (22) are equal, thus

ρ^{'} \cos ϕ - ρ β^{'} \sin ϕ = 0

(17)Combining equation (13), equation (14), equation (16), equation (17), and equation (12), the algebra equations with respect to ρ′ and β′ are obtained as follows

ρ^{'} = - \frac{ε}{ω} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \sin φ

(18)

β^{'} = - \frac{ε}{ω ρ} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \cos φ

(19)

ε is a small parameter, and the varying rates of ρ and β against τ are much slower than that of φ against τ. Replacing the right term of equation (18) and equation (19) with the mean value of φ over a period of 2π, and assuming ρ and β to be constant for the period, the average equation can be obtained as

ρ^{'} = - \frac{ε}{2 π ω} \int_{0}^{2 π} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \sin φ d φ

(20)

β^{'} = - \frac{ε}{2 π ω ρ} \int_{0}^{2 π} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \cos φ d φ

(21)

After calculation, it gives

\int_{0}^{2 π} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \sin φ d φ = π ω (\sin β + 2 ζ ρ)

(22)

\int_{0}^{2 π} [ω \cos ω τ - 2 ζ z^{'} + W (z) + σ z] \cos φ d φ = π (ω \cos β + σ ρ + W_{1})

(23)

W_{1} = \frac{3}{4} C_{3} ρ^{3} + C_{1} ρ

(24)

By combining equation (20), equation (21), equation (22), equation (23), and equation (24), equation (22) and equation (23) can be simplified as follows

ρ^{'} = - \frac{ε}{2} (\sin β + 2 ζ ρ) = - \frac{ε}{2 ω} [Φ - (- ω) \sin β]

(25)where

Φ = 2 ζ ω ρ

β^{'} = - \frac{ε}{2 ω ρ} (ω \cos β + W_{1} + σ ρ) = \frac{ε}{2 ω ρ} [Ψ + (- ω \cos β)]

(26)where

Ψ = - W_{1} - σ ρ

In the case ρ′=0 and β′=0, it represents that the solution of equation (11) is a steady periodic motion; therefore

{\begin{array}{c} \sin β + 2 ζ ρ = 0 \\ \cos β + \frac{σ ρ + W_{1}}{ω} = 0 \end{array}

(27)

Considering $\sin^{2} β + \cos^{2} β = 1$ , the equation of amplitude–frequency response can be obtained as

{[(ω^{2} - 1) ρ + W_{1}]}^{2} + {(2 ω ζ ρ)}^{2} = ω^{2}

(28)

It can also be expressed as

F (ρ, ω) = Φ^{2} + Ψ^{2} - ω^{2} = 0

(29)

Equation (28) can be transformed as a quadratic polynomial equation about ω²

ρ^{2} {(S_{3} ρ^{2} + 1)}^{2} {(ω^{2})}^{2} + [2 ρ^{2} (S_{1} - 1) (S_{3} ρ^{2} + 1) + 4 ζ^{2} ρ^{2} - 1] ω^{2} + ρ^{2} {(S_{1} - 1)}^{2} = 0

(30)where

S_{3} = \frac{3 P_{3} Y^{2}}{4 k_{p}}

and

S_{1} = \frac{P_{1}}{k_{p}}

A resonance peak occurs with ρ_max at ω_max when ω₁ = ω₂, which gives

{\begin{array}{c} ρ_{\max} = \frac{1}{2 ζ} \\ ω_{\max} = 4 ζ \sqrt{\frac{k_{p} - P_{1}}{16 k_{p} ζ^{2} + 3 P_{3} Y^{2}}} \end{array}

(31)

It suggests that the ρ_max is only related to ζ.

4.5. Stability of the isolation system

To investigate the stability of the system, a small interference is imposed to the steady-state response as follows

{\begin{array}{c} h = ρ - ρ_{s} \\ η = β - β_{s} \end{array}

(32)

Submitting equation (32) to equation (25) and equation (26), it gives

{\begin{array}{c} 2 ω \dot{h} = - ε (2 ω ζ h + ω {\cos β}_{s} η) \\ 2 ω \dot{η} = ε {\frac{h}{ρ_{s}} [- \frac{d W_{1} (ρ_{s})}{d ρ_{s}} - σ] + \frac{W_{1} (ρ_{s}) + σ ρ_{s} + ω {\cos β}_{s}}{ρ_{s}^{2}} + \frac{ω {\sin β}_{s}}{ρ_{s}} η} \end{array}

(33)

Combining equation (27), the equations can be transformed as

{\begin{array}{c} 2 ω \dot{h} + 2 ε ω ζ h - ε [W_{1} (ρ_{s}) + σ ρ_{s}] η = 0 \\ 2 ω \dot{η} + \frac{ε}{ρ_{s}} (\frac{d W_{1} (ρ_{s})}{d ρ_{s}} + σ) h + 2 ε ω ζ η = 0 \end{array}

(34)

The eigen equations corresponding to equation (34) are

| \begin{array}{c} 2 ω λ + 2 ε ω ζ & - ε [W_{1} (ρ_{s}) + σ ρ_{s}] \\ \frac{ε}{ρ_{s}} (\frac{d W_{1} (ρ_{s})}{d ρ_{s}} + σ) & 2 ω λ + 2 ε ω ζ \end{array} | = 4 ω^{2} (λ^{2} + A λ + B) = 0

(35)where

A = 2 ε ζ, B = \frac{ε^{2}}{8 ω^{2} ρ_{s}} {(\frac{\partial F}{\partial ρ})}_{s} = \frac{ε^{2}}{64 ω^{2}} [27 C_{3}^{2} ρ_{s}^{4} + 48 C_{3} (C_{1} + σ) ρ_{s}^{2} + 16 {(C_{1} + σ)}^{2} + 64 ω^{2} ζ^{2}]

According to Lyapunov’s first approximate theory, the case that A > 0 and B > 0 is a sufficient condition for the gradual stability of the singularity $(ρ_{s}, β_{s})$ . When B < 0, the singularity $(ρ_{s}, β_{s})$ is unstable. When B = 0, the cut-off points between stable and unstable regions can be calculated.

4.6. Transmissibility

The displacement transmissibility is a key index to describe the vibration isolation performance of the isolator under base excitation.

The absolute displacement response of the isolated object can be obtained as

y_{t} = Y ω z + y_{e} = Y ω ρ \cos ϕ + Y \cos (ω_{e} t) = A Y \cos (ω_{e} t + θ)

(36)where

A = \sqrt{1 + 2 ω ρ \cos β + {(ω ρ)}^{2}} = \sqrt{1 + (2 - ω^{2}) ρ^{2} - 2 ρ W_{1}}

(37)

θ = \arctan \frac{ω ρ \sin β}{1 + ω ρ \cos β}

(38)

Thus

T = \frac{y_{t}}{y_{e}} = A = \sqrt{1 + (2 - ω^{2}) ρ^{2} - 2 ρ W_{1}}

(39)

4.7. The solution verification

Taking the QZS isolation system with the MNSM composed of MNSU(I) as the example, the correctness of above analytical solutions is verified by comparing with the numerical solutions of Runge–Kutta method when ζ = 0.0896, Ω = 31.6228 (k_p = 3e⁵N/m, M = 300 kg, c = 1700 Ns/m), and Y = 0.002 m. It shows a good agreement between two types of solutions in Figure 11.

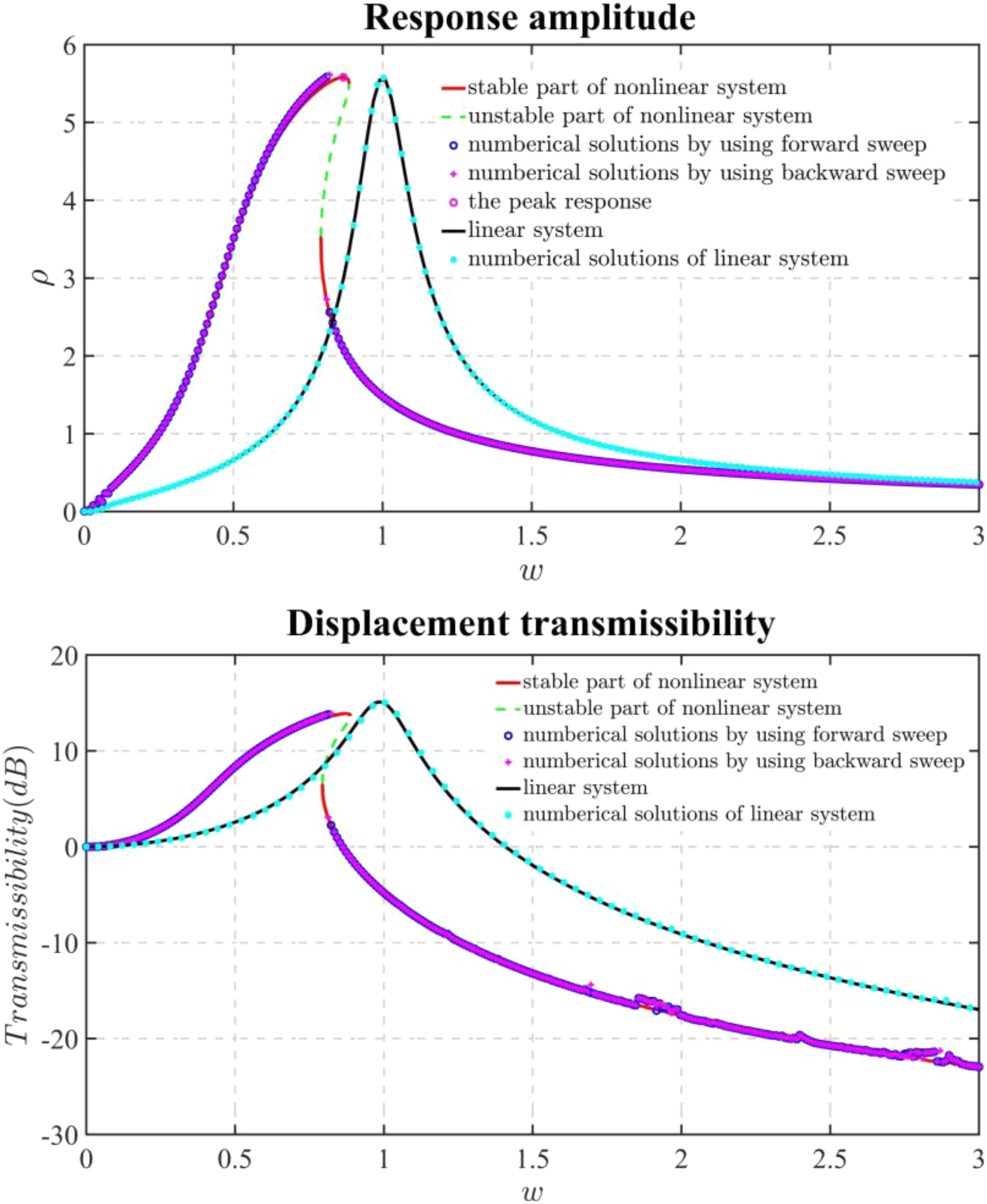

Figure 11.

The comparisons between the analytical solutions and the numerical solutions.

5. Dynamic analysis of the magnetic quasi-zero-stiffness vibration isolator

5.1. Nonlinearity effects on the isolation systems with different MNSMs

It can be drawn from equation (8) that the stiffness force consists of the magnetic force and the linear stiffness force. The nonlinearity is defined as the ratio of the nonlinear and linear parts of the stiffness force in equation (40). The MNSM composed of MNSU(n) is named as MNSM(n), n = I, II, III, and IV. The negative stiffnesses of different MNSMs and the nonlinearities of the isolation systems with different MNSMs are illustrated in Figure 12

η = | \frac{P_{3} x^{2} + P_{2} x}{k_{p} - P_{1}} |

(40)Figure 12 also shows the frequency-amplitude and transmissibility variations of the isolation systems with different MNSMs when ζ = 0.0854, Ω = 31.6228 (k_p = 3e⁵N/m, M = 300 kg, c = 1620 Ns/m), and Y = 0.0024 m. When the excitation frequency is swept from left to right or right to left, the jumping phenomenon occurs with jump-down points or jump-up points in different extent. It is worth pointing out that the peak response amplitude ρ_max remains constant when ζ unchanged, which is consistent with equation (31).

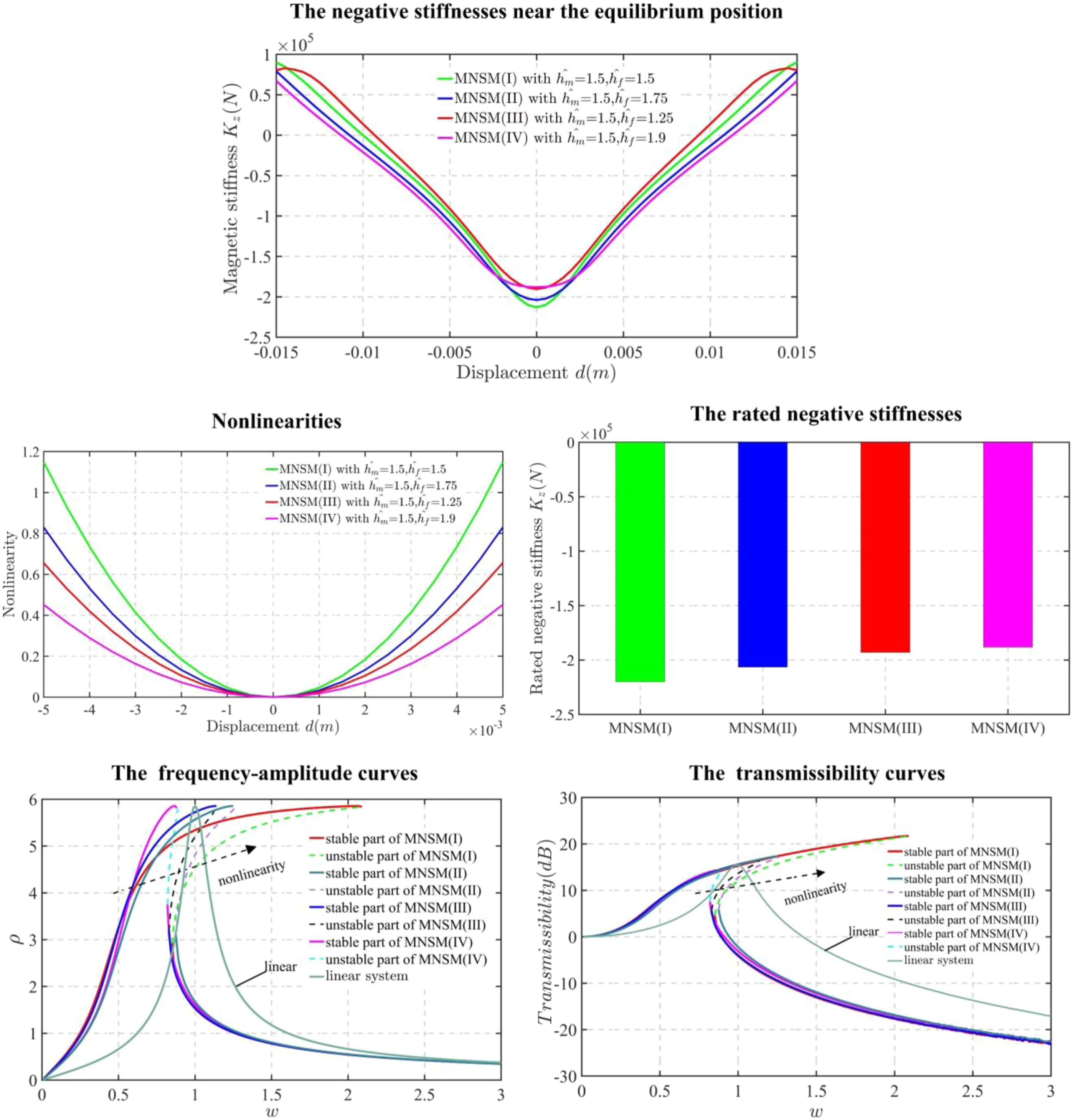

Figure 12.

The characteristics of different MNSMs.

From the QZS-VI with MNSM(II) to that with MNSM(IV), the nonlinearities are not prominent. Benefitting by the implementation of QZS, their isolation performances get improved in comparison with the linear system. The resonant and effective isolation frequencies are notably reduced in turn, so do their peak transmissibilities. As to MNSM(Ⅰ), even its upper and lower branches of transmissibility curves are all conspicuously lower than that of the equivalent linear system under the same frequency. Unfortunately, the vibration isolation performance steadily deteriorates in terms of all aspects as a result of the growing nonlinearity. That is because the increased nonlinearity exacerbates jumping phenomenon, and the effective isolation behavior cannot occur in the frequency range within the unstable region. Instead of the frequency when the transmissibility curve is intersecting 0 dB line, the effective isolation frequency changes to the jump-down frequency and gets enlarged. Besides, the transmissibility peaks at the jump-down frequency, which rises strikingly in comparison with the linear system.

Contrary to the superficial sense that higher K_n leads to better isolation performance, although the absolute values of K_n increase monotonically from MNSM(IV) to (I), the resonant frequency and the peak transmissibility keep increasing because of the increased nonlinearity. Among the MNSMs, only the resonant frequency and peak transmissibility of MNSM(IV) with the least nonlinearity is lower than that of the equivalent linear system.

As shown in the last sub figure of Figure 10, the value of P₂ is close to 0. Both the absolute values of P₁ and P₃ increase from MNSM(IV) to (I). According to equation (40), the nonlinearity η can be seen as $| P 3 x^{2} / (k_{p} - p_{1}) |$ . It means that η increases with the absolute values of P₁ and P₃. Through deriving the derivative of equation (8) with respect to d, the absolute value of the rated negative magnetic stiffness K_n equals to P₁. It indicates that, for the isolation system with the MNSM, higher K_n incurs stronger nonlinearity. That is consistent with the observed results. The nonlinearity and negative stiffness should be considered and balanced, which is also in accord with three design principles of the MNSM in Section 3.1.

5.2. Parameter effects on the isolation system with different MNSMs

To analyze the dynamic response, equation (28) can be transformed to equation (41). According to the Descartes rule of signs, equation (41) has one or three solutions. When M and k_p remain constant, since the sign of P₃ is negative, the solution number depends on P₁ and ω_e. Namely, the MNSM structure and the excitation frequency

\frac{9}{16} C_{3}^{2} ρ^{6} + \frac{3}{2} C_{3} (ω^{2} + C_{1} - 1) ρ^{4} + {4 ζ^{2} ω^{2} + {[(ω^{2} - 1) + C_{1}]}^{2}} ρ^{2} - ω^{2} = 0

(41)where

C_{3} = \frac{P_{3} Y^{2} ω^{2}}{k_{p}}, C_{1} = \frac{P_{1}}{k_{p}}, Ω^{2} = \frac{k_{p}}{M}, ζ = \frac{c}{2 M Ω}, ω = \frac{ω_{e}}{Ω}

Consequently, when $0 < ω < \sqrt{1 - P_{1} / k_{p}}$ , the maximum solution number is one; when $ω > \sqrt{1 - P_{1} / k_{p}}$ , the maximum number of the solutions is three. It suggests that the MNSM composed of more MNSUs has larger P₁ and more likely to cause multiple solutions.

5.2.1. Effects of damping ratio

When investigating the damping effects on the isolation system with different MNSMs, setting Ω = 33.8062 (k_p = 4e⁵N/m, M = 450 kg) and Y = 0.004 m. c varies from c₁ to c₄ (c₁ = 5000 Ns/m, c₂ = 4500 Ns/m, c₃ = 4000 Ns/m, c₄ = 3500 Ns/m). Correspondingly, ζ varies from ζ₁ to ζ₄ (ζ₁ = 0.1863, ζ₂ = 0.1677, ζ₃ = 0.1491, ζ₄ = 0.1304). The MNSM(VI) is composed of MNSM(IV) and MNSM(V).

According to equation (31), the same ζ leads to the same ρ_max for both QZS and linear isolation systems. ω_max of the QZS isolation system depends on the MNSM structure and ζ. For the linear isolation system, ω_max=1. The variations of ω_max with ζ for different isolation systems are presented in Figure 13(a). Substituting ω_max into equation (31), the peak transmissibilities of the QZS and linear isolation systems are, respectively, achieved in equations (42) and (43). From above, the peak transmissibility of the proposed QZS isolation systems is related to the MNSM structure, ζ and Y, while that of the linear isolation systems only depends on ζ. The variations of peak transmissibility with ζ for different isolation systems are described in Figure 13(a)

T_{\max, M N S M} = \sqrt{1 + \frac{1}{2 ζ^{2}} - \frac{4 (k_{p} - P_{1})}{16 k_{p} ζ^{2} + 3 P_{3} Y^{2}} - \frac{3 (k_{p} - P_{1}) P_{3} Y^{2}}{2 k_{p} (16 k_{p} ζ^{2} + 3 P_{3} Y^{2}) ζ^{2}} - \frac{p_{1}}{2 k_{p} ζ^{2}}}

(42)

T_{\max, L} = \sqrt{1 + \frac{1}{4 ζ^{2}}}

(43)From Figure 13(a)’s frequency–amplitude and transmissibility curves, when ζ varies from ζ₁ to ζ₃, the QZS isolation systems outperform the linear isolation system in terms of resonant frequency, peak transmissibility, effective isolation frequency, and transmissibility after effective isolation frequency. The QZS isolation system with the MNSM(VI) is superior to that with the MNSM(IV). It indicates that the MNSMs contribute to the isolation performance improvement, and the MNSM composed of pairwise MNSUs is more effective than the MNSM composed of individual MNSU.

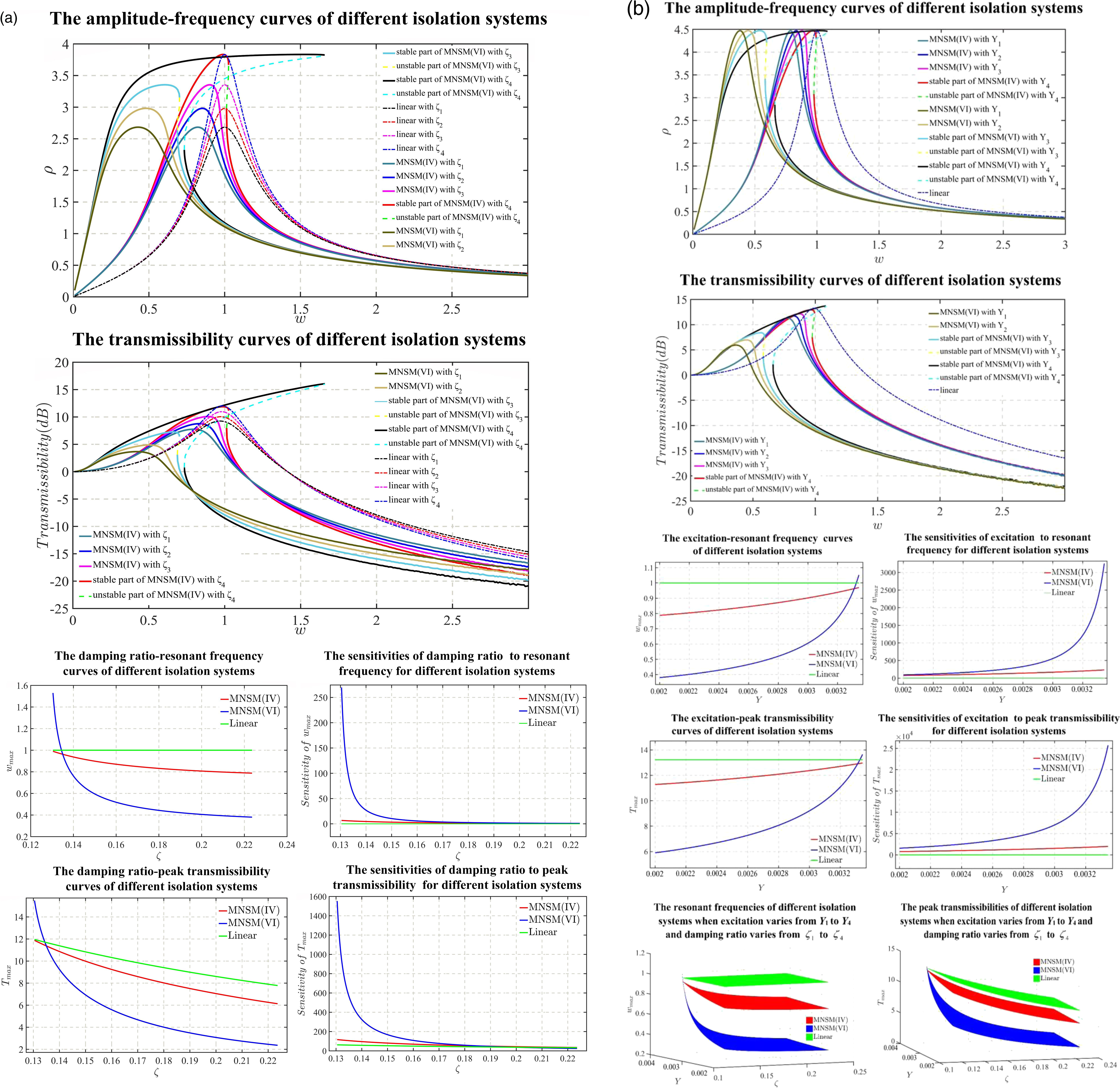

Figure 13.

Effects of parameters on different isolation systems: (a) damping ratio and (b) excitation.

However, as ζ decreases to ζ₄, an obvious jumping phenomenon occurs with a sudden increase at ω_max when adopting MNSM(VI), which results in a large jump-down frequency and a high peak transmissibility. As a result, the isolation system with MNSM(IV) has an enlarged effective isolation frequency with narrow isolation frequency range. Interestingly, the QZS isolation system with MNSM(VI) is not significantly sensitive to ζ. The frequency range corresponding to its unstable region does not expand much with the change of ζ. As a result, the QZS isolation system with MNSM(VI) is superior to the linear system and the QZS isolation system with MNSM(IV) in all aspects.

To some extent, the influence of ζ on the vibration isolation system is very similar to that of nonlinearity mentioned above. The resonant frequency and peak transmissibility monotonically decrease with respect to ζ. It can be drawn that smaller ζ is beneficial to the vibration isolation performance. The structure complexity is positively correlated with its vibration isolation performance, but negatively correlated with the influence of dynamic parameter change.

Concretely, taking the sensitivities of peak transmissibility and resonant frequency to ζ as examples. By differentiating the partial derivatives of equations (31), (42), and (43) with respect to ζ and taking absolute value, the sensitivities of ζ to the resonant frequency and peak transmissibility for different isolation systems are, respectively, achieved in equations (44), (45), and (46). The associated results are displayed in Figure 13(a). The QZS isolation systems with MNSMs have higher ζ sensitivity than linear isolation system, and the amount of the MNSUs that is composing the MNSM is directly proportional to the sensitivity

S e n s i t i v i t y_{M N S M, ω_{\max}_ζ} = | 4 \sqrt{\frac{k_{p} - P_{1}}{3 P_{3} Y^{2} + 16 k_{p} ζ^{2}}} - \frac{64 k_{p} ζ^{2} (k_{p} - P_{1})}{\sqrt{(k_{p} - P_{1}) {(3 P_{3} Y^{2} + 16 k_{p} ζ^{2})}^{3}}} |

(44)

S e n s i t i v i t y_{M N S M, T_{\max}_ζ} = | \frac{f_{t 1} - f_{t 2} + f_{t 3} - f_{t 4}}{f_{t 5}} |

(45)where the expressions of

f_{t 1}

f_{t 2}

f_{t 3}

f_{t 4}

, and

f_{t 5}

are presented in Appendix D

S e n s i t i v i t y_{L, T_ζ} = - \frac{1}{2 ζ^{2} \sqrt{4 ζ^{2} + 1}}

(46)

5.2.2. Effects of excitation amplitude on the isolation system

To explore the influence of Y on the isolation system with different MNSMs, setting Ω=33.8062 (k_p = 4e⁵N/m, M = 450 kg) and ζ = 0.1304 (c = 3500 Ns/m). Y varies from Y₁ to Y₄ (Y₁ = 0.0033 m, Y₂ = 0.0029 m, Y₃ = 0.0025 m, Y₄ = 0.002 m). The amplitude–frequency and transmissibility curves of different isolation systems are illustrated in Figure 13(b).

According to equation (31), ρ_max remains constant with same ζ for different isolation systems, and ω_max varies with different Y and the MNSM structure. Substituting the relevant parameters into equations (31), (42), and (43), the variations of resonant frequency and peak transmissibility with excitation amplitude for different isolation systems are displayed in Figure 13(b).

Compared with the linear isolation system, the resonant frequency, peak transmissibility, effective isolation frequency, and transmissibility after effective isolation frequency of the QZS system with MNSM(IV) and MNSM(VI) are reduced within most range. When Y changes from Y₁ to Y₃, the QZS system with MNSM(VI) has advantages over that with MNSM(IV) in all aspects. However, as the excitation amplitude Y increases to Y₄, an obvious jumping phenomenon is triggered with a large jump-down frequency when adopting the MNSM(VI), and the isolation performance deteriorates rapidly. The excitation amplitude Y has less of an impact when adopting MNSM(Ⅵ), and the QZS isolation system with the MNSM(Ⅵ) still outperforms the linear system in all aspects.

Differentiating the partial derivatives of equations (31) and (42) with respect to Y, and then taking absolute value, the sensitivities of Y to peak transmissibility and resonant frequency for different isolation systems are, respectively, expressed in equations (47) and (48). The results are shown in Figure 13(b). It is observed that, contrary to the effect of ζ, the resonant frequency and peak transmissibility monotonically increase with respect to Y. The QZS isolation systems with MNSMs have higher excitation amplitude sensitivity than linear isolation system, and the amount of the MNSUs that composing the MNSM is directly proportional to the sensitivity

S e n s i t i v i t y_{M N S M, ω_{\max}_Y} = | \frac{12 ζ P_{3} Y (k_{p} - P_{1})}{\sqrt{(k_{p} - P_{1}) {(3 P_{3} Y^{2} + 16 k_{p} ζ^{2})}^{3}}} |

(47)

S e n s i t i v i t y_{M N S M, T_{\max}_Y} = | \frac{f_{t 1^{'}} - f_{t 2^{'}} + f_{t 3^{'}}}{f_{t 4^{'}}} |

(48)where

f_{t 1^{'}}, f_{t 2^{'}}, f_{t 3^{'}}

, and

f_{t 4^{'}}

are specifically described in Appendix D.

Also, Figure 13(b) shows the values of the resonant frequency and peak transmissibility when Y varies from Y₁ to Y₄ and ζ varies from ζ₁ to ζ₄. It can be more intuitively seen that the QZS isolation system with MNSM(VI) have better performance than that with MNSM(VI) and the linear isolation system within most range.

6. Comparative studies with the existing QZS isolator

To confirm the advantages of the MNSM, the comparisons of isolation performance between the QZS isolator with MNSM(IV) and that with the magnetized permanent rings under ideal parameters in the literature (Zhou et al., 2019) have been made in Figure 14. When studying the isolation performances under different damping ratios, setting Ω = 89.4427 (k_p = 4e⁵N/m, M = 50 kg) and Y = 0.004 m. ζ varies from ζ₁′ to ζ₃′ (ζ₁′ = 0.0894, ζ₂′ = 0.1006, ζ₃′= 0.1118). When investigating the isolation performances under different excitations, setting k_p and M unchanged, c = 1000 Ns/m. Y varies from Y₁ to Y₃ (Y₁ = 0.0025 m, Y₂ = 0.002 m, Y₃ = 0.0017 m). The results indicate that the proposed QZS isolator with MNSM(IV) has a lower resonant frequency and a smaller peak transmissibility, as well as a wider isolation frequency range.

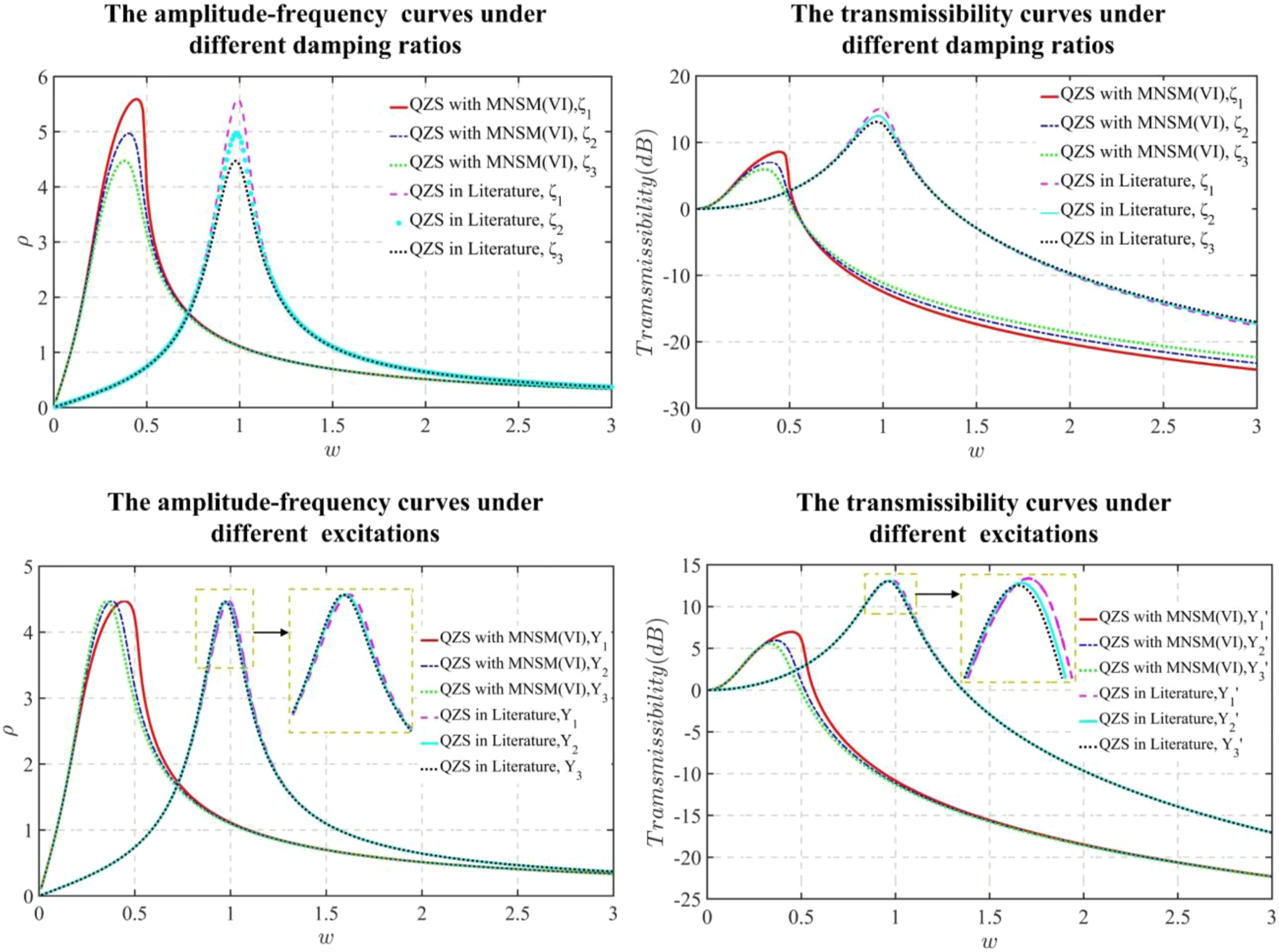

Figure 14.

The comparisons of the isolation performance between the proposed quasi-zero-stiffness (QZS) isolator with the MNSM and the existing QZS isolator.

7. Conclusions

This paper presents a study on the quasi-zero-stiffness vibration isolator equipped with extensible and axially MNSMs to improve the low-frequency isolation performance, emphasizing on the mathematical modeling and analysis of the MNSM and isolation system.

Different from traditional passive NSM, the designed MNSM omits compression and simplifies the structure at the guarantee of considerable negative stiffness and work stroking. In addition, the MNSM’s design process incorporates the concepts of modularity and expansibility. An MNSU is designed as a basic component of the proposed MNSM, and the MNSM can be flexibly formed by combining various MNSUs for extensive prospects. The mathematical modeling of the MNSU is established based on the derived computationally high efficient equivalent surface currents method. Through the systematic investigation about the MNSU magnetic negative stiffness, the optimized parameters are achieved. The design procedures of different MNSMs composed of the MNSUs with optimized parameters are presented. The QZS isolation systems with different MNSMs are modeled and analyzed. The theoretical analysis reveals the following:

(a) Compared with the linear isolator and the existing magnetized QZS isolator, the MNSMs can endow the isolation system with better isolation performance.

(b) Greater nonlinearity is extremely detrimental to the vibration isolation system and even negates the benefits of greater negative stiffness. Higher K_n incurs stronger nonlinearity; thus, a balance needs to be struck between the two.

(c) In most cases, the QZS isolation system with the MNSM composed of pairwise MNSUs outperforms that with the MNSM composed of individual MNSU.

(d) Smaller Y and larger ζ are more beneficial to the isolation system. There is an inverse relationship between the complexity of the MNSM structure and the sensitivity of the isolation system. In addition, the sensitivities of ζ have an opposite changing trend to that of Y.

Footnotes

Acknowledgments

The authors gratefully acknowledge the support of the National Natural Science Foundation of China (nos. 52225109 & 52271309) and Natural Science Foundation of Heilongjiang Province of China (no. YQ2022E104).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by Natural Science Foundation of China (nos. 52225109 & 52271309) and Natural Science Foundation of Heilongjiang Province of China (no. YQ2022E104).

ORCID iDs

Junjie Yuan

Guoyong Jin

Appendix

Appendix A

Appendix B

Appendix C

Appendix D

References

Alabuzhev

(1989) Vibration Protection and Measuring Systems with Quasi-Zero Stiffness. New York: Hemisphere Publishing Corporation, Taylor & Francis Group.

Balaji

SelvaKumar

(2021) Applications of nonlinearity in passive vibration control: a review. Journal of Vibration Engineering & Technologies 9(2): 183–213.

Carrella

Brennan

Waters

(2007a) Optimization of a quasi-zero-stiffness isolator. Journal of Mechanical Science and Technology 21(6): 946–949.

Carrella

Brennan

Waters

(2007b) Static analysis of a passive vibration isolator with quasi-zero-stiffness characteristic. Journal of Sound and Vibration 301(3–5): 678–689.

Carrella

Brennan

Waters

, et al. (2008) On the design of a high-static-low-dynamic stiffness isolator using linear mechanical springs and magnets. Journal of Sound and Vibration 315(3): 712–720.

Carrella

Brennan

Kovacic

, et al. (2009) On the force transmissibility of a vibration isolator with quasi-zero-stiffness. Journal of Sound and Vibration 322(4–5): 707–717.

Carrella

Brennan

Waters

, et al. (2012) Force and displacement transmissibility of a nonlinear isolator with high-static-low-dynamic-stiffness. International Journal of Mechanical Sciences 55(1): 22–29.

Cheung

Tachi

Calisch

, et al. (2014) Origami interleaved tube cellular materials. Smart Materials and Structures 23(9): 094012.

Deng

Wen

Ding

, et al. (2020) A bio-inspired isolator based on characteristics of quasi-zero stiffness and bird multi-layer neck. Mechanical Systems and Signal Processing 145: 106967.

10.

Dong

Zhang

Xie

, et al. (2017) Simulated and experimental studies on a high-static-low-dynamic stiffness isolator using magnetic negative stiffness spring. Mechanical Systems and Signal Processing 86: 188–203.

11.

Gatti

Kovacic

Brennan

(2010) On the response of a harmonically excited two degree-of-freedom system consisting of a linear and a nonlinear quasi-zero stiffness oscillator. Journal of Sound and Vibration 329(10): 1823–1835.

12.

Han

Liu

, et al. (2018) A new approach to achieve variable negative stiffness by using an electromagnetic asymmetric tooth structure. Shock and Vibration 2018: 1–11.

13.

Huang

Liu

Sun

, et al. (2014) Effect of the system imperfections on the dynamic response of a high-static-low-dynamic stiffness vibration isolator. Nonlinear Dynamics 76(2): 1157–1167.

14.

Inamoto

Ishida

(2019) Improved feasible load range and its effect on the frequency response of origami-inspired vibration isolators with quasi-zero-stiffness characteristics. Journal of Vibration and Acoustics 141(2): 021004.

15.

Ishida

Uchida

Shimosaka

, et al. (2017a) Design and numerical analysis of vibration isolators with quasi-zero-stiffness characteristics using bistable foldable structures. Journal of Vibration and Acoustics 139(3): 031015.

16.

Ishida

Suzuki

Shimosaka

(2017b) Design and experimental analysis of origami-inspired vibration isolator with quasi-zero-stiffness characteristic. Journal of Vibration and Acoustics 139(5): 051004.

17.

Luo

(2021) Vibration control based metamaterials and origami structures: a state-of-the-art review. Mechanical Systems and Signal Processing 161: 107945.

18.

Lan

Yang

(2014) Design and experiment of a compact quasi-zero-stiffness isolator capable of a wide range of loads. Journal of Sound and Vibration 333(20): 4843–4858.

19.

Wang

(2015) Fluidic origami: a plant-inspired adaptive structure with shape morphing and stiffness tuning. Smart Materials and Structures 24(10): 105031.

20.

Liu

Huang

Hua

(2013) On the characteristics of a quasi-zero stiffness isolator using Euler buckled beam as negative stiffness corrector. Journal of Sound and Vibration 332(14): 3359–3376.

21.

Liu

Feng

Zhao

, et al. (2019) A real-time controllable electromagnetic vibration isolator based on magnetorheological elastomer with quasi-zero stiffness characteristic. Smart Materials and Structures 28(8): 085037.

22.

Liu

Zhao

, et al. (2021a) A quasi-zero-stiffness device capable of vibration isolation and energy harvesting using piezoelectric buckled bea-ms. Energy 223: 121146.

23.

Liu

Zhao

, et al. (2021b) In-plane quasi-zero-stiffness vibration isolator using magnetic interaction and cables: theoretical and experimental study. Applied Mathematical Modelling 96: 497–522.

24.

Yang

MichaelBrennan

, et al. (2014) An investigation into the isolation performance of mono-and Bi-stable systems. Journal of Marine Science and Application 13: 291–298.

25.

Ding

, et al. (2020) Nonlinear vibration isolation via a circular ring. Mechanical Systems and Signal Processing 136: 106490.

26.

Meng

Sun

(2015) Theoretical design and characteristics analysis of a quasi-zero stiffness isolator using a disk spring as negative stiffness element. Shock and Vibration 2015: 1–19.

27.

Yuan

Peng

, et al. (2019) Multi-layer electromagnetic spring with tunable negative stiffness for semi-active vibration isolation. Mechanical Systems and Signal Processing 121: 942–960.

28.

Sadeghi

(2019) Fluidic origami cellular structure with asymmetric quasi-zero stiffness for low-frequency vibration isolation. Smart Materials and Structures 28(6): 065006.

29.

Shan

Chen

(2015) Design of a miniaturized pneumatic vibration isolator with high-static-low-dynamic stiffness. Journal of Vibration and Acoustics 137(4): 045001.

30.

Shi

Zhu

(2015) Magnetic negative stiffness dampers. Smart Materials and Structures 24(7): 072002.

31.

Shiri

Shoulaie

(2009) A new methodology for magnetic force calculations between planar spiral coils. Progress In Electromagnetics Research 95: 39–57.

32.

Song

Wang

Zhang

, et al. (2022) Design and testing of a parabolic cam-roller quasi-zero-stiffness vibration isolator. International Journal of Mechanical Sciences, 2022 220: 107146.

33.

Sun

Jing

, et al. (2014) Beneficial performance of a quasi-zero-stiffness vibration isolator with time-delayed active control. International Journal of Mechanical Sciences 82: 32–40.

34.

Sun

Zhao

Wang

, et al. (2020) High-static-low-dynamic stiffness isolator with tunable electromagnetic mechanism. Ieee-Asme Transactions on Mechatronics 25(1): 316–326.

35.

Chen

Shan

(2014) Analysis and experiment of a vibration isolator using a novel magnetic spring with negative stiffness. Journal of Sound and Vibration 333(13): 2958–2970.

36.

Sun

(2015) A multi-directional vibration isolator based on Quasi-Zero-Stiffness structure and time-delayed active control. International Journal of Mechanical Sciences 100: 126–135.

37.

Yan

Zhou

Yan

, et al. (2020) Multi-direction vibration isolator for momentum wheel assemblies. Journal of Vibration and Acoustics 142(4): 041007.

38.

Brown

(2015) Design of a quasi-zero stiffness isolation system for supporting different loads. Journal of Sound and Vibration 471: 115198.

39.

Zhao

Luo

, et al. (2021a) An improved quasi-zero stiffness isolator with two pairs of oblique springs to increase isolation frequency band. Nonlinear Dynamics 104: 349–365.

40.

Zhao

Sun

Ding

, et al. (2021b) Shock isolation capability of an electromagnetic variable stiffness isolator with bidirectional stiffness regulation. Ieee-Asme Transactions on Mechatronics 26(4): 2038–2047.

41.

Zhao

Cao

Luo

, et al. (2022a) Enhanced design of the quasi-zero stiffness vibration isolator with three pairs of oblique springs: theory and experiment. Journal of Vibration and Control 1–15. DOI:10.1177/10775463221074143

42.

Zhao

Cao

Luo

, et al. (2022b) Practical design of the QZS isolator with one pair of oblique bars by considering pre-compression and low-dynamic stiffness. Nonlinear Dynamics 108(4): 3313–3330.

43.

Zheng

Zhang

Luo

, et al. (2016) Design and experiment of a high-static-low-dynamic stiffness isolator using a negative stiffness magnetic spring. Journal of Sound and Vibration 360: 31–52.

44.

Zhou

Wang

, et al. (2015) Nonlinear dynamic characteristics of a quasi-zero stiffness vibration isolator with cam-roller-spring mechanisms. Journal of Sound and Vibration 346: 53–69.

45.

Zhou

Chen

Xia

, et al. (2019) The design of negative stiffness spring for precision vibration isolation using axially magnetized permanent magnet rings. Journal of Vibration and Control 25(19–20): 2667–2677.

Theoretical modeling and analysis of a quasi-zero-stiffness vibration isolator equipped with extensible and axially magnetized negative stiffness modules

Abstract

Keywords

1. Introduction

2. The model of MNSU

2.1. The structure of MNSU

2.2. Analytical model of magnetic force and stiffness

2.3. Effects of geometric parameters of the MNSU on the stiffness characteristics

2.3.1. Effects of the height on the magnetic stiffness characteristics

2.3.2. Effects of the radial thickness on the magnetic stiffness characteristics

2.3.3. Effects of the gap on the magnetic stiffness characteristics

3. Design of the MNSM

3.1. The design method of the MNSM

3.2. The design procedures of different MNSMs

3.2.1. The design procedure of the MNSM composed of individual MNSU

3.2.2. The design procedure of the MNSM composed of pairwise MNSUs

4. Dynamic modeling of the magnetic quasi-zero-stiffness vibration isolator (MQZS-VI)

4.1. Modeling of the MQZS-VI

4.2. The dynamic equation

4.3. The approximation of the magnetic force

4.4. The solution of the dynamic equation

4.5. Stability of the isolation system

4.6. Transmissibility

4.7. The solution verification

5. Dynamic analysis of the magnetic quasi-zero-stiffness vibration isolator

5.1. Nonlinearity effects on the isolation systems with different MNSMs

5.2. Parameter effects on the isolation system with different MNSMs

5.2.1. Effects of damping ratio

5.2.2. Effects of excitation amplitude on the isolation system

6. Comparative studies with the existing QZS isolator

7. Conclusions

Footnotes

Acknowledgments

Declaration of conflicting interests

Funding

ORCID iDs

Appendix

Appendix A

Appendix B

Appendix C

Appendix D

References
