CircRFWD2 Promotes Osteogenic Differentiation of human Dental Pulp Stem Cells by Targeting miR-6817-5p Through BMP-Smad and p38 MAPK Pathway

Abstract

Dental pulp stem cells (DPSCs) are one promising cell source of mesenchymal stem cells in bone tissue engineering. However, it remains unknown that the molecules and signaling pathways involved in osteogenesis of DPSCs. Hence, this study investigated the functional roles and underlying mechanisms of circRFWD2 during osteogenesis of DPSCs. Knockdown of circRFWD2 suppressed osteogenesis of DPSCs significantly. Mechanistically, circRFWD2 could crosstalk with miR-6817-5p, which was an inhibitor of DPSCs osteogenesis. MiR-6817-5p functioned as a sponge of BMPR2, which regulated the phosphorylation of Smad5 and p38 to impact osteogenesis activity of DPSCs. Collectively, circRFWD2/miR-6817-5p/BMPR2 axis could regulate DPSCs osteogenesis via BMP-Smad and p38 MAPK pathway, which are novel mechanisms in the osteogenic differentiation of DPSCs and suggest potential therapeutic methods for bone defects regeneration.

Introduction

Bone defects, which could be caused by traumas, tumors, and congenital malformations, are one kind of most prevalent skeletal diseases ^1–2 . They reduce the quality of life seriously and pose heavy physical, emotional, and economic burden to the individuals and society ³ . Cell-based bone tissue engineering, which utilizes a combination of mesenchymal stem cells (MSCs), scaffolds, and growth factors, is a promising strategy for bone defects regeneration ^4–5 . The best approach to acquiring MSCs should meet the requirements of sufficient quantity, painless and straightforward sampling, and low risk of complications ⁶ .

Dental pulp stem cells (DPSCs), neural crest-derived cells with an outstanding ability to differentiate into multiple lineages, have become a popular cell source of MSCs in bone tissue engineering ^{7 –9} . As DPSCs can be isolated from extracted teeth after routine surgical practice (e.g., third molars, orthodontic teeth), they are more easily accessible than bone marrow or adipose tissue derived MSCs which require invasive biopsies ¹⁰ . Some studies reported that simple in vitro protocols and/or considerable interactions with certain biomaterials could induce DPSCs into mature osteoblasts to produce a mineralized matrix ^11,12 . However, it remains unknown that the molecules and signaling pathways involved in osteogenesis of DPSCs which induce DPSCs osteogenesis effectively and safely in bone defects treatment. Therefore, understanding the functions and characteristics of DPSCs at the genetic and molecular levels are of great importance.

Circular RNAs (circRNAs) are novel noncoding RNAs. Unlike linear RNAs, circRNAs have unique closed loop structures with 3’ heads and 5’ tails bound together, which makes them resistant to digestion by RNAse R ¹³ . Additionally, a growing body of studies suggest that circRNAs express in a spatial- and temporal-specific manner, and participate in embryonic development, cellular activities, and many human diseases ^14,15 . It is showed that circRNAs orchestrate a variety of molecules and signaling pathways to regulate osteogenesis ^16,17 . Our previous study performed RNA-sequencing to detect the expression pattern of circRNAs in recombinant NELL-1-induced osteogenic differentiation ¹⁸ . The results showed circRFWD2 were up-regulated during recombinant NELL-1-induced osteogenesis of adipose tissue derived stem cells (ASCs) and circRFWD2 could regulate the expression of miR-6817-5p to influence the recombinant NELL-1-induced osteoblast differentiation of ASCs, indicating circRFWD2 plays key roles in the osteogenic differentiation process of MSCs. However, it remains to be studied that the roles of circRFWD2 during DPSCs osteogenesis.

In this study, we investigated the functional roles and underlying mechanisms of circRFWD2 during osteogenesis of DPSCs for the first time. Knockdown of circRFWD2 significantly retarded osteoblast differentiation of DPSCs, while overexpression of miR-6817-5p could induced a similar change. Mechanistically, miR-6817-5p served as a sponge of BMPR2, which regulated the phosphorylation of Smad5 and p38 to impact DPSCs osteogenesis activity. Therefore, this study reveals novel mechanisms in the osteogenic differentiation of DPSCs and suggests potential therapeutic methods for bone defects regeneration.

Material and Methods

hDPSCs Isolation and Identification

As described previously, hDPSCs were extracted and cultured from premolars extracted for orthodontic treatment which were collected from 3 adolescents (12–14 years old) with informed consent ^19,20 . Briefly, type I collagenase (Gibco, Grand Island, NY, USA) was used to digest the dental pulp tissues for 1 hour at 37°C. The digested pulp tissue was then maintained in the culture medium composed of low glucose Dulbecco’s Modified Eagle Medium (DMEM; Gibco, Grand Island, NY, USA), penicillin-streptomycin (Gibco, Grand Island, NY, USA), as well as 10% fetal bovine serum (FBS, Gibco, Grand Island, NY, USA). The 4th passage hDPSCs were used for subsequent experiments.

To identify MSCs surface markers, hDPSCs were collected in phosphate-buffered saline (PBS) and incubated with FITC-conjugated anti-human CD29, FITC-conjugated anti-human CD31, FITC-conjugated anti-human CD44, FITC-conjugated anti-human CD45, FITC-conjugated anti-human HLA-ABC (all from Thermo Fisher Scientific, Waltham, MA, USA). After incubation for 30 min, the hDPSCs samples were identified in the flow cytometer (Beckman Coulter, FC500, FL, USA), and FlowJo software (Tree Star, San Carlos, CA, USA) were used for data analysis.

Trilineage differentiation that consisting of osteogenic, chondrogenic, and adipogenic differentiation was designed to evaluate the differentiation potential of hDPSCs. Briefly, hDPSCs were seeded into 24-well plates (2.0 × 10⁴ cells/well) with normal medium and transferred into trilineage differentiation induction medium after cell confluence reached 60%. These plates were cultured for 21 days in the osteogenic, chondrogenic, and adipogenic induction medium (Cyagen, Guangzhou, China). The ability of osteogenic differentiation was determined by Alizarin Red S staining (ARS, Solarbio, Beijing, China). Alcian Blue (Sigma-Aldrich, St. Louis, MO, USA) staining was utilized to evaluate chondrogenic differentiation potential. Oil Red O (Sigma-Aldrich, St. Louis, MO, USA) staining was performed for visualizing adipogenic differentiation.

Osteogenic Induction

The hDPSCs were seeded in a 24-well plate, and osteogenic differentiation was initiated after 80% cell confluence. The osteogenic induction medium consisted of general culture medium, 10 nM dexamethasone, 50 mg/mL vitamin C, and 10 mM β-glycerophosphate (all from Sigma-Aldrich, St. Louis, MO, USA). All the plates were cultured in an incubator under 5% CO₂ at 37°C, and induction medium was replaced every 3 days.

RNA Oligoribonucleotides and Cell Transfection

For alteration expression of circRFWD2, miR-6817-5p, and BMPR2, cell transfection was conducted by Lipofectamine 3000 (Invitrogen, Carlsbad, CA, USA) according to manufacturer’s instructions after cell reached 70% confluence. The RNA oligoribonucleotides were obtained from GenePharma Co. (Shanghai, China) which were showed in Table S1. The si-circRFWD2, si-BMPR2, miR-6817-5p mimic, miR-6817-5p inhibitor, and negative controls underwent cell transfection with 100 nM concentration. The transfected cells were collected after 2 and 3 days for qRT-PCR and Western blot, respectively.

RNA Isolation and Real-Time PCR Analysis

Total RNA from cultured cells were extracted by the TRIzol reagent (Invitrogen, Carlsbad, CA, USA) according to manufacturer’s protocol. The concentration and quality of RNAs were evaluated by the spectrophotometer (NanoDrop 2000, ThermoFisher, Carlsbad, CA, USA). Real-time PCR analysis was performed on an Applied Biosystems 7500 Fast Systems (Applied Biosystems, Shanghai, China). The primers of circRNAs and mRNAs were synthesized by GenePharma Co. (Shanghai, China) which were showed in Table S2. The miRNAs qRT-PCR Detection Kit (GeneCopoeia, Rockville, MD, USA) was used for detecting miRNAs expression, and U6 was used for expression normalization. The relative expression in this study was calculated by the formula 2^−ΔΔCt.

Western Blot

Total cell protein was extracted by using radio immunoprecipitation assay (RIPA) lysis buffer. Protein concentration was measured by the BCA Protein Assay Kit (Beyotime Institute of Biotechnology, Nanjing, China). Equal amount of protein samples was used for 10% SDS-PAGE electrophoresis. After that, the protein was transferred onto the PVDF membranes blocked with 5% BSA. These PVDF membranes were added with primary antibodies and incubated overnight at 4°C. After washed with TBST, the secondary antibodies were added to the membranes. The antibodies were as follows: RUNX2 (ab76956, Abcam), BMPR2 (EM1709-92, Huabio), p-SMAD5 (ET1605-5, Huabio), SMAD5 (ET1606-26, Huabio), p-p38 (ER1903-01, Huabio), p38 (ET1602-26, Huabio), and GAPDH (ab181602, Abcam).

Alkaline Phosphatase (ALP) Staining and Activity

Alkaline phosphatase staining was performed by utilizing the Leukocyte Alkaline Phosphatase Kit 86C (Sigma-Aldrich, St. Louis, MO, USA). Briefly, after washed with PBS, the cell samples were fixed in citrate solution for 30 seconds. After fixation, samples were stained with a mixed solution composed of naphthol AS-BI alkaline, FRV alkaline, and sodium nitrite for 15 minutes. To measure the ALP activity, the Alkaline Phosphatase Assay Kit (Beyotime Institute of Biotechnology, Nanjing, China) was used to analyze the ALP activity. In brief, the cell samples were cleaved with RIPA lysis buffer and scraped into distilled water, the supernatant was added into a 96-well plate and incubated at 37°C for 30 minutes. The p-nitrophenol and reaction substrates were used for detection of ALP activity. Absorbance was calculated at 405 nm.

Alizarin red S (ARS) Staining and Quantification

Cell samples were fixed in 4% para-formaldehyde solution for 30 minutes at room temperature, and stained with 1% Alizarin Red S (pH 4.2; Solarbio, Beijing, China) for 5 minutes. The Alizarin Red staining results were quantified by a spectrophotometer at 595 nm. To determine the quantity of mineralized nodules, the ARS stain was dissolved in 10% cetylpyridinium chloride (Sigma-Aldrich, St. Louis, MO, USA) for 60 minutes, and the absorbance was measured at 570 nm.

Dual Luciferase Reporter Assay

Dual luciferase reporter assay was conducted to confirm the binding relationship between miR-6817-5p and BMPR2 as well as circRFWD2 and miR-6817-5p. In brief, HEK293 cells were seeded in the 24-well plate with 50% density. The wild-type 3’UTR sequences of BMPR2 and circRFWD2 mRNA contained putative binding sites for miR-6817-5p, and the mutant 3’UTR of BMPR2 and circRFWD2 were constructed with the Mut Express MultiS Fast Mutagenesis Kit (Vazyme Biotech, Nanjing, China). 40 ng BMPR2 luciferase reporter plasmids with 100 nM miR-NC or miR-6817-5p mimic were co-transfected into HEK 293 T cells by using Lipofectamine 3000. After transfected for 48 h, luciferase activity was measured using the Dual-Luciferase Reporter System (Promega, Madison, WI, USA), while Renilla luciferase activity was used for normalizing firefly luciferase activity. All experiments were conducted in triplicate.

Statistical Analyses

Statistical analyses in this study were performed by using SPSS version 16.0 (SPSS, Chicago, IL, USA). All the data were shown as the means ± standard deviation (SD) of at least three independent experiments. The differences between the two groups were analyzed using Student’s t test. One-way analysis of variance (ANOVA) was used for measuring differences among three or more groups. P-value < 0.05 was regarded as statistical significance. In all cases, *P < 0.05, **P < 0.01.

Results

hDPSCs Showed Multidirectional Differentiation Ability and Expressed MSCs Markers

hDPSCs were extracted from dental pulp, and subsequently cultured with medium for proliferation. hDPSCs at passage 4 appeared to be spindle-shaped, indicating the typical MSCs morphology (Fig. 1A). To determine the potential of multidirectional differentiation of hDPSCs, the multidirectional induction was performed with osteogenesis, adipogenesis, and chondrogenesis inducing medium, respectively. ARS staining showed apparent calcium mineral deposits (Fig. 1B), while Oil Red O staining showed numerous cytoplasmic lipid droplets (Fig. 1B), and Alcian Blue staining exhibited more glycosaminoglycans after chondrogenesis induction (Fig. 1B). Flow cytometry was performed to identify MSCs surface markers, indicating that hDPSCs were positive for CD29 (99.45%), CD44 (99.70%), and HLA-ABC (98.65%), but negative for CD31 (0.50%) and CD45 (1.95%) (Fig. 1C). These results demonstrated that hDPSCs in this study showed MSCs morphology, conserved multidirectional differentiation ability, and exhibited MSCs markers expression.

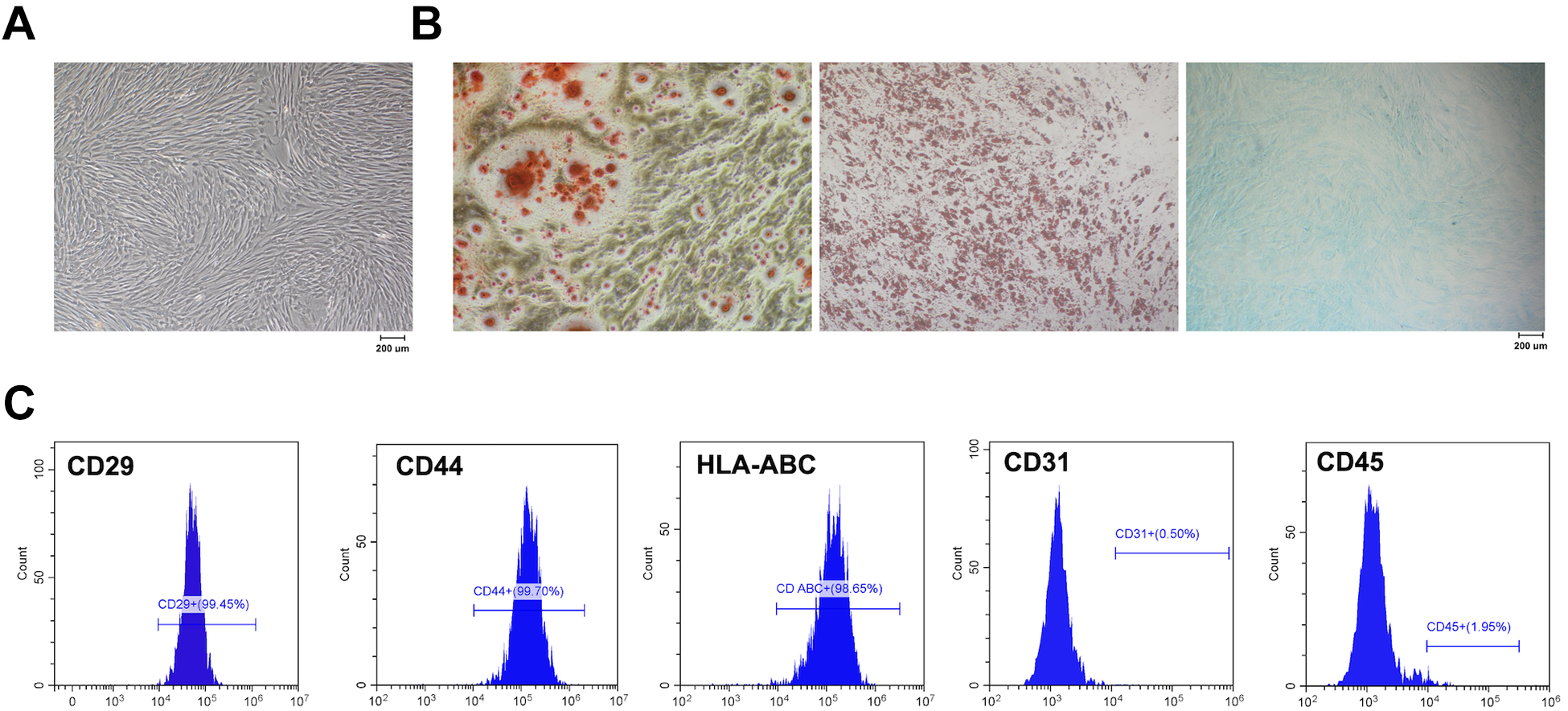

Figure 1.

hDPSCs showed multidirectional differentiation ability and expressed MSCs markers. (A) The typical MSCs morphology of hDPSCs. (B) The multidirectional induction was performed with osteogenesis, adipogenesis, and chondrogenesis inducing medium. (C) hDPSCs were positive for CD29, CD44, and HLA-ABC, while negative for CD31 and CD45. hDPSCs: human dental pulp stem cells; MSCs: mesenchymal stem cells.

Knockdown of circRFWD2 Inhibited Osteogenic Differentiation of hDPSCs

It was showed that circRFWD2 was up-regulated after 7-day and 14-day osteogenic induction (Fig. 2A). Cell transfection was performed to knock down the expression of circRFWD2 for determining its biological effect on osteogenesis of hDPSCs. Three si-RNA plasmids were constructed to avoid the off-targets effect during transfection. We used qRT-PCR analysis to detect the expression of circRFWD2, finding that circRFWD2 was down-regulated by approximately 76%, 74%, and 60% in three si-circRFWD2 groups (Fig. 2B). After osteogenic induction for 7 days, ALP staining and activity were both attenuated in si-circRFWD2 groups (Fig. 2C, D). Similarly, the intensity and quantification of ARS staining were decreased in si-circRFWD2 groups, as a result of impaired matrix mineralization (Fig. 2C, E). qRT-PCR results demonstrated that the relative mRNA expressions of RUNX2 and OPN declined significantly in si-circRFWD2 groups (Fig. 2F–G). Meanwhile, the results of Western blot indicated that RUNX2 protein level was down-regulated when circRFWD2 was knocked down (Fig. 2H–I).

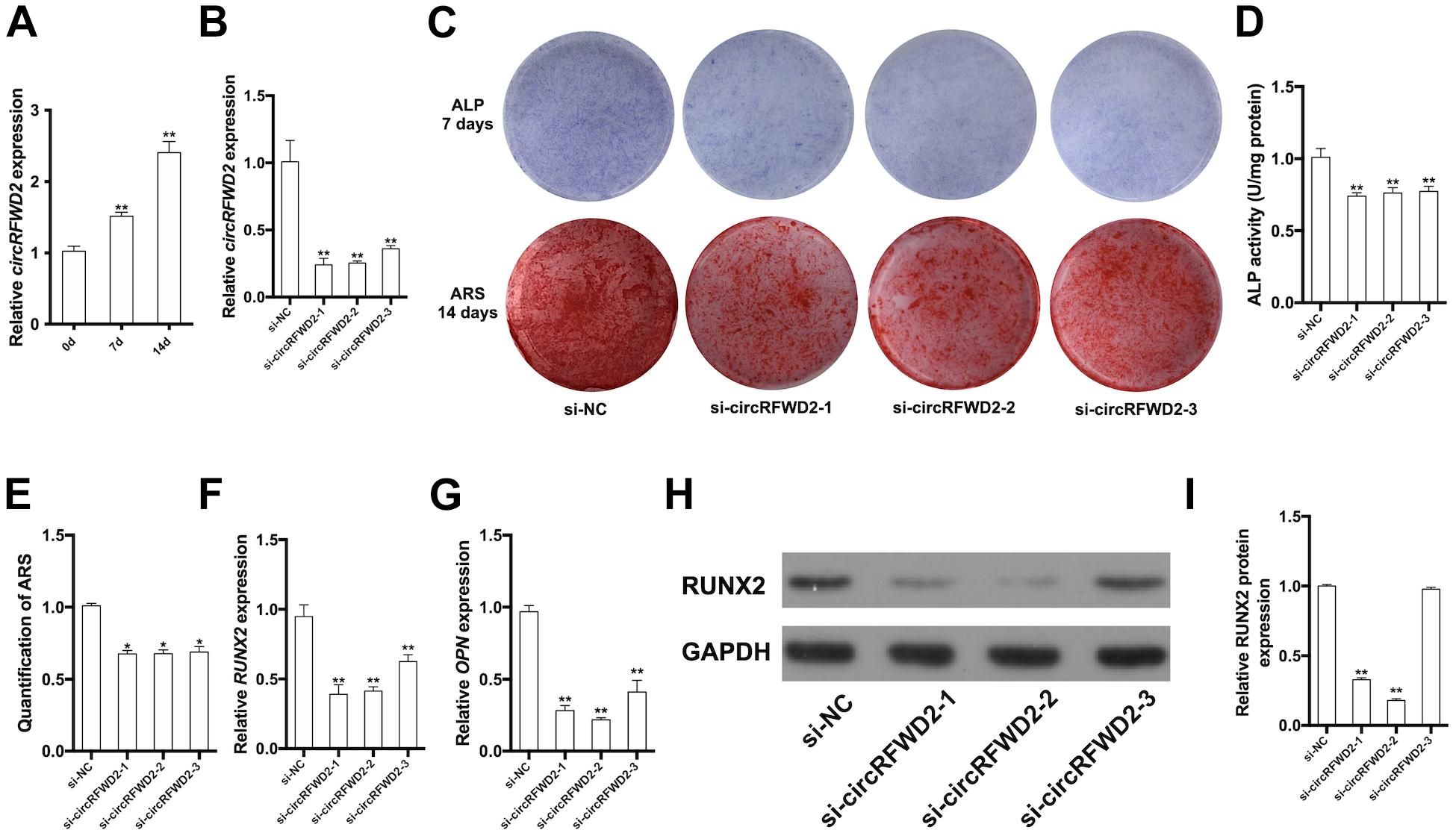

Figure 2.

Knockdown of circRFWD2 inhibited osteogenic differentiation of hDPSCs. (A) Relative expression of circRFWD2 after osteogenic induction for 0, 7, and 14 days. (B) qRT-PCR was performed to determine the expression of circRFWD2 in si-NC and si-circRFWD2 groups. (C) ALP staining and ARS staining in si-NC and si-circRFWD2 groups. (D) ALP activity was measured by spectrophotometry and normalized to the si-NC group. (E) The quantity of ARS staining was detected by densitometry at 562 nm. (F) Relative expression of RUNX2 mRNA in si-NC and si-circRFWD2 groups. (G) Relative expression of OPN mRNA in si-NC and si-circRFWD2 groups. (H) Western blot analysis of RUNX2 in si-NC and si-circRFWD2 groups. (I) Quantity of western blot analysis of RUNX2 in si-NC and si-circRFWD2 groups. GAPDH is a protein-loading control. All experiments were repeated at least three times. The data are shown as the mean ± SD (n = 3). *P < 0.05, **P < 0.01. ALP: Alkaline phosphatase; ARS: Alizarin Red S; si-circRFWD2: small interfering RNAs targeting circRFWD2; si-NC: small interfering RNA negative control.

miR-6817-5p Suppressed Osteogenic Differentiation of hDPSCs

The expression levels of miR-6817-5p were decreased from day 0 to day 14 after osteogenic induction (Fig. 3A). The hDPSCs were incubated with miR-6817-5p mimic or miR-6817-5p inhibitor for 2 days to over- or low-express miR-6817-5p, respectively. The results of qRT-PCR showed that miR-6817-5p increased to more than 2-fold in miR-6817-5p mimic group, while it was declined by approximately 50% in miR-6817-5p inhibitor group (Fig. 3B). After 7 days of osteogenic induction, ALP staining and activity showed decreased osteogenesis ability in the miR-6817-5p mimic group, while osteogenesis ability was increased in the miR-6817-5p inhibitor group (Fig. 3C, D). A similar trend was observed in the intensity and quantification of ARS staining after a 14-day induction (Fig. 3C, E). qRT-PCR analysis was performed to detect the mRNA expression levels of osteogenic markers, showing that the mRNA expression levels of RUNX2 and OPN were decreased in the miR-6817-5p mimic group, while they were increased in the miR-6817-5p inhibitor group (Fig. 3F, G). In accordance, miR-6817-5p overexpression could inhibit RUNX2 protein expression, while miR-6817-5p knockdown promoted the protein level of RUNX2(Fig. 3H, I). These results supported that miR-6817-5p could suppress osteogenic differentiation of hDPSCs.

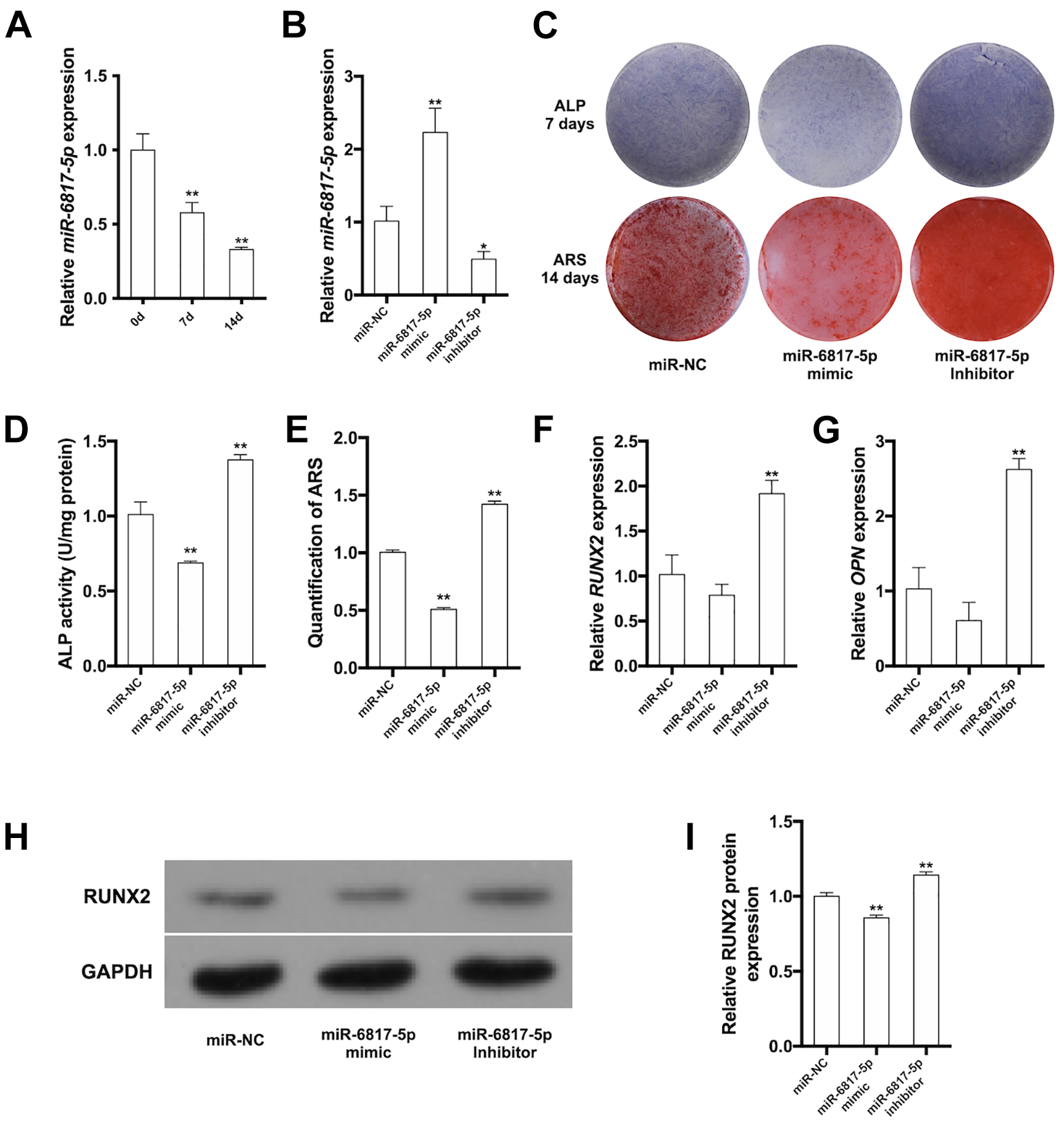

Figure 3.

miR-6817-5p suppressed osteogenic differentiation of hDPSCs. (A) Relative expression of miR-6817-5p after osteogenic induction for 0, 7, and 14 days. (B) qRT-PCR was performed to determine the expression of miR-6817-5p in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (C) ALP staining and ARS staining in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (D) ALP activity in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (E) The quantity of ARS staining at 562 nm in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (F) Relative expression of RUNX2 mRNA in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (G) Relative expression of OPN mRNA in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (H) Western blot analysis of RUNX2 in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (I) Quantity of western blot analysis of RUNX2 in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. GAPDH is a protein-loading control. All experiments were repeated at least three times. The data are shown as the mean ± SD (n = 3). *P < 0.05, **P < 0.01. ALP: Alkaline phosphatase; ARS: Alizarin Red S; NC: negative control.

circRFWD2 Could Talk with miR-6817-5p Through BMPR2

The binding sites between circRFWD2 and miR-6817-5p were confirmed by dual luciferase reporter assay. The mutated sequences of the miR-6817-5p binding site were designed in the circRFWD2 mutant-type (circRFWD2 MU) reporter. The relative luciferase activity in circRFWD2 wild type declined significantly, while the relative luciferase activity in circRFWD2 MU remained stable (Fig. 4A, B). These results suggested circRFWD2 could bind to miR-6817-5p. Similarly, TargetScanhuman 7.2 database was used to predict the potential target genes of miR-6817-5p, which showed that the 3’ untranslated region (UTR) of BMPR2 may bind to miR-6817-5p. Therefore, we constructed two luciferase reporter plasmids to confirm the binding sites between miR-6817-5p and BMPR2. We designed mutated sequences of the miR-6817-5p binding site in the mutant-type (MU) reporter, where the relative luciferase activity of BMPR2 remained stable (Fig. 4C, D). These results confirmed miR-6817-5p could bind to BMPR2 directly.

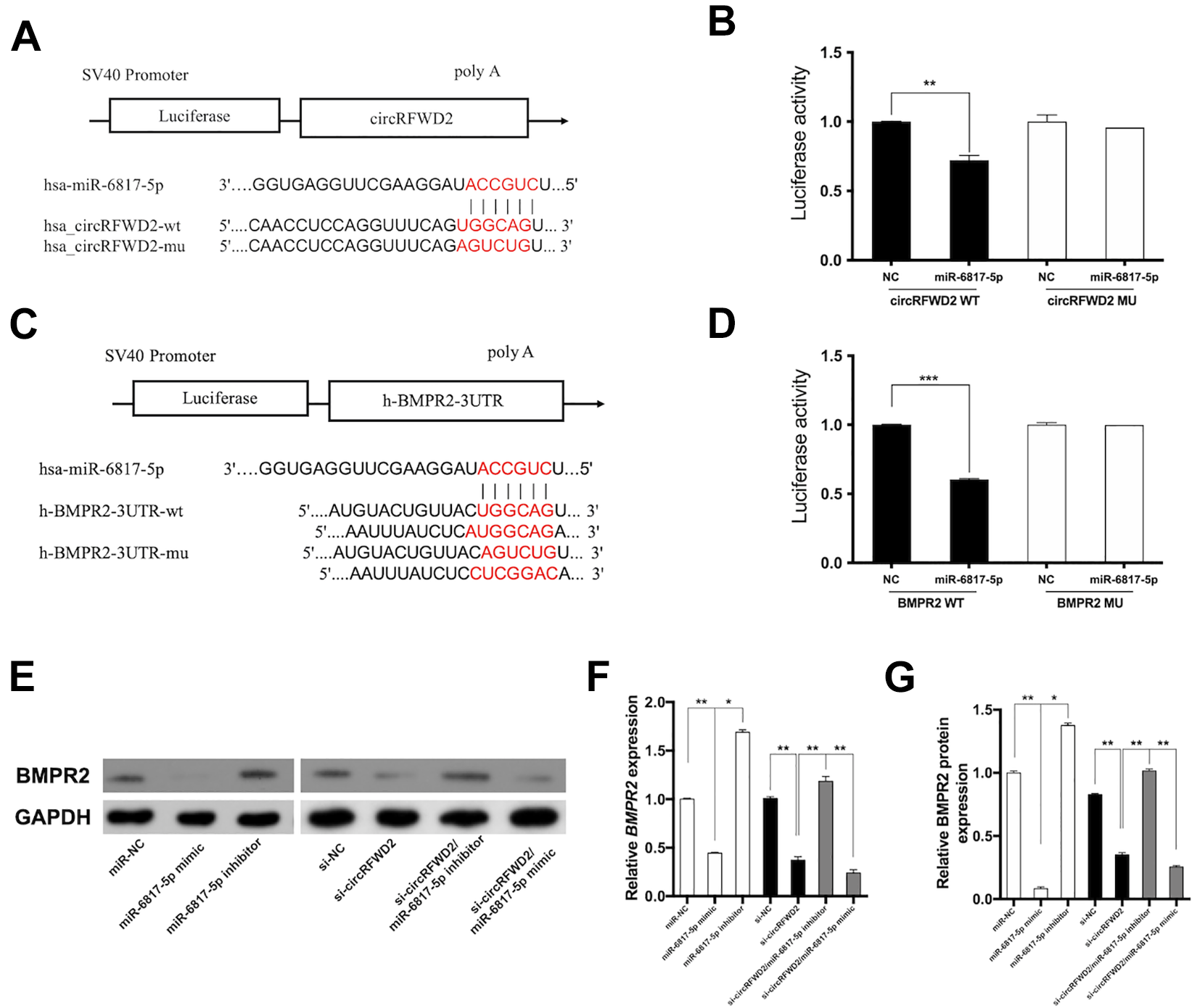

Figure 4.

circRFWD2 could talk with miR-6817-5p through BMPR2. (A) The putative binding sites between miR-6817-5p and circRFWD2 was displayed. (B) 40 ng circRFWD2 luciferase reporter plasmids with 100 nM miR-NC or miR-6817-5p mimic were co-transfected into HEK 293 T cells, luciferase assays were conducted 48 h after transfection. (C) The putative binding sites of miR-6817-5p to the 3’ untranslated region of BMPR2 predicted by TargetScanhuman 7.2 database, and the mutation site in the 3’ UTR of BMPR2 was shown. (D) 40 ng BMPR2 luciferase reporter plasmids with 100 nM miR-NC or miR-6817-5p mimic were co-transfected into HEK 293 T cells, luciferase assays were conducted 48 h after transfection. (E) Western blot analysis of BMPR2 in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor, si-NC, si-circRFWD2, si-circRFWD2/miR-6817-5p inhibitor, and si-circRFWD2/miR-6817-5p mimic groups. (F) The mRNA levels of BMPR2 in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor, si-NC, si-circRFWD2, si-circRFWD2/miR-6817-5p inhibitor, and si-circRFWD2/miR-6817-5p mimic groups. (G) The protein levels of BMPR2 in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor, si-NC, si-circRFWD2, si-circRFWD2/miR-6817-5p inhibitor, and si-circRFWD2/miR-6817-5p mimic groups. GAPDH is a protein-loading control. All experiments were repeated at least three times. The data are shown as the mean ± SD (n = 3). *P < 0.05, **P < 0.01, ***P < 0.001. si-circRFWD2: small interfering RNAs targeting circRFWD2; si-NC: small interfering RNA negative control; NC: negative control.

To further confirm whether BMPR2 could be regulated by circRFWD2 and miR-6817-5p, cell transfection was conducted to control the expression of miR-6817-5p and circRFWD2. The results of qRT-PCR and Western blot showed that knockdown of circRFWD2 could suppress expression of BMPR2 both at mRNA and protein levels (Fig. 4E–G). Consistently, miR-6817-5p mimic decreased the mRNA and protein levels of BMPR2 (Fig. 4E–G), while miR-6817-5p inhibitor could promote the expression of BMPR2 (Fig. 4E–G).

Cell co-transfection was used to explore how the crosstalk of circRFWD2 and miR-6817-5p affected the expression of BMPR2. The results showed that the mRNA and protein levels of BMPR2 declined significantly in si-circRFWD2 and miR-6817-5p mimic group, when compared with those in si-circRFWD2 group (Fig. 4E–G). In contrast, the mRNA and protein levels of BMPR2 were increased significantly in si-circRFWD2 and miR-6817-5p inhibitor group (Fig. 4E–G). Taken together, BMPR2 may serve as the target of miR-6817-5p, and the cross-talk between circRFWD2 and miR-6817-5p could function via BMPR2.

Silence of BMPR2 inhibited osteogenic differentiation of hDPSCs and miR-6817-5p inhibitor partially reversed the inhibition effect of si-BMPR2 on osteogenesis

After 7-day and 14-day osteogenic induction, the mRNA expression levels of BMPR2 were up-regulated significantly (Fig. 5D). hDPSCs transfected with si-BMPR2 were further used to investigate the effect of BMPR2 on osteogenic differentiation of hDPSCs. The mRNA expression of BMPR2 decreased by approximately 50% in si-BMPR2 groups when compared to negative control, indicating the gene knock-down was successful (Fig. 5E). ALP and ARS staining on both quality and quantity levels also showed the weaken osteogenesis ability in si-BMPR2 groups (Fig. 5A–C). The relative mRNA expression of osteogenic markers, including RUNX2 and OPN, declined significantly in si-BMPR2 groups (Fig. 5F–G).

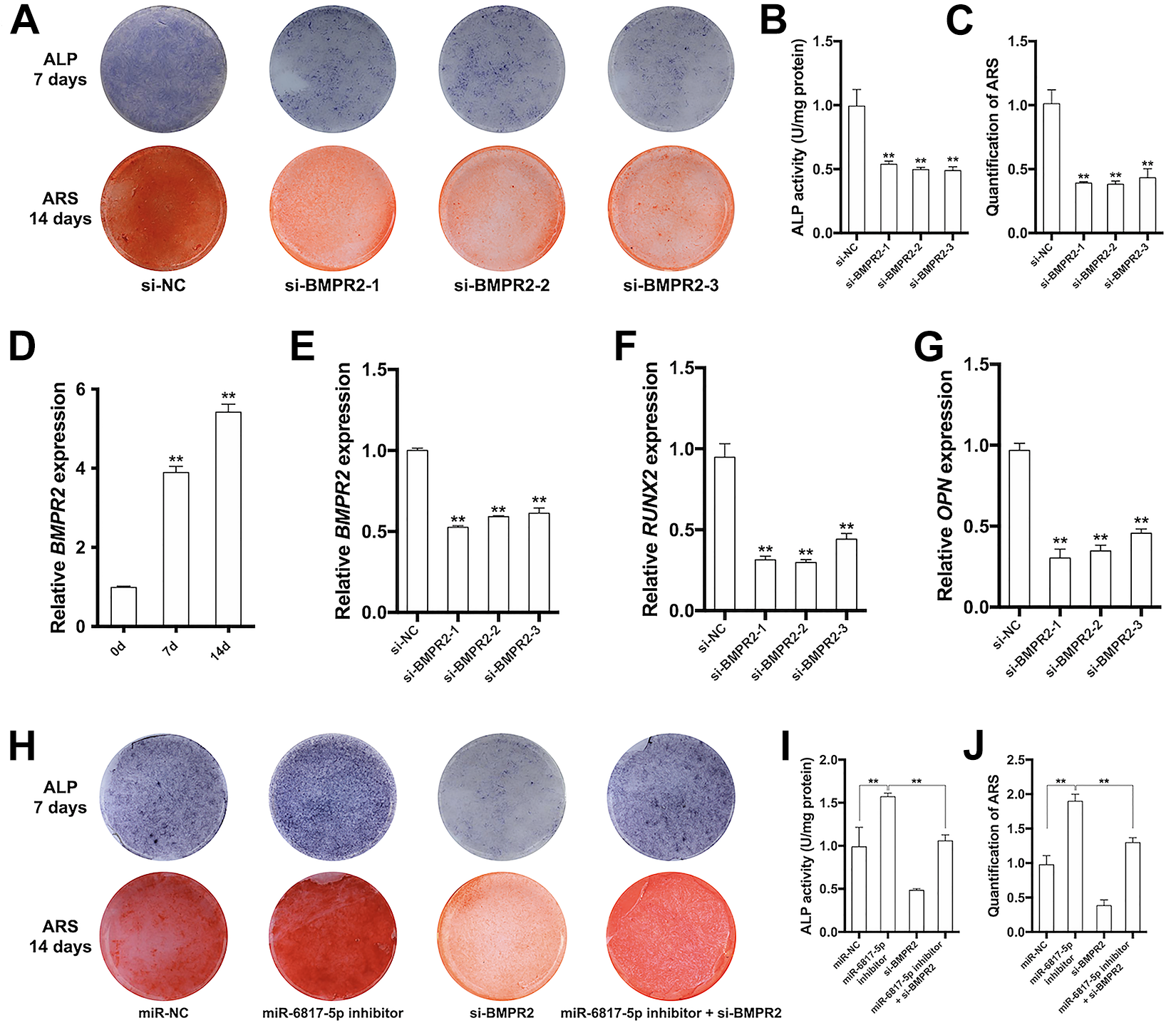

Figure 5.

Silence of BMPR2 inhibited osteogenic differentiation of hDPSCs and miR-6817-5p inhibitor partially reversed the inhibition effect of si-BMPR2 on osteogenesis. (A) ALP staining and ARS staining in si-NC and si-BMPR2 groups. (B) ALP activity in si-NC and si-BMPR2 groups. (C) The quantity of ARS staining at 562 nm in si-NC and si-BMPR2 groups. (D) Relative expression of BMPR2 mRNA after osteogenic induction for 0, 7, and 14 days. (E) Relative expression of BMPR2 mRNA in si-NC and si-BMPR2 groups. (F) Relative expression of RUNX2 mRNA in si-NC and si-BMPR2 groups. (G) Relative expression of OPN mRNA in si-NC and si-BMPR2 groups. (H) ALP staining and ARS staining in si-NC, miR-6817-5p inhibitor, si-BMPR2, and miR-6817-5p inhibitor/si-BMPR2 groups. (I) ALP activity in si-NC, miR-6817-5p inhibitor, si-BMPR2, and miR-6817-5p inhibitor/si-BMPR2 groups. (J) The quantity of ARS staining at 562 nm in si-NC, miR-6817-5p inhibitor, si-BMPR2, and miR-6817-5p inhibitor/si-BMPR2 groups. All experiments were repeated at least three times. The data are shown as the mean ± SD (n = 3). *P < 0.05, **P < 0.01. ALP: Alkaline phosphatase; ARS: Alizarin Red S; NC: negative control.

To investigate whether miR-6817-5p affect osteogenesis of hDPSCs via BMPR2, we utilized cell co-transfection including miR-6817-5p inhibitor and si-BMPR2. After osteogenesis induction for 7 and 14 days, ALP and ARS staining suggested that miR-6817 inhibitor partially reversed the inhibition effect of si-BMPR2 on osteogenesis (Fig. 5H–J).

circRFWD2/miR-6817-5p/BMPR2 Axis Could Regulate the Osteogenesis of hDPSCs Through Smad5 and p38 Phosphorylation

Smad5 served as the essential transcript factor and p38 is an important kinase of BMPs family. To investigate the specific molecular signaling pathways involved in this study, we selected Smad5 and p38 as the potential candidates. Compared to control group, p-Smad5 was decreased significantly in si-circRFWD2 (Fig. 6A, B), miR-6817-5p mimic groups (Fig. 6C, D), and si-BMPR2 (Fig. 6E, F), whereas increased in the miR-6817-5p inhibitor group (Fig. 6C, D). Similarly, phosphorylation of p38 (p-p38) was showed to decline significantly in si-circRFWD2 (Fig. 6A, B), miR-6817-5p mimic groups (Fig. 6C, D), and si-BMPR2 (Fig. 6E, F), while it was increased in miR-6817-5p inhibitor group (Fig. 6C, D). These results demonstrated that circRFWD2/miR-6817-5p/BMPR2 axis may function by activating p-Smad5 and p-p38. The Schematic model showed that miR-6817-5p, targeted by circRFWD2, suppressed osteogenic differentiation through the BMPR2-mediated activation of pSmad5 and p38 MAPK pathway (Fig. 6G).

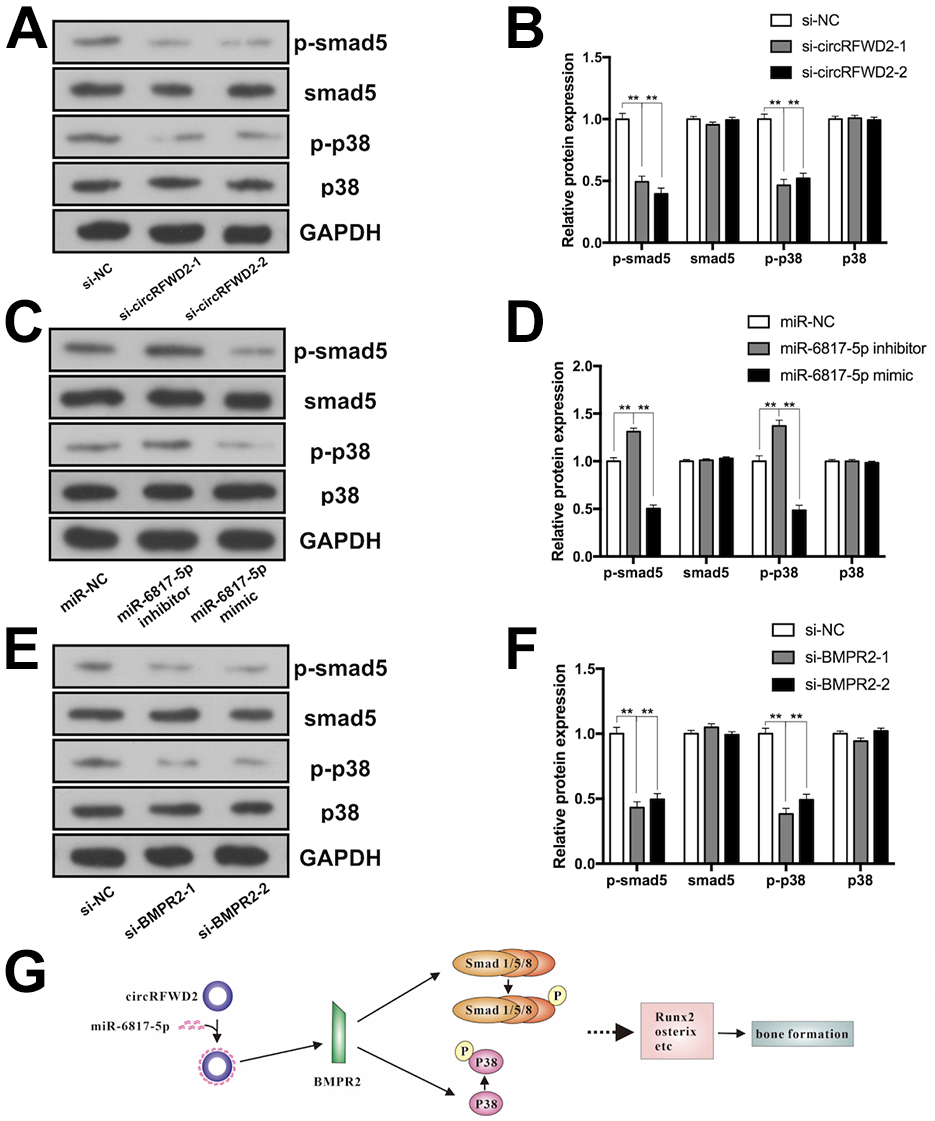

Figure 6.

circRFWD2/miR-6817-5p/BMPR2 axis could regulate the osteogenesis of hDPSCs through Smad5 and p38 phosphorylation. (A) Western blot analyses of phosphorylated Smad5 (p-Smad5), Smad5, phosphorylated p-38 (p-p38), p38, and the internal control GAPDH in si-NC and si-circRFWD2 groups. (B) The protein levels of p-Smad5, Smad5, p-p38, p38, and GAPDH in si-NC and si-circRFWD2 groups. (C) Western blot analyses of p-Smad5, Smad5, p-p38, p38, and GAPDH in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (D) The protein levels of p-Smad5, Smad5, p-p38, p38, and GAPDH in miR-NC, miR-6817-5p mimic, and miR-6817-5p inhibitor groups. (E) Western blot analyses of p-Smad5, Smad5, p-p38, p38, and GAPDH in si-NC and si-BMPR2 groups. (F) The protein levels of p-Smad5, Smad5, p-p38, p38, and GAPDH in si-NC and si-BMPR2 groups. (G) Schematic model showed that miR-6817-5p, targeted by circRFWD2, suppressed osteogenic differentiation through the BMPR2-mediated activation of pSmad5 and p38 MAPK pathway. All experiments were repeated at least three times. The data are shown as the mean ± SD (n = 3). **P < 0.01. NC: negative control; p-Smad5: phosphorylated Smad5; p-p38: phosphorylated p-38.

Discussion

The treatment of bone defects by bone tissue engineering requires numerous stem cells. Although MSCs can be expanded in vitro, their ability of self-renewing and proliferation is decreased during passaging ²¹ . Additionally, bone defects are not terminal diseases typically and treatment should balance risks and benefits simultaneously. Therefore, the best approach to acquiring MSCs should meet the requirements of sufficient quantity, painless and straightforward sampling, and low risk of complications. DPSCs are multipotent MSCs which are can differentiate into a variety of cell lineages, such as osteoblasts, chondrocytes, and adipocytes, in response to stimulation by multiple environmental factors ^22,23 . It is showed that BMSCs have a longer population doubling time (PDT) than DPSCs during a 10-day period and that DPSCs have greater proliferative ability than BMSCs ²⁴ . Moreover, DPSCs could be easily isolated from extracted teeth such as orthodontic teeth and third molars, which are usually discarded ²⁵ . Therefore, DPSCs are one kind of promising cell sources in bone tissue engineering and further exploration are required to understand more deeply the specific regulation of DPSCs osteogenesis.

In this study, we investigated the functional roles and underlying mechanisms of circRFWD2 during osteogenesis of DPSCs for the first time. The results showed that both of ALP staining and activity, as well as the intensity and quantification of ARS staining, were decreased in si-circRFWD2 groups. Similarly, mRNA and protein expression levels of osteogenic markers were down-regulated when circRFWD2 was knocked down. These results suggested that knockdown of circRFWD2 significantly retarded osteoblast differentiation of DPSCs.

Several circRNAs have been showed to prevent miRNAs efficiently to regulate the expression levels of mRNAs, and function as the critical orchestrator of signaling pathway during the osteogenesis ²⁶ . It is reported that circSIPA1L1 functions as the sponge of miR-617 to phosphorylate Smad3, which is responsible for stimulating DPSC osteogenesis ²⁷ . CircAKT3 sponges miR-206 and arrests the negative effect of miR-206 on CX43 expression, and thus serves as a positive regulator during osteogenic differentiation of DPSCs ¹⁹ . CircLPAR1 could eliminate the inhibitive effect of hsa-miR-31 on osteogenesis by competently bind to hsa-miR-31, which promotes osteogenesis of the recipient homotypic DPSCs ²⁸ . Our study showed that circRFWD2 could talk with miR-6817-5p through BMPR2. MiR-6817-5p could bind with BMPR2 and decrease expression of BMPR2 both at mRNA and protein levels, while knockdown of circRFWD2 could down-regulate BMPR2. Cell co-transfection was used to explore how the crosstalk of circRFWD2 and miR-6817-5p affected the expression of BMPR2. The results showed that the mRNA and protein levels of BMPR2 declined significantly in si-circRFWD2 and miR-6817-5p mimic group, while the expression levels of BMPR2 were increased significantly in si-circRFWD2 and miR-6817-5p inhibitor group. Our study further showed that miR-6817-5p could suppress osteogenic differentiation of hDPSCs. Silence of BMPR2 inhibited osteogenic differentiation of hDPSCs and miR-6817-5p inhibitor partially reversed the inhibition effect of si-BMPR2 on osteogenesis.

BMPR2 is a transmembrane serine/threonine kinase receptor which forms a heterodimeric complex with BMP receptor type 1 ²⁹ . BMPs bind to the preformed heterocomplexes to phosphorylate R-Smad proteins, including Smad1, Smad5, and Smad8. Subsequently, the phosphorylated Smad1/5/8 have a high affinity for the common-mediator Smad (Co-Smad), Smad4. The resulting complex serves as a transcription activator, which translocates into the nuclei and activates the expression of corresponding target genes to regulate osteogenic gene expression ³⁰ . BMP–Smad signaling could enhance almost every step during osteogenesis ³¹ . In addition to this Smad-dependent signaling pathway, p38-mitogen activated protein kinase (p38MAPK) signaling cascade could be activated by BMP-induced signaling complexes to affect transcriptional responses ³² . MAPK pathway is showed to phosphorylate Runx2 and Osterix to promote their transcriptional activity and regulate MSC differentiation positively ³³ . It is reported that p38 could perform a negative feedback on canonical BMP-Smad signaling, which contributes to a tight regulated network of osteogenesis ³⁴ . In our study, the results showed that circRFWD2 and BMPR2 could up-regulate the expression level of p-Smad5 and p-p38, while miR-6817-5p suppressed the phosphorylation of p38 and Smad5. Therefore, it is suggested that circRFWD2/miR-6817-5p/BMPR2 axis regulated the osteogenesis of hDPSCs through BMP-Smad and p38 MAPK pathway.

Conclusions

In conclusion, silencing of circRFWD2 was showed to suppress osteogenesis of DPSCs. Mechanistically, miR-6817-5p suppressed osteogenic differentiation of DPSCs, and circRFWD2 could talk with miR-6817-5p through BMPR2. MiR-6817-5p served as a sponge of BMPR2, which regulated BMP-Smad and p38 MAPK pathway to impact DPSCs osteogenesis activity. Thus, this study reveals novel mechanisms of osteogenic differentiation of DPSCs and suggests potential therapeutic methods for bone defects regeneration.
