Abstract

The key indicator to assess the performance of a battery management system is the state of charge (SoC). Although various SoC estimation algorithms have been developed to increase the estimation accuracy, the effect of the current input measurement error on the SoC estimation has not been adequately considered in these algorithms. The majority of SoC estimation algorithms are based on noiseless current measurement models in the literature. More realistic battery models must include the current measurement modelled with the bias noise and the white noise. We present a novel method for mitigating noise in current input measurements to reduce the SoC estimation error. The proposed algorithm is validated by computer simulations and battery experiments. The results show that the proposed method reduces the maximum SoC estimation error from around 11.3% to 0.56% in computer simulations and it is reduced from 1.74% to 1.17% in the battery experiment.

Keywords

State of charge estimation error noisy current input measurement online parameter estimation adaptive Kalman filtering current noise mitigation

Introduction

Concerns regarding energy conservation and environmental protection have increased the popularity of electric vehicles (EVs). Despite their increasing popularity, their performance still need to be improved. Existing EVs have a significantly lower driving range compared to traditional internal combustion engine-based vehicles. Another issue regarding EVs is to miscalculate the remaining power, leaving passengers stranded. These are due to the lack of an efficient battery management system (BMS) that can accurately estimate the remaining power of a battery pack. In this sense, the state of charge (SoC) is a key parameter to ensure a longer driving range with reliable remaining power. Optimal SoC estimation maximises battery energy utilisation, resulting in increased driving range. It is also vital to inform the driver about the current driving range and avoid the harmful consequences of overcharging or overdischarging the battery. The majority of investigations to improve the SoC estimation accuracy primarily focus on algorithm development with no current measurement error assumption.

The SoC is the ratio of the available battery capacity to the maximum battery capacity.¹ It cannot be directly measured but can be calculated or estimated using current and voltage measurements. There are various types of SoC estimation algorithms divided into two main groups: model-free methods and model-based methods.² Two most widely used model-free methods are Coulomb counting (CC) and open circuit voltage (OCV) measurement methods. The CC method determines the remaining capacity of a battery by integrating the current flowing in and out of the battery over time. However, noisy current measurement is not the only disadvantage of this method but also the correct initial SoC guess is required for high accuracy.³ The OCV measurement method measures the terminal voltage when the battery is in a steady state for a sufficient time, for example, 1 h.⁴ The measured terminal voltage is assumed to be equal to the OCV and then converted to the SoC through a look-up table, which is obtained by laborious laboratory work. This method is not practical since it requires a long relaxation period and a look-up table.

State of health (SoH) is another important indicator in battery systems and it refers to how well a battery is performing in comparison to its fresh condition. In literature, there are various approaches to calculating SoH accurately. In the work by Guo et al.,⁵ an SoH estimation algorithm using the SSA-Elman model is proposed. Battery features and capacity are better correlated using this method. In the work by Li et al.,⁶ an improved electrochemical impedance spectroscopy (EIS) method is introduced to estimate SoH. The improved method increases the equivalent circuit model (ECM) accuracy and reduces the error in the SoH estimation error. An attention mechanism and bidirectional long short-term memory neural network are combined in Guo et al.⁷ for estimating SoH. Three features as input of the model are chosen from the incremental capacity curve.

Model-based SoC estimation algorithms require a battery model to reflect the battery dynamics. Electrochemical models and ECMs are the two most common techniques used in battery modelling. In electrochemical models, complex differential equations are used to describe the electrochemical process taking place inside the battery.⁸ The pseudo-two-dimensional (P2D) model is one of the electrochemical models existing in the literature. P2D models are based on the porous electrode theory, concentrated solution theory and kinetic equations.⁹ Another electrochemical model is the single-particle model (SPM) which was developed to simplify the P2D model. In the SPM, it is assumed that multiple uniform-sized spherical particles form the electrodes and the current distribution is uniform along both electrodes.¹⁰ The electrochemical models can explain battery dynamics in terms of the main electrochemical reactions occurring inside a battery. However, their onsite accuracy is low due to their complexity and numerous parameters to be identified in the models. They are generally used for the optimisation of the battery design.¹¹ Unlike the electrochemical models, the ECMs are frequently used in estimating the SoC due to the advantages of low computational effort and high estimation accuracy. The ECM describes the battery dynamics via basic circuit elements. In the work by Feng et al.¹² and Hossain et al.,¹³ it is shown that the Thevenin ECM model with one parallel resistor–capacitor (RC) branch can accurately represent the battery dynamics.

Adopting a battery model requires model parameter identification (MPI). The MPI methods are classified into two main groups: an offline method and online methods. The offline method is an experimental method to calculate the model parameters in laboratories. The hybrid pulse power characterisation (HPPC) current profile is commonly used in the experiment.¹⁴ This method provides fixed parameter estimations. The actual model parameters change as the battery ages and the operational conditions change. Therefore, offline method cannot update the parameters according to different operational conditions and battery ageing, resulting in inaccurate SoC estimates. To adopt the parameters to the changes in operational conditions and battery ageing, online MPI methods are used. The recursive least squares (RLS) method is one of the most popular online methods found in literature.^15,16 In the work by Xia et al.,¹⁷ a forgetting factor RLS method is introduced to minimise the influence of old data on the current estimate. However, the noisy current input measurement deteriorates the performance of RLS-based parameter identification methods.¹⁸ In this case, the adaptive law-based MPI method can be an alternative. This method guarantees the stability of the parametric uncertainties based on the Lyapunov direct method.¹⁹

The Kalman filter (KF) family has been used in ECM-based SoC estimation algorithms due to its simplicity and powerful estimation ability.^20–23 These algorithms first estimate the OCV and then convert it to the SoC using the nonlinear relationship between the SoC and the OCV.^24,25 In the literature, the majority of available SoC estimation algorithms do not consider the input current measurement noise. The development of a more realistic SoC estimation algorithm requires taking into account the input noise.

Error is always present in the current measurement, which is the input of both current counting and voltage-based correction methods. Thus, the current measurement error causes SoC error in both methods.²⁶ The current measurement is corrupted by the current bias noise and the white noise.^27,26 The impact of these noises is significantly different. The white noise does not have a significant effect on the SoC estimation error.²⁸ The extended Kalman filter (EKF) can accurately estimate the SoC based on the current sensor measurement with the large random white noise.²⁹ However, it is found that the bias noise substantially increases the error in the SoC estimation.²⁷ In the work by Liu and He,³⁰ the effect of the bias noise on the SoC estimation is investigated. The bias noise of ± 10 A is injected into the SoC estimation algorithm during the simulation. It is observed that the SoC estimation error is out of the tolerable range by 5%, which may cause overcharging or discharging of the battery in real-time applications. In the work by Liu et al.,³¹ it is found that the bias noise may reach up to 1% in the battery experiments. It can reach up to 200 mA in practice due to the electromagnetic environment and the temperature. In the work by Liu et al.,³¹ the bias noise is treated as a constant parameter to be estimated with battery model parameters. The convergence of battery model parameters to their actual values is not guaranteed; therefore, the bias convergence to its actual value cannot be guaranteed. Incorrect bias estimation would lead to erroneous SoC estimation. In the work by Xu et al.,²¹ a dual KF algorithm is proposed to filter the SoC twice to reduce the current measurement error and battery modelling error. Despite the increased computational cost, this method cannot provide a certain mitigation of the bias noise. In the work by Hou et al.,³² the SoC is estimated for portable devices without sensing the current. The current is an unknown input that is chosen as one of the states. In the work by Chun et al.,³³ a method is also developed to estimate the SoC without sensing the current measurement. The method only uses the filtered terminal voltage measurements of each cell in the battery pack. The current applied to the battery is estimated using the corresponding filtered terminal voltage measurement. To estimate the load current based on terminal voltage sensor measurements, it is necessary to use a high-quality but costly voltage sensor; otherwise, the current estimate is likely to be less accurate. An improved fuzzy adaptive KF is designed in Yan et al.³⁴ to estimate the SoC of EVs working under poor sensor measurements. The system noise and the measurement noise are assumed to be zero-mean white noise, and the proposed method only updates their statistical properties. However, the current sensor is also corrupted by the bias noise and it is neglected.

In literature, different noise modelling strategies have been considered. In the work by Wang et al.,³⁵ a method is proposed to calculate the error probabilities, which characterises the estimation reliability and diagnosis accuracy stochastically. To investigate sensor measurements, data missing phenomenon is considered to address the estimation error in Chen et al.³⁶ In the work by Kitanidis,³⁷ the uncertainty in the system input is modelled as a stochastic process with a mean value that is not known and varies in time. In the work by Shu et al.,³⁸ the corrupted measurements are characterised as a Bernoulli-distributed random sequence. In the work by Lu et al.,³⁹ it is shown that the states and unknown system inputs can be estimated by an extended Double-Model adaptive estimation approach. The unknown time-varying input is modelled as a random walk. Then, the system and measurement models are updated based on the unknown input model. Finally, the estimation algorithm is updated based on the new system and measurement models. In this work, we modelled the current sensor as a summation of the true current, the bias noise treated as random walk and the zero-mean white noise. To the best of the authors’ knowledge, our work is the first direct attempt to consider two stochastic noises in the current measurement in the SoC estimation.

The organisation of the article is as follows: section ‘Adaptive battery model identification’ introduces the battery modelling and online MPI method, section ‘Current bias mitigation’ explains the bias noise estimation method; section ‘SoC estimation’ presents the SoC estimation method along with the modification of the standard KF algorithm; section ‘Simulations and results’ presents the computer simulation and experimental results; finally, the conclusion and the future work are presented in section ‘Conclusion and future work’.

Adaptive battery model identification

Equivalent circuit battery modelling

An accurate SoC estimation algorithm can be developed based on a battery model, which is required for the safe and efficient operation of the battery. The ECM-based battery models have been used to replicate the battery dynamic behaviour.⁴⁰ There are several ECMs found in the literature. Although Thevenin-based ECMs do not demand comprehensive knowledge regarding battery electrochemistry, they accurately reflect the battery dynamics.^41,42 The first-order Thevenin model is revealing superiority over other ECMs due to its simplicity but accuracy in representing the battery dynamics.^43–45,46 Figure 1 shows the ECM used in this work. The ECM has an ideal OCV source $(V_{oc})$ , an ohmic resistance $(R_{0})$ and an RC branch consisting of a polarisation resistor $R_{p}$ and a polarisation capacitor $C_{p}$ . The energy loss during charging or discharging the battery is caused by $R_{0}$ . The RC branch mimics the polarisation characteristic of the battery during or after the charging/discharging cycles. The load current and the terminal voltage signals are denoted by I and $V_{t}$ , respectively. $I_{a}$ is the current flowing over $R_{p}$ , whereas $I_{b}$ is the current flowing over $C_{p}$ . The battery reaches the equilibrium state in a sufficient enough time, for example, 1 h after the load is removed from the battery. In the equilibrium state, $V_{t}$ is equal to $V_{oc}$ . Herein, the load current has a positive sign at discharge and a negative sign at charge. Based on the Kirchhoff’s law and Ohm’s law, the first-order Thevenin ECM can be expressed as follows

\frac{d V_{p}}{dt} = \frac{I}{C_{p}} - \frac{V_{p}}{R_{p} C_{p}}

(1a)

V_{t} = V_{oc} - I R_{0} - V_{p}

(1b)

where t is the time, $d / dt$ is the derivative, $V_{p}$ is the voltage across the RC branch. In equation (1), $R_{0}$ , $R_{p}$ and $C_{p}$ are the model parameters to be identified. Furthermore, the identification of the nonlinear SoC–OCV relationship is also necessary for the SoC estimation. This relationship can be acquired through a battery SoC drop test.

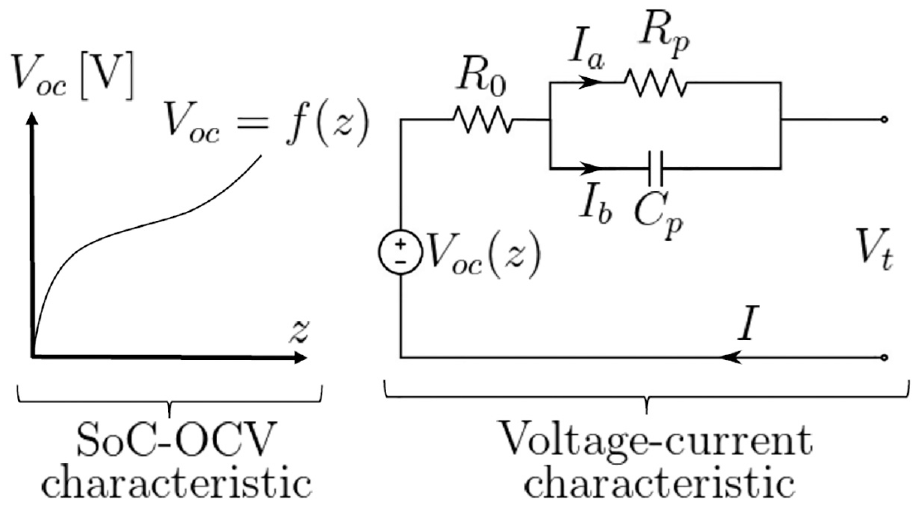

Figure 1.

SoC–OCV nonlinear relationship and equivalent circuit model of Li-ion battery.

Online MPI

An online MPI method improves the real-time performance of SoC estimation algorithms. In this work, the adaptive law-based MPI method is adopted to estimate the model parameters in real time. The adaptive law calculates the current estimate of the parameters by adding the previous estimate of the parameters and the correction term. The correction term is calculated based on a difference between the calculated output signal and the measured output signal. Therefore, the model parameter uncertainty is overcome by parameter updating and correction.

Discrete-time expressions of equations (1a) and (1b) are of the form

V_{p, k + 1} = α V_{p, k} + (1 - α) R_{p} I_{k}

(2a)

V_{t, k} = V_{oc, k} - R_{0} I_{k} - V_{p, k}

(2b)

where $(\cdot)_{k}$ represents the $k th$ sample of (·), $α = e^{- Δ t / τ}$ , $Δ t$ is the sampling time and $τ$ is the time constant, that is, $τ = R_{p} C_{p}$ . Rewrite equation (2b) for step $k + 1$

V_{t, k + 1} = V_{oc, k + 1} - R_{0} I_{k + 1} - V_{p, k + 1}

(3)

Substitute equation (2a) into equation (3)

V_{t, k + 1} = V_{oc, k + 1} - R_{0} I_{k + 1} - α V_{p, k} - (1 - α) R_{p} I_{k}

(4)

Rearrange equation (2b) and substitute into equation (4)

\begin{matrix} V_{t, k + 1} = α V_{t, k} - R_{0} I_{k + 1} + [α R_{0} - (1 - α) R_{p}] I_{k} \\ + V_{oc, k + 1} - α V_{oc, k} \end{matrix}

(5)

Define $Δ V_{t, k + 1} = V_{t, k + 1} - V_{t, k}$ and substitute into equation (5) for sampling time k and $k - 1$

\begin{matrix} Δ V_{t, k + 1} = α Δ V_{t, k} - R_{0} Δ I_{k + 1} + γ Δ I_{k} \\ + Δ V_{oc, k + 1} - α Δ V_{oc, k} \end{matrix}

(6)

where $Δ (\cdot)_{k + 1} = (\cdot)_{k + 1} - (\cdot)_{k}$ and $γ = α R_{0} - (1 - α) R_{p}$ . $V_{oc}$ varies slowly in comparison with $V_{t}$ , when the sampling frequency is high enough,⁴⁷ that is, $Δ V_{oc} \approx 0$ . Equation (6) can be approximated as follows

Δ V_{t, k + 1} = α Δ V_{t, k} - R_{0} Δ I_{k + 1} + γ Δ I_{k}

(7)

Equation (7) can be written in the LPM as follows

y_{k + 1} = θ_{k + 1}^{T} ϕ_{k + 1}

(8)

where the unknown model parameters vector is given by

θ_{k + 1} = {[\begin{matrix} α & - R_{0} & γ \end{matrix}]}^{T}

(9)

and the measured input vector is given by

ϕ_{k + 1} = {[\begin{matrix} Δ V_{t, k} & Δ I_{k + 1} & Δ I_{k} \end{matrix}]}^{T}

(10)

The terminal voltage difference is calculated from two measurement samples. The measurement equation for the parameter estimation is as follows

{\tilde{y}}_{k + 1} = Δ V_{t, k + 1} + Δ v_{V_{t}, k + 1}

(11)

where $(\tilde{\cdot})$ is the measurement of (·) and $Δ v_{V_{t}, k + 1}$ represents the measurement noise. Note that unadorned symbols represent the true values.

$θ_{k}$ is simultaneously estimated using the online parameter estimation method based on the adaptive law given as follows⁴⁸

ε_{k + 1} = {\tilde{y}}_{k + 1} - {\hat{θ}}_{k}^{T} ϕ_{k + 1}

(12a)

{\hat{θ}}_{k + 1} = {\hat{θ}}_{k} + Γ Δ t ε_{k + 1} ϕ_{k + 1}

(12b)

where $(\hat{\cdot})$ is the estimate of (·), and $Γ$ is the positive-definite adaptive gain matrix. After ${\hat{θ}}_{k}$ is calculated, the model parameters ${\hat{R}}_{0}$ , ${\hat{R}}_{p}$ and ${\hat{C}}_{p}$ can be reversely calculated by

{\hat{R}}_{0} = - {\hat{θ}}_{k + 1}^{(2)}

(13a)

{\hat{R}}_{p} = \frac{{\hat{θ}}_{k + 1}^{(3)} + {\hat{θ}}_{k + 1}^{(1)} {\hat{R}}_{0}}{1 - {\hat{θ}}_{k + 1}^{(1)}}

(13b)

{\hat{C}}_{p} = \frac{- Δ t {\hat{R}}_{p}}{\log {\hat{θ}}_{k + 1}^{(1)}}

(13c)

where $(\cdot)^{(i)}$ for $i = 1, 2, 3$ is the $i th$ element of (·).

Test rig design

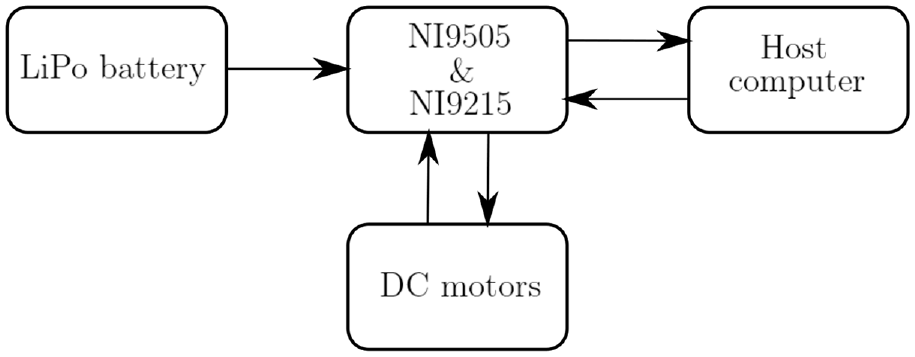

Figure 2 shows a schematic diagram of the test rig designed to run three DC motors powered by a completely new lithium polymer (LiPo) battery whose capacity is 1 Ah. The battery has two serially connected LiPo cells, which makes the battery’s upper cut-off voltage 8.4 V and lower cut-off voltage 6.4 V. CompactRIO is the microprocessor used in the test rig. A graphical user interface is designed on LabVIEW software to control the speed of DC motors. During the battery test, I and $V_{t}$ are measured through the NI 9505 and NI 9215 devices every 0.01 s. We used a commercial battery charger to charge the battery in a constant current constant voltage (CCCV) mode. It can also be used to discharge the battery with a constant current. To prevent possible electrode damage due to overcharging the battery, the upper cut-off voltage is set to 8.4 V. When the terminal voltage drops to 6.4 V, the battery is considered completely discharged. The operating temperature remains constant at 25°C ± 3°C. Three DC motors discharge the battery with a constant current of 1.3 A when the speed is set to 50 r/min (revolution per minute). The speed remains constant at 50 r/min during the battery experiment. The experimental conditions are summarised in Table 1.

Figure 2.

The schematic diagram of experimental setup.

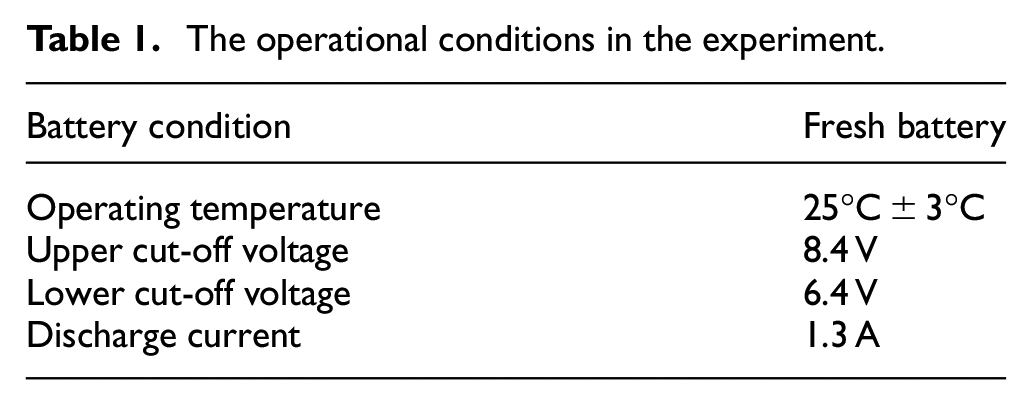

Table 1.

The operational conditions in the experiment.

Battery condition	Fresh battery
Operating temperature	25°C ± 3°C
Upper cut-off voltage	8.4 V
Lower cut-off voltage	6.4 V
Discharge current	1.3 A

SoC–OCV nonlinear relationship

All ECM-based SoC estimation algorithms require the nonlinear SoC–OCV relationship to convert the estimated OCV to an SoC estimate. This relationship can be obtained by a battery SoC drop test.⁴⁹ First, the battery is fully charged under a CCCV regime until it reaches the higher cut-off voltage given by the battery manufacturer. At this point, the battery is assumed to be fully charged. A fully charged battery is discharged by 5% SoC intervals until the SoC decreases to 80%. Then, the discharge interval is increased to 10% and the battery is discharged until its SoC drops to 20%. Then, the discharge interval is decreased to 5% and the battery is fully discharged. The smaller SoC discharge interval is used at low and high SoC regions to observe the nonlinearity better. The sampling time of the battery SoC drop test is 0.01 s and the experiment is repeated five times. Finally, the average values are calculated based on the collected data. A battery SoC drop test was performed on the LiPo battery and the result is given in Table 2.

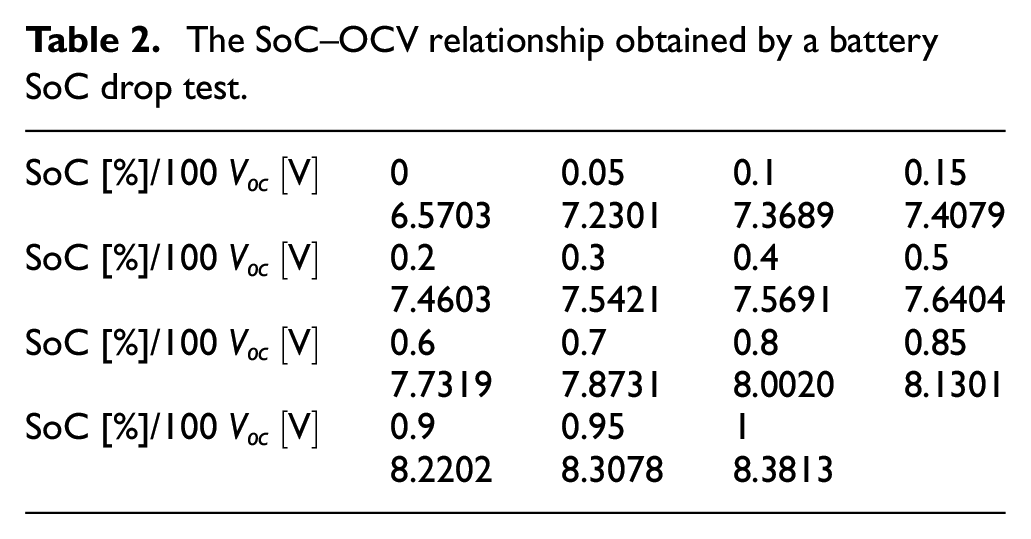

Table 2.

The SoC–OCV relationship obtained by a battery SoC drop test.

SoC [%]/100 $V_{oc} [V]$	0	0.05	0.1	0.15
	6.5703	7.2301	7.3689	7.4079
SoC [%]/100 $V_{oc} [V]$	0.2	0.3	0.4	0.5
	7.4603	7.5421	7.5691	7.6404
SoC [%]/100 $V_{oc} [V]$	0.6	0.7	0.8	0.85
	7.7319	7.8731	8.0020	8.1301
SoC [%]/100 $V_{oc} [V]$	0.9	0.95	1
	8.2202	8.3078	8.3813

The OCV–SoC nonlinear relationship is modelled by the following nonlinear expression⁵⁰

V_{oc} = a \log (z) + b e^{{(z)}^{3}} + c

(14)

where a, b and c are the constant coefficients, z is equal to SoC [%] divided by 100 and it is in the range of $[δ, 1]$ , where $δ$ is an arbitrary small positive number. The SoC below $δ$ is considered zero. The experimental data are curve-fitted to Cho et al.¹⁴ to calculate a, b and c. Conversely, a real-time estimation algorithm can be used to update the coefficients.⁵⁰

Current bias mitigation

In battery-powered systems, the current sensor output is the current measurement which is corrupted by two different types of stochastic noise²⁷

{\tilde{I}}_{k} = I_{k} + β_{k} + v_{i, k}

(15)

where ${\tilde{I}}_{k}$ is the current measurement, and $I_{k}$ is the true current, $β_{k}$ is the bias noise and $v_{i, k}$ is the zero-mean white noise whose variance is $r_{i}$ . $β_{k}$ is a random walk and modelled as follows³⁹

β_{k} = β_{k - 1} + Δ β_{k}

(16)

where $Δ β_{k}$ is the variation in $β$ from sampling time $k - 1$ to sampling time k.

In battery systems, the second measurable signal is ${\tilde{V}}_{t}$ . Note that, measured ${\tilde{V}}_{t}$ is a function of true states, including $V_{oc}$ , $I_{a}$ and true input current I. However, estimated ${\hat{V}}_{t}$ is a function of estimated states, including ${\hat{V}}_{oc}$ , ${\hat{I}}_{a}$ and the measured current input $\tilde{I}$ . Considering the battery states converge to their actual values, the difference between the measured ${\tilde{V}}_{t}$ and the estimated ${\hat{V}}_{t}$ must be caused by the current sensor measurement error. Therefore, one sampling time step difference of $({\tilde{V}}_{t} - {\hat{V}}_{t})$ provides the required information to calculate $β$ in real time. The measurement model of the terminal voltage is given by

{\tilde{V}}_{t, k} = V_{oc, k} - I_{k} R_{0} - I_{a, k} R_{p} + v_{V_{t}, k}

(17)

Rewrite equation (17) for the previous sampling time

{\tilde{V}}_{t, k - 1} = V_{oc, k - 1} - I_{k - 1} R_{0} - I_{a, k - 1} R_{p} + v_{V_{t}, k - 1}

(18)

Note that $v_{V_{t}, k}$ is independent of $v_{V_{t}, k - 1}$ . Subtract equation (18) from equation (17)

Δ {\tilde{V}}_{t, k} = Δ V_{oc, k} - Δ I_{k} R_{0} - Δ I_{a, k} R_{p} + Δ v_{V_{t}, k}

(19)

where $Δ (\cdot)_{k} = (\cdot)_{k} - (\cdot)_{k - 1}$ and $Δ v_{V_{t}, k} = v_{V_{t}, k} - v_{V_{t}, k - 1}$ . To calculate the one-step difference of the measurement residual, the estimate of $Δ V_{t}$ is required. First, the estimate of $V_{t, k}$ is calculated according to the noisy current input measurement as follows

{\hat{V}}_{t, k} = {\hat{V}}_{oc, k} - {\tilde{I}}_{k} {\hat{R}}_{0} - {\hat{I}}_{a, k} {\hat{R}}_{p}

(20)

Similarly, the estimate of $V_{t}$ at sampling time $k - 1$ can be written as follows

{\hat{V}}_{t, k - 1} = {\hat{V}}_{oc, k - 1} - {\tilde{I}}_{k - 1} {\hat{R}}_{0} - {\hat{I}}_{a, k - 1} {\hat{R}}_{p}

(21)

Subtract equation (21) from equation (20)

Δ {\hat{V}}_{t, k} = Δ {\hat{V}}_{oc, k} - Δ {\tilde{I}}_{k} {\hat{R}}_{0} - Δ {\hat{I}}_{a, k} {\hat{R}}_{p}

(22)

In equation (22), to calculate the difference of OCV at two sampling points, we could use the estimated SoC at two sampling points and convert them to the corresponding OCV using the SoC–OCV relationship. However, two estimated SoC could have inconsistent values to charging (increasing SoC) or discharging (decreasing SoC) of the battery. Instead, first, the previous value of SoC is calculated using the following CC equation

{\hat{z}}_{k - 1} = z_{k} + \frac{[{\tilde{I}}_{k} - {\hat{β}}_{k}] Δ t}{Q_{max}}

(23)

where $Q_{max}$ is the maximum available capacity and $z_{k}$ is substituted by the estimated $z_{k}$ from the KF. Then, the calculated ${\hat{z}}_{k - 1}$ is transformed into the estimated ${\hat{V}}_{oc, k - 1}$ through the SoC–OCV relationship. The estimated OCV difference is calculated by subtracting ${\hat{V}}_{oc, k - 1}$ from ${\hat{V}}_{oc, k}$ , that is, $Δ {\hat{V}}_{oc, k} = {\hat{V}}_{oc, k} - {\hat{V}}_{oc, k - 1}$ .

The one sampling step difference of the measurement residual can be calculated by subtracting equation (22) from equation (19) as follows

\begin{matrix} Δ [Δ V_{t, k}] = Δ {\tilde{V}}_{t, k} - Δ {\hat{V}}_{t, k} \\ = Δ V_{oc, k} - Δ I_{k} R_{0} - Δ I_{a, k} R_{p} + Δ v_{V_{t}, k} \\ - Δ {\hat{V}}_{oc, k} - Δ {\tilde{I}}_{k} {\hat{R}}_{0} - Δ {\hat{I}}_{a, k} {\hat{R}}_{p} \\ = (Δ V_{oc, k} - Δ {\hat{V}}_{oc, k}) + (Δ I_{k} - Δ {\tilde{I}}_{k}) {\hat{R}}_{0} \\ + (Δ I_{a, k} - Δ {\hat{I}}_{a, k}) {\hat{R}}_{p} + Δ v_{V_{t}, k} \\ = - Δ β_{k} {\hat{R}}_{0} - Δ v_{i, k} {\hat{R}}_{0} + Δ v_{V_{t}, k} \end{matrix}

(24)

The difference $Δ β_{k}$ can be calculated as follows

Δ β_{k} = - \frac{Δ [Δ V_{t, k}]}{{\hat{R}}_{0}} + e_{s, k}

(25)

where $e_{s, k} = Δ v_{V_{t}, k} / {\hat{R}}_{0} - Δ v_{i, k}$ is a zero-mean white noise. Directly substituting $Δ β_{k}$ into equation (21) would amplify undesired noises in the estimated $β$ values. Thus, the standard KF is designed for estimating $β_{k}$ and provided in Algorithm 1. Details of the algorithm are presented in the next section.

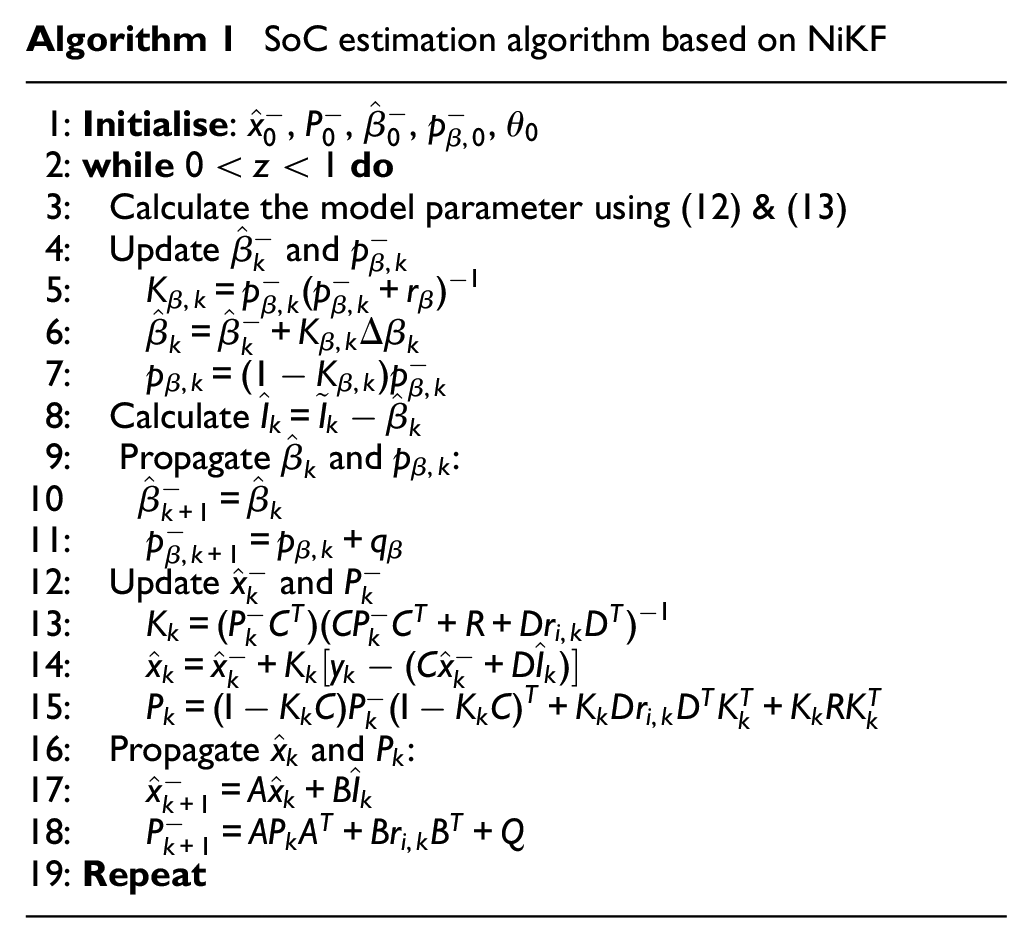

Algorithm 1

SoC estimation algorithm based on NiKF

1: Initialise:

{\hat{x}}_{0}^{-}

P_{0}^{-}

{\hat{β}}_{0}^{-}

p_{β, 0}^{-}

θ_{0}

2: while

0 < z < 1

do3: Calculate the model parameter using (12) & (13)4: Update

{\hat{β}}_{k}^{-}

and

p_{β, k}^{-}

K_{β, k} = p_{β, k}^{-} (p_{β, k}^{-} + r_{β})^{- 1}

{\hat{β}}_{k} = {\hat{β}}_{k}^{-} + K_{β, k} Δ β_{k}

p_{β, k} = (1 - K_{β, k}) p_{β, k}^{-}

8: Calculate

{\hat{I}}_{k} = {\tilde{I}}_{k} - {\hat{β}}_{k}

9: Propagate

{\hat{β}}_{k}

and

p_{β, k}

:10

{\hat{β}}_{k + 1}^{-} = {\hat{β}}_{k}

11:

p_{β, k + 1}^{-} = p_{β, k} + q_{β}

12: Update

{\hat{x}}_{k}^{-}

and

P_{k}^{-}

13:

K_{k} = (P_{k}^{-} C^{T}) ({CP}_{k}^{-} C^{T} + R + D r_{i, k} D^{T})^{- 1}

14:

{\hat{x}}_{k} = {\hat{x}}_{k}^{-} + K_{k} [y_{k} - (C {\hat{x}}_{k}^{-} + D {\hat{I}}_{k})]

15:

P_{k} = (I - K_{k} C) P_{k}^{-} (I - K_{k} C)^{T}

+ K_{k} D r_{i, k} D^{T} K_{k}^{T} + K_{k} {RK}_{k}^{T}

16: Propagate

{\hat{x}}_{k}

and

P_{k}

:17:

{\hat{x}}_{k + 1}^{-} = A {\hat{x}}_{k} + B {\hat{I}}_{k}

18:

P_{k + 1}^{-} = A P_{k} A^{T} + B r_{i, k} B^{T} + Q

19: Repeat

SoC estimation

The SoC propagation equation is given by

z_{k + 1} = z_{k} - \frac{{\hat{I}}_{k} Δ t}{Q_{max}} + w_{z, k}

(26)

where $w_{z, k}$ is a zero-mean Gaussian white noise. The current $I_{a}$ is propagated as follows

I_{a, k + 1} = α I_{a, k} + (1 - α) {\hat{I}}_{k} + w_{I_{a}, k}

(27)

where $w_{I_{a}, k}$ is a white noise with zero mean. Note that $w_{z, k}$ is independent of $w_{I_{a}, k}$ . The measurement equation is given in equation (17), where $V_{oc}$ is a nonlinear function of z. The SoC estimation algorithm has linear state propagation equations (26) and (27) and nonlinear measurement equation (17). Consider the following generic model for a battery system

x_{k + 1} = A x_{k} + B u_{k} + w_{x, k}

(28a)

y_{k} = h (x_{k}) + D u_{k} + v_{y, k}

(28b)

where $h (\cdot)$ is a nonlinear function

\begin{matrix} x_{k} & = {[\begin{matrix} I_{a, k} & z_{k} \end{matrix}]}^{T}, y_{k} = {\tilde{V}}_{t, k}, u_{k} = {\hat{I}}_{k} \\ A & = [\begin{matrix} {\hat{α}}_{k} & 0 \\ 0 & 1 \end{matrix}], B = [\begin{matrix} 1 - {\hat{α}}_{k} \\ \frac{- Δ t}{Q_{max}} \end{matrix}], w_{x, k} = [\begin{matrix} w_{I_{a}, k} \\ w_{z, k} \end{matrix}] \\ C & = {\frac{\partial y_{k}}{\partial x} |}_{x = {\hat{x}}_{k}}, D = - {\hat{R}}_{0}, v_{y, k} = v_{V_{t}, k} \end{matrix}

(29)

$x_{k}$ is the state vector, $y_{k}$ is the measurement vector and $u_{k}$ is the input. $w_{x, k}$ and $v_{y, k}$ are the process and measurement zero-mean white noises with known covariance matrices Q and R, respectively. They are independent of each other and assumed to be stationary over time.

In practice, it is expected that the standard KF’s performance degrades due to the noisy input current measurement. Therefore, standard KF algorithm given in Kasdin⁵¹ is reconstructed by considering the input current measurement model given in equation (15). Note that u in equations (28a) and (28b) is replaced by ${\hat{I}}_{k}$ in battery systems.

We are to derive the standard KF based on the generic model of the battery system. The derivation of the noisy input Kalman filter (NiKF) starts with updating the priori prediction of the state vector as follows

{\hat{x}}_{k} = {\hat{x}}_{k}^{-} + K_{k} (y_{k} - {\hat{y}}_{k})

(30)

where $(\cdot)^{-}$ implies the priori prediction of (·), $K_{k}$ is the Kalman gain and the $(y_{k} - {\hat{y}}_{k})$ is the measurement residual. The derivation of the update part starts with defining the posterior state estimation error given as follows

\begin{matrix} e_{k} = x_{k} - {\hat{x}}_{k} \\ = x_{k} - {\hat{x}}_{k}^{-} - K_{k} (C x_{k} + D I_{k} + v_{y, k} - C {\hat{x}}_{k}^{-} - D {\hat{I}}_{k}) \\ = x_{k} - {\hat{x}}_{k}^{-} - K_{k} [C x_{k} + D ({\tilde{I}}_{k} - β_{k} - v_{i, k}) \\ + v_{y, k} - C {\hat{x}}_{k}^{-} - D ({\tilde{I}}_{k} - {\hat{β}}_{k})] \\ = (I - K_{k} C) e_{k}^{-} - K_{k} v_{y, k} + K_{k} D v_{i, k} \\ + K_{k} D ({\hat{β}}_{k} - β_{k}) \end{matrix}

(31)

where $K_{k} D ({\hat{β}}_{k} - β_{k})$ term is neglected by assuming $lim_{t \to \infty} \hat{β} \to β$ . The approximation of equation (31) is given by

e_{k} = (I - K_{k} C) e_{k}^{-} - K_{k} v_{y, k} + K_{k} D v_{i, k}

(32)

The posterior state estimation error covariance matrix is as follows

\begin{matrix} P_{k} = E [e_{k} e_{k}^{T}] \\ = E [((I - K_{k} C) e_{k}^{-} + K_{k} D v_{i, k} - K_{k} v_{y, k}) \\ ((I - K_{k} C) e_{k}^{-} + K_{k} D v_{i, k} - K_{k} v_{y, k})^{T}] \\ = (I - K_{k} C) P_{k}^{-} (I - K_{k} C)^{T} \\ + K_{k} D r_{i, k} D^{T} K_{k}^{T} + K_{k} {RK}_{k}^{T} \end{matrix}

(33)

where $E [\cdot]$ represents the expectation operator and $r_{i, k}$ is the variance of $v_{i, k}$ . Note that $v_{y, k}$ , $v_{i, k}$ and $e_{k}^{-}$ are independent of each other.

The Kalman gain matrix is derived by minimising the trace of $P_{k}$ . The trace of $P_{k}$ is the sum of the mean squared errors. Expand equation (33) as follows

\begin{matrix} P_{k} = P_{k}^{-} - K_{k} {CP}_{k}^{-} - P_{k}^{-} C^{T} K_{k}^{T} \\ + K_{k} ({CP}_{k}^{-} C^{T} + D r_{i, k} D^{T} + v_{y, k}) K_{k}^{T} \end{matrix}

(34)

Taking the trace of equation (34) gives

\begin{matrix} trace [P_{k}] = trace [P_{k}^{-}] - 2 \times trace [K_{k} {CP}_{k}^{-}] \\ + trace [K_{k} ({CP}_{k}^{-} C^{T} + D r_{i, k} D^{T} + R) K_{k}^{T}] \end{matrix}

(35)

Differentiate equation (35) with respect to $K_{k}$

\begin{matrix} \frac{d trace [P_{k}]}{d K_{k}} = - 2 {({CP}_{k}^{-})}^{T} \\ + 2 K_{k} ({CP}_{k}^{-} C^{T} + D r_{i, k} D^{T} + R) \end{matrix}

(36)

Equalising equation (36) to zero and solving for $K_{k}$ yield

K_{k} = (P_{k}^{-} C^{T}) {({CP}_{k}^{-} C^{T} + R + D r_{i, k} D^{T})}^{- 1}

(37)

The state is propagated as follows

x_{k + 1} = A x_{k} + B I_{k}

(38)

The posterior error covariance matrix is propagated as follows

\begin{matrix} e_{k + 1}^{-} = x_{k + 1} - {\hat{x}}_{k + 1}^{-} \\ = A x_{k} + B I_{k} + w_{x, k} - A {\hat{x}}_{k}^{-} - B {\hat{I}}_{k} \\ = A x_{k} + B ({\tilde{I}}_{k} - β_{k} - v_{i, k}) + w_{x, k - 1} \\ - A {\hat{x}}_{k}^{-} - B ({\tilde{I}}_{k} - {\hat{β}}_{k}) \\ = A (x_{k} - {\hat{x}}_{k}^{-}) + w_{x, k} - B v_{i, k} - B ({\hat{β}}_{k} - β_{k}) \end{matrix}

(39)

where $(\cdot)_{k}^{-}$ represents the priori prediction of $(\cdot)_{k}$ . In equation (39), $B ({\hat{β}}_{k} - β_{k})$ term is neglected since $lim_{t \to \infty} \hat{β} \to β$ in most practical cases. The final expression of the priori state prediction error is given as follows

e_{k + 1}^{-} = A e_{k} + w_{x, k} - B v_{i, k}

(40)

The prior covariance matrix is expressed as follows

\begin{matrix} P_{k + 1}^{-} = E [e_{k + 1}^{-} {e_{k + 1}^{-}}^{T}] \\ = E [(A e_{k} + w_{x, k} - B v_{i, k}) {(A e_{k} + w_{x, k} - B v_{i, k})}^{T}] \\ = A P_{k} A^{T} + B r_{i, k} B^{T} + Q \end{matrix}

(41)

Note that $e_{k}$ , $w_{x, k}$ and $v_{i, k}$ are independent of each other. The NiKF is summarised in Algorithm 1.

Simulations and results

The first random noise corrupting the current measurement is the random walk bias $β$ . The difference between $β_{k}$ and $β_{k - 1}$ is an independent random increment which follows the Gaussian distribution. Its mean and variance are given as follows

E [β_{k} - β_{k - 1}] = 0

(42a)

E {[β_{k} - β_{k - 1}] {[β_{k} - β_{k - 1}]}^{T}} = σ_{β}^{2} Δ t

(42b)

where $σ_{β}$ is a positive constant. The random increment is expressed by

Δ β_{k} = η_{k} Δ t

(43)

where $η_{k}$ is a random number generated from the Gaussian distribution. Equation (42a) must be satisfied, therefore

E [Δ β_{k}] = E [η_{k} Δ t] = E [η_{k}] Δ t = 0

(44)

The mean value of $η_{k}$ must be zero, that is, $E [η_{k}] = 0$ . The variance of $η_{k}$ must satisfy the property of random increment given in equation (42a)

E [η_{k} Δ t η_{k}^{T} Δ t] = E [η_{k} η_{k}^{T}] (Δ t)^{2} = σ_{β}^{2} Δ t

(45)

Hence, the variance of $η_{k}$ can be calculated by

E [η_{k} η_{k}^{T}] = \frac{σ_{β}^{2}}{Δ t}

(46)

The second noise corrupting the current measurement is the white noise which is a typical sensor noise whose mean is zero and distribution is Gaussian or normal

E [v_{i, k}] = 0

(47a)

E [v_{i, k} v_{i, k}^{T}] = σ_{v_{i}}^{2}

(47b)

It is assumed that the $η_{k}$ is not correlated with the white noise $v_{i, k}$ .

The simulated battery has the capacity of 0.85 Ah. It is fully discharged under two different dynamic loadings shown at the bottom of Figures 7 and 8. During the process, the bias noise and the white noise are added to the current input in every 0.01 s. The true battery model parameters are chosen similar to ones in equation⁵² and set to

[\begin{matrix} R_{0} & R_{p} & C_{p} \end{matrix}] = [\begin{matrix} 0.3 Ω & 0.1 Ω & 10 F \end{matrix}]

(48)

For the simulation purposes, the initial $β$ is randomly generated within the sample space whose lower bound is 0 and higher bound is 250 mA, $σ_{β}$ is equal to $10^{- 3}$ and the initial $p_{β}$ is set to $10^{- 3}$ . $Δ β$ is calculated using equation (43). True $β$ is then calculated in every calculation step by adding $Δ β$ to the previous $β$ .

The initial state $I_{a}$ is set to 0, whereas the initial estimate z is randomly drawn from the uniform distribution in [0,1]. The initial priori error covariance matrix is set to $P_{1}^{-} = [10^{- 3} 0; 0 10^{- 3}]$ . The coefficients of the nonlinear SoC–OCV relation are as follows: $a = 0.2032$ , $b = 0.3783$ and $c = 7.401$ . The small-positive scalar delta is set to $δ = 0.003$ . The available voltage sensors can measure ${\tilde{V}}_{t}$ with the error of 1–2 mV.²⁷ Therefore, we assume the $\pm 3 σ_{V} = \pm 1.5 mV$ , and the standard deviation in $V_{t}$ , $σ_{V}$ , is calculated to be $σ_{V} = 0.05 mV$ . We also tested the algorithm with larger $σ_{V}$ values, such as $σ_{V} = 1$ and $σ_{V} = 10 mV$ . In comparison with the current bias noise, the white noise in the current measurement does not have a significant effect on the SoC estimation.²⁷ Therefore, the standard deviation in $v_{i}$ , $σ_{i}$ , is set to the same values as $σ_{V}$ . Q is set to $[10^{- 3} 0; 0 10^{- 3}]$ .

Figures 3 and 4 show that the online parameter estimation algorithm successfully calculates the model parameters under two different dynamic loadings. In both cases, $R_{0}$ converges to its true value fast. However, $R_{p}$ and $C_{p}$ show more tiny fluctuations depending on the current input profile. This is expected because $R_{p}$ and $C_{p}$ define the response of the battery to the dynamic loading. However, these fluctuations do not have a significant effect on the SoC estimation error. Furthermore, $C_{p}$ and $R_{p}$ have the opposite reaction to keep the time constant of the battery constant. From MPI results, it can be concluded that the adaptive law-based parameter identification method can successfully estimate the model parameters under the noisy current input measurement.

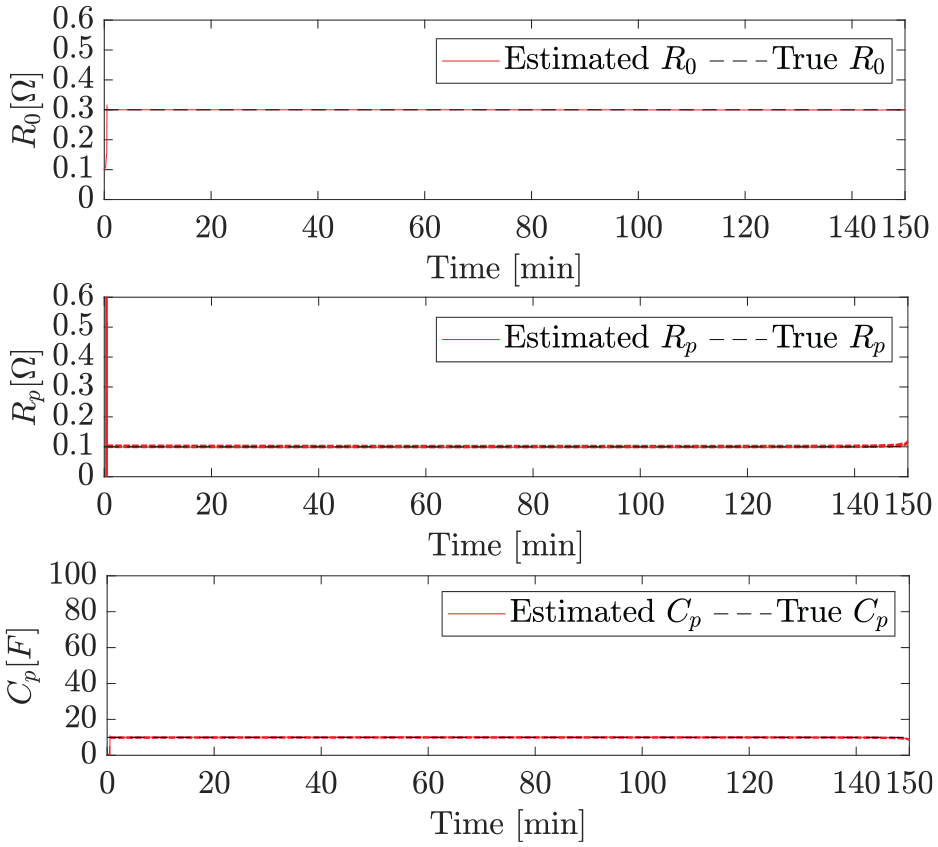

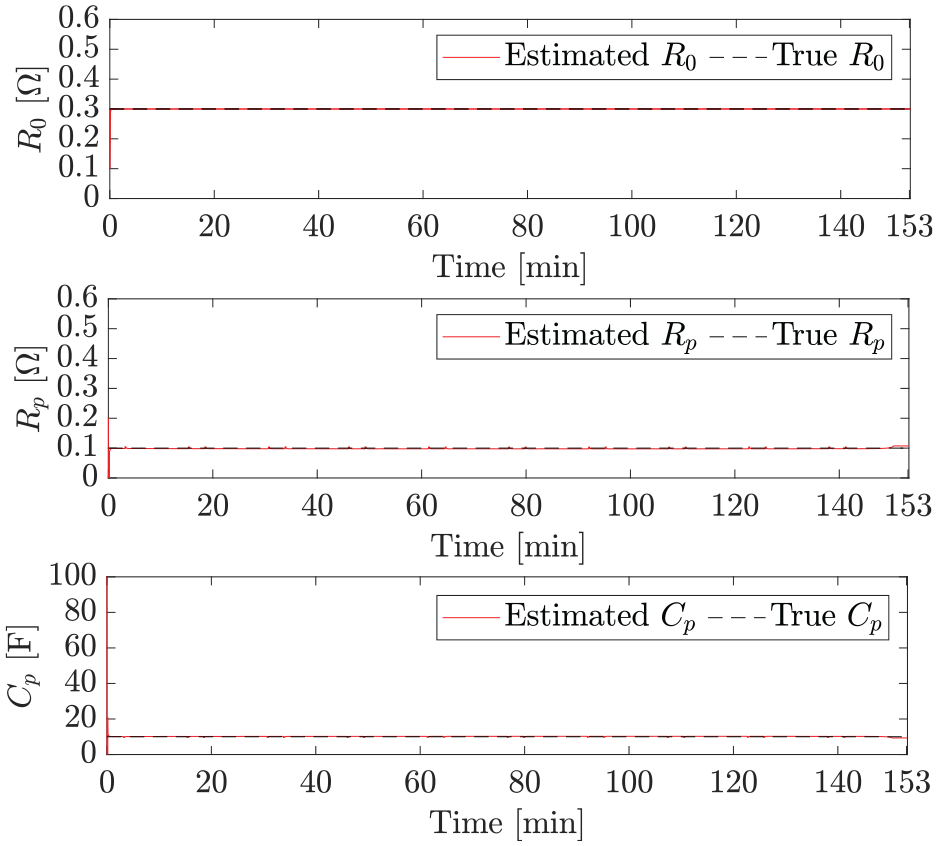

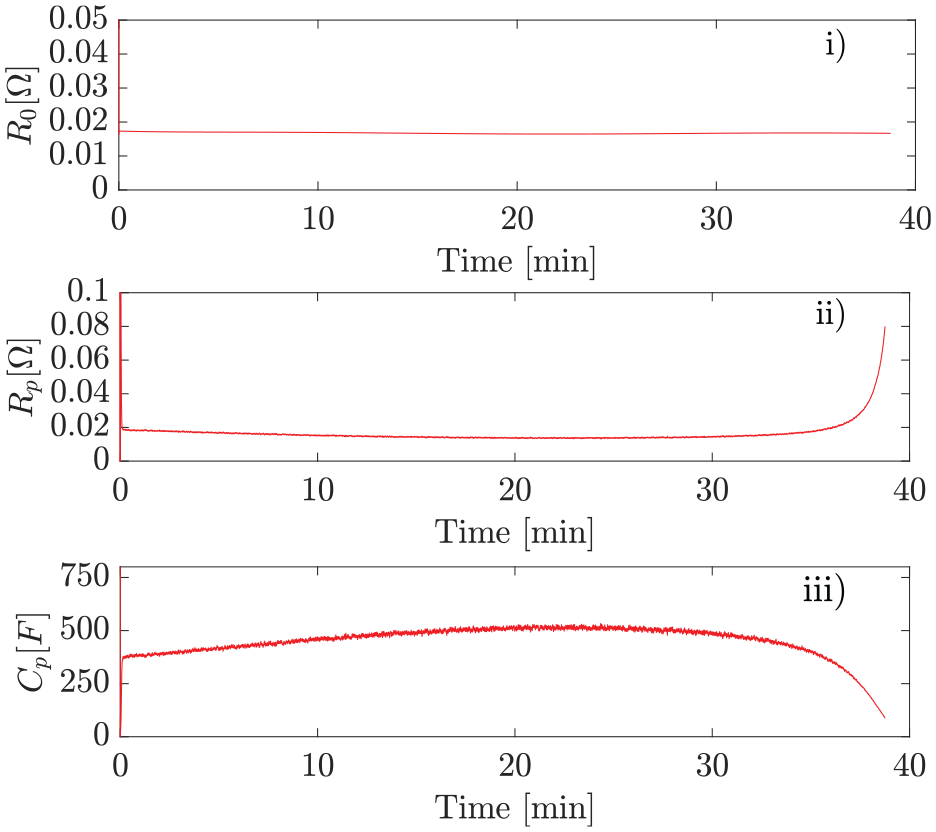

Figure 3.

ECM battery parameter estimation under DST cycle.

Figure 4.

ECM battery parameter estimation under HPPC cycle.

Calculated parameters are then fed to the SoC estimation algorithm. The estimation of $β$ and the current measurement are shown in Figures 5 and 6. Although the actual current bias does not change so drastically in EV applications,³¹ an extreme case is generated to test the performance of the algorithm. The maximum true bias reaches 120 mA in the dynamic stress test (DST) simulation, whereas it is around 250 mA in the HPPC test. In both scenarios, the algorithm accurately estimated $β$ . $β$ converges fast and minimises the effect of the initial error.

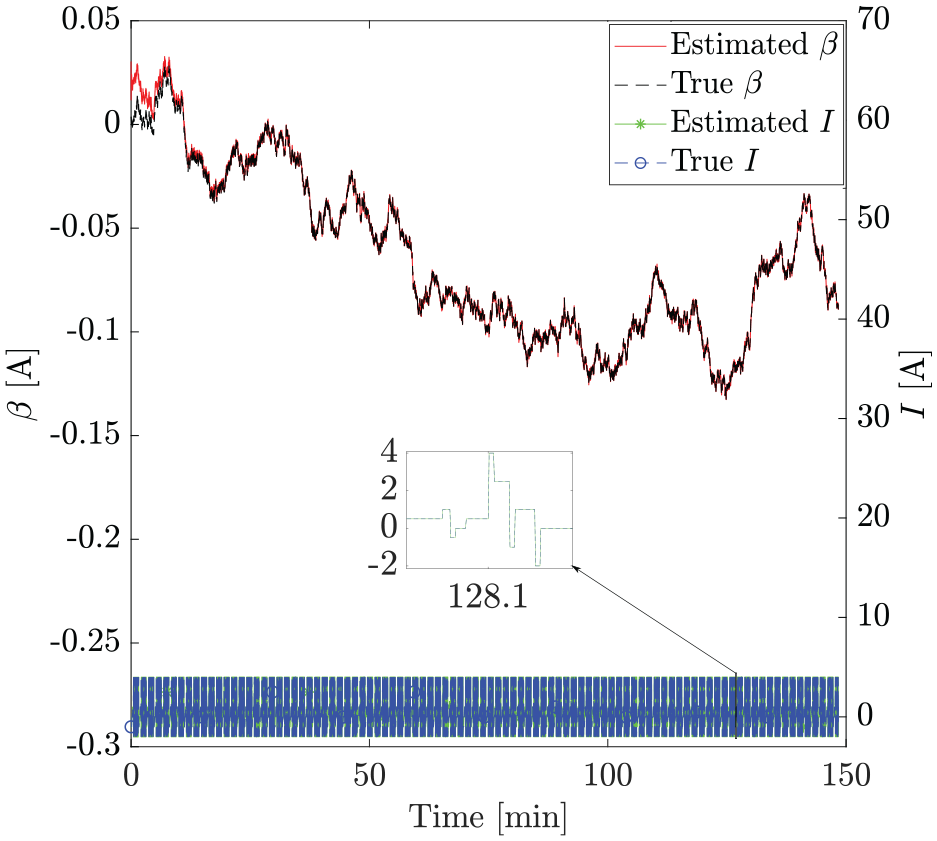

Figure 5.

Bias estimation results under DST cycle.

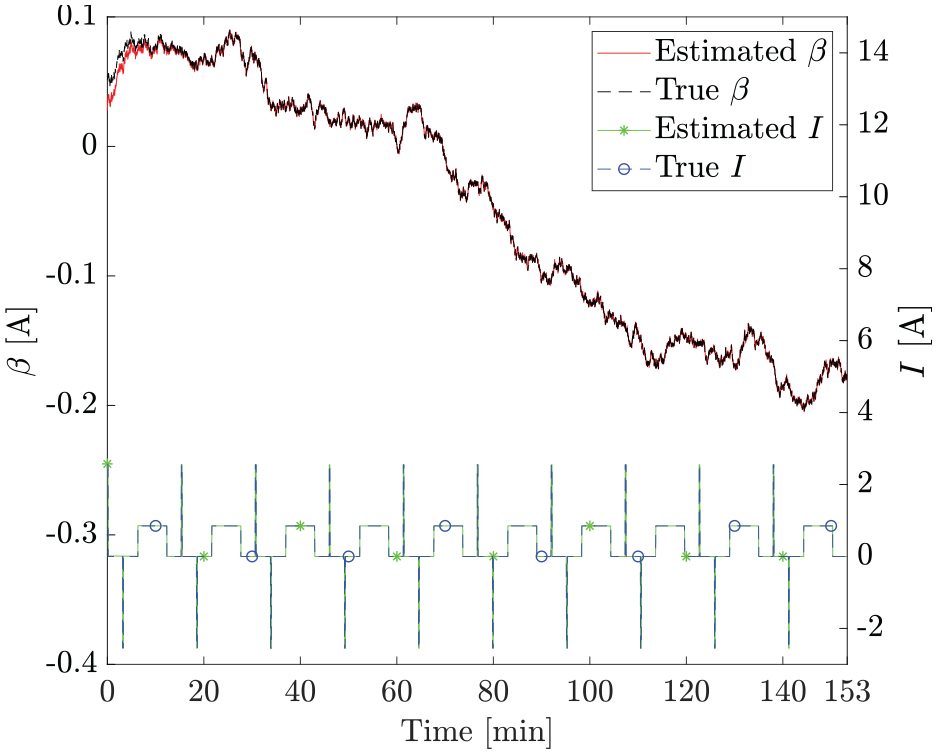

Figure 6.

Bias estimation results under HPPC cycle.

The results show that the proposed algorithm can estimate $β$ with reasonable accuracy without depending on the current input profile. Once the estimated $β$ is available, the bias measurement is corrected by subtracting $\hat{β}$ from $\tilde{I}$ .

Figures 7 and 8 show the SoC estimation under the measured current input and the corrected current input along with the current input estimations. The mean absolute error (MAE), root mean square error (RMSE) and maximum percentage error (MAXE) of the SoC estimation are used to quantify the performance of the proposed algorithm. The MAXE in SoC estimation is reduced from around 11.3% to 0.56% under the HPPC cycle. It is decreased from 7.2% to 0.78% under the DST cycle. The battery experiment is also conducted to validate the proposed algorithm.

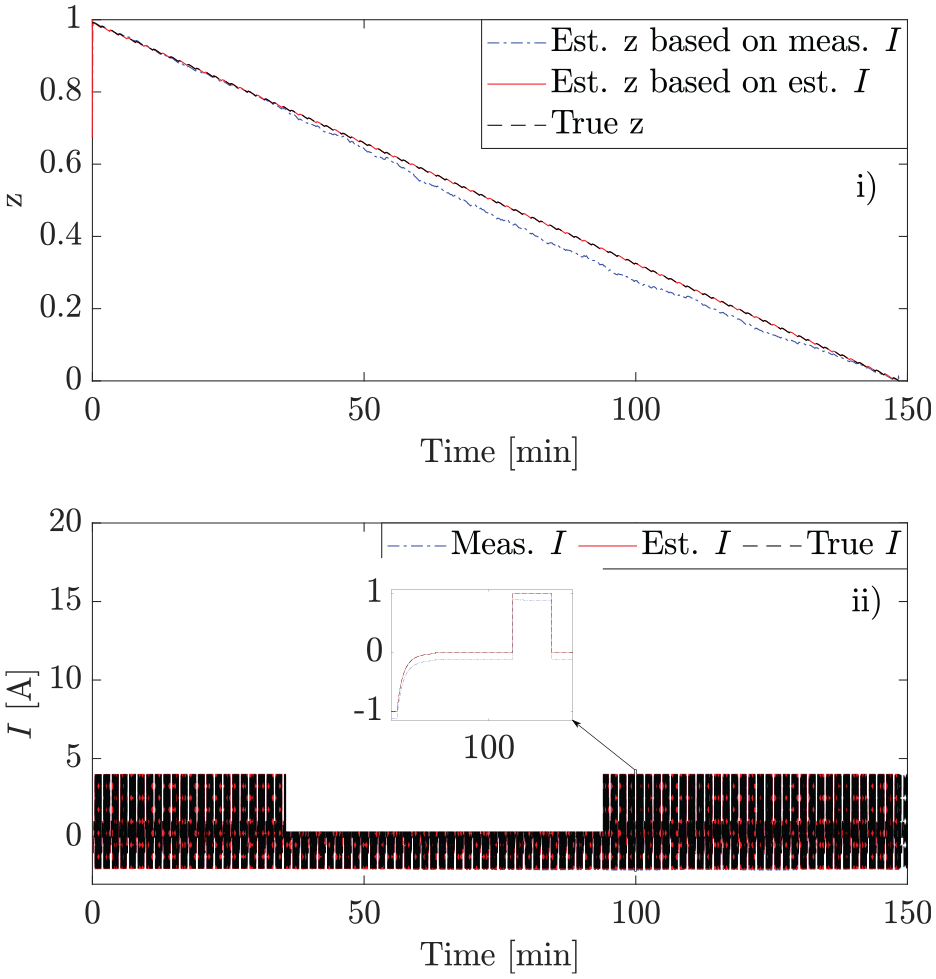

Figure 7.

SoC and I estimation results under DST cycle: (i) SoC estimation results and (ii) current measurement correction result.

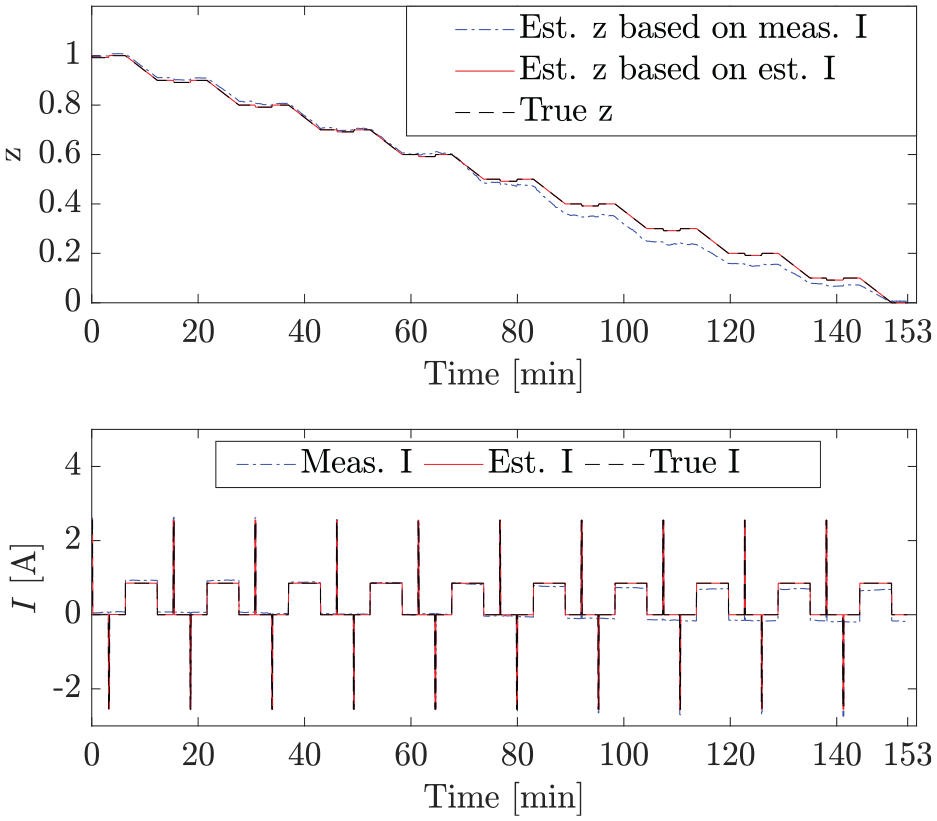

Figure 8.

SoC and I estimation results under HPPC cycle: (i) SoC estimation results and (ii) current measurement correction result.

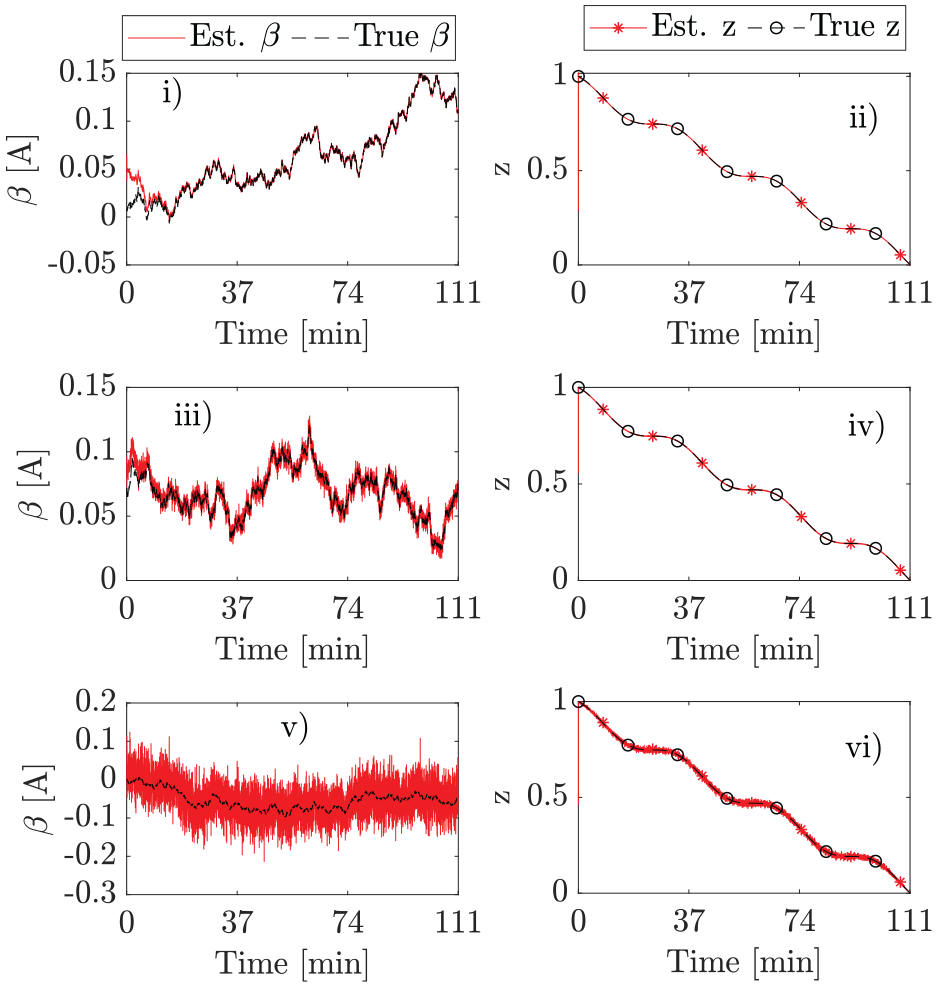

Figure 9 demonstrates $β$ and SoC estimation results under different noises in terms of the standard deviation in $v_{V}$ and $v_{i}$ . The results show that an increase in the standard deviation in $v_{V}$ and $v_{i}$ increases the fluctuations in the $β$ estimation. However, this increase does not have a significant effect on the estimated SoC values. It can be concluded that the proposed algorithm can remove the SoC error due to the current bias noise when the $V_{t}$ measurement has different noise variance values.

Figure 9.

$β$ and SoC estimation results with different white noise standard deviations in ${\tilde{V}}_{t}$ and $\tilde{I}$ : (i–ii) $β$ and SoC estimation results with $σ_{V} = 0.0005$ and $σ_{i} = 0.0005$ , (iii–iv) $β$ and SoC estimation results with $σ_{V} = 0.001$ and $σ_{i} = 0.001$ , (v–vi) $β$ and SoC estimation results with $σ_{V} = 0.01$ and $σ_{i} = 0.01$ .

Figure 10 shows the parameter estimation based on the battery experimental data. The parameters converge to their values fast. $R_{0}$ shows a stable value around $0.18 Ω$ until the battery is fully discharged. In comparison with $R_{0}$ , $R_{p}$ value increases dramatically at the end of the battery test. This is due to an increase in the residuals of the electrochemical reaction that takes place inside the battery. $C_{p}$ shows the opposite trend compared to $R_{p}$ because of the battery’s time constant. Figure 11 shows the SoC estimation result along with the beta estimation and corrected current measurement. The current drift is calculated at around 20 mA. However, it insignificantly changes around this magnitude due to the nonlinear relationship of the SoC–OCV curve. The current drift estimation result is similar to the one in Liu et al.³¹ The MAXE in SoC estimation is reduced from 1.74% to 1.12% in the battery experiment. Table 3 summarises MAE, RMSE and MAXE in SoC estimation for computer simulations and battery experiment. These results show that the proposed algorithm can successfully mitigate the input current measurement error. This significantly reduces the error in the SoC estimation. Results based on the experimental data validate the capability of the algorithm to adapt to real-world applications.

Figure 10.

Parameter estimation results by experiment.

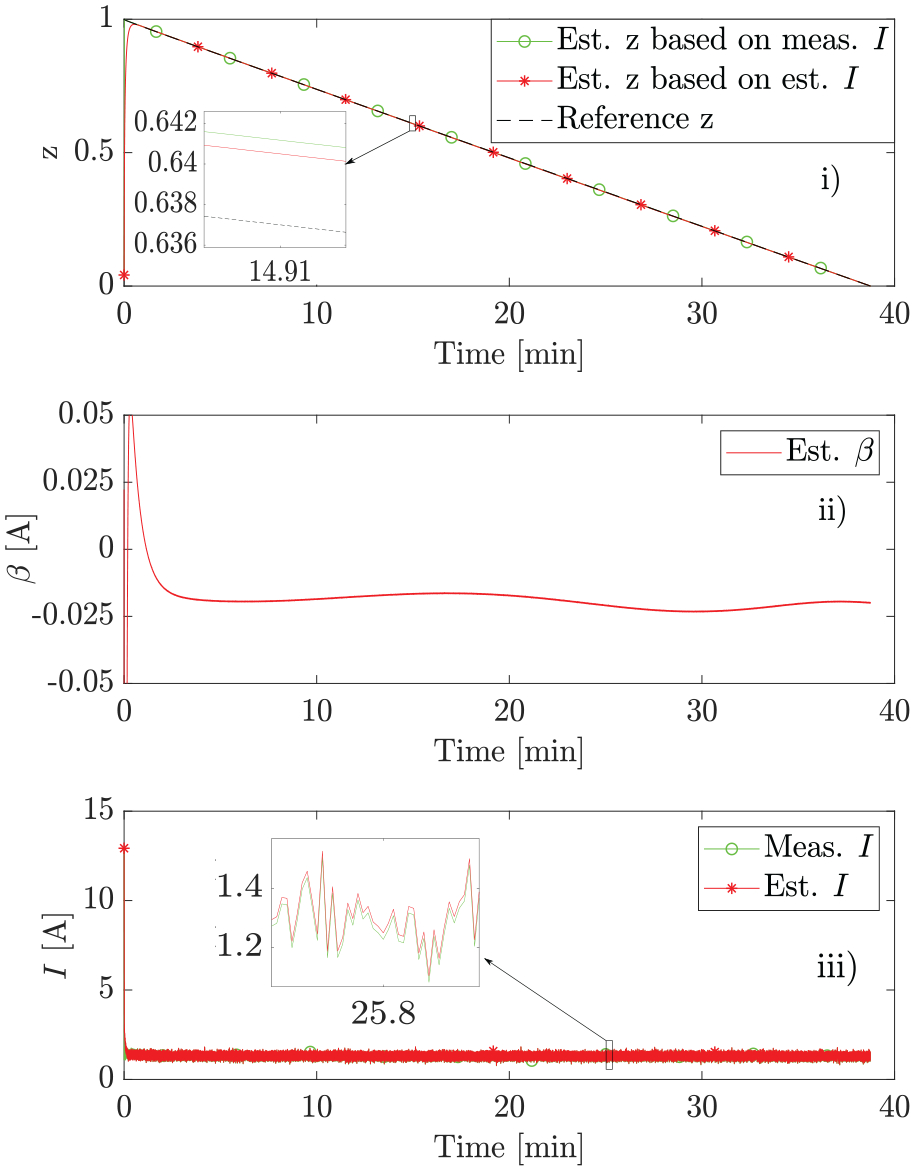

Figure 11.

SoC estimation results by experiment.

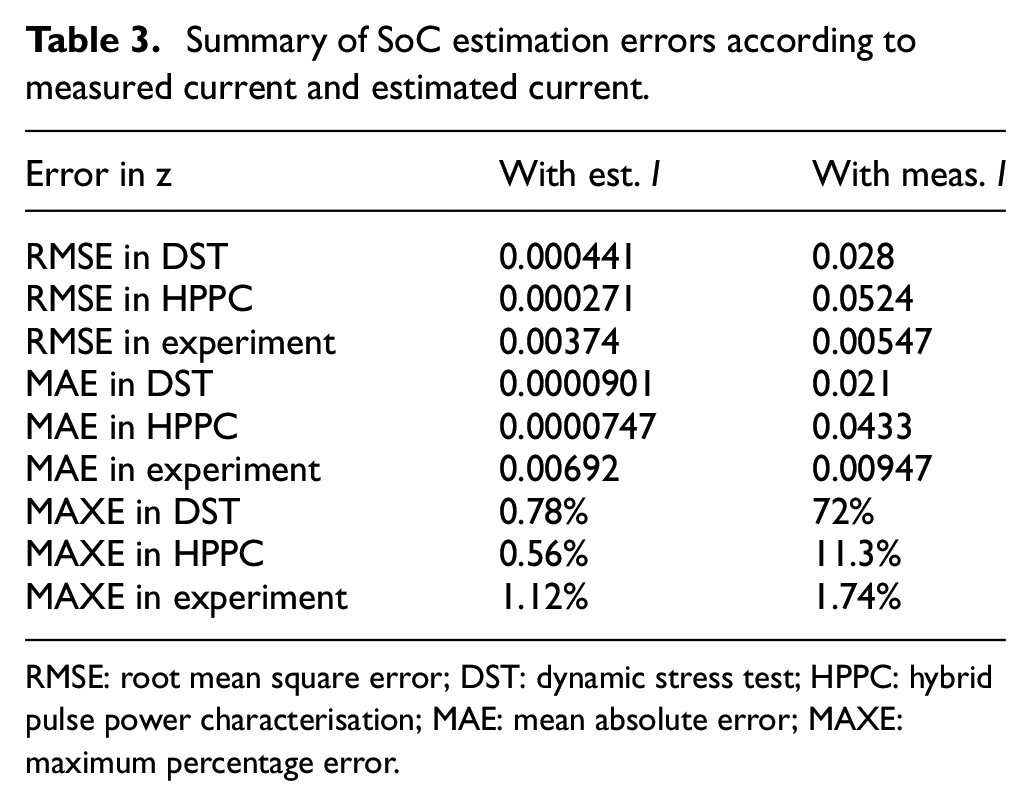

Table 3.

Summary of SoC estimation errors according to measured current and estimated current.

Error in z	With est. I	With meas. I
RMSE in DST	0.000441	0.028
RMSE in HPPC	0.000271	0.0524
RMSE in experiment	0.00374	0.00547
MAE in DST	0.0000901	0.021
MAE in HPPC	0.0000747	0.0433
MAE in experiment	0.00692	0.00947
MAXE in DST	0.78%	72%
MAXE in HPPC	0.56%	11.3%
MAXE in experiment	1.12%	1.74%

RMSE: root mean square error; DST: dynamic stress test; HPPC: hybrid pulse power characterisation; MAE: mean absolute error; MAXE: maximum percentage error.

Conclusion and future work

The corrupted current sensor measurements, variations in the operational conditions and battery depredation are inevitable in battery-powered applications. Unlike the majority of the SoC estimation algorithms in the literature, the current measurement is corrupted by two stochastic noises in practice. This deteriorates the SoC estimation accuracy, resulting in shorter battery pack life or passenger safety risks due to overcharging/overdischarging. This study proposes an online SoC estimation algorithm that mitigates the input current measurement noise. The method significantly reduces the SoC estimation error and increases the reliability of the BMS. The battery model parameters are estimated online using an adaptive law-based parameter estimation algorithm. The input current measurement is modelled by considering the following two noises: the zero-mean white noise $v_{i}$ with a known variance and the random walk bias noise $β$ . Moreover, the standard KF is modified according to the input current measurement model. The current input measurement is used in the state propagation and update equations. Hence, more accurate current input measurement leads to more reliable SoC estimation. The proposed algorithm accurately estimates the bias noise in the input current and corrects the input current measurement. The proposed algorithm is assessed by computer simulations and battery experiment. It is found that the proposed algorithm significantly mitigates the current measurement error source in SoC estimation and increases the SoC estimation accuracy. The current work presents an engineering practice and a theoretical framework for estimating the SoC based on noisy input current measurements. In conclusion, our work provides a more realistic understanding of the battery SoC estimation problem taking place in practice.

The future work will investigate the accuracy of $β$ estimation based on the difference between the calculated SoC–OCV model and the true SoC–OCV model by further computational simulations and battery experiments. The further battery experiments will be conducted in terms of the longer time duration to observe a larger current bias noise. Then, the performance of the proposed algorithm will be assessed based on this experimental data.

Footnotes

Acknowledgements

The authors thank the Republic of Türkiye Ministry of National Education for funding support for the first author’s PhD at the University of Leeds.

Authors’ contributions

O.K. made a contribution in algorithm design and implementation, performed the computer simulation and battery experiment, and participated in writing original draft, review and editing. J.K. made a contribution in algorithm design, review, editing and supervision.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship and/or publication of this article.

ORCID iD

Onur Kadem

Data availability

Data available on request from the authors.

References

Waag

Fleischer

Sauer

DU.

Critical review of the methods for monitoring of lithium-ion batteries in electric and hybrid vehicles. J Power Sourc 2014; 258: 321–339.

Zou

Küpper

, et al. Model-based state of charge estimation algorithms under various current patterns. Energ Proc 2009; 158: 2806–2811.

Cottis

RA.

4 – Electrochemical noise for corrosion monitoring. Techniq Corros Monit 2008; 2008: 86–110.

Yao

DDC

Lei

Rapid open-circuit voltage measurement method for lithium-ion batteries using one-cycle bipolar-current pulse. IEEE J Emerg Select Topic Ind Electron 2021; 2(2): 132–141.

Guo

Yang

Zhang

, et al. Online estimation of SOH for lithium-ion battery based on SSA-Elman neural network. Prot Control Mod Power Syst 2022; 7: 40.

Yang

, et al. Electrochemical impedance spectroscopy based on the state of health estimation for lithium-ion batteries. Energies 2022; 15(18): 6665.

Guo

Yang

Zhao

, et al. State of health estimation for lithium-ion battery based on Bi-directional long short-term memory neural network and attention mechanism. Energ Report 2022; 8: 208–215.

Doyle

Fuller

Newman

Modeling of galvanostatic charge and discharge of the lithium/polymer/insertion cell. J Electrochem Soc 1993; 140(6): 1526–1533.

Newman

Thomas-Alyea

KE.

Electrochemical systems. 3rd ed. Hoboken, NJ: John Wiley & Sons, 2004.

10.

Guo

Sikha

White

Single-particle model for a lithium-ion cell: thermal behavior. J Electrochem Soc 2011; 158: a122.

11.

Corno

Bhatt

Savaresi

, et al. Electrochemical model-based state of charge estimation for li-ion cells. IEEE Trans Control Syst Tech 2015; 23: 117–127.

12.

Feng

Yang

Zhao

, et al. Online identification of lithium-ion battery parameters based on an improved equivalent-circuit model and its implementation on battery state-of-power prediction. J Power Sourc 2015; 281: 192–203.

13.

Hossain

Haque

Saha

, et al. State of charge estimation of li-ion batteries based on adaptive extended Kalman filter. In: 2020 IEEE power energy society general meeting (PESGM), Montreal, QC, Canada, 2–6 August 2020, pp. 1–5. New York: IEEE.

14.

Cho

Lee

Kim

JH.

Analysis of the effect of the variable charging current control method on cycle life of li-ion batteries. Energies 2019; 2(15): 3023.

15.

Shi

Guo

Chen

Parameter identification method for lithium-ion batteries based on recursive least square with sliding window difference forgetting factor. J Energ Storag 2021; 44: 103485.

16.

Kou

Gong

Zhu

, et al. Parameter identification of battery model based on forgetting factor recursive least square method. In: 2018 IEEE 4th information technology and mechatronics engineering conference (ITOEC), Chongqing, China, 14–16 December 2018, pp. 1712–1715. New York: IEEE.

17.

Xia

Lao

Zhang

, et al. Online parameter identification and state of charge estimation of lithium-ion batteries based on forgetting factor recursive least squares and nonlinear Kalman filter. Energies 2018; 11: 10003.

18.

Zhu

Duan

Zhang

, et al. Co-estimation of model parameters and state-of-charge for lithium-ion batteries with recursive restricted total least squares and unscented Kalman filter. Appl Energ 2020; 277: 115494.

19.

Chaoui

Golbon

Hmouz

, et al. Lyapunov-based adaptive state of charge and state of health estimation for lithium-ion batteries. IEEE Trans Ind Electron 2015; 62(3): 1610–1618.

20.

Lagraoui

Doubabi

Rachid

Soc estimation of lithium-ion battery using Kalman filter and Luenberger observer: a comparative study. In: 2014 international renewable and sustainable energy conference (IRSEC), Ouarzazate, 17–19 October 2014, pp. 636–641. New York: IEEE.

21.

Zhou

, et al. State of charge estimation for lithium-ion batteries based on adaptive dual Kalman filter. Appl Math Model 2020; 77: 1255–1272.

22.

Huang

Wang

Zhao

, et al. Robustness evaluation of extended and unscented Kalman filter for battery state of charge estimation. IEEE Access 2018; 6: 27617–27628.

23.

Guo

Xiong

, et al. Model-based state-of-charge estimation approach of the lithium-ion battery using an improved adaptive particle filter. Energ Proc 2016; 103: 394–399.

24.

Zhang

Xia

, et al. A study on the open circuit voltage and state of charge characterization of high capacity lithium-ion battery under different temperature. Energies 2018; 11: 2408.

25.

Lee

Kim

Lee

, et al. State-of-charge and capacity estimation of lithium-ion battery using a new open-circuit voltage versus state-of-charge. J Power Sourc 2008; 185: 1367–1373.

26.

Shen

Ouyang

Han

, et al. Error analysis of the model-based state-of-charge observer for lithium-ion batteries. IEEE Trans Veh Tech 2018; 67(9): 8055–8064.

27.

Zheng

Ouyang

Han

, et al. Investigating the error sources of the online state of charge estimation methods for lithium-ion batteries in electric vehicles. J Power Sourc 2018; 377: 161–188.

28.

Chen

CC.

State of charge estimation of lithium-ion batteries in electric drive vehicles using extended Kalman filtering. IEEE Trans Veh Tech 2012; 62: 1020–1030.

29.

Liu

Song

, et al. Hybrid state of charge estimation for lithium-ion battery under dynamic operating conditions. Int J Electr Power Energ Syst 2019; 110: 48–61.

30.

Liu

Model-based sensor fault diagnosis of a lithium-ion battery in electric vehicles. Energies 2015; 8(7): 6509–6527.

31.

Liu

Chen

Zhang

, et al. A novel temperature-compensated model for power li-ion batteries with dual-particle filter state of charge estimation. Appl Energ 2014; 123: 263–272.

32.

Hou

Yang

Gao

A variational Bayes based state-ofcharge estimation for lithium-ion batteries without sensing current. IEEE Access 2012; 9: 84651–84665.

33.

Chun

Cho

Kim

Implementation of discharging/charging current sensorless state-of-charge estimator reflecting cell-to-cell variations in lithium-ion series battery packs. Int J Automot Tech 2026; 17: 909–916.

34.

Yan

Yang

Guo

Electric vehicle battery soc estimation based on fuzzy Kalman filter. In: 2013 2nd international symposium on instrumentation and measurement, sensor network and automation (IMSNA), Toronto, ON, Canada, 23–24 December 2013, pp. 863–866. New York: IEEE.

35.

Wang

Chen

Lin

, et al. Data-driven statistical analysis and diagnosis of networked battery systems. IEEE Trans Sustain Energ 2017; 8(3): 1177–1186.

36.

Chen

Tian

Wang

State-of-charge estimation of lithium-ion batteries subject to random sensor data unavailability: a recursive filtering approach. IEEE Trans Ind Electron 2022; 69(5): 5175–5184.

37.

Kitanidis

PK.

Unbiased minimum-variance linear state estimation. Automatica 1987; 23(6)): 775–778.

38.

Shu

Zhang

Shen

, et al. Unknown input and state estimation for linear discrete-time systems with missing measurements and correlated noises. Int J General Syst 2016; 45(5): 648–661.

39.

van Kampen

de Visser

, et al. Framework for state and unknown input estimation of linear time-varying systems. Automatica 2016; 73: 145–154.

40.

Xiao

, et al. Real-time peak power prediction for zinc nickel single flow batteries. J Power Sourc 2020; 448: 227346.

41.

Xiong

Cao

, et al. Critical review on the battery state of charge estimation methods for electric vehicles. IEEE Access 2018; 6: 1832–1843.

42.

Chen

Multi-objective optimization discharge method for heating lithium-ion battery at low temperatures. IEEE Access 2018; 6: 44036–44049.

43.

Wang

Zhang

, et al. Parameters identification of Thevenin model for lithium-ion batteries using self-adaptive particle swarm optimization differential evolution algorithm to estimate state of charge. J Energ Storage 2021; 44: 103244.

44.

Zheng

Xing

Jiang

, et al. Influence of different open circuit voltage tests on state of charge online estimation for lithium-ion batteries. Appl Energ 2016; 183: 513–525.

45.

Shu

Chen

Shen

, et al. State of charge estimation for lithium-ion battery based on hybrid compensation modeling and adaptive H-infinity filter. IEEE Trans Transp Electr 2022; 9: 945–957.

46.

Xiong

Guo

Online estimation of model parameters and state of charge of lifepo4 batteries in electric vehicles. Appl Energ 2012; 89(1): 413–420.

47.

Chaoui

Gualous

Adaptive state of charge estimation of lithium-ion batteries with parameter and thermal uncertainties. IEEE Trans Control Syst Tech 2017; 25(2): 752–759.

48.

Ioannou

Fidan

Adaptive control tutorial, society for industrial and applied mathematics. Philadelphia, PA: SIAM.

49.

Afshari

Attari

Ahmed

, et al. Reliable state of charge and state of health estimation using the smooth variable structure filter. Control Eng Practice 2018; 77: 1–14.

50.

Kadem

Kim

Real-time state of charge-open circuit voltage curve construction for battery state of charge estimation. IEEE Trans Veh Tech. Epub ahead of print 13 February 2023. DOI: 10.1109/TVT.2023.3244623.

51.

Kasdin

NJ.

Optimal estimation of dynamical systems, John L. Crassidis and John L. Junkins, Chapman & Hall/CRC, London, Boca Raton, 2004, ISBN 1-58488-391-X. Int J Robust Nonlin Control 2006; 16(7): 369–371.

52.

Jarraya

Masmoudi

Chabchoub

, et al. An online state of charge estimation for lithium-ion and supercapacitor in hybrid electric drive vehicle. J Energ Storage 2019; 26:0946.

Mitigation of state of charge estimation error due to noisy current input measurement

Abstract

Keywords

Introduction

Adaptive battery model identification

Equivalent circuit battery modelling

Online MPI

Test rig design

SoC–OCV nonlinear relationship

Current bias mitigation

SoC estimation

Simulations and results

Conclusion and future work

Footnotes

Acknowledgements

Authors’ contributions

Declaration of conflicting interests

Funding

ORCID iD

Data availability

References
