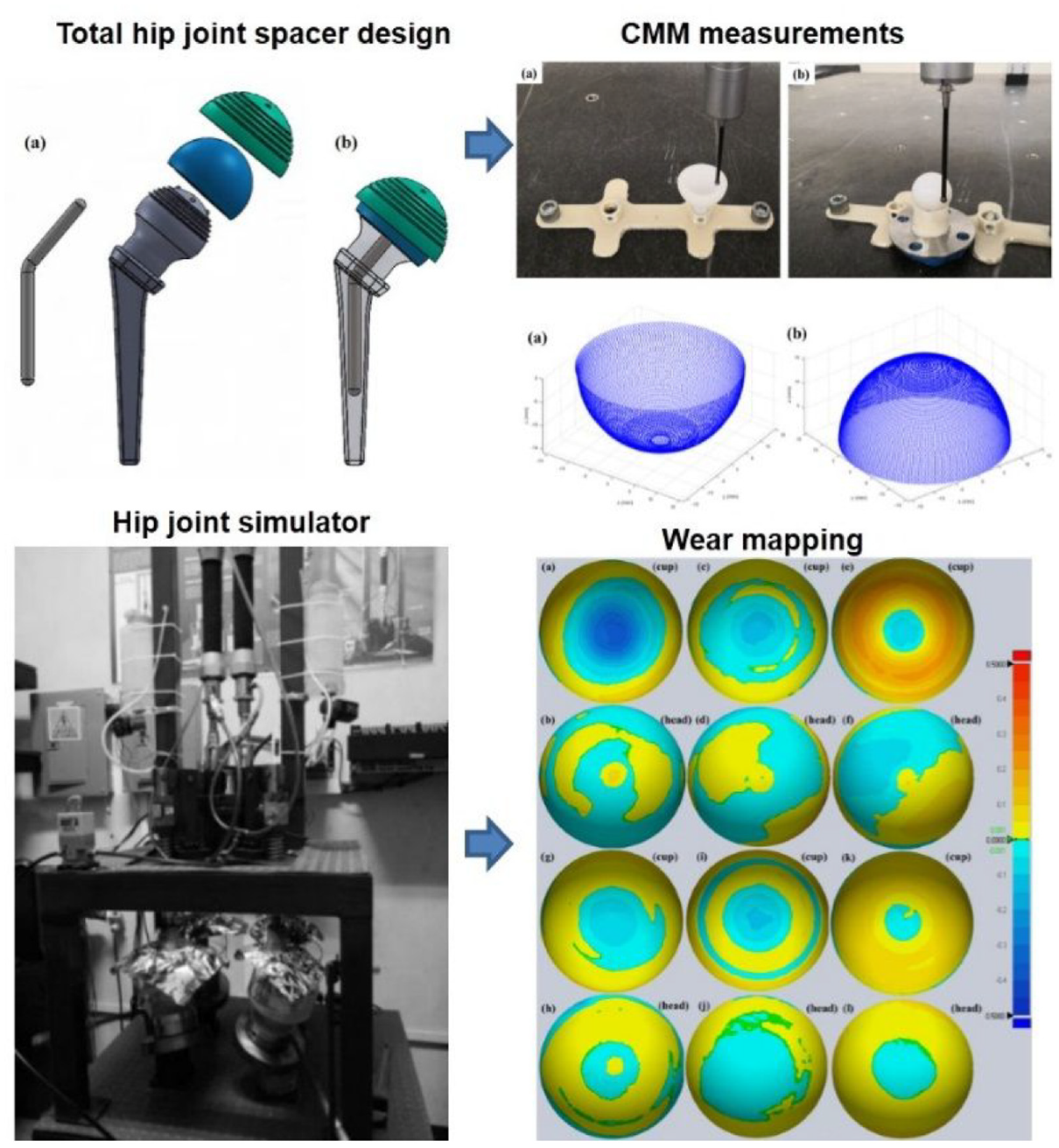

Temporary antibiotic-loaded cement spacers are widely used for treating chronic periprosthetic hip infections. The aim of this study is to evaluate the short-term tribological performance of ultra-high-molecular-weight polyethylene (UHMWPE) and (60Co) gamma-irradiated cross-linked UHMWPE (XLPE) self-mated systems as frictional pairs for temporary total hip spacers. A three-axial hip joint simulator, FIME II, was used to test the UHMWPE and XLPE self-mated systems under variable load profiles. A fetal bovine serum solution was used as a lubricant. After simulation tests, wear measurements of damaged coupled surfaces were made with a coordinate measuring machine. Finally, surfaces were characterized with scanning electron microscopy, Raman spectroscopy, Fourier transform infrared spectroscopy, and nanoindentation tests. The mass loss test results for UHMWPE were 11.91 ± 3.43 mg for the cups and 4.57 ± 0.92 mg for the heads. Whereas, the results for XLPE showed a significant reduction, with mean mass loss values of 6.59 ± 0.14 mg for the cups and 2.82 ± 0.59 mg for the heads, suggesting the viability of the self-mated XLPE contact pair for a temporary total hip spacer.
MossASMurphyLBHelmickCG, et al. Annual incidence rates of hip symptoms and three hip OA outcomes from a U.S. population-based cohort study: the Johnston County Osteoarthritis Project. Osteoarthr Cartil2016; 24: 1518–1527.
2.
Glyn-JonesSPalmerAJAgricolaR, et al. Osteoarthritis. Lancet2015; 386: 376–387.
3.
Maradit KremersHLarsonDRCrowsonCS, et al. Prevalence of total hip and knee replacement in the United States. J Bone Joint Surg Am2015; 97: 1386–1397.
4.
MurphyNJEylesJPHunterDJ.Hip osteoarthritis: etiopathogenesis and implications for management. Adv Ther2016; 33: 1921–1946.
5.
LearmonthIDYoungCRorabeckC.The operation of the century: total hip replacement. Lancet2007; 370: 1508–1519.
6.
LehilMSBozicKJ.Trends in total hip arthroplasty implant utilization in the United States. J Arthroplasty2014; 29: 1915–1918.
7.
KurtzSOngKLauE, et al. Projections of primary and revision hip and knee arthroplasty in the United States from 2005 to 2030. J Bone Joint Surg Am2007; 89: 780–785.
8.
KurtzSMLauEOngK, et al. Future young patient demand for primary and revision joint replacement: national projections from 2010 to 2030. Clin Orthop Relat Res2009; 467: 2606–2612.
9.
VinaERKwohCK.Epidemiology of osteoarthritis: literature update. Curr Opin Rheumatol2018; 30: 160–167.
10.
GwamCUMistryJBMohamedNS, et al. Current epidemiology of revision total hip arthroplasty in the United States: national inpatient sample 2009 to 2013. J Arthroplasty2017; 32: 2088–2092.
11.
BroomfieldJAJMalakTTThomasGER, et al. The relationship between polyethylene wear and periprosthetic osteolysis in total hip arthroplasty at 12 years in a randomized controlled trial cohort. J Arthroplasty2017; 32: 1186–1191.
12.
DionNTBragdonCMuratogluO, et al. Durability of highly cross-linked polyethylene in total hip and total knee arthroplasty. Orthop Clin North Am2015; 46: 321–327, ix.
13.
KuzykPRDhotarHSSternheimA, et al. Two-stage revision arthroplasty for management of chronic periprosthetic hip and knee infection: techniques, controversies, and outcomes. J Am Acad Orthop Surg2014; 22: 153–164.
14.
GomezMMTanTLManriqueJ, et al. The fate of spacers in the treatment of periprosthetic joint infection. J Bone Joint Surg Am2015; 97: 1495–1502.
15.
CharetteRSMelnicCM.Two-stage revision arthroplasty for the treatment of prosthetic joint infection. Curr Rev Musculoskelet Med2018; 11: 332–340.
16.
D’AngeloFNegriLBindaT, et al. The use of a preformed spacer in two-stage revision of infected hip arthroplasties. Musculoskelet Surg2011; 95: 115–120.
17.
KimYKatsuraYKasaharaN, et al. Temporary total hip arthroplasty-like spacer for treating an infected periprosthetic femoral fracture using a long stem: a case report. Int J Surg Case Rep2017; 34: 115–118.
18.
AnagnostakosK.Therapeutic use of antibiotic-loaded bone cement in the treatment of hip and knee joint infections. J Bone Jt Infect2017; 2: 29–37.
19.
CarnelliDVillaTGastaldiD, et al. Predicting fatigue life of a PMMA based knee spacer using a multiaxial fatigue criterion. J Appl Biomater Biomech2011; 9: 185–192.
20.
UchiyamaKTakahiraNFukushimaK, et al. Two-stage revision total hip arthroplasty for periprosthetic infections using antibiotic-impregnated cement spacers of various types and materials. Sci World J2013; 2013: 1–7.
21.
HofmannAAGoldbergTDTannerAM, et al. Ten-year experience using an articulating antibiotic cement hip spacer for the treatment of chronically infected total hip. J Arthroplasty2005; 20: 874–879.
22.
DowsonDHardakerCFlettM, et al. A hip joint simulator study of the performance of metal-on-metal joints: part II: design. J Arthroplasty2004; 19: 124–130.
23.
TrommerRMMaruMM.Importance of preclinical evaluation of wear in hip implant designs using simulator machines. Rev Bras Ortop2017; 52: 251–259.
24.
Ortega-SáenzJAHernández-RodríguezMAPérez-UnzuetaA, et al. Development of a hip wear simulation rig including micro-separation. Wear2007; 263: 1527–1532.
25.
Alvarez-VeraMOrtega-SaenzJAHernandez-RodríguezMA.A study of the wear performance in a hip simulator of a metal–metal Co–Cr alloy with different boron additions. Wear2013; 301: 175–181.
26.
ISO. 14242-1:2014. Implants for surgery-wear of total hip-joint prostheses–part 1: loading and displacement parameters for wear-testing machines and corresponding environmental conditions for test.
27.
DiabbJJuarez-HernandezAReyesA, et al. Failure analysis for degradation of a polyethylene knee prosthesis component. Eng Fail Anal2009; 16: 1770–1773.
28.
AzamAMAliAKhanH, et al. Analysis of degradation in UHMWPE a comparative study among the various commercial and laboratory grades UHMWPE. IOP Conf Ser Mater Sci Eng2015; 146: 012025.
29.
ForsterALTsinasZAl-SheikhlyM.Effect of irradiation and detection of long-lived polyenyl radicals in highly crystalline ultra-high molar mass polyethylene (UHMMPE) fibers. Polymers Basel2019; 11: 924.
30.
PezzottiGKumakuraTYamadaK, et al. Confocal Raman spectroscopic analysis of cross-linked ultra-high molecular weight polyethylene for application in artificial hip joints. J Biomed Opt2007; 12: 014011.
31.
TaddeiPDi FoggiaMAffatatoS.Raman characterisation of conventional and cross-linked polyethylene in acetabular cups run on a hip joint simulator. J Raman Spectrosc2011; 42: 1344–1352.
32.
AffatatoSZavalloniMTaddeiP, et al. Comparative study on the wear behaviour of different conventional and cross-linked polyethylenes for total hip replacement. Tribol Int2008; 41: 813–822.
33.
UddinMSMakCYCallarySA.Evaluating hip implant wear measurements by CMM technique. Wear2016; 364–365: 193–200.
34.
SodhiNKhlopasASultanAA, et al. Linear wear rates of a highly cross-linked polyethylene hip liner. Surg Technol Int2018; 33: 265–270.
35.
CowieRMBriscoeAFisherJ, et al. Wear and friction of UHMWPE-on-PEEK optima™. J Mech Behav Biomed Mater2019; 89: 65–71.
36.
ChangYLeeMSLiauJJ, et al. Polyethylene-based knee spacer for infection control: design concept and pre-clinical in vitro validations. Polymers2020; 12: 2334.
37.
AffatatoSForoniFMerolaM, et al. Preliminary results of the tribological performance of new modular temporary knee spacer antibiotic-impregnated. J Mech Behav Biomed Mater2019; 95: 205–209.
38.
Rama SreekanthPSKanagarajS. Assessment of bulk and surface properties of medical grade UHMWPE based nanocomposites using nanoindentation and microtensile testing. J Mech Behav Biomed Mater2013; 18: 140–151.
39.
ParkKMishraSLewisG, et al. Quasi-static and dynamic nanoindentation studies on highly crosslinked ultra-high-molecular-weight polyethylene. Biomaterials2004; 25: 2427–2436.
40.
BraccoPBellareABistolfiA, et al. Ultra-high molecular weight polyethylene: influence of the chemical, physical and mechanical properties on the wear behavior. A review. Materials2017; 10(7): 791.
41.
SaikkoV.Effect of type of contact, counterface surface roughness, and contact area on the wear and friction of extensively cross-linked, vitamin E stabilized UHMWPE. J Biomed Mater Res B Appl Biomater2020; 108: 1985–1992.
42.
SaikkoVMoradOViitalaR.Effect of temperature on UHMWPE and VEXLPE friction and wear against CoCr in noncyclic tests. Wear2022; 490–491: 204190.
43.
AffatatoSRuggieroAJaberSA, et al. Wear behaviours and oxidation effects on different UHMWPE acetabular cups using a hip joint simulator. Materials2018; 11: 433.
44.
MerolaMAffatatoS.Materials for hip prostheses: a review of wear and loading considerations. Materials2019; 12: 495.
45.
LiuSLiQWangJ, et al. Study on the post-irradiation oxidation of polyethylenes using EPR and FTIR technique. Polym Degrad Stab2022; 196: 109846.
46.
NayakCBalaniK.Effects of reinforcements and gamma-irradiation on wear performance of ultra-high molecular weight polyethylene as acetabular cup liner in hip-joint arthroplasty: a review. J Appl Polym Sci2021; 138(43): 51275.
47.
PaladuguSRMSreekanthR. Influence of gamma radiation on wear and oxidation properties of cross-linked UHMWPE components used in total knee arthroplasty - a review. Mater Today Proc2022; 56: 1097–1102.
