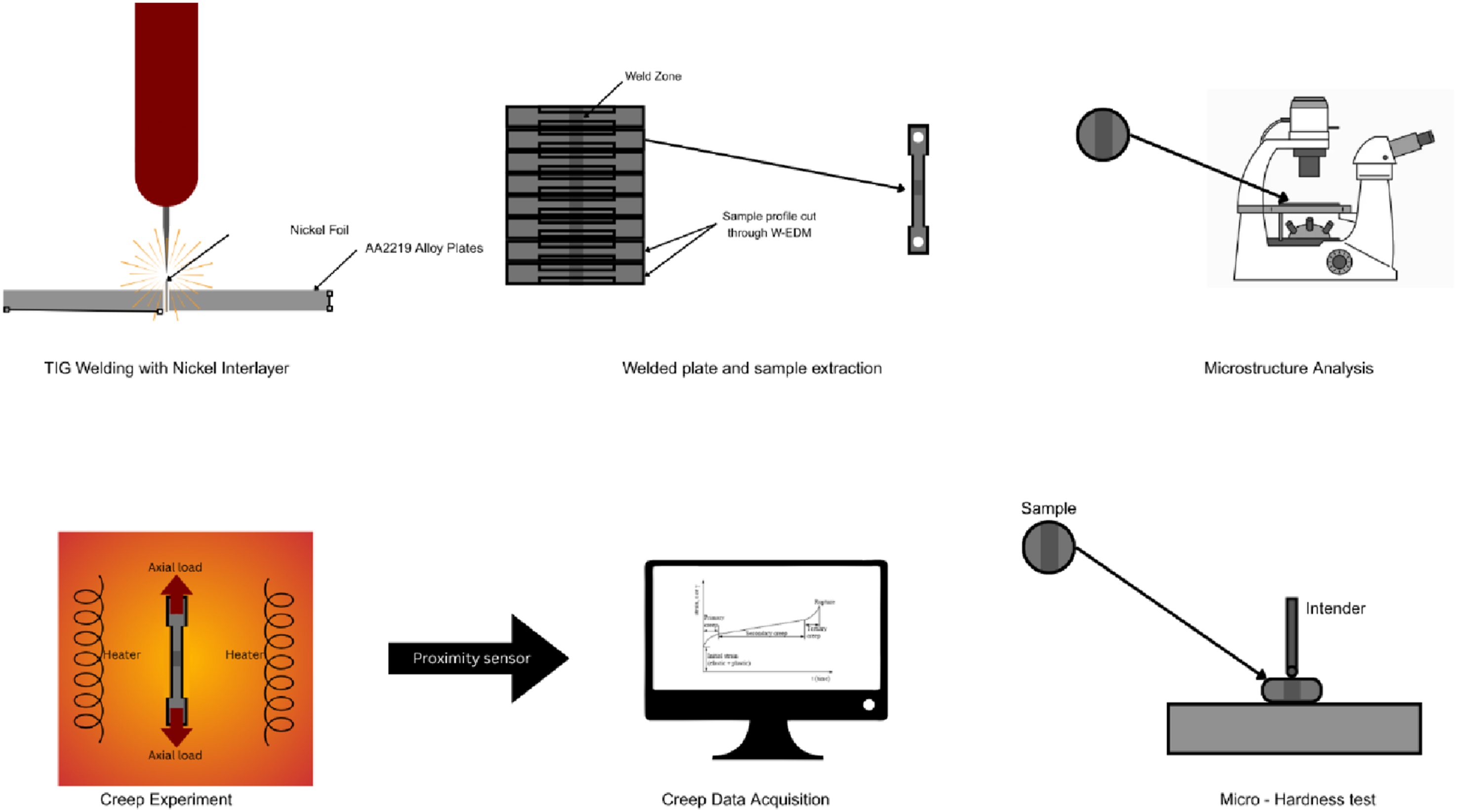

This study investigates the influence of a nickel interlayer on the microstructure, mechanical properties, and creep performance of Tungsten Inert Gas (TIG)-welded AA2219 aluminum alloy, widely used in aerospace structures. A novel welding approach was employed by inserting 99.9% pure nickel foil between solution-treated AA2219 plates to enhance joint integrity. Optimized TIG welding trials were conducted under both single-pass and double-pass weld conditions, followed by comprehensive microstructural characterization, Vicker’s microhardness measurements, and thermo-static creep testing at 300°C under varying stress levels. The nickel interlayer promoted the formation of intermetallic compounds, including Al2Cu and Al2Ni, which refined the weld-zone grains and improved mechanical performance. The weld nugget exhibited a 25.18% increase in microhardness (94 HV) compared to the base material (70 HV). In creep testing, double-pass welds sustained 70 MPa with 2.71 mm elongation, representing a ∼20-fold improvement over single-pass welds. The findings demonstrate that nickel interlayers enhance weld texture, reduce defects, and improve directional strength, offering promising benefits for high-stress aerospace applications.
BalajiSMahapatraMM. Experimental study and modeling of friction stir welding process to produce optimized AA2219 butt welds for aerospace application. Proc IME B J Eng Manufact2013; 227(1): 132–143.
2.
JhaAKMurtySNSreekumarK, et al.High strain rate deformation and cracking of AA 2219 aluminium alloy welded propellant tank. Eng Fail Anal2009; 16(7): 2209–2216.
3.
LiHZouJYaoJ, et al.The effect of TIG welding techniques on microstructure, properties and porosity of the welded joint of 2219 aluminum alloy. J Alloys Compd2017; 727: 531–539.
4.
LinYWangDWangM, et al.Effect of different pre-and post-weld heat treatments on microstructures and mechanical properties of variable polarity TIG welded AA2219 joints. Sci Technol Weld Join2016; 21(3): 234–241.
5.
MalarvizhiSBalasubramanianV. Effect of welding processes on AA2219 aluminium alloy joint properties. Trans Nonferrous Metals Soc China2011; 21(5): 962–973.
6.
NairBSPhanikumarGPrasad RaoK, et al.Improvement of mechanical properties of gas tungsten arc and electron beam welded AA2219 (Al–6 wt-% cu) alloy. Sci Technol Weld Join2007; 12(7): 579–585.
7.
ZengTZhouY. Effects of ultrasonic introduced by L-shaped ceramic sonotrodes on microstructure and macro-segregation of 15t AA2219 aluminum alloy ingot. Materials2019; 12(19): 3162.
8.
DubeyYSharmaPSinghMP. Effect of TIG welding on Al alloy, Mg alloy, and stainless steel-a review. Int J Mech Eng2022; 7(3): 808–821.
9.
AhmadiEEbrahimiAHoseinzadehA. Microstructure evolution and mechanical properties of 2219 aluminum alloy A–TIG welds. Phys Met Metallogr2020; 121: 483–488.
10.
NarayanaGVSharmaVDiwakarV, et al.Fracture behaviour of aluminium alloy 2219–T87 welded plates. Sci Technol Weld Join2004; 9(2): 121–130.
11.
NyrkovaLOsadchukSLaburT, et al.Comparative studies of the properties of heat-treated welded joints of AA2219 alloy. Metallofiz Noveishie Tekhnol2023; 45(5): 615–630.
12.
PrasadGSSharmilaTSrinivasaRaoK, et al.Effect of welding process on microstructure, mechanical properties and corrosion behavior of AA2519 Al-alloy. AIP Conf Proc2021; 2395: 1, AIP Publishing.
13.
ChenS-GZhangY-DWuQ, et al.Residual stress relief for 2219 aluminum alloy weldments: a comparative study on three stress relief methods. Metals2019; 9(4): 419.
14.
HanCJiangPGengS, et al.Ultra grain refinement and mechanical properties improvement of all-weld-metal for medium-thick Al-Li alloy via laser beam oscillation and in-situ alloying. Opt Laser Technol2024; 168: 109965.
15.
FarajiAHMoradiMGoodarziM, et al.An investigation on capability of hybrid nd: YAG laser-TIG welding technology for AA2198 Al-Li alloy. Opt Laser Eng2017; 96: 1–6.
16.
ZhouYLinXKangN, et al.Mechanical properties and precipitation behavior of the heat-treated wire+ arc additively manufactured 2219 aluminum alloy. Mater Char2021; 171: 110735.
17.
HuangCLiHLiJ, et al.Residual stress measurement on propellant tank of 2219 aluminum alloy and study on its weak spot. J Mech Sci Technol2017; 31: 2213–2220.
18.
WangDZhanLLiuC, et al.Study on creep aging behavior of the friction stir welded Al-Li alloy joints under different stresses. Mater Char2024; 210: 113763.
19.
YangXMengTSuY, et al.Investigation on reducing residual stress and optimizing performance of 2219 aluminum alloy friction stir welded joint by cold spraying. J Manuf Process2024; 119: 87–97.
20.
ShaoMWangDHuangC, et al.Study on the properties of a 2219 aluminum alloy friction stir-welded joint under the biaxial stress state. Metals2023; 13(11): 1838.
21.
RaoSKReddyGMRaoKP. Effects of thermo-mechanical treatments on mechanical properties of AA2219 gas tungsten arc welds. Journal of Materials Processing Technology2008; 202(1–3): 283–289.
22.
SeshagiriPNairBSReddyG, et al.Improvement of mechanical properties of aluminium–copper alloy (AA2219) GTA welds by Sc addition. Sci Technol Weld Join2008; 13(2): 146–158.
23.
VenugopalASreekumarKRajaV. Effect of repair welding on electrochemical corrosion and stress corrosion cracking behavior of TIG welded AA2219 aluminum alloy in 3.5 wt pct NaCl solution. Metall Mater Trans A2010; 41: 3151–3160.
24.
DeepakDVChavaliAAmruthP, et al. Low-temperature creep performance of additive manufactured Ti–6Al–4 V. Mater Test. 2024; 66(7): 1095–1103.
25.
VigneshRVPadmanabanR. Artificial neural network model for predicting the tensile strength of friction stir welded aluminium alloy AA1100. Mater Today Proc2018; 5(8): 16716–16723.
26.
SrikanthCVigneshRVPadmanabanR. Investigations on the effect of cyclic heat treatment on the mechanical properties of friction stir welded aluminum alloys (AA5052 & AA6061). Russ J Non-Ferrous Metals2021; 62: 692–707.
27.
JaganathDRamasubramanianMGovindarajuM, et al.Investigations on the influence of hot rolling on the creep characteristics of additively manufactured Mg-5Ag alloy. Eng Res Express2024; 6(3): 035539.
28.
RaoAUVasuVGovindarajuM, et al.Stress corrosion cracking behaviour of 7xxx aluminum alloys: a literature review. Trans Nonferrous Metals Soc China2016; 26(6): 1447–1471.
29.
WeeksMD. Design and environmental factors contributing to the failure of thermal barrier coating systems. University of California, 2011.
30.
SoysalT. A criterion to find crack-resistant aluminium alloys to avoid solidification cracking. Sci Technol Weld Join2021; 26(2): 99–105.
31.
WangYCongBQiB, et al.Process characteristics and properties of AA2219 aluminum alloy welded by double pulsed VPTIG welding. J Mater Process Technol2019; 266: 255–263.
32.
WangYLiHLiZ, et al.Refining microstructure of medium-thick AA2219 aluminium alloy welded joint by ultrasonic frequency double-pulsed arc. Journal of Materials Research and Technology2023; 23: 3048–3061.
33.
ArunkumarSSathiyaPDevakumaranK, et al.Microstructural and mechanical characterization of as weld and aged conditions of AA2219 aluminium alloy by gas tungsten arc welding process. Russ J Non-Ferrous Metals2018; 59: 93–101.
34.
WangYQiBCongB, et al.Keyhole welding of AA2219 aluminum alloy with double-pulsed variable polarity gas tungsten arc welding. J Manuf Process2018; 34: 179–186.
35.
ZhangDWangGWuA, et al.Study on the inconsistency in mechanical properties of 2219 aluminium alloy TIG-welded joints. J Alloys Compd2019; 777: 1044–1053.
