Abstract

Open architecture provides a sustainable product framework for mass personalised production. Applying personalised modules and common interfaces, an open-architecture product can satisfy changes in the user requirements of an application. Planning product modules for the open-architecture product structure using the existing method is challenging. The quality function deployment is extended in this study to decide the open-architecture product module types. The customer requirements are divided into two parts: basic function needs and changes of the individual customer needs. Based on the axiomatic design, the functional requirements are mapped into design parameters to establish the design matrix. A degree of variety is proposed as a quantitative measure for the component variability of product modules. According to the relationship of components and degree of variety, the product components are clustered into open-architecture product modules. The proposed method is used to design a paper-bag-folding machine to satisfy requirement changes during the machine application.

Keywords

Machine design open-architecture product quality function deployment adaptable design modular design

Introduction

Market competition and economic globalisation have been the driving forces of product innovation to satisfy various consumer requirements. Industries must develop products with variable functions and low cost to satisfy the user needs. The development of new technologies in data management and manufacturing process, such as 3D printing, 3D scanning, and cloud manufacturing, provides the opportunity for industries to develop products for individual user needs.

Industrial product has experienced development stages of mass production and mass customisation. The personalised product is a trend to satisfy the global competition for individual user preference, which requires a new concept of product development. Open-architecture products (OAPs) intend to develop personalised products using existing manufacturing technologies of mass production and mass customisation.

A typical OAP consists of three types of functional modules: common platform modules, customised modules, and personalised modules, as shown in Figure 1. The common platform modules are designed and made by manufacturers using mass production methods. The customised modules are designed and made by producers using mass customisation methods for customer choice in the purchasing process. The personalised modules are proposed, made, or purchased by the users. Therefore, an OAP is a product whose function can be changed in the product use stage. When a product user changes the requirements, the user can add or replace personalised modules from different sources to the existing OAP to satisfy the changing need.

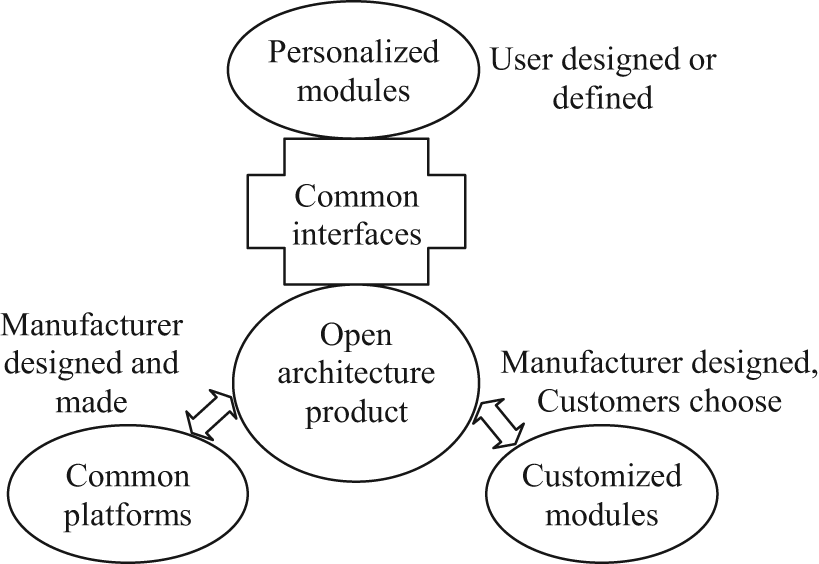

Figure 1.

Open-architecture product.

Paper-bags are commonly used as grocery containers. There are different demands for paper-bags in the market. Figure 2 shows a paper-bag-folding machine to fold the bag bottom after the bonding to improve the bag bottom strength. The existing paper-bag-folding machine is designed as an integral structure. One machine can only be used for one type of bag. Different machines are required to fold different bottom sizes or shapes of the bag, which increases the machine application cost. The machine users expect that the machine can adapt to the requirements of different bags. This study proposes the development of a paper-bag-folding machine using the open architecture to satisfy the user requirement.

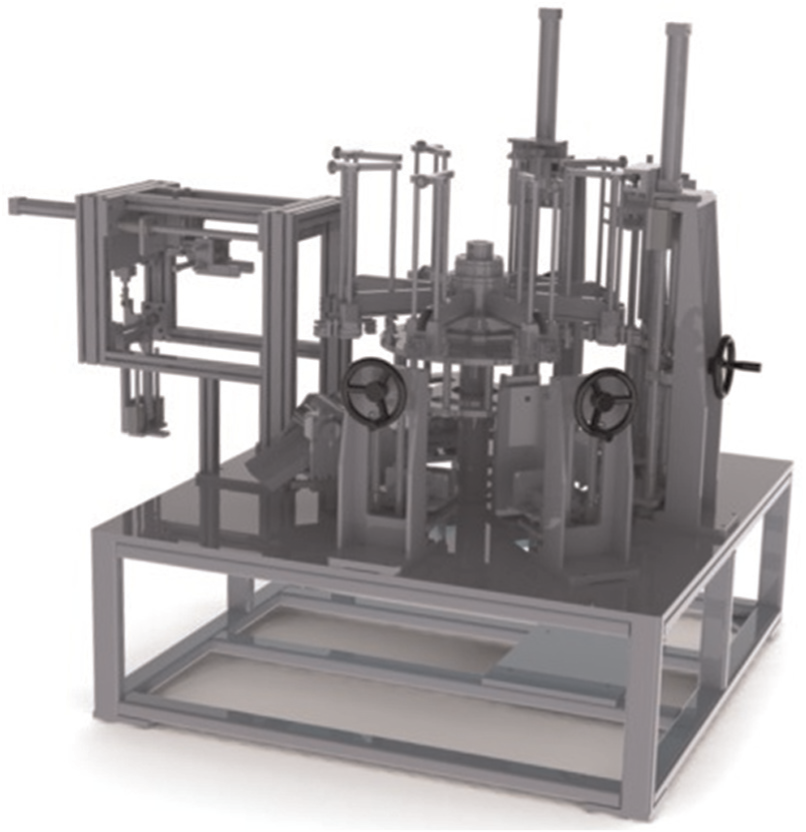

Figure 2.

Paper-bag-folding machine.

Because modularity and commonality are two important factors for a product to adopt the open architecture, this study searches for an efficient method to decide the modularity and commonality of the paper-bag-folding machine. System modularity consists of different functional modules of the machine with independent function structures using a modular design to enable the extendable and upgradable abilities of the machine. Commonality allows personalised modules from different sources to be used in the machine. A machine with an open architecture will have expandability, adaptability, and sustainability, which are enabled by the correct modularity and commonality. Therefore, the machine modules are clustered based on OAP module functions, with an appropriate configuration of modules to satisfy changes to the machine application driven by user requirements. However, the existing methods for module clustering are mainly for product families and platform design. There is no feasible solution for the structure planning of OAPs. Module-planning methods must be developed to use open architecture in the paper-bag-folding machine.

This article introduces methods of integrating extended quality function deployment (QFD) and axiomatic design (AD) for OAP module planning to satisfy the user requirement change. The degree of variety (DV) is expanded as a quantitative measure for various components to decide the difference of OAP functional modules. Then, the paper-bag-folding machine is designed using open architecture to satisfy the changing requirements of the machine’s applications. The remainder of this article is organised as follows. The next section reviews related research on the product structure, QFD, AD, and modular design to identify available methods and areas for improvement. Section ‘Module planning for OAPs’ introduces the proposed module-planning method for OAPs. The development of the paper-bag-folding machine using open architecture is discussed in section ‘Module planning for a paper-bag-folding machine’. Section ‘Applications of the paper-bag folding machine with the open architecture’ introduces different applications of the paper-bag-folding machine to satisfy requirement changes using open architecture, and section ‘Conclusion and further work’ includes the conclusions and future work.

Related research

Personalisation is an emerging manufacturing paradigm to satisfy various requirements of product users. Design in the context of mass personalisation searches for cost-effective solutions for personalised-product development.¹ The existing product structure cannot satisfy the personalised-product requirement with a cost-effective solution.² An appropriate product architecture is required to satisfy the user requirement change without increasing the product cost.^3,4

Open architecture is proposed as an appropriate framework for a product to satisfy personalised requirements. OAPs allow the adoption of personalised function modules in an original product for the individual need. An OAP concept was proposed in a keynote of the College International pour la Recherche en Productique (CIRP) 2013 annual as a new product structure,⁵ which introduces product upgrading ability to the users. The users can add or replace product function modules to satisfy personalised requirements. An important feature of OAPs is their open interface to the public. Product components that are made by other manufacturers can be applied to OAPs.⁶

Personalised modules can be made by different manufacturers. The users at the point of product application require personalised modules and interfaces to offer easy assembly and disassembly.^5,7 Open architecture can reduce complex interactions among the structural elements to improve the performance and reliability of a system or product. Ferrer⁸ discussed the use of open architecture for the inventory allocation in F-16 operations and concluded that the adoption of open architecture could benefit the industry with reduced costs in product development, production, storage, training, and maintenance.

A study of the product architecture evolution based on the history of Fanuc numerical controllers found that development of product architecture normally follows a trend of the integral architecture, modular architecture, and subsequently open architecture.⁶ Koren et al.⁹ proposed open controller architecture for manufacturing systems in the 1990s. Wright¹⁰ suggested that open-architecture manufacturing was an enabling technology for agile manufacturing and computer-integrated manufacturing systems. Yamazaki et al.¹¹ developed a TRUE-CNC controller using open architecture for transparent, transportable, transplantable, revivable, user-reconfigurable, and evolving abilities. Open architecture enabled the integration of CNC systems and computer-aided design (CAD) graph-driven technologies¹² and efficient business management.¹³

Aziz et al.¹⁴ believed that open architecture could assist collaborative product development and knowledge management in small- and medium-sized enterprises by improving non-customisable data models and inter-enterprise integration in product life cycle management. Open architecture is also applied in the modelling and simulation of hazard assessment to rapidly and easily modify the model to control temperature conditions in the reactor.¹⁵

However, open architecture is commonly applied in computer software¹⁶ and control systems.¹⁷ It is challenging to apply open architecture to mechanical products due to their complex mechanical structure. The existing literature mainly discusses conceptual proposals and prospective studies. Most existing studies on product architecture compare the performance of modular architecture and integral architecture. There are notably few real industrial applications using open architecture for product development. There is a lack of effective methods for OAP design with cost-effective solutions.¹⁸

Open architecture is built based on modular design. Modular structure allows independent function units to be added or replaced in a product with the flexibility to satisfy requirement changes in the application. QFD is a common method to find design details based on requirements. QFD builds the relations among design contents and customer needs (CNs) for the product concept development, which analyses needs by mapping function demands into the design targets and technical parameters.¹⁹ A main role of QFD is as the house of quality to ensure that a product can satisfy the relevant needs during either new product development or product redesign.²⁰

Much research has been conducted using QFD in the early product development stage. QFD can include ergonomics considerations in the design stage.²¹ A dynamic QFD structure was defined to update the customer data and evolve the requirements for manufacturing processing.²² A QFD-based method was used in product platform development to improve the understanding of the product family design.²³ QFD combined with Kano’s model can increase the understanding of CN and satisfaction.²⁴ QFD has also been used to design modular products in the exploration of design requirements and modular-product analysis.²⁵ The final configuration of the products can be established using QFD through linear integer programming. The general variety index and coupling index can measure the required redesign effort for future changes of products based on QFD.^26,27 AD provides a common guideline for the QFD application.

AD was proposed to systematically understand product design.²⁸ AD includes two axioms. One is the independence axiom, which requires that independence of functional requirements (FRs) be maintained. FRs are defined as the minimum number of independent requirements that characterise the design goal. The second axiom is the information axiom to satisfy the independence axiom.²⁹ Different methods have been proposed for product design based on AD. A method was introduced for concept search using AD in a requirement classification system to decide the product structure.³⁰ The decomposition-integration model was proposed using AD matrices in mapping FRs to the design parameters (DPs) for a structured representation of system development.³¹ A product module identification approach was developed by using AD to develop a reasonable modular-product architecture with physically detachable modules.³² Because AD recommends a product structure using a one-to-one match for independent FRs, modular design is commonly applied in planning product structures and configurations.

Most studies of modularity originated from Suh’s²⁹ independence axiom for the reduction of complexity in customisation. Modularisation has been used as a tool to break product structure into smaller and more manageable units.³³ Ulrich and Tung³⁴ defined the characteristics of modular products using the similarity of physical and functional architectures to minimise the incidental interactions of physical components. Chen et al.³⁵ proposed a measure of modularity based on the independence of the FRs and their sensitivity to the DPs. A design incidence matrix was used to design the product platform based on AD.³⁶ This software tool can assess the cost of qualitative product recycling.³⁷ The module division can be evaluated based on the information entropy.³⁸ The product cost can be evaluated for different module sizes and levels.³⁹ An option-pricing method has been used to plan the modules to add, reject, and merge to form different configurations at each stage of the module introduction processes.⁴⁰ However, these module-planning methods cannot capture all aspects of modularity for OAP design, particularly for personalised module planning.

In summary, many methods of product modular design have been proposed for module planning to improve product structure and applications. These methods aim to design either a product family or a product platform. They are mainly proposed for product design under the traditional production model, which benefits the designers or manufacturers but not the users considering the requirement change during the product application. A traditional product must be redesigned and remanufactured by the original manufacturer to satisfy the requirement change. OAPs are proposed to satisfy the individual need by upgrading or replacing a personalised module by the users in the product working place. Similar to the modular product, OAPs require relatively independent product modules and common platforms. However, the OAP objective is achieved using personalised modules and common interfaces to extend and upgrade the product in the product life cycle. The existing design methods cannot satisfy these requirements.

A new module-development method for OAPs is introduced in this article. Module planning is the first step of OAP implementation. The following section introduces the method to integrate extended QFD and expanded AD to plan the functional modules of OAPs.

Module planning for OAPs

Extended QFD

QFD is one of the most commonly used tools in product design to translate CNs into technical requirements (TRs). It is not sufficient to only consider the basic functional needs for OAPs. Changes to needs during the product life cycle should also be considered. We extend the QFD to include both the basic function needs (BFNs) known in the design stage and the changes to the needs of the individual customer during the product life cycle. Therefore, CNs in an extended QFD includes BFN and individual customer need (ICN). The corresponding TRs are divided into general technical requirements (GTRs) and OAP technical requirements (OTRs). The expected changes (ECs) are added to estimate the changes in the product life cycle. The extended QFD also includes a variance coefficient of TRs, technical importance weight, relative importance of the average of TRs, and index of weighted coefficient of variance, as shown in Figure 3.

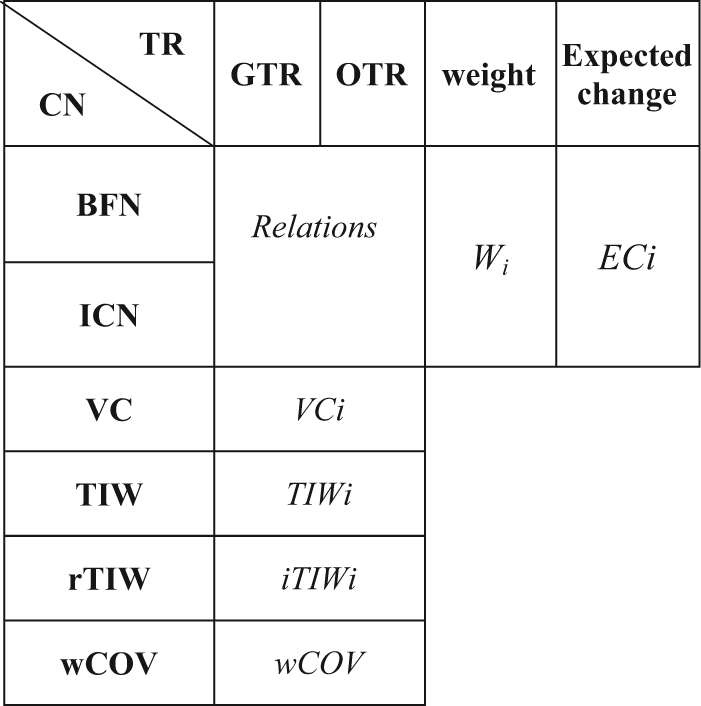

Figure 3.

Extended QFD.

The method proposed by Park and Shin²³ for platform development is extended in this study to the design of three types of OAP modules. The weighted coefficient of variance index is used as a quantitative description of the variance measure as follows

{wCOV}_{i} = {rTIW}_{i} \times {VC}_{i}

(1)

{rTIW}_{i} (%) = \frac{\bar{{TIW}_{i}}}{\sum_{i = 1}^{m} \bar{{TIW}_{i}}} \times 100 (%)

(2)

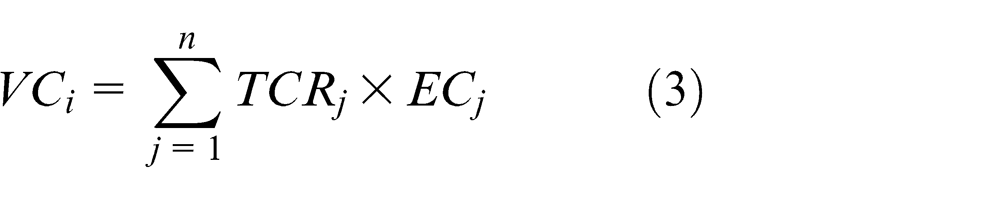

{VC}_{i} = \sum_{j = 1}^{n} {TCR}_{j} \times {EC}_{j}

(3)

Then, the variance can be decided by the value of wCOVs for OAPs’ modules, which satisfy TRs as either a constant or variant. The constant TRs form common platform modules, whereas the variant TRs will determine the customised and personalised modules. Designers can specify TRs based on the function variant in product applications.

Extended AD

AD is used to maintain module independence for the function requirement. Design for mapping FRs and DPs incorporates processes to search the solutions of FRs until one-to-one DP matches are completed, as shown in Figure 4.

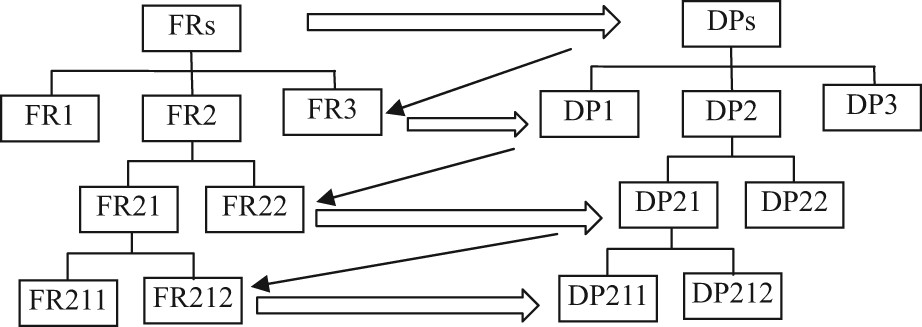

Figure 4.

Mapping of FRs and DPs.

DV is used to assess the component contributions in different OAP modules as follows

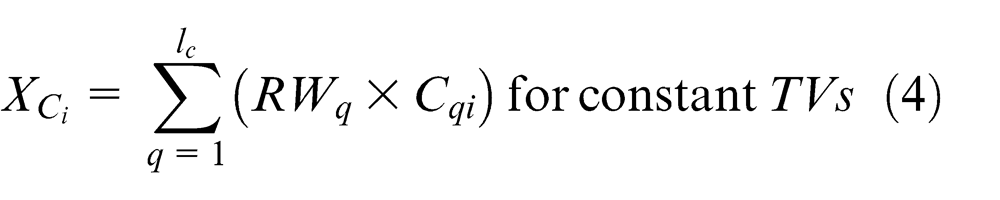

X_{C_{i}} = \sum_{q = 1}^{l_{c}} ({RW}_{q} \times C_{qi}) for constant TVs

(4)

X_{v_{i}} = \sum_{r = 1}^{l_{v}} ({RW}_{r} \times V_{ri}) for variant TVs

(5)

{DV}_{i} (%) = \frac{X_{V_{i}}}{X_{C_{i}}} \times 100 (%)

(6)

Design structure matrix for module clustering

A design structure matrix (DSM) is normally formed based on the relations of the components to combine components into modules.⁴¹ DV is introduced in this study to add a measure of the component variety to cluster components into blocks, which forms three types of modules for OAPs. Any interaction outside the clustered blocks is considered interfaces. The diagonal of DSM is DV, which is used to indicate the component variable.

According to DVs, the components are divided into three types of modules based on two thresholds of f₁ and f₂. The thresholds are set based on the predicted requirement change in the product life cycle. The threshold values are used to divide the modules into common platforms, customised modules, and personalised modules. Components i with DV_i < f₁ are defined as the common platform modules and components i with DV_i > f₂ represent personalised modules. The customised modules are structured by components with DV values in between f₁ and f₂. A greater f₁ will clearly generate more platform components, and a smaller f₂ will make more personalised modules. A manufacturer can set thresholds based on the expected open degree of a product.

Figures 5 and 6 show the difference of clustered modules without and with DV in the module-development process. Figure 5 shows the product modules after clustering only based on the relationship of the components. Using DVs and the selected thresholds, components with similar DV values are clustered into one module as shown in Figure 6 where DSM can be clustered to form three types of modules for OAPs.

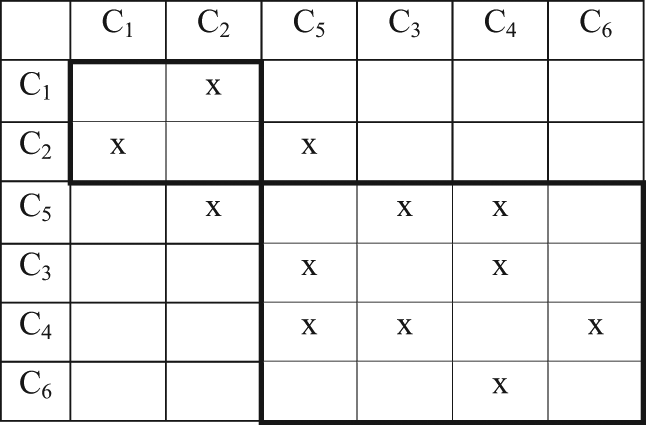

Figure 5.

Clustered DSM without DV.

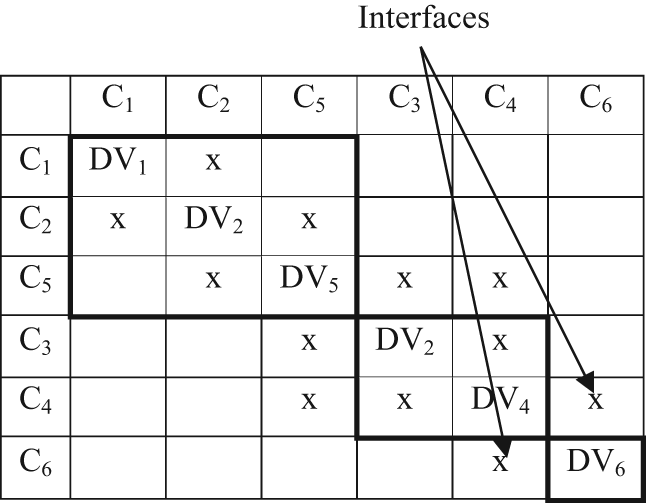

Figure 6.

Clustered DSM using DV.

After the module types are decided based on the DV of components and thresholds, modules can be planned for the product configuration. Different module types have different requirements in product application. The following section introduces the development of a paper-bag-folding machine using the proposed method to satisfy the requirement changes in the machine application.

Module planning for a paper-bag-folding machine

Extended QFD for the paper-bag-folding machine

It is assumed that changes to machine requirements are based on user surveys and market trends during the machine life cycle. The requirement changes within the machine application are called ECs of user requirements. A column can be added to the matrix shown in Table 1 to estimate the values of user requirement changes, for example, high = 3, medium = 2, and low = 1. Therefore, an extended QFD of the paper-bag-folding machine can be developed based on the BFNs and future requirement changes in the machine life cycle, as shown in Table 1.

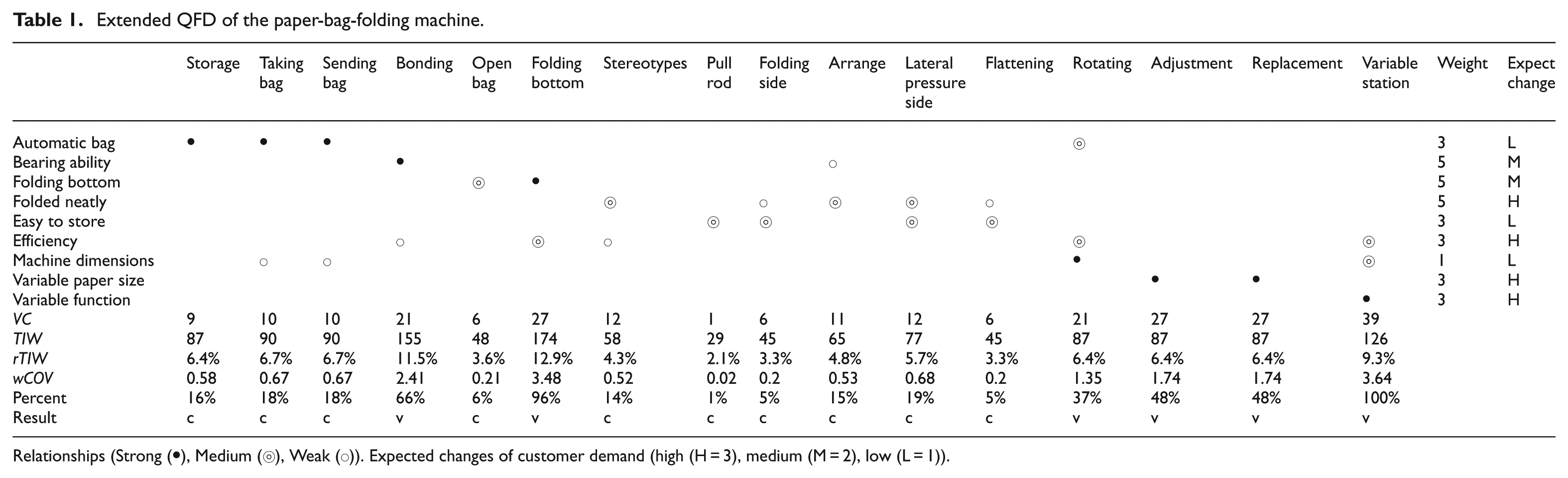

Table 1.

Extended QFD of the paper-bag-folding machine.

	Storage	Taking bag	Sending bag	Bonding	Open bag	Folding bottom	Stereotypes	Pull rod	Folding side	Arrange	Lateral pressure side	Flattening	Rotating	Adjustment	Replacement	Variable station	Weight	Expect change
Automatic bag	•	•	•										◎				3	L
Bearing ability				•						○							5	M
Folding bottom					◎	◎											5	M
Folded neatly							◎		○	◎	◎	○					5	H
Easy to store								◎	◎		◎	◎					3	L
Efficiency				○		◎	○						◎			◎	3	H
Machine dimensions		○	○										•			◎	1	L
Variable paper size														•	•		3	H
Variable function																•	3	H
VC	9	10	10	21	6	27	12	1	6	11	12	6	21	27	27	39
TIW	87	90	90	155	48	174	58	29	45	65	77	45	87	87	87	126
rTIW	6.4%	6.7%	6.7%	11.5%	3.6%	12.9%	4.3%	2.1%	3.3%	4.8%	5.7%	3.3%	6.4%	6.4%	6.4%	9.3%
wCOV	0.58	0.67	0.67	2.41	0.21	3.48	0.52	0.02	0.2	0.53	0.68	0.2	1.35	1.74	1.74	3.64
Percent	16%	18%	18%	66%	6%	96%	14%	1%	5%	15%	19%	5%	37%	48%	48%	100%
Result	c	c	c	v	c	v	c	c	c	c	c	c	v	v	v	v

Relationships (Strong (•), Medium (◎), Weak (○)). Expected changes of customer demand (high (H = 3), medium (M = 2), low (L = 1)).

Using the extended QFD data in Table 1 and equations (1)–(3), the weighted coefficient of variance index is calculated. The results are listed in Table 1; these are used to plan components for modules based on the change probability of TRs.

Extended AD for function decomposition

According to AD, function decomposition is achieved by mapping FRs and DPs, as discussed in section ‘Extended axiomatic design’. Figure 7 shows elements of the FRs for a bag-folding machine based on user needs. Figure 8 lists the corresponding DPs that are mapped from the FRs of the bag-folding machine. The one-to-one relation is listed in Table 2 for the FRs and DPs of the machine. Then, the machine design matrix of FRs and DPs can be established. Numerical values such as 1, 3, and 9 are assigned to the TRs of the components for their abilities to satisfy the FRs, which are used for the DV calculation in the design matrix in Table 3.

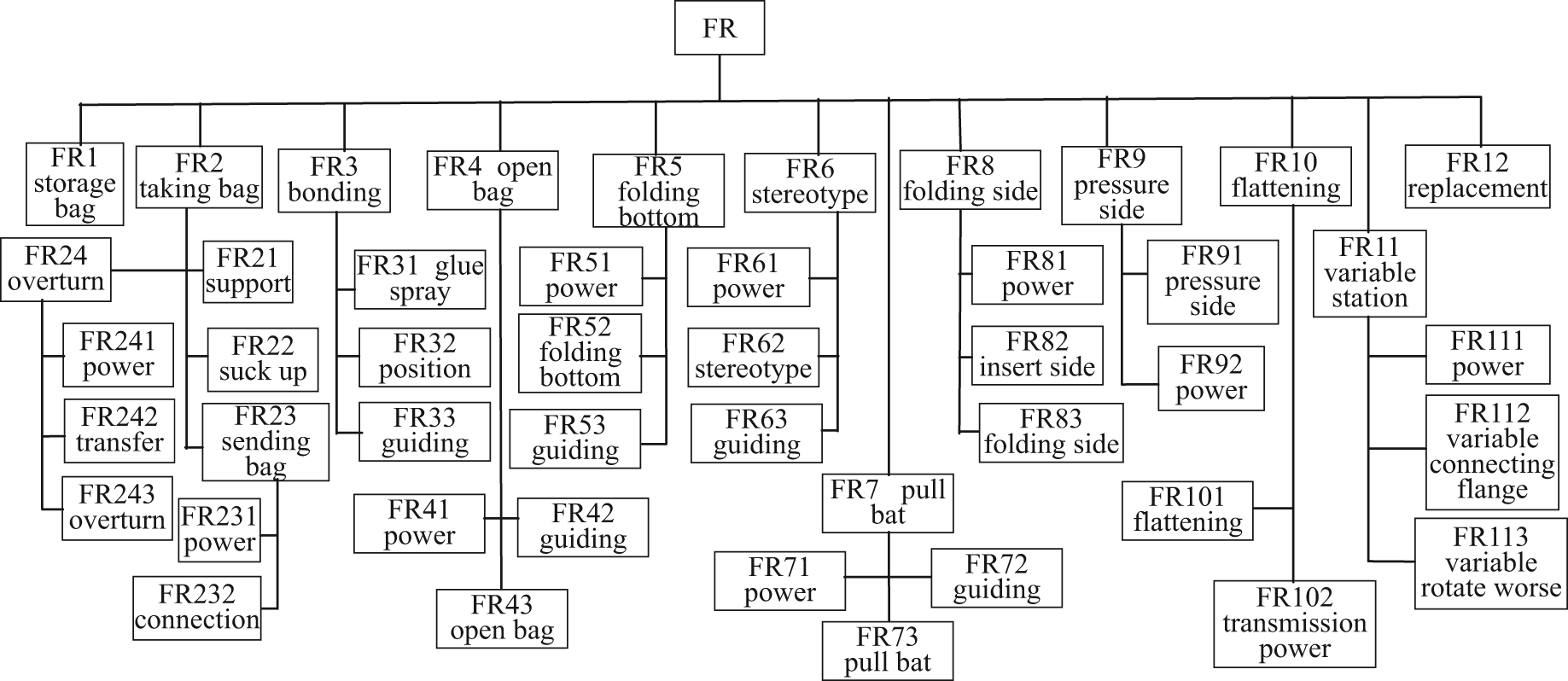

Figure 7.

Part of the functional decomposition of the paper-bag-folding machine.

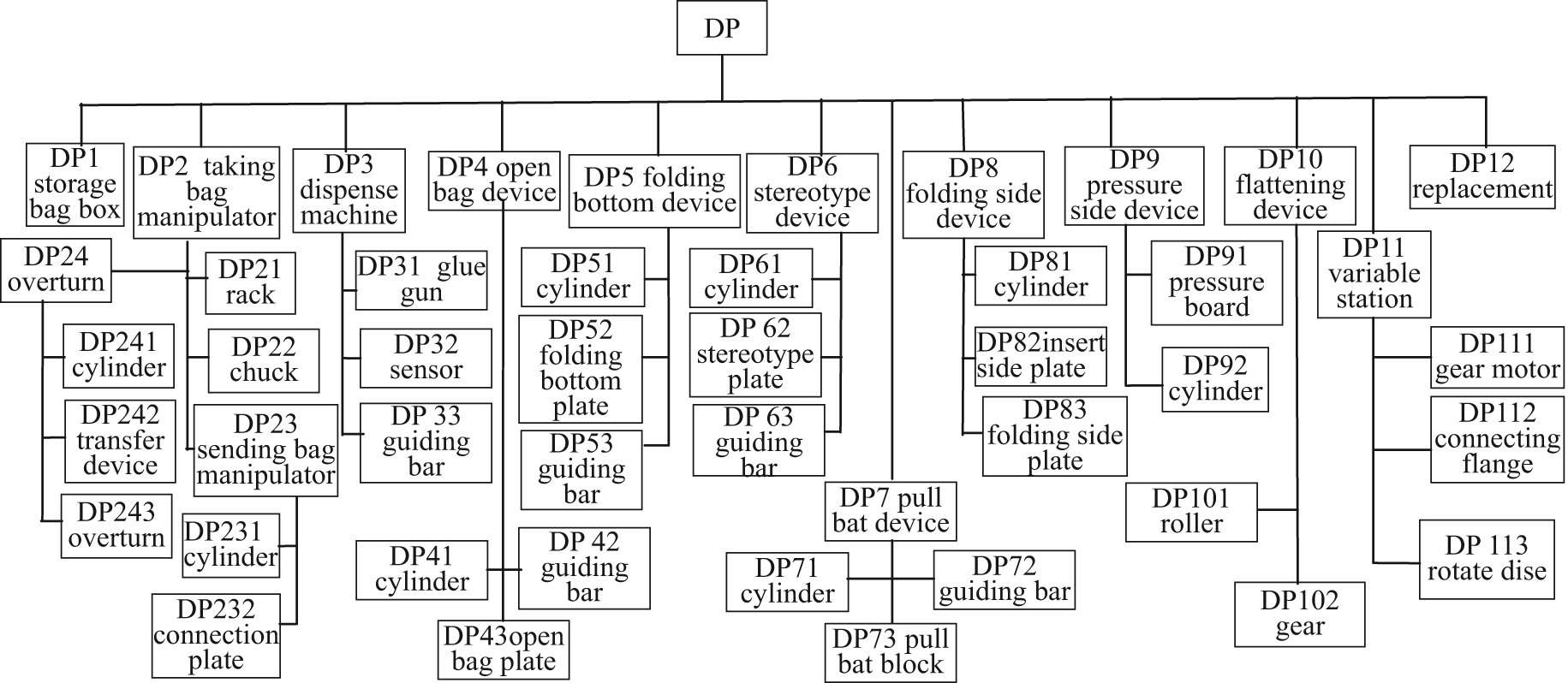

Figure 8.

Part of the design parameters of the paper-bag-folding machine based on FRs in Figure 7.

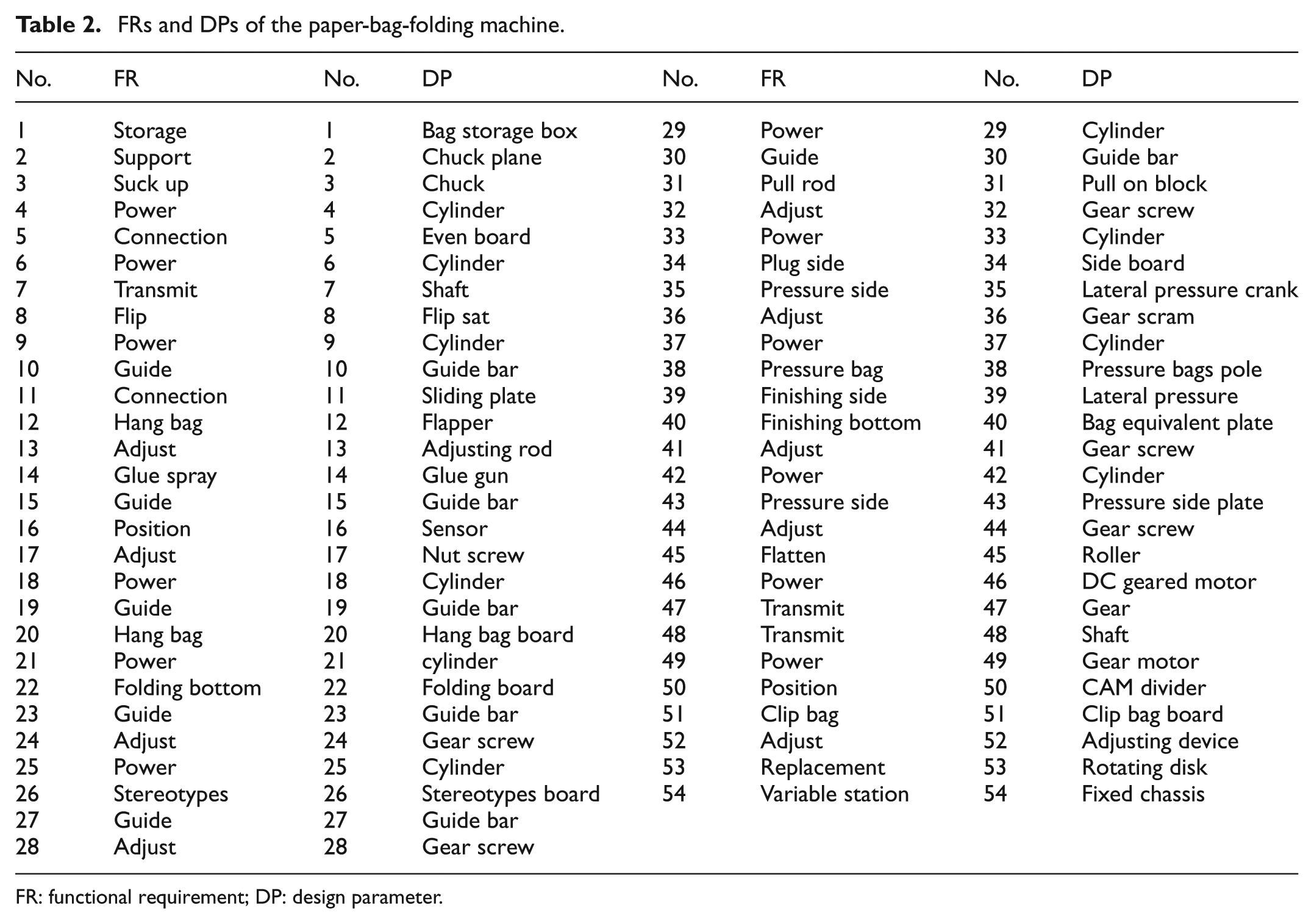

Table 2.

FRs and DPs of the paper-bag-folding machine.

No.	FR	No.	DP	No.	FR	No.	DP
1	Storage	1	Bag storage box	29	Power	29	Cylinder
2	Support	2	Chuck plane	30	Guide	30	Guide bar
3	Suck up	3	Chuck	31	Pull rod	31	Pull on block
4	Power	4	Cylinder	32	Adjust	32	Gear screw
5	Connection	5	Even board	33	Power	33	Cylinder
6	Power	6	Cylinder	34	Plug side	34	Side board
7	Transmit	7	Shaft	35	Pressure side	35	Lateral pressure crank
8	Flip	8	Flip sat	36	Adjust	36	Gear scram
9	Power	9	Cylinder	37	Power	37	Cylinder
10	Guide	10	Guide bar	38	Pressure bag	38	Pressure bags pole
11	Connection	11	Sliding plate	39	Finishing side	39	Lateral pressure
12	Hang bag	12	Flapper	40	Finishing bottom	40	Bag equivalent plate
13	Adjust	13	Adjusting rod	41	Adjust	41	Gear screw
14	Glue spray	14	Glue gun	42	Power	42	Cylinder
15	Guide	15	Guide bar	43	Pressure side	43	Pressure side plate
16	Position	16	Sensor	44	Adjust	44	Gear screw
17	Adjust	17	Nut screw	45	Flatten	45	Roller
18	Power	18	Cylinder	46	Power	46	DC geared motor
19	Guide	19	Guide bar	47	Transmit	47	Gear
20	Hang bag	20	Hang bag board	48	Transmit	48	Shaft
21	Power	21	cylinder	49	Power	49	Gear motor
22	Folding bottom	22	Folding board	50	Position	50	CAM divider
23	Guide	23	Guide bar	51	Clip bag	51	Clip bag board
24	Adjust	24	Gear screw	52	Adjust	52	Adjusting device
25	Power	25	Cylinder	53	Replacement	53	Rotating disk
26	Stereotypes	26	Stereotypes board	54	Variable station	54	Fixed chassis
27	Guide	27	Guide bar
28	Adjust	28	Gear screw

FR: functional requirement; DP: design parameter.

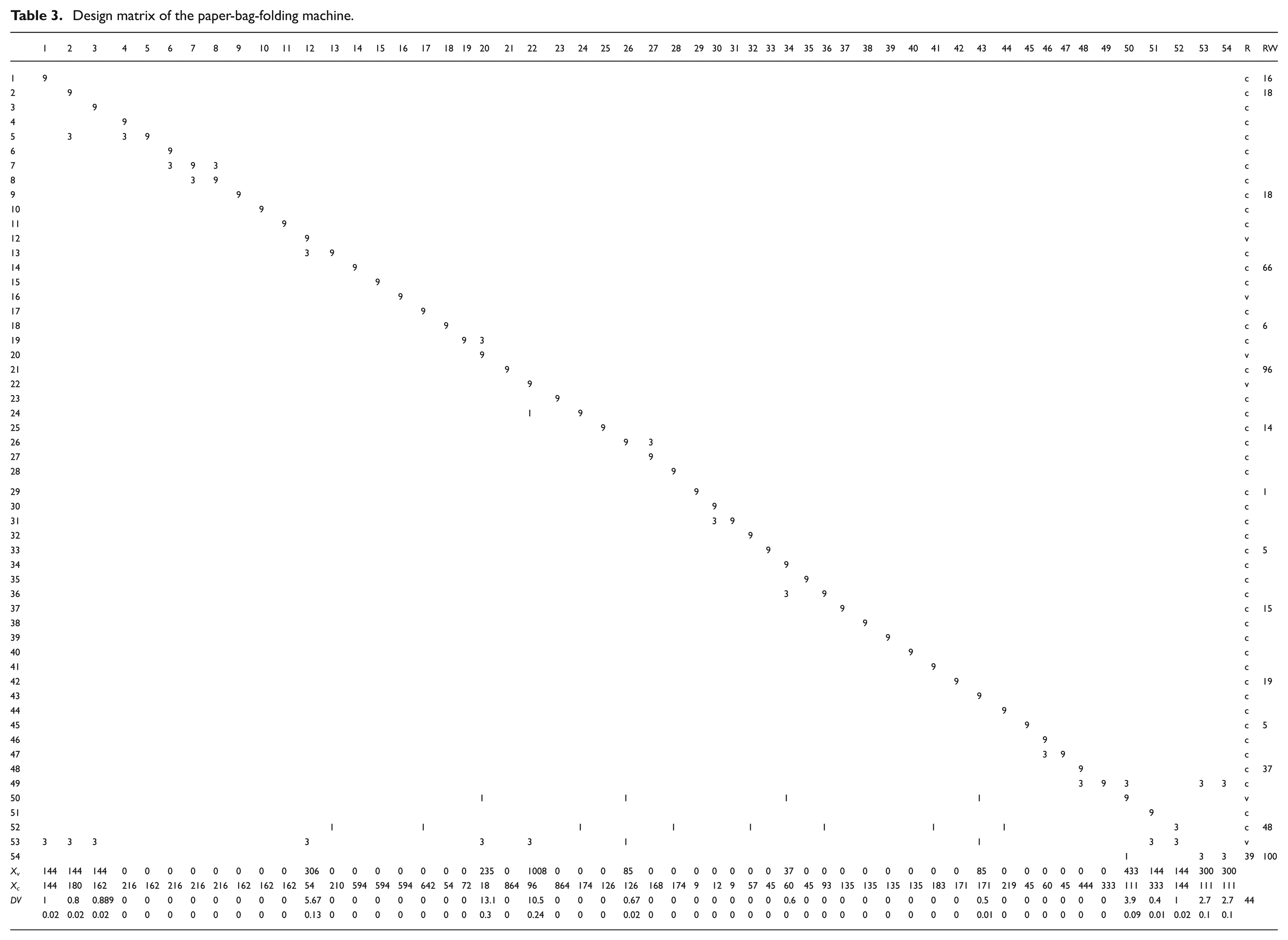

Table 3.

Design matrix of the paper-bag-folding machine.

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45	46	47	48	49	50	51	52	53	54	R	RW
1	9																																																						c	16
2		9																																																					c	18
3			9																																																				c
4				9																																																			c
5		3		3	9																																																		c
6						9																																																	c
7						3	9	3																																															c
8							3	9																																															c
9									9																																														c	18
10										9																																													c
11											9																																												c
12												9																																											v
13												3	9																																										c
14														9																																									c	66
15															9																																								c
16																9																																							v
17																	9																																						c
18																		9																																					c	6
19																			9	3																																			c
20																				9																																			v
21																					9																																		c	96
22																						9																																	v
23																							9																																c
24																						1		9																															c
25																									9																														c	14
26																										9	3																												c
27																											9																												c
28																												9																											c
29																													9																										c	1
30																														9																									c
31																														3	9																								c
32																																9																							c
33																																	9																						c	5
34																																		9																					c
35																																			9																				c
36																																		3		9																			c
37																																					9																		c	15
38																																						9																	c
39																																							9																c
40																																								9															c
41																																									9														c
42																																										9													c	19
43																																											9												c
44																																												9											c
45																																													9										c	5
46																																														9									c
47																																														3	9								c
48																																																9							c	37
49																																																3	9	3			3	3	c
50																				1						1								1									1							9					v
51																																																			9				c
52													1				1							1				1				1				1					1			1								3			c	48
53	3	3	3									3								3		3				1																	1								3	3			v	48
54																																																		1			3	3	39	100
X_v	144	144	144	0	0	0	0	0	0	0	0	306	0	0	0	0	0	0	0	235	0	1008	0	0	0	85	0	0	0	0	0	0	0	37	0	0	0	0	0	0	0	0	85	0	0	0	0	0	0	433	144	144	300	300
X_c	144	180	162	216	162	216	216	216	162	162	162	54	210	594	594	594	642	54	72	18	864	96	864	174	126	126	168	174	9	12	9	57	45	60	45	93	135	135	135	135	183	171	171	219	45	60	45	444	333	111	333	144	111	111
DV	1	0.8	0.889	0	0	0	0	0	0	0	0	5.67	0	0	0	0	0	0	0	13.1	0	10.5	0	0	0	0.67	0	0	0	0	0	0	0	0.6	0	0	0	0	0	0	0	0	0.5	0	0	0	0	0	0	3.9	0.4	1	2.7	2.7	44
	0.02	0.02	0.02	0	0	0	0	0	0	0	0	0.13	0	0	0	0	0	0	0	0.3	0	0.24	0	0	0	0.02	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0.01	0	0	0	0	0	0	0.09	0.01	0.02	0.1	0.1

DSM for module type planning

A DSM is developed to cluster the required parts. The diagonal of a DSM is DV, which indicates the degrees of component variability. According to the DV, the components are divided into three types based on two thresholds for the variant. The thresholds are the ratios of the variant TRs and constant TRs. Based on the assumption of user need changes, different thresholds can be applied based on the manufacturer’s data for the potential change. Table 4 shows an example of the paper-bag-folding machine using 1% and 10% for the f₁ and f₂ thresholds, respectively. According to the relationship of the components and their DV values, the components are clustered into modules for the OAP, as shown in Table 4.

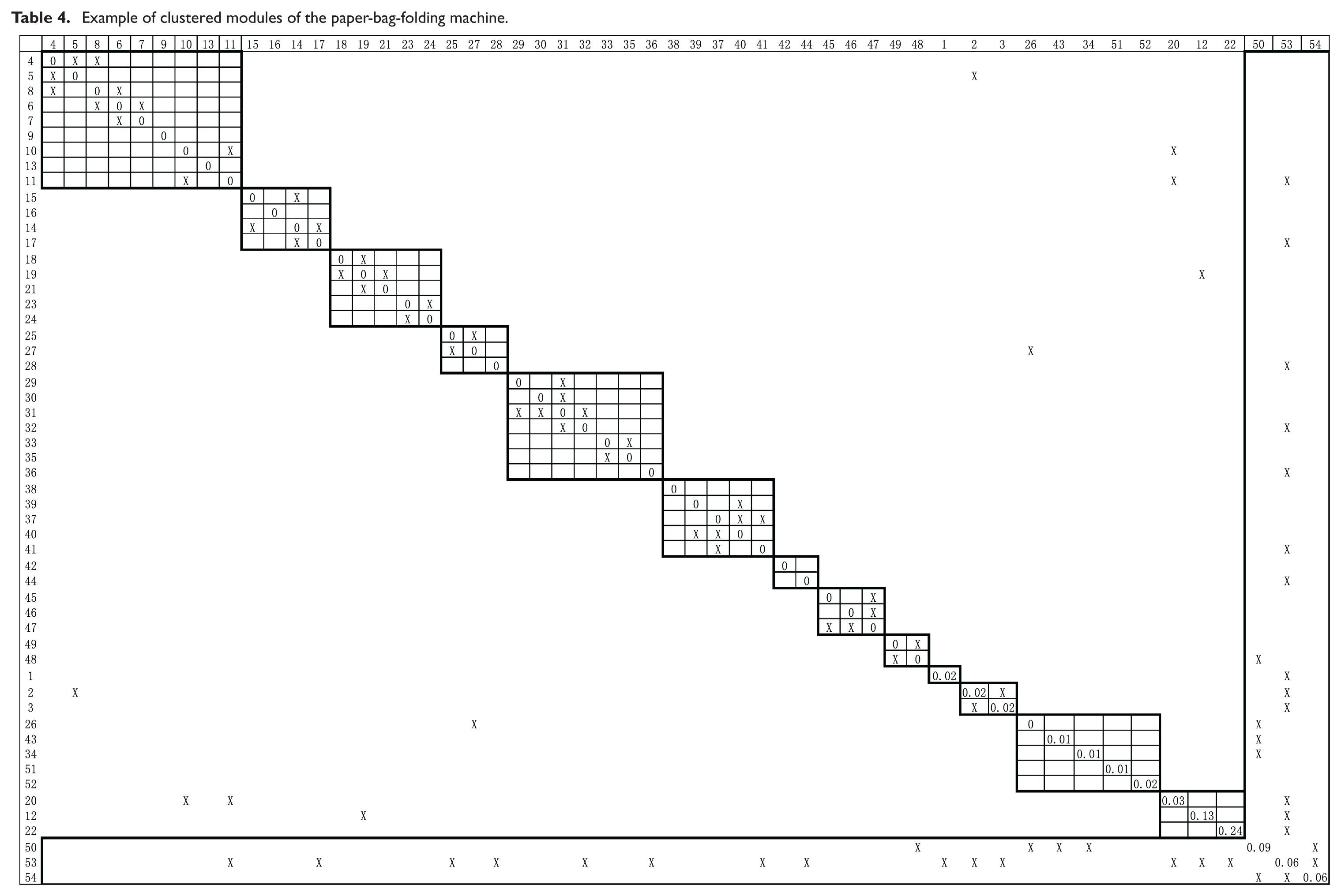

Table 4.

Example of clustered modules of the paper-bag-folding machine.

	4	5	8	6	7	9	10	13	11	15	16	14	17	18	19	21	23	24	25	27	28	29	30	31	32	33	35	36	38	39	37	40	41	42	44	45	46	47	49	48	1	2	3	26	43	34	51	52	20	12	22	50	53	54
4	0	X	X
5	X	0																																								X
8	X		0	X
6			X	0	X
7				X	0
9						0
10							0		X																																								X
13								0
11							X		0																																								X				X
15										0		X
16											0
14										X		0	X
17												X	0																																								X
18														0	X
19														X	0	X																																		X
21															X	0
23																	0	X
24																	X	0
25																			0	X
27																			X	0																								X
28																					0																																X
29																						0		X
30																							0	X
31																						X	X	0	X
32																								X	0																												X
33																										0	X
35																										X	0
36																												0																									X
38																													0
39																														0		X
37																															0	X	X
40																														X	X	0
41																															X		0																				X
42																																		0
44																																			0																		X
45																																				0		X
46																																					0	X
47																																				X	X	0
49																																							0	X
48																																							X	0												X
1																																									0.02												X
2		X																																								0.02	X										X
3																																										X	0.02										X
26																				X																								0								X
43																																													0.01							X
34																																														0.01						X
51																																															0.01
52																																																0.02
20							X		X																																								0.0.3				X
12															X																																			0.13			X
22																																																			0.24		X
50																																								X				X	X	X						0.09		X
53									X				X						X		X				X			X					X		X						X	X	X						X	X	X		0.06	X
54																																																				X	X	0.06

Following the aforementioned processes, the modules of the paper-bag-folding machine are divided into common platform modules, customised modules, and personalised modules, as shown in Figure 9 and Tables 5 and 6. Figure 9 shows 10 common modules that were used to develop the platform of the paper-bag-folding machine. Table 5 lists different customised modules that are made by the machine producer and were selected by the user during the purchasing process. The personalised modules of the paper-bag-folding machine are listed in Table 6; those modules are predicted in the design stage but will be used or updated during the machine application. The users can also make or purchase their personalised modules from other suppliers to satisfy their needs.

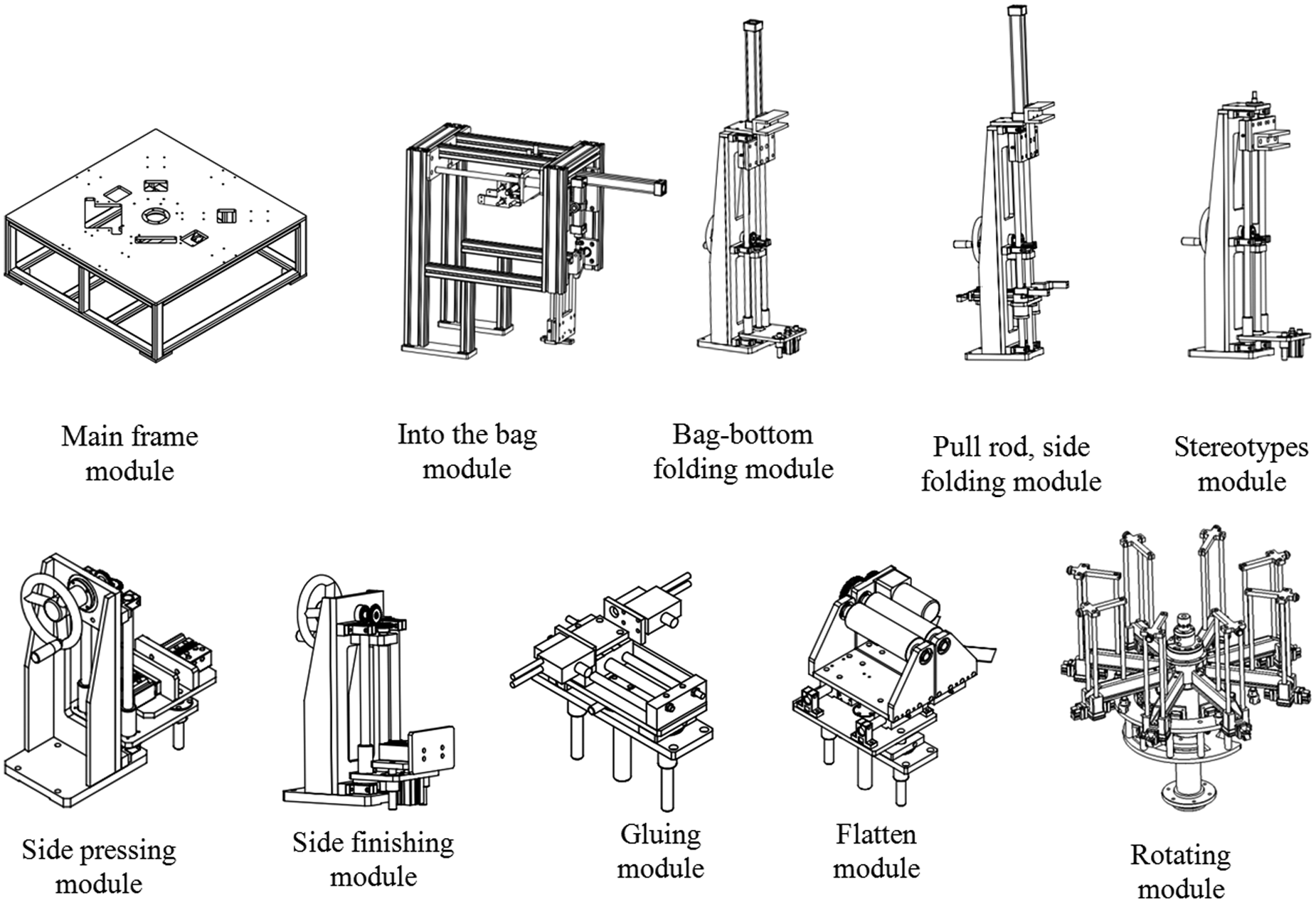

Figure 9.

Paper-bag-folding machine’s platform modules.

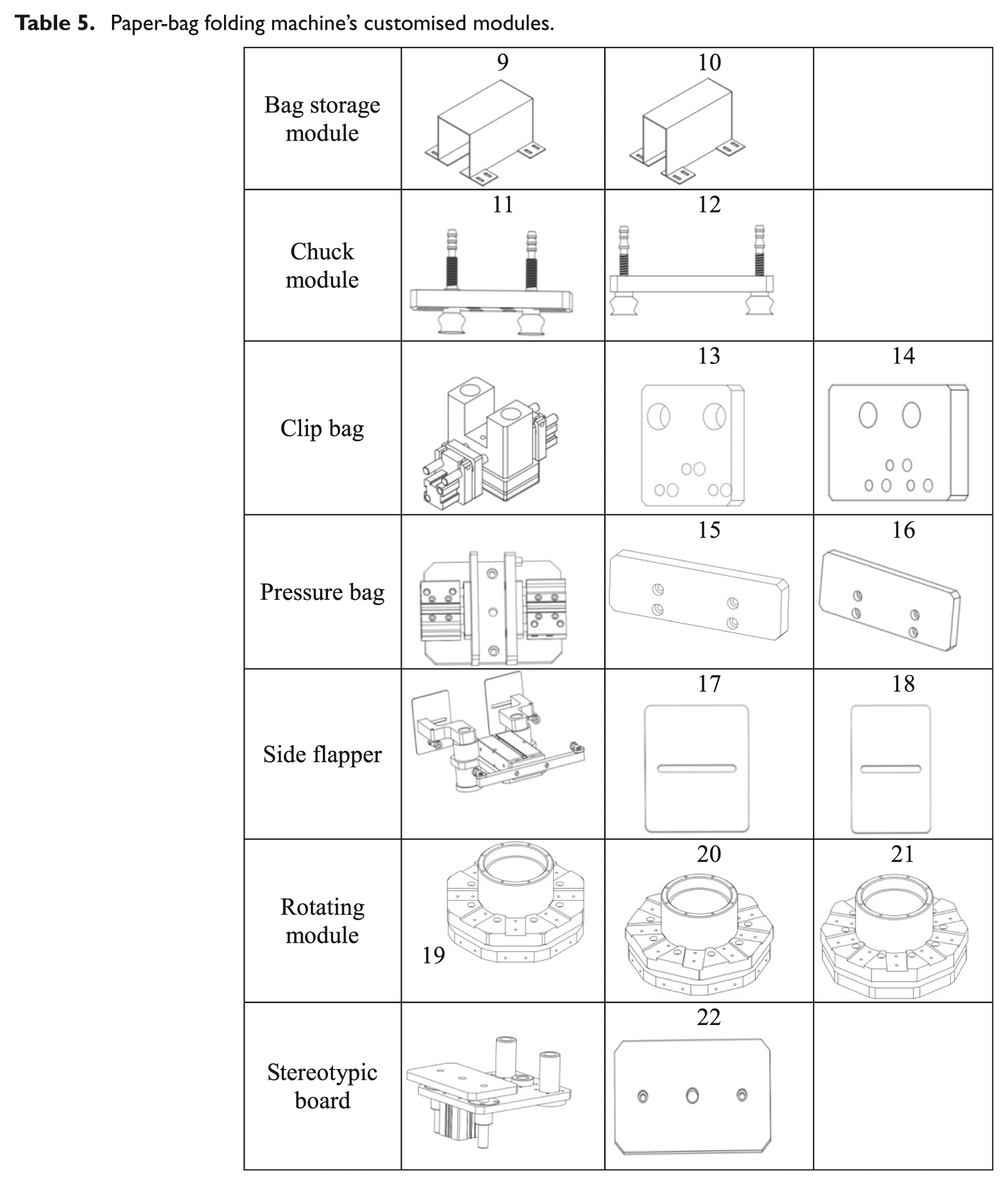

Table 5.

Paper-bag folding machine’s customised modules.

Bag storage module	9	10
Chuck module	11	12
Clip bag		13	14
Pressure bag		15	16
Side flapper		17	18
Rotating module	19	20	21
Stereotypic board		22

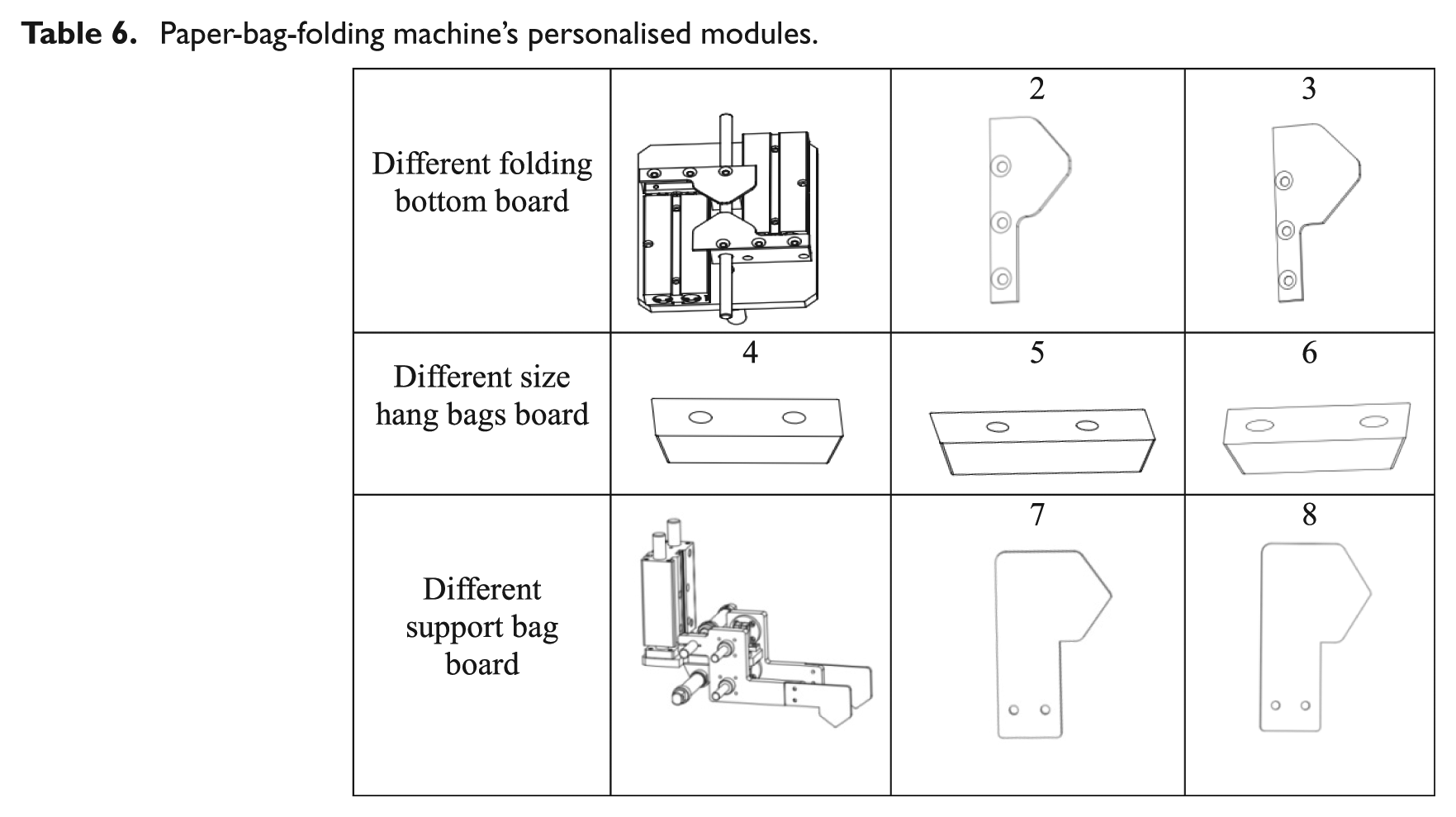

Table 6.

Paper-bag-folding machine’s personalised modules.

Different folding bottom board		2	3
Different size hang bags board	4	5	6
Different support bag board		7	8

Based on these three types of modules, a paper-bag-folding machine can be made to satisfy the user’s individual requirements when a personalised module is installed alongside the common platform and customised modules in the machine.

Applications of a paper-bag-folding machine with open architecture

To test the feasibility of the proposed machine architecture, potential change requirements of the paper-bag-folding machine are proposed in Table 7 based on the manufacturer’s suggestions, user survey, and market forecast. A total of 8–10 working processes for the machine are required to complete the operations in Table 7. The proposed machine with an open architecture can be changed from 8 to 10 workstations to satisfy these needs by changing the personalised modules. When the size or shape of the paper-bag changes, the personalised modules can be replaced on the machine to satisfy different sized or shaped paper-bag requirements.

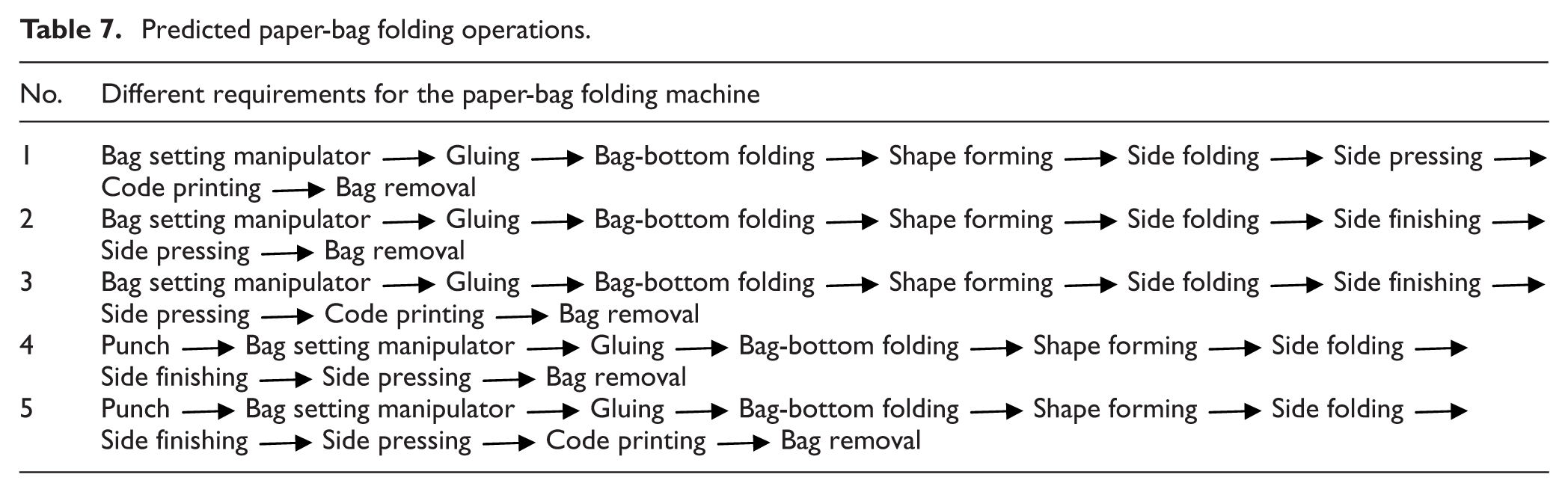

Table 7.

Predicted paper-bag folding operations.

No.	Different requirements for the paper-bag folding machine
1	Bag setting manipulator → Gluing → Bag-bottom folding → Shape forming → Side folding → Side pressing → Code printing → Bag removal
2	Bag setting manipulator → Gluing → Bag-bottom folding → Shape forming → Side folding → Side finishing → Side pressing → Bag removal
3	Bag setting manipulator → Gluing → Bag-bottom folding → Shape forming → Side folding → Side finishing → Side pressing → Code printing → Bag removal
4	Punch → Bag setting manipulator → Gluing → Bag-bottom folding → Shape forming → Side folding → Side finishing → Side pressing → Bag removal
5	Punch → Bag setting manipulator → Gluing → Bag-bottom folding → Shape forming → Side folding → Side finishing → Side pressing → Code printing → Bag removal

Figure 10 shows an example of the open architecture paper-bag-folding machine with eight workstations based on process requirement 2 in Table 7. The machine includes one common platform; seven customised modules – bag storage module 9, chuck module 11, bag clip plate 13, bag pressure plate 15, side flapper 17, rotating module 20, and stereotypic board 22 – and three personalised modules – bottom folding board 2, bag hanging board 5, and bag support board 7. The machine is used to satisfy the following bag specifications: D = {(Long, Wide, Side)|145 ≤ L ≤ 300, W = 130, S = 40}.

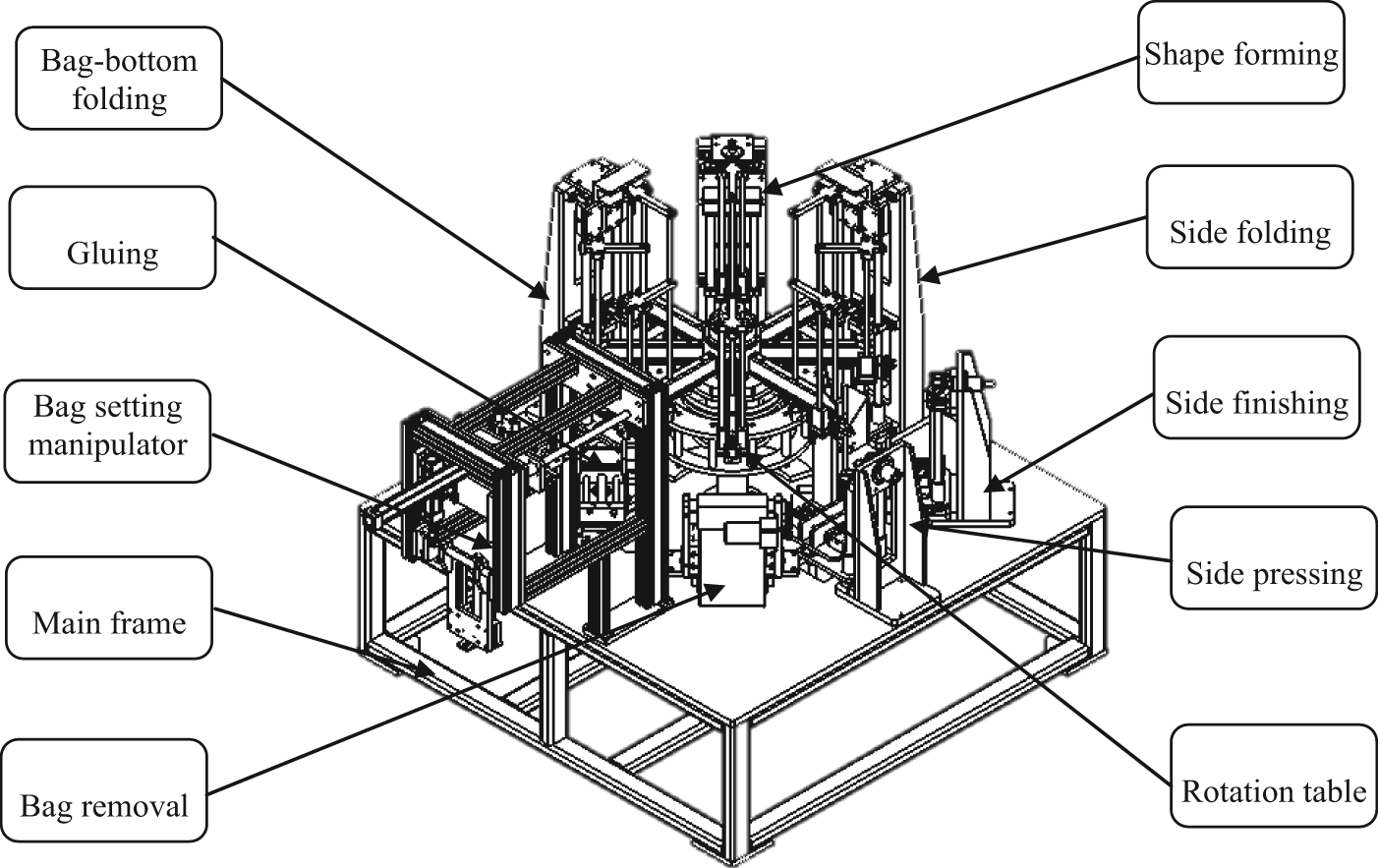

Figure 10.

Paper-bag-folding machine with eight workstations.

If the requirement is changed to the requirement of process 3 in Table 7, adding a code printing function, it is necessary to change only the rotating module and adjust the position of the platform module. When the size of the paper-bag changes to D = {(Long, Wide, Side)|145 ≤ L ≤ 300, W = 80, S = 50}, it will be necessary to replace the existing modules using three personalised modules: bottom folding board 3, bag hanging board 6, and bag support board 8. The machine can then satisfy the requirement.

In summary, the paper-bag-folding machine with open architecture provides a cost-effective solution for users who perform different jobs. The solution allows the users of a machine to satisfy different job requirements by exchanging personalised modules. The machine can be upgraded by users in their workplace, which reduces the cost of using multiple machines. The proposed method is verified in the OAP development.

Conclusion and further work

A competitive product should be able to satisfy user requirements over its life cycle, which requires that the product includes personalised requirements in the product design. Open architecture provides the flexibility to product in design, manufacturing, and application. OAPs can sustainably satisfy personalised requirements in the product life cycle. A typical OAP consists of three types of product modules: common function modules to form the basic product platform, customised modules of the user’s choice, and personalised modules for the users to create and upgrade their own product functions. Modularity is an important method to realise OAPs. Module differentiation is the key to successfully design OAPs for personalised requirements.

This study improves the module-development methods for OAPs. Individual customer requirements and TRs of OAPs are included in an extended QFD to satisfy the OAP requirements. The domain of AD is expanded to satisfy the individual customer requirements. The DV of product components is proposed as a quantitative measure for the component contributions to different modules. Components with a high DV are clustered into independent modules to form personalised modules. The proposed approach helps developing three types of modules for an OAP of the paper-bag-folding machine to satisfy changing user requirements. The OAP structure can deliver highly personalised products to satisfy both customer-specific requirements and manufacturers’ capacities. Designers and manufacturers can use the proposed method to identify the appropriate product architectures, plan functional modules, and manufacture solutions to achieve personalised products.

It is important to apply OAPs in production, considering the ratio of volume and variety of products for a cost-effective solution. The paper-bag-folding machine is mainly used to verify the proposed method in this study for OAP module planning. The initial requirement originated from the machine manufacturer based on some users’ requirements. One of the purposes of using OAPs is to reduce the machine setup time, labour, and equipment cost. Currently, a cost-based evaluation that uses the proposed solution for different types of products is in progress to justify the OAP application. Some examples that we are working on are wheelchairs and industrial painting machines to procure greater benefits for the industries and users when OAPs are applied. The methods that were developed in this study can be similarly used for other OAP designs. The evaluation method and common interfaces are also important work for future research into OAP development.

Footnotes

Appendix 1 Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

The authors wish to acknowledge that this study was supported by the Leading Talent Project of Guangdong Province of China, the National Natural Science Foundation of China (No. 51375287), and the Natural Sciences and Engineering Research Council (NSERC) of Canada.

References

Tseng

Jiao

Wang

. Design for mass personalisation. CIRP Ann: Manuf Techn 2010; 59(1): 175–178.

. Evolving paradigms of manufacturing: from mass production to mass customisation and personalisation. Procedia CIRP 2013; 7: 3–8.

Xue

Nee

. Adaptable design: concepts, methods, and applications. Proc IMechE, Part B: J Engineering Manufacture 2009; 223(11): 1367–1387.

Berry

Wang

. Product architecting for personalisation. J Manuf Syst 2013; 32: 404–411.

Koren

. Open-architecture products. CIRP Ann: Manuf Techn 2013; 62(2): 719–729.

Shibata

Yano

Kodama

. Empirical analysis of evolution of product architecture: Fanuc numerical controllers from 1962 to 1997. Res Policy 2005; 34: 13–31.

Peng

Liu

. Development of an open-architecture electric vehicle using adaptable design. In: Azevedo

(ed.) Advances in sustainable and competitive manufacturing systems(Lecture Notes in Mechanical Engineering). Cham: Springer, 2013, pp.79–90.

Ferrer

. Open architecture, inventory pooling and maintenance modules. Int J Prod Econ 2010; 128: 393–403.

Koren

Pasek

Ulsoy

. Real-time open control architectures and system performance. CIRP Ann: Manuf Techn 1996; 45(1): 377–380.

10.

Wright

. Principles of open-architecture manufacturing. J Manuf Syst 1995; 14(3): 187–202.

11.

Yamazaki

Hanaki

Mori

. Autonomously proficient CNC controller for high-performance machine tools based on an open architecture concept. CIRP Ann: Manuf Techn 1997; 46(1): 275–278.

12.

Gao

Wang

. Open architecture of CNC system research based on CAD graph-driven technology. Robot CIM: Int Manuf 2010; 26: 720–724.

13.

Park

Fujimoto

Hong

. Product architecture, organizational capabilities and IT integration for competitive advantage. Int J Inform Manage 2012; 32(5): 479–488.

14.

Aziz

Gao

Maropoulos

. Open standard, open source and peer-to-peer tools and methods for collaborative product development. Comput Ind 2005; 56: 260–271.

15.

Shacham

Brauner

Cutlip

. Open architecture modelling and simulation in process hazard assessment. Comput Chem Eng 2000; 24: 415–421.

16.

West

. How open is open enough? Melding proprietary and open source platform strategies. Res Policy 2004; 32: 1259–1285.

17.

Silva

. Development and implementation of a real-time open-architecture control system for industrial robot systems. Eng Appl Artif Intel 2004; 17: 469–483.

18.

Brière-Côté

Rivest

Desrochers

. Adaptive generic product structure modeling for design reuse in engineer-to-order products. Comput Ind 2010; 61(1): 53–65.

19.

Akao

. Quality function deployment: integrating customer requirements into product design. New York: Productivity Press, 1990.

20.

Hauser

Clausing

. The house of quality. Harvard Bus Rev 1998; 66(3): 63–73.

21.

Marsot

. QFD: a methodological tool for integration of ergonomics at the design stage. Appl Ergon 2005; 36(2): 185–192.

22.

Adiano

Roth

. Beyond the house of quality: dynamic QFD. Benchmark Qual Manag Tech 1994; 1(1): 25–37.

23.

Park

Shin

. A product platform development method using QFD. In: Proceedings of the ASME. International design engineering technical conferences and computers and information in engineering conference, Las Vegas, NV, 4–7 September 2007, pp.949–958. New York: ASME.

24.

Sireli

Kauffmann

Ozan

. Integration of Kano’s model into QFD for multiple product design. IEEE T Eng Manage 2007; 54(2): 380–390.

25.

Kreng

Lee

. QFD-based modular product design with linear integer programming – a case study. J Eng Design 2004; 15(3): 261–284.

26.

Martin

Ishii

. Design for variety: developing standardised and modularised product platform architectures. Res Eng Des 2002; 13(4): 213–235.

27.

Sered

Reich

. Standardisation and modularisation driven by minimising overall process effort. Comput Aided Design 2006; 38(5): 405–416.

28.

Suh

. Axiomatic design: advances and applications. New York: Oxford University Press, 2001.

29.

Suh

. Designing-in of quality through axiomatic design. IEEE T Reliab 1995; 44(2): 256–264.

30.

Thompson

. Improving the requirements process in Axiomatic Design Theory. CIRP Ann: Manuf Techn 2013; 62(1): 115–118.

31.

Guenov

Barker

. Application of axiomatic design and design structure matrix to the decomposition of engineering systems. Syst Eng 2005; 8(1): 29–40.

32.

Cheng

Zhang

. A product module identification approach based on axiomatic design and design structure matrix. Concurrent Eng: Res A 2012; 20(3): 185–194.

33.

Ericsson

Erixon

. Controlling design variants: modular product platforms. New York: SME Press, 1999.

34.

Ulrich

Tung

. Fundamentals of product modularity. In: Dasu

Eastman

(eds) Management of design: engineering and management perspectives. Dordrecht: Springer, 1994, pp.219–231.

35.

Chen

Rosen

Allen

. Modularity and the independence of functional requirements in designing complex systems. Concurr Prod Des 1994; 74: 31–38.

36.

Xiao

Cheng

Chen

. New approach to product platform design based on axiomatic design and design relationship matrix. Chin J Mech Eng 2012; 48(11): 94–103.

37.

Marco

Eubanks

Ishii

. Compatibility analysis of product design for recyclability and reuse. Comput Eng 1994; 1: 105–112.

38.

Mao

. The evaluation of module division program based on information entropy. Adv Mat Res 2012; 479: 1592–1595.

39.

Sharman

Yassine

. Architectural valuation using the design structure matrix and real options theory. Concurrent Eng: Res A 2007; 15(2): 157–173.

40.

Dong

Yang

Wang

. Optimal decisions in product modularity design using real option approach. Concurrent Eng: Res A 2010; 18(1): 31–39.

41.

Browning

. Applying the design structure matrix to system decomposition and integration problems: a revimew and new directions. IEEE T Eng Manage 2001; 48(3): 292–306.

Development of a paper-bag-folding machine using open architecture for adaptability

Abstract

Keywords

Introduction

Related research

Module planning for OAPs

Extended QFD

Extended AD

Design structure matrix for module clustering

Module planning for a paper-bag-folding machine

Extended QFD for the paper-bag-folding machine

Extended AD for function decomposition

DSM for module type planning

Applications of a paper-bag-folding machine with open architecture

Conclusion and further work

Footnotes

Appendix 1

Declaration of conflicting interests

Funding

References
