Investigation of electrochemical machining characteristics of 20MnCr5 alloy steel using potassium dichromate mixed aqueous NaCl electrolyte and optimization of process parameters

Abstract

Electrochemical machining is a modern machining technique that plays an important role in the applications of aerospace, die and electronic industries. Electrochemical machining is used to machine difficult-to-machine materials and complex shapes. Machining of alloy steels especially 20MnCr5 is very important for its wide variety of applications such as piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts. Machining of the above components with conventional machine tools is a burdensome task. Hence, in this work, an investigation was made to study the electrochemical machining characteristics of 20MnCr5 alloy steel. Two electrolytes, namely, aqueous sodium chloride (NaCl) and potassium dichromate (K₂Cr₂O₇) mixed aqueous NaCl, were used to investigate the machining performance. K₂Cr₂O₇ was selected for its oxidizing characteristics and was included in small proportions in aqueous NaCl bath. The influence of predominant electrochemical machining process parameters such as applied voltage (V), inter electrode gap and electrolyte concentration was studied on the material removal rate and surface roughness (R_a). Scanning electron microscope photography of surface of the 20MnCr5 specimen machined with electrochemical machining was studied to understand the effect of electrolytes during the machining. The contour plots were generated to study the effect of process parameters as well as their interactions. It was noted in the study that the presence of K₂Cr₂O₇ in aqueous NaCl electrolyte increases the material removal rate significantly. The process parameters are optimized through genetic algorithm-desirability function. Optimized operating conditions were found to be quite close with experimental results.

Introduction

Electrochemical machining (ECM) has been in the industrial interest for the last few decades due to its specific advantages such as no tool wear, mechanical forceless machining, no thermally influenced machining zones, high surface quality, low roughness and stress-free surface products. ECM is the reverse of electroplating process. It is one of the advanced machining processes (AMPs) capable of machining hard materials and complicated shapes. ECM is a controlled atomic-level anodic dissolution process of the workpiece that is electrically conductive by a shaped tool through an electrolyte. In ECM, workpiece is the anode and the tool is the cathode and the electrolyte is pumped into the inter electrode gap (IEG) between the tool and the workpiece. High current is passed through this electrochemical circuit to dissolve metal from the workpiece. The movement of ions is accompanied by electrons’ flow, in the direction opposite to the positive current in the electrolyte. The amount of substance dissolved is directly proportional to the amount of current flow into the circuit according to Faraday’s law. The metal hydroxides and other by-products generated during the machining are flushed away from the gap by the high-velocity electrolyte jet. ECM and its hybrid processes such as electrochemical honing (ECH) and electrochemical discharge machining (ECDM) are gaining momentum in the industrial applications.^1,2 ECM of metals, particularly steels, plays an important role in many industrial applications. The use of alloy steel 20MnCr5, a good wearing resistance material in piston bolts, spindles, camshafts, gears, shafts and so on, fascinated the authors to study its ECM characteristics. Yielding higher material removal rate (MRR) of workpiece is most important in this machining process in order to utilize its full potential. The dissolution rate is highly reliant on the selection of electrolytes and its current-carrying capacity. ³ Electrolyte composition (ratio of NaNO₃:NaCl), temperature and concentration play significant role in the improvement of surface quality of workpiece. ⁴ Higher concentrated electrolyte solution increases the dissolution rate. But excess concentration allows the crystal formation, which damages the accessories of ECM and reduces the volume of electrolyte in the flow pipes. Weak solution makes intermittent passivity on the workpiece resulting in poor machining. The conductivity of electrolyte depends not only on the concentration but also on the ionic interaction. Thus, the current-carrying process done by the base electrolyte is small, but H⁺ and OH⁻ ions produced in electrolysis of water play vital role. ³ Water–isopropanol–glycerin chloride blend was considered as electrolyte for high anodic dissolution of hafnium. ⁵ The results point out that the anodic potential or the temperature of the electrolyte bath has significant effect on the hafnium anodic dissolution rate. Change in pH value of electrolyte, during the machining, contributes more to the dissolution rate than the hydroxyl ion’s catalytic effect. ⁶ Three prominent ECM characteristics such as metal dissolution, gas evolution and the solid surface film formation can be observed during machining. At low current density, exclusive oxygen evolution is observed. With increasing current density, formation of cation species is enhanced, while the oxygen evolution diminishes. At high current density, surface film formation such as metal oxides is very less. Haisch et al. ⁷ experimented with NaNO₃ and NaCl salt solutions in order to study the ECM characteristics of 100Cr6 steel. The formation of more Fe³⁺ ions at the current density of 21 A/cm² suggests the increase in current efficiency (η). Since NaNO₃ is a passivating electrolyte, NaCl electrolyte solution is usually preferred. Pulsed current influences the surface quality of ECM-machined iron metal machined with NaCl and NaNO₃ electrolytes. A drastic shift from predominant oxygen evolution to predominant iron dissolution is observed in the current density range of 5–30 A/cm². ⁷ A simultaneous formation of ions (Fe³⁺, Fe²⁺) in the ratio of 1:2 results in dissolution of Fe₃O₄ formed on the iron anodic surface.^8,9 High anodic dissolution was also observed for electro-thermo-chemically treated steels than untreated steels in chloride solution. ¹⁰ Ethylene glycol mixed chloride solution was also used to increase the anodic rate of titanium. ¹¹ Conductivity of electrolyte significantly affects the performance of ECM. Polymer electrolytes were attempted in ECM-assisted abrasive flow machining. ¹² The change in anodic dissolution rate is also caused by the change in the composition and properties of oxide film on the metal surface. The participation of more hydroxyl ions and the catalytic effect is needed to increase the high anodic dissolution rate. Small portion of oxidizing elements in the basic electrolyte can oxidize the sludge to a higher oxidation state. According to the literature, increasing the MRR in ECM is a strong research base. Therefore, in this direction, potassium dichromate (K₂Cr₂O₇) is considered as catalytic element for increasing the MRR by utilizing its high oxidizing power. In this work, predominant ECM process parameters such as electrolyte concentration (EC), IEG and voltage (V) along with fixed amount of K₂Cr₂O₇ concentration are considered to study its influence on performance parameters, that is, MRR and surface roughness (R_a). Furthermore, this work is aimed to study the ECM characteristics of alloy steel specimen (20MnCr5) with aqueous NaCl electrolyte and potassium dichromate (K₂Cr₂O₇) mixed aqueous NaCl electrolyte. Process parameters are optimized through genetic algorithm-desirability function (GA-DF).

Experimentation

Electrical conductance

Electrical conductance of NaCl was tested at different concentrations in distilled water, and the results are shown in Figure 1. The concentration of 150 g of NaCl/L of water was considered as the optimum concentration to test the concentration requirement of K₂Cr₂O₇. Conductance was measured for different concentrations of K₂Cr₂O₇ in the selected concentration of NaCl in water. Here, the concentration of NaCl in water was taken as 150 g/L with different concentrations of K₂Cr₂O₇ in it. As shown in Figure 2, at 5 g of K₂Cr₂O₇ per l00 mL of aqueous NaCl, pH value is slightly above 4, which is adequate to accelerate the anodic dissolution rate.

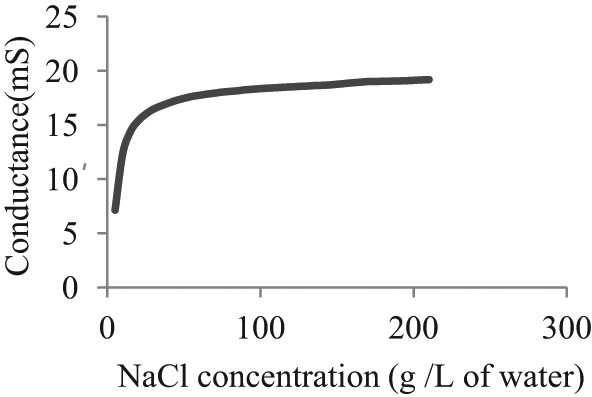

Figure 1.

Concentration of NaCl with conductance.

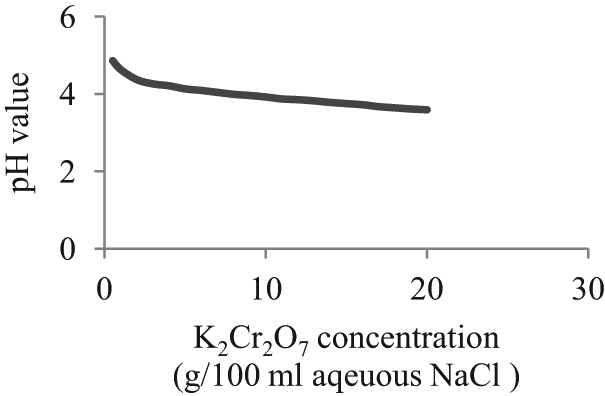

Figure 2.

pH value change with concentration of K₂Cr₂O₇.

Experimental work in ECM

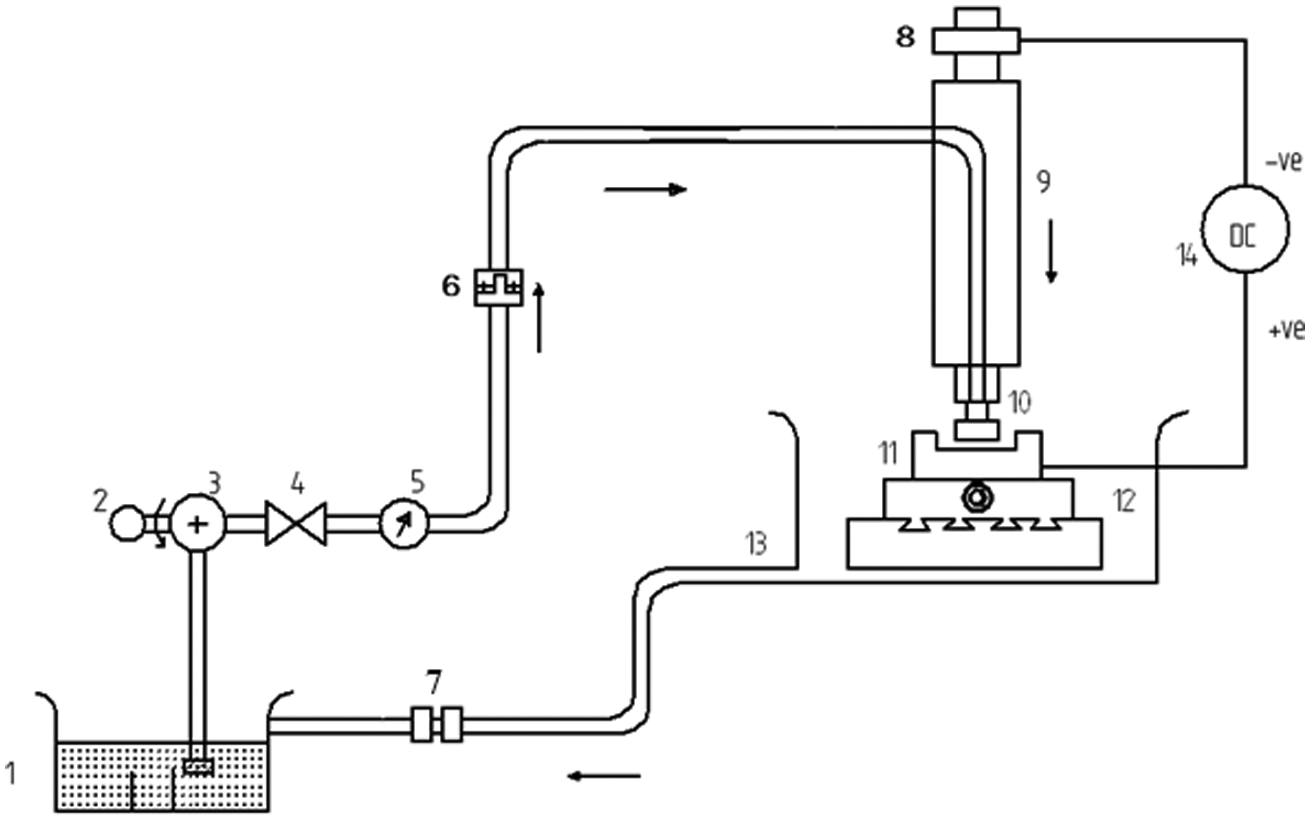

Schematic diagram of ECM setup is shown in Figure 3. It comprises a power supply system, electrolyte supply and filtering system, tool and tool feed mechanism, work holding and position system, control panel and frame and housing. A 5–30 V direct current (DC) potential with current adjustable up to 300 A is applied across the IEG between a brass tool and an anode workpiece. The tool is fed against the workpiece, which is firmly fixed on the vice. IEG, sufficient voltage (V) and current are set in the control panel.

Figure 3.

Schematic diagram of ECM apparatus.

Commercially available 20MnCr5 alloy steel specimens with Φ 40 mm diameter and 10 mm height were used in the experiment. The composition of the steel is as follows—iron: 97%, C: 0.20%, Mn: 1.25%, Si: 0.25%, P: ≤0.035%, S: ≤0.035%, Cr: 1.15% and Al: ≥0.020. Aqueous NaCl and K₂Cr₂O₇ mixed aqueous NaCl electrolytes are axially fed into machining zone. Figure 4 shows photographic view of experimental setup of the ECM system. Figure 5 presents the three-dimensional (3D) model and cross-sectional view of the tool. The experiments were based on central composite design (CCD) of response surface methodology (RSM) and were designed with the help of the software Design-Expert 7.1. ¹³ RSM is a collection of mathematical and statistical techniques useful for modeling and optimizing the response variable models involving quantitative independent variables. ¹⁴ RSM was effectively implemented in ECH process and its effectiveness was proven. ⁴ In this work, 20 tests were carried out with different parameter combinations. At low current densities, the MRR is low. In order to have a high current efficiency, higher current density of 110 A/cm² is used.

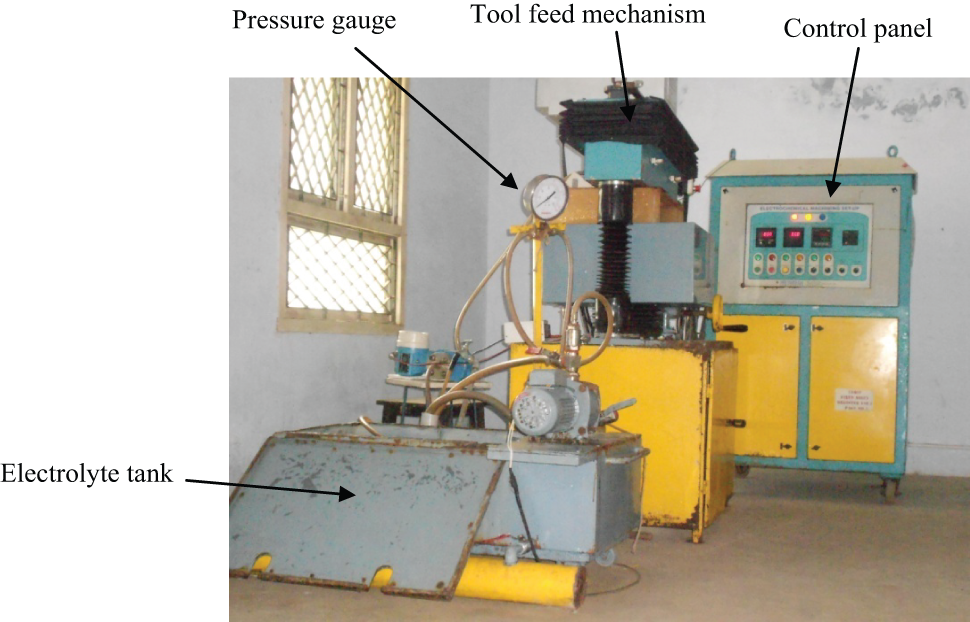

Figure 4.

Electrochemical machining apparatus.

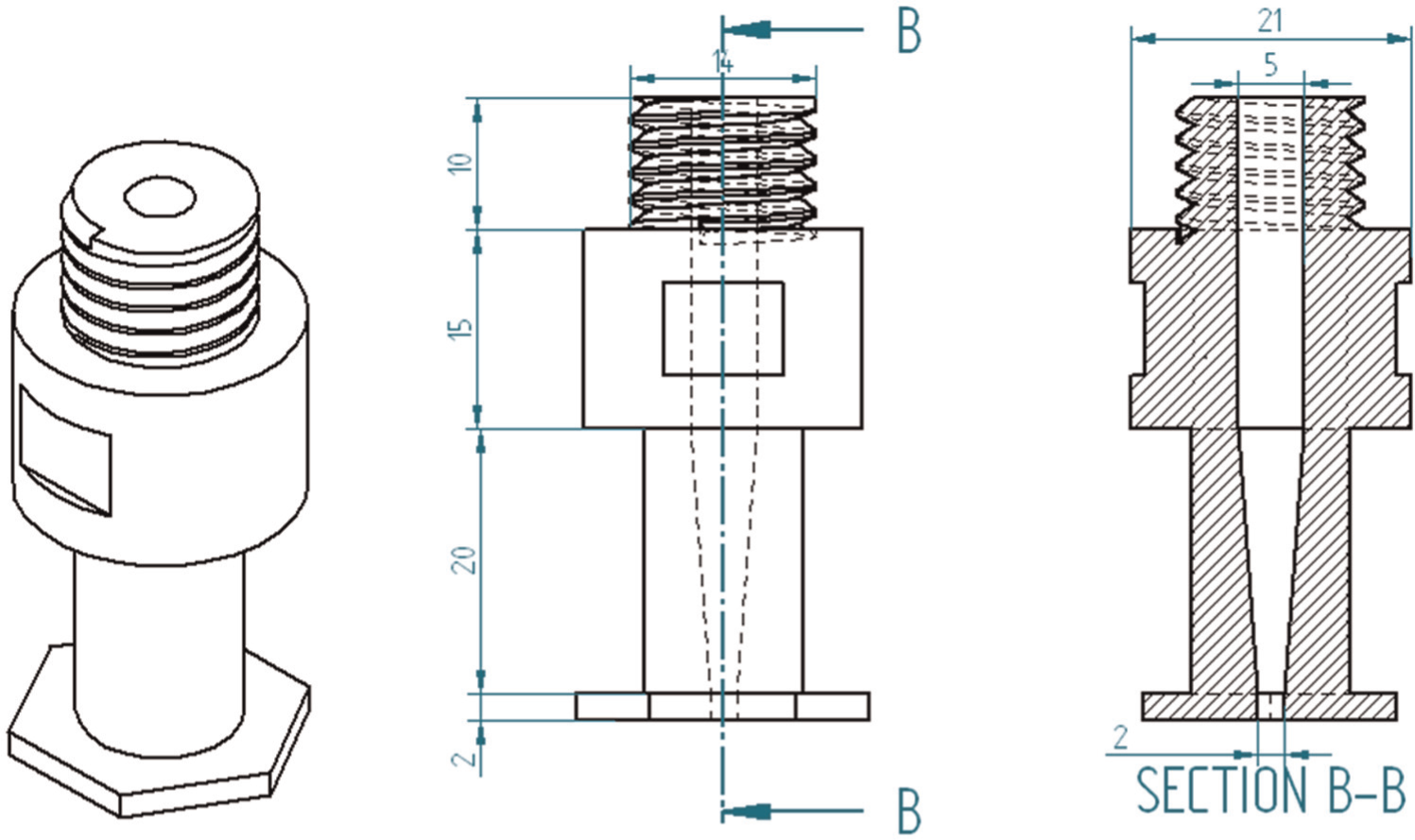

Figure 5.

Tool 3D model and cross-sectional view.

The main process parameters governing the ECM process are voltage (V), IEG and EC according to the literature. Therefore, these parameters are considered in this work and its levels are shown in Table 1.

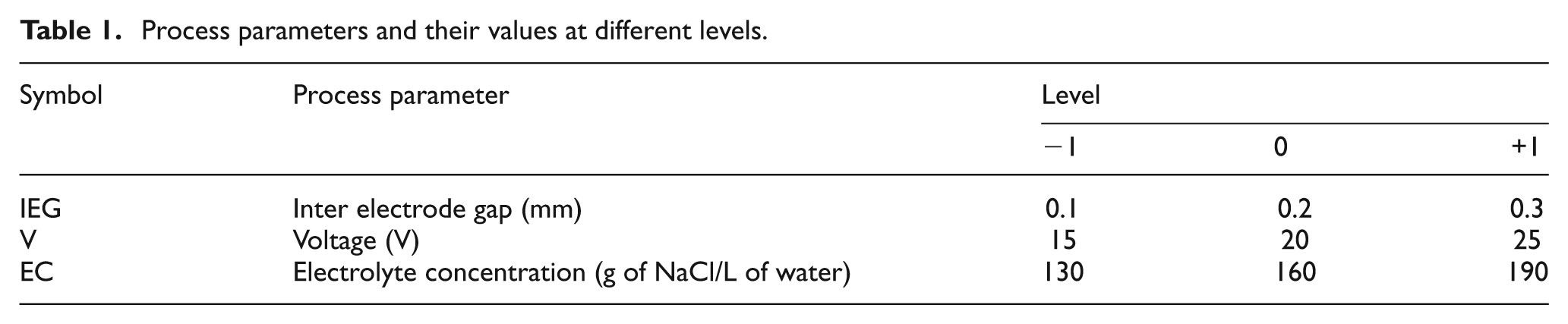

Table 1.

Process parameters and their values at different levels.

Symbol	Process parameter	Level
		−1	0	+1
IEG	Inter electrode gap (mm)	0.1	0.2	0.3
V	Voltage (V)	15	20	25
EC	Electrolyte concentration (g of NaCl/L of water)	130	160	190

In this work, MRR was measured based on weight loss during machining time

$$\begin{array}{cc}\multicolumn{1}{c}{}& \mathrm{Material\; removal\; rate}(\mathrm{MRR})\hfill \\ \multicolumn{1}{c}{}& =\frac{\mathrm{Loss\; of\; weight}}{\mathrm{Machining\; time}}(\mathrm{g}/\min )\hfill \end{array}$$

(1)

Weights were measured using weighing machine with least count of 1 mg and maximum weight of 1 kg. The surface roughness (R_a) was measured with the Mitutoyo surface roughness tester with sampling length of 10 mm. The results are the average of the three measurements. Table 2 shows the experimental results of aqueous NaCl and K₂Cr₂O₇ mixed aqueous NaCl electrolyte.

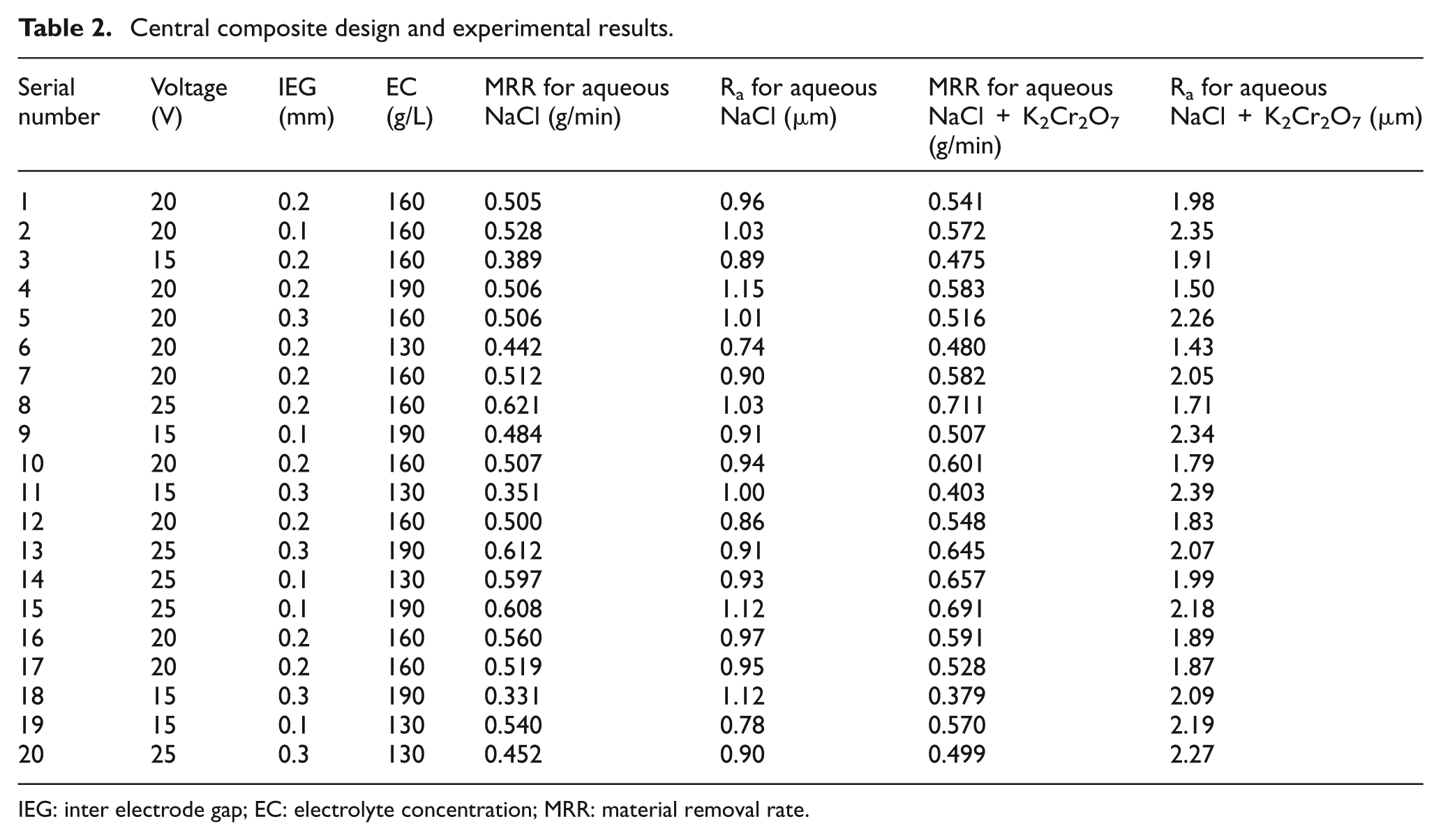

Table 2.

Central composite design and experimental results.

Serial number	Voltage (V)	IEG (mm)	EC (g/L)	MRR for aqueous NaCl (g/min)	Ra for aqueous NaCl (µm)	MRR for aqueous NaCl + K2Cr2O7 (g/min)	Ra for aqueous NaCl + K2Cr2O7 (µm)
1	20	0.2	160	0.505	0.96	0.541	1.98
2	20	0.1	160	0.528	1.03	0.572	2.35
3	15	0.2	160	0.389	0.89	0.475	1.91
4	20	0.2	190	0.506	1.15	0.583	1.50
5	20	0.3	160	0.506	1.01	0.516	2.26
6	20	0.2	130	0.442	0.74	0.480	1.43
7	20	0.2	160	0.512	0.90	0.582	2.05
8	25	0.2	160	0.621	1.03	0.711	1.71
9	15	0.1	190	0.484	0.91	0.507	2.34
10	20	0.2	160	0.507	0.94	0.601	1.79
11	15	0.3	130	0.351	1.00	0.403	2.39
12	20	0.2	160	0.500	0.86	0.548	1.83
13	25	0.3	190	0.612	0.91	0.645	2.07
14	25	0.1	130	0.597	0.93	0.657	1.99
15	25	0.1	190	0.608	1.12	0.691	2.18
16	20	0.2	160	0.560	0.97	0.591	1.89
17	20	0.2	160	0.519	0.95	0.528	1.87
18	15	0.3	190	0.331	1.12	0.379	2.09
19	15	0.1	130	0.540	0.78	0.570	2.19
20	25	0.3	130	0.452	0.90	0.499	2.27

IEG: inter electrode gap; EC: electrolyte concentration; MRR: material removal rate.

Electrolyte and reactions

The following parameters were set as constant during the experimentation. These values have been set after conducting several tests and were found to be optimal:

• Current (I): 250 A;

• Machining time (t): 10 min;

• Flow rate (U): 8 L/min;

• Feed rate (F): 0.1 mm/min;

• Concentration of K₂Cr₂O₇: 5 g/L of water.

A higher feed rate produces higher MRR. However, higher feed rate of tool reduces the IEG and it makes more difficult to allow the full flow of the electrolyte. This circumstance leads to short-circuiting, intermittent sparks that damage the tool and workpiece. Moreover, feed rate is directly proportional to MRR. Hence, constant feed rate (F) of 0.1 mm/min is considered for good surface finish. The experiments were conducted in turbulent electrolyte flow conditions with the flow rate (U) of 8 L/min of aqueous NaCl solution. The electrolyte and water undergo ionic dissociation^15,16 as the potential difference is applied between the workpiece (anode) and the tool (cathode). The positive ions move toward the tool and the negative ions move toward the workpiece.

Aqueous NaCl solution dissociates as

$$\mathrm{NaCl}\to \mathrm{N}{\mathrm{a}}^{+}+\mathrm{C}{\mathrm{l}}^{-}\mathrm{and}{\mathrm{H}}_2\mathrm{O}\to {\mathrm{H}}^{+}+{(\mathrm{OH})}^{-}$$

(2)

$${\mathrm{K}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7\mathrm{ionizes\; as}{\mathrm{K}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7\to 2{\mathrm{K}}^{+}+\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7^{2-}$$

(3)

$$\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7^{2-}+{\mathrm{H}}_2\mathrm{O}{2\mathrm{CrO}}_4^{2-}+2{\mathrm{H}}^{+}$$

(4)

Dichromate ions react with excess hydrogen ions and form water as

$$\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7^{2-}+14{\mathrm{H}}^{+}+6{\mathrm{e}}^{-}\to 2\mathrm{C}{\mathrm{r}}^{3+}+7{\mathrm{H}}_2\mathrm{O}$$

(5)

$${\mathrm{K}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7+2\mathrm{NaCl}\to \mathrm{N}{\mathrm{a}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7+2\mathrm{KCl}$$

(6)

The alloy steel 20MnCr5 workpiece (anode) undergoes an oxidation reaction by which the atoms are ionized.

The divalent ferrous dissolution occurs at the current efficiency (η = 100%)

$$\mathrm{F}{\mathrm{e}}^0\to \mathrm{F}{\mathrm{e}}^{2+}+2{\mathrm{e}}^{-}$$

(7)

The trivalent ferrous dissolution occurs at the current efficiency (η < 100%)

$$\mathrm{F}{\mathrm{e}}^0\to \mathrm{F}{\mathrm{e}}^{3+}+3{\mathrm{e}}^{-}$$

(8)

Hydroxyl ion (OH)⁻ evolves oxygen at the anode as

$$4\mathrm{O}{\mathrm{H}}^{-}\to {\mathrm{O}}_2\uparrow +2{\mathrm{H}}_2\mathrm{O}+4{\mathrm{e}}^{-}$$

(9)

This oxygen formation dominates if no metal dissolution occurs. For NaCl solution, oxygen formation is less.

The hydrogen ions will take away electrons from the cathode (tool) and form hydrogen gas at the cathode

$$2{\mathrm{H}}^{+}+2{\mathrm{e}}^{-}\to {\mathrm{H}}_2\uparrow$$

(10)

Choking of the flow of electrolyte by hydrogen bubbles is avoided by the high velocity of electrolyte jet. Within the electrolyte, iron ions would combine with chloride ions to form iron chloride and similarly, sodium ions would combine with hydroxyl ions to form sodium hydroxide

$$\mathrm{N}{\mathrm{a}}^{+}+\mathrm{O}{\mathrm{H}}^{-}\to \mathrm{NaOH}$$

(11)

$$\mathrm{F}{\mathrm{e}}^{2+}+2\mathrm{O}{\mathrm{H}}^{-}\to \mathrm{Fe}{(\mathrm{OH})}_2$$

(12)

Fe(OH)₂ are formed and precipitated as sludge. Due to further reaction, some amount of Fe(OH)₃ is also possible. Dichromate oxidizes Fe²⁺ to Fe³⁺ ions, which confirm the more electrochemical dissolution on the surface of the workpiece. The above reactions confirm the gradual machining of workpiece and the sludge gets precipitated. As the material removal takes place due to atomic-level dissociation, the machined surface is of good surface finish and stress free. The experimental results of working of this electrolyte are tabulated in Table 2. Since K₂Cr₂O₇ is a good oxidizing agent, it electrochemically reacts with aqueous NaCl solution. During the process of ECM, the hydroxyl ions’ formation is important for machining. Because these ions react with workpiece material to form metal hydroxide which is considered as material removal in this machining.

Analysis of variance of the models

The analysis of variance (ANOVA) and Fisher’s test (F-ratio) have been performed to justify the goodness of fit of the mathematical models. ¹⁴ In order to study the effect of the ECM process parameters, a second-order polynomial model with input variables is fitted in the following equation. Table 3 refers to the ANOVA results for models MRR and R_a

$$Y_u=b_o+{\displaystyle \sum _{i=1}^n}{b}_i{X}_{\mathrm{iu}}+{\displaystyle \sum _{i=1}^n}{b}_{\mathrm{it}}{X}_{\mathrm{iu}}^2+{\displaystyle \sum _{j>1}^n}{b}_{\mathrm{ij}}{X}_{\mathrm{iu}}{X}_{\mathrm{ju}}+e_u$$

(13)

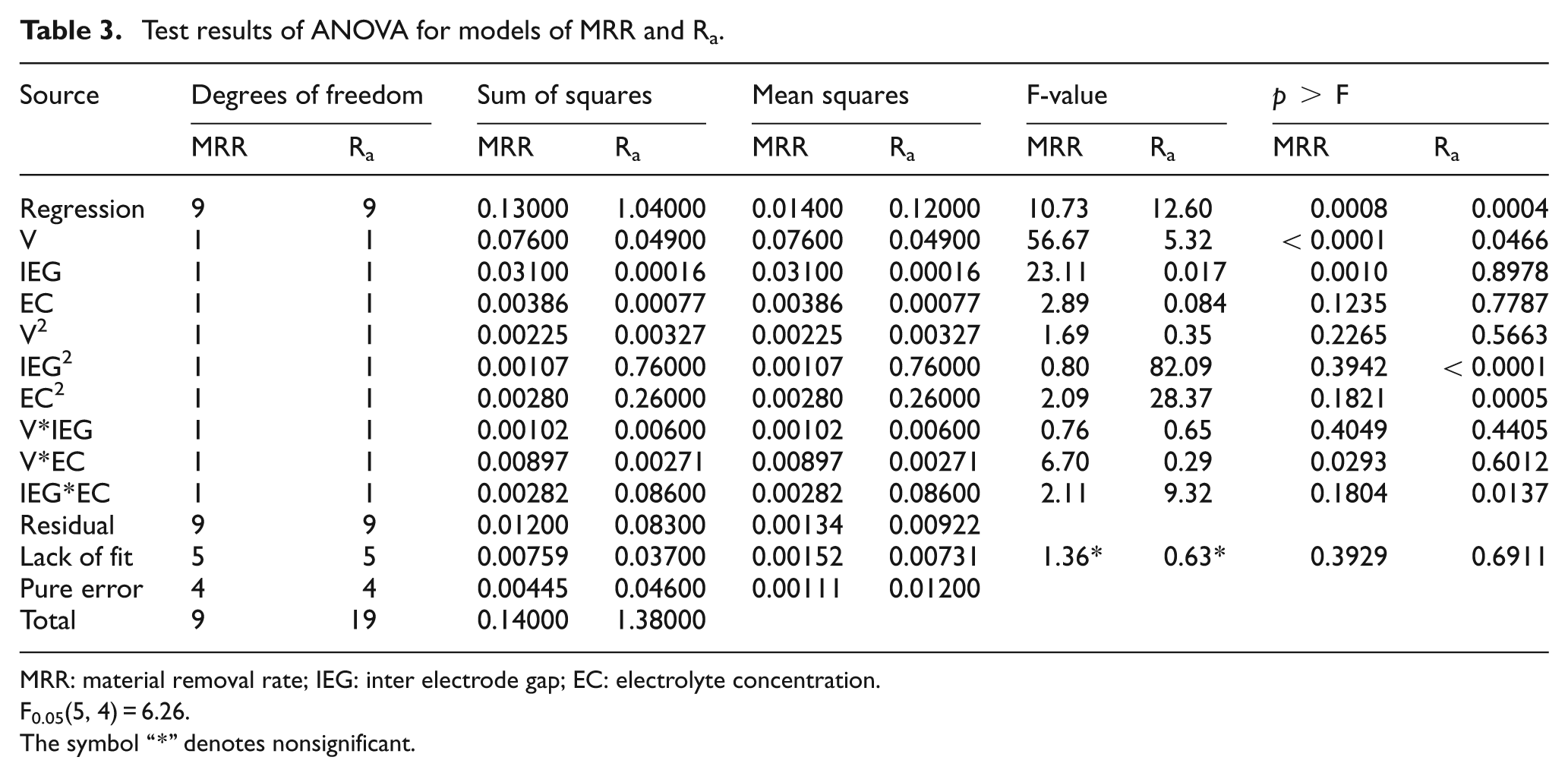

Table 3.

Test results of ANOVA for models of MRR and R_a.

Source	Degrees of freedom		Sum of squares		Mean squares		F-value		p > F
	MRR	Ra	MRR	Ra	MRR	Ra	MRR	Ra	MRR	Ra
Regression	9	9	0.13000	1.04000	0.01400	0.12000	10.73	12.60	0.0008	0.0004
V	1	1	0.07600	0.04900	0.07600	0.04900	56.67	5.32	<0.0001	0.0466
IEG	1	1	0.03100	0.00016	0.03100	0.00016	23.11	0.017	0.0010	0.8978
EC	1	1	0.00386	0.00077	0.00386	0.00077	2.89	0.084	0.1235	0.7787
V2	1	1	0.00225	0.00327	0.00225	0.00327	1.69	0.35	0.2265	0.5663
IEG2	1	1	0.00107	0.76000	0.00107	0.76000	0.80	82.09	0.3942	<0.0001
EC2	1	1	0.00280	0.26000	0.00280	0.26000	2.09	28.37	0.1821	0.0005
V*IEG	1	1	0.00102	0.00600	0.00102	0.00600	0.76	0.65	0.4049	0.4405
V*EC	1	1	0.00897	0.00271	0.00897	0.00271	6.70	0.29	0.0293	0.6012
IEG*EC	1	1	0.00282	0.08600	0.00282	0.08600	2.11	9.32	0.1804	0.0137
Residual	9	9	0.01200	0.08300	0.00134	0.00922
Lack of fit	5	5	0.00759	0.03700	0.00152	0.00731	1.36*	0.63*	0.3929	0.6911
Pure error	4	4	0.00445	0.04600	0.00111	0.01200
Total	9	19	0.14000	1.38000

MRR: material removal rate; IEG: inter electrode gap; EC: electrolyte concentration.

F_0.05(5, 4) = 6.26.

The symbol “*” denotes nonsignificant.

where Y_u is the response; n the number of parameters; b_o, b ₁ and so on the second-order regression coefficients and e_u the regression error.

The MRR model F-ratio value of 10.73 implies that model is statistically significant. In this case, V, IEG and V*EC are significant model terms. The value of R² = 91.47% means that the regression model provides an excellent explanation of the relationship between the variables and the response MRR. Standard F-ratio (F _0.05,5,4) for “lack of fit” of this model is 6.26. The calculated F-ratio value of 1.36 is smaller than the standard, which means that there is no strong evidence of lack of fit. Thus, the model equation (14) is adequate

$$\begin{array}{cc}\multicolumn{1}{c}{}& \mathrm{MRR}=0.6938-0.069177*\mathrm{V}-1.21029*\mathrm{IEG}\hfill \\ \multicolumn{1}{c}{}& +0.006415*\mathrm{EC}+0.00116*{\mathrm{V}}^2-1.99735*\mathrm{IE}{\mathrm{G}}^2\hfill \\ \multicolumn{1}{c}{}& -0.00003586*\mathrm{E}{\mathrm{C}}^2+0.0226*\mathrm{V}*\mathrm{IEG}\hfill \\ \multicolumn{1}{c}{}& +0.0002232*\mathrm{V}*\mathrm{EC}+0.006258*\mathrm{IEG}*\mathrm{EC}\hfill \end{array}$$

(14)

The R_a model F-value of 12.60 implies that the model is significant. In this case, V, IEG², EC² and IEG*EC are significant model terms. The value of R² = 92.65% means that the regression model provides an excellent explanation of the relationship between the variables and the response R_a. The calculated F-ratio value for “lack of fit” of 0.63 is smaller than the standard (F_0.05,5,4) = 6.26. Thus, the developed model equation (15) can be used for the further analysis

$$\begin{array}{cc}\multicolumn{1}{c}{}& R_a=-4.50378-0.10038*\mathrm{V}-16.76485*\mathrm{IEG}\hfill \\ \multicolumn{1}{c}{}& +0.11514*\mathrm{EC}+0.001395*{\mathrm{V}}^2+53.0886*\mathrm{IE}{\mathrm{G}}^2\hfill \\ \multicolumn{1}{c}{}& -0.0003468*\mathrm{E}{\mathrm{C}}^2+0.054775*\mathrm{V}*\mathrm{IEG}\hfill \\ \multicolumn{1}{c}{}& +0.000123*\mathrm{V}*\mathrm{EC}-0.034537*\mathrm{IEG}*\mathrm{EC}\hfill \end{array}$$

(15)

Results and discussion

The amount of different substances dissolved by the same quantity of electricity is proportional to their chemical equivalent weights. Since the electrolyte serves as the conductor of electric current, Ohm’s law can be applied to this conductor. The simple expression of Faraday’s law can be described as

$$m=\mathrm{kIt}$$

(16)

where k is the electrochemical equivalent of the anode metal (=M/(nF) (g/C)) and m is the mass (g).

In this work, 20MnCr5 alloy steel comprises different elements. The amount of mass (MRR_theo) liberated from the alloy is given by

$$\begin{array}{cc}\multicolumn{1}{c}{}& \mathrm{MR}{R}_{\mathrm{theo}}=\frac{I}{F}\left[\frac{1}{\sum \frac{x_i*n_i}{M_i}}\right]i=1,2,\dots ,\hfill \\ \multicolumn{1}{c}{}& \mathrm{no}.\mathrm{of\; elements\; in\; the\; alloy}\hfill \end{array}$$

(17)

where MRR_theo is the theoretical MRR (g/sec), I the current flow (A), F the Faraday’s constant =96,485 C mol⁻¹, M the molar mass of the substance (g/mol), n_i the valency number of each element in the alloy and x_i the composition of each element in the alloy.

Faraday’s law of electrolysis predicts the rate at which metal is removed from a workpiece. The current efficiency (η) for the 20MnCr5 alloy steel dissolution was then determined from the mass loss measurements assuming divalent metal ion (Fe²⁺) formation. Practically, all the current is not used to ionize the workpiece atoms during the ECM process. Some current does the undesirable electrochemical reactions such as metal deposits on the tool and the production of gas. Thus, an efficiency term (η) is used to describe the percentage of current applied to dissolve atoms in the overall current. Actual MRR using the electrochemical equivalent equation yields MRR = ηkIt. The anodic current is largely consumed in alloy steel 20MnCr5 dissolution. The anodic dissolution process is almost unaffected with electrolyte flow rate in the turbulent conditions. But it is significantly influenced by EC. A small layer of oxide film appears on the workpiece when current density is low and most of the current is consumed for oxygen gas evolution. At high current density, complete metal dissolution takes place and the oxide film is removed.

The type of electrolytes used in the process affects the quality of surface finish of jobs machined with ECM. Sodium chloride (NaCl) electrolyte tends to produce matte finish with alloy steels. Higher voltages are applied to break the oxide film and its disruption is non-uniform, which results in deep grain boundary attack of the metal surface. Pitting on metal surfaces occurs sometimes due to the evolution of the gas bubbles, which rupture the oxide film. Identifying the best electrolyte selection plays an important role in ECM. In Figure 6, it is observed that current efficiency is slightly higher with K₂Cr₂O₇ mixed aqueous NaCl electrolyte for all tests. This is because of the oxidation due to K₂Cr₂O₇ in addition to regular metal hydroxides (sludge) and erosion on the surface.

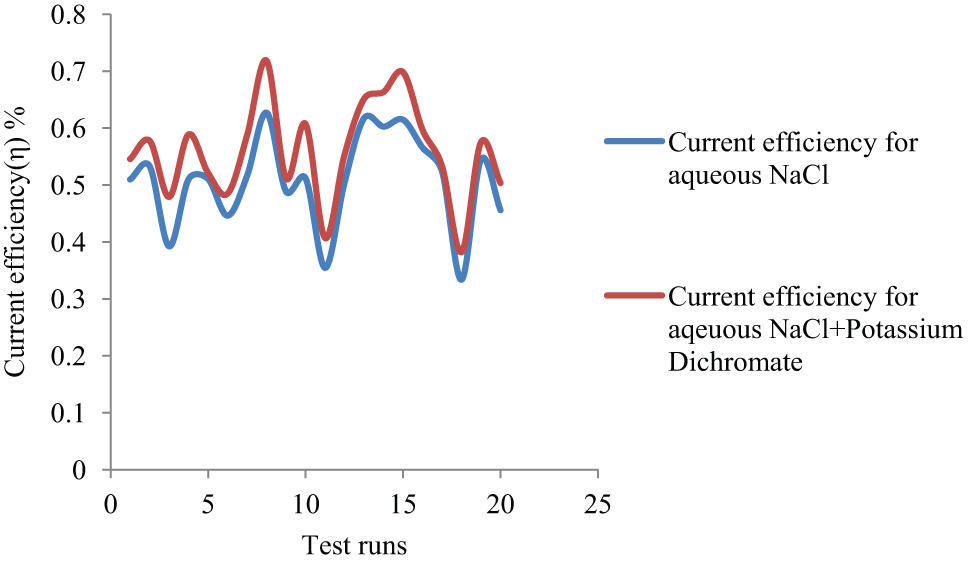

Figure 6.

Current efficiency versus different electrolytes.

Parametric influence on MRR and R_a for K₂Cr₂O₇ mixed aqueous NaCl electrolyte

In order to analyze the effect of the various process variables on MRR and R_a, contour plots were drawn for various combinations. Figure 7 shows the influence of the variables on the MRR for K₂Cr₂O₇ mixed aqueous NaCl electrolyte. Increase in voltage increases the machining current in the IEG, thereby increasing the MRR.

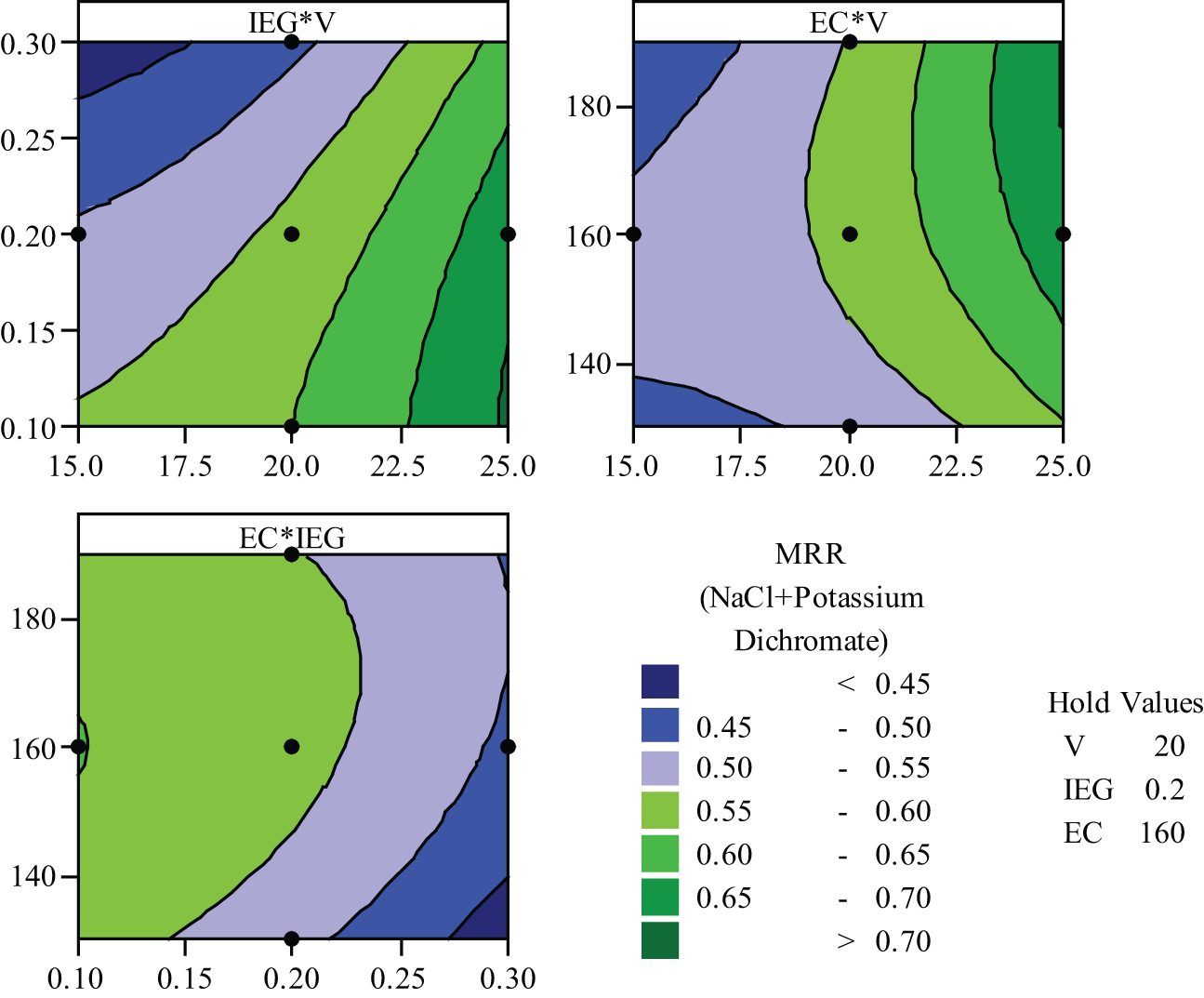

Figure 7.

Parametric influence on MRR.

This can be seen in scanning electron micrograph of machined components at low voltage (15 V) in Figure 9(a) and (b). Surfaces look rough at low voltage (15 V). Figure 9(b) confirms more erosion on the surface of workpiece due to the presence of oxidation power of K₂Cr₂O₇. Smaller IEG increases the rapid anodic dissolution as a result of higher current density. This confirms to the fundamental machining mechanism of ECM. It can be observed that the increase in EC increases MRR. This is attributed to the increase in the conductance of the electrolyte with the increase in concentration. Increase in both voltage (V) and EC enhances the MRR enormously. This can be seen in the second graph of Figure 7. The third graph in Figure 7 represents the effect of IEG and EC on the MRR. Since smaller IEG increases the current density and higher concentration allows more ions for ionization, its combined effect increases the MRR. Figure 8 shows the influence of process variables on the R_a for aqueous NaCl with K₂Cr₂O₇ electrolyte. K₂Cr₂O₇ presence influences more on the surface of the specimen. Change in pH value of electrolyte mixture during the machining affects the surface structure. IEG of 0.2 mm with voltage of 25 V produces good surface roughness (R_a). Higher concentrations of NaCl in water produce small R_a. A mild oxide deposits on the metal surface, due to the presence of K₂Cr₂O₇, is further oxidized and is eliminated due to high velocity of electrolyte jet. On the whole, sensible non-uniform metal dissolution is created due to K₂Cr₂O₇, which results in slightly higher R_a. Figures 9(b), 10(b) and 11(b) confirm the more anodic dissolution as well as corrosion due to K₂Cr₂O₇ presence in the aqueous NaCl electrolyte.

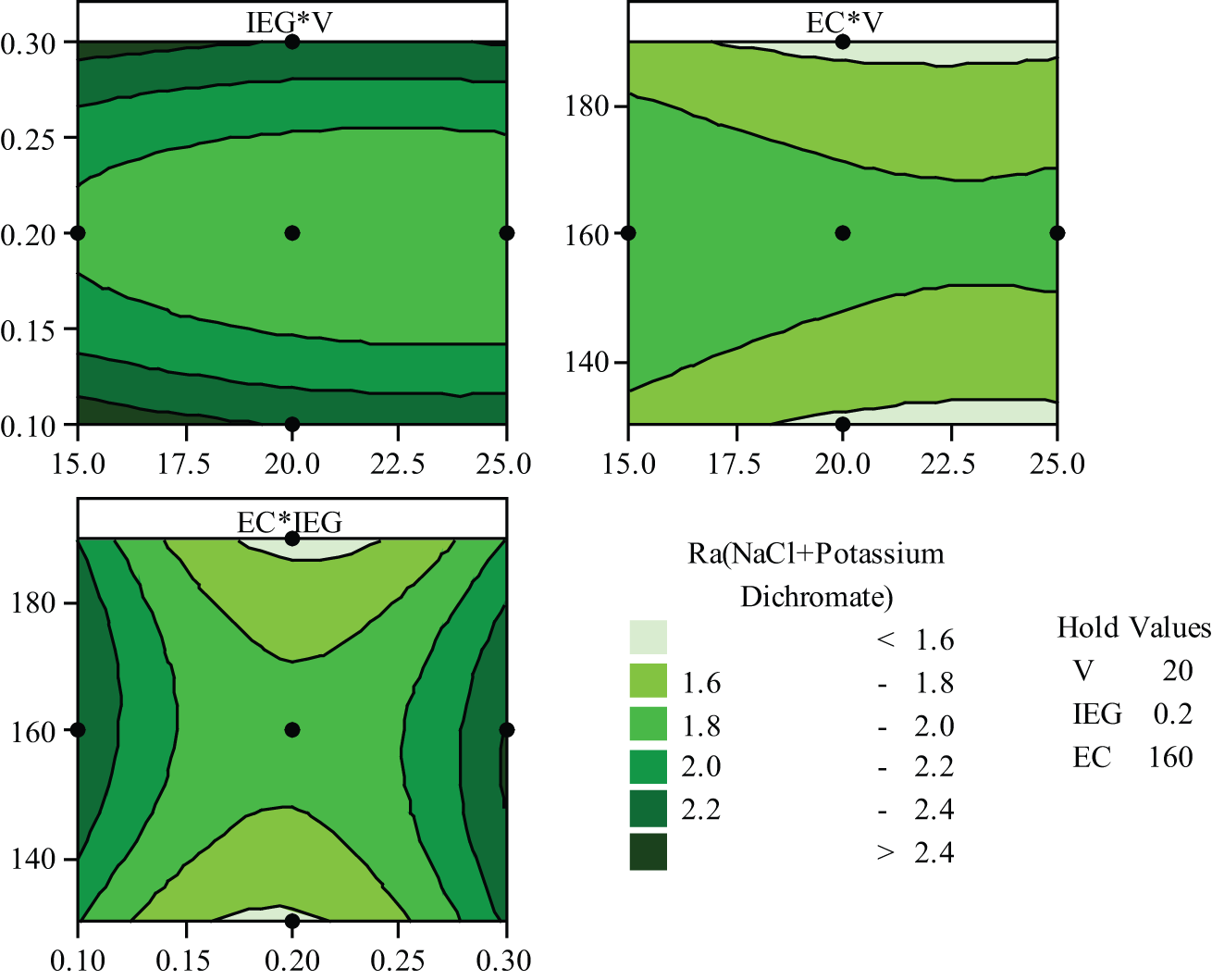

Figure 8.

Parametric influence on R_a.

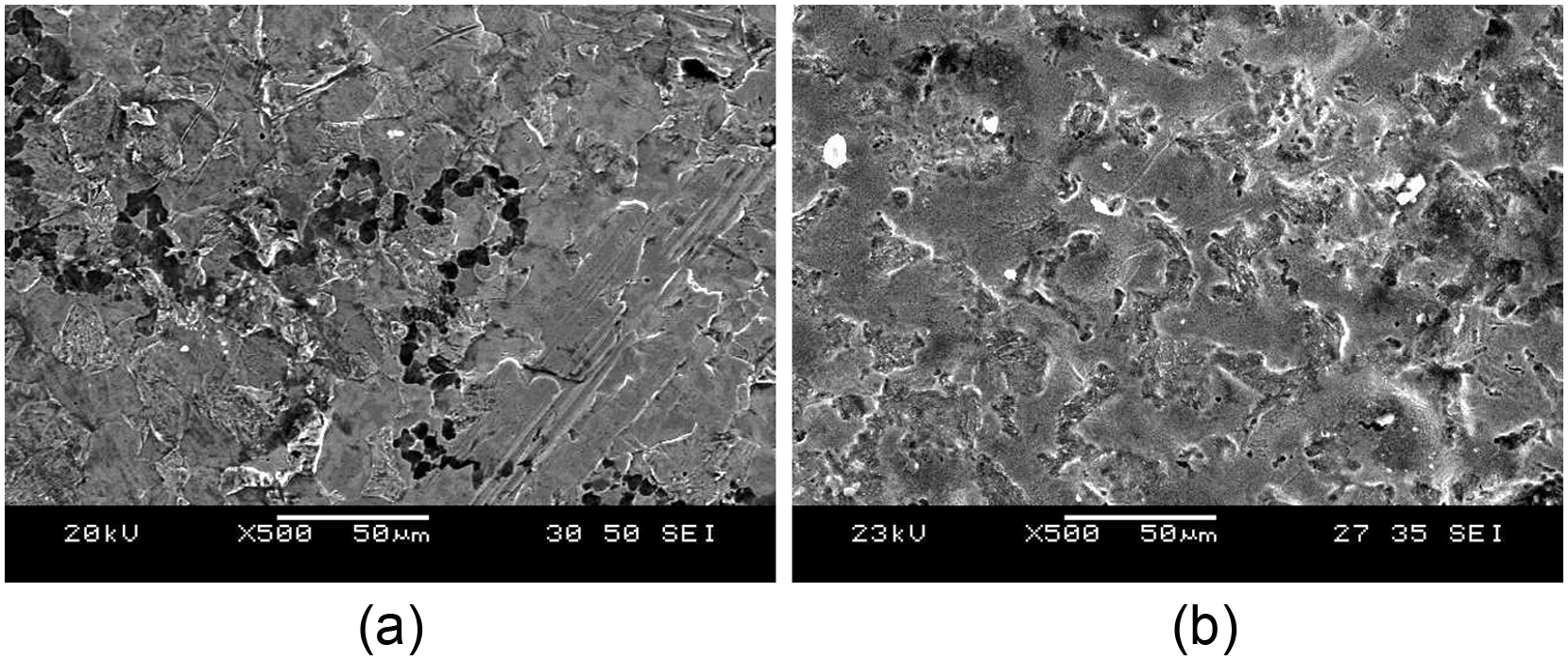

Figure 9.

(a) Machined surface at 15 V with aqueous NaCl, (b) Machined surface at 15 V with K₂Cr₂O₇ mixed aqueous NaCl.

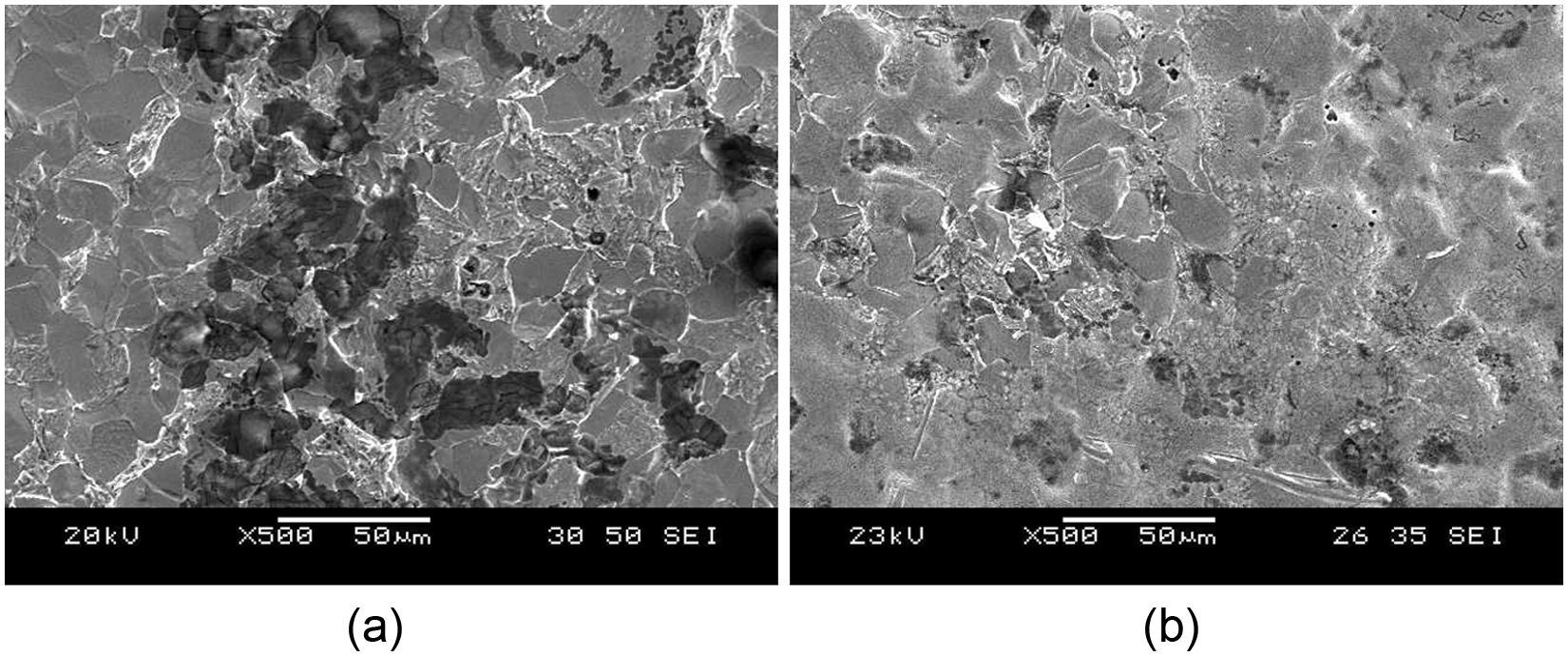

Figure 10.

(a) Machined surface at 20 V with aqueous NaCl. (b) Machined surface at 20 V with K₂Cr₂O₇ mixed aqueous NaCl.

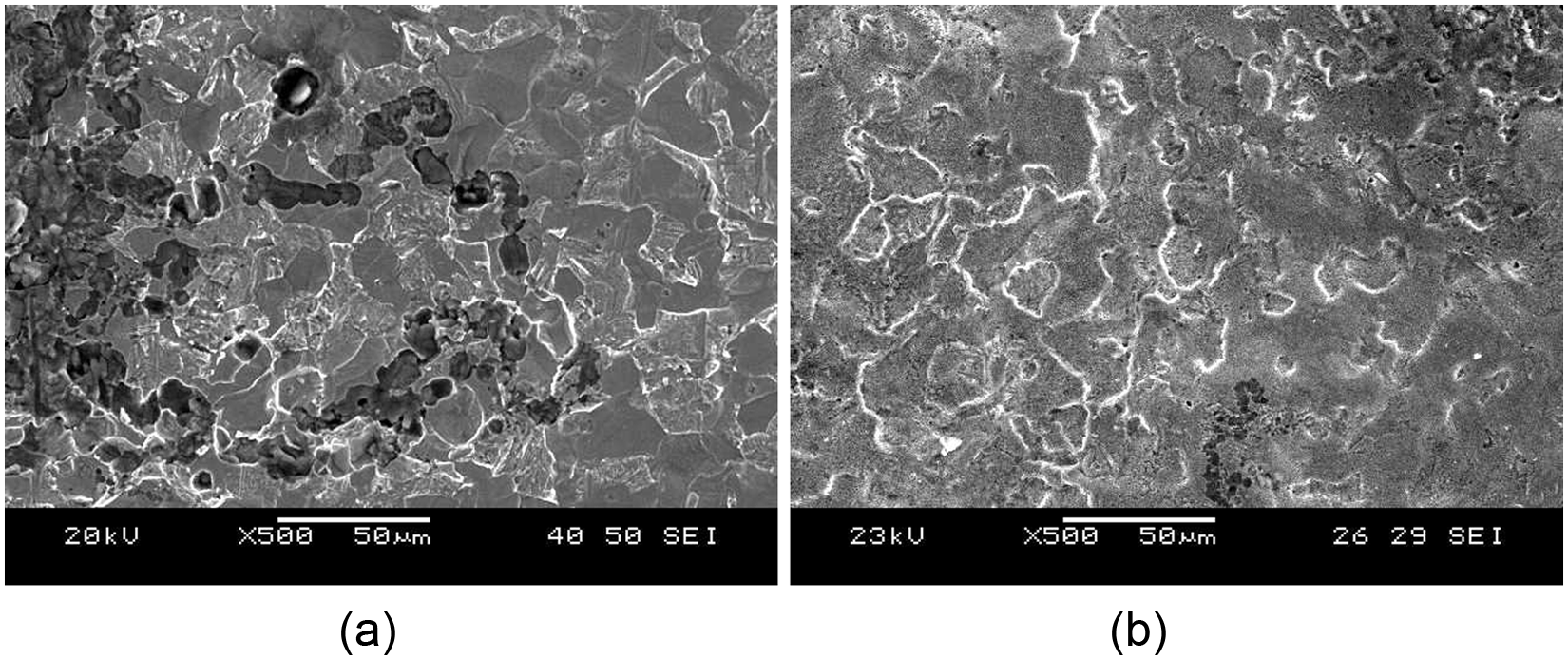

Figure 11.

(a) Machined surface at 25 V with aqueous NaCl. (b) Machined surface at 25 V with K₂Cr₂O₇ mixed aqueous NaCl.

Multi-response optimization by GA-DF optimizer

DF

DF is one of the most extensively used methods for multi-response optimization. ¹⁷ It transforms each response y_i into an individual DF d_i(y_i) that varies in the range (0, 1) and increases as the corresponding response value becomes more desirable. Depending on the nature of the responses (y_i), DFs d_i(y_i) will be maximized, minimized or assigned to a target value. The individual desirability d_i(y_i) will be as follows

$$d_i(y_i)=0\mathrm{if}{y}_i(x)\le L_i$$

(18)

$$d_i(y_i)={\left(\frac{y_i(x)-L_i}{T_i-L_i}\right)}^r\mathrm{if}{L}_i\le y_i(x)\le T_i$$

(19)

$$d_i(y_i)={\left(\frac{y_i(x)-U_i}{T_i-U_i}\right)}^r\mathrm{if}{T}_i\le y_i(x)\le U_i$$

(20)

$$d_i(y_i)=0\mathrm{if}{y}_i(x)>U_i$$

(21)

where x is the factor; L_i and U_i are the lower and upper acceptable bounds of y_i; T_i is the target value desired for i ^th response, where L_i < T_i < U_i and r is the parameter that determines the shape of d_i(y_i).

The individual DFs are then combined using the geometric mean, which gives the composite desirability D

$$D={((d_1(y_1)*d_2(y_2)*\cdots *d_m(y_m))}^{\frac{1}{m}}$$

(22)

where m denotes the number of responses and y ₁, y ₂,…, y_m are the response equations.

The composite desirability (D) is to be maximized. In this work, individual desirability d(MRR) and d(R_a) are calculated as shown in equations (23) and (24) within the allowable bounds

$$d(\mathrm{MRR})=\frac{\mathrm{MRR}(x)-\mathrm{MR}{R}_{\min }}{\mathrm{MR}{R}_{\max }-\mathrm{MR}{R}_{\min }}$$

(23)

$$d(R_a)=\frac{R_a(x)-R_{\max }}{R_{\min }-R_{\max }}$$

(24)

The r-value is 1 as the shape of individual desirability is considered as linear function. The composite desirability (D) is obtained as

$$D={(d(\mathrm{MRR})*d(R_a))}^{\frac{1}{2}}$$

(25)

GA-DF optimizer steps

GA was developed by John Holland inspired from the evolution of biological systems. ¹⁸ GA is integrated with DF in such a way that GA-DF optimizer is developed. Optimality search is conducted to get the maximum composite desirability (D) for aqueous NaCl with K₂Cr₂O₇ electrolyte using GA-DF optimizer, and the working of this technique is explained in the following steps. Scheme of this proposed algorithm is shown in Figure 12.

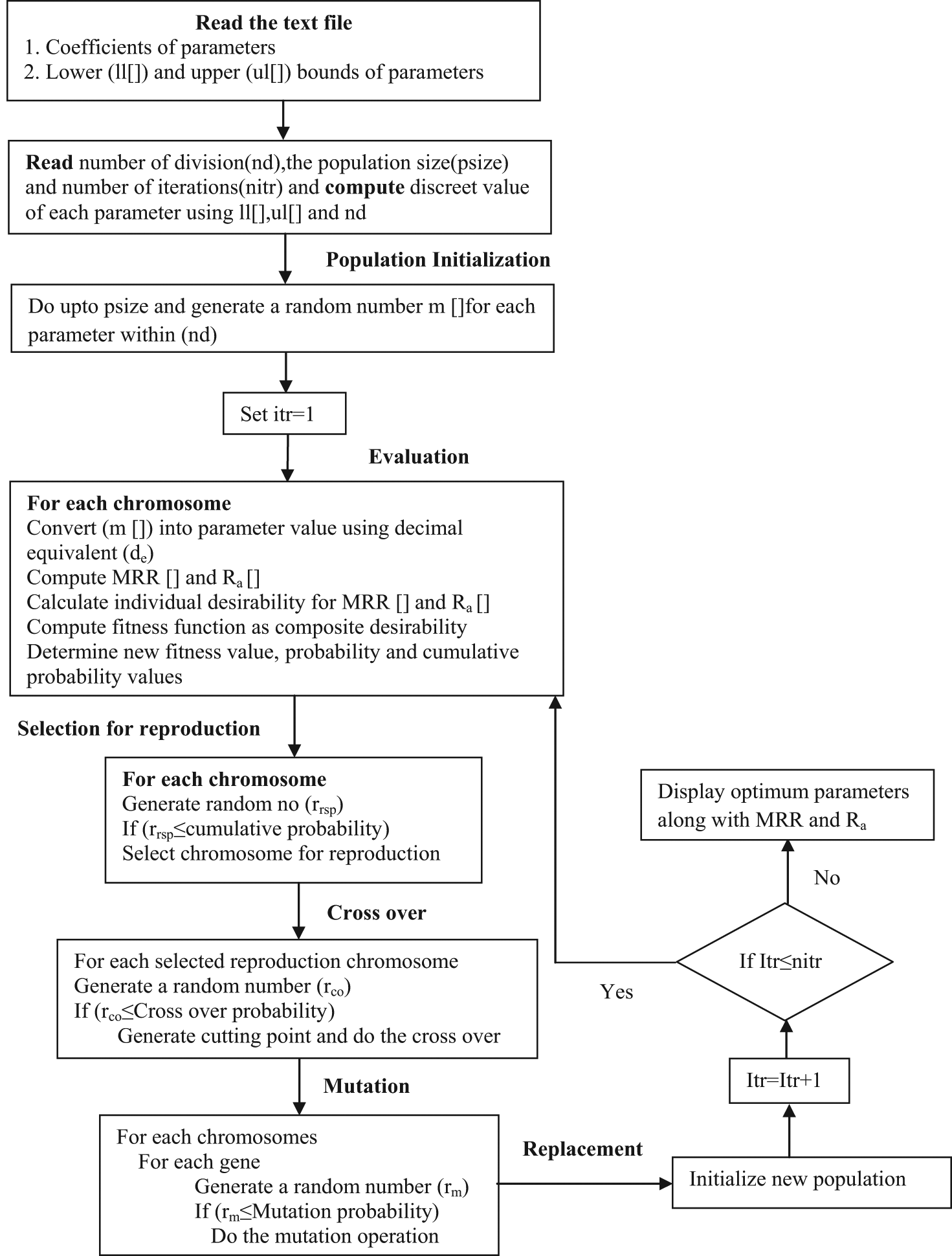

Figure 12.

Scheme of GA-DF algorithm.

Initialization

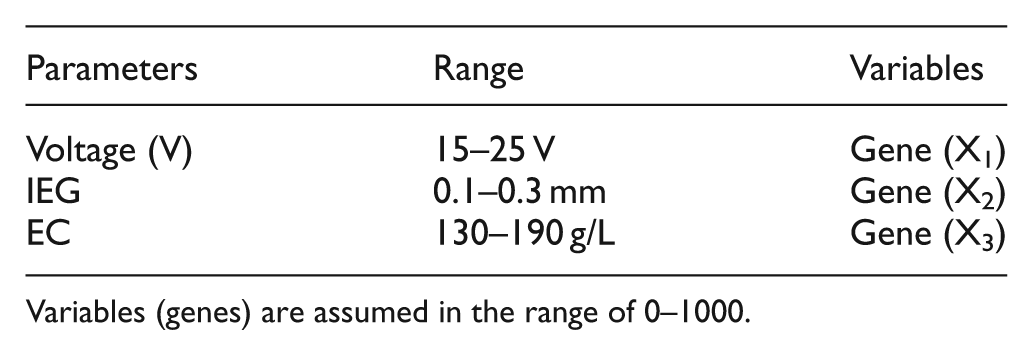

In this work, population size and the number of generations considered are 20 and 500, respectively.

Parameters	Range	Variables
Voltage (V)	15–25 V	Gene (X1)
IEG	0.1–0.3 mm	Gene (X2)
EC	130–190 g/L	Gene (X3)

Variables (genes) are assumed in the range of 0–1000.

Parameters are initialized based on the expression

$$\mathrm{Parameter\; value}({\mathrm{X}}_1)=\mathrm{Min}.\mathrm{value}+\mathrm{D}{\mathrm{E}}_{\mathrm{X}1}\times \mathrm{D}{\mathrm{C}}_{\mathrm{X}1}$$

where $\mathrm{D}{\mathrm{E}}_{\mathrm{X}1}=((\mathrm{Max}.\mathrm{value}-\mathrm{Min}.\mathrm{value})/1000)$ and DC_X1 is variable assumed in the range of 0–1000.

Five chromosomes are considered for the explanation. The evaluation for MRR and R_a and its desirability values are given in Table 4.

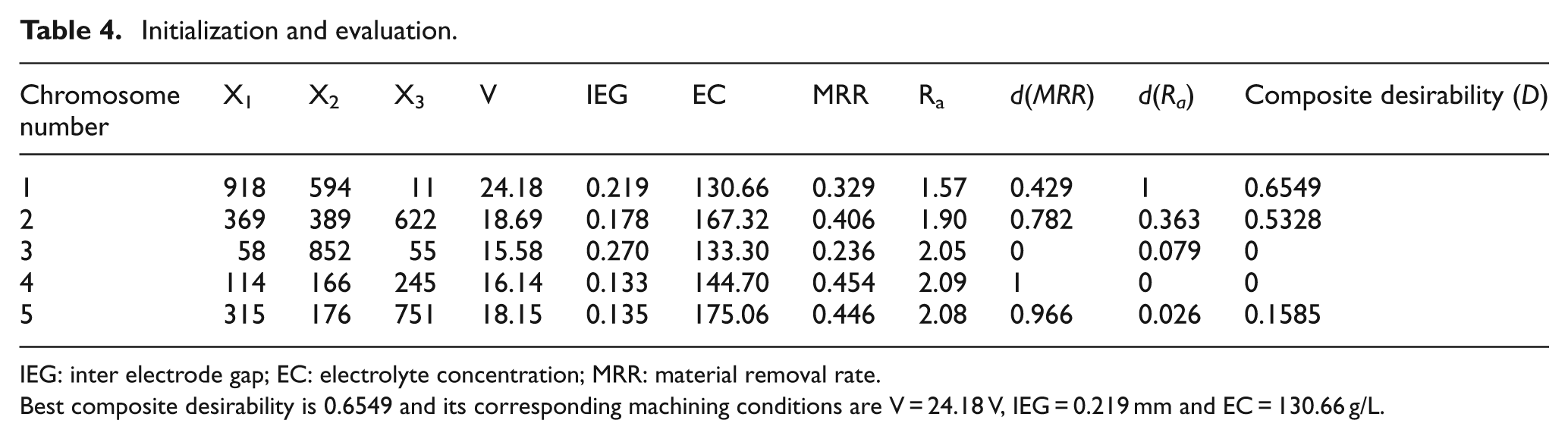

Table 4.

Initialization and evaluation.

Chromosome number	X1	X2	X3	V	IEG	EC	MRR	Ra	d(MRR)	d(Ra)	Composite desirability (D)
1	918	594	11	24.18	0.219	130.66	0.329	1.57	0.429	1	0.6549
2	369	389	622	18.69	0.178	167.32	0.406	1.90	0.782	0.363	0.5328
3	58	852	55	15.58	0.270	133.30	0.236	2.05	0	0.079	0
4	114	166	245	16.14	0.133	144.70	0.454	2.09	1	0	0
5	315	176	751	18.15	0.135	175.06	0.446	2.08	0.966	0.026	0.1585

IEG: inter electrode gap; EC: electrolyte concentration; MRR: material removal rate.

Best composite desirability is 0.6549 and its corresponding machining conditions are V = 24.18 V, IEG = 0.219 mm and EC = 130.66 g/L.

Selection for reproduction

The chromosomes are selected according to roulette wheel selection method. The modified fitness value for each chromosome is calculated by the expression $\mathrm{nf}(x)=e^{-\mathrm{cf}(x)}$ , where c is taken as 0.05.

The probability of chromosomes is determined using the following expression

$$P_i=\frac{n{f}_i}{{\displaystyle \sum _{i=1}^{\mathrm{ps}}}n{f}_i}$$

where ps is population size, i is chromosome and P_i is probability of i ^th chromosome.

Probability and cumulative probability are listed in Table 5. Random number (r_rsp) is generated for each chromosome. Chromosomes are selected corresponding to its cumulative probability value that is the next higher value than r_rsp and renamed as chromosome number 1′, 2′ and so on. Table 5 represents the selected chromosomes for reproduction.

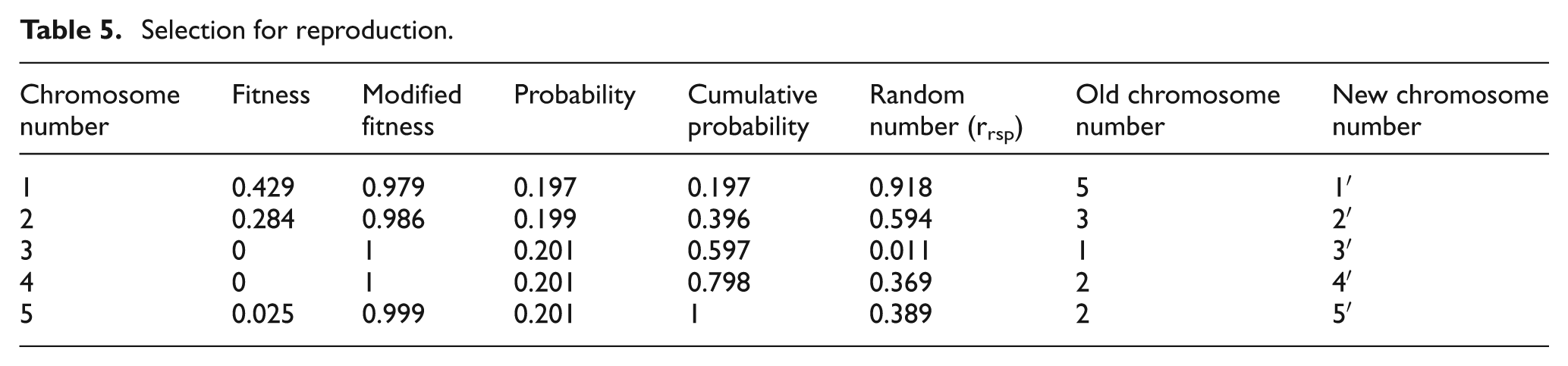

Table 5.

Selection for reproduction.

Chromosome number	Fitness	Modified fitness	Probability	Cumulative probability	Random number (rrsp)	Old chromosome number	New chromosome number
1	0.429	0.979	0.197	0.197	0.918	5	1′
2	0.284	0.986	0.199	0.396	0.594	3	2′
3	0	1	0.201	0.597	0.011	1	3′
4	0	1	0.201	0.798	0.369	2	4′
5	0.025	0.999	0.201	1	0.389	2	5′

Crossover

A crossover probability is assumed as 0.62 and a random number (r_co) is generated for each chromosome. The chromosome is selected for crossover operation, only if r_co is less than or equal to crossover probability. Single-point crossover is considered in this work.

A random number (r_cp), as cutting point, is generated within in the number N < number of parameters considered. So either 1 or 2 is generated for each chromosome for crossover. The genes after and before cutting point (r_cp) are interchanged and presented in Table 6. Those chromosomes not selected for the crossover will be retained as such after crossover.

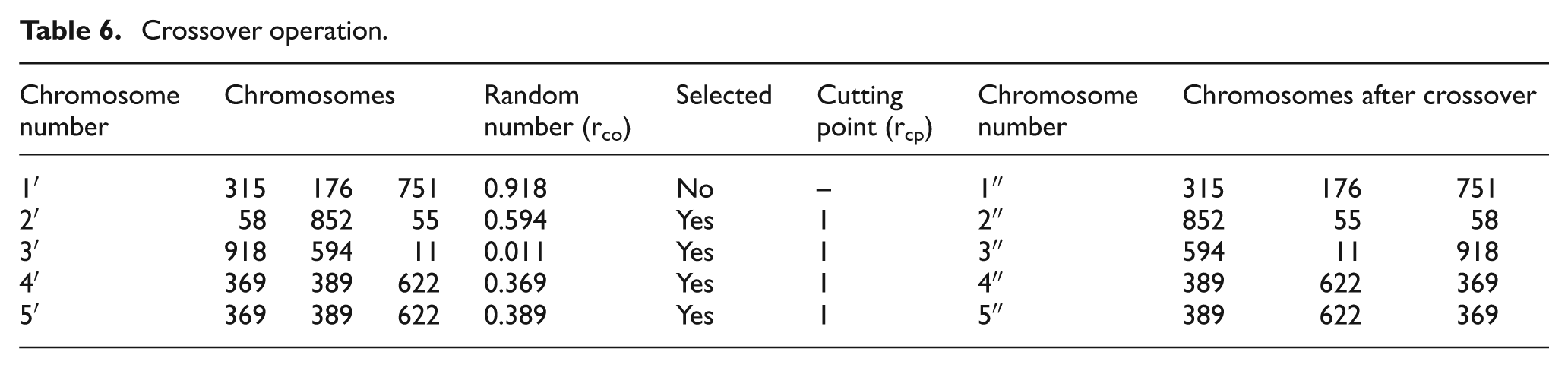

Table 6.

Crossover operation.

Chromosome number	Chromosomes			Random number (rco)	Selected	Cutting point (rcp)	Chromosome number	Chromosomes after crossover
1′	315	176	751	0.918	No	–	1″	315	176	751
2′	58	852	55	0.594	Yes	1	2″	852	55	58
3′	918	594	11	0.011	Yes	1	3″	594	11	918
4′	369	389	622	0.369	Yes	1	4″	389	622	369
5′	369	389	622	0.389	Yes	1	5″	389	622	369

Mutation

A value of 0.05 is assumed as mutation probability and a random number (r_m) is generated for each gene of all chromosomes. If r_m is less than or equal to mutation probability, then the corresponding gene is mutated with neighbor gene and it is shown in detail in Table 7.

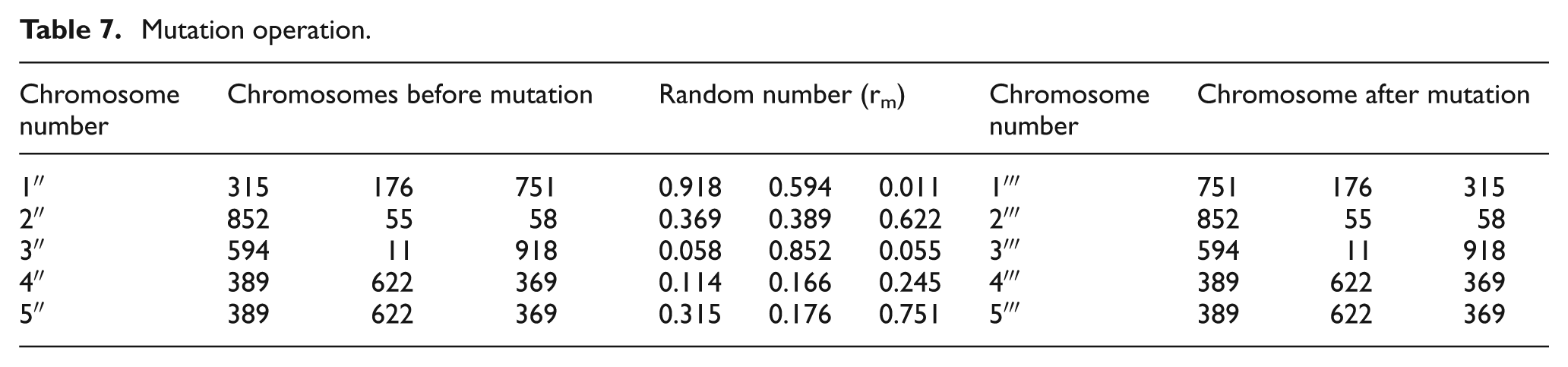

Table 7.

Mutation operation.

Chromosome number	Chromosomes before mutation			Random number (rm)			Chromosome number	Chromosome after mutation
1″	315	176	751	0.918	0.594	0.011	$1‴$	751	176	315
2″	852	55	58	0.369	0.389	0.622	$2‴$	852	55	58
3″	594	11	918	0.058	0.852	0.055	$3‴$	594	11	918
4″	389	622	369	0.114	0.166	0.245	$4‴$	389	622	369
5″	389	622	369	0.315	0.176	0.751	$5‴$	389	622	369

The chromosomes after mutation are assumed as new population. This new population is evaluated to find the best fitness value and is repeated till 500 iterations.

Best composite desirability for the simultaneous optimization of MRR and R_a in the aqueous NaCl and K₂Cr₂O₇ environment is 0.98 (Figure 13). Optimum machining conditions are V = 25 V, IEG = 0.192 mm, EC = 184.3 g/L, MRR = 0.489 g/min and R_a = 1.65 µm.

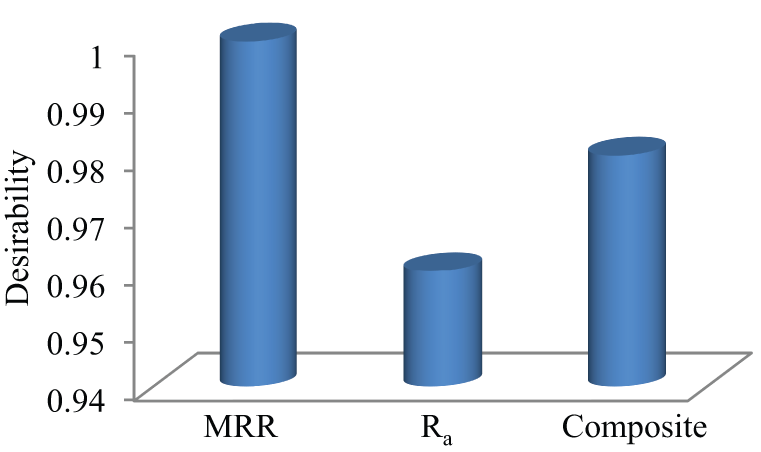

Figure 13.

Desirability results of GA-DF optimizer.

Confirmatory experiment

In order to test the validity of the above machining conditions, confirmatory experiment was conducted and its results are given in Table 8.

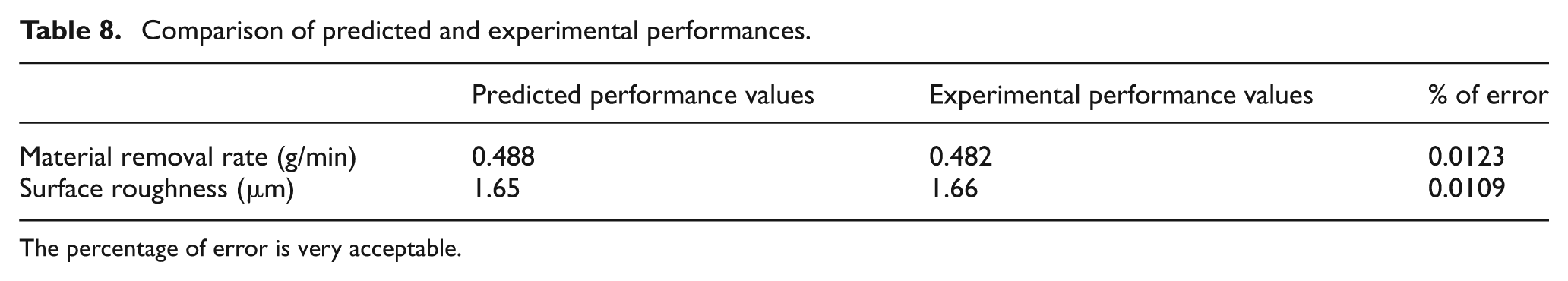

Table 8.

Comparison of predicted and experimental performances.

	Predicted performance values	Experimental performance values	% of error
Material removal rate (g/min)	0.488	0.482	0.0123
Surface roughness (µm)	1.65	1.66	0.0109

The percentage of error is very acceptable.

Conclusion

The experimental analysis highlights the ECM characteristics of 20MnCr5 alloy steel using aqueous NaCl solution and K₂Cr₂O₇ mixed aqueous NaCl. RSM was used in this research work to prove its adequacy to analyze the ECM process. From the investigations, the following conclusions can be drawn. The process parameters, voltage (V), IEG and EC, significantly affect the MRR and R_a. Potassium dichromate presence in the aqueous NaCl proves to be very effective in improving the MRR of workpiece. Increase in MRR is noted from 1% to 14% due to the addition of 5 g of K₂Cr₂O₇/L of aqueous NaCl solution. MRR is improved due to the oxidation effect of K₂Cr₂O₇. Due to the affinity of steel toward oxygen, more oxygen elements in K₂Cr₂O₇ are attracted into the electrochemical reaction. Due to this high oxygen availability in the electrolyte, more FeO is formed, which is further oxidized and washed away by the electrolyte jet. Mathematical models developed based on RSM approach for correlating process parameters with MRR and R_a are tested through the ANOVA and proved adequate. The GA-DF optimizer was used for multi-response optimization. Optimum machining conditions, in the K₂Cr₂O₇ mixed aqueous NaCl solution environment, are found out. Hence, it is concluded that the MRR is increased when K₂Cr₂O₇ mixed aqueous NaCl is used as an electrolyte and slight increase in R_a is also observed.
