Abstract

The rotary-draw bending process of thin-walled rectangular tube is a complex process with the interaction of many factors. The wrinkling may be produced if the process parameters are inappropriate. So, here, based on finite element numerical simulation, and taking the clearances and the frictions between tube and dies as the optimal design variables and the wrinkling height as the optimal objective, the optimization design for rotary-draw bending process of thin-walled rectangular 3A21 aluminum alloy tube has been carried out by using sequential quadratic programming method. Then, the recommended values of the clearances between mandrel, wiper die and bending die and tube, and the friction coefficients between pressure die, mandrel and wiper die and tube are obtained. The achievements of this study are significant to reduce the manufacturing cost and increase efficiency and bending quality.

Keywords

Aluminum alloy thin-walled rectangular tube rotary-draw bending process parameters optimization design sequential quadratic programming

Introduction

Thin-walled rectangular aluminum alloy tube bent parts are widely used in aerospace, aviation, radar and various other industries for the merits of light in weight, less loss pulsing signal, larger circulating transmitter and so on. This type of tube bending can be done using several different methods, such as rotary-draw bending, stretch bending and press bending.¹ Among these methods, the rotary-draw bending method plays a very important role in rectangular tube bending process because it can realize the requirement of high precision, high efficiency, flexible bending and so on.

However, the rotary-draw bending process of thin-walled rectangular tube is a complex forming process with the interaction of many factors. The wrinkling phenomenon is easily produced if process parameters are inappropriate in the bending process, especially for the interference among many process parameters, which makes wrinkling difficult to control. As a result, the determination of appropriate process parameters has become one key problem to be urgently solved for developing tube bent parts with no wrinkling, high performance and increasing its application potential.

In recent years, the bending process of thin-walled tube has been investigated largely by many scholars all over the word. Wrinkling behavior in pure bending of rectangular tube and differences in wrinkling among the tubes with different materials and different sections were studied by many researchers using experimental method, theoretical method, artificial neural network and so on.^2–4 Yoshida and Fujiwara⁵ studied the wrinkling of rectangular tube in draw bending process and obtained the critical compressive strain using theoretical method. Corona and Vaze^6,7 addressed the response, which was buckling and collapse of long thin-walled square tubes under pure bending, analytically and experimentally. To study the correlation between the main geometrical tube parameters of the rotary-draw bending process and the resulting quality of the cross section of small hydraulic pilings, Mentella and Strano⁸ studied the free rotary-draw bending of small diameter copper tubes with high length and relatively thin walls. And a unique quality estimator, the cross-sectional geometry of bent tubes, has been developed. Zhao et al.^9,10 investigated the influence of mandrel, clearance and friction between mandrel and tube on wrinkling in rotary-draw bending process. These above studies are mostly focused on pure bending process or the effect of independent parameter on wrinkling, however sufficiently solve the complex optimization problems of tube rotary-draw bending with multi-factors is scarce,¹¹ especially for the thin-walled rectangular tube. Therefore, in this study, the optimal design of clearances and frictions has been done for the rotary-draw bending process using the method of virtual experiment-regression prediction-sequential quadratic programming (SQP). And the recommended values of the clearances and frictions are obtained.

Optimal design model

Optimal objective

One of the objectives of the rotary-draw bending process for thin-walled rectangular tube is eliminating the wrinkling phenomenon and satisfying the requirements of high precision and high performance. Therefore, the wrinkling phenomenon is taken as the subject investigated in this study, and the optimal objective is to obtain the tube bent parts without wrinkling. The mathematical model of the wrinkling wave height can be obtained as follows.

According to the geometrical relationship among $A_{i}$ , $B_{i}$ and $C_{i}$ (see Figure 1) in the section located at node i(i = 0, 1, 2, …, 50), the bulging height $Δ h_{i}$ of wrinkling wave in the cross section can be calculated by

Δ h_{i} = \bar{| B_{i} C_{i} |} = \sqrt{{\bar{| A_{i} B_{i} |}}^{2} - {\bar{| A_{i} C_{i} |}}^{2}}, i = 0, 1, 2, \dots, 50

(1)

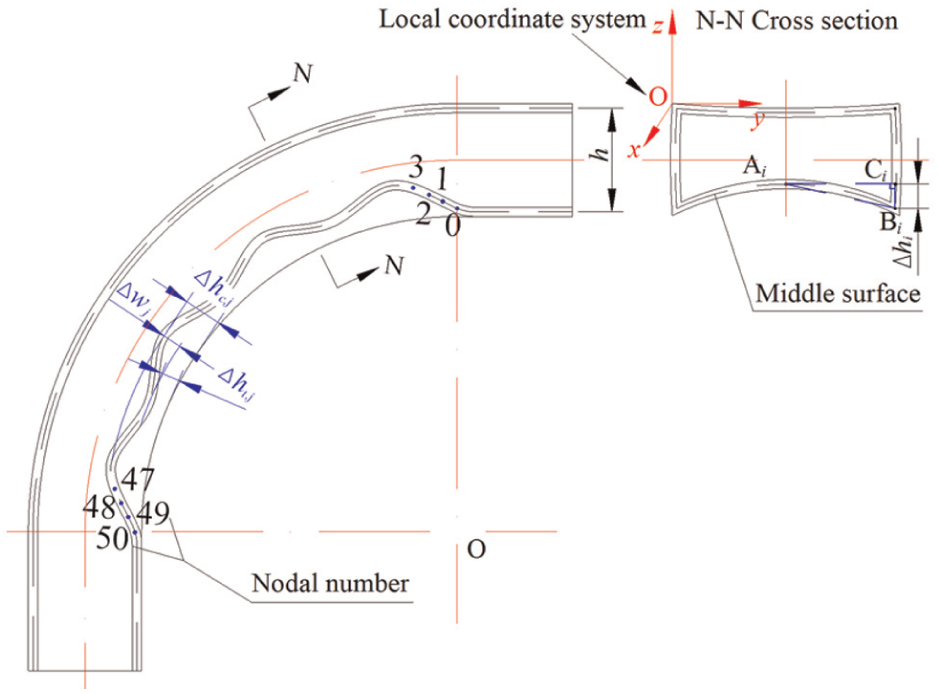

Figure 1.

Wrinkling ripple inside the elbow.

Through $Δ h_{i}$ and the node i, the wrinkling wave can be expressed quantificationally in Cartesian coordinate system. Define $Δ h_{c, j}$ as the height of wave crest, $Δ h_{t, j}$ as the height of wave trough and $Δ w_{j}$ as the wrinkling wave height (j = 0, 1, …, m, m is the wave number). So, the wrinkling wave height $Δ w_{max}$ can be calculated by

Δ w_{max} = max {Δ w_{j} = Δ h_{c, j} - Δ h_{t, j}}

(2)

It represents that the smaller the value of $Δ w_{max}$ , the higher the forming quality of tube.

Selection of design variables

Because the rotary-draw bender consists of a bending die, a wiper die, a mandrel and so on, there are many parameters influencing the onset of wrinkling during the bending process. Accordingly, the clearances between mandrel, wiper die, bending die and tube, and the frictions between pressure die, mandrel, wiper die and tube, which have significant effects on wrinkling, are selected as the design variables, and then, the rotary-draw bending process of thin-walled rectangular tube is optimized using the SQP method.

Constraint conditions

According to the practical production, the constraint conditions of the rotary-draw bending of thin-walled rectangular tube are listed in Table 1.

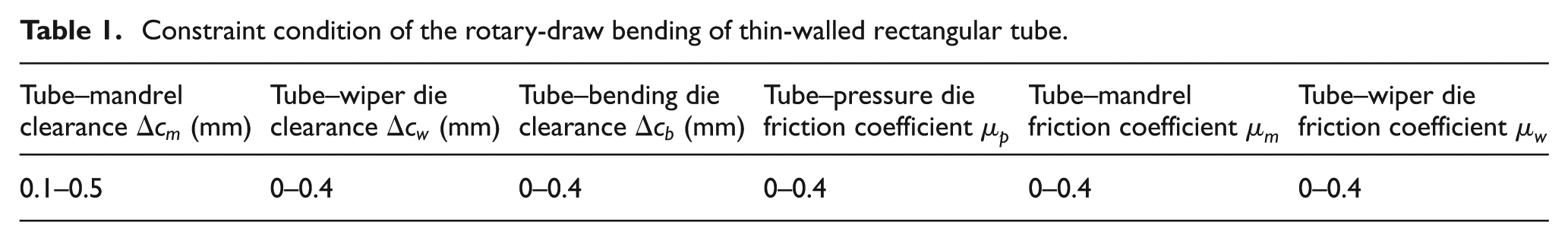

Table 1.

Constraint condition of the rotary-draw bending of thin-walled rectangular tube.

Tube–mandrel clearance $Δ c_{m}$ (mm)	Tube–wiper die clearance $Δ c_{w}$ (mm)	Tube–bending die clearance $Δ c_{b}$ (mm)	Tube–pressure die friction coefficient $μ_{p}$	Tube–mandrel friction coefficient $μ_{m}$	Tube–wiper die friction coefficient $μ_{w}$
0.1–0.5	0–0.4	0–0.4	0–0.4	0–0.4	0–0.4

Establishing optimal design model

Because the relation between process parameters and wrinkling wave height $Δ w_{max}$ (multivariate nonlinear regression model) is very complex, it is difficult to be expressed as a certain function. Consequently, the virtual orthogonal experiments have been done based on the numerical simulation. And then the optimal design model (approximate relation between process parameters and wrinkling wave height) is built using the polynomial regression.

Three-dimensional finite element model and the simulation conditions

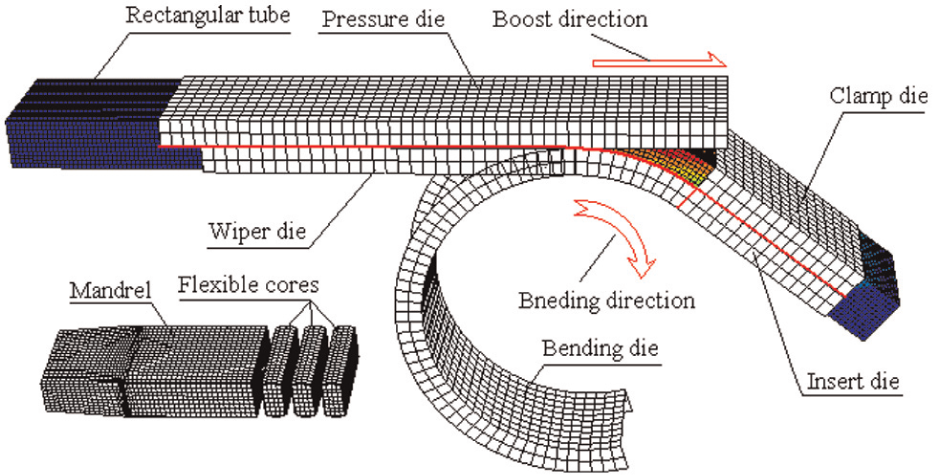

The three-dimensional (3D) finite element (FE) model of rotary-draw bending process of thin-walled rectangular tube, shown in Figure 2, has been built under the dynamic explicit code ABAQUS/Explicit and validated experimentally by Zhao et al.¹²

Figure 2.

Illustration of FE model for rotary-draw bending process.

The material used is thin-walled rectangular 3A21 aluminum alloy. Its elastic modulus E is 60.2 GPa, Poisson ratio υ is 0.33, tensile strength $σ_{b}$ is 191.4 MPa and stress–strain characteristic is $\bar{σ} = 138.46 + 136 {(\bar{ε} - 0.0023)}^{0.2}$ .¹³

The cross-sectional height h of the tube is 12.2 mm, width w is 24.86 mm, wall thickness t is 1 mm and length l is 200 mm. The main process parameters of rotary-draw bending process are as follows: the bending radius is 40 mm, bending angular velocity $ω$ is 0.5 rad/s, booster velocity of pressure die is 22.5 mm/s and bending angle is 90°.

Virtual orthogonal experiment

During the rotary-draw bending process of thin-walled rectangular tube, factors that need to be investigated are the variables (shown in section “Selection of design variables”). Five levels are selected for each parameter. So, an $L_{25} (5^{6})$ orthogonal design table is chosen, and the computational plan is shown in Table 2. According to the computational plan, the wrinkling wave height $Δ w_{max}$ of each case is obtained through the numerical simulation of the bending process of thin-walled rectangular aluminum alloy 3A21 tube which had been carried out using the dynamic explicit code ABAQUS/Explicit. And the results are shown in Table 2.

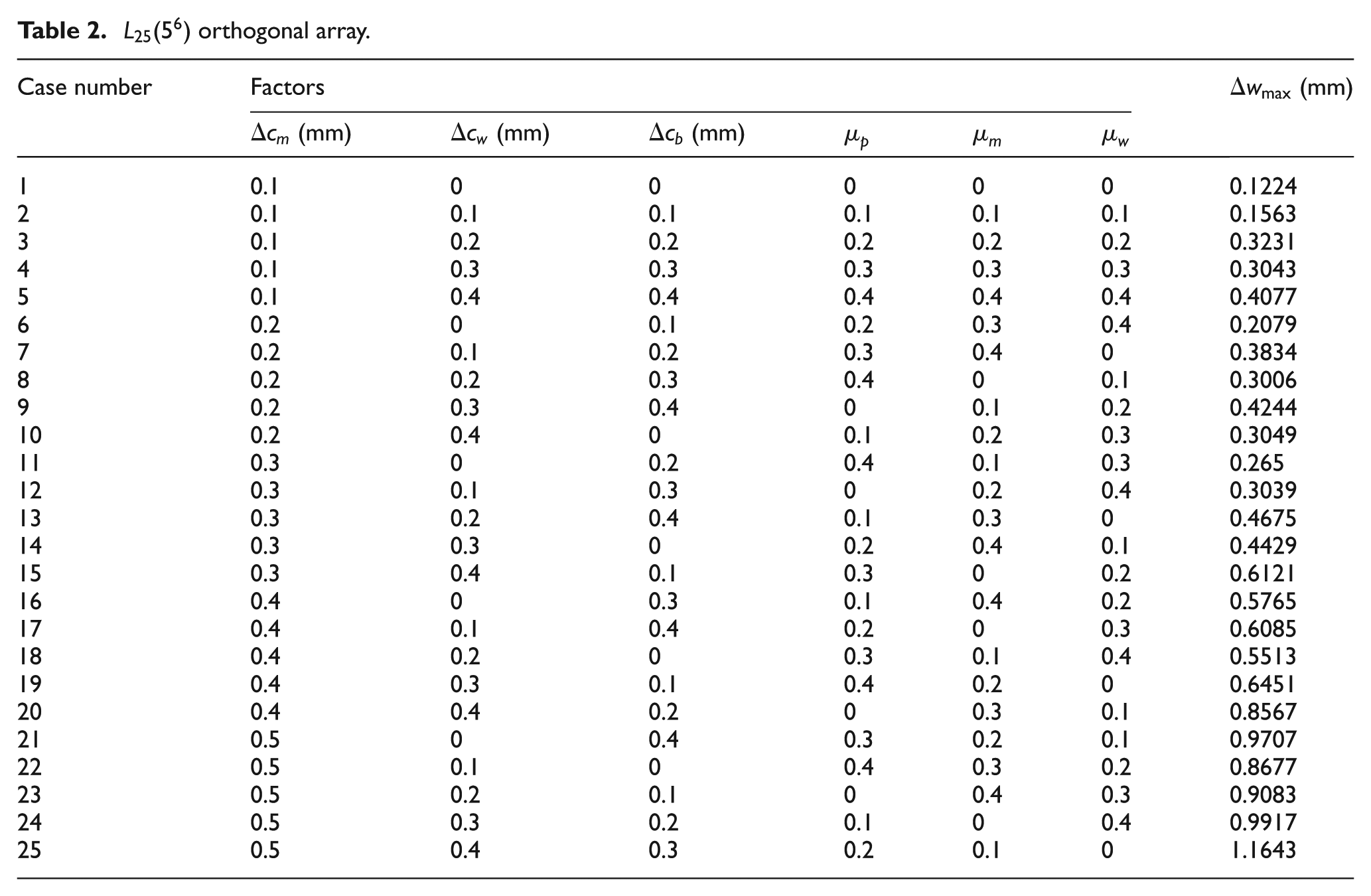

Table 2.

$L_{25} (5^{6})$ orthogonal array.

Case number	Factors						$Δ w_{max}$ (mm)
	$Δ c_{m}$ (mm)	$Δ c_{w}$ (mm)	$Δ c_{b}$ (mm)	$μ_{p}$	$μ_{m}$	$μ_{w}$	$Δ w_{max}$ (mm)
1	0.1	0	0	0	0	0	0.1224
2	0.1	0.1	0.1	0.1	0.1	0.1	0.1563
3	0.1	0.2	0.2	0.2	0.2	0.2	0.3231
4	0.1	0.3	0.3	0.3	0.3	0.3	0.3043
5	0.1	0.4	0.4	0.4	0.4	0.4	0.4077
6	0.2	0	0.1	0.2	0.3	0.4	0.2079
7	0.2	0.1	0.2	0.3	0.4	0	0.3834
8	0.2	0.2	0.3	0.4	0	0.1	0.3006
9	0.2	0.3	0.4	0	0.1	0.2	0.4244
10	0.2	0.4	0	0.1	0.2	0.3	0.3049
11	0.3	0	0.2	0.4	0.1	0.3	0.265
12	0.3	0.1	0.3	0	0.2	0.4	0.3039
13	0.3	0.2	0.4	0.1	0.3	0	0.4675
14	0.3	0.3	0	0.2	0.4	0.1	0.4429
15	0.3	0.4	0.1	0.3	0	0.2	0.6121
16	0.4	0	0.3	0.1	0.4	0.2	0.5765
17	0.4	0.1	0.4	0.2	0	0.3	0.6085
18	0.4	0.2	0	0.3	0.1	0.4	0.5513
19	0.4	0.3	0.1	0.4	0.2	0	0.6451
20	0.4	0.4	0.2	0	0.3	0.1	0.8567
21	0.5	0	0.4	0.3	0.2	0.1	0.9707
22	0.5	0.1	0	0.4	0.3	0.2	0.8677
23	0.5	0.2	0.1	0	0.4	0.3	0.9083
24	0.5	0.3	0.2	0.1	0	0.4	0.9917
25	0.5	0.4	0.3	0.2	0.1	0	1.1643

Regression prediction model

Generally, in the fields of science and technology, using quadratic polynomial to approach the relation between variable and optimal objective can satisfy the requirement of precision.¹⁴ The mathematical model of quadratic polynomial is expressed as

\begin{matrix} f \hat{} (x) = a_{0} + a_{1} x_{1} + a_{2} x_{2} + \dots + a_{n} x_{n} + a_{n + 1} x_{1}^{2} \\ + a_{n + 2} x_{2}^{2} + \dots + a_{n + n} x_{n}^{2} + a_{2 n + 1} x_{1} x_{2} + a_{2 n + 2} x_{1} x_{3} + \dots \end{matrix}

(3)

From equation (3), the multivariate nonlinear regression model between wrinkling wave height $Δ w_{max}$ and process parameters can be expressed as

\begin{array}{l} Δ w_{\max} (x) = a_{0} + a_{1} x_{1} + a_{2} x_{2} + a_{3} x_{3} \\ + a_{4} x_{4} + a_{5} x_{5} + a_{6} x_{6} + a_{7} x_{1}^{2} + a_{8} x_{2}^{2} \\ + a_{9} x_{3}^{2} + a_{10} x_{4}^{2} + a_{11} x_{5}^{2} + a_{12} x_{6}^{2} \end{array}

(4)

where $x_{1}$ is the clearance between mandrel and tube, $x_{2}$ is the clearance between wiper die and tube, $x_{3}$ is the clearance between bending die and tube, $x_{4}$ is the friction between pressure die and tube, $x_{5}$ is the friction between mandrel and tube, $x_{6}$ is the friction between wiper die and tube and a_i (i = 0, 1, 2, …, 12) is the regression coefficient.

The analysis of multivariate nonlinear regression has been done based on the virtual orthogonal design results shown in Table 2, and then, the regression coefficients are obtained and shown as follows

\begin{matrix} a_{0} = 0.1769, a_{1} = - 1.0065, a_{2} = 0.3224, \\ a_{3} = 0.5925, a_{4} = 0.3783, a_{5} = - 0.4639, \\ a_{6} = 0.0226, a_{7} = 4.6157, a_{8} = 0.5665, \\ a_{9} = - 0.6616, a_{10} = - 0.7979, a_{11} = 1.1248, \\ a_{12} = - 0.5649 \end{matrix}

From the regression coefficients and equation (4), the multivariate nonlinear regression model becomes

\begin{matrix} Δ w_{max} (x) = 0.1769 - 1.0065 x_{1} + 0.3224 x_{2} \\ + 0.5925 x_{3} + 0.3783 x_{4} - 0.4639 x_{5} \\ + 0.0226 x_{6} + 4.6157 x_{1}^{2} + 0.5665 x_{2}^{2} \\ - 0.6616 x_{3}^{2} - 0.7979 x_{4}^{2} + 1.1248 x_{5}^{2} - 0.5649 x_{6}^{2} \end{matrix}

(5)

Optimal design of process parameters

Based on the intuitive analysis of orthogonal experiment for Table 2, the intuitive analysis results are obtained and listed in Table 3.

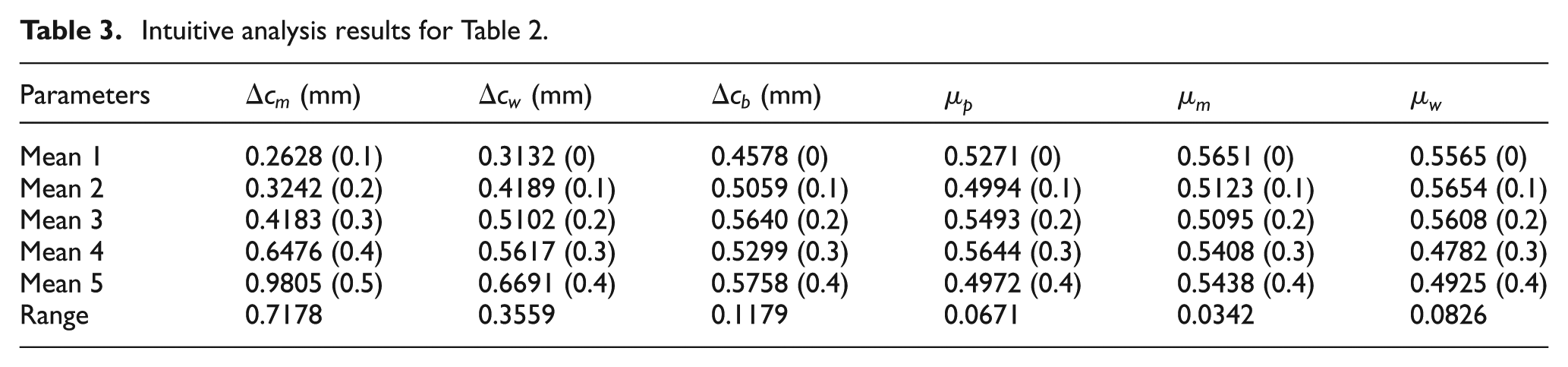

Table 3.

Intuitive analysis results for Table 2.

Parameters	$Δ c_{m}$ (mm)	$Δ c_{w}$ (mm)	$Δ c_{b}$ (mm)	$μ_{p}$	$μ_{m}$	$μ_{w}$
Mean 1	0.2628 (0.1)	0.3132 (0)	0.4578 (0)	0.5271 (0)	0.5651 (0)	0.5565 (0)
Mean 2	0.3242 (0.2)	0.4189 (0.1)	0.5059 (0.1)	0.4994 (0.1)	0.5123 (0.1)	0.5654 (0.1)
Mean 3	0.4183 (0.3)	0.5102 (0.2)	0.5640 (0.2)	0.5493 (0.2)	0.5095 (0.2)	0.5608 (0.2)
Mean 4	0.6476 (0.4)	0.5617 (0.3)	0.5299 (0.3)	0.5644 (0.3)	0.5408 (0.3)	0.4782 (0.3)
Mean 5	0.9805 (0.5)	0.6691 (0.4)	0.5758 (0.4)	0.4972 (0.4)	0.5438 (0.4)	0.4925 (0.4)
Range	0.7178	0.3559	0.1179	0.0671	0.0342	0.0826

From Table 3, the primary and secondary sequences of the parameters (shown in Table 2) on wrinkling are obtained based on the range: Δc_m (0.7178) > Δc_w (0.3559) > Δc_b (0.1179) > µ_w (0.0826) > µ_p (0.0671) > µ_m (0.0342).

To eliminate effectively wrinkling in the tube bending process, as far as $Δ w_{max}$ is concerned, the smaller the better. Thus, the optimization combination of the processing parameters is $Δ c_{m}$ 1 $Δ c_{w}$ 1 $Δ c_{b}$ 1 $μ_{p}$ 5 $μ_{m}$ 3 $μ_{w}$ 4. And the specific value of this combination is listed in Table 4.

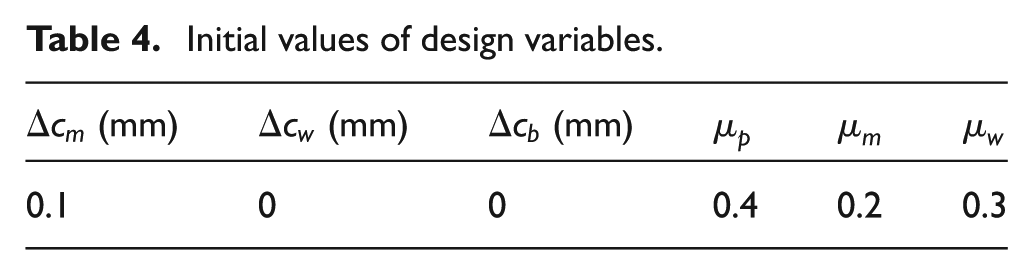

Table 4.

Initial values of design variables.

$Δ c_{m}$ (mm)	$Δ c_{w}$ (mm)	$Δ c_{b}$ (mm)	$μ_{p}$	$μ_{m}$	$μ_{w}$
0.1	0	0	0.4	0.2	0.3

To reduce the optimal range and increase efficiency and accuracy, determine the values of the combination as the initial input values for SQP method.

Optimal design procedure

Based on the multivariate nonlinear regression model and the constraint conditions, the rotary-draw bending process for thin-walled rectangular tube of aluminum alloy 3A21 is optimized by using SQP method. The optimal design procedure of SQP is shown in Figure 3.

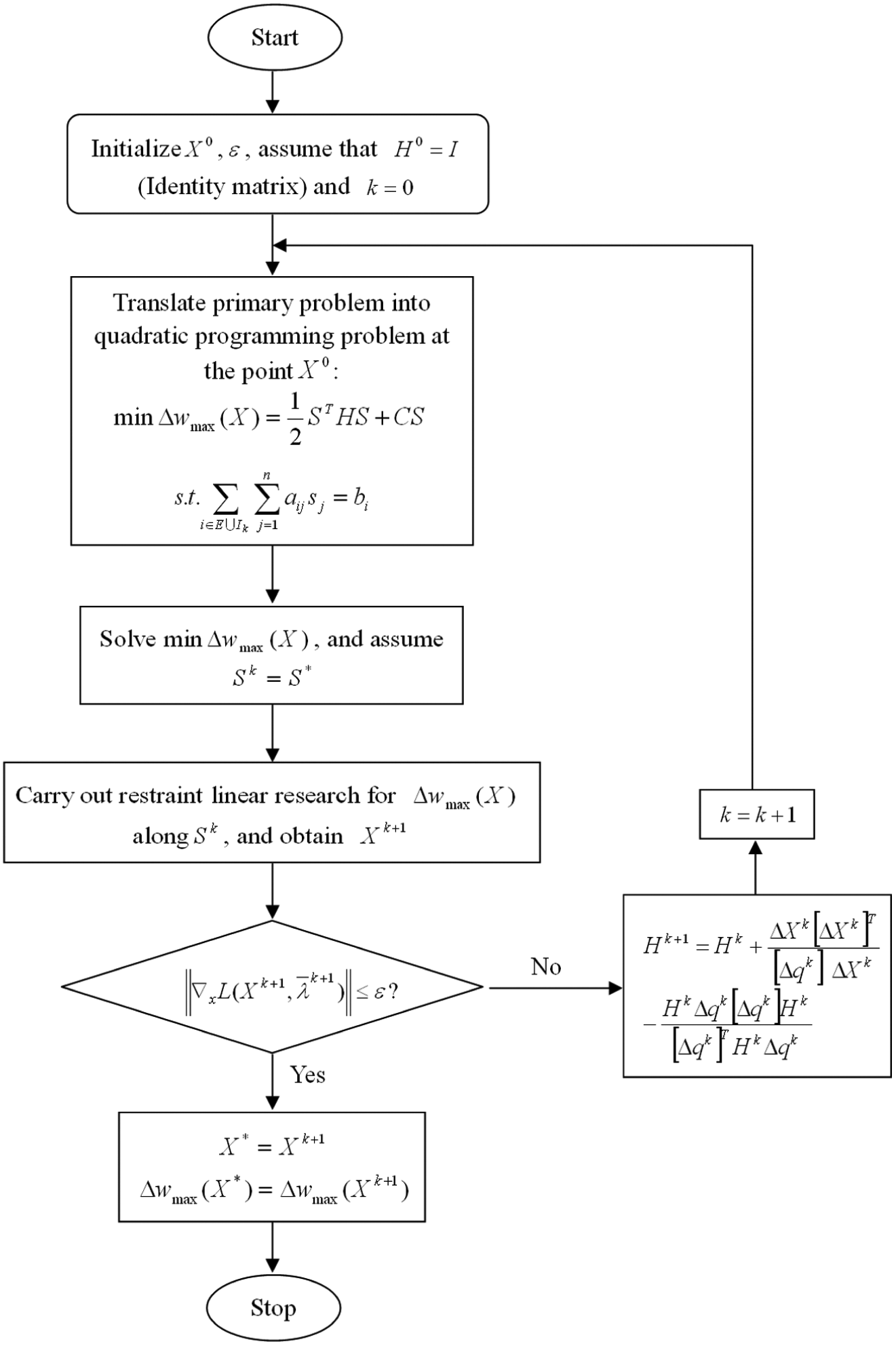

Figure 3.

Optimization design procedure of SQP.

The solution procedure of the SQP for the bending process is as follows: (1) Determine the initial values of processing parameters, an arbitrary small positive number, namely, $X^{0}$ , $ε$ according to the virtual orthogonal experiment, and assume that the initial Hessian matrix is identity matrix and $k$ , $X$ ’s superscript is 0, namely, $H = I, k = 0$ . (2) Translate the primary problem into the quadratic programming problem at the point $X^{k}$ . (3) Solve the $min Δ w_{max} (X)$ and obtain the iterative direction $S^{k}$ . Carry out the restraint linear research for $Δ w_{max} (X)$ along $S^{k}$ and then obtain $X^{k + 1}$ . (4) Judge whether the drop gradient is less than the small positive number. If not, calculate the Hessian matrix $H^{k + 1}$ and assume that $k = k + 1$ and then turn to step (2). (5) If yes, assign $X^{k + 1}$ to $X^{*}$ and $Δ w_{max} (X^{k + 1})$ to $Δ w_{max} (X^{*})$ and then output the optimized results.

Optimal design results

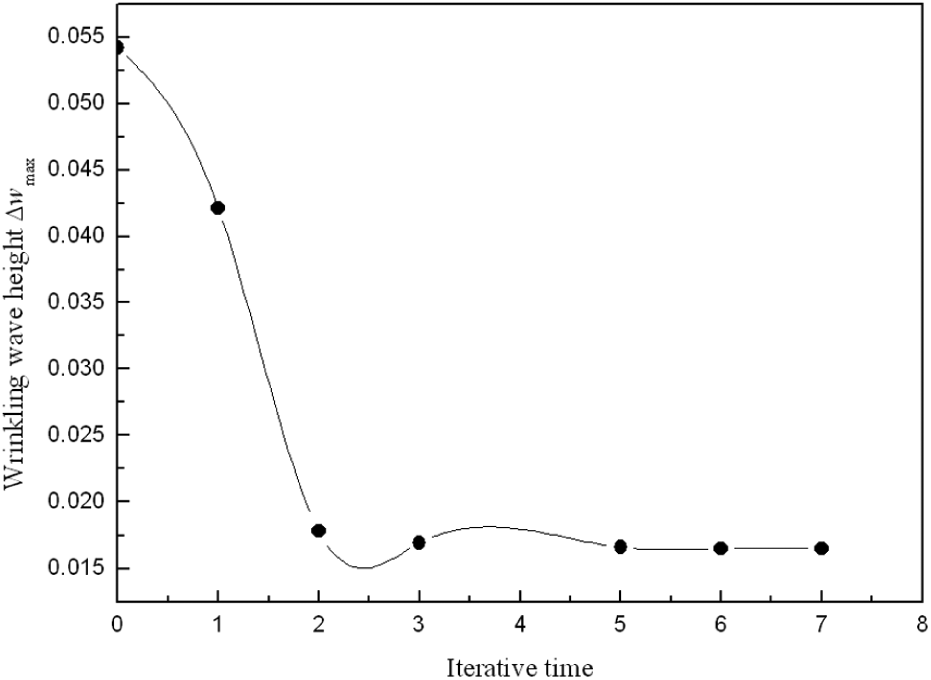

Figure 4 shows that with the variation in $Δ w_{max}$ with the progress of optimal iterative process, it can be seen that the fluctuation of $Δ w_{max}$ gradually decreases with the progress of iterative process and constringes to a certain value after iterated seven times, that is, the value of $Δ w_{max}$ decreases from 0.054 to 0.017 mm. And it is reduced by about 68.5%. So, an obvious optimal result is obtained, and the optimized parameters are shown in Table 5.

Figure 4.

The variation in $Δ w_{max}$ with progress of optimal iterative process.

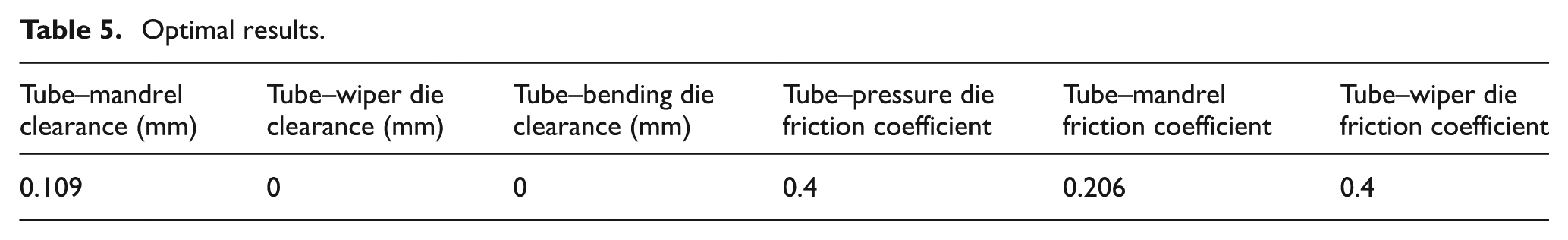

Table 5.

Optimal results.

Tube–mandrel clearance (mm)	Tube–wiper die clearance (mm)	Tube–bending die clearance (mm)	Tube–pressure die friction coefficient	Tube–mandrel friction coefficient	Tube–wiper die friction coefficient
0.109	0	0	0.4	0.206	0.4

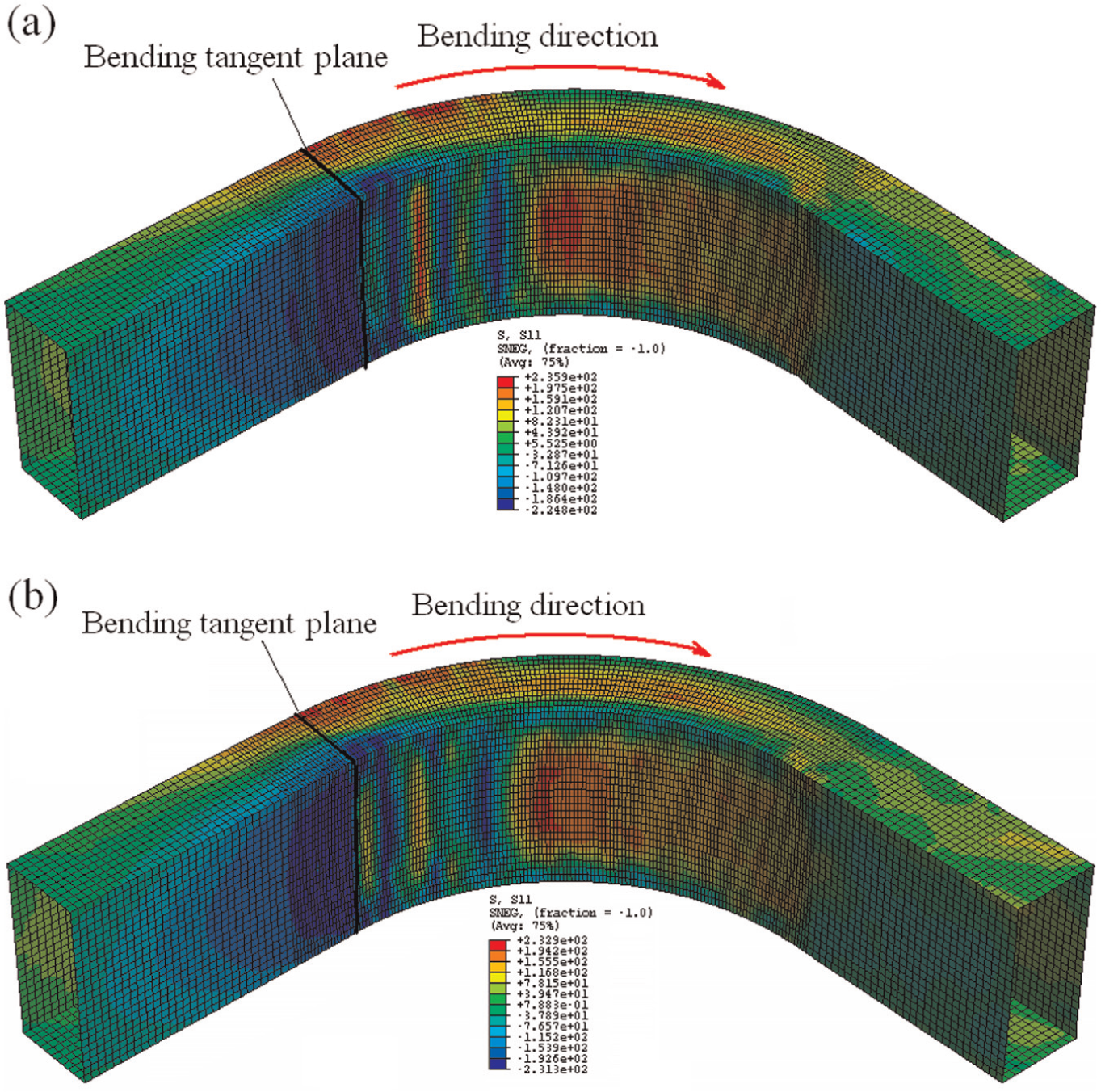

Figure 5(a) and (b) shows the tangential stress distribution in initial and optimal design of the rectangular tube bent parts, respectively. From Figure 5(a), it can be observed that more compression tangential stress concentration areas appear in the compressive flange of the tube, and the peak tangential stress is smaller. So the compression deformation extend is smaller. In Figure 5(b), the area of the tangential stress is larger, and its distribution is more uniform. The quantitative representation of distribution law of tangential compressive stress along bending direction in the deforming zone can be seen in Figure 6. From this figure, it can be observed that the tangential stress area of optimized bent tube part by SQP is larger than that of no optimization. Therefore, the optimal effectiveness is significant.

Figure 5.

(a) Tangential stress distribution in initial of rectangular tube bent part and (b) tangential stress distribution in optimal design of rectangular tube bent part.

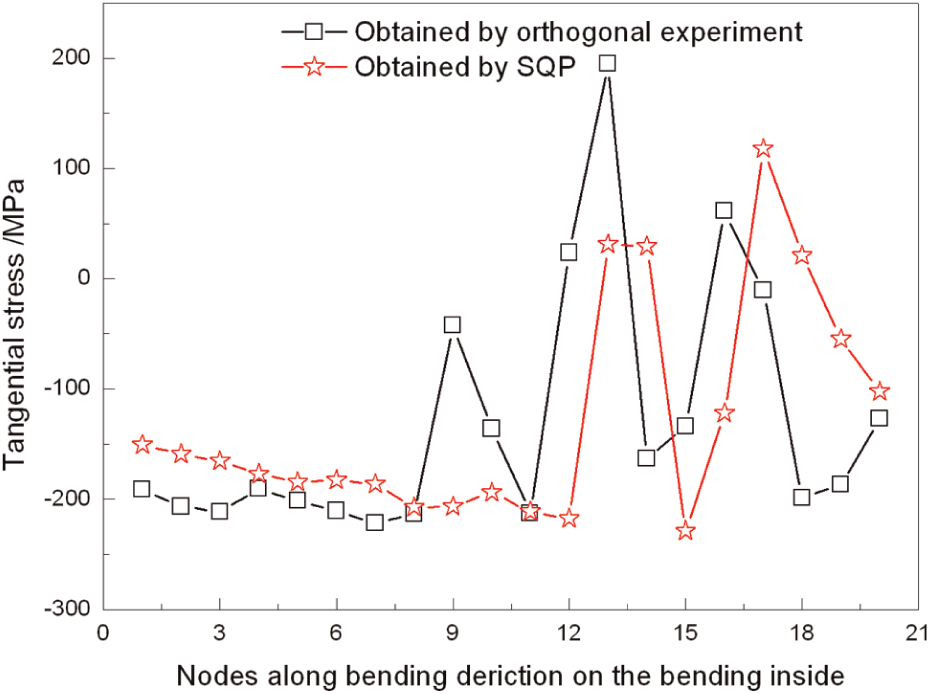

Figure 6.

Distribution of tangential compressive stress along bending direction in the deforming zone.

Optimal result application

To ensure that the optimal results can be applied to practice, the experiment of rotary-draw bending process for rectangular aluminum alloy 3A21 tube has been carried out using programmable logic controller (PLC) controlling hydraulic tube bending machine W27YPC-63 based on the optimized parameters obtained by SQP.

Under aforementioned conditions, as shown in Figure 7, the thin-walled rectangular aluminum alloy 3A21 tube can be stably bent without occurrence of wrinkling. As a result, the parameters of clearance and friction can be optimized using SQP method compared with FE analysis, and the achievements of this study can provide a guideline for practically manufacturing thin-walled rectangular bent tubes with small bending radius.

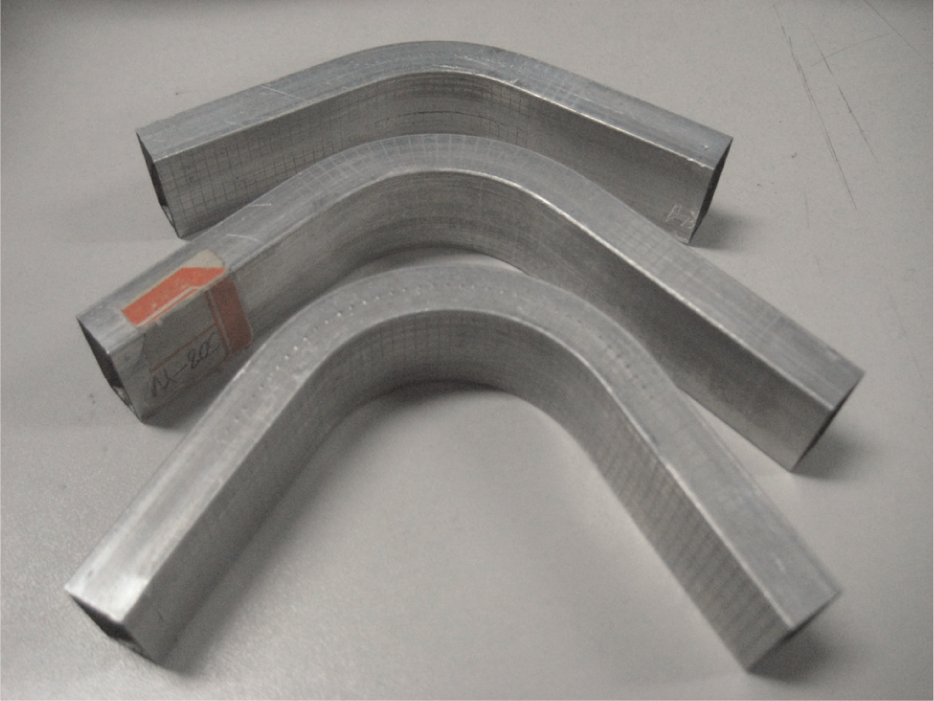

Figure 7.

Experimental result of rectangular tube bent part.

Conclusion

Based on the virtual experimental design, the multivariate nonlinear regression model is built.

Based on the multivariate nonlinear regression model, the rotary-draw bending process of thin-walled rectangular tube is optimized by using the SQP method. The recommendation process parameters are obtained, namely, the clearance between mandrel and tube is 0.109 mm; the clearances between bending die, wiper die and tube are 0; the friction coefficients between pressure die, wiper die and tube are 0.4 and the friction coefficient between mandrel and tube is 0.206.

Footnotes

Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

This research received the support of the National Natural Science Foundation of China (nos 50975235 and 51165037).

References

Vollertsen

Sprenger

Kraus

. Extrusion, channel and profile bending: a review. J Mater Process Tech 1999; 87: 1–27.

Paulsen

Welo

. Cross-sectional deformations of rectangular hollow sections in bending: part I—experiments. Int J Mech Sci 2001; 43: 109–129.

Welo

Paulsen

Brobak

. The behaviour of thin-walled, aluminium alloy profiles in rotary draw bending—a comparison between numerical and experimental results. J Mater Process Tech 1994; 45: 173–180.

Kami

Dariani

. Prediction of wrinkling in thin-walled tube push-bending process using artificial neural network and finite element method. Proc IMechE, Part B: J Engineering Manufacture 2011; 225: 1801–1812.

Yoshida

Fujiwara

. Prediction of wrinkling and strain of rectangular aluminum tubes in draw bending. J Jpn Soc Tech Plast 1997; 38(440): 803–808.

Corona

Vaze

. Buckling of elastic-plastic square tubes under bending. Int J Mech Sci 1996; 38(7): 753–775.

Vaze

Corona

. Degradation and collapse of square tubes under cyclic bending. Thin Wall Struct 1998; 31: 325–341.

Mentella

Strano

. Rotary draw bending of small diameter copper tubes: predicting the quality of the cross-section. Proc IMechE, Part B: J Engineering Manufacture 2012; 226: 267–278.

Zhao

Liu

Yang

. Numerical simulation on influence of clearance and friction on wrinkling in bending of aluminum alloy rectangular tubes. Mater Sci Forum 2007; 46–49: 833–838.

10.

Zhao

Liu

Yang

. Effect of clearance on wrinkling of thin-walled rectangular tube in rotary-draw bending process. Int J Adv Manuf Tech 2010; 50(1–4): 85–92.

11.

Yang

. Knowledge-based substep deterministic optimization of large diameter thin-walled Al-alloy tube bending. Int J Adv Manuf Tech 2013; 68: 1989–2004.

12.

Zhao

Liu

Yang

. Three-dimensional finite-elements modeling and simulation of rotary-draw bending process for thin-walled rectangular tube. Mat Sci Eng A: Struct 2009; 499: 257–261.

13.

Zhao

Liu

Yang

. Cross-sectional distortion behaviors of thin-walled rectangular tube in rotary-draw bending process. T Nonferr Metal Soc 2010; 20: 484–489.

14.

Zheng

Jiang

. Experimental design and data processing. Beijing, China: China Building Material Industry Publishing House, 2004, p.132 (in Chinese).
