Abstract

The benefits of cryogenic cooling by liquid nitrogen in cutting of titanium alloys have often been evaluated as a comparison to dry machining conditions. However, it is more interesting to quantitatively assess the performance of cryogenic conditioning of the process with respect to standard industrial conditions, that is, with respect to flood emulsion cooling. The technical and scientific literature is scarce and somehow contradictory, especially in terms of cutting forces and coefficient of friction. The aim of this article is to enrich the common base of experimental data, by conducting a comparison of traditional and cryogenic turning of Ti6Al4V in a region of cutting parameters particularly relevant to the aerospace industry, where no previous data are available. This study confirms that cryogenic machining is able to increase the tool life, even with respect to wet cutting. Besides, the results show that not only cutting forces are reduced but also a small, albeit significant, reduction can be achieved in the coefficient of friction at the tool–workpiece interface.

Keywords

Rough turning cutting forces tool wear liquid nitrogen titanium

Introduction

The use of cryogenic cooling in metal cutting has received renewed recent attention because liquid nitrogen is a safe, clean, and nontoxic coolant that requires no expensive disposal and can substantially improve the tool life. Uehara and Kumagai¹ have pioneered works on cryogenics in machining. A review on the subject has been written by Yildiz and Nalbant.² Cryogenic cooling approaches in machining can be classified into several types according to the delivery method:³ precooling of workpiece, tool back cooling, flank cooling, rake cooling, and simultaneous rake and flank cooling. The most effective approaches deliver the liquid to the rake face and/or the flank. All studies agree that these two techniques reduce the tool temperature and prolong its life, with respect to dry cutting and to conventional emulsion lubrication. Recent studies by Bermingham et al.⁴ demonstrate that high-pressure emulsion cooling (HPC) outperforms cryogenic cooling with respect to the tool life.

It is reasonable to expect that the tool life advantage of cryogenic cooling versus water-based oil emulsion flooding depends on the selected levels of the process parameters (feed rate f, depth of cut a_p, cutting speed v_c). The role of f and other parameters in cryogenic working of titanium is not yet unanimously assessed. Some authors observed that the greatest improvement in the tool life using cryogenic coolant occurs for high feed rate and low depth of cut combinations,⁵ with constant speed and approximately constant material removal rate (MRR). The authors also prove that these conditions are neither optimal with respect to economic efficiency nor they allow to maximize the tool life. Some authors have proved that in machining of AISI 304 steel⁶ or titanium,⁷ the percentage tool life advantage and the economic convenience of liquid nitrogen (LN₂), with respect to conventional emulsion, increase as the cutting speed increases. According to other studies, the advantage of cryogenics is nearly independent of the process parameters, at least for stainless steel.⁸ On the contrary, some claim that if increasing v_c to very high levels (up to 100 m/min and above), the differences tend to decrease, in terms of wear on the rake face.⁹

Similar contrasting results emerge from the literature when machining forces and friction are observed. Results of force measurements often indicate that the cold strengthening of titanium material might increase the cutting force in cryogenic machining, but lower friction allows to reduce the feed force, in comparison to dry cutting.¹⁰ Although many authors compare the performance of liquid nitrogen versus dry cutting,^11,12 a more meaningful comparison should be done with respect to conventional emulsion flooding. As anticipated, not all studies agree. Some works demonstrate that no change in the forces¹³ occurs. Other studies report a decrease in both main cutting and feed forces for cryogenic versus wet conditions, regardless of cutting speed.¹⁴ As already commented about the tool life, it is reasonable to expect that the advantage of cryogenic cooling versus emulsion lubrication with respect to machining forces depends on the process parameter values. In fact, recent research works prove that force reduction is greatest when using high f and low a_p combinations,⁵ if the cutting speed is kept constant. An increase in v_c, according to most previous works, reduces the coefficient of friction, for dry, emulsion, and cryogenic cooling.^15,16

The differences between conventional and cryogenic machining may be due to several causes: both tool and workpiece can be hardened by the low working temperatures, the tribological conditions are altered, and so on. As a consequence, cryogenic machining changes the mechanics of the chip formation, generating a thinner⁵ and more discontinuous¹⁷ chip and also a limited amount of built-up edge,¹⁵ if compared to dry machining.

In conclusion, all authors agree that cryogenic cooling allows a significant improvement in the tool life over dry machining. When compared to traditional flood cooling, fewer results are available, but cryogenics has shown a great potential of improving the process performance, although conflicting results have been obtained by different researchers. An explanation for these differences is that the design of the injection system strongly influences the process, as it determines the localization of the nitrogen flow on the workpiece–tool interface surfaces and the available flow rate. Another source of variation among different results is that the investigated range of process parameters varies from study to study. In order for the coolant to have enough time to subtract heat from the working area, it seems reasonable that the influence of LN₂, which is injected through small nozzles, is larger for smaller values of MRR. However, it also seems reasonable that the increase in the tool life due to cryogenics becomes evident only at larger cutting speeds, that is, when the tool is stressed by higher cutting forces and higher heat generation. The expected outcome of the process is therefore not trivial, and the results can easily be influenced by the cutting conditions. There is a need for additional experimental evidence with respect to different issues, such as the three components of force (cutting, feed, and thrust), the coefficient of friction, and the rate of tool wear at different values of the process parameters.

In order to better identify what experimental conditions can be more usefully investigated, in Table 1, the most relevant publications are listed, with a report on the process parameters and the main findings. It is worth observing that most articles in the table investigate the parameters in a region that is typical of finish turning rather than medium or rough turning (i.e. high speed, above 60–70 m/min, and relatively low feed rate, below 0.3 mm/rev). However, medium and rough turning are economically more relevant to the machining industry, especially in the aerospace field where the so-called buy-to-fly ratio can be as large as 10:1 and above.¹⁸ Because of their poor machinability, titanium alloys are cut with moderate parameters. In conventional rough turning, in order to avoid premature tool failure, speed v_c and feed f are never set above 60 m/min and 0.4 mm/rev, respectively.

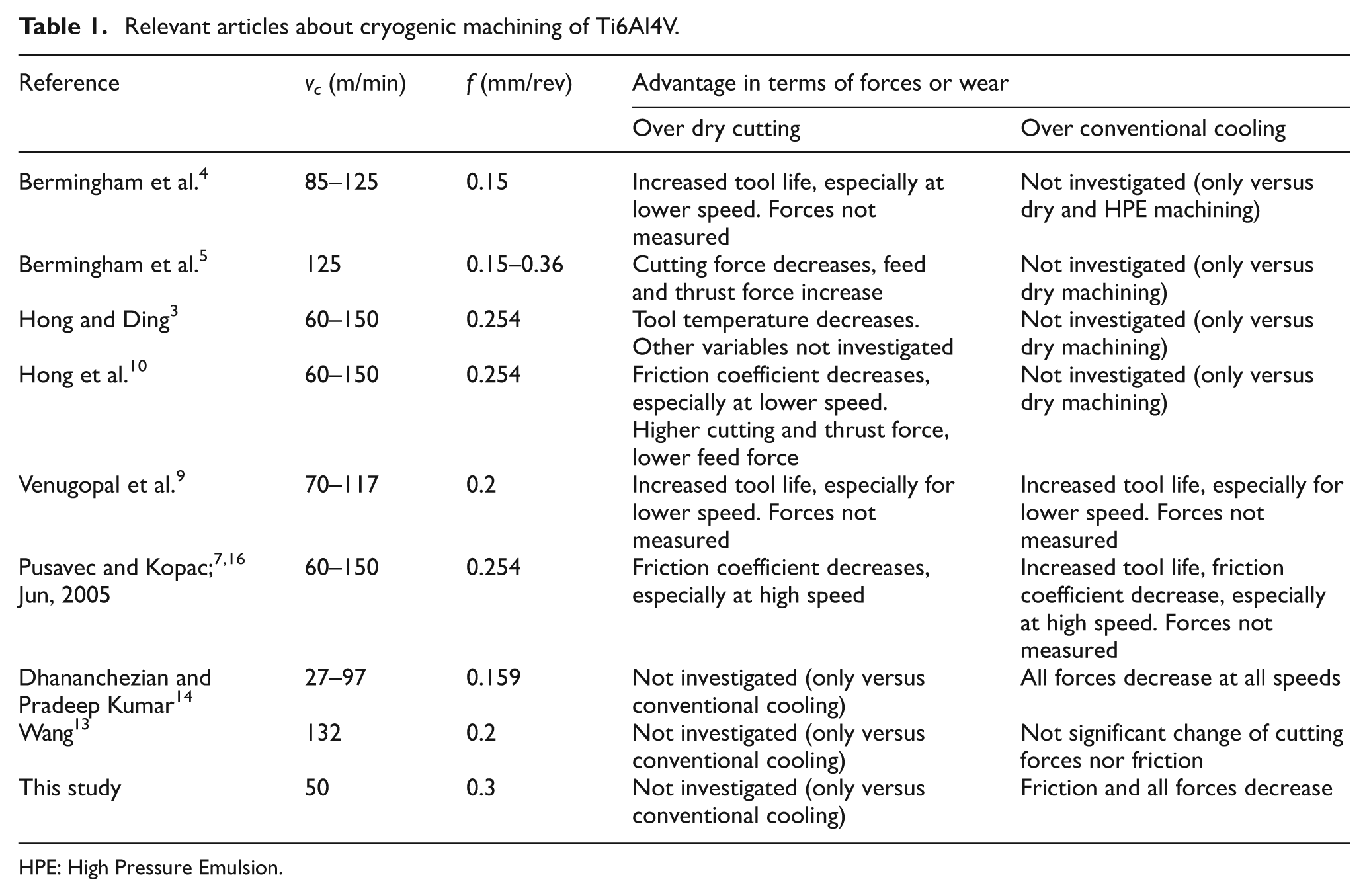

Table 1.

Relevant articles about cryogenic machining of Ti6Al4V

Reference	v_c (m/min)	f (mm/rev)	Advantage in terms of forces or wear
Reference	v_c (m/min)	f (mm/rev)	Over dry cutting	Over conventional cooling
Bermingham et al.⁴	85–125	0.15	Increased tool life, especially at lower speed. Forces not measured	Not investigated (only versus dry and HPE machining)
Bermingham et al.⁵	125	0.15–0.36	Cutting force decreases, feed and thrust force increase	Not investigated (only versus dry machining)
Hong and Ding³	60–150	0.254	Tool temperature decreases. Other variables not investigated	Not investigated (only versus dry machining)
Hong et al.¹⁰	60–150	0.254	Friction coefficient decreases, especially at lower speed. Higher cutting and thrust force, lower feed force	Not investigated (only versus dry machining)
Venugopal et al.⁹	70–117	0.2	Increased tool life, especially for lower speed. Forces not measured	Increased tool life, especially for lower speed. Forces not measured
Pusavec and Kopac;^7,16 Jun, 2005	60–150	0.254	Friction coefficient decreases, especially at high speed	Increased tool life, friction coefficient decrease, especially at high speed. Forces not measured
Dhananchezian and Pradeep Kumar¹⁴	27–97	0.159	Not investigated (only versus conventional cooling)	All forces decrease at all speeds
Wang¹³	132	0.2	Not investigated (only versus conventional cooling)	Not significant change of cutting forces nor friction
This study	50	0.3	Not investigated (only versus conventional cooling)	Friction and all forces decrease

HPE: High Pressure Emulsion.

In order for the industry to evaluate the actual advantage of cryogenic coolants, the performance must be compared to standard flood emulsion cooling, not to dry conditions. Only two studies^13,14 report force comparisons with respect to emulsion cooling. In this short communication, some new experimental observations are reported, in order to fill this gap, providing cutting force measurements with emulsion and cryogenic cooling, at a relatively low cutting speed (50 m/min) and a relatively high feed rate (0.3 mm/rev).

Experimental setup

The tests have been run with the setup described as follows.

Workpiece

Ti6Al4V bars with 55 mm diameter have been used. The effect of the titanium microstructure on its machinability is relevant, as demonstrated by several authors.^19,20 For this reason, the bars are annealed and the microstructure of a sample has been analyzed through the diameter. It can be considered quite homogeneous, according to micrographic images that show a substantially uniform granularity across the cross section. The tensile strength is 934 MPa, and the yield strength is 867 MPa.

Machine

All tests have been conducted using a computer numerical control (CNC) lathe with a maximum spindle speed of 2560 r/min and a drive motor powered to 11 kW.

Cutting tool

The insert is a Sandvik CNMG 120408 SMR1115, suited for medium roughing of titanium alloys. It has been preliminarily tested at different conditions (v_c = 40–80 m/min, f = 0.2–0.3 mm/rev) with conventional cooling. As an example, its average life, detected when the flank wear is VB_B = 0.3 mm, allows a removed volume of 343,000 mm³ with speed v_c = 50 m/min, feed f = 0.2 mm/rev, and depth a_p = 1.2 mm in conventional cooling. The insert is a carbide tool with coating layers TiAlN (2 µm) + AlCrO (0.7 µm). Hardness measurements of the insert have been performed with a pressing load of 0.5 kg, selected in order to characterize the hardness of the entire tool: WC+coating layers. Each hardness value has been computed considering six repeated measurements on the tool flank, and the average HV number is 1878.

Conventional cooling

Fluid is a water–oil emulsion (Hocut 795/I) at a concentration of 5% and a flow rate of 1.6 L/min.

Cryogenic cooling

The nitrogen reservoir is a dewar (courtesy of SIAD) at a pressure of 160 kPa with a capacity of 240 L. A thermally insulated metal pipe delivers the fluid to a commercial tool holder, designed for internal lubrication (MIRCONA PCLNL 2525 EB, Figure 1). The tool holder has two injection nozzles for both rake and flank cooling.

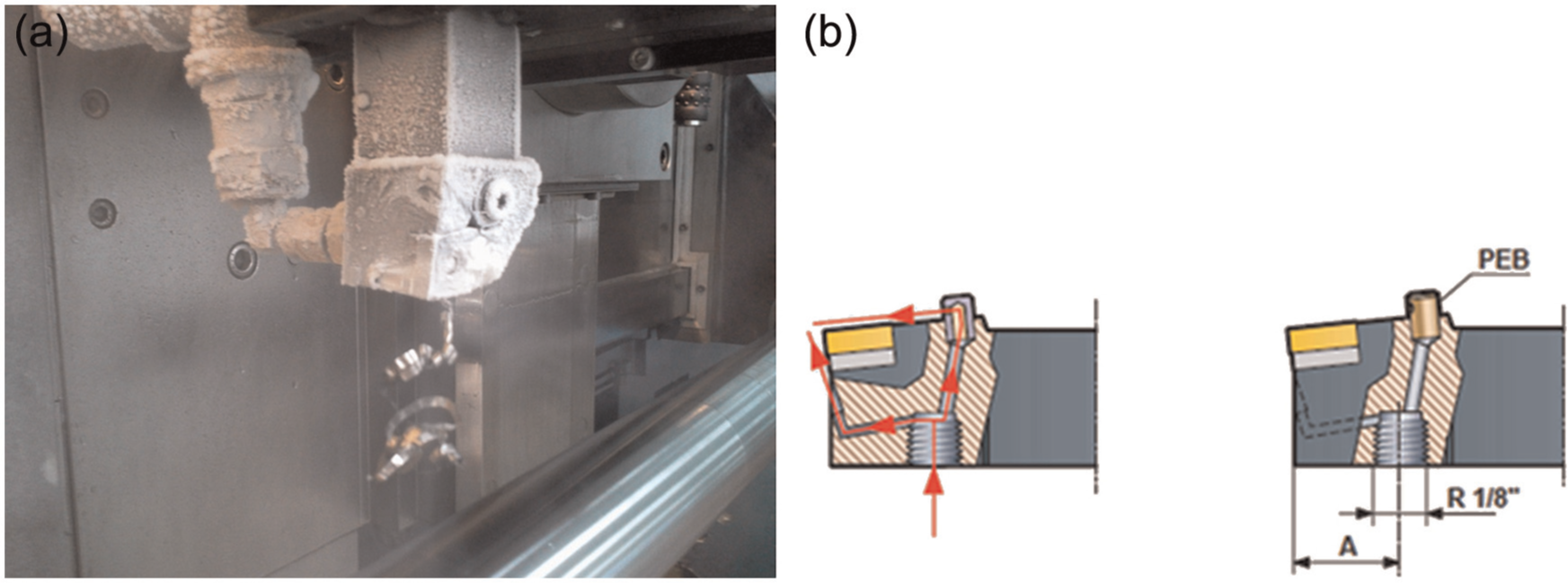

Figure 1.

(a) Cooled tool holder and titanium bar and (b) internal holes in the tool holder

Cutting process parameters

The tests have been performed with entry angle δ = 95°, rake α = −6°, side clearance β = 5°, and back rake ω = −6°. The parameters are a_p = 1.2 mm, f = 0.3 mm/rev, and v_c = 50 mm/min.

Wear measurement

Average flank wear VB_B (in accordance with ISO Standard 3685) was measured on micrographic images, taken with a stereomicroscope; the positioning reproducibility of the worn insert was ensured by a specifically designed fixture, at the base of the microscope. Each test condition has been interrupted in order to have six points on the VB_B versus time curves, and it has been replicated three times, for assessing the repeatability.

Force measurement

A dynamometric table has been used to measure all the three orthogonal components: main cutting force F_c, feed force F_f, and thrust force F_r. Average forces are calculated during the first period of each machining condition, thus inserts are in no case significantly worn.

Coefficient of friction

The coefficient of friction µ has been calculated for every test, using equation (1)

μ = \frac{F_{n} \cdot \cos (γ_{r}) + F_{c} \cdot sen (γ_{r})}{F_{c} \cdot \cos (γ_{r}) - F_{n} \cdot sen (γ_{r})}

(1)

where γ_r is the true rake angle and F_n is the normal force on the cutting plane, defined by F_f and F_r

F_{n} = \sqrt{F_{f} + F_{r}}

(2)

Discussion of results

The most evident and relevant result can be seen in Figure 2, where the tests run with cryogenic cooling clearly show a longer average tool life. The tool life curves show the typical s-shaped profile, with a rapid initial increase, a nearly flat central region (plateau), and a final rapid increase. In general, tools with a longer plateau not only live longer but also provide more repeatable and robust cutting performance since the tool geometry is stable for a longer period. It is worth observing that up to about 300 s, there is virtually no difference among the six curves. Interestingly, the tests with nitrogen have a longer plateau, which starts a little before and ends significantly after the other three curves that increase rapidly after a time of 300 s.

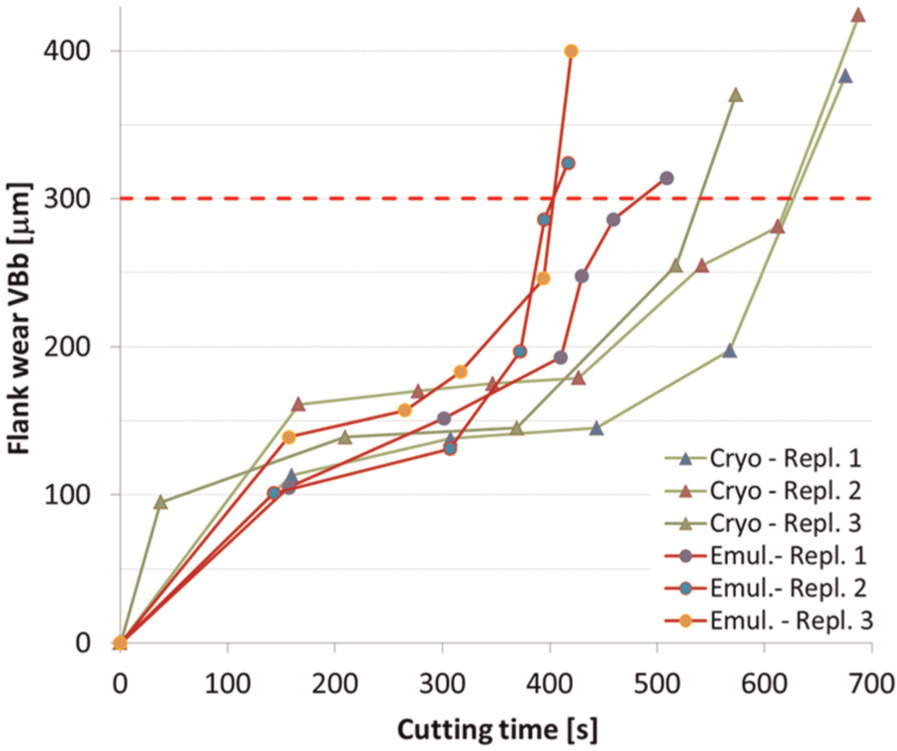

Figure 2.

Tool wear VB_B versus time curves for all six tests run with f = 0.3 mm/rev and v_c = 50 mm/min.

The data useful for the comparison are given in Table 2. The percentage average increase in the tool life T allowed by the liquid nitrogen is +39%, a significant value, even taking into account the intrinsic variability and uncertainty of these type of results. The table shows that all forces decrease (in agreement with the study by Dhananchezian and Pradeep Kumar¹⁴). The largest reduction is registered for the feed force F_r, which is highly correlated to the coefficient of friction µ. This confirms that LN₂ not only has a better cooling effect than the conventional fluids but also has a better lubrication effect.

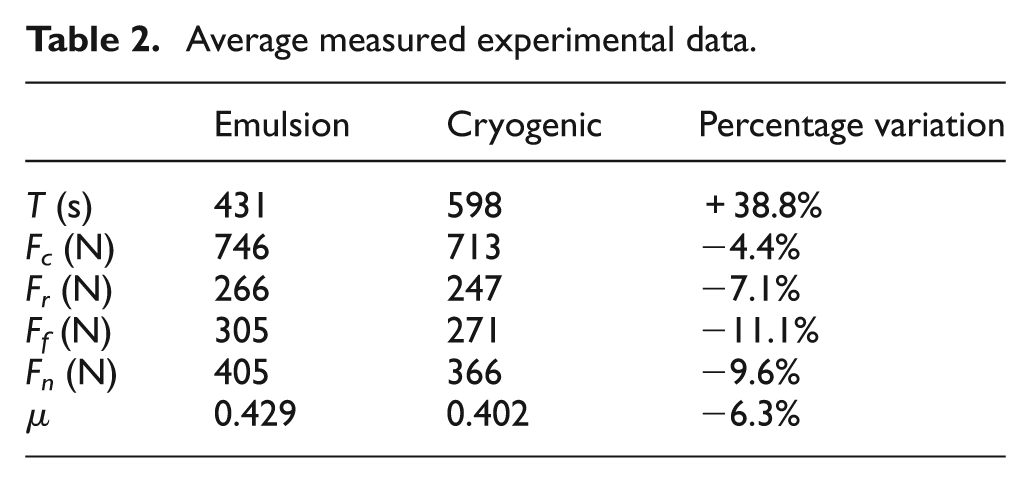

Table 2.

Average measured experimental data.

	Emulsion	Cryogenic	Percentage variation
T (s)	431	598	+38.8%
F_c (N)	746	713	−4.4%
F_r (N)	266	247	−7.1%
F_f (N)	305	271	−11.1%
F_n (N)	405	366	−9.6%
µ	0.429	0.402	−6.3%

No significant difference has been observed in terms of chip morphology. In order to further evaluate the advantage of LN₂ versus a conventional emulsion, examples of flank wear profiles after 160,000 mm³ of removed material (about 530 s of machining) are shown in Figure 3.

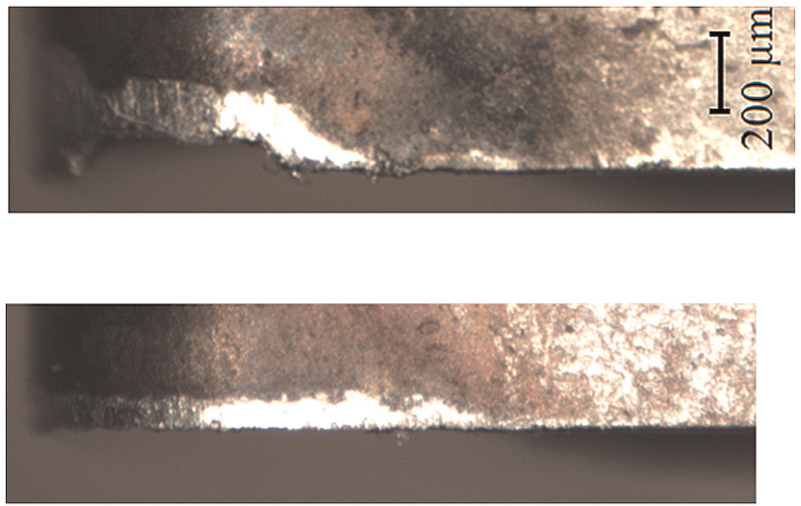

Figure 3.

Examples of flank wear profiles after 160,000 mm³ of removed material (about 530 s machining time): top photograph is taken after an emulsion cooled test and bottom photograph after an LN₂ test.

In order to compare the obtained results with the data available from the literature, Figure 4 has been built with four data sets; they have been obtained with different experimental setups by different research groups. The graph cannot be reliably used for drawing any scientific conclusion, but a general trend is evident: the percentage advantage of cryogenic cooling versus conventional emulsion cooling seems to decrease as v_c decreases. Apparently, when conventional room temperature coolants are used, as the speed increases, the process becomes more adiabatic, that is, there is no time for the tool and its other boundaries to dissipate the heat. As a consequence, the tool rapidly deteriorates. On the contrary, the very low temperature nitrogen is able to subtract heat from the cutting zone even at high cutting speeds. Some authors observed that the greatest improvement in the tool life using cryogenic coolant versus dry conditions occurs for high feed rate a_p and low depth of cut.⁵Figure 4 does not clearly indicate any trend with this respect: further investigations are needed.

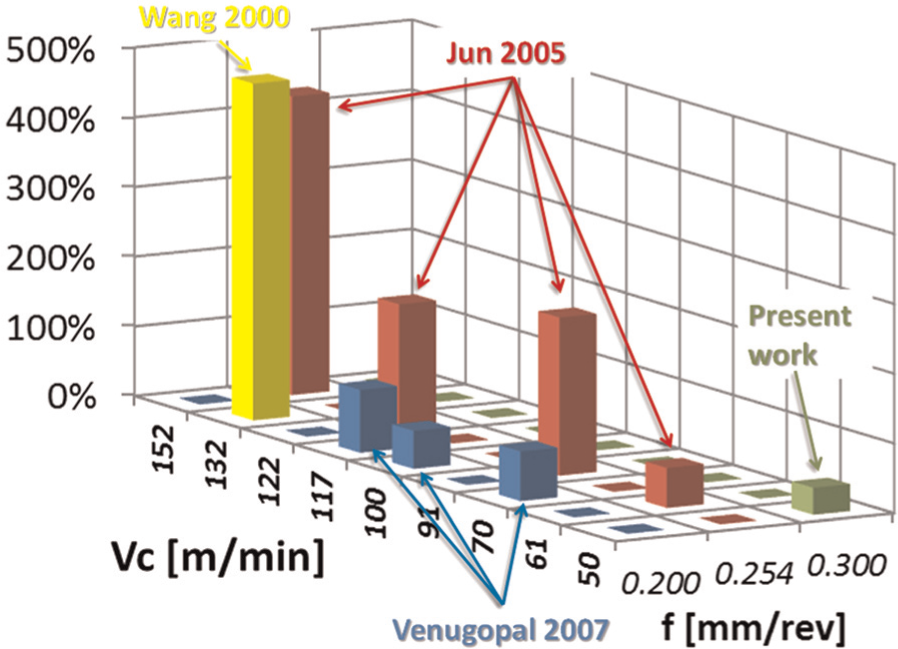

Figure 4.

Tool life percentage increase in cryogenic versus wet cooling at different cutting conditions.

Conclusion

In this article, a quantitative experimental comparison of cryogenic versus conventional cooling in lathe turning of aeronautic titanium has been performed with process parameters that had been seldom investigated before (low feed rate, high speed). This study has demonstrated that cryogenic machining is able to increase the tool life by about 40% with respect to wet cutting. A general reduction in cutting forces and a small but significant reduction in coefficient of friction have been reported. The results are in agreement with a trend that seems to be present among the available literature reports: the benefits of cryogenics (e.g. measured as percentage increase in tool life) increase with an increase in cutting speed.

Footnotes

Acknowledgements

The authors gratefully thank and acknowledge the contributions of Mr Malomo and Mr Maffioletti of SIAD and Mr Buroni and Mr Mussi of MUSP.

Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

This research has been partly funded by the “Tecnopolo” project of Emilia Romagna under the PON-FESR program.

References

Uehara

Kumagai

. Chip formation, surface roughness and cutting force in cryogenic machining. CIRP Ann: Manuf Techn 1968; 17(1): 409–416.

Yildiz

Nalbant

. A review of cryogenic cooling in machining processes. Int J Mach Tool Manu 2008; 48(9): 947–964.

Hong

Ding

. Cooling approaches and cutting temperatures in cryogenic machining of Ti-6Al-4V. Int J Mach Tool Manu 2001; 41(10): 1417–1437.

Bermingham

Palanisamy

Kent

. A comparison of cryogenic and high pressure emulsion cooling technologies on tool life and chip morphology in Ti–6Al–4V cutting. J Mater Process Tech 2012; 212(4): 752–765.

Bermingham

Kirsch

Sun

. New observations on tool life, cutting forces and chip morphology in cryogenic machining Ti-6Al-4V. Int J Mach Tool Manu 2011; 51(6): 500–511.

Hong

Broomer

. Economical and ecological cryogenic machining of AISI 304 austenitic stainless steel. Clean Products Process 2000; 2(3): 157–166.

Pusavec

Kopac

. Achieving and implementation of sustainability principles in machining processes. Adv Prod Eng Manag 2009; 4: 151–160.

Kalyan Kumar

KVBS

Choudhury

. Investigation of tool wear and cutting force in cryogenic machining using design of experiments. J Mater Process Tech 2008; 203(1–3): 95–101.

Venugopal

Paul

Chattopadhyay

. Growth of tool wear in turning of Ti-6Al-4V alloy under cryogenic cooling. Wear 2007; 262(9–10): 1071–1078.

10.

Hong

Ding

Jeong

. Friction and cutting forces in cryogenic machining of Ti–6Al–4V. Int J Mach Tool Manu 2001; 41(15): 2271–2285.

11.

Ahmed

Ismail

Abakr

. Effectiveness of cryogenic machining with modified tool holder. J Mater Process Tech 2007; 185(1–3): 91–96.

12.

Venugopal

Tawade

Prashanth

. Turning of titanium alloy with TiB2-coated carbides under cryogenic cooling. Proc IMechE, Part B: J Engineering Manufacture 2003; 217(12): 1697–1707.

13.

Wang

Rajurkar

. Cryogenic machining of hard-to-cut materials. Wear 2000; 239(2): 168–175.

14.

Dhananchezian

Pradeep Kumar

. Cryogenic turning of the Ti–6Al–4V alloy with modified cutting tool inserts. Cryogenics 2011; 51(1): 34–40.

15.

Sun

Brandt

Dargusch

. Machining Ti–6Al–4V alloy with cryogenic compressed air cooling. Int J Mach Tool Manu 2010; 50(11): 933–942.

16.

Jun

S-C

. Lubrication effect of liquid nitrogen in cryogenic machining friction on the tool-chip interface. J Mech Sci Technol 2005; 19(4): 936–946.

17.

Dong

Liu

. Use of nitrogen gas in high-speed milling of Ti-6Al-4V. T Nonferr Metal Soc 2009; 19(3): 530–534.

18.

Bermingham

Palanisamy

Dargusch

. Understanding the tool wear mechanism during thermally assisted machining Ti-6Al-4V. Int J Mach Tool Manu 2012; 62: 76–87.

19.

Rahman Rashid

Sun

Wang

. Machinability of a near beta titanium alloy. Proc IMechE, Part B: J Engineering Manufacture 2011; 225(12): 2151–2162.

20.

Khanna

Sangwan

. Comparative machinability study on Ti54M titanium alloy in different heat treatment conditions. Proc IMechE, Part B: J Engineering Manufacture 2012; 227(1): 96–101.
