Abstract

In this work, a series of polylactic acid/thermoplastic polyurethane/polyaniline (PLA/TPU/PANI) blends with different weight ratios were prepared by Fused deposition molding First, six groups of PLA/TPU (U9A1/U8A2/U7A3/U6A4/U5A5/U4A6) and three groups of PLA/TPU/PANI (821/823/825) with different ratios were fabricated by melt blending. Then, the effects of different filament forming and printing process parameters on print resolution and quality were investigated. Next, printed samples were characterized by Fourier transform infrared (FTIR), Thermogravimetric analysis (TGA), Scanning electron microscopy (SEM) and mechanical experiments. The results of FTIR and TGA showed no chemical reaction between different components, and uniform distribution of the material was observed in the SEM. The tensile and compressive curves of the samples showed an inverted U-shape. Finally, the shape-memory property was evaluated by differential scanning calorimetry. For PLA/TPU blends, U8A2 had the best shape memory capability ( $R_{r}$ = 80.8% and $R_{f}$ = 100%). Based on the excellent shape memory performance of PLA/TPU, the addition of PANI can introduce a light-actuated mechanism to form a binary-driven shape memory material. The composite materials prepared in this work can be applied to tissue engineering scaffolds, medical devices, soft robots and so on.

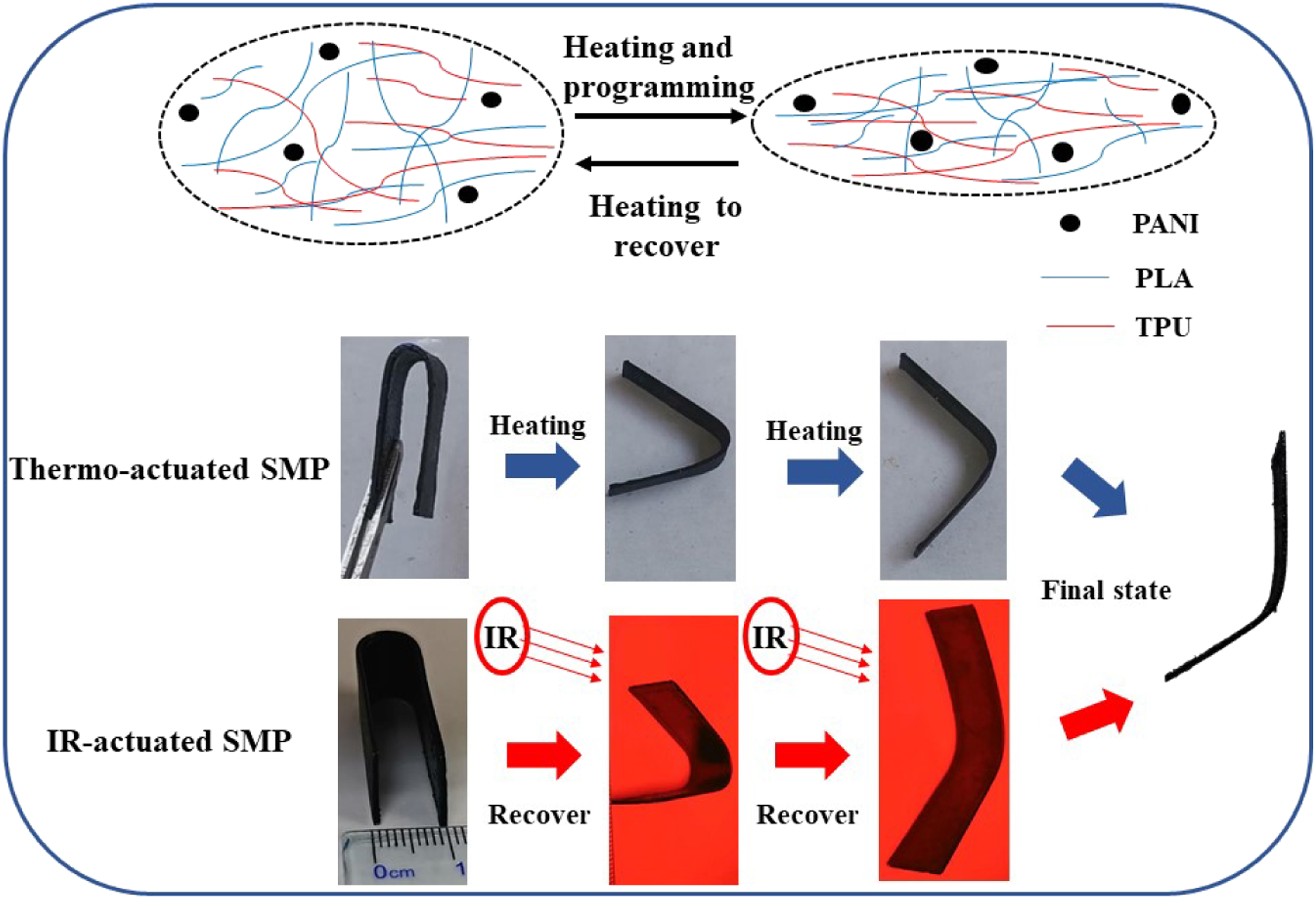

Graphical Abstract

Keywords

4D printing light/thermo-responsive shape memory composites polylactic acid/thermoplastic polyurethane/polyaniline blends

Get full access to this article

View all access options for this article.

References

Wang

Wei

, et al. Effects of the composition ratio on the properties of PCL/PLA blends: a kind of thermo-sensitive shape memory polymer composites. J Polym Res 2021; 28: 12. DOI: 10.1007/S10965-021-02815-4

Wang

Wei

, et al. Light-responsive shape memory polymer composites. Eur Polym J 2022; 173: 111314. DOI: 10.1016/j.eurpolymj.2022.111314

Wang

Liu

, et al. Electrical actuation properties of reduced graphene oxide paper/epoxy-based shape memory composites. Compos Sci Technol 2015; 106: 20–24. DOI: 10.1016/j.compscitech.2014.10.016

Conti

Lenz

Rumpf

. Hysteresis in magnetic shape memory composites: modeling and simulation. J Mech Phys Sol 2016; 89: 272–286. DOI: 10.1016/j.jmps.2015.12.010

Han

Dong

Fan

, et al. PH-induced shape-memory polymers. Macromol Rapid Commun 2012; 33(12): 1055–1060. DOI: 10.1002/MARC.201200153

Cheng

Zhang

, et al. Superhydrophobic shape memory polymer arrays with switchable isotropic/anisotropic wetting. Adv Funct Mater 2018; 28: 7. DOI: 10.1002/ADFM.201705002

Wang

Zhang

, et al. 3D printing thermo-responsive shape memory polymer composite based on PCL/TPU blends. J Polym Res 2022; 29: 6. DOI: 10.1007/S10965-022-03095-2

Sun

Chu

Huang

, et al. Hybrid electroactive shape memory polymer composites with room temperature deformability. Macromol Mater Eng 2019; 304: 10. DOI: 10.1002/MAME.201900196

Fan

Wei

Yin

, et al. Near-infrared light-triggered unfolding microneedle patch for minimally invasive treatment of myocardial ischemia. ACS Appl Mater Inter 2021; 13(34): 40278–40289. DOI: 10.1021/ACSAMI.1C09658

10.

Fang

Liu

, et al. Near-infrared light triggered soft actuators in aqueous media prepared from shape-memory polymer composites. Macromol Mater Eng 2016; 301(9): 1111–1120. DOI: 10.1002/MAME.201600139

11.

Zhu

Wang

MD Islam

, et al. Polydopamine modified ammonium polyphosphate modified shape memory water-borne epoxy composites with photo-responsive flame retardant property. J Appl Polym Sci 2021; 138: 3. DOI: 10.1002/APP.49696

12.

Chi

Yang

, et al. Polydopamine-assisted shape memory of polyurethane nanofibers with light-induced tunable responsiveness and improved cell adhesiveness. Colloids Surf A Physicochem Eng Asp 2021; 627: 127100. DOI: 10.1016/j.colsurfa.2021.127100

13.

Yang

Leow

Wang

, et al. 3D printed photoresponsive devices based on shape memory composites. Adv Mater 2017; 29(33): 1701627. DOI: 10.1002/ADMA.201701627

14.

Liu

Vyas

Poologasundarampillai

, et al. Process-driven microstructure control in melt-extrusion-based 3D printing for tailorable mechanical properties in a polycaprolactone filament. Macromol Mater Eng 2018; 303(8): 1800173. DOI: 10.1002/MAME.201800173

15.

Yahia

. Introduction to shape-memory polymers for biomedical applications. Shape Mem Polym Biomed Appl 2015; 30(44): 3–8. DOI: 10.1016/B978-0-85709-698-2.00001-5

16.

Lai

Lan

. Shape memory properties of melt-blended polylactic acid (PLA)/thermoplastic polyurethane (TPU) bio-based blends. J Polym Res 2013; 20(5): 1–8. DOI: 10.1007/S10965-013-0140-6

17.

Lai

Wang

. Annealing effect on the shape memory properties of polylactic acid (PLA)/thermoplastic polyurethane (TPU) bio-based blends. J Polym Res 2016; 23(5): 1–13. DOI: 10.1007/S10965-016-0993-6

18.

Jing

Peng

, et al. The morphology, properties, and shape memory behavior of polylactic acid/thermoplastic polyurethane blends. Polym Eng Sci 2015; 55(1): 70–80. DOI: 10.1002/PEN.23873

19.

Wang

et al. Morphology evolutions and mechanical properties of in situ fibrillar polylactic acid/thermoplastic polyurethane blends fabricated by fused deposition modeling. Macromol Mater Eng 2019; 304(7): 1900107. DOI: 10.1002/MAME.201900107

20.

Raja

Ryu

Shanmugharaj

. Thermal, mechanical and electroactive shape memory properties of polyurethane (PU)/poly (lactic acid) (PLA)/CNT nanocomposites. Eur Polym J 2013; 49(11): 3492–3500. DOI: 10.1016/j.eurpolymj.2013.08.009

21.

xiang Sun

hui Huang

tong Mao

, et al. Fabricating polylactic acid-based blend composite with balanced stiffness−toughness and excellent shape memory performance by incorporating surface-modified carbon nanofibers. Compos Sci Technol 2022; 217: 109088. DOI: 10.1016/j.compscitech.2021.109088

22.

Sun

Cai

Ren

, et al. Room temperature deformable shape memory composite with fine-tuned crystallization induced via nanoclay particles. J Polym Sci B Polym Phys 2017; 55(16): 1197–1206. DOI: 10.1002/POLB.24370

23.

Zhang

Xia

Wang

, et al. Conductive shape memory microfiber membranes with core-shell structures and electroactive performance. ACS Appl Mater Inter 2018; 10(41): 35526–35532. DOI: 10.1021/ACSAMI.8B12743

24.

Azadi

Jafari

Khonakdar

, et al. Influence of graphene oxide on thermally induced shape memory behavior of PLA/TPU blends: correlation with morphology, creep behavior, crystallinity, and dynamic mechanical properties. Macromol Mater Eng 2021; 306(2): 2000576. DOI: 10.1002/MAME.202000576

25.

Wibowo

Vyas

Cooper

, et al. 3D printing of polycaprolactone-polyaniline electroactive Scaffolds for bone tissue engineering. Materials Basel 2020; 13(3): 512. DOI: 10.3390/MA13030512

26.

Near-infrared light-responsive shape memory polymer fabricated from reactive melt blending of semicrystalline maleated polyolefin elastomer and polyaniline. http://spis.hnlat.com/scholar/detail/97bba301ffeea9977a43a21531a4ed55 (accessed Sep. 05, 2022).

27.

Jin

, et al. 4D printing of polymers: techniques, materials, and prospects. Prog Polym Sci 2022; 126: 101506. DOI: 10.1016/J.PROGPOLYMSCI.2022.101506

28.

Villani

Consonni

Canetti

, et al. Polyurethane-based composites: effects of antibacterial fillers on the physical-mechanical behavior of thermoplastic polyurethanes. Polymers Basel. 2020; 12(2): 362. DOI: 10.3390/POLYM12020362

29.

Ehrmann

Brockhagen

Ehrmann

. Shape-memory properties of 3D printed cubes from diverse PLA materials with different post-treatments. Technologies 2021; 9(4): 71. DOI: 10.3390/TECHNOLOGIES9040071

30.

Zhang

Wei

, et al. Investigation of a novel poly (lactic acid) porous material toughened by thermoplastic polyurethane. J Mater Sci 2022; 57(9): 5456–5466. DOI: 10.1007/S10853-022-06951-0

31.

Wei

Tan

, et al. The compatibilization of PLA-g-TPU graft copolymer on polylactide/thermoplastic polyurethane blends. J Polym Res 2020; 27(2): 1–13. DOI: 10.1007/S10965-019-1999-7

32.

Deng

Guo

, et al. Rapid thermal responsive conductive hybrid cryogels with shape memory properties, photothermal properties and pressure dependent conductivity. J Colloid Interf Sci 2018; 526: 281–294. DOI: 10.1016/j.jcis.2018.04.093

33.

Yelil Arasi

Juliet Latha Jeyakumari

Sundaresan

, et al. The structural properties of Poly(aniline)-Analysis via FTIR spectroscopy. Spectrochim Acta-A Mol Biomol Spectrosc 2009; 74(5): 1229–1234. DOI: 10.1016/j.saa.2009.09.042

34.

Sattar

Kausar

Siddiq

. Thermal, mechanical and electrical studies of novel shape memory polyurethane/polyaniline blends. Chin J Polym Sci English Ed 2015; 33(9): 1313–1324. DOI: 10.1007/S10118-015-1680-5
