Abstract

We present a novel method for in-situ monitoring of the vacuum-bag-only (VBO) consolidation process of CF/LM-PAEK thermoplastic composites using an embedded Fibre Bragg Grating (FBG) sensor. An FBG sensor is first employed to monitor transverse strain in the plane during composite manufacturing. The data obtained from the embedded sensor demonstrate its sensitivity to thermal transitions of the thermoplastic matrix, including glass transition, crystallisation and melting. The coefficient of thermal expansion (CTE) of the composite material is also estimated using the FBG, with results validated by dilatometric measurements. Second, the sensitivity of the embedded FBG to consolidation phenomena, particularly the establishment of intimate contact between adjacent layers is also investigated. FBG-based monitoring of two different laminate configurations, one with raw prepreg plies and the other with pre-crystallised prepreg plies, confirms the sensor’s effectiveness in detecting the onset of intimate contact at the glass transition temperature. These findings highlight the potential of FBG-based monitoring for optimising composites manufacturing and improving quality control of high-performance thermoplastic composites.

Keywords

Fibre Bragg Grating thermoplastic composites CF/LM-PAEK (carbon-fibre low Melt–PolyArylEtherKetone) composites vacuum-bag-only consolidation in-situ process monitoring transverse strain monitoring

Introduction

Over the past few decades, carbon-fibre-reinforced thermoplastic composites have gained significant attention in the aerospace industry due to their exceptional mechanical properties and the potential for lightweight high-performance structures. Typically, thermoset composites reinforced with carbon or glass fibre have long been preferred owing to their ease of processing and proven mechanical performance. The growing demand for cost-effective manufacturing techniques, combined with the need for shorter production time, however, has shifted the focus toward thermoplastic composites. Thermoset composite materials and their corresponding manufacturing technologies, are increasingly regarded as less viable options due to their limited shelf life and long curing time.¹

The development of non-corrosive carbon-fibre/thermoplastic composite materials with superior mechanical properties, high service temperature, and recyclability represents a major challenge for the aerospace industry. One promising approach is the use of high-performance thermoplastic composites such as CF/LM-PAEK (Carbon-Fibre/Low-Melt PolyArylEtherKetone), which meet various requirements including excellent mechanical properties, high-temperature resistance and recyclability.^2–5 Despite their advantages, the high manufacturing cost of such composites remains a critical barrier. Currently, autoclave consolidation is widely used, but it is an energy-intensive manufacturing technique for thermoplastic composite structures. Recently, increased attention has been paid to Out-of-Autoclave (OoA) processing methods, such as Vacuum-Bag-Only (VBO) processing, which offers a promising alternative by significantly reducing the manufacturing cost and increasing the production rate.^6,7 Recent studies highlight the potential of VBO processing to enhance manufacturing efficiency by increasing the throughput and reducing the equipment cost. Specifically, Zhang et al.,^8,9 demonstrated that the VBO process can successfully consolidate thermoplastic composite laminates with low void content (<1 %) over a range of dwell time. Their findings emphasize the critical role of interlayer permeability in facilitating the removal of volatiles during processing, making VBO an efficient method for consolidating thermoplastic laminates. Additionally, the formation of porous interlayer regions due to surface roughness has been identified as a key factor to enhancing the volatiles removal process, further underlying the potential of VBO processing as both cost-effective and efficient for high-performance thermoplastic composite laminates, depending on processing conditions.^10,11

Despite its advantages, VBO processing still faces challenges in meeting the stringent quality standards required for aerospace applications, particularly in ensuring consistent void reduction and interlaminar consolidation. While the process has demonstrated its potential for producing high-performance thermoplastic composites, achieving industrial scalability requires further optimization to minimize process-induced defects, such as interlaminar voids, and to enhance interfacial bonding between adjacent plies.^12–15 These challenges highlight the importance of advanced process monitoring and control strategies to ensure optimal consolidation and reproducibility in large-scale manufacturing.

The phenomena associated with intimate contact,^12,16–18 autohesion^17,19,20 and crystallisation^21,22 during thermoplastic composites manufacturing, have been explored in various studies. If the processing conditions are not optimised, insufficient interfacial bonding can occur, leading to the reduced interlaminar strength and the generation of process-induced defects such as voids. Such defects are typically identified using conventional non-destructive testing (NDT) methods, including ultrasonic testing and X-ray inspection imaging.^23,24 Since process-induced-defects can significantly compromise the final structural performance, it is crucial to gain a better understanding of the consolidation process and the associated phenomena to ensure the production of high-quality parts.

Various models have been proposed to describe the phenomenon of intimate contact, with the primary mechanism being the flattening of surface roughness under compaction pressure. Lee and Springer modeled the intimate contact by representing the prepreg surface roughness by a series of rectangles with the same dimensions.¹⁷ Recent studies have evaluated the evolution of intimate contact during consolidation using thermocouples embedded between adjacent laminate plies.^25,26 These studies demonstrated that the thermal contact resistance between the adjacent layers of carbon-fibre-reinforced Polyamide-6 (PA-6) tapes decreased as intimate contact was established during the consolidation process using a hot press. Few studies have focused on low-pressure consolidation of carbon-fibre thermoplastic laminates, although recent research has analysed interlaminar consolidation phenomena during the Out-of-Autoclave (OoA) manufacturing process of these composites laminates.²⁷ In particular, in-situ temperature monitoring through the laminate’s thickness during consolidation, revealed that intimate contact begins to form at the glass transition temperature, contrary to earlier studies where the intimate contact was assumed to occurr near the matrix’s melting temperature.²⁸

Embedded Structural Health Monitoring (SHM) sensors offers a promising solution for optimising these processes and minimising poorly consolidated laminates. The same sensor can be used to monitor the manufacturing process as well as the thermomechanical behaviour of composites during their service life. SHM in the aerospace industry has evolved significantly over the years, employing various sensor technologies to ensure aircraft safety and performance. Traditional electrical resistance strain gauges have been widely used in aircraft systems for localised strain measurements because of their cost-effectiveness and reasonable accuracy.²⁹ In recent years, carbon nanomaterial (CNM) sensors, including graphene-based fibers and carbon nanotube (CNT) composites, have emerged as innovative alternatives for aerospace applications. These sensors offer high sensitivity, enabling real-time structural monitoring, detection of structural anomalies through changes in electrical conductivity, and distributed damage detection. A key advantage of CNM sensors in composite structures is their integration within the material, minimizing intrusiveness and preserving structural integrity while enhancing fuel efficiency, flight safety, and reducing maintenance cost and environmental impact.³⁰ Piezoelectric sensors, particularly those made from lead zirconate titanate (PZT), are widely used in aerospace for active damage detection and acoustic emission monitoring. These sensors are effective in inspecting critical components, such as wing spars, and are valued for their high-temperature performance and versatility in both sensing and actuation. However, their widespread adoption has been hindered by challenges such as material fragility, complex signal processing, and limited scalability for large-scale applications.³¹

Fibre Bragg Grating (FBG) optical sensors are emerging as one of the least intrusive sensors used for in-situ measurements of temperature and strain when embedded within laminate structures. These sensors offer a number of advantages, including relatively low cost, small size, low intrusivity, and lightweight characteristics, which make them highly suitable for use in composite materials.^32,33 Unlike strain gauges and piezoelectric sensors, FBGs can be integrated into composite structures during manufacturing, providing minimal intrusion and enabling monitoring throughout component’s lifecycle.³⁴ Additionally, FBG sensors offer excellent long-term stability with minimal maintenance requirements, making them ideal for the demanding and harsh environments encountered in aerospace applications.^35,36

For high-performance thermoplastic composites, few studies have focused on process monitoring using embedded FBG sensors. Some researchers have used FBG sensors to monitor transverse strains during the manufacturing process of a carbon-fibre/polyphenylenesulfide (CF/PPS) laminate. Their results demonstrated that embedded FBG sensors were sensitive to various thermal transitions in the thermoplastic laminate such as the glass transition, cold and hot crystallisation and melting.³⁷ In other studies by the same authors, the FBG sensors were used to identify residual stresses and strains in thick PolyPhenylSulfide (CF/PPS) laminates by dint of the thermal skin-core effect.^38,39 This phenomenon occurs during the cooling phase of composites manufacturing when the outer (skin) layers cool more quickly than the inner (core) layers, leading to a non-uniform temperature distribution through the laminate thickness. In that experiment, FBGs were used as in-plane transverse strain sensors during the cooling phase and successfully detected significant compressive strain due to crystallisation and solidification starting from 250°C. Other studies focused on process monitoring using embedded FBG during the manufacturing of a carbon-fibre-reinforced polyphenylene sulphide (AS4/PPS) composite laminate by analysing wavelength variations in the FBG spectrum.⁴⁰ Through experimental and numerical analyses, it was demonstrated that FBGs were sensitive to changes in the state of the thermoplastic matrix, including the glass-rubber transition, solid-liquid transition and shrinkage during the cooling phase.

Whereas the aforementioned research papers report interesting results on the use of FBG sensors for in-situ process monitoring, the current research specifically focuses on investigating the sensitivity of FBG sensors for detecting the onset of intimate contact at inter-ply interfaces during the VBO manufacturing process. This aspect has not yet been thoroughly explored in the existing literature. To achieve this objective, we developed an embedded FBG sensor system for monitoring the fabrication of high-performance thermoplastic composites designed for aeronautical applications, which require processing temperatures exceeding 300°C. Although FBG sensors are capable of operating at even higher temperatures, the novelty of this work lies in addressing the integration challenges within the composite structure. These challenges include ensuring sensor performance during thermal cycling, optimising calibration procedures under process specific conditions, and selecting the most suitable consolidation strategy. VBO processing was chosen, due to its ability to facilitate the observation of consolidation phenomena, such as the establishment of intimate contact between adjacent plies, that are more difficult to investigate in hot-press-based systems, commonly studied in the literature. The current work makes a unique contribution by focusing on consolidation under VBO conditions, providing additional insights into the thermo-mechanical behaviour captured by the FBG sensor during both the heating and cooling phases. Particular emphasis is placed on the heating phase, which has rarely been examined in detail. The primary objective of this paper is to introduce a novel FBG-based experimental method for monitoring transverse strain during the manufacturing of high-performance thermoplastic composites. This approach provides a deeper understanding of key consolidation phenomena, particularly the establishment of intimate contact between adjacent layers.

The paper begins with a brief overview of the FBG’s operating principle is presented in the subsequent section. Next, a preliminary thermal characterisation of the prepreg material is conducted using Differential Scanning Calorimetry (DSC) and dilatometric measurements, prior to the in-situ process monitoring using embedded FBG sensors. These preliminary analyses determine critical thermal properties, including the glass transition temperature, melting temperature, crystallisation temperature, and coefficient of thermal expansion (CTE). Additionally, thermal calibration of the sensor prior to its embedment in the laminate VBO consolidation process is presented. This study explores the ability of embedded FBG sensors to capture key consolidation phenomena and thermal expansion behavior of composite laminates. By comparing “as-received” and “pre-crystallized” prepreg plies, the sensitivity of FBG sensors is assessed across both primary and secondary thermal cycles, providing insights into process-induced strain and material behavior during VBO consolidation. In this regard, two different types of composite laminates are compared, namely, the one composed of “as-received” raw prepreg plies and the other composed of “pre-crystallised” prepreg plies. In particular, two successive thermal cycles are applied, viz., a primary consolidation cycle and a secondary post-consolidation cycle, to assess the sensitivity of the embedded FBG in capturing consolidation behaviour, thermal expansion coefficient and process-induced strain.

Fibre Bragg Grating: Working principle

An FBG sensor is created by introducing a periodic modulation of the refractive index along a short section of a silica Single-Mode Fibre (SMF28) using an intense optical interference pattern, typically at ultraviolet (UV) wavelengths.⁴¹ As illustrated in Figure 1, the FBG sensor used in this study was supplied by IDIL Fibres Optiques and consisted of a single 5 mm-long Bragg Grating. The Bragg grating region was in silica glass, while the rest of the fibre was protected by an acrylate coating. When a continuous broadband light is injected into the core of the optical fibre, the narrow-band light with a specific central wavelength called the Bragg wavelength ( $λ_{B}$ ) is reflected while the rest of the broadband light is transmitted. The Bragg wavelength of the reflected spectrum is given by Equation (1), where $n_{e f f}$ is the effective refractive index of the grating’s reverse coupling mode and $Λ$ is the grating period.⁴²

λ_{B r a g g} = 2 n_{e f f} Λ

(1)

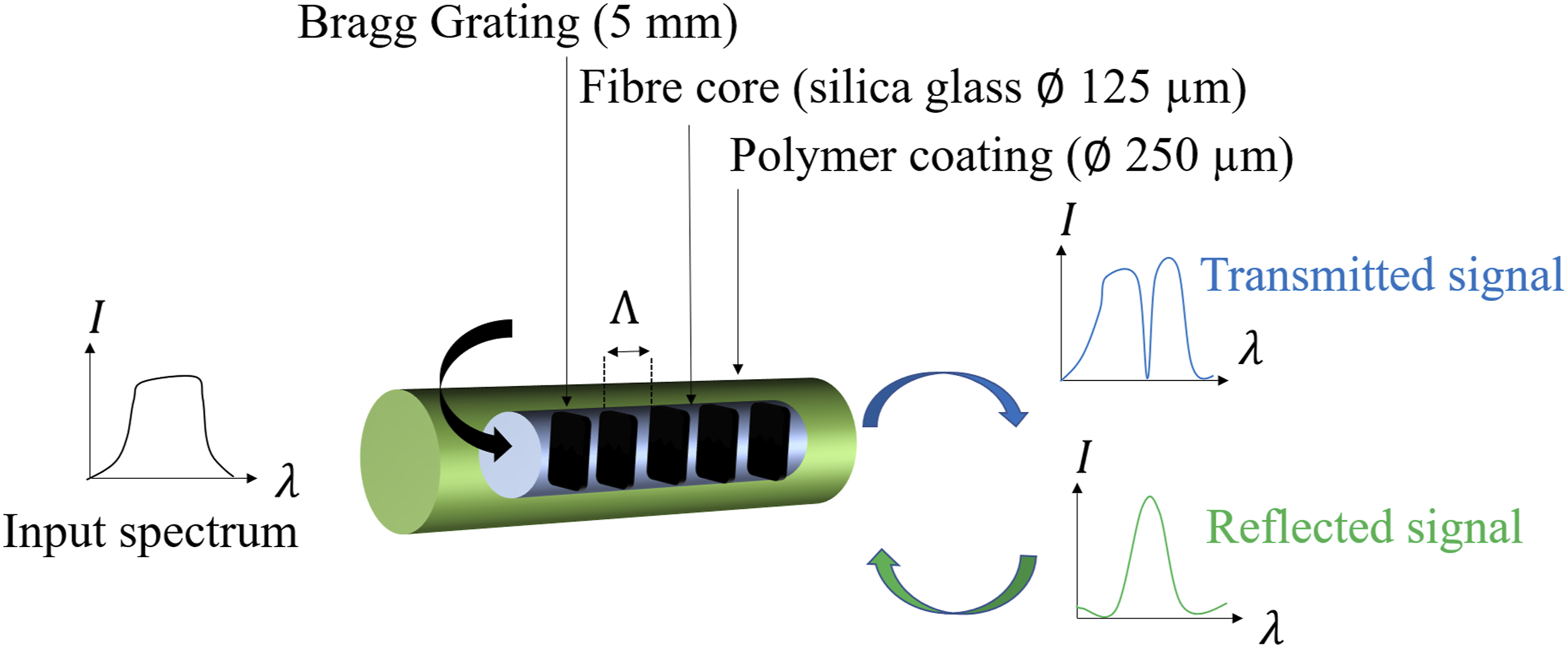

Figure 1.

Operating principle and geometric characteristics of FBG.

The Bragg grating period and the effective refractive index are sensitive to variations in physical parameters such as strain, temperature, and pressure. Any variation of these parameters results in a proportional change of the reflected wavelength. Some studies have shown that variations in Bragg wavelength due to pressure are negligible during the autoclave process where the compaction pressure is below 1 MPa.⁴³ Thus, changes in the Bragg wavelength can be attributed solely to variations in strain and temperature as described in Equation (2):

\frac{Δ λ_{B}}{λ_{B}} = (α + ξ) Δ T + (1 - p_{e}) ε = K_{T} Δ T + K_{ε} ε

(2)

where

α

is the coefficient of thermal expansion of the optical fibre,

ξ

is the thermo-optical coefficient,

Δ T

is the temperature variation and

p_{e}

is the strain-optical constant.⁴¹ The variation in axial strain along the sensor is expressed by

ε

. The temperature and strain coefficients of the FBG are represented by

K_{T}

and

K_{ε}

, respectively. To uncouple the influences of temperature and strain, numerous methods have been proposed in the literature, such as thermal and strain calibration of the optical sensor^44,45 as well as the use of embedded thermocouples and encapsulated FBG sensors.^43,46

Materials and characterization methods

Fibre-reinforced thermoplastic prepreg material (CF/LM-PAEK)

The material considered in this study was a unidirectional carbon-fibre-reinforced thermoplastic composite supplied by Toray advanced composites in the form of prepreg tape. The matrix of the composite was a semi-crystalline low-melt PAEK (LM-PAEK) and the fibre mass fraction was 66%. The properties of the prepreg tape are summarised in Table 1.

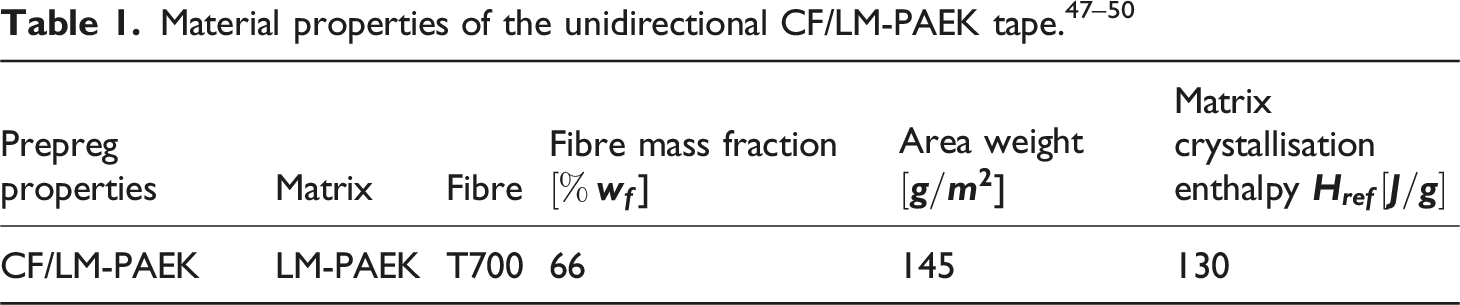

Table 1.

Material properties of the unidirectional CF/LM-PAEK tape.^47–50

Prepreg properties	Matrix	Fibre	Fibre mass fraction $[% w_{f}$ ]	Area weight $[g / m^{2}$ ]	Matrix crystallisation enthalpy $H_{r e f} [J / g]$
CF/LM-PAEK	LM-PAEK	T700	66	145	130

Differential scanning calorimetry

DSC analysis was performed to identify critical temperatures including the glass transition temperature ( $T_{g}$ ), the cold and hot crystallisation temperatures ( $T_{c c}, T_{h c}$ ) and the melting temperature ( $T_{m}$ ) of the polymer matrix as well as the degree of crystallinity ( $X_{c}$ ). DSC analysis was carried out on an “as-received” unprocessed material (i.e., raw prepreg material) as a reference. Additionally, a fully crystallised coupon was also subjected to another DSC analysis.

To obtain pre-crystallised specimens, a thermal pre-treatment was applied on the “as-received” prepreg. The prepreg samples were heated at a rate of 5°C/min from 25°C to 200°C, held at a constant temperature of 200°C for 1 hour, and cooled down to room temperature at a rate of −5°C/min. This thermal cycle was selected based on the findings of a research paper, where the same raw prepreg exhibited cold crystallisation between approximately 180°C and 200°C⁵¹. The isothermal plateau duration was considered long enough to assure the generation of a fully crystalline material.

The DSC analysis was performed using a TA Instrument Q100, with samples having an average weight of 6 mg. Slide-in lids were employed to ensure thin single-sheet samples, which were in contact with an aluminium crucible base. All measurements were conducted using nitrogen as a protective/purging gas. Two heating and cooling cycles were applied to each sample to replicate the thermal cycle applied in our thermoplastic composite’s consolidation process. These thermal cycles involved a heating rate of 5°C/min from 25°C to 380°C, followed by maintaining a constant temperature of 380°C for 15 minutes. The samples were then cooled to room temperature at a rate of −5°C/min.

From this experiment, a curve of normalised heat flow (Q) in W/g (watts per gram) versus temperature (°C) was obtained for both the raw and pre-crystallised specimens. The thermogram provided the critical temperatures ( $T_{g}$ , $T_{c c}, T_{h c}$ , $T_{m}$ ), while the enthalpies of crystallisation ( $Δ H_{c c}$ ) and melting ( $Δ H_{m}$ ) were obtained by integrating the heat flow as a function of time, yielding the enthalpy energy in joules per gram $(J / g)$ , as given by Equation (3):

Δ H = \int_{0}^{t} \frac{\partial H}{\partial t} d t

(3)

where

{Δ H}_{c c} (J / g)

represents the enthalpy of cold crystallisation, which corresponds to the fraction of the amorphous material that crystallises upon heating, and

{Δ H}_{m} (J / g)

is the enthalpy of melting. The degree of crystallinity is calculated from the heating cycle of the thermogram using Equation (4).^52,53

X_{c} (%) = \frac{| Δ H_{m} | - | Δ H_{c c} |}{Δ H_{r e f} (1 - w_{f})} \times 100

(4)

where

{Δ H}_{r e f} (J / g)

is the heat of melting of an ideal crystalline material, estimated to be 130 J/g^47–50 and

w_{f} (%)

is the fibre mass fraction, as presented in Table 1.

X_{c}

(%) represents the overall degree of crystallinity in the polymer.

Dilatometry

The coefficient of thermal expansion of the CF/LM-PAEK material was measured using a TMA Setsys Evolution 18 dilatometer. The material was heated from 25°C to 250°C (below $T_{m}$ ) at a rate of 3°C/min, held a constant temperature of 250°C for 5 minutes and then cooled to 25°C at a rate of −3°C/min. The test was conducted under neutral gas (argon) to simulate conditions in the absence of air. Two identical thermal cycles were applied to the laminate in order to relieve any thermal residual stress generated during the previous process. The sample tested was a unidirectional laminate with an approximate thickness of 4.31 mm, consolidated by hot-press molding. Such manufacturing method was chosen to produce a laminate sample with sufficient thickness for the dilatometric equipment, as the laminates fabricated by the VBO process did not have the appropriate dimensions.

The specimen was then dried in an oven at 100°C for 60 minutes to remove the residual moisture while keeping the process below the glass transition temperature of LM-PAEK (∼150°C). This method was chosen to accelerate drying compared to a desiccator while avoiding any potential alterations to the material’s properties. Given the relatively low moisture absorption of CF/LM-PAEK,⁴⁹ 1 hour was deemed sufficient for effective drying.

The coefficient of thermal expansion was measured in the transverse direction of the sample and calculated according to Equation (5):

C T E (° C^{- 1}) = \frac{ε}{Δ T} = \frac{\frac{Δ L}{L_{0}}}{Δ T}

(5)

where

ε

is the strain variation deduced from the length variation (

Δ L

) in the transverse direction caused by the temperature variation

(Δ T

in °C) and

L_{0}

is the initial length of the specimen (4.31 mm).

To ensure robustness and accuracy of the reported data, the errors in the coefficients of thermal expansion measured using the dilatometric method (as presented in 5.1.2), and those obtained through FBG measurements (5.3.2) were calculated using the standard deviation ( $σ$ ) of the measured values. In Equation (6), $n$ represents the number of specimens tested, ${C T E}_{n}$ is the coefficient of thermal expansion for each measurement and $\bar{C T E}$ is the mean value of the CTE.

σ = \sqrt{\frac{\sum_{i = 1}^{n} {({C T E}_{n} - \bar{C T E})}^{2}}{n}}

(6)

Experimental procedure of in-situ process monitoring

Specimens preparation by the VBO process

Unidirectional eight-ply laminates ([ $0_{8}$ ]) were fabricated by the VBO process under a thermal cycle inspired by industrial guidelines and previous works in the literature for the manufacturing process of similar high-performance thermoplastic composites.^52–54 The process began with vacuum until the relative pressure reached approximately −99 $\times$ 10³ Pa. The heating setup consisted of a heating plate that heated the laminate exclusively from the bottom side. The thermal cycle applied by the heating plate included a heating phase at a rate of 5°C/min up to 275°C, followed by a slower heating phase at 3°C/min up to a maximum temperature of 380°C. This was followed by a constant temperature stage which was maintained for 15 minutes. Subsequently, a free cooling phase down to room temperature was applied, along with pressure relief. The planar dimensions of the laminates were 10 cm $\times$ 10 cm, with a thickness of 1.25 mm for each eight-ply laminate.

Thermal calibration of FBG sensor

During the consolidation process, coupled thermomechanical effects take place due to the combined effect of the temperature from the heating plate and the vacuum pressure applied to the laminate. When embedded within the laminate, the FBG sensor monitors the strain history inside the laminate’s core. Therefore, temperature and strain compensation is necessary to distinguish the thermal and strain contributions to the overall wavelength shift.

The thermal calibration of the sensor was conducted under real consolidation conditions (near 400°C) and the temperature sensitivity coefficient ( $K_{T}$ ) was determined. The calibration was carried out using a heating plate on which the FBG was placed. One branch of the FBG was taped and the other one was left free to prevent the optical fibre from being subjected to the thermal expansion of the plate. A K-type thermocouple was also installed as close as possible to the FBG sensor to measure the temperature accurately. The thermal cycle applied included a heating phase at 5°C/min up to a maximum temperature of 420°C, followed by a free cooling down to 20°C. From this experiment, a calibration curve was constructed based on the wavelength shift of the FBG which had been recorded during the temperature calibration by the thermocouple. The experimental setup is depicted in Figure 2.

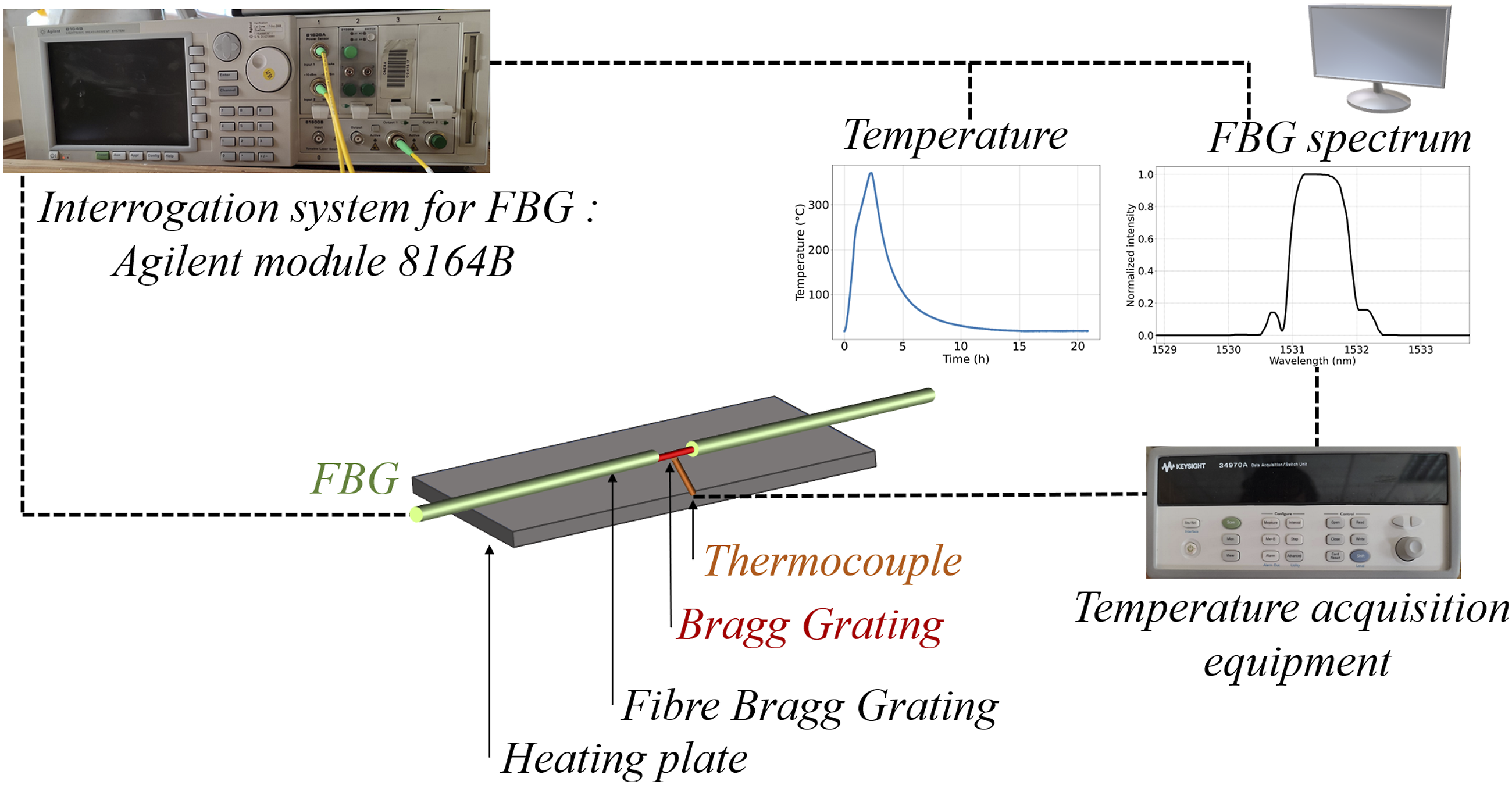

Figure 2.

Experimental setup for thermal calibration of the FBG sensor.

Monitoring experiment with FBG sensor

For the monitoring experiments, an FBG sensor was embedded within the manufactured samples. Most literature studies on the in-situ process monitoring with an embedded FBG placed the sensor in the parallel direction to carbon fibres in prepreg plies to avoid resin accumulation.^43,55 However, the objective of this work is to investigate the sensitivity of the FBG to the phenomena occurring during the consolidation process such as intimate contact, glass transition, crystallisation and melting, which are related to matrix behaviour. For this purpose, the FBG sensor was embedded perpendicular to the carbon fibres to enhance its sensitivity to the physicochemical phenomena of the thermoplastic matrix and to obtain the information on process-induced strain. Unlike parallelly -aligned FBGs, which primarily capture axial strains dominated by the stiff carbon fibres, perpendicularly embedded FBGs are more responsive to transverse strains induced by the polymer matrix. This sensor orientation circumvents the shielding effect of carbon fibres, ensuring direct measurement of the matrix strain and thereby improving detection of intimate contact, crystallisation, and thermal expansion.^32,56 Parallel alignment often leads to resin pooling around the sensor, creating a localized environment that isolates the FBG from direct matrix influence. In contrast, a perpendicularly embedded FBG is better coupled with the evolving viscoelastic properties of the matrix, particularly during phase transitions such as glass transition and melting.^32,57 This direct interaction enhances the sensor’s ability to monitor matrix behaviour with higher fidelity.

An Agilent 8164B module, operating in the 1500–1600 nm range, served as the tuneable laser source for interrogating the reflected wavelengths of the FBG sensor, as depicted in Figure 3. The optical sensing equipment included a tuneable narrowband 81,600B laser source with a resolution of approximately 0.1 p.m. The spectral width was on the order of a few nanometers, allowing the source to be considered punctual for FBG interrogation. The FBG was positioned between the 4^th and 5^th plies of the laminate stack. The laminate was also instrumented with an embedded K-type thermocouple (TC), placed as close as possible to the FBG sensor to achieve optimal thermal compensation and monitor the temperature during the manufacturing process. An illustration of the experimental setup is provided in Figure 3. The raw data obtained from this experiment included the reflected wavelength shift, the spectrum intensity, and the temperature measured by the embedded thermocouple. The wavelength data were subsequently converted into strain data following Equation (2).

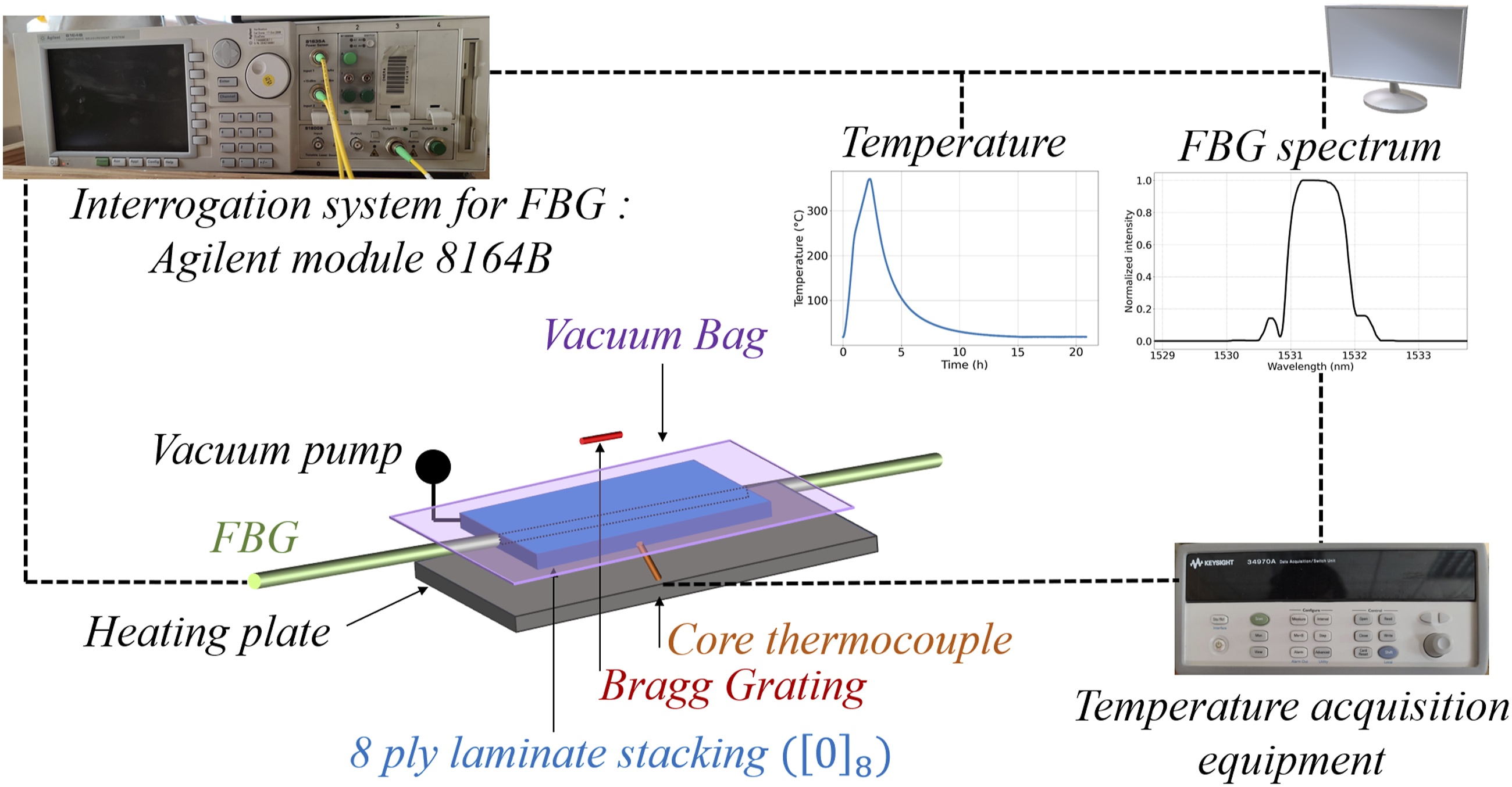

Figure 3.

Experimental setup in VBO process and FBG interrogation system.

A summary table of the experiments (Table 2), including the experimental methods, the measured parameters, and the number of samples, provides a clear overview, facilitating a better understanding of the experiments.

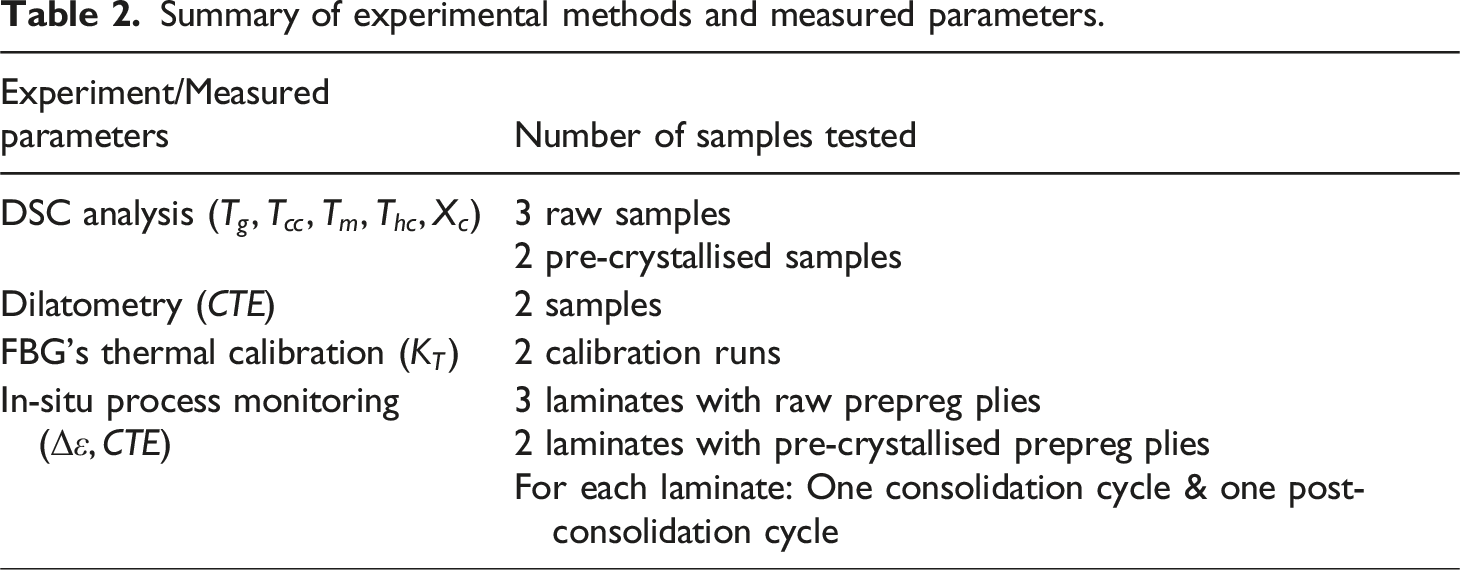

Table 2.

Summary of experimental methods and measured parameters.

Experiment/Measured parameters	Number of samples tested
DSC analysis ( $T_{g}, T_{c c}, T_{m}, T_{h c}, X_{c}$ )	3 raw samples
DSC analysis ( $T_{g}, T_{c c}, T_{m}, T_{h c}, X_{c}$ )	2 pre-crystallised samples
Dilatometry ( $C T E$ )	2 samples
FBG’s thermal calibration ( $K_{T}$ )	2 calibration runs
In-situ process monitoring ( $Δ ε, C T E$ )	3 laminates with raw prepreg plies
	2 laminates with pre-crystallised prepreg plies
	For each laminate: One consolidation cycle & one post-consolidation cycle

Results and discussion

Thermal characterisation of material samples

In this section, the results obtained from DSC and dilatometric measurements on the composite material samples are presented.

Phase transition properties: Glass transition, crystallisation, melting

The DSC measurements on the raw CF/LM-PAEK prepreg and the pre-crystallised specimens provided a curve of the total heat flow Q (W/g) versus temperature (°C), as depicted in Figures 4 and 5.

• First heating (red line): For the raw prepreg material, a “step” is observed in the heat flux curve around 150°C (Figure 4), which is attributed to glass transition. Cold crystallisation occurs approximately between 180°C and 200°C, marked by an exothermic peak. In contrast, the glass transition and crystallisation steps are not visible during the first heating of the pre-crystallised specimen (Figure 5), indicating its fully crystalline state. For both the raw and pre-crystallised samples, endothermic peaks are observed between 260°C and 325°C, which indicate the melting of the thermoplastic matrix.

• First cooling (blue line): Polymers solidify upon cooling below the melting temperature. Exothermic peaks for both raw and pre-crystallised specimens are observed between approximately 225°C and 270°C, which corresponds to the hot crystallisation. It should be noted that the crystalline structure of the pre-crystallised sample was erased when it was heated above the melting temperature

• Second heating (orange line): The glass transition and the peak of cold crystallisation are no longer observable, indicating that both the raw and pre-crystallised samples reached their maximum crystallinity during the cooling phase of the first cycle. Endothermic peaks between 255°C and 325°C are associated with the matrix melting.

• Second cooling (green line): A second exothermic peak, occurring approximately between 225°C and 270°C for both specimens, indicates the second occurrence of hot crystallisation.

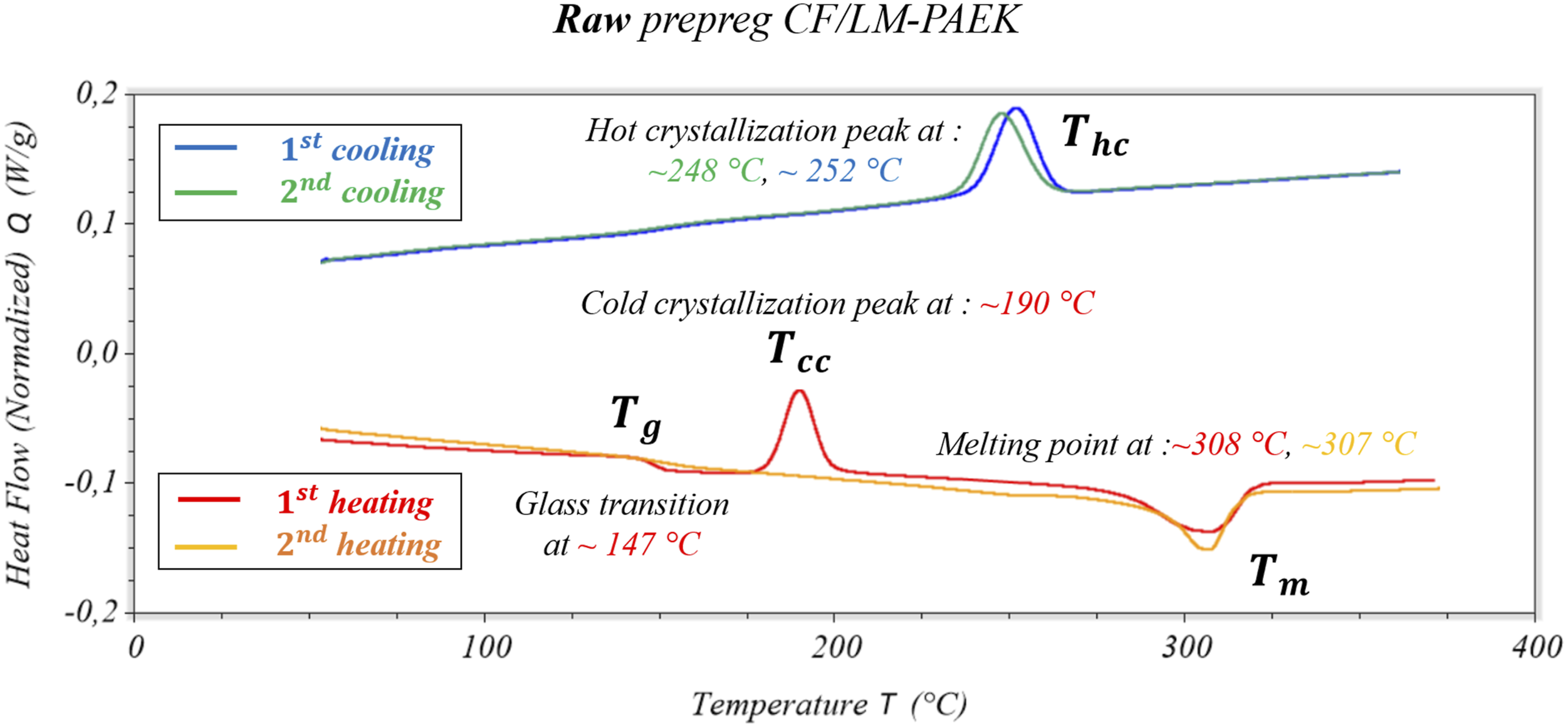

Figure 4.

Heat flux profile of the raw CF/LM-PAEK coupon measured by DSC over two successive thermal cycles.

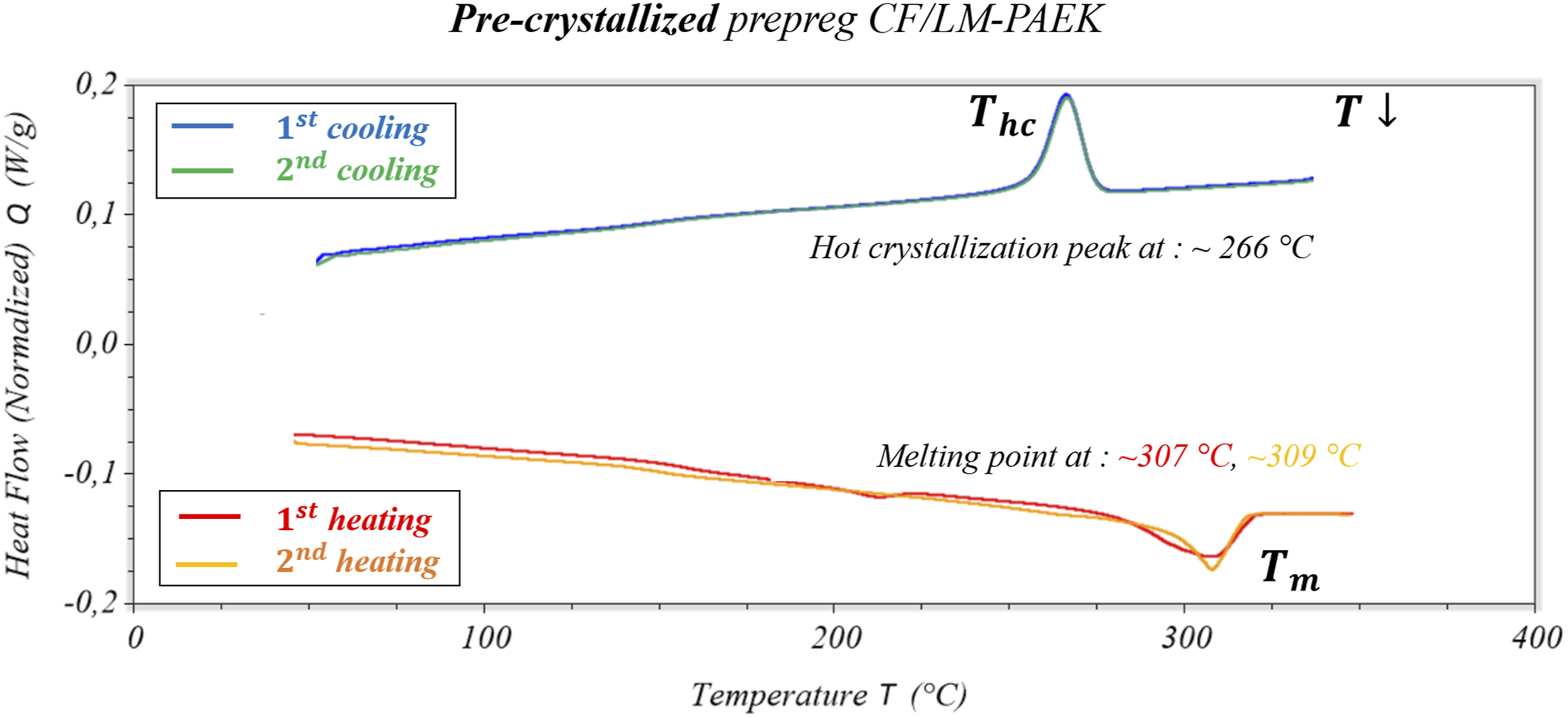

Figure 5.

Heat flux profile of the pre-crystallised CF/LM-PAEK coupon measured by DSC over two successive thermal cycles. Several key conclusions can be drawn.

The values for the glass transition, crystallisation, and melting temperatures of the thermoplastic matrix are in good agreement with the DSC measurements reported for the same prepreg material in the literature.^49,51,52,58 A summary of the characteristic temperatures, enthalpies, crystallisation, and degree of crystallinity obtained during the first and second thermal cycles is provided in Table 3 and Table 4 for both the raw and pre-crystallised samples, respectively. The errors in the obtained data were calculated by considering the measured values from two additional raw prepreg samples and one pre-crystallised sample.

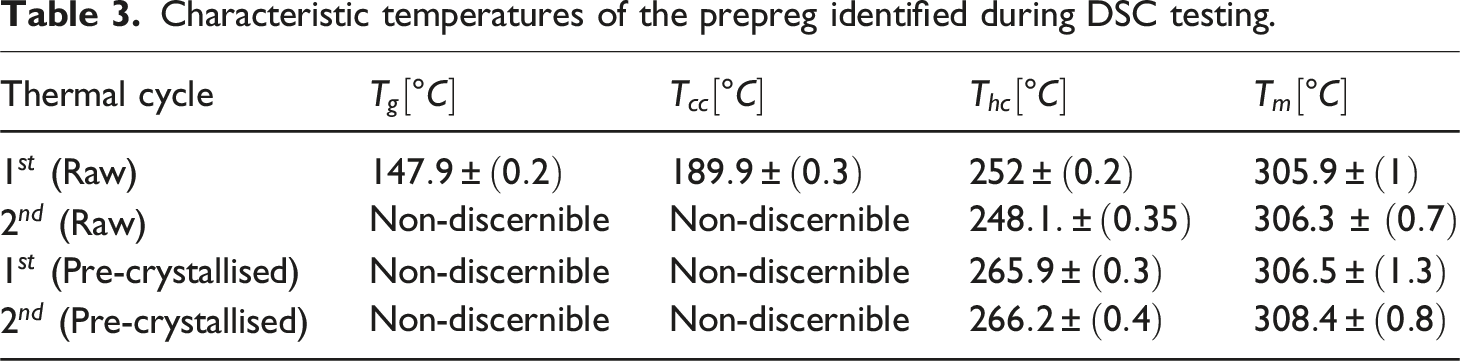

Table 3.

Characteristic temperatures of the prepreg identified during DSC testing.

Thermal cycle	$T_{g} [° C]$	$T_{c c} [° C]$	$T_{h c} [° C]$	$T_{m} [° C]$
$1^{s t}$ (Raw)	$147.9 \pm (0.2)$	$189.9 \pm (0.3)$	$252 \pm (0.2)$	$305.9 \pm (1)$
$2^{n d}$ (Raw)	Non-discernible	Non-discernible	$248.1 . \pm (0.35)$	306.3 $\pm (0.7)$
$1^{s t}$ (Pre-crystallised)	Non-discernible	Non-discernible	$265.9 \pm (0.3)$	$306.5 \pm (1.3)$
$2^{n d}$ (Pre-crystallised)	Non-discernible	Non-discernible	$266.2 \pm (0.4)$	$308.4 \pm (0.8)$

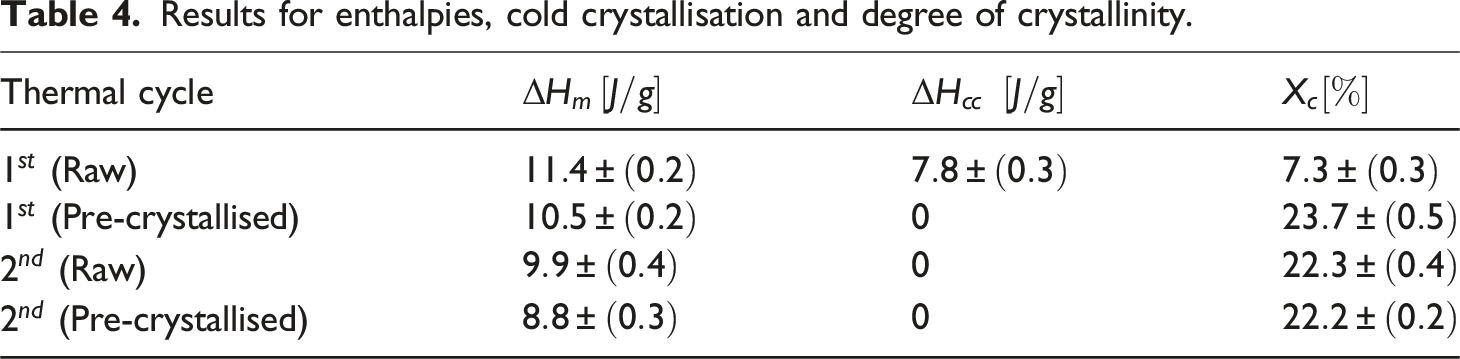

Table 4.

Results for enthalpies, cold crystallisation and degree of crystallinity.

Thermal cycle	${Δ H}_{m} [J / g]$	${Δ H}_{c c} [J / g]$	$X_{c} [%]$
$1^{s t}$ (Raw)	$11.4 \pm (0.2)$	$7.8 \pm (0.3)$	$7.3 \pm (0.3)$
$1^{s t}$ (Pre-crystallised)	$10.5 \pm (0.2)$	0	$23.7 \pm (0.5)$
$2^{n d}$ (Raw)	$9.9 \pm (0.4)$	0	$22.3 \pm (0.4)$
$2^{n d}$ (Pre-crystallised)	$8.8 \pm (0.3)$	0	$22.2 \pm (0.2)$

The presence or absence of peaks related to glass transition and cold crystallisation during the first or second heating depends on the crystallinity of the specimen (raw or pre-crystallised, respectively). For the raw prepreg material, the difference in the degree of crystallinity between the values obtained after the first cycle (∼7%) and the second cycle (∼22%) indicates that the maximum crystallinity level was reached (around 22%) by the end of the first thermal cycle. In contrast, the second sample (pre-crystallised) was first subjected to annealing at 200°C, prior to the DSC testing. The pre-crystallised sample already had a stable crystalline structure, limiting its potential for further crystallisation, whereas the raw prepreg sample still contained amorphous regions capable of further crystallisation. Therefore, the absence of glass transition and crystallisation during the first cycle of the DSC experiments demonstrates that the annealing process resulted in a fully crystalline sample, with a cold crystallinity enthalpy of zero and a maximum degree of crystallinity of approximately 24%, observed during the first heating.

During the second thermal cycle, the crystallinity fractions were nearly identical (around 22%) for both the raw and pre-crystallised specimens, indicating that the thermal history of the polymer matrix was effectively erased during the first thermal cycle, resulting in similar crystallinity values.

Coefficient of thermal expansion

The objective of the dilatometric experiment was to determine the transverse coefficient of thermal expansion of the samples fabricated by hot-press moulding. This experiment provided a curve of transverse strain versus temperature during the heating and cooling phases of the second thermal cycle. The specimens were subjected to two thermal cycles to relieve the thermal residual stresses. Therefore, the coefficient of thermal expansion of the CF/LM-PAEK material was determined during the second thermal cycle of the dilatometric experiment, as shown in Figure 6.

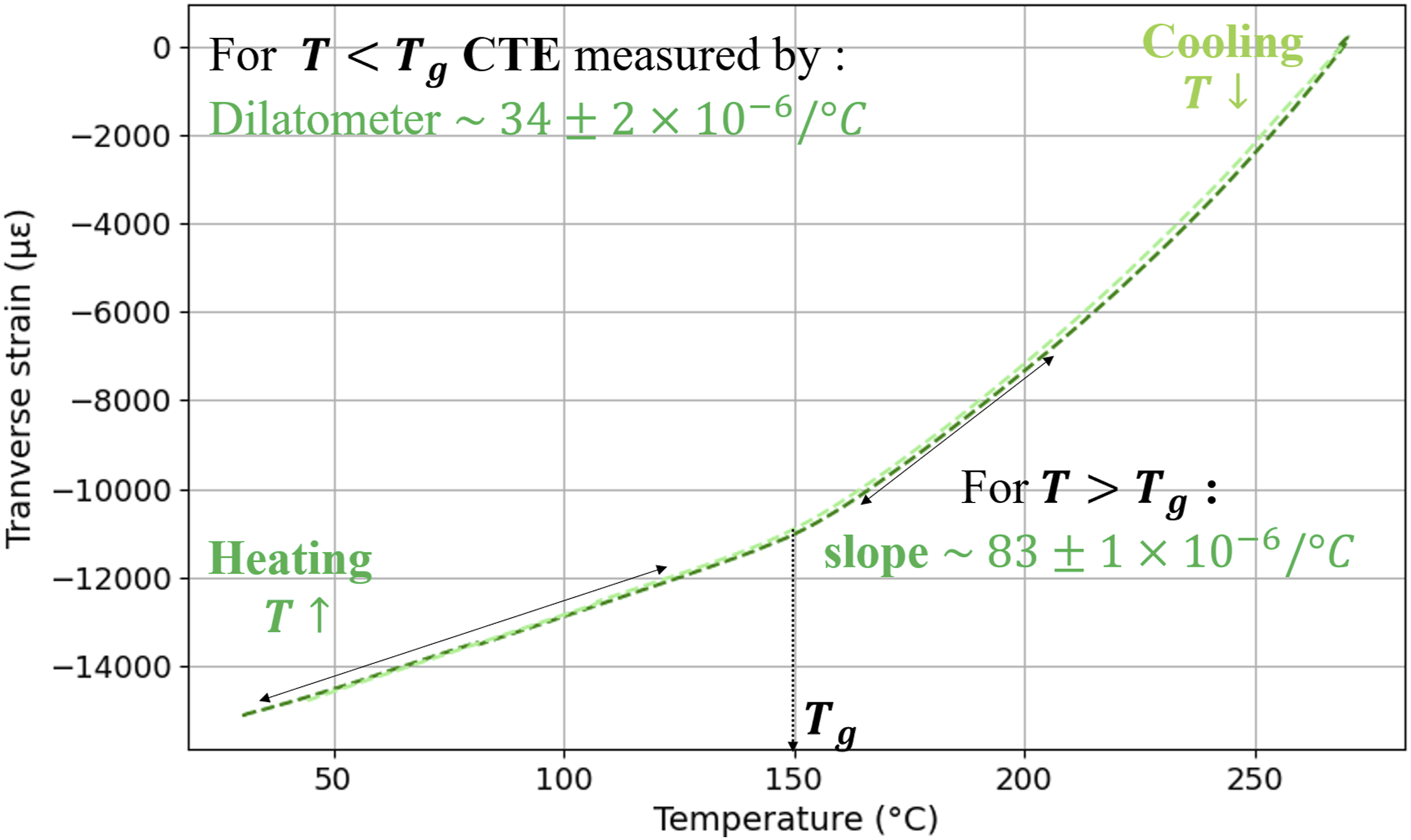

Figure 6.

Transverse strain induced during the second thermal cycle estimated from dilatometric measurements.

The CTE value found was approximately 34 $\times$ 10⁻⁶ /°C for temperatures below $T_{g}$ , while for temperatures above $T_{g}$ (between approximately 180°C and 210°C as shown in Figure 6), the slope increased by more than two times, and the CTE was about 80 $\times$ 10⁻⁶ /°C. This significant increase in the CTE occurs around the glass transition temperature and is more pronounced in amorphous and semi-crystalline materials than in crystalline materials^59,60 which have a high degree of crystallinity with molecular chains arranged in an ordered and tightly packed structure. This crystalline phase restricts molecular mobility and thermal expansion, leading to lower CTE variations than amorphous or semi-crystalline materials.

The change in CTE near the glass transition temperature is linked to the molecular relaxation of the amorphous phase, leading to an increase in specific volume above $T_{g}$ and, consequently, an increase in CTE. On the other hand, the crystalline phase restricts this expansion, causing a reduction in CTE.

The CTE values estimated by this method are compared with the CTE measured by the embedded FBG sensor during the in-situ process monitoring experiments in Sections 5.3.1 and 5.3.2.

Thermal calibration of FBG sensor

The temperature sensitivity coefficient was determined through thermal calibration of the FBG sensor. The calibration curve shown in Figure 7 was used to establish the relationship between the wavelength shift and temperature, enabling the calculation of $K_{T}$ . This coefficient was defined by the following second-degree polynomial function of temperature change:

K_{T} = 0.00373 \times 10^{- 3} \times {(Δ T)}^{2} + 0.0091 \times Δ T + 1539 n m / ° C

(7)

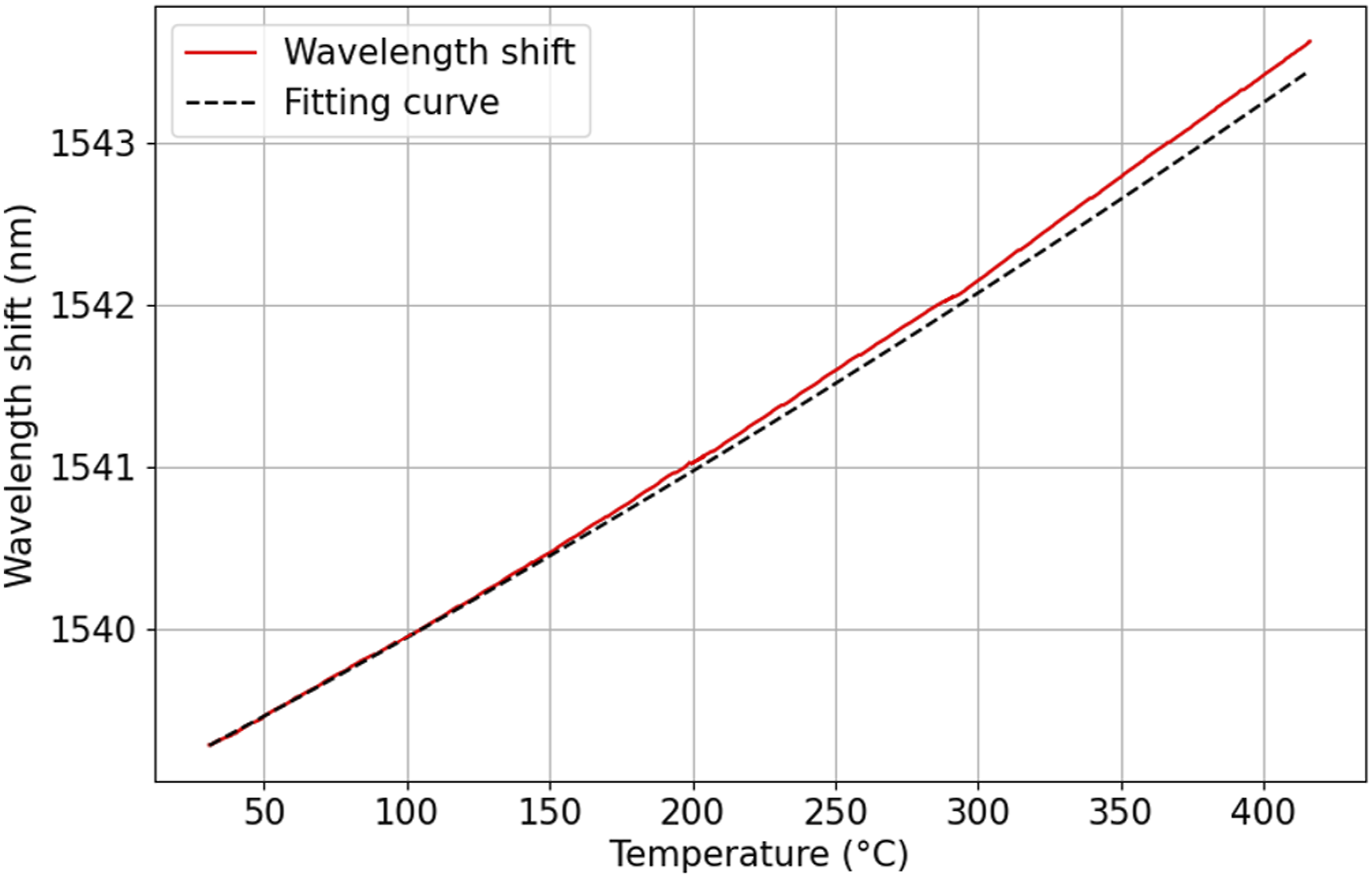

Figure 7.

FBG temperature calibration curve.

As expressed in Equation (2), however, in addition to $K_{T}$ , the coefficient of strain sensitivity ( $K_{ε}$ ) is also required to uncouple the contributions of strain and temperature to the wavelength shift. This allows the axial strain $ε$ to be determined from the measured wavelength shift $\frac{{Δ λ}_{B}}{λ_{B}}$ . Based on literature, the value of $K_{ε}$ was reported to be $1.2 p m / μ ε$ ⁴⁴.

In-situ monitoring of consolidation process with embedded FBG sensor

This section presents the results obtained during the in-situ monitoring of the VBO process using an embedded FBG sensor. A study by A. Liapi et al.,⁶¹ investigated the sensitivity of FBG sensors to key transitions during the consolidation of thermoplastic composites, including changes in the state of the thermoplastic matrix and the thermal expansion of the composite. Additionally, their research demonstrated the repeatability of the FBG sensor in capturing these transitions by two supplementary test trials, which highlight the consistency and reliability of the FBG sensor for monitoring consolidation processes. The present research is based on this work by providing a deeper understanding of the phenomena detected by the FBG sensor, particularly the establishment of intimate contact between adjacent layers.

Investigating the sensitivity of FBG to consolidation phenomena

To investigate the sensitivity of the embedded sensor to phenomena related to the consolidation process (intimate contact) and the state changes of the thermoplastic matrix (glass transition, crystallisation and melting), three cases were considered. The first one consisted of the consolidation cycle, during which intimate contact was established between adjacent layers, and the physicochemical phenomena of the thermoplastic matrix occurred. The second case focused on the already consolidated laminate subjected to a post-consolidation cycle, in which the FBG was expected to respond only to the phenomena related to the state changes of the matrix. The third case explored the manufacturing cycle of a laminate with pre-crystallised prepreg plies, aiming to investigate the influence of pre-crystallisation on the consolidation process, particularly the establishment of intimate contact.

The transverse strain ( $μ ε$ ) was derived from the wavelength shift (nm) obtained by the FBG during the heating of the samples in the three cases: (i) consolidation cycle of raw prepreg plies, (ii) post-consolidation of raw prepreg plies, and (iii) consolidation of pre-crystallised prepreg plies. The heating curves corresponding to these three cases are presented in Figure 8.

• ${T < T}_{g}$ : The strain increased with rising temperature for the first two cases (consolidation and post-consolidation cycles with raw prepreg plies), suggesting that the FBG was subjected to the thermal expansion of the thermoplastic matrix even at the beginning of the consolidation cycle. To verify this hypothesis, the coefficient of thermal expansion was determined from the slope of the strain-versus-temperature curve for the three study cases at temperatures below $T_{g}$ . The CTE obtained from the slope during the consolidation cycle of the laminate with raw prepreg plies was slightly lower $(\sim$ 26 $\times$ 10⁻⁶ /°C) than the CTE obtained during the post-consolidation cycle $(\sim$ 30 $\times$ 10⁻⁶ /°C). In contrast, the slope corresponding to the pre-crystallised material was significantly lower $(\sim$ 16 $\times$ 10⁻⁶ /°C) than in the two other cases. The errors in the CTE, derived from the slope during the consolidation cycle of the laminate with raw prepreg plies, were calculated using two supplementary repeatability tests. For the specimens with pre-crystallised prepreg plies, an additional repeatability measurement was conducted to calculate errors in the slope corresponding to the pre-crystallised material as measured for temperatures below the glass transition. The above findings confirmed the influence of the crystalline structure on the material’s behaviour. Choupin’s research indicated that the presence of crystalline regions can reduce the thermal expansion, as the crystalline phase is less susceptible to thermal expansion than the amorphous matrix.² This is consistent with our observations that the CTE of the pre-crystallised plies was lower than that of raw prepreg plies. A higher degree of crystallinity appears to enhance structural rigidity and dimensional stability, thereby limiting thermal expansion and restricting further matrix expansion upon heating. Therefore, this difference in CTE provides an insight into the material’s behaviour during the consolidation cycle and how the material’s behaviour is influenced by the pre-crystallisation. Finally, the CTE value determined during the post-consolidation cycle $(\sim$ 30 $\times$ 10⁻⁶ /°C) aligns with the thermal expansion coefficient of the composite material measured using dilatometric equipment, as presented in Section (3.3). The discrepancy observed between the consolidation and post-consolidation cycles can be attributed to the different contact conditions between the FBG sensor and the prepreg plies in each case. During the heating phase of the consolidation cycle, the FBG sensor was positioned between adjacent prepreg plies and vacuum pressure was applied to the laminate stack. Below $T_{g}$ , the prepreg material remained rigid with a rougher surface, potentially leading to non-uniform contact stress between the prepreg plies and the FBG sensor. This variation in contact conditions could result in slight differences in the in-plane strain measurements carried out by the FBG. Non-uniformity in the optical sensor’s surrounding environment as reported in the literature,⁶² can also lead to spectral distortion under high compaction pressure (∼20 bar) during consolidation, resulting in multiple peaks near $T_{g}$ . In contrast, the results in the present work show that the lower compaction pressure used in VBO (∼990 mbar) prevents such distortions. Figure 9 demonstrates undistorted spectral profiles at ambient temperature ( $T_{a m b}$ ) and $T_{g}$ for all three cases studied. Although the FBG wavelength shifts to higher values with increasing temperature, these shifts remain free of spectral distortions during the $T_{g}$ transition, confirming the stability of the FBG spectrum under VBO conditions. During the post-consolidation phase, the prepreg plies were fully consolidated, ensuring uniform contact between the FBG sensor and the adjacent plies. Finally, the onset of heating for the laminate with pre-crystallised prepreg plies (black line in Figure 8) exhibited distinct behaviour in the measured strain, starting from ambient temperature. The origin of this behaviour is explained in the following paragraph.

• $T_{g} < {T < T}_{m}$ : A small drop in the strain measured by the FBG occurred around the glass transition temperature (150°C) during the consolidation cycle of the laminate with raw prepreg plies (red line in Figure 8), demonstrating the capability of the embedded sensor to detect $T_{g}$ . Conversely, this strain decrease around the glass transition temperature was not observed (black line in Figure 8) in the case of the laminate with pre-crystallised prepreg plies. As indicated by Choupin’s study on PEKK composites, the presence of crystalline phases can affect the mechanical properties and the glass transition temperature of the material.² Indeed, the consolidation of the laminate with pre-crystallised prepreg plies exhibited a distinct difference in the strain measured by the FBG, extending from ambient temperature to 300°C. Additionally, a slight “zig-zag” behaviour was observed in the FBG strain response for the laminate with the pre-crystallised plies. While the exact cause remains uncertain, a repeatability measurement confirmed that such behaviour consistently appears around the annealing temperature used to pre-crystallize the prepreg plies (200°C). One possible explanation is that the annealing process introduced localised variations in crystallinity and residual stresses, which relax in a non-uniform manner as the temperature increases. The high sensitivity of the FBG sensor allowed detection of these small fluctuations. Although further investigation is needed, the repeatability of the measurement suggests that the “zig-zag” behaviour in the FBG’s response might be originated from the thermal history of the material rather than an experimental artefact. During the consolidation cycle of the laminate with the raw prepreg plies (red line in Figure 8), we could observe a strain plateau whose onset took place just after $T_{g}$ . This implies a modification of the mechanical properties of the composite around $T_{g}$ , i.e. the decrease of matrix stiffness due to the glassy to glassy transition. When the sensor was embedded in the composite structure constituted by pre-crystallised prepreg plies, such a plateau was no longer discernible. The origin of this strain plateau may be attributed to the establishment of intimate contact between adjacent layers, detected by the embedded sensor. Recent studies have investigated the influence of a high-crystalline prepreg on the phenomenon of intimate contact during consolidation.⁵⁹ Saffar et al. reported that intimate contact begins to be established at the glass transition temperature and that a high crystallinity is a critical factor influencing intimate contact, as it can delay this phenomenon. The findings of that research suggest a possible explanation for the difference observed in the strain plateau between FBG monitoring of the consolidation process of laminates with raw or fully crystallised prepreg plies. The presence of pre-crystallised layers in the laminate delays the establishment of intimate contact which does not occur until the matrix melts. Conversely, the use of raw prepreg plies allows the onset of intimate contact after $T_{g}$ . Choupin’s findings on the influence of crystallinity suggest that as the degree of crystallinity increases, the transition around $T_{g}$ becomes less obvious in terms of changes in mechanical properties.² This observation helps explain why the strain drop is less noticeable in the pre-crystallised case, supporting the idea that higher crystallinity leads to higher stiffness of the matrix, making the surface roughness harder to deform and potentially delaying or altering the establishment of intimate contact between adjacent layers. Finally, once the laminate was consolidated and intimate contact was achieved, the FBG was sensitive only to the changes related to the thermal expansion of the material, as demonstrated by the orange curve in Figure 8. For temperatures below the glass transition, the thermal expansion coefficient was found to be lower ( $\sim 30 \times 10^{- 6} / ° C$ ) than the value measured for temperatures above $T_{g}$ ( $61 \times 10^{- 6} / ° C$ ). The increase of CTE after $T_{g}$ , agrees with the results of the dilatometric experiment. The difference in CTE values above $T_{g}$ between FBG measurements for the post-consolidated specimen ( $61 \times 10^{- 6} / ° C$ ) and dilatometry ( $83 \times 10^{- 6} / ° C$ ) can be attributed to differences in thermal history, which affect the polymer’s crystallinity, leading to variations in thermal expansion. Heating above $T_{m}$ during VBO allowed complete melting and recrystallisation upon cooling, potentially increasing crystallinity and reducing thermal expansion due to the denser and more ordered structure.^63,64

• $T > T_{m}$ : When the temperature exceeded 300°C, a sudden drop in strain was observed for all three cases, corresponding to the melting point of the matrix at around 305°C. This also highlights the sensitivity of the embedded sensor to the material’s transition from the solid to the molten state. A phenomenon of strain relaxation measured by the optical sensor, was also observed at the melting point for both cases of consolidation using raw and pre-crystallised plies (in red and black lines in Figure 8). Such a significant jump occurring at the melting temperature of the matrix was also noted by Sorensen et al.,⁶² who observed changes in the spectral forms of the sensor due to the liquid state of the matrix, that allowed viscous flow of the composite around the fibre optic sensor creating equal transverse strains. The drop in measured strain by the FBG could be a consequence of the thermoplastic molecular chains, which, when heated above their melting temperature, gained enough energy to move more freely. In this molten state, the polymer chains were no longer in a rigid structure but could relax and slide past out of their entanglements.⁶⁵

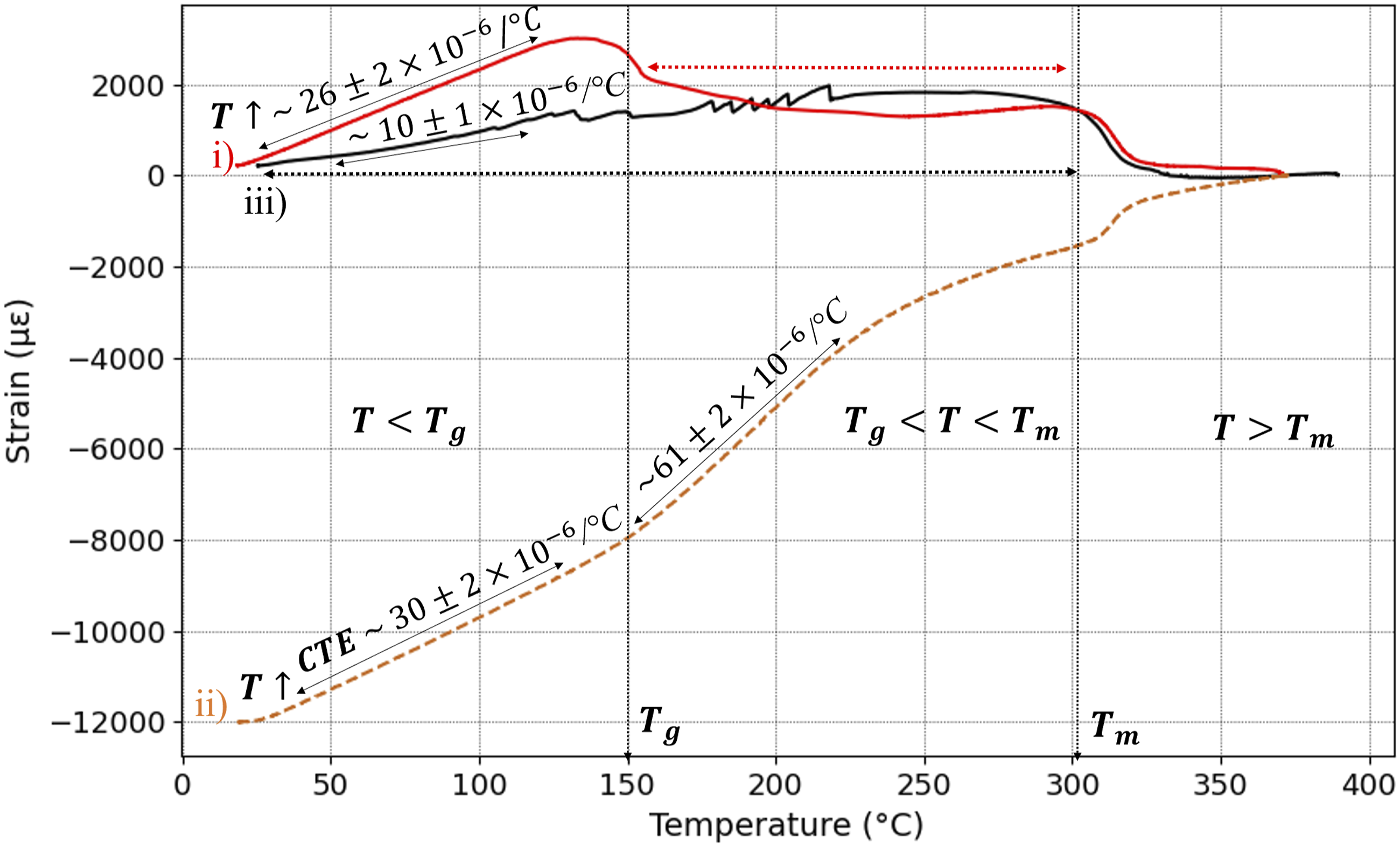

Figure 8.

FBG monitoring of transverse induced strain during heating (i) consolidation and (ii) post-consolidation of a laminate with raw prepreg plies, (iii) consolidation cycle of a laminate with pre-crystallised prepreg plies.

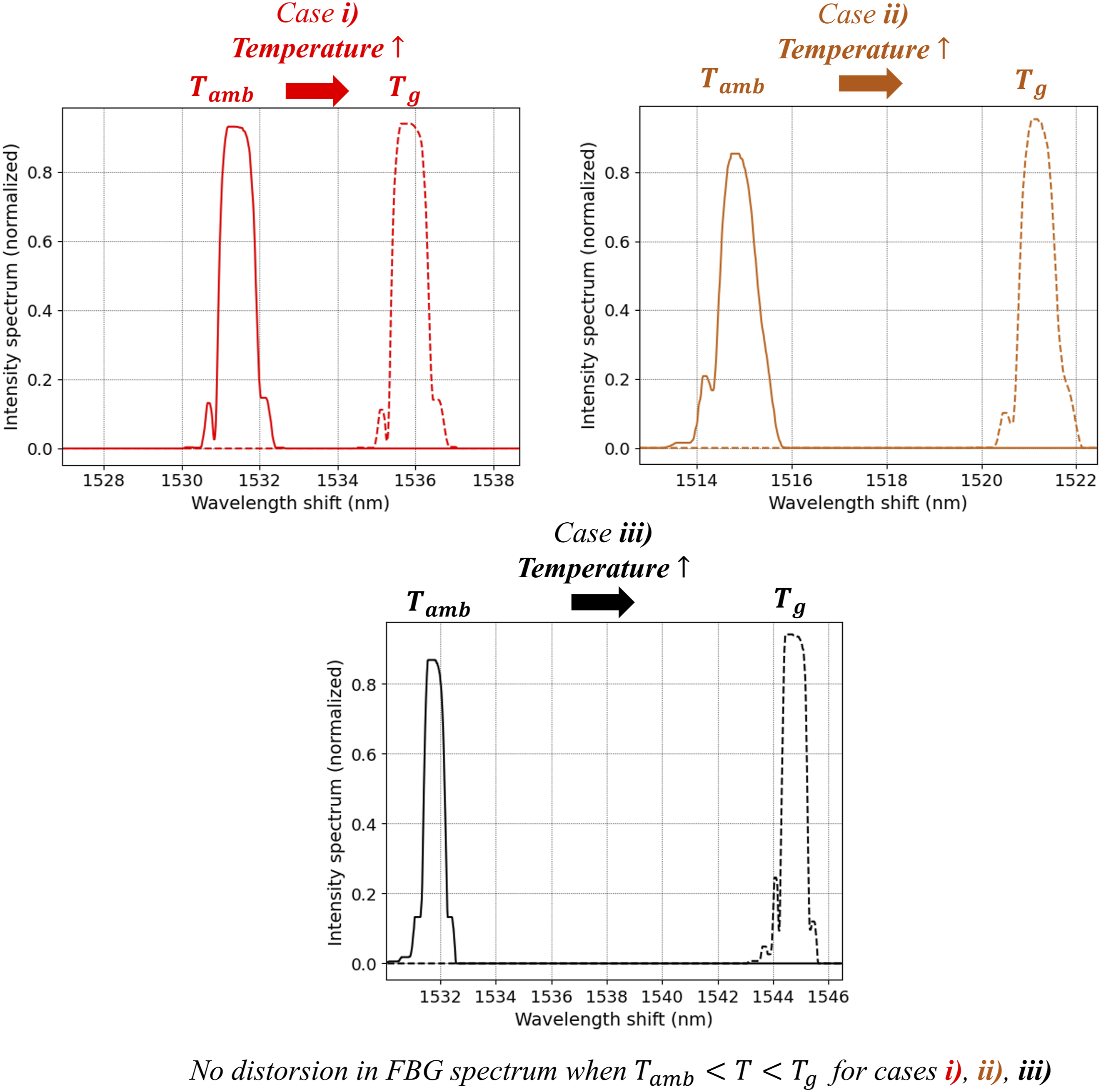

Figure 9.

FBG spectrum profiles between ambient temperature and $T_{g}$ during: (i) consolidation and (ii) post-consolidation of a laminate with raw prepreg plies, (iii) consolidation cycle of a laminate with pre-crystallised prepreg plies.

Estimating the thermal expansion coefficient from process-induced strain measured by embedded FBG during thermoplastic cooling

After the melting temperature was exceeded and the intimate contact between adjacent layers was achieved, the cooling process of the laminate was carried out. The data provided from the FBG monitoring of the cooling process for the three cases are displayed in Figure 10, from which a few conclusions can be drawn.

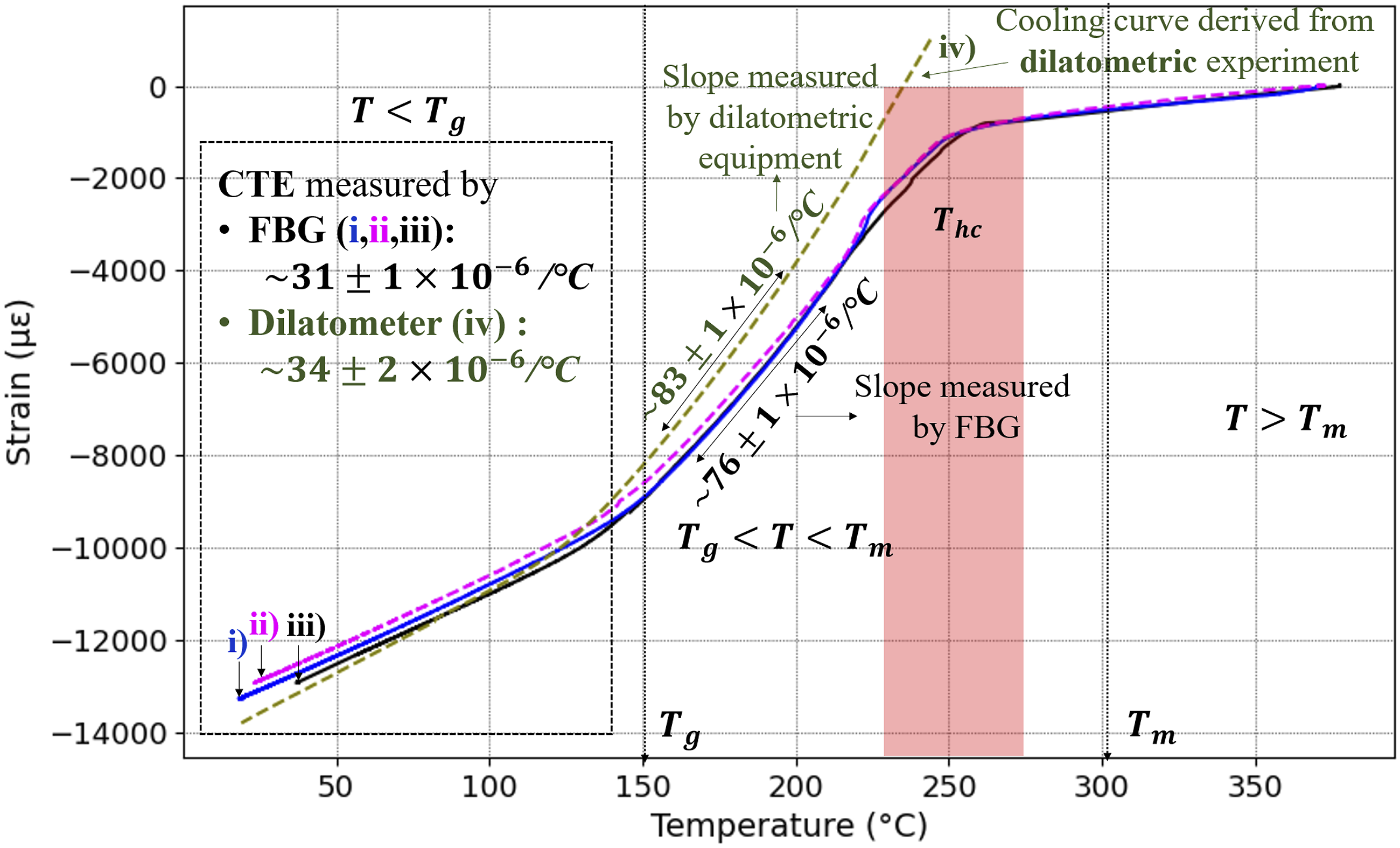

Figure 10.

FBG monitoring of transverse strain during cooling of the (i) consolidation cycle and (ii) post-consolidation cycle of the laminate with raw prepreg plies, (iii) consolidation cycle of the laminate with pre-crystallised prepreg plies and (iv) cooling curve derived from dilatometric experiment.

In the range of temperature above the melting point, no significant variation in the transverse strain measured by the FBG was observed. As the specimen cooled down, however, we can observe, in the temperature range between 225°C and 260°C, a characteristic step emerged in the strain-temperature curve where the strain drops significantly as the temperature decreases. This sudden decrease of strain is related to the matrix shrinkage due to hot crystallisation phenomenon and was also detectable in the DSC analysis. This result confirms the sensitivity of the FBG to hot crystallisation which was observed both for the consolidation and post-consolidation cycles. Moreover, this sudden decrease of strain due to cold crystallisation did not take place in the case of pre-crystallised prepreg plies, whereas only the phenomena observed during the heating phase (e.g., intimate contact explained in the aforementioned section) were influenced by the pre-crystallisation of prepreg. This behaviour is due to the fact that once the temperature exceeds the melting point, the thermal history of the materials, regardless of their initial crystallinity, is erased. As a result, a similar material behaviour for both raw and pre-crystallised materials can be observed during the cooling phase.

In order to investigate the sensitivity of the FBG to process-induced strain during the cooling step, the cooling curves derived from the FBG monitoring during the consolidation and post-consolidation cycles are compared with the cooling curve obtained from the dilatometric experiment (presented in Section 3.3, Figure 6). The CTE was estimated from the cooling curves obtained from dilatometry measurements and the FBG monitoring, according to Equation (5). The result in Figure 10 shows a similar order of magnitude of transverse strain (around 12,000 $μ ε$ ) for both methods and a similar average value for the thermal expansion coefficient (approximately $30 \times 10^{- 6} / ° C$ ). Tsukada et al. measured the shrinkage strain using an embedded middle-tail FBG sensor during the cooling process of a CF/PPS thick thermoplastic laminate.^38,39 They observed significant compressive strain induced by crystallisation and solidification around 250°C. The order of magnitude of the measured strain (around 20,000 $μ ε$ ) aligned with the result obtained by the embedded FBG in the current research.

This experiment proves the efficiency of FBG sensors for monitoring the vacuum bag consolidation process of carbon-fibre reinforced thermoplastic composites. FBG sensors, typically used for structural health monitoring can also be used for real-time process monitoring of transverse strain and the estimation of the thermal expansion coefficient instead of a dilatometric equipment.

Conclusion and perspectives

This study demonstrates the successful application of FBG sensors for monitoring the VBO consolidation process of high-performance CF/LM-PAEK thermoplastic composites. Thermal calibration of the FBG sensor enabled the determination of the sensitivity coefficient ( $K_{T} = 0.00373 \times 10^{- 3} \times {Δ T}^{2} + 0.0091 \times Δ T + 1539 n m / ° C$ ) at temperatures exceeding 400°C. This calibration facilitated thermal compensation during process monitoring and enabled accurate measurement of process-induced strain during laminate manufacturing.

An experimental protocol for integrating the sensor into the laminate structure was developed. The embedded FBG sensor effectively captured key transitions of the thermoplastic matrix, such as $T_{g}, T_{m},$ and $T_{h c}$ , observed at approximately 150°C, 305°C and 250°C, respectively. These values were consistent with those obtained from DSC analysis on the prepreg material. Furthermore, the CTE of the composite material, as measured by the FBG sensor, was estimated to be approximately 30 × 10⁻⁶ /°C, closely aligning with dilatometric measurements.

Differences observed between the two successive consolidation cycles highlighted the ability of the FBG sensor to detect distinct consolidation phenomena occurring in each cycle. Notably, the FBG sensor detected the onset of intimate contact at $T_{g}$ during the consolidation of laminates made from raw prepreg plies, indicated by a characteristic strain plateau. This plateau was delayed in the laminate containing pre-crystallised plies, illustrating how pre-crystallisation can influence the timing of intimate contact. These findings highlight the sensor’s potential to monitor critical consolidation phenomena.

An intriguing “zig-zag” pattern in the FBG strain response was observed during the manufacturing cycle of laminates with pre-crystallised prepreg plies, around the crystallisation annealing temperature (∼200°C). This pattern is potentially attributable to the non-uniform relaxation of residual stresses, which warrants further investigation to fully understand this behaviour.

Ongoing work focuses on developing a thermomechanical model to simulate process-induced strain in the composite structure. A thermoelastic model is being implemented in which both thermal and mechanical fields are fully coupled, to determine the magnitude of cooling-induced strain and validate the numerical predictions against the experimental results obtained from FBG strain monitoring.
