Abstract

The main aim of this work was to obtain conductive polymer-based materials by incorporation of different amounts of multiwalled carbon nanotubes (MWCNTs) into poly(lactide)(PLA) using the electrospinning technique. Fiber-based nonwovens with 0.2, 0.5, 1, and 3 wt% of MWCNTs were characterized regarding conductivity, morphology, thermal, and mechanical properties. It was confirmed that an increase of the MWCNTs content does not influence the increase of the material conductivity, since the conductivity was 170 ohm sq⁻¹ for all composites. Scanning electron microscopy and transmission electron microscopy analyses revealed that smooth and beadless fibers were obtained, but also average diameters of composite nanofibers decreased with the increase of the MWCNTs content. Differential scanning calorimetry analysis showed that the presence of MWCNTs in the PLA matrix had a significant influence on the crystallization behavior of PLA nanofibers, because the decrease in crystallization temperature (T_c) was detected. Also, the incorporation of MWCNTs into PLA fibers affected the melting process, enabling the generation of α′ form, while had no influence on ordered α crystal. The enthalpy of composite degradation decreased, because MWCNTs are well-known for good heat conductivity, and with that the second step of degradation slowed down, as it was confirmed by thermogravimetric analysis. The addition of MWCNTs improved mechanical properties of composite fibers and caused the increase of both elasticity and tensile strengths of nanofibers.

Keywords

Poly(lactide) nanofibers multiwalled carbon nanotubes electrospinning conductive polymer thermal properties

Introduction

Hybrid polymer-based materials with tailored properties are under development in recent years. Enhanced thermal, mechanical, optical, electrical, and other properties of hybrid materials are the result of combining two or more phases in materials processing. Nowadays, the trend in the production of hybrid materials is the substitution of synthetic materials with biomaterials. The use of bio-based polymers gives added value to hybrid materials due to their biocompatibility, biodegradability, and easy processing. One of the most promising and often used bio-based polymers is poly(lactide) (PLA), which can be produced from sugar-based raw materials.¹ PLA can be used for many applications, such as biomedical, pharmaceutical, or packaging, but, due to its good processability, also for some industrial applications, especially in the automotive industry. Even if PLA has some good properties, the main drawback is its brittleness, and because of that, it lacks in mechanical and thermal properties.² Slow crystallization rate present in PLA limits wider use of this biomaterial.² These deficiencies can be overcome by adding some filler, macro or nano, into the PLA matrix. Many types of nanofillers were already used for improving PLA properties, such as silicon (IV)-oxide and titanium oxide nanoparticles, nanocellulose, different nanoclays, and carbon-based fillers.^3

–10 With the addition of fillers, besides improving mechanical and thermal properties, many scientists strive for obtaining conductive polymers. The main aim is to obtain light materials with mechanical and electrical properties similar to metals, but the main issue is to produce conductive polymer-based materials. As polymers are inert and used as insulators, it is necessary to incorporate conductive material into the matrix. Carbon-based materials like graphite, carbon black and recently nanoforms of these, graphene and carbon nanotubes (CNTs), are most commonly used conductive materials.^11
–13 Carbon nanofillers induce conductivity of composites when added to the polymer, even in a small amount, up to 5 wt%. The main issue in the production of CNT-based nanocomposites is achieving homogenous dispersion of CNTs into the polymer matrix. Many different methods, such as incorporation in situ, solvent dispersion, and melt mixing, were commonly used for dispersing of CNTs. Because of CNTs’ poor solubility in organic solvents, it is hard to obtain a good dispersion, especially when higher concentrations of CNTs are used, and because of this, melt compounding is the most efficient method for the preparation of CNT-based polymer composites. During the last decade, electrospinning as a new method for the production of composite materials has been employed.¹⁴ The main principle of this technique is the use of high voltage as driving force for the production of nanofibers from polymer-based solutions. In this case, CNTs are dispersed not only by mechanical dispersion in solvent but also under the influence of the electric field. With more or less success, PLA/CNT nanofibers were produced by electrospinning and conductive polymer mats were obtained.^15
–17 CNTs in the PLA matrix do not only induce conductivity of polymer but also have an influence on the crystallization of PLA and separation of different forms of crystals thereby improving mechanical properties by increasing the PLA strength. The influence on the thermal stability of PLA/CNT composite materials is also observed.^18,19

In this work, PLA-based composite nanofibers with different amounts of multiwalled carbon nanotubes (MWCNTs) were produced using the electrospinning technique in order to obtain conductive materials. Morphology of nanofibers and also electrical, mechanical, and thermal properties were examined and the impact of the amount of MWCNTs on the obtained composites properties was tested.

Experimental

Materials

The PLA used in this study was provided by Esun, China. Parameters of the neat PLA are number-average molecular weight (M_n = 60,520 g mol⁻¹), weight-average molecular weight (M_w = 160,780 g mol⁻¹), and polydispersity (Q = 2.6; determined using gel permeation chromatography). PLA was dried 6 h at 50°C prior to use.

MWCNTs with a diameter of 13 nm, length of 1 μm, and purity of 95% were supplied by a Bayer Material Science. Dichloromethane (DCM) (Fisher Scientific, Loughborough, UK) and dimethylformamide (DMF) (Centrohem, Stara Pazova, Serbia) were used as solvents without further purification.

Preparation of solutions for electrospinning and obtaining of PLA-based nanofibers

For experimental purpose, in this work, five different PLA-based fibers were prepared: one pure PLA nonwoven, which served as a control, and four composite PLA fibers containing 0.2, 0.5, 1, and 3 wt% of MWCNTs, respectively. PLA solution was prepared by mixing appropriate amount of PLA in solvent mixture of DCM/DMF (in the ratio 6:5 v/v). Composite PLA solutions were prepared in a two-step mixing process: first pure PLA solution was prepared and then to this solution, a matching amount, which corresponds with a concentration of MWCNTs, was added (Table 1). This solution was treated in an ultrasonic bath for 20 min to ensure the dispersion of MWCNTs within the PLA matrix. After 24 h of mixing on a magnetic stirrer at room conditions, the solution was transferred to a plastic syringe which was connected to the system in the electrospinning machine Fluidnatek LE-10 (Bioinicia, Paterna, Spain). Process parameters for electrospinning were adjusted for the preparation of each sample (Table 1).

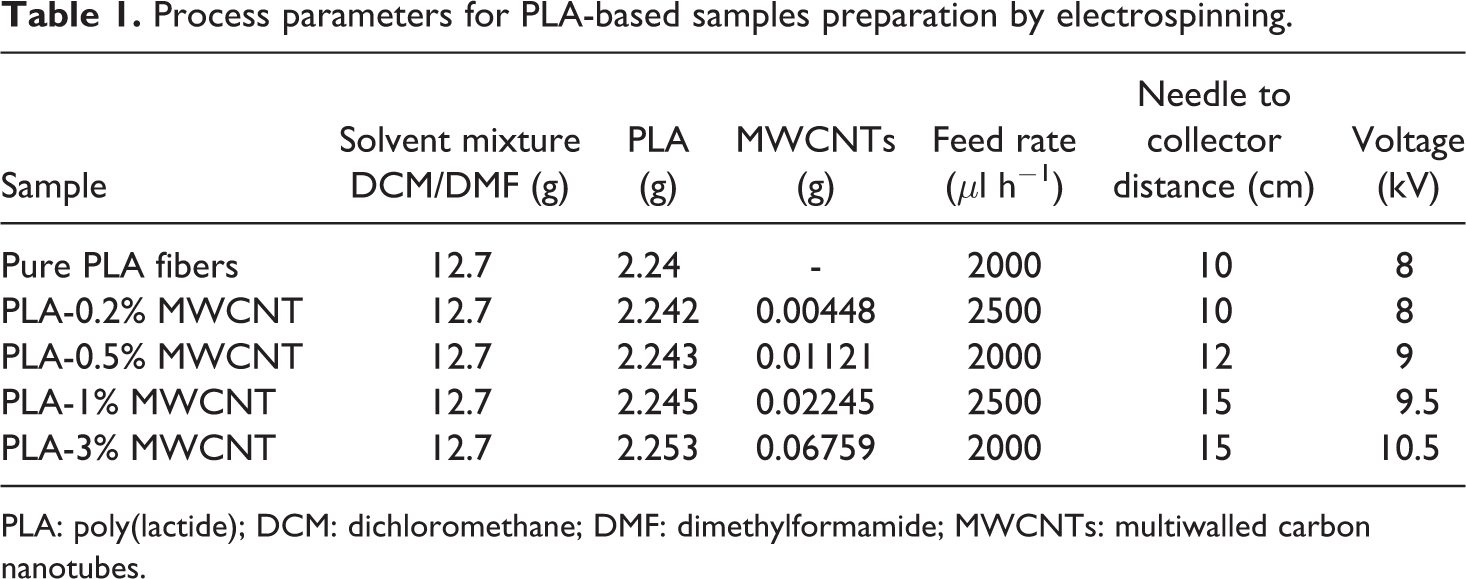

Table 1.

Process parameters for PLA-based samples preparation by electrospinning.

Sample	Solvent mixture DCM/DMF (g)	PLA (g)	MWCNTs (g)	Feed rate (μl h⁻¹)	Needle to collector distance (cm)	Voltage (kV)
Pure PLA fibers	12.7	2.24	-	2000	10	8
PLA-0.2% MWCNT	12.7	2.242	0.00448	2500	10	8
PLA-0.5% MWCNT	12.7	2.243	0.01121	2000	12	9
PLA-1% MWCNT	12.7	2.245	0.02245	2500	15	9.5
PLA-3% MWCNT	12.7	2.253	0.06759	2000	15	10.5

PLA: poly(lactide); DCM: dichloromethane; DMF: dimethylformamide; MWCNTs: multiwalled carbon nanotubes.

Characterization of nanofibers

Morphology of obtained samples was analyzed using scanning electron microscopе (SEM), Lyra (Tescan, USA) operated at 25 kV.

Validation of the morphology nanofibers and verification of successful incorporation of MWCNTs into PLA-based nanofibers were confirmed using transmission electron microscopy (TEM; Tecnai G2 F20, FEI, USA). The samples for TEM imaging were placed on a holey carbon-coated grid AGS147-4 (Agar Scientific, Essex, UK).

The conductivity of nanofibers was explained by measuring sheet resistivity of samples.²⁰ The sheet resistivity of PLA/MWCNT nanocomposites was taken on four-point probe device and was measured at five different places on the surface of the samples, and the average values were taken. All measurements were done at room temperature.

Dielectric properties (conductance) of the samples were measured by Digital LCR Meter 4284A, in the frequency range from 20 Hz to 1 MHz at the room temperature.

Differential scanning calorimetry (DSC) measurements were performed using a Setaram 151 R instrument (software SETSOFT 2000 from Setaram) in the temperature range from 25°C to 200°C under nitrogen atmosphere at a heating rate of 5°C min⁻¹.

Cold crystallization degree (X_cc) was estimated according to the following equation:

X_{cc} (%) = \frac{Δ H_{m} - Δ H_{c}}{Δ H_{m}^{0} \times {wt}_{PLA}} \times 100

where ΔH_m refers to the enthalpy of melting, ΔH_c refers to the cold crystallization enthalpy of PLA/CNT composites; $Δ H_{m}^{0}$ refers to the enthalpy value of 100% crystalline PLA, which is 93 J g⁻¹ and wt_PLA refers to the weight ratio of PLA in PLA/CNT composites.²¹

Thermogravimetric analysis (TGA) was performed on the Setaram Setsys Evolution-1750 instrument. Samples (average weight 5 mg) were heated from 30°C to 500°C at the heating rate of 10°C min⁻¹ in an argon atmosphere with the gas flow rate of 20 cm³ min⁻¹. During the heating period, the weight loss and temperature difference were recorded as a function of temperature.

Mechanical properties of electrospun nonwovens were determined using an Instron 1122 tensile testing machine (UK), with a crosshead speed of 1 mm min⁻¹ at room conditions. Samples were cut from prepared nonwoven mats in the form of a rectangle, with approximate dimensions 10 × 50 mm².

Results and discussion

SEM images of pure and MWCNT-loaded PLA-based nanofibers are shown in Figure 1, where pure PLA nanofibers are shown in Figure 1(a). It can be seen that smooth and uniform fibers without beads and drops were obtained using appropriate process parameters. The addition of nanofiller did not disrupt the morphology of nanofibers; smooth and beadless fibers were obtained from all prepared PLA-based solutions containing MWCNTs (Figure 1(b) and (c)). Due to the higher conductivity of composite polymer solutions caused by the presence of MWCNTs, the elongation of the viscoelastic solution in high-voltage electric field increased,²² so with the higher amounts of filler, fibers with lower diameters were obtained (Table 2).

Figure 1.

SEM micrographs of (a) pure PLA fibers and (b) composite fibers with 0.5 wt% of MWCNTs, and (c) 3 wt% of MWCNTs.

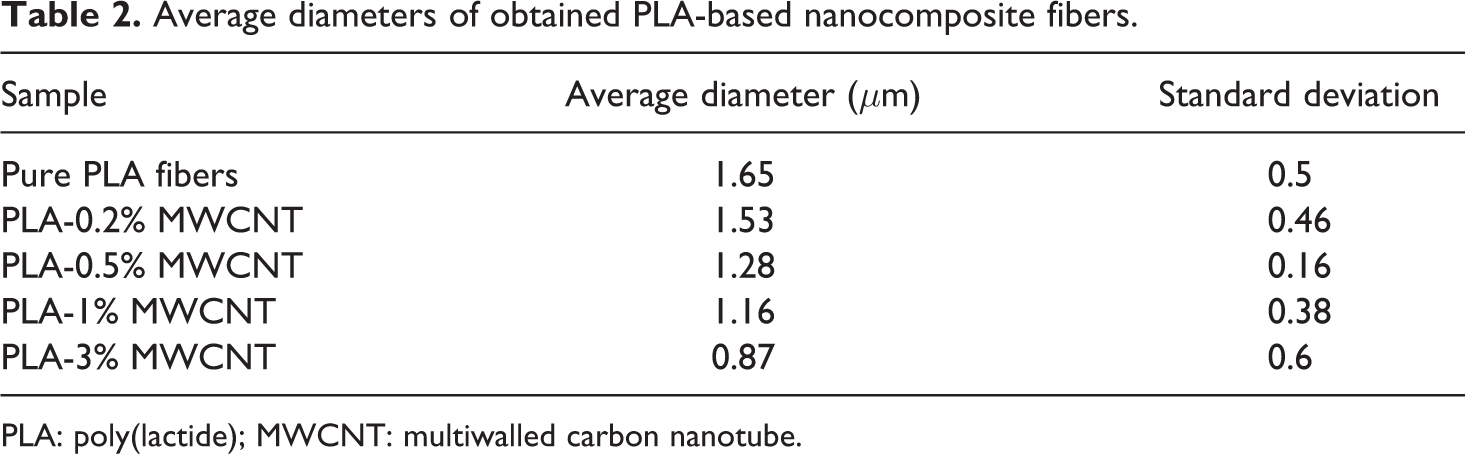

Table 2.

Average diameters of obtained PLA-based nanocomposite fibers.

Sample	Average diameter (μm)	Standard deviation
Pure PLA fibers	1.65	0.5
PLA-0.2% MWCNT	1.53	0.46
PLA-0.5% MWCNT	1.28	0.16
PLA-1% MWCNT	1.16	0.38
PLA-3% MWCNT	0.87	0.6

PLA: poly(lactide); MWCNT: multiwalled carbon nanotube.

In the electric field, MWCNTs orient in the direction of the electric field, so they are distributed along the nanofibers.¹⁵ Due to good dispersion of MWCNTs within PLA, they are encapsulated into fibers, and it was not possible to notice them using SEM microscope. TEM results revealed the presence of by-products (carbon-type materials) of MWCNTs into the fibers, which is shown in Figure 2(b). Even the best quality MWCNTs have some carbon by-products and if these by-products are successfully incorporated into the nanofibers, this ensures that MWCNTs are also incorporated into the polymer matrix. Within nanofibers with a lower amount of MWCNTs (0.2 wt% and 0.5 wt%), nanotubes existed as single tubes, randomly dispersed through the fiber volume, because concentration was too low and no strong forces between them were present (Figure 2(c)). With the increase of the MWCNTs’ amount, attraction forces between MWCNTs are becoming stronger and they start to form aggregates (Figure 2(d)). Even though aggregates of MWCNTs are present, this did not hinder the conductivity of the fibers.

Figure 2.

TEM micrographs of (a) pure PLA fibers and (b) composite fibers with 0.5 wt% of MWCNTs and (c) and (d) 3 wt% of MWCNTs.

For all composite fibers, sheet resistivity was around 170 ohm sq⁻¹, so once the conductivity percolation was achieved, the increase in the MWCNTs’ amount had no effect on the conductivity of the fibers. In our experiment, the lowest concentration of CNTs was 0.2 wt%, and even this small amount of carbon filler is sufficient for obtaining conductive material. SEM images illustrated that MWCNTs are not connected to each other along the fibers, but they are randomly arranged. Conductivity, in this case, is achieved with specific morphology of samples, where fibers form an unregular three-dimensional network which is enhancing the formation of percolation network.^23,24 As the fiber diameter is small and the fibers are thin, MWCNTs in two connected fibers interact and transfer conductivity further along with the network. With the increasing MWCNTs content, conductivity was not changed, because the fiber network forms the same number of active places that take part in electron transfer.

It was shown that specific morphology achieved using the electrospinning technique enables the preparation of conductive materials with the addition of very low concentrations of MWCNTs, which is hard to achieve with conventional process techniques. It can be explained by the fact that MWCNTs are embedded in polymer fibers, and because of this, when the conductive threshold was achieved, further addition of MWCNTs had no influence on the value of conductance. This was confirmed by conductance measurement on the frequency range from 100 kHz to 1 MHz (Figure 3). MWCNTs had a strong influence on the ionic and dipole interaction in the PLA matrix, increasing conductance and shifting this transition to the higher frequency.

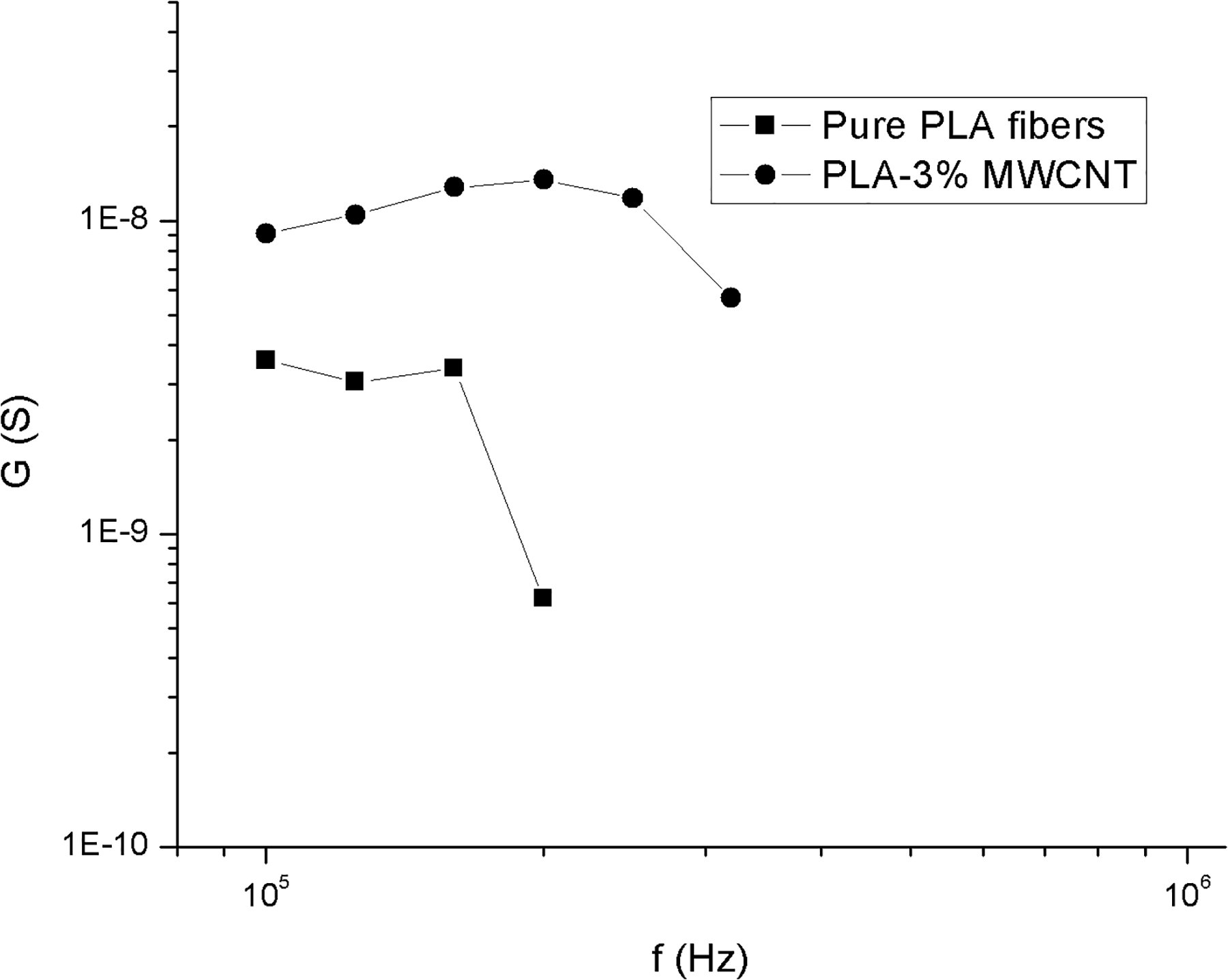

Figure 3.

Conductance of pure PLA fibers (▪) and composite fibers with 3 wt% of MWCNTs (•).

The results of DSC analysis of obtained nanofibers are summarized in Table 3 and Figure 4. It is evident that the presence of CNTs in the PLA matrix had a significant influence on the crystallization behavior of PLA nanofibers, because decreasing of crystallization temperature (T_c) was detected. As referenced in the literature, MWCNTs can serve as nucleating agents and they ease crystallization of PLA.¹⁸ The highest decrease of T_c occurred with the addition of 1 wt% of MWCNTs amounted for almost 20°C. With the decrease of T_c, separation of different crystal forms in PLA was more prominent, so two different melting points were detected on DSC graphs. The first melting point decreased with the addition of MWCNTs for 3–4°C, which is the consequence of ease crystallization, but the second melting point remained the same. Considering two crystal forms of PLA, α i α′, this kind of behavior was expected, related to the fact that MWCNTs can act as a nucleating agent. Namely, PLA belongs to the group of semicrystal polymers and dominant form of crystals present in the PLA matrix is α form. The melting temperature of these crystals is related to the ratio of l-lactide as well as to the presence of filler. The addition of MWCNTs definitely leads to an increase in PLA crystallinity rate through the increase in enthalpy of melting of α crystals. However, because of irregularity and the shape of the nucleating agent, less ordered α′ form crystal has been formed, which is proved with melting peak that occurred at a lower melting temperature compared to α form. The addition of MWCNTs to PLA fibers enables α′ form formation, while has no influence on ordered α crystal. Because of this, with increasing of MWCNTs’ loading, decreasing of T_m1 (derived from α′ form) is detected, which is a consequence of increasing the number of nucleating places that further eases the crystallization. This causes a slight increase in the crystallinity of PLA fibers, because the overall enthalpy of melting, which presents the sum of enthalpies of melting of α and α′ crystals, increased (Table 3).

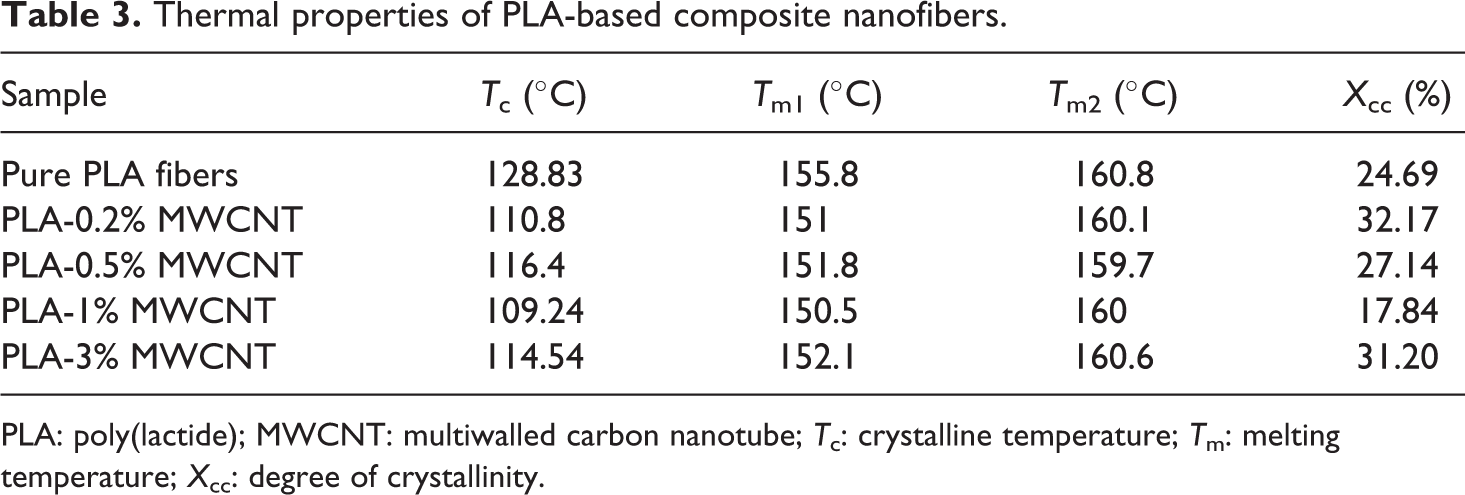

Table 3.

Thermal properties of PLA-based composite nanofibers.

Sample	T_c (°C)	T_m1 (°C)	T_m2 (°C)	X_cc (%)
Pure PLA fibers	128.83	155.8	160.8	24.69
PLA-0.2% MWCNT	110.8	151	160.1	32.17
PLA-0.5% MWCNT	116.4	151.8	159.7	27.14
PLA-1% MWCNT	109.24	150.5	160	17.84
PLA-3% MWCNT	114.54	152.1	160.6	31.20

PLA: poly(lactide); MWCNT: multiwalled carbon nanotube; T_c: crystalline temperature; T_m: melting temperature; X_cc: degree of crystallinity.

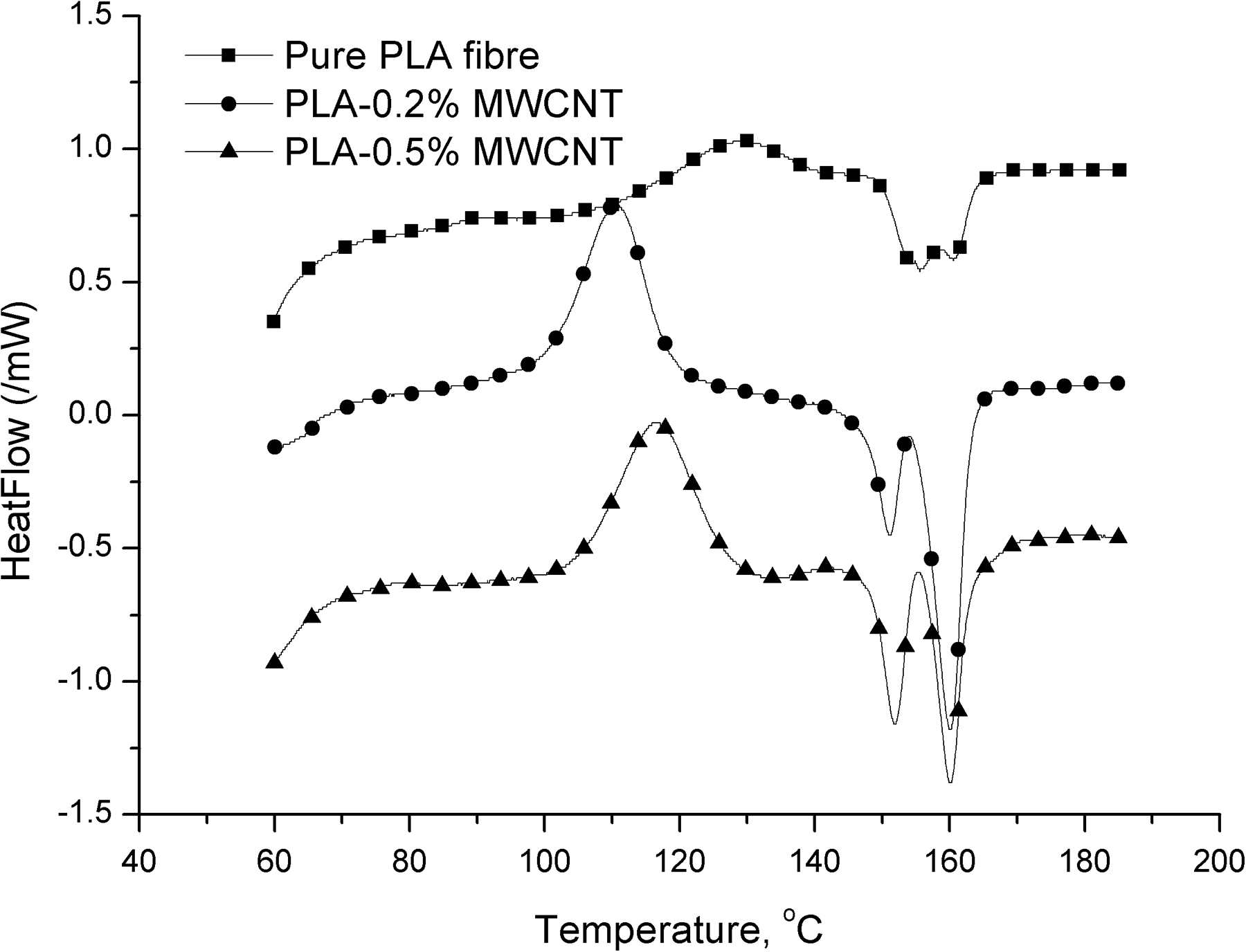

Figure 4.

DSC thermograms of pure PLA fibers and composite fibers with 0.2 wt% and 0.5 wt% of MWCNTs.

Comparison of thermal properties of pure PLA and PLA-based composite fibers is shown in Figure 4, where the influence of the presence of MWCNTs in the PLA matrix can be clearly noticed. Crystallization and melting peaks are sharper and separation of different forms of crystals is more evident within a sample with 0.2 wt% of MWCNTs.

Thermal stability of the obtained nanofibers was examined using the TGA method. It was shown that the overall stability of the samples was not affected by the presence and the amount of MWCNTs (Figure 5). Pure PLA and the PLA composite with the 0.2 wt% of MWCNTs had slightly delayed degradation for a few degree Celsius, but that was not a significant difference in thermal stability. Considering SEM and TEM micrographs, it was proved that MWCNTs were present inside the polymer fibers, so an increase of thermal stability was not expected, because the degradation process starts from the surface of the fibers, on which the filler particles, that are inside, did not have any influence. In other words, a filler that was inside the fibers did not have influence on heat flow and fiber degradation process itself. However, when differential thermal analysis curves of pure PLA and composite fibers were compared, no influence of the filler on thermal stability was observed (Figure 4).

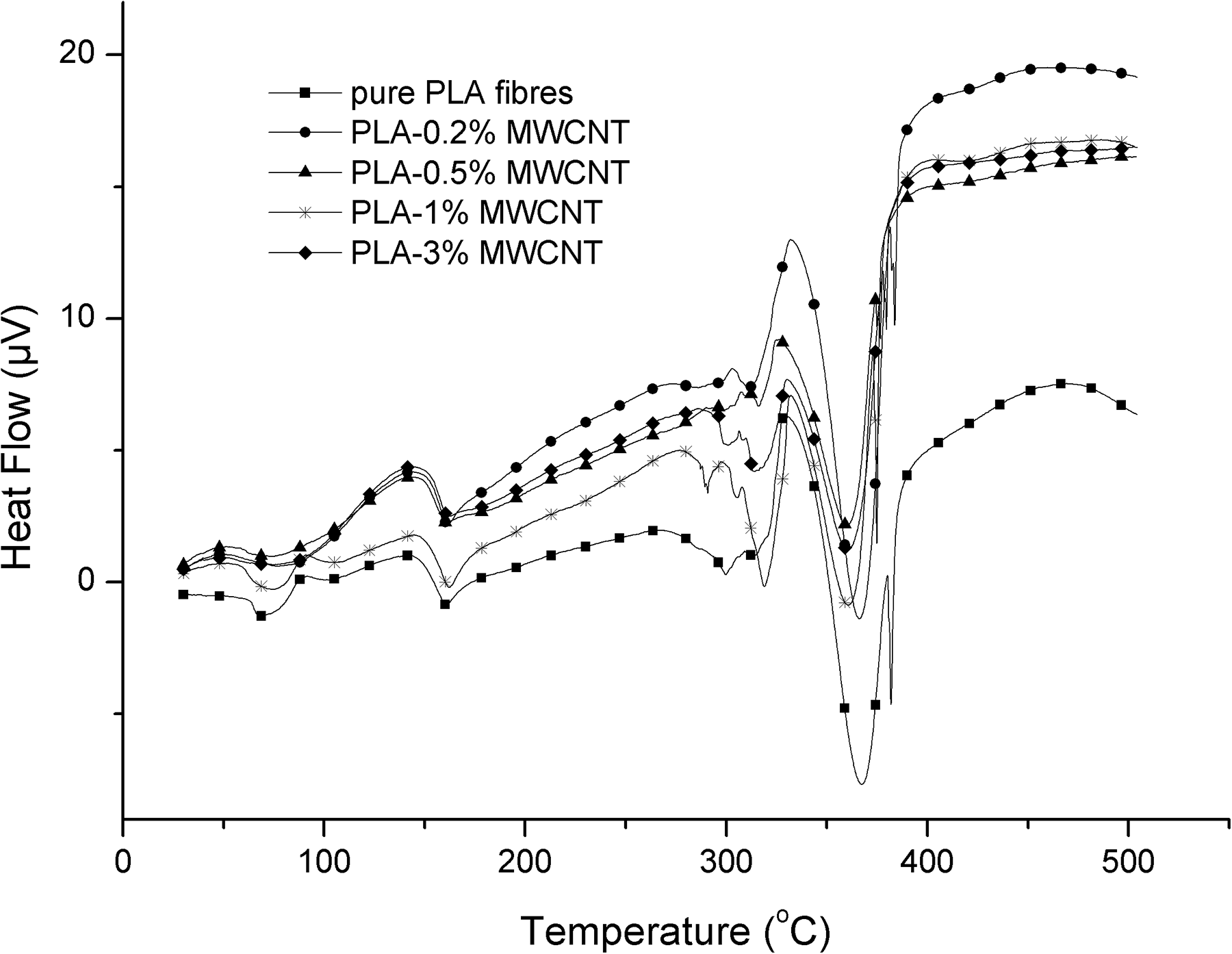

Figure 5.

DTA curves of obtained composite nanofibers.

Values of mechanical properties, elongation at break (ε, %), and tensile strength (σ, MPa) are summarized in Table 4. The addition of MWCNTs caused the increase of both elasticity and tensile strengths of nanofibers (Figure 6). It was noticed that the presence of MWCNTs had a higher influence on tensile strength, increasing it up to five times, which was expected due to tensile properties of CNTs themselves. The increase rate of elongation was lower, but significant when compared pure PLA and PLA-based composite with 3 wt% of MWCNTs.

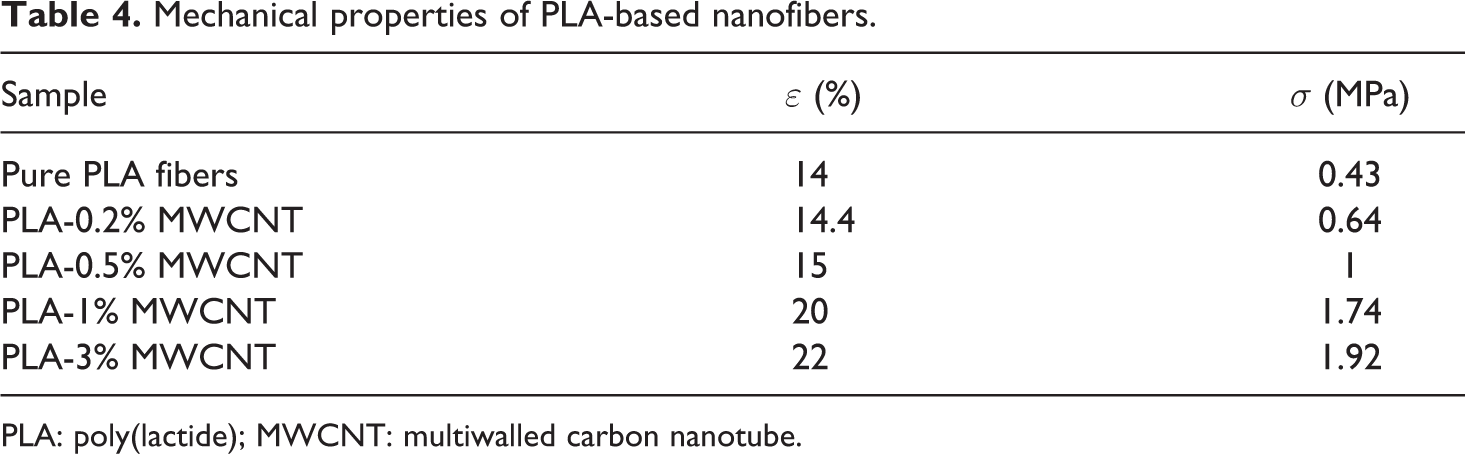

Table 4.

Mechanical properties of PLA-based nanofibers.

Sample	ε (%)	σ (MPa)
Pure PLA fibers	14	0.43
PLA-0.2% MWCNT	14.4	0.64
PLA-0.5% MWCNT	15	1
PLA-1% MWCNT	20	1.74
PLA-3% MWCNT	22	1.92

PLA: poly(lactide); MWCNT: multiwalled carbon nanotube.

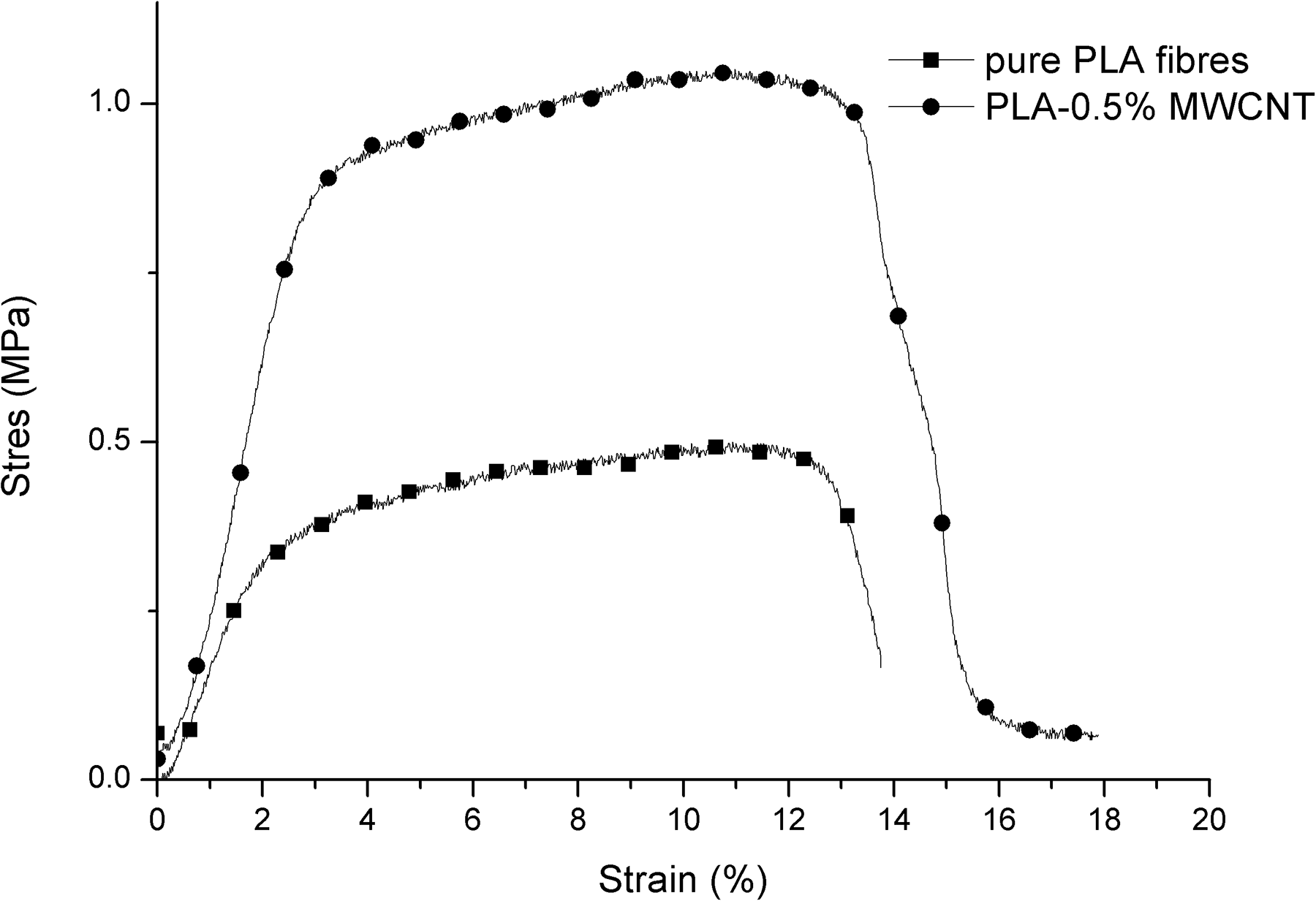

Figure 6.

Mechanical properties of pure PLA fibers and PLA composite fibers.

Conclusions

This article illustrates that the electrospinning technique enables the production of conductive fibers made of biobased and biodegradable polymers with the addition of small amounts of MWCNTs, where specific morphology plays a significant role in transferring of conductivity. In this research, it was shown that MWCNTs are successfully incorporated into the PLA matrix and that uniform, smooth, and beadless fibers were obtained. The decrease of the average diameter with the increased amount of MWCNTs was observed, due to higher conductivity of polymer solution. Applied technique allowed good dispersion of MWCNTs into the PLA matrix and enabled their orientation in the direction of the fibers. The addition of MWCNTs increased crystallization rate of composite nanofibers, eased formation of α′ crystal form and lowered melting temperature compared to pure PLA fibers. Thermal stability of the fibers was increased with the addition of MWCNTs, through slowing down of second degradation step. With the addition of nanofiller, elasticity and tensile strength of fibers increased, together with the toughness of the samples. Materials obtained this way are conductive, mechanically persistent, and thermally stable, which open brand new possibilities of their applications.
