Management of Bilaterally Impacted Labial and Palatal Maxillary Canines With One-Year Follow-Up: A Case Report

Abstract

Introduction:

Management of impacted maxillary canines is considered to be complex and challenging task by orthodontists due to the varied biomechanical considerations involved.

Objective:

This article describes an effective and efficient treatment modality for de-impaction of bilaterally impacted labial and palatal canines.

Case Report:

A female patient aged 13 years and 5 months presented with the following complaints: absence of tooth numbers 13 and 23, crowding in the upper and lower anterior dental units, and over-retained tooth numbers 53 and 63 with a non-consonant smile arc.

Results:

Arch development was done to create space for tooth numbers 13 and 23, as well as to relieve crowding. The impacted canines were surgically exposed, and guided traction was employed to place them in their ideal position. A class I canine and premolar relation was established. The smile aesthetics were also improved. The result remained stable 12 months after the end of treatment. The improvement can be quantified by the reduction in scores of orthodontic indices measured pretreatment and posttreatment.

Conclusion:

Modifications in continuous arch mechanics can be reliably used in the management of impacted canines and arch development.

Introduction

Tooth impaction has been defined as the infraosseous position of a tooth after the expected time of eruption, ¹ or it can be said that the tooth in question has not erupted into the oral cavity beyond its normal time of eruption. The most common tooth that is impacted after the third molars is the maxillary canine.^2,3

There also exists a gender predilection, as maxillary canine impaction is twice as common in females as compared to men. The frequency of canine impactions in the maxilla is more than twice that of those observed in the mandible. It is also known that among individuals who have impacted maxillary canines, 8% have bilateral impactions. ⁴ The maxillary tooth impaction can be either labial or palatal with respect to the position from the dental arch. About one-third of all impacted maxillary canines are labially impacted, while two-thirds are palatal in location.^5,6

Labial impactions of the maxillary canines have been ascribed to either the ectopic migration of the canine crown over the root of the lateral incisor or the shifting of the maxillary dental midline causing insufficient space for the canine to erupt. ⁷ Palatal impactions of the maxillary canine have been ascribed to the guidance theory and/ or genetic theory.^8,9

Various imaging modalities, such as intraoral periapical radiographs, occlusal radiographs orthopantomograms (OPGs), cone-beam computed tomography, etc, have been suggested in the identification, diagnosis, and localization of the impacted canine.

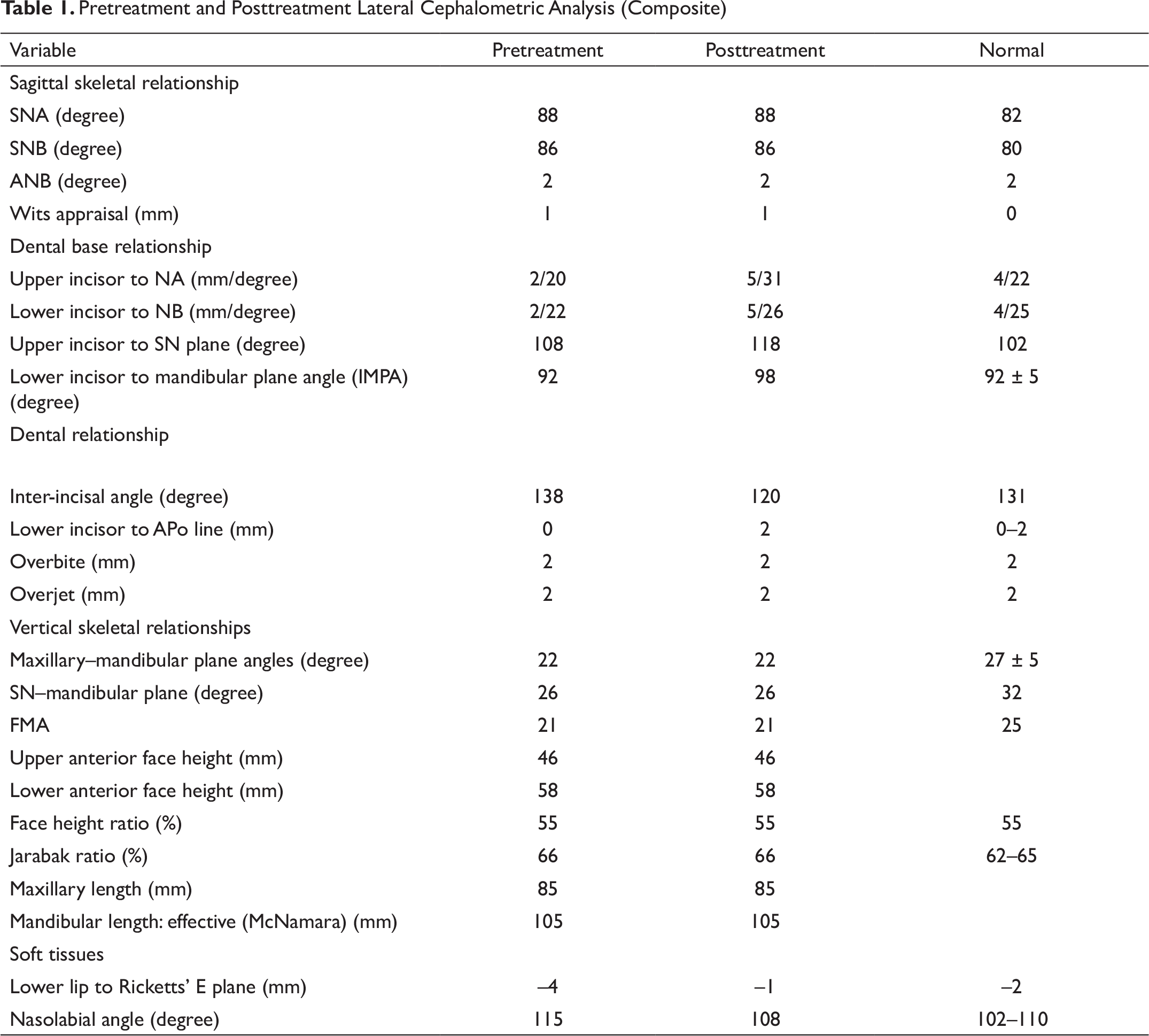

Table 1.

Pretreatment and Posttreatment Lateral Cephalometric Analysis (Composite)

Variable	Pretreatment	Posttreatment	Normal
Sagittal skeletal relationship
SNA (degree)	88	88	82
SNB (degree)	86	86	80
ANB (degree)	2	2	2
Wits appraisal (mm)	1	1	0
Dental base relationship
Upper incisor to NA (mm/degree)	2/20	5/31	4/22
Lower incisor to NB (mm/degree)	2/22	5/26	4/25
Upper incisor to SN plane (degree)	108	118	102
Lower incisor to mandibular plane angle (IMPA) (degree)	92	98	92 ± 5
Dental relationship
Inter-incisal angle (degree)	138	120	131
Lower incisor to APo line (mm)	0	2	0–2
Overbite (mm)	2	2	2
Overjet (mm)	2	2	2
Vertical skeletal relationships
Maxillary–mandibular plane angles (degree)	22	22	27 ± 5
SN–mandibular plane (degree)	26	26	32
FMA	21	21	25
Upper anterior face height (mm)	46	46
Lower anterior face height (mm)	58	58
Face height ratio (%)	55	55	55
Jarabak ratio (%)	66	66	62–65
Maxillary length (mm)	85	85
Mandibular length: effective (McNamara) (mm)	105	105
Soft tissues
Lower lip to Ricketts’ E plane (mm)	–4	–1	–2
Nasolabial angle (degree)	115	108	102–110

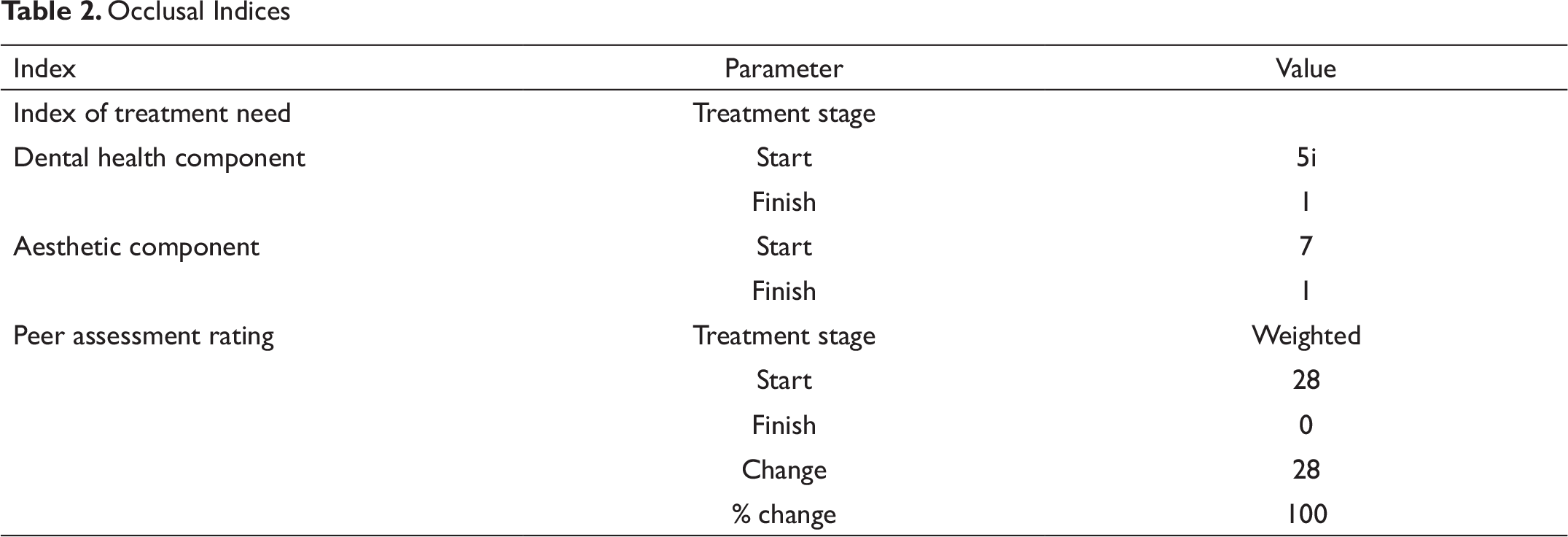

Table 2.

Occlusal Indices

Index	Parameter	Value
Index of treatment need	Treatment stage
Dental health component	Start	5i
	Finish	1
Aesthetic component	Start	7
	Finish	1
Peer assessment rating	Treatment stage	Weighted
	Start	28
	Finish	0
	Change	28
	% change	100

Figure 1A.

Pretreatment Extraoral View: Frontal at Rest

Figure 1B.

Pretreatment Extraoral View: Profile

The management of canine impactions can be broadly described in the following key steps: diagnosis and localization of the impacted cuspid(s), arch development or creation of space for the impacted cuspid, surgical exposure involving open or closed surgical techniques,^10,11 guided eruption process utilizing a variety of traction techniques,^12-14 and detailing the final position of the impacted cuspid to achieve a harmonious relationship with adjacent and opposing dental units.

Management of palatally impacted maxillary canines is technically more challenging given the difficulty in access, complex mechanics, and the greater range of tooth movement as compared to labially impacted canines. ¹⁵

This article presents the management of bilaterally impacted maxillary canines (one of which is labial, while the other is palatal) in an adolescent female using a non-extraction technique with a 1-year post treatment review.

Case Report

Section A: Case Evaluation and Development of the Problem List

Pretreatment Evaluation

A girl 13 years and 5 months old, Sh. Sh., reported with a complaint of crooked upper and lower front teeth. There was no contributory medical or dental history.

Figure 1C.

Pretreatment Extraoral View: Frontal Smiling

Extraoral examination revealed a mesocephalic and mesoprosopic shape of head and facial form, respectively. The facial profile was adjudged to be straight with matched skeletal bases and a normodivergent growth pattern. The lips were incompetent, with a 2 mm interlabial gap at rest. The nasolabial angle was normal, and the mentolabial sulcus was shallow (Figures 1A–1C).

Her smile analysis ¹⁶ revealed a non-consonant smile arch with a reverse resting upper lip line and the presence of buccal corridors. Her maxillary midline was not matched with the facial midline, and there was also an asymmetrical dental arch due to vertical discrepancies between incisors. The gingival components of her smile were normal (Figures 2A–2E).

Intraoral examination revealed the presence of all erupted permanent teeth until the second molars, with the absence of both right and left permanent maxillary canines. She also had over-retained right and left deciduous maxillary canines. She had an Angle’s class I molar relationship on both sides. A mild dental deep bite was noted. The arch forms were ovoid for both the maxilla and mandible. The upper and lower dental midlines did not match. She also had rotations in multiple teeth, and a palatal bulge was palpable in the right maxillary region and a labial bulge on the left maxillary quadrant. The gingiva appeared normal. The size and shape of tongue were normal too.

Figure 2A.

Pretreatment Intraoral View: Frontal

Figure 2B.

Pretreatment Intraoral View: Left Buccal View

Figure 2C.

Pretreatment Intraoral View: Right Buccal View

Figure 2D.

Pretreatment Intraoral View: Maxillary Occlusal View

Figure 2E.

Pretreatment Intraoral View: Mandibular Occlusal View

Radiographic Examination: An OPG and a lateral cephalogram were ordered for patient Sh. Sh. The OPG revealed the presence of right and left maxillary permanent canines. The presence of developing maxillary and mandibular third molars was also noted. The bony borders of the mandible and maxilla were normal. The temporomandibular joint appeared normal, with a normal size and shape of the condylar head and glenoid fossa (Figure 3).

Figure 3.

Pretreatment Orthopantomogram

Figure 4A.

Pretreatment Lateral Cephalogram

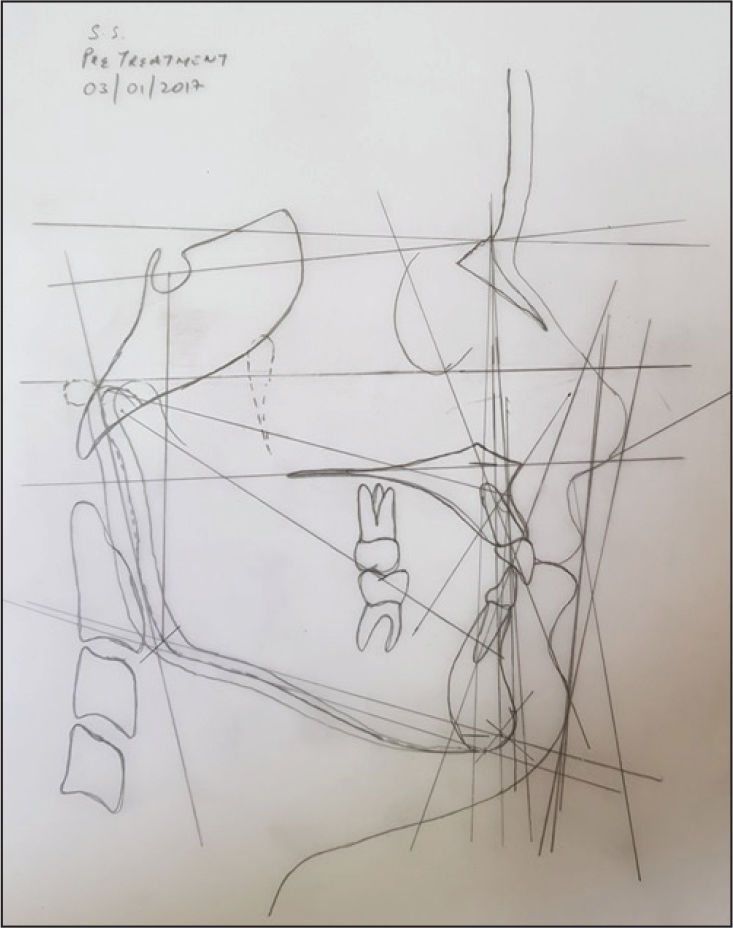

Figure 4B.

Pretreatment Lateral Cephalometric Analysis

Upon assessing the impacted cuspids for severity using sector classification,^17,18 it was seen that tooth number 13 was present in sector IV and was at an angulation of 41°, which was suggestive of a guarded prognosis, while tooth number 23 had a favorable prognosis as it was present in sector I and had an angulation of 27°.

The lateral cephalometric analysis (Figures 4A and 4B; Table 1) revealed a class I pattern (ANB = 2°, beta angle = 30°, Wits appraisal = 1 mm). The sella, nasion, A point (SNA) (88°) and sella, nasion, B point (SNB) (86°) revealed a prognathic maxilla and mandible, which is contrary to the clinical presentation. This could probably have resulted from the erroneous position of the sella and/or nasion. Measuring jaw position in relation to the anterior cranial base can be inaccurate because of alterations in the sella–nasion (SN) plane. If the position of the nasion is at fault, this will also influence the A point, nasion, B point (ANB). The Eastman correction is available to overcome this. ¹⁹ This correction for ANB can only be applied for changes in the position of the nasion, indicated by a SN–maxillary plane within the normal range of 8 ± 3°.

However, in this case, the SN–maxillary plane angle is 4°. This indicates that the position of the sella is at fault. Because this affects the SNA and SNB values to the same extent, the ANB value does not require correction. To avoid errors associated with discrepancies of the position of the cranial base within the skull, it is advisable to carry out an additional analysis that is independent of this region. This is easily achieved by using the Wits appraisal of jaw disharmony. The Wits appraisal indicates a class I skeletal pattern, which is further corroborated by the beta angle (30°), which is an indicator of sagittal discrepancy. Both these analyses are independent of the sella point and hence show the class I skeletal relation despite a change in the SN plane, if any.

The vertical proportions assessed by the facial height ratio and Jarabak ratio were within the normal range, indicating an average growth pattern. This was also provided credence by an average measurement of the FMA angle (21°).

The upper and lower incisors were also upright over the respective basal bones.

Model Analysis: In order to estimate the mesiodistal width of the impacted maxillary cuspids, the radiographic method was employed. On the basis of the widths of the erupted teeth on the study casts and radiographs, it was calculated that the mesiodistal of tooth numbers 13 and 23 was 10.06 mm and 10.35 mm, respectively. Upon using these values for model analysis, it was seen that there existed a 6 mm crowding in the upper arch and a 3 mm one in the lower arch.

Diagnosis: Sh. Sh. presented with a class I skeletal base and Angle’s class I malocclusion, with an average growth pattern and normal vertical height ratios. In addition, both her permanent maxillary cuspids were impacted. She exhibited a 3 mm crowding in the lower arch, and further space (6 mm) was required in the upper arch for tooth numbers 13 and 23 and to relieve incisal crowding. In addition, both her maxillary deciduous canines were over-retained. She presented with a straight profile, incompetent and retrusive lips. Her smile aesthetics were also poor, with a downward lip curvature and the presence of buccal corridors. Both maxillary permanent canines were visible on the panoramic tomogram. The Index of Orthodontic Treatment Need (IOTN) suggested a score of 5i, which confirmed the requirement of mandatory orthodontic intervention (Table 2).

Treatment Objectives

1. Gain space for maxillary permanent canines (3|3), (tooth numbers 13 and 23) and guide them to their proper position.

2. Relieve crowding in maxillary and mandibular anterior teeth.

3. Achieve normal axial inclinations.

4. Achieve a functional occlusion (class I canine relationship) and a canine-guided occlusion.

5. Achieve lip competency.

6. Preserve class I molar occlusion.

7. Preserve straight profile.

Section B: Treatment

Proposed Treatment Plan

• A pre-adjusted edgewise appliance 0.022 in × 0.028 in slot of MBT prescription was employed.

• Steps:

• Extractions of tooth numbers 53 and 63 were indicated.

• Level and align arches.

• Alleviate crowding between dental units.

• Create space for maxillary permanent canines (3|3).

• Initiate minor surgical procedures to uncover 13 and 23, bond orthodontic attachments, and apply traction (a, full thickness flap raised for surgical exposure of tooth number 13; b, operculectomy with tooth number 23).

• Perform guided eruption with tooth numbers 13 and 23.

• Finish and detail the occlusion.

• Proposed retention strategy: bonded lingual retainers with tooth numbers 22,21,11,12 and 31,32,41,42 with upper and lower Essix-type clear retainers.

Treatment Progress: The treatment was commenced with a pre-adjusted edgewise appliance 0.022 in × 0.028 in slot of MBT prescription after extraction of tooth numbers 53 and 63. The initial aligning archwires used were 0.014 in nickel–titanium wires. The teeth were allowed to unravel, and arch development was continued till placement of 0.016 in × 0.022 in nickel–titanium archwires in both arches. Upon levelling the arch, on a 0.019 in × 0.025 in stainless steel archwire, open coil springs were placed to create space for tooth number 23. After this, an operculectomy was performed (open surgical excision was performed to expose tooth number 13, and a PAE cuspid bracket was bonded). Tooth number 23 was guided into its final position using a 0.012 in nickel–titanium archwire piggybacked over a 0.016 in stainless steel base archwire with bent in stop loops mesial to tooth numbers 16 and 26.

Once tooth number 23 was brought to its occlusal level, surgical exposure of tooth number 13 was performed. A full-thickness mucoperiosteal flap was raised, tooth number 13 was exposed, hemostasis was achieved, and a curved Begg bracket was bonded (Figure 5A). Using a 0.09 in stainless steel ligature wire and elastomeric chain, traction was applied to tooth number 23 to guide its eruption (Figure 5B). Once tooth number 23 was visible in the dental arch, a PAE bracket was bonded onto it and ligated with a 0.012 in copper–nickel–titanium archwire. Brackets were later repositioned while detailing the occlusion. Settling elastics were used to achieve intercuspation in the buccal segments.

After 24 months of active treatment, the fixed appliance was removed and posttreatment records obtained.

Figure 5A.

Full Thickness Mucoperiosteal Flap Raised to Expose Tooth Number 13

Figure 5B.

Traction Placed to Guide Eruption of Tooth Number 13

Retention

Bonded lingual retainers with tooth numbers 22,21,11,12 and 31,32,41,42, with upper and lower Essix-type clear retainers, were used. The patient was advised to wear her retainers for 3 years, with a periodic review every 6 months.

No adverse events were recorded during treatment.

Figure 6A.

Posttreatment Intraoral View: Frontal

Figure 6B.

Posttreatment Intraoral View: Left Buccal View

Figure 6C.

Posttreatment Intraoral View: Right Buccal View

Figure 6D.

Posttreatment Intraoral View: Maxillary Occlusal View

Figure 6E.

Posttreatment Intraoral View: Mandibular Occlusal View

Results

Posttreatment Assessment

Clinical

The facial profile was straight at the end of the treatment, with proper placement of the impacted cuspids in the dental arch. The crowding of the dental units was also relieved. The smile was improved (Figures 6A–6E). A class I incisor and molar relationship was maintained. The overjet and overbite were both corrected to 2 mm. A class I canine relationship was achieved with a mutually protected function during lateral excursion. Harmonious inter-arch and intra-arch relationships were achieved in the buccal dental units. The maxillary midline was coincident with the facial midline at the end of the treatment. No white spot lesions were seen at the end of the treatment (Figures 7A–7C).

The change in the occlusal indices also reflects the improvement achieved by the orthodontic treatment (Table 2).

Figure 7A.

Posttreatment Extraoral View: Frontal at Rest

Figure 7B.

Posttreatment Extraoral View: Profile

Figure 7C.

Posttreatment Extraoral View: Frontal Smiling

Figure 8.

Posttreatment Orthopantomogram

Figure 9A.

Posttreatment Lateral Cephalogram

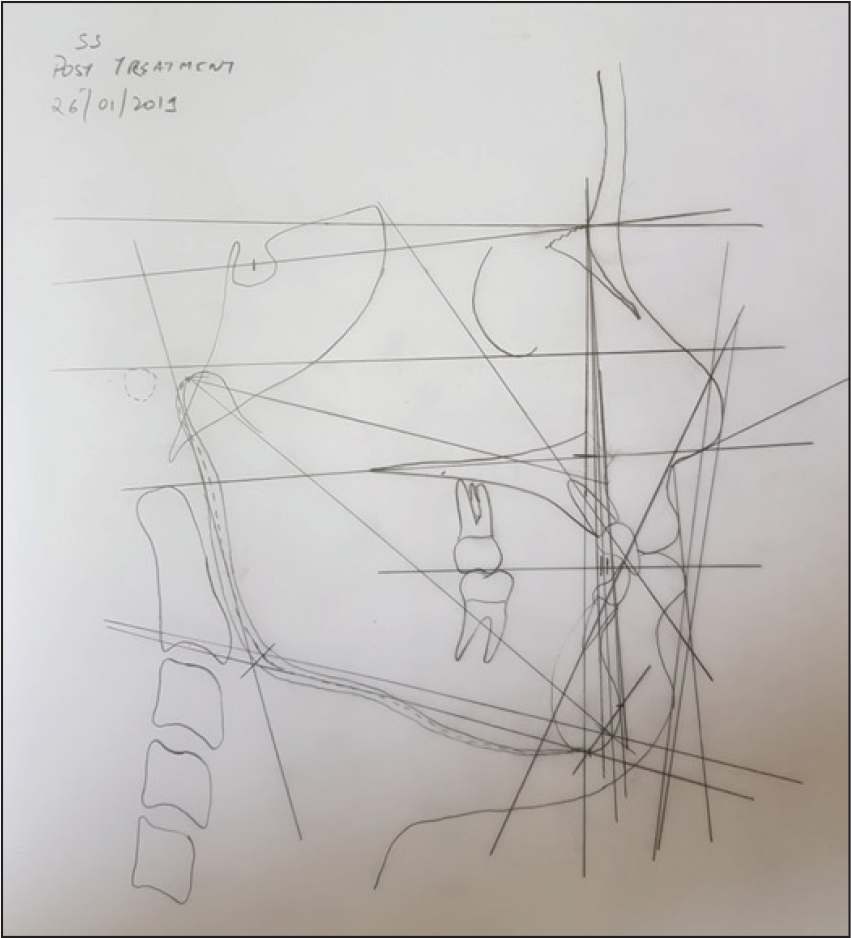

Figure 9B.

Posttreatment Lateral Cephalometric Analysis

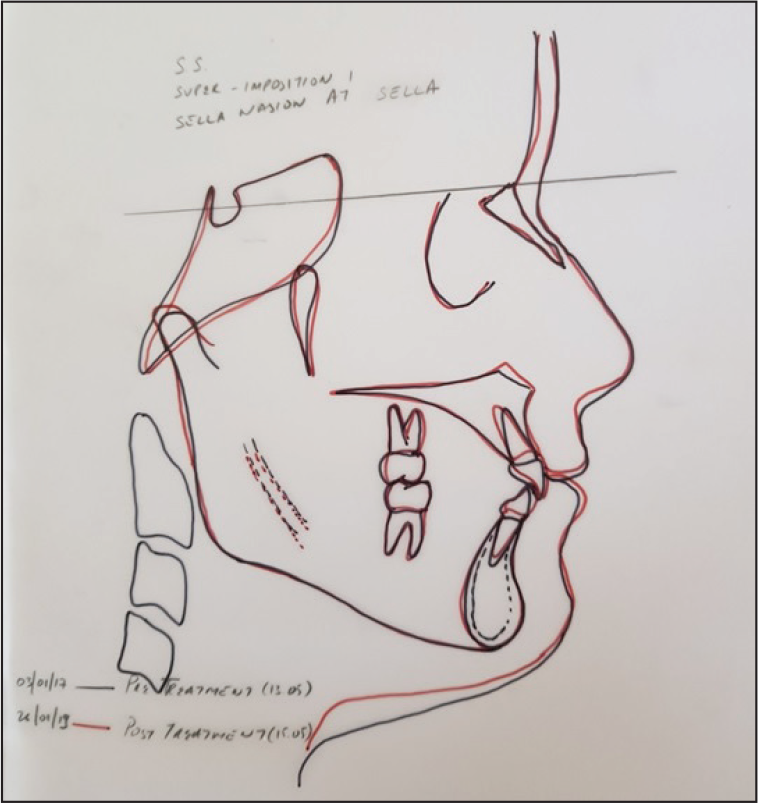

Figure 10.

Lateral Cephalometric Superimposition (SN Plane at Sella)

Figure 11A.

One-Year Recall Extraoral View: Frontal at Rest

Figure 11B.

One-Year Recall Extraoral View: Profile

Figure 11C.

One-Year Recall Extraoral View: Frontal Smiling

Figure 12A.

One-Year Recall Intraoral View: Frontal

Figure 12B.

One-Year Recall Intraoral View: Left Buccal View

Figure 12C.

One-Year Recall Intraoral View: Right Buccal View

Figure 12D.

One-Year Recall Intraoral View: Maxillary Occlusal View

Figure 12E.

One-Year Recall Intraoral View: Mandibular Occlusal View

Radiographic Appraisal

OPG: The roots of all permanent teeth were placed ideally with respect to each other. No bone loss was noticed at the end of the treatment. Mild apical blunting was seen with the root of tooth number 11; however, this was not clinically significant (Figure 8).

Lateral Cephalogram (Figures 9A and 9B): The sagittal relationship remained the same as before (skeletal class I; ANB = 2°; Wits appraisal = 1 mm). Both the maxilla and mandible were orthognathic in relation to the SN plane, and their measured values were 88° and 86°, respectively. The face height ratio too remained unchanged at 55%. The upper and lower incisors were mildly proclined over their respective skeletal bases (upper incisor to NA plane: linear 5 mm and angular 31°; lower incisor to NA plane: linear 5 mm and angular 26°). The incisor mandibular plane angle (IMPA) increased by 6°; however, the IMPA was still within its normative range. The overjet and overbite were corrected to normal values of 2 mm. Though the nasolabial angle increased (108°), it remained within the normal range. The posture of the lower lip improved in its relation to Ricketts’ E plane (-1 mm) (Table 1). These features can be assessed using the lateral cephalometric superimposition on the SN plane registered at S (Figure 10).

One-Year Posttreatment Assessment: Sh. Sh. was reviewed 1 year after treatment. All treatment results were found to be stable. There was no unanticipated development in the movement of any of the teeth. The treatment results at the end of 1 year after the treatment may be deemed stable (Figures 11A–12E). The patient has been advised to report every 6 months for a review for the next 2 years also. She has also been advised that she may need to undergo extractions of third molars at a later date.

Discussion

IOTN scores of 5i (dental component) and 7 (aesthetic component) are suggestive of an immediate need for orthodontic treatment. The patient and her parents expressed concerns over irregular upper and lower teeth, as well as poor smile aesthetics.

Since both her maxillary canines were impacted, it was decided to unravel the crowding in the maxillary and mandibular anterior segments while maintaining the posterior buccal occlusion in a class I relationship on both sides. The need for guided eruption (intervention) for an impacted canine was urgent, because of the sequelae of canine impaction. ²⁰ This included root resorption of adjacent teeth, formation of dentigerous cyst around the impacted canine, migration of neighboring teeth, and loss of arch length infection and referred pain. Delayed eruption and the presence of labial and palatal bulges were suggestive of an impacted canine, which was confirmed on reading the radiographs. Also, over-retained deciduous canines are usually shed by the second or third decade of life. This would pose an aesthetic challenge during the patient’s adult life. Further, well-positioned canines are useful in restoring a canine-guided occlusion, which improves chewing efficiency and increases the longevity of the dentition.

On evaluating the patient’s smile aesthetics, it was decided to not remove any permanent teeth in order to preclude dark buccal corridors. This was corroborated by the cephalometric appraisal, which revealed that the upper and lower incisors were retroclined on their respective skeletal bases. Uprighting the incisors would help in creating space to align the crowded dentition, as well as in improving the posture of the lips. Towards the end of the treatment, it could be observed that the patient now has a more “fuller” profile, with upper and lips confirming with the aesthetic line (Ricketts’ E line). The presence of a normal Z angle at the beginning of the treatment also led support to treating this case without extracting any permanent teeth.

To achieve these objectives, a pre-adjusted edgewise appliance (0.022 in × 0.028 in) with an MBT prescription was chosen. For surgical exposure of tooth number 13, it was decided to raise a full-thickness flap in order to visualize the tooth and bond an attachment. This was the procedure of choice, as it helps maintain the gingival architecture around the tooth once it is brought into the arch. With respect to tooth number 23, due to the thin gingival tissue covering it, there was no option of raising a full-thickness flap, as the attachment would have pierced through the gingiva. Hence, it was decided to perform an operculectomy. Care was taken to excise a small amount of gingival tissue over the incisal and middle third of the tooth, thereby preserving the gingiva in the cervical region.

Retention Strategy: In the lower anterior segment, a fixed bonded lingual retainer was placed, while in the upper arch, a vacuum-formed thermoplastic clear retainer was delivered. This was done to ensure continual settling of the occlusion.

Conclusion

Sh. Sh. was successfully treated with orthodontic treatment and minor adjunctive surgical procedures over a period of 24 months. All treatment objectives envisaged were realized. The patient’s chief complaints were addressed. The patient and her family were pleased with the treatment progress and the results obtained. Aesthetic and occlusal goals as envisaged at the beginning of treatment were met. This is reflected in the decrease in Index of orthodontic treatment needs (IOTN) and peer assessment rating (PAR) scores (Table 2).

Skeletal: Skeletal class I relationship was maintained. The vertical facial height ratios and Jarabak ratio remained constant.

Dental: Good settling was seen. Class I molar and canine relationship was achieved. However, the following areas could have been improved:

Root parallelism between tooth numbers: 31 and 41; and 12 and 13; and

More buccal root torque with tooth number 13 required.

Apart from the points mentioned above, all of Andrews’ 6 keys were satisfied posttreatment.

Soft Tissue: Facial profile was improved and lip posture was better by the end of the treatment.

The treatment results were seen to be stable 1 year after the treatment, and the patient has been advised to report for a periodic review every 6 months.
