Comparison of patient outcomes with and without stenting tube in pancreaticoduodenectomy

Abstract

Objective

To evaluate the clinical effect of different pancreaticojejunostomy techniques in the treatment of pancreaticoduodenectomy and investigate the applicability of pancreaticojejunostomy without pancreatic duct stenting.

Methods

From January 2012 to December 2015, 87 patients who underwent pancreaticoduodenectomy were randomly assigned to either Group A (duct-to-mucosa anastomosis with pancreatic duct stenting, n = 43) or Group B (pancreas–jejunum end-to-side anastomosis without stenting (n = 44). The operative duration of pancreaticojejunostomy, postoperative hospital stay, and incidence of postoperative complications were compared between the two methods.

Results

The operative duration of pancreaticojejunostomy without use of the pancreatic duct stent was significantly shorter in Group B than in Group A (t = 7.137). The postoperative hospital stay was significantly shorter in Group B than in Group A (t = 2.408). The differences in the incidence of postoperative complications such as pancreatic fistula, abdominal bleeding, abdominal infection and delayed gastric emptying were not significantly different between the two groups (χ²= 0.181, 0.322, 0.603, and 0.001, respectively).

Conclusion

Pancreaticoduodenectomy without pancreatic duct stenting is safe and reliable and can reduce the operative time and hospital stay. No significant differences were observed in the incidence of postoperative complications.

Keywords

Pancreaticoduodenectomy pancreatic duct stent pancreaticojejunostomy patient outcomes postoperative pancreatic fistula randomized controlled trial

Pancreaticoduodenectomy (Whipple surgery) is one of the most extensive abdominal surgeries. It is associated with high postoperative morbidity and mortality rates because of its involvement with multiple organs, complex surgical procedures, and long surgical duration.^1,2 Advances in surgical techniques have led to a decrease in the mortality rate of pancreaticoduodenectomy, which has currently fallen to <5%. However, the complication rate remains as high as 21%, most commonly because of the development of pancreatic fistulas.³ The prevalence of pancreatic fistulas is influenced by patient age, preoperative nutritional status, underlying disease, pancreas texture, pathological type, and other factors. The pancreaticojejunostomy technique and experience level of the surgeon are also influential factors in the development of pancreatic fistulas. Surgeons once considered that the incidence of pancreatic fistula could be reduced by placing a pancreatic stenting tube during pancreaticoduodenectomy, thereby allowing the pancreatic juice to be directly drained from the body and reducing corrosion at the anastomotic site caused by pancreatic juice.^4,5 More recently, clinical studies have suggested that placement of a tube does not reduce the incidence of postoperative pancreatic fistula and other complications. Winter et al.⁶ demonstrated that pancreatic duct stenting did not decrease the frequency or severity of postoperative pancreatic fistulas; in fact, a trend toward increased pancreatic fistulas was observed in patients with soft pancreatic remnants and stents (21.1%) compared with patients with soft pancreatic remnants and no stents (10.7%). A retrospective study by Suzuki et al.⁷ found no differences in long-term follow-up after pancreaticoduodenectomy with duct-to-mucosa pancreaticojejunostomy anastomosis performed with versus without a stenting tube. Based on the short-term and long-term complications, the authors suggested that duct-to-mucosa pancreaticojejunostomy anastomosis can be performed more safely without than with a stenting tube.⁷ In addition, a study by Sachs et al.⁸ demonstrated that the use of pancreaticojejunal stents did not decrease the incidence or severity of clinically relevant postoperative pancreatic fistulas after proximal pancreatic resection, both overall and for high-risk scenarios. In some patients, pancreaticojejunal stents may lead to short- and long-term adverse outcomes. The authors found that pancreaticojejunostomy without a stent may be associated with a decrease in the rates of abdominal infection and abscess as well as a relative decrease in the rates of major complications and wound dehiscence.⁸ However, their study was not a randomized controlled trial and was therefore subject to certain limitations. We designed this randomized controlled trial to demonstrate the safety and clinical value of pancreaticojejunostomy without pancreatic duct stenting.

Figure 1.

Flow diagram showing progression through the phases of this randomized trial (i.e. enrollment, intervention allocation, follow-up, and data analysis).

Data and methods

General data

Data on 90 patients undergoing pancreaticoduodenectomy in the authors’ hospital from January 2012 to December 2015 were collected. Three patients were excluded from the study during the operation. In two cases, the tumors were unresectable because of vascular invasion of the superior mesenteric artery, and the patients therefore underwent hepaticojejunostomy. In one case, total pancreatectomy was performed when the frozen section analysis of the specimen revealed tumor involvement of the pancreatic body and tail remnant (Figure 1). The reported results include the 87 patients who completed the study (46 men and 41 women; age range, 28–78 years; mean age, 59.0 years). The reason for pancreaticoduodenectomy were pancreatic head adenocarcinoma (n = 35), ampulla of Vater adenocarcinoma (n = 13), distal common bile duct cholangiocarcinoma (n = 19), duodenal adenocarcinoma (n = 14), and chronic pancreatitis and pancreatolithiasis (n = 6). The patients were randomly divided into two groups depending on the pancreaticojejunostomy technique. Patients in Group A underwent traditional duct-to-mucosa anastomosis with pancreatic duct stenting (n = 43), while those in Group B underwent pancreas–jejunum end-to-side anastomosis without pancreatic duct stenting (n = 44). The study protocol was approved by the Ethics Committee of Yongchuan Hospital of Chongqing Medical University, and all patients provided written informed consent. There were no statistically significant differences in sex, age, preoperative laboratory parameters, or tumor site between the two groups (Table 1). There were also no statistically significant differences in pancreatic texture or pancreatic duct diameter (Table 2).

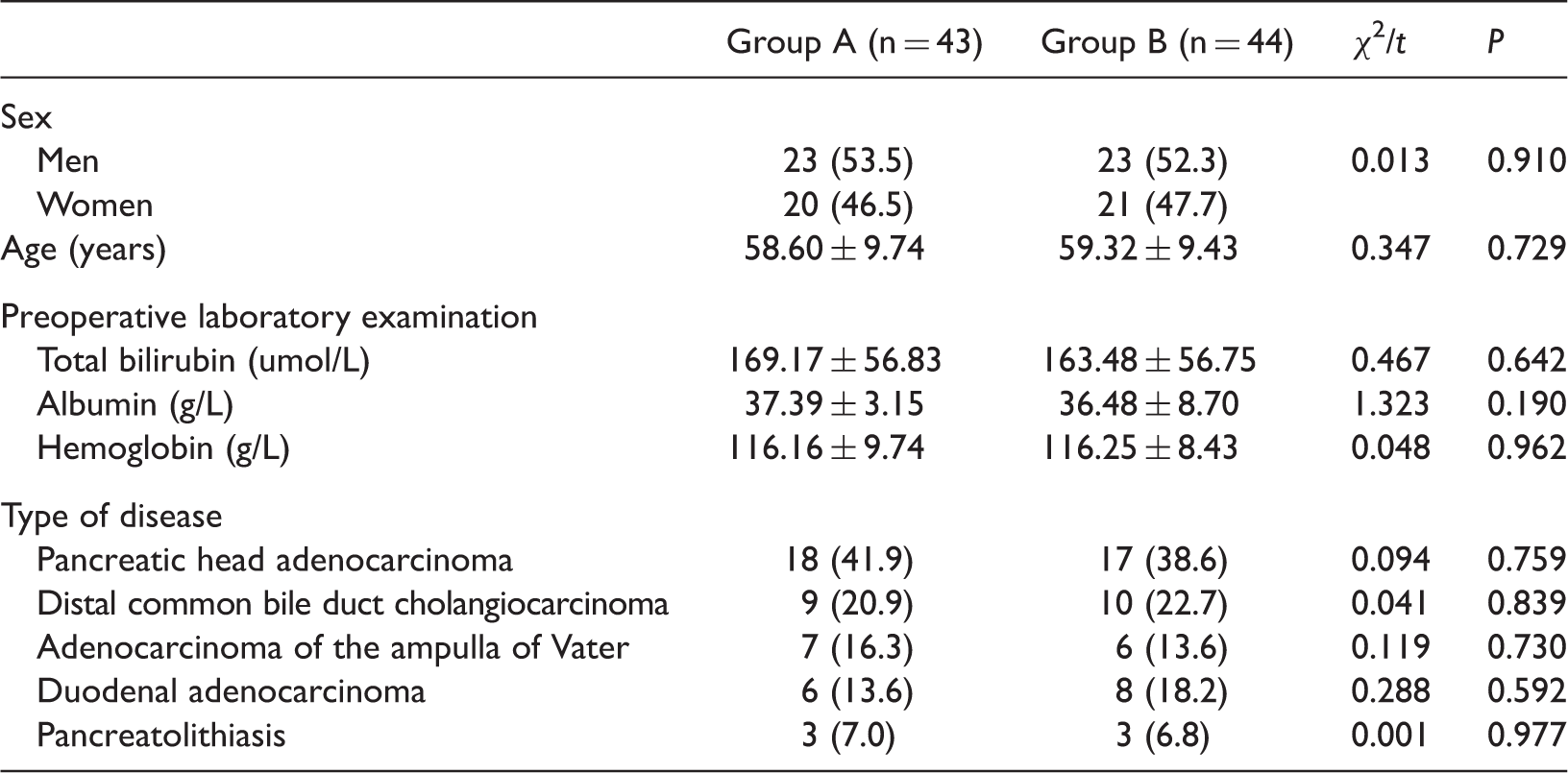

Table 1.

Comparison of general clinical data between the two groups of patients.

	Group A (n = 43)	Group B (n = 44)	χ²/t	P
Sex
Men	23 (53.5)	23 (52.3)	0.013	0.910
Women	20 (46.5)	21 (47.7)
Age (years)	58.60 ± 9.74	59.32 ± 9.43	0.347	0.729
Preoperative laboratory examination
Total bilirubin (umol/L)	169.17 ± 56.83	163.48 ± 56.75	0.467	0.642
Albumin (g/L)	37.39 ± 3.15	36.48 ± 8.70	1.323	0.190
Hemoglobin (g/L)	116.16 ± 9.74	116.25 ± 8.43	0.048	0.962
Type of disease
Pancreatic head adenocarcinoma	18 (41.9)	17 (38.6)	0.094	0.759
Distal common bile duct cholangiocarcinoma	9 (20.9)	10 (22.7)	0.041	0.839
Adenocarcinoma of the ampulla of Vater	7 (16.3)	6 (13.6)	0.119	0.730
Duodenal adenocarcinoma	6 (13.6)	8 (18.2)	0.288	0.592
Pancreatolithiasis	3 (7.0)	3 (6.8)	0.001	0.977

Data are presented as n (%) or mean ± standard deviation.

Table 2.

Comparison of intraoperative technique between the two groups of patients.

	Group A (n = 43)	Group B (n = 44)	χ²/t	P
Pancreaticojejunostomy
Time (min)	21.07 ± 3.73	15.43 ± 3.64	7.137	0.000
Blood loss (ml)	359.30 ± 138.55	357.95 ± 142.21	0.045	0.964
Diameter of pancreatic duct (mm)	3.51 ± 1.18	3.27 ± 1.10	0.973	0.333
Texture of pancreas
Soft	18 (41.8)	18 (40.9)	0.08	0.928
Firm	25 (58.2)	26 (59.1)

Data are presented as n (%) or mean ± standard deviation.

Surgical methods

Four surgeons participated in this trial, and one chief surgeon performed all the surgeries. Digestive tract reconstruction included pancreaticojejunostomy, hepaticojejunostomy, and gastrojejunostomy during the pancreaticoduodenectomy procedure. In both study groups, an end-to-side two-layer anastomosis was performed between the pancreas and jejunum. Group A underwent pancreas–jejunum end-to-side and duct-to-mucosa anastomosis with an external vinyl tube. The duct-to-mucosa pancreaticojejunostomy was created with the use of absorbable 5-0 suture. The external stenting tube traversed the anastomosis without fixation and traveled prograde down the pancreaticobiliary limb approximately 5 cm past the hepaticojejunostomy, where it was then externalized through the bowel and secured with an absorbable purse-string suture. From there, it traversed the abdominal wall, was secured to the skin with permanent sutures, and placed into a bag for gravity-induced drainage. Anastomosis of the outer layer was performed between the pancreatic parenchyma and jejunal seromuscularis using 3-0 nonabsorbable sutures. The stent was occluded 1 to 2 weeks after the operation and removed 2 months later. In contrast, the pancreaticojejunostomy method in Group B included pancreatic stump–jejunum end-to-side anastomosis without a stenting tube. The pancreaticojejunostomy procedure was performed as follows: the posterior pancreas and full layer of the jejunum were anastomosed with 4-0 Prolene interrupted sutures, and an anastomosis was created between the anterior pancreas and full layer of the jejunum. Finally, to reinforce the anastomosis, the outer layer was reformed between the pancreas serosa and the jejunal seromuscularis using 3-0 nonabsorbable sutures. The surgeons distinguished the main pancreatic duct, avoiding sutures during the operation, and performed the anterior anastomosis by interrupted sutures without knots, confirming that the main pancreatic duct was not sutured. The knots were then tied off to close the anterior anastomosis. Somatostatin was used selectively in high-risk patients who had been previously determined to have soft glands, a small pancreatic duct size (≤3 mm), high-risk pathology (anything exclusive of pancreatic adenocarcinoma or pancreatitis), and serious blood loss (>1000 mL) according to the International Study Group of Pancreatic Fistula (ISGPF) classification⁹. Somatostatin was started after the operation and continued for 5 to 7 days postoperatively.

Monitoring indicators

Factors compared between Groups A and B included intraoperative bleeding; the surgical duration of pancreaticojejunostomy; postoperative complications such as pancreatic fistula, abdominal bleeding, abdominal infections, and delayed gastric emptying; and the mean postoperative hospital stay. The ISGPF defines a postoperative pancreatic fistula as a drain output of any measurable volume of fluid on or after postoperative day 3 with an amylase content greater than three times the serum amylase activity.¹⁰ The pancreatic fistulas in the present study were grade B and C. The definition of bleeding established by the International Study Group of Pancreatic Surgery (ISGPS) was used,¹¹ and grade B and C bleeding was included in the present study. The definition of delayed gastric emptying established by the ISGPS was used,¹² and grade B and C delayed gastric emptying was included in the present study.

Statistical analysis

Statistical software (SPSS v.24.0; IBM Corp., Armonk, NY, USA) was used for data analysis. Measurement data were analyzed using the t test, while count data were analyzed using the χ² test. The difference was statistically significant at P < 0.05.

Results

Comparison of intraoperative situation

The surgical duration of pancreaticojejunostomy in Group B (pancreas–jejunum end-to-side anastomosis without pancreatic duct stenting) was significantly shorter than that in Group A (duct-to-mucosa anastomosis with pancreatic duct stenting and outer drainage) (t = 7.192, P < 0.01) (Table 2).

Postoperative complications

The postoperative complications included pancreatic fistula, abdominal bleeding, abdominal infection, and delayed gastric emptying. According to the Clavien–Dindo classification, in Group A, four patients had grade I complications, nine patients had grade II complications, and one patient had grade IIIb complications. In Group B, four patients had grade I complications, six patients had grade II complications, one patient had a grade IIIa complication, and one patient had a grade IIIb complication. There were no statistically significant differences in these postoperative complications between the two groups (χ²= 0.181, 0.332, 0.603, and 0.001, respectively). The patients with a pancreatic fistula in both Group A and Group B showed improvement after treatment with drainage. Patients in Group B experienced a significantly shorter hospital stay than those in Group A (t = 2.408, P < 0.05) (Table 3). The patients in both groups were followed up for 3 months. The patients in Group A with pancreatic duct stenting developed stent occlusion 1 to 2 weeks after the operation, and the pancreatic stent was removed 2 months later. One patient developed a complication involving the stent falling out, but no serious outcomes occurred. The remaining patients did not experience complications after removal of the pancreatic duct stent. No patients in the two groups developed complications such as pancreatic duct stenosis or pancreatitis after a 3-month follow-up.

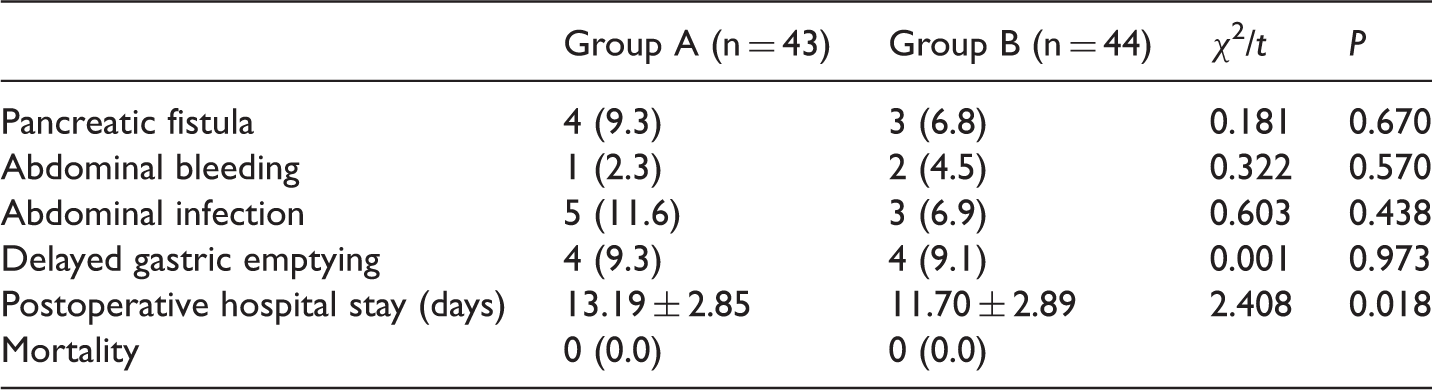

Table 3.

Comparison of postoperative complications between the two groups of patients.

	Group A (n = 43)	Group B (n = 44)	χ²/t	P
Pancreatic fistula	4 (9.3)	3 (6.8)	0.181	0.670
Abdominal bleeding	1 (2.3)	2 (4.5)	0.322	0.570
Abdominal infection	5 (11.6)	3 (6.9)	0.603	0.438
Delayed gastric emptying	4 (9.3)	4 (9.1)	0.001	0.973
Postoperative hospital stay (days)	13.19 ± 2.85	11.70 ± 2.89	2.408	0.018
Mortality	0 (0.0)	0 (0.0)

Data are presented as n (%) or mean ± standard deviation.

Discussion

Pancreaticoduodenectomy is a complex operation involving substantial bodily injury because the pancreas is located in the retroperitoneum and surrounded by many important anatomical structures and organs. In addition, the operation includes complex procedures and requires a long surgical time. Multiple postoperative complications associated with this procedure have led researchers and surgeons to seek new ways to simplify the technique, reduce the operation time, and reduce the risk of postoperative complications. Pancreatic fistula is the most common and dangerous complication of pancreaticoduodenectomy.¹³ Effective prevention of pancreatic leakage is the key to successful pancreaticoduodenectomy, and choosing the proper pancreaticojejunostomy technique is regarded as the most critical step of the whole operation. A significantly higher incidence and clinical severity of pancreatic fistula are associated with pancreaticojejunostomy.¹⁴ More than 30 methods have been used to reduce the incidence of pancreatic fistula; however, an effective method with which to completely avoid the occurrence of pancreatic fistula has not been established. The main factors involved in pancreatic fistula formation include the pancreatic texture, thickness of the pancreatic duct, experience of the surgeon, high pressure placed on the bowel, delayed healing of the pancreaticojejunostomy, presence of residual pancreas tissue, and digestion and destruction of the pancreaticojejunostomy site by pancreatic enzymes. The traditional view is that placement of a pancreatic duct stenting tube during the pancreaticojejunostomy allows for direct drainage of the pancreatic juice from the body, which can reduce the incidence of pancreatic fistula because of the decrease in corrosion of the pancreaticojejunostomy site by the pancreatic juice. However, recent studies performed worldwide have revealed that the absence of a pancreatic duct stent is safe and reliable and has no effect on the development of pancreatic fistula.^15–17 One randomized controlled study showed that the incidence of postoperative pancreatic fistula did not increase and that no statistically significant difference was present when pancreaticojejunostomy without a pancreatic stenting tube was performed compared with a control group. Other complications such as delayed gastric emptying, abdominal infection, bleeding, and perioperative mortality were not significantly different. The operative procedures were simplified in the experimental group, which did not undergo pancreatic stenting, and the operative duration of pancreaticojejunostomy and postoperative hospital stay were significantly shortened. The patients did not have an external pancreatic duct stent, which can result in an improved quality of life because the tube does not need to be utilized for a long period of time, thereby reducing the patients’ experience of trauma and pain. In addition, treating patients becomes more convenient because they no longer need to use the tube after they leave the hospital nor do they need to return to the hospital for removal of the drainage tube.

Notably, the performance of duct-to-mucosa anastomosis with a pancreatic stenting tube is not applicable to every patient because it is very difficult to place a pancreatic duct stent during the operation in patients with a soft pancreatic texture, small pancreatic duct diameter, or thin pancreatic duct wall. The external pancreatic duct stent may become blocked or fall off of the drainage tube, which may lead to further complications including pancreatic fistula.^18,19 It can also lead to migration of the pancreaticojejunostomy stent into the bile duct, potentially resulting in small bowel perforation.^20,21 The method of pancreaticojejunostomy without a pancreatic stent that the authors use in their clinic can simplify the operation procedure, reduce the duration of pancreaticojejunostomy, and decrease the postoperative hospitalization time. Furthermore, the absence of an external drainage tube of the pancreatic duct facilitates postoperative nursing care of patients and improves their quality of life. The method used in this study was safe and reliable, and no significant difference was found in postoperative complications compared with pancreaticojejunostomy involving placement of a pancreatic stenting tube.

Footnotes

Declaration of conflicting interests

The material has not been published previously and will not be submitted for publication elsewhere, in whole or in part. All authors listed have approved the manuscript and have no conflicts of interest.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

References

Kawai

Yamaue

. Analysis of clinical trials evaluating complications after pancreaticoduodenectomy: a new era of pancreatic surgery. Surg Today 2010; 40: 1011–1107.

Wellner

Sick

Olschewski

et al.

Randomized controlled single-center trial comparing pancreatogastrostomy versus pancreaticojejunostomy after partial pancreatoduodenectomy. J Gastrointest Surg 2012; 16: 1686–1695.

Reid-Lombardo

Fanell

Crippa

et al.

Pancreatic anastomotic leakage after pancreaticoduodenectomy in 1,507 patients: a report from the pancreatic anastomotic leak study group. J Gastrointest Surg 2007; 11: 1451–1458.

Motoi

Egawa

Rikiyama

et al.

Randomized clinical trial of external stent drainage of the pancreatic duct to reduce postoperative pancreatic fistula after pancreaticojejunostomy. Br J Surg 2012; 99: 524–531.

Patel

Teta

Sukharamwala

et al.

External pancreatic duct stent reduces pancreatic fistula: a meta-analysis and systematic review. Int J Surg 2014; 12: 827–832.

Winter

Cameron

Campbell

et al.

Does pancreatic duct stenting decrease the rate of pancreatic fistula following pancreaticoduodenectomy? Results of a prospective randomized trial. J Gastrointest Surg 2006; 10: 1280–1290.

Suzuki

Kaji

Koike

et al.

Pancreaticoduodenectomies with a duct-to-mucosa pancreaticojejunostomy anastomosis with and without a stenting tube showed no differences in long-term follow-up. J Hepatobiliary Pancreat Sci 2011; 18: 258–262.

Sachs

Pratt

Kent

et al.

The pancreaticojejunal anastomotic stent: friend or foe?

Surgery 2013; 153: 651–662.

Pratt

Callery

Vollmer

Jr . Risk prediction for development of pancreatic fistula using the ISGPF classification scheme. World J Surg 2008; 32: 419–428.

10.

Bassi

Dervenis

Butturini

et al.

Postoperative pancreatic fistula: an international study group (ISGPF) definition. Surgery 2005; 138: 8–13.

11.

Wente

Veit

Bassi

et al.

Postpancreatectomy hemorrhage (PPH): an international study group of pancreatic surgery (ISGPS) definition. Surgery 2007; 142: 20–25.

12.

Wente

Bassi

Dervenis

et al.

Delayed gastric emptying (DGE) after pancreatic surgery: a suggested definition by the international study group of pancreatic surgery (ISGPS). Surgery 2007; 142: 761–768.

13.

Shrikhande

D’Souza

. Pancreatic fistula after pancreatectomy: evolving definitions, preventive strategies and modern management. World J Gastroenterol 2008; 14: 5789–5796.

14.

Addeo

Delpero

Paye

et al.

Pancreatic fistula after a pancreaticoduodenectomy for ductal adenocarcinoma and its association with morbidity: a multicentre study of the French Surgical Association. HPB (Oxford) 2014; 16: 46–55.

15.

Xiong

Altaf

Mukherjee

et al.

Systematic review and meta-analysis of outcomes after intraoperative pancreatic duct stent placement during pancreaticoduodenectomy. Br J Surg 2012; 99: 1050–1061.

16.

Usuba T, Misawa T, Ito R, et al. Safety of Non-stented Pancreaticojejunostomy in Pancreaticoduodenectomy for Patients with Soft Pancreas. Anticancer Res 2016; 36: 6619–6623.

17.

Watanobe

Omori

Miyano

et al.

Results of pancreaticojejunal end-to-side anastomosis using the invagination method without a pancreatic stenting tube. Hepatogastroenterology 2015; 62: 447–450.

18.

Suzuki

Kaji

Koike

et al.

Pancreaticojejunostomy of duct to mucosa anastomosis can be performed more safely without than with a stenting tube. Am J Surg 2009; 198: 51–54.

19.

Smyrniotis

Arkadopoulos

Kyriazi

et al.

Does internal stenting of the pancreaticojejunostomy improve outcomes after pancreatoduodenectomy? A prospective study. Langenbecks Arch Surg 2010; 395: 195–200.

20.

Mari

Costanzi

Monzio

et al.

Small bowel perforation caused by pancreaticojejunal anastomotic stent migration after pancreaticoduodenectomy for periampullary carcinoma. JOP 2015; 16: 185–188.

21.

Park

Kim

Noh

et al.

Migration of internal pancreaticojejunostomy stents into the bile ducts in patients undergoing pancreatoduodenectomy. J Gastrointest Surg 2015; 19: 1995–2002.
