Abstract
Background
It is uncertain whether T2-weighted Dixon water images (DixonT2w) and short tau inversion recovery (STIR) are interchangeable when evaluating vertebral bone edema, or if one method is superior or visualizes the edema differently.
Purpose
To compare image quality and Modic change (MC)-related edema between DixonT2w and STIR and estimate inter-observer reliability for MC edema on DixonT2w.
Material and Methods
Consecutive patients (n = 120) considered for the Antibiotics in Modic changes (AIM) trial underwent lumbar 1.5-T magnetic resonance imaging with two-point DixonT2w and STIR. Two radiologists assessed MC-related high-signal lesions on DixonT2w and compared image quality and lesion extent with STIR. Cohen's kappa and mean of differences ± limits of agreement were calculated.
Results
Fat suppression and artefacts were similar on DixonT2w and STIR in 116 of 120 (97%) patients. Lesion conspicuity was similar in 88, better on STIR in 10, and better on DixonT2w in 9 of 107 patients with MC-related high-signal lesions. Contrast-to-noise ratio for STIR versus DixonT2w was 19.1 versus 17.1 (mean of differences 2.0 ± 8.2). Of 228 lesions L4-S1, 215 (94%) had similar extent on DixonT2w and STIR, 11 were smaller/undetected on STIR, and two were smaller/undetected on DixonT2w. Lesions missed on STIR (n = 9) or DixonT2w (n = 1) had a weak signal increase on the other sequence (≤17%; 0% = vertebral body, 100% = cerebrospinal fluid). Inter-observer reliability (mean kappa L4-S1) was very good for presence (0.87), moderate for height (0.44), and good for volume (0.63) of lesions on DixonT2w.
Conclusion
DixonT2w provided similar visualization of MC-related vertebral edema as STIR.
Introduction
Water-only images from magnetic resonance imaging (MRI) with the Dixon method are used to evaluate edema changes in various parts of the body, including the spine (1–5). The Dixon method separates fat and water and can provide uniform fat suppression with few artefacts (1) and, unlike other fat-suppression techniques, it provides images with and without fat suppression in one acquisition.
Short tau inversion recovery (STIR) is an established fluid-sensitive MRI method (6). Both STIR and T2-weighted Dixon water-only images (DixonT2w) are used to assess bone edema. However, it is uncertain whether these methods can be used interchangeably, or if one method is superior or may visualize the edema differently. Few have compared DixonT2w and STIR, and results diverge. At 1.5-T MRI of the spine, DixonT2w showed better fat suppression but poorer lesion conspicuity than STIR in one study (2) and a similar lesion depiction at a reduced scan time in another study (4). DixonT2w yielded better fat suppression than STIR in the hands (7), but poorer inter-observer agreement for occult fractures in hip and pelvis (8).
In this study, we compared the use of DixonT2w and STIR to evaluate bone edema related to Modic changes (MCs) in the lumbar spine. MCs are MRI signal changes extending from the endplate into the vertebral body marrow (9). There is conflicting evidence for whether MCs are related to pain (10,11), but those containing edema may be painful (12–14) and MCs have been targets of treatment in selected patients with back pain (15–21). Data are scarce regarding evaluations of MC edema on DixonT2w, but suggest moderate to very good inter-observer reliability for such evaluations on STIR (22). The aim of the present study was to compare image quality and MC-related edema between DixonT2w and STIR and estimate inter-observer reliability for MC edema on DixonT2w.
Material and Methods
This cross-sectional study was based on MRI examinations of 120 consecutive patients with chronic low back pain. All were prospectively recruited from hospital outpatient clinics in Norway, had MCs on a previous clinical MRI, and were considered for possible participation in the Antibiotics In Modic changes (AIM) trial (15,23). Patients preliminarily eligible for the trial based on the previous MRI and the criteria in Appendix Table A1 were included in the present study regardless of their current MRI findings or final trial eligibility. No patient had prior low back surgery, except disc herniation surgery conducted >1 year earlier. No patient had lumbar metal implants. The Regional Committees for Medical Research Ethics in Norway approved this study. All patients gave written informed consent before inclusion. The Regional Committees for Medical Research Ethics in Norway approved this study and the trial it was based on (REC South East, approval number 2014/158). The trial is registered at ClinicalTrials.gov (identifier NCT02323412).
Images
The 120 patients underwent MRI from June 2015 to September 2016 at five centers using identical protocols and 1.5 T scanners (Magnetom Avanto B19; Siemens Healthineers, Erlangen, Germany). This study applied sagittal two-point DixonT2w and STIR sequences acquired during the same scanning session (Table 1). Dixon in-phase, opposed-phase, or fat only images were not used.

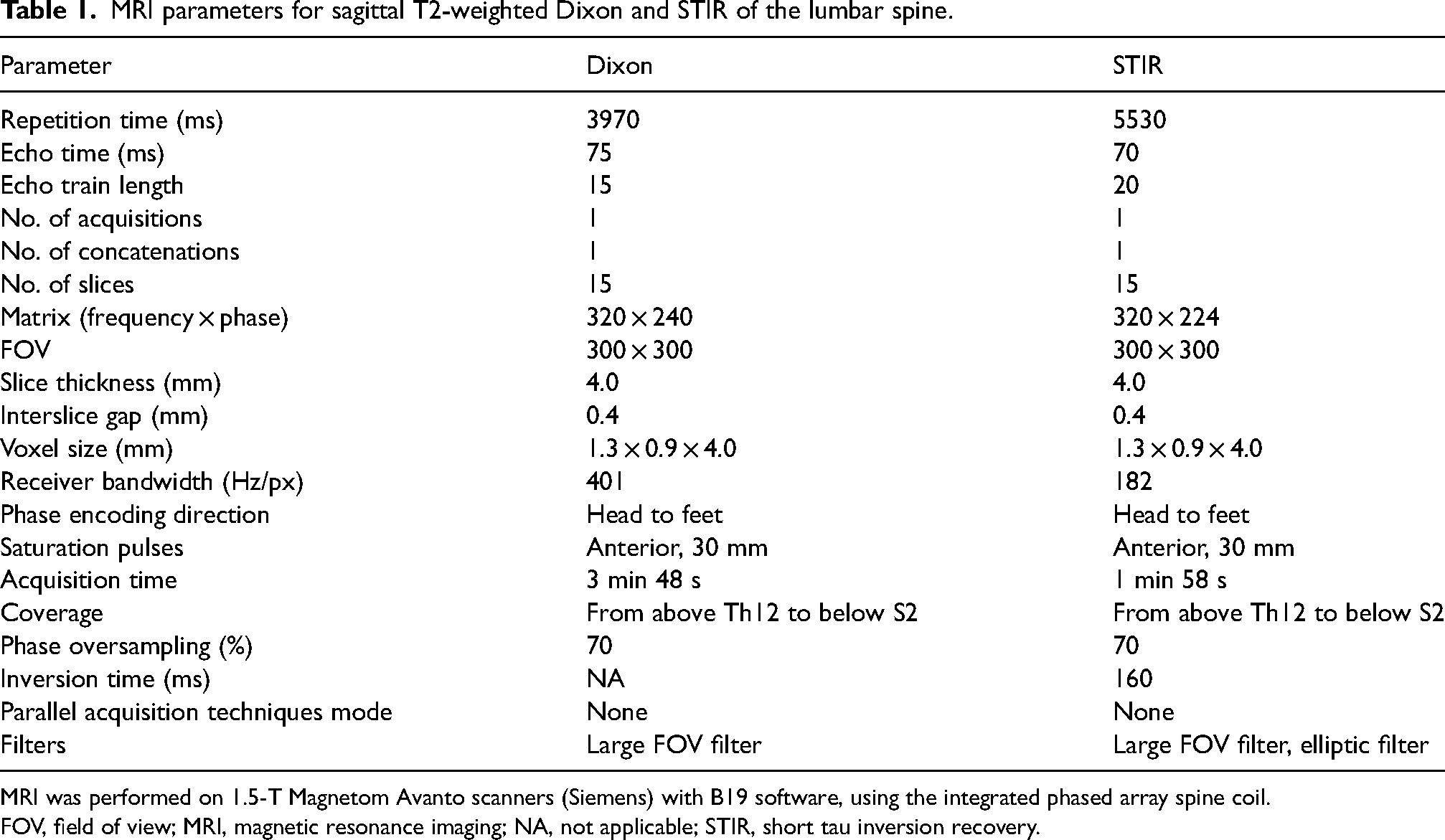

MRI parameters for sagittal T2-weighted Dixon and STIR of the lumbar spine.
MRI was performed on 1.5-T Magnetom Avanto scanners (Siemens) with B19 software, using the integrated phased array spine coil.
FOV, field of view; MRI, magnetic resonance imaging; NA, not applicable; STIR, short tau inversion recovery.
Evaluation
Two radiologists, with four and five years of experience and a special interest in musculoskeletal imaging, independently evaluated levels Th12-S1 (12 endplates) using all sagittal slices. They were blinded to clinical data, except the presence of chronic low back pain. For each patient, first DixonT2w images were interpreted blinded to STIR, then image quality and signal increases were directly compared between DixonT2w and STIR.
Image quality was defined by visual assessments of fat suppression uniformity, artefacts, and lesion conspicuity and by measurements of noise, signal-to-noise ratio (SNR), and contrast-to-noise ratio (CNR), as detailed below. Increased MC-related signal on DixonT2w was defined as a visibly increased signal compared to normal vertebral bone marrow. The signal increase had to be located in or be in contact with a region with MCs on T1-weighted (T1W) and T2-weighted (T2W) fast spin-echo images – or be shaped and located as an MC. The observers had the T1W and T2W images open when assessing DixonT2w images. MCs were defined based on non-fat suppressed T1W/T2W fast-spin echo images alone as signal changes in the vertebral bone marrow that extend from the endplate, as described by Modic et al. (9).
Blinded to STIR, the observers evaluated presence (yes/no), height, volume, and maximum intensity of MC-related high signal on DixonT2w. The largest height of the high signal lesion was measured in millimeters and was recalculated into a percentage of vertebral body marrow height measured in millimeters along the same line on the same image. This height percentage was analyzed both as a continuous variable and categorized (<10%, <25%, 25%–50%, or >50%). The volume of the region with high signal was visually estimated as <10%, <25%, 25%–50%, or >50% of the total volume of the vertebral body marrow.
Signal intensity was measured on DixonT2w in the brightest area of the MC-related high-signal lesion, in normal vertebral body marrow, and in cerebrospinal fluid (CSF) using circular regions of interest (ROIs) available in our PACS. A ROI of size 25 mm2 was used for measuring the most intense MC-related high signal and the signal of CSF at the level of the affected vertebral unit. A ROI of 44 mm2 was used to measure the signal intensity in normal vertebral bone marrow, avoiding the central vertebral vein (Fig. 1) (22). Maximum intensity of the MC-related high signal on DixonT2w (“Dixon”) in % points was calculated on a scale from normal vertebral body intensity (“Body,” 0%) to CSF intensity (“CSF,” 100%) as ([“Dixon” – “Body”]/[“CSF” – “Body”])*100%. We also used corresponding intensity measurements made on the STIR images (blinded to DixonT2w) in a prior reliability study by three musculoskeletal radiologists, each with >10 years of experience (22).
Measurements of signal intensities and noise. (a–d) A 50-year-old woman with chronic low back pain. Measurements of signal intensity (GY, grayscale units) in (a) the most intense Modic change-related high-signal region and in (b) normal vertebral body and CSF on DixonT2w. Measurement of noise (Dev) on (c) DixonT2w and (d) STIR. Midline slices were used for measuring CSF intensity at the affected level, vertebral body intensity centrally near the endplate in the normal part of the affected or a close vertebra, and noise in air posterior to L3. CSF, cerebrospinal fluid; DixonT2w, T2-weighted Dixon water images; STIR, short tau inversion recovery.
Comparing DixonT2w and STIR, the current observers evaluated fat suppression uniformity (better on Dixon, similar, better on STIR), artefacts (less on Dixon, similar, less on STIR), lesion conspicuity (better on Dixon, similar, better on STIR), noise (see below), and extent of MC-related high signal (larger on Dixon, similar, larger on STIR). Fat-water swap on Dixon (fat presented as water and water presented as fat) (1) was also noted (yes/no) and whether poor fat suppression or artefacts reduced diagnostic confidence on Dixon (yes/no) or STIR (yes/no). Only definite findings or differences, visible on ≥2 image slices were noted.
Noise was defined as the standard deviation (SD) of the background signal intensity outside the patient, after verifying a Rayleigh distribution of the intensity (i.e. mean/SD = 1.9) (24). Noise was measured in grayscale units in the mid-sagittal image (or the next image left or right) in a circular ROI of 44 mm2 that was 1–2 cm posterior to the skin at the level of L3 (Fig. 1). We calculated the SNR and CNR at L4-S1; SNR = normal vertebral body intensity/noise; CNR = (maximum MC-related signal intensity in grayscale units – vertebral body intensity)/noise (25).
Conclusive findings
Conclusive findings were based on agreement between both radiologists and – in cases of disagreement – consensus with a musculoskeletal radiologist with >10 years of experience. For the presence of MC-related high signal on STIR, the conclusive rating was the majority rating reported (blinded to DixonT2w) by the three radiologists in the previous reliability study (22). For noise, SNR, and CNR on DixonT2w and STIR, the conclusive value was the mean of two radiologists’ values.
Pilot study
The two radiologists conducted a pilot study on 14 patients, not included in the present study, in order to refine and find a similar understanding of the MRI evaluation criteria. They interpreted high signal lesions, compared image quality and lesions between DixonT2w and STIR, and discussed disagreements and criteria. At the end of the pilot study, their MRI assessments and the MRI evaluation criteria were concluded to be adequate for starting the main study.
Statistical analyses
The one-sample signed rank sum test was applied to compare fat suppression uniformity, artefacts, lesion conspicuity, and signal extent between DixonT2w and STIR. To compare noise, SNR, and CNR, we used Bland–Altman plots with the mean of differences ± 1.96 SD (limits of agreement [LoA]).
Cohen's kappa was calculated for inter-observer agreement on MC-related high signal on DixonT2w at each endplate L4-S1, and for agreement on conclusive findings between DixonT2w and STIR across L4-S1 (480 endplates). Due to the low prevalence of findings (<10%) in levels Th12-L3, kappa was not calculated for these levels (26). The interpretation of Cohen's kappa was as follows: 0.00–0.20 = poor; 0.21–0.40 = fair; 0.41–0.60 = moderate; 0.61–0.80 = good; and 0.81–1.00 = very good agreement beyond chance (26).
For height and maximum intensity of the high signal on DixonT2w in percentage points, we calculated means of differences between observers with LoA across all endplates L4-S1.
MedCalc 17.6 (MedCalc Software) was used for analyses and Matlab 9.5 (Mathworks) for plots.
Sample size
A sample size of 85 patients is needed to detect an unweighted pairwise kappa value of 0.70 as significantly larger than 0.40 for a finding with 30% prevalence (β = 0.2, two-sided α = 0.05) (26). We included 120 patients to improve the power.
Results
The 120 included patients (72 women) were aged 25–64 years (mean age = 45 years).
Image quality: DixonT2w versus STIR
The fat suppression uniformity was concluded to be similar on DixonT2w and STIR in 116 of 120 (97%) patients and better on Dixon in four patients (Table 2, Fig. 2). Reduced diagnostic confidence due to poor fat suppression was not reported in any patient.
Difference in fat suppression between DixonT2w and STIR. (a, b) A 31-year-old man with chronic low back pain. More uniform suppression of subcutaneous fat on (a) DixonT2w compared to (b) STIR. DixonT2w, T2-weighted Dixon water images; STIR, short tau inversion recovery.

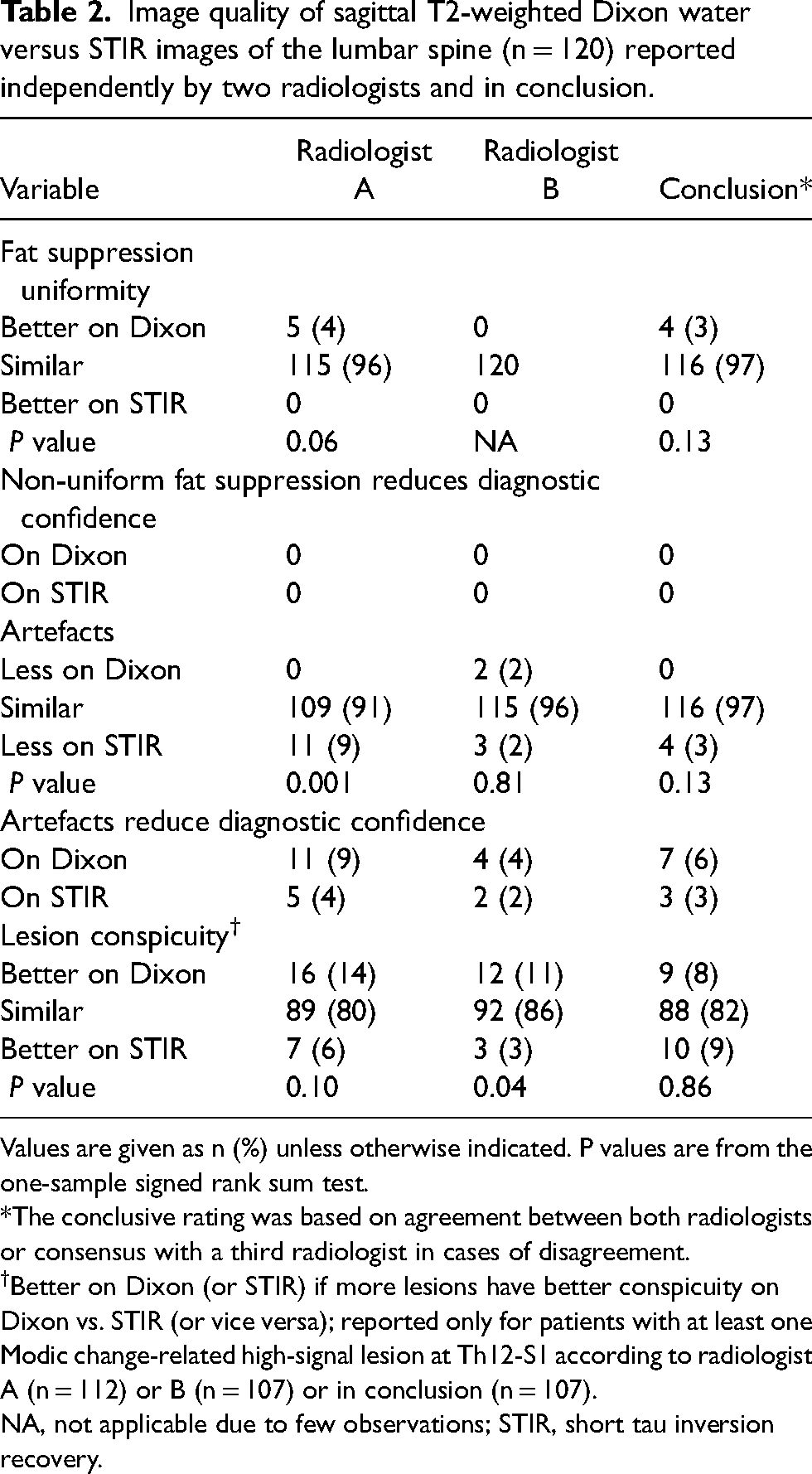

Image quality of sagittal T2-weighted Dixon water versus STIR images of the lumbar spine (n = 120) reported independently by two radiologists and in conclusion.
Values are given as n (%) unless otherwise indicated. P values are from the one-sample signed rank sum test.
*The conclusive rating was based on agreement between both radiologists or consensus with a third radiologist in cases of disagreement.
Better on Dixon (or STIR) if more lesions have better conspicuity on Dixon vs. STIR (or vice versa); reported only for patients with at least one Modic change-related high-signal lesion at Th12-S1 according to radiologist A (n = 112) or B (n = 107) or in conclusion (n = 107).
NA, not applicable due to few observations; STIR, short tau inversion recovery.
Artefacts were similar on DixonT2w and STIR in 116 patients and less on STIR in four patients by conclusion, and less on STIR in 11 patients according to one radiologist (Table 2). Reduced diagnostic confidence due to artefacts was concluded for both Dixon and STIR in three patients and for Dixon only in four patients. These appeared as pulsation artefacts in all cases, visible posterior to aorta in six of seven cases.
Fat-water swap on Dixon occurred in 49 of 120 (41%) patients. It always affected the whole image stack (the whole part of each image) and did not influence diagnostic confidence.
The conclusive lesion conspicuity was similar in 82% of the patients without favoring DixonT2w or STIR (Table 2). Each radiologist separately tended to report better lesion conspicuity on Dixon.
DixonT2w showed slightly more noise than STIR (mean 5.2 vs. 4.6, LoA ± 1.8), similar SNR (mean 12.1 vs. 12.6, LoA ± 5.9), and slightly lower CNR (mean 17.1 vs. 19.1, LoA ± 8.2) across levels L4-S1 (Fig. 3).

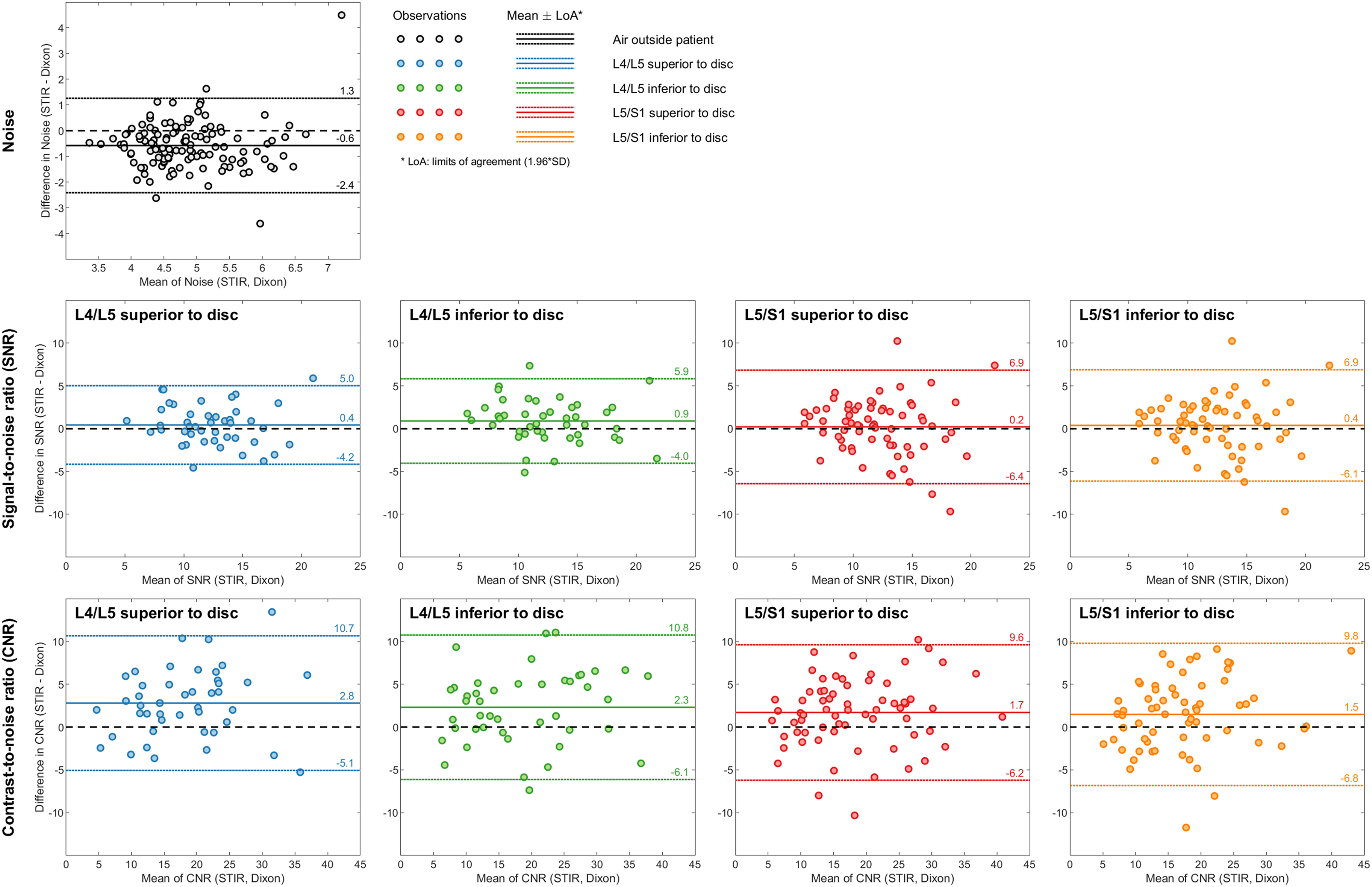

Differences in noise, SNR, and CNR between STIR and DixonT2w. Noise = the standard deviation of the signal intensity in air outside the patient (in grayscale units). SNR = normal vertebral body intensity in grayscale units/noise. CNR = (maximum MC related signal intensity in grayscale units – vertebral body intensity in grayscale units)/noise. CNR, contrast-to-noise ratio; DixonT2w, T2-weighted Dixon water images; MC, Modic change; SNR, signal-to-noise ratio; STIR, short tau inversion recovery.
High-intensity lesions: DixonT2w versus STIR
DixonT2w and/or STIR showed 228 MC-related high signal lesions at L4-S1 (480 endplates). DixonT2w missed 1 of 219 high-intensity lesions present on STIR and showed high signal at 9 of 261 endplates without high signal on STIR (kappa = 0.96).
The nine lesions missed on STIR had a low CNR and low maximum intensity on DixonT2w (CNR = 5.7–13.0, mean = 9.2 vs. 17.1 for all lesions; intensity 8%–17%, mean 12% vs. 25% for all lesions; 0% = vertebral body, 100% = CSF). One lesion missed on DixonT2w had a CNR of 5.1 and maximum intensity of 13% on STIR.
Of the 228 lesions L4-S1, 215 (94%) had a similar extent on DixonT2w and STIR, 2 (1%) were smaller or undetected on Dixon, and 11 (5%) were smaller/undetected on STIR (P = 0.03) (Fig. 4; Appendix Table A2).
Difference in lesion conspicuity and extent between DixonT2w and STIR. (a, b) A 38-year-old man with chronic low back pain. (a) DixonT2w shows slightly better conspicuity and somewhat larger extent of high signal (arrows) than (b) STIR. DixonT2w, T2-weighted Dixon water images; STIR, short tau inversion recovery.
Inter-observer reliability: DixonT2w
The inter-observer agreement (Fig. 5) was very good for the presence of MC-related high signal on DixonT2w (mean kappa = 0.87). The agreement on the categorized height of the high signal ranged from fair to good and was moderate overall (mean kappa = 0.44). For the volume of the region with a high signal, overall inter-observer agreement was good (mean kappa = 0.63).

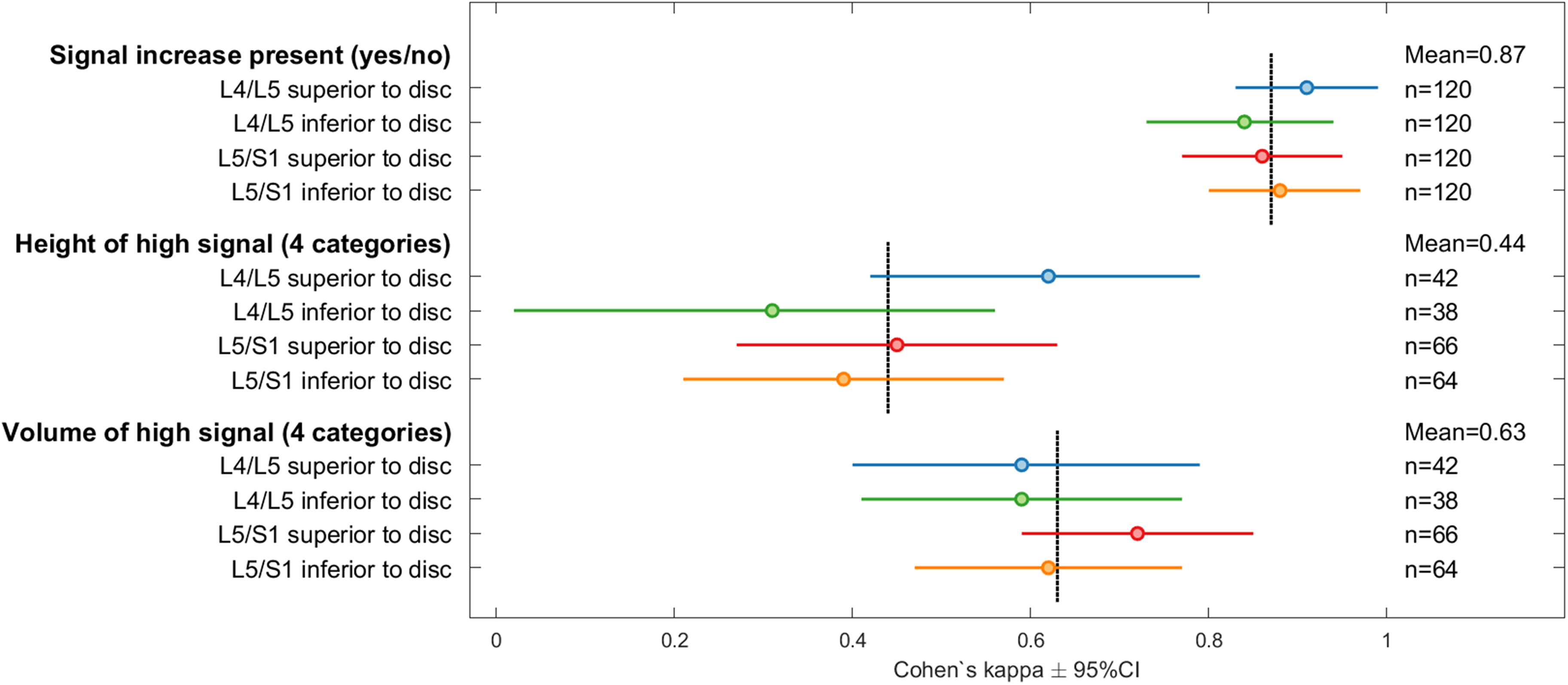

Inter-observer agreement for Modic change-related signal-increases on DixonT2w. Vertical lines show mean kappa for levels L4–S1. Kappa is linearly weighted for height and volume. CI, confidence interval; DixonT2w, T2-weighted Dixon water images.
For the height of the high signal on DixonT2w in the percentage of vertebral body height, the mean of differences between observers ± LoA was 2.1 ± 24.8% points at L4-S1. The corresponding figures were 0.03 ± 7.3% points for maximum intensity of the signal (scale of 0%–100%). Height percentage points were reported in the range of 7–100 (mean = 44) and intensity percentage points in the range of 3–67 (mean = 25) (Appendix Table A3).
Discussion
To our knowledge, this was the first comprehensive study (n = 120) to compare evaluations of MC-related vertebral bone edema between DixonT2w and STIR. The study included assessments of image quality, differences in visualization of bone edema, and inter-observer reliability. We found mostly similar fat-suppression uniformity, artefacts, lesion conspicuity, and diagnostic confidence with both methods. The presence of bone edema was highly similar on DixonT2w and STIR. The inter-observer reliability was very good for presence, moderate for height, and good for volume of MC-related high signal on DixonT2w.
Our findings support the clinical use of DixonT2w to assess vertebral bone edema. They also suggest that these 1.5-T DixonT2w and STIR protocols may be used interchangeably to evaluate the presence and extent of MC-related edema. It seems that no previous study has compared the extent of vertebral high signal between Dixon and STIR. In the present study, 94% of vertebral high signal lesions had similar extent on DixonT2w and STIR.
Our reliability results also support the use of DixonT2w. The inter-observer reliability for high signal findings on DixonT2w was comparable to the reliability achieved by the more experienced observers for the same findings on STIR in the same sample (22). The kappa on DixonT2w versus STIR was 0.87 versus 0.86 for presence, 0.44 versus 0.51 for height, and 0.63 versus 0.56 for volume of high signal; the largest mean of differences ± LoA was 0.03 ± 7.3 vs 0.9 ± 7.6% points for maximum intensity of the signal. The low kappa value for height may be due to gradual tapering of the high signal, making height assessments difficult. These results for reliability when rating high signal lesions on DixonT2w and STIR need confirmation in other studies.
Some minor differences between DixonT2w and STIR need to be discussed. More uniform fat suppression on DixonT2w in a few patients (n = 4/120) may be explained by Dixon being less sensitive to local magnetic field heterogeneity (2). The fat suppression in the lumbar spine was also regarded better on Dixon versus STIR in one small previous study (n = 13) (2). That study did not examine the impact of the difference in fat suppression on diagnostic confidence; we found no impact. Artefacts reduced diagnostic confidence in seven versus three patients on DixonT2w versus STIR. These pulsation artefacts appeared on several sequences. We do not consider them compelling evidence against DixonT2w.
Fat-water swap is a common postprocessing artefact on two-point Dixon images, reported in 17% of patients in a prior study (27). It was more frequent in our study (41%), but the swap always affected the whole image stack and did not affect the diagnostic evaluation. Local fat-water swaps can make the interpretation more difficult (28). Multi-point Dixon methods provide more signal data for improved postprocessing, which makes fat-water swap less likely (1,28).
Slightly more noise and lower CNR on DixonT2w versus STIR did not imply poorer detection of high signal lesions with DixonT2w. Rather, such lesions were somewhat more frequent or slightly larger on DixonT2w compared to STIR, and each observer separately tended to report better lesion conspicuity on DixonT2w (Table 2). However, all lesions missed on STIR had low intensity on DixonT2w (≤17% intensity increase), possibly reducing their clinical relevance.
The acquisition time for Dixon was twice that for STIR (3 min 48 s vs. 1 min 58 s) (Table 1). The MRI protocol included a range of sequences, and each sequence (including STIR) had been shortened to reduce the total scan time while attempting to maintain good image quality. The Dixon sequence provided fat only and in-phase images that may correspond to T1W and non-fat suppressed T2W images (29), compensating for the longer acquisition time.
The strengths of this study include a large sample and standardized MRI scanning. The direct comparison of images was likely to provide reliable evaluation of differences (30).
The present study has some limitations. These include the fact that only MC edema was studied. However, a wide range of edema findings was covered, and the results may be relevant also when assessing edema due to infection, malignancy, or fracture. Our noise measurements were affected by the large field of view filters and multichannel reconstruction applied (we used a phased array coil) (Table 1) (24). We could have used better methods for measuring noise based on repeated acquisitions of the same sequence (24) but this was not feasible. Further, we only looked at two-point Dixon on 1.5-T MRI. The results may not apply to other water-fat separation methods or 3-T MRI. We did not examine the complete Dixon sequence (2, 29, 31), which may have potential to replace T1W images and STIR (25). Findings from 3-T MRI suggest that a Dixon sequence alone may be adequate for detecting vertebral bone metastases (25,32) and assessing degenerative spine conditions (29,33).
In conclusion, we found no important differences in fat suppression uniformity, lesion conspicuity, diagnostic confidence, or high signal detection rate between DixonT2w and STIR. Both methods provided similar visualization of MC-related vertebral bone edema.
