Na + /K + -ATPase α isoform deficiency results in distinct spreading depolarization phenotypes

Abstract

Compromised Na⁺/K⁺-ATPase function is associated with the occurrence of spreading depolarization (SD). Mutations in ATP1A2, the gene encoding the α2 isoform of the Na⁺/K⁺-ATPase, were identified in patients with familial hemiplegic migraine type 2 (FHM2), a Mendelian model disease for SD. This suggests a distinct role for the α2 isoform in modulating SD susceptibility and raises questions about underlying mechanisms including the roles of other Na⁺/K⁺-ATPase α isoforms. Here, we investigated the effects of genetic ablation and pharmacological inhibition of α1, α2, and α3 on SD using heterozygous knock-out mice. We found that only α2 heterozygous mice displayed higher SD susceptibility when challenged with prolonged extracellular high potassium concentration ([K⁺]_o), a pronounced post SD oligemia and higher SD speed in-vivo. By contrast, under physiological [K⁺]_o, α2 heterozygous mice showed similar SD susceptibility compared to wild-type littermates. Deficiency of α3 resulted in increased resistance against electrically induced SD in-vivo, whereas α1 deficiency did not affect SD. The results support important roles of the α2 isoform in SD. Moreover, they suggest that specific experimental conditions can be necessary to reveal an inherent SD phenotype by driving a (meta-) stable system into decompensation, reminiscent of the episodic nature of SDs in various diseases.

Introduction

Spreading depolarization (SD) is the generic term for all waves of abrupt, near-complete breakdown of the neuronal transmembrane ion gradients that cause neuronal edema and propagate at about 3 mm/min in cerebral gray matter. The SD continuum describes the spectrum from short-lasting SD in metabolically intact tissue to SD of intermediate duration to terminal SD in severely ischemic tissue. Accordingly, SDs occur in human diseases from the harmless migraine aura to stroke to circulatory arrest, which means that there are overlaps but also large variations in mechanistic aspects along the SD continuum.^1,2

The Na⁺/K⁺-ATPase generates the steep transmembrane gradients of the two principal ions, Na⁺ and K⁺, and accounts for ∼50% of the brain's ATP consumption under resting conditions.^3,4 Accordingly, pharmacological Na⁺/K⁺-ATPase inhibition, using cardiac glycosides such as ouabain, is known to trigger SD under normoxic conditions ⁵ and SD under anoxia/ischemia is assumed to result from failure of the Na⁺/K⁺-ATPase due to lack of ATP.^6,7 Three distinct α isoforms of the Na⁺/K⁺-ATPase are expressed in the brain by individual genes in a developmentally regulated and cell-type specific manner: α1, α2, and α3.^8,9 Na⁺/K⁺-ATPase α isoforms vary in their kinetic properties and in their affinity to Na⁺, K⁺, ATP and ouabain. ¹⁰ The α1 isoform can be found on most cell types and is considered to be the housekeeping enzyme. In the adult brain, the α2 isoform is expressed predominantly on astrocytes, whereas the α3 isoform is expressed exclusively on neurons.^8,11 Experimental data suggest that the α2 isoform exerts specific functions through coupling to secondary active transporters and functional interaction in spatially restricted microdomains^12–15 and has been reported to co-localize with glutamate reuptake transporters.^16,17 Association of mutations in the α2 and α3 isoform with neurological disorders suggests isoform-specific functions. Whereas mutations in the gene encoding the α2 isoform have been identified in patients with FHM2, a severe Mendelian form of migraine with aura, ¹⁸ mutations in ATP1A3, the gene coding for the α3 subunit, are linked to rapid-onset dystonia parkinsonism (RODP), ¹⁹ alternating hemiplegia of the childhood (AHC)^20,21 and cerebellar ataxia, areflexia, pes cavus, optic atrophy, and sensorineural hearing loss (CAPOS) syndrome. ²²

Two FHM2 knock-in mouse models (α2^+/W887R, α2^+/G301R) have been reported to exhibit a high SD susceptibility phenotype^23,24 and both have been shown to have impaired astrocytic glutamate clearance.^24,25 However, it is unknown how other Na⁺/K⁺-ATPase α isoforms, in particular the neuronal isoform, modulate the SD process and how their role in SD compares to α2. A similar affinity of cardiac glycosides to α2 and α3 has precluded a pharmacological approach to studying distinct isoforms' function. To investigate the roles of the three Na⁺/K⁺-ATPase α isoforms in SD, we employed mice heterozygous for a null mutation in each of the isoform genes.^14,26 Because all three Na⁺/K⁺-ATPase α isoforms are essential, homozygosity of the null mutation is embryonically or neonatally lethal. By contrast, heterozygous mice do not have an apparent phenotype and breed normally. In acute brain slices and in-vivo experiments, we investigated the effect of genetic and pharmacological reduction of Na⁺/K⁺-ATPase α isoform activity on SD threshold, propagation and recovery.

Materials and methods

Animals

The reporting of animal experiments complies with the ARRIVE Guidelines. All animal experiments were authorized by the animal welfare authorities in Berlin, Germany: Berlin State Office for Health and Social Affairs (LAGeSo), T0311/11 and G0152-11, and all experimental procedures were conducted in accordance with the Charité Animal Welfare Guidelines.

The effects of genetic reduction of Na⁺/K⁺-ATPase α isoforms on SD were studied in α isoform-deficient knock-out mice (n = 340) bearing a null mutation in one allele of each of the murine orthologous genes: ATP1A1, ATP1A2, and ATP1A3. All three mouse lines employed in this study were genetically engineered, using techniques of targeted disruption and homologous recombination, at the University of Cincinnati, Ohio, USA.^14,26 Heterozygous animals did not display an apparent clinical phenotype or histological brain anomalies and were fertile. Na⁺/K⁺-ATPase α isoform-deficient mice were backcrossed to (F>9) and maintained on a C57BL/6J (Jackson Laboratory, Bar Harbor, ME, USA) genetic background. Genotyping was performed by PCR as previously described.^14,26 Adult male mice, 12–18 weeks of age from each line (α1, α2, and α3 heterozygous and wild-type littermates) were used. Animals were housed in groups (at least two animals per cage) under a 12-h light–dark cycle with food and tap water available ad libitum. Due to the effect of sex hormones on migraine prevalence and SD susceptibility,^27,28 only male mice were used in this study. To compensate for possible differences in genetic background or environmental factors, heterozygous knock-out mice were only compared to their wild-type littermates (WT). ²⁹ For in-vivo experiments, additional confirmatory genotyping was performed.

Na⁺/K⁺-ATPase α isoform-deficient mouse line details

Mice deficient for the α1 isoform (α1^+/KOE15, ATP1A1^+/tm1Ling) bear a mutation in ATP1A1 that results in removal of exons 15 through 18. Western blot analysis of hippocampal whole tissue extracts revealed a reduction of ∼70% of the α1 isoform with no change in α2 and α3 isoform levels.^14,26 Knock-out mice for α2 (α2^+/KOE4, ATP1A2^+/tm1Ling) were generated by introducing a deletion in exon 4. Although no transcript was detectable in cardiac homogenates, ¹⁴ expression of the protein would result in a truncation of the protein after the first transmembrane domain. Protein expression in hippocampal extracts showed a reduction of α2 by ∼50%, no change in α1, and α3 with a ∼25% lower expression compared to wild types. ²⁶ Mice deficient for the α3 isoform (α3^+/KOI4, ATP1A3^+/tm1Ling) were generated by introducing a point mutation in intron 4 in ATP1A3, causing aberrant mRNA processing that entails an unstable transcript and loss of expression. Hippocampal protein expression of α3 was shown to be reduced by ∼60%, α1 was increased by ∼35%, and the α2 isoform was unchanged compared to wild types. ²⁶

Acute brain slice experiments

Animals (n = 128) were deeply anesthetized with isoflurane and decapitated. The brain was quickly removed from the skull and transferred into chilled (0–4℃) carbogenated (5% CO₂ and 95% O₂) artificial cerebrospinal fluid (ACSF). The ACSF contained (in mmol/L) 129 NaCl, 3 KCl, 1.8 MgSO₄, 1.6 CaCl₂, 1.25 NaH₂PO₄, 21 NaHCO₃, and 10 glucose (pH 7.4). Depending on the protocol, either coronal or transverse acute brain slices with a thickness of 400 µm were prepared using a vibrating blade microtome (Vibroslice, MA752, Campden Instruments, Loughborough, Leics., England). Brain slices were transferred to an interface-type recording chamber and perfused with prewarmed (36℃) carbogenated ACSF in a humified atmosphere of 95% O₂/5% CO₂. Before starting the recordings, the tissue was allowed to equilibrate for ∼60 min.^30–32 Viability was assessed by stimulating at the boundary of layer VI to the subjacent white matter using a bipolar platinum stimulation electrode (diameter 25 µm, tip separation 100 µm, single-pulse duration 100 μs, intensity 5–10 V) and recording field potentials in neocortical layers II/III. In horizontal slices, stimulation of the Schaffer collateral pathway in the hippocampus resulted in a population spike (PS) in stratum pyramidale of the CA1 which was used instead. Slices were accepted if stimulation resulted in a field potential amplitude of at least 1.5 mV. Recorded potential changes were amplified (custom-built ISME amplifier), field potentials were low-pass filtered at 3 kHz and sampled at 10 kHz, ion-selective potentials were low-pass filtered at 30 Hz and sampled at 100 Hz, displayed on an oscilloscope, digitized (CED-1401, Spike2 software; Cambridge Electronic Design Limited, Milton, Cambridge, England), and stored for off-line analysis. Electrical stimulation pulses were generated using a programmable pulse generator (Master-8, AMPI Instruments, Jerusalem, Israel) connected to a stimulus-isolator (BSI-1, BAK Electronics, Umatilla, FL, USA).

In-vivo: Urethane/α-chloralose anesthesia

Heterozygous knock-out mice (n = 73) were anesthetized with intraperitoneal injection of urethane (600 mg/kg) and α-chloralose (50 mg/kg) in 6 ml/kg saline. An open cranial window was prepared (2.5 × 4.5 mm) using a saline-cooled drill to access the neocortex of the right hemisphere (posterior 3.3 mm to anterior 1.2 mm from bregma). The dura was removed and great care was taken to avoid triggering premature SDs. ACSF was topically applied to the brain containing in mmol/L: 127.5 NaCl, 24.5 NaHCO₃, 6.7 urea, 3.7 glucose, 3 KCl, 1.5 CaCl₂, and 1.2 MgCl₂. The ACSF was equilibrated with a gas mixture containing 6.6% O₂, 5.9% CO₂, and 87.5% N₂. A second small (diameter ∼1 mm, posterior 3.6 mm, lateral 2.0 mm from bregma) burr hole allowed for stimulation of the cortex through the intact dura mater. Regional cerebral blood flow (rCBF) was continuously monitored with one laser-Doppler flow (LDF) probe (Periflux 4001, Perimed, Järfälla, Sweden). The subdural direct current-electrocorticography (DC-ECoG) (bandpass: 0–45 Hz) was recorded using an Ag/AgCl microelectrode. Changes in the extracellular K⁺ concentration ([K⁺]_o) and the intracortical DC shift (bandpass 0–45 Hz) were recorded in a cortical depth of 150 µm using two ISMEs, positioned at the opposing ends of the window. A reference electrode (Ag/AgCl pellet) was placed subcutaneously above the nose. Body temperature was maintained at 37℃ using a heating pad (Temperature Control FHC, Bowdoinham, ME, USA). The level of anesthesia was assessed by monitoring breathing rate and testing motor responses to foot-pinching. Electrical stimuli of increasing intensity were applied using a bipolar stimulation electrode (tip diameter: 0.2 mm, tip separation: 0.5 mm, model: NE-200, Rhodes Medical Instruments, Summerland, CA, USA) connected to a battery-driven stimulus isolator (BSI-1, BAK Electronics). The stimulation protocol consisted of biphasic pulses of 100 ms (±50 ms) duration with exponentially increasing intensities (20, 30, 40, 50, 60, 80, 100, 150, 200, 260, 340, 450, 600, 800, 1000 µA) at 5-min intervals until SD was triggered. ³³ SD threshold was defined as the smallest electrical charge (electric current [A]×time [s]) necessary to trigger an SD. Analog-to-digital conversion was performed using a Power 1401 (Cambridge Electronic Design). [K⁺]_o, voltage and rCBF changes were continuously recorded using a personal computer and Spike2 software (version 6, Cambridge Electronic Design). Animals were killed after the experiment by intravenous administration of KCl solution. SD speed was calculated by dividing the distance between the ISME tips by the latency between SD onset as recorded by the occipital and rostral electrode.

Data analysis, visualization and statistical inference

Unless not stated otherwise, all data are given as mean±standard deviation. Boxplots show the median and interquartile range (IQR). The whiskers extend to the most extreme data point that is no more than 1.5 times IQR from the edge of the box. More extreme data points (outliers) are shown as gray plus signs. In addition, the arithmetic mean is included as a red triangle. For clarity, time-series data or related data points with error bars are given as mean±standard error of the mean (SEM). If desired, standard deviation can be calculated as SEM*sqrt(n) using the sample size given in the text. Assessment of data distribution and statistical testing was performed using the scientific Python stack ³⁴ and graphs were prepared using Matplotlib. ³⁵

Supplementary materials and methods

Further information on data analysis and statistical inference, K⁺-sensitive microelectrodes, [K⁺]_o threshold for SD induction, stimulus-induced [K⁺]_o increases, KCl microinjection SD threshold, intrinsic optical signal (IOS) recordings, in-vivo experiments under isoflurane anesthesia, and Na⁺/K⁺-ATPase activity assay.

Results

Deficiency of the α2 isoform increases SD susceptibility in acute brain slices when exposed to high [K⁺]_o in the bathing medium

To obtain a measure of SD susceptibility in acute brain slices, we raised [K⁺]_ACSF in a stepwise fashion in 30-min intervals until SD occurred (Figure 1(a) to (c)). In most slices, SDs originated in the neocortex and, in contrast to physiological [K⁺]_ACSF, SDs were not confined to the cortex but frequently invaded the hippocampus in coronal or the striatum in transverse brain slices (Figure 1(a)). In slices from α2^+/KOE4 mice, SD was initiated at a significantly lower [K⁺]_ACSF (13.0 ± 1.2 mmol/L, n = 18) compared to their wild-type littermates (WT) (14.9 ± 1.7 mmol/L, n = 23; P = 0.001) (Figure 1(d)). The SD threshold reduction was reflected in a significant shortening of the latency to SD occurrence (α2^+/KOE4: 62.1 ± 16.0 min, n = 18; WT: 79.9 ± 21.6 min, n = 23; P = 0.004) (Figure 1(e)). These results indicate that α2 haploinsufficiency results in increased SD susceptibility under elevated baseline [K⁺]_o. In contrast to the threshold effect, peak [K⁺]_o and [K⁺]_o undershoot were not significantly affected by α2 deficiency (Figure 1(f) and (g)).

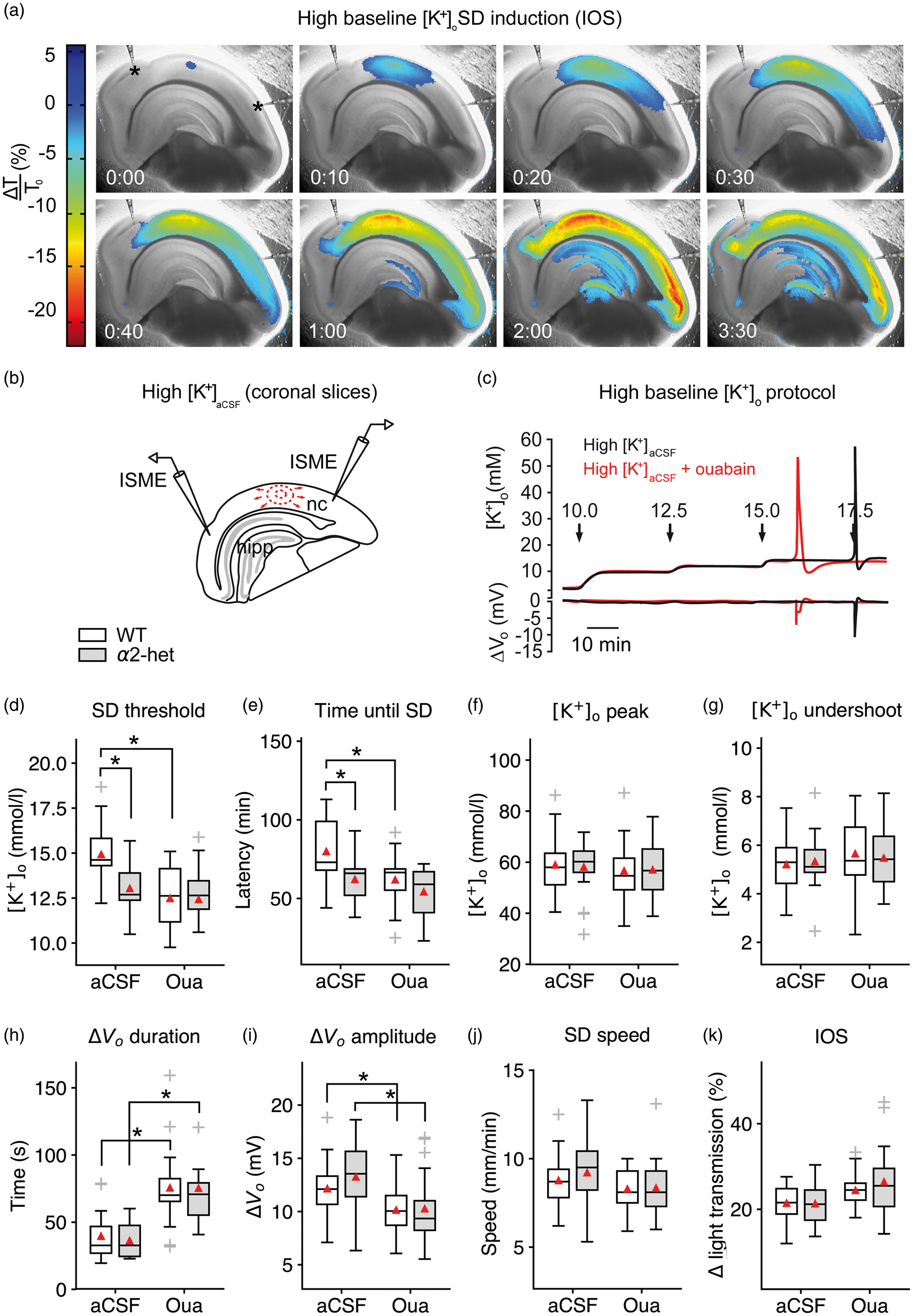

Figure 1.

Na⁺/K⁺-ATPase α2 deficiency increases SD susceptibility in acute brain slices. (a–b) SD speed and invaded area were imaged using light transmission changes (IOS). In the interface-type recording chamber, SD is characterized by a short increase (blue), followed by a long-lasting decrease of the IOS (red). Elevated baseline [K⁺]_o induced SD in the neocortex (nc) and frequently in the hippocampus (hipp) but not in the brainstem. (c) Stepwise increased baseline [K⁺]_o allowed for threshold assessment using ISMEs. (d) SD occurred at lower [K⁺]_ACSF in α2^+/KOE4 compared to WT. Co-application of 5 µM ouabain did not significantly add to the α2 deficiency effect on threshold [K⁺]_ACSF indicating ouabain action via the astrocytic and not the neuronal isoform. (e) SD latency was shorter in α2^+/KOE4 compared to WT mice confirming the lower [K⁺]_o threshold in α2-deficient mice. (f–g) Genetic α2 reduction did not affect [K⁺]_o peak and [K⁺]_o undershoot following SD. (h–i) Only pharmacological inhibition of the α2/3 portion of the Na⁺/K⁺-ATPase prolonged SD duration and decreased the DC amplitude irrespective of the genetic background. (j) SD speed was high under elevated [K⁺]_ACSF without additional effects of genetic or pharmacological α2 reduction. (k) IOS amplitude was not affected significantly by genetic or pharmacological α2 reduction. Sample sizes: α2^+/KOE4, n = 16–19; α2^+/+, n = 21–23. *p < 0.05.

To compare the magnitude of the observed SD effects of genetic α2 isoform reduction with the effect of pharmacological Na⁺/K⁺-ATPase inhibition, we co-applied 5 µmol/L ouabain with the high [K⁺] bathing medium of WT brain slices. In this concentration, ouabain blocks most of the α2/3 portion of the Na⁺/K⁺-ATPase activity.^5,36 The pharmacological effect on SD latency (α2^+/KOE4: −22.2%, ouabain: -22.6%) and SD threshold reduction was of similar magnitude compared to genetic α2 isoform reduction observed in α2^+/KOE4 mice (α2^+/KOE4: −12.7%, ouabain: −16.4%).

To investigate the contribution of the astrocytic (α2) and the neuronal (α3) isoform to the effect of ouabain inhibition, we added 5 µmol/L ouabain to the high [K⁺]_ACSF of brain slices from α2-deficient mice. Although adding ouabain to the bathing medium of α2^+/KOE4 brain slices further lowered (4.7%) the threshold [K⁺]_ACSF and further reduced the SD latency by 12.7% in α2^+/KOE4 compared to WT, these effects were considerably smaller compared to the effect of ouabain in WT slices and did not reach statistical significance (Figure 1(d) and (e)). These results suggest that the facilitating effect of ouabain on SD is mediated via the astrocytic isoform. If the neuronal isoform would be involved, the ouabain effect would be expected to add significantly to the effect of genetic α2 reduction in α2^+/KOE4 mice. Instead, the size of the ouabain effect was reduced in α2-deficient mice, which is consistent with the reduced ouabain receptor availability. Interestingly, only pharmacological Na⁺/K⁺-ATPase inhibition using 5 µmol/L ouabain significantly prolonged SD duration and reduced DC amplitude, whereas genetic α2 reduction did not have these effects (Figure 1(h) and (i)).

Despite the effect of genetic α2 reduction on SD threshold and latency, SD speed was similar in α2^+/KOE4 mice compared to WT (α2^+/KOE4: 9.2 ± 2.0 mm/min, n = 16; WT: 8.8 ± 1.5 mm/min, n = 21; P = 0.29) under high [K⁺]_o (Figure 1(j)). Because [K⁺]_o elevation exerts a strong effect on SD speed (high [K⁺]_ACSF: 317% of control in 3 mM [K⁺]_o), a significant speed difference is presumably negated by the lower threshold [K⁺]_o in α2^+/KOE4 mice; 5 µM ouabain did not have a facilitating effect on SD speed under high [K⁺]_o either (ouabain: 8.3 ± 1.1, n = 21; control: 8.8 ± 1.5, n = 21, P = 0.34).

Deficiency of other Na⁺/K⁺-ATPase α isoforms does not affect SD susceptibility under elevated baseline [K⁺]_o in brain slices

Next, we sought to determine whether the observed SD threshold [K⁺]_o effect in α2^+/KOE4 mice was specific to a genetic reduction of this particular isoform or whether the effect could be mimicked by deficiency of the other Na⁺/K⁺-ATPase isoforms expressed in the brain: α1 and α3. To this end, we tested the high [K⁺]_ACSF protocol with α1^+/KOE15 and α3^+/KOI4 mice and compared the results to their wild-type littermates (WT).

Whereas lower [K⁺]_ACSF triggered SD in α2^+/KOE4 mice, we did not find a significant difference between the threshold [K⁺]_ACSF in α3^+/KOI4 (103.7 ± 14.3% of WT, n_het=13, n_WT=14; P = 0.5) or α1^+/− (94.2 ± 9.9% of WT, n_het=6, n_WT=8; P = 0.48) compared to WT (Figure 2(a)). These observations were confirmed by the absence of differences in latency to SD initiation in α3^+/KOI4 and α1^+/KOE15 compared to WT (Figure 2(b)). These results indicate that the observed SD facilitation under high [K⁺]_o is specific for a reduction of the α2 isoform and suggest that the effect is not primarily dependent on bulk Na⁺ and K⁺ transport capacity.

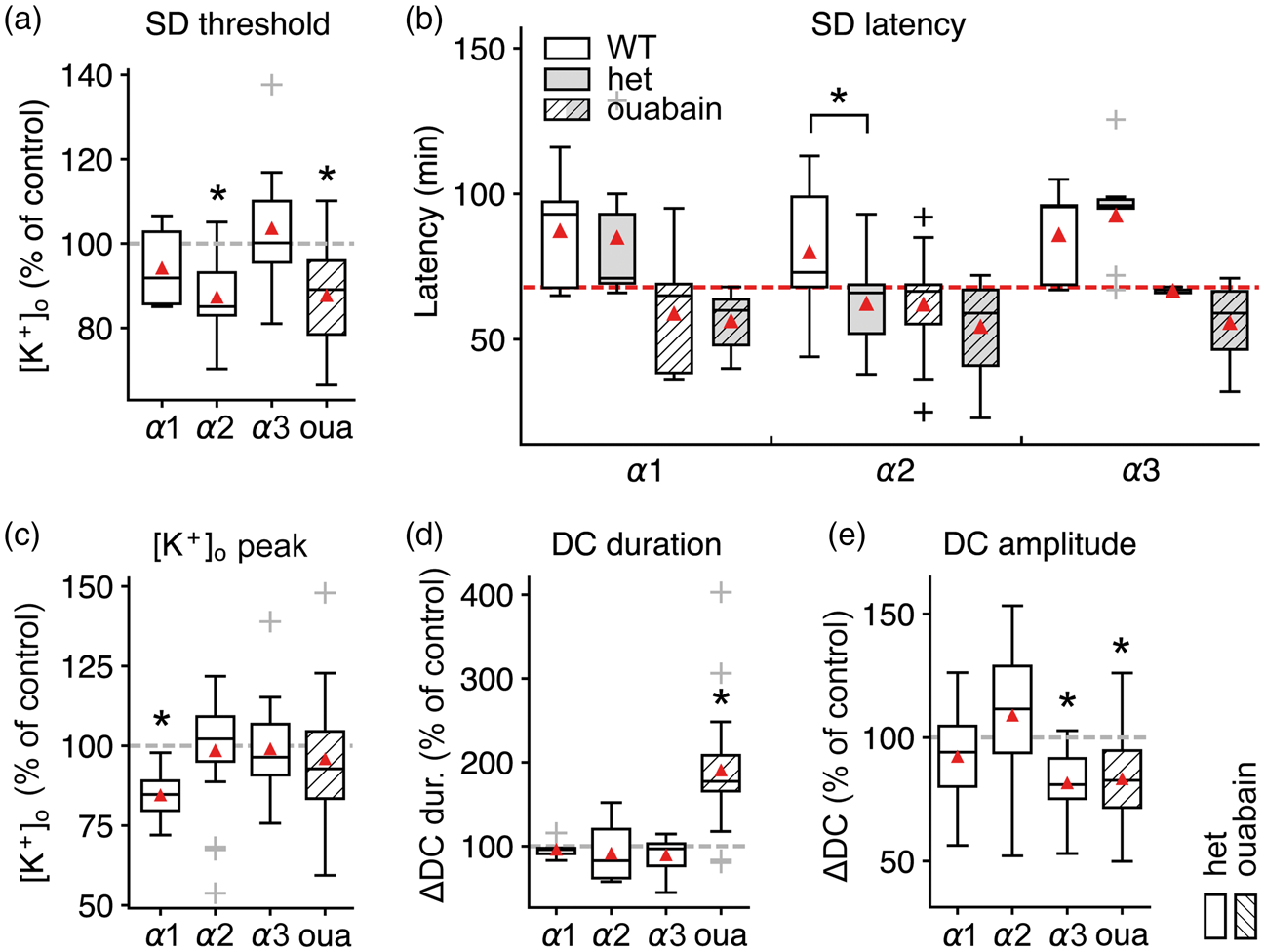

Figure 2.

SD threshold reduction is specific to deficiency of the α2 isoform in acute brain slices. (a) Only α2 deficiency or pharmacological inhibition with 5 µM ouabain significantly reduced SD threshold [K⁺]_o, whereas α1 and α3 deficiency did not significantly affect threshold [K⁺]_o as measured by ISMEs. (b) SD latency: α2^+/KOE4 segregate from the high into the low threshold group together with ouabain, indicated by the significantly shorter time until SD occurrence (below the red dashed line). (c) Peak [K⁺]_o during SD was significantly lower in α1^+/KOE15 mice. (d) The duration of the accompanying DC shift was longer only under ouabain exposure, whereas α isoform deficiency had no effect. (e) The DC amplitude was reduced in α3^+/KOI4 and in presence of 5 µM ouabain. Sample sizes: α2^+/KOE4/α2^+/+, n = 17–23; α3^+/KOI4/ α3^+/+, n = 10–14; α1^+/KOE15/ α1^+/+, n = 6–8. *P < 0.05.

Extracellular K⁺ clearance during intense neuronal stimulation is not altered significantly in α2^+/KOE4 mice

Because of the effect of α2 deficiency on the SD threshold in conditions of high [K⁺]_o challenge, we wanted to test whether impaired extracellular K⁺ clearance was causal to the observed threshold differences. To this end, we analyzed stimulus-induced [K⁺]_o surges during and following intense neuronal stimulation in acute brain slices (Figure 3(a) to (c)). Stimulus trains of increasing intensity lasting 10 s, consisting of 200 pulses at a frequency of 20 Hz, were applied to the Schaffer collateral pathway in the hippocampal CA1 subfield of transverse brain slices (Figure 3(a)) of α2^+/KOE4 and WT. Of note, even under supramaximal stimulation (150%), in none of the α2^+/KOE4 slices SD was triggered.

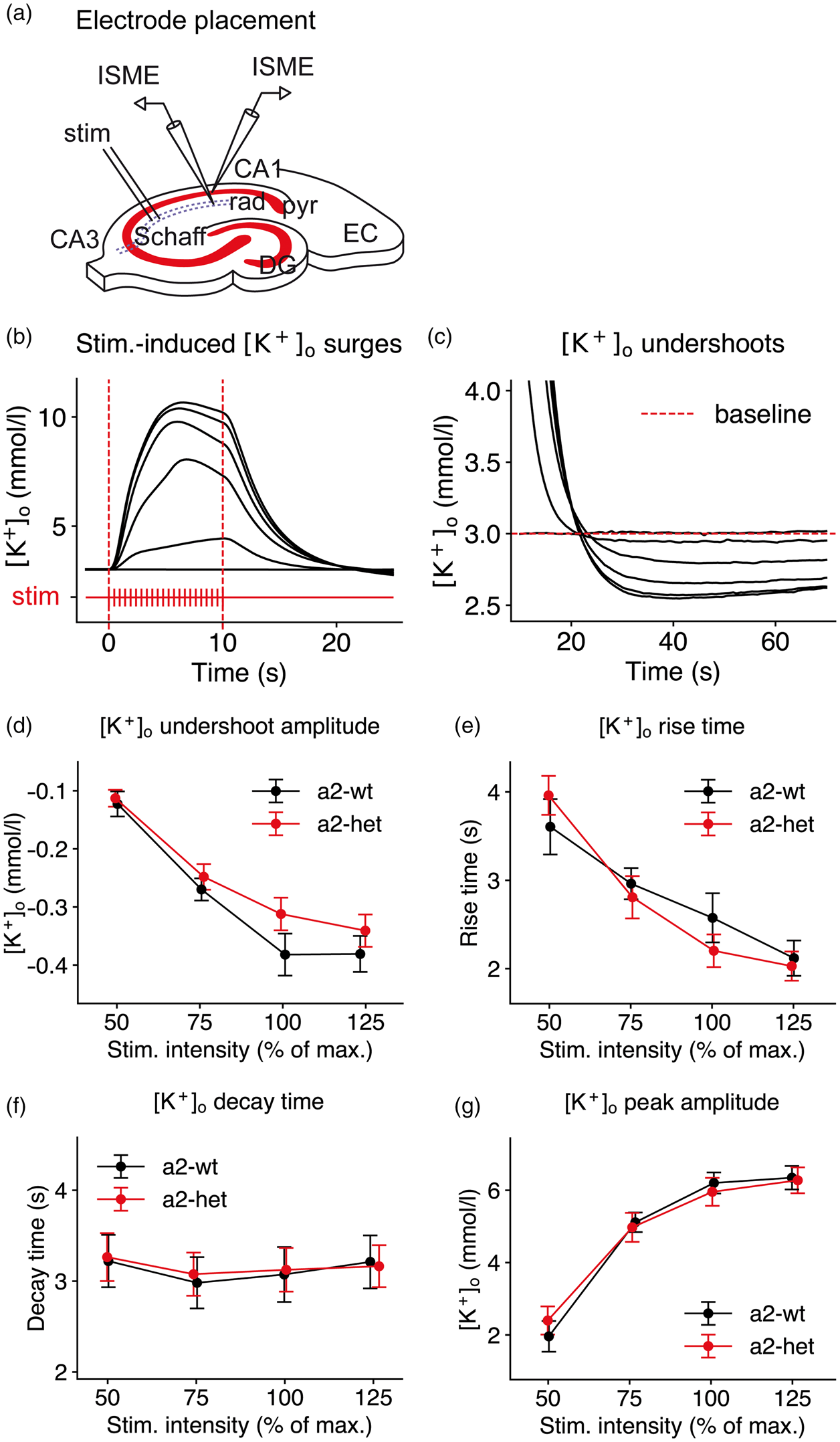

Figure 3.

[K⁺]_o clearance is not significantly impaired in α2-deficient mice. (a) A stimulus train (10 s, 20 Hz) was applied to the hippocampal Schaffer collateral pathway (Schaff) in the CA3 of transverse brain slices. stim: bipolar stimulation electrode location; rad: stratum radiatum; pyr: stratum pyramidale; EC: entorhinal cortex; DG: dentate gyrus. (b) [K⁺]_o surges and (c) [K⁺]_o undershoots were recorded in str. pyramidale and radiatum in CA1 using ISMEs. (d) The [K⁺]_o undershoot amplitude showed a tendency to be less pronounced at 100% stimulation intensity although the difference did not reach statistical significance (α2^+/KOE4: −0.31±0.03, n = 19; WT: −0.38±0.04, n = 13; P = 0.13). (e-g) α2 deficiency did not significantly alter the [K⁺]_o response to intense neuronal stimulation. Data are presented as mean±SEM.

During neuronal activation, K⁺ is released into the extracellular space. The [K⁺]_o undershoot following neuronal stimulation is believed to be predominantly attributable to Na⁺/K⁺-ATPase activity, stimulated by elevated intracellular sodium concentration ([Na⁺]_i) following intense neuronal firing. Because faster K⁺ clearance mechanisms, such as passive diffusion and spatial buffering, have redistributed K⁺ away from the location of its release, [K⁺]_o is decreasing from its baseline level and forms a noticeable undershoot. ³⁷ The [K⁺]_o undershoot amplitude increased with higher stimulation strength and at 100% stimulation intensity, the amplitude appeared to be slightly lower in α2^+/KOE4 animals compared to WT, although the difference did not reach statistical significance (Figure 3(d)).

To test whether the α2 isoform is involved in limiting local K⁺ accumulation in response to neuronal stimulation, we analyzed [K⁺]_o rise time and peak [K⁺]_o. To assess extracellular K⁺ clearance, we analyzed the [K⁺]_o decay time.^25,38 We did not find significant differences in [K⁺]_o rise time, decay time, and peak [K⁺]_o amplitude between α2^+/KOE4 and WT (Figure 3(e) to (g)). The lack of an effect in acute brain slices corresponds to similar activity of Na⁺/K⁺-ATPase α2/3 fraction measured in brain homogenates of α2 and WT (Supplementary Figure 1 and Table 1).

The data indicate that the extracellular K⁺ clearance during intense neuronal stimulation is not significantly compromised in α2^+/KOE4 mice in normal ACSF. This observation is in agreement with data from α2^+/G301R mice in a similar protocol ³⁹ but contrasts with the findings in slices of α2^+/W887R mice, that displayed a higher time constant of the [K⁺]_o decay following the stimulation train compared to WT. ²⁵

In contrast to high [K⁺]_o, SD threshold and speed are not affected in α2^+/KOE4 mice under physiological [K⁺]_o

Published FHM mouse models exhibit a high SD susceptibility phenotype characterized by a low SD threshold and increased SD speed^25,33,40 as well facilitated corticostriatal SD propagation. ²⁷

To assess the SD threshold without globally affecting [K⁺]_o, we injected increasing amounts of KCl (1M) focally into the cortical tissue until SD was triggered under normal [K⁺]_o (3 mM) (Figure 4(a) and (b)). In contrast to the higher SD susceptibility under elevated baseline [K⁺]_ACSF, the focal induction duration and thus the injected K⁺ volume were similar in α2^+/KOE4 mice compared to WT under physiological [K⁺]_o (Figure 4(c)). We calculated the SD speed using the SD-associated light transmittance (LT) changes (IOS) in the dorsal and the ventral portion of the propagation path (Figure 4(d)). Although we found significantly higher SD speed in the dorsal compared to ventral portion of the cortex (dorsal: 3.2 ± 0.7, n = 9; ventral: 2.4 ± 0.4, n = 9; P = 0.01) (Figure 4(e)), SD speed was not different between α2^+/KOE4 and WT (α2^+/KOE4: 2.6 ± 0.5 mm/min, n = 9; WT: 2.8 ± 0.5 mm/min; P = 0.86) (Figure 4(f)). We also analyzed the extent of SD spread as the projected area of the IOS change on the brain slice surface and did not find an effect of α2 deficiency (α2^+/KOE4: 3.3 ± 1.3 mm², n = 10; WT: 3.9 ± 1.3 mm²; P = 0.38) (Figure 4(g)). Whereas α isoform deficiency in general did not have an effect on SD speed and extent of SD spread, 5 µM ouabain increased SD speed significantly and resulted in larger extent of SD spread in brain slices (Figure 4(g) and (h)).

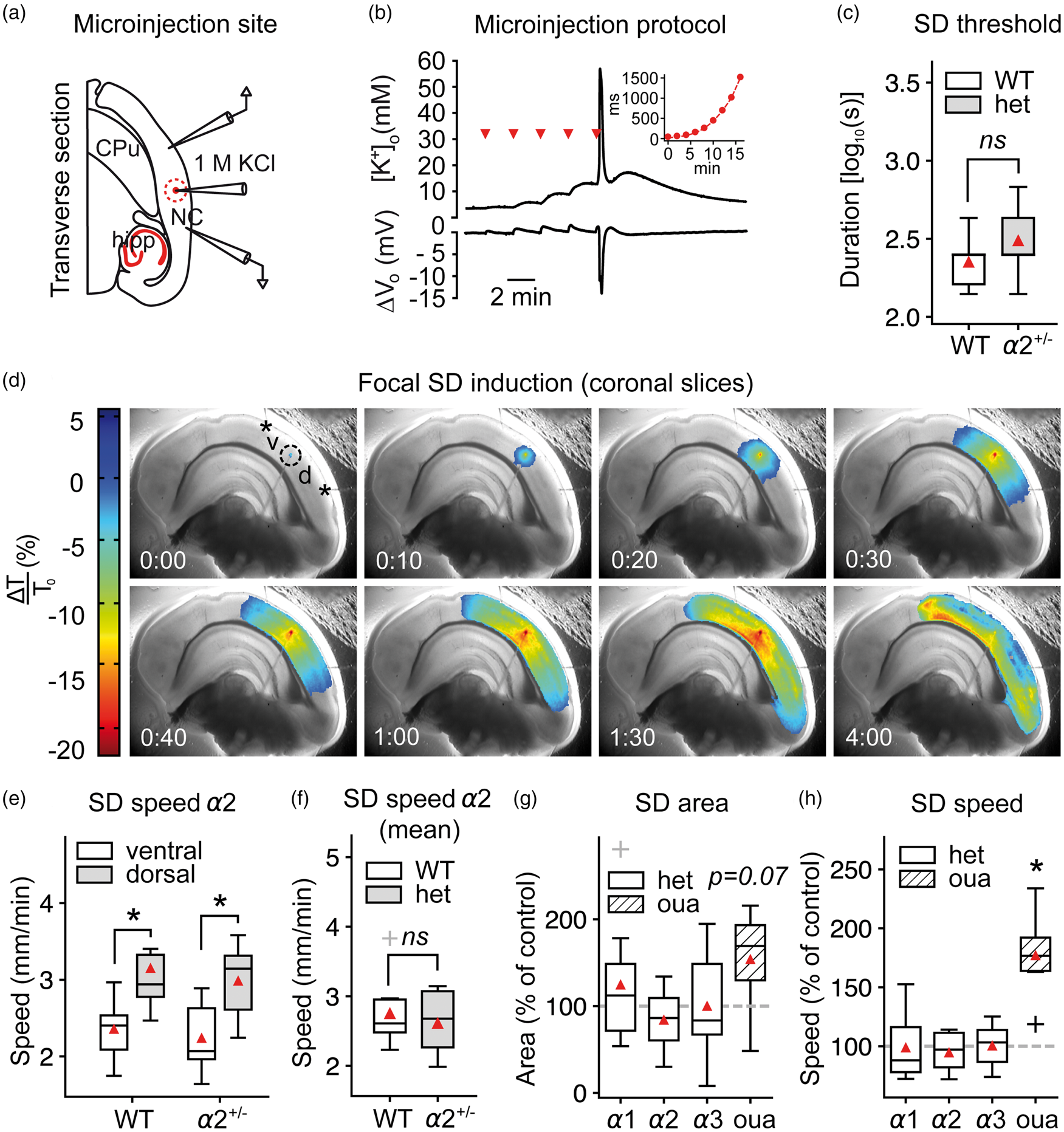

Figure 4.

SD speed is not affected by α2-deficiency in acute brain slices. (a–b) SD was induced focally in acute coronal brain slices under physiological ACSF by microinjecting an increasing volume of 1M KCl into the tissue. NC: neocortex; hipp: hippocampus; CPu: caudate putamen (c) The necessary injected 1M KCl volume to evoke SD was similar in α2^+/KOE4 and α2^+/+ mice under normal [K⁺]_ACSF (α2^+/KOE4: n = 9, α2^+/+: n = 6). (d) SD speed and area were calculated from the dorsal (“d”) and ventral (“b”) portion relative to injection point (dashed circle) in coronal brain slices. (e) SD propagated with markedly higher speed in the dorsal compared to the ventral portion of the cortex as measured from the injection site. (f) SD speed was not different between α2^+/KOE4 and WT (mean of dorsal and ventral speeds) under normal [K⁺]_ACSF. Data were obtained from 9 α2^+/KOE4 (39 SDs, 27 slices) and 9 α2^+/+ (37 SDs, 25 slices) mice. (g) The projected area of SD spread on the slice surface tended to be larger (P = 0.07) only in ouabain-treated slices with no effect in α2^+/KOE4 mice. (h) Ouabain application increased SD speed drastically (77.3 ± 35.2%, P < 0.00001), whereas genetic α isoform deficiency had no effect on SD speed. Sample sizes for speed and area calculations: α2^+/KOE4/α2^+/+, n = 9; α3^+/KOI4/ α3^+/+, n = 9–16; α1^+/KOE15/ α1^+/+, n = 8; ouabain, n = 7. *P < 0.05.

The data indicate that α2 deficiency is well compensated under normal [K⁺]_o, in contrast to prolonged exposure to elevated baseline [K⁺]_o. The observation of similar SD susceptibility under normal [K⁺]_o is unexpected and differs from studies using brain slices of FHM1⁴⁰ and FHM2²⁵ knock-in mice. Both studies reported a lower SD threshold and higher SD speed albeit using a submerged system and not an interface recording chamber as employed in this study. However, the absence of an effect on SD speed has been reported in another study comparing FHM2 knock-in mice (α2^+/G301R) with WT in-vivo, ²⁴ indicating possible functional differences between distinct FHM2 missense mutations. Despite the aforementioned differences in the recording chamber setup, we expect the brain slice speed measurement approach to be sensitive enough to detect the reported speed differences, since application of 5 µM ouabain resulted in a massive speed increase (Figure 4(h)). Furthermore, the measurement uncovered a significant difference between the dorsal and the ventral portion of the mouse cortex which was consistent throughout all mouse lines. Additionally, the dorso-ventral SD speed gradient was also evident as a section-dependence of SD speed in transverse slices (data not shown).

SD susceptibility in-vivo

To test the SD threshold in-vivo, we induced SD electrically in the right hemisphere of urethane/α-chloralose anesthetized Na⁺/K⁺-ATPase α isoform-deficient mice. Biphasic stimuli of increasing strength were applied through a bipolar stimulation electrode until SD was recorded by an intracortical microelectrode in the open cranial window (Figure 5(a)). Because of a possible impact on the SD threshold and a drastically different rCBF response of a secondary SD, ⁴¹ we assessed the typical multiphasic rCBF response of the mouse using LDF (Figure 5(b)). To test SD susceptibility under different anesthesia and to precisely check for potential induction of premature SDs during the preparation phase, we induced SDs electrically in animals anesthetized with isoflurane in a second set of experiments. LASCA imaging was employed to map cerebral perfusion levels through the intact skull bone of both hemispheres (Figure 5(c) and (d), Supplementary Figure 2).

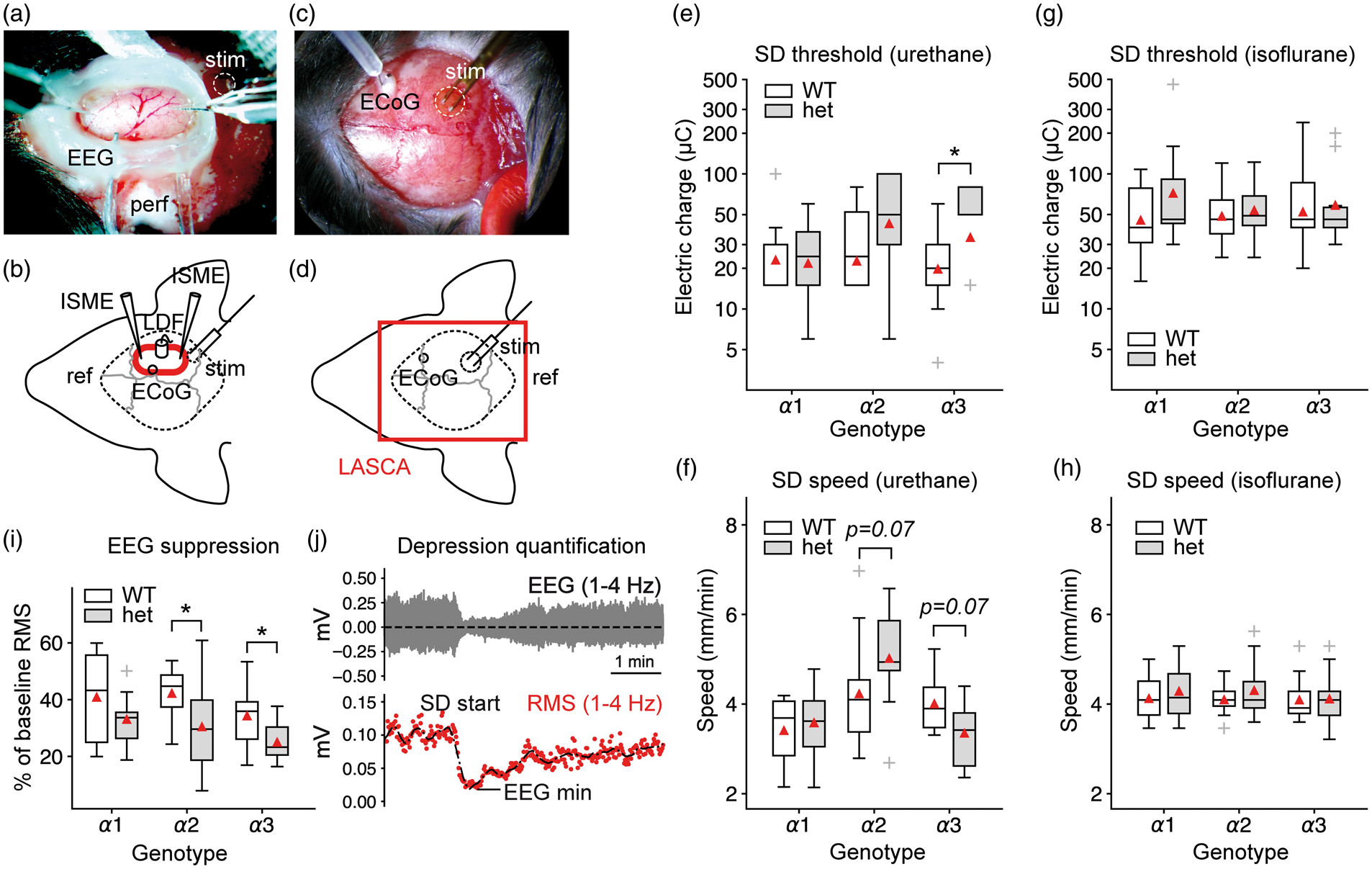

Figure 5.

Na⁺/K⁺-ATPase α isoform deficiency and anesthesia differentially affect SD threshold and speed. (a–b) Urethane/α-chloralose protocol with open cranial window preparation and experimental setting. LDF: laser Doppler flowmetry probe; LASCA: laser speckle contrast analysis imaging area; ref: reference electrode; ECoG: electrocorticography electrode; perf: ACSF perfusion; stim: site of electrical stimulation; ECoG: epidurally placed electrode (c–d) Isoflurane protocol with LASCA imaging through the intact mouse skull. (e) In agreement with acute brain slice experiments under normal [K⁺]_o, α2^+/KOE4 mice do not display a lower SD threshold. Mice deficient for the α3 isoform required a higher threshold charge to trigger SD. Y-axis shows electric charge in micro Coulomb of logarithmically transformed data. (f) In α2^+/KOE4 mice, SD speed showed a tendency towards higher values, whereas the speed tended to be lower in α3^+/KOI4 animals. Both observations did not reach statistical significance. (g–h) α isoform deficiency had no effect on SD threshold and speed under isoflurane anesthesia. (i) Depression of spontaneous activity following SD was more pronounced in heterozygous knock-out mice of all lines (α1, α2, α3) compared to their wild-type littermates. Differences reached statistical significance (P < 0.05) in α2-het and α3-het animals (α2: P = 0.04, α3: P = 0.03). (j) Example of spontaneous activity depression with subsequent recovery. EEG suppression was calculated as RMS amplitude reduction of the bandpass-filtered (1–4 Hz). RMS: root mean square. V_o: extracellularly recorded voltage.

Confirming the brain slice experiments in normal ACSF of this study, α2-deficient mice did not display a reduction in the threshold electric charge to induce SD in-vivo. In fact, the threshold charge tended towards higher threshold charges in α2^+/KOE4 mice, although the difference did not reach statistical significance (α2^+/KOE4: 58.1 ± 38.5 µC, n = 10, WT: 33.4 ± 24.3 µC, n = 12, P = 0.15) (Figure 5(e)). In mice deficient of the α3 isoform, the SD threshold charge was significantly higher compared to WT (α3^+/KOI4: 51.8 ±28.3 µC, n = 9, WT: 24.0 ± 14.9 µC, n = 11, P = 0.04). No effect of α isoform deficiency on SD threshold was observed in α1^+/KOE15 compared to WT (α1^+/KOE15: 26.5 ± 16.7 µC, n = 10, WT: 29.0 ± 26.5 µC, n = 10, P = 0.91). SD speed trended towards higher values in α2-deficient mice, although this difference did not reach statistical significance at the 5% level (α2^+/KOE4: 5.0 ± 1.2 mm/min, n = 9; WT: 4.2 ± 1.2 mm/min, n = 13; P = 0.07) (Figure 5(f)). In contrast to α2-deficient mice, α3^+/KOI4 mice displayed a lower SD speed, although the difference did not reach statistical significance (α3^+/KOI4: 3.4 ± 0.8, n = 9; WT: 4.0 ± 0.7, n = 8; P = 0.07). Changes in DC and [K⁺]_o during SD did not differ significantly between α isoform deficient mice and WT (Supplementary Figure 3). No significant differences were observed in SD threshold and speed comparing α1^+/KOE15, α2^+/KOE4, and α3^+/KOI4 to WT when using isoflurane anesthesia (Figure 5(g) and (h)).

ECoG depression following SD is pronounced in α2- and α3-deficient mice

In electrically active tissue, SD causes spreading depression of spontaneous neuronal activity. To compare ECoG depression between α isoform-deficient mice and WT, we calculated the initial reduction of the root mean square (RMS) amplitude of the bandpass-filtered (1–4 Hz) ECoG following SD. The ECoG depression was more pronounced in α2 isoform-deficient mice (α2^+/KOE4: 30.4 ± 15.5%, n = 10; WT: 42.2 ± 10.0%, n = 9; P = 0.045) and α3^+/KOI4 mice (α3^+/KOI4: 25.0 ± 7.4%, n = 8; WT: 34.3 ± 10.7%, n = 13; P = 0.033) compared to WT. ECoG suppression was not significantly different in α1^+/KOE15 compared to WT (P = 0.4) (Figure 5(i) and (j)).

The result of a pronounced initial reduction of spontaneous activity with largely normal recovery in α2-deficient mice is in agreement with data from another α2 knock-out mouse model. ⁴² In this study, only α2^+/KOE2 mice displayed a difference in the ECoG suppression, whereas the effect was not observed in α2^KOE21 mice ⁴² indicating different degrees of functional impairment following N- and C-terminal deletions in the knock-out mice. A slowed recovery of the spreading depression as assessed by the spontaneous activity in the ECoG has also been reported in a knock-in mouse model of FHM2, ²⁴ whereas evoked potentials recovered in a similar fashion to wild-type animals in the same study and in two FHM1 mouse models. ²⁷

Pronounced post SD oligemia in α2-deficient mice under urethane/α-chloralose anesthesia

Under physiological conditions, the cerebral hemodynamic response to SD is characterized by a considerable hyperemia followed by a post-SD oligemia in most species, such as humans and rats. ⁴³ The rCBF response in mice differs drastically from other studied species ⁴¹ (Figure 6(a)). Typical for the vasomotor response in mice is a pronounced fast initial hypoperfusion that is temporally correlated with the DC shift, a short-lasting rCBF recovery, followed by a pronounced oligemic phase that can last up to an hour (Figure 6(b) to (d), Supplementary Figure 4).

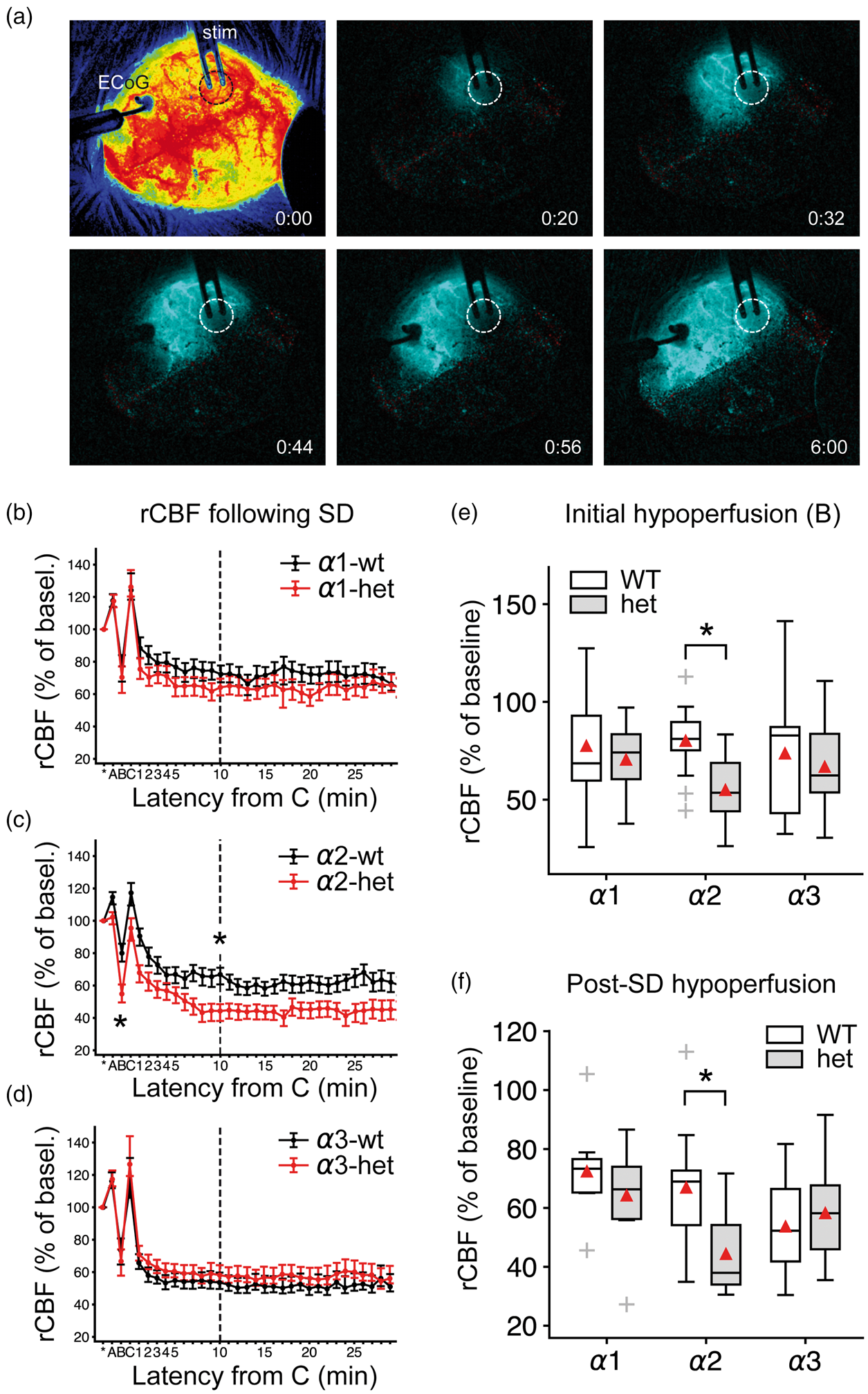

Figure 6.

Pronounced hypoperfusion in α2-deficient mice in the wake of SD under urethane/α-chloralose anesthesia. (a) LASCA imaging in the isoflurane protocol: The first image shows cortical perfusion imaged through the intact mouse skull. Starting from the second image, difference images show the propagating hypoperfusion that characterizes SD in the mouse cortex of the right hemisphere. Regional CBF over time was analyzed and SD speed was calculated. The dashed circle marks the burr hole with the exposed dura mater. Time from SD onset is given in [m:ss] in the lower right. ECoG: electrocorticography, stim: stimulation electrode. (b–d) SD evoked a multiphasic rCBF response in mice denoted A, B, C on the time axis. A: short hyperemia, B: short-lasting hypoemia, C: hyperemia, followed by a long-lasting hypoemia (after C). Data points are given with respect to 5-min baseline rCBF (=100%) prior to SD onset as mean±SEM. (e–f) In α2^+/KOE4 mice, the rCBF following SD showed a pronounced hypoemia in the wake of SD compared to WT during the initial hypoperfusion (marked “B”) and during the long-lasting hypoemia following the short rCBF recovery (marked “C”). By contrast, deficiency of α1 and α3 did not affect post-SD rCBF.

rCBF was measured using an LDF probe centered between two ISMEs in the open cranial window of α isoform deficient mice and WT. In α2-deficient mice, the hypoemic response to SD was significantly more pronounced compared to WT. Both the initial short hypoperfusion (α2^+/KOE4: 44.3 ± 13.9%, n = 10; α2^+/+: 66.8 ± 21.3%, n = 11; p = 0.01) and the long-lasting hypoemia, as measured 10 min after the short, transient recovery (α2^+/KOE4: 53.5 ± 20.1%, n=9; α2^+/+: 78.4 ± 19.1%, n = 11; p = 0.009), decreased by over 30% in α2^+/KOE4 mice compared to WT (Figure 6(e) and (f)). No significant differences in the post SD perfusion were apparent in α3^+/KOI4 and α1^+/KOE15 compared to WT. The pronounced hypoemia in α2^+/KOE4 mice suggests a specific role of the α2 isoform in regulation of the diameter of cerebral vasculature.

Discussion

Increased SD susceptibility in brain slices is specific for α2 haploinsufficiency

In this study, we show that the genetic reduction of the three different Na⁺/K⁺-ATPase α isoforms expressed in the mammalian brain results in distinct SD phenotypes. Only α2^+/KOE4 mice displayed a lower SD threshold in acute brain slices. In principle, this result is in agreement with studies in FHM2 mouse models and supports evidence that α2 haploinsufficiency results in increased SD susceptibility.^23–25 However, the threshold effect in α2^+/KOE4 mice was only present in acute brain slices when the tissue was exposed to elevated baseline [K⁺]_o for an extended period of time. Under normal conditions, the SD threshold was similar to WT in acute brain slices and in-vivo. These findings present a notable difference in the SD phenotype when compared to data from one of the two published FHM2 knock-in mouse lines (α2^+/W887R)^23,25 and a recent knock-out mouse study, ⁴² where an effect on SD threshold was demonstrated under normal [K⁺]_o.

Moreover, in normal ACSF, extracellular K⁺ clearance during and following intense neuronal stimulation was not significantly compromised in α2^+/KOE4 mice. Although this observation is consistent with data from α2^+/G301R mice in a similar protocol, ³⁹ it contrasts with the findings in slices of α2^+/W887R mice, that displayed a higher time constant of the [K⁺]_o decay following the stimulation train compared to WT. ²⁵

The in-vivo recordings support the findings in acute brain slices from α2^+/KOE4 mice. Using two separate experimental paradigms with either urethane/α-chloralose or isoflurane anesthesia, we found no reduction in the electric charge to trigger SD in α2^+/KOE4 mice compared to WT. However, although isoflurane has been employed successfully in SD studies^44,45 including electrical SD induction, ²⁸ the results have to be interpreted with caution, since isoflurane inhibits N-methyl-D-aspartate (NMDA) receptors ⁴⁶ and has been reported to suppress SD.^47–50

The differences between the mild SD phenotype of α2^+/KOE4 mice and published FHM mouse models may be attributable to differences in the genetic modifications of the murine ATP1A2 in knock-out and knock-in mice. Whereas FHM2 mouse models bear missense mutations resulting in the substitution of only a single amino acid,^23,24 expression of the null allele in α2^+/KOE4 mice would lead to an α2 isoform truncated after the first transmembrane domain that would lack approximately 90% of the original protein. ¹⁴ In consequence, the protein would be deficient of essential functional elements, such as the nucleotide-binding (N), the phosphorylation (P), and the actuator (A) domain, which is expected to result in full haploinsufficiency.^51,52

It seems unlikely that the milder SD phenotype of α2^+/KOE4 mice is caused by compensatory overexpression of α1 and/or α3, as semi-quantification of protein and RNA expression has been demonstrated to be at normal levels for α1 and even showed a ∼25% reduction in the α3 isoform. ²⁶ Moreover, since α1-deficiency was not associated with increased SD susceptibility and α3^+/KOI4 mice were more resistant against electrical SD induction in-vivo, interpretation of a possible compensatory overexpression would not be straightforward.

Phenotypic variability can also be observed between other mouse models of Na⁺/K⁺-ATPase α2 haploinsufficiency. For example, Unekawa et al. ⁴² reported higher SD susceptibility in knock-out mice with the N-terminal deletion targeting exon 2 (α2^+/KOE2) compared to animals carrying a C-terminal deletion in exon 21 (α2^+/KOE21). Heterogeneous results have also been reported for FHM2 knock-in mice. In contrast to α2^+/W887R mice,^23,25 α2^+/G301R mice displayed a similar SD speed compared to WT ²⁴ and did not exhibit a significantly affected [K⁺]_o clearance. ³⁹

It seems plausible that differences in experimental approaches contribute to the observed variability of the SD phenotype between different genetically engineered mouse models of α2 deficiency. For example, in this study, we encountered profound SD phenotype differences in the α3^+/KOI4 group when using two different experimental approaches in-vivo. The experimental paradigms differed primarily in anesthesia and preparation to gain access to the mouse neocortex for SD induction and recording (open cranial window and ACSF perfusion vs. small burr holes with intact dura mater). Varying anesthetic regimen and SD induction methods have been employed by the other mouse model studies referred to in this article. In the first published FHM-2 mouse model study, Leo et al. ²³ used urethane to anesthetize α2^+/W887R knock-in mice and induced SD electrically. ²³ By contrast, in the other published FHM-2 mouse model (α2^+/G301R), Bottger et al. ²⁴ used α-chloralose as the main anesthetic and induced SD by injecting potassium acetate into the neocortical tissue. Yet another approach was used by Unekawa et al., ⁴² who investigated SD susceptibility in two distinct α2 knock-out mice using urethane anesthesia and triggering SD by applying increasing concentrations of KCl solution to the brain surface.

Apart from differences in experimental conditions, the observed phenotypic variability in FHM2 mouse models may reflect the remarkably diverse functional abnormalities described as a consequence of over 80 human disease-linked FHM2 mutations. ⁵²

Lack of a single allele of the α2 isoform gene seems to be well compensated in metabolically intact in contrast to stressed tissue

Physiological neuronal activity results in local [K⁺]_o transients of only 0.2–0.4 mM above baseline.^53,54 During vigorous electrical stimulation, [K⁺]_o locally rises up to the so-called ceiling level of ∼12 mM.^54–56 During SD, [K⁺]_o rapidly increases to a level of ∼50 mM. ⁵⁷ In addition to astrocyte-mediated spatial buffering,^58–60 the α2 isoform is ideally suited to oppose such acute rises in [K⁺]_o because of its low affinity, which allows the enzyme to rapidly adapt its turnover over a large range of [K⁺]_o.^61,62 In parallel, α2 activity increases in response to the membrane depolarizing effect of rising [K⁺]_o,^63,64 particularly when associated with the β2 subunit. ³⁹ Further, the maximal catalytic turnover (V_max) of the α2 isoform is several fold higher than that of the α3 isoform for example.^61,65,66

The α2 isoform is also ideally located to counteract acute rises in extracellular glutamate which typically accompany rises in [K⁺]_o. In adult somatosensory cortex of rodents, the α2 enzyme almost completely co-localizes with the astrocytic glutamate transporters GLT-1 (SLC1A2) and GLAST (SLC1A3). Analysis at the ultrastructural level evidenced that this complex preferentially occurs in astrocytic processes around asymmetric glutamatergic synaptic junctions, but not around GABAergic terminals. ¹⁶ The α2 isoform is thus assumed to be responsible for the buildup of Na⁺ and K⁺ gradients necessary for the glutamate uptake in this subcellular microdomain. Impaired α2 function should hence increase the susceptibility to SD based on the notion that SD is a reaction/diffusion mechanism in which neurons release neuroactive substances such as K⁺ or glutamate. These are assumed to diffuse to adjacent neurons where they trigger a self-propagating regenerative process.^67–70 Accordingly, impaired glutamate reuptake was reported in FHM2 knock-in mouse models.^24,25

An intriguing interpretation of our results is that the lack of one α2 allele is very well compensated under normal conditions and only becomes apparent in conditions of challenge. Prolonged exposure to elevated [K⁺]_o appears to be such a stressor. This interpretation is, in a broader sense, in agreement with data from a behavioral study of FHM2 knock-in mice (α2^+/G301R) that described stress-induced abnormalities when compared with WT. ²⁴ Notably, however, elevated baseline [K⁺]_o represents a more extreme and in fact highly pathological stressor, which occurs for example during focal ischemia or after brain hemorrhage. Whereas hemolysis is the source of K⁺ in brain hemorrhage, ⁷¹ ischemia causes activation of Ca²⁺-activated K⁺ channels, resulting in a rise of baseline [K⁺]_o, long before the ATP shortage slows the Na⁺/K⁺-ATPases and SD occurs associated with further rapid rise of [K⁺]_o.^72,73

Because expression of the α2 isoform is reduced by about ∼50% in α2^+/KOE4 mice, ²⁶ it is conceivable that the reduced gene dosage is unmasked only in conditions where transport capacity is exhausted and adaptation would require upregulation. Regulation of the intrinsic Na⁺/K⁺-ATPase activity depends on substrate concentration (K⁺, Na⁺, ATP), interaction with FXYD proteins and covalent modification, such as glutathionylation and phosphorylation.^36,74 Further activity increase requires the insertion of additional Na⁺/K⁺-ATPase enzymes into the plasma membrane through mobilization from endosomal pools,^74,75 which might consequently unmask a reduced protein expression.

An additional mechanism could potentially aggravate α2 isoform deficiency under conditions of high [K⁺]_o load and promote decompensation of its homeostatic function: Previous studies have demonstrated a decrease of the ouabain-suppressible α2/α3 portion of the total Na⁺/K⁺-ATPase activity in response to elevated baseline [K⁺]_o. It has been suggested that this reduction did not result from loss of high-energy phosphate levels or modifications in protein or mRNA expression but from modifications of specific active sites, trapping the enzyme in an inactive phosphorylated state. ⁷⁶

Pronounced post-SD oligemia in α2-deficient mice

Mice deficient of the α2 isoform showed pronounced post-SD hypoemic responses. This could result from abnormal Ca²⁺ handling leading to enhanced vasoconstriction in the wake of SD. A multitude of studies have pointed to a distinct role of the α2 isoform in controlling local Ca²⁺ concentration and thereby modulating the release from intracellular Ca²⁺ stores. ⁷⁷ Functional coupling of the α2 isoform with the Na⁺/Ca²⁺-exchanger (NCX) ⁷⁸ was proposed as the mechanism by which the local Ca²⁺ concentration increases and in consequence the concentration in the endoplasmic/sarcoplasmic reticulum. ⁷⁹ In the brain, the α2 isoform is highly expressed in glial and vascular smooth muscle cells (VSMCs) and the observed vasoconstrictive effect could be mediated by augmented intracellular Ca²⁺ transients in either cell type. In VSMCs and astrocytes, ouabain has been found to induce intracellular Ca²⁺ increases.^12,15 Augmented Ca²⁺ transients in astrocytic endfeet were reported to cause constriction in arterioles. ⁸⁰ The pronounced hypoemic rCBF response in α2^+/KOE4 mice is in agreement with data from α2^+/G301R mice that have been described to exhibit enhanced contractility of cerebral arteries. ⁸¹ This study identified higher Ca²⁺ sensitivity as opposed to increased Ca²⁺ release as the cause of enhanced contractility. The effect was reversible by cSrc inhibition. In addition, the resting blood flow in the middle cerebral artery was reduced in α2^+/G301R mice.

Higher SD resistance of α3-deficient mice in-vivo

Despite significant Na⁺/K⁺-ATPase reduction in whole brain homogenates, α3^+/KOI4 mice were more resistant against electrically induced SD in-vivo under urethane/α-chloralose anesthesia compared to WT and displayed a lower SD speed. In a behavioral study, α3^+/KOI4 mice were shown to have a ∼40% lower hippocampal NMDA receptor NR1 isoform expression compared to WT and more pronounced learning deficits compared to α2-deficient mice. ²⁶ One possible explanation of the decreased NMDA receptor expression is that chronic overexcitability during development may result in compensatory NMDA downregulation to reduce excitotoxic damage to neurons. Reduced glutamate receptor availability could explain the diminished efficiency of electrical SD induction since the induction process is likely to depend on glutamate release. ⁸²

Conclusion

In summary, the data demonstrate distinct SD phenotypes as a consequence of genetic disruption or pharmacological inhibition of the three Na⁺/K⁺-ATPase α isoforms expressed in the brain. Both, the astrocytic and neuronal isoform differentially affect the SD phenotype in heterozygous knock-out mice, whereas lack of one allele of α1, the ubiquitous isoform, had no significant effect on SD-associated features.

The dependence on additional external factors to reveal the SD phenotype in α2^+/KOE4 mice presents a mechanism that may model the episodic nature of migraine aura, where attacks depend on a combination of genetically determined susceptibility and challenging environmental conditions. ⁸² In addition, the presented features of the different Na⁺/K⁺-ATPase α isoforms are important for conditions during which the SD continuum is now increasingly recorded while the patient is on the neurocritical care unit, such as traumatic brain injury, intracerebral spontaneous hematoma, aneurysmal subarachnoid hemorrhage, malignant hemispheric stroke or cardiac arrest.^1,83 Better understanding of the different isoforms could inform the development of novel therapeutic strategies in all these conditions.
