Evidence for a “metabolically inactive” inorganic phosphate pool in adenosine triphosphate synthase reaction using localized 31P saturation transfer magnetic resonance spectroscopy in the rat brain at 11.7 T

Abstract

With the increased spectral resolution made possible at high fields, a second, smaller inorganic phosphate resonance can be resolved on ³¹P magnetic resonance spectra in the rat brain. Saturation transfer was used to estimate de novo adenosine triphosphate synthesis reaction rate. While the main inorganic phosphate pool is used by adenosine triphosphate synthase, the second pool is inactive for this reaction. Accounting for this new pool may not only help us understand ³¹P magnetic resonance spectroscopy metabolic profiles better but also better quantify adenosine triphosphate synthesis.

Introduction

Phosphorus (³¹P) magnetic resonance spectroscopy (MRS) can be used to non-invasively quantify metabolites involved in energy metabolism, such as adenosine triphosphate (ATP), phosphocreatine (PCr) and inorganic phosphate (Pi). It has been widely used to study muscles but also brain and liver (Befroy et al. ¹ and references herein). In addition to the metabolic profile, ³¹P MRS has the added benefit of allowing the non-invasive measurement of pH. ² Furthermore, saturation transfer experiments can be used to quantify reaction rates between exchanging pools ³ and can be of particular interest when studying brain metabolism together with other methods. ⁴

At high magnetic fields, there is an increase in ³¹P spectral resolution that can help differentiate peaks that would otherwise overlap. Previous studies in the muscle have reported resonances between 5.1 and 5.3 ppm that could be attributed to a second pool of Pi (the main pool resonating at 4.9 ppm). These studies suggested that the alkaline pool of Pi may originate from extracellular space, ⁵ blood ⁶ or mitochondrial space.^7,8 Other studies at lower fields have been trying to deconvolve the broad Pi peak into various number of pools and attribute them to specific cellular compartments in isolated brains.^9–11 A very recent study in the human brain ¹² found the second Pi pool resonating at 5.24 ppm to be insensitive to selective inversion of PCr and γ-ATP, ¹³ suggesting the absence of chemical exchange with Pi and thus supporting the extra-cellular hypothesis.

The aim of this study was to combine high magnetic field (11.7 T) and spectroscopic localization to achieve good spectral resolution and test this hypothesis, i.e. characterize Pi pools (noted Pi_4.9 and Pi_5.3) in the rat brain, including saturation transfer experiments to estimate the participation of each pool to ATP synthesis. We also evaluated how not accounting for the existence of this smaller pool of Pi could possibly result in biased estimation of ATP synthase reaction rate (k_fATPase).

Methods

Animal preparation

This study was conducted using five Sprague Dawley male rats (8–12 months old). All experiments were conducted according to the French regulation (Directive 2010/63/EU—French Act Rural Code R 214-87 to 131). The animal facility was approved by veterinarian inspectors (authorization #B 92-032-02) and complies with Standards for Humane Care and Use of Laboratory Animals of the Office of Laboratory Animal Welfare (OLAW—#A5826-01). All experimental procedures were approved by the CEA Ethic Committee (committee #44, approval #10-057). Reporting of this work complies with ARRIVE guidelines. Rats were scanned using a horizontal 11.7 T Bruker scanner (Bruker, Ettlingen, Germany) and a double tuned ¹H-³¹P transmit-receive surface coil (Rapid Biomed GmbH, Rimpar, Germany). Rats were anesthetized with isoflurane at a concentration kept under 2% to minimize effects on metabolism, ¹⁴ and fixed on a stereotaxic frame to minimize motion artifacts.

Data acquisition

Anatomical images were obtained using a standard T2 sequence and used to position a 10 × 7 × 11 mm³ voxel covering most of the brain (Figure 1). Localized shimming (∼20–25 Hz) was automatically performed after acquisition of a B0 map using the “MAPSHIM” Bruker routine.

Figure 1.

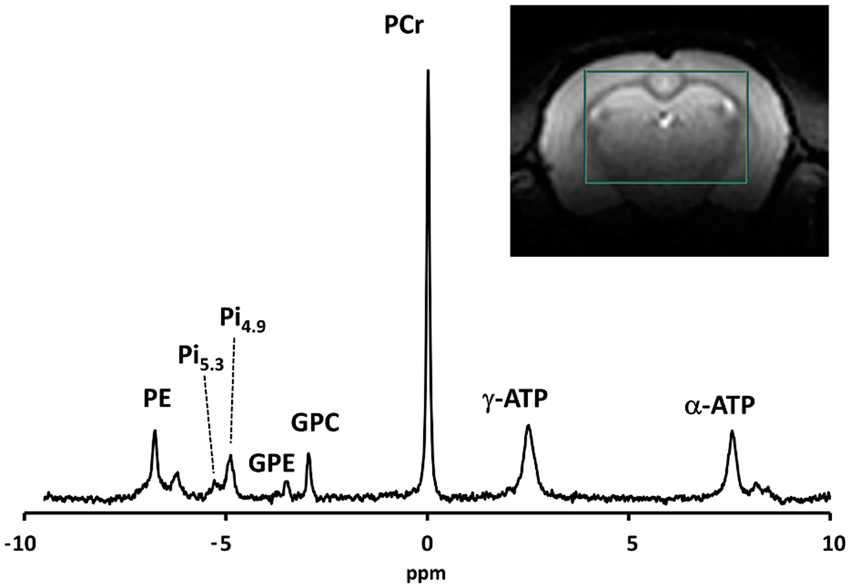

Unsaturated ³¹P spectra acquired in a large voxel of the rat brain, averaged over two animals, showing different resonances; phosphoethanolamine (PE), the two pools of inorganic phosphate (dominant Pi_4.9, and newly resolved Pi_5.3), glycerol 3-phosphorylethanolamine (GPE), glycerol 3-phosphorylcholine (GPC), phosphocreatine (PCr), and ATP resonances (terminal γ-ATP and proximal α-ATP).

Spectroscopic localization was performed using a 3D-ISIS module (TR = 8 s) with 3-ms adiabatic hyperbolic secant inversion pulses (10-kHz bandwidth), and 2-ms adiabatic half passage excitation pulse. In addition to the unsaturated spectrum (t_sat = 0), spectra were acquired at five different saturation times (t_sat = 0.53, 1.05, 2.10, 3.15, 4.19 s). To be less sensitive to B1 inhomogeneity, selective saturation of γ-ATP consisted of a BISTRO pulse train of hyperbolic secant pulses (50-ms each duration, 100-Hz bandwidth) with 5-ms gradient spoiling between pulses. ¹⁵ Each spectrum was acquired in 34 min, keeping total examination time under 4 h. To control for direct saturation effects on the spectra, two other rats were scanned using the same protocol with the selective saturation placed symmetrical to γ-ATP resonance relative to Pi, at all t_sat. No detectable signal loss was observed on the dominant Pi peak, demonstrating the absence of significant RF bleed-over effect in our experimental conditions. Hence, in the following, Pi signal attenuations will be calculated relative to the unsaturated spectrum, rather than relative to symmetrically saturated spectra. This approach allows devoting the whole experiment to acquiring “useful” saturation data, i.e. acquire data for more saturation times, and with more averaging.

Data analysis

Spectra were averaged over all five animals for each t_sat to increase signal-to-noise ratio. This averaged dataset was then analyzed with LCModel ¹⁶ using a simulated basis set as described in Deelchand et al. ¹⁷ Both peaks were visible at the expected Pi resonances, one at 4.9 and the other at 5.3 ppm, and the basis set was built accordingly. The exact chemical shift between each Pi peak and PCr resonance was used to calculate pH in each compartment according to this equation:

$\mathrm{pH}=\mathrm{pKa}+\log (\frac{\delta -{\delta }_{\text{ha}}}{{\delta }_{\text{a}}-\delta })$

Limiting shifts are δ_ha = 3.27 (acidic species) δ_a = 5.68 (basic species) and deprotonation constant is pKa = 6.73. ²

The decrease of Pi longitudinal magnetization during saturation transfer was modeled using Bloch equations modified to account for chemical exchange between Pi and ATP. ¹⁸ Non-linear fitting was applied to estimate both T1_int (the intrinsic T1, in absence of exchange, i.e. during saturation) and k_fATPase and Monte-Carlo simulations over 500 repetitions was used to derive the error on estimates. Because TR was long as compared with T1, the precise value of T1_mix (the T1 in presence of exchange, i.e. during sequence dead time) had only marginal impact of k_fATPase, as we could verify using a complete model including T1_mix. ¹⁸

Results

Amount and pH of Pi pools

Figure 1 shows a localized ³¹P spectrum acquired in the rat brain (t_sat = 0) with two separate peaks visible around 5 ppm. Each peak is identified with a CRLB of less than 6% and the correlation coefficient between them is weak (0.064). The pH found for each peak was pH_4.9 = 7.06 and pH_5.3 = 7.39, respectively. The signal ratio Pi_5.3/Pi_total was found to be 19%.

Progressive saturation

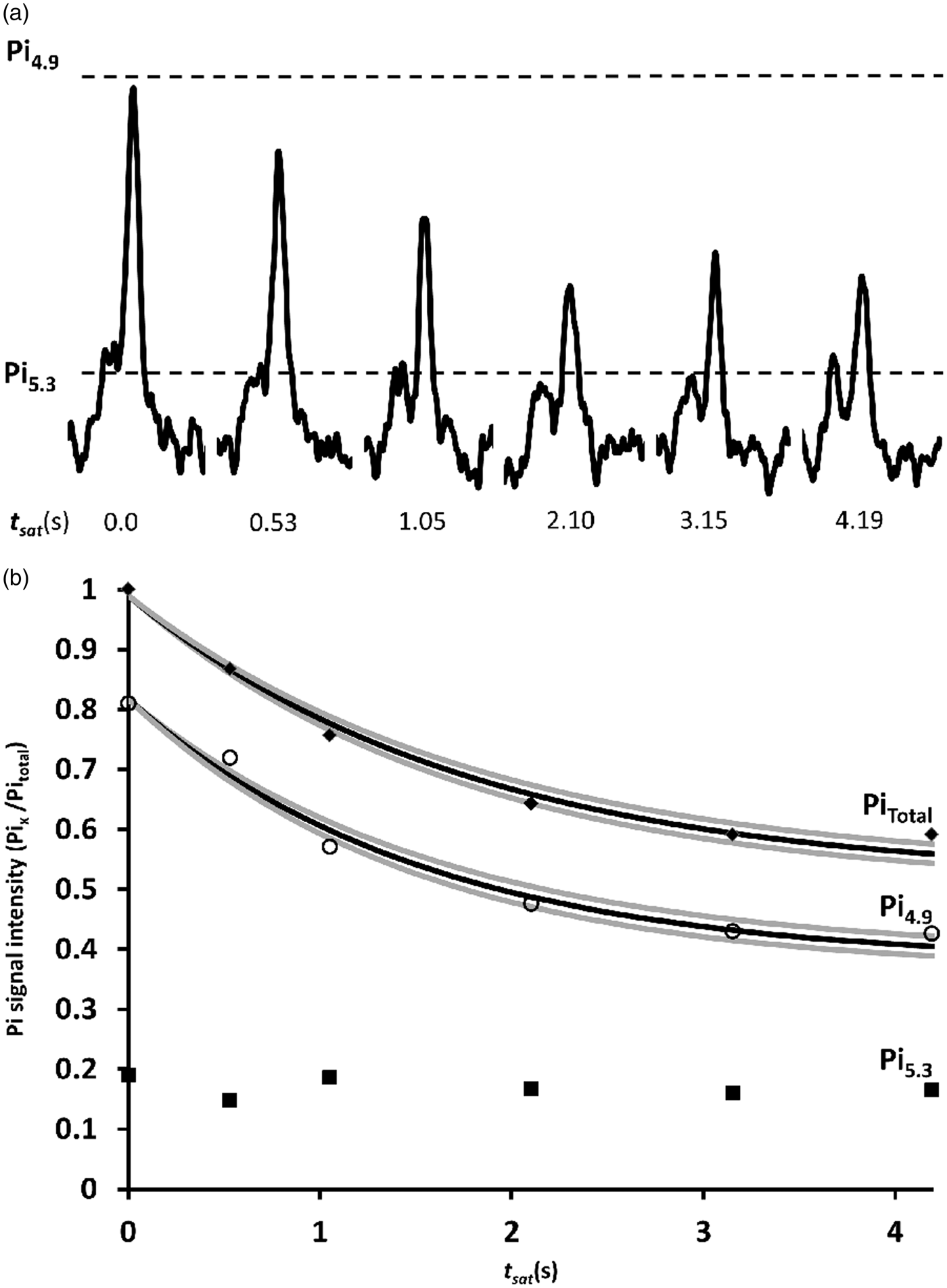

Spectra averaged over five rats and zoomed on the Pi peaks at different saturation times are shown in Figure 2(a). There was no significant decrease of signal intensity for phosphomonoester (PE and PCho) and phosphodiester (GPE and GPC) resonances as t_sat increased (not shown). The signal decrease of the largest peak at 4.9 ppm reflects the strong chemical exchange between Pi (Pi_4.9) and ATP. Figure 2(b) shows the best fit for Pi_4.9 signal attenuation and total Pi attenuation yielding k_fATPase = 0.37 ± 0.03 s⁻¹ and k_fATPase = 0.28 ± 0.02 s⁻¹ for Pi_4.9 and Pi_total, respectively. Meanwhile, the signal of alkaline Pi was not apparently affected by progressive saturation (Figure 2(a) and (b)), demonstrating that this pool is not involved in ATP synthesis at detectable levels.

Figure 2.

(a) Signal decrease of dominant Pi when applying selective saturation on the γ-ATP pool in exchange with Pi. The weaker Pi pool remains unaffected by the downfield saturation suggesting no interaction with γ-ATP. (b) Normalized attenuation of the averaged signal (n = 5) of total Pi (♦) and intracellular Pi (◯) as a function of saturation time. The alkaline Pi_5.3 (▪) was also plotted to show its independence to γ-ATP saturation. The best nonlinear fit for each Pi_4.9 and Pi_total is shown in black line and the uncertainty on k_fATPase is represented as lower and upper bounds in lighter shade.

Discussion

Extracellular origin of the 5.3 ppm Pi peak

As far as we know, this is the first report of two pools of Pi in the rat brain. To exclude the possibility of an alteration in metabolic profile due to the anesthetic used, e.g. as observed for isoflurane on ¹H spectra (resulting in lactate increase ¹⁹ ), we acquired control spectra on a rat anesthetised with benzodiazepine (midazolam) and medetomidine (2.5 and 0.25 mg/kg, respectively). The same peaks in similar concentrations were observed, excluding some metabolic effect due to isoflurane.

Previous studies have reported observing a second Pi peak 0.2–0.4 downfield of the main Pi_4.9 peak in muscles and brain. All studies have excluded the blood contamination possibility, on the basis of small partial volume, low concentration and lack of 2,3-DPG in the spectra. Some reports assign a mitochondrial origin to the second Pi peak in the muscle, with a chemical shift actually closer to 5.1 ppm ⁸ (and references therein), while others assign an extracellular origin in the brain.^20,21 The different origin of this second Pi in brain ¹² compared to muscle ⁸ is also suggested by the large difference in T1 (approximately four times longer in the brain).

The fact that the Pi_5.3 peak is insensitive to γ-ATP saturation shows that this pool does not participate in de novo ATP synthesis at the time scale of the experiment. This was shown here with saturation transfer in the rat brain, and with inversion transfer techniques in the human brain. ¹² Using saturation transfer allowed achieving a ∼50% signal decrease for Pi_4.9, i.e. a much stronger contrast compared to inversion transfer (25% maximal signal decrease). While measurement noise may have partly masked 25% signal attenuation for Pi_5.3 (see Figure 6(a) in Ren et al. ¹² ), it is less likely that it may have masked a 50% Pi_5.3 decrease in the present work. This strongly reinforces the idea that Pi_5.3 is not in exchange with ATP, thus adding another argument in favor of the extracellular origin of Pi_5.3 in the brain.

Interestingly, we estimated that the extracellular Pi represents 20% of the total Pi in the rat brain, which is close to what has been reported in Ren et al. ¹² (35%) and Kintner et al. ²⁰ and Du et al. ²¹ (25%). Considering that this corresponds well to the generally accepted ²² volume fraction of each of those compartments in the brain, these results suggest that Pi concentrations are similar in the intracellular and extracellular spaces.

Potential bias on k_fATPase and V_ATP determination

The k_fATPase value found when modeling only the Pi_4.9 signal is ∼30% higher than when taking the total Pi signal in the voxel. This increase is expected since a higher proportion of the signal considered is in direct exchange with ATP. Remarkably, the values for ATP synthesis rates (V_ATP = k_fATPasex[Pi]) calculated both ways (considering Pi_total or Pi_4.9) are very close. This can be explained by the fact that the lower k_fATPase is multiplied by a higher concentration and vice versa when considering total Pi or dominant Pi only, respectively. Using a literature value of 1.3 mM for [Pi_total], and a 1.1 g/mL brain density,^18,23 ATP synthesis rate can be estimated to V_ATP = 23.2 ± 2.2 µmol g⁻¹ min⁻¹ considering only dominant Pi, and V_ATP = 22.0 ± 1.4 µmol g⁻¹ min⁻¹ considering total Pi. In other words, this means that V_ATP values from past studies based on total Pi attenuation may be essentially correct in practice, despite the presence of extracellular Pi in the broad peak, while the values of k_fATPase may be significantly underestimated.

Note that estimated k_fATPase and V_ATP values are slightly higher than in previous reports in awake Humans^12,18,21 (10.6 µmol g⁻¹ min⁻¹ on average), macaques under propofol ⁴ (7.8 µmol g⁻¹ min⁻¹), or rats under isoflurane ²⁴ and halothane ²⁵ (12.1 and 19.8 µmol g⁻¹ min⁻¹, respectively). Here, we optimized the saturation module to neglect RF bleed over and calculate signal attenuation relative to t_sat = 0, rather than relative to symmetric experiment as in previous works. A small RF bleed over, below our detection capabilities, could explain this slight bias towards higher values. This does not affect the findings of the present work regarding the potential bias induced on k_fATPase, and limited bias on V_ATP when considering total Pi.

Conclusion

In this work, we acquired localized ³¹P spectra in the rat brain at 11.7 T to characterize a second pool of Pi at more alkaline pH than the main Pi resonance. Based on pH measurements and saturation transfer MRS, we assigned an extracellular origin to this pool and showed that significant bias can be introduced in k_fATPase measurements when not accounting for both pools. However, this bias does not strongly impact the ATP synthesis rate (V_ATP) estimation. Differentiating between intra and extracellular pools may help elucidate some mechanisms at stake under pathological conditions. For example, based on total Pi chemical shift at lower field, we have reported that pH increased in a rat model of Huntington’s disease as well as in patients, which we hypothesized to be of intracellular origin. ²⁶ Separating both pools could allow firmly establishing that the observed shift in Pi_total is not due to increased extracellular pH or increased Pi_5.3 content, and that only intracellular pH is affected.
