Abstract
Background:
End-stage liver disease is a common cause of morbidity and mortality worldwide, yet little is known about its symptomatology and impact on health-related quality of life.
Aim:
To describe symptom prevalence and health-related quality of life of patients with end-stage liver disease to improve care.
Design:
Systematic review.
Data sources:
We searched eight electronic databases from January 1980 to June 2018 for studies investigating symptom prevalence or health-related quality of life of adult patients with end-stage liver disease. No language restrictions were applied. Meta-analyses were performed where appropriate.
Results:
We included 80 studies: 35 assessing symptom prevalence, 41 assessing health-related quality of life, and 4 both. The instruments assessing symptoms varied across studies. The most frequently reported symptoms were as follows: pain (prevalence range 30%–79%), breathlessness (20%–88%), muscle cramps (56%–68%), sleep disturbance (insomnia 26%–77%, daytime sleepiness 29.5%–71%), and psychological symptoms (depression 4.5%–64%, anxiety 14%–45%). Erectile dysfunction was prevalent (53%–93%) in men. The health-related quality of life of patients with end-stage liver disease was significantly impaired when compared to healthy controls or patients with chronic liver disease. Compared with compensated cirrhosis, decompensation led to significant worsening of both components of the 36-Item Short Form Survey although to a larger degree for the Physical Component Summary score (decrease from average 6.4 (95% confidence interval: 4.0–8.8); p < 0.001) than for the Mental Component Summary score (4.5 (95% confidence interval: 2.4–6.6); p < 0.001).
Conclusion:
The symptom prevalence of patients with end-stage liver disease resembled that of patients with other advanced conditions. Given the diversity of symptoms and significantly impaired health-related quality of life, multidisciplinary approach and timely intervention are crucial.
Keywords
End-stage liver disease is a major cause of morbidity and mortality worldwide, causing symptoms and reducing health-related quality of life.
There are no systematic reviews of symptom prevalence or health-related quality of life of patients with end-stage liver disease.
The symptom prevalence of patients with end-stage liver disease resembled that of patients with other advanced conditions.
The most frequently reported symptoms were pain, breathlessness, muscle cramps, sleep disturbance, depression, anxiety, and erectile dysfunction.
Decompensation led to significant worsening of health-related quality of life.
Given the diversity of symptoms and significantly impaired health-related quality of life, multidisciplinary approach and timely intervention are crucial in the care of patients with end-stage liver disease.
Introduction
End-stage liver disease is the final stage of a liver disease when liver failure is usually irreversible and liver transplantation is the only curative treatment. Worldwide, end-stage liver disease is a common cause of morbidity and mortality.1–6 A global estimate of its mortality in 2010 reported more than 1 million patients died from end-stage liver disease equating to about 2% of all deaths.4,5 In Europe, liver disease is the seventh leading cause of death. 6 In the United Kingdom, liver disease is currently the fifth most common cause of death in those under 65 years of age, and the number of people who die from end-stage liver disease is still increasing. 1 In the United States, end-stage liver disease is the 12th leading cause of death overall, and the 7th leading cause of death in people aged 25–64 years. 2 Compared to other end-stage organ failure or terminal illness, end-stage liver disease disproportionately affects younger age groups, and the years of life lost is estimated to be around 20 years.7,8
Cirrhosis, which is defined as the histological development of advanced liver fibrosis, is a final pathway in patients with chronic liver injury from a variety of etiologies.9,10 Alcoholic liver disease and hepatitis C are the main causes in developed countries, while hepatitis B is the most common cause in most parts of Asia and sub-Saharan Africa. 10 Patients with cirrhosis who have not developed major complications are classified as having compensated cirrhosis. As progressive liver damage occurs, the disease may proceed to decompensated cirrhosis, that is, end-stage liver disease. The major complications of decompensation include variceal bleeding, ascites, encephalopathy, spontaneous bacterial peritonitis, hepatorenal syndrome, and hepatopulmonary syndrome. Once decompensation has occurred, the 5-year mortality without transplantation is as high as 85%. 10 Patients with end-stage liver disease face physical, psychological, and complex social and financial problems because the majority of them are in their working age.7,11
Although patients with end-stage liver disease are vulnerable and at risk of death, it is surprising that such little attention has been paid to describing their symptom prevalence and health-related quality of life. Another problem comes from the ambiguous study population representing patients with end-stage liver disease in previous research, such as patients with chronic liver disease, advanced liver disease, or liver cirrhosis without mentioning decompensation or not. Furthermore, studies looking into health-related quality of life of patients with end-stage liver disease have predominantly focused on the health-related quality of life of liver transplant recipients, not of candidates experiencing end-stage liver disease. 12
This study aimed to describe symptom prevalence and health-related quality of life of patients with end-stage liver disease in order to understand their needs and to provide a good reference for developing tailored care services for them.
Materials and methods
Study design
We undertook a systematic review and meta-analysis, which was conducted and reported following the PRISMA (preferred reporting items for systematic reviews and meta-analyses) statement. 13
Search strategy and selection criteria
We searched eight electronic databases including Cochrane Library (Wiley), MEDLINE (Ovid), EMBASE (Ovid), PsycINFO (Ovid), CINAHL (EBSCO Host), British Nursing Index (ProQuest), SCOPUS (Elsevier), and Web of Science (Thomson Reuters), between 1 January 1980, and 30 June 2018, using a combination of medical subject headings, title/abstract keywords, and free text (see Supplementary Material). In addition to database searching, hand searching (from reference lists of all of the eligible studies, key studies, and key journals) was performed. No language restrictions were applied, and the full eligibility criteria are presented in Table 1.

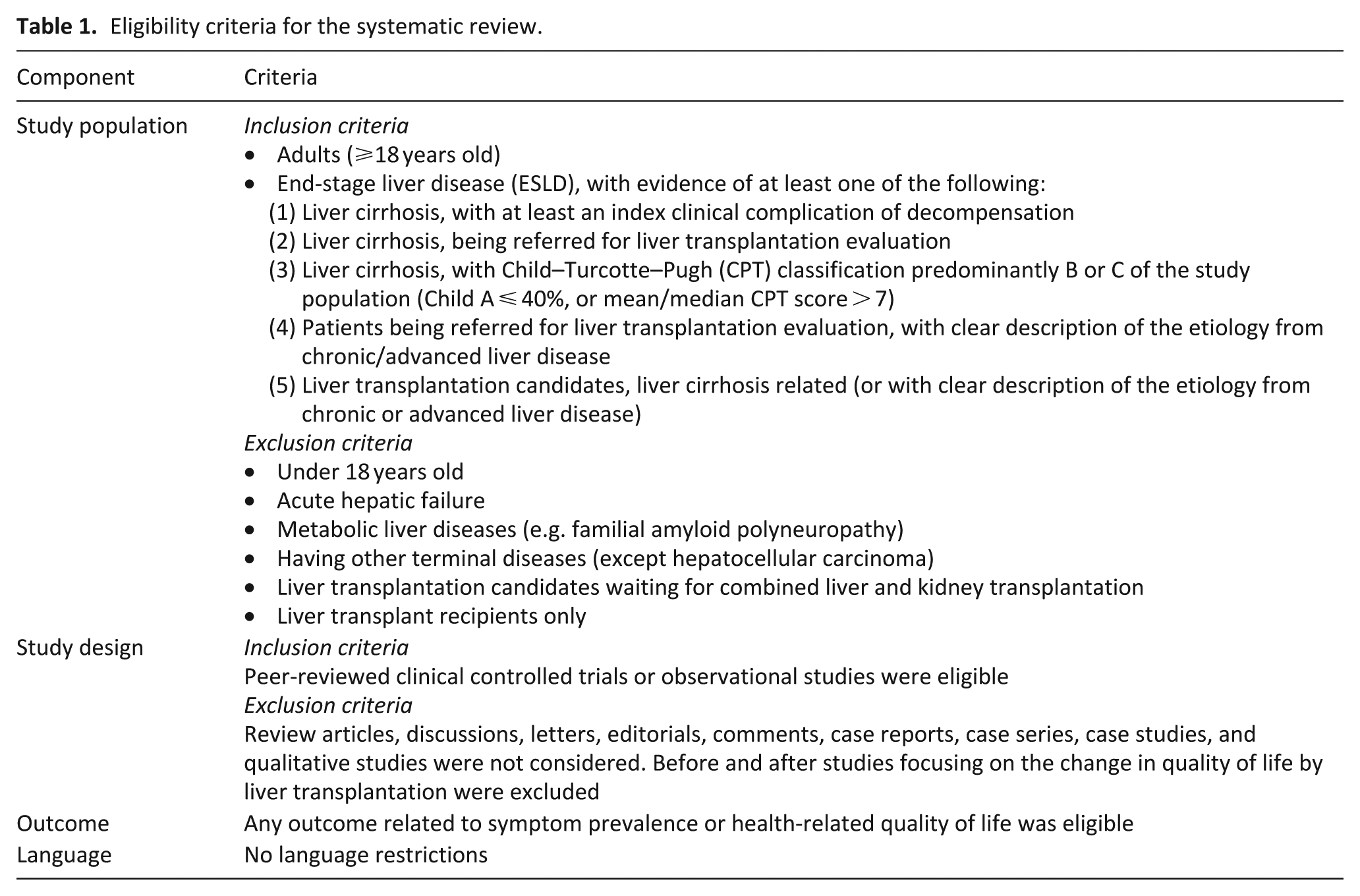

Eligibility criteria for the systematic review.
Following the search, two authors (J.-K.P. and N.H.) screened all titles and abstracts and excluded irrelevant papers independently. Then J.-K.P. assessed the full texts of all the remaining studies and discussed with N.H. as needed. Disagreement was resolved via discussion.
Data analysis
Data were extracted from all included studies (by J.-K.P.) using a data extraction spreadsheet. For each study, author/year, place of study, study design, study population, patient number, age, sex, etiology, Child–Turcotte–Pugh classification (or score), 14 percentage of patients with hepatocellular carcinoma, Model for End-Stage Liver Disease score,15–17 symptom prevalence or health-related quality of life and their measurement tools, and comparison groups (if applicable) were recorded.
For quality assessment, J.-K.P. assessed all studies for risk of bias by using the validated review tool (QualSyst, score 0–1). 18 The articles scoring greater or equal to 0·8 were regarded as high quality, 0·6–0·79 as medium, while less than 0·6 as poor quality. A random 10% of the assessments were independently checked for accuracy and completeness by N.H. One review author (W.G.) resolved disagreement. Articles graded as poor quality (score < 0·6) were not considered for final data synthesis.
For symptom prevalence of patients with end-stage liver disease, data were summarized by each symptom. As for health-related quality of life, a descriptive summary was given, and the results were combined for meta-analysis if appropriate, using a random effect model due to the degree of heterogeneity (defined if the p value of chi-square test was less than 0.1 or the I2 statistic was more than 40%). 19 Forest plots were used to display the results. Stata/SE 14 (STATA, College Station, TX) was used for all statistical analyses.
Results
A total of 80 studies were included in the final review (Figure 1). Electronic database searching identified 39,661 references. A total of 5473 duplicate references were removed, and a further 33,865 references were excluded after title/abstract screening and further deduplication. Seven additional studies were identified from hand searching. The full-text of 330 articles were assessed, and 87 articles were kept for quality assessment. Seven papers were graded as low quality and therefore excluded. Among the remaining, 35 described symptom prevalence and 41 provided information on health-related quality of life, while four assessed both outcomes.

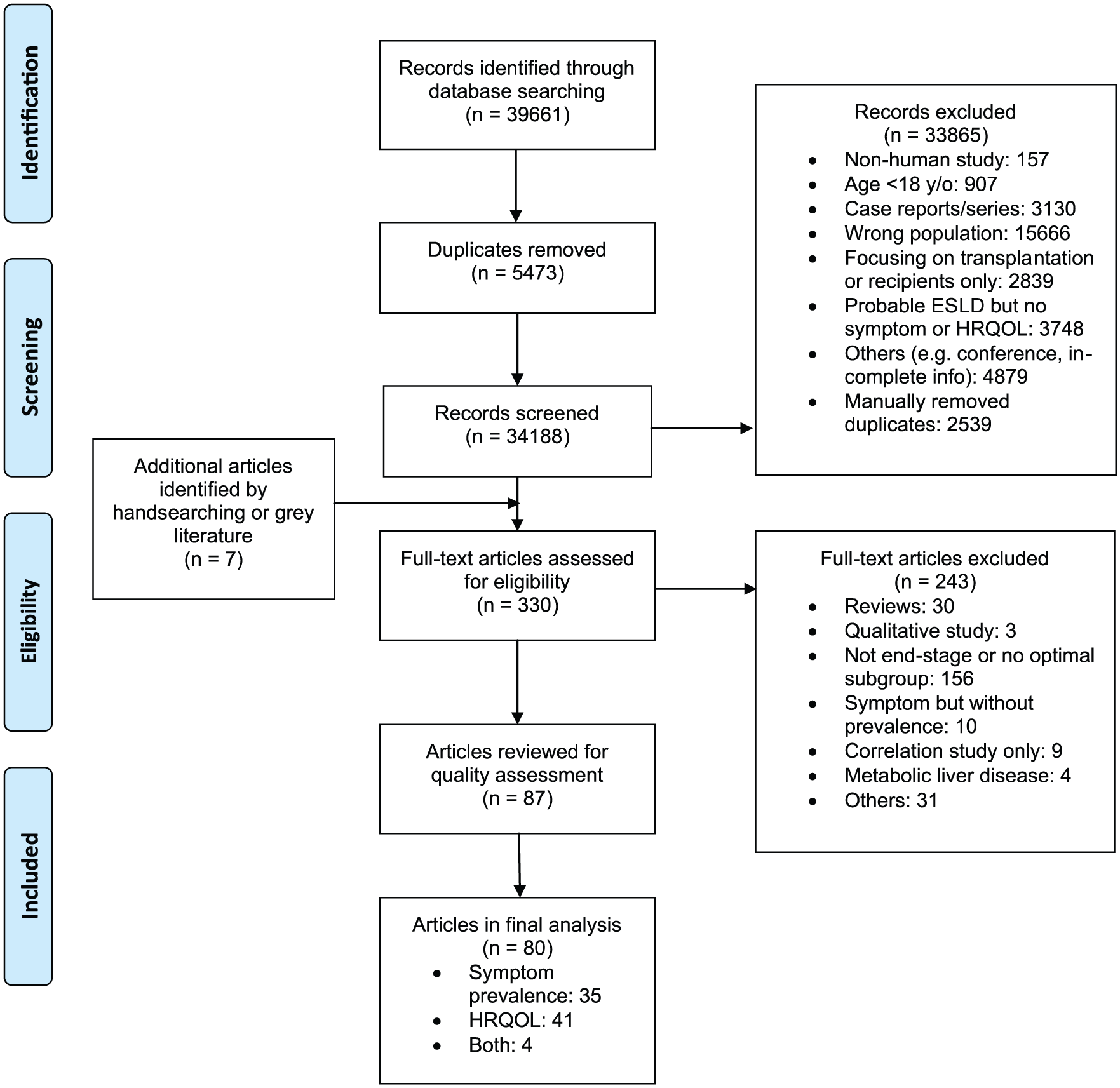

PRISMA flow diagram.
Symptom prevalence of patients with end-stage liver disease
A total of 39 studies assessing symptom prevalence were included (see Supplementary Material).20–58 The majority reported data from North America (16) and Europe (14), although Asia (8) and Africa (1) were also covered. Most were cross-sectional studies conducted while patients were outpatients or stable after hospitalization. The patients were middle aged and predominantly male. For disease severity, 26 studies (67%) reported the percentage of patients with Child–Turcotte–Pugh class A or overall Child–Turcotte–Pugh score and 17 of 33 studies (52%) which were published between 2002 and 2018 provided Model for End-Stage Liver Disease scores. The percentage of comorbidity with hepatocellular carcinoma was reported in 18 studies (46%), ranging from 0% to 46·9%.
The instruments for symptom measurement varied across studies. For physical symptoms, most studies focused on one or two symptoms, and only three studies evaluated more than three symptoms at the same time.24,40,46 The only study systematically reporting the average number of symptoms in patients with end-stage liver disease was conducted by Baumann et al., using liver-specific Edmonton Symptom Assessment System to evaluate 50 liver transplantation candidates. Among them, 80% had at least one moderate to severe symptom, and the average number of moderate to severe symptoms was 4·1. 24
The summary of symptom prevalence of patients with end-stage liver disease is shown in Table 2. Pain was one of the most frequently reported symptoms across the studies with a prevalence ranging between 30% and 79%.36,40,43,45,46 More specifically, Rogal et al. surveyed 193 advanced liver cirrhosis patients with a mean Child–Turcotte–Pugh score of 7.6. The authors found that 56% of patients’ pain occurred at least daily, and pain-related disability was noted in 75% of the whole population. The most frequent locations of their pain were the abdomen and lower back, which was similar in another study. 36 Unfortunately, the pain of patients with end-stage liver disease was not well relieved. In the retrospective study conducted by Madan et al., 90% of 108 patients with end-stage liver disease were prescribed medication for pain, but only 33% of them received favorable pain relief. Furthermore, 74% of patients had already been given at least three medications for pain. 36 Muscle cramps were also reported in several studies, occurring in 56%–68% of patients, but the given time period of the definition of prevalence varied across studies.21–23,25,26 Other most frequently reported physical symptoms were insomnia (26%–77%),28,29,38,39,42,58 erectile dysfunction (53%–93%),27,32,35,48,51 breathlessness (20%–88%),20,34,40,46 and daytime sleepiness (29.5%–71%).28,38,39,53,55 Fatigue and pruritus, which are regarded as disease-specific symptoms, were only reported in two articles for each, with a prevalence of 52%–86% and 47%–64%, respectively.25,42,56,57 Other symptoms reported in only one article were as follows: dyspepsia (85%), 30 lower urinary tract symptoms (in men, 38%), 37 nausea (58%), 40 and poor appetite (49%). 40 The prevalence of abdominal symptoms (e.g. distension, bloating) were not reported in these studies.

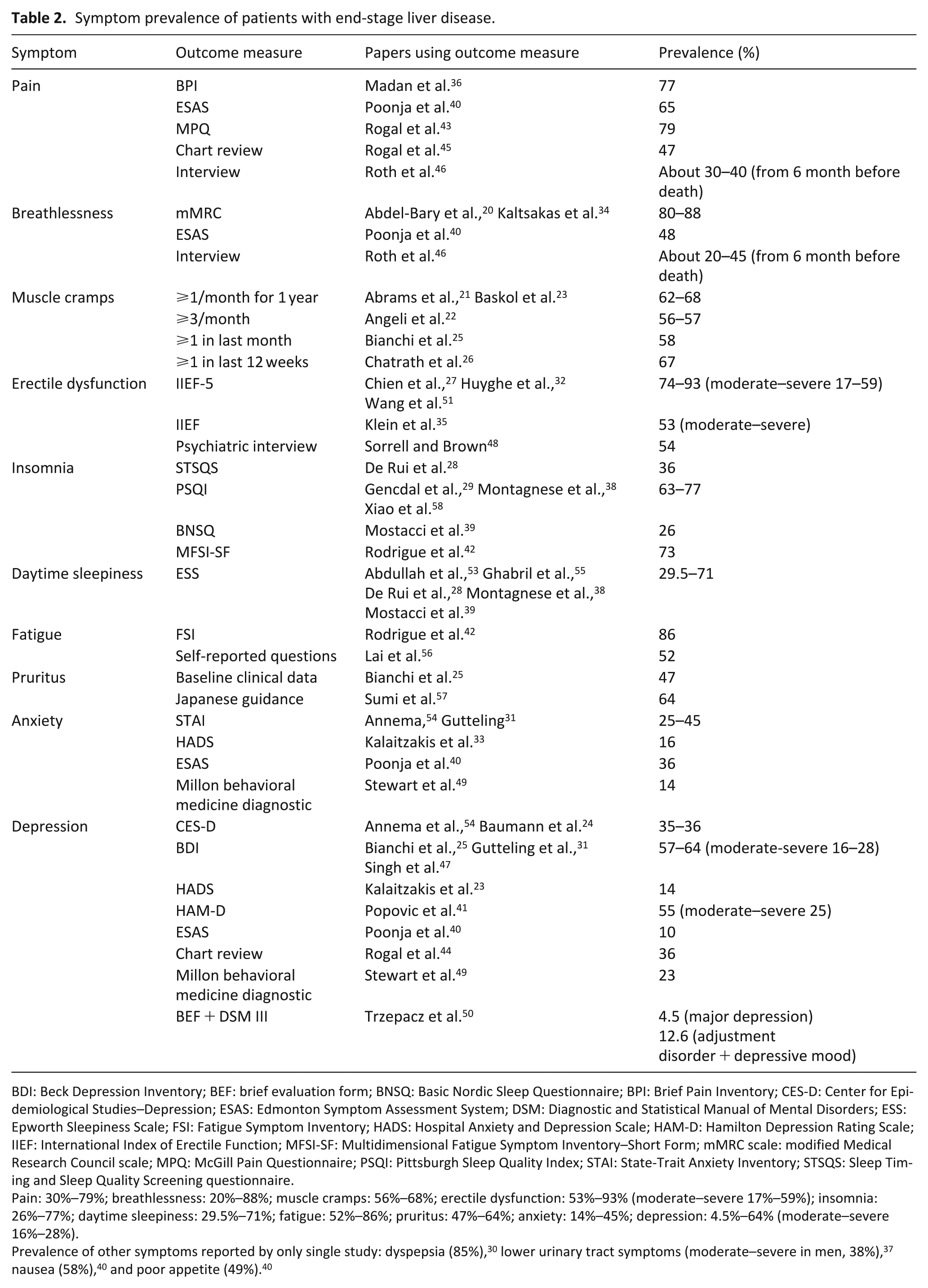

Symptom prevalence of patients with end-stage liver disease.
BDI: Beck Depression Inventory; BEF: brief evaluation form; BNSQ: Basic Nordic Sleep Questionnaire; BPI: Brief Pain Inventory; CES-D: Center for Epidemiological Studies–Depression; ESAS: Edmonton Symptom Assessment System; DSM: Diagnostic and Statistical Manual of Mental Disorders; ESS: Epworth Sleepiness Scale; FSI: Fatigue Symptom Inventory; HADS: Hospital Anxiety and Depression Scale; HAM-D: Hamilton Depression Rating Scale; IIEF: International Index of Erectile Function; MFSI-SF: Multidimensional Fatigue Symptom Inventory–Short Form; mMRC scale: modified Medical Research Council scale; MPQ: McGill Pain Questionnaire; PSQI: Pittsburgh Sleep Quality Index; STAI: State-Trait Anxiety Inventory; STSQS: Sleep Timing and Sleep Quality Screening questionnaire.
Pain: 30%–79%; breathlessness: 20%–88%; muscle cramps: 56%–68%; erectile dysfunction: 53%–93% (moderate–severe 17%–59%); insomnia: 26%–77%; daytime sleepiness: 29.5%–71%; fatigue: 52%–86%; pruritus: 47%–64%; anxiety: 14%–45%; depression: 4.5%–64% (moderate–severe 16%–28%).
Many of the studies also assessed psychological symptoms with a bigger focus on depression, which was reported by 11 articles. The prevalence of depression in patients with end-stage liver disease varied between 4.5% and 64%.24,25,31,33,40,41,44,47,49,50,54 This may in part be related to the measurement tools used as the Beck Depression Inventory (BDI) was applied in three studies, the Center for Epidemiological Studies–Depression (CES-D) was applied in two studies, while the other six studies used six different ways to identify depressive symptoms or major depression. The prevalence of anxiety was 14%–45%,31,33,40,49,54 and similarly, the five studies which assessed anxiety administered four different measurement tools.
Health-related quality of life of patients with end-stage liver disease
A total of 45 studies for health-related quality of life were included (see Supplementary Material).26,31,38,49,59–99 Except for two international studies, the majority of studies reported data from Europe (21) and North America (11), and there were five from China. Most of the studies were cross-sectional and outpatient-based. The patients were mostly in their 50s and predominantly male. A total of 28 studies (62%) reported the percentage of patients with Child–Turcotte–Pugh class A or overall Child–Turcotte–Pugh score; 21 of 42 (50%) studies published between 2002 and 2018 provided Model for End-Stage Liver Disease scores. The prevalence of hepatocellular carcinoma was provided in 18 studies, ranging from 0% to 41·1%. In general, the reporting quality of articles for health-related quality of life was better than those for symptoms.
The results of the included studies for health-related quality of life of patients with end-stage liver disease are shown in the Supplementary Material. The comparisons in these articles could be categorized into four themes: disease severity, clinical status (inclusive of decompensation, lab finding, or symptoms), etiology, and other factors (e.g. demographic characteristics, social economic status). Generic health-related quality of life tools were more frequently administered than disease-specific health-related quality of life tools. The Medical Outcome Study Questionnaire 36-Item Short Form Survey (SF-36)100,101 was applied in 36 studies (80%). As for disease-specific health-related quality of life tools, the Chronic Liver Disease Questionnaire (CLDQ) 102 was applied in 14 studies, followed by the Liver Disease Quality Of Life 1.0 103 (twice) and the Hepatitis Quality Of Life Questionnaire 104 (once).
The health-related quality of life of patients with end-stage liver disease was significantly worse, compared to normal controls or patients with chronic hepatitis. We conducted a meta-analysis of the effect of Child–Turcotte–Pugh class (Child B or C vs Child A)61,70,84,93 or decompensation (decompensated vs compensated liver cirrhosis)38,63,67,73,79,87,92 on the Physical Component Summary score (Figure 2a) and the Mental Component Summary score (Figure 2b) of the 36-Item Short Form Survey as well as CLDQ (see Supplementary Material).38,62,64,74,79,93,95 Due to heterogeneity (chi-square p < 0.1, I2 statistic > 40%), a random-effect model was applied. We found that disease progression led to significant worsening of both components of the 36-Item Short Form Survey; however, this was to a larger degree for Physical Component Summary score than for Mental Component Summary score. The decrease from average Physical Component Summary score was 6.4 (95% confidence interval (CI): 4.0–8.8; p < 0.001) and that of average Mental Component Summary score was 4.5 (95% CI: 2.4–6.6; p < 0.001). As to CLDQ (global score, ranging from 1 to 7), disease progression significantly worsened health-related quality of life, and the difference between each group was 0·66 (95% CI: 0.34–0.98; p < 0.001).

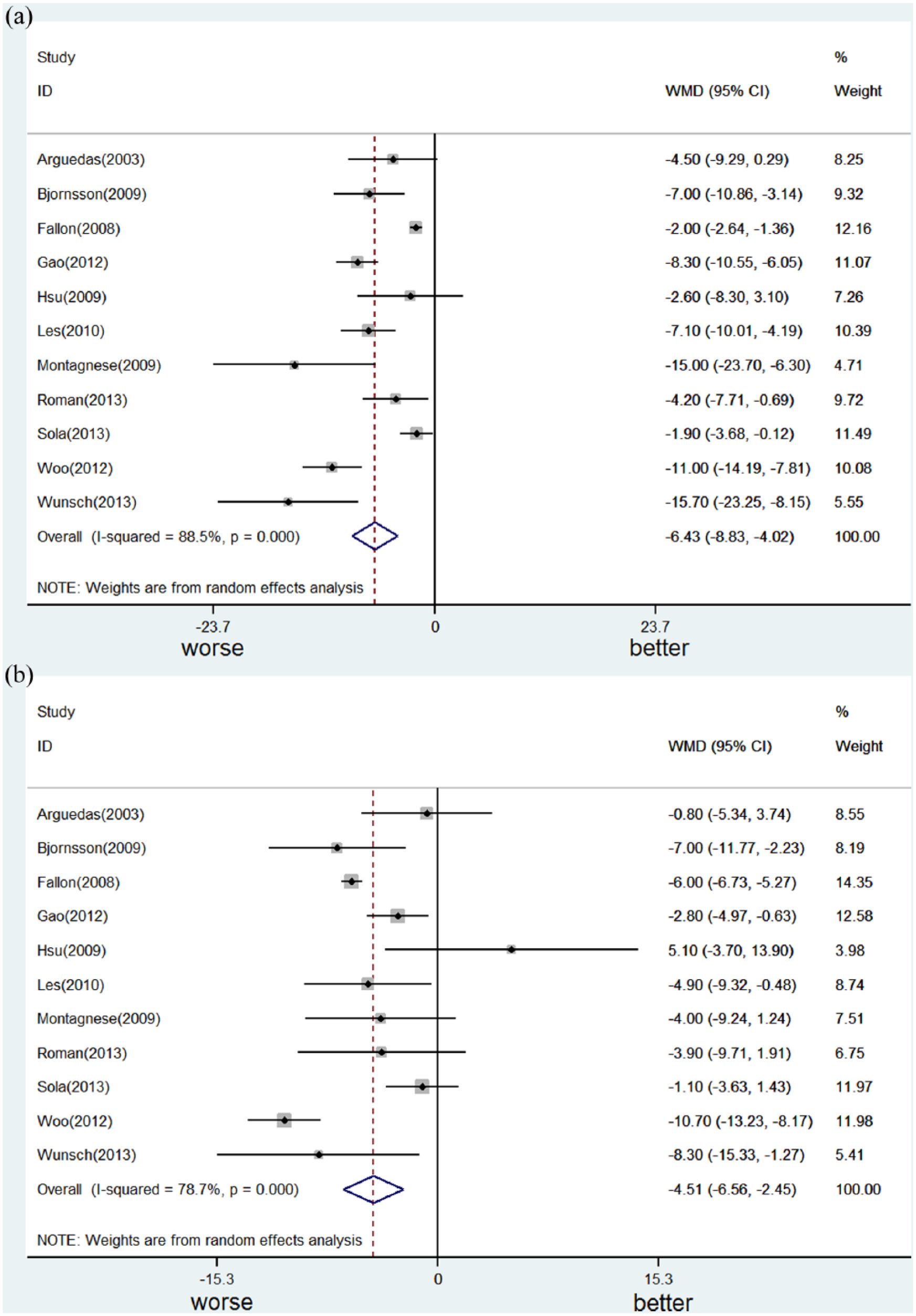

Meta-analysis of the effect of Child–Turcotte–Pugh class (Child B or C vs Child A) or decompensation (decompensated vs compensated liver cirrhosis) on the Physical Component Summary score (Figure 2a) and the Mental Component Summary score (Figure 2b) of the 36-Item Short Form Survey.
Discussion
Main findings of the study
This review described symptom prevalence and health-related quality of life of patients with end-stage liver disease. Pain, breathlessness, muscle cramps, sleep disturbances, and psychological symptoms are common and need to be managed carefully. Erectile dysfunction is prevalent in men with end-stage liver disease, who should be provided an opportunity for treatment. The health-related quality of life of patients with end-stage liver disease is significantly impaired when compared to healthy controls, patients with chronic liver disease or those with compensated liver cirrhosis.
This review highlighted the high degree of variability in symptom prevalence reported by different studies. This is probably owing to the within-patient variability and the differences between measurement tools. We have compared our results with that of a systematic review of symptom prevalence in advanced cancer, chronic obstructive pulmonary disease, congestive heart failure, end-stage renal disease, dementia, motor neuron disease and multiple sclerosis. 105 (Table 3) The symptom prevalence of patients with end-stage liver disease resembles that of patients with these other advanced and chronic conditions. The wide range of symptoms experienced by these patients reminds healthcare professionals the importance of comprehensive and consecutive assessments for them.

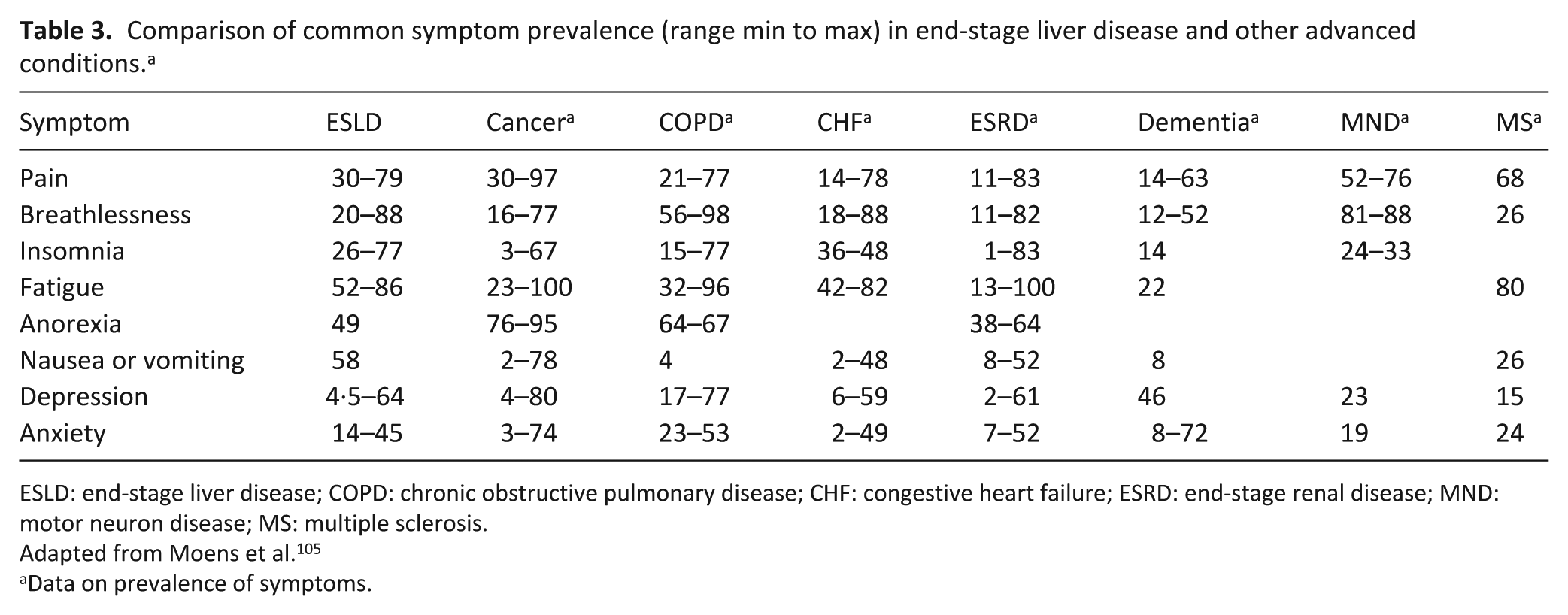

Comparison of common symptom prevalence (range min to max) in end-stage liver disease and other advanced conditions. a
ESLD: end-stage liver disease; COPD: chronic obstructive pulmonary disease; CHF: congestive heart failure; ESRD: end-stage renal disease; MND: motor neuron disease; MS: multiple sclerosis.
Adapted from Moens et al. 105
Data on prevalence of symptoms.
Given that end-stage liver disease affects younger age groups compared to other end-stage organ failure or terminal illness, their needs for symptom treatment and support can be different. Sexual dysfunction is a good example of this. In men with end-stage liver disease, they may have hypogonadism resulting in impotence, infertility, loss of sexual drive, or testicular atrophy. In our review, the prevalence of erectile dysfunction is 53%–93% (moderate–severe: 17%–59%).27,32,35,48,51 For women with end-stage liver disease, chronic anovulation is common, which may manifest as irregular menstrual bleeding or amenorrhea, 106 and the prevalence of sexual dysfunction is 77.8%. 35 For both men and women, Sorrell and Brown. 48 identified that frequency of and interest in sex decreased markedly (65.3% and 40.5% each). Hence, patients with end-stage liver disease should be provided an opportunity for assessment and treatment of sexual dysfunction.
Strengths and weakness of the study
One strength of this review is that we carefully considered our eligibility criteria to identify patients with end-stage liver disease and we provide clear descriptions of important clinical characteristics of the study population (e.g. etiology, percentage of Child A according to Child–Turcotte–Pugh classification, Model for End-Stage Liver Disease score, and the percentage of hepatocellular carcinoma). In addition, this review summarized the best available evidence by searching eight electronic databases. Moreover, we were also able to perform a meta-analysis to compare the health-related quality of life between compensated and decompensated liver cirrhosis, which is of value.
Our review has several limitations. First, this is a systematic review of observational studies. We were not able to control for all potential confounders, and not all the included studies had comparison groups. However, we conducted a quality assessment and presented good-quality studies clearly to allow readers to draw their own conclusions. Second, most studies were conducted while patients were outpatients or stable after hospitalization; hence, some acute symptoms related to decompensation were not captured. Third, due to limited articles for symptom prevalence and heterogeneity of the populations, meta-analysis could not be performed in many aspects. Finally, although there was no limitation of language in the process of study identification and selection, the majority of the included studies were from Europe and North America, where the cause of end-stage liver disease, the patterns of comorbidity (e.g. hepatocellular carcinoma), and the factors associated with health-related quality of life might be different from Asian or African countries.
What this study adds
Currently, the priority of the medical care for patients with end-stage liver disease is usually curative treatment (e.g. liver transplantation) rather than best supportive care because these patients are younger and not seen to be at the end of life by themselves or by their physicians, regardless of the risk of shortage of organs, delisting from transplantation waiting list due to contraindication, or facing life-threatening conditions.107,108 The lack of holistic approach, the high prevalence of depression and anxiety, and the dearth of social support all together bring about the complexity and difficulty of caring for patients with end-stage liver disease.7,107–111 Given the wide range of symptoms experienced by these patients and the significant impairment in health-related quality of life revealed by our systematic review, collaboration between primary care physicians, specialist hepatologists, liver transplantation providers, and specialist palliative care is needed.107–109 Early detection, consecutive monitoring, and timely management of symptoms may result in better health-related quality of life in these patients. Further studies focusing on comprehensive symptom evaluation, factors related to the variation of symptomatology, and developing consensus in symptom measurement or management would be helpful.
As for the symptomatology of patients with end-stage liver disease, several disease-specific symptoms were less reported, such as abdominal symptoms, fatigue, or pruritus. Abdominal symptoms, including abdominal distension, bloating, pain, or any kind of abdominal discomfort, may worsen alongside the development of refractory ascites and induce patient distress. 112 On the contrary, fatigue and pruritus are common in patients with primary biliary cirrhosis or primary sclerosing cholangitis,113,114 yet we found no report for either of these symptoms after decompensation. A practical way to enrich our understanding of these symptoms is to provide the raw data when measuring disease-specific health-related quality of life in future research. For instance, these symptoms are embedded in CLDQ, 102 Liver Disease Quality Of Life 1.0, 103 as well as PBC-40 115 for patients with primary biliary cirrhosis. Symptom prevalence can be identified from these tools. Furthermore, some other symptoms were not identified in this review and are worth exploring, including symptoms related to gastrointestinal disorder or bleeding (hematemesis, melena, hematochezia), jaundice, easy bruisability, lower extremity edema, and weight loss.
Finally, for better clarity and reporting quality of future research in patients with end-stage liver disease, we suggest that Child–Turcotte–Pugh classification (or score), Model for End-Stage Liver Disease score, and the information of comorbidity (especially hepatocellular carcinoma) should be reported. As for hepatocellular carcinoma, it is better presented considering the Milan criteria, which has been widely applied as a basis for selecting patients with hepatocellular carcinoma for liver transplantation. 116
Conclusion
End-stage liver disease, a common cause of morbidity and mortality, disproportionally affects younger age groups and causes premature death. The symptom prevalence of patients with end-stage liver disease resembles that of patients with other advanced conditions. Given the diversity of symptoms and significantly impaired health-related quality of life, multidisciplinary approach and timely intervention are crucial. Palliative care should be integrated in the care of patients with end-stage liver disease.
