Abstract

Background

Wearable powered exoskeletons represent a promising rehabilitation tool for locomotor training in various populations, including in individuals with a spinal cord injury. The lack of clear evidence on how to implement a locomotor powered exoskeleton training program raises many challenges for patients, clinicians and organizations.

Objective

To report determinants of implementation in clinical practice of an overground powered exoskeleton locomotor training program for persons with a spinal cord injury.

Data sources

Medline, CINAHL, Web of Science.

Study selection

Studies were included if they documented determinants of implementation of an overground powered exoskeleton locomotor training program for individuals with spinal cord injury.

Data extraction

Eligible studies were identified by two independent reviewers. Data were extracted by one reviewer, based on constructs of the Consolidated Framework for Implementation Research, and validated by a second reviewer.

Results

Sixty-three articles were included. 49.4% of all determinants identified were related to the intervention characteristics, 29.6% to the individuals’ characteristic and 13.5% to the inner setting. Recurrent barriers identified were the high prevalence of adverse events (e.g., skin issues, falls) and device malfunctions. Adequate training for clinicians, time and resource available, as well as discussion about patients’ expectations were identified as facilitators.

Conclusions

Powered exoskeleton training is a complex intervention. The limited information on the context and the implementation process domains may represent a barrier to a successful transition from knowledge to action.

Keywords

Robotics perceptions gait barriers facilitators

Background

In Canada, over 86,000 people live with a spinal cord injury,¹ which may lead to sensorimotor disorders, autonomic dysfunctions, and walking limitations. Irrespective of age, injury severity, or time since injury, recovery of walking is a high priority for them.² However, walking limitations often remain after rehabilitation that can negatively impact participation in daily activities and quality of life.^3,4

Wearable powered exoskeletons represent a promising rehabilitation tool for standing and locomotor training that may complement conventional locomotor training after a spinal cord injury by enabling more repetition and intensive exercise.^5,6 Systematic reviews have shown functional and health benefits associated with overground powered exoskeleton locomotor training for individuals with spinal cord injury, such as improvements in walking speed and endurance, standing balance, lower extremity function, bowel function, as well as reduction in neuropathic pain and spasm intensity.^7–11

Integrating the use of powered exoskeletons as part of rehabilitation practice is not a simple matter, however. In a study on robotic technologies for upper-limb impairment rehabilitation, the authors concluded that the lack of clear evidence that takes into consideration all relevant dimensions of implementation is one of the most important barriers to a wider adoption of robotic technologies.¹² Research on adoption and implementation of robotics in stroke rehabilitation demonstrated that the clinical uptake of these technologies is relatively low.^13,14 Numerous barriers have been identified, such as the lack of training combined with little or no allocated time for training for clinician, or the fact that using the technology was perceived as being too time-consuming by clinicians.¹⁴ Thus, from the early stages of development to its implementation in real-life settings, it is crucial to take into consideration the perception of potential users, such as clinicians and patients, toward a technology to ensure it adequately matches their needs and requirements.^15,16 Moreover, therapists highlighted the pressing need for guidance regarding the integration of exoskeletons into existing rehabilitation services.¹⁷ Therefore, identifying and addressing barriers early in the development of this intervention is essential for the research to clinical knowledge translation¹⁸ and facilitates effective clinical adoption of wearable powered exoskeletons. The purpose of this knowledge synthesis is therefore to systematically report the potential determinants of implementation of an overground powered exoskeleton locomotor training program for individuals with a spinal cord injury.

Methods

The knowledge synthesis protocol has been registered within the PROSPERO database (registration number: CRD42021239327) and is being reported in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (2020) statement.¹⁹ A review protocol was not published prior to this systematic review.

A literature search was conducted, in September 2020, using Medline, CINAHL, and Web of science databases. An update of the review search was done in June 2022. A search strategy combining keywords and indexed vocabulary related to the following key concepts: [1] exoskeleton, [2] locomotion or gait, [3] spinal cord injury, and [4] implementation determinants (facilitators and barriers to the use or to the implementation of powered exoskeletons) was used. The search strategy, which was developed by the research team and a professional librarian, was adjusted for each database (detailed search strategy presented in Appendix 1). The reference lists of selected studies and related systematic reviews(8, 9) were also searched for additional references.

Articles were included if: [1] they were peer-reviewed empirical studies, including qualitative, quantitative, or mixed methods; [2] they were published in English or in French; [3] they referred to an overground locomotor training program using a wearable powered multi-joint lower limb exoskeleton in clinical practice; [4] the powered exoskeleton locomotor training targeted adults (16 years old and older) with a subacute or chronic spinal cord injury (no specificity regarding the spinal cord injury level); and if [5] determinants of implementation of a powered exoskeleton locomotor training program were reported. Publications were excluded if: [1] they consisted of conference proceedings, abstracts, commentaries, letters, book chapters, animal studies, theses, reviews, meta-analyses, and proof-of-concepts; [2] the locomotor training involved less than three sessions, or consisted of fitting or parameter testing only; [3] the studied population included participants with various neurological conditions (or pathologies) and the perceptions of individuals with a spinal cord injury could not be extracted; and if [4] the powered exoskeleton was considered or used for personal mobility purposes at-home or in the community, rather than for rehabilitation training. As this technology is relatively recent, there were no restrictions on the year of publication.

The main outcome of this systematic review was the determinants of implementation, which are often identified as barriers and facilitators. These determinants may have been reported by different stakeholders (e.g., clinicians, patients, administrators) or by researchers who conducted the empirical studies.

After identifying studies through databases and eliminating duplicates, titles and abstracts were screened by two independent reviewers (CC and JD). Relevant full texts were then retrieved and independently assessed for eligibility by the same reviewers. Disagreements between reviewers were discussed, and a third reviewer (AKB) was consulted for final decision, when needed.

All the selected studies that met eligibility criteria were reviewed and information related to study characteristics, such as author, year of publication, design (i.e., quantitative, qualitative, or mixed methods), participant characteristics and type of exoskeleton (if applicable) was extracted by one reviewer (JD). For the extraction of determinants, one reviewer (JD) performed the initial data extraction using Dedoose Software (www.dedoose.com). Then, a second reviewer (CC) read the complete articles to validate this initial extraction and identified any additional determinants. Modification or addition to the first extraction was discussed between the two reviewers. The information extracted was validated by a third reviewer (MEL) in case of any disagreements.

To ensure that all relevant dimensions of implementation were taken into consideration, the Consolidated Framework for Implementation Research (20) was used to guide the data extraction process and to synthesize findings. This framework aims to offer a consistent, standardized taxonomy, terminology and definition of facilitators and barriers involved in health care implementation research, and includes five major domains, namely [1] intervention characteristics, [2] outer setting, [3] inner setting, [4] characteristics of the individuals involved, and [5] process of implementation (www.cfirguide.org).²⁰

A narrative synthesis method was then used to describe the potential determinants of implementation and use of an overground powered exoskeleton locomotor training program for individuals with a spinal cord injury.

Results

The database literature searches result in the identification of 2571 references and one additional record was identified through review of reference lists (for a total of 2572 references). Of this total, 1654 articles remained after removing duplicates. After the screening of titles and abstracts, 169 full text articles were assessed for eligibility and 105 did not meet the selection criteria. Figure 1 presents the PRISMA flow diagram for the inclusion of 63 relevant papers.^{5,6,17,21–80} The update of the literature search added 20 studies.

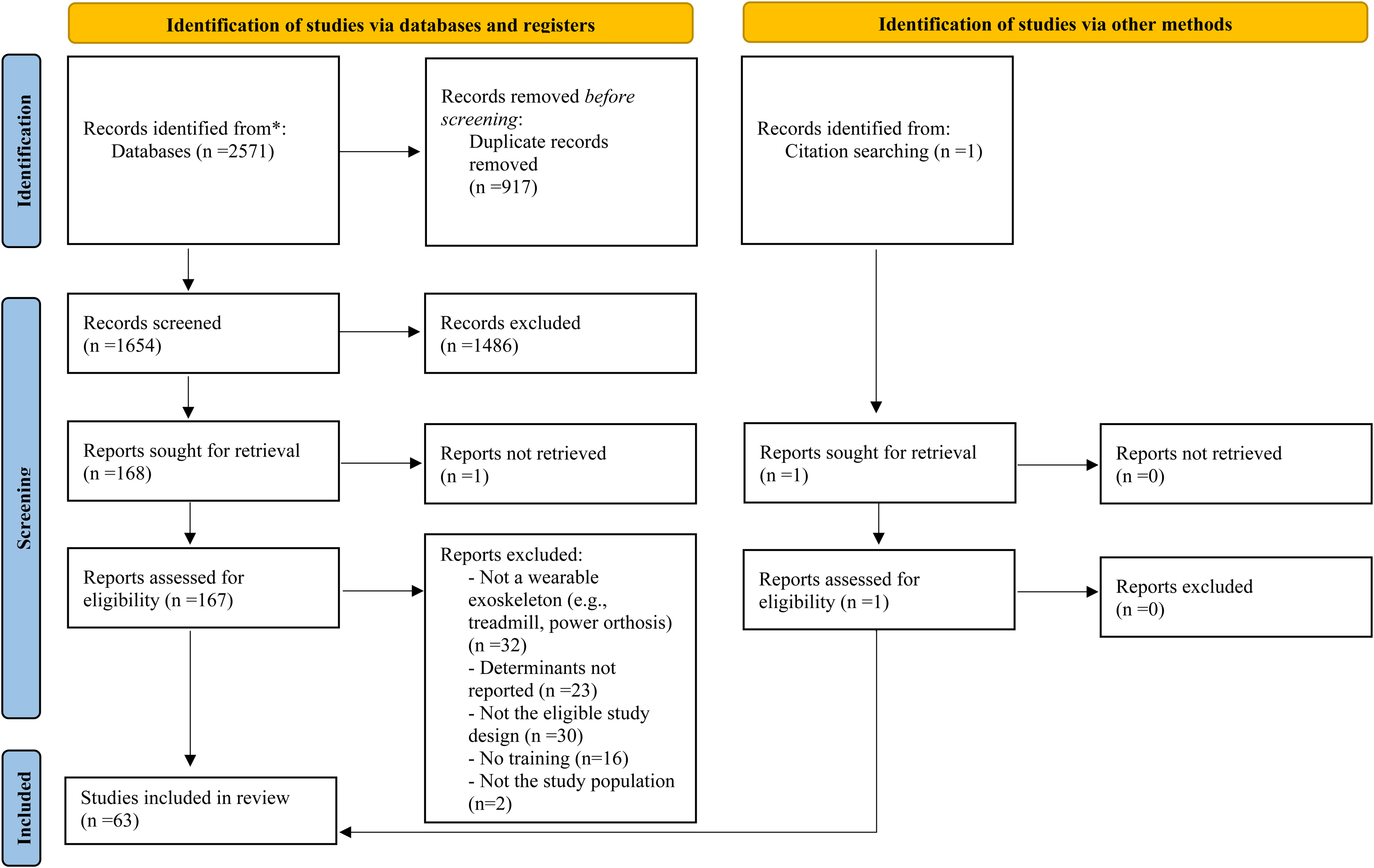

Figure 1.

Article selection process: PRISMA flow diagram from Page et al. (2021).¹⁹

All selected studies were published between 2012 and 2022. Most studies used quantitative research methods (51/63), while the others used qualitative research (9/63) and mixed methods (3/63). The primary objectives of these studies were related to the assessment of feasibility, efficacy, or effectiveness of an overground powered exoskeleton gait training in individuals with a spinal cord injury. Twelve studies were designed as retrospective evaluation of barriers and facilitators to the development and implementation of powered exoskeletons gait training for individuals with a spinal cord injury, which were documented through surveys, focus groups and/or individual interviews.^17,21–31 Among these studies, 7 explored the perspective of persons with a spinal cord injury,^{21,23–25,28–30} while 7 documented clinicians’ perspective.^{17,22,26–29,31} Different models of wearable powered exoskeleton were used in the included studies (Ekso, n = 31; ReWalk, n = 20; Indego, n = 5; WPAL, n = 4; and others, n = 9). For a more detailed overview of the included articles, see the supplemental materials.

In total, 385 determinants were identified based on the five Consolidated Framework for Implementation Research constructs in the included studies. The qualitative studies have reported 37.1% of the determinants. The five domains did not receive similar levels of attention. A synthesis of the determinants identified in the studies is presented in Table 1. The next section will highlight the main determinants identified in the included studies based on the Consolidated Framework for Implementation Research domains.

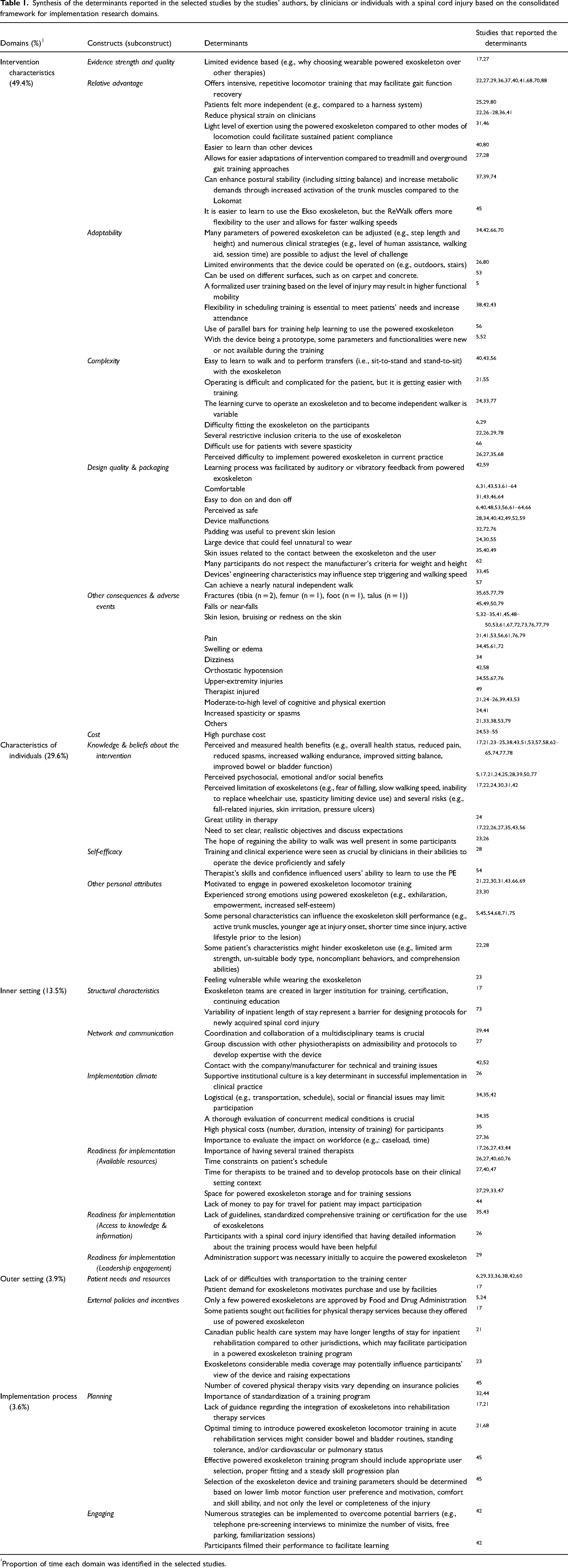

Table 1.

Synthesis of the determinants reported in the selected studies by the studies’ authors, by clinicians or individuals with a spinal cord injury based on the consolidated framework for implementation research domains.

Domains (%)¹	Constructs (subconstruct)	Determinants	Studies that reported the determinants
Intervention characteristics (49.4%)	Evidence strength and quality	Limited evidence based (e.g., why choosing wearable powered exoskeleton over other therapies)	^17,27
	Relative advantage	Offers intensive, repetitive locomotor training that may facilitate gait function recovery	^{22,27,29,36,37,40,41,68,70,88}
		Patients felt more independent (e.g., compared to a harness system)	^25,29,80
		Reduce physical strain on clinicians	^{22,26–28,36,41}
		Light level of exertion using the powered exoskeleton compared to other modes of locomotion could facilitate sustained patient compliance	^31,46
		Easier to learn than other devices	^40,80
		Allows for easier adaptations of intervention compared to treadmill and overground gait training approaches	^27,28
		Can enhance postural stability (including sitting balance) and increase metabolic demands through increased activation of the trunk muscles compared to the Lokomat	^37,39,74
		It is easier to learn to use the Ekso exoskeleton, but the ReWalk offers more flexibility to the user and allows for faster walking speeds	⁴⁵
	Adaptability	Many parameters of powered exoskeleton can be adjusted (e.g., step length and height) and numerous clinical strategies (e.g., level of human assistance, walking aid, session time) are possible to adjust the level of challenge	^34,42,66,70
		Limited environments that the device could be operated on (e.g., outdoors, stairs)	^26,80
		Can be used on different surfaces, such as on carpet and concrete.	⁵³
		A formalized user training based on the level of injury may result in higher functional mobility	⁵
		Flexibility in scheduling training is essential to meet patients’ needs and increase attendance	^38,42,43
		Use of parallel bars for training help learning to use the powered exoskeleton	⁵⁶
		With the device being a prototype, some parameters and functionalities were new or not available during the training	^5,52
	Complexity	Easy to learn to walk and to perform transfers (i.e., sit-to-stand and stand-to-sit) with the exoskeleton	^40,43,56
		Operating is difficult and complicated for the patient, but it is getting easier with training.	^21,55
		The learning curve to operate an exoskeleton and to become independent walker is variable	^24,33,77
		Difficulty fitting the exoskeleton on the participants	^6,29
		Several restrictive inclusion criteria to the use of exoskeleton	^22,26,29,78
		Difficult use for patients with severe spasticity	⁶⁶
		Perceived difficulty to implement powered exoskeleton in current practice	^26,27,35,68
	Design quality & packaging	Learning process was facilitated by auditory or vibratory feedback from powered exoskeleton	^42,59
		Comfortable	^{6,31,43,53,61–64}
		Easy to don on and don off	^31,43,46,64
		Perceived as safe	^{6,40,48,53,56,61–64,66}
		Device malfunctions	^{28,34,40,42,49,52,59}
		Padding was useful to prevent skin lesion	^32,72,76
		Large device that could feel unnatural to wear	^24,30,55
		Skin issues related to the contact between the exoskeleton and the user	^35,40,49
		Many participants do not respect the manufacturer's criteria for weight and height	⁶²
		Devices’ engineering characteristics may influence step triggering and walking speed	^33,45
		Can achieve a nearly natural independent walk	⁵⁷
	Other consequences & adverse events	Fractures (tibia (n = 2), femur (n = 1), foot (n = 1), talus (n = 1))	^35,65,77,79
		Falls or near-falls	^45,49,50,79
		Skin lesion, bruising or redness on the skin	^{5,32–35,41,45,48–50,53,61,67,72,73,76,77,79}
		Pain	^{21,41,53,56,61,76,79}
		Swelling or edema	^34,45,61,72
		Dizziness	³⁴
		Orthostatic hypotension	^42,58
		Upper-extremity injuries	^34,55,67,76
		Therapist injured	⁴⁹
		Moderate-to-high level of cognitive and physical exertion	^{21,24–26,39,43,53}
		Increased spasticity or spasms	^24,41
		Others	^{21,33,38,53,79}
	Cost	High purchase cost	^24,53–55
Characteristics of individuals (29.6%)	Knowledge & beliefs about the intervention	Perceived and measured health benefits (e.g., overall health status, reduced pain, reduced spasms, increased walking endurance, improved sitting balance, improved bowel or bladder function)	^{17,21,23–25,38,43,51,53,57,58,62–65,74,77,78}
		Perceived psychosocial, emotional and/or social benefits	^{5,17,21,24,25,28,39,50,77}
		Perceived limitation of exoskeletons (e.g., fear of falling, slow walking speed, inability to replace wheelchair use, spasticity limiting device use) and several risks (e.g., fall-related injuries, skin irritation, pressure ulcers)	^{17,22,24,30,31,42}
		Great utility in therapy	²⁴
		Need to set clear, realistic objectives and discuss expectations	^{17,22,26,27,35,43,56}
		The hope of regaining the ability to walk was well present in some participants	^23,26
	Self-efficacy	Training and clinical experience were seen as crucial by clinicians in their abilities to operate the device proficiently and safely	²⁸
	Self-efficacy	Therapist's skills and confidence influenced users’ ability to learn to use the PE	⁵⁴
	Other personal attributes	Motivated to engage in powered exoskeleton locomotor training	^{21,22,30,31,43,66,69}
		Experienced strong emotions using powered exoskeleton (e.g., exhilaration, empowerment, increased self-esteem)	^23,30
		Some personal characteristics can influence the exoskeleton skill performance (e.g., active trunk muscles, younger age at injury onset, shorter time since injury, active lifestyle prior to the lesion)	^{5,45,54,68,71,75}
		Some patient's characteristics might hinder exoskeleton use (e.g., limited arm strength, un-suitable body type, noncompliant behaviors, and comprehension abilities)	^22,28
		Feeling vulnerable while wearing the exoskeleton	²³
Inner setting (13.5%)	Structural characteristics	Exoskeleton teams are created in larger institution for training, certification, continuing education	¹⁷
	Structural characteristics	Variability of inpatient length of stay represent a barrier for designing protocols for newly acquired spinal cord injury	⁷³
	Network and communication	Coordination and collaboration of a multidisciplinary teams is crucial	^29,44
		Group discussion with other physiotherapists on admissibility and protocols to develop expertise with the device	²⁷
		Contact with the company/manufacturer for technical and training issues	^42,52
	Implementation climate	Supportive institutional culture is a key determinant in successful implementation in clinical practice	²⁶
		Logistical (e.g., transportation, schedule), social or financial issues may limit participation	^34,35,42
		A thorough evaluation of concurrent medical conditions is crucial	^34,35
		High physical costs (number, duration, intensity of training) for participants	³⁵
		Importance to evaluate the impact on workforce (e.g.,: caseload, time)	^27,36
	Readiness for implementation (Available resources)	Importance of having several trained therapists	^{17,26,27,43,44}
		Time constraints on patient's schedule	^{26,27,40,60,76}
		Time for therapists to be trained and to develop protocols base on their clinical setting context	^27,40,47
		Space for powered exoskeleton storage and for training sessions	^27,29,33,47
		Lack of money to pay for travel for patient may impact participation	⁴⁴
	Readiness for implementation (Access to knowledge & information)	Lack of guidelines, standardized comprehensive training or certification for the use of exoskeletons	^35,43
		Participants with a spinal cord injury identified that having detailed information about the training process would have been helpful	²⁶
	Readiness for implementation (Leadership engagement)	Administration support was necessary initially to acquire the powered exoskeleton	²⁹
Outer setting (3.9%)	Patient needs and resources	Lack of or difficulties with transportation to the training center	^{6,29,33,36,38,42,60}
	Patient needs and resources	Patient demand for exoskeletons motivates purchase and use by facilities	¹⁷
	External policies and incentives	Only a few powered exoskeletons are approved by Food and Drug Administration	^5,24
		Some patients sought out facilities for physical therapy services because they offered use of powered exoskeleton	¹⁷
		Canadian public health care system may have longer lengths of stay for inpatient rehabilitation compared to other jurisdictions, which may facilitate participation in a powered exoskeleton training program	²¹
		Exoskeletons considerable media coverage may potentially influence participants’ view of the device and raising expectations	²³
		Number of covered physical therapy visits vary depending on insurance policies	⁴⁵
Implementation process (3.6%)	Planning	Importance of standardization of a training program	^32,44
		Lack of guidance regarding the integration of exoskeletons into rehabilitation therapy services	^17,21
		Optimal timing to introduce powered exoskeleton locomotor training in acute rehabilitation services might consider bowel and bladder routines, standing tolerance, and/or cardiovascular or pulmonary status	^21,68
		Effective powered exoskeleton training program should include appropriate user selection, proper fitting and a steady skill progression plan	⁴⁵
		Selection of the exoskeleton device and training parameters should be determined based on lower limb motor function user preference and motivation, comfort and skill ability, and not only the level or completeness of the injury	⁴⁵
	Engaging	Numerous strategies can be implemented to overcome potential barriers (e.g., telephone pre-screening interviews to minimize the number of visits, free parking, familiarization sessions)	⁴²
	Engaging	Participants filmed their performance to facilitate learning	⁴²

Proportion of time each domain was identified in the selected studies.

The intervention characteristics’ domain, which corresponds to the characteristics of the gait training programs using powered exoskeletons, was the most documented with 49.4% of all determinants identified. The relative advantage of the innovation was highlighted in several studies, as many reported that wearable powered exoskeletons can offer intensive repetitive locomotor training to the users,^{27,36,37,40,70} and can contribute to reduce physical strain on clinicians compared to conventional gait training.^26,36 Other studies have shown increased activation of trunk muscles when using mobile exoskeletons compared to fixed exoskeletons (e.g., the Lokomat), which may contribute to improve standing and sitting balance.^37,39,74 About the design quality & packaging construct, wearable powered exoskeleton were seen as comfortable,^31,43,61 easy to don on and don off,^31,43,46 and safe to use.^40,61,66 Others perceived powered exoskeleton as large device that could feel unnatural to wear.^24,30,55 Device malfunctions and technical problems were identified as potential barriers to its use in many studies.^{29,34,40,42,49,52,59} The adaptability of the innovation was considered limited since the exoskeleton cannot be used in all types of environments (e.g., stairs, outdoors).²⁶ The complexity of the device was highlighted by the several eligibility criteria for users, making it difficult for clinicians to decide whether their patients are good candidate or not for this intervention.^26,29 In addition, operating the exoskeleton can be difficult initially for the patient.^21,55 The learning curve to ultimately use the exoskeleton independently is variable from one individual to another.^24,33,77 Another barrier reported by most of the studies concerns the occurrence of adverse events and other consequences induced by intensive training with the wearable powered exoskeletons that may affect the continuation of the training program, and include falls, fractures, skin lesions, pain, orthostatic hypotension and injuries sustained by therapists.^{5,21,25,26,32–35,38,40–43,45,48–50,53,55,56,58,61,67,72,73,76,77,79} Moreover, the training process with the powered exoskeleton was perceived as both mentally and physically demanding by some participants.^{21,24–26,39,43,53} Finally, a high purchase cost was identified as a barrier of accessibility to this technology.^24,53–55 In fact, Kinnett-Hopkins et al. (2020) reported that most participants experienced exoskeleton-based training in research settings, and not in clinical settings.

The individuals’ characteristics, which is related to the characteristics of clinicians, patient, and others involved in the program, was the second domain most mentioned, with 29.6% of all the determinants identified. A predominance of the determinants related to the knowledge and beliefs about the intervention was found. In fact, several health benefits have been perceived or experienced by users (either patients or clinicians), such as improved overall health, reduced pain and spasm intensity, increased walking endurance, as well as psychosocial benefits.^{5,17,21–25,29,38,39,43,50,51,53,57,58,62–65,74,77} On the opposite, limitations and risks associated with powered exoskeleton gait training have also been individually perceived or experienced by clinicians or by patients, including a limited walking speed with the exoskeleton, falls, fear of falling, and skin irritation.^{17,22,24,30,31,42} A main determinant identified for successful use of powered exoskeleton training program was the establishment of clear and realistic objectives with the patient as well as discussing patients’ expectations toward the powered exoskeleton gait training program.^{17,22,26,27,35,43,56} As reported by the study of Ehrlich-Jones and colleagues,²² discussions with the patients about expectations are crucial since “Patients may see others in the device and expect similar outcomes or they may find the exoskeleton does not provide the function that they expected”. From both clinicians and spinal cord injury user's perspectives, therapists’ skills and experience with the exoskeletons influenced a proficient and safe use of the device,^29,54 which increased sense of self-efficacy for both clinicians and spinal cord injury users. Finally, other personal attributes of individuals with a spinal cord injury may facilitate or hinder exoskeleton use. Younger age at injury onset, active lifestyle prior to the lesion, active trunk muscle, and patient motivation were identified as potential facilitators,^{5,21,22,30,31,43,54,66,69,75} whereas limited arm strength, limited comprehension abilities, and body type that does not fit in the exoskeleton represent potential limitations to the use of powered exoskeleton.^22,29

The inner setting domain was represented in 13.5% of all documented determinants. Network and communication were identified as a crucial determinant for successful implementation of a powered exoskeleton gait training program in clinical settings. Three included articles highlighted the importance of coordination and collaboration within the multidisciplinary team,^29,44 to ensure that patients receive the appropriate therapies to meet their rehabilitation needs.²⁹ Physiotherapists perceived that working with other physiotherapist colleagues provides the opportunity to collaboratively develop protocols and discuss the appropriateness of the Ekso for each patient.²⁷ Another study also noted the importance of collaborating with the patient's physician to obtain medical clearance to ensure safe participation in the powered exoskeleton gait training program.⁴⁴ Finally, keeping contact with the exoskeleton company for assistance with technical issues or training difficulties was identified as a facilitator.^42,52

Determinants related to the available resources were also frequently mentioned. One obstacle reported was the difficulty for planning training sessions due to patient's time constraints. Having several trained therapists,^{17,26,27,43,44} time dedicated for powered exoskeleton locomotor training within clinicians’ caseload,^26,27 as well as a suitable and accessible location to store the exoskeleton^27,29,33,47 were all identified as facilitators. Supportive implementation climate was also identified as a key determinant in successful implementation of powered exoskeleton program in clinical practice.²⁶ Some clinicians and researchers were concerned about the compatibility of the powered exoskeleton technology for the training of persons with spinal cord injury, as many of them have co-morbidities that could limit or affect training. The high level of involvement required from patients is not to be neglected either, in terms of physical costs (i.e., number, duration, and intensity of training sessions),³⁵ transportation and financial cost to participate in a powered exoskeleton training program, which can represent another compatibility issue with this program. Another barrier related to the access to knowledge and information was the lack of information for the management of concurrent medical conditions (e.g., osteoporosis) for exoskeleton gait training.³⁵

The outer setting domain has been little documented in the selected articles (3.9% of all documented determinants). Nevertheless, one major barrier that emerged regarding patient needs and resources was the lack of or difficulty with transportation^{6,33,36,38,42,60} to have access to the powered exoskeleton gait training sessions. Regarding the External policies and incentives construct, inpatient rehabilitation length of stay in different health care systems may affect the number of sessions that one individual can access. In addition, differences in insurance coverage may also limit accessibility to an exoskeleton training program, depending on the number of physiotherapy visits included in one's insurance coverage.^21,45

The implementation process domain was also little documented (3.6% of all documented determinants). Regarding the planning construct, the importance of standardized training protocols to ensure safety and proficient use of wearable exoskeleton was mentioned.^32,44 The lack of guidelines available for the integration of exoskeleton into rehabilitation services was also identified as an important barrier to the implementation process.^17,21,26,43 The selection of the exoskeleton device, the optimal timing to introduce powered exoskeleton as well as the selection of parameters should be based on different personal factors of the user, such as lower limb motor function, standing tolerance, cardiovascular status, user preference and motivation, rather than being based solely on the level or the severity of the injury.^21,45,68 Finally, Read and colleagues²⁷ highlighted that “the role physiotherapists play in the integration of technology and new practices is crucial, so providing physiotherapists with adequate training, time, and resources is likely a key factor in successful integration”.

Discussion

The goal of this knowledge synthesis was to report, based on the consolidated framework for implementation research, the potential determinants of implementation of an overground powered exoskeleton locomotor training program for individuals with a spinal cord injury. Most of the reported determinants were related to the intervention characteristics domain. It is not surprising that the context (i.e., inner and outer settings) was not well documented, given that wearable powered exoskeletons are a relatively novel technology in their early stages of adoption and use in clinical settings. The scarcity of the reported determinants related to the characteristics of individuals, the inner and outer settings, and the implementation process may however represent a threat to a successful passage from Knowledge to Action.¹⁸

Within the intervention characteristics domain, the overground locomotor training using a powered exoskeleton seems to present a relative advantage over other technologies or intervention. Their design quality and packaging were described as either a facilitator or an obstacle, which could be influenced by the type of exoskeleton used in the studies. The complexity of the technology, as well as the numerous adverse events and other consequences caused by training with the exoskeleton were described as important barriers to its clinical use. The complexity of an intervention is known to significantly influence the level of effort required for implementation, especially when it requires more human resources, as it is indeed the case with wearable powered exoskeleton.⁸¹ Another barrier identified by stakeholders is the high cost for purchase and maintenance of exoskeleton. However, it is crucial to evaluate the technology cost-effectiveness, and not only consider its purchase cost, since a technology may appear to be expensive at the implementation stage, but saves money on the long term. Pinto and colleagues⁸² examined relevant economic factors for exoskeleton locomotor training following a spinal cord injury and they estimated that providing powered exoskeleton overground training for 10% of locomotor training sessions results in a decreased hospital costs between $1114 to $4784 annually. Further economic studies are needed to corroborate these estimates.

Within the inner setting domain, the available resources construct was identified as a key factor in successful implementation of powered exoskeleton in clinical practice. This includes providing therapists with adequate training, time, and resources. Read and colleagues²⁷ reported that physiotherapists’ adoption of technology is dependent to some extent on the willingness of their organization to support them with additional resources. In addition, some therapists in stroke rehabilitation were reticent to engage with powered exoskeleton due to the time and effort required to learn how to use the device,⁸³ which again highlighted the importance of supportive institutional culture to promote implementation. Coordination and collaboration of a multidisciplinary team has been reported as an important determinant of implementation, especially at early stages of recovery following a spinal cord injury. In stroke rehabilitation using powered exoskeleton, multidisciplinary coordination between physical rehabilitation unit along with other hospital disciplines was also identified as a key determinant.⁸⁴

Limited determinants have been identified regarding the characteristics of individuals. Nonetheless, a key element mentioned in several studies was the need to establish clear and realistic objectives for the use of powered exoskeleton in gait training, as well as the importance of discussing expectations with patients. Patient expectations can be managed through education, a well-informed selection process, as well as through constant re-assessment of the process,²⁶ as expectations can change over time.¹⁷ Multidisciplinary teamwork can also be a facilitator for the management of patients’ expectations, by involving a psychologist, neuropsychologist or social worker in the discussion with the patient about his expectations towards this technology.

The outer setting and the implementation process domains were very little documented. In implementation research in general, outer setting tends to receive less attention compared to the others determinants.^85,86 A systematic review concluded that context has been an inconsistently defined and applied concept throughout studies, limiting its operationalization in research and practice. A well-defined and consensual definition of this concept would help to better understand its influence on the effectiveness and reach of complex interventions.⁸⁷ Although we have very little information on the interaction between the determinants of the five domains of the consolidated framework for implementation research, two studies have underlined that adoption of powered exoskeleton technologies does not depend solely on their effectiveness, but is rather influenced by the complex interactions between the technology characteristics, the attitudes of the various stakeholders involved, and the organization of the healthcare setting.^12,29

Although several determinants were identified in this systematic review, future research is needed to explore more thoroughly determinants from the context (inner and outer settings) and from the implementation process. A better comprehension of the interactions between all determinants may help implementing these complex technologies, which may contribute to increase stakeholders’ acceptance and uptake of powered exoskeletons in clinical practice. Some implementation strategies can be suggested, such as developing users’ eligibility checklist, guidelines for providing training, decision support to pursue and progress powered exoskeleton gait training, as well as establishing organizational strategies in terms of resources.

Some limitations of this review should be acknowledged. First, data extraction was not completed by two independent reviewers. Another limitation of our study is that the identified determinants were not analyzed separately for different users (e.g., patients, clinicians). Finally, methodological quality assessment of the included studies was not performed due to the variety of study designs and scope of the different publications. A methodological quality assessment would not have influenced the interpretation of the results at this stage.

Clinical messages

Wearable powered exoskeleton training is a complex intervention that might be challenging to implement in clinical settings. Such an implementation requires a good knowledge of the characteristics of the exoskeleton (e.g., design, functionalities) and demands adequate training for clinicians to administer safely a training program using this technology.

For a successful implementation, key organizational elements should be considered by the healthcare setting, such as the availability of resources (e.g., time, having several trained therapists, space) and maintaining a good communication between the multidisciplinary team members.

Management of patient's expectations and hopes toward the powered exoskeleton training program should be addressed, ideally by a multidisciplinary team, before starting the program and throughout the process to have a realistic and shared vision of the therapeutic objectives.

Supplemental Material

sj-docx-1-cre-10.1177_02692155231164092 - Supplemental material for A Systematic Review of the Determinants of Implementation of a Locomotor Training Program Using a Powered Exoskeleton for Individuals with a Spinal Cord Injury

Supplemental material, sj-docx-1-cre-10.1177_02692155231164092 for A Systematic Review of the Determinants of Implementation of a Locomotor Training Program Using a Powered Exoskeleton for Individuals with a Spinal Cord Injury by Caroline Charette, Julien Déry, Andreanne K. Blanchette, Céline Faure, Fran?s Routhier, Laurent J. Bouyer, and Marie-Eve Lamontagne in Clinical Rehabilitation

Footnotes

Acknowledgments

The authors would like to thank Mrs. Élyse Granger, librarian at Université Laval, for helping to design the search strategy for this review.

Author Contributions

Concept/idea/research design was performed by ME. Lamontagne, A.K. Blanchette, F. Routhier, and C. Faure. Writing was done by C. Charette, J. Déry, ME. Lamontagne, and K. Blanchette. Data extraction and synthesis: C. Charette, J. Déry, C. Faure. Data analysis: C. Charette, J. Déry, ME. Lamontagne, A.K. Blanchette.

Project management: ME. Lamontagne, A.K. Blanchette.

Providing facilities/equipment: ME. Lamontagne, A.K. Blanchette, F. Routhier, L.J. Bouyer.

Consultation (including review of manuscript before submitting): C. Charette, J. Déry, C. Faure, ME. Lamontagne, F. Routhier, L.J. Bouyer, A.K. Blanchette.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

This study was supported in part by the Praxis Spinal Cord Institute (Research Grant No: G2020-33) and by the Fonds de recherche du Québec – Santé (Scholarship to C. Charette, research scholar to F. Routhier and M-E Lamontagne).

ORCID iDs

Julien Déry

Andreanne K Blanchette

Marie-Eve Lamontagne

Supplemental Material

Supplemental material for this article is available online.

Appendix 1. Detailed search strategies

Example of search strategy in MEDLINE/Ovid database

#	Search
1	(exoskelet* or exo skelet* or ((powered or robot) adj3 (orthos or training)) or pgo or wearable robot* or rex or H2 or atlas or robin).ti,ab. or robotic*.ti.
2	Exoskeleton Device/ or Robotics/
3	1 or 2
4	(walking or walk or gait or gaits or locomotor or locomotion or ambulation or rehabilitation or mobility or overground or over ground).ti,ab.
5	Exercise Therapy/ or Locomotion/ or Walking/ or Gait/ or Rehabilitation/
6	4 or 5
7	(rewalk* or Ekso or elegs or mindwalker* or Wearable Power Assist Locomotor or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* adj3 orthos) or arke or ExoAtlet or bionic leg or keeogo or kinesis or tibion or Vanderbilt or ABLE human motion or Walking Assistance Device* or X1 Robotic Exoskeleton* or HULC or Human Universal Load Carrier or walktrainer* or hybrid assistive limb* or HAL).ti,ab.
8	(((robot* or bionic* or powered or automated) adj4 (walk* or gait* or locomot* or ambulat*)) or ragt).ti,ab.
9	7 or 8
10	(((spinal cord or spinal column) adj3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) adj2 myelopath)).ti,ab.
11	Spinal Cord Injuries/
12	10 or 11
13	((3 and 6) or 9) and 12
14	(exoskelet* or exo skelet* or ((powered or robot) adj3 (orthos or training)) or pgo or wearable robot* or rewalk* or Ekso or elegs or mindwalker* or Wearable Power Assist Locomotor or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* adj3 orthos) or arke or ExoAtlet or bionic leg or keeogo or kinesis or tibion or Vanderbilt or ABLE human motion or Walking Assistance Device* or X1 Robotic Exoskeleton* or HULC or Human Universal Load Carrier or walktrainer* or hybrid assistive limb* or HAL).ti,ab.
15	(((robot* or bionic* or powered or automated) adj4 (walk* or gait* or locomot* or ambulat*)) or ragt).ti,ab.
16	Exoskeleton Device/
17	14 or 15 or 16
18	(((spinal cord or spinal column) adj3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) adj2 myelopath)).ti,ab.
19	(wheelchair* or wheel chair* or paraplegi* or tetraplegi* or quadriplegi* or multiple sclerosis or stroke or ((physical* or mobility or ambulat* or walking) adj2 (disorder* or incapacit* or impair* or limit* or problem* or difficult* or deficien* or disab* or challeng* or issue)) or disabled or disabilit or handicap*).ti,ab.
20	(rehabilitation or neurorehabilitation or physiotherap* or physical therap* or exercise therap*).ti,ab.
21	Spinal Cord Injuries/ or Multiple Sclerosis/ or Stroke/ or Stroke Rehabilitation/ or Disabled Persons/ or Wheelchairs/ or Rehabilitation/ or Neurological Rehabilitation/ or Exercise Therapy/ or Physical Therapy Specialty/ or Physical Therapy Modalities/
22	18 or 19 or 20 or 21
23	(barrier or barriers or obstacle or obstacles or difficulty or difficulties or challenge or challenges or pitfall* or shortcoming* or facilitat* or opportunit* or experience or experiences or perspective* or survey* or view or views or opinion or opinion* or expectation* or perception* or acceptance or appraisal* or implementation or implementing or adoption or adopting or integration or integrating or state of the art or feasib* or usability or pros or cons or advantage* or disadvantage* or drawback* or satisfaction or preference).ti. or (barrier or barriers or obstacle or obstacles or difficulty or difficulties or challenge or challenges or pitfall or shortcoming* or facilitator* or opportunit* or experience or experiences or perspective* or survey* or view or views or opinion or opinion* or expectation* or perception* or acceptance or appraisal* or implementation or implementing or adoption or adopting or integration or integrating or state of the art or feasibilit* or usability or pros or cons or advantage* or disadvantage* or drawback* or satisfaction or preference*).ab./freq = 2
24	"Surveys and Questionnaires"/ or Feasibility Studies/ or exp Patient Satisfaction/
25	23 or 24
26	17 and 22 and 25
27	13 or 26
28	27 not (mouse or mice or rat or rats or rodent* or rabbit or rabbits).ti.
29	28 not ((treadmill* or lokomat) not (overground or over ground)).ti.
30	29 not ((upper limb* or upper extremit* or hand or hands or arm or arms or forearm* or shoulder or shoulders or elbow or elbows or wrist or wrists) not (lower limb* or lower extremit* or leg or legs or foot or feet)).ti.
31	limit 30 to (english or french)
Example of search strategy in Web of science database (Science Citation Index Expanded, Social Sciences Citation Index, Emerging Sources Citation Index)
#	Search
1	TS = (exoskelet* or “exo skelet” or ((“powered” or robot) NEAR/2 (orthos* or “training”)) or “pgo” or “wearable robot” or “rex” or “H2” or “atlas” or “robin”) OR TI = robotic
2	TS = (“walking” or “walk” or “gait” or “gaits” or “locomotor” or “locomotion” or “ambulation” or “rehabilitation” or “mobility” or “overground” or “over ground”)
3	TS = (rewalk* or “Ekso” or “elegs” or mindwalker* or “Wearable Power Assist Locomotor” or “WPAL” or “mina” or “indego” or “ARGO” or “RGO” or “IRGO” or (reciprocat* NEAR/2 orthos) or “arke” or “ExoAtlet” or “bionic leg” or “keeogo” or “kinesis” or “tibion” or “Vanderbilt” or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or “HULC” or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb*” or “HAL”)
4	TS = (((robot* or bionic* or “powered” or “automated”) NEAR/3 (walk* or gait* or locomot* or ambulat*)) or “ragt”)
5	#3 or #4
6	TS = (((“spinal cord” or “spinal column”) NEAR/2 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or “SCI” or ((“traumatic” or “posttraumatic”) NEAR/1 myelopath))
7	((#1 and #2) or #5) and #6
8	TS = (exoskelet* or “exo skelet” or ((“powered” or robot) NEAR/2 (orthos* or “training”)) or “pgo” or “wearable robot” or rewalk or “Ekso” or “elegs” or mindwalker* or “Wearable Power Assist Locomotor” or “WPAL” or “mina” or “indego” or “ARGO” or “RGO” or “IRGO” or (reciprocat* NEAR/2 orthos) or “arke” or “ExoAtlet” or “bionic leg” or “keeogo” or “kinesis” or “tibion” or “Vanderbilt” or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or “HULC” or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb*” or “HAL”)
9	TS = (((robot* or bionic* or “powered” or “automated”) NEAR/3 (walk* or gait* or locomot* or ambulat*)) or “ragt”)
10	#8 or #9
11	TS = (((“spinal cord” or “spinal column”) NEAR/2 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or “SCI” or ((“traumatic” or “posttraumatic”) NEAR/1 myelopath))
12	TS = (wheelchair* or “wheel chair” or paraplegi or tetraplegi* or quadriplegi* or “multiple sclerosis” or “stroke” or ((physical* or “mobility” or ambulat* or “walking”) NEAR/1 (disorder* or incapacit* or impair* or limit* or problem* or difficult* or deficien* or disab* or challeng* or issue)) or “disabled” or disabilit or handicap*)
13	TS = (“rehabilitation” or “neurorehabilitation” or physiotherap* or “physical therap” or “exercise therap”)
14	#11 or #12 or #13
15	TI = (“barrier” or “barriers” or “obstacle” or “obstacles” or “difficulty” or “difficulties” or “challenge” or “challenges” or pitfall* or shortcoming* or facilitat* or opportunit* or “experience” or “experiences” or perspective* or survey* or “view” or “views” or “opinion” or opinion* or expectation* or perception* or “acceptance” or appraisal* or “implementation” or “implementing” or “adoption” or “adopting” or “integration” or “integrating” or “state of the art” or feasib* or “usability” or “pros” or “cons” or advantage* or disadvantage* or drawback* or “satisfaction” or preference*)
16	#10 and #14 and #15
17	#7 or #16
18	#17 not TI = (“mouse” or “mice” or “rat” or “rats” or “rodent*” or “rabbit” or “rabbits”)
19	#18 not TI = ((“treadmill*” or “lokomat”) not (“overground” or “over ground”))
20	#19 not TI = ((“upper limb” or “upper extremit” or “hand” or “hands” or “arm” or “arms” or “forearm” or “shoulder” or “shoulders” or “elbow” or “elbows” or “wrist” or “wrists”) not (“lower limb” or “lower extremit*” or “leg” or “legs” or “foot” or “feet”))
21	#20 Restrict results by languages: English, French
Example of search strategy in CINAHL(EBSCO)
#	Search
1	TI (exoskelet* or “exo skelet” or ((powered or robot) N2 (orthos* or training)) or pgo or “wearable robot” or rex or H2 or atlas or robin or robotic) OR AB (exoskelet* or “exo skelet” or ((powered or robot) N2 (orthos* or training)) or pgo or “wearable robot*” or rex or H2 or atlas or robin)
2	MH (Exoskeleton Devices or Robotics)
3	S1 or S2
4	TI (walking or walk or gait or gaits or locomotor or locomotion or ambulation or rehabilitation or mobility or overground or “over ground”) OR AB (walking or walk or gait or gaits or locomotor or locomotion or ambulation or rehabilitation or mobility or overground or “over ground”)
5	MH (Therapeutic Exercise or Locomotion or Walking or Gait or Step or Rehabilitation)
6	S4 or S5
7	TI (rewalk* or Ekso or elegs or mindwalker* or “Wearable Power Assist Locomotor” or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* N2 orthos) or arke or ExoAtlet or “bionic leg” or keeogo or kinesis or tibion or Vanderbilt or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or HULC or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb” or HAL) OR AB (rewalk or Ekso or elegs or mindwalker* or “Wearable Power Assist Locomotor” or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* N2 orthos) or arke or ExoAtlet or “bionic leg” or keeogo or kinesis or tibion or Vanderbilt or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or HULC or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb*” or HAL)
8	TI (((robot* or bionic* or powered or automated) N3 (walk* or gait* or locomot* or ambulat)) or ragt) OR AB (((robot or bionic* or powered or automated) N3 (walk* or gait* or locomot* or ambulat*)) or ragt)
9	S7 or S8
10	TI (((“spinal cord” or “spinal column”) N3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) N1 myelopath)) OR AB (((“spinal cord” or “spinal column”) N3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) N1 myelopath))
11	MH (Spinal Cord Injuries)
12	S10 or S11
13	((S3 and S6) or S9) and S12
14	TI (exoskelet* or “exo skelet” or ((powered or robot) N2 (orthos* or training)) or pgo or “wearable robot” or rewalk or Ekso or elegs or mindwalker* or “Wearable Power Assist Locomotor” or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* N2 orthos) or arke or ExoAtlet or “bionic leg” or keeogo or kinesis or tibion or Vanderbilt or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or HULC or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb” or HAL) OR AB (exoskelet or “exo skelet” or ((powered or robot) N2 (orthos* or training)) or pgo or “wearable robot” or rewalk or Ekso or elegs or mindwalker* or “Wearable Power Assist Locomotor” or WPAL or mina or indego or ARGO or RGO or IRGO or (reciprocat* N2 orthos) or arke or ExoAtlet or “bionic leg” or keeogo or kinesis or tibion or Vanderbilt or “ABLE human motion” or “Walking Assistance Device” or “X1 Robotic Exoskeleton” or HULC or “Human Universal Load Carrier” or walktrainer* or “hybrid assistive limb*” or HAL)
15	TI (((robot* or bionic* or powered or automated) N3 (walk* or gait* or locomot* or ambulat)) or ragt) OR AB (((robot or bionic* or powered or automated) N3 (walk* or gait* or locomot* or ambulat*)) or ragt)
16	MH (Exoskeleton Devices)
17	S14 or S15 or S16
18	TI (((“spinal cord” or “spinal column”) N3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) N1 myelopath)) OR AB (((“spinal cord” or “spinal column”) N3 (injur* or trauma* or transection* or lacerat* or contusion* or damag* or lesion)) or SCI or ((traumatic or posttraumatic) N1 myelopath))
19	TI (wheelchair* or “wheel chair” or paraplegi or tetraplegi* or quadriplegi* or “multiple sclerosis” or stroke or ((physical* or mobility or ambulat* or walking) N1 (disorder* or incapacit* or impair* or limit* or problem* or difficult* or deficien* or disab* or challeng* or issue)) or disabled or disabilit or handicap) OR AB (wheelchair or “wheel chair” or paraplegi or tetraplegi* or quadriplegi* or “multiple sclerosis” or stroke or ((physical* or mobility or ambulat* or walking) N1 (disorder* or incapacit* or impair* or limit* or problem* or difficult* or deficien* or disab* or challeng* or issue)) or disabled or disabilit or handicap*)
20	TI (rehabilitation or neurorehabilitation or physiotherap* or “physical therap” or “exercise therap”) OR AB (rehabilitation or neurorehabilitation or physiotherap* or “physical therap” or “exercise therap”)
21	MH (Spinal Cord Injuries or Multiple Sclerosis or Stroke or Disabled or Wheelchairs or Rehabilitation or Therapeutic Exercise or Physical Therapy or Physical Therapy Practice or Physical Therapy Service)
22	S18 or S19 or S20 or S21
23	TI (barrier or barriers or obstacle or obstacles or difficulty or difficulties or challenge or challenges or pitfall* or shortcoming* or facilitat* or opportunit* or experience or experiences or perspective* or survey* or view or views or opinion or opinion* or expectation* or perception* or acceptance or appraisal* or implementation or implementing or adoption or adopting or integration or integrating or state of the art or feasib* or usability or pros or cons or advantage* or disadvantage* or drawback* or satisfaction or preference*)
24	MH (Surveys or Patient Satisfaction+)
25	S23 or S24
26	S17 and S22 and S25
27	S13 or S26
28	S27 not TI (mouse or mice or rat or rats or rodent* or rabbit or rabbits)
29	S28 not TI ((treadmill* or lokomat) not (overground or over ground))
30	S29 not TI ((upper limb* or upper extremit* or hand or hands or arm or arms or forearm* or shoulder or shoulders or elbow or elbows or wrist or wrists) not (lower limb* or lower extremit* or leg or legs or foot or feet))
31	S30 AND LA (english or french)

References

Noonan

Fingas

Farry

, et al. Incidence and prevalence of spinal cord injury in Canada: a national perspective. Neuroepidemiology 2012; 38: 219–226.

Ditunno

Patrick

Stineman

, et al. Who wants to walk? Preferences for recovery after SCI: a longitudinal and cross-sectional study. Spinal Cord 2008; 46: 500–506.

Noreau

Noonan

Cobb

, et al. Spinal cord injury community survey: understanding the needs of Canadians with SCI. Top Spinal Cord Inj Rehabil 2014; 20: 265–276.

Krause

Carter

Brotherton

Association of mode of locomotion and independence in locomotion with long-term outcomes after spinal cord injury. J Spinal Cord Med 2009; 32: 237–248.

Esquenazi

Talaty

Packel

, et al. The ReWalk powered exoskeleton to restore ambulatory function to individuals with thoracic-level motor-complete spinal cord injury. Am J Phys Med Rehabil 2012; 91: 911–921.

Zeilig

Weingarden

Zwecker

, et al. Safety and tolerance of the ReWalk exoskeleton suit for ambulation by people with complete spinal cord injury: a pilot study. J Spinal Cord Med 2012; 35: 96–101.

Morawietz

Moffat

Effects of locomotor training after incomplete spinal cord injury: a systematic review. Arch Phys Med Rehabil 2013; 94: 2297–2308.

Miller

Zimmermann

Herbert

WG.

Clinical effectiveness and safety of powered exoskeleton-assisted walking in patients with spinal cord injury: systematic review with meta-analysis. Med Devices (Auckl) 2016; 9: 455–466.

Shackleton

Evans

Shamley

, et al. Effectiveness of over-ground robotic locomotor training in improving walking performance, cardiovascular demands, secondary complications and user-satisfaction in individuals with spinal cord injuries: a systematic review. J Rehabil Med 2019; 51: 723–733.

10.

Duddy

Doherty

Connolly

, et al. The Effects of Powered Exoskeleton Gait Training on Cardiovascular Function and Gait Performance: A Systematic Review. Sensors 2021; 21(9): 3207.

11.

Tamburella

Lorusso

Tramontano

, et al. Overground robotic training effects on walking and secondary health conditions in individuals with spinal cord injury: systematic review. Journal of NeuroEngineering & Rehabilitation (JNER) 2022; 19: 1–56.

12.

Turchetti

Vitiello

Trieste

, et al. Why effectiveness of robot-mediated neurorehabilitation does not necessarily influence its adoption. IEEE Rev Biomed Eng 2014; 7: 143–153.

13.

Langan

Subryan

Nwogu

, et al. Reported use of technology in stroke rehabilitation by physical and occupational therapists. Disabil Rehabil Assist Technol 2018; 13: 641–647.

14.

Hochstenbach-Waelen

Seelen

HA.

Embracing change: practical and theoretical considerations for successful implementation of technology assisting upper limb training in stroke. J Neuroeng Rehabil 2012; 9: 52.

15.

Simblett

Greer

Matcham

, et al. Barriers to and facilitators of engagement with remote measurement technology for managing health: systematic review and content analysis of findings. J Med Internet Res 2018; 20: e10480.

16.

Davis

Freeman

Kaye

, et al. A systematic review of clinician and staff views on the acceptability of incorporating remote monitoring technology into primary care. Telemed J E Health 2014; 20: 428–438.

17.

Heinemann

Jayaraman

Mummidisetty

, et al. Experience of robotic exoskeleton use at four spinal cord injury model systems centers. J Neurol Phys Ther 2018; 42: 256–267.

18.

Graham

Logan

Harrison

, et al.

Lost in knowledge translation: time for a map?

J Contin Educ Health Prof 2006; 26: 13–24.

19.

Page

McKenzie

Bossuyt

, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. Br Med J 2021; 372: n71.

20.

Damschroder

Aron

Keith

, et al. Fostering implementation of health services research findings into practice: a consolidated framework for advancing implementation science. Implement Sci 2009; 4: 50.

21.

Charbonneau

Loyola-Sanchez

McIntosh

, et al. Exoskeleton use in acute rehabilitation post spinal cord injury: a qualitative study exploring patients’ experiences. J Spinal Cord Med 2022; 45(6): 848–856.

22.

Ehrlich-Jones

Crown

Kinnett-Hopkins

, et al. Clinician perceptions of robotic exoskeletons for locomotor training after spinal cord injury: a qualitative approach. Archives of Physical Medicine & Rehabilitation 2021; 102: 203–215.

23.

Evans

Bantjes

Shackleton

, et al. “I was like intoxicated with this positivity": the politics of hope amongst participants in a trial of a novel spinal cord injury rehabilitation technology in South Africa. Disabil Rehabil Assist Technol 2022; 17(6): 712–718.

24.

Kinnett-Hopkins

Mummidisetty

Ehrlich-Jones

, et al. Users with spinal cord injury experience of robotic locomotor exoskeletons: a qualitative study of the benefits, limitations, and recommendations. Journal of NeuroEngineering & Rehabilitation (JNER) 2020; 17: N.PAG–N.PAG.

25.

Manns

Hurd

Yang

JF.

Perspectives of people with spinal cord injury learning to walk using a powered exoskeleton. J Neuroeng Rehabil 2019; 16: 94.

26.

Mortenson

Pysklywec

Chau

, et al. Therapists’ experience of training and implementing an exoskeleton in a rehabilitation centre. Disabil Rehabil 2022; 44(7): 1060–1066.

27.

Read

Woolsey

McGibbon

, et al. Experiences using the ekso bionic exoskeleton with patients in a neurological rehabilitation hospital: a qualitative study. Rehabil Res Pract 2020; 2020: 2939573.

28.

Swank

Galvan

DiPasquale

, et al. Lessons learned from robotic gait training during rehabilitation: therapeutic and medical severity considerations over 3 years. Technol Disabil 2020; 32: 103–110.

29.

Swank

Sikka

Driver

, et al. Feasibility of integrating robotic exoskeleton gait training in inpatient rehabilitation. Disabil Rehabil Assist Technol 2020; 15: 409–417.

30.

Thomassen

Jørgensen

Normann

“Back at the same level as everyone else"-user perspectives on walking with an exoskeleton, a qualitative study. Spinal Cord Ser Cases 2019; 5: 103.

31.

Wolff

Parker

Borisoff

, et al. A survey of stakeholder perspectives on exoskeleton technology. J Neuroeng Rehabil 2014; 11: 169.

32.

Asselin

Avedissian

Knezevic

, et al. Training Persons with Spinal Cord Injury to Ambulate Using a Powered Exoskeleton. J Vis Exp 2016;(112): 54071.

33.

Asselin

Cirnigliaro

Kornfeld

, et al. Effect of exoskeletal-assisted walking on soft tissue body composition in persons with spinal cord injury. Archives of Physical Medicine & Rehabilitation 2021; 102: 196–202.

34.

Bach Baunsgaard

Vig Nissen

Katrin Brust

, et al. Gait training after spinal cord injury: safety, feasibility and gait function following 8 weeks of training with the exoskeletons from ekso bionics. Spinal Cord 2018; 56: 106–116.

35.

Benson

Hart

Tussler

, et al. Lower-limb exoskeletons for individuals with chronic spinal cord injury: findings from a feasibility study. Clin Rehabil 2016; 30: 73–84.

36.

Chang

Afzal

Berliner

, et al. Exoskeleton-assisted gait training to improve gait in individuals with spinal cord injury: a pilot randomized study. Pilot Feasibility Stud 2018; 4: 62.

37.

Chisholm

Alamro

Williams

, et al. Overground vs. Treadmill-based robotic gait training to improve seated balance in people with motor-complete spinal cord injury: a case report. J Neuroeng Rehabil 2017; 14: 27.

38.

Chun

Asselin

Knezevic

, et al. Changes in bowel function following exoskeletal-assisted walking in persons with spinal cord injury: an observational pilot study. Spinal Cord 2020; 58: 459–466.

39.

Corbianco

Cavallini

Dini

, et al. Energy cost and psychological impact of robotic-assisted gait training in people with spinal cord injury: effect of two different types of devices. Neurol Sci 2021; 42: 3357–3366.

40.

Delgado

Escalon

Bryce

, et al. Safety and feasibility of exoskeleton-assisted walking during acute/sub-acute SCI in an inpatient rehabilitation facility: a single-group preliminary study. J Spinal Cord Med 2020; 43: 657–666.

41.

Edwards

Forrest

Cortes

, et al. Walking improvement in chronic incomplete spinal cord injury with exoskeleton robotic training (WISE): a randomized controlled trial. Spinal Cord. 2022; 60(6): 522–532.

42.

Gagnon

Escalona

Vermette

, et al. Locomotor training using an overground robotic exoskeleton in long-term manual wheelchair users with a chronic spinal cord injury living in the community: lessons learned from a feasibility study in terms of recruitment, attendance, learnability, performance and safety. J Neuroeng Rehabil 2018; 15: 12.

43.

Gagnon

Vermette

Duclos

, et al. Satisfaction and perceptions of long-term manual wheelchair users with a spinal cord injury upon completion of a locomotor training program with an overground robotic exoskeleton. Disability and Rehabilitation Assistive Technology 2019; 14: 138–145.

44.

Gorgey

Wade

Sumrell

, et al. Exoskeleton training may improve level of physical activity after spinal cord injury: a case series. Top Spinal Cord Inj Rehabil 2017; 23: 245–255.

45.

Hong

Gorman

Forrest

, et al. Mobility skills with exoskeletal-assisted walking in persons with SCI: results from a three center randomized clinical trial. Front Robot AI 2020; 7: 93.

46.

Juszczak

Gallo

Bushnik

Examining the effects of a powered exoskeleton on quality of life and secondary impairments in people living with spinal cord injury. Top Spinal Cord Inj Rehabil 2018; 24: 336–342.

47.

Karelis

Carvalho

Castillo

, et al. Effect on body composition and bone mineral density of walking with a robotic exoskeleton in adults with chronic spinal cord injury. J Rehabil Med 2017; 49: 84–87.

48.

Kerdraon

Previnaire

Tucker

, et al. Evaluation of safety and performance of the self balancing walking system atalante in patients with complete motor spinal cord injury. Spinal Cord Ser Cases 2021; 7: 71.

49.

Khan

Livingstone

Hurd

, et al. Retraining walking over ground in a powered exoskeleton after spinal cord injury: a prospective cohort study to examine functional gains and neuroplasticity. J Neuroeng Rehabil 2019; 16: 145.

50.

Kim

Park

Lee

, et al. Effects of wearable powered exoskeletal training on functional mobility, physiological health and quality of life in non-ambulatory spinal cord injury patients. J Korean Med Sci 2021; 36: e80.

51.

Knezevic

Asselin

Cirnigliaro

, et al. Oxygen uptake during exoskeletal-assisted walking in persons with paraplegia. Archives of Physical Medicine & Rehabilitation 2021; 102: 185–195.

52.

Kolakowsky-Hayner

Crew

Moran

, et al. Safety and feasibility of using the EksoTM bionic exoskeleton to aid ambulation after spinal cord injury. J Spine 2013; S4: 3.

53.

Koljonen

Virk

Jeong

, et al. Outcomes of a multicenter safety and efficacy study of the SuitX Phoenix powered exoskeleton for ambulation by patients with spinal cord injury. Front Neurol 2021; 12: 689751.

54.

Kozlowski

Bryce

Dijkers

MP.

Time and effort required by persons with spinal cord injury to learn to use a powered exoskeleton for assisted walking. Top Spinal Cord Inj Rehabil 2015; 21: 110–121.

55.

Kwon

Lee

, et al. Energy efficiency and patient satisfaction of gait with knee-ankle-foot orthosis and robot (ReWalk)-assisted gait in patients with spinal cord injury. Ann Rehabil Med 2020; 44: 131–141.

56.

Lemaire

Smith

Herbert-Copley

, et al. Lower extremity robotic exoskeleton training: case studies for complete spinal cord injury walking. NeuroRehabilitation 2017; 41: 97–103.

57.

Maggio

Naro

De Luca

, et al. Body Representation in Patients with Severe Spinal Cord Injury: A Pilot Study on the Promising Role of Powered Exoskeleton for Gait Training. J Pers Med 2022; 12(4): 619.

58.

McIntosh

Charbonneau

Bensaada

, et al. The safety and feasibility of exoskeletal-assisted walking in acute rehabilitation after spinal cord injury. Arch Phys Med Rehabil 2020; 101: 113–120.

59.

Muijzer-Witteveen

Sibum

van Dijsseldonk

, et al. Questionnaire results of user experiences with wearable exoskeletons and their preferences for sensory feedback. J Neuroeng Rehabil 2018; 15: 112.

60.

Park

Kim

Jang

, et al. Cardiorespiratory Responses to 10 Weeks of Exoskeleton-Assisted Overground Walking Training in Chronic Nonambulatory Patients with Spinal Cord Injury. Sensors 2021; 21(15): 5022.

61.

Platz

Gillner

Borgwaldt

, et al. Device-Training for individuals with thoracic and lumbar spinal cord injury using a powered exoskeleton for technically assisted mobility: achievements and user satisfaction. BioMed Res Int. 2016; 2016: 8459018.

62.

Postol

Spratt

Bivard

, et al. Physiotherapy using a free-standing robotic exoskeleton for patients with spinal cord injury: a feasibility study. Journal of NeuroEngineering & Rehabilitation (JNER) 2021; 18: 1–10.

63.

Sale

Russo

, et al. Effects on mobility training and de-adaptations in subjects with spinal cord injury due to a wearable robot: a preliminary report. BMC Neurol 2016; 16: 12.

64.

Sale

Russo

Scarton

, et al. Training for mobility with exoskeleton robot in spinal cord injury patients: a pilot study. Eur J Phys Rehabil Med 2018; 54: 745–751.

65.

Shackleton

Evans

West

, et al. Robotic walking to mitigate bone mineral density decline and adverse body composition in individuals with incomplete spinal cord injury: A pilot randomized clinical trial. Am J Phys Med Rehabil 2022; 101(10): 931–936.

66.

Shapkova

Pismennaya

Emelyannikov

, et al. Exoskeleton walk training in paralyzed individuals benefits from transcutaneous lumbar cord tonic electrical stimulation. Front Neurosci 2020; 14: 416.

67.

Stampacchia

Olivieri

Rustici

, D, et al. Gait rehabilitation in persons with spinal cord injury using innovative technologies: an observational study. Spinal Cord 2020; 58: 988–997.

68.

Swank

Trammell

Bennett

, et al. The utilization of an overground robotic exoskeleton for gait training during inpatient rehabilitation—single-center retrospective findings. Int J Rehabil Res 2020; 43: 206–213.

69.

Sylos-Labini

La Scaleia

d'Avella

, et al. EMG Patterns during assisted walking in the exoskeleton. Front Hum Neurosci 2014; 8: 423.

70.

Tanabe

Hirano

Saitoh

Wearable power-assist locomotor (WPAL) for supporting upright walking in persons with paraplegia. NeuroRehabilitation 2013; 33: 99–106.

71.

Tanabe

Koyama

Saitoh

, et al. Clinical feasibility of gait training with a robotic exoskeleton (WPAL) in an individual with both incomplete cervical and complete thoracic spinal cord injury: a case study. NeuroRehabilitation 2017; 41: 85–95.

72.

Tefertiller

Hays

Jones

, et al. Initial outcomes from a multicenter study utilizing the indego powered exoskeleton in spinal cord injury. Top Spinal Cord Inj Rehabil 2018; 24: 78–85.

73.

Tsai

C-Y

Delgado

Weinrauch

, et al. Exoskeletal-Assisted walking during acute inpatient rehabilitation leads to motor and functional improvement in persons with spinal cord injury: a pilot study. Arch Phys Med Rehabil 2020; 101: 607–612.

74.

Tsai

Asselin

Hong

, et al. Exoskeletal-assisted walking may improve seated balance in persons with chronic spinal cord injury: a pilot study. Spinal Cord Ser Cases 2021; 7: 20.

75.

van Dijsseldonk

Rijken

van Nes

IJW

, et al. Predictors of exoskeleton motor learning in spinal cord injured patients. Disabil Rehabil 2021; 43(14): 1982–1988.

76.

van Dijsseldonk

Keijsers

NLW

Rijken

, et al. A framework for measuring the progress in exoskeleton skills in people with complete spinal cord injury. Front Neurosci 2017; 11: 699.

77.

van Nes

IJW

van Dijsseldonk

van Herpen

FHM

, et al. Improvement of quality of life after 2-month exoskeleton training in patients with chronic spinal cord injury. J Spinal Cord Med 2022: 1–7. Epub ahead of print.

78.

Williams

AMM

Deegan

Walter

, et al. Exoskeleton gait training to improve lower urinary tract function in people with motor-complete spinal cord injury: a randomized pilot trial. J Rehabil Med 2021; 53: jrm00222.

79.

Xiang

X-N

Ding

M-F

Zong

H-Y

, et al. The safety and feasibility of a new rehabilitation robotic exoskeleton for assisting individuals with lower extremity motor complete lesions following spinal cord injury (SCI): an observational study. Spinal Cord 2020; 58: 787–794.

80.

Yatsuya

Hirano

Saitoh

, et al. Comparison of energy efficiency between wearable power-assist locomotor (WPAL) and two types of knee-ankle-foot orthoses with a medial single hip joint (MSH-KAFO). J Spinal Cord Med 2018; 41: 48–54.

81.

Gericke

Kurowski

Ranson

, et al. Intervention complexity–a conceptual framework to inform priority-setting in health. Bull World Health Organ 2005; 83: 285–293.

82.

Pinto

Garnier

Barbas

, et al. Budget impact analysis of robotic exoskeleton use for locomotor training following spinal cord injury in four SCI model systems. J Neuroeng Rehabil 2020; 17: 4.

83.

Chen

Bode

RK.

Factors influencing therapists’ decision-making in the acceptance of new technology devices in stroke rehabilitation. Am J Phys Med Rehabil 2011; 90: 415–425.

84.

Stephenson

Lockwood

Adoption of robotic stroke rehabilitation into clinical settings: a qualitative descriptive analysis. JBI Evid Implement 2020; 18(4): 376–390.

85.

Nilsen

Bernhardsson

Context matters in implementation science: a scoping review of determinant frameworks that describe contextual determinants for implementation outcomes. BMC Health Serv Res 2019; 19: 189.

86.

McHugh

Dorsey

Mettert

, et al. Measures of outer setting constructs for implementation research: A systematic review and analysis of psychometric quality. Implementation Research and Practice 2020; 1: 1–20.

87.

Pfadenhauer

Mozygemba

Gerhardus

, et al. Context and implementation: a concept analysis towards conceptual maturity. Z Evid Fortbild Qual Gesundhwes 2015; 109: 103–114.

88.

Tanabe

Saitoh

Hirano

, et al. Design of the wearable power-assist locomotor (WPAL) for paraplegic gait reconstruction. Disability and Rehabilitation: Assistive Technology 2013; 8: 84–91.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.12 MB

A systematic review of the determinants of implementation of a locomotor training program using a powered exoskeleton for individuals with a spinal cord injury

Abstract

Background

Objective

Data sources

Study selection

Data extraction

Results

Conclusions

Keywords

Background

Methods

Results

Discussion

Clinical messages

Supplemental Material

sj-docx-1-cre-10.1177_02692155231164092 - Supplemental material for A Systematic Review of the Determinants of Implementation of a Locomotor Training Program Using a Powered Exoskeleton for Individuals with a Spinal Cord Injury

Footnotes

Acknowledgments

Author Contributions

Declaration of Conflicting Interests

Funding

ORCID iDs

Supplemental Material

Appendix 1. Detailed search strategies

References

Supplementary Material
