Establishing relationships between environmental exposures to radionuclides and the consequences for wildlife: inferences and weight of evidence

Abstract

Ecological risk assessments for radioactive substances are based on a number of inference rules to compensate for knowledge gaps, and generally require the implementation of a weight-of-evidence approach. Until recently, dose (rate)–response relationships used to derive radioprotection criteria for wildlife have mainly relied on laboratory studies from a limited number of species as representatives of biodiversity. There is no doubt that additional knowledge, combined with advanced conceptual and mathematical approaches, is needed to develop general rules and increase confidence when extrapolating from test species to complex biological/ecological systems. Moreover, field data sets based on robust sampling strategies are still needed to validate benchmark values derived from controlled laboratory tests, and to indicate potential indirect ecological effects, if any. This paper illustrates, through several examples, the need for implementing a combined laboratory–field-model approach to obtain science-based benchmark doses (or dose rates) (e.g. screening benchmarks for ecological risk assessments or derived consideration reference levels), based on robust meta-analysis of dose–effect relationships covering ecologically relevant exposure time scales, species, and endpoints.

1. INTRODUCTION

1.1. International background in brief

Over the last 15 years, there has been considerable international effort to investigate the issue of protection of the environment from radioactive substances. In Europe, much of the focus has been on collating relevant information and developing different approaches to enable regulatory assessments and protective actions to be undertaken [FASSET (Williams, 2004), ERICA (Larsson, 2008), PROTECT (Howard et al., 2010)]. These developments were well aligned with the European framework for managing environmental risk from chemicals. The major operational outcomes were: an ecological risk assessment (ERA)-type tiered approach and associated tool for characterising and managing the environmental risk for radioactive substances [the ERICA Integrated Approach (Larsson, 2008)]; the derivation of screening ecological benchmarks needed for implementation of the tiered approach (Garnier-Laplace et al., 2008); and the FREDERICA database collating primary data on effects of ionising radiation on non-human species (Copplestone et al., 2008). In the meantime, the United Nations Scientific Committee on the Effects of Atomic Radiation (UNSCEAR) reviewed the literature to update its estimates of effects of ionising radiation on non-human biota (UNSCEAR, 2008). Through Publication 108, the International Commission on Radiological Protection (ICRP) developed an approach for radiological protection of the environment, consistent with the approach for humans (ICRP, 2008). This publication defines the underlying basic concepts and data requirements for Reference Animals and Plants (RAPs), including derived consideration reference level (DCRL) values, defined as the ‘band of dose rates within which there is likely to be the same chance of deleterious effects occurring to individuals of such type of organism’. The International Atomic Energy Agency has revised the International Basic Safety Standards, which now include references to radiological protection of the environment (IAEA, 2011), and the revised version of the Euratom Basic Safety Standards was adopted consistently at the end of 2013 (Council of the European Union, 2013).

1.2. Basic definitions and extrapolation issues

Broadly, ERAs estimate the probability and magnitude of detrimental effects that are likely to occur in exposed biota at different levels of biological organisation (individuals, populations, communities, ecosystems). The method used to characterise the risk is based on comparing the doses (or the dose rates) to which living species of interest are exposed during a defined period with critical effect values (including ‘no-effect’ values). These effect benchmarks are defined for specific RAPs in ICRP’s methodology, for specific wildlife groups when referring to the UNSCEAR’s estimates, and for the structure and function of an ecosystem when using the ERICA-PROTECT’s screening benchmark associated with the ERICA Integrated Approach (Table 1). Whichever method is used for derivation, a number of extrapolation issues that arise in undertaking an ERA need to be dealt with, such as from acute to chronic exposures, from external to internal irradiation, between biological endpoints, between species, and from individual to population levels (Garnier-Laplace et al., 2008). This paper reviews three of these issues – extrapolation from individual to population, between species, and from laboratory to field – and discusses them in terms of basic knowledge, inference methods used, and main lessons learnt.

Table 1.

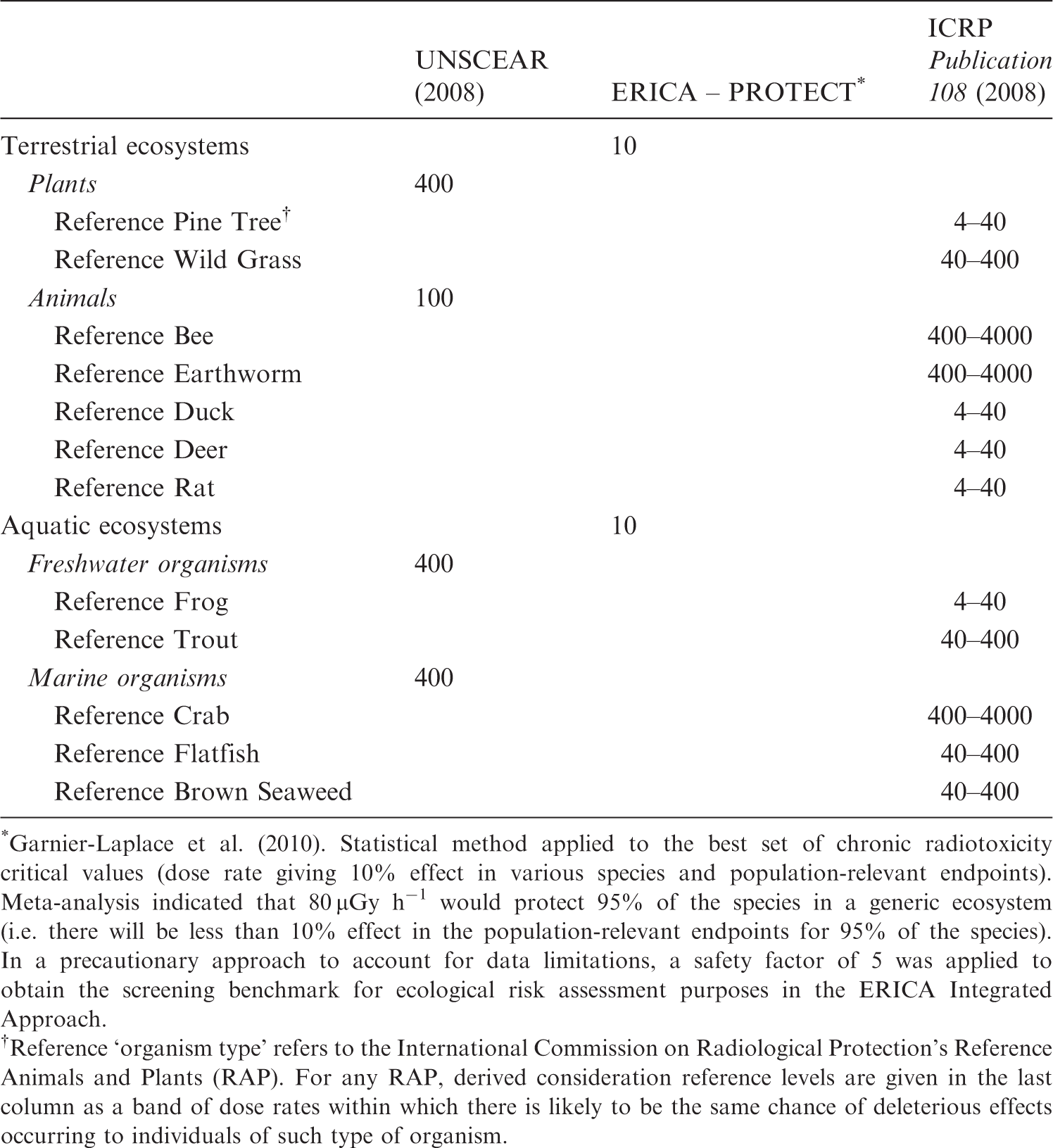

Published effects benchmarks (dose rate in µGy h⁻¹) for chronic exposure situations.

	UNSCEAR (2008)	ERICA – PROTECT *	ICRP Publication 108 (2008)
Terrestrial ecosystems		10
Plants	400
Reference Pine Tree †			4–40
Reference Wild Grass			40–400
Animals	100
Reference Bee			400–4000
Reference Earthworm			400–4000
Reference Duck			4–40
Reference Deer			4–40
Reference Rat			4–40
Aquatic ecosystems		10
Freshwater organisms	400
Reference Frog			4–40
Reference Trout			40–400
Marine organisms	400
Reference Crab			400–4000
Reference Flatfish			40–400
Reference Brown Seaweed			40–400

*

Garnier-Laplace et al. (2010). Statistical method applied to the best set of chronic radiotoxicity critical values (dose rate giving 10% effect in various species and population-relevant endpoints). Meta-analysis indicated that 80 µGy h⁻¹ would protect 95% of the species in a generic ecosystem (i.e. there will be less than 10% effect in the population-relevant endpoints for 95% of the species). In a precautionary approach to account for data limitations, a safety factor of 5 was applied to obtain the screening benchmark for ecological risk assessment purposes in the ERICA Integrated Approach.

†

Reference ‘organism type’ refers to the International Commission on Radiological Protection’s Reference Animals and Plants (RAP). For any RAP, derived consideration reference levels are given in the last column as a band of dose rates within which there is likely to be the same chance of deleterious effects occurring to individuals of such type of organism.

2. Materials and methods

2.1. Overview of the method for estimating population effects for a given species by combining Leslie matrices and dose-rate–effects relationships

Generally, protection of the environment targets populations and ecosystems. However, most laboratory effect tests are performed at individual and subindividual levels. One of the most important challenges is to extrapolate measured effects on individual endpoints to the population. Focusing solely on individual endpoints can lead to inaccurate estimates of risk to populations due to the complexity and non-linearity of the relationship between effects on individual survival, reproduction, or growth, and population dynamics. The proposed method is based on the use of a Leslie matrix, where the population of a species is represented as an age-structured vector N(t) containing the numbers n_i(t) of individuals in each age class i at time t, with i being the individual age ranging from 1 to i_max. The population at t + Δ is obtained from the equation N(t + Δ) = A.N(t), where A, the transition matrix constructed on the basis of the species’ life-cycle features, collected from the literature, is defined by the following variables:

the survival rate P_i, i.e. the probability that individuals of age class i survive to the next age class over one time step; and

the fecundity rate, F_i, for each age class i during one time step.

Based on dose-rate–effect relationships established for individual endpoints, responses to ionising radiation are expressed as reduction coefficients applied to each variable (Fig. 1). Such dose-rate–response relationships were built according to a well-defined procedure explained in detail in Garnier-Laplace et al. (2010). The method, initially proposed by Lance et al. (2012), has been generalised to representative wildlife species (Alonzo et al., 2013). Here, only two terrestrial species, a mammal (Mus musculus) and a soil invertebrate (Eisenia fetida), are used as examples to compare the chronic external gamma radiosensitivity at the individual level using the EDR₁₀ (dose rate giving 10% change in observed effect) on survival or fecundity with two population-relevant endpoints modelled as the lowest dose rate inducing significant change in the population growth rate λ-loEDR and the individual reproductive rate R₀-loEDR (number of offspring per individual over a lifetime) (Lance et al., 2012).

Fig. 1.

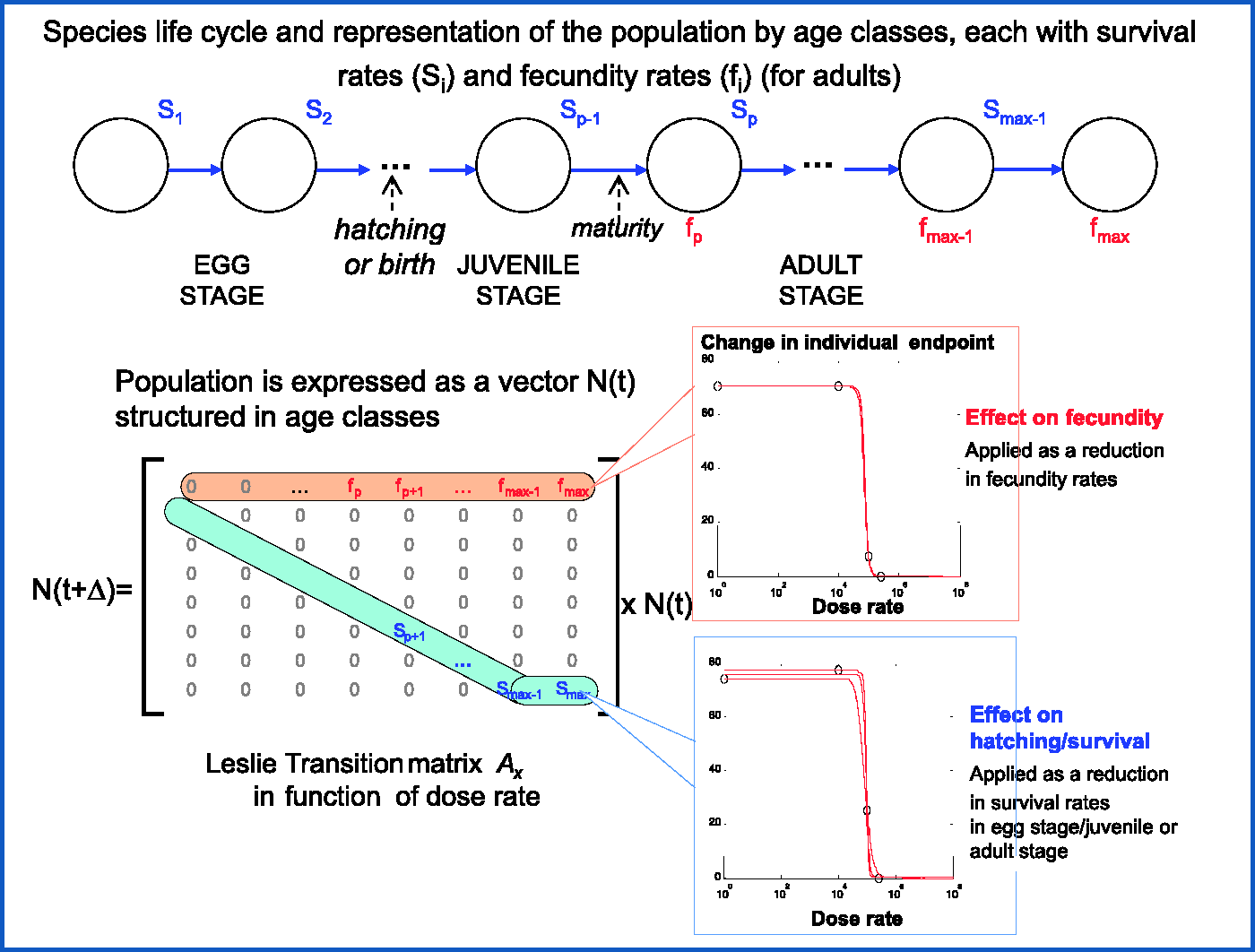

Extrapolation approach proposed for predicting population-level response by combining dose-rate–effect relationships and an age-structured population matrix.

2.2. Overview of the method for estimating the range of variation of radiosensitivity among species

The method aims to represent the range of variation in radiosensitivity among species using a statistical extrapolation model named ‘species sensitivity distribution’ (SSD). Using the FREDERICA database, focusing on terrestrial species and endpoints directly relevant to population demography, the analysis was restricted to chronic external exposure situations acquired under controlled conditions, and to chronic effect data derived from field studies within the Chernobyl exclusion zone. For each species and endpoint, the dose-rate–effect relationship was built, and the EDR₁₀ was estimated. EDR₁₀ values were allocated into two consistent data sets of critical ecotoxicity data: one documenting effects from chronic exposure to external gamma irradiation under controlled conditions, and the other documenting effects from chronically exposed wildlife within the Chernobyl exclusion zone in the last 15 years. Curve fitting on quality-assessed data subsets was performed with the ‘drc’ add-on package (Ritz and Streibig, 2005) of R software (R Development Core Team, 2010).

A statistical distribution was fitted to the selected sets of EDR₁₀ (one minimum value per species) and allowed to compare interspecies variation in radiosensitivity between controlled and field exposure conditions. A direct weighted bootstrap method was used to build the SSD confidence intervals. The method is described in full in Garnier-Laplace et al. (2010).

3. results and discussion

3.1. Extrapolation from individual to population level for two species

The population response to chronic ionising radiation was explored in E. fetida and M. musculus on the basis of a modelling exercise examining how population growth rate declined as a result of combined changes in several life-history traits. For the two selected species – and for a series of others in Alonzo et al. (2013) – evidence was found to show that population-level effects depended on how key variables were affected by exposure to ionising radiation at the individual level, and on how population dynamics responded to such combination of individual effects (Fig. 2). The simulations supported the view that the most influential individual endpoint for population dynamics was not necessarily the most sensitive to radiation (Alonzo et al., 2013). Combining available effects observed in each species on distinct life stages and individual endpoints yielded significant changes in both individual R₀ and/or population λ at minimum dose rates of 2610 µGy h⁻¹ and 140 µGy h⁻¹, respectively, in the soil invertebrate (E. fetida) and the terrestrial mammal (M. musculus). Significant reduction in individual R₀ or population λ resulting from a combination of slight effects (<10% reduction) on several life-history traits was predicted at dose rates below any EDR₁₀ derived for E. fetida at the individual level (lowest EDR₁₀ of 3400 µGy h⁻¹), whereas the individual level for M. musculus (lowest EDR₁₀ of 26 µGy h⁻¹) was clearly more radiosensitive than the population level. These observations supported the idea that a species might not be protected against a significant change below the EDR₁₀ derived for the most sensitive individual endpoint, if several life-history traits are affected simultaneously. As a consequence for ICRP DCRL bands for the corresponding RAP (ICRP, 2008), the recommended DCRL band for the Reference Rat (i.e. 0.1–1 mGy day⁻¹ or 4–40 µGy h⁻¹) fits with data reported here for the individual level, but may be overly cautious at the population level (in that case, the DCRLs would be 1–10 mGy day⁻¹ or 40–400 µGy h⁻¹). For Reference Earthworm, the DCRL of 10–100 mGy day⁻¹ (or 400–4000 µGy h⁻¹) is appropriate for both individual and population levels.

Fig. 2.

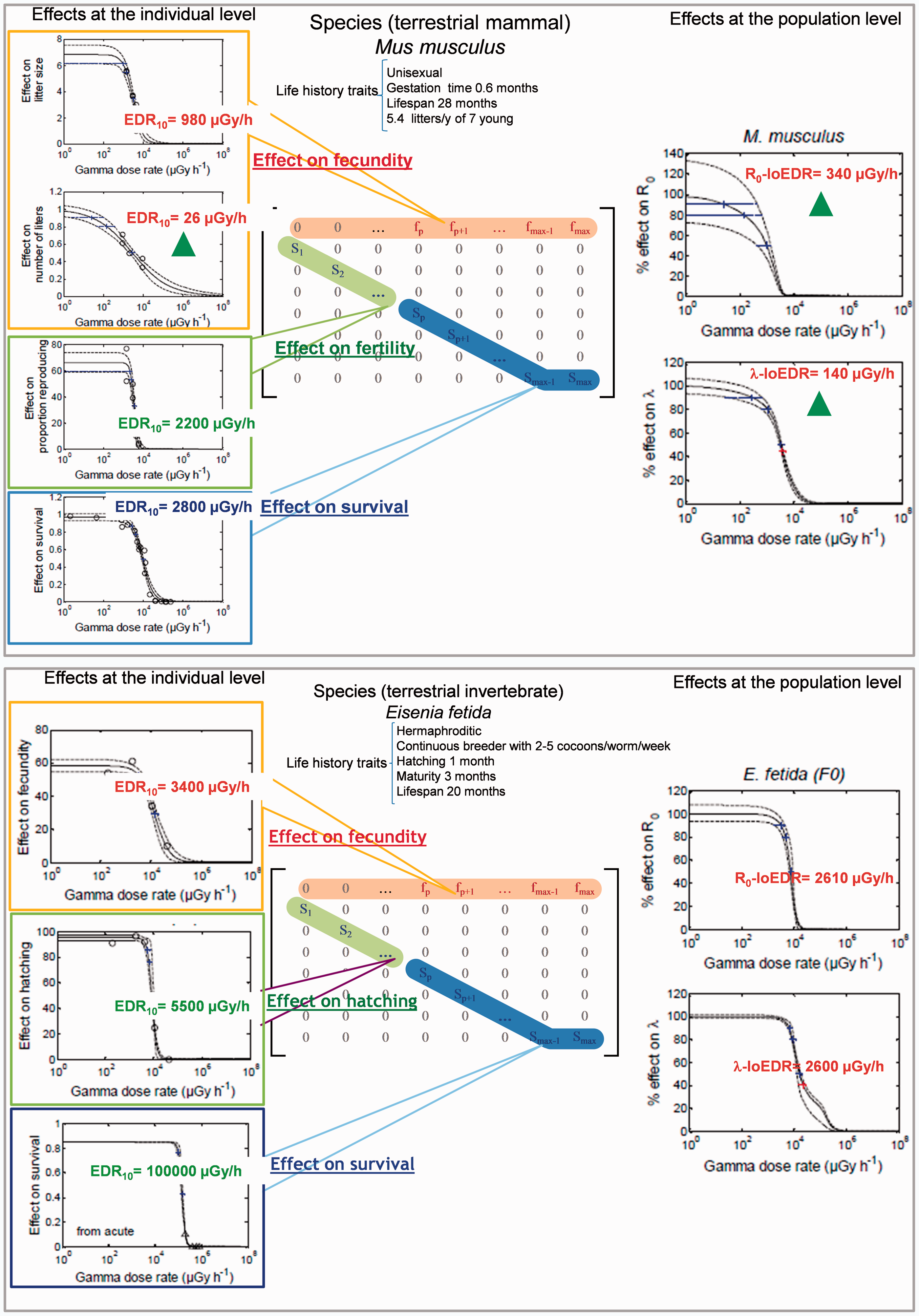

Extrapolation approach proposed for predicting population-level response by combining dose-rate–effect relationships derived from chronic toxicity data and Leslie matrices (top: results for Mus musculus; bottom: results for Eisenia fetida).

3.2. Extrapolation from one species to another, and from laboratory exposure conditions to the field

Based on laboratory data on radiation effects, species radiosensitivity varied over six orders of magnitude, with vertebrates being among the most radiosensitive organisms (Garnier-Laplace et al., 2010). This suggested that research on primary mechanisms of interactions between ionising radiation and living organisms (from biomolecules up to individuals) is still needed to extrapolate effects in terms of quality and intensity on a rational basis among the wide biodiversity. Additionally, two sets of chronic radiotoxicity data in terrestrial non-human species (one acquired under controlled external gamma irradiation in the laboratory or in the field, and another acquired from field studies in the Chernobyl exclusion zone characterised by a much more complex exposure situation) were compared. This comparison, discussed in detail in Garnier-Laplace et al. (2013), indicated that the best estimate of the median value of the distribution established for field conditions at Chernobyl (approximately 100 mGy h⁻¹) was eight times lower than that from controlled experiments (approximately 850 mGy h⁻¹), suggesting that organisms in their natural environmental were more sensitive (Fig. 3). However, this first comparison highlighted a lack of mechanistic understanding and confusion resulting from field sampling strategies that did not account sufficiently for confounding factors. The field exposure–effects relationship may be modified due to the combination of radiotoxicity effects on growth rate/reproduction and geographic gene diversity, competition, predation, and abiotic factors including pollutants other than radionuclides. Until more field data are acquired, this study calls for a precautionary approach when deriving any benchmark values.

Fig. 3.

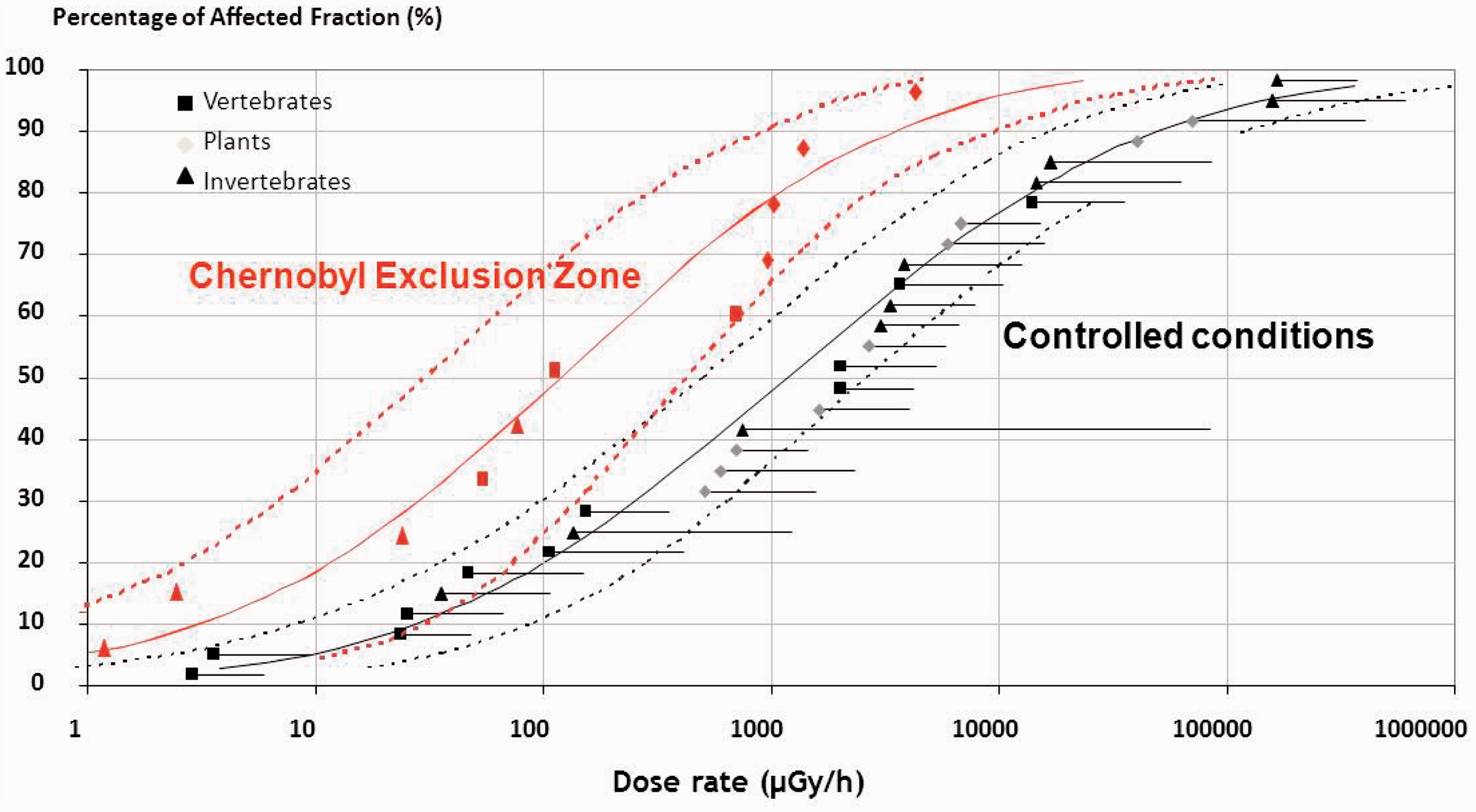

Extrapolation approach proposed for modelling interspecies radiosensitivity variation. Right: species sensitivity distribution (SSD) fitted to minimum values of EDR₁₀ (dose rate giving 10% change in observed effect) for terrestrial species exposed under controlled conditions to external gamma irradiation; left: SSD fitted on EDR₁₀ data set acquired in real field conditions from the Chernobyl exclusion zone.

4. CONCLUSIONS

Population models proposed in this study integrate available radiation effect data measured at the individual level, and infer effects at the population level. They can be used to derive dose rates above which population growth is significantly affected when chronically exposed to ionising radiation. This modelling approach is useful to identify critical endpoints for population sustainability in any species, and to prioritise future research. Additionally, the discrepancy between controlled tests and Chernobyl effects data on wildlife is intriguing, mainly due to a shift to a greater radiosensitivity of wildlife in the field. This strongly highlights the need for fundamental research to understand elementary mechanisms.
