Abstract

Objective:

Otosclerosis is an underlying disease of the bony labyrinth. This disorder, occurring only within the area of a person’s temporal bone, is characterized by a progressive hearing loss and tinnitus.

Material and Methods:

The study looked for the answer to the question of whether the presence or absence of Carhart notch in the presurgical tonal audiogram affects the final outcome of the otosclerosis surgery.

Results:

The analysis included 140 patients operated on for the first time due to otosclerosis between 2010 and 2016. The study group consisted of 107 women aged from 19 to 62 (average age: 40.33) and 33 men aged 27 to 59 (average age: 38.23). Analysis showed a statistically better result of stapedotomy in patients without the notch than in the same procedure in patients with the notch present. The opposite situation occurred in the case of stapedectomy.

Conclusion:

(1) The presence of a refraction of the bone conduction curve with a depth of 10 to 20 dB at a frequency of 2000 Hz (the so-called Carhart notch) in the presurgical tonal audiogram is an unfavorable prognostic factor in relation to closing the cochlear reserve and improving bone conduction after the stapedotomy. (2) Regardless of the presence or absence of Carhart notch in the presurgical tonal audiogram, stapedotomy is the procedure with the highest efficiency in the treatment of otosclerosis.

Keywords

Carhart notch otosclerosis hearing improvement

Introduction

Otosclerosis is an underlying disease of the bony labyrinth. This disorder, occurring only within the area of a person’s temporal bone, is characterized by a progressive hearing loss and tinnitus.^1
-3 The disease has a long-term course and can lead to severe hypoacusis and even deafness.^4,5

On the basis of histological examinations, it was concluded that the process of otosclerosis most often develops in the front part of the oval window in a spot referred to as “fistula ante fenestram.” In addition to the above location, the lesions may also include the round window, semicircular canals, the area around the cochlea, endings of nerve fibers of the upper ampulla branch, and lateral vestibular nerve.^6

-9

On the basis of the location of the otosclerosis outbreaks, 3 types of otosclerosis were distinguished:

The Bezold-Siebenmann type

The Manasse type

The Lermoyez type

Otosclerotic outbreaks most often cause immobilization of the stirrup in the oval window and the appearance of conductive hypoacusis (Bezold-Siebenmann type). In pure tone audiometry, threshold curves have an ascending character, the Cochlear reserve is maintained, often a refraction of the bone conduction curve with a depth of 10 to 20 dB at a frequency of 2000 Hz (the so-called Carhart notch) appears. At the initial stage of the disease, the hypoacusis may be one-sided, later bilateral, and usually unbalanced. Patients with otosclerosis who have conductive hypoacusis are characterized by quiet speech and often better hearing in noise (paracusis Willisi). As otosclerotic lesions spread to the niche area of the oval window, proteolytic enzymes are released in the outbreaks of otospongiosis. The enzymes penetrate into the fluid of the inner ear, resulting in a change in hypoacusis from conductive to mixed or even sensorineural hearing loss (Lermoyez type). Otosclerosis within the labyrinth, but without immobilizing the stapes base, leads to hypoacusis of the sensorineural type (Manasse type).

The advanced form of otosclerosis is defined clinically as mixed hypoacusis with bone conduction thresholds above 55 dB and air conduction above 95 dB. The most serious variant of this disease is the so-called malignant form of otosclerosis, in which the reconstruction concerns the whole labyrinth bone cover, ultimately leading to deafness.^10

-17

Material and Method

The analysis included 140 patients operated on for the first time due to otosclerosis at our department in 2010 to 2016. The youngest patient was 19 years old and the oldest was 62 years old. The average age was 39.31 years. The study group consisted of 107 women aged 19 to 62 years (average age: 40.33 years) and 33 men aged 27 to 59 years (average age: 38.23 years). The aim of the analysis was to divide patients into 2 groups depending on the surgery performed (stapedotomy [A], stapedectomy [B]). In addition, a reference group was isolated from the group whose members underwent stapedotomy. The reference group consisted of patients in whom, apart from complete immobilization of the stirrup base in the oval window, no other lesions were found in the middle ear and the osseous conduction of the ear operated in the presurgical tonal audiogram fell within the range of 0 to 20 dB. The reference group consisted of 20 patients, 16 women and 4 men (Table 1). In order to carry out a detailed analysis, patients in particular groups were divided into subgroups (0: Carhart notch present [C+], Carhart notch absent [C−], A: [C+], [C−], B: [C+], [C−]) depending on the occurrence of Carhart notch in the tonal audiogram before the surgery or lack thereof (Table 1). The study looked for the answer to the question of whether the presence or absence of Carhart notch in the presurgical tonal audiogram affects the final outcome of the otosclerosis surgery.

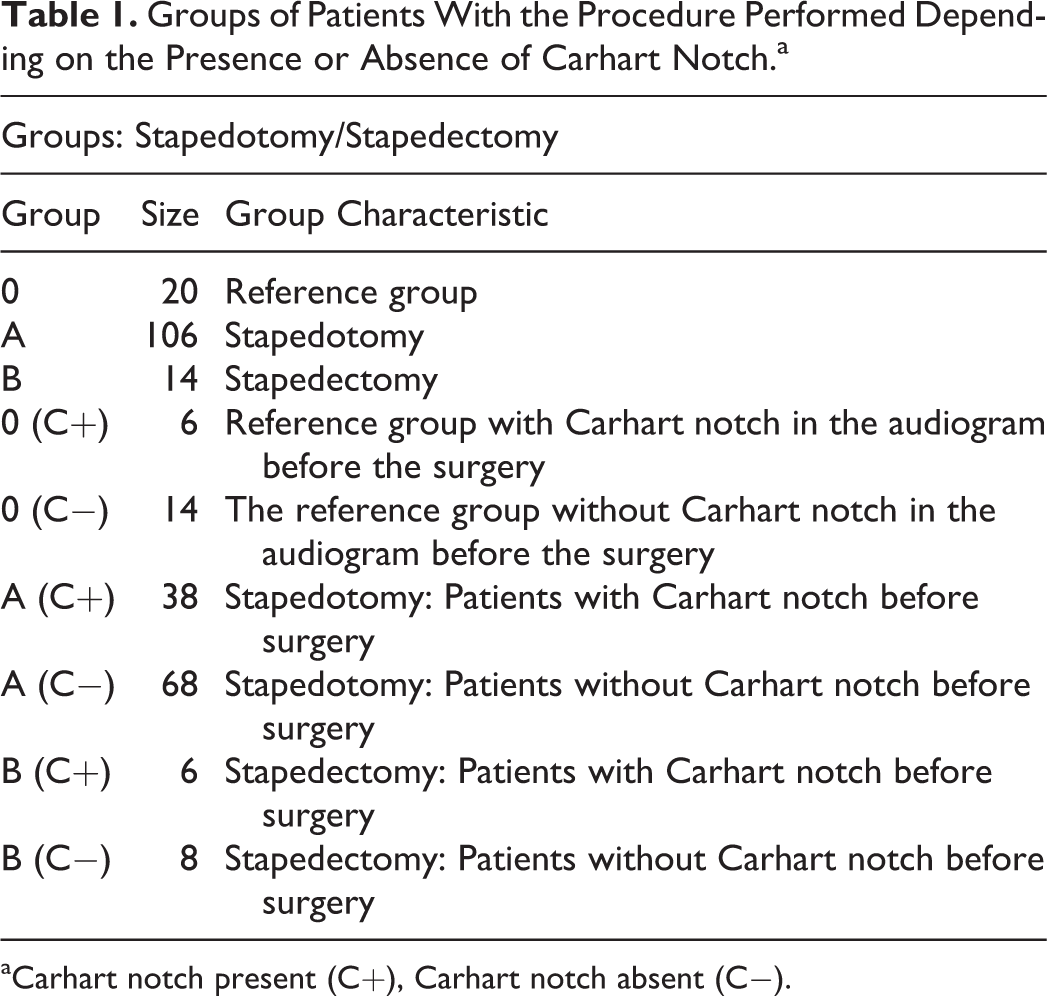

Table 1.

Groups of Patients With the Procedure Performed Depending on the Presence or Absence of Carhart Notch.^a

Groups: Stapedotomy/Stapedectomy
Group	Size	Group Characteristic
0	20	Reference group
A	106	Stapedotomy
B	14	Stapedectomy
0 (C+)	6	Reference group with Carhart notch in the audiogram before the surgery
0 (C−)	14	The reference group without Carhart notch in the audiogram before the surgery
A (C+)	38	Stapedotomy: Patients with Carhart notch before surgery
A (C−)	68	Stapedotomy: Patients without Carhart notch before surgery
B (C+)	6	Stapedectomy: Patients with Carhart notch before surgery
B (C−)	8	Stapedectomy: Patients without Carhart notch before surgery

^aCarhart notch present (C+), Carhart notch absent (C−).

The audiometric tests were performed in a sound-proof cabin of the audiometric laboratory. In the cabin, the equivalent sound level corrected by the A characteristic did not exceed 25 dB A. The intensity of the stimulus for each of the tested frequencies was determined with an accuracy of 5 dB. The interior of the room was always occupied only by the examined person. Threshold values for air and bone conduction were determined by the MIDIMATE 622 audiometer (Midimate 622; Madsen, Budapest, Hungary) equipped with TDK 39 headphones (39 headphones; TDH, Tokyo, Japan). The audiometer met the ISO ISO0389-1985 standard and the ISO7566-1987 standard for air conduction and bone conduction, respectively.

The data obtained during the research were subjected to statistical analysis. The first test applied in order to analyze the improvement in hearing was the Fisher test, also known in the relevant literature as the analysis of variance test. The test analyzes the impact of the classification criterion on the results of the conducted study. In the work, the null hypothesis states that the mean values of given parameters are statistically equal. The alternative hypothesis is the inverse statement that the means are not equal. The statistical test conducted with the use of the analysis of variance consisted of finding the F0 function. The null hypothesis stating that all means are equal was rejected with the α risk of error when: F0 > αFN-kk-1. In the test verifying nonparametric hypotheses, the c2 test was applied—that of multicolumn contingency tables (cross tabulation). This test is used for nonmeasurable variables of qualitative nature. In this test, the Pearson χ² test was applied as the method of calculating c2, which was confirmed by the χ² goodness-of-fit test. This method allows to analyze whether the data representing variables contained in cross-tabulation provide sufficient proof for a correlation between these variables. The correlation significance is represented with the use of Cramér V, whose value always falls between 0 and 1. The greater the correlation between variables, the closer to 1 the value of the coefficient is. In the work, the sufficient significance level of 5% was defined (α = .05), which means that the risk of the error of rejecting the hypothesis in case of its validity equals 5%. Statistically significant results were reported for P < .05.¹⁸

In the statistical analysis process, the Statistica software was used (Statistica, StatSoftPolska, Krakow, Poland). Informed consent was taken from each patient included in the study. Local ethics committee approved the study.

Results

In the assessment of Carhart notch in the tonal audiogram prior to surgical treatment depending on the patient’s age, no statistically significant differences were found (χ² = 7, 76, P = .08 and Cramér V = 0.22; Table 2).

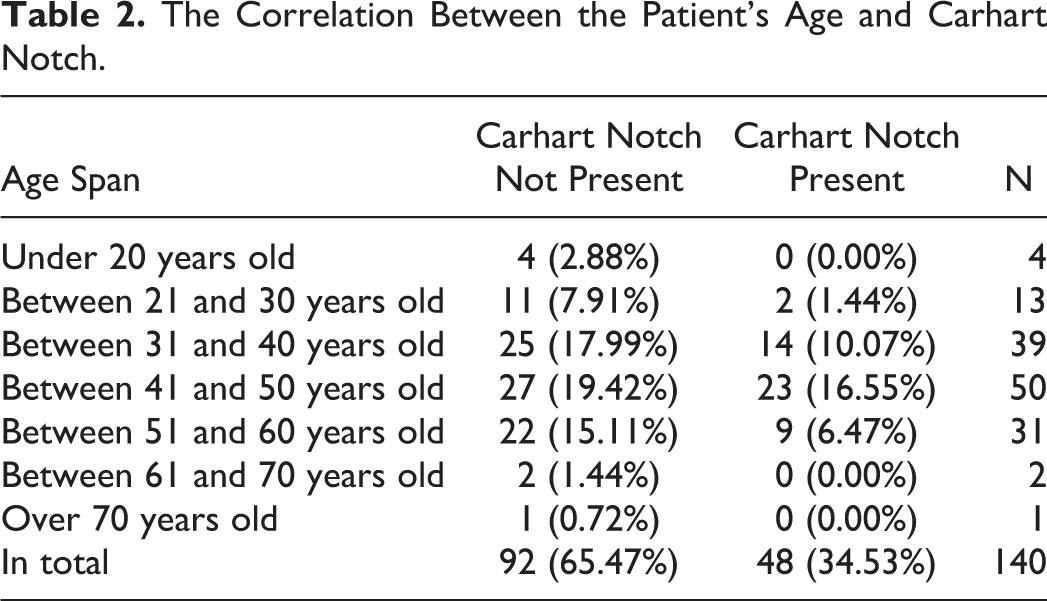

Table 2.

The Correlation Between the Patient’s Age and Carhart Notch.

Age Span	Carhart Notch Not Present	Carhart Notch Present	N
Under 20 years old	4 (2.88%)	0 (0.00%)	4
Between 21 and 30 years old	11 (7.91%)	2 (1.44%)	13
Between 31 and 40 years old	25 (17.99%)	14 (10.07%)	39
Between 41 and 50 years old	27 (19.42%)	23 (16.55%)	50
Between 51 and 60 years old	22 (15.11%)	9 (6.47%)	31
Between 61 and 70 years old	2 (1.44%)	0 (0.00%)	2
Over 70 years old	1 (0.72%)	0 (0.00%)	1
In total	92 (65.47%)	48 (34.53%)	140

In the next stage of the analysis, the degree of hearing improvement was determined in terms of closing the air–bone gap (ABG) 12 months after the surgery, depending on the occurrence of Carhart notch in the presurgical audiogram. In the analysis of variance after the treatment, the following results of changes in the mean ABGs were obtained, P < .05 (Table 3).

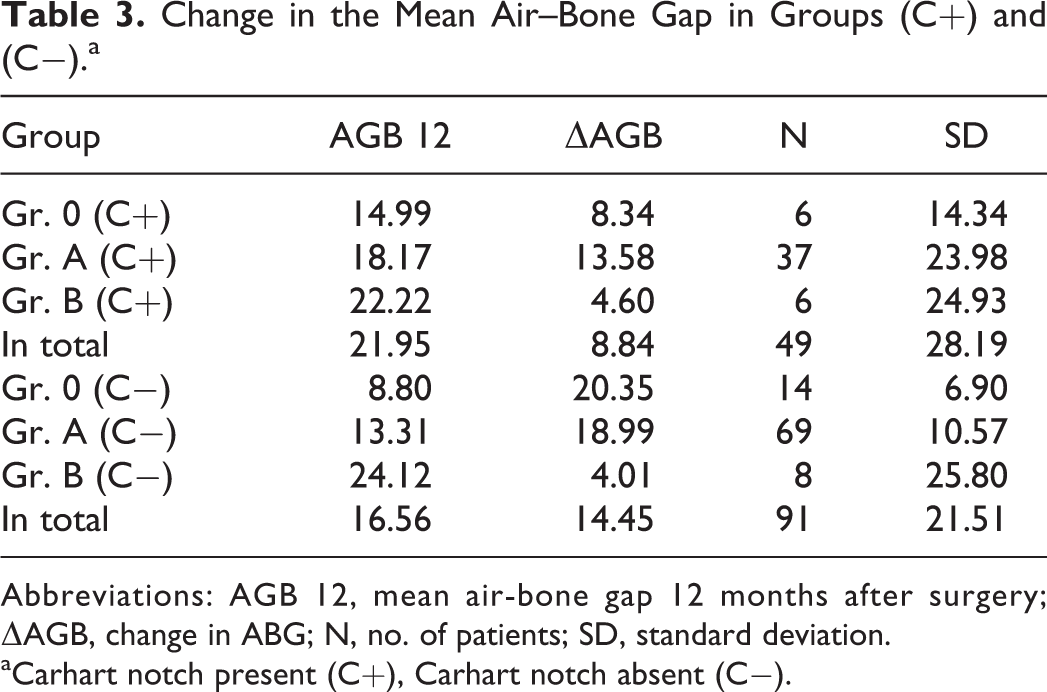

Table 3.

Change in the Mean Air–Bone Gap in Groups (C+) and (C−).^a

Group	AGB 12	ΔAGB	N	SD
Gr. 0 (C+)	14.99	8.34	6	14.34
Gr. A (C+)	18.17	13.58	37	23.98
Gr. B (C+)	22.22	4.60	6	24.93
In total	21.95	8.84	49	28.19
Gr. 0 (C−)	8.80	20.35	14	6.90
Gr. A (C−)	13.31	18.99	69	10.57
Gr. B (C−)	24.12	4.01	8	25.80
In total	16.56	14.45	91	21.51

Abbreviations: AGB 12, mean air-bone gap 12 months after surgery; ΔAGB, change in ABG; N, no. of patients; SD, standard deviation.

^aCarhart notch present (C+), Carhart notch absent (C−).

Based on the obtained data, it was confirmed that the result of the surgery after stapedotomy is statistically better than that of the procedure performed with the stapedectomy method, regardless of the presence of the Carhart notch.

Analysis within the same procedure showed a statistically better result of stapedotomy in patients without the notch (Group [Gr.] A [C−], Gr.0 [C−]) than in the same procedure in patients with the notch present (Gr. A [C+]). The opposite situation occurred in the case of stapedectomy. In the assessment of this group of patients, statistically better results were obtained in patients with the notch (Gr. B [C+]).

In the subsequent part of the study, the change in the value of the bone conduction threshold was analyzed depending on the surgical procedure and the presence or absence of Carhart notch in the presurgical tonal audiogram. The analysis was conducted for the frequencies of 500, 1000, and 2000 Hz. For the groups of patients created on the basis of the surgery performed with Carhart notch present in the presurgical tonal audiogram, the following results were obtained (Table 4).

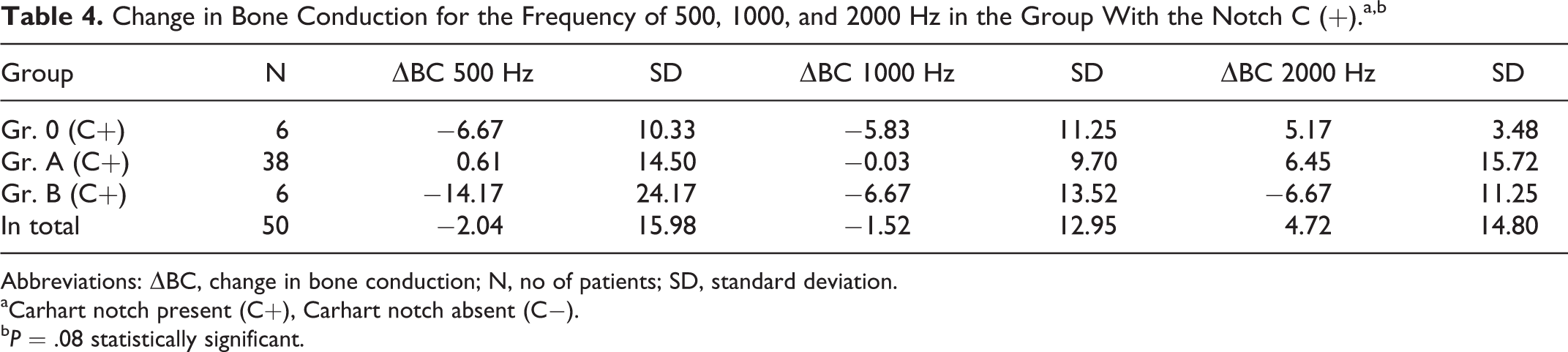

Table 4.

Change in Bone Conduction for the Frequency of 500, 1000, and 2000 Hz in the Group With the Notch C (+).^a,b

Group	N	ΔBC 500 Hz	SD	ΔBC 1000 Hz	SD	ΔBC 2000 Hz	SD
Gr. 0 (C+)	6	−6.67	10.33	−5.83	11.25	5.17	3.48
Gr. A (C+)	38	0.61	14.50	−0.03	9.70	6.45	15.72
Gr. B (C+)	6	−14.17	24.17	−6.67	13.52	−6.67	11.25
In total	50	−2.04	15.98	−1.52	12.95	4.72	14.80

Abbreviations: ΔBC, change in bone conduction; N, no of patients; SD, standard deviation.

^aCarhart notch present (C+), Carhart notch absent (C−).

^bP = .08 statistically significant.

Within the analyzed groups, there were no statistically significant changes in the bone conduction threshold values in the studied frequencies after the surgery. In the analysis of groups of patients without the Carhart notch in the presurgical tonal audiogram, the following results were obtained (Table 5).

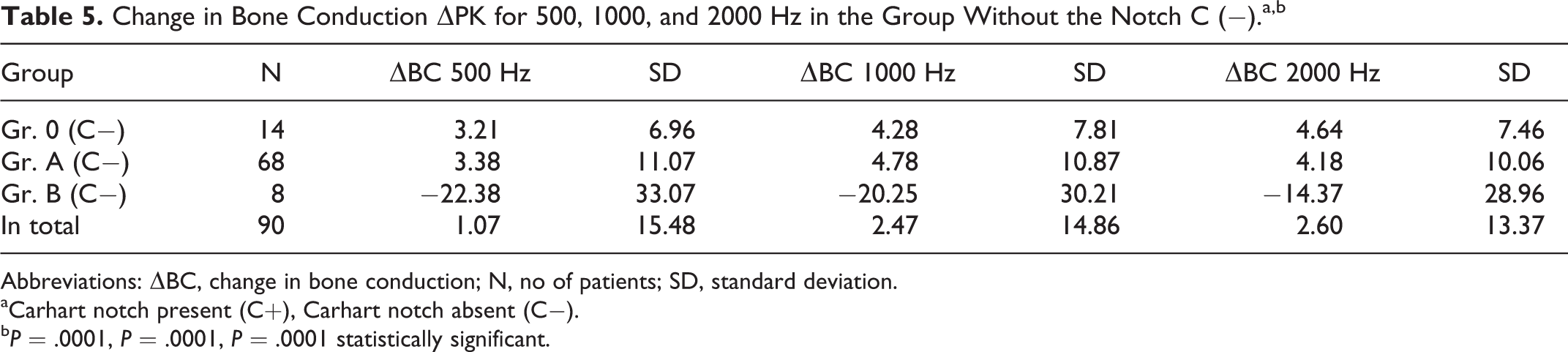

Table 5.

Change in Bone Conduction ΔPK for 500, 1000, and 2000 Hz in the Group Without the Notch C (−).^a,b

Group	N	ΔBC 500 Hz	SD	ΔBC 1000 Hz	SD	ΔBC 2000 Hz	SD
Gr. 0 (C−)	14	3.21	6.96	4.28	7.81	4.64	7.46
Gr. A (C−)	68	3.38	11.07	4.78	10.87	4.18	10.06
Gr. B (C−)	8	−22.38	33.07	−20.25	30.21	−14.37	28.96
In total	90	1.07	15.48	2.47	14.86	2.60	13.37

Abbreviations: ΔBC, change in bone conduction; N, no of patients; SD, standard deviation.

^aCarhart notch present (C+), Carhart notch absent (C−).

^bP = .0001, P = .0001, P = .0001 statistically significant.

Based on the obtained data, it was concluded that after the period of 12 months from the surgery, the change in the mean threshold value of bone conduction between the groups formed at the frequencies tested was statistically significant (P < .05). The average values for groups A and 0 were significantly different from the group B average. In the population of patients without the Carhart notch and the stapedotomy surgery (Gr. 0, Gr. A), a statistically significant improvement in the mean threshold of bone conduction was found. In the postsurgical evaluation of patients without the Carhart notch who underwent stapedectomy, an increase in the mean threshold of bone conduction was noted. At the same time, there were no statistically significant differences between the mean threshold bone conduction values of groups A and 0.

Discussion

Otosclerosis is an osteodystrophic disease of the labyrinth bone shell, manifested by progressive hearing loss and tinnitus. According to the current state of knowledge, the only effective way to treat otosclerosis is to perform a surgery on the stirrup, whose aim is to restore the functions of the oval window and thus the proper mobility of the middle ear transmission system.

Considering the factors affecting the improvement of hearing in patients operated on due to otosclerosis, the occurrence of Carhart notch and its influence on the result of surgical treatment were analyzed. Carhart notch, described for the first time in 1950, involves a reduction in the bone curve by approximately 10 to 20 dB at a frequency of 2000 Hz. It arises as a result of mechanical immobilization of the stirrup base in the oval window and disturbances in the self-resonance of the ossicular chain. Immobilization of the stirrup in otosclerosis and the associated loss of ossicular resonance impairs the 3 bone conduction pathways described by Tondorf¹⁹ in 1968 (directly from the bones to the cochlea, from the bones to the middle ear and to the cochlea, and from the bones to the external auditory canal, then to the middle ear and to the cochlea). The largest contribution of the middle ear elements occurs for the resonant frequency. The improvement in bone conduction after a successful surgery (stapedotomy) changes the properties of the middle ear by changing the mass and stiffness of the osseous chain, causing a modification of the resonant frequency and improvement in the measured bone conduction thresholds. The change in bone conduction and disappearance of Carhart notch after successful surgery are complex and multicomponent phenomena, and according to numerous authors (Sheehy,²⁰ Sellars,²¹ Hueb et al,²² and Lippy et al²³), it is not possible to analyze and explain the obtained results using a single mechanism. In our observations, the lack of Carhart notch in the presurgical tonal audiogram is a favorable prognostic factor in terms of hearing improvement (closing the cochlear reserve and improving bone conduction) in the case of stapedotomy.^24,25

Conclusions

The presence of Carhart notch in the presurgical tonal audiogram is an unfavorable prognostic factor in relation to closing the cochlear reserve and improving bone conduction after the stapedotomy.

Regardless of the presence or absence of Carhart notch in the presurgical tonal audiogram, stapedotomy is the procedure with the highest efficiency in the treatment of otosclerosis.
