Abstract

The aim of the study is to investigate barrier properties of a nanocomposite material against organic solvents. Molecular transport phenomena of three alcohols, namely methanol, ethanol and isopropanol, through a nitrile rubber-based nanocomposite, are carried out in temperatures ranging from 23 to 70°C. For each configuration, mass transfer kinetics are investigated for three different types of clay nanoparticles using mass uptake experiments. Maleated nanocomposites with enhanced dispersion morphology are also examined. Results show that all molecular transport parameters are generally susceptible to temperature variations. Sorption and diffusion coefficients noticeably increased as temperatures increased. Polymer/solvent interaction seems to be similarly affected. Molecular volume of the penetrant is observed to have an influence on molecule migration. Diffusion coefficients are likewise affected and decrease with the linear increase of molecular volume. The diffusion mechanism is slightly altered by this factor and the Fickian mode is maintained. When filling the rubbery matrix with layered silicates, sorption decreases at equilibrium. Its level drops even lower with the maleation of the nanocomposite. However, the diffusion coefficient exhibits a less systematic trend. Randomly filled nanocomposites appear to have higher diffusivity than neat rubber, but diffusion parameter considerably decreases after maleation, which emphasizes the nanoclay’s dispersion effect.

Keywords

Nitrile rubber layered silicate nanocomposites maleic anhydride mass transfer kinetics swelling

Introduction

Molecular transport phenomena through polymeric systems play an important role in several areas of engineering and have a considerable impact in many industrial sectors.¹ Structural integrity, chemical stability and dimensional invariance in the presence of aggressive substances are qualities of great importance when applications such as food packaging, controlled drug release, filtration and electronic encapsulation are concerned.² The sorption and transport properties of small organic molecules in a wide range of polymers have been extensively investigated. For instance, there are several studies on the molecular transport of most of the thermoplastic polymers, thermosets, elastomers, and geomembranes.^3–5 The barrier properties of these materials were probed in the presence of the majority of commercial chemicals, such as n-alkanes, halo-alkanes, aliphatic esters and aromatic hydrocarbons.^6,7 The molecular transport behavior was found to be deeply affected by the structural properties of the penetrant/polymer system. In fact, studies demonstrate the influence of the segmental mobility of the polymeric matrix, the size and shape of the penetrant as well as the chemical affinity in the diffusion system.⁸ It was also found that the mass transfer phenomena closely depend on the environmental conditions surrounding the sorption process, namely temperature and humidity.^9,10

Polymers reinforced with inorganic nanostructured and layered silicates have attracted substantial attention due to their unique and attractive characteristics even at low concentrations.¹¹ These materials, also called nanoclays, combine the simplicity of polymer processing with the resistance of the platelet-like nanoparticles. In addition, clay nanoparticles possess two characteristics. First, the constitutive platelets can be dispersed on individual layers. Second, they can functionalize the surface of these layers and apply chemical modifications that allow better interactions with the hosting polymers.¹² In previous works, their high aspect ratio was stated to contribute to the reduction of fluid permeability by creating a tortuous pathway to the penetrant substance.^13,14 The ideal state would be having a complete separation of the nano-platelets leading to a maximum of interfacial surface in the rubber/clay system. However, total delamination is technically difficult to achieve due to the non-compatibility between the components and the hydrophilic nature of the bare clay nanoparticle surface. Therefore, the successful synthesis of nanocomposites depends on the chemical affinity between the polymeric matrix and the hosted nanoparticles that ensure the thermodynamic stability of the nanocomposite system. Over the years, new techniques are continually being developed to enhance the nanoclay/polymer compatibility. The most commonly adopted method consists of modifying the surface chemistry of the nano-platelets with aliphatic organic structures to reduce the surface tension and facilitate polymeric chain intercalation.¹⁵ Rather than achieving intercalation via ion exchange, other methods to increase the interfacial adhesion were adopted, such as ion dipole bonding of bulk molecules to the metallic cation on the nanoclay surface and nano-platelet edge treatment with silane coupling agents.¹⁶ It was also found that some studies used maleic anhydride monomers as compatibilizers due to their polarity and their highly reactive nature.^17,18

Both in its solid and latex states, acrylonitrile butadiene rubber is considered to be one of the most mass produced and widely commercialized elastomers, also known as nitrile rubber. Mainly manufactured using the emulsion polymerization method, this elastomer exhibits low mechanical and barrier properties without reinforcing fillers. Attempts were made to incorporate clay nanoparticles to enhance its barrier properties, but this yielded a low state of dispersion of the nanoclays within the elastomeric matrix, resulting in poor chemical resistance quality. In our previous work, a clay nanocomposite based on nitrile rubber was developed. Combining the grafting of nitrile rubber backbones with maleic anhydride and the organic modification of the nanoclay surfaces led to a successful synthesis of the nanocomposite with a satisfactory state of nanoclay dispersion and orientation of the nano-platelets within the elastomeric structure. Thus, the aim of the present study is to investigate the barrier properties and better understand the sorption behavior of this material against organic solvents by probing the kinetic molecular transport parameters of the penetrant/nanocomposite system.

Reagents and materials

Baymod N34.52 NBR powder was used, complements of Matexion, ON, Canada. This nitrile rubber elastomer (NBR) is 34% acrylonitrile. Its Mooney viscosity is 45±5 at 100°C and its specific gravity is 0.98. For the grafted nanocomposite samples, maleic anhydride (MA) was used as a reactive monomer and benzoyl peroxide (BPO) as an initiator of the grafting process. Both substances were purchased from Aldrich Chemical with a purity level of over 98%.

The nanocomposites were filled with three different commercial-grade clay nanoparticles at a mass concentraton of 5 wt% (Sigma-Aldrich, Oakville, ON, Canada), one unmodified and two organically treated. The nClays were labeled as follows: nClay/0, a natural inorganic hydrophilic sodium montmorillonite (Na⁺MMT) with no surface modification. nClay/1, surface modified MMT containing 35–45 wt. % of dimethyl dialkyl (C14-C18) amine. nClay/2, Surface modified MMT containing 25–30 wt. % methyl dihydroxyethyl hydrogenated tallow ammonium.

High purity grade (over 98%) methanol, ethanol and isopropanol (propan-2-ol) from Fisher scientific (Hampton, NH, U.S.A.) were used as penetrant solvents in the sorption experiments. The molecular volume of the solvents are 40.45, 58.37 and 76.46 cm³·mol⁻¹, respectively.

Experimental

Preparation of the nanocomposites

Nitrile rubber-based nanocomposites containing the formerly described nanoclays were prepared. For every batch, a virgin nitrile rubber sample was prepared using the same processing protocol as for the nanocomposites for comparison purposes. A HAAKE Polylab OS—RheoDrive 4 co-rotating twin screw extruder (Rheomex OS PTW16) was used to prepare the conventional and maleated nanocomposites. After this, all the obtained compounds were press-molded into sheets for mass transfer experiments.

The preparation of maleated nanocomposite rubber was carried out in two stages; grafted nitrile rubber was firstly prepared by grafting NBR with maleic anhydride in the presence of benzoyl peroxide in a Brabender mixer. One part per hundred rubber (phr) was pre-mixed with nitrile powder for 5 min at 80°C and 100 rpm. Two phr of MA was then added for an additional 5 min under the same mixing conditions. The resulting mixture was then extruded in accordance with the procedure described in the previous section.

The nomenclature adopted to label the nanocomposites under study was as follows. Each nanocomposite was appointed as RCN/x where x stood for the nature of the nClay (0, 1 and 2 for nClay/0, nClay/1 and nClay/2 respectively). The same terminology was used for the maleated sample with an extra g letter referring to grafting (RCNg/x). NBR/P stood for pure nitrile rubber used as reference.

Mass uptake experiment

Mass uptake experiments were performed at 23, 40, 55 and 70°C. Rectangular samples (60 × 10 mm) were cut from the press-molded nanocomposite sheets. Screw-tight test bottles containing about 10 mL of the penetrant solvent were placed in a bath of silicone oil heated to the desired temperature within an accuracy of ± 1.0°C. Dry weights of the cut samples were then placed in the bottles. At predefined time intervals, the samples were withdrawn from the solvent containers. The surface-adhered liquid was removed by gently pressing the samples between filter paper wraps and the samples were weighed on a digital balance (accuracy ± 0.01 mg). The overall process was performed within a maximum of 20 seconds to minimize errors. The sorption tests were performed until equilibrium was reached, i.e. solvent was no longer being absorbed despite continued immersion. Each test was replicated three times to obtain statistically valid data.

The percent mass uptake during solvent sorption was given by:

% M a s s u p t a k e (t) = (\frac{m_{t} - m_{0}}{m_{0}}) \times 100

Theory

Sorption behavior

Even though nitrile nanocomposites are dense and nonporous materials, they can be permeated to some extent by liquids, gases and vapors of liquids at a molecular level.¹⁹ An effective way to predict the diffusion mechanism in a given system is to establish a relationship between the sorption data from mass uptake experiments and the analytical approach.⁴

\frac{M_{t}}{M_{\infty}} = K \cdot t^{n}

Where, M_t is the mass uptake at instant t, $M_{\infty}$ , the mass uptake at equilibrium, K is a constant closely related to the diffusion coefficient of the system as well as to the sample thickness, and n is a real number indicating the type of diffusion mechanism.

Kinetics of mass transfer

Molecular transport through polymeric systems is admitted to be a diffusion process.²⁰ The diffusion coefficient of the molecular flow through a given polymeric membrane can be calculated using the thin-film solution with Fick’s second law of mass transfer.

Resolution of the second law of Fick’s equation leads to an expression of the mass of the penetrant absorbed by the film as a function of time, previously defined as the dynamic mass variation. A detailed development of the resolution of Fick’s second law can be consulted in our previous works²¹:

\frac{M_{t}}{M_{\infty}} = 4 {(\frac{D}{π})}^{1 / 2} \cdot (\frac{\sqrt{t}}{h})

Therefore, the diffusion coefficient, D, can be graphically deduced from the slope of the reduced sorption plot overlaying the experimental data of sorption.

The solubility, S, of the studied materials is related to the chemical nature of both penetrant and polymer; it is the capacity of the polymer to uptake the solvent. The permeability coefficient, P, is defined as the volume of the penetrant that has past through a unit area of the membrane per unit time on a normalized thickness, all within a unit pressure difference across the system. Under the assumption of Fickian transport mechanism, this parameter depends on both solubility and diffusion coefficients of the process⁹; it is therefore defined as:

P = D \times S

Results and discussion

Mass uptake

Mass uptake data are interpreted using sorption plots. In these plots, the mass variation of the immersed sample is portrayed as a function of time. Figures 1 and 2 shows the effect of four temperatures and three different molecular sizes of the penetrant on mass uptake of NBR/P and RCN for different nClays. The standard deviation of all sorption measurements is less than 1.8%.

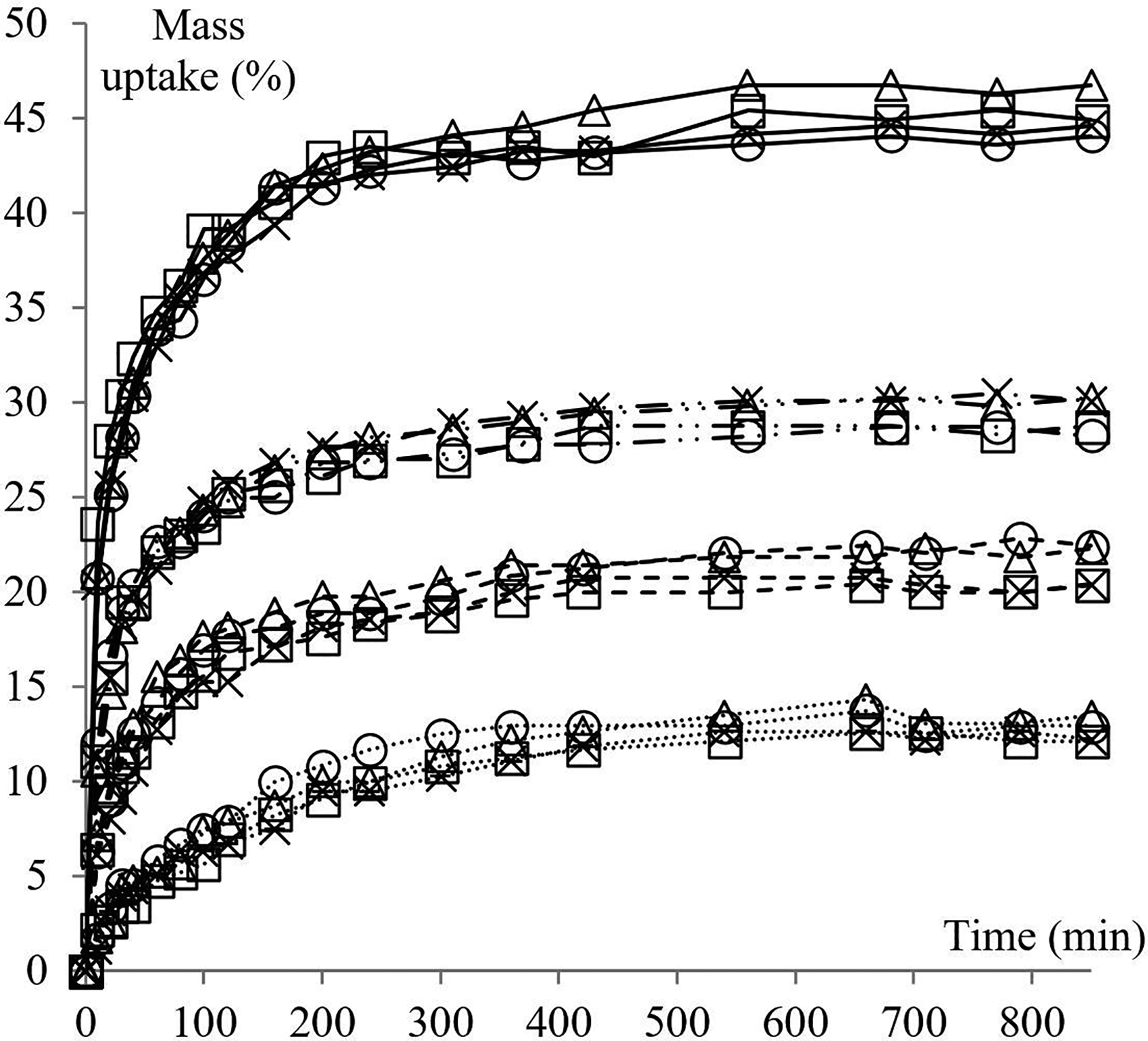

Figure 1.

Mass uptake of NBR/P and RCN for different nClays in isopropanol at different temperatures. Line styles refer to Temp.: (···) 23°C, (− −) 40°C, (− ··) 55°C and (−−) 70°C. Legend: (×) NBR/P, (□) RCN/0, (ˆ) RCN/1 and (△) RCN/2.

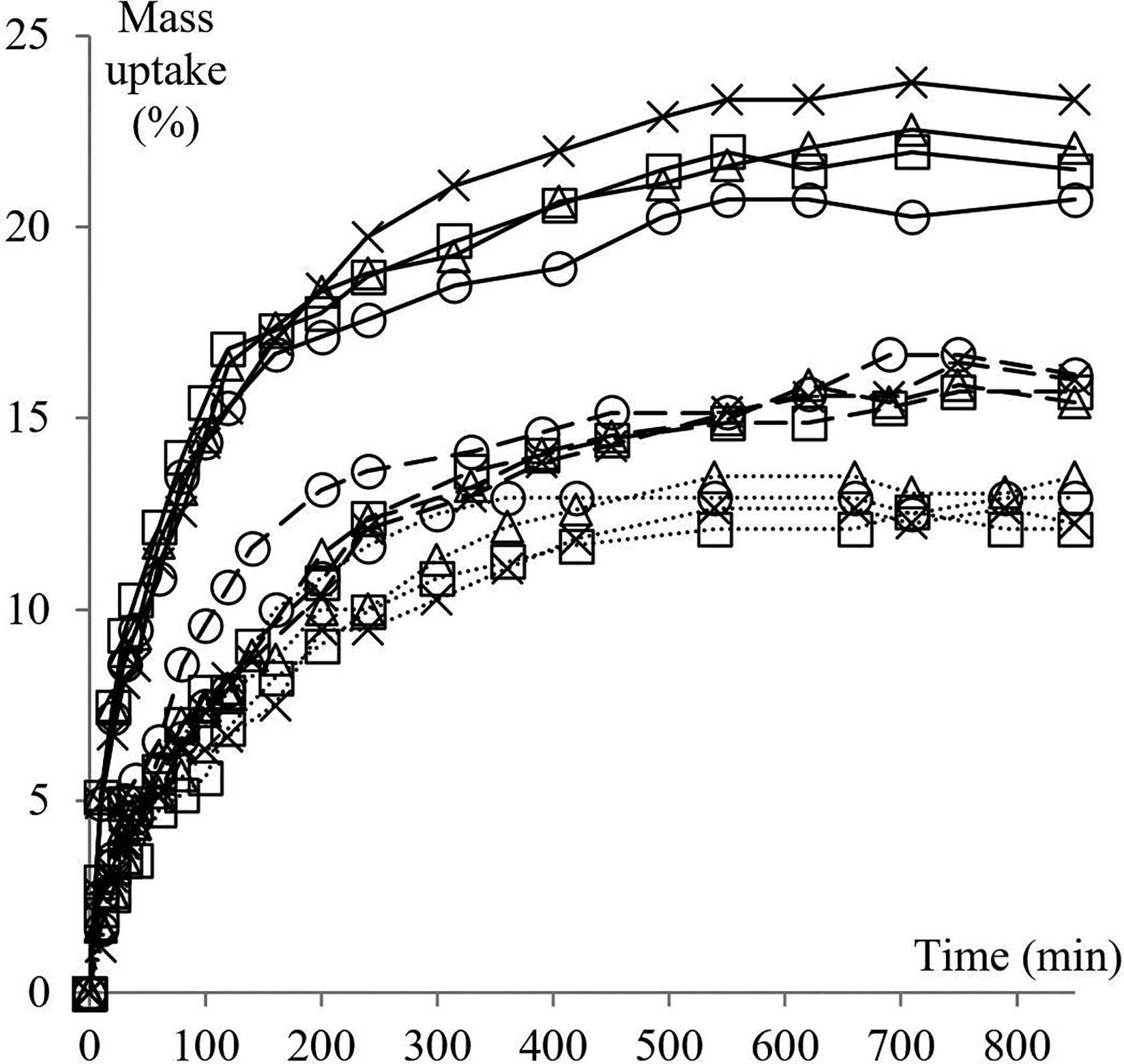

Figure 2.

Mass uptake of NBR/P and RCN for different nClays in different solvents at 23°C. Line styles refer to: (···) isopropanol, (− −) ethanol and (−−) methanol. Legend: (×) NBR/P, (□) RCN/0, (ˆ) RCN/1 and (△) RCN/2.

As a general observation, one can notice that all curves exhibit the similar characteristic behavior of polymeric materials. The resulting curves start off showing rapid mass uptake after which they exhibit concave behavior toward the x-axis until approaching the sorption equilibrium values.²²

Figure 1 illustrates the sorption data of NBR/P, RCN/0, RCN/1 and RCN/2 in isopropanol at 23, 40, 55 and 70°C. Sorption attains the equilibrium state more quickly as the temperature increases. In fact, steady state is not achieved before 540 min of immersion at 23°C, while it is reached in 310 min at 70°C. The same trend occurs with intermediate temperatures therefore not all data is graphically represented to avoid redundancy (Table 1). It is also noted that the higher the temperature, the steeper the slope. These findings are directly related to the kinetic of mass transfer that will be discussed in the following sections. From another perspective, the proportion of sorption at saturation exhibits a systematic increase as the temperature regularly increases. For all temperatures, the nature of the nanoclay does not seem to have a substantial effect on the value of sorption at saturation. In what follows, RCN/1 is considered to illustrate the effect of temperature. From 23 to 55°C, the maximum of solubility rises from around (12.5 ± 1.1) % at regular intervals of about 6 to 7%. At 70°C, the maximum sorption value rises even higher (around 15% per 15°C) and sorption at equilibrium was reached at (43.6 ± 1.3) %. The temperature effect is also investigated with methanol and ethanol (Table 1). The same trend is observed with both alcohols and the regular increase of temperature results in an augmentation of the sorbed amount of solvent at equilibrium. Yet interestingly, temperature has a lesser effect on the sorption of methanol. The values of sorption at saturation vary more systematically with the increase of temperature, but with an interval of mass uptake barely exceeding 5%. No jump of sorption was noted at 70°C as with isopropanol.

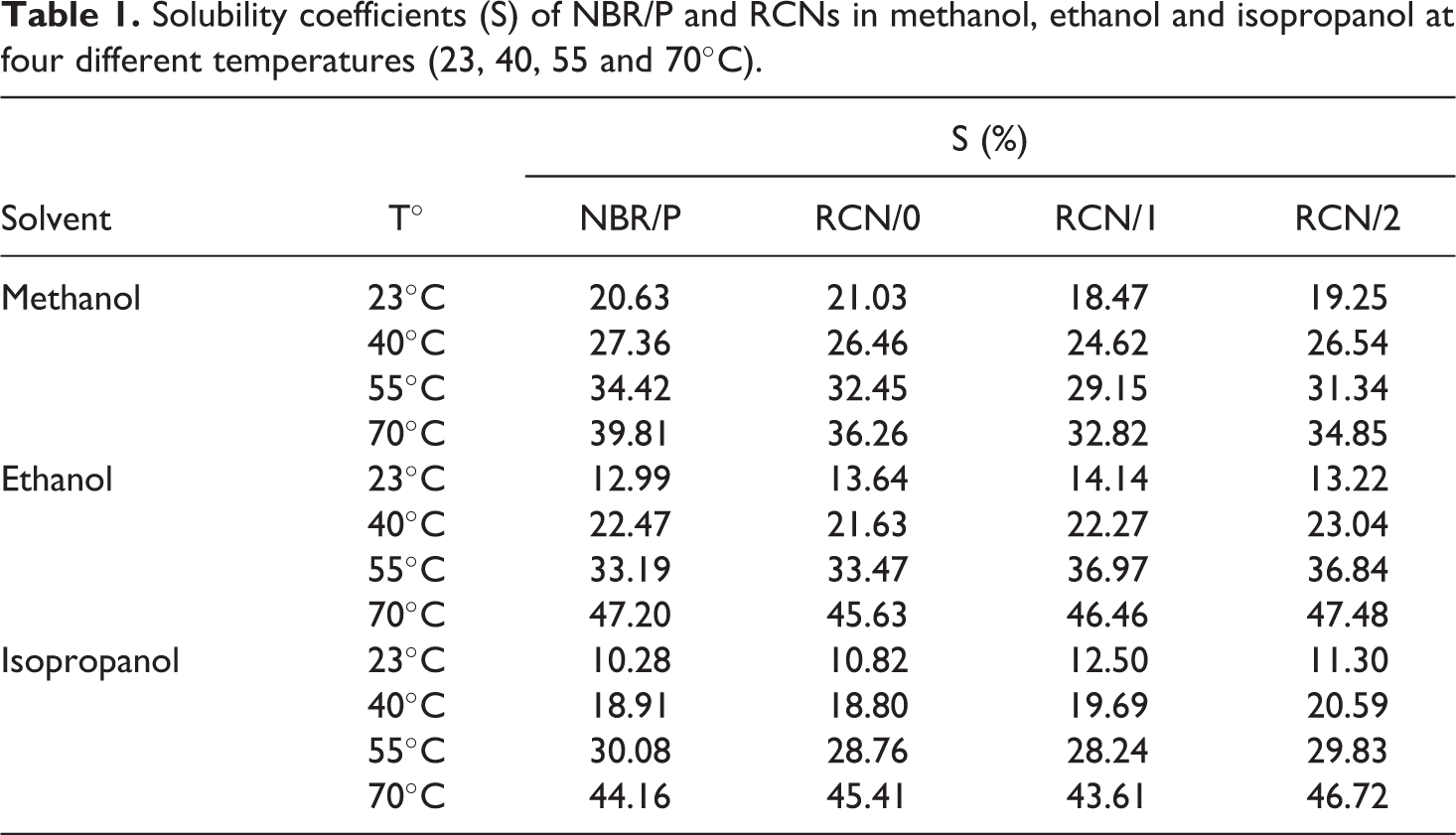

Table 1.

Solubility coefficients (S) of NBR/P and RCNs in methanol, ethanol and isopropanol at four different temperatures (23, 40, 55 and 70°C).

		S (%)
Solvent	T°	NBR/P	RCN/0	RCN/1	RCN/2
Methanol	23°C	20.63	21.03	18.47	19.25
	40°C	27.36	26.46	24.62	26.54
	55°C	34.42	32.45	29.15	31.34
	70°C	39.81	36.26	32.82	34.85
Ethanol	23°C	12.99	13.64	14.14	13.22
	40°C	22.47	21.63	22.27	23.04
	55°C	33.19	33.47	36.97	36.84
	70°C	47.20	45.63	46.46	47.48
Isopropanol	23°C	10.28	10.82	12.50	11.30
	40°C	18.91	18.80	19.69	20.59
	55°C	30.08	28.76	28.24	29.83
	70°C	44.16	45.41	43.61	46.72

Figure 2 portrays the mass percent uptake data of NBR/P, RCN/0, RCN/1 and RCN/2, at 23°C, in methanol, ethanol and isopropanol. Homologous results at 40, 55 and 70°C are also examined although not graphically represented (Table 1). Here again, sorption plots of all solvents follow the same tendency as the typical mass uptake curve of a liquid/polymer system. However, the nature of the penetrant seems to have a substantial influence on the extent of sorption at equilibrium. Indeed, the methanol pattern of mass gain starts with a high rate then levels off at about 495 min. The same behavior is noted for the isopropanol curve except that equilibrium state is reached at around 540 min of immersion time. A more significant effect is observed on the solubility coefficient. Indeed, while methanol attains saturation at (20.7 ± 1.7) % of mass uptake in RCN/1, isopropanol does so at (13.4 ± 0.9) %, for the same nanocomposite and same immersion time of 850 min. An intermediate value is exhibited by ethanol. Similar conclusions are reported in a study involving solubility and diffusion of a number of hydrocarbons through poly(dimethyl-siloxane).²³ The authors state that the molar solubility is inversely proportional to the penetrant’s chain length. And as the solubility is governed by entropic effects, polymeric chain segments exhibit higher affinity to smaller molecules. A related point to consider is that the solubility is clearly affected by the presence of nanoclays, namely in the case of methanol. Further inspection of this behavior is provided in upcoming sections. Let us consider the evolution of the gap of sorption between the solvents as a function of temperature. Isopropanol molecules are less taken up by about 4% by the RCN/1 sample than the ethanol molecules at room temperature. This gap lessens as temperature increases until almost vanishing at 70°C within the interval of measurement error. Surprisingly, methanol seems to exhibit a less systematic behavior. The associated solubility coefficient increases as temperature increases as expected, but at a lower rate (around 5% per 15°C) compared to the other solvents. As a result, the sorption of methanol attains saturation at 32.8%, which is more than 10% lower than isopropanol.

The permeability of low molecular weight substances through a membrane structure involves matter migrating from one side to the other. For organic dense elastomeric matrices, a conceptual understanding of the phenomena is to say that this transport process combines the sorption of the small penetrants into the membrane’s surface followed by the diffusion by concentration gradient through the structure. Permeability is thus intrinsically linked to the ratio of the total path length traveled by the penetrant molecules over the thickness of the specimen. Diffusion and solubility are expected to be affected by the addition of inorganic and impermeable fillers in the polymeric matrix, such as clay nanoparticles. In effect, fillers act as obstacles forcing the penetrant molecules to work around them, increasing the tortuousness of available pathways. In addition, the presence of lamellar structure fillers, as is the case with nanoclays, is believed to modify the alignment of the adjacent polymeric macromolecules. This morphological modification results in an indirect alteration of the permeation mechanism.^24,25 From a phenomenological perspective, and for a given size and concentration of the filler, a high degree of tortuosity is reached by increasing the specific surface of the filler capable of creating a maze path that slows down molecular penetration. At low level of filler loading, enhancing specific surface of nanoclays is only possible by increasing the extent of their dispersion. RCNg/1 is a maleated nanocomposite that was synthetized in our previous work. It exhibited a higher state of dispersion compared to conventional RCN/1. In what follows, molecular transport characteristics are investigated according to the structural properties of the nanocomposite. In every case, results are compared to the unfilled rubber matrix.

Figure 3 displays percent mass uptake curves of NBR/P, RCN/1 and RCNg/1 in methanol at 40°C and 70°C. For both temperatures, a consistent trend can be observed; solubility coefficient in methanol decreases with the presence of layered silicate fillers (RCN/1), the coefficient is even lower with maleated nanocomposite (RCNg/1). At 40°C, sorption of methanol is reduced from 30.2% to 26.6% with the addition of nClay/1 in the conventional nanocomposite. Mass uptake at saturation drops by an additional 4% after maleation of the nanocomposite. At 70°C, the effect of the nanoclay is more pronounced. The difference in mass percent uptake between NBR/P and RCN/1 decreases twofold compared to sorption data at 40°C. However, sorption is slightly reduced during maleation.

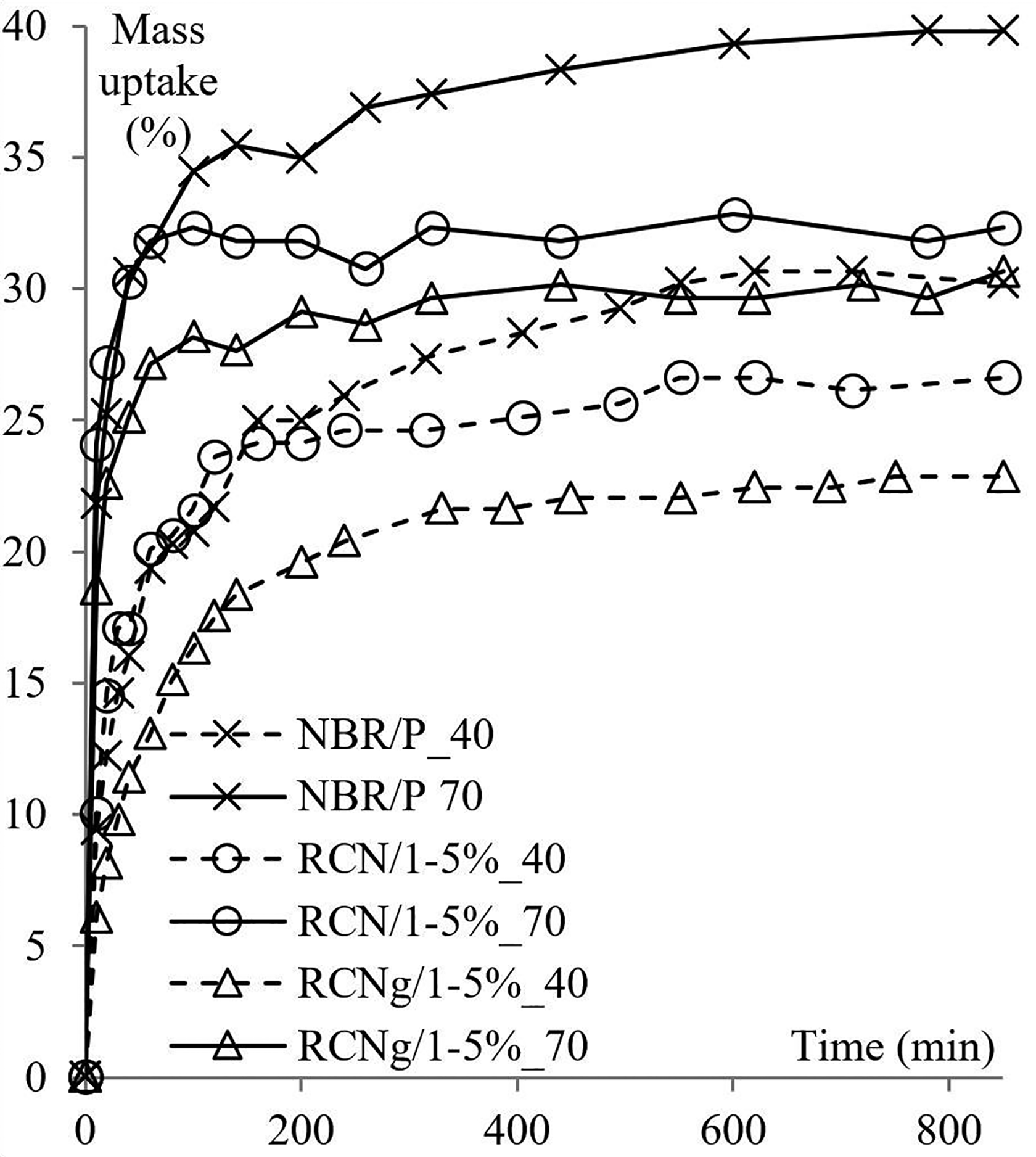

Figure 3.

Comparison of mass uptake of NBR/P, RCN/1 and RCNg/1 in methanol at 40°C and 70°C.

For all three materials, the effect of the penetrant’s nature is also examined and the associated sorption data in methanol and isopropanol at 55°C are displayed in Figure 4. The same previously observed tendency appears to be preserved. For methanol, sorption data for the three materials follow the same behavior observed at 40 and 70°C. It can even be observed that the sorption pattern follows the trend of high temperatures and is closer to that examined at 70°C. The solubility coefficient values lay in the intermediate zone between the coefficients associated to 40 and 70°C. Interestingly, higher molecular volume penetrants deviate from the previous bias. In fact, sorption at equilibrium in isopropanol barely decreased while loading with nClay/1. Nevertheless, a drop of about 5% is clearly spotted with the maleated nanocomposite. Not shown in the figure but worth mentioning, ethanol sorption data exhibit intermediate values.

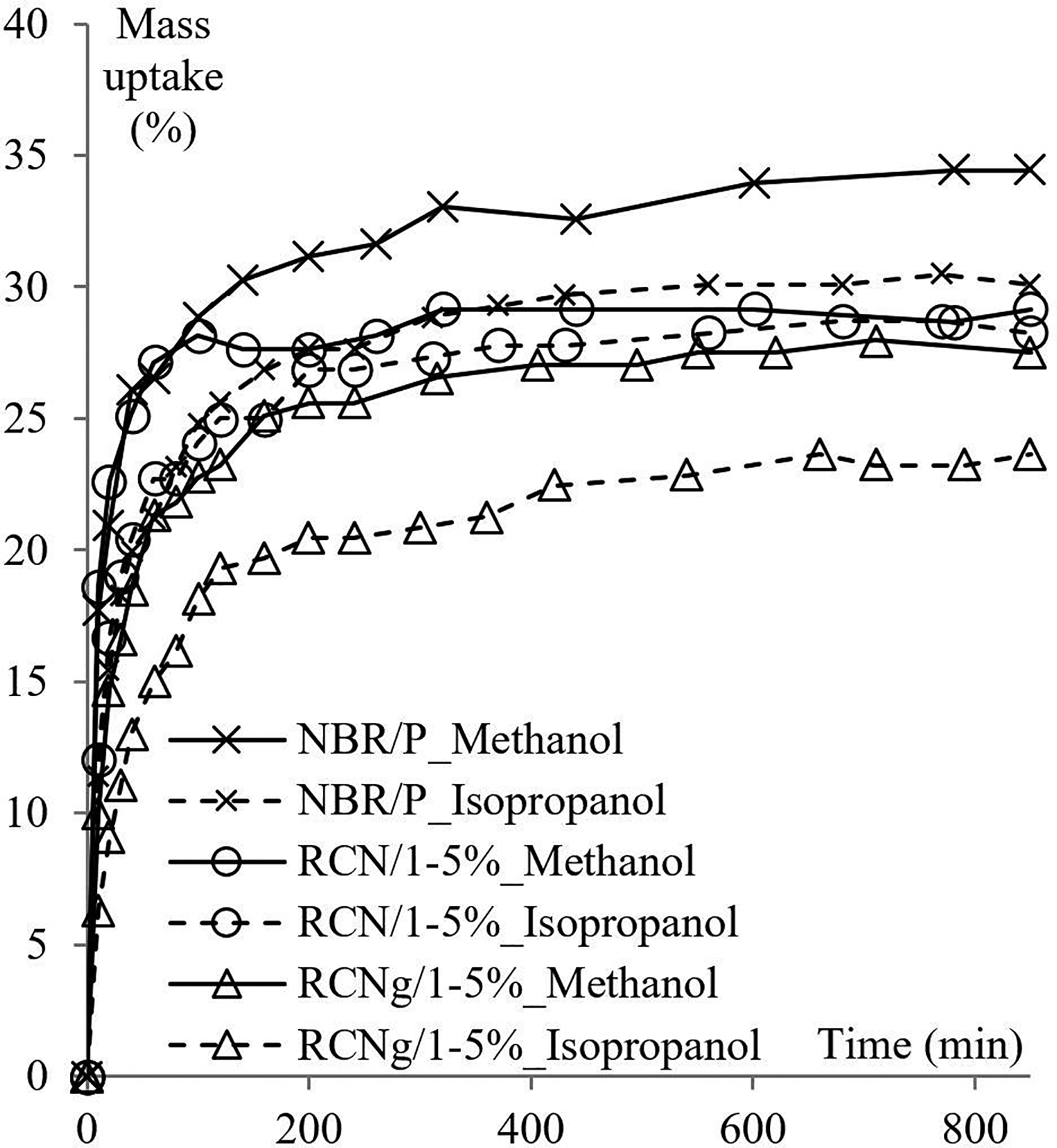

Figure 4.

Comparison of mass uptake of NBR/P, RCN/1 and RCNg/1 in methanol and isopropanol at 55°C.

Mass transfer mechanism

The empirical relation expressed by equation (2) is chosen to numerically estimate the diffusion mode of the systems investigated in this study. A very good correlation is obtained for all regressions (R² > 0.98). Table 2 summarizes the entire set of diffusion mechanism index n, as well as interaction factor K of NBR/R and the three RCNs with all three solvents at the four previously listed temperatures. A few key observations are worth pointing out. It may be noted that the values of the factors exhibit systematic increase as temperature increases. This supports the premise of increased polymer/solvent interaction. The same trend is confirmed for all the solvents. As indicative information, the interaction factor of the RCN/1/isopropanol system goes from (52 ± 4) to (213 ± 17) ×10⁻³ g·g⁻¹·min⁻ⁿ within the [23, 70°C] temperature interval. Furthermore, the K factor varies linearly along with the temperature with a slope of about 54 × 10⁻³ g·g⁻¹·min⁻ⁿ/15°C. An exception is observed with methanol, K rises with the temperature until 55°C then drops slightly at 70°C. When investigating the solvents in this regard, no obvious correlation is noted between the magnitude of K and the nature of the penetrant alcohol. This result is understandable since all three solvents exhibit similar chemical structures and no different interactions are expected with the polymeric materials. This tendency is also noticed with all conventional nanocomposites (RCN/0, RCN/1 and RCN/2), but nothing can be said about the influence of the nature of the nanoclay on this parameter. To emphasize the influence of nanoclays in conventional and maleated nanocomposites, the associated least-square estimations of K with methanol are depicted in Figure 5 from 23 to 70°C. It clearly shows that the presence of the nanoparticles intensifies K up to 55°C suggesting an increase of the matrix/solvent interaction due to the presence of the filler. Thereafter, a substantial drop in the interaction parameter is witnessed after the maleation of the nanocomposite. The data at 70°C are an exception.

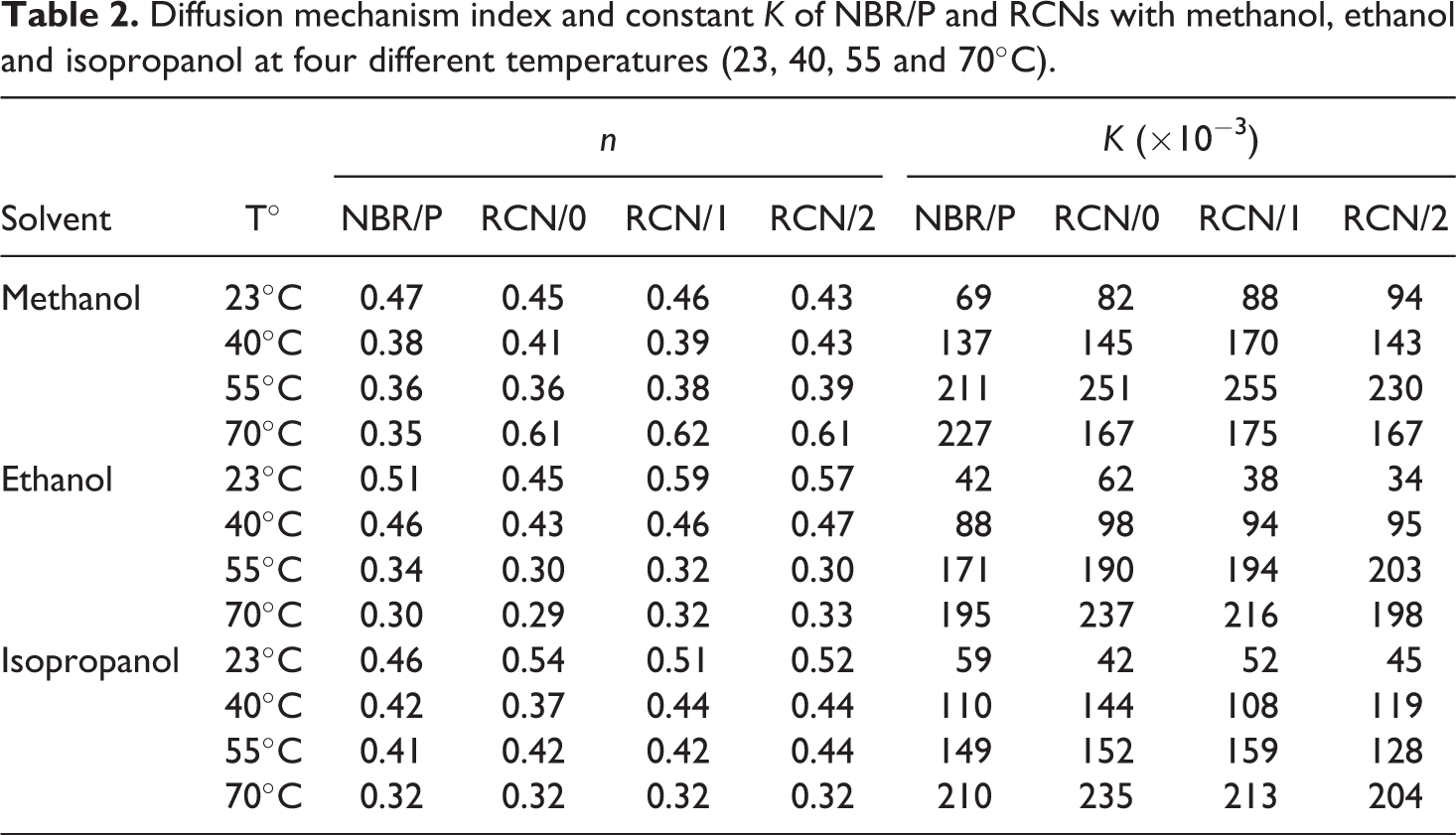

Table 2.

Diffusion mechanism index and constant K of NBR/P and RCNs with methanol, ethanol and isopropanol at four different temperatures (23, 40, 55 and 70°C).

		n				K (×10⁻³)
Solvent	T°	NBR/P	RCN/0	RCN/1	RCN/2	NBR/P	RCN/0	RCN/1	RCN/2
Methanol	23°C	0.47	0.45	0.46	0.43	69	82	88	94
	40°C	0.38	0.41	0.39	0.43	137	145	170	143
	55°C	0.36	0.36	0.38	0.39	211	251	255	230
	70°C	0.35	0.61	0.62	0.61	227	167	175	167
Ethanol	23°C	0.51	0.45	0.59	0.57	42	62	38	34
	40°C	0.46	0.43	0.46	0.47	88	98	94	95
	55°C	0.34	0.30	0.32	0.30	171	190	194	203
	70°C	0.30	0.29	0.32	0.33	195	237	216	198
Isopropanol	23°C	0.46	0.54	0.51	0.52	59	42	52	45
	40°C	0.42	0.37	0.44	0.44	110	144	108	119
	55°C	0.41	0.42	0.42	0.44	149	152	159	128
	70°C	0.32	0.32	0.32	0.32	210	235	213	204

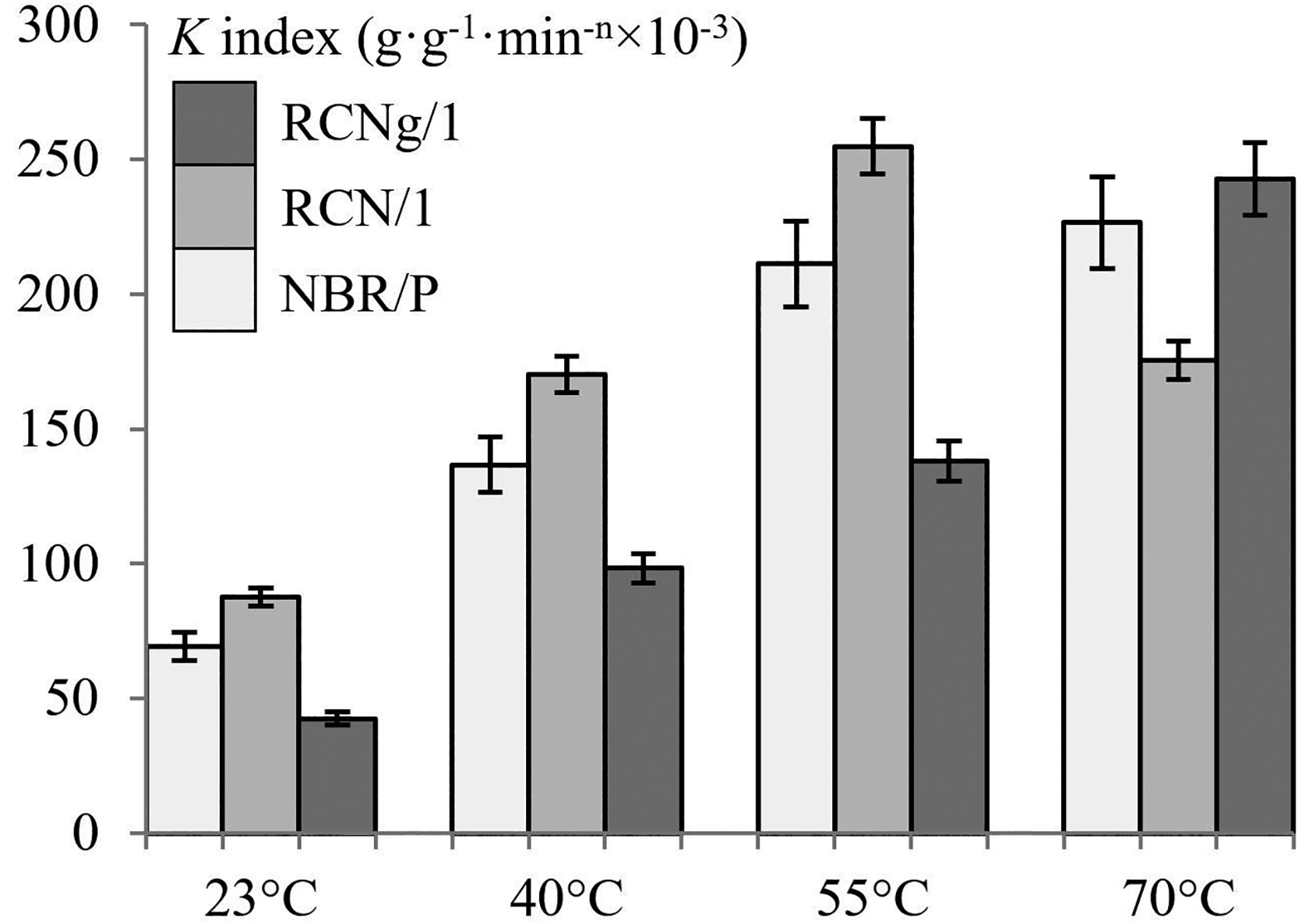

Figure 5.

Constant K of NBR/P, RCN/1 and RCNg/1 with methanol at 23, 40, 55 and 70°C.

Let us shed light on the diffusion mechanism index under the described considerations. Still from data presented in Table 2 and starting with the effect of temperature, a general remark can be made. Factor n diminishes slightly as temperature increases. The deduction is valid for all solvents except for methanol at 70°C. The index varies in a general way from around 0.5 at 23°C up to values approaching 0.3 at 70°C. Although below 0.5, this mechanism is still classified as Fickian and it is generally termed as sub-Fickian behavior. In Fickian mode, the rate of chain-segment relaxation is higher than the rate of the penetrant diffusion. The drop of the diffusion behavior index involves an increase in macromolecule mobility. According to the results, this mobility is induced by the elevation of the temperature. Considering data from the perspective of the penetrant’s nature, not much can be said and there is no systematic evolution with the change in solvent. It is noteworthy, however, that the diffusion mechanism is Fickian with all the penetrants and n index laying between sub-Fickian and Fickian thresholds. To demonstrate the impact of nanoclay fillers on the diffusion mechanism, n index of NBR/P, RCN/1 and RCNg/1 is estimated with all solvents at all temperatures. An example of the data is shown at 40°C with the three solvents in Figure 6. The neat nitrile rubber exhibits the lowest diffusion mechanism index. The associated values are (0.37 ± 0.01), (0.45 ± 0.02) and (0.41 ± 0.02) with methanol, ethanol and isopropanol, respectively. With the addition of clay nanoparticles, there is no noticeable change. The n index barely increases and diffusion still obeys Fick’s law. This applies to all present solvents. Interesting behavior is observed with the maleated nanocomposites: associated diffusion indexes show substantial increases. The n values reach a maximum of (0.58 ± 0.05) with ethanol and isopropanol. Therefore, the diffusion mechanism deviates from Fickian to anomalous behavior. In fact, over the delamination of the layered silicate nanoparticles and the dispersion of the inorganic nano-platelets in the polymeric structure, a restriction of the segmental chain mobility in the polymeric medium occurred. In this configuration, lamellar silicates have a similar effect to crystals in glassy polymers. Finally, it should be noted that the described pattern only occurs within a restricted temperature range: 40 to 55°C.

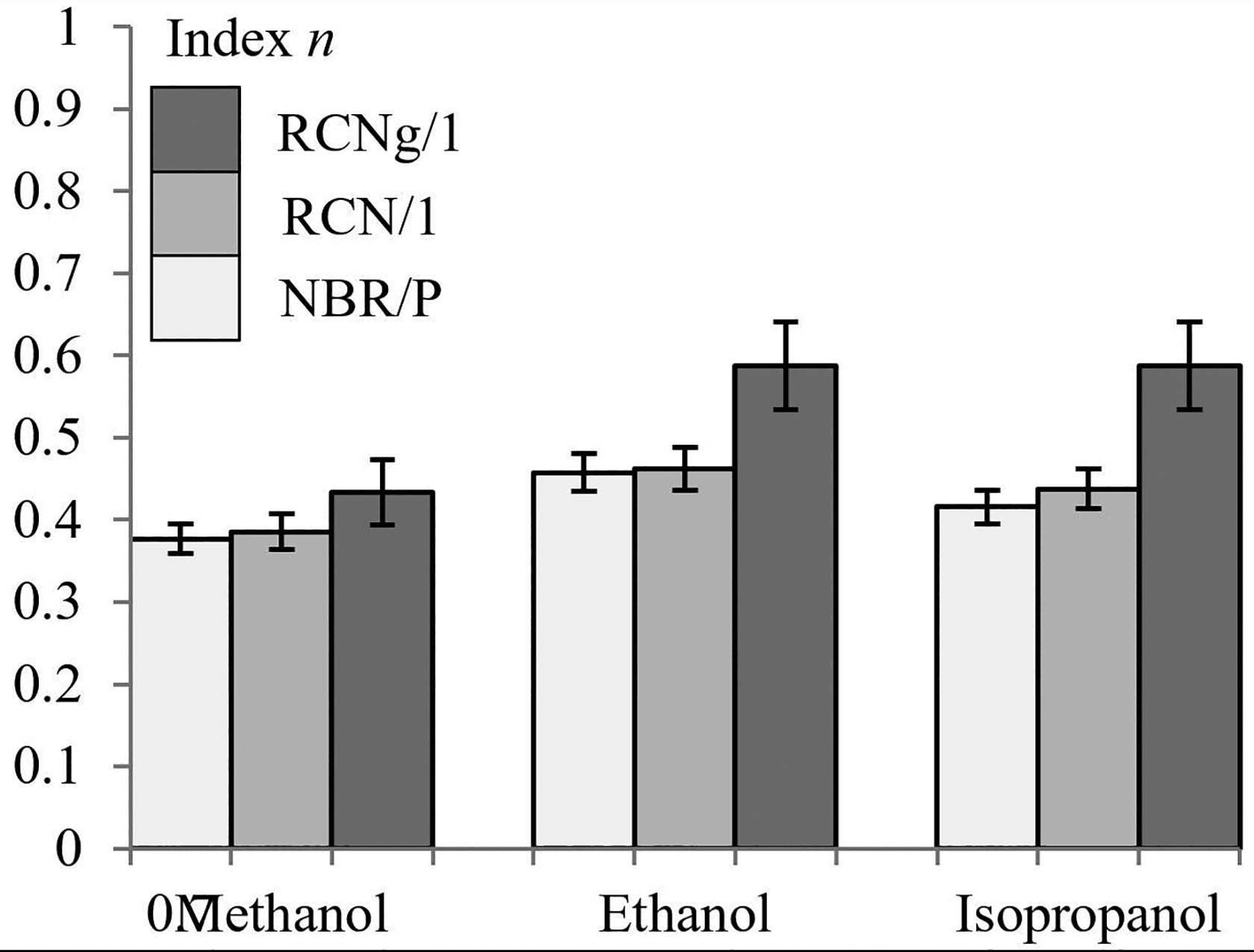

Figure 6.

Diffusion index of NBR/P, RCN/1 and RCNg/1 with all solvents at 40°C.

Diffusion coefficient and permeability

The diffusion mechanisms of the systems under investigation are demonstrated to be more or less Fickian. Dynamic solvent uptake is therefore expected to exhibit linear dependence, for short durations, to the normalized square root of time (Equation 3). Hence, a fine approximation of the diffusion coefficient can be estimated based on Fick’s second law of mass transfer. Figure 7 shows histograms of the overall diffusion coefficients of NBR/R and the three RCNs with methanol, ethanol and isopropanol at the four formerly designated temperatures. Several comments can be made based on the presented data. Firstly, a clean and concise augmentation of the diffusion coefficients appears as the temperature increases from 23 to 70°C. The trend is observed with all polymer/solvent systems. Temperature seems to intensify every aspect related to the molecular migration process. The most pronounced variation is associated to the smallest molecular penetrant. For instance, the D coefficient of RCN/1/methanol surges from (2.7 ± 0.3) ×10⁻⁸ cm²·s⁻¹ at 23°C to (28.2 ± 1.1) ×10⁻⁸ cm²·s⁻¹ at 70°C. A similar tendency is observed with ethanol and isopropanol, but the rate of variation is smaller. For example, when the temperature rises from 23 to 70°C with isopropanol, the diffusion coefficient increases from (1.6 ± 0.2) ×10⁻⁸ cm²·s⁻¹ to (7.5 ± 0.3) ×10⁻⁸ cm²·s⁻¹, respectively. Consequently, a systematic behavior is deduced with the variation of the penetrant size. Indeed, Figure 7 clearly shows a strong reduction of coefficient D as the molecular volume of the penetrant increases. The diminution appears to follow a logarithmic pattern and the observation remains valid for all temperatures. The findings are in agreement with research carried out on aromatic hydrocarbons.^26,27 The same observations are reported in the work of Moller et al. on the diffusion of phenols²⁸ and the logarithm of D was found to linearly decrease as the molecular size increased. This results from the geometric requirements of the penetrant molecule based on the penetration process governed by a “jump to a free volume” mechanism. It should be noted that the molecular size of the penetrants is assimilated to the molecular volume since there is no significant variation of bond angles or chain conformations between the molecules of the investigated solvents. Isopropanol shows the lowest D values. A related point to consider is that isopropanol has a branched structure. Previous studies show that linear molecules exhibit higher diffusivity and any ramification in the structure is expected to restrain movement and decrease their diffusion coefficient.²⁹ Incidentally, diffusivity can also be correlated to the penetrant solvent’s viscosity. In alcohols, viscosity systematically increases as the amount of atom carbons in the structure increases. Studies by Vahdat et al. establish a reciprocity between the diffusion coefficient and the viscosity of solvents in elastomeric systems.³⁰

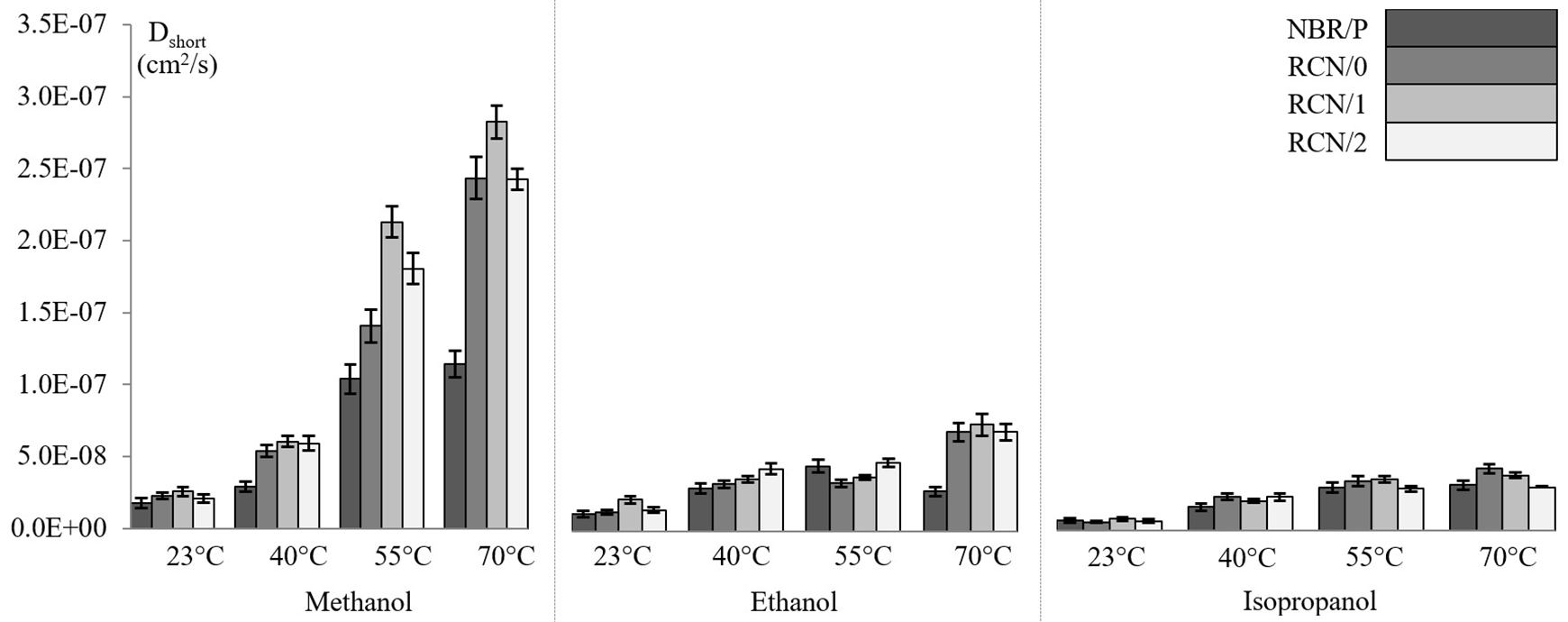

Figure 7.

Diffusion coefficients of methanol, ethanol and isopropanol in NBR/P, RCN/0, RCN/1 and RCN/2 at 23°C, 40°C, 55°C and 70°C.

The following section investigates the effect of the presence of nanoclays on the diffusion coefficients. Since the early works of Nielsen, filled polymeric matrices with inorganic layered silicates are suggested to increase the tortuous path of the diffusing molecules. The proposed model is supposed to result in filled materials having enhanced barrier properties.³¹ This theoretical approach is only valid when considering nanoclay fillers as impermeable and as having separated nano-platelets that are totally aligned perpendicularly to the diffusion direction. In Figure 8 (a), the diffusion coefficients of NBR/P, RCN/1 and RCNg/1 with methanol are compared at four temperatures. The diffusion coefficients of the same materials in methanol, ethanol and isopropanol at 23°C are presented in Figure 8 (b). In general, temperature and molecular volume have the same previously-described effects on all three materials. D increases exponentially as temperature increases with respect to Arrhenius’ relation and decreases in logarithmic fashion as the penetrant molecular volume linearly increases. Randomly filled nanocomposites exhibit higher D coefficients compared to the unfilled nitrile rubber. The same can be seen with all solvents and at all temperatures. For instance, the diffusion coefficient of methanol in RCN/1 at 70°C doubles with NBR/P in the same conditions. This observation is directly associated to the poor state of dispersion of the nanoclays in the matrix. In fact, it was shown in our former work that RCN/1 exhibited weak interfacial interaction with the rubber chains due to chemical incompatibility and lack of affinity. During the diffusion process, penetrant molecules are believed to accumulate in the nanoclay/polymer interfacial zone. From there, the penetration mechanism is established through the communication of the charged cavities, which is thought to cause the increase in the rate of diffusion. More interestingly, the diffusion coefficient with the three solvents and at the four temperatures is witnessed to encounter a substantial drop during maleation of the nanocomposite. To use an example from Figure 8 (a), D in methanol at 55°C goes from (21.3 ± 1.0) ×10⁻⁸ cm²·s⁻¹ to (6.6 ± 0.7) ×10⁻⁸ cm²·s⁻¹. The reduction in diffusivity is a result of the nanoclays’ improved state of dispersion, increasing the pathways of the penetrant. Moreover, the enhancement of the compatibility between the layered silicates and the rubber medium eliminates the cavities in which the penetrant tends to accumulate.

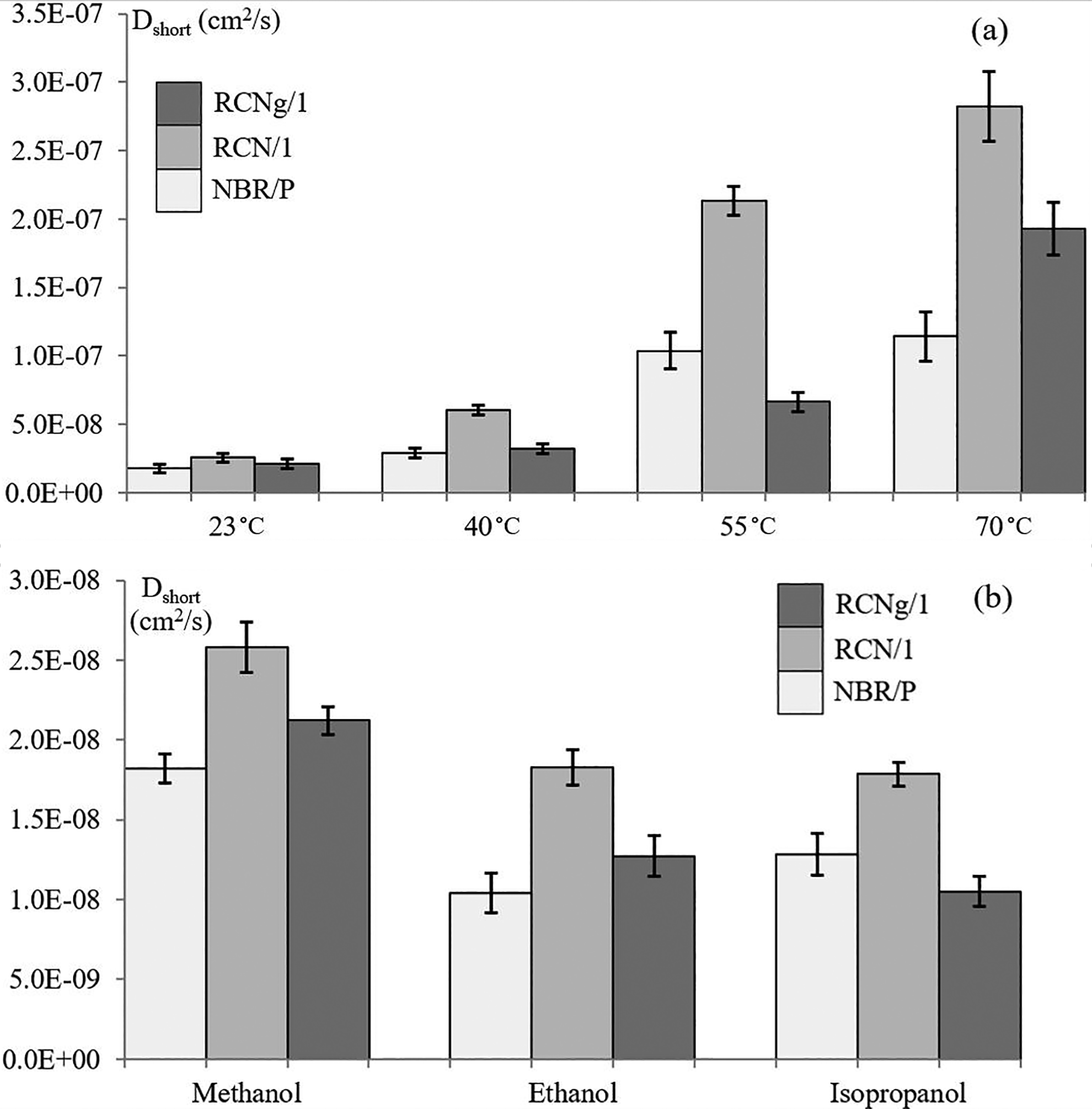

Figure 8.

Diffusion coefficient of NBR/P, RCN/1 and RCNg/1: (a) with methanol at 23, 40, 55 and 70°C; (b) with all three solvents at room temperature (23°C).

When the diffusion mechanism obeys Fick’s law and the sorption process is governed by Henry’s rule, the overall permeability of the solvent/membrane system can be determined by multiplying the coefficients of diffusion and solubility. As previously seen, diffusion slightly deviates from the Fickian mode under certain circumstances. Therefore, permeation coefficients calculated in this study are only considered as estimations. An obvious observation is that P values exhibit the same tendencies as diffusion coefficients for a given penetration system.

Conclusions

Achieving a high level of layered silicate dispersion in a nitrile rubber-based nanocomposite is quite challenging. Physical mixing of the nanometric fillers with the elastomeric matrix does not guarantee enhanced barrier properties. In our previous work, a specially made nanocomposite with a high degree of exfoliation was developed with maleation. In the present study, the chemical resistance of this maleated nanocomposite was compared to that of a conventional filled-material at four different temperatures ranging from 23 to 70°C. Mass uptake experiments based on a gravimetric technique were adopted to assess mass transport characteristics in three alcohols: methanol, ethanol and isopropanol. With all materials and regardless of the immersion medium, findings show a substantial increase of molecular transport parameters with the increase in temperature. These parameters were also found to be inversely proportional to the molecular volume of the penetrant, the only exception being methanol at 70°C. When it came to filling the rubber matrix with nanoclays, the sorption at equilibrium decreased proportionally with the concentration of filler. The decrease was seen to be intensified with the nanoclays’ enhanced state of dispersion. Conversely, diffusivity was clearly noticed to be more sensitive to the morphological properties of the nanocomposite. The presence of bulky fillers within the elastomeric system seemed to negatively affect the diffusion coefficient, which was observed to increase with the addition of 5% of nanoclays, after which, a substantial decrease in diffusivity was witnessed during maleation. The permeation coefficient behaved in the same way and followed the D coefficient pattern. Although slightly altered by the presence of nano-fillers, the diffusion mechanism in all solvents kept behaving in a Fickian mode, which gives more credibility to our calculation of mass transfer kinetics, using approximations from models of Fick’s law. The maleated nanocomposite succeeded in enhancing the barrier properties of the native nitrile rubber to some extent. However, more work must be done to optimize the developed material. In addition, more sophisticated techniques must be used to accurately probe molecular migration characteristics through the polymeric structure. Moreover, temperature was seen to have a substantial effect on all parameters of mass transport. Therefore, a thermodynamic study should be carried out on the molecular migration phenomena.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Mohamed Zemzem

References

Greenkorn

. Momentum, heat, and mass transfer fundamentals. Boca Raton, FL: CRC Press, 2018.

Baker

. Membrane technology and applications. Hoboken, NJ: Wiley, 2012.

Sridhar

Smitha

Mayor

, et al. Gas permeation properties of polyamide membrane prepared by interfacial polymerization. J Mater Sci 2007; 42: 9392–9401.

Stephen

Varghese

Joseph

, et al. Diffusion and transport through nanocomposites of natural rubber (NR), carboxylated styrene butadiene rubber (XSBR) and their blends. J Membr Sci 2006; 282: 162–170.

Rao

Subha

Sairam

, et al. Blend membranes of chitosan and poly(vinyl alcohol) in pervaporation dehydration of isopropanol and tetrahydrofuran. J Appl Polym Sci 2007; 103: 1918–1926.

Kumar

. A study of sorption/desorption and diffusion of substituted aromatic probe molecules into semi interpenetrating polymer network of polyurethane/polymethyl methacrylate. Polymer 2005; 46: 7140–7155.

Swamy

. Sorption and diffusion of chlorinated aliphatic hydrocarbon penetrants into diol chain extended polyurethane membranes. J Hazard Mater 2003; 99: 177–190.

George

Thomas

. Transport phenomena through polymeric systems. Prog Polym Sci 2001; 26: 985–1017.

Joseph

Mathai

Thomas

. Sorption and diffusion of methyl substituted benzenes through cross-linked nitrile rubber/poly(ethylene co-vinyl acetate) blend membranes. J Membr Sci 2003; 220: 13–30.

10.

Hatzigrigoriou

Vouyiouka

Joly

, et al. Temperature-humidity superposition in diffusion phenomena through polyamidic materials. J Appl Polym Sci 2012; 125: 2814–2823.

11.

Bhattacharya

. Polymer nanocomposites—a comparison between carbon nanotubes, graphene, and clay as nanofillers. Materials 2016; 9: 262.

12.

Azeez

Rhee

Park

, et al. Epoxy clay nanocomposites—processing, properties and applications: a review. Compos B Eng 2013; 45: 308–320.

13.

Tan

Thomas

. A review of the water barrier properties of polymer/clay and polymer/graphene nanocomposites. J Membr Sci 2016; 514: 595–612.

14.

Zemzem

Vinches

Hallé

. Influence of processing parameters on barrier properties of nitrile rubber/nanoclay nanocomposite membrane against organic solvent. Journal of Polymer Research 2019; 26(3): 1–11.

15.

Kotal

Bhowmick

AK.

Polymer nanocomposites from modified clays: recent advances and challenges. Prog Polym Sci 2015; 51: 127–187.

16.

Beall

Powell

. Fundamentals of polymer-clay nanocomposites. Cambridge: Cambridge University Press, 2011.

17.

Issaadi

Habi

Grohens

, et al. Effect of the montmorillonite intercalant and anhydride maleic grafting on polylactic acid structure and properties. Appl Clay Sci 2015; 107: 62–69.

18.

Sridhar

Doddipatla

. Influence of PP content on mechanical properties, water absorption, and morphology in PA6/PP blend. J Appl Polym Sci 2019; 136: 47690.

19.

Mathai

Singh

Thomas

. Transport of substituted benzenes through nitrile rubber/natural rubber blend membranes. J Membr Sci 2002; 202: 35–54.

20.

Masaro

Zhu

. Physical models of diffusion for polymer solutions, gels and solids. Prog Polym Sci 1999; 24: 731–775.

21.

Zemzem

Vinches

Hallé

. Sorption and diffusion of gold and silver nanoparticles in solution through nitrile rubber membrane. J Appl Polym Sci 2017; 134(39):45350.

22.

Haseeb

ASMA

Jun

Fazal

, et al. Degradation of physical properties of different elastomers upon exposure to palm biodiesel. Energy 2011; 36: 1814–1819.

23.

Cocchi

De Angelis

Doghieri

Solubility and diffusivity of liquids for food and pharmaceutical applications in crosslinked polydimethylsiloxane (PDMS) films: I. Experimental data on pure organic components and vegetable oil. J Membr Sci 2015; 492: 600–611.

24.

Manias

. Polymer nanocomposite technology, fundamentals of barrier. J Nature Mater 2007; 6: 9–11.

25.

Sorrentino

Tortora

Vittoria

. Diffusion behavior in polymer–clay nanocomposites. J Polym Sci Part B: Polym Phys 2006; 44: 265–274.

26.

Rusina

Smedes

Klanova

. Diffusion coefficients of polychlorinated biphenyls and polycyclic aromatic hydrocarbons in polydimethylsiloxane and low-density polyethylene polymers. J Appl Polym Sci 2010; 116: 1803–1810.

27.

Unnikrishnan

Thomas

. Sorption and diffusion of aliphatic hydrocarbons into crosslinked natural rubber. J Polym Sci Part B: Polym Phys 1997; 35: 725–734.

28.

Möller

Gevert

An FTIR solid-state analysis of the diffusion of hindered phenols in low-density polyethylene (LDPE): the effect of molecular size on the diffusion coefficient. J Appl Polym Sci 1994; 51: 895–903.

29.

Aminabhavi

Khinnavar

. Diffusion and sorption of organic liquids through polymer membranes: 10. Polyurethane, nitrile-butadiene rubber and epichlorohydrin versus aliphatic alcohols (C 1-C 5). Polymer 1993; 34: 1006–1018.

30.

Aminabhavi

Phayde

. Molecular transport characteristics of Santoprene thermoplastic rubber in the presence of aliphatic alkanes over the temperature interval of 25 to 70 C. Polymer 1995; 36: 1023–1033.

31.

Tan

Thomas

. Tortuosity model to predict the combined effects of crystallinity and nano-sized clay mineral on the water vapour barrier properties of polylactic acid. Appl Clay Sci 2017; 141: 46–54.
